TC8300
Touch Computer
User Guide
for Android ™ 8.1.0 Oreo
MN-003402-03 Rev A
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC; Oreo is a
trademark of Mondelez International, Inc. group. All other trademarks are the property of their respective owners.
©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.
COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/
copyright.
WARRANTY: For complete warranty information, go to www.zebra.com/warranty
END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula
Terms of Use
• Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra
Technologies”). It is intended solely for the information and use of parties operating and maintaining the
equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any
other parties for any other purpose without the express, written permission of Zebra Technologies.
• Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.
• Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.
• Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if
Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you.
.
.
Revision History
Changes to the original guide are listed below:
Change Date Description
-01 Rev A 04/2019 Initial release.
-02 Rev A 09/2019 Updated to include the DPM configuration, DPM accessories, and SE4770-SR.
-03 Rev A 11/2019 Updated the Decode Range distances.
2
Table of Contents
Copyright ......................................................................................................................... 2
Terms of Use ..................................................................................................................2
Revision History ..............................................................................................................2
About This Guide........................................................................................................ 11
Introduction ................................................................................................................... 11
Configurations ............................................................................................................... 11
Software Versions ......................................................................................................... 13
Chapter Descriptions .................................................................................................... 13
Notational Conventions ................................................................................................. 13
Related Documents and Software ................................................................................ 14
Service Information ....................................................................................................... 14
Provide Documentation Feedback ................................................................................ 15
Getting Started............................................................................................................ 16
Introduction ................................................................................................................... 16
Unpacking ............................................................................................................. 16
Removing the Screen Protective Film ................................................................... 16
Features ....................................................................................................................... 17

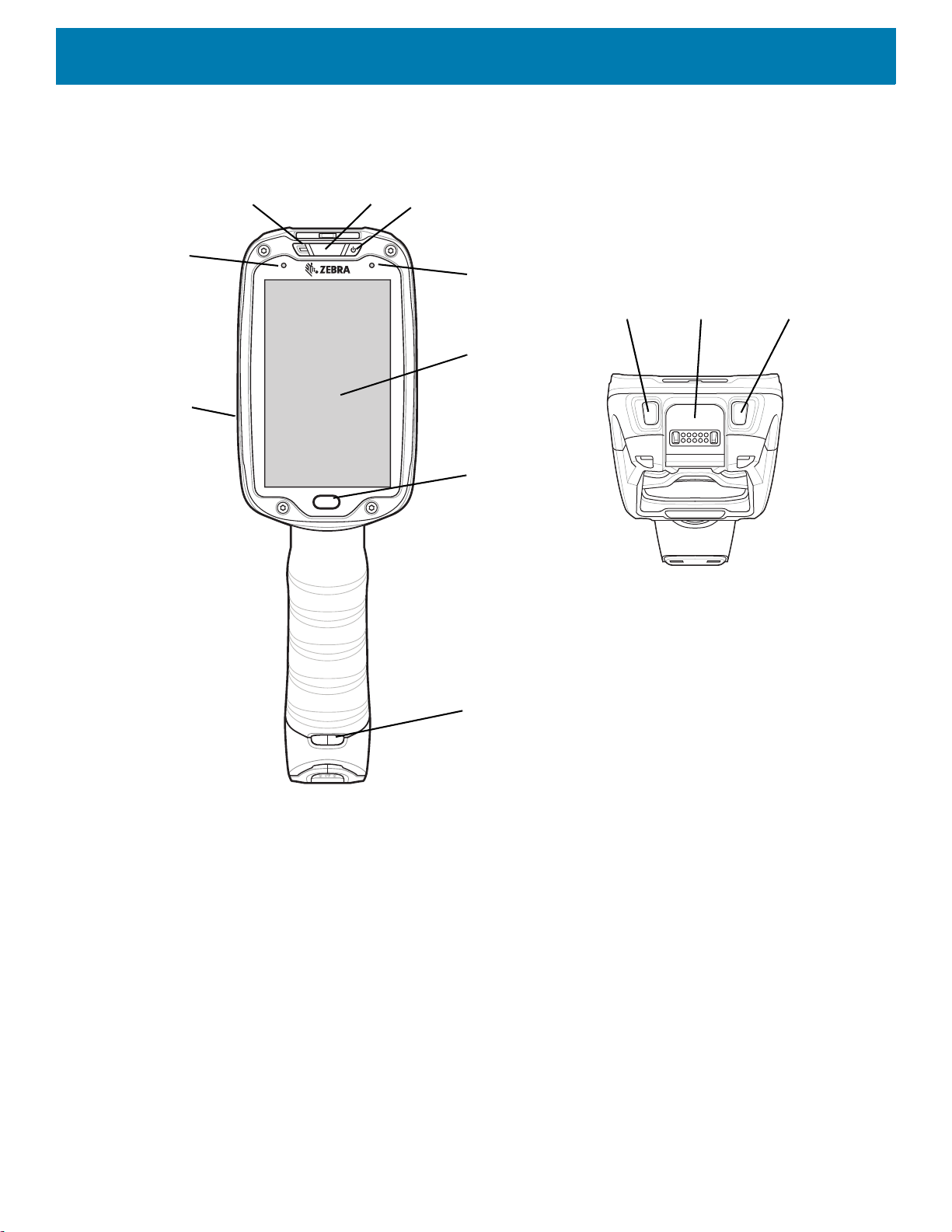

Front View Descriptions ........................................................................................ 18
Back View Descriptions ......................................................................................... 20
Setup ............................................................................................................................. 20
Installing the microSD Card ................................................................................... 20
Installing the Battery .............................................................................................. 22
Charging the Battery ............................................................................................. 23
Powering on the Device ................................................................................................ 24
Google Account Setup .......................................................................................... 25
Zebra Visibility Services ................................................................................................ 25
Installing the Hand Strap ............................................................................................... 26
Hot Swap Mode ............................................................................................................ 28
3
Table of Contents
Replacing the Battery .................................................................................................... 28
Battery Management ..................................................................................................... 30

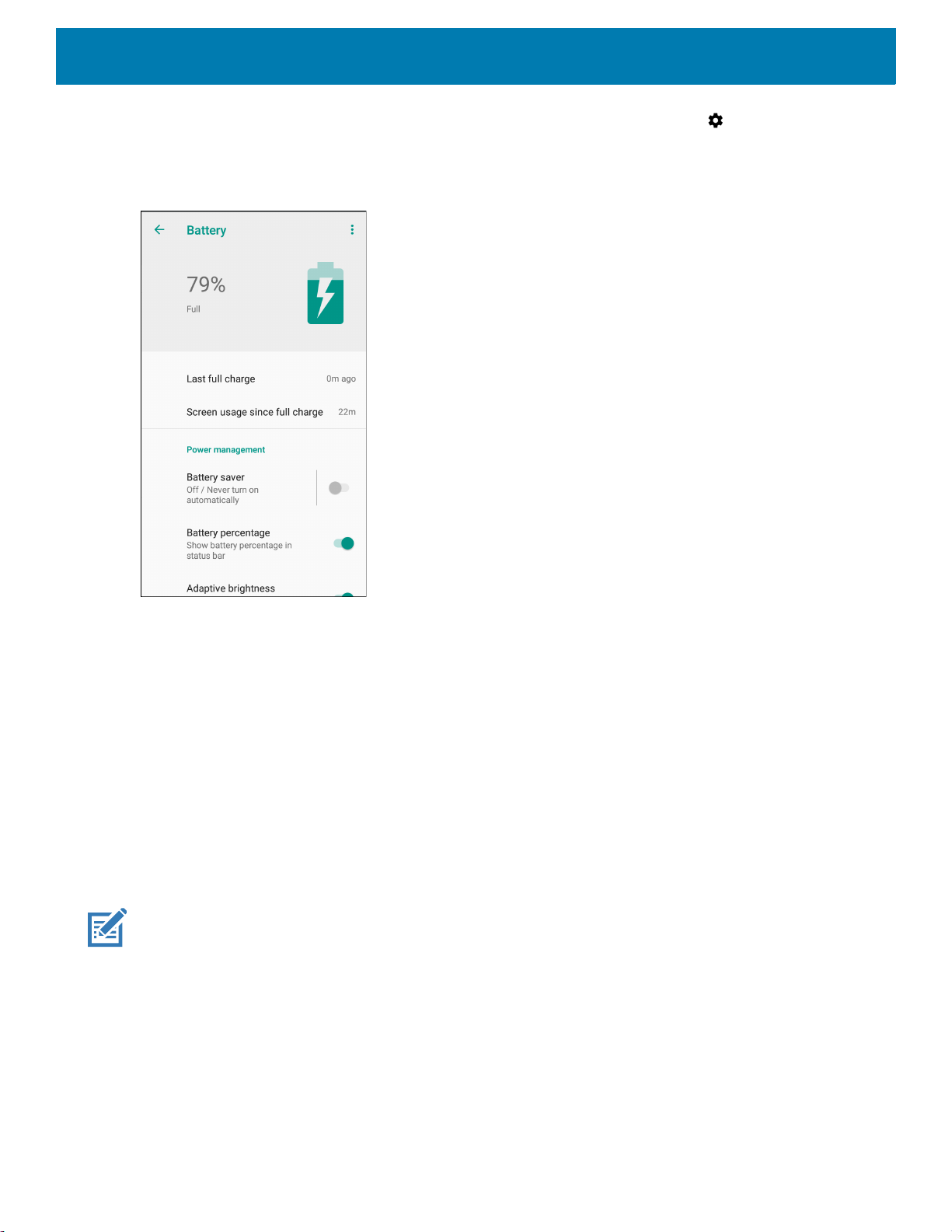

Monitoring Battery Usage ...................................................................................... 30
Low Battery Notification ......................................................................................... 31
Battery Optimization .............................................................................................. 32
Turning Off the Radios .......................................................................................... 32
Setting the Date and Time ............................................................................................ 32
Display Settings ............................................................................................................ 33
Setting the Screen Brightness ............................................................................... 33
Setting Screen Timeout ......................................................................................... 34
Setting Screen Rotation ........................................................................................ 34
Setting Font Size ................................................................................................... 34
Setting Display Size .............................................................................................. 35
Ambient Display .................................................................................................... 36
Touch Panel Mode ................................................................................................ 36
General Sound Setting .................................................................................................. 36
Wake-Up Sources ......................................................................................................... 38
Using the Device ......................................................................................................... 39
Introduction ................................................................................................................... 39
Google Mobile Services ................................................................................................ 39
Home Screen ................................................................................................................ 39
Status Bar .............................................................................................................. 40
Status Icons .................................................................................................... 41
Notification Icons ............................................................................................. 42
Managing Notifications .......................................................................................... 42
Setting App Notifications ................................................................................. 43
Viewing Notification Settings for All Apps ....................................................... 44
Controlling Lock Screen Notifications ............................................................. 44
Blink Light ....................................................................................................... 44
Quick Access Panel .............................................................................................. 44
App Shortcuts and Widgets ................................................................................... 45
Adding an App Shortcut to the Home Screen ................................................. 45
Adding a Widget to the Home Screen ............................................................. 45
Moving Items on the Home Screen ................................................................. 46
Removing an App Shortcut or Widget from the Home Screen ....................... 46
Folders .................................................................................................................. 46
Creating a Folder ............................................................................................ 46
Naming Folders ............................................................................................... 46
Removing a Folder .......................................................................................... 47
Home Screen Wallpaper ....................................................................................... 47
Using the Touchscreen ................................................................................................. 47
4
Table of Contents
Using the Android and Gboard Keyboards ................................................................... 48
Editing Text ..................................................................................................... 48
Entering Numbers, Symbols, and Special Characters .................................... 48
Apps .............................................................................................................................. 48
Accessing Apps ............................................................................................................ 51
Switching Between Recent Apps .......................................................................... 52
Un-Locking the Screen ................................................................................................. 53
Suspend Mode .............................................................................................................. 54
Interactive Sensor Technology ..................................................................................... 54
Resetting the Device ..................................................................................................... 55
Performing a Soft Reset ........................................................................................ 55
Performing a Hard Reset ....................................................................................... 55
Applications ................................................................................................................ 56
Introduction ................................................................................................................... 56
Battery Manager ........................................................................................................... 56
Camera ........................................................................................................................ 59
Taking Photos ....................................................................................................... 59
Recording Videos .................................................................................................. 60
Photo Settings ....................................................................................................... 61
Rear Camera .................................................................................................. 61
Video Settings ....................................................................................................... 61
Rear Camera .................................................................................................. 62
Contacts ....................................................................................................................... 63
Adding a Contact ................................................................................................... 63
Editing Contacts .................................................................................................... 63
Deleting Contacts .................................................................................................. 63
DataWedge Demonstration .......................................................................................... 64
Device Central ............................................................................................................. 65
Device Central Tabs .............................................................................................. 65
Paging an RS6000 Ring Scanner ......................................................................... 66
Diagnostic Tool ............................................................................................................ 67
Settings ................................................................................................................. 70
Battery Test Information ........................................................................................ 70
System Test Information ....................................................................................... 71
WLAN Test Information ......................................................................................... 71
Bluetooth Test Information .................................................................................... 71
Files ............................................................................................................................. 72
Gallery .......................................................................................................................... 73
Working with Albums ............................................................................................. 74
Sharing an Album ........................................................................................... 75
5
Table of Contents
Getting Album Information .............................................................................. 75
Deleting an Album ........................................................................................... 75
Working with Photos .............................................................................................. 76
Viewing and Browsing Photos ........................................................................ 76
Cropping a Photo ............................................................................................ 76
Setting a Photo as a Contact Icon .................................................................. 77
Sharing a Photo .............................................................................................. 77
Deleting a Photo ............................................................................................. 78
Working with Videos .............................................................................................. 78
Watching Videos ............................................................................................. 78
Sharing a Video .............................................................................................. 78
Deleting a Video .............................................................................................. 78

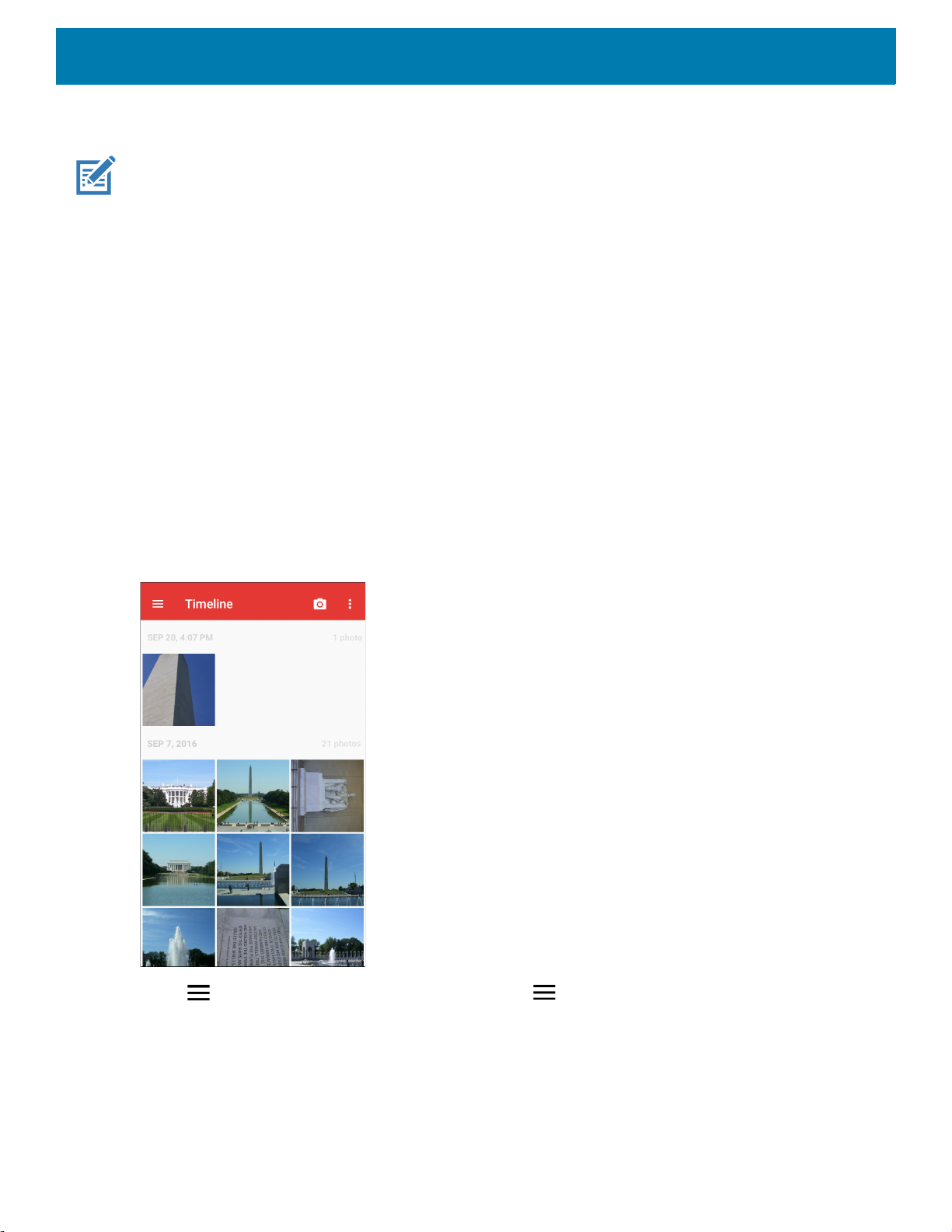

Photos .......................................................................................................................... 79
Working with Albums ............................................................................................. 80
Sharing an Album ........................................................................................... 81
Deleting an Album ........................................................................................... 81
Working with Photos .............................................................................................. 82
Viewing and Browsing Photos ........................................................................ 82
Cropping a Photo ............................................................................................ 82
Setting a Photo as a Contact Icon .................................................................. 83
Sharing a Photo .............................................................................................. 83
Deleting a Photo ............................................................................................. 84
Working with Videos .............................................................................................. 84
Watching a Video ............................................................................................ 84
Sharing a Video .............................................................................................. 84
Deleting a Video .............................................................................................. 84
Print Station ................................................................................................................. 85
PTT Express Voice Client ............................................................................................ 86
PTT Audible Indicators .......................................................................................... 86

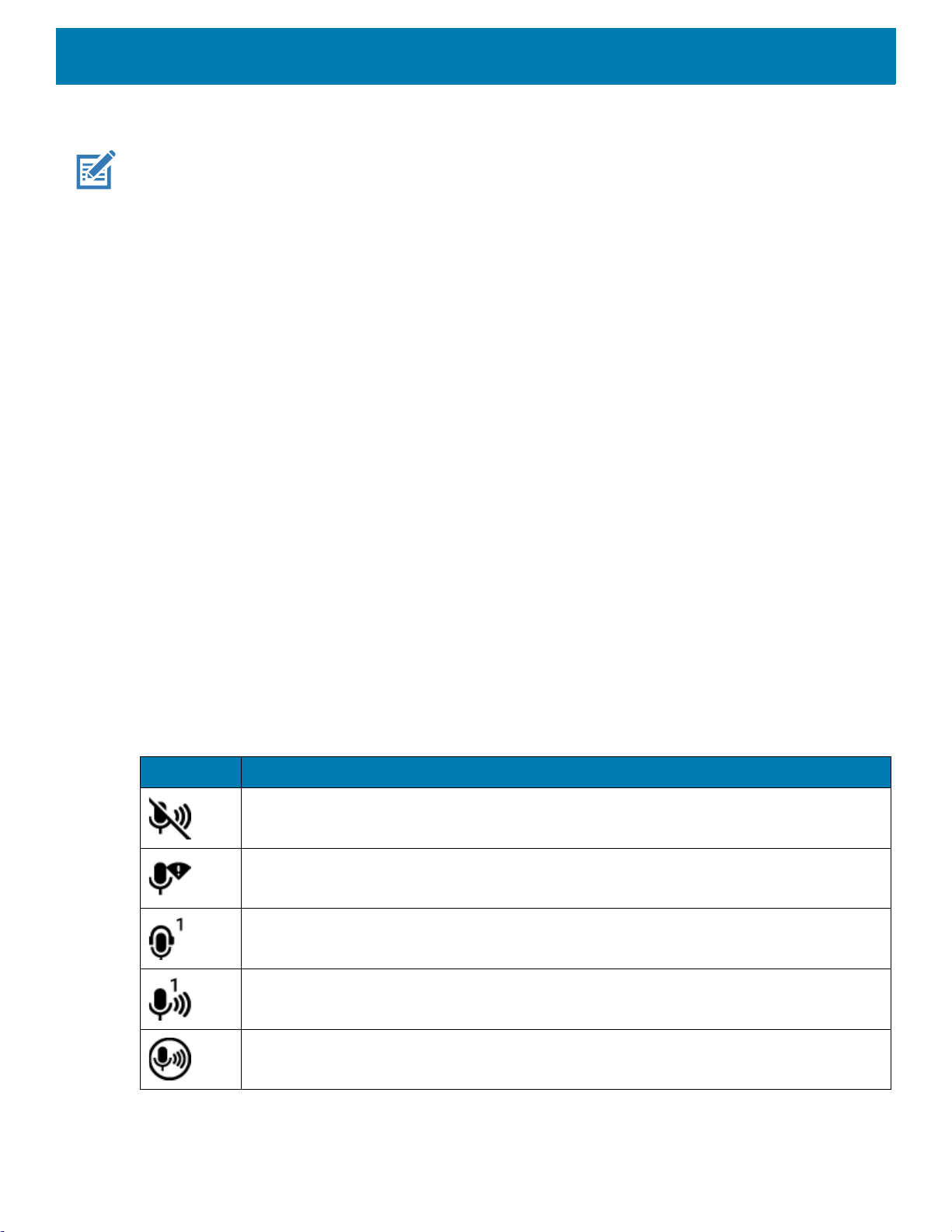

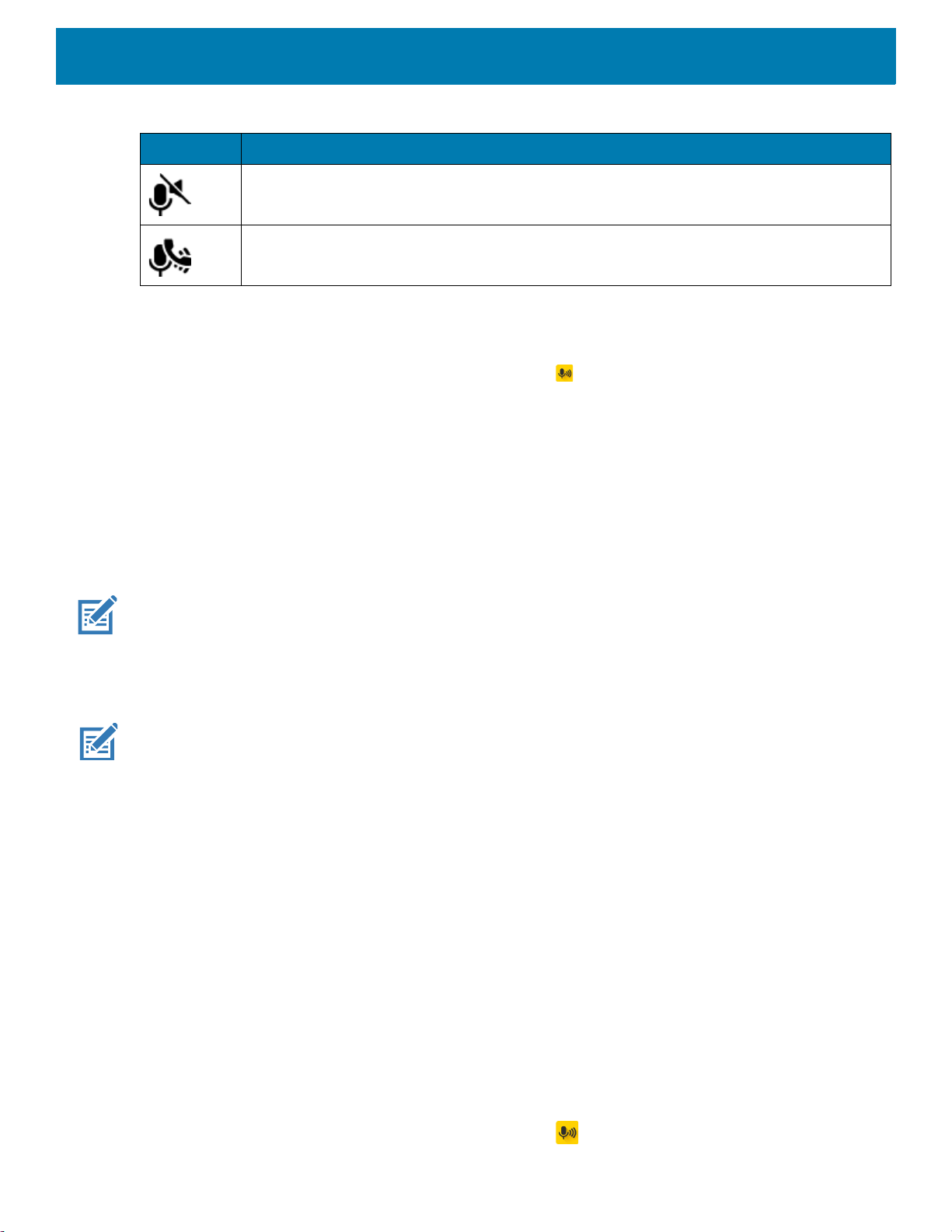

PTT Notification Icons ........................................................................................... 86
Enabling PTT Communication ............................................................................... 87
Selecting a Talk Group .......................................................................................... 87
PTT Communication .............................................................................................. 87
Creating a Group Call ..................................................................................... 87
Responding with a Private Response ................................................................... 87
Disabling PTT Express Voice Client Communication ............................................ 87
RxLogger ..................................................................................................................... 89
RxLogger Configuration ........................................................................................ 89
Configuration File .................................................................................................. 90
Enabling Logging ................................................................................................... 90
Disabling Logging .................................................................................................. 90
Extracting Log Files ............................................................................................... 91
RxLogger Utility ............................................................................................................ 92
Sound Recorder ............................................................................................................ 92
6
Table of Contents
Velocity ........................................................................................................................ 94
Scanner Setup in Velocity ..................................................................................... 94
Data Capture................................................................................................................ 95
Introduction ................................................................................................................... 95
Status LED ....................................................................................................................95
Laser Scanning ............................................................................................................. 95
Imaging ......................................................................................................................... 96
Operational Modes ................................................................................................ 96
Digital Camera .............................................................................................................. 96
Scanning Considerations .............................................................................................. 96
Bar Code Capture with Laser Scanner ......................................................................... 97
Bar Code Capture with Imager ..................................................................................... 98
Bar Code Capture with Camera .................................................................................. 100
Bar Code Capture with RS507 Hands-Free Imager ................................................... 100
Pairing the RS507 Hands-Free Imager Using SSI ...................................................... 102
Pairing the RS507 Hands-Free Imager Using Bluetooth HID ..................................... 102
Hands Free Scanning ................................................................................................. 103
Settings ............................................................................................................... 104
Scanning Mode ............................................................................................. 105
Proximity Range ............................................................................................ 105
Ergonomic Recommendations .................................................................................... 106
Proper Scanning .................................................................................................. 106
Avoid ................................................................................................................... 106
DataWedge ................................................................................................................. 107
Enable DataWedge ............................................................................................. 107
Disable DataWedge ............................................................................................ 107
Wireless ..................................................................................................................... 108
Introduction ................................................................................................................. 108
Wireless Local Area Networks .................................................................................... 108
Connecting to a Wi-Fi Network ................................................................................... 108
Configuring a Secure Wi-Fi Network ................................................................... 109
Manually Adding a Wi-Fi Network ....................................................................... 111
Configuring for a Proxy Server ............................................................................ 112
Configuring the Device to Use a Static IP Address ............................................. 113
Advanced Wi-Fi Settings ..................................................................................... 114
Additional Wi-Fi Settings ..................................................................................... 114
Removing a Wi-Fi Network .................................................................................. 115
Wi-Fi Advanced Features .................................................................................... 115
7
Table of Contents
Bluetooth ..................................................................................................................... 116
Adaptive Frequency Hopping .............................................................................. 116
Security ............................................................................................................... 117
Bluetooth Profiles ................................................................................................ 117
Bluetooth Power States ....................................................................................... 118
Bluetooth Radio Power ........................................................................................ 119
Enabling Bluetooth ........................................................................................ 119
Disabling Bluetooth ....................................................................................... 119
Discovering Bluetooth Device(s) ......................................................................... 119
Changing the Bluetooth Name ............................................................................ 120
Connecting to a Bluetooth Device ....................................................................... 120
Selecting Profiles on the Bluetooth Device ......................................................... 120
Unpairing a Bluetooth Device .............................................................................. 120
Cast ............................................................................................................................. 121
Accessories............................................................................................................... 122
Accessories ................................................................................................................. 122
2-Slot Charge Only Cradle .......................................................................................... 124
Charging the Device ............................................................................................ 125
Charging the Spare Battery ................................................................................. 126
Battery Charging ................................................................................................. 126
Main Battery Charging .................................................................................. 126
Spare Battery Charging ................................................................................ 126
Charging Temperature ........................................................................................ 127
5-Slot Charge Only Cradle .......................................................................................... 127
Charging the Device ............................................................................................ 127
Battery Charging ................................................................................................. 128
Main Battery Charging .................................................................................. 128
Charging Temperature ........................................................................................ 128
5-Slot Charge Only Cradle with Battery Charger ........................................................ 128
Charging the Device ............................................................................................ 129
Charging the Spare Battery ................................................................................. 129
Battery Charging ................................................................................................. 130
Main Battery Charging .................................................................................. 130
Spare Battery Charging ................................................................................ 130
Charging Temperature ........................................................................................ 130
5-Slot Ethernet Cradle ................................................................................................ 130
Charging the Device ............................................................................................ 131
Battery Charging ................................................................................................. 131
Main Battery Charging .................................................................................. 131
Charging Temperature ........................................................................................ 132
Establishing Ethernet Communication ................................................................ 132
8
Table of Contents
Ethernet LED Indicators ................................................................................ 132
5-Slot Ethernet Cradle with Battery Charger ............................................................... 132
Charging the Devices .......................................................................................... 133
Charging the Spare Battery ................................................................................. 133
Battery Charging ................................................................................................. 134
Main Battery Charging .................................................................................. 134
Spare Battery Charging ................................................................................ 134
Charging Temperature ........................................................................................ 134
Establishing Ethernet Communication ................................................................ 134
Ethernet LED Indicators ................................................................................ 135
4-Slot Battery Charger ................................................................................................ 135
Battery Installation ............................................................................................... 135
Battery Removal .................................................................................................. 136
Battery Charging ................................................................................................. 136
Spare Battery Charging ................................................................................ 136
Charging Temperature ........................................................................................ 136
USB and Charging Cable ............................................................................................ 137
Attaching the USB and Charging Cable .............................................................. 137
Removing the USB and Charging Cable ............................................................. 138
Battery Charging ................................................................................................. 138
Main Battery Charging .................................................................................. 138
Charging Temperature ........................................................................................ 138
Quick Disconnect Audio Adapter ................................................................................ 138
Attaching the Audio Adapter ................................................................................ 139
Connecting the Adapter to a Headset ................................................................. 139
Removing the Audio Adapter .............................................................................. 139
3.5 mm Audio Adapter ................................................................................................ 140
Attaching the Audio Adapter ................................................................................ 140
Connecting the Adapter to a Headset ................................................................. 140
Headset Recommendations .......................................................................... 141
Removing the Audio Adapter .............................................................................. 141
Pairing the HS3100 Bluetooth Headset to the Device ................................................ 141
Pairing Using Near Field Communication ........................................................... 141
Desktop Stand ............................................................................................................ 142
Cart Mount .................................................................................................................. 143
Quick-Draw Soft Holster ............................................................................................. 144
Presentation Holster ................................................................................................... 145
Stylus .......................................................................................................................... 146
Maintenance and Troubleshooting ......................................................................... 148
Introduction ................................................................................................................. 148
Maintaining the Device ................................................................................................ 148
9
Table of Contents
Battery Safety Guidelines ........................................................................................... 148
Long Term Storage ..................................................................................................... 149
Cleaning Instructions .................................................................................................. 149
Approved Cleanser Active Ingredients ................................................................ 149
Harmful Ingredients ............................................................................................. 149
Device Cleaning Instructions ............................................................................... 150
Special Cleaning Notes ....................................................................................... 150
Cleaning Materials Required ............................................................................... 150
Cleaning Frequency ............................................................................................ 150
Cleaning the Device ............................................................................................ 150
Housing ......................................................................................................... 150
Display .......................................................................................................... 151
Exit Window .................................................................................................. 151
Cleaning Battery Connectors .............................................................................. 151
Cleaning Cradle Connectors ............................................................................... 151
Troubleshooting .......................................................................................................... 152
TC8300 ................................................................................................................ 152
Specifications............................................................................................................ 154
Technical Specifications ............................................................................................. 154
SE965 Standard Range Laser Decode Zones .................................................... 157
SE4750-MR Decode Zones ................................................................................ 158
SE4750-DP Decode Zones ................................................................................. 159
SE4750-DPW Decode Zones .............................................................................. 160
SE4770-SR Decode Zones ................................................................................. 161
SE4850 Decode Zones ....................................................................................... 162
Index
10
About This Guide
Introduction
This guide provides information about using the device and accessories.
NOTE
:
Screens and windows pictured in this guide are samples and can differ from actual screens.
Configurations
The TC8300 includes standard, condensation resistant, and premium configurations.
Table 1 Configurations
Radios Data Capture Memory OS Sensors
Configuration
NFC
Bluetooth 5.0
802.11 a/b/g/n/ac
Base
TC83B0-A005A510NA x x x x x x x x x x
TC83B0-2005A510NA x x x x x x x x x x
TC83B0-3005A510NA x x x x x x x x x x
TC83B0-6005A510NA x x x x x x x x x x
TC83B0-A005A510RW x x x x x x x x x x
TC83B0-2005A510RW x x x x x x x x x x
TC83B0-3005A510RW x x x x x x x x x x
TC83B0-6005A510RW x x x x x x x x x x
TC83B0-2005A510CN x x x x x x x x x x
TC83B0-3005A510CN x x x x x x x x x x
TC83B0-6005A510CN x x x x x x x x x x
TC83B0-2005A510IN x x x x x x x x x x
TC83B0-3005A510IN x x x x x x x x x x
TC83B0-6005A510IN x x x x x x x x x x
Condensation Resistant
TC83B0-2005A61CNA x x x x x x x x x x x
TC83B0-3005A61CNA x x x x x x x x x x x
TC83B0-6005A61CNA x x x x x x x x x x x
TC83B0-2005A61CRW x x x x x x x x x x x
SE965 Laser Engine
SE4750-MR Imager
SE4750-DP Imager
SE4750-DPA Imager
SE4770-SR Imager
SE4850 Imager
13 MP Camera
4” WVGA Color
4G RAM/32 GB Flash
V8.1.0
AndroidGMS
8G RAM/128 GB Flash
Accelerometer
Gyroscope
Proximity Sensor
Apps
Vibration
ATTE
Magnet
Scan
Touchscreen
11
About This Guide
Table 1 Configurations
Magnet
Apps
Vibration
ATTE
Touchscreen
Radios Data Capture Memory OS Sensors
Configuration
NFC
Bluetooth 5.0
802.11 a/b/g/n/ac
SE965 Laser Engine
SE4750-MR Imager
SE4750-DP Imager
SE4770-SR Imager
SE4750-DPA Imager
SE4850 Imager
13 MP Camera
4” WVGA Color
4G RAM/32 GB Flash
V8.1.0
AndroidGMS
8G RAM/128 GB Flash
Accelerometer
Gyroscope
Proximity Sensor
TC83B0-3005A61CRW x x x x x x x x x x x
TC83B0-6005A61CRW x x x x x x x x x x x
TC83B0-2005A61CCN x x x x x x x x x x x
TC83B0-3005A61CCN x x x x x x x x x x x
TC83B0-2005A61CIN x x x x x x x x x x x
TC83B0-3005A61CIN x x x x x x x x x x x
Package 1
TC83BH-2205A710NA x x x x x x x xxxxxx xx
TC83BH-3205A710NA x x x xxxx xxxxxx xx
TC83BH-6205A710NA x x x x x x x xxxxxx xx
TC83BH-2205A710RW x x x x x x x xxxxxx xx
TC83BH-3205A710RW x x x xxxx xxxxxx xx
TC83BH-6205A710RW x x x x x x x xxxxxx xx
TC83BH-2205A710CN x x x x x x x xxxxxx xx
TC83BH-3205A710CN x x x xxxx xxxxxx xx
TC83BH-2205A710IN x x x x x x x xxxxxx xx
TC83BH-3205A710IN x x x xxxx xxxxxx xx
Package 2 High Memory
TC83BH-2206A710NA x x x x x x xxxxxxx xx
TC83BH-3206A710NA x x x x x x xxxxxxx xx
TC83BH-6206A710NA x x x x x x xxxxxxx xx
TC83BH-6206A710RW x x x x x x xxxxxxx xx
TC83BH-2206A710RW x x x x x x xxxxxxx xx
TC83BH-3206A710RW x x x x x x xxxxxxx xx
DPM
TC83B0-4005A610NA x x x x x x x x x x x
TC83B0-4005A610RW x x x x x x x x x x x
TC83B0-4005A610CN x x x x x x x x x x x
TC83B0-5005A610NA x x x x x x x x x x x
TC83B0-5005A610RW x x x x x x x x x x x
TC83B0-5005A610CN x x x x x x x x x x x
TC83B0-4005A610IN x x x x x x x x x x x
TC83B0-5005A610IN x x x x x x x x x x x
TAA
TC83B0-2005A510TA x x x x x x x x x x
TC83B0-3005A510TA x x x x x x x x x x
TC83B0-6005A510TA x x x x x x x x x x
TC83BH-6205A710TA x x x x x x x xxxxxx xx
TC83BH-2205A710TA x x x x x x x xxxxxx xx
TC83BH-3205A710TA x x x xxxx xxxxxx xx
Scan
12
Software Versions
To determine the current software versions:
1. Swipe down from the Status bar to open the Quick Settings bar.
2. Touch > System.
3. Touch About phone.
4. Scroll to view the following information:
•Status
• Battery information
• SW components
• Legal information
•Model
• Android version
• Android security patch level
•Kernel version
• Build Fingerprint
• Build number.
About This Guide
To determine the device serial number, touch About phone > Status.
• Serial number
Chapter Descriptions
Topics covered in this guide are as follows:
• Getting Started, describes the features and basic operation of the device, lists the accessories for the
device and explains how to install and charge the batteries and start the device for the first time.
• Using the Device, provides instructions for connecting the device to a host computer and using the OS
desktop of the device.
• Applications, provides information on various applications pre-installed on the device.
• Data Capture, provides information for capturing bar code data.
• Wireless, provides information on the various wireless options.
• Accessories, Accessories, provides information for using the accessories with the device.
• Maintenance and Troubleshooting, includes instructions on cleaning and storing the device, and provides
troubleshooting solutions for potential problems during device operation.
• Specifications, includes a table listing the technical specifications for the device and accessories.
Notational Conventions
The following conventions are used in this document:
13
About This Guide
• Bold text is used to highlight the following:
• Dialog box, window and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen
• Key names on a keypad
• Button names on a screen.
• Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential.
• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.
Related Documents and Software
The following documents provide more information about the device.
• TC8300 Quick Start Guide, p/n MN-003365-xx
• TC8300 Regulatory Guide, p/n MN-003364-xx
• TC8300 Integrator Guide for Android 8.1, p/n MN-003403-xx
• TC8300 Accessory Regulatory Guide, p/n MN002282Axx
• Desk Mount Installation Guide, p/n MN002413Axx
• Rack/Wall Mount Installation Guide, p/n MN002412Axx
For the latest version of this guide and all guides, go to: http://www.zebra.com/support.
Service Information
If you have a problem with your equipment, contact Customer Support for your region. Contact information is
available at: www.zebra.com/support
When contacting support, please have the following information available:
• Serial number of the unit (found on manufacturing label)
• Model number or product name (found on manufacturing label)
• Software type and version number
Customer Support responds to calls by email or telephone within the time limits set forth in support
agreements.
.
If the problem cannot be solved by Customer Support, you may need to return the equipment for servicing and
will be given specific directions. We are not responsible for any damages incurred during shipment if the
approved shipping container is not used. Shipping the units improperly can possibly void the warranty.
Remove the microSD card from the device before shipping for service.
If the device was purchased from a business partner, contact that business partner for support.
14
About This Guide
Provide Documentation Feedback
If you have comments, questions, or suggestions about this guide, send an email to
EVM-Techdocs@zebra.com
.
15
Getting Started
Introduction
This chapter describes the features of the device and explains how to install and charge the battery and how to
reset the device.
Unpacking
Carefully remove all protective material from the device and save the shipping container for later storage and
shipping.
Verify that box contains all the equipment listed below:
• TC8300
• Battery
• Regulatory Guide.
Inspect the equipment for damage. If you are missing any equipment or if you find any damaged equipment,
contact Support immediately. See Service Information on page 14 for contact information.
Removing the Screen Protective Film
A screen protection film is applied to the device’s screen to protect the screen during shipping. To remove the
screen protector, carefully lift the thin film off the display.
16
Features
5
7
4
9
1
3
8
6
2
121110
Figure 1 Front View
Getting Started
17
Getting Started
Front View Descriptions
Table 2 Front View Descriptions
Number Item Function
1 Charging/Scan LED Indicates battery charging status while charging, good decode indication
during data capture and application generated notifications.
2 Power Button Turns the display on and off. Press and hold to reset the device and
power off.
3 Blue Indication LED User programmable LED.
4 Display Displays all information needed to operate the device.
5 Programmable
Button
6 Hand Strap
Mounting Point
7 Speakers Provides audio output for video and music playback.
8 Ambient Light
Sensor
9 Microphone Use for communication in Headset mode.
10 Volume Up Button Increases audio volume (programmable).
11 Interface Connector Provides USB host and client communication, audio and device charging
12 Volume Down
Button
Press to select items.
Use for installing the optional hand strap.
Determines ambient light for controlling display backlight intensity.
via cables and accessories.
Decreases audio volume (programmable).
18
Figure 2 Back View
1
2
4
5
7
8
9
6
3
3
8
10
4
3
3
8
8
5
7
6
Standard DPM
Getting Started
19
Getting Started
Back View Descriptions
Table 3 Back View Descriptions
Number Item Function
1 Camera Flash Provides illumination for the camera (optional).
2 Camera Takes photos and videos (optional).
3 Speaker Provides audio output.
4 Scanner/Exit Window Provides data capture using the imager or laser scanner.
5 Trigger Initiates data capture (programmable).
6 Programmable Button
(Secondary Trigger)
7 Battery Pack Provides power to the device.
8 Hand Strap Mounting
Point
9 Proximity Sensor Triggers hands-free, triggerless scanning.
10 NFC tag Tap-to-Pair using NFC (Near Field Communication) - (optional).
Initiates Push-To-Talk communication (programmable).
Use for installing the optional hand strap.
Setup
Perform these procedures to start using the device for the first time.
1. Install a microSD card (optional)
2. Install the battery
3. Charge the device
4. Power on the device.
Installing the microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the back bezel of the
unit. Refer to the documentation provided with the card for more information, and follow the manufacturer's
recommendations for use.
WARNING
precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.
NOTE
When installing a microSD card on Condensation Resistant configurations, replace the Back Bezel with desiccant pack. Refer to the TC8300 Integrator Guide. Once the Rear Bezel is removed, the desiccant pack absorbs ambient moisture and can
lessen the life of the desiccant pack.
:
Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD
:
The Condensation Resistant configuration has six screws securing the back bezel.
1. Remove the Torx T8 screws holding the back bezel in place.
20
Figure 3 Remove Screws
2. Lift the bezel to expose the SD slot.
Getting Started
Figure 4 Remove Bezel
3. Insert the microSD card into the slot with contacts facing the bottom of the device.
Figure 5 Insert microSD Card
21
Getting Started
4. Align the bezel onto the device.
Figure 6 Align Bezel
5. Tighten the four screws using T8 hex screwdriver.
6. Torque screws to 4.5 kg-cm.
Figure 7 Secure Bezel
Installing the Battery
To install the battery:
NOTE
:
The battery is keyed to ensure that the battery is inserted properly. The notch in the battery must face the back of
the device.
1. Align the battery with the notch facing the back of the device.
2. Slide the battery into the handle of the device.
22
Figure 8 Battery Installation
Getting Started
3. Press the battery into the handle until it snaps into place.
Charging the Battery
Before using the device for the first time, charge the battery using a cable or a cradle with the appropriate
power supply. For information about the accessories available for the device, see Accessories.
The device is equipped with a supercapacitor (supercap) which automatically charges from the fully-charged
main battery. The supercap requires approximately 10 minutes to fully charge. The supercap retains random
access memory (RAM) data in memory and WLAN connection for at least 30 seconds when the main battery is
removed during Hot Swap. After 30 seconds, the WLAN connection is dropped and the RAM data is retained
for 20 minutes.
• 4-Slot Battery Charger
• 2-Slot USB Charge Cradle
• 5-Slot Charge Only Cradle
• 5-Slot Ethernet Cradle
• 5-Slot Charge Only Cradle with 4-Slot Battery Charger
• 5-Slot Ethernet Cradle with 4-Slot Battery Charger.
The 6,700 mAh battery charges from 0 - 90% in less than four hours at room temperature.
The 7,000 mAh battery charges from 0 - 90% in less than five hours at room temperature.
Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or accessory always
performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C
23
Getting Started
(+98 °F)) the device or accessory may for small periods of time alternately enable and disable battery charging
to keep the battery at acceptable temperatures. The device or accessory indicates when charging is disabled
due to abnormal temperatures via its red blinking LED.
1. To charge the main battery, connect the charging accessory to the appropriate power source.
2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The
Charging/Scan LED lights amber while charging, then turns solid green when fully charged.
Table 4 Charging/Scan LED Charging Indicators
State Indication
Off Device is not charging. Device is not inserted correctly in the cradle or connected
to a power source. Charger/cradle is not powered.
Solid Amber Healthy battery is charging.
Solid Green Healthy battery charging is complete.
Fast Blinking Red
(2 blinks/second)
Solid Red Unhealthy battery is charging or fully charged.
IMPORTANT
battery power to turn on. You will need to charge the battery or replace it.
:
When trying to power on the device, a quick blink of the charging LED indicates that it does not have enough
Charging error, e.g.:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).
Powering on the Device
The device starts automatically as soon as power is applied; either with a charged battery installed or when
inserted into the cradle.
If a charged battery is installed and the device is turned off, press the Power button to turn on.
When the device is powered on for the first time, it initializes its system. The splash
period of time.
Figure 9 Splash Screen
screen appears for a short
24
Getting Started
GMS AOSP
The splash screen is followed by the boot animation screen and then the Home Screen.

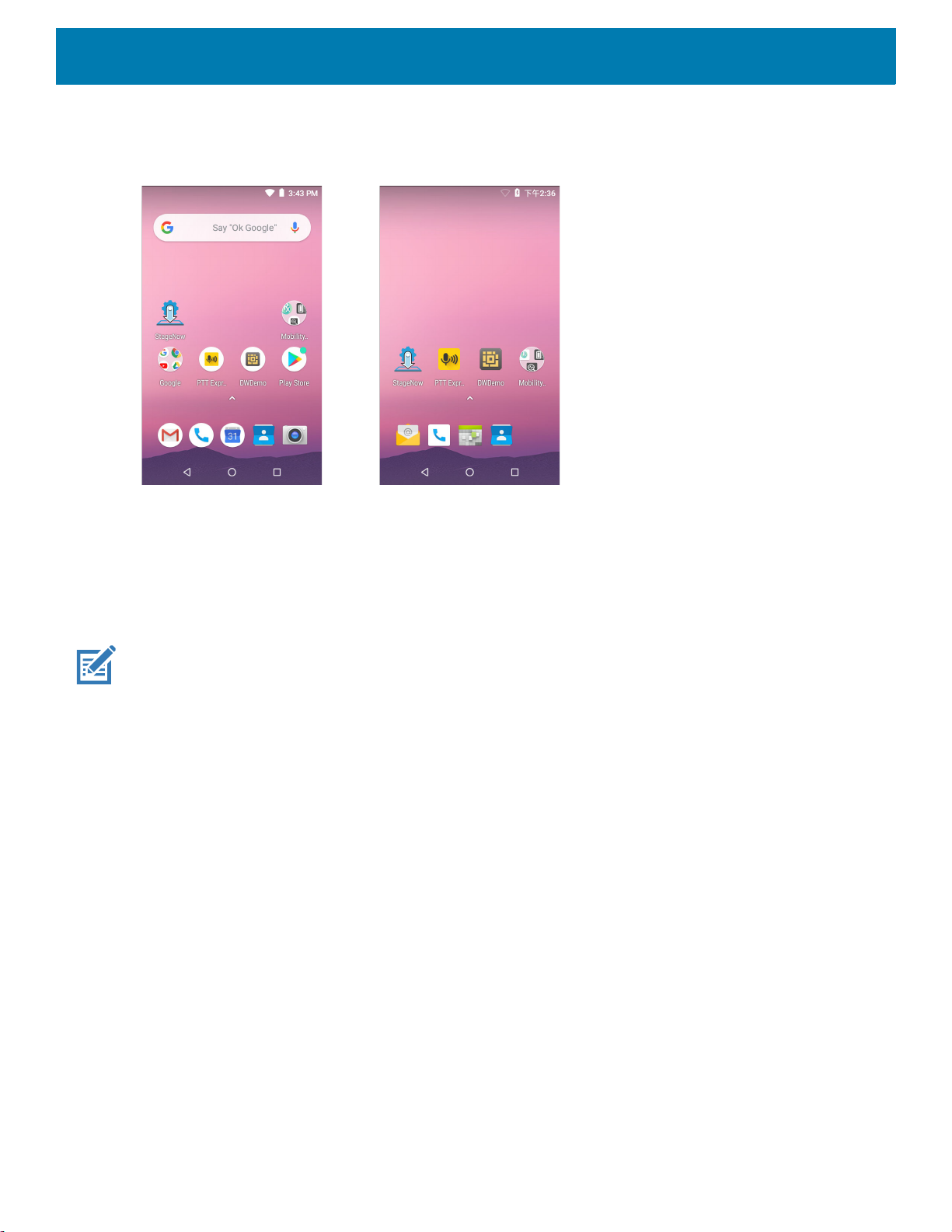

Figure 10 Home Screen
Google Account Setup
NOTE
:
The device has to be connected to the internet in order to set up a Google™ account.
A Google account is only required on devices with GMS software.
The first time the device starts, the Setup Wizard displays. Follow the on-screen instructions to set up a Google
account, configure Google Pay
information, and enable backup/restore features.
Zebra Visibility Services
The device captures and provides device analytics to a system administrator. The first time the device boots
(or after a Factory reset), the Zebra Services agreement screen displays.
™
for purchasing items from the Google Play™ store, to enter your personal
25
Getting Started
Figure 11 Zebra Services
Touch the Device Data switch to disable the device from sending analytics data.
Installing the Hand Strap
To install the hand strap:
NOTE
:
Installation of the hand strap is optional. Skip this section if not installing the hand strap.
1. Remove battery if installed.
2. Thread the lanyard loop through the opening near the base of the handle.
Figure 12 Insert Loop through Handle Slot
3. Insert the top end of the hand strap through the loop.
26
Getting Started
Figure 13 Thread Hand Strap Through Loop
4. Thread the hand-strap through the lanyard.
5. Pull the hand strap through the loop.
6. Thread the lanyard through the slot on the left or right side of the unit, depending on your preference.
Figure 14 Thread Tab Through Side Slot
7. Slide the tab onto the clip.
27

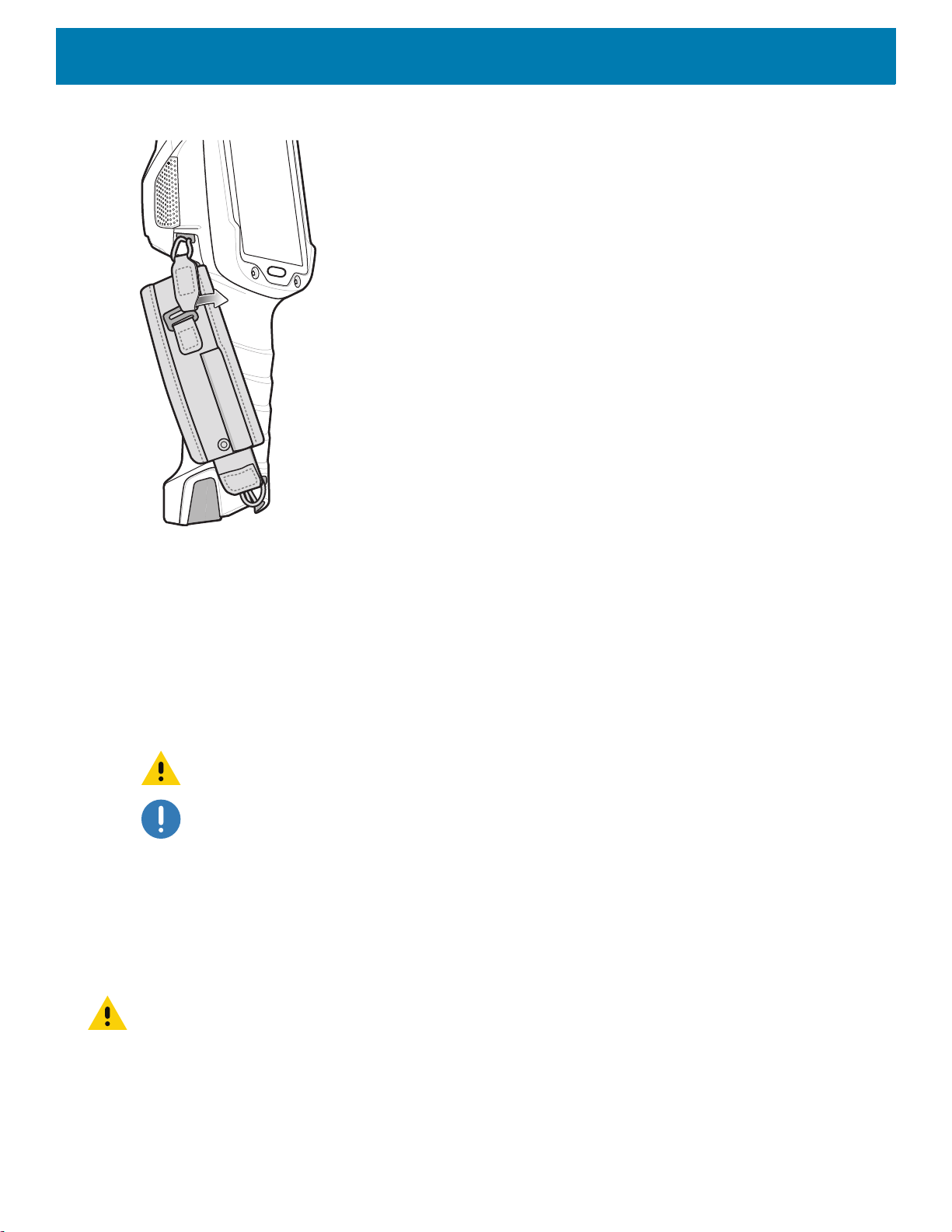

Figure 15 Slide Tab onto Clip
Getting Started
Hot Swap Mode
The device provides a Hot Swap mode where the user can replace the battery without powering off the device.
When the user removes the battery, the display turns off and the device enters a low power state while in Hot
Swap mode. In Hot Swap mode, the device retains RAM data for approximately 5 minutes. Replace the battery
within 5 minutes to preserve memory persistence. If the user does not install a charged battery within 5
minutes, data in RAM will be lost. During Hot Swap mode, Wi-Fi and Bluetooth remain connected for 30
seconds. If the battery is not inserted within 30 seconds, Wi-Fi is disabled and then re-enabled when the
device comes out of Hot Swap mode and Bluetooth is reset when the device comes out of Hot Swap mode.
CAUTION
IMPORTANT
battery is fully depleted. Hot Swap mode will not retain data unless the supercap is fully charged.
:
To prevent damage to the device, do not perform a hot swap during a device boot up session.
: The supercap requires time to recharge after performing a Hot Swap or after the main
Replacing the Battery
To remove the battery:
CAUTION
:
Do not press the trigger while removing the battery.
1. Press the two battery release latches in.
28
Getting Started
Figure 16 Battery Removal
2. Pull the battery out of the device. The Charging/Scan LED lights red.
Figure 17 Battery Removal
3. Align the replacement battery with the notch facing the back of the device.
4. Slide the battery into the handle of the device.
29
Figure 18 Battery Installation
Getting Started
5. Press the battery into the handle until it snaps into place.
Battery Management
NOTE
:
Prior to checking the battery charge level, remove the device from any AC power source (cradle or cable).
To check the charge status of the main battery, open Settings and touch System > About phone > Battery
Information.
Battery present status indicates if the battery is present and Battery level lists the battery charge (as a
percentage of fully charged). The battery percentage can also be viewed next to the battery icon in the quick
access panel. Swipe down with two fingers from the status bar to open the quick access panel.
Monitoring Battery Usage
The Battery screen provides battery charge details, power management options, and a list of apps that
consume the most battery power.
Use the power management options to extend battery life, or touch an app to display details about its power
consumption. Different apps display different information. Some apps include buttons that open screens with
settings to adjust power use. Use the DISABLE or FORCE CLOSE buttons to turn off apps that consume too
much power.
30
Getting Started
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Battery.
Figure 19 Battery Screen
Low Battery Notification
When the battery charge level drops below 15%, the device displays a notice to connect the device to power.
The user should charge the battery using one of the charging accessories.
When the battery charge drops below 10%, the device displays a notice to connect the device to power. The
user must charge the battery using one of the charging accessories.
When the battery charge drops below 6%, the device turns off. The user must charge the battery using one of
the charging accessories.
NOTE
:
Under conditions of heavy load (scanning quickly and often, RF communication, etc.) the device may turn off earlier
than 6% charge remaining.
31
Figure 20 Low Battery Notification
Battery Optimization
Observe the following battery saving tips:
• Set the screen to turn off after a short period of non-use.
• Reduce screen brightness.
• Turn off all wireless radios when not in use.
• Turn off automatic syncing for Email, Calendar, Contacts, and other apps.
• Minimize use of apps that keep the device from suspending, for example, music and video apps.
Getting Started
Turning Off the Radios
To turn off all the radios:
1. Swipe down from the Status bar to open the Quick Settings panel.
2. Touch Airplane mode. The airplane icon appears in the Status bar indicating that all the radios are off.
Setting the Date and Time
The date and time is automatically synchronized using an NITZ server when the device is connected to a
wireless network. You are only required to set the time zone or set the date and time when not connected to a
wireless network or if the wireless LAN does not support Network Time Protocol (NTP).
To set the date and time:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch System > Date & time.
3. Touch Automatic date & time to disable automatic date and time synchronization.
4. Touch Automatic time zone to disable automatic time zone synchronization.
32
Getting Started
5. Touch Set date.
6. In the calendar, set today’s date.
7. Touch OK.
8. Touch Set time.
9. Touch the green circle, drag to the current hour and then release.
10.Touch the green circle, drag to the current minute and then release.
11.Touch AM or PM.
12.Touch OK.
13.Touch Select time zone.
14.Select the current time zone from the list.
15.Touch Use 24-hour format.
16.Touch .
Display Settings
Use Display settings to change the screen brightness, enable night light, change the background image,
enable screen rotation, set sleep time, and change font size.
Setting the Screen Brightness
To manually set the screen brightness using the touchscreen:
1. Swipe down with two fingers from the Status bar to open the Quick Access panel.
2. Slide the icon to adjust the screen brightness level.
Figure 21 Brightness Slider
To let the device automatically adjust the screen brightness using the built-in light sensor:
1. Swipe down from the status bar to open the quick settings bar and then touch .
2. Touch Display.
3. If disabled, touch Adaptive brightness to automatically adjust the brightness.
By default, Adaptive brightness is enabled. Toggle the switch to disable.
4. Touch .
33
Setting Screen Timeout
To set the screen sleep time:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced > Sleep.
3. Select one of the sleep values.
• 15 seconds
• 30 seconds
• 1 minute (default)
• 2 minutes
• 5 minutes
•10 minutes
• 30 minutes
4. Touch .
Getting Started
Setting Screen Rotation
By default, screen rotation is enabled.
To disable screen rotation:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
3. Touch Auto-rotate screen.
NOTE
:
To change the Home screen rotation, see Setting Home Screen Rotation.
4. Touch .
Setting Font Size
To set the size of the font in system apps:
1. Swipe down from the Status bar to open the Quick Settings panel and then touch .
2. Touch Display > Advanced.
3. Touch Font size.
34
Figure 22 Font Settings
Getting Started
4. Select one of the font size values.
•Small
• Default
•Large
•Largest.
5. Touch .
Setting Display Size
By default, display size is set to default.
To change the display size:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
3. Touch Display size.
4. Touch - and + to change the display size.
5. Touch .
35
Ambient Display
The Ambient display setting wakes the screen when notifications are received.
To disable ambient display:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
3. Touch Ambient display.
4. In the When to show section, enable or disable an option using the switch.
5. Touch .
Touch Panel Mode
Getting Started
The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.
NOTE
:
A glove can be made of medical latex, leather, cotton, or wool.
For optimal performance use a Zebra certified stylus.
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
3. Touch Touch panel mode.
Figure 23 Touch Panel Mode Dialog Box
4. Select:
a. Finger Only to use a finger on the screen.
b. Stylus, Glove and Finger to use a stylus, gloved finger, or a finger on the screen.
When the user changes the touch panel mode, it will take several seconds for the new configuration to
be loaded.
5. Touch .
General Sound Setting
Use the Sound settings to configure media and alarm volumes.
36
Getting Started
To access sound settings:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Sound.
3. Touch an option to set sounds.
Figure 24 Sound Screen
• Zebra volume controls
• Ring volume - Controls the ringtone volume.
• Media volume - Controls the music, games, and media volume.
• Alarm volume - Controls the alarm clock volume.
• Notifications volume - Controls the notification volume.
• Scanner volume - Controls the scanner volume.
• Volume presets
• - Mutes the ring, notifications, and scanner so that the device does not make sounds or vibrate.
• - All sounds except media and alarms are silenced and vibrate mode is active.
• - Enables all sounds at the user defined levels.
• Do Not Disturb preferences - Mutes some or all sounds and vibrations.
• Priority only allows - Use to set the priorities for the following:
• Reminders - Switch on or off.
• Events - Switch on or off.
• Alarms - This is always enabled.
• Messages - Choose to allow messages from anyone, starred contacts, any contact, or none. To star
contacts, use the Contacts app.
• Block visual disturbances
37
Getting Started
• Block when screen is on - This option prevents notifications from displaying over the screen
(peeking) while you are actively using the device.
• Block when screen is off - This option prevents notifications from turning on the screen or pulsing
the LED light when a new notification is received while you are not using the device.
• Automatic rules - Choose when to automatically silence the device. Touch a default rule, such as
Weekend or Weeknight, or create your own rule. To create your own rule, tap Add more and then Time
rule.
• Advanced - Touch to display advanced sound options.
• Default notification sound - Touch to select a sound to play for all system notifications.
• Default alarm sound - Touch to select a sound to play for alarms.
• Other sounds and vibrations
• Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).
• Charging sounds - Not applicable.
• Touch sounds - Play a sound when making screen selections (default – ).
• Vibrate on tap - Vibrate the device when making screen selections (default – disabled).
Wake-Up Sources
By default, the device wakes from suspend mode when the user presses the power button. The device can be
configured to wake when the user presses the PTT button or the Scan button.
1. Swipe up from the bottom of the Home screen and touch Settings > Wake-Up Sources.
2. Touch a checkbox. A check appears in the checkbox.
3. Touch .
38
Using the Device
Introduction
This chapter describes the screens, status and notification icons, and controls on the device, and
provides basic instructions for using the device.
Google Mobile Services
NOTE
:
This section applies to Google Mobile Services (GMS) devices only.
Devices with GMS contain apps and services that provide additional functionality.
GMS includes:
• Apps - GMS adds a variety of Google apps and associated widgets including Chrome, Gmail,
Drive, and Maps.
• Services:
• Speech to Text - Allows for free format speech to text in many languages for both connected
and disconnected network. Launch by touching the microphone icon on the keyboard.
• TalkBack Service - Provides spoken feedback on various parts of the user interface. To enable,
go to Settings > Accessibility.
• Network Location Provider - Adds a location provider which uses mobile network tower
information and Wi-Fi access point information to provide a location without using GPS. To
enable, go to Settings > Security & location > Location.
• Widevine DRM - Enables Digital Rights Management (DRM) so that protected streaming video
content can be played. Enable DRM Info from the Google Play
• Google Cloud Messaging - Allows the device to receive data from the server and other devices
on the same connection.
• Backup and Restore - Allows the users settings and apps to be backed up to a Google server
and subsequently restored from that server after a factory reset.
• Google Accounts - Create and use a Google account to synchronize mail, files, music, photos,
contacts and calendar events.
™
store.
Home Screen
Turn on the device to display the Home screen. Depending on the configuration, the Home screen may
appear different. Contact your system administrator for more information.
39
Using the Device
1
3
4
56
7
2
1
2
3
4
56
7
GMSGMS
AOSP
After a suspend or screen time-out, the Home screen displays with the lock slider. Touch the screen and slide
up to unlock. For screen locking information, see Un-Locking the Screen.
The Home screen provides additional screens for placement of widgets and shortcuts. Swipe the screen left or
right to view the additional screens.
NOTE
:
By default, non-GMS devices do not have the same icons on the Home screen as GMS. Icons are shown below for
example only.
Home screen icons can be configured by the user and may look different than shown.
The Home screen consists of the following:
Table 5 Home Screen Items
Item Description
1 — Status Bar Displays the time, status icons (right side), and notification icons (left side). For
more information see Notification Icons and Managing Notifications.
2 — Folders Contains multiple application icons.
3 — Menu Icon Displays running applications.
4 — Home Icon Displays the Home screen.
5 — All Apps Icon Opens the APPS window.
6 — Back Icon Displays the previous screen.
Status Bar
7 — Shortcut Icons Opens applications installed on the device. See App Shortcuts and Widgets for
more information.
The Status bar displays the time, notification icons (left side), and status icons (right side).
40
Using the Device
Notification Icons
Status Icons
NOTE
:
Some Status icons may not appear in the Status bar if there are too many icons to display.
Figure 25 Notification and Status Icons
If there are more notifications than can fit in the Status bar, two dots display indicating that more notifications
exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.
Status Icons
Table 6 Status Icons
Icon Description
Alarm is active.
Main battery is fully charged.
Main battery is partially drained.
Main battery charge is low.
Main battery charge is very low.
Main battery is charging.
All sounds, except media and alarms, are silenced and vibrate mode is active.
Do Not Disturb mode active.
Airplane Mode is active. All radios are turned off.
Bluetooth is on.
The device is connected to a Bluetooth device.
Connected to a Wi-Fi network.
Not connected to a Wi-Fi network or no Wi-Fi signal.
Connected to an Ethernet network.
Speakerphone enabled.
41
Using the Device
Notification Icons
Table 7 Notification Icons
Icon Description
Main battery is low.
More notifications are available for viewing.
Data is syncing.
Indicates an upcoming event. GMS devices only.
Open Wi-Fi network is available.
Song is playing.
Problem with sign-in or sync has occurred.
Device is uploading data.
Device is downloading data when animated and download is complete when static.
Device is connected via USB cable.
Device is connected to or disconnected from virtual private network (VPN).
Preparing internal storage by checking it for errors.
USB debugging is enabled on the device.
Indicates that RxLogger app is running.
Indicates the RS6000 is connected to the device.
Indicates the RS6000 is connected to the device in HID mode.
Managing Notifications
Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When a
notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons for a list of
possible notification icons and their description. Open the Notification panel to view a list of all the notifications.
To open the Notification panel, drag the Status bar down from the top of the screen.
42
Figure 26 Notification Panel
Using the Device
To respond to a notification, open the Notification panel and then touch a notification. The Notification panel
closes and the corresponding app opens.
To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based notifications
are removed. Ongoing notifications remain in the list.
To close the Notification panel, swipe the Notification panel up.
Setting App Notifications
To set notification settings for a specific app:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Apps & notifications > Notifications > App notifications.
3. Select an app.
4. Select an available option:
• On / Off - Select to turn all notifications from this app On (default) or Off.
• Allow notification dot - Do not allow this app to add a notification dot to the app icon.
• Allow interruptions - Do not allow notifications from this app to make sound, vibrate, or pop
notifications on the screen.
• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is set to Priority
Only.
• Categories - Do not allow specific types of notifications from this app.
• Additional settings in the app - Open the app settings.
NOTE
:
To change the notification settings for an app, slide the notification slightly left or right and touch .
43
Using the Device
Viewing Notification Settings for All Apps
To view the notification settings for all apps:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Apps & Notifications.
3. Scroll down to Notifications to view how many apps have notifications turned off.
4. To set or view notifications settings for a specific app, see Setting App Notifications.
Controlling Lock Screen Notifications
To control whether notifications can be seen when the device is locked:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Apps & notifications > Notifications.
3. Touch On the lock screen and select one of the following:
• Show all notification content (default)
• Don’t show notifications at all.
Blink Light
The Notification LED lights blue when an app, such as email and VoIP, generates a programmable notification
or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled.
To change the notification setting:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Apps & notifications > Notifications.
3. Touch Blink light to toggle the notification on or off.
Quick Access Panel
Use the Quick Access panel to access frequently used settings (for example, Airplane mode).
Figure 27 Quick Settings Bar
To see the full Quick Access panel:
• If the device is locked, swipe down once.
• If the device is unlocked, swipe down once with two fingers, or twice with one finger.
• If the Quick Settings bar is open, touch the Down arrow.
44
Figure 28 Quick Access Panel
NOTE
:
Not all icons are pictured. Icons may vary.
To change a setting, touch the icon:
Using the Device
App Shortcuts and Widgets
App shortcuts placed on the Home screen allow quick and easy access to apps. Widgets are self-contained
apps placed on the Home screen to access frequently used features.
Adding an App Shortcut to the Home Screen
To add an app shortcut to the Home screen:
1. Go to the desired Home screen.
2. Swipe up from the bottom of the screen.
3. Scroll through the list to find the app icon.
4. Touch and hold the icon until the Home screen appears.
5. Position the icon on the screen and then release.
Adding a Widget to the Home Screen
To add a widget to the Home screen:
1. Go to the desired Home screen.
2. Touch and hold until the menu appears.
3. Touch WIDGETS.
4. Scroll through the list to find the widget.
5. Touch and hold the widget until the Home screen appears.
6. Position the widget on the screen and then release.
45
Using the Device
Title Area
Moving Items on the Home Screen
To move app shortcuts or widgets on the Home screen:
1. Touch and hold the item until it floats on the screen.
2. Drag the item to a new location. Pause at the edge of the screen to drag the item onto an adjacent Home
screen.
3. Lift finger to place the item on the Home screen.
Removing an App Shortcut or Widget from the Home Screen
To remove an app shortcut or widget from the Home screen:
1. Go to the desired Home screen.
2. Touch and hold the app shortcut or widget icon until it floats on the screen.
3. Drag the icon to
Folders
Use Folders to organize similar applications together. Tap the folder to open and display items in the folder.
Creating a Folder
There must be at least two app icons on the Home screen.
To create a folder:
1. Go to the desired Home screen.
2. Touch and hold one app icon.
3. Drag the icon and stack on top of another icon.
4. Lift and release.
Naming Folders
To name a folder:
1. Touch the folder.
X
Remove at the top of the screen and then release.
Figure 29 Open Folder
2. Touch the title area and enter a folder name using the keyboard.
46
Using the Device
3. Touch on the keyboard.
4. Touch anywhere on the Home screen to close the folder. The folder name appears under the folder.
Removing a Folder
To remove a folder:
1. Touch and hold the folder icon until it enlarges.
2. Drag the folder to
X
Remove and release.
Home Screen Wallpaper
To change the Home screen wallpaper:
1. Touch and hold the screen until the menu appears.
2. Touch WALLPAPERS.
3. Touch Photos or Gallery to select a photo or select one of the pre-installed wallpapers.
4. Touch Set wallpaper.
Using the Touchscreen
Use the multi-tap sensitive screen to operate the device.
• Tap - Tap to:
• Select items on the screen.
• Type letters and symbols using the on-screen keyboard.
• Press on-screen buttons.
• Tap and Hold - Tap and hold:
• An item on the Home screen to move it to a new location or to the trash.
• An item in Apps to create a shortcut on the Home screen.
• The Home screen to open a menu for customizing the Home screen.
• An empty area on the Home screen until the menu appears.
• Drag - Tap and hold an item for a moment and then move finger on the screen until reaching the new
position.
• Swipe - Move finger up and down or left and right on the screen to:
• Unlock the screen.
• View additional Home screens.
• View additional app icons in the Launcher window.
• View more information on an app’s screen.
• Double-tap - Tap twice on a web page, map, or other screen to zoom in and out.
• Pinch - In some apps, zoom in and out by placing two fingers on the screen and pinching them together (to
zoom out) or spreading them apart (to zoom in).
47
Using the Device
Using the Android and Gboard Keyboards
Use the Android or Gboard keyboards to enter text in a text field. To configure the keyboard settings, touch and
hold
,
(comma) and then select Android keyboard settings.
Editing Text
Edit entered text and use menu commands to cut, copy, and paste text within or across apps. Some apps do
not support editing some or all of the text they display; others may offer their own way to select text.
Entering Numbers, Symbols, and Special Characters
To enter numbers and symbols:
• Touch and hold one of the top-row keys until a menu appears then select a number or special character.
• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch the
Shift key a third time to unlock Capslock.
•Touch
• Touch the
?123
to switch to the numbers and symbols keyboard.
=\<
key on the numbers and symbols keyboard to view additional symbols.
Apps
To enter special characters, touch and hold a number or symbol key to open a menu of additional symbols. A
larger version of the key displays briefly over the keyboard.
The APPS screen displays icons for all installed apps. The table below lists the apps installed on the device.
Refer to the device Integrator Guide for Android Version 8.1 for information on installing and uninstalling apps.
Table 8 Apps
Icon Description
Battery Manager - Displays battery information, including charge level, status, health and wear
level.
Bluetooth Pairing Utility – Use to pair with the device by scanning a barcode.
Calculator - Provides the basic and scientific arithmetic functions.
Calendar - Use to manage events and appointments. GMS/GMS-Restricted only.
Calendar - Use to manage events and appointments. AOSP only.
Camera - Take photos or record videos. For more information see Camera.
48
Using the Device
Table 8 Apps (Continued)
Icon Description
Chrome - Use to access the Internet or intranet. GMS/GMS-Restricted only.
Chromium - Use to access the Internet or intranet. AOSP only.
Clock - Use to schedule alarms for appointments or as a wake-up.
Contacts - Use to manage contact information. See Contacts for more information.
DataWedge - Enables data capture using the imager.
Device Central - Use to display detailed information about the device and connected
peripherals. See Device Central for more information.
Diagnostic Tool - Use to diagnose the device.
Drive - Upload photos, videos, documents, and other files to personal storage site.
GMS/GMS-Restricted only.
Duo - A one-to-one video calling app (WWAN only). GMS/GMS-Restricted only.
DWDemo - Provides a way to demonstrate the data capture features using the imager. See
DataWedge Demonstration for more information.
Email - Use to send and receive email. AOSP only.
Files - Organize and manage files on the device. See Files for more information.
Gallery - Use to view photos stored on the . For more information, see Gallery for more
information. AOSP only.
Gmail - Use to send and receive email using a Google email account. GMS/GMS-Restricted
only.
49
Using the Device
Table 8 Apps (Continued)
Icon Description
Google - Launches Google ™ search app. GMS/GMS-Restricted only.
Hangouts - Use to communicate with friends using text messages and photos.
GMS/GMS-Restricted only.
Keep- Use to create, edit, and share notes. GMS/GMS-Restricted only.
License Manager - Use to manage software licenses on the device.
Maps - Use to see your location on a map (with public transit, traffic, or satellite overlays).
Search for any business or place of interest. Provides turn-by-turn navigation with voice
guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers, and users of
public transportation. GMS/GMS-Restricted only.
Music - Play music stored on the device, microSD card,or internal storage. AOSP only.
Notes - Use to take and save notes. AOSP only.
Phone - Use to dial a phone number when used with some Voice over IP (VoIP) clients (VoIP
telephony ready only).
Photos - Use to sync photos with Google account. For more information, see Photo Settings.
GMS/GMS-Restricted only.
Play Movies & TV - View movies and video on your device. GMS/GMS-Restricted only.
Play Music - Use to listen to music. GMS/GMS-Restricted only.
Play Store - Download music, movies, books, and Android apps and games from the Google
Play Store. GMS/GMS-Restricted only.
PTT Express - Use to launch PTT Express client for VoIP communication.
RxLogger - Use to diagnose device and app issues. See the device Integrator Guide for
Android Version 8.1 for more information.
50
Using the Device
Table 8 Apps (Continued)
Icon Description
RxLogger Utility - Use to view, backup, and archive RxLogger data.
Search - Use to search the Web. Requires an Internet connection. AOSP only.
Settings - Use to configure the device.
Sound Recorder - Use to record audio.
StageNow - Allows the device to stage a device for initial use by initiating the deployment of
settings, firmware, and software.
Velocity - Opens the Ivanti (formerly Wavelink) terminal emulation app.
Videos - Use to view videos on the device. AOSP only.
Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding area and
display network stats, such as coverage hole detection, or AP in vicinity. Refer to the Worry Free
Wi-Fi Analyzer Administrator Guide for Android.
YouTube - Use to view videos on the YouTube
Zebra Bluetooth - Use to configure Bluetooth logging.
Accessing Apps
All apps installed on the device are accessed using the APPS window.
1. On the Home screen, swipe up from the bottom of the screen.
™
web site. GMS/GMS-Restricted only.
Figure 30 APPS Window Example
51
Using the Device
Slide the APPS window up or down to view more app icons. Touch an icon to open the app.
Switching Between Recent Apps
To switch between recent apps:
1. Touch . A window appears on the screen with icons of recently used apps.
Figure 31 Recently Used Apps
2. Slide the apps displayed up and down to view all recently used apps.
3. Swipe left or right to remove app from the list and force close the app.
52
4. Touch an icon to open an app or touch to return to the current screen.
Un-Locking the Screen
Use the Lock screen to protect access to data on the device. Some email accounts require locking the screen.
Refer to the device Integrator Guide for information on setting up the locking feature.
When locked, a pattern, PIN, or password is required to unlock the device. Press the Power button to lock the
screen. The device also locks after a pre-defined time-out.
Press and release the Power button to wake the device. The Lock screen displays. Swipe the screen up to
unlock. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen.
If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.
Figure 32 Lock Screen
Using the Device
53
Figure 33 PIN Screen
Using the Device
Suspend Mode
The device goes into suspend mode when you press the button or after a period of inactivity .
To wake the device from Suspend mode, press the button. The Lock screen displays. Swipe the screen up to
unlock. If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen.
If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.
See Un-Locking the Screen.
NOTE
:
If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before trying again.
If you forget the PIN, password, or pattern contact your system administrator.
Interactive Sensor Technology
The device contains sensors that monitor movement, orientation and ambient light:
• Gyroscope - Measures angular rotational velocity to detect rotation of the device.
• Accelerometer - Measures the linear acceleration of movement to detect the orientation of the device.
• Light Sensor - Used to detect ambient light and adjust the screen brightness.
• Proximity Sensor - Uses to detect presence of nearby objects without physical contact.
54
In order to take advantage of these sensors, applications use API commands. Refer to the Zebra Android
EMDK for more information.
Resetting the Device
There are two reset functions:
• Soft reset
• Hard reset.
Performing a Soft Reset
Perform a soft reset if applications stop responding.
1. Press the power button until the menu appears.
2. Touch Restart.
3. The device reboots.
Using the Device
Performing a Hard Reset
CAUTION
To perform a hard reset, simultaneously press and hold the power button, trigger and PTT button for five
seconds. When the device reboots, release the buttons and trigger.
:
Perform a hard reset only if the device stops responding.
55
Applications
Introduction
This chapter describes the apps installed on the device.
Battery Manager
The Battery Manager provides detailed information about the battery.
To open Battery Manager, swipe up from the bottom of the Home screen and touch .
Figure 34 Battery Manager Screen
56
Table 9 Battery Icon Description
Applications
Battery
Icon
Battery charge level.
Battery charging.
Battery charge level is below 20%.
• Battery level - The current battery charge level as a percentage. Displays -% when level is unknown.
• Time until full - The amount of time until the battery is fully charged.
• Time since charging - The amount of time since the device began charging.
• Time until empty - The amount of time until the battery is empty.
• Battery status
• Not charging - The device is not charging.
• Charging over AC - The device is connected to AC power and charging.
• Charging over USB - The device is connected to a host computer with a USB cable and charging.
• Discharging - That the battery is discharging.
• Full - That the battery is fully charged.
• Unknown - The battery status is unknown.
Description
• Battery health - The health of the battery. If a critical error occurs, appears. Touch to view the error
description.
• Decommission - The battery is past its useful life and should be replaced. See system administrator.
• Good - The battery is good.
• Charge error - An error occurred while charging. See system administrator.
• Over Current - An over-current condition occurred. See system administrator.
• Dead - The battery has no charge. Replace the battery.
• Over Voltage - An over-voltage condition occurred. See system administrator.
• Below Temperature - The battery temperature is below the operating temperature. See system
administrator.
• Failure Detected - A failure has been detected in the battery. See system administrator.
• Unknown - See system administrator.
• Wear level - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color
changes to red.
57
Applications
• Advanced info - Touch to view additional battery information.
• Battery present status - Indicates that the battery is present.
• Battery level - The battery charge level as a percentage of scale.
• Battery scale - The battery scale level used to determine battery level (100).
• Battery voltage - The current battery voltage in millivolts.
• Battery temperature - The current battery temperature in degrees Centigrade.
• Battery technology - The type of battery.
• Battery current - The average current into or out of the battery over the last second in mAh.
• Battery manufacture date - The date of manufacture.
• Battery serial number - The battery serial number. The number matches the serial number printed on
the battery label.
• Battery part number - The battery part number.
• Battery rated capacity - Lists the rated capacity of the backup battery in mAh.
• Battery decommission status - Indicates if the battery is past its life span.
• Battery Good - The battery is in good health.
• Decommissioned Battery - The battery is past its useful life and should be replaced.
• Base cumulative charge - Cumulative charge using Zebra charging equipment only.
• App version - The application version number.
58
Camera
Camera Mode
Settings
Scene Mode
Shutter Button
Gallery
Color Effect
High Dynamic Range
This section provides information for taking photos and recording videos using the integrated digital cameras.
Taking Photos
NOTE
1. Swipe up from the bottom of the Home screen and touch Camera.
Figure 35 Camera Mode
Applications
:
See Photo Settings for camera setting descriptions.
2. If necessary, touch the Camera Mode icon and touch .
3. Frame the subject on the screen.
4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear
on the screen.
5. Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.
59
6. Touch .
Camera Mode
Settings
Audio
Shutter Button
Gallery
Color Effect
The camera takes a photo and a shutter sound plays.
The photo momentarily displays as a thumbnail in the lower left corner.
Recording Videos
1. Swipe up from the bottom of the Home screen and touch Camera.
2. Touch the camera mode menu and touch .
Figure 36 Video Mode
Applications
3. Point the camera and frame the scene.
4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear
on the screen.
5. Touch to start recording.
The video time remaining appears in the top left of the screen.
6. Touch to the end recording.
The video momentarily displays as a thumbnail in the lower left corner.
60

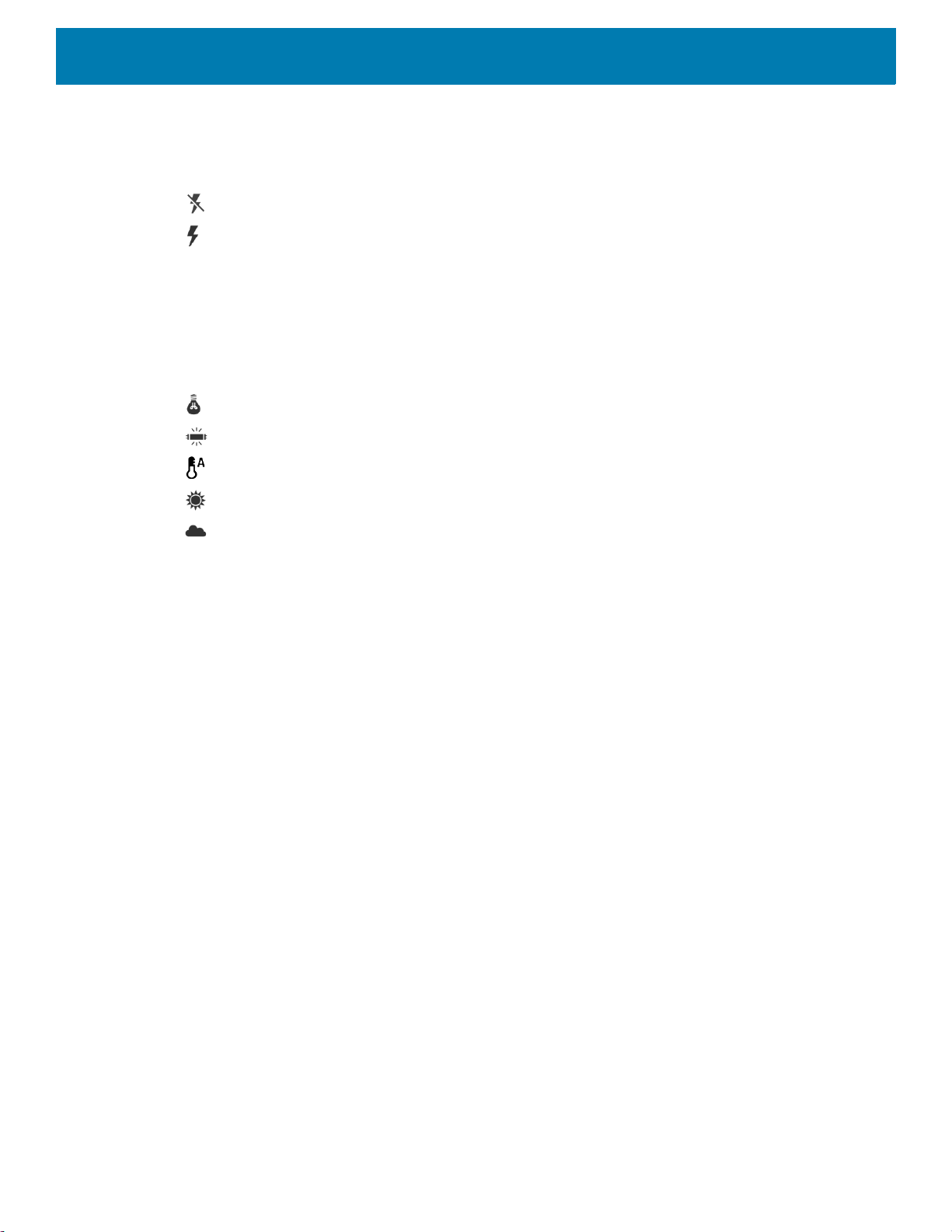

Photo Settings
In Photo mode, photo settings appear on screen. Touch to display the photo settings options.
Rear Camera
• Flash - Select whether the camera relies on its light meter to decide whether a flash is necessary, or to turn
it on or off for all shots.
• Off - Disable flash.
• Auto - Adjust flash automatically depending upon light meter (default).
• On - Enable flash upon taking a photo.
• Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M pixels,
HD 1080, 2M pixels, HD720, 1M pixels, WVGA, VGA, or QVGA.
• Picture quality - Set the picture quality setting to: Low, Standard (default) or High.
• Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.
• Storage – Set the location to store the photo to: Phone or SD Card.
• Face Detection - Select to turn face detection Off (default) or On.
• ISO - Set camera sensitivity to light to: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400, ISO800
or ISO1600.
• Exposure - Set the exposure settings to: +2, +1, 0(default),
• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors:
Applications
-1 or -2.
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
• Chroma Flash - Sets the camera to take two pictures, one with flash and one without flash. The two
images are combined to produce a final image with the sharpness and clarity and bright color tones from a
picture with the flash, coupled with the natural colors of a picture without a flash. Options: Off (default) or
On.
• Redeye reduction - Helps eliminate redeye effect. Options: Disabled (default), or Enable.
• ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled).
• Shutter Sound - Select to play a shutter sound when taking a photo. Options: Disable (default) or Enable.
• Anti Banding - Allows the camera to avoid problems caused by artificial light sources that are not constant.
These sources cycle (flicker) fast enough to go unnoticed to the human eye, appearing continuous. The
camera’s eye (its sensor) can still see this flicker. Options: Auto (default), 60 Hz, 50 Hz, or Off.
Video Settings
In Video mode, video settings appear on screen. Touch to display the video settings options.
61
Applications
Rear Camera
• Flash - Select whether Rear-facing Camera relies on its light meter to decide whether a flash is necessary,
or to turn it on or off for all shots.
• Off - Disable flash (default).
• On - Enable flash.
• Video quality - Set video quality to: 4k DCI, 4k UHD, HD 1080p (default), HD 720p, SD 480p, VGA, CIF,
or QVGA.
• Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).
• Storage – Set the location to store the photo to: Phone (default) or SD Card.
• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors.
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
• Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off (default).
62
Contacts
Use the Contacts app to manage contacts.
From a Home or Apps screen, touch Contacts to open to the main list of contacts. Contacts are listed in
alphabetical order. Swipe up or down to scroll through the list.
Adding a Contact
1. In the Contacts app, touch .
2. If there is more than one account with contacts, touch the one you want to use.
3. Type the contact’s name and other information. Touch a field to start typing, and swipe down to view all
categories.
4. To open a menu with preset labels, such as Home or Work for an email address, touch the label to the right
of the item of contact information. Or, to create your own label, touch Custom in the menu.
5. Touch the check mark next to Add New Contact.
Applications
Editing Contacts
1. In the Contacts app, touch a contact name to edit.
2. Touch .
3. Edit the contact information.
4. Touch SAVE.
Deleting Contacts
1. In the Contacts app, touch a contact name to delete.
2. Touch .
3. Touch Delete.
4. Touch DELETE to confirm.
63
DataWedge Demonstration
NOTE
:
DataWedge is on the Home screen.To this feature, go to the DataWedge settings and .
Use DataWedge Demonstration to demonstrate data capture functionality.
Figure 37 DataWedge Demonstration Window
Applications
Table 10 DataWedge Demonstration Icons
Icon Description
Illumination Imager illumination is on. Touch to turn illumination off.
Imager illumination is off. Touch to turn illumination on.
An RS507 or RS6000 Bluetooth imager is connected.
An RS507 or RS6000 Bluetooth imager is not connected.
Scan Mode Imager is in picklist mode. Touch to change to normal scan mode.
Imager is in normal scan mode. Touch to change to picklist mode.
Opens a menu to view the application information or to set the
application DataWedge profile.
64
Device Central
Device Central displays detailed information about the device and connected peripherals and supports the
following Zebra devices:
Device Central features include:
• Discovering and pairing with supported peripherals via Bluetooth or corded connection.
• Paging a connected RS6000 Ring Scanner.
• Displaying the connection status of peripherals.
• Displaying information for a connected peripheral in the notification bar.
Figure 38 Device Central Screen
Applications
1. Touch Get Info to read the cradle information.
Device Central Tabs
• Peripherals Tab - displays all currently connected and previously connected peripherals. Connected
peripherals display the length of time (in minutes) that they have been connected. When an RS6000 is
connected the Page button displays. See Paging an RS6000 Ring Scanner.
Touch the peripheral information to display the Device Details screen.
• Device Details - displays detailed device information for the selected peripheral.
• My Device Tab - displays information about the device and the current version of Device Central.
• Device Details - displays the Phone status screen.
• Device Battery Details - displays the Battery screen.
65
Figure 39 Peripherals Tab
Applications
Paging an RS6000 Ring Scanner
Use Page to easily locate the connected RS6000 Ring Scanner:
1. With the RS6000 Ring Scanner connected, swipe up from the bottom of the screen and touch .
NOTE
:
The RS6000 Ring Scanner must be within 10 m (32 ft) of the device.
2. Under the RS6000 peripheral information, touch Page to page the RS6000. The paged RS6000 beeps and
vibrates.
To stop paging, press the scan trigger of the RS6000. On a triggerless RS6000, reset the RS6000 to stop
paging. Refer to the RS6000 User Guide.
66
Diagnostic Tool
The Diagnostic Tool is a utility that determines the health of the device. Use the Diagnostic Tool to
troubleshoot the device.
1. Swipe up from the bottom of the Home screen and touch .
Figure 40 Diagnostic Tool
Applications
2. Touch RUN TEST. The app tests all enabled subsystems (by default, only the Battery and System tests).
See Settings to enable subsystem tests.
67
Figure 41 Test Passed Screen
Applications
Figure 42 Test Failed Screen
3. To view each subsystem test, touch Subsystem Tests.
68
Figure 43 Subsystem Screen
Applications
4. Touch one of the subsystems to view details.
Table 11 Subsystem Test Result Indicators
Status Icon Description
Test passed.
Test failed.
Test not supported or not enabled.
69
Figure 44 Battery Subsystem Details
Applications
Settings
By default only the Battery and System tests are enabled. To enable other tests:
1. Touch > Settings.
2. Touch to the left of the test name. A green box with a checkmark appears.
3. Touch SAVE.
4. Touch Yes to confirm.
5. Touch .
Battery Test Information
The Battery Test obtains the following information:
• Battery Level - Current battery charge level
• Battery Voltage - Current battery voltage
• Status - Whether the battery is charging (on AC power) or discharging (on battery power)
• Power Source - Whether the device is receiving power from the battery or from an external source
• Temperature - Current battery temperature
• Health Percentage - Indicates the ratio of present capacity to design capacity at a discharge rate of design
capacity.
• Backup Battery Voltage - Backup battery voltage.
• Manufacture Date - Manufacture date of the battery.
70
System Test Information
Use the System Test to determine if the CPU or memory loads are too high, there are too many processes
running on the device, or storage on the device is almost full.
The System Test obtains the following information:
• CPU Load - Amount of CPU being used
• Free Physical Memory - Amount of RAM available
• Free Storage - Amount of internal Flash memory available
• Process Count - Number of processes currently running.
WLAN Test Information
If the WiFi radio is not present or disabled, skip this test. This test determines if the device’s WLAN
configuration is correct or whether there is any connection with an access point or network.
The WLAN test obtains the following information:
• WLAN Enabled - WLAN radio is enabled or disabled
• WLAN Status - Current status of association with the access point
• ESSID - Name of the wireless network
• BSSID - MAC address of the connected access point
• MAC Address - Device’s MAC address
• Signal - Strength of the Wi-Fi signal (in dBm)
• IP Address - IP address of the device.
Applications
Bluetooth Test Information
The Bluetooth Test obtains the following information:
• Enabled - Whether the Bluetooth radio is enabled or disabled
• Status - Whether the device is paired to another Bluetooth device
• Connectable/Discoverable - Whether the device is discoverable or able to connect
• Address - Bluetooth radio MAC address
• Name - Bluetooth name for the device.
71
Files
Sort
Applications
Use the Files app to view and manage files on the device.
To open Files, swipe up from the bottom of the screen and touch .
Figure 45 Files Screen
• Touch and hold an item to open the File Operations menu. Select an option:
• - Share the file with other devices.
• - Delete the file.
• - View additional options.
• Open with - Select which app is used to open the file.
• Select all - Select all folders and files.
• Copy to... - Copy the file.
• Move to... - Move the file or folder to a new location.
• Compress - Compress the selected file(s) into a ZIP file.
• Rename - Rename the file.
• Touch the Sort drop-down to sort files by name, type, size, or date.
• - View all file locations.
• - Search for a specific file on the device.
• / - Change the folder to display items as a list / grid.
• - Open the options menu.
• New Window - Create a new Files window.
• New Folder - Create a new folder.
• Select all - Select all folders and files.
• Show/Hide internal storage - Show or hide internal storage.
72
Gallery
Applications
NOTE
:
The device supports the following image formats: jpeg, gif, png and bmp.
The device supports the following video formats: H.263, H.264 and MPEG4 Simple Profile.
Available on device with AOSP only.
Use Gallery to:
• View photos
• Play videos
• Perform basic editing of photos
• Set photos as wallpaper
• Set photos as a contact photo
• Share photos and videos.
Gallery presents all photos and videos stored on the internal memory.
To open Gallery, swipe up from the bottom of the Home screen and touch Gallery, or in the camera app touch
the thumbnail image at the bottom left.
By default, Gallery opens to the Timeline view.
Figure 46 Gallery - Timeline View
Touch > Albums to view photos sorted by albums or > Videos to view only videos.
73
Figure 47 Gallery — Albums View
Applications
• Touch an album to open it and view its contents. The photos and videos in the album are displayed in
chronological order.
• Touch a photo or video in an album to view it.
•Touch > Timeline to return to the default Gallery screen.
Working with Albums
Albums are groups of images and videos in folders. Touch an album to open it. The photos and videos are
listed in a chronologically ordered grid. The name of the album displays at the top of the screen.
74
Figure 48 Photos Inside an Album
Applications
Swipe up or down to scroll through the images.
Sharing an Album
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch and hold an album to highlight it.
3. Touch other albums as required.
4. Touch . The Share menu opens.
5. Touch the app to use to share the selected albums.
6. Follow the instructions within the selected app.
Getting Album Information
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch and hold an album to highlight it.
3. Touch .
4. Touch Details.
Deleting an Album
To delete an album and its contents:
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch and hold an album to highlight it.
3. Check other albums to delete.
75
4. Touch .
5. In the Delete selected item? menu, touch OK to delete the album.
Working with Photos
Use Gallery to view photos on the device and edit and share photos.
Viewing and Browsing Photos
To view a photo:
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
3. Touch a photo.
Figure 49 Photo Example
Applications
4. Swipe left or right to view the next or previous photo in the album.
5. Turn the device to view the photo in upright (portrait) or sideways (landscape) orientation. The photo is
displayed (but not saved) in the new orientation.
6. Touch the photo to view the controls.
7. Double-tap the screen to zoom in or pinch two fingers together or spread them apart to zoom in or out.
8. Drag the photo to view parts that are not in view.
Cropping a Photo
1. In Gallery, touch a photo to view the controls.
76
Applications
2. Touch > > . The cropping tool appears.
3. Use the cropping tool to select the portion of the photo to crop.
• Drag from the inside of the cropping tool to move it.
• Drag an edge of the cropping tool to resize it to any proportion.
Figure 50 Cropping Tool
4. Touch > SAVE to save a copy of the cropped photo. The original version is retained.
Setting a Photo as a Contact Icon
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
3. Touch a photo to open it.
4. Touch .
5. Touch Set picture as.
6. Touch Contact photo.
7. In Contacts, touch a contact.
8. Touch the white box and crop the photo accordingly.
9. Touch SAVE.
Sharing a Photo
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
77
3. Touch a photo to open it.
4. Touch .
5. Touch the app to use to share the selected photo.
6. Follow the instructions within the selected app.
Deleting a Photo
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
3. Touch a photo to open it.
4. Touch .
5. Touch OK to delete the photo.
Working with Videos
Use Gallery to view and share videos.
Applications
Watching Videos
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
3. Touch a video.
4. Touch to play.
5. Touch the screen to view the playback controls.
Sharing a Video
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
3. Touch a video to open it.
4. Touch . The Share menu appears.
5. Touch the app to use to share the selected video.
6. Follow the instructions within the selected app.
Deleting a Video
1. Swipe up from the bottom of the Home screen and touch Gallery.
2. Touch an album to open it.
3. Touch a video to open it.
4. Touch .
5. Touch OK.
78
Photos
Applications
NOTE
:
The device supports the following image formats: jpeg, gif, png, and bmp.
The device supports the following video formats: H.263, H.264, and MPEG4 Simple Profile.
Available on device with GMS only.
Use Photos to:
• View photos
• Play videos
• Perform basic editing of photos
• Set photos as wallpaper
• Set photos as a contact photo
• Share photos and videos.
Photos presents all photos and videos stored on the internal memory.
To open Photos, swipe up from the bottom of the Home screen and touch Photos.
By default, Photos opens to the photos view.
Figure 51 Photos View
Touch Albums to view photos sorted by albums.
79
Figure 52 Albums View
Applications
• Touch an album to view its contents. The photos and videos in the album appear in chronological order.
• Touch a photo or video in an album to view it.
• Touch to return to the main screen.
Working with Albums
Albums are groups of images and videos in folders. Touch an album to open it. The photos and videos are
listed in a chronologically ordered grid. The name of the album displays at the top of the screen.
80
Figure 53 Photos Inside an Album
Applications
Swipe up to scroll through the images.
Sharing an Album
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch Albums.
3. Touch an album.
4. Touch > Select.
5. Select all photos in the album.
6. Touch . The Share menu opens.
7. Touch an app to share the selected albums.
8. Follow the instructions within the selected app.
Deleting an Album
To delete an album and its contents:
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch Albums.
3. Touch an album.
4. Touch > Select.
5. Select all photos in the album.
6. Touch .
81
7. Touch Move to trash to delete the album.
Working with Photos
Use Photos to view photos on the internal memory.
Viewing and Browsing Photos
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch a photo.
Figure 54 Photo Example
Applications
3. Swipe left or right to view the next or previous photo in the album.
4. Turn the device to view the photo in upright (portrait) or sideways (landscape) orientation. The photo is
displayed (but not saved) in the new orientation.
5. Touch the photo to view the controls.
6. Double-tap the screen to zoom in, or pinch two fingers together or spread them apart to zoom in or out.
7. Drag the photo to view parts that are not in view.
Cropping a Photo
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch a photo to view the controls.
3. Touch > . The cropping tool appears.
82
Figure 55 Cropping Tool
Applications
4. Use the cropping tool to select the portion of the photo to crop.
• Drag from the inside of the cropping area to move it.
• Drag an edge of the cropping area to resize it to any proportion.
5. Touch DONE.
6. Touch SAVE to save a copy of the cropped photo. The original version is retained.
Setting a Photo as a Contact Icon
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch the photo to open it.
3. Touch > Use as.
4. Touch Contact photo.
5. In the Contacts app, touch a contact.
6. Touch the white box and crop the photo accordingly.
7. Touch Done.
Sharing a Photo
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch an album to open it.
3. Touch a photo to open it.
4. Touch .
83
5. Touch the app to use to share the selected photo.
6. Follow the instructions within the selected app.
Deleting a Photo
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch a photo to open it.
3. Touch .
4. Touch MOVE TO TRASH.
Working with Videos
Use Photos to view and share videos.
Watching a Video
1. Swipe up from the bottom of the Home screen and touch Photos.
Applications
2. Touch a video to play.
3. Touch the screen to view the playback controls.
Sharing a Video
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch a video to open it.
3. Touch . The Share menu appears.
4. Touch the app to use to share the selected video.
5. Follow the instructions within the selected app.
Deleting a Video
1. Swipe up from the bottom of the Home screen and touch Photos.
2. Touch a video to open it.
3. Touch .
4. Touch MOVE TO TRASH to delete the video.
84
Print Station
Use the Print Station application to print labels and receipts directly to a Zebra ZPL printer via USB, Bluetooth
or WLAN.
Features include:
• Discovering and pairing with Zebra printers via a Bluetooth, WLAN or USB connection.
• Retrieving and displaying a list of document templates stored on the device and on the printer.
• Using document templates to generate on-screen prompts allowing data entry at print time.
• Using the camera on the device to scan bar codes for data entry.
• Supports multiple Zebra printer models using the ZPL command language.
Applications
85
PTT Express Voice Client
NOTE
:
PTT Express Voice Client enables Push-To-Talk (PTT) communication between disparate enterprise devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers simple PTT communication
without requiring voice communication server.
• Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.
• Private Response: Double-press the PTT button to respond to the originator of the last broadcast or to
make a Private Response.
PTT Audible Indicators
The following tones provide helpful cues when using the voice client.
• Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for you to start talking.
• Access Tone: Single beep. Plays when another user just finished a broadcast or response. You can now
initiate a Group Broadcast or Private Response.
• Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already
communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60 seconds).
• Network Tone:
• Three increasing pitch beeps. Plays when PTT Express acquires the WLAN connection and the service
is enabled.
• Three decreasing pitch beeps. Plays when PTT Express loses the WLAN connection or the service is
disabled.
Applications
PTT Notification Icons
Notification icons indicate the current state of the PTT Express Voice client.
Table 12 PTT Express Icon Descriptions
Status Icon Description
The PTT Express Voice client is disabled.
The PTT Express Voice client is enabled but not connected to a WLAN.
The PTT Express Voice client is enabled, connected to a WLAN, and listening on the Talk
Group indicated by the number next to the icon.
The PTT Express Voice client is enabled, connected to a WLAN, and communicating on the
Talk Group indicated by the number next to the icon.
The PTT Express Voice client is enabled, connected to a WLAN, and in a private response.
86
Table 12 PTT Express Icon Descriptions (Continued)
Status Icon Description
The PTT Express Voice client is enabled and muted.
The PTT Express Voice client is enabled but it is not able to communicate due to a VoIP
telephony call in progress.
Enabling PTT Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the ON position. The button changes to ON.
Selecting a Talk Group
One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be enabled
at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.
Applications
PTT Communication
NOTE
:
This section describes the default PTT Express client configuration. Refer to the PTT Express V1.2 User Guide for
detailed information on using the client.
Creating a Group Call
1. Start talking after hearing the talk tone.
NOTE
:
Holding the button for more than 60 seconds (default) drops the call, allowing others to make Group calls. Release
the button when finished talking to allow others to make calls.
Responding with a Private Response
The Private Response can only be initiated once a Group Call has been established. The initial Private
Response is made to the originator of the Group Call.
1. Wait for an access tone.
2. Within 10 seconds, double-press the PTT button, and listen for the talk tone.
3. If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure that
PTT Express and the WLAN are enabled.
4. Start talking after the talk tone plays.
5. Release the button when finished talking.
Disabling PTT Express Voice Client Communication
1. Swipe up from the bottom of the Home screen and touch .
87
Applications
2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.
3. Touch .
88
RxLogger
RxLogger is a comprehensive diagnostic tool that provides app and system metrics. Create custom plug-ins
that work seamlessly with this tool. RxLogger diagnoses device and application issues, and tracks information
for: CPU load, memory load, memory snapshots, battery consumption, power states, wireless logging, TCP
dumps, Bluetooth logging, GPS logging, logcat, ANR dumps, etc. All logs and files generated are saved in
flash storage on the device (internal or external).
Figure 56 RxLogger
Applications
RxLogger Configuration
RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plug-ins
already built-in. The included plug-ins are described below.
89
Applications
To open the configuration screen, from the RxLogger home screen touch Settings.
Figure 57 RxLogger Configuration Screen
Configuration File
RxLogger configuration can be set using an XML file. The
RxLogger\config
configuration file and then replace the XML file on the device. There is no need to stop and restart the
RxLogger service since the file change is automatically detected.
Enabling Logging
To enable logging:
1. Swipe the screen up and select .
2. Touch Start.
3. Touch .
Disabling Logging
To disable logging:
1. Swipe the screen up and select .
2. Touch Stop.
config.xml
folder. Copy the file from the device to a host computer using a USB connection. Edit the
configuration file is located in the
3. Touch .
90
Extracting Log Files
1. Connect the device to a host computer using an USB connection.
Applications
2. Using a file explorer, navigate to the
3. Copy the file from the device to the host computer.
4. Disconnect the device from the host computer.
RxLogger
folder.
91
RxLogger Utility
RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running.
Access the logs and RxLogger Utility features in the App View or the Overlay View.
In the App View, view logs in the RxLogger Utility.
Figure 58 RxLogger Utility App View
Applications
Refer to the device Integrator Guide for detailed information on the RxLogger Utility.
Sound Recorder
Use Sound Recorder to record audio messages.
Recordings are saved on the internal storage and are available in the Play Music application (GMS devices).
92
Figure 59 Sound Recorder Application
Applications
93
Velocity
Velocity transforms the traditional green screen telnet application into a modern smart device application. It
accomplishes all of this without modifying the host application, offering workers a familiar experience optimized
for today’s touch screen mobile computers.
To open Velocity, swipe up from the Home screen and touch .
• Access the context menu for quick access to function or control keys.
• Access the Velocity menu for starting new sessions or switching between green and reformatted screens.
Refer to the Velocity user guide for more information. Goto
http://download.wavelink.com/Files/Velocity-qsg-28042016.pdf
Scanner Setup in Velocity
Use the Velocity console to configure any of the supported SSI scanners.
Applications
94
Data Capture
Charging/Scan LED
Introduction
NOTE
:
Not available on all configurations
The device has the following data capture options:
• integrated SE965 Standard Range Laser
• integrated SE4770-Standard Range Imager
• integrated SE4850 Extended Range Imager
• integrated digital camera
• optional RS507 Hands-Free Imager.
NOTE
:
By default, the good decode beep is set to system volume (Notifications). The good decode beep can be set to another sound (Ringer, Music and Media or Alarms) and the volume can be independently controlled. See the DataWedge
section in the TC8300 Integrator Guide for more information.
Status LED
The Charging/Scan LED indicates data capture status. The LED lights green when a bar code is successfully
decoded.

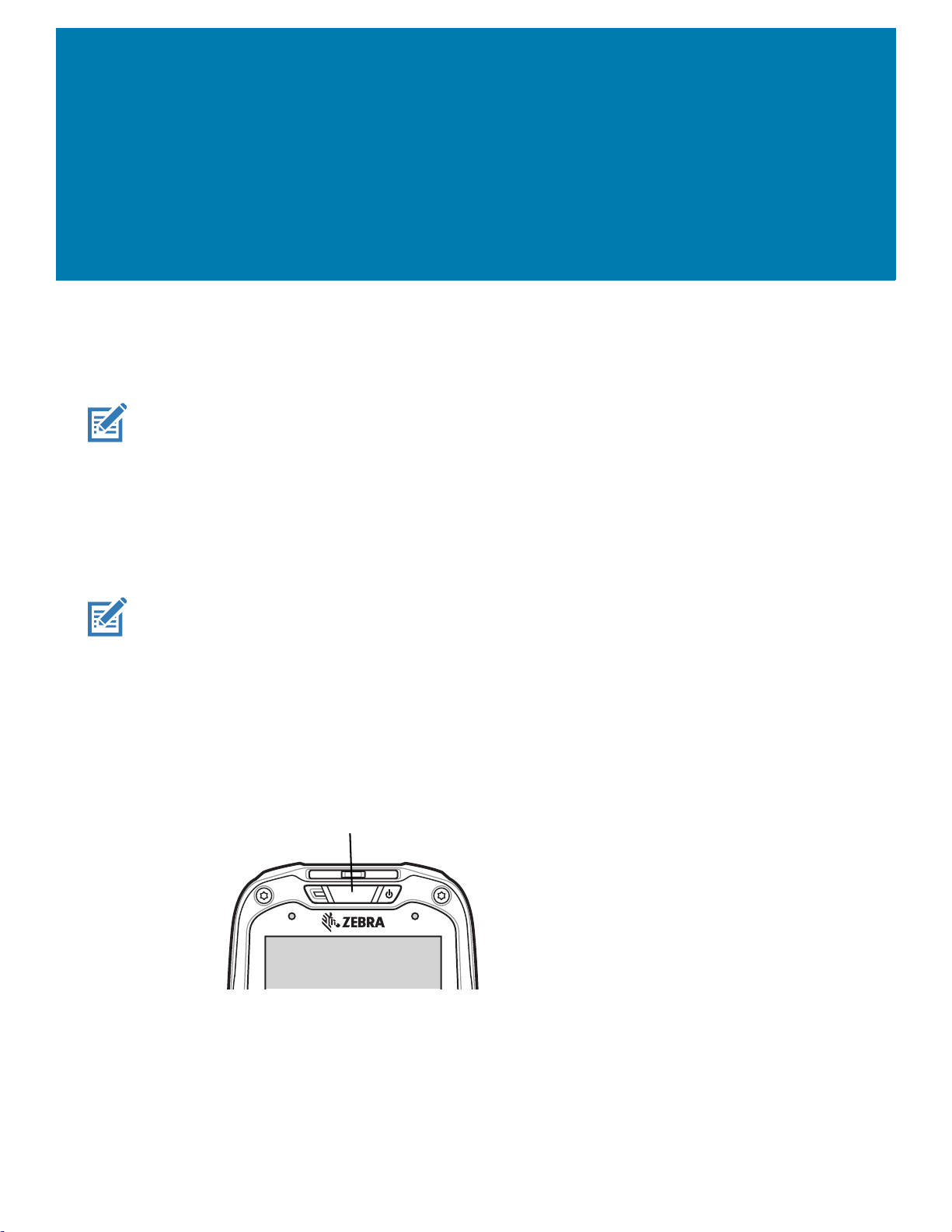

Figure 60 Charging/Scan LED
Laser Scanning
The device with laser scanner has the following features:
• Reading of a variety of bar code symbologies, including the most popular linear, postal, and 1-D code
types.
95
• Intuitive aiming for easy point-and-shoot operation.
Imaging
The device with an integrated imager has the following features:
• Omnidirectional (360°) reading of a variety of bar code symbologies, including the most popular linear,
postal, PDF417, and 2D matrix code types.
• The ability to capture and download images to a host for a variety of imaging applications.
• Advanced intuitive laser aiming for easy point-and-shoot operation.
The imager uses digital camera technology to take a digital picture of a bar code, stores the resulting image in
its memory, and executes state-of-the-art software decoding algorithms to extract the data from the image.
Operational Modes
The device with an integrated imager supports two modes of operation, listed below. Activate each mode
pressing the Scan button.
• Decode Mode: In this mode, the device attempts to locate and decode enabled bar codes within its field of
view. The imager remains in this mode as long as you hold the scan button, or until it decodes a bar code.
• Pick List Mode: This mode allows the user to selectively decode a bar code when more than one bar code
is in the device’s field of view. To accomplish this, move the aiming crosshair or center dot over the required
bar code to decode only this bar code. This feature is ideal for pick lists containing multiple bar codes and
manufacturing or transport labels containing more than one bar code type (either 1D or 2D).
Data Capture
NOTE
:
To enable Pick List Mode, configure in DataWedge or set in an application using a API command.
Digital Camera
The device with an integrated camera based bar code scanning solution has the following features:
• Omnidirectional reading of a variety of bar code symbologies, including the most popular linear, postal, QR,
PDF417, and 2D matrix code types.
• Cross-hair reticle for easy point-and-shoot operation.
• Picklist mode to decode a particular bar code from many in the field of view.
The solution uses the advanced camera technology to take a digital picture of a bar code, and executes
state-of-the-art software decoding algorithms to extract the data from the image.
Scanning Considerations
Scanning consists of; aim, scan and decode. Scanning performance can be optimized by considering the
range and the scanning angle:
• Range
Any scanning device decodes well over a particular working range (minimum and maximum distances from
the bar code). This range varies according to bar code density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the bar codes being
scanned. However, the situation is complicated by the availability of various integrated scanning modules.
The best way to specify the appropriate working range per bar code density is through a chart called a
96
Data Capture
decode zone for each scan module. A decode zone simply plots working range as a function of minimum
element widths of bar code symbols.
•Angle
The scan angle is important for optimizing decode performance. When laser beams reflect directly back into
the scanner from the bar code, this specular reflection can “blind” the scanner.
To avoid this, scan the bar code so that the beam does not bounce directly back. But do not scan at too
sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful
decode. Practice quickly shows what tolerances to work within.
NOTE
:
Contact the Zebra Support if chronic scanning difficulties develop. Decoding of properly printed bar codes should be
quick and effortless.
Bar Code Capture with Laser Scanner
To read a bar code, a scan-enabled application is required. The device contains the DataWedge application
that allows the user to enable the scanner to decode bar code data and display the bar code content. See
DataWedge on page 8-107 for information on enabling DataWedge.
1. Launch a scanning application.
2. Point the exit window at a bar code.
Figure 61 Laser Scanning
3. Press the trigger button. Ensure the red scan beam covers the entire bar code. The Charging/Scan LED
Indicators illuminate green and a beep sounds to indicate a successful decode.
97
Figure 62 Laser Aiming
4. Release the trigger or scan button.
Bar Code Capture with Imager
To read a bar code, a scan-enabled application is required. The device contains the DataWedge application
that allows the user to enable the scanner to decode bar code data and display the bar code content. See
DataWedge on page 107 for more information on launching DataWedge.
Data Capture
1. Launch a scanning application.
2. Point the exit window at a bar code.
3. Press the trigger button.
Figure 63 Imager Scanning
4. Ensure the red scan beam covers the entire bar code. The Charging/Scan LED Indicators illuminate green
and a beep sounds to indicate a successful decode.
98
Data Capture
Figure 64 Imager Aiming Pattern - Standard Range
Figure 65 Imager Aiming Pattern - Extended Range
Figure 66 Imager Pick List Mode with Multiple Bar Codes - Standard Range
Figure 67 Imager Pick List Mode with Multiple Bar Codes - Extended Range
5. Release the trigger.
99
Bar Code Capture with Camera
To read a bar code, a scan-enabled application is required. The device contains the DataWedge application
that allows the user to enable the scanner to decode bar code data and display the bar code content. See
DataWedge on page 8-107 for more information on launching DataWedge.
1. Launch a scanning application.
2. Point the camera window at a bar code.
3. Press and hold the trigger. By default, a preview window appears on the screen.
Figure 68 Camera Scanning
Data Capture
NOTE
:
When Picklist mode is enabled, move the
4. Move the device until the bar code is visible on the screen.
5. The Decode LED lights green, a beep sounds and the device vibrates, by default, to indicate the bar code
was decoded successfully.
6. The captured data appears in the text field.
7. Release the trigger.
device
until the bar code is centered under the red target on the screen.
Bar Code Capture with RS507 Hands-Free Imager
Pair the RS507 with the device. See Pairing the RS507 Hands-Free Imager Using SSI on page 8-102 or
Pairing the RS507 Hands-Free Imager Using Bluetooth HID on page 8-102 for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507 at a bar code.
100
