Publication Date
October 27, 2021
2
Contents
About this Guide............................................................................................................................... 12
3.5 mm Audio Cable Technical Specifications ..................................................... 173
Index ................................................................................................................................................ 174
11
About this Guide
Introduction
This guide provides information about using the device and accessories.
NOTE: Screens and windows pictured in this guide are samples and can differ from actual screens.
Configurations
The TC8300 includes standard, condensation resistant, and premium configurations.
Table 1 Configurations
RadiosData CaptureMemoryOSSensorsAppsVibration
Configuration
Base
TC83B0-A005A
510NA
TC83B0-2005A
510NA
TC83B0-3005A
510NA
TC83B0-6005A
510NA
TC83B0-A005A
510RW
TC83B0-2005A
510RW
NFC
Bluetooth 5.0
802.11 a/b/g/n/ac
xxxx xx xxxx
xxxx xx xxxx
xxxxx xxx xx
xxxx xx xxxx
xxxx xx xxxx
xxxx xx xxxx
SE965 Laser Engine
SE4750-DP Imager
SE4750-MR Imager
SE4750-DPA Imager
SE4770-SR Imager
13 MP Camera
SE4850 Imager
4” WVGA Color
4G RAM/32 GB Flash
V8.1.0
AndroidGMS
8G RAM/128 GB Flash
Accelerometer
Proximity Sensor
Gyroscope
Magnet
ATTE
Scan
Touchscreen
12
Table 1 Configurations
RadiosData CaptureMemoryOSSensorsAppsVibration
Configuration
802.11 a/b/g/n/ac
TC83B0-3005A
xxxxx xxx xx
510RW
TC83B0-6005A
xxxx xx xxxx
510RW
About this Guide
NFC
Bluetooth 5.0
SE4750-DP Imager
SE4750-MR Imager
SE965 Laser Engine
SE4770-SR Imager
SE4750-DPA Imager
13 MP Camera
SE4850 Imager
4” WVGA Color
4G RAM/32 GB Flash
8G RAM/128 GB Flash
AndroidGMS
V8.1.0
Accelerometer
Gyroscope
Proximity Sensor
Magnet
ATTE
Scan
Touchscreen
TC83B0-2005A
xxxx xx xxxx
510CN
TC83B0-3005A
xxxxx xxx xx
510CN
TC83B0-6005A
xxxx xx xxxx
510CN
TC83B0-2005A
xxxx xx xxxx
510IN
TC83B0-3005A
xxxxx xxx xx
510IN
TC83B0-6005A
xxxx xx xxxx
510IN
Condensation Resistant
TC83B0-2005A
xxxx xx xxxx x
61CNA
TC83B0-3005A
xxxxx xxx xxx
61CNA
TC83B0-6005A
xxxx xx xxxx x
61CNA
TC83B0-2005A
xxxx xx xxxx x
61CRW
TC83B0-3005A
61CRW
TC83B0-6005A
61CRW
TC83B0-2005A
61CCN
TC83B0-3005A
61CCN
TC83B0-2005A
61CIN
xxxxx xxx xxx
xxxx xx xxxx x
xxxx xx xxxx x
xxxxx xxx xxx
xxxx xx xxxx x
13
Table 1 Configurations
RadiosData CaptureMemoryOSSensorsAppsVibration
Configuration
802.11 a/b/g/n/ac
TC83B0-3005A
xxxxx xxx xxx
61CIN
Package 1
About this Guide
NFC
Bluetooth 5.0
SE4750-DP Imager
SE4750-MR Imager
SE965 Laser Engine
SE4770-SR Imager
SE4750-DPA Imager
13 MP Camera
SE4850 Imager
4” WVGA Color
4G RAM/32 GB Flash
8G RAM/128 GB Flash
AndroidGMS
V8.1.0
Accelerometer
Gyroscope
Proximity Sensor
Magnet
ATTE
Scan
Touchscreen
TC83BH-2205A
xxxxxx xx xxxx x x x
710NA
TC83BH-3205A
xxxxxx xx xxxx x x x
710NA
TC83BH-6205A
xxxxxx xx xxxx x x x
710NA
TC83BH-2205A
xxxxxx xx xxxx x x x
710RW
TC83BH-3205A
xxxxxx xx xxxx x x x
710RW
TC83BH-6205A
xxxxxx xx xxxx x x x
710RW
TC83BH-2205A
xxxxxx xx xxxx x x x
710CN
TC83BH-3205A
xxxxxx xx xxxx x x x
710CN
TC83BH-2205A
xxxxxx xx xxxx x x x
710IN
TC83BH-3205A
xxxxxx xx xxxx x x x
710IN
Package 2 High Memory
TC83BH-2206A
710NA
TC83BH-3206A
710NA
TC83BH-6206A
710NA
TC83BH-6206A
710RW
TC83BH-2206A
710RW
TC83BH-3206A
710RW
xxxxxxx x xxxx x x x
xxxxxxx x xxxx x x x
xxxxxxx x xxxx x x x
xxxxxxx x xxxx x x x
xxxxxxx x xxxx x x x
xxxxxxx x xxxx x x x
14
Table 1 Configurations
RadiosData CaptureMemoryOSSensorsAppsVibration
Configuration
802.11 a/b/g/n/ac
DPM
About this Guide
NFC
Bluetooth 5.0
SE4750-DP Imager
SE4750-MR Imager
SE965 Laser Engine
SE4770-SR Imager
SE4750-DPA Imager
13 MP Camera
SE4850 Imager
4” WVGA Color
4G RAM/32 GB Flash
8G RAM/128 GB Flash
AndroidGMS
V8.1.0
Accelerometer
Gyroscope
Proximity Sensor
Magnet
ATTE
Scan
Touchscreen
TC83B0-4005A
610NA
TC83B0-4005A
610RW
TC83B0-4005A
610CN
TC83B0-5005A
610NA
TC83B0-5005A
610RW
TC83B0-5005A
610CN
TC83B0-4005A
610IN
TC83B0-5005A
610IN
TAA
TC83B0-2005A
510TA
TC83B0-3005A
510TA
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x x
xxxx xx xxx x
xxxxx xxx xx
TC83B0-6005A
xxxx xx xxx x
510TA
TC83BH-6205A
xxxxxx xx xxxx x x x
710TA
TC83BH-2205A
xxxxxx xx xxxx x x x
710TA
TC83BH-3205A
xxxxxx xx xxxx x x x
710TA
Notational Conventions
Notationalconventions are used to highlight important information.
•Bold text is used to highlight the following:
15
•Dialog box, window and screen names
•Drop-down list and list box names
•Check box and radio button names
•Icons on a screen
•Key names on a keypad
•Button names on a screen.
•Bullets (•) indicate:
•Action items
•Lists of alternatives
•Lists of required steps that are not necessarily sequential.
•Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.
Icon Conventions
The following icons are used throughout the document. The icons and their associated meanings are
described below.
About this Guide
NOTE: The text here indicates information that is supplemental for the user to know and that is not
required to complete a task.
IMPORTANT: The text here indicates information that is important for the user to know.
CAUTION: If the precaution is not heeded, the user could receive minor or moderate injury.
WARNING: If danger is not avoided, the user CAN be seriously injured or killed.
DANGER: If danger is not avoided, the user WILL be seriously injured or killed.
Service Information
If you have a problem with your equipment, contact Customer Support for your region. Contact information
is available at: zebra.com/support
When contacting support, please have the following information available:
•Serial number of the unit (found on manufacturing label)
•Model number or product name (found on manufacturing label)
.
•Software type and version number
Customer Support responds to calls by email or telephone within the time limits set forth in support
agreements.
If the problem cannot be solved by Customer Support, the user may need to return the equipment for
servicing and will be given specific directions. We are not responsible for any damages incurred during
shipment if the approved shipping container is not used. Shipping the units improperly can possibly void
the warranty. Remove the microSD card from the device before shipping for service.
16
About this Guide
If the device was purchased from a business partner, contact that business partner for support.
Determining Software Versions
Before contacting Customer Support, determine the current software version on your device.

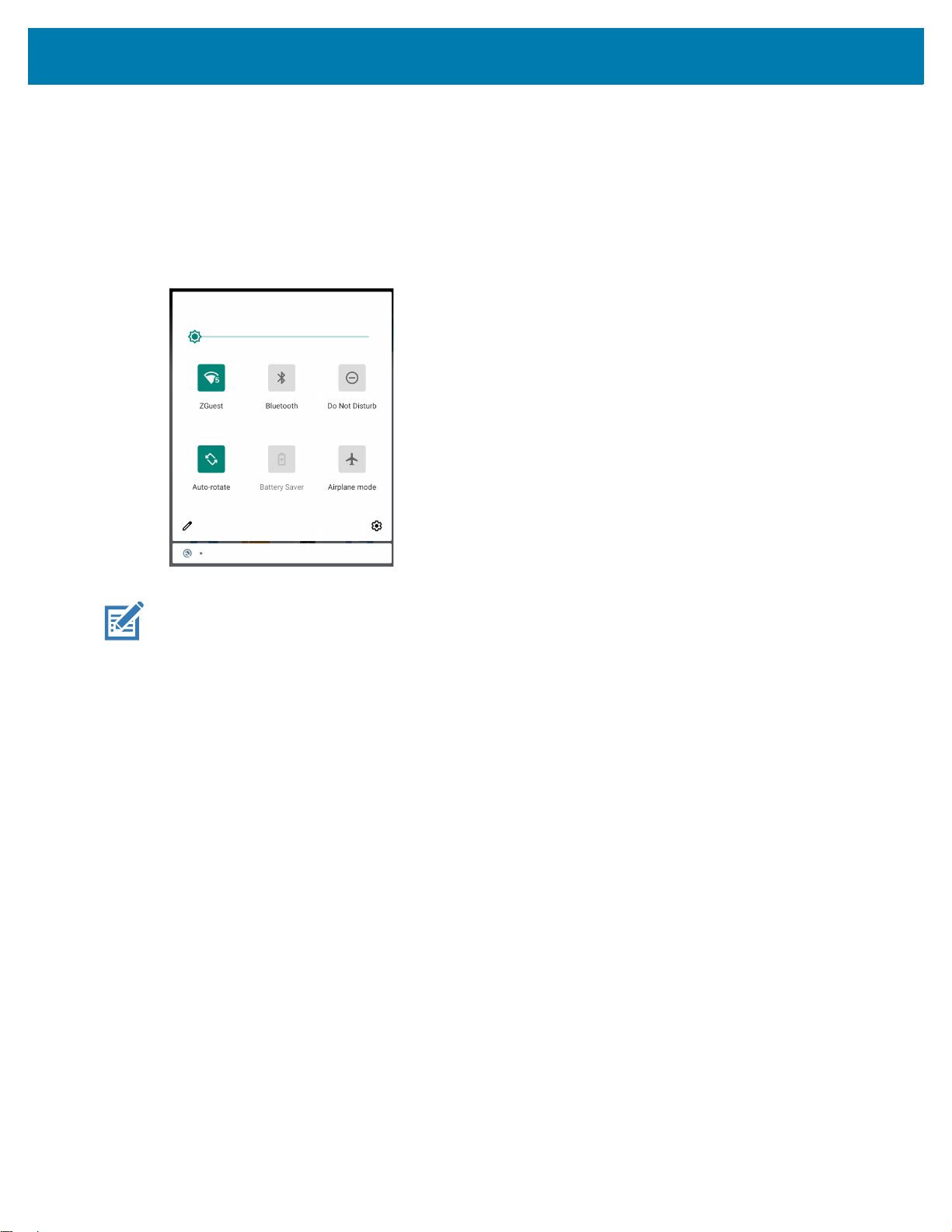

1. Swipe down from the Status bar with two fingers to open the Quick Access panel, and then touch .
2. Touch About phone.
3. Scroll to view the following information:
•Status
•Battery information
•SW components
•Legal information
•Android security patch level
•Build Fingerprint
Determining the Serial Number
Before contacting Customer Support, determine the serial number of your device.
Touch About phone > Status > Serial number.
17
Getting Started
Introduction
This chapter describes the features of the device and explains how to install and charge the battery and
how to reset the device.
Unpacking
Carefully remove all protective material from the device and save the shipping container for later storage
and shipping.
Verify that box contains all the equipment listed below:
•TC8300
•Battery
•Regulatory Guide.
Inspect the equipment for damage. If you are missing any equipment or if you find any damaged
equipment, contact Support immediately. See Service Information on page 16 for contact information.
Removing the Screen Protective Film
A screen protection film is applied to the device’s screen to protect the screen during shipping. To remove
the screen protector, carefully lift the thin film off the display.
18
Features
5
7
4
9
1
3
8
6
2
121110
Getting Started
Figure 1 Front View
1Charging/Scan LEDIndicates battery charging status while charging, good decode indication during data
capture and application generated notifications.
2Power ButtonTurns the display on and off. Press and hold to reset the device and power off.
3Blue Indication LEDUser programmable LED.
4DisplayDisplays all information needed to operate the device.
5Programmable
Press to select items.
Button
6Hand Strap
Use for installing the optional hand strap.
Mounting Point
7SpeakersProvides audio output for video and music playback.
8Ambient Light
Determines ambient light for controlling display backlight intensity.
Sensor
9MicrophoneUse for communication in Headset mode.
19
Getting Started
13
14
16
17
19
20
21
18
15
15
20
22
StandardDPM
16
15
15
20
20
17
19
18
10Volume Up ButtonIncreases audio volume (programmable).
11Interface ConnectorProvides USB host and client communication, audio and device charging via cables
and accessories.
12Volume Down
Button
Figure 2 Back View
Decreases audio volume (programmable).
13Camera FlashProvides illumination for the camera (optional).
14CameraTakes photos and videos (optional).
15SpeakerProvides audio output.
16Scanner/Exit WindowProvides data capture using the imager or laser scanner.
17TriggerInitiates data capture (programmable).
18Programmable Button
Initiates Push-To-Talk communication (programmable).
22NFC tagTap-to-Pair using NFC (Near Field Communication) - (optional).
Use for installing the optional hand strap.
Setup
Perform these procedures to start using the device for the first time.
1. Install a microSD card (optional)
2. Install the battery
3. Charge the device
4. Power on the device.
Installing the microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the back bezel of
the unit. Refer to the documentation provided with the card for more information, and follow the
manufacturer's recommendations for use.
WARNING: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card.
Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the
operator is properly grounded.
NOTE: The Condensation Resistant configuration has six screws securing the back bezel.
When installing a microSD card on Condensation Resistant configurations, replace the Back Bezel with
desiccant pack. See Condensation Resistant Rear Bezel Replacement on page 139. Once the Rear Bezel
is removed, the desiccant pack absorbs ambient moisture and can lessen the life of the desiccant pack.
1. Remove the Torx T8 screws holding the back bezel in place.
Figure 3 Remove Screws
21
Getting Started
2.
Lift the bezel to expose the SD slot.
Figure 4 Remove Bezel
3. Insert the microSD card into the slot with contacts facing the bottom of the device.
Figure 5 Insert microSD Card
4. Align the bezel onto the device.
Figure 6 Align Bezel
22
Getting Started
5.
Tighten the four screws using T8 hex screwdriver.
6. Torque screws to 4.5 kg-cm.
Figure 7 Secure Bezel
23
Installing the Battery
To install the battery:
NOTE: The battery is keyed to ensure that the battery is inserted properly. The notch in the battery must
face the back of the device.
1. Align the battery with the notch facing the back of the device.
2. Slide the battery into the handle of the device.
Figure 8 Battery Installation
Getting Started
3. Press the battery into the handle until it snaps into place.
Charging the Battery
Before using the device for the first time, charge the battery using a cable or a cradle with the appropriate
power supply. For information about the accessories available for the device, see Accessories.
The device is equipped with a supercapacitor (supercap) which automatically charges from the
fully-charged main battery. The supercap requires approximately 10 minutes to fully charge. The supercap
retains random access memory (RAM) data in memory and WLAN connection for at least 30 seconds
when the main battery is removed during Hot Swap. After 30 seconds, the WLAN connection is dropped
and the RAM data is retained for 20 minutes.
•4-Slot Battery Charger
•2-Slot USB Charge Cradle
•5-Slot Charge Only Cradle
24
Getting Started
•5-Slot Ethernet Cradle
•5-Slot Charge Only Cradle with 4-Slot Battery Charger
•5-Slot Ethernet Cradle with 4-Slot Battery Charger.
The 6,700 mAh battery charges from 0 - 90% in less than four hours at room temperature.
The 7,000 mAh battery charges from 0 - 90% in less than five hours at room temperature.
Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or accessory always
performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37
°C (+98 °F)) the device or accessory may for small periods of time alternately enable and disable battery
charging to keep the battery at acceptable temperatures. The device or accessory indicates when charging
is disabled due to abnormal temperatures via its red blinking LED.
1. To charge the main battery, connect the charging accessory to the appropriate power source.
2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The
Charging/Scan LED lights amber while charging, then turns solid green when fully charged.
Table 2 Charging/Scan LED Charging Indicators
StateIndication
OffDevice is not charging. Device is not inserted correctly in the cradle or connected
to a power source. Charger/cradle is not powered.
Solid AmberHealthy battery is charging.
Solid GreenHealthy battery charging is complete.
Fast Blinking Red
(2 blinks/second)
Solid RedUnhealthy battery is charging or fully charged.
IMPORTANT: When trying to power on the device, a quick blink of the charging LED indicates that it does
not have enough battery power to turn on. You will need to charge the battery or replace it.
Charging error, such as:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).
Powering on the Device
The device starts automatically as soon as power is applied; either with a charged battery installed or when
inserted into the cradle.
If a charged battery is installed and the device is turned off, press the Power button to turn on.
When the device is powered on for the first time, it initializes its system. The splash
short period of time.
screen appears for a
25
Getting Started
GMSAOSP
Figure 9 Splash Screen
The splash screen is followed by the boot animation screen and then the Home Screen.
Figure 10 Home Screen
Google Account Setup
NOTE: The device has to be connected to the internet in order to set up a Google ™ account.
A Google account is only required on devices with GMS software.
The first time the device starts, the Setup Wizard displays. Follow the on-screen instructions to set up a
Google account, configure Google Pay
personal information, and enable backup/restore features.
™ for purchasing items from the Google Play ™ store, to enter your
26
Zebra Visibility Services
The device captures and provides device analytics to a system administrator. The first time the device
boots (or after a Factory reset), the Zebra Services agreement screen displays.
1. Leave Device Data enabled if you want the device to send analytics data.
2. Touch the Device Data switch to disable the device from sending analytics data.
3. Touch OK to confirm selection.
Installing the Hand Strap
To install the hand strap:
NOTE: Installation of the hand strap is optional. Skip this section if not installing the hand strap.
1. Remove battery if installed.
2. Thread the lanyard loop through the opening near the base of the handle.
Getting Started
Figure 11 Insert Loop through Handle Slot
3. Insert the top end of the hand strap through the loop.
Figure 12 Thread Hand Strap Through Loop
4. Thread the hand-strap through the lanyard.
27
Getting Started
5.
Pull the hand strap through the loop.
6. Thread the lanyard through the slot on the left or right side of the unit, depending on your preference.
Figure 13 Thread Tab Through Side Slot
7. Slide the tab onto the clip.
Figure 14 Slide Tab onto Clip
28
Hot Swap Mode
The device provides a Hot Swap mode where the user can replace the battery without powering off the
device. When the user removes the battery, the display turns off and the device enters a low power state
while in Hot Swap mode. In Hot Swap mode, the device retains RAM data for approximately 5 minutes.
Replace the battery within 5 minutes to preserve memory persistence. If the user does not install a
charged battery within 5 minutes, data in RAM will be lost. During Hot Swap mode, Wi-Fi and Bluetooth
remain connected for 30 seconds. If the battery is not inserted within 30 seconds, Wi-Fi is disabled and
then re-enabled when the device comes out of Hot Swap mode and Bluetooth is reset when the device
comes out of Hot Swap mode.
CAUTION: To prevent damage to the device, do not perform a hot swap during a device boot up session.
IMPORTANT! The supercap requires time to recharge after performing a Hot Swap or after the main
battery is fully depleted. Hot Swap mode will not retain data unless the supercap is fully charged.
Replacing the Battery
Getting Started
To remove the battery:
CAUTION: Do not press the trigger while removing the battery.
1. Press the two battery release latches in.
Figure 15 Battery Removal
29
Getting Started
2.
Pull the battery out of the device. The Charging/Scan LED lights red.
Figure 16 Battery Removal
3. Align the replacement battery with the notch facing the back of the device.
4. Slide the battery into the handle of the device.
Figure 17 Battery Installation
5. Press the battery into the handle until it snaps into place.
30
Using the Device
Home Screen
Turn on the device to display the Home screen. Depending on how your system administrator configured
your device, your Home screen may appear differently than the graphics in this section.
After a suspend or screen time-out, the Home screen displays with the lock slider. Touch the screen and
slide up to unlock.
The Home screen provides four additional screens to place widgets and shortcuts. Swipe the screen left or
right to view the additional screens.
NOTE: By default, AOSP devices do not have the same icons on the Home screen as GMS devices. Icons
are shown below for example only.
Home screen icons can be configured by the user and may look different than shown.
Figure 18 Home Screen
31
1Status BarDisplays the time, status icons (right side), and notification icons (left side).
1
2
For more information see Notification Icons on page 32 and Managing
Notifications on page 34.
2WidgetsLaunches stand-alone apps that run on the Home screen.
3Shortcut IconsOpens apps installed on the device.
4FolderContains apps.
Setting Home Screen Rotation
By default, the Home screen rotation is disabled.
1. Touch and hold anywhere on the Home screen until the options appear.
2. Touch Home settings.
3. Touch the Allow Home screen rotation switch.
4. Touch the Home button.
5. Rotate the device.
Using the Device
Status Bar
The Status bar displays the time, notification icons (left side), and status icons (right side).
If there are more notifications than can fit in the Status bar, a dot displays indicating that more notifications
exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.
Figure 19 Notification and Status Icons
1Notification Icons. See Notification Icons on page 32.
2Status Icons. See Status Icons on page 33.
Notification Icons
Notification icons indicate app events and messages.

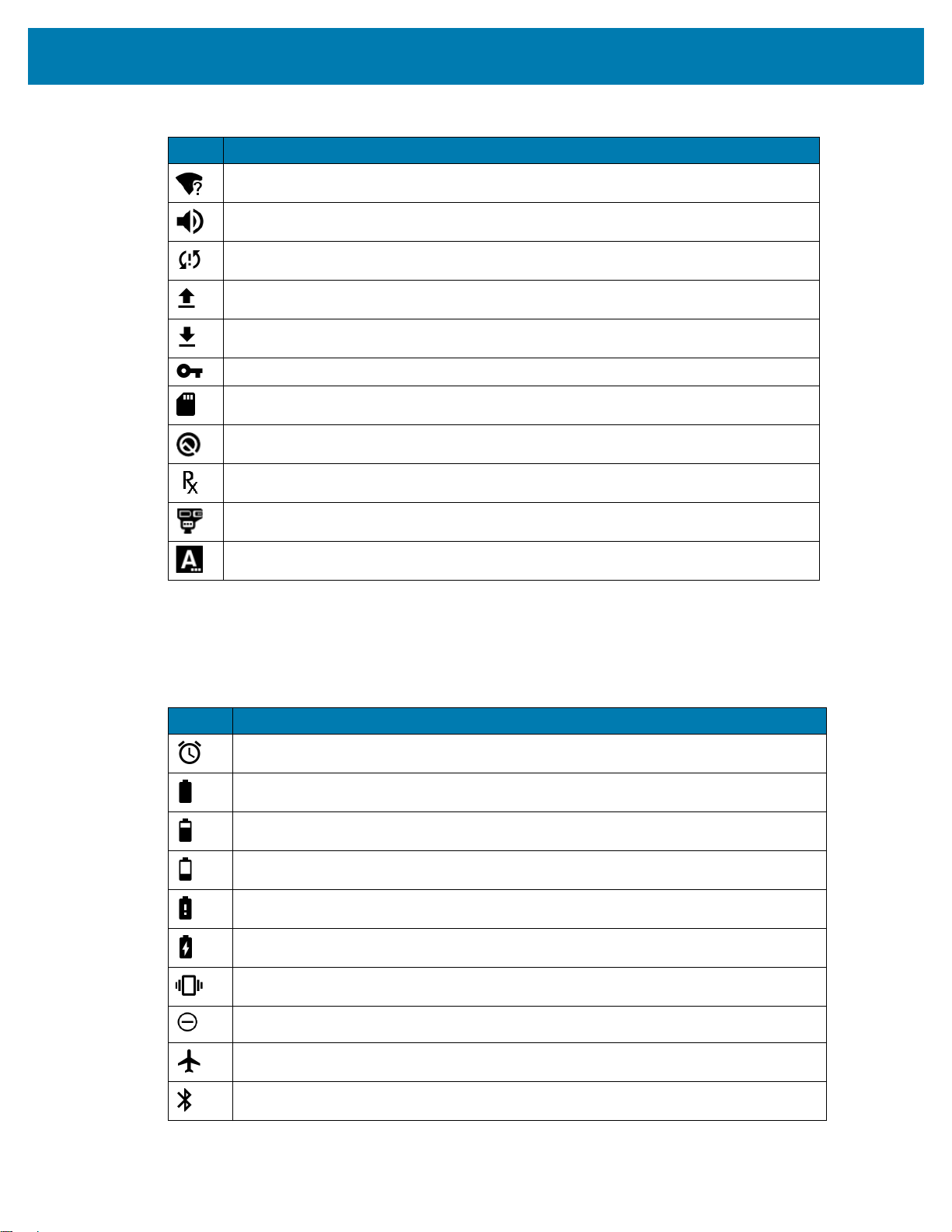

Table 3 Notification Icons
IconDescription
Main battery is low.
More notifications are available for viewing.
Data is syncing.
Indicates an upcoming event. GMS devices only.
32
Using the Device
Table 3 Notification Icons (Continued)
IconDescription
Open Wi-Fi network is available.
Audio is playing.
Problem with sign-in or sync has occurred.
Device is uploading data.
Animated: the device is downloading data. Static: the download is complete.
Device is connected to or disconnected from a virtual private network (VPN).
Preparing internal storage by checking it for errors.
USB debugging is enabled on the device.
Indicates the RxLogger app is running.
Status Icons
Status icons display system information for the device.
Table 4 Status Icons
IconDescription
Indicates the Bluetooth scanner is connected to the device.
Indicates the ring scanner is connected to the device in HID mode.
Alarm is active.
Main battery is fully charged.
Main battery is partially drained.
Main battery charge is low.
Main battery charge is very low.
Main battery is charging.
All sounds, except media and alarms, are muted. Vibrate mode is active.
Do Not Disturb mode active.
Airplane Mode is active. All radios are turned off.
Bluetooth is on.
33

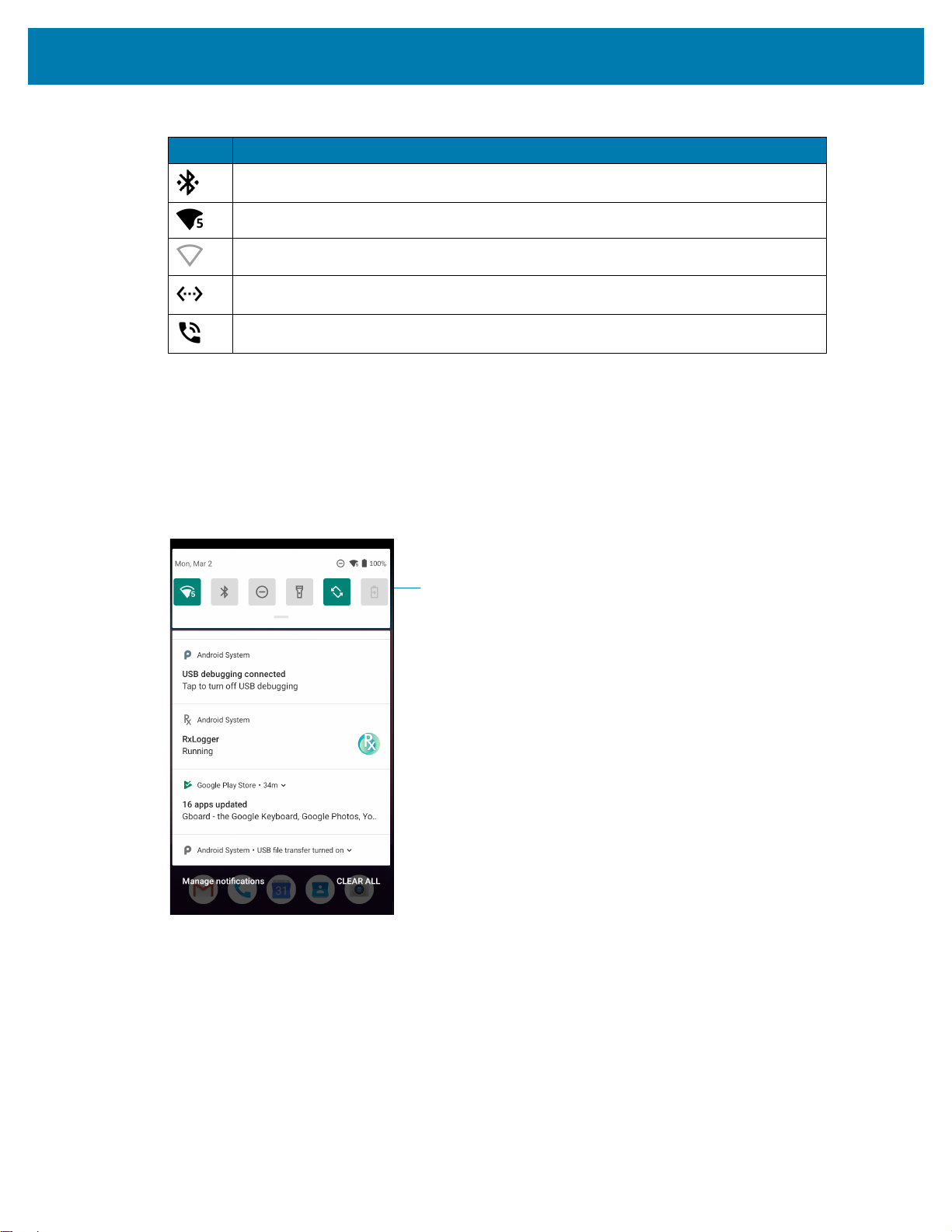

Table 4 Status Icons (Continued)
Quick Settings Bar
IconDescription
The device is connected to a Bluetooth device.
Connected to a Wi-Fi network. Indicates the Wi-Fi version number.
Not connected to a Wi-Fi network or no Wi-Fi signal.
Connected to an Ethernet network.
Speakerphone enabled.
Managing Notifications
Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When
a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons on
page 32 for a list of possible notification icons and their description.
•To view a list of all notifications, open the Notification panel by dragging the Status bar down from the
top of the screen.
Using the Device
•To respond to a notification, open the Notification panel and then touch a notification. The Notification
panel closes and the corresponding app opens.
•To manage recent or frequently used notifications, open the Notification panel and then touch Manage
notifications. Touch the toggle switch next to an app to turn off all notifications, or touch an app for
more notification options.
•To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based
notifications are removed. Ongoing notifications remain in the list.
•To close the Notification panel, swipe the Notification panel up.
34
Using the Device
Opening the Quick Access Panel
Use the Quick Access panel to access frequently used settings (for example, Airplane mode). To get to the
Quick Access Panel:
•If the device is locked, swipe down once.
•If the device is unlocked, swipe down once with two fingers, or twice with one finger.
•If the Notification panel is open, swipe down from the Quick Settings bar.
NOTE: Not all icons are pictured. Icons may vary.
Quick Access Panel Icons
•Display brightness - Use the slider to decrease or increase the brightness of the screen.
•Wi-Fi network - Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.
•Bluetooth settings - Turn Bluetooth on or off. To open Bluetooth settings, touch Bluetooth.
•Battery saver - Turn Battery saver mode on or off. When Battery saver mode is on the performance of
the device is reduced to preserve battery power.
•Invert colors - Invert the display colors.
•Do not disturb - Control how and when to receive notifications.
•Airplane mode - Turn Airplane mode on or off. When Airplane mode is on the device does not connect
to Wi-Fi or Bluetooth.
•Auto-rotate - Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.
•Night Light - Tint the screen amber to make it easier to look at the screen in dim light. Set Night Light to
turn on automatically from sunset to sunrise, or at other times.
•Focus mode - Turn on to pause distracting apps. To open Focus mode settings, touch and hold.
•Bedtime mode - Turn grayscale on and off. Grayscale turns the screen black and white, reducing phone
distractions and improving battery life.
Editing Icons on the Quick Settings Bar
The first several setting tiles from the Quick Access panel become the Quick Settings bar.
35
Open the Quick Access panel and touch to edit, add, or remove settings tiles.
Battery Management
Observe the recommended battery optimization tips for your device.
•Set the screen to turn off after a short period of non-use.
•Reduce screen brightness.
•Turn off all wireless radios when not in use.
•Turn off automatic syncing for Email, Calendar, Contacts, and other apps.
•Minimize use of apps that keep the device from suspending, for example, music and video apps.
NOTE: Before checking the battery charge level, remove the device from any AC power source (cradle or
cable).
Checking Battery Status
•Open Settings and touch About phone > Battery Information.
Using the Device
Or, swipe up from the bottom of the screen and touch to open the Battery Manager app. See
Battery Manager on page 51.
•Battery present status indicates if the battery is present.
•Battery level lists the battery charge (as a percentage of fully charged).
•Swipe down with two fingers from the status bar to open the quick access panel.
•Battery percentage is displayed next to the battery icon.
Monitoring Battery Usage
The Battery screen provides battery charge details and power management options to extend battery life.
1. Go to Settings.
2. Touch Battery.
Display battery information and power management options for a specific app.
1. Go to Settings.
2. Touch Apps & notifications.
3. Touch an app.
4. Touch Advanced > Battery.
Different apps display different information. Some apps include buttons that open screens with settings to
adjust power use. Use the DISABLE or FORCE CLOSE buttons to turn off apps that consume too much
power.
Low Battery Notification
When the battery charge level drops below 15%, the device displays a notice to connect the device to
power. The user should charge the battery using one of the charging accessories.
36
Using the Device
When the battery charge drops below 10%, the device displays a notice to connect the device to power.
The user must charge the battery using one of the charging accessories.
When the battery charge drops below 6%, the device turns off. The user must charge the battery using one
of the charging accessories.
NOTE: Under conditions of heavy load (scanning quickly and often, RF communication, etc.) the device
may turn off earlier than 6% charge remaining.
Turning Off the Radios
To turn off all the radios:
1. Swipe down from the Status bar to open the Quick Settings panel.
2. Touch Airplane mode. The airplane icon appears in the Status bar indicating that all the radios are
off.
Interactive Sensor Technology
The device contains sensors that monitor movement, orientation and ambient light.
•Gyroscope - Measures angular rotational velocity to detect rotation of the device.
•Accelerometer - Measures the linear acceleration of movement to detect the orientation of the device.
•Light Sensor - Detects ambient light and adjusts the screen brightness.
•Proximity Sensor - Detects the presence of nearby objects without physical contact. The sensor detects
when the device close to your face during a call and turns off the screen, preventing unintentional
screen touches.
In order to take advantage of these sensors, applications use API commands. Refer to the Google Android
Sensor APIs for more information. For information on the Zebra Android EMDK, go to:
techdocs.zebra.com
Waking the Device
The device goes into Suspend mode when you press the Power button or after a period of inactivity (set in
the Display settings window).
1. To wake the device from Suspend mode, press the Power button.
The Lock screen displays.
2. Swipe the screen up to unlock.
•If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock
screen.
.
•If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking
the screen.
NOTE: If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before
trying again.
If you forget the PIN, password, or pattern contact your system administrator.
37
USB Communication
Connect the device to a host computer to transfer files between the device and the host computer.
When connecting the device to a host computer, follow the host computer’s instructions for connecting and
disconnecting USB devices, to avoid damaging or corrupting files. For information on USB communication
accessories available for this device, see Accessories.
Transferring Files
Use Transfer files to copy files between the device and the host computer.
1. Connect the device to a host computer using a USB accessory.
2. On the device, pull down the Notification panel and touch Charging this device via USB.
By default, No data transfer is selected.
3. Touch File Transfer.
4. On the host computer, open a file explorer application.
5. Locate the device as a portable device.
Using the Device
6. Open the Internal storage folder.
7. Copy files to and from the device or delete files as required.
Transferring Photos
Use PTP to copy photos from the device to the host computer.
1. Connect the device to a host computer using a USB accessory.
2. On the device, pull down the Notification panel and touch Charging this device via USB.
3. Touch PTP.
4. On the host computer, open a file explorer application.
5. Open the Internal storage folder.
6. Copy or delete photos as required.
Disconnect from the Host Computer
Carefully follow the host computer’s instructions to disconnect USB devices correctly to avoid losing
information.
To disconnect the device from the host computer:
1. On the host computer, unmount the device.
2. Remove the device from the USB accessory.
38
Settings
Accessing Settings
There are multiple ways to access settings on a device.
•Swipe down with two fingers from the top of the Home screen to open the Quick Access panel and
touch .
•Double-swipe down from the top of the Home screen to open the Quick Access panel and touch .
•Swipe up from the bottom of the Home screen to open APPS and touch Settings.
Display Settings
Use Display settings to change the screen brightness, enable night light, change the background
image, enable screen rotation, set sleep time, and change font size.
Setting the Screen Brightness Manually
Manually set the screen brightness using the touchscreen.
1. Swipe down with two fingers from the Status bar to open the Quick Access panel.
2. Slide the icon to adjust the screen brightness level.
Setting the Screen Brightness Automatically
Automatically adjust the screen brightness using the built-in light sensor.
1. Go to Settings.
2. Touch Display.
3. If disabled, touch Adaptive brightness to automatically adjust the brightness.
By default, Adaptive brightness is enabled. Toggle the switch to disable.
4. Touch the Home button.
Setting Night Light
The Night Light setting tints the screen amber, making the screen easier to look at in low light.
1. Go to Settings.
2. Touch Display.
39
3.
Touch Night Light.
4. Touch Schedule.
5. Select one of the schedule values:
•None (default)
•Turns on at custom time
•Turns on from sunset to sunrise.
6. By default, Night Light is disabled. Touch TURN ON NOW to enable.
7. Adjust the tint using the Intensity slider.
8. Touch the Home button.
Setting Screen Rotation
By default, screen rotation is enabled.
1. Go to Settings.
2. Touch Display > Advanced.
Settings
3. Touch Auto-rotate screen.
NOTE: To change the Home screen rotation, see Setting Home Screen Rotation on page 32.
4. Touch the Home button.
Setting Screen Timeout
Set the screen sleep time.
1. Go to Settings.
2. Touch Display > Advanced > Sleep.
3. Select one of the sleep values.
•15 seconds
•30 seconds
•1 minute (default)
•2 minutes
•5 minutes
•10 minutes
•30 minutes
4. Touch the Home button.
Ambient Display
The Ambient display setting wakes the screen when notifications are received.
1. Go to Settings.
2. Touch Display > Advanced.
40
3.
Touch Ambient display.
4. In the When to show section, enable or disable an option using the switch.
5. Touch the Home button.
Setting Font Size
Set the size of the font in system apps.
1. Go to Settings.
2. Touch Display > Advanced.
3. Touch Font size.
4. Select one of the font size values.
•Small
•Default
•Large
•Largest.
Settings
5. Touch the Home button.
Setting Display Size
By default, display size is set to default.
To change the display size:
1. Swipe down from the Status bar to open the Quick Settings bar and then touch .
2. Touch Display > Advanced.
3. Touch Display size.
4. Touch - and + to change the display size.
•Small
•Default
•Large.
5. Touch Home button.
Touch Panel Mode
The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.
NOTE: A glove can be made of medical latex, leather, cotton, or wool.
For optimal performance use a Zebra certified stylus.
1. Go to Settings.
2. Touch Display > Advanced.
3. Touch Touch panel mode.
4. Select:
•Finger Only to use a finger on the screen.
41
•Stylus, Glove and Finger to use a stylus, gloved finger, or a finger on the screen.
When the user changes the touch panel mode, it will take several seconds for the new configuration to
be loaded.
5. Touch the Home button.
Setting the Date and Time
The date and time is automatically synchronized using an NITZ server when the device is connected to a
wireless network. You are only required to set the time zone or set the date and time if the wireless LAN does
not support Network Time Protocol (NTP) or when not connected to a wireless network.
1. Go to Settings.
2. Touch System > Date & time.
3. Touch Use network-provided time to disable automatic date and time synchronization.
4. Touch Use network-provided time zone to disable automatic time zone synchronization.
5. Touch Date.
6. In the calendar, set today’s date.
Settings
7. Touch OK.
8. Touch Time.
9. Touch the green circle, drag to the current hour and then release.
10. Touch the green circle, drag to the current minute and then release.
11. Touch AM or PM.
12. Touch OK.
13. Touch Time zone.
14. Select the current time zone from the list.
15. Touch Use 24-hour format.
16. Touch the Home button.
General Sound Setting
Use the Sound settings to configure media and alarm volumes.
1. Go to Settings.
2. Touch Sound.
3. Touch an option to set sounds.
Sound Options
•Zebra volume controls
•Ring volume - Controls the ringtone volume.
•Media volume - Controls the music, games, and media volume.
•Alarm volume - Controls the alarm clock volume.
•Notifications volume - Controls the notification volume.
42
•Scanner volume - Controls the scanner volume.
•Volume presets
• - Mutes the ring, notifications, and scanner so that the device does not make sounds or vibrate.
• - All sounds except media and alarms are silenced and vibrate mode is active.
• - Enables all sounds at the user defined levels.
•Do Not Disturb - Mutes some or all sounds and vibrations.
•Other sounds and vibrations
•Touch vibration - Vibrate the device when making screen selections (default – disabled).
Setting Wake-Up Sources
By default the device wakes from suspend mode when the user presses the Power button. The device can be
configured to wake when the user presses the PTT or Scan buttons on the device handle.
1. Go to Settings.
2. Touch Wake-Up Sources.
Settings
•GRIP_TRIGGER_2 - PTT button.
•SCAN - Scan button.
3. Touch a checkbox. A check appears in the checkbox.
4. Touch the Home button.
Remapping a Button
Buttons on the device can be programmed to perform different functions or as shortcuts to installed apps. For
a list of key names and descriptions, refer to: techdocs.zebra.com
NOTE: It is not recommended to remap the scan button.
1. Go to Settings.
2. Touch Key Programmer. A list of programmable buttons displays.
3. Select the button to remap.
4. Touch the BUTTON REMAPPING tab, the SHORTCUT tab, or swipe to touch the TRIGGERS tab that lists
the available functions, applications and triggers.
5. Touch a function or application shortcut to map to the button.
NOTE: If you select an application shortcut, the application icon appears next to the button on the Key
Programmer screen.
.
6. Touch the Home button.
Keyboards
The device provides multiple keyboard options.
•Android Keyboard - AOSP devices only
43
•Gboard - GMS devices only
•Enterprise Keyboard
NOTE: By default the Enterprise and Virtual Keyboards are disabled.
Keyboard Configuration
Enabling Keyboards
1. Go to Settings.
2. Touch System > Languages & input > Virtual keyboard > Manage keyboards.
3. Touch a keyboard to enable.
Switching Between Keyboards
•To switch between keyboards, touch in a text box to display the current keyboard.
•On the Gboard keyboard, touch and hold (GMS devices only).
Settings
•On the Enterprise keyboard, touch . Only available with Mobility DNA Enterprise License.Not
pre-installed on the device. Contact Zebra Support for more information.
Using the Android and Gboard Keyboards
Use the Android or Gboard keyboards to enter text in a text field.
To configure the keyboard settings, touch and hold
Edit Text
Edit entered text and use menu commands to cut, copy, and paste text within or across apps. Some apps do
not support editing some or all of the text they display; others may offer their own way to select text.
Entering Numbers, Symbols, and Special Characters
1. Enter numbers and symbols.
•Touch and hold one of the top-row keys until a menu appears then select a number or special character.
•Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch
the Shift key a third time to unlock Capslock.
•Touch
•Touch the
?123 to switch to the numbers and symbols keyboard.
=\< key on the numbers and symbols keyboard to view additional symbols.
, (comma) and then select Android keyboard settings.
2. Enter special characters.
•Touch and hold a number or symbol key to open a menu of additional symbols. A larger version of the
key displays briefly over the keyboard.
Using the Enterprise Keyboard
The Enterprise Keyboard contains multiple keyboard types.
•Numeric
44
Settings
•Alpha
•Special characters
•Data capture.
Numeric Tab
The numeric keyboard is labeled 123. The keys displayed vary on the app being used. For example, an arrow
displays in Contacts, however Done displays in Email account setup.
Alpha Tab
The alpha keyboard is labeled using the language code. For English, the alpha keyboard is labeled EN.
Additional Character Tab
The additional characters keyboard is labeled #*/.
Touch to enter emoji icons in a text message.
Touch ABC to return to the Symbols keyboard.
Scan Tab
The Scan tab provides an easy data capture feature for scanning barcodes.
Language Usage
Use the Language & input settings to change the device’s language, including words added to the dictionary.
Changing the Language Setting
1. Go to Settings.
2. Touch System > Languages & input.
3. Touch Languages. A list of available languages displays.
4. If the desired language is not listed, touch Add a language and select a language from the list.
5. Touch and hold to the right of the desired language, then drag it to the top of the list.
6. The operating system text changes to the selected language.
Adding Words to the Dictionary
1. Go to Settings.
2. Touch System > Languages & input > Advanced > Personal dictionary.
3. If prompted, select the language where this word or phase is stored.
4. Touch + to add a new word or phrase to the dictionary.
5. Enter the word or phrase.
6. In the Shortcut text box, enter a shortcut for the word or phrase.
7. Touch the Home button.
45
Notifications
Setting App Notifications
To set notification settings for a specific app:
1. Go to Settings.
2. Touch Apps & notifications > SEE ALL XX APPS. The App info screen displays.
3. Select an app.
4. Touch Notifications.
Options vary depending on the app selected.
5. Select an available option:
Show notifications - Select to turn all notifications from this app on (default) or off.
Touch a notification category to display additional options.
•Alerting - Allow notifications from this app to make sound or vibrate the device.
•Pop on screen - Allow notifications from this app to pop notifications on the screen.
Settings
•Silent - Do not allow notifications from this app to make sound or vibrate.
•Minimize - In the Notification panel, collapse notifications to one line.
•Advanced - Touch for additional options.
•Sound - Select a sound to play for notifications from this app.
•Vibrate - Allow notifications from this app to vibrate the device.
•Blink light - Allow notifications from this app the light the Notification LED blue.
•Show notification dot - Allow notifications from this app to add a notification dot to the app icon.
•Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is enabled.
Advanced
•Allow notification dot - Do not allow this app to add a notification dot to the app icon.
•Additional settings in the app - Open the app settings.
Viewing Notification Settings for All Apps
To view the notification settings for all apps:
1. Go to Settings.
2. Touch Apps & Notifications.
3. Scroll down to Notifications to view how many apps have notifications turned off.
4. To set or view notifications settings for a specific app, see Setting App Notifications.
Controlling Lock Screen Notifications
To control whether notifications can be seen when the device is locked:
1. Go to Settings.
2. Touch Apps & notifications > Notifications.
46
Settings
3.
Touch Notifications on lockscreen and select one of the following:
•Show alerting and silent notifications (default)
•Show alerting notifications only
•Don’t show notifications.
Blink Light
The Notification LED lights blue when an app, such as email and VoIP, generates a programmable notification
or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled.
3. Touch Blink light to toggle the notification on or off.
47
Applications
The APPS screen displays icons for all installed apps. See Application Deployment for information on
installing and uninstalling apps. For information on standard Android apps, go to the Google Play Apps
store.
The following table describes the apps installed on the device.
Table 5 Apps
IconDescription
Battery Manager - Displays battery information, including charge level, status, health and
wear level.

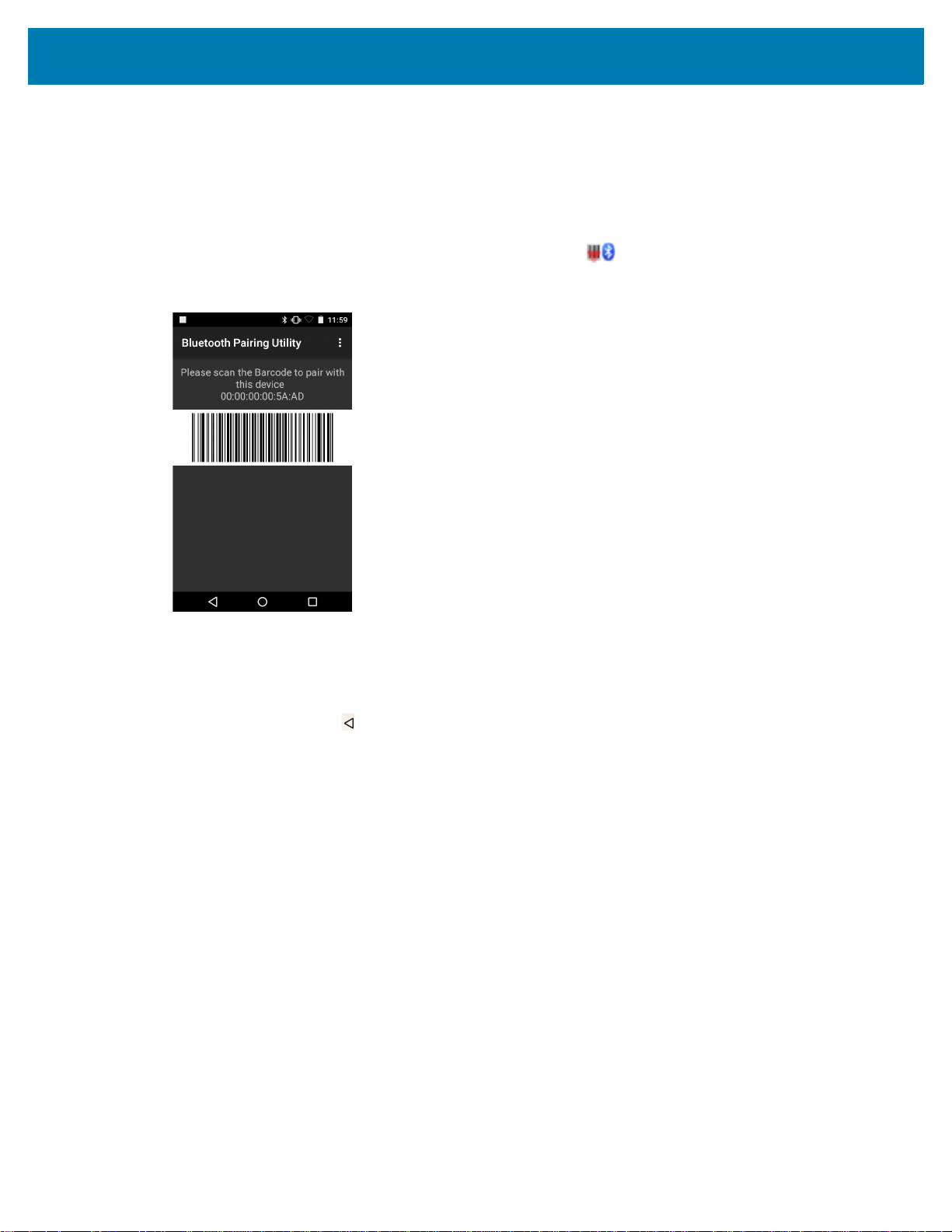

Bluetooth Pairing Utility – Use to pair a Zebra Bluetooth scanner with the device by
scanning a barcode.
Calculator - Provides the basic and scientific arithmetic functions.
Calendar - Use to manage events and appointments. GMS/GMS-Restricted only.

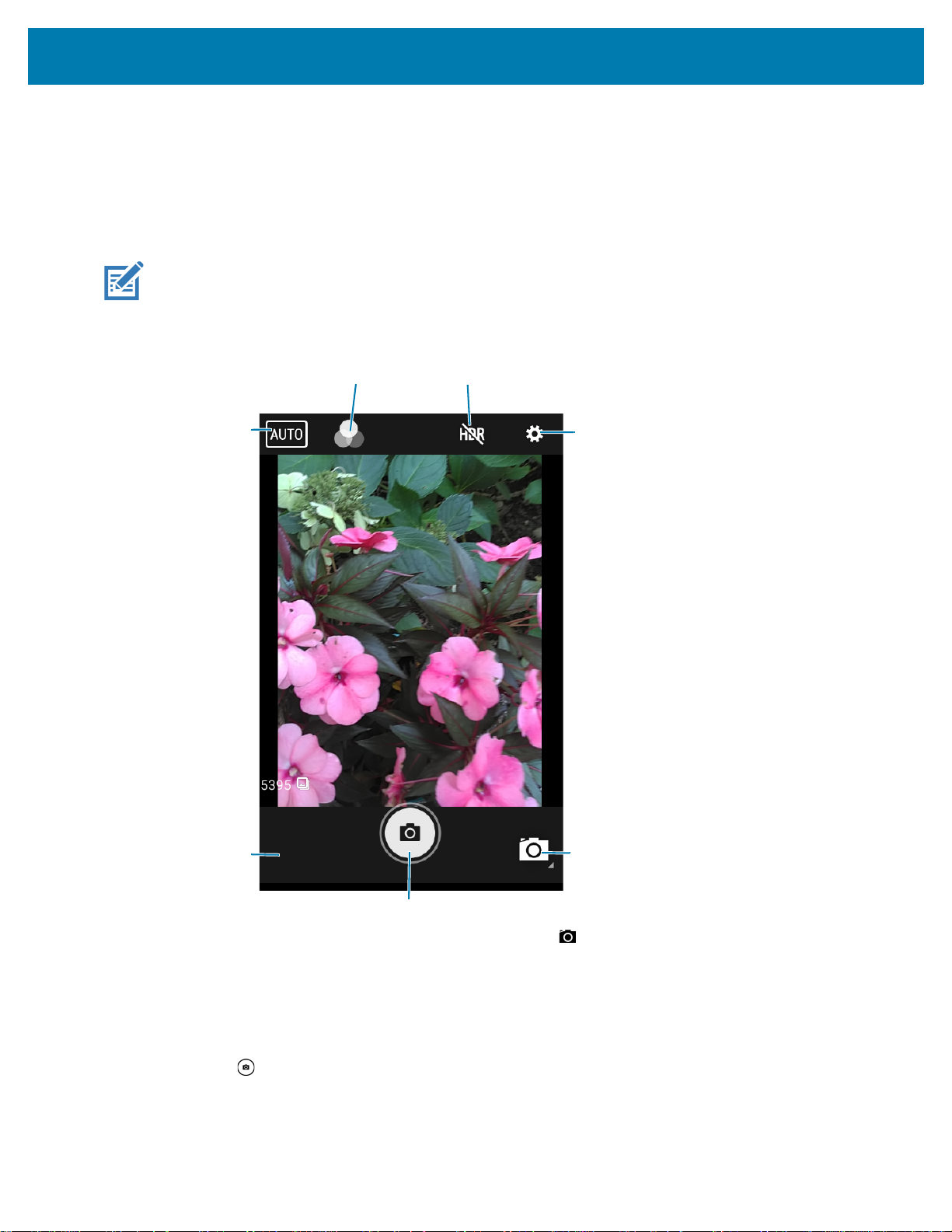

Camera - Take photos or record videos. For more information, see Camera on page 53.
Chrome - Use to access the Internet or intranet. GMS/GMS-Restricted only.
Clock - Use to schedule alarms for appointments or as a wake-up.
Contacts - Use to manage contact information.
DataWedge - Enables data capture using the imager. For more information, see DataWedge
Demonstration on page 57.
48
Applications

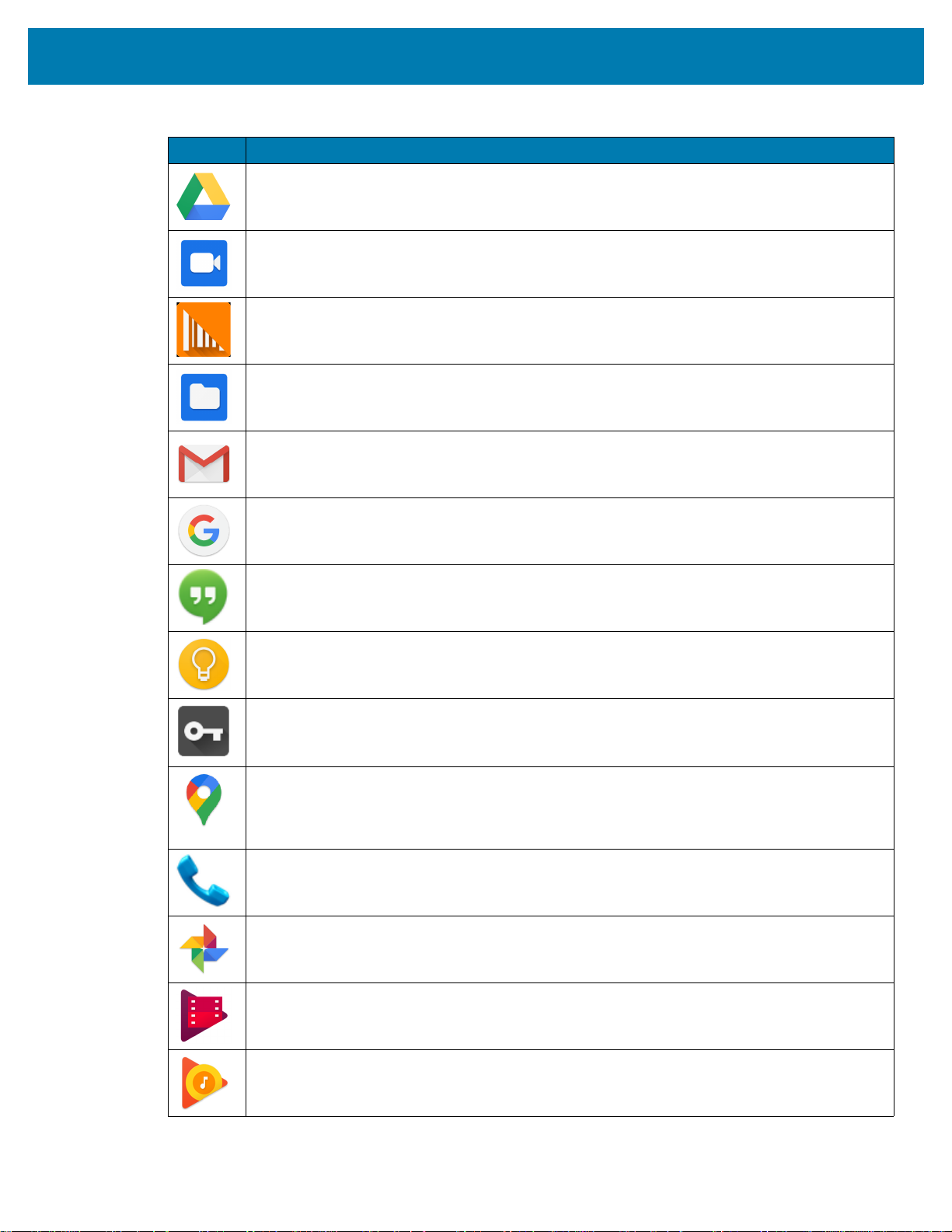

Table 5 Apps (Continued)
IconDescription
Drive - Upload photos, videos, documents, and other files to personal storage site.
GMS/GMS-Restricted only.
Duo - A one-to-one video calling app (WWAN only). GMS/GMS-Restricted only.
DWDemo - Provides a way to demonstrate the data capture features using the imager. For
more information, see DataWedge Demonstration on page 57.
Files - Organize and manage files on the device.
Gmail - Use to send and receive email using a Google email account. GMS/GMS-Restricted
only.
Google - Launches Google ™ search app. GMS/GMS-Restricted only.
Hangouts - Use to communicate with friends using text messages and photos.
GMS/GMS-Restricted only.
Keep - Use to create, edit, and share notes. GMS/GMS-Restricted only.
License Manager - Use to manage software licenses on the device.
Maps - Use to see your location on a map (with public transit, traffic, or satellite overlays).
Search for any business or place of interest. Provides turn-by-turn navigation with voice
guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers, and users of
public transportation. GMS/GMS-Restricted only.
Phone - Use to dial a phone number when used with some Voice over IP (VoIP) clients
(VoIP telephony ready only).
Photos - Use to sync photos with Google account. GMS/GMS-Restricted only.
Play Movies & TV - View movies and video on your device. GMS/GMS-Restricted only.
Play Music - Use to listen to music. GMS/GMS-Restricted only.
49
Applications
Table 5 Apps (Continued)
IconDescription

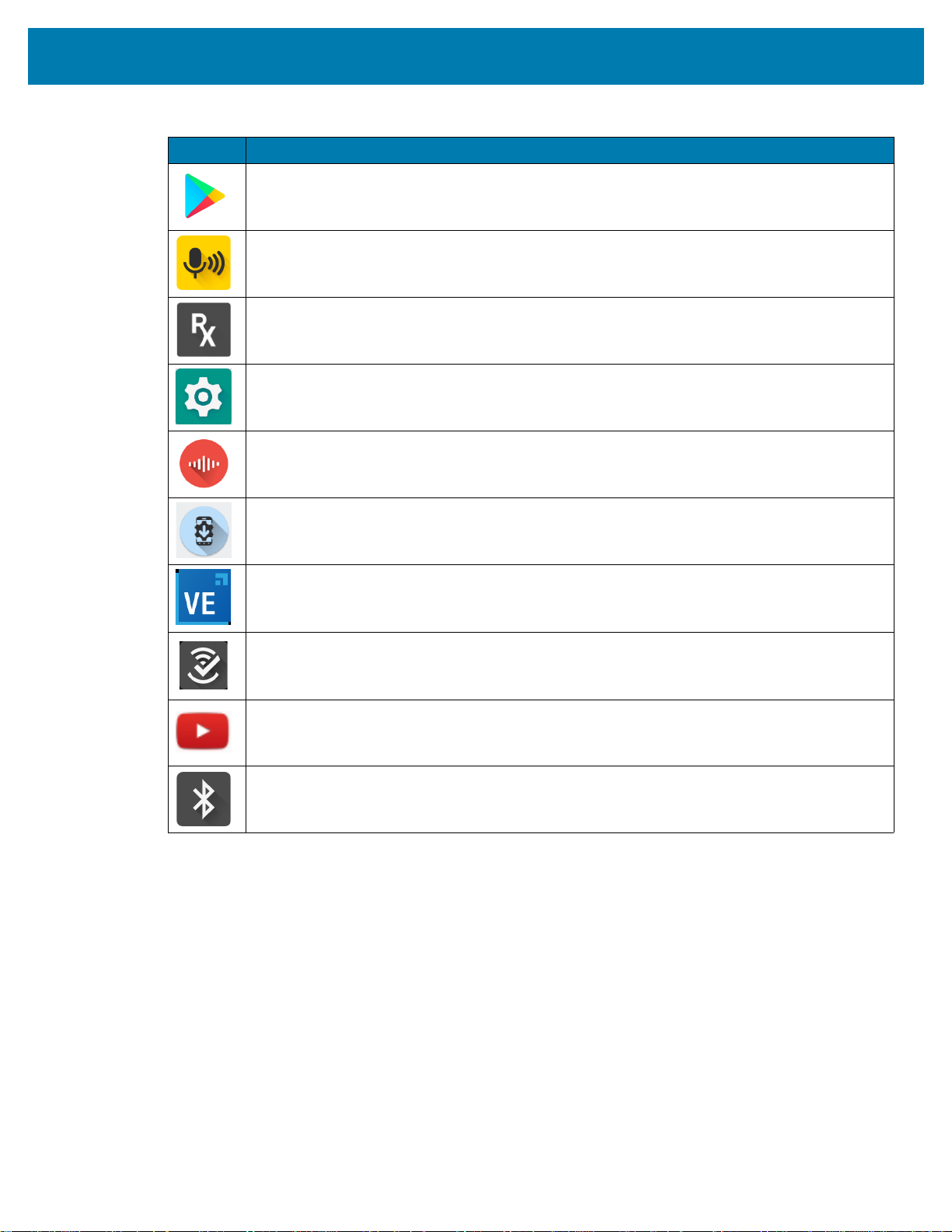

Play Store - Download music, movies, books, and Android apps and games from the
Google Play Store. GMS/GMS-Restricted only.
PTT Express - Use to launch PTT Express client for VoIP communication.
RxLogger - Use to diagnose device and app issues. For more information, see RxLogger on
page 61.
Settings - Use to configure the device.
Sound Recorder - Use to record audio. For more information, see Sound Recorder on
page 62.
Accessing Apps
All apps installed on the device are accessed using the APPS window.
1. On the Home screen, swipe up from the bottom of the screen.
StageNow - Allows the device to stage a device for initial use by initiating the deployment of
settings, firmware, and software.
Velocity - Opens the Ivanti (formerly Wavelink) terminal emulation app.
Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding area
and display network stats, such as coverage hole detection, or AP in vicinity. Refer to the
Worry Free Wi-Fi Analyzer Administrator Guide for Android.
YouTube - Use to view videos on the YouTube
Zebra Bluetooth Settings - Use to configure Bluetooth logging.
™ web site. GMS/GMS-Restricted only.
2. Slide the APPS window up or down to view more app icons.
3. Touch an icon to open the app.
Switching Between Recent Apps
Use the Recent button to switch between recently used apps.
1. Touch Recent button.
A window appears on the screen with icons of recently used apps.
50
2.
Slide the apps displayed up and down to view all recently used apps.
3. Swipe left or right to remove app from the list and force close the app.
4. Touch an icon to open an app or touch Back button to return to the current screen.
Battery Manager
The Battery Manager provides detailed information about the battery and battery swap procedures on
supported devices.
Opening Battery Manager
To open the Battery Manager app, swipe up from the bottom of the Home screen, and then touch .
Battery Manager Information Tab
The Battery Manager displays detailed information about battery charging, health, and status.

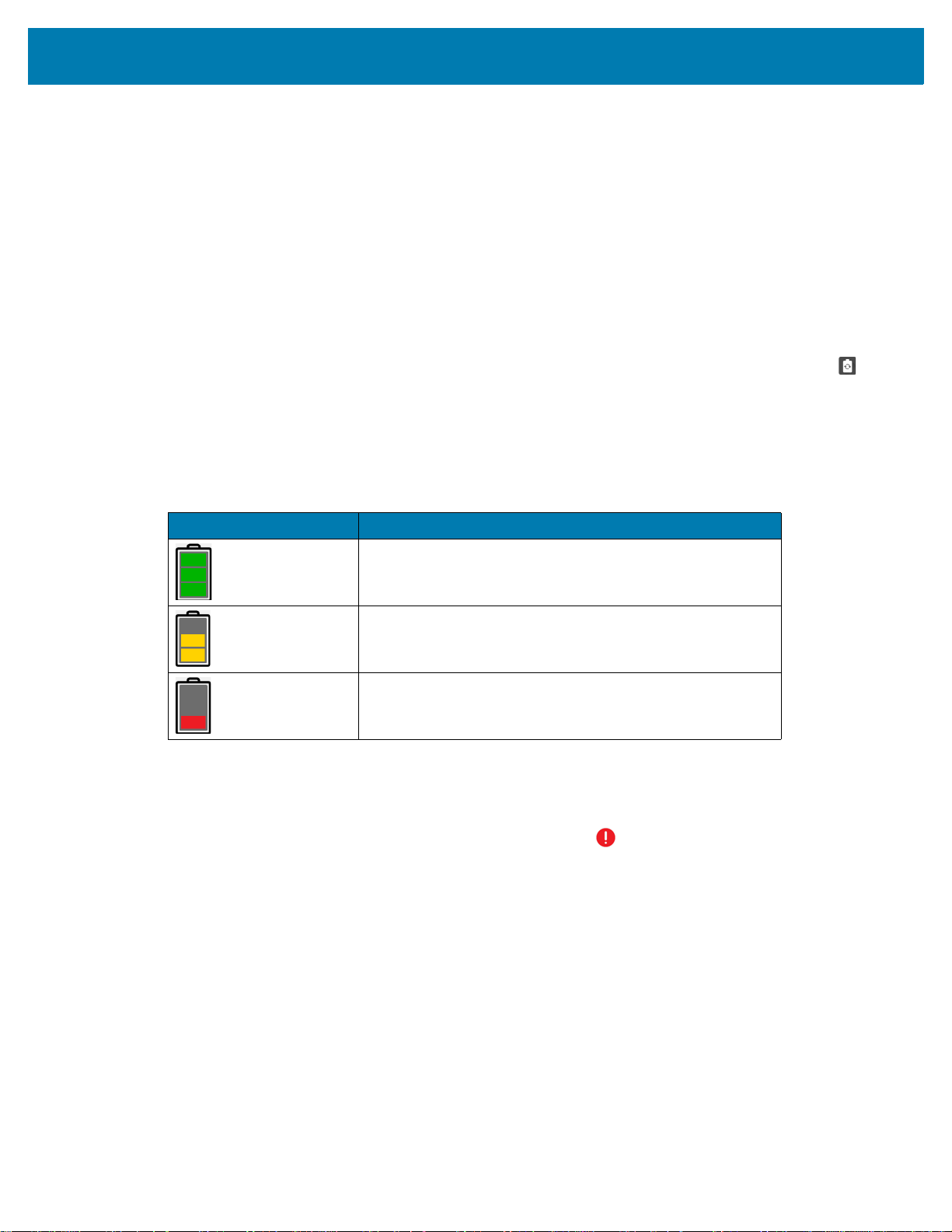

Table 6 Battery Icon Description
Applications
Battery IconDescription
Battery charge level is between 85% and 100%.
Battery charge level is between 19% and 84%.
Battery charge level is between 0% and 18%.
•Level - The current battery charge level as a percentage. Displays -% when level is unknown.
•Wear - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color
changes to red.
•Health - The health of the battery. If a critical error occurs, appears. Touch to view the error
description.
•Decommission - The battery is past its useful life and should be replaced. See system
administrator.
•Good - The battery is good.
•Charge error - An error occurred while charging. See system administrator.
•Over Current - An over-current condition occurred. See system administrator.
•Dead - The battery has no charge. Replace the battery.
•Over Voltage - An over-voltage condition occurred. See system administrator.
•Below Temperature - The battery temperature is below the operating temperature. See system
administrator.
•Failure Detected - A failure has been detected in the battery. See system administrator.
51
Applications
•Unknown - See system administrator.
•Charge Status
•Not charging - The device is not charging.
•Charging-AC - The device is connected to AC power and charging.
•Charging-USB - The device is connected to a host computer with a USB cable and charging.
•Discharging - The battery is discharging.
•Full - That the battery is fully charged.
•Unknown - The battery status is unknown.
•Time until Full - The amount of time until the battery is fully charged.
•Time since charging - The amount of time since the device began charging.
•Time until empty - The amount of time until the battery is empty.
•Advanced info - Touch to view additional battery information.
•Battery present status - Indicates that the battery is present.
•Battery level - The battery charge level as a percentage of scale.
•Battery scale - The battery scale level used to determine battery level (100).
•Battery voltage - The current battery voltage in millivolts.
•Battery temperature - The current battery temperature in degrees Centigrade.
•Battery technology - The type of battery.
•Battery current - The average current into or out of the battery over the last second in mAh.
•Battery manufacture date - The date of manufacture.
•Battery serial number - The battery serial number. The number matches the serial number printed
on the battery label.
•Battery part number - The battery part number.
•Battery rated capacity - Lists the rated capacity of the backup battery in mAh.
•Battery decommission status - Indicates if the battery is past its life span.
•Battery Good - The battery is in good health.
•Decommissioned Battery - The battery is past its useful life and should be replaced.
•Battery usage number - The health of the battery as a result of charging and discharging. A high
number indicates low battery health.
•Usage decommission threshold - When the Battery usage number is greater than or equal to the
Usage decommission threshold, the battery is past its useful life and should be replaced.
•App version - The application version number.
52
Camera
Camera Mode
Settings
Scene Mode
Shutter Button
Gallery
Color Effect
High Dynamic Range
Taking Photos
Applications
This section provides information for taking photos and recording videos using the integrated digital
cameras.
NOTE: See Photo Settings for camera setting descriptions.
1. Swipe up from the bottom of the Home screen and touch Camera.
2. If necessary, touch the Camera Mode icon and touch .
3. Frame the subject on the screen.
4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls
appear on the screen.
5. Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.
6. Touch .
The camera takes a photo and a shutter sound plays.
The photo momentarily displays as a thumbnail in the lower left corner.
53

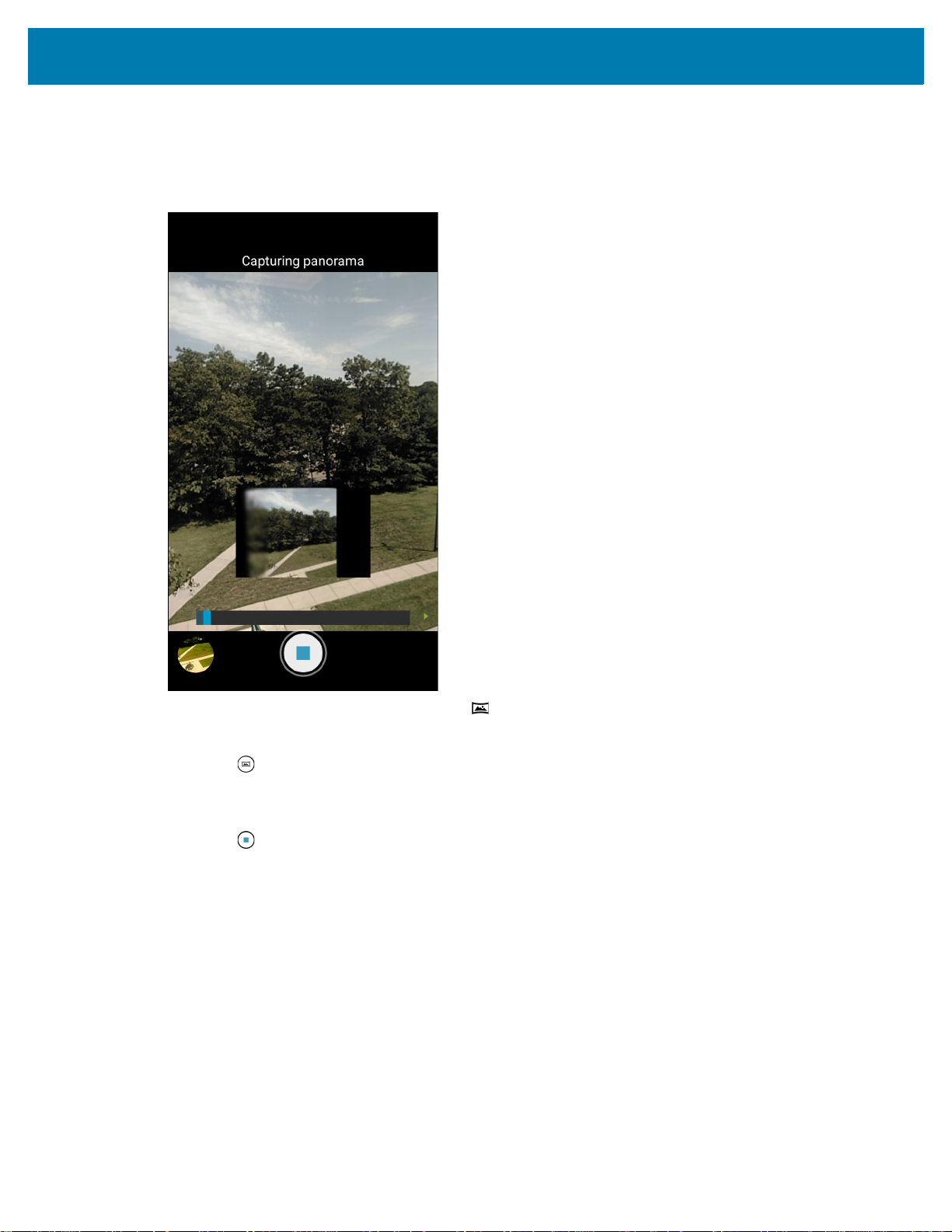

Taking a Panoramic Photo
Panorama mode creates a single wide image by panning slowly across a scene.
1. Swipe up from the bottom of the Home screen and touch Camera.
Applications
2. Touch the Camera Mode icon and touch .
3. Frame one side of the scene to capture.
4. Touch and slowly pan across the area to capture. A small white square appears inside the button
indicating the capture is in progress.
If you are panning too quickly, the message Too fast appears.
5. Touch to end the shot. The panorama appears immediately and a progress indicator displays while
it saves the image.
Recording Videos
1. Swipe up from the bottom of the Home screen and touch Camera.
54
Applications
Camera Mode
Settings
Audio
Shutter Button
Gallery
Color Effect
2. Touch the camera mode menu and touch .
3. Point the camera and frame the scene.
4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls
appear on the screen.
5. Touch to start recording.
The video time remaining appears in the top left of the screen.
6. Touch to end the recording.
The video momentarily displays as a thumbnail in the lower left corner.
Photo Settings
In Photo mode, photo settings appear on screen. Touch to display the photo settings options.
Rear Camera Photo Settings
•Flash - Select whether the camera relies on its light meter to decide whether a flash is necessary, or to
turn it on or off for all shots.
• Off - Disable flash.
• Auto - Adjust flash automatically depending upon light meter (default).
• On - Enable flash upon taking a photo.
•Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M
pixels, HD 1080, 2M pixels, HD720, 1M pixels, WVGA, VGA, or QVGA.
55
Applications
•Picture quality - Set the picture quality setting to: Low, Standard (default) or High.
•Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.
•Storage – Set the location to store the photo to: Phone or SD Card.
•ISO - Set camera sensitivity to light to: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400,
ISO800 or ISO1600.
•Exposure - Set the exposure settings to: +2, +1, 0(default), -1 or -2.
•White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors:
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
•Chroma Flash - Sets the camera to take two pictures, one with flash and one without flash. The two
images are combined to produce a final image with the sharpness and clarity and bright color tones
from a picture with the flash, coupled with the natural colors of a picture without a flash. Options: Off
(default) or On.
•ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled).
•Shutter Sound - Select to play a shutter sound when taking a photo. Options: Disable (default) or
Enable.
•Anti Banding - Allows the camera to avoid problems caused by artificial light sources that are not
constant. These sources cycle (flicker) fast enough to go unnoticed to the human eye, appearing
continuous. The camera’s eye (its sensor) can still see this flicker. Options: Auto (default), 60 Hz, 50
Hz, or Off.
Video Settings
In Video mode, video settings appear on screen. Touch to display the video settings options.
Rear Camera Video Settings
•Flash - Select whether Rear-facing Camera relies on its light meter to decide whether a flash is
necessary, or to turn it on or off for all shots.
• Off - Disable flash (default).
• On - Enable flash.
•Video quality - Set video quality to: 4k DCI, 4k UHD, HD 1080p (default), HD 720p, SD 480p, VGA,
CIF, or QVGA.
(default), or Enable.
•Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).
•Storage – Set the location to store the photo to: Phone (default) or SD Card.
•White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors.
56
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
•Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off
(default).
DataWedge Demonstration
Use DataWedge Demonstration to demonstrate data capture functionality. To configure DataWedge,
refer to techdocs.zebra.com/datawedge/
NOTE: DataWedge is enabled on the Home screen. To disable this feature, go to the DataWedge settings
and disable the Launcher profile.
Applications
.

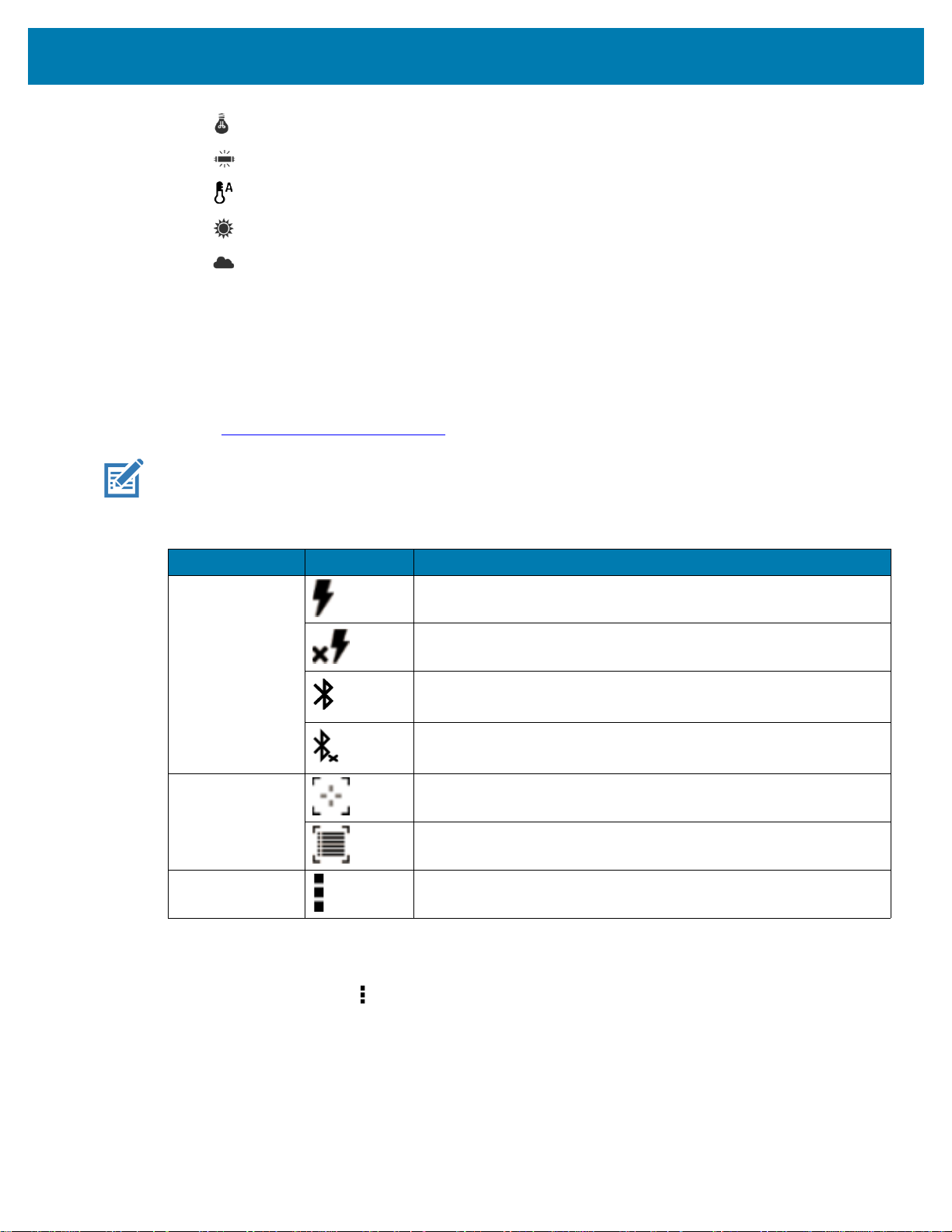

Table 7 DataWedge Demonstration Icons
IlluminationImager illumination is on. Touch to turn illumination off.
Scan ModeImager is in picklist mode. Touch to change to normal scan mode.
MenuOpens a menu to view the application information or to set the
Scanner Selection
IconDescription
Imager illumination is off. Touch to turn illumination on.
An RS507 or RS6000 Bluetooth imager is connected.
An RS507 or RS6000 Bluetooth imager is not connected.
Imager is in normal scan mode. Touch to change to picklist mode.
application DataWedge profile.
To select a scanner, touch > Settings > Scanner selection.
See the Data Capture section for more information.
Press the programmable button or touch the yellow scan button to capture data. The data appears in the
text field below the yellow button.
57
PTT Express Voice Client
3
2
1
4
5
NOTE: Requires a PTT Express License.
PTT Express Voice Client enables Push-To-Talk (PTT) communication between disparate enterprise
devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers
simple PTT communication without requiring a voice communication server.
•Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.
•Private Response: Double-press the PTT button to respond to the originator of the last broadcast or to
make a Private Response.
PTT Express User Interface
Figure 20 PTT Express Default User Interface
Applications
Table 8 PTT Express Default User Interface Descriptions
NumberItemDescription
1Notification IconIndicates the current state of the PTT Express client.
2Service IndicationIndicates the status of the PTT Express client. Options: Service Enabled,
3Talk GroupsLists all 32 Talk Groups available for PTT communication.
4SettingsOpens the PTT Express Settings screen.
5Enable/Disable
Switch
Service Disabled or Service Unavailable.
Turns the PTT service on and off.
58
PTT Audible Indicators
The following tones provide helpful cues when using the voice client.
•Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for you to start
talking.
•Access Tone: Single beep. Plays when another user just finished a broadcast or response. You can
now initiate a Group Broadcast or Private Response.
•Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already
communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60
seconds).
•Network Tone:
•Three increasing pitch beeps. Plays when PTT Express acquires the WLAN connection and the
service is enabled.
•Three decreasing pitch beeps. Plays when PTT Express loses the WLAN connection or the service
is disabled.
PTT Notification Icons
Applications
Notification icons indicate the current state of the PTT Express Voice client.
Table 9 PTT Express Icon Descriptions
Status IconDescription
The PTT Express Voice client is disabled.
The PTT Express Voice client is enabled but not connected to a WLAN.
The PTT Express Voice client is enabled, connected to a WLAN, and listening on the
Talk Group indicated by the number next to the icon.
The PTT Express Voice client is enabled, connected to a WLAN, and communicating on
the Talk Group indicated by the number next to the icon.
The PTT Express Voice client is enabled, connected to a WLAN, and in a private
response.
The PTT Express Voice client is enabled and muted.
The PTT Express Voice client is enabled but it is not able to communicate due to a VoIP
telephony call in progress.
Enabling PTT Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the ON position. The button changes to ON.
59
Selecting a Talk Group
One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be
enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.
PTT Communication
NOTE: This section describes the default PTT Express client configuration. Refer to the PTT Express V1.2
User Guide for detailed information on using the client.
Creating a Group Call
1. Press and hold the PTT button (or the Talk button on the headset) and listen for the talk tone.
If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure
that PTT Express and the WLAN are enabled.
2. Start talking after hearing the talk tone.
NOTE: Holding the button for more than 60 seconds (default) drops the call, allowing others to make
Group calls. Release the button when finished talking to allow others to make calls.
Applications
3. Release the button when finished talking.
Responding with a Private Response
The Private Response can only be initiated once a Group Call has been established. The initial Private
Response is made to the originator of the Group Call.
1. Wait for an access tone.
2. Within 10 seconds, double-press the PTT button, and listen for the talk tone.
3. If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure
that PTT Express and the WLAN are enabled.
4. Start talking after the talk tone plays.
5. Release the button when finished talking.
Disabling PTT Communication
1. Swipe up from the bottom of the Home screen and touch .
2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.
3. Touch the Home button.
60
RxLogger
RxLogger is a comprehensive diagnostic tool that provides application and system metrics, and diagnoses
device and application issues. RxLogger logs the following information: CPU load, memory load, memory
snapshots, battery consumption, power states, wireless logging, cellular logging, TCP dumps, Bluetooth
logging, GPS logging, logcat, FTP push/pull, ANR dumps, etc. All generated logs and files are saved onto
flash storage on the device (internal or external).
RxLogger Configuration
RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plug-ins
already built-in. For information on configuring RxLogger, refer to techdocs.zebra.com/rxlogger/
To open the configuration screen, from the RxLogger home screen touch Settings.
Configuration File
RxLogger configuration can be set using an XML file. The config.xml configuration file is located in the
RxLogger\config folder. Copy the file from the device to a host computer using a USB connection. Edit the
configuration file and then replace the XML file on the device. There is no need to stop and restart the
RxLogger service since the file change is automatically detected.
Applications
.
Enabling Logging
To enable logging:
1. Swipe the screen up and select .
2. Touch Start.
3. Touch the Home button.
Disabling Logging
To disable logging:
1. Swipe the screen up and select .
2. Touch Stop.
3. Touch the Home button.
Extracting Log Files
1. Connect the device to a host computer using an USB connection.
2. Using a file explorer, navigate to the RxLogger folder.
3. Copy the file from the device to the host computer.
4. Disconnect the device from the host computer.
Backing Up
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
61
To save the backup data, touch > BackupNow.
RxLogger Utility
RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running.
Logs and RxLogger Utility features are accessed using Main Chat Head.
Initiating the Main Chat Head
To initiate the Main Chat Head:
1. Open RxLogger.
2. Touch > Toggle Chat Head. The Main Chat Head icon appears on the screen.
3. Touch and drag the Main Chat head icon to move it around the screen.
Removing the Main Chat Head
To remove the Main Chat Head icon:
1. Touch and drag the icon. A circle with an X appears.
Applications
2. Move the icon over the circle and then release.
Viewing Logs
To view logs:
1. Touch the Main Chat Head icon. The RxLogger Utility screen appears.
2. Touch a log to open it. The user can open many logs with each displaying a new sub Chat Head.
3. If necessary, scroll left or right to view additional Sub Chat Head icons.
4. Touch a Sub Chat Head to display the log contents.
Removing a Sub Chat Head Icon
To remove a sub chat Head icon, press and hold the icon until it disappears.
Backing Up In Overlay View
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
The Backup icon is always available in Overlay View.
1. Touch . The Backup dialog box appears.
2. Touch Yes to create the back up.
Sound Recorder
Use Sound Recorder to record audio messages.
Recordings are saved on the internal storage, and are available in the Play Music application (GMS
devices).
62
Data Capture
Charging/Scan LED
Introduction
NOTE: Not available on all configurations
The device has the following data capture options:
•integrated SE965 Standard Range Laser
•integrated SE4770-Standard Range Imager
•integrated SE4850 Extended Range Imager
•integrated digital camera
•optional RS507 Hands-Free Imager.
NOTE: By default, the good decode beep is set to system volume (Notifications). The good decode beep
can be set to another sound (Ringer, Music and Media or Alarms) and the volume can be independently
controlled. See the DataWedge section in the TC8300 Integrator Guide for more information.
Status LED
The Charging/Scan LED indicates data capture status. The LED lights green when a barcode is
successfully decoded.
Figure 21 Charging/Scan LED
63
Laser Scanning
The device with laser scanner has the following features:
•Reading of a variety of barcode symbologies, including the most popular linear, postal, and 1-D code
types.
•Intuitive aiming for easy point-and-shoot operation.
Imaging
The device with an integrated imager has the following features:
•Omnidirectional (360°) reading of a variety of barcode symbologies, including the most popular linear,
postal, PDF417, and 2D matrix code types.
•The ability to capture and download images to a host for a variety of imaging applications.
•Advanced intuitive laser aiming for easy point-and-shoot operation.
The imager uses digital camera technology to take a digital picture of a barcode, stores the resulting image
in its memory, and executes state-of-the-art software decoding algorithms to extract the data from the
image.
Data Capture
Operational Modes
The device with an integrated imager supports two modes of operation, listed below. Activate each mode
pressing the Scan button.
•Decode Mode: In this mode, the device attempts to locate and decode enabled barcodes within its field
of view. The imager remains in this mode as long as you hold the scan button, or until it decodes a
barcode.
•Pick List Mode: This mode allows the user to selectively decode a barcode when more than one
barcode is in the device’s field of view. To accomplish this, move the aiming crosshair or center dot
over the required barcode to decode only this barcode. This feature is ideal for pick lists containing
multiple barcodes and manufacturing or transport labels containing more than one barcode type (either
1D or 2D).
NOTE: To enable Pick List Mode, configure in DataWedge or set in an application using a API command.
Digital Camera
The device with an integrated camera based barcode scanning solution has the following features:
•Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal,
QR, PDF417, and 2D matrix code types.
•Cross-hair reticle for easy point-and-shoot operation.
•Picklist mode to decode a particular barcode from many in the field of view.
The solution uses the advanced camera technology to take a digital picture of a barcode, and executes
state-of-the-art software decoding algorithms to extract the data from the image.
64
Scanning Considerations
Scanning consists of; aim, scan and decode. Scanning performance can be optimized by considering the
range and the scanning angle:
•Range
Any scanning device decodes well over a particular working range (minimum and maximum distances
from the barcode). This range varies according to barcode density and scanning device optics.
Scanning within range brings quick and constant decodes; scanning too close or too far away prevents
decodes. Move the scanner closer and further away to find the right working range for the barcodes
being scanned. However, the situation is complicated by the availability of various integrated scanning
modules. The best way to specify the appropriate working range per barcode density is through a chart
called a decode zone for each scan module. A decode zone simply plots working range as a function of
minimum element widths of barcode symbols.
•Angle
The scan angle is important for optimizing decode performance. When laser beams reflect directly back
into the scanner from the barcode, this specular reflection can “blind” the scanner.
To avoid this, scan the barcode so that the beam does not bounce directly back. But do not scan at too
sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful
decode. Practice quickly shows what tolerances to work within.
Data Capture
NOTE: Contact the Zebra Support if chronic scanning difficulties develop. Decoding of properly printed
barcodes should be quick and effortless.
Barcode Capture with Laser Scanner
To read a barcode, a scan-enabled application is required. The device contains the DataWedge
application that allows the user to enable the scanner to decode barcode data and display the barcode
content. See DataWedge on page 76 for information on enabling DataWedge.
1. Launch a scanning application.
65
2.
Point the exit window at a barcode.
Figure 22 Laser Scanning
Data Capture
3. Press the trigger button. Ensure the red scan beam covers the entire barcode. The Charging/Scan LED
Indicators illuminate green and a beep sounds to indicate a successful decode.
Figure 23 Laser Aiming
4. Release the trigger or scan button.
Barcode Capture with Imager
To read a barcode, a scan-enabled application is required. The device contains the DataWedge
application that allows the user to enable the scanner to decode barcode data and display the barcode
content. See DataWedge on page 76 for more information on launching DataWedge.
1. Launch a scanning application.
2. Point the exit window at a barcode.
66
3.
Press the trigger button.
Figure 24 Imager Scanning
Data Capture
4. Ensure the red scan beam covers the entire barcode. The Charging/Scan LED Indicators illuminate
green and a beep sounds to indicate a successful decode.
Figure 25 Imager Aiming Pattern - Standard Range
67
Data Capture
Figure 26 Imager Aiming Pattern - Extended Range

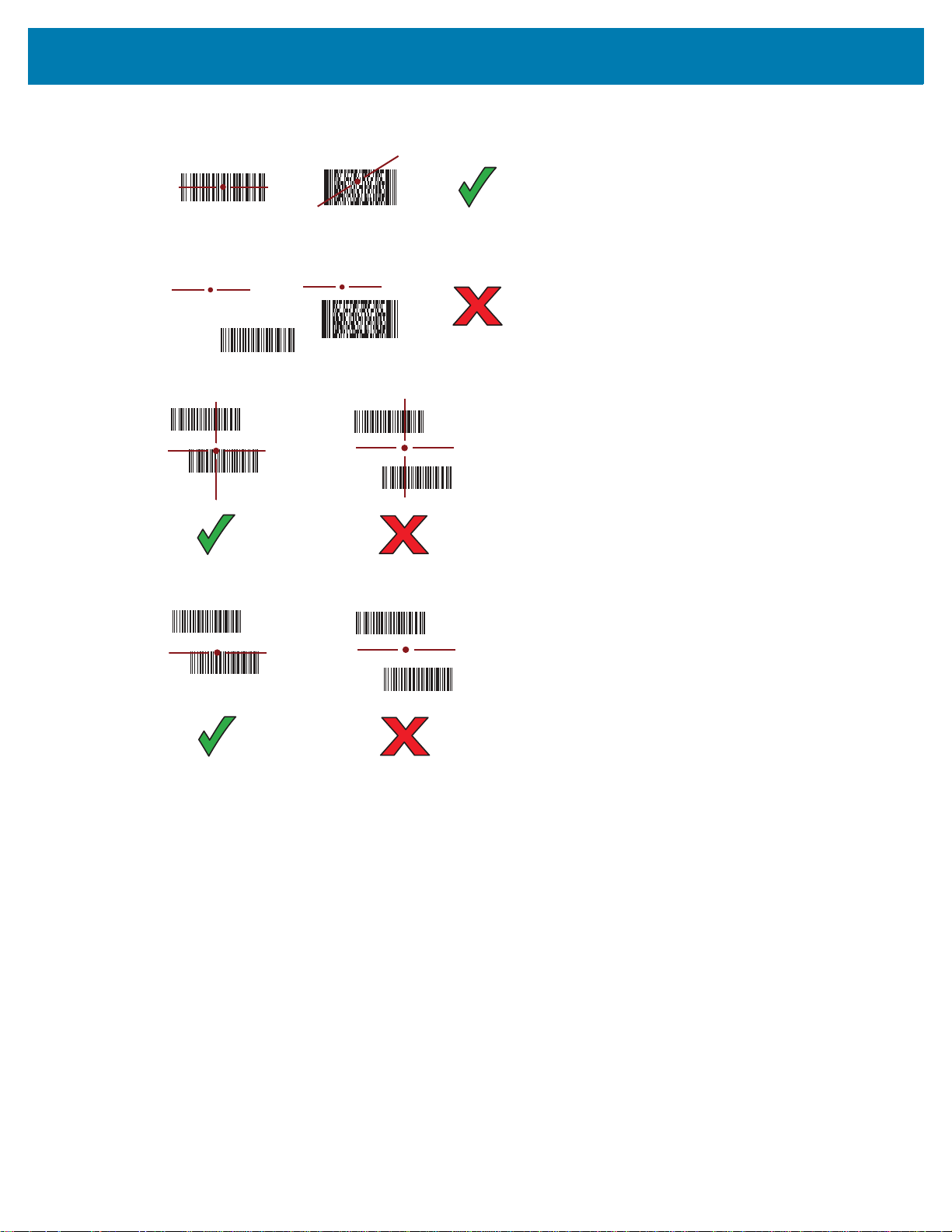

Figure 27 Imager Pick List Mode with Multiple Barcodes - Standard Range
Figure 28 Imager Pick List Mode with Multiple Barcodes - Extended Range
5. Release the trigger.
Barcode Capture with Camera
To read a barcode, a scan-enabled application is required. The device contains the DataWedge
application that allows the user to enable the scanner to decode barcode data and display the barcode
content. See DataWedge on page 76 for more information on launching DataWedge.
1. Launch a scanning application.
2. Point the camera window at a barcode.
68
Data Capture
3.
Press and hold the trigger. By default, a preview window appears on the screen.

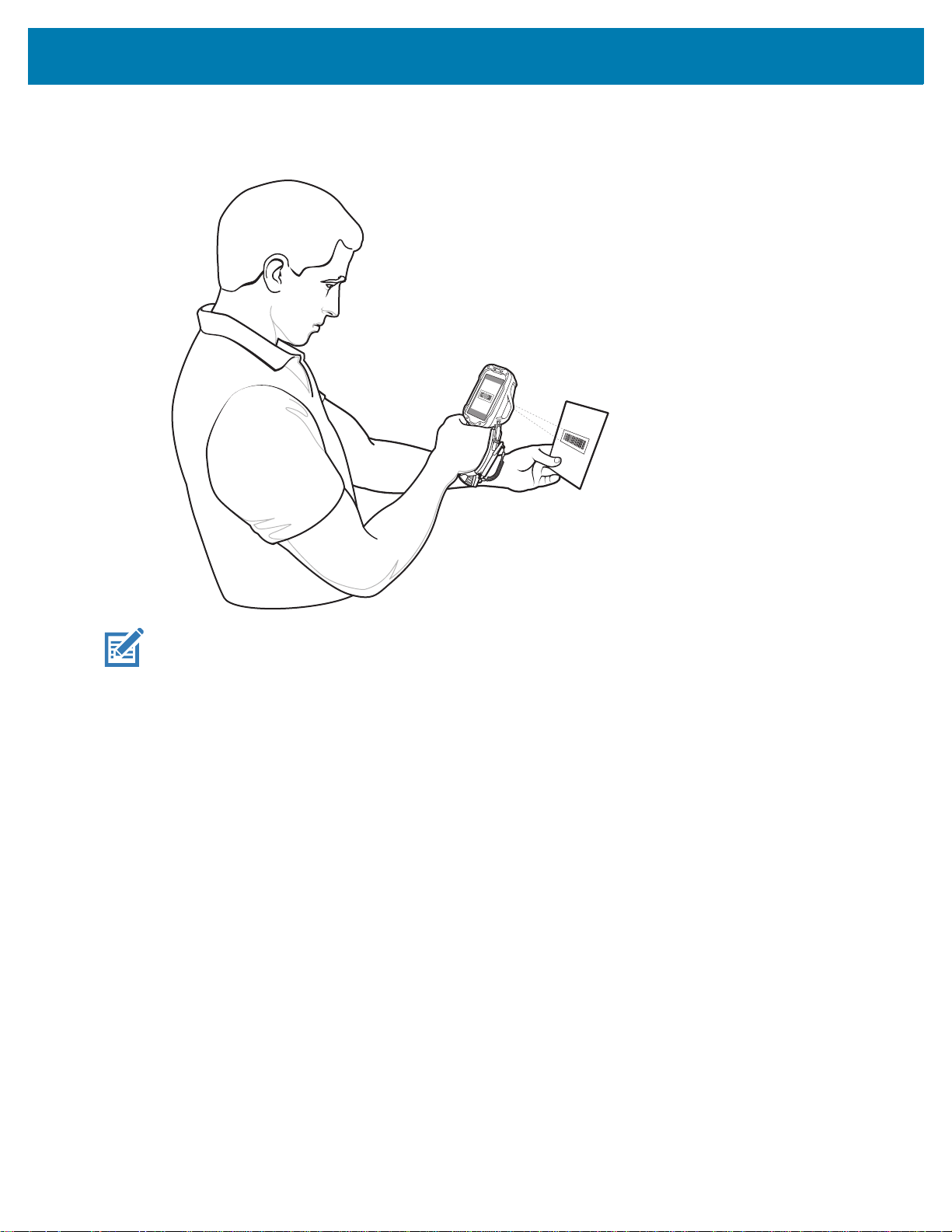

Figure 29 Camera Scanning
NOTE: When Picklist mode is enabled, move the device until the barcode is centered under the red target
on the screen.
4. Move the device until the barcode is visible on the screen.
5. The Decode LED lights green, a beep sounds and the device vibrates, by default, to indicate the
barcode is decoded successfully.
6. The captured data appears in the text field.
7. Release the trigger.
Barcode Capture with RS507 Hands-Free Imager
Pair the RS507 with the device. See Pairing the RS507 Hands-Free Imager Using SSI on page 71 or
Pairing the RS507 Hands-Free Imager Using Bluetooth HID on page 71 for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
69
Data Capture
2.
Point the RS507 at a barcode.

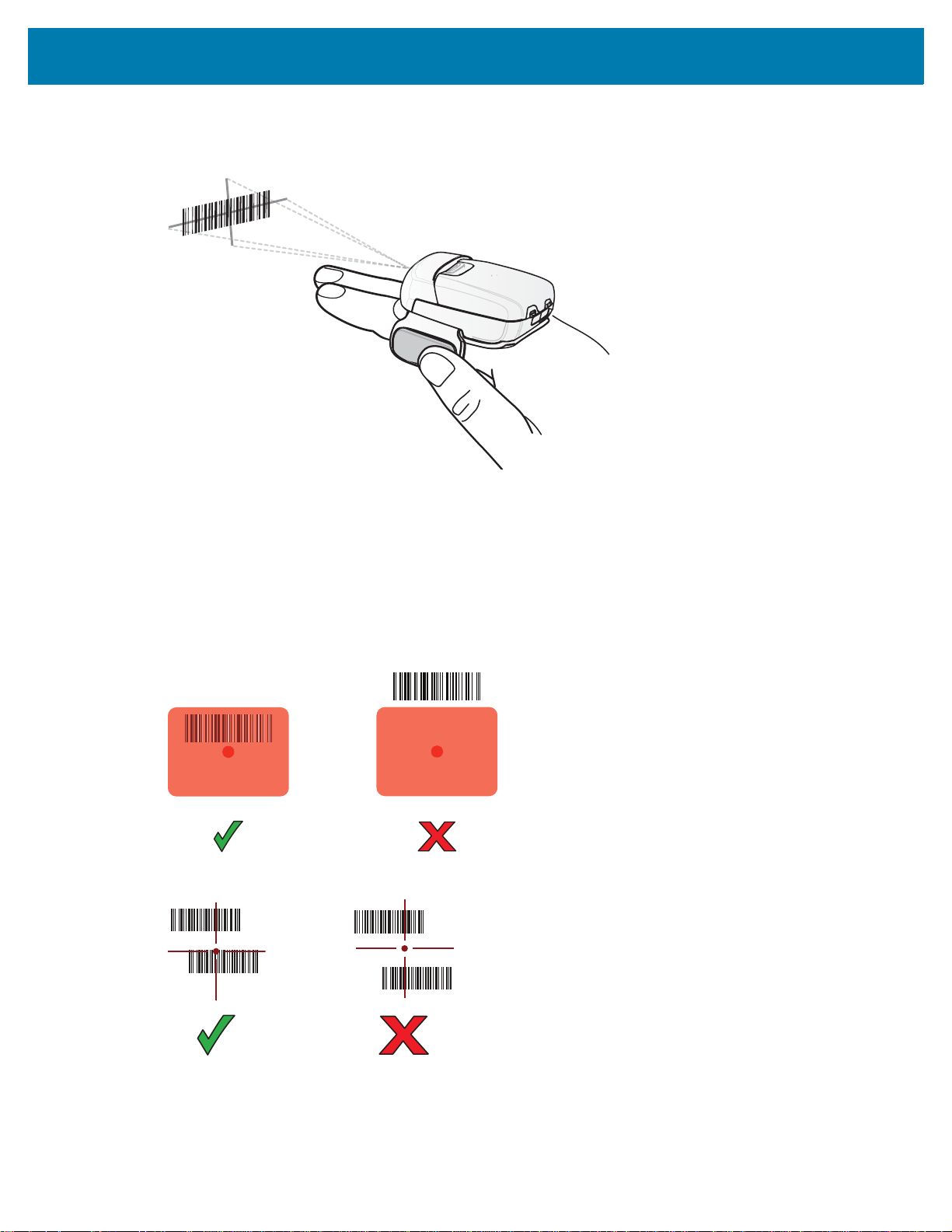

Figure 30 Barcode Scanning with RS507
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed
by the cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting
conditions.
The RS507 LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note
that when the RS507 is in Pick List Mode, the RS507 does not decode the barcode until the center of
the crosshair touches the barcode.
Figure 31 Aiming Pattern
Figure 32 Pick List Mode with Multiple Barcodes in Aiming Pattern
4. The captured data appears in the text field.
70
Data Capture
Pairing the RS507 Hands-Free Imager Using SSI
An RS507 Hands-free Imager can be used with the device to capture barcode data.
1. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
2. Install the battery into the RS507.
3. Swipe up from the bottom of the Home screen and touch .
Figure 33 Bluetooth Pairing Utility
4. Using the RS507, scan the barcode on the screen.
The RS507 emits a high/low/high/low beeps. The Scan LED flashes green indicating that the RS507 is
attempting to establish connection with the device. When connection is established, the Scan LED
turns off and the RS507 emits one string of low/high beeps.
5. On the device, touch .
Pairing the RS507 Hands-Free Imager Using Bluetooth HID
An RS507 Hands-free Imager can be used with the device to capture barcode data.
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507 in Human Interface Device (HID) mode. If the RS507 is already in HID mode, skip to
step 5.
a. Remove the battery from the RS507.
b. Press and hold the Restore key.
c. Install the battery onto the RS507.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash
green.
71
e.
Scan the barcode below to place the RS507 in HID mode.

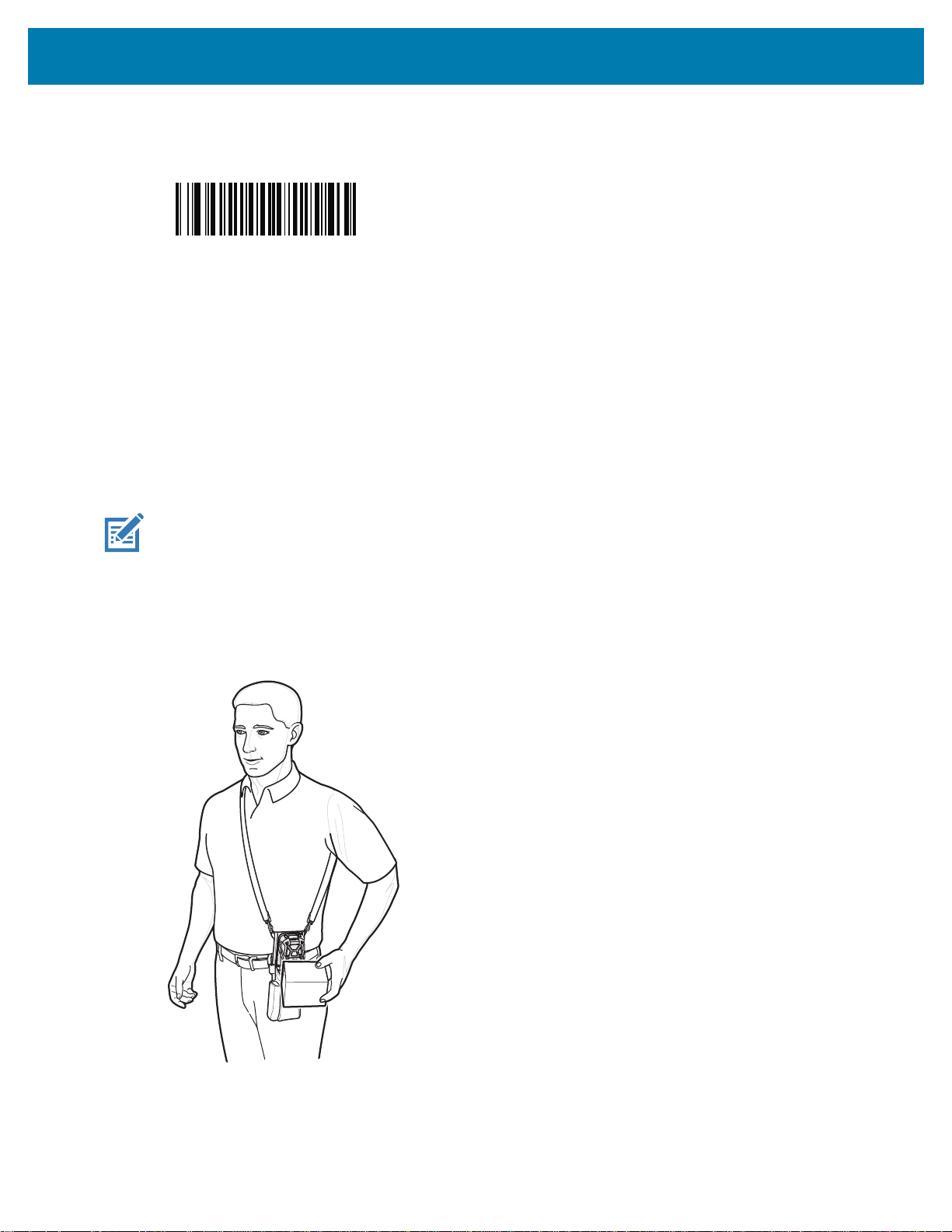

Figure 34 RS507 Bluetooth HID Barcode
5. Remove the battery from the RS507.
6. Re-install the battery into the RS507.
7. Swipe up from the bottom of the Home screen and touch Settings > Connected devices > Bluetooth.
8. Touch SCAN FOR DEVICES. The device begins searching for discoverable Bluetooth devices in the
area and displays them under AVAILABLE DEVICES.
9. Scroll through the list and select RS507.
The device connects to the RS507 and Connected appears below the device name. The Bluetooth
device is added to the Bluetooth devices list and a trusted (“paired”) connection is established.
Hands Free Scanning
Data Capture
NOTE: The Hands Free Scanning is only available on devices with the imager engine.
Hands Free Scanning allows the user to capture barcode data when a barcode is placed within the view of
the device without pressing the trigger. Hands Free Scanning is enabled using the Hands Free Scanning
settings or when the device is placed in the Presentation Holster or the Desk Stand. Hands Free Scanning
is set to disabled by default.
Figure 35 Scanning in Presentation Holster
72

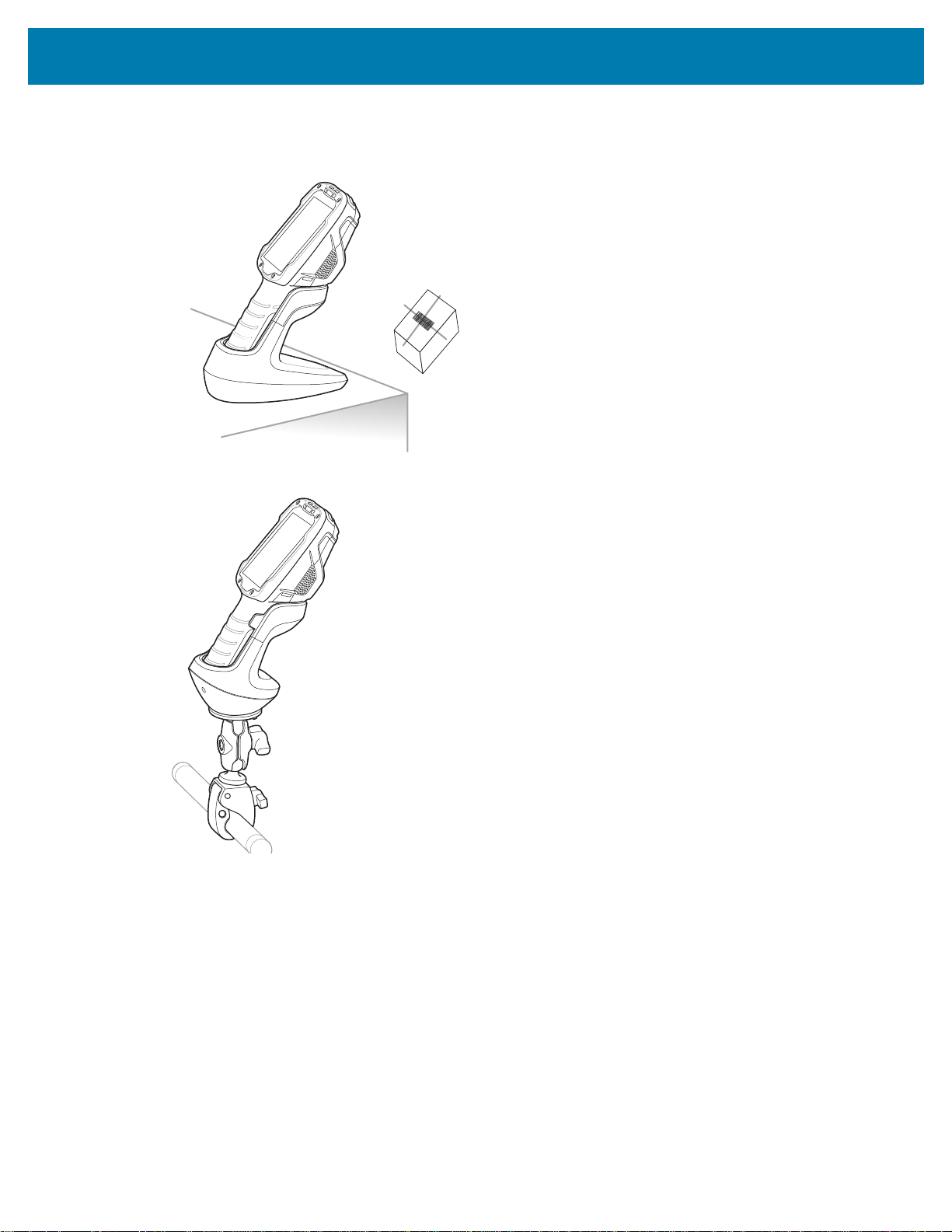

Figure 36 Scanning in Desk Stand
Figure 37 Scanning in Cart Mount
Data Capture
Settings
Use the Hands Free Scanning setting to configure scanning mode and the proximity trigger sensitivity.
Swipe up from the bottom of the Home screen and touch Settings > Hands Free Scanning.
73
Figure 38 Hands Free Scanning Settings
Scanning Mode
Use the Scanning Mode settings to configure how the device functions while in hands-free scanning
mode.
Data Capture
Figure 39 Scanning Mode Dialog Box
•Hands Free in Holster/Mount - Select to enable scanning when the device is in the Presentation
Holster, Desk Stand or Cart Mount.
•Hands Free Always On - Select to place the device in hands free scanning mode.
•Hands Free Off - Select to disable hands free scanning mode (default).
Proximity Range
To configure the proximity sensor range sensitivity, touch Proximity Trigger Range.
Figure 40 Proximity Trigger Range Dialog Box
•Near - Proximity sensor detects and generates a trigger when the barcode is within 0 to 15 cm
(nominal) (default).
74
•Far - Proximity sensor detects and generates a trigger when the barcode is within 0 to 26 cm (nominal).
StandingHigh ScanningLow Scanning
Ergonomic Recommendations
Proper Scanning
Figure 41 Proper Scanning Position
Data Capture
Avoid
Figure 42 Do Not Bend Wrist Excessively
75
Figure 43 Reaching and Bending
DataWedge
DataWedge is a utility that adds advanced barcode scanning capability to any application without writing
code. It runs in the background and handles the interface to built-in barcode scanners. The captured
barcode data is converted to keystrokes and sent to the target application as if it was typed on the keypad.
Data Capture
DataWedge allows any app on the device to get data from input sources such as a barcode scanner, MSR,
RFID, voice, or serial port and manipulate the data based on options or rules.
Configure DataWedge to:
•Provide data capture services from any app.
•Use a particular scanner, reader or other peripheral device.
•Properly format and transmit data to a specific app.
To configure DataWedge refer to techdocs.zebra.com/datawedge/
Enabling DataWedge
1. Swipe up from the bottom of the Home screen and touch .
2. Touch > Settings.
3. Touch the DataWedge enabled checkbox. A blue checkmark appears in the checkbox indicating that
DataWedge is enabled.
4. Touch the Home button.
Disabling DataWedge
1. Touch .
.
2. Touch Settings.
3. Touch DataWedge enabled.
The blue check disappears from the checkbox indicating that DataWedge is disabled.
76
Supported Decoders
NOTE: DataWedge supports the decoders listed below but not all are validated on this device.
Table 10 Supported Decoders
Decoders
Camera
Data Capture
SE965
RS5100
RS6000
DS2278
DS3678
LI3678
DS8178
Internal Imager
Internal Laser Scanner
Australian Postal O--OOOOOO--O
AztecX--XXXXXX--X
Canadian Postal O-- OOOO------ --
Chinese 2 of 5OOOOOOOOOO
CodabarXXXXXXXXXX
Code 11OOOOOOOOOO
Code 128XXXXXXXXXX
Code 39XXXXXXXXXX
Code 93OOOOOOOOOO
Composite ABO-- OOOOOO-- O
Composite CO-- OOOOOO--O
Discrete 2 of 5OOOOOOOOOO
DatamatrixX--XXXXXX--X
Dutch PostalO-- OOOOOO--O
DotCodeX OOOOOOOOO
Internal Imager
SE4750-DP/SE4750-DPA
SE4850-ER/SE4770-SR/SE4750-MR
EAN13XXXXXXXXXX
EAN8XXXXXXXXXX
Grid MatrixOOOOOOOOOO
GS1 DataBarXXXXXXXXXX
GS1 DataBar
Expanded
GS1 DataBar LimitedOOOOOOOOOO
GS1 Datamatrix O-- OOOOOO--O
XXXXXXXXXX
77
Data Capture
Table 10 Supported Decoders (Continued)
Decoders
Camera
SE965
RS5100
RS6000
DS2278
DS3678
LI3678
DS8178
Internal Imager
Internal Laser Scanner
GS1 QRCodeO--OOOOOO-- O
HAN XINO-- OOOO--OO--
Interleaved 2 of 5 OOOOOOOOOO
Japanese Postal O--OOOOOO-- O
Korean 3 of 5OOOOOOOOOO
MAIL MARKX--XXXXXX--X
Matrix 2 of 5OOOOOOOOOO
MaxicodeX--XXXXXX--X
MicroPDFO-- OOOOOO--O
MicroQRO-- OOOOOO-- O
MSIOOOOOOOOOO
PDF417X--XXXXXX--X
QR CodeX--XXXXXX--X
Decoder SignatureO--OOOOO-- -- --
Internal Imager
SE4750-DP/SE4750-DPA
SE4850-ER/SE4770-SR/SE4750-MR
TLC 39OOOOOOOOOO
Trioptic 39OOOOOOOOOO
UK PostalO-- OOOOOO--O
UPCAXXXXXXXXXX
UPCE0XXXXXXXXXX
UPCE1OOOOOOOOOO
US4stateO--OOOOOO-- O
US4state FICSO--OOOOOO-- O
US PlanetO--OOOOOO-- O
US PostnetO--OOOOOO-- O
78
Data Capture
Key
X = Enabled
O = Disabled
-- = Not Supported
Touch the Back button to return to the previous screen.
79
Wireless
This section provides information on the following wireless features:
•Wireless Local Area Network (WLAN)
•Bluetooth
•Cast
•Near Field Communications (NFC)
Wireless Local Area Networks
Wireless local area networks (WLANs) allow the device to communicate wirelessly inside a building.
Before using the device on a WLAN, the facility must be set up with the required hardware to run the
WLAN (sometimes known as infrastructure). The infrastructure and the device must both be properly
configured to enable this communication.
Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches,
Radius servers, etc.) for instructions on how to set up the infrastructure.
Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks settings configure the device to match the security scheme.
The device supports the following WLAN security options:
•None
•Enhanced Open
•Wireless Equivalent Privacy (WEP)
•Wi-Fi Protected Access (WPA)/WPA2 Personal (PSK)
•WPA3-Personal
•WPA/WPA2/WPA3 Enterprise (EAP)
•WPA3-Enterprise 192-bit
The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status.
NOTE: To extend the life of the battery, turn off Wi-Fi when not in use.
80
Connecting to a Wi-Fi Network
To connect to a Wi-Fi network:
1. Go to Settings.
2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.
3. Scroll through the list and select the desired WLAN network.
4. For open networks, touch profile once or press and hold and then select Connect or for secure
networks enter the required password or other credentials then touch Connect. See the system
administrator for more information.
The device obtains a network address and other required information from the network using the
dynamic host configuration protocol (DHCP) protocol. To configure the device with a fixed internet
protocol (IP) address, see Configuring the Device to Use a Static IP Address on page 84.
5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.
Removing a Wi-Fi Network
To remove a remembered or connected network:
Wireless
1. Go to Settings.
2. Touch Network & Internet > W-Fi.
3. Scroll down to the bottom of the list and touch Saved networks.
4. Touch the name of the network.
5. Touch FORGET.
6. Touch the Home button.
WLAN Configuration
This section provides information on configuring Wi-Fi settings.
Configuring a Secure Wi-Fi Network
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the switch to the ON position.
4. The device searches for WLANs in the area and lists them on the screen.
5. Scroll through the list and select the desired WLAN network.
6. Touch the desired network. If the network security is Open, the device automatically connects to the
network. For all other network security a dialog box appears.
7. If the network security is WPA/WPA2-Personal, WPA3-Personal, or WEP, enter the required password
and then touch Connect.
8. If the network security is WPA/WPA2/WPA3 Enterprise:
•Touch the EAP method drop-down list and select one of the following:
•PEAP
81
Wireless
•TLS
•TTLS
•PWD
•LEAP.
•Touch the Phase 2 authentication drop-down list and select an authentication method.
•If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:
Certificates are installed using the Security settings.
•If required, touch User certificate and select a user certificate. Note: User certificates are installed
using the Security settings.
•If required, in the Identity text box, enter the username credentials.
•If desired, in the Anonymous identity text box, enter an anonymous identity username.
•If required, in the Password text box, enter the password for then given identity.
9. If the network security is WPA3-Enterprise 192-bit:
•Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are
installed using the Security settings.
•Touch User certificate and select a user certificate. Note: User certificates are installed using the
Security settings.
•In the Identity text box, enter the username credentials.
NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring
for a Proxy Server for setting connection to a proxy server and see Configuring the Device to Use a Static
IP Address for setting the device to use a static IP address.
10. Touch Connect.
11. Touch the Home button.
Manually Adding a Wi-Fi Network
Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network
when out of range.
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
4. Scroll to the bottom of the list and select Add network.
5. In the Network name text box, enter the name of the Wi-Fi network.
6. In the Security drop-down list, set the type of security to:
•None
•Enhanced Open
•WEP
•WPA/WPA2-Personal
•WPA3-Personal
•WPA/WPA2/WPA3-Enterprise
82
Wireless
•WPA3-Enterprise 192-bit
7. If the network security is None or Enhanced Open, touch Save.
8. If the network security is WEP, WPA3-Personal, or WPA/WPA2-Personal, enter the required
password and then touch Save.
9. If the network security is WPA/WPA2/WPA3-Enterprise:
•Touch the EAP method drop-down list and select one of the following:
•PEAP
•TLS
•TTLS
•PWD
•LEAP.
•Touch the Phase 2 authentication drop-down list and select an authentication method.
•If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:
Certificates are installed using the Security settings.
•If required, touch User certificate and select a user certificate. Note: User certificates are installed
using the Security settings.
•If required, in the Identity text box, enter the username credentials.
•If desired, in the Anonymous identity text box, enter an anonymous identity username.
•If required, in the Password text box, enter the password for the given identity.
10. If the network security is WPA3-Enterprise 192-bit:
•Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are
installed using the Security settings.
•Touch User certificate and select a user certificate. Note: User certificates are installed using the
Security settings.
•In the Identity text box, enter the username credentials.
NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring
for a Proxy Server on page 83 for setting connection to a proxy server and see Configuring the Device to
Use a Static IP Address on page 84 for setting the device to use a static IP address.
11. Touch Save. To connect to the saved network, touch and hold on the saved network and select
Connect to network.
12. Touch the Home button.
Configuring for a Proxy Server
A proxy server is a server that acts as an intermediary for requests from clients seeking resources from
other servers. A client connects to the proxy server and requests some service, such as a file, connection,
web page, or other resource, available from a different server. The proxy server evaluates the request
according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is
validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting
the service on behalf of the client.
83
Wireless
It is important for enterprise customers to be able to set up secure computing environments within their
companies, making proxy configuration essential. Proxy configuration acts as a security barrier ensuring
that the proxy server monitors all traffic between the Internet and the intranet. This is normally an integral
part of security enforcement in corporate firewalls within intranets.
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
4. In the network dialog box, select and touch a network.
5. Touch to edit the network details.
6. Touch the down arrow to hide the keyboard.
7. Touch Advanced options.
8. Touch Proxy and select Manual.
9. In the Proxy hostname text box, enter the address of the proxy server.
10. In the Proxy port text box, enter the port number for the proxy server.
11. In the Bypass proxy for text box, enter addresses for web sites that are not required to go through the
proxy server. Use a comma “,” between addresses. Do not use spaces or carriage returns between
addresses.
12. Touch Save.
13. Touch Connect.
14. Touch the Home button.
Configuring the Device to Use a Static IP Address
By default, the device is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an
Internet protocol (IP) address when connecting to a wireless network.
1. Go to Settings.
2. Touch Network & Internet > Wi-Fi.
3. Slide the Wi-Fi switch to the On position.
4. In the network dialog box, select and touch a network.
5. Touch to edit the network details.
6. Touch the down arrow to hide the keyboard.
7. Touch Advanced options.
8. Touch IP settings and select Static.
9. In the IP address text box, enter an IP address for the device.
10. If required, in the Gateway text box, enter a gateway address for the device.
11. If required, in the Network prefix length text box, enter the prefix length.
12. If required, in the DNS 1 text box, enter a Domain Name System (DNS) address.
13. If required, in the DNS 2 text box, enter a DNS address.
14. Touch Save.
15. Touch Connect.
84
16.
Touch the Home button.
Wi-Fi Preferences
Use the Wi-Fi preferences to configure advanced Wi-Fi settings. From the Wi-Fi screen scroll down to the
bottom of the screen and touch Wi-Fi preferences.
•Turn on Wi-Fi automatically - When enabled, Wi-Fi automatically turns back on when near high
quality saved networks.
•Open network notification - When enabled, notifies the user when an open network is available.
•Advanced - Touch to expand options.
•Additional settings - See Additional Settings.
•Install Certificates – Touch to install certificates.
•Network rating provider - Disabled (AOSP devices). To help determine what constitutes a good
Wi-Fi network, Android supports external Network rating providers that provide information about
the quality of open Wi-Fi networks. Select one of the providers listed or None. If none are available
or selected, the Connect to open networks feature is disabled.
•MAC address - Displays the Media Access Control (MAC) address of the device when connecting
to Wi-Fi networks.
Wireless
•IP address - Displays the IP address of the device when connecting to Wi-Fi networks.
Additional Wi-Fi Settings
NOTE: Additional Wi-Fi settings are for the device, not for a specific wireless network.
Use the AdditionalSettings to configure additional Wi-Fi settings. To view the additional Wi-Fi settings,
scroll to the bottom of the Wi-Fi screen and touch Wi-Fi Preferences > Advanced > Additional settings.
•Regulatory
•Country Selection - Displays the acquired country code if 802.11d is enabled, else it displays the
currently selected country code.
•Region code - Displays the current region code.
•Band and Channel Selection
•Wi-Fi frequency band - Set the frequency band to: Auto (default), 5 GHz only or 2.4 GHz only.
•Available channels (2.4 GHz) - Touch to display the Available channels menu. Select specific
channels and touch OK.
•Available channels (5 GHz) - Touch to display the Available channels menu. Select specific
channels and touch OK.
•Logging
•Advanced Logging – Touch to enable advanced logging or change the log directory.
•Wireless logs - Use to capture Wi-Fi log files.
•Fusion Logger - Touch to open the Fusion Logger application. This application maintains a
history of high level WLAN events which helps to understand the status of connectivity.
•Fusion Status - Touch to display live status of WLAN state. Also provides information about the
device and connected profile.
85
•About
•Version - Displays the current Fusion information.
Wi-Fi Direct
Wi-Fi Direct devices can connect to each other without having to go through an access point. Wi-Fi Direct
devices establish their own ad-hoc network when required, letting you see which devices are available and
choose which one you want to connect to.
1. Go to Settings.
2. Touch Wi-Fi > Wi-Fi preferences > Advanced > Wi-Fi Direct. The device begins searching for
another Wi-Fi Direct device.
3. Under Peer devices, touch the other device name.
4. On the other device, select Accept.
Connected appears on the device. On both devices, in their respective Wi-Fi Direct screens, the other
device name appears in the list.
Wireless
Bluetooth
Bluetooth devices can communicate without wires, using frequency-hopping spread spectrum (FHSS)
radio frequency (RF) to transmit and receive data in the 2.4 GHz Industry Scientific and Medical (ISM)
band (802.15.1). Bluetooth wireless technology is specifically designed for short-range (10 m (32.8 ft))
communication and low power consumption.
Devices with Bluetooth capabilities can exchange information (for example, files, appointments, and tasks)
with other Bluetooth enabled devices such as printers, access points, and other mobile devices.
The device supports Bluetooth Low Energy. Bluetooth Low Energy is targeted at applications in the
healthcare, fitness, security, and home entertainment industries. It provides reduced power consumption
and cost while maintaining standard Bluetooth range.
Adaptive Frequency Hopping
Adaptive Frequency Hopping (AFH) is a method of avoiding fixed frequency interferers, and can be used
with Bluetooth voice. All devices in the piconet (Bluetooth network) must be AFH-capable in order for AFH
to work. There is no AFH when connecting and discovering devices. Avoid making Bluetooth connections
and discoveries during critical 802.11b communications. AFH for Bluetooth consists of four main sections:
•Channel Classification - A method of detecting an interference on a channel-by-channel basis, or
pre-defined channel mask.
•Link Management - Coordinates and distributes the AFH information to the rest of the Bluetooth
network.
•Hop Sequence Modification - Avoids interference by selectively reducing the number of hopping
channels.
•Channel Maintenance - A method for periodically re-evaluating the channels.
When AFH is enabled, the Bluetooth radio “hops around” (instead of through) the 802.11b high-rate
channels. AFH coexistence allows enterprise devices to operate in any infrastructure.
86
Security
Wireless
NOTE: It is not recommended to perform Bluetooth wireless technology inquiry when high rate 802.11b
operation is required.
The current Bluetooth specification defines security at the link level. Application-level security is not
specified. This allows application developers to define security mechanisms tailored to their specific need.
Link-level security occurs between devices, not users, while application-level security can be implemented
on a per-user basis. The Bluetooth specification defines security algorithms and procedures required to
authenticate devices, and if needed, encrypt the data flowing on the link between the devices. Device
authentication is a mandatory feature of Bluetooth while link encryption is optional.
Pairing of Bluetooth devices is accomplished by creating an initialization key used to authenticate the
devices and create a link key for them. Entering a common personal identification number (PIN) in the
devices being paired generates the initialization key. The PIN is never sent over the air. By default, the
Bluetooth stack responds with no key when a key is requested (it is up to user to respond to the key
request event). Authentication of Bluetooth devices is based-upon a challenge-response transaction.
Bluetooth allows for a PIN or passkey used to create other 128-bit keys used for security and encryption.
The encryption key is derived from the link key used to authenticate the pairing devices. Also worthy of
note is the limited range and fast frequency hopping of the Bluetooth radios that makes long-distance
eavesdropping difficult.
Recommendations are:
•Perform pairing in a secure environment
•Keep PIN codes private and do not store the PIN codes in the device
•Implement application-level security.
Bluetooth Profiles
The device supports the Bluetooth services listed.
Table 11 Bluetooth Profiles
Service Discovery Protocol
(SDP)
Serial Port Profile (SPP)Allows use of RFCOMM protocol to emulate serial cable
Object Push Profile (OPP)Allows the device to push and pull objects to and from a push
Advanced Audio Distribution
Profile (A2DP)
Audio/Video Remote Control
Profile (AVRCP)
Personal Area Network (PAN)Allows the use of Bluetooth Network Encapsulation Protocol to
Human Interface Device Profile
(HID)
ProfileDescription
Handles the search for known and specific services as well as
general services.
connection between two Bluetooth peer devices. For example,
connecting the device to a printer.
server.
Allows the device to stream stereo-quality audio to a wireless
headset or wireless stereo speakers.
Allows the device to control A/V equipment to which a user has
access. It may be used in concert with A2DP.
provide L3 networking capabilities over a Bluetooth link. Only
PANU role is supported.
Allows Bluetooth keyboards, pointing devices, gaming devices and
remote monitoring devices to connect to the device.
87
Wireless
Table 11 Bluetooth Profiles (Continued)
ProfileDescription
Headset Profile (HSP)Allows a hands-free device, such as a Bluetooth headset, to place
and receive calls on the device.
Hands-Free Profile (HFP)Allows car hands-free kits to communicate with the device in the
car.
Phone Book Access Profile
(PBAP)
Out of Band (OOB)Allows exchange of information used in the pairing process. Pairing
Symbol Serial Interface (SSI)Allows for communication with Bluetooth Imager.
Generic Attribute Profile (GATT)Provides profile discovery and description services for Bluetooth
Dial Up Networking (DUN)Provides a standard to access the Internet and other dial-up
Allows exchange of Phone Book Objects between a car kit and a
mobile device to allow the car kit to display the name of the
incoming caller; allow the car kit to download the phone book so
you can initiate a call from the car display.
is completed using the Bluetooth radio, but requires information
from the OOB mechanism. Using OOB with NFC enables pairing
when devices simply get close, rather than requiring a lengthy
discovery process.
Low Energy protocol. It defines how attributes are grouped
together into sets to form services.
services over Bluetooth.
Generic Access Profile (GAP)Use for device discovery and authentication.
OBject EXchange (OBEX)Facilitates the exchange of binary objects between devices.
Bluetooth Power States
The Bluetooth radio is off by default.
•Suspend - When the device goes into suspend mode, the Bluetooth radio stays on.
•Airplane Mode - When the device is placed in Airplane Mode, the Bluetooth radio turns off. When
Airplane mode is disabled, the Bluetooth radio returns to the prior state. When in Airplane Mode, the
Bluetooth radio can be turned back on if desired.
Bluetooth Radio Power
Turn off the Bluetooth radio to save power or if entering an area with radio restrictions (for example, an
airplane). When the radio is off, other Bluetooth devices cannot see or connect to the device. Turn on the
Bluetooth radio to exchange information with other Bluetooth devices (within range). Communicate only
with Bluetooth radios in close proximity.
NOTE: To achieve the best battery life, turn off radios when not in use.
Enabling Bluetooth
1. Swipe down from the Status bar to open the Notification panel.
2. Touch to turn Bluetooth on.
3. Touch the Home button.
88
Disabling Bluetooth
1. Swipe down from the Status bar to open the Notification panel.
2. Touch to turn Bluetooth off.
3. Touch the Home button.
Discovering Bluetooth Device(s)
The device can receive information from discovered devices without pairing. However, once paired, the
device and a paired device exchange information automatically when the Bluetooth radio is on.
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Swipe down from the Status bar to open the Quick Access panel.
5. Touch and hold Bluetooth.
6. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area
and displays them under Available devices.
Wireless
7. Scroll through the list and select a device. The Bluetooth pairing request dialog box appears.
8. Touch Pair on both devices.
9. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is
established.
Changing the Bluetooth Name
By default, the device has a generic Bluetooth name that is visible to other devices when connected.
The device searches for nearby Miracast devices and lists them.
4. Touch a device to begin casting.
5. Touch the Home button.
Near Field Communications
NFC/HF RFID is a short-range wireless connectivity technology standard that enables secure transaction
between a reader and a contactless smartcard. The technology is based on ISO/IEC 14443 type A and B
(proximity) and ISO/IEC 15693 (vicinity) standards, using the HF 13.56 MHz unlicensed band.
The device supports the following operating modes:
•Reader mode
•Peer-to-Peer communication
•Card Emulation mode.
Using NFC, the device can:
•Read contactless cards such as contactless tickets, ID cards and ePassport.
•Read and write information to contactless cards such as SmartPosters and tickets, as well as devices
with NFC interface such as vending machines.
•Read information from supported medical sensors.
90
•Pair with supported Bluetooth devices such as printers , ring scanners (ex. RS6000), and headsets (ex.
HS3100).
•Exchange data with another NFC device.
•Emulate contactless card such as payment,ticket, or SmartPoster.
The device NFC antenna is positioned to read NFC cards from the top of the device while the device is
being held.
Reading NFC Cards
Read contactless cards using NFC.
Figure 44 Reading Cards
Wireless
1. Launch an NFC enabled application.
2. Hold device as shown.
3. Move the device close to the NFC card until it detects the card.
4. Hold the card steadily until the transaction is complete (usually indicated by the application).
Enterprise NFC Settings
Improve NFC performance or increase battery life by selecting which NFC features to use on the device.
•Card Detection Mode - Select a card detection mode.
91
Wireless
•Low - Increases battery life by lowering the NFC detection speed.
•Hybrid - Provides a balance between NFC detection speed and battery life (default).
•Standard - Provides the best NFC detection speed, but reduces battery life.
•Supported Card Technology - Select an option to detect only one NFC tag type, increasing battery
life, but reducing detection speed.
•All (Default) - Detects all NFC tag types. This provides the best detection speed, but reduces
battery life.
•ISO 14443 Type A/B
•FeliCa
•ISO15693
•Other NFC settings available with Zebra administrator tools (CSP) - Allows configuration of
additional Enterprise NFC Settings through staging tools and Mobile Device Management (MDM)
solutions with an MX version that supports the Enterprise NFC Settings Configuration Service Provider
(CSP). For more information on using the Enterprise NFC Settings CSP, refer to: techdocs.zebra.com
.
92
Accessories
Introduction
The TC8300 accessories provide a variety of product support capabilities.
Table 12 Accessories
AccessoryPart NumberDescription
Cradles
2-Slot USB Charge
Cradle
2-Slot USB Charge
Cradle (for DPM only)
5-Slot Charge Only
Cradle
5-Slot Ethernet CradleCRD-TC8X-5SETH-01Provides device charging and provides Ethernet
5-Slot Charge Only
Cradle with Battery
Charger
5-Slot Ethernet Cradle
with Battery Charger
CRD-TC8X-2SUCHG-01Provides device and spare battery charging and USB
communication with a host computer. Use with power
supply, p/n PWR-BGA12V50W0WW and country
specific grounded AC line cord.
CRD-TC8D-2SUCHG-01Provides device and spare battery charging and USB
communication with a host computer. Use with power
supply, p/n PWR-BGA12V50W0WW and country
specific grounded AC line cord.
CRD-TC8X-5SCHG-01Charges up to five devices. Use with power supply, p/n
PWR-BGA12V108W0WW, DC line cord, p/n
50-16002-029R and country specific grounded AC line
cord.
communication for up to five devices. Use with power
supply, p/n PWR-BGA12V108W0WW, DC line cord,
p/n 50-16002-029R and country specific grounded AC
line cord.
CRD-TC8X-5SC4BC-01Charges up to four devices and four spare batteries.
Use with power supply, p/n PWR-BGA12V108W0WW,
DC line cord, p/n 50-16002-029R and country specific
grounded AC line cord.
CRD-TC8X-5SE4BC-01Provides device charging and provides Ethernet
communication for up to four devices. Provides
charging for four spare batteries. Use with power
supply, p/n PWR-BGA12V108W0WW, DC line cord,
p/n 50-16002-029R and country specific grounded AC
line cord.
93
Accessories
Table 12 Accessories (Continued)
AccessoryPart NumberDescription
Batteries and Chargers
BatteryBTRY-TC8X-67MA1-01
BTRY-TC8X-67MA1-10
BTRY-TC8X-70MA1-01
BTRY-TC8X-70MA1-01
4-Slot Battery ChargerSAC-TC8X-4SCHG-01Charges up to four spare batteries. Requires power
USB and Charging CableCBL-TC8X-USBCHG-01Provides USB communication and power to the device.
Audio Accessories
Replacement battery (single pack).
Replacement battery (10–pack).
Replacement battery (single pack).
Replacement battery (10–pack).
supply, p/n PWR-BGA12V50W0WW and country
specific grounded AC line cord.
Requires power supply PWR-BUA5V16W0WW and
country specific un-grounded AC line cord.
Quick Disconnect Audio
Cable
3.5 mm Audio CableCBL-TC8X-AUDBJ-01Snaps onto the device and provides audio to a wired
Mounting Brackets
2-Slot Cradle Desktop
Stand
5-Slot Cradle Desktop
Stand
Rack Mount BracketBRKT-SCRD-SMRK-01Use for mounting a 5-Slot cradle or four 4-Slot Battery
Desktop StandMNT-TC8X-DKPH-01Un-powered desktop presentation stand. Allows to use
Cart MountMNT-TC8X-CMKT-01Un-powered cart mount. Allows to use the device on
Forklift MountMNT-TC8X-FMKT-01Un-powered forklift mount. Allows to install the device
Forklift MountMNT-TC8X-FHKT-01Un-powered forklift mount. Allows to install the device
Carrying Solutions
Hand StrapSG-TC8X-HDSTP-01Replacement hand strap.
Wrist Lanyard50-12500-006Optional lanyard for holding the device.
CBL-TC8X-AUDQD-01Snaps onto the device and provides audio to a wired
headset with Quick Disconnect connector.
headset with 3.5 mm plug.
BRKT-SCRD-SSDK-01Use for mounting a 2-Slot cradle on a desk.
BRKT-SCRD-MSDK-01Use for mounting a 5-Slot cradle on a desk or rack.
Chargers on a rack.
the device on a flat surface (i.e. desktop) for hands-free
scanning.
carts with up to 2” diameter rail/bar and allows to use
the device on hands-free scanning mode. Includes
RAM Mount required for installation.
on a roll bar or square surface of a forklift and allows to
use the device on landscape or portrait mode.
on a roll bar or square surface of a forklift and allows to
use the device on landscape or portrait mode.
Quick Draw Soft HolsterSG-TC8X-QDHLST-01Use to hold the device. Requires the Universal Belt.
Quick Draw Soft Holster
(for DPM only)
SG-TC8D-QDHLST-01Use to hold the device. Requires the Universal Belt.
94
Accessories
Table 12 Accessories (Continued)
AccessoryPart NumberDescription
Presentation Soft HolsterSG-TC8X-PMHLST-01Use to hold the device and for hands-free scanning.
Requires the Universal Shoulder Strap or Universal
Belt.
Universal Belt11-08062-02RUse to hold the Quick Draw Soft Holster or the
Presentation Soft Holster.
Universal Shoulder StrapWA6010Use to hold the Presentation Soft Holster.
Power Supplies
Power SupplyPWR-BUA5V16W0WWProvides power to the device using the USB and
Charging Cable. Requires country specific
un-grounded AC line cord.
Power SupplyPWR-BGA12V50W0WWProvides power to the 2–Slot cradles and 4-Slot Spare
Battery Charger. Requires country specific grounded
AC line cord.
Power SupplyPWR-BGA12V108W0WWProvides power to the 5-Slot Charge Only Cradle,
5-Slot Ethernet Cradle, 5-Slot Charge Only Cradle with
Battery Charger and the 5-Slot Ethernet Cradle with
Battery Charger. Requires DC Line Cord, p/n
50-16002–029R and country specific grounded AC line
cord.
DC Y Cable25-85993-01RProvides power from the PWR-BGA12V108W0WW
power supply to two 4-Slot Battery Chargers.
DC Line Cord50-16002-029RProvides power from the power supply to the 5-Slot
Charge Only Cradle, 5-Slot Ethernet Cradle, 5-Slot
Charge Only Cradle with Battery Charge and 5-Slot
Ethernet Cradle with Battery Charger.
Miscellaneous
StylusSG-TC7X-STYLUS-03Stylus for use with the device (3-pack).
Screen ProtectorsMISC-TC8X-SCRN-01Provides additional protection for display (5-pack).
Replacement
Condensation Resistant
Back Housing
MISC-TC8X-DSCNT-01Field replaceable desiccant cartridge for condensation
resistant TC8300 models.
2-Slot USB Charge Cradle
NOTE: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on
page 155.
The 2-Slot USB Charge Cradle:
•Provides 5 VDC (nominal) power for operating the device.
•Provide USB communication with a host computer.
•Charges the device’s battery.
•Charges a spare battery.
95
Accessories
1
2
Standard
1
2
DPM

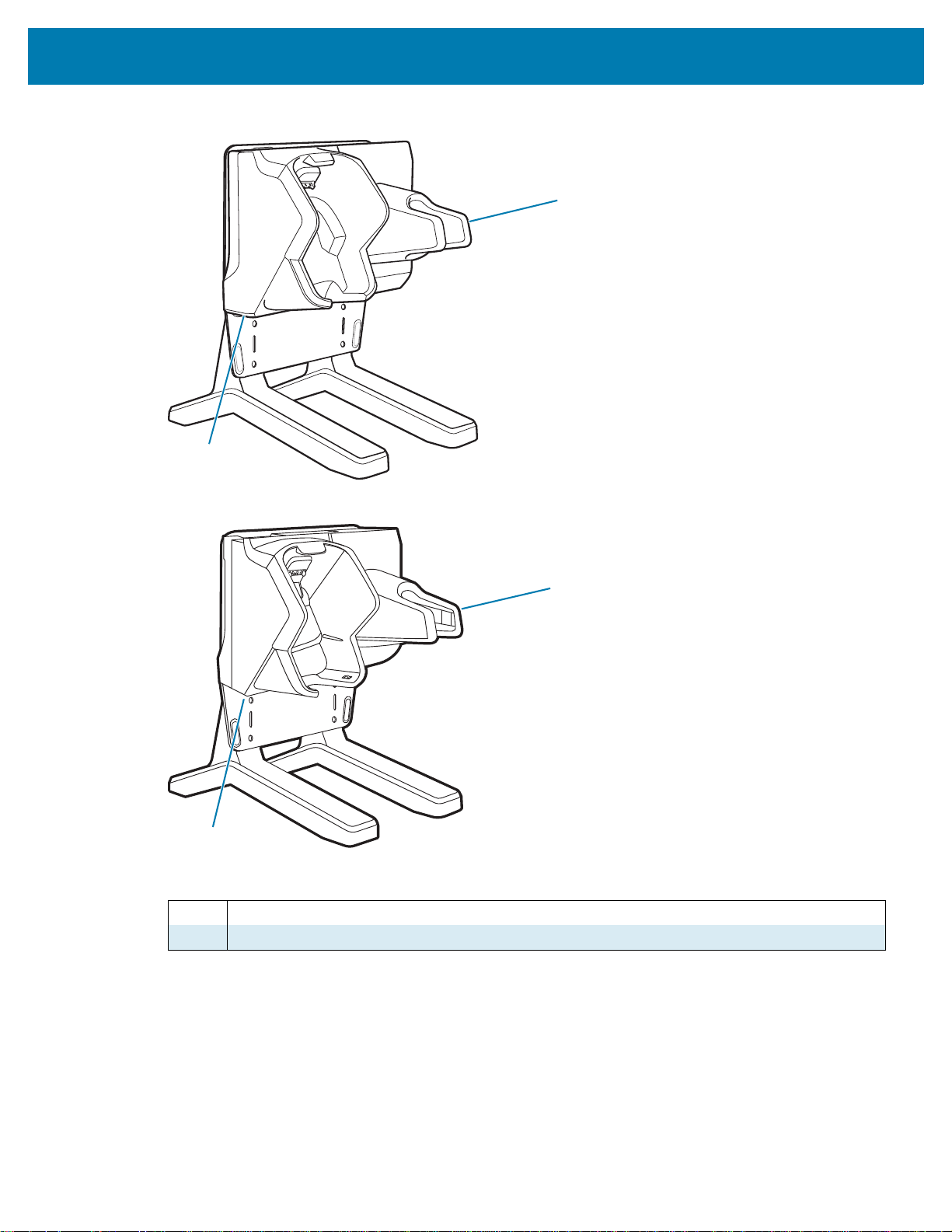

Figure 45 2-Slot Charge Only Cradle (Shown on Optional Desk Mount)
1
2Power LED
Spare Battery Charging LED
96
Setup
1
2
3
Standard
2
3
DPM
Accessories

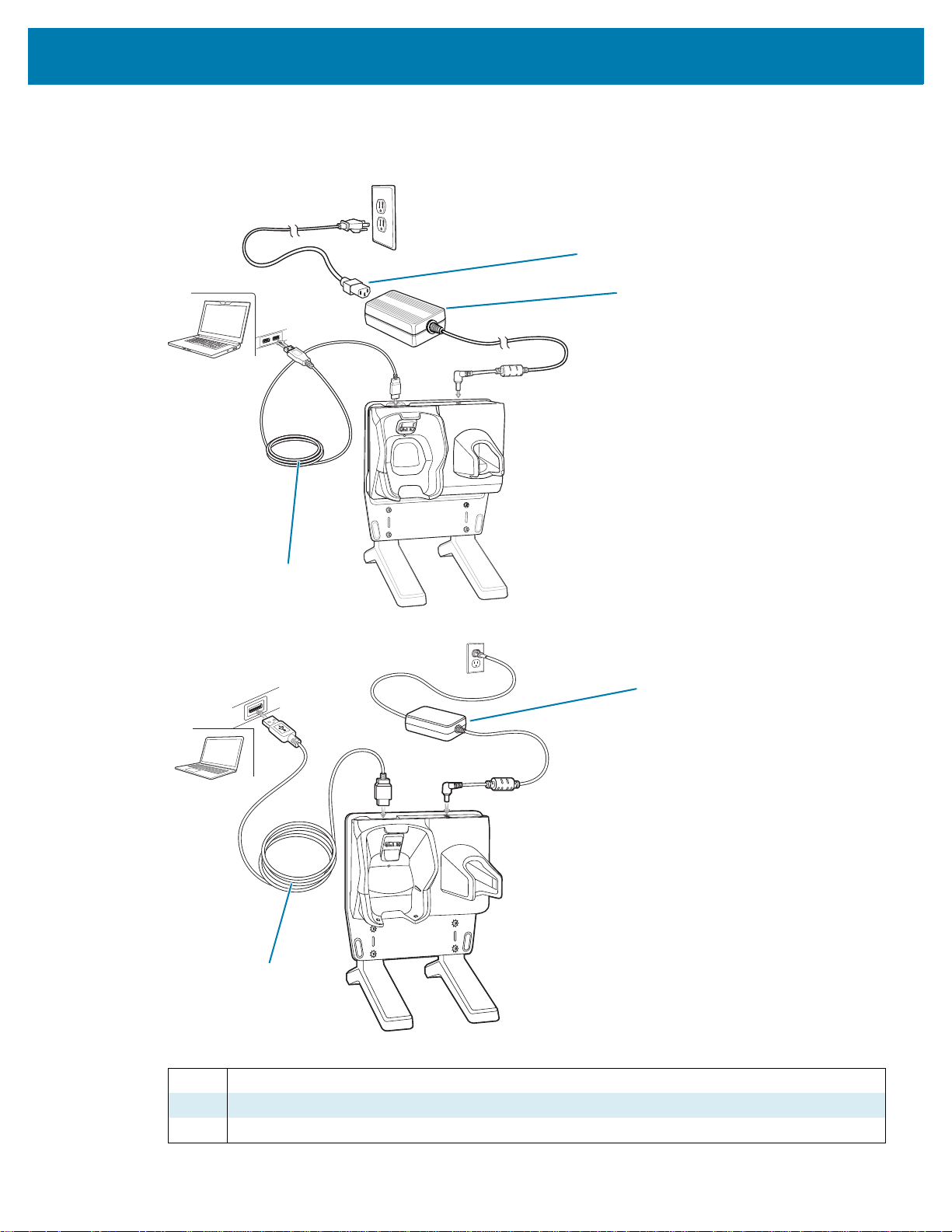

Figure 46 Setup (Shown on Optional Desk Mount)
1AC Line Cord
2Power Supply
3USB Cable
97
Charging the Device
To charge a device:
1. Insert the device into the slot to begin charging.

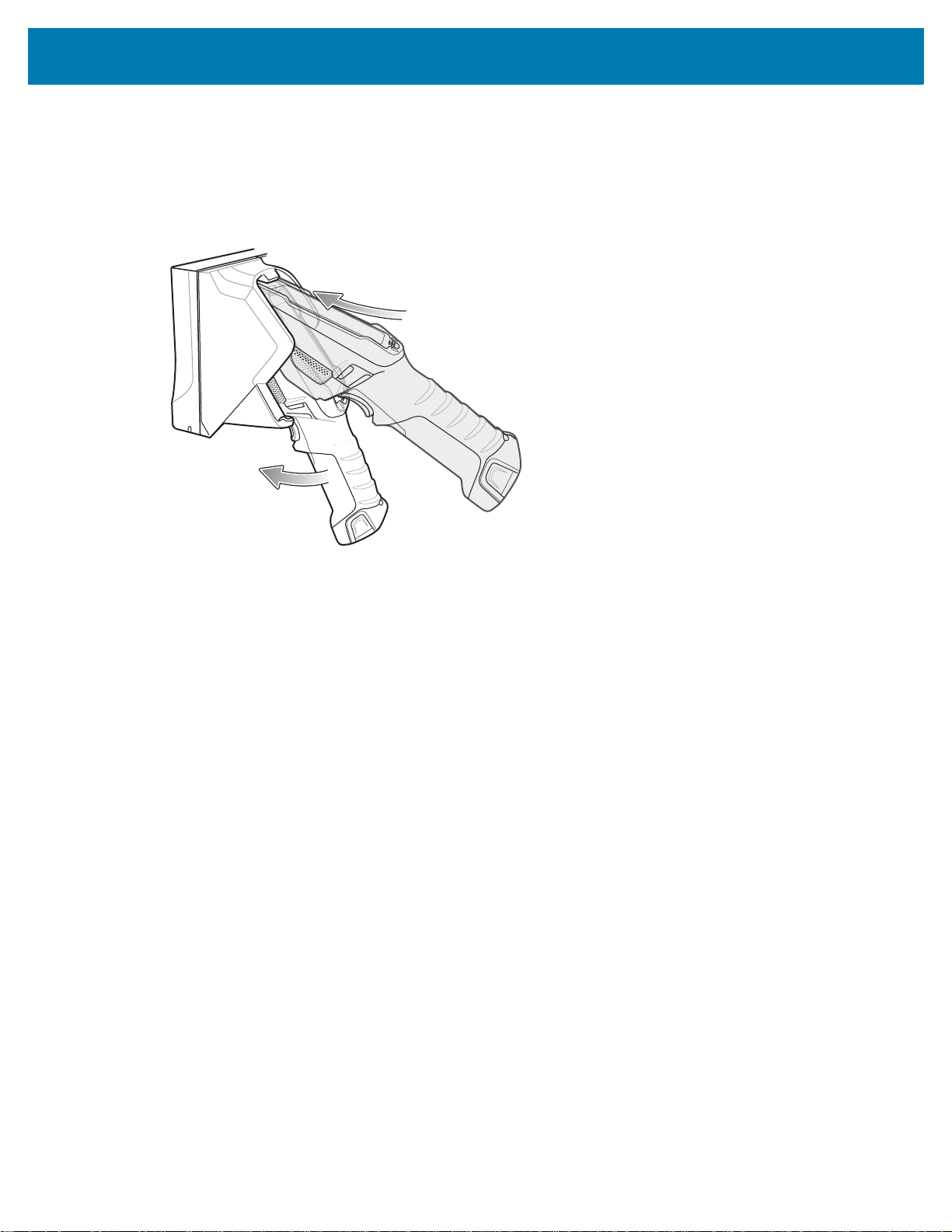

Figure 47 Insert Device into Cradle
Accessories
2. Ensure the device is seated properly.
Charging the Spare Battery
To charge a spare battery:
1. Insert the battery into the right slot to begin charging.
2. Ensure the battery is seated properly.
Battery Charging
Main Battery Charging
The device’s Charging/Notification LED indicates the status of the battery charging in the device. The
6,700 mAh battery charges from 0 - 90% in less than four hours at room temperature. The 7,000 mAh
battery charges from 0 - 90% in less than five hours at room temperature.
Spare Battery Charging
The Spare battery Charging LED on the cup indicates the status of the spare battery charging. The 6,700
mAh battery charges from 0 - 90% in less than four hours at room temperature. The 7,000 mAh battery
charges from 0 - 90% in less than five hours at room temperature.
98
Accessories
1
Table 13 Spare Battery Charging LED Indicators
StateIndication
OffThe battery is not charging. The battery is not inserted correctly in the cradle or
connected to a power source. Cradle is not powered.
Solid AmberHealthy battery is charging.
Solid GreenHealthy battery charging is complete.
Fast Blinking Red
(2 blinks/second)
Solid RedUnhealthy battery is charging or fully charged.
Charging error, e.g.:
- Temperature is too low or too high.
- Charging has gone on too long without completion (typically eight hours).
Charging Temperature
Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or cradle always
performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37
°C (+98 °F)) the device or cradle may for small periods of time alternately enable and disable battery
charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is
disabled due to abnormal temperatures via its LED.
5-Slot Charge Only Cradle
NOTE: Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on
page 155.
The 5-Slot Charge Only Cradle:
•Provides 5 VDC (nominal) power for operating the device.
•Simultaneously charges up to five devices.
Figure 48 5-Slot Charge Only Cradle (Shown on Optional Desk Mount)
1Power LED
99
Setup
3
2
1
Accessories
Figure 49 5-Slot Charge Only Cradle Setup (Shown on Optional Desk Mount)
1AC Line Cord
2Power Supply
3DC Line Cord
100
Loading...
