TC7X
Vehicle Cradle
Installation Guide
2 TC7X Vehicle Cradle Installation Guide
Zebra reserves the right to make changes to any product to
improve reliability, function, or design.
Zebra does not assume any product liability arising out of, or
in connection with, the application or use of any product,
circuit, or application described herein.
No license is granted, either expressly or by implication,
estoppel, or otherwise under any patent right or patent,
covering or relating to any combination, system, apparatus,
machine, material, method, or process in which Zebra
products might be used. An implied license exists only for
equipment, circuits, and subsystems contained in Zebra
products.
Warranty
For the complete Zebra hardware product warranty
statement, go to: http://www.zebra.com/warranty.
Installation Guide 3
Introduction
This guide describes how to install and use a
CRD-TC7X-DCVH-01 Vehicle Cradle with a TC75 touch
computer.
Install the cradle into a vehicle. Once installed, the cradle:
• holds the TC75 securely in place
• provides power for operating the TC75 when connected to
the optional USB I/O Hub.
Requirements
For mounting on a flat surface:
• four M3 screws (included)
• four wall anchors (not included).
®

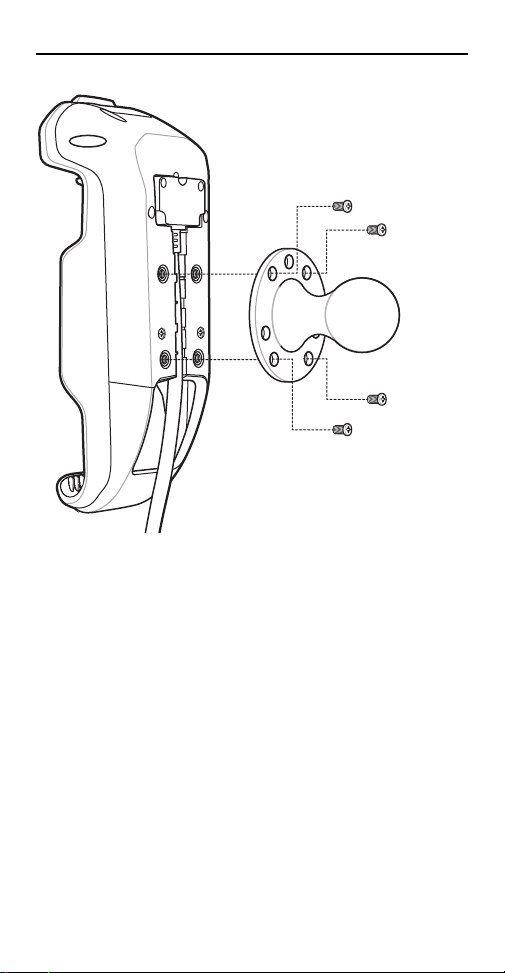

For mounting onto a RAM Mount
• RAM Mount (sold separately)
• Four M4 screws, lock washers and flat washers
(included).
:
4 TC7X Vehicle Cradle Installation Guide
FRONT VIEW
REAR VIEW
Mounting
Holes
Power Input Cable
Release Latch
Parts
Installation Guide 5
CAUTION ROAD SAFETY - Do not use the TC75
while driving. Park the vehicle first.
Always ensure the TC75 is fully
inserted into the cradle. Do not place it
on the seat or where it can break loose
in a collision or sudden stop. Lack of
proper insertion may result in property
damage or personal injury. Zebra is not
responsible for any loss resulting from
the use of the products while driving.
Remember: Safety comes first.

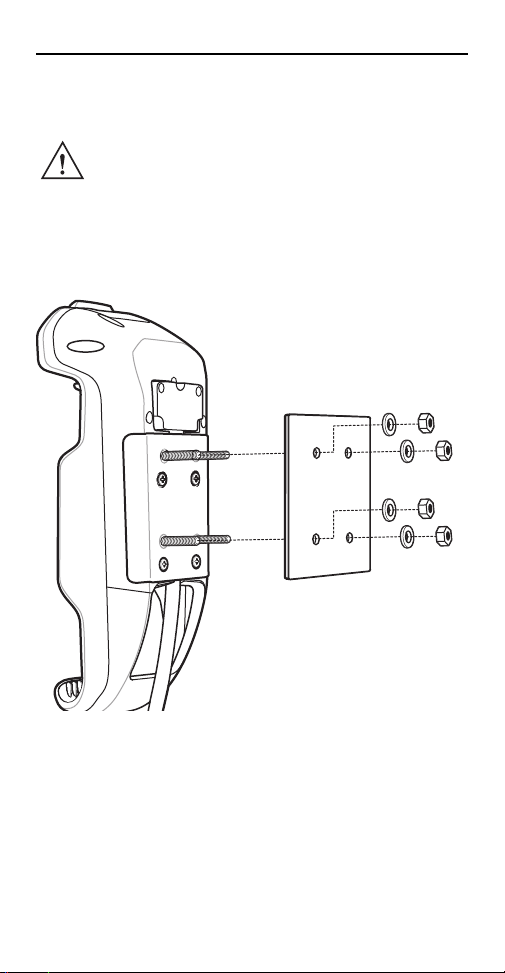

Mounting the Cradle to a Flat
Surface
CAUTION Only mount the Vehicle Cradle in a
vertical position. Never mount the
vehicle cradle on the side or upside
down or on a wall that can be subject to
impact or collision of greater than 10Gs,
in accordance with SAE J1455 Section
4.10.3.5.
1. Select a mounting location for the cradle. It should be flat,
and must provide adequate support for the cradle.
2. Prepare the mounting surface, using the mounting
template below, with wall anchors that support the weight
of the cradle and device. The anchors should accept four
M3 screws.
