Zebra TC72, TC77 User Guide

Download

TC72/TC77

Touch Computer

User Guide

for Android ™ 10

MN-004055-04EN

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC. All other trademarks are the property of their respective owners. © 2022 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

For further information regarding legal and proprietary statements, go to:

COPYRIGHTS:www.zebra.com/copyright WARRANTY:www.zebra.com/warranty END USER LICENSE AGREEMENT: www.zebra.com/eula

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Revision History

Changes to the original guide are listed below:

Change Date Description

-01 Rev A 9/2020 Initial release.

-02 Rev A 11/2020 Add WWAN information and best practices for hot environments.

-03 Rev A 11/2021 Fix description of GMS Restricted Mode

-04 Rev A 2/2022 Added SE4770 Decode Distances

Table of Contents

About This Guide.............................................................................................................................. 13

Configurations................................................................................................................ 13

Notational Conventions.................................................................................................. 13

Icon Conventions ........................................................................................................... 14

Service Information ........................................................................................................ 14

Determining Software Versions...................................................................................... 14

Determining the Serial Number...................................................................................... 15

Getting Started.................................................................................................................................. 16

Introduction .................................................................................................................... 16

Unpacking ...................................................................................................................... 16

Features......................................................................................................................... 17

Setting Up the Device .................................................................................................... 19

Removing the SIM Lock Access Cover .................................................................. 20

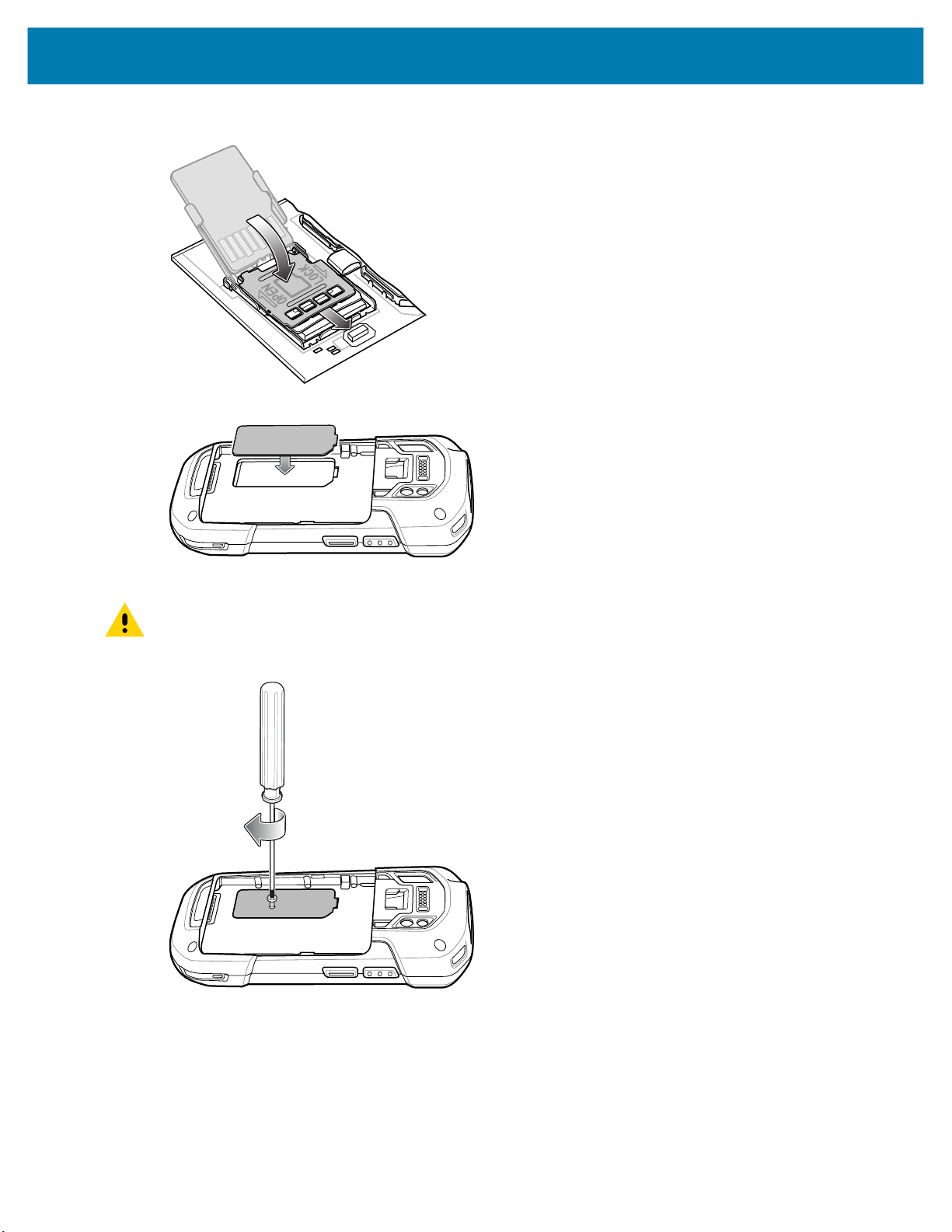

Installing the SIM Card ........................................................................................... 20

Installing the SAM Card.......................................................................................... 22

Installing a microSD Card....................................................................................... 23

Installing the Hand Strap and Battery..................................................................... 26

Installing the Battery ............................................................................................... 27

Charging the Battery............................................................................................... 28

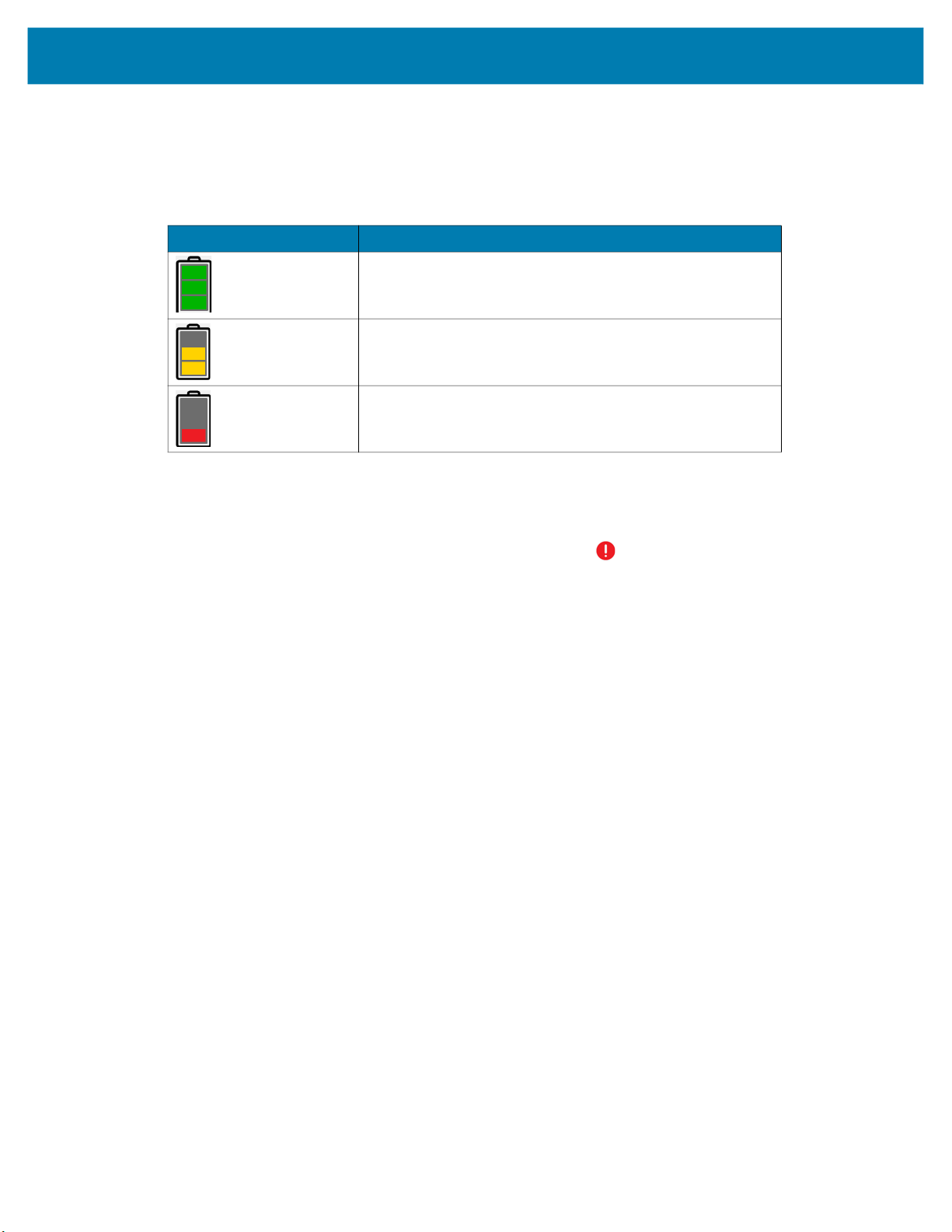

Charging Indicators ................................................................................................ 28

Zebra Visibility Services................................................................................................. 29

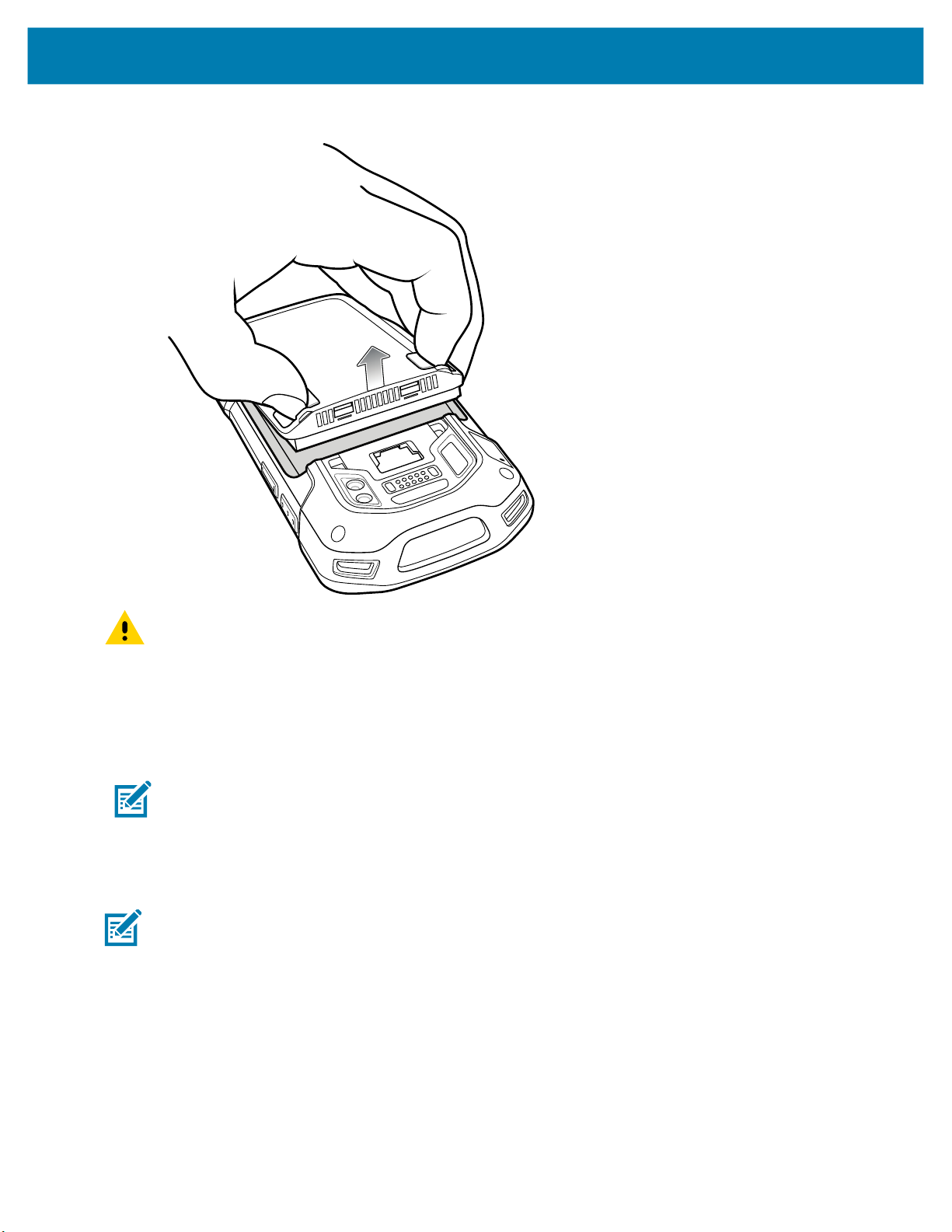

Replacing the Battery..................................................................................................... 29

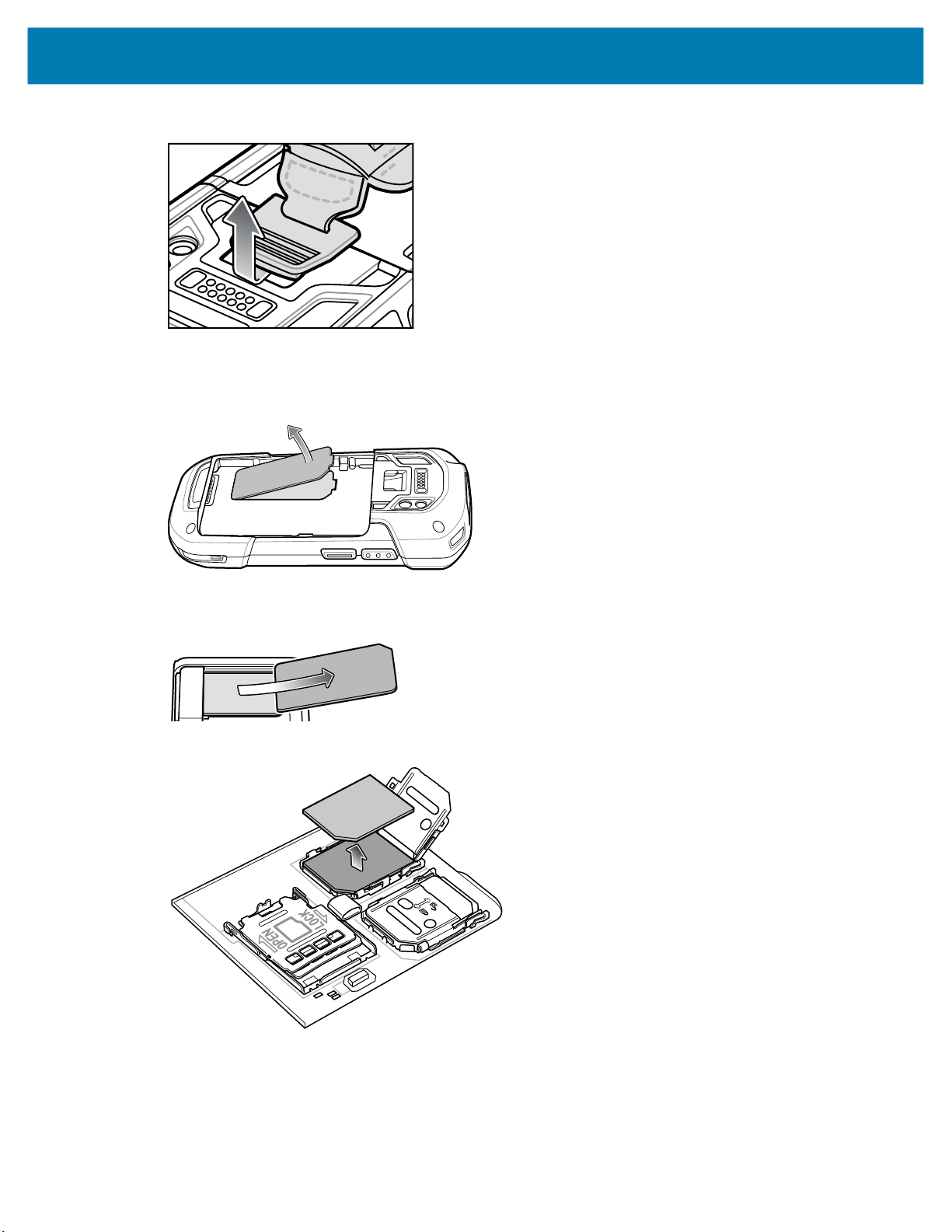

Replacing the SIM or SAM Card.................................................................................... 31

Replacing the microSD Card.......................................................................................... 33

Data Capture ..................................................................................................................................... 36

Introduction .................................................................................................................... 36

Integrated Imager........................................................................................................... 36

Operational Modes ................................................................................................. 36

Digital Camera........................................................................................................ 37

RS507/RS507X Hands-Free Imager.............................................................................. 37

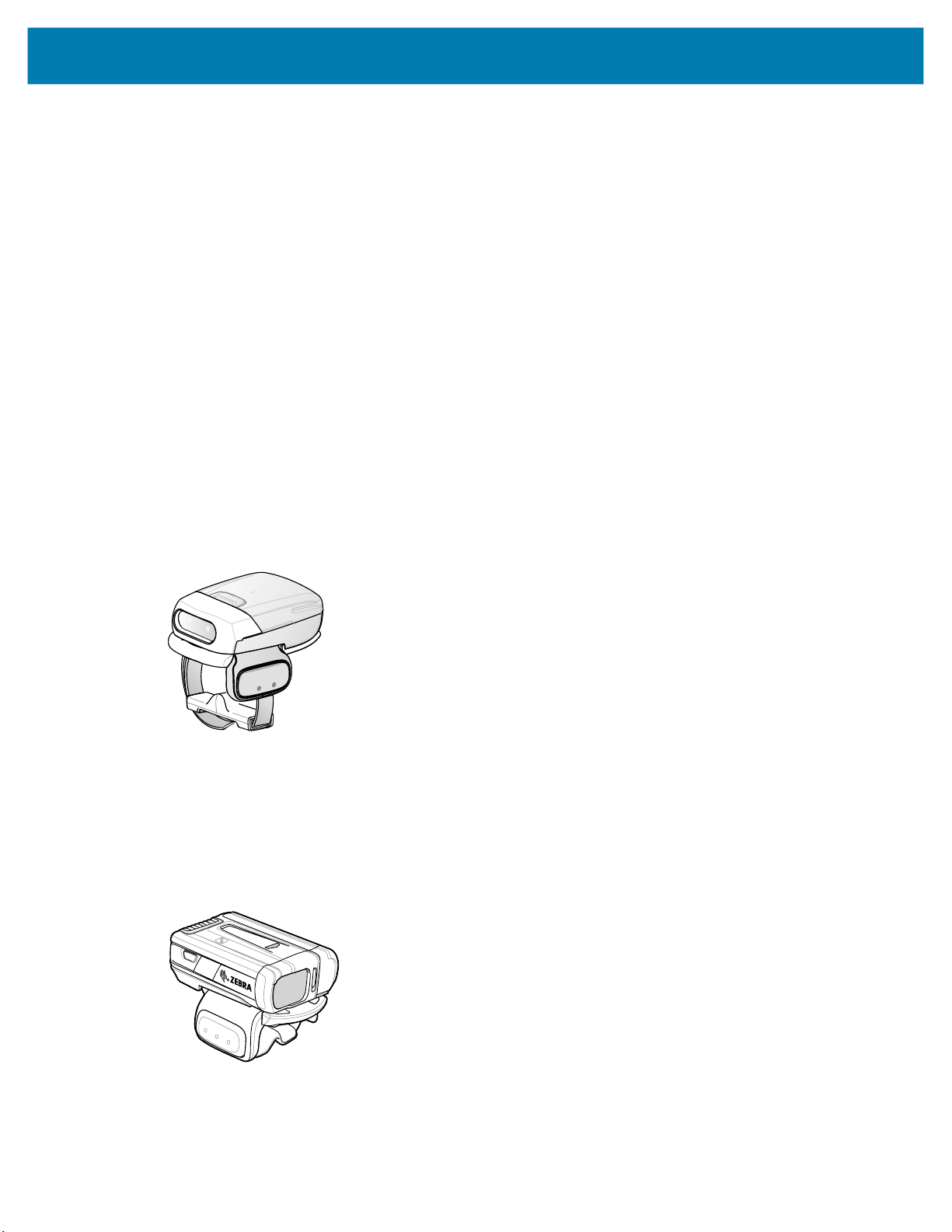

RS6000 Bluetooth Ring Scanner ................................................................................... 37

DS3678 Digital Scanner................................................................................................. 38

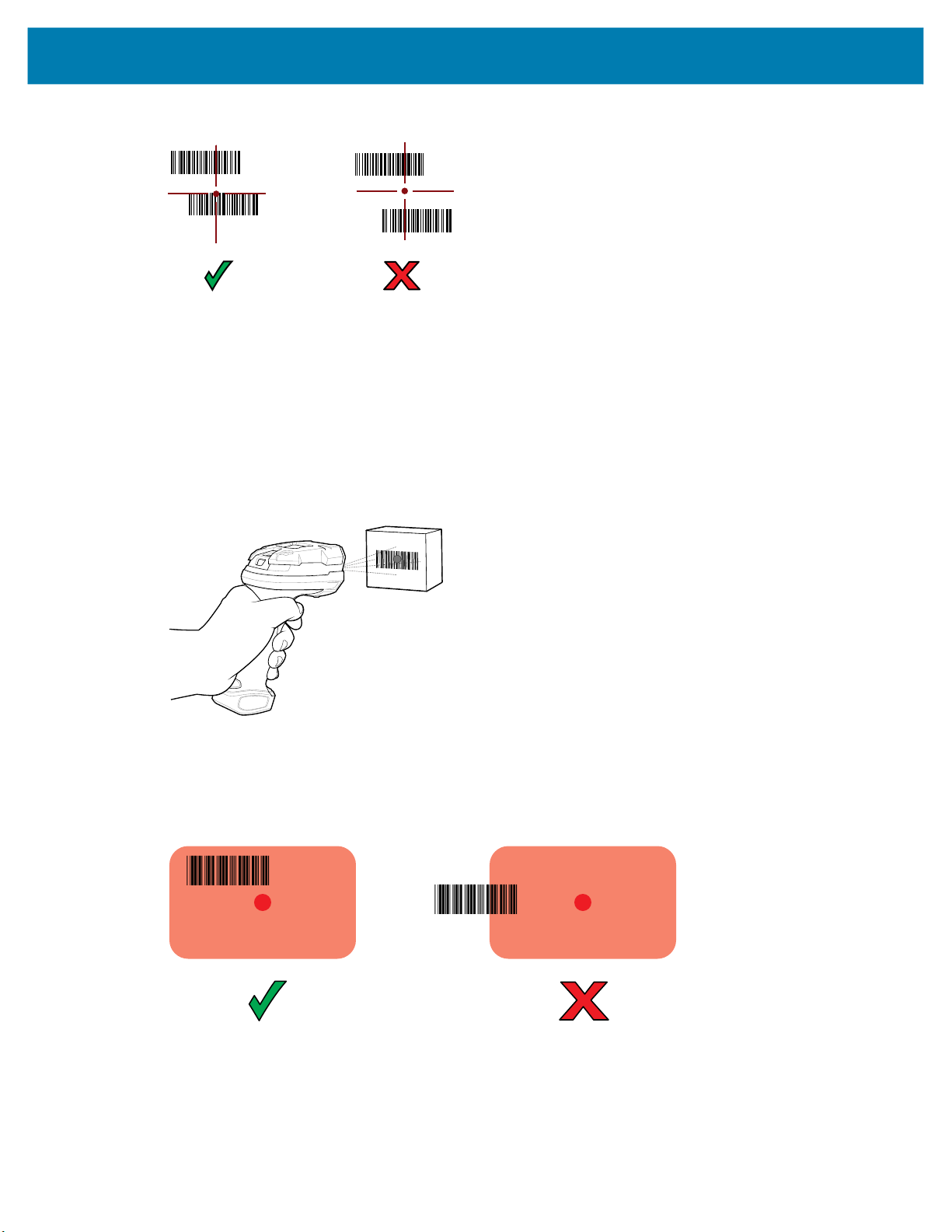

Scanning Considerations ............................................................................................... 38

Scanning with Internal Imager........................................................................................ 38

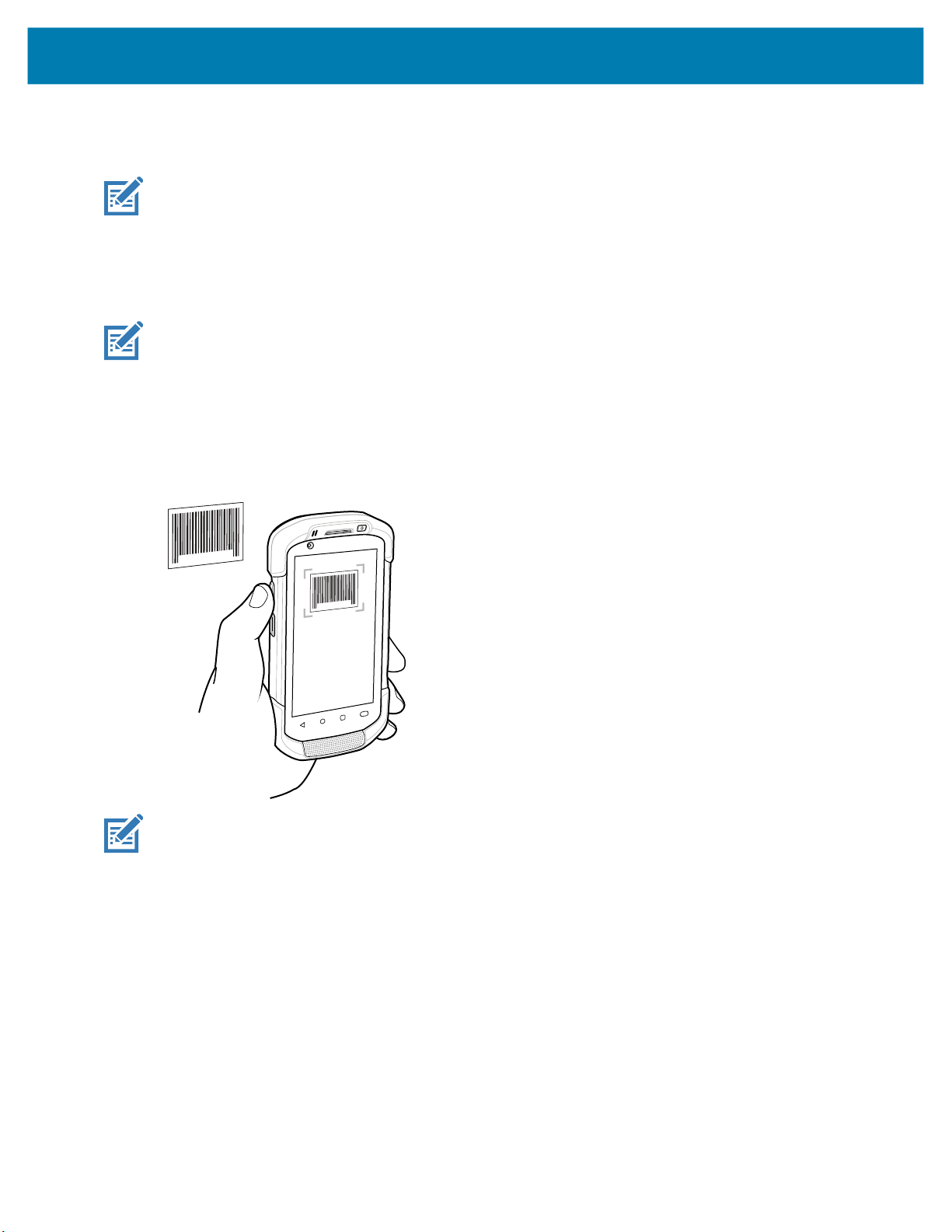

Scanning with Integrated Camera.................................................................................. 40

Scanning with RS507/RS507X Hands-Free Imager ...................................................... 40

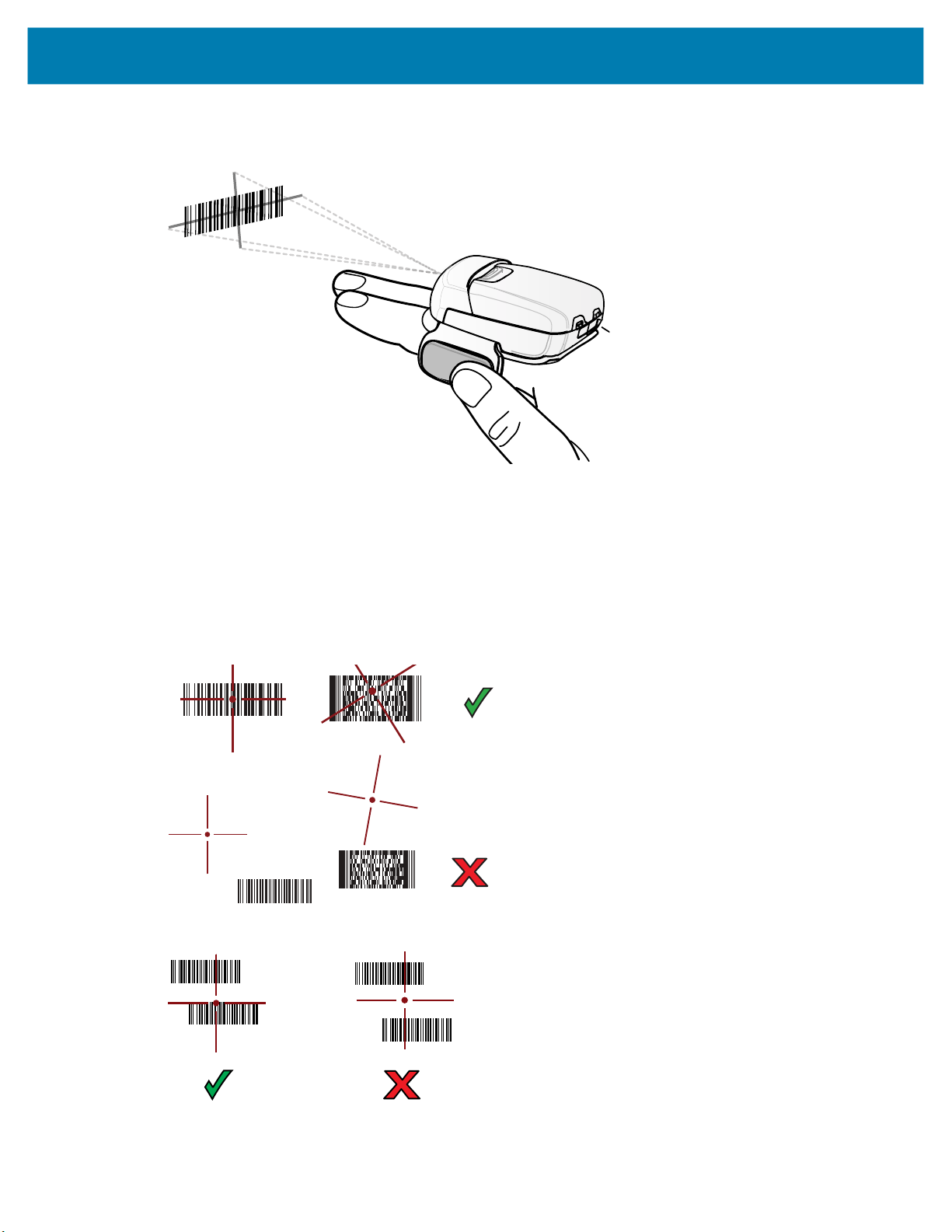

Scanning with RS6000 Bluetooth Ring Scanner............................................................ 42

Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner ..................... 43

Pairing the RS507/RS507X/RS6000 Hands-Free Imager ............................................. 44

Pairing Using Near Field Communication............................................................... 44

Pairing in HID Mode Using Near Field Communication.......................................... 45

Pairing Using Simple Serial Interface (SSI)............................................................ 45

Pairing Using Bluetooth Human Interface Device .................................................. 46

Pairing a Bluetooth Scanner .......................................................................................... 47

Pairing Using Bluetooth Human Interface Device .................................................. 47

DataWedge .................................................................................................................... 48

Enabling DataWedge.............................................................................................. 48

Disabling DataWedge............................................................................................. 48

Supported Decoders............................................................................................... 48

....................................................................................................................................... 50

Using the Device............................................................................................................................... 51

Home Screen ................................................................................................................. 51

Setting Home Screen Rotation ............................................................................... 52

Status Bar............................................................................................................... 52

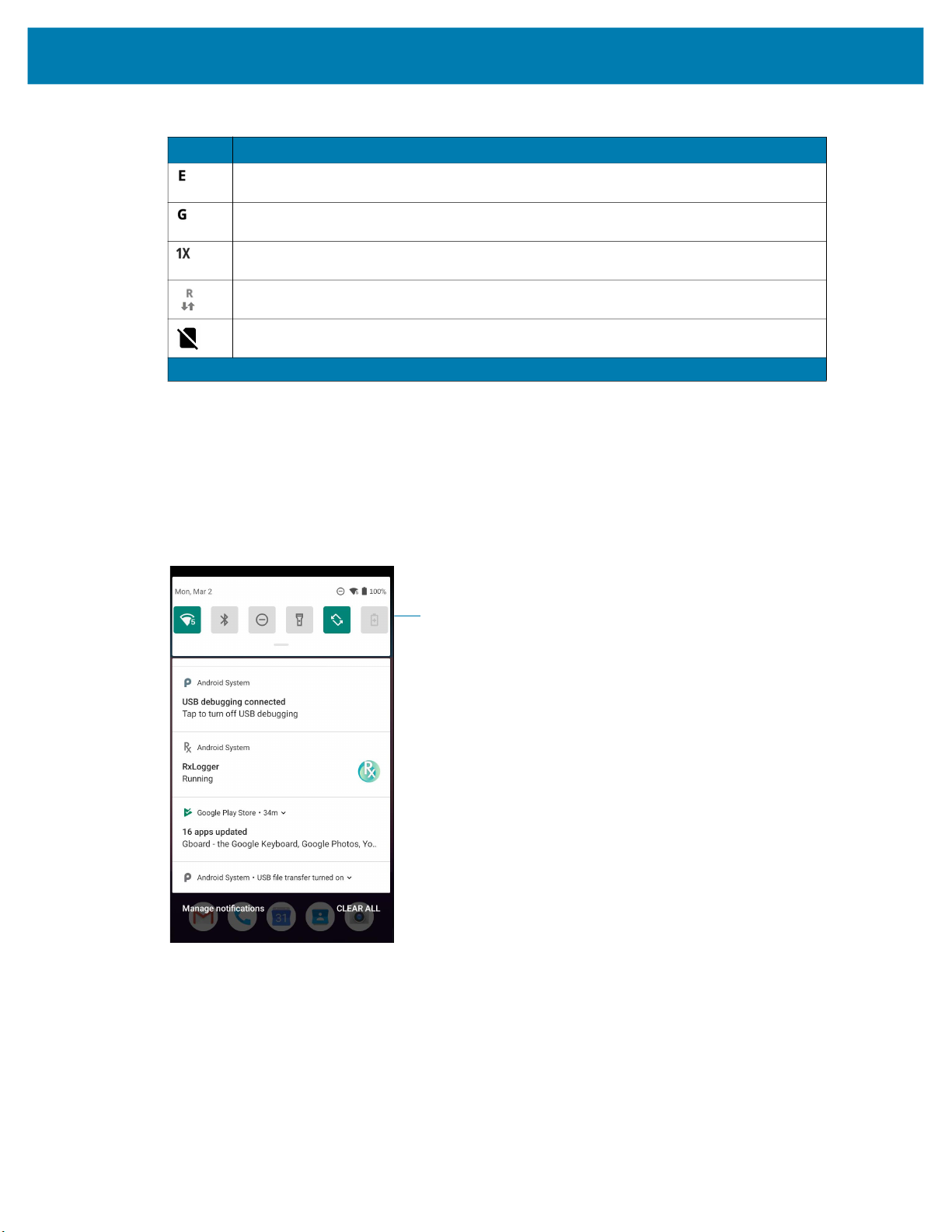

Notification Icons.............................................................................................. 52

Status Icons ..................................................................................................... 54

Managing Notifications ........................................................................................... 55

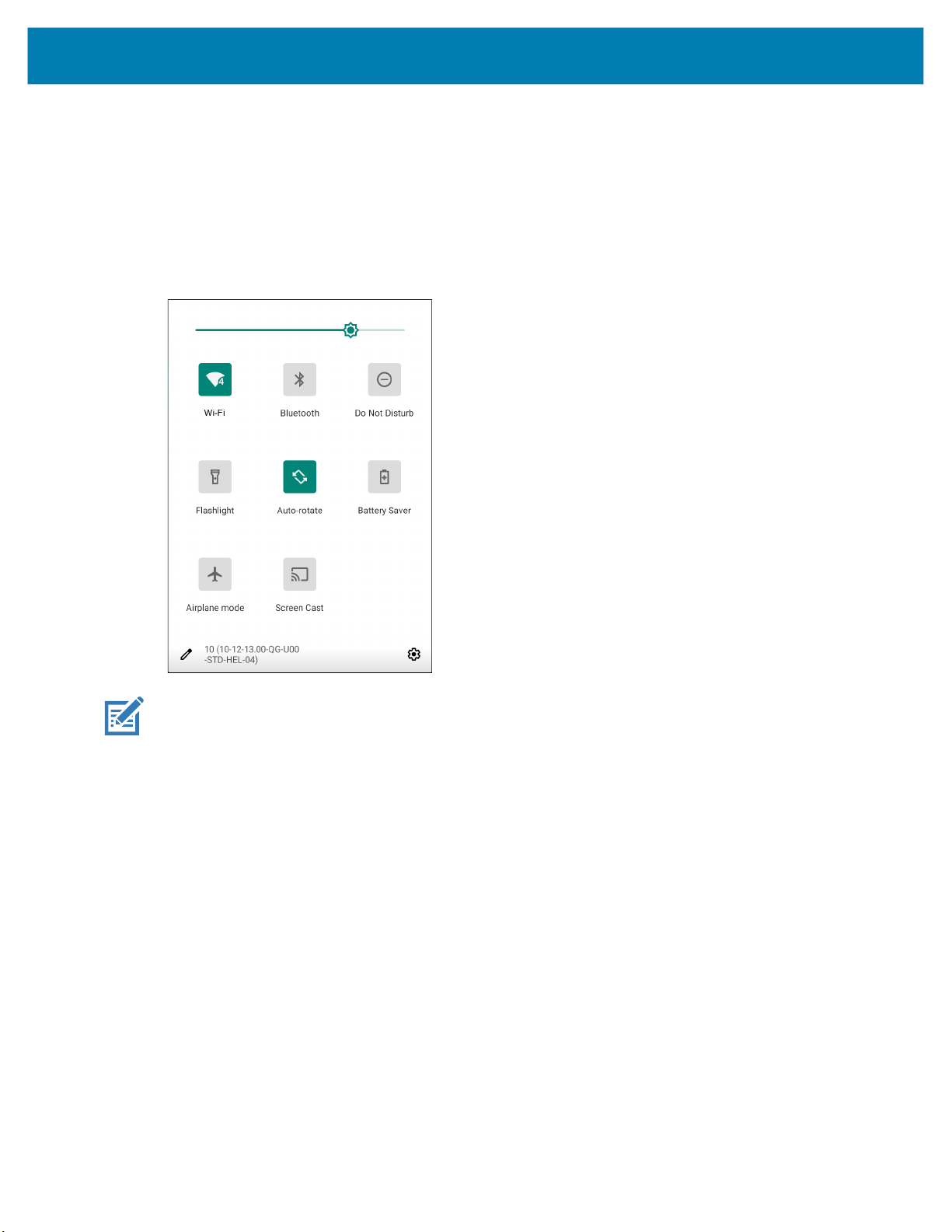

Opening the Quick Access Panel ........................................................................... 56

Quick Access Panel Icons................................................................................ 56

Editing Icons on the Quick Settings Bar ................................................................. 57

Battery Management...................................................................................................... 57

Checking Battery Status ......................................................................................... 57

Monitoring Battery Usage ....................................................................................... 58

Low Battery Notification.......................................................................................... 58

Interactive Sensor Technology....................................................................................... 58

Waking the Device ......................................................................................................... 58

USB Communication...................................................................................................... 59

Transferring Files.................................................................................................... 59

Transferring Photos ................................................................................................ 59

Disconnect from the Host Computer ...................................................................... 60

Settings.............................................................................................................................................. 61

Accessing Settings......................................................................................................... 61

Display Settings ............................................................................................................. 61

Setting the Screen Brightness Manually................................................................. 61

Setting the Screen Brightness Automatically.......................................................... 61

Setting Night Light .................................................................................................. 61

Setting Screen Rotation.......................................................................................... 62

Setting Screen Timeout .......................................................................................... 62

Lock Screen Display............................................................................................... 62

Setting Touch Key Light ......................................................................................... 63

Setting Font Size .................................................................................................... 63

Notification LED Brightness Level .......................................................................... 63

Touch Panel Mode ................................................................................................. 64

Setting the Date and Time ............................................................................................. 64

General Sound Setting................................................................................................... 65

Sound Options........................................................................................................ 65

Setting Wake-Up Sources.............................................................................................. 66

Remapping a Button ...................................................................................................... 66

Keyboards...................................................................................................................... 66

Keyboard Configuration.......................................................................................... 67

Enabling Keyboards ......................................................................................... 67

Switching Between Keyboards......................................................................... 67

Using the Android and Gboard Keyboards............................................................. 67

Edit Text ........................................................................................................... 67

Entering Numbers, Symbols, and Special Characters ..................................... 67

Using the Enterprise Keyboard............................................................................... 67

Numeric Tab..................................................................................................... 68

Alpha Tab......................................................................................................... 68

Additional Character Tab ................................................................................. 68

Scan Tab.......................................................................................................... 68

Language Usage............................................................................................................ 68

Changing the Language Setting ............................................................................. 68

Adding Words to the Dictionary .............................................................................. 68

Notifications.................................................................................................................... 69

Setting App Notifications ........................................................................................ 69

Viewing Notification Settings for All Apps ........................................................ 69

Controlling Lock Screen Notifications .............................................................. 69

Blink Light......................................................................................................... 70

Applications ...................................................................................................................................... 71

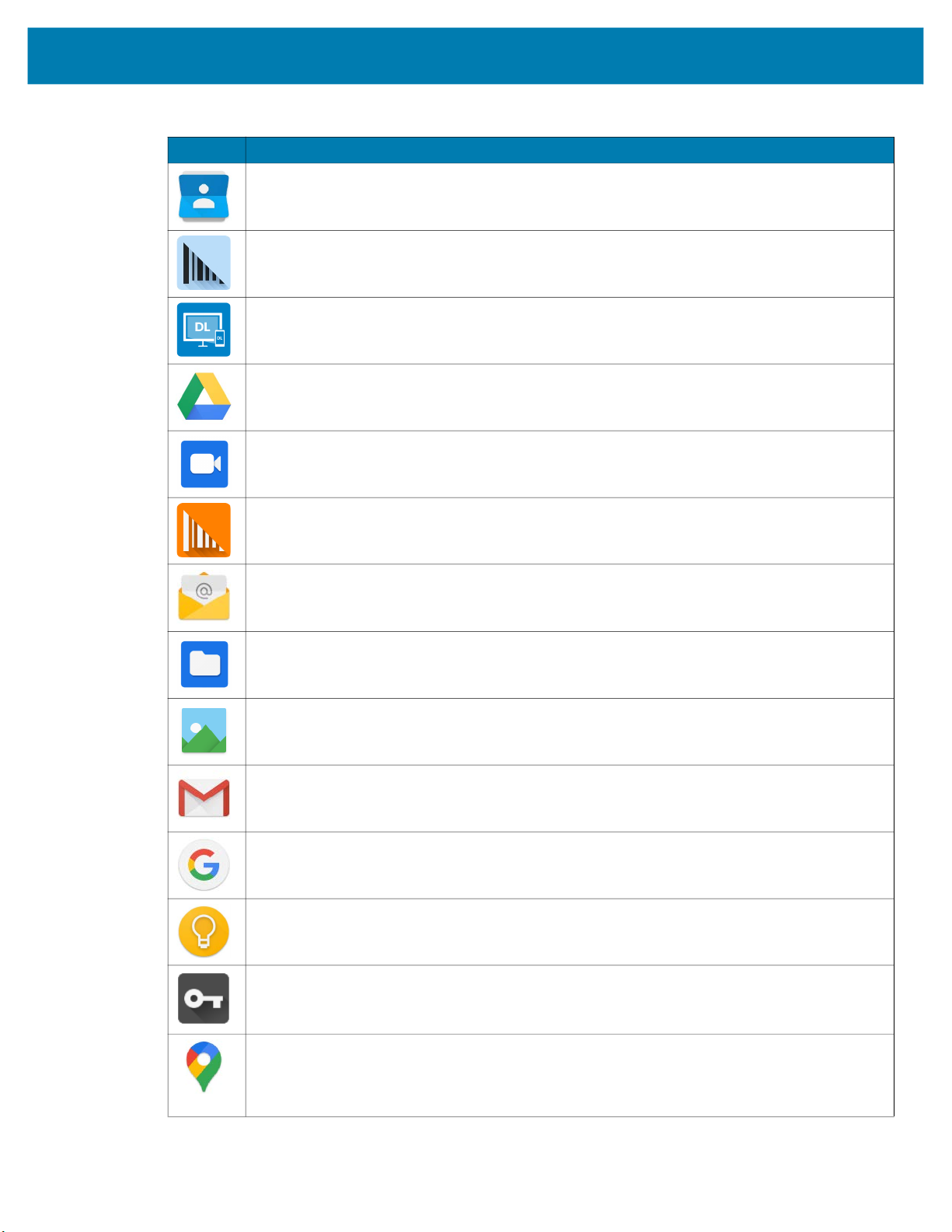

Accessing Apps.............................................................................................................. 74

Switching Between Recent Apps............................................................................ 74

Battery Manager............................................................................................................. 74

Opening Battery Manager ...................................................................................... 74

Battery Manager Information Tab........................................................................... 75

Battery Manager Swap Tab.................................................................................... 76

Camera ......................................................................................................................... 77

Taking Photos......................................................................................................... 77

Taking a Panoramic Photo ..................................................................................... 78

Recording Videos ................................................................................................... 78

Photo Settings ........................................................................................................ 79

Rear Camera Photo Settings ........................................................................... 79

Front Camera Photo Settings........................................................................... 80

Video Settings ........................................................................................................ 81

Rear Camera Video Settings ........................................................................... 81

Front Camera Video Settings........................................................................... 82

DataWedge Demonstration............................................................................................ 82

Scanner Selection .................................................................................................. 83

PTT Express Voice Client ............................................................................................. 84

PTT Express User Interface ................................................................................... 84

PTT Audible Indicators ........................................................................................... 85

PTT Notification Icons ............................................................................................ 85

Enabling PTT Communication................................................................................ 85

Selecting a Talk Group ........................................................................................... 86

PTT Communication............................................................................................... 86

Creating a Group Call ...................................................................................... 86

Responding with a Private Response .............................................................. 86

Disabling PTT Communication ............................................................................... 87

RxLogger....................................................................................................................... 88

RxLogger Configuration.......................................................................................... 88

Configuration File ................................................................................................... 88

Enabling Logging.................................................................................................... 88

Disabling Logging ................................................................................................... 88

Extracting Log Files ................................................................................................ 88

Backing Up ............................................................................................................. 88

RxLogger Utility ...................................................................................................... 89

Initiating the Main Chat Head........................................................................... 89

Removing the Main Chat Head ........................................................................ 89

Viewing Logs.................................................................................................... 89

Removing a Sub Chat Head Icon..................................................................... 89

Backing Up In Overlay View............................................................................. 89

Sound Recorder............................................................................................................. 89

Wireless............................................................................................................................................... 1

Wireless Local Area Networks ......................................................................................... 1

Connecting to a Wi-Fi Network................................................................................. 2

Removing a Wi-Fi Network....................................................................................... 2

WLAN Configuration ........................................................................................................ 2

Configuring a Secure Wi-Fi Network ........................................................................ 2

Manually Adding a Wi-Fi Network ............................................................................ 3

Configuring for a Proxy Server ................................................................................. 5

Configuring the Device to Use a Static IP Address .................................................. 5

Wi-Fi Preferences..................................................................................................... 6

Additional Wi-Fi Settings .......................................................................................... 6

Wi-Fi Direct............................................................................................................... 7

Wireless Wide Area Networks.......................................................................................... 7

Sharing the Mobile Data Connection........................................................................ 7

Enabling USB Tethering..................................................................................... 7

Enabling Bluetooth Tethering............................................................................. 8

Enabling Wi-Fi Hotspot ...................................................................................... 8

Configuring the Wi-Fi Hotspot ............................................................................ 8

Data Usage............................................................................................................... 9

Setting Data Usage Warning.............................................................................. 9

Setting Data Limit............................................................................................... 9

Cellular Network Settings ....................................................................................... 10

Data When Roaming........................................................................................ 10

Setting Preferred Network Type....................................................................... 10

Using Search for MicroCell .............................................................................. 10

Configuring the Access Point Name ................................................................ 10

Locking the SIM Card....................................................................................... 11

Default SIM Slot Configuration......................................................................... 11

Dual SIM Dual Standby.................................................................................... 11

Bluetooth........................................................................................................................ 12

Adaptive Frequency Hopping ................................................................................. 12

Security................................................................................................................... 12

Bluetooth Profiles ................................................................................................... 13

Bluetooth Power States .......................................................................................... 14

Bluetooth Radio Power........................................................................................... 14

Enabling Bluetooth ........................................................................................... 14

Disabling Bluetooth .......................................................................................... 14

Discovering Bluetooth Device(s) ............................................................................ 14

Changing the Bluetooth Name ............................................................................... 15

Connecting to a Bluetooth Device .......................................................................... 15

Selecting Profiles on the Bluetooth Device............................................................. 15

Unpairing a Bluetooth Device ................................................................................. 15

Cast................................................................................................................................ 16

Near Field Communications........................................................................................... 16

Reading NFC Cards ............................................................................................... 16

Sharing Information Using NFC.............................................................................. 17

Enterprise NFC Settings......................................................................................... 18

....................................................................................................................................... 18

Calls ................................................................................................................................................... 19

Emergency Calling......................................................................................................... 19

Audio Modes .................................................................................................................. 19

Bluetooth Headset.......................................................................................................... 19

Wired Headset ............................................................................................................... 19

Adjusting Audio Volume................................................................................................. 20

Making a Call Using the Dialer....................................................................................... 20

Accessing Dialing Options...................................................................................... 21

Making a Call Using Contacts........................................................................................ 21

Using the Dialer ...................................................................................................... 21

Using the Contacts App.......................................................................................... 21

Making a Call Using Call History.................................................................................... 21

Using the Call History List ...................................................................................... 21

Making a Conference Call on GSM................................................................................ 22

Making a Call Using a Bluetooth Headset...................................................................... 22

Answering Calls ............................................................................................................. 23

Call Settings................................................................................................................... 23

Accessories....................................................................................................................................... 25

Battery Charging ............................................................................................................ 28

Main Battery Charging............................................................................................ 28

Spare Battery Charging .......................................................................................... 28

Charging Temperature ........................................................................................... 29

2-Slot Charge Only Cradle............................................................................................. 29

2-Slot Charge Only Cradle Setup ........................................................................... 30

Charging the Device with the 2-Slot Charge Only Cradle ...................................... 30

Charging the Spare Battery with the 2-Slot Charge Only Cradle ........................... 31

2-Slot USB-Ethernet Cradle.......................................................................................... 32

2-Slot USB-Ethernet Cradle Setup ......................................................................... 33

Charging the Device with the 2-Slot USB-Ethernet Cradle .................................... 33

Charging the Spare Battery with the 2-Slot USB-Ethernet Cradle ......................... 34

USB and Ethernet Communication......................................................................... 35

Ethernet LED Indicators ................................................................................... 35

Establishing Ethernet Connection .................................................................... 35

Ethernet Settings.............................................................................................. 36

Configuring Ethernet Proxy Settings ................................................................ 36

Configuring Ethernet Static IP Address............................................................ 36

5-Slot Charge Only Cradle............................................................................................ 38

5-Slot Charge Only Cradle Setup ........................................................................... 38

Charging the Device with the 5-Slot Charge Only Cradle ...................................... 39

Installing the Four Slot Battery Charger ................................................................. 40

Removing the Four Slot Battery Charger ............................................................... 43

4-Slot Charge Only Cradle with Battery Charger .......................................................... 45

4-Slot Charge Only Cradle with Battery Charger Setup ......................................... 46

Charging the Device with a 4-Slot Charge Only Cradle with Battery Charger........ 46

Charging the Batteries with a 4-Slot Charge Only Cradle with Battery Charger .... 47

5-Slot Ethernet Cradle................................................................................................... 49

5-Slot Ethernet Cradle Setup.................................................................................. 50

Daisy-chaining Ethernet Cradles ............................................................................ 50

Charging the Device with a 5-Slot Ethernet Cradle ................................................ 51

Installing the Four Slot Battery Charger ................................................................. 53

Removing the Four Slot Battery Charger ............................................................... 56

Ethernet Communication ........................................................................................ 57

Ethernet LED Indicators ................................................................................... 57

Establishing Ethernet Connection .................................................................... 57

Ethernet Settings.............................................................................................. 57

Configuring Ethernet Proxy Settings ................................................................ 58

Configuring Ethernet Static IP Address............................................................ 58

4-Slot Battery Charger ................................................................................................... 59

4-Slot Battery Charger Setup ................................................................................. 59

Charging Spare Batteries in the 4-Slot Battery Charger......................................... 59

3.5 mm Audio Adapter ................................................................................................... 60

Connecting a Headset to the 3.5 mm Audio Adapter ............................................. 61

Attaching the 3.5 mm Audio Adapter...................................................................... 62

Device with 3.5 mm Audio Adapter in Holster ........................................................ 62

Removing the 3.5 mm Audio Adapter..................................................................... 62

Snap-On USB Cable...................................................................................................... 63

Connecting the Snap-On USB Cable ..................................................................... 63

USB Communication with the Snap-On USB Cable............................................... 64

Charging the Device with the Snap-On USB Cable ............................................... 64

Disconnecting the Snap-On USB Cable from the Device....................................... 65

Charging Cable Cup....................................................................................................... 65

Charging the Device with the Charging Cable Cup ................................................ 66

Snap-On DEX Cable...................................................................................................... 67

Connecting the Snap-On DEX Cable ..................................................................... 67

DEX Communication .............................................................................................. 68

Disconnecting the Snap-On DEX Cable from the Device....................................... 68

Trigger Handle ............................................................................................................... 69

Installing the Attachment Plate to Trigger Handle .................................................. 69

Installing the Trigger Handle Plate ......................................................................... 70

Inserting the Device into the Trigger Handle .......................................................... 71

Removing the Device from the Trigger Handle ...................................................... 72

Vehicle Charging Cable Cup.......................................................................................... 74

Charging the Device with the Vehicle Charging Cable........................................... 75

Vehicle Cradle................................................................................................................ 76

Inserting the Device into the Vehicle Cradle........................................................... 77

Removing the Device from the Vehicle Cradle....................................................... 78

Charging the Device in the Vehicle Cradle............................................................. 79

TC7X Vehicle Communication Charging Cradle............................................................ 79

Inserting the Device into the TC7X Vehicle Communication Charging Cradle....... 79

Inserting the Device into the TC7X Vehicle Communication Charging Cradle....... 80

Charging the Device in the TC7X Vehicle Communication Charging Cradle ......... 80

USB IO Hub ................................................................................................................... 81

Connecting Cables to the USB IO Hub .................................................................. 81

Connecting External Cable to the USB IO Hub ...................................................... 82

Powering the Vehicle Cradle .................................................................................. 83

Audio Headset Connection..................................................................................... 83

Replacing the Hand Strap.............................................................................................. 84

Application Deployment................................................................................................................... 88

Security .......................................................................................................................... 88

Secure Certificates......................................................................................................... 88

Installing a Secure Certificate ........................................................................................ 88

Configuring Credential Storage Settings ................................................................ 89

Development Tools ........................................................................................................ 89

Android Application Development .......................................................................... 89

Development Workstation ................................................................................ 89

Enabling Developer Options ............................................................................ 89

EMDK for Android................................................................................................... 90

StageNow ............................................................................................................... 90

GMS Restricted.............................................................................................................. 90

ADB USB Setup............................................................................................................. 90

Enabling USB Debugging....................................................................................... 90

Application Installation ................................................................................................... 91

Installing Applications Using the USB Connection ................................................. 91

Installing Applications Using the Android Debug Bridge ........................................ 92

Installing Applications Using a microSD Card ........................................................ 92

Uninstalling an Application ..................................................................................... 93

Performing a System Update......................................................................................... 94

Downloading the System Update Package ............................................................ 94

Performing a System Update Using microSD Card................................................ 94

Performing a System Update Using ADB............................................................... 94

Verifying System Update Installation...................................................................... 95

Enterprise Reset ............................................................................................................ 95

Performing an Enterprise Reset From Device Settings.......................................... 95

Downloading the Enterprise Reset Package .......................................................... 96

Performing an Enterprise Reset Using microSD Card ........................................... 96

Performing an Enterprise Reset Using ADB........................................................... 96

Performing a Factory Reset ........................................................................................... 97

Downloading the Factory Reset Package .............................................................. 97

Performing a Factory Reset Using microSD Card.................................................. 97

Performing a Factory Reset Using ADB ................................................................. 98

Storage........................................................................................................................... 99

Random Access Memory ....................................................................................... 99

Viewing Memory............................................................................................... 99

Internal Storage ...................................................................................................... 99

Viewing Internal Storage .................................................................................. 99

External Storage..................................................................................................... 99

Viewing External Storage............................................................................... 100

Formatting a microSD Card ........................................................................... 100

Formatting a microSD Card as Internal Memory............................................ 100

Enterprise Folder .................................................................................................. 100

Managing Apps ............................................................................................................ 100

App Details ........................................................................................................... 101

Managing Downloads................................................................................................... 101

Maintenance and Troubleshooting ............................................................................................... 102

Maintaining the Device................................................................................................. 102

Battery Safety Guidelines............................................................................................. 102

Cleaning Instructions.................................................................................................... 103

Approved Cleanser Active Ingredients ................................................................. 103

Harmful Ingredients .............................................................................................. 104

Device Cleaning Instructions ................................................................................ 104

Special Cleaning Notes ........................................................................................ 104

Cleaning Materials Required ................................................................................ 104

Cleaning Frequency ............................................................................................. 105

Cleaning the Device..................................................................................................... 105

Housing .......................................................................................................... 105

Display ........................................................................................................... 105

Camera and Exit Window............................................................................... 105

Cleaning Battery Connectors................................................................................ 105

Cleaning Cradle Connectors ................................................................................ 105

Troubleshooting ........................................................................................................... 106

Performing a Soft Reset ....................................................................................... 106

Performing a Hard Reset...................................................................................... 106

TC72/TC77 ........................................................................................................... 106

2-Slot Charge Only Cradle ................................................................................... 109

2-Slot USB/Ethernet Cradle.................................................................................. 110

5-Slot Charge Only Cradle ................................................................................... 111

5-Slot Ethernet Cradle .......................................................................................... 112

4-Slot Battery Charger.......................................................................................... 112

Technical Specifications................................................................................................................ 114

Data Capture Supported Symbologies......................................................................... 114

SE4750-SR Decode Distances.................................................................................... 114

SE4770 Decode Distances .......................................................................................... 115

I/O Connector Pin-Outs............................................................................................... 116

2-Slot Charge Only Cradle Technical Specifications ................................................... 116

2-Slot USB/Ethernet Cradle Technical Specifications.................................................. 117

5-Slot Charge Only Cradle Technical Specifications ................................................... 117

5-Slot Ethernet Cradle Technical Specifications.......................................................... 118

4-Slot Battery Charger Technical Specifications.......................................................... 118

Charge Only Vehicle Cradle Technical Specifications................................................. 119

Trigger Handle Technical Specifications...................................................................... 119

Charging Cable Cup Technical Specifications............................................................. 119

Snap-On USB Cable Technical Specifications ............................................................ 120

DEX Cable Technical Specifications............................................................................ 120

Index ................................................................................................................................................ 121

About This Guide

Configurations

This guide covers the following configurations:

Configuratio

TC720L WLAN: 802.11

a/b/g/n/ac/d/h/i/r/k/v w

WPAN: Bluetooth v5.0 Low Energy

TC77HL WWAN:

HSPA+/LTE/CDMA

WLAN: 802.11 a/b/g/n/ac/d/h/i/r/k/v

WPAN: Bluetooth v5.0 Low Energy

Notational Conventions

Notational conventions are used to highlight important information.

• Bold text is used to highlight the following:

• Dialog box, window and screen names

Radios Display Memory

4.7” High

Definition

(1280 x 720) LCD

4.7” High Definition (1280 x 720) LCD

4 GB RAM/32 GB Flash

Data Capture Options

2D imager, camera and integrated NFC

Operating

System

Android 10

• Drop-down list and list box names

• Check box and radio button names

• Icons on a screen

• Key names on a keypad

• Button names on a screen.

• Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential.

• Sequential lists (for example, those that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The following icons are used throughout the document. The icons and their associated meanings are described below.

NOTE: The text here indicates information that is supplemental for the user to know and that is not required to complete a task.

IMPORTANT: The text here indicates information that is important for the user to know.

CAUTION: If the precaution is not heeded, the user could receive minor or moderate injury.

WARNING: If danger is not avoided, the user CAN be seriously injured or killed.

About This Guide

DANGER: If danger is not avoided, the user WILL be seriously injured or killed.

Service Information

If you have a problem with your equipment, contact Customer Support for your region. Contact information is available at: zebra.com/support

When contacting support, please have the following information available:

• Serial number of the unit (found on manufacturing label)

• Model number or product name (found on manufacturing label)

• Software type and version number

• IMEI number

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements.

If the problem cannot be solved by Customer Support, the user may need to return the equipment for servicing and will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the SIM card and/or microSD card from the device before shipping for service.

If the device was purchased from a business partner, contact that business partner for support.

Determining Software Versions

Before contacting Customer Support, determine the current software version on your device.

1. Swipe down from the Status bar with two fingers to open the Quick Access panel, and then touch .

2. Touch About phone.

About This Guide

Scroll to view the following information:

• Battery information

• SW components

• Legal information

• Model & hardware

• Android version

• Android security patch level

• Baseband version

• Kernel version

• Build number

To determine the device IMEI information (WWAN only), touch About phone > IMEI.

• IMEI - Displays the IMEI number for the device.

• IMEI SV - Displays the IMEI SV number for the device.

Determining the Serial Number

Before contacting Customer Support, determine the serial number of your device.

Touch About phone > Model & hardware > Serial number.

Getting Started

Introduction

This chapter provides information to get the device up and running for the first time.

Unpacking

1. Carefully remove all protective material from the device and save the shipping container for later

storage and shipping.

2. Verify that the following are included:

• Touch computer

• 4,620 mAh PowerPercision+ Lithium-ion battery

• Hand strap

• Regulatory Guide.

3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global

Customer Support center immediately.

4. Prior to using the device for the first time, remove the protective shipping film that covers the scan

window, display, and camera window.

Features

Figure 1 Front View

Getting Started

Table 1 Front View Features

Number Item Function

1 Touch

Displays all information needed to operate the device.

Screen

2 Scan Button Initiates data capture (programmable).

3 PTT Button Initiates push-to-talk communications (programmable).

4 Back Button Displays the previous screen.

5 Home Button Displays the Home screen with a single press.

On device with GMS, opens the Google Now screen when held for a short period of time.

6 Microphone Use for communications in Handset mode.

7 Charging

Provides power to the device from cables and cradles.

Contacts

8 Speaker Provides audio output for video and music playback. Provides audio in

speakerphone mode.

9 Search

Opens the Recent App screen.

Button

10 Menu Button Opens a menu with items that affect the current screen or app.

11 Light Sensor Determines ambient light for controlling display backlight intensity.

12 Proximity

Determines proximity for turning off display when in handset mode.

Sensor

Getting Started

Table 1 Front View Features (Continued)

Number Item Function

13 Power Button Turns the display on and off. Press and hold to reset the device, power off or

swap battery.

14 Microphone Use for communications in Speakerphone mode.

15 Receiver Use for audio playback in Handset mode.

16 Charging/Not

ification LED

17 Data Capture

LED

18 Front Facing

Camera

Figure 2 Rear View

Indicates battery charging status while charging and app generated notifications.

Indicates data capture status.

Use to take photos and videos (optional).

Table 2 Back View Features

Number Item Function

19 Interface

Connector

Provides USB host and client communications, audio and device charging via cables and accessories.

20 Exit Window Provides data capture using the imager.

21 Microphone Use during video recording and for noise cancellation.

22 Scan Button Initiates data capture (programmable).

23 Volume

Increase and decrease audio volume (programmable). Up/Down Button

24 Battery

Press to remove the battery. Release Latches

25 Elastic

Use to hold optional stylus. Sleeve

26 Battery Provides power to the device.

Table 2 Back View Features (Continued)

Number Item Function

27 Hand strap Use to securely hold the device in your hand.

28 Hand strap

Mounting Point

29 Camera Takes photos and videos.

30 Camera

Flash

Setting Up the Device

To start using the device for the first time:

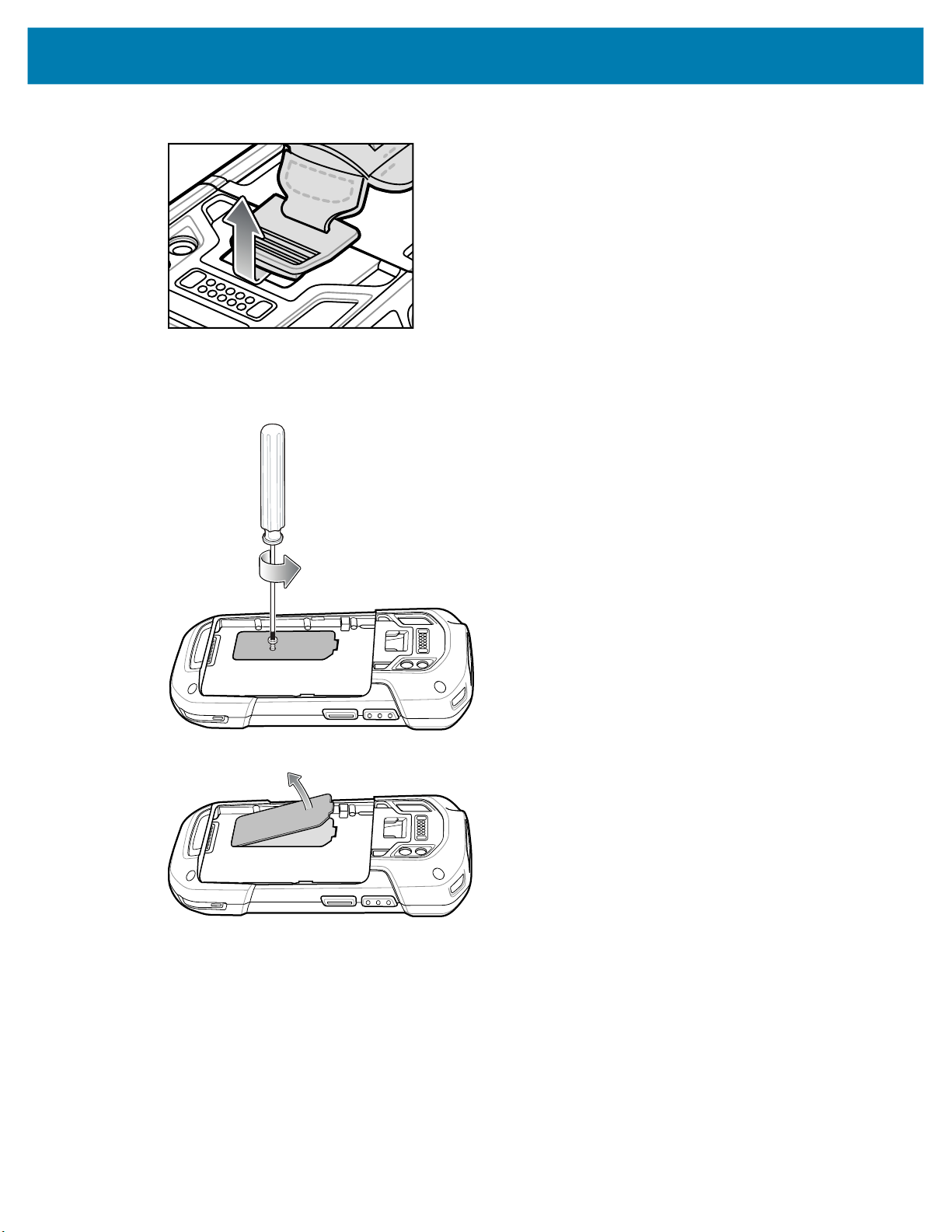

1. Removing the SIM Lock Access Cover (TC77 with SIM Lock only).

2. Install a SIM card (TC77 only).

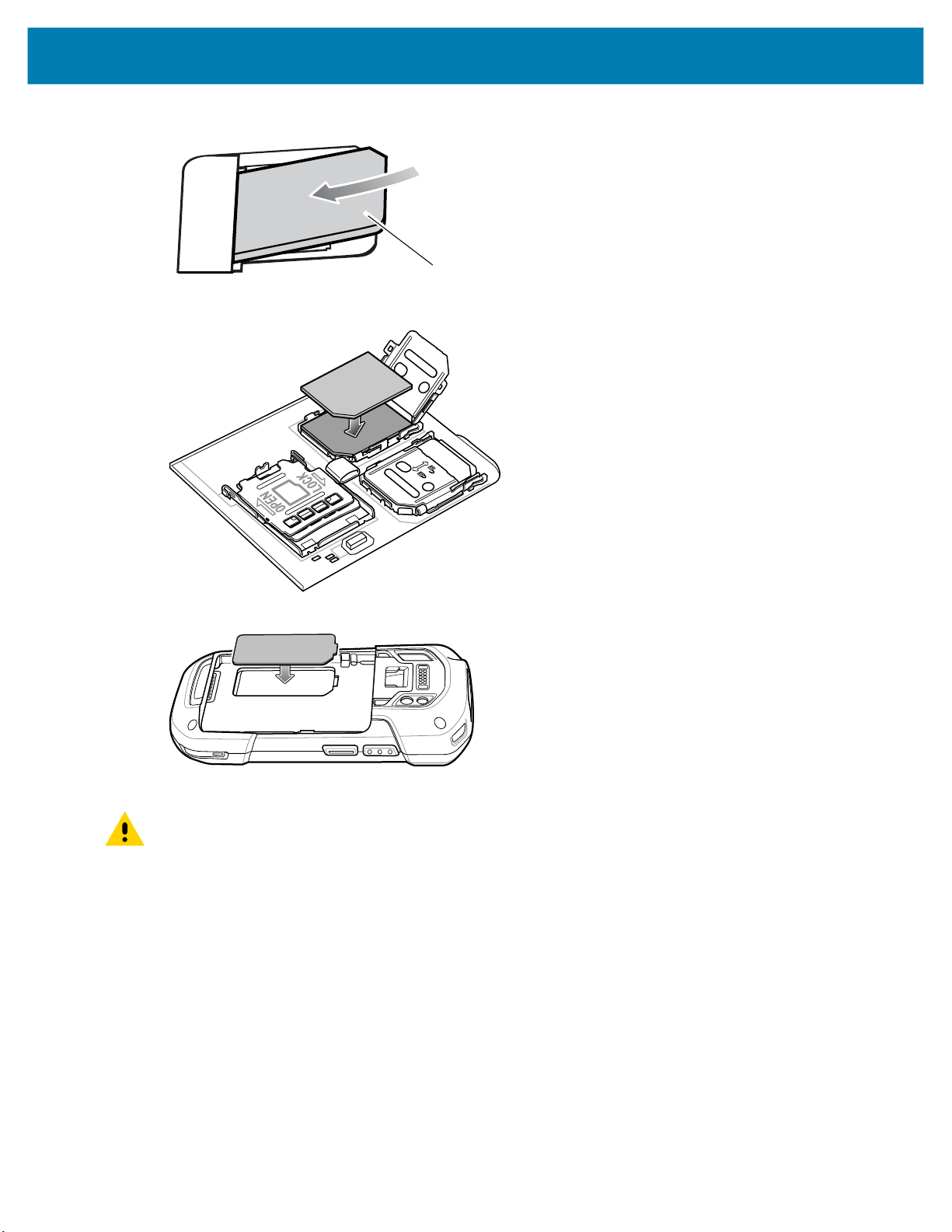

3. Install a SAM card.

Getting Started

Provides latching point for the hand strap.

Provides illumination for the camera.

4. Install a micro secure digital (SD) card (optional).

5. Install hand strap (optional).

6. Install the battery.

7. Charge the device.

8. Power on the device.

Getting Started

Removing the SIM Lock Access Cover

TC77 with SIM Lock only.

TC77 models with the SIM Lock feature include an access door that is secured using a Microstix 3ULR-0 screw. To remove the access cover, use a Microstix TD-54(3ULR-0) screwdriver to remove the screw from the access panel.

Figure 3 Remove Secure Access Cover Screw

After re-installing the access cover, make sure to use a Microstix TD-54(3ULR-0) screwdriver to re-install the screw.

Installing the SIM Card

TC77 only.

Only use a nano SIM card.

Follow proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

1. Lift the access door.

Getting Started

Figure 4 TC77 SIM Slot Locations

nano SIM

Slot 1 (default)

2. Slide the SIM card holder to the unlock position.

nano SIM

Slot 2

3. Lift the SIM card holder door.

Getting Started

Place the nano SIM card into the card holder with contacts facing down.

5. Close the SIM card holder door and slide to the lock position.

6. Replace the access door.

7. Press the access door down and ensure that it is properly seated.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

Installing the SAM Card

CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the Secure Access

Module (SAM) card. Proper ESD precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

NOTE: If using a micro SAM card, a third-party adapter is required.

Getting Started

Lift the access door.

2. Insert a SAM card into the SAM slot with the cut edge toward the middle of the device and the contacts

facing down.

Mini SAM Slot

3. Ensure that the SAM card is seated properly.

4. Replace the access door.

5. Press the access door down and ensure that it is properly seated.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION: Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator is properly grounded.

1. Remove the hand strap, if installed.

2. If the device has a secure access door, use a Microstix 0 screwdriver to remove the 3ULR-0 screw.

Getting Started

Figure 5 Remove Secure Access Door Screw

3. Lift the access door.

4. Slide the microSD card holder to the Open position.

5. Lift the microSD card holder.

Getting Started

Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on

each side of the door.

7. Close the microSD card holder door and slide the door to the Lock position.

8. Replace the access door.

9. Press the access door down and ensure that it is properly seated.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

Getting Started

If the device has a secure access door, use a Microstix 0 screwdriver to install the 3ULR-0 screw.

10.

Installing the Hand Strap and Battery

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags,

engravings, stickers, etc., may compromise the intended performance of the device or accessories. Performance levels such as sealing (Ingress Protection (IP)), impact performance (drop and tumble), functionality, temperature resistance, etc. could be effected. DO NOT put any labels, asset tags, engravings, stickers, etc. in the battery well.

NOTE: Installation of the hand strap is optional. Skip this section if not installing the hand strap.

1. Remove the hand strap filler from the hand strap slot. Store the hand strap filler in a safe place for

future replacement.

2. Insert the hand strap plate into the hand strap slot.

Getting Started

Insert the battery, bottom first, into the battery compartment in the back of the device.

4. Press the battery down into the battery compartment until the battery release latches snap into place.

5. Place hand strap clip into hand strap mounting slot and pull down until it snaps into place.

Installing the Battery

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags,

Getting Started

Insert the battery, bottom first, into the battery compartment in the back of the device.

2. Press the battery down into the battery compartment until the battery release latches snap into place.

Charging the Battery

Before using the device for the first time, charge the main battery until the green Charging/Notification light emitting diode (LED) remains lit. To charge the device, use a cable or a cradle with the appropriate power supply. For information about the accessories available for the device, see Accessories for more information.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The device or accessory always performs battery charging in a safe and intelligent manner. At higher temperatures (approximately +37°C (+98°F)) the device or accessory may, for small periods of time, alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device or accessory indicates when charging is disabled due to abnormal temperatures via its LED.

To charge the main battery:

1. Connect the charging accessory to the appropriate power source.

2. Insert the device into a cradle or attach to a cable. The device turns on and begins charging. The

Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.

Charging Indicators

Table 3 Charging/Notification LED Charging Indicators

State Indication

Off The device is not charging. The device is not inserted correctly in

the cradle or connected to a power source. Charger/cradle is not powered.

Slow Blinking Amber (1 blink every 4 seconds)

Solid Green Charging complete.

The device is charging.

Table 3 Charging/Notification LED Charging Indicators (Continued)

State Indication

Fast Blinking Amber (2 blinks/second)

Slow Blinking Red (1 blink every 4 seconds)

Solid Red Charging complete but the battery is at end of useful life.

Fast Blinking Red (2 blinks/second) Charging error but the battery is at end of useful life.

Zebra Visibility Services

Getting Started

Charging error:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically

eight hours).

The device is charging but the battery is at end of useful life.

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically

eight hours).

The device captures and provides device analytics to a system administrator. The first time the device boots (or after a Factory reset), the Zebra Services agreement screen displays.

1. Leave Device Data enabled if you want the device to send analytics data.

2. Touch the Device Data switch to disable the device from sending analytics data.

3. Touch OK to confirm selection.

Replacing the Battery

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags,

CAUTION: Do not add or remove SIM, SAM or microSD card during battery replacement.

1. Remove any accessory attached to the device.

2. Press the Power button until the menu appears.

3. Touch Battery Swap.

4. Follow the on-screen instructions.

5. Wait for the LED to turn off.

6. If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

Press the two battery latches in.

Getting Started

Lift the battery from the device.

Getting Started

CAUTION: Replace the battery within two minutes. After two minutes the device reboots and data may be lost.

9. Insert the replacement battery, bottom first, into the battery compartment in the back of the device.

10. Press the battery down until the battery release latch snaps into place.

11. Replace the hand strap, if required.

12. Press and hold the Power button to turn on the device.

NOTE: After replacing the battery, wait 15 minutes before using Battery Swap again.

Replacing the SIM or SAM Card

NOTE: SIM replacement applies to TC77 only.

To replace the SIM or SAM card:

1. Press and hold the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

Getting Started

If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

5. Press the two battery latches in.

6. Lift the battery from the device.

7. Lift the access door.

8. Remove card from holder.

Figure 6 Remove SAM Card

Figure 7 Remove Nano SIM Card

9. Insert the replacement card.

Figure 8 Insert SAM Card

Figure 9 Insert Nano SIM Card

Getting Started

Mini SAM Slot

10. Replace the access door.

11. Press the access door down and ensure that it is properly seated.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

12. Insert the battery, bottom first, into the battery compartment in the back of the device.

13. Press the battery down until the battery release latch snaps into place.

14. Replace the hand strap, if required.

15. Press and hold the Power button to turn on the device.

Replacing the microSD Card

To replace the microSD card:

1. Press the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

Getting Started

If hand strap is attached, slide the hand strap clip up toward the top of the device and then lift.

5. Press the two battery latches in.

6. Lift the battery from the device.

7. If the device has a secure access door, use a Microstix 0 screwdriver to remove the 3ULR-0 screw.

8. Lift the access door.

9. Slide the microSD card holder to the Open position.

10. Lift the microSD card holder.

11. Remove microSD card from holder.

12. Insert the replacement microSD card into the card holder door ensuring that the card slides into the

holding tabs on each side of the door.

Getting Started

Close the microSD card holder door and slide the door to the Lock position.

13.

14. Replace the access door.

15. Press the access door down and ensure that it is properly seated.

CAUTION: Access door must be replaced and securely seated to ensure proper device sealing.

16. If the device has a secure access door, use a Microstix 0 screwdriver to install the 3ULR-0 screw.

17. Insert the battery, bottom first, into the battery compartment in the back of the device.

18. Press the battery down until the battery release latch snaps into place.

19. Replace the hand strap, if required.

20. Press and hold the Power button to turn on the device.

Data Capture

Introduction

The device supports data capture using:

• Integrated Imager

• Integrated Camera

• RS507/RS507X Hands-free Imager

• RS6000 Bluetooth Ring Scanner

• DS3578 Digital Scanner

• DS3608 Digital Scanner

• DS3678 Digital Scanner.

Integrated Imager

The device with an integrated 2D imager has the following features:

• Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal, PDF417, Digimarc, and 2D matrix code types.

• The ability to capture and download images to a host for a variety of imaging applications.

• Advanced intuitive laser aiming cross-hair and dot aiming for easy point-and-shoot operation.

The imager uses imaging technology to take a picture of a barcode, stores the resulting image in memory, and executes state-of-the-art software decoding algorithms to extract the barcode data from the image.

Operational Modes

The device with an integrated imager supports two modes of operation, listed below. Activate each mode by pressing the Scan button.

• Decode mode - The device attempts to locate and decode enabled barcodes within its field of view. The imager remains in this mode as long as you hold the scan button, or until it decodes a barcode.

NOTE: To enable Pick List Mode, configure in DataWedge or set in an application using a API command.

Data Capture

• Pick List mode - Selectively decode a barcode when more than one barcode is in the device’s field of view by moving the aiming crosshair or dot over the required barcode. Use this feature for pick lists containing multiple barcodes and manufacturing or transport labels containing more than one barcode type (either 1D or 2D).

Digital Camera

The device with an integrated camera based barcode scanning solution has the following features:

• Omnidirectional reading of a variety of barcode symbologies, including the most popular linear, postal, QR, PDF417, and 2D matrix code types.

• Cross-hair reticle for easy point-and-shoot operation.

• Picklist mode to decode a particular barcode from many in the field of view.

The solution uses the advanced camera technology to take a digital picture of a barcode, and executes state-of-the-art software decoding algorithms to extract the data from the image.

RS507/RS507X Hands-Free Imager

The RS507/RS507X Hands-free Imager is a wearable barcode scan solution for both 1D and 2D barcode symbologies.

Figure 10 RS507/RS507X Hands-Free Imager

Refer to the RS507/RS507X Hands-free Imager Product Reference Guide for more information.

RS6000 Bluetooth Ring Scanner

The RS6000 Bluetooth Ring Scanner is a wearable barcode scan solution for both 1D and 2D barcode symbologies.

Figure 11 RS6000 Bluetooth Ring Scanner

Refer to the RS6000 Bluetooth Ring Scanner Product Reference Guide for more information.

DS3678 Digital Scanner

The cordless DS3678 combines superior 1D and 2D omnidirectional barcode scanning performance and advanced ergonomics in a lightweight design. See the DS36X8 Product Reference Guide for more information.

Figure 12 DS3678 Digital Scanner

Data Capture

Scanning Considerations

Typically, scanning is a simple matter of aim, scan, and decode, with a few quick trial efforts to master it. However, consider the following to optimize scanning performance:

• Range: Scanners decode best over a particular working range — minimum and maximum distances from the barcode. This range varies according to barcode density and scanning device optics. Scan within range for quick and constant decodes; scanning too close or too far away prevents decodes. Move the scanner closer and further away to find the right working range for the barcodes being scanned.

• Angle: Scanning angle is important for quick decodes. When the illumination/flash reflects directly back into the imager, the specular reflection can blind/saturate the imager. To avoid this, scan the barcode so that the beam does not bounce directly back. Do not scan at too sharp an angle; the scanner needs to collect scattered reflections from the scan to make a successful decode. Practice quickly shows what tolerances to work within.

• Hold the device farther away for larger symbols.

• Move the device closer for symbols with bars that are close together.

NOTE: Scanning procedures depend on the app and device configuration. An app may use different

scanning procedures from the one listed above.

Scanning with Internal Imager

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows the user to enable the imager, decode the barcode data, and display the barcode content.

Data Capture

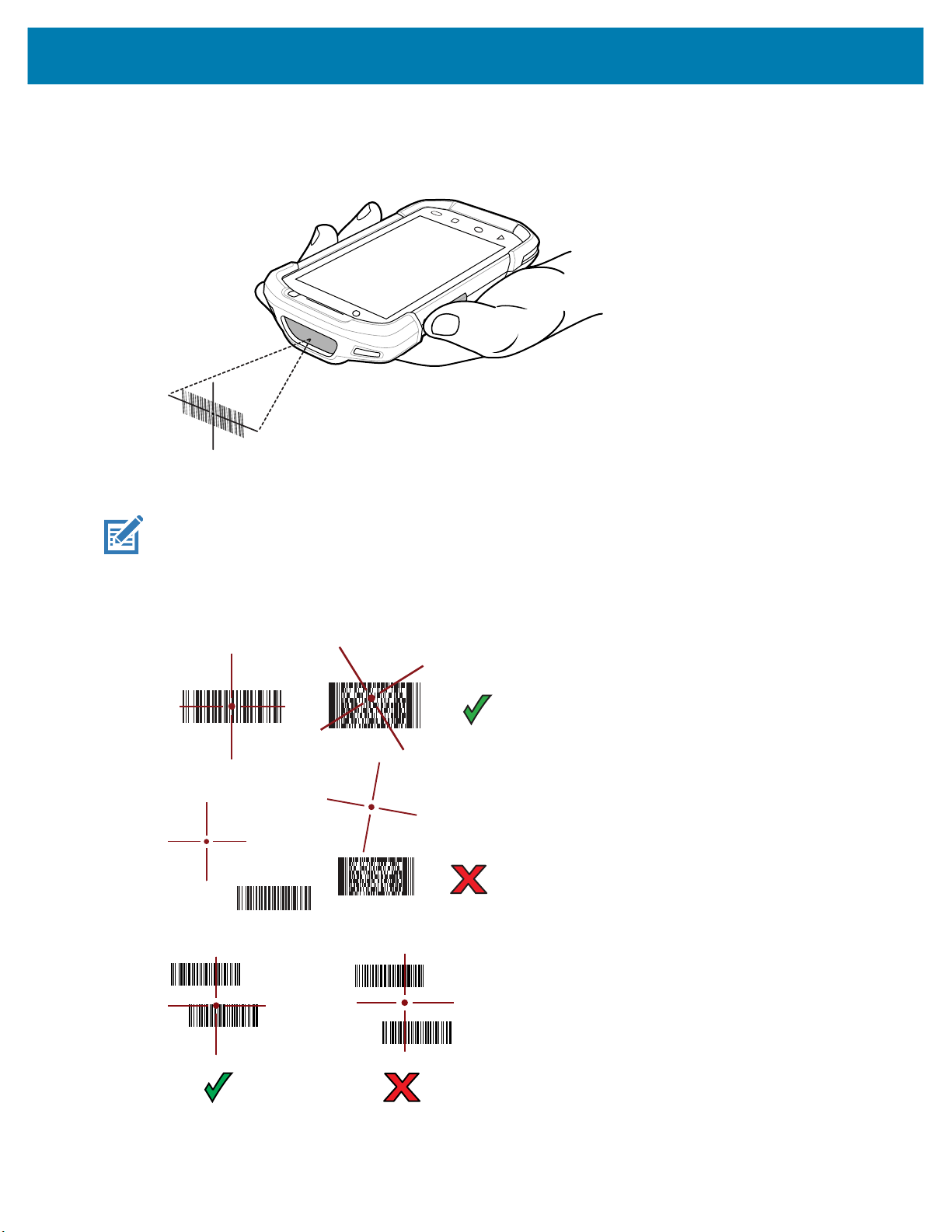

To scan with the internal imager:

1. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

2. Point the exit window on the top of the device at a barcode.

3. Press and hold the scan button.

The red laser aiming pattern turns on to assist in aiming.

NOTE: When the device is in Picklist mode, the imager does not decode the barcode until the crosshair or aiming dot touches the barcode.

4. Ensure the barcode is within the area formed by the crosshairs in the aiming pattern. The aiming dot

increases visibility in bright lighting conditions.

Figure 13 Aiming Pattern

Figure 14 Pick List Mode with Multiple Barcodes

5. The Data Capture LED lights green and a beep sounds, by default, to indicate the barcode was

decoded successfully.

Data Capture

Release the scan button.

The barcode content data displays in the text field.

NOTE: Imager decoding usually occurs instantaneously. The device repeats the steps required to take a digital picture (image) of a poor or difficult barcode as long as the scan button remains pressed.

Scanning with Integrated Camera

To capture bar code data:

NOTE: When capturing bar code data in poor lighting, turn on Illumination mode in the DataWedge app. See the device Integrator Guide for detailed information on configuring DataWedge.

1. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

For example, open the web browser and touch the text field.

2. Aim the camera at a bar code.

3. Press and hold the Scan button. By default, a preview window appears on the screen. The Decode light

emitting diode (LED) lights red to indicate that data capture is in process.

NOTE: When Picklist mode is enabled, move the device until the bar code is centered under the red target on the screen.

4. Move the device until the bar code is visible on the screen.

5. The Decode LED lights green, a beep sounds and the device vibrates, by default, to indicate the bar

code was decoded successfully.

6. The captured data appears in the text field.

Scanning with RS507/RS507X Hands-Free Imager

To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS507/RS507X:

1. Pair the RS507/RS507X with the device. See Pairing Using Simple Serial InterfacePairing Bluetooth

Scanners or

Pairing Using Bluetooth Human Interface Device for more information.

Data Capture

Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS507/RS507X at a barcode.

4. Press and hold the trigger.

The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

The RS507/RS507X LEDs light green and a beep sounds to indicate the barcode was decoded successfully. When the RS507/RS507X is in Pick List mode, the RS507/RS507X does not decode the barcode until the center of the crosshair touches the barcode.

Figure 15 RS507/RS507X Aiming Pattern

Figure 16 RS507/RS507X Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

Data Capture

Scanning with RS6000 Bluetooth Ring Scanner

To read a barcode, a scan-enabled app is required. Devices that contain the Zebra DataWedge app allows you to enable the scanner to decode barcode data and display the barcode content.

To scan with the RS6000:

1. Pair the RS6000 with the device. See Pairing Using Bluetooth Human Interface Device for more

information.

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the RS6000 at a barcode.

4. Press and hold the trigger.

The RS6000 LEDs light green and a beep sounds to indicate the barcode was decoded successfully. When the RS6000 is in Pick List mode, the RS6000 does not decode the barcode until the center of the crosshair touches the barcode.

Figure 17 RS6000 Aiming Pattern

Data Capture

Figure 18 RS6000 Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner

To scan with the DS3608 or DS3678:

1. Pair the scanner with the device. For more information, see Connecting a USB Scanner for the DS3608

or Pairing Bluetooth Scanners for the DS3678.

2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).

3. Point the scanner at a barcode.

4. Press and hold the trigger.

Ensure the barcode is within the area formed by the aiming pattern. The aiming dot increases visibility in bright lighting conditions.

Figure 19 DS3608/DS3678 Aiming Pattern

Data Capture

Figure 20 DS3608/DS3678 Pick List Mode with Multiple Barcodes in Aiming Pattern

5. The captured data appears in the text field.

Pairing the RS507/RS507X/RS6000 Hands-Free Imager

To connect the RS507/RS507X or RS6000 imager to the device, use one of the following methods:

• Near Field Communication (NFC) (RS6000 only)

• Simple Serial Interface (SSI)

• Bluetooth Human Interface Device (HID) Mode.

Pairing Using Near Field Communication

The device provides the ability to pair the RS6000 using NFC.

NOTE: RS6000 Only.

To pair using NFC:

1. Ensure that the RS6000 is in SSI mode. Refer to the RS6000 User Guide for more information.

2. Ensure that NFC is enabled on the device.

3. Align the NFC icon on the RS6000 with the NFC antenna on the device.

The RS6000 Status LED blinks blue indicating that the RS6000 is attempting to establish connection with the device. When connection is established, the Status LED turns off and the RS6000 emits a single string of low/high beeps.

A notification appears on the Notification panel and the icon appears in the Status bar.

NFC Logo

NFC Antenna Area

Data Capture

Pairing in HID Mode Using Near Field Communication

The device provides the ability to pair the RS6000 in HID mode using NFC.

NOTE: RS6000 Only.

To pair in HID mode using NFC:

1. Ensure that NFC is enabled on the device.

2. Ensure that Bluetooth is enabled on the device.

3. Place the RS6000 in Human Interface Device (HID) mode. If the RS6000 is already in HID mode, skip

to step 4.

a. Remove the battery from the RS6000.

b. Press and hold the Restore key.

c. Install the battery onto the RS6000.

d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash

green.

e. Scan the barcode below to place the RS6000 in HID mode.

4. Remove the battery from the RS6000.

5. Re-install the battery into the RS6000.

6. Align the NFC icon on the RS6000 with the NFC antenna on the device.

A notification appears on Notification panel and the icon appears in the Status bar.

NFC Logo

Pairing Using Simple Serial Interface (SSI)

To pair the RS507/RS507X or RS6000 with the device using SSI.

NFC Antenna Area

Data Capture

Swipe up from the bottom of the Home screen and touch .

2. Using the RS507/RS507X or RS6000, scan the barcode on the screen.

The RS507/RS507X or RS6000 emits a string of high/low/high/low beeps. The Scan LED flashes green indicating that the RS507/RS507X or RS6000 is attempting to establish connection with the device. When connection is established, the Scan LED turns off and the RS507/RS507X or RS6000 emits one string of low/high beeps.

A notification appears on the Notification panel and the icon appears in the Status bar.

Pairing Using Bluetooth Human Interface Device

To pair the RS507/RS507X or RS6000 with the device using Human Interface Device (HID):

1. Ensure that Bluetooth is enabled on both devices.

2. Ensure that the Bluetooth device to discover is in discoverable mode.

3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.

4. Place the RS507/RS507X or RS6000 in HID mode. If the RS507/RS507X or RS6000 is already in HID

mode, skip to step 5.

a. Remove the battery from the RS507/RS507X or RS6000.

b. Press and hold the Restore key.

c. Install the battery onto the RS507/RS507X or RS6000.

d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash

green.

e. Scan the barcode below to place the RS507/RS507X or RS6000 in HID mode.

Data Capture

Figure 21 RS507 Bluetooth HID Barcode

Figure 22 RS6000 Bluetooth HID Barcode

5. Remove the battery from the RS507/RS507X or RS6000.

6. Re-install the battery into the RS507/RS507X or RS6000.

7. Go to Settings.

8. Touch Bluetooth.

9. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area

and displays them under Available devices.

10. Scroll through the list and select RS507/RS507X or RS6000.

The device connects to the RS507/RS507X or RS6000 and Connected appears below the device name. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is established.

A notification appears on Notification panel and the icon appears in the Status bar.

Pairing a Bluetooth Scanner

Connect the scanner to the device using one of the following methods:

• Simple Serial Interface (SSI) mode

• Bluetooth Human Interface Device (HID) mode.

Pairing Using Bluetooth Human Interface Device

To pair the scanner with the device using HID:

1. Remove the battery from the scanner.

2. Replace the battery.

3. After the scanner reboots, scan the barcode below to place the scanner in HID mode.

4. On the device, swipe down from the Status bar to open the Quick Access panel and then touch .

5. Touch Bluetooth.

6. Touch Pair new device. The device begins searching for discoverable Bluetooth devices in the area

and displays them under Available devices.

DataWedge

DataWedge is a utility that adds advanced barcode scanning capability to any application without writing code. It runs in the background and handles the interface to built-in barcode scanners. The captured barcode data is converted to keystrokes and sent to the target application as if it was typed on the keypad.

DataWedge allows any app on the device to get data from input sources such as a barcode scanner, MSR, RFID, voice, or serial port and manipulate the data based on options or rules.

Configure DataWedge to:

• Provide data capture services from any app.

• Use a particular scanner, reader or other peripheral device.

• Properly format and transmit data to a specific app.

Data Capture

Scroll through the list and select XXXXX xxxxxx, where XXXXX is the scanner and xxxxxx is the serial number.

The device connects to the scanner, the scanner beeps once and Connected appears below the device name. The Bluetooth device is added to the Paired devices list and a trusted (“paired”) connection is established.

To configure DataWedge refer to techdocs.zebra.com/datawedge/

Enabling DataWedge

1. Swipe up from the bottom of the Home screen and touch .

2. Touch > Settings.

3. Touch the DataWedge enabled checkbox. A blue checkmark appears in the checkbox indicating that

DataWedge is enabled.

4. Touch the Home button.

Disabling DataWedge

1. Touch .

2. Touch Settings.

3. Touch DataWedge enabled.

The blue check disappears from the checkbox indicating that DataWedge is disabled.

Supported Decoders

NOTE: DataWedge supports the decoders listed below but not all are validated on this device.

Table 4 Supported Decoders

Decoders

Data Capture

SE4770

RS5100

RS6000

DS2278

DS3578

DS3678

LI3678

DS8178

Internal Imager

Australian Postal O O O O O O O O -- O

Aztec X X X X X X X X -- X

Canadian Postal O O O O -- -- -- -- -- --

Chinese 2 of 5 O O O O O O O O O O

Codabar X X X X X X X X X X

Code 11 O O O O O O O O O O

Code 128 X X X X X X X X X X

Code 39 X X X X X X X X X X

Code 93 O O O O O O O O O O

Composite AB O O O O O O O O -- O

Composite C O O O O O O O O -- O

Discrete 2 of 5 O O O O O O O O O O

Datamatrix X X X X X X X X -- X

Dutch Postal O O O O O O O O -- O

DotCode X O O O O O O O O O

EAN13 X X X X X X X X X X

EAN8 X X X X X X X X X X

Grid Matrix O O O O O O O O O O

GS1 DataBar X X X X X X X X X X

GS1 DataBar Expanded

GS1 DataBar Limited O O O O O O O O O O

GS1 Datamatrix O O O O -- O O O -- O

GS1 QRCode O O O O -- O O O -- O

HAN XIN O O O O -- -- -- O O --

Interleaved 2 of 5 O O O O O O O O O O

X X X X X X X X X X

Internal Imager

SE4750-SR & SE4750-MR

RS507/RS507X

Data Capture

Table 4 Supported Decoders (Continued)

Decoders

SE4770

RS5100

RS6000

DS2278

DS3578

DS3678

LI3678

DS8178

Internal Imager

Japanese Postal O O O O O O O O -- O

Korean 3 of 5 O O O O O O O O O O

MAIL MARK X X X X -- X X X -- X

Matrix 2 of 5 O O O O O O O O O O

Maxicode X X X X X X X X -- X

MicroPDF O O O O O O O O -- O

MicroQR O O O O O O O O -- O

MSI O O O O O O O O O O

PDF417 X X X X X X X X -- X

QR Code X X X X X X X X -- X

Decoder Signature O O O O O O -- -- -- --

TLC 39 O O O O O O O O O O

Trioptic 39 O O O O O O O O O O

UK Postal O O O O O O O O -- O

UPCA X X X X X X X X X X

UPCE0 X X X X X X X X X X

UPCE1 O O O O O O O O O O

US4state O O O O O O O O -- O

US4state FICS O O O O O O O O -- O

US Planet O O O O O O O O -- O

US Postnet O O O O O O O O -- O

Internal Imager

SE4750-SR & SE4750-MR

RS507/RS507X

Key

X = Enabled O = Disabled

-- = Not Supported

Touch the Back button to return to the previous screen.

Using the Device









Home Screen

Turn on the device to display the Home screen. Depending on how your system administrator configured your device, your Home screen may appear differently than the graphics in this section.

After a suspend or screen time-out, the Home screen displays with the lock slider. Touch the screen and slide up to unlock.

The Home screen provides four additional screens to place widgets and shortcuts. Swipe the screen left or right to view the additional screens.

NOTE: By default, AOSP devices do not have the same icons on the Home screen as GMS devices. Icons are shown below for example only.

Home screen icons can be configured by the user and may look different than shown.

Figure 23 Home Screen

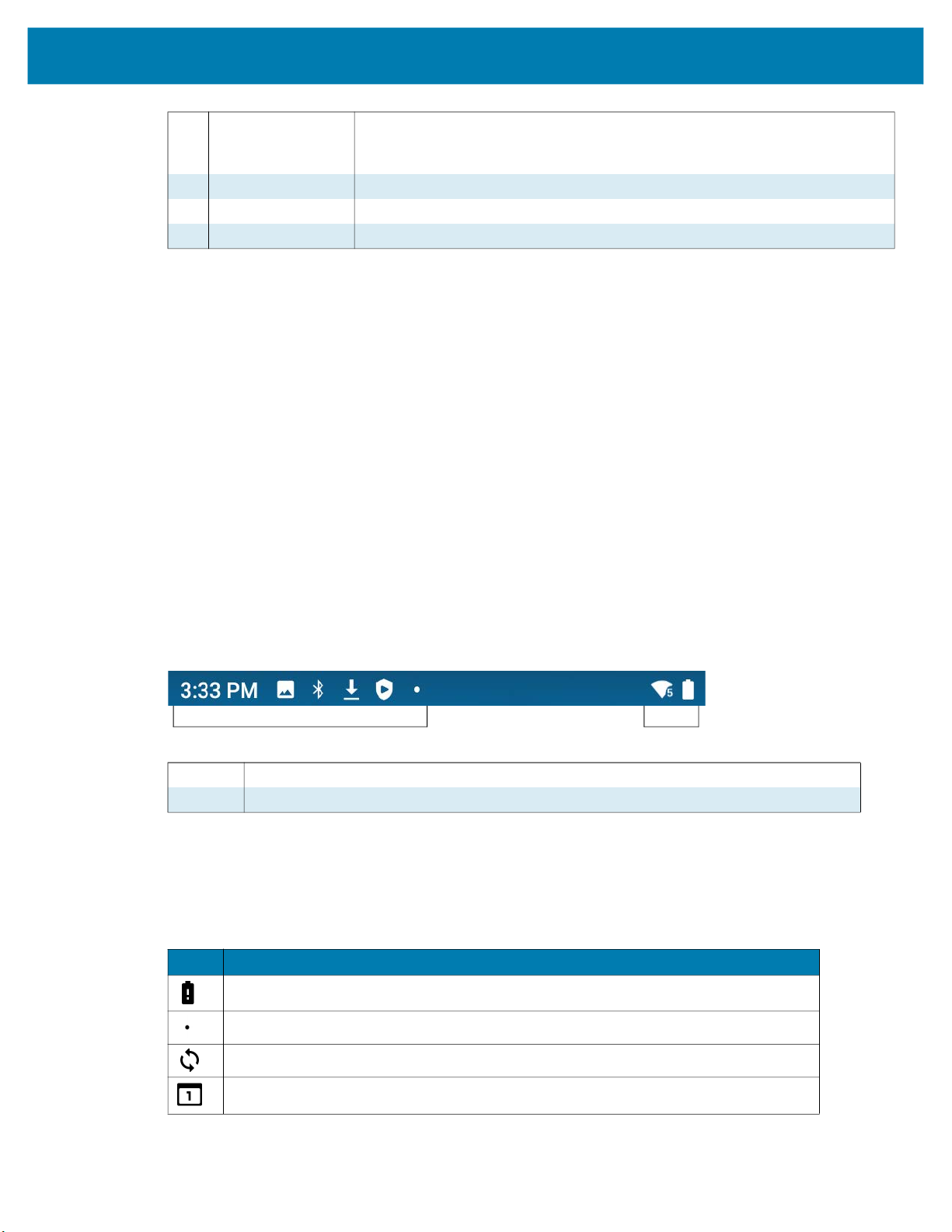

1 Status Bar Displays the time, status icons (right side), and notification icons (left side).

For more information see Notification Icons on page 52 and Managing

Notifications on page 55.

2 Widgets Launches stand-alone apps that run on the Home screen.

3 Shortcut Icons Opens apps installed on the device.

4 Folder Contains apps.

Setting Home Screen Rotation

By default, the Home screen rotation is disabled.

1. Touch and hold anywhere on the Home screen until the options appear.

2. Touch Home settings.

3. Touch the Allow Home screen rotation switch.

4. Touch the Home button.

5. Rotate the device.

Using the Device

Status Bar

The Status bar displays the time, notification icons (left side), and status icons (right side).

If there are more notifications than can fit in the Status bar, a dot displays indicating that more notifications exist. Swipe down from the Status bar to open the Notification panel and view all notifications and status.

Figure 24 Notification and Status Icons

1 Notification Icons. See Notification Icons on page 52.

2 Status Icons. See Status Icons on page 54.

Notification Icons

Notification icons indicate app events and messages.

Table 5 Notification Icons

Icon Description

Main battery is low.

More notifications are available for viewing.

Data is syncing.

Indicates an upcoming event. AOSP devices only.

Using the Device

Table 5 Notification Icons (Continued)

Icon Description

Indicates an upcoming event. GMS devices only.

Open Wi-Fi network is available.

Audio is playing.

Problem with sign-in or sync has occurred.

Device is uploading data.

Animated: the device is downloading data. Static: the download is complete.

Device is connected to or disconnected from a virtual private network (VPN).

Preparing internal storage by checking it for errors.

USB debugging is enabled on the device.

Call is in progress (WWAN only).

The mailbox contains one or more voice message (WWAN only).

Call is on hold (WWAN only).

Call was missed (WWAN only).

Wired headset with a boom module is connected to the device.

Wired headset without a boom module is connected to the device.

PTT Express Voice client status. See the PTT Express PTT Notification Icons for a complete list.

Indicates the RxLogger app is running.

Indicates the Bluetooth scanner is connected to the device.

Indicates the ring scanner is connected to the device in HID mode.

Status Icons

Status icons display system information for the device.

Table 6 Status Icons

Icon Description

Using the Device

Alarm is active.

Main battery is fully charged.

Main battery is partially drained.

Main battery charge is low.

Main battery charge is very low.

Main battery is charging.

All sounds, except media and alarms, are muted. Vibrate mode is active.

Indicates that all sounds except media and alarms are muted.

Do Not Disturb mode active.

Airplane Mode is active. All radios are turned off.

Bluetooth is on.

The device is connected to a Bluetooth device.

Connected to a Wi-Fi network. Indicates the Wi-Fi version number.

Not connected to a Wi-Fi network or no Wi-Fi signal.

Connected to an Ethernet network.

Speakerphone enabled.

Portable Wi-Fi hotspot is active (WWAN only).

Connected to a 4G LTE/LTE-CA network (WWAN only)

Connected to a DC-HSPA, HSDPA, HSPA+, HSUPA, LTE/LTE-CA or WCMDMA

network (WWAN only)

Connected to a 1x-RTT (Sprint), EGDGE, EVDO, EVDV or WCDMA network

(WWAN only)

Connected to a GPRS network (WWAN only)

Connected to a DC - HSPA, HSDPA, HSPA+ or HSUPA network (WWAN only)1.

Cellular network icon that appears is dependent upon the carrier/network.

Table 6 Status Icons (Continued)

Icon Description

Connected to an EDGE network (WWAN only)

Connected to a GPRS network (WWAN only)

Connected to a 1x-RTT (Verizon) network (WWAN only)

Roaming from a network (WWAN only).

No SIM card installed (WWAN only).

Cellular network icon that appears is dependent upon the carrier/network.

Managing Notifications

Notification icons report the arrival of new messages, calendar events, alarms, and ongoing events. When a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons on

page 52 for a list of possible notification icons and their description.

Using the Device

• To view a list of all notifications, open the Notification panel by dragging the Status bar down from the top of the screen.

Quick Settings Bar

• To respond to a notification, open the Notification panel and then touch a notification. The Notification panel closes and the corresponding app opens.

• To manage recent or frequently used notifications, open the Notification panel and then touch Manage notifications. Touch the toggle switch next to an app to turn off all notifications, or touch an app for

more notification options.

• To clear all notifications, open the Notification panel and then touch CLEAR ALL. All event-based notifications are removed. Ongoing notifications remain in the list.

• To close the Notification panel, swipe the Notification panel up.

Using the Device

Opening the Quick Access Panel

Use the Quick Access panel to access frequently used settings (for example, Airplane mode). To get to the Quick Access Panel:

• If the device is locked, swipe down once.

• If the device is unlocked, swipe down once with two fingers, or twice with one finger.

• If the Notification panel is open, swipe down from the Quick Settings bar.

NOTE: Not all icons are pictured. Icons may vary.

Quick Access Panel Icons

• Display brightness - Use the slider to decrease or increase the brightness of the screen.

• Wi-Fi network - Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.

• Bluetooth settings - Turn Bluetooth on or off. To open Bluetooth settings, touch Bluetooth.

• Battery saver - Turn Battery saver mode on or off. When Battery saver mode is on the performance of

the device is reduced to preserve battery power.

• Invert colors - Invert the display colors.

• Do not disturb - Control how and when to receive notifications.

• Mobile data - Turns cellular radio on or off. To open Mobile data settings, touch and hold (WWAN only).

• Airplane mode - Turn Airplane mode on or off. When Airplane mode is on the device does not connect

to Wi-Fi or Bluetooth.

• Auto-rotate - Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.

• Flashlight - Turn flashlight on or off. Turn camera flash on or off.

The thermal protection safety feature for the camera provides the following behavior if the temperature range is 40°C or above:

Using the Device

• If the flashlight is kept on for a certain period of time, it is automatically turned off and cannot be

turned back on for a period of time until it has cooled off.

• During the cooling off period, the camera cannot be turned on. If you attempt to use the camera, a

message displays indicating to try again after a period of time.

• Location - Enable or disable locationing feature.

• Hotspot - Turn on to share the device’s mobile data connection with other devices.

• Data Saver - Turn on to prevent some apps from sending or receiving data in the background.

• Night Light - Tint the screen amber to make it easier to look at the screen in dim light. Set Night Light to

turn on automatically from sunset to sunrise, or at other times.

• Screen Cast - Share phone content on Chromecast or a television with Google Cast built-in. Touch cast screen to display a list of devices, then touch a device to begin casting.

• Dark Theme - Toggles dark theme on and off. Dark themes reduce the luminance emitted by the screen, while meeting minimum color contrast ratios. It helps improve visual ergonomics by reducing eye strain, adjusting brightness to current lighting conditions, and facilitating screen use in dark environments, while conserving battery power.

• Focus mode - Turn on to pause distracting apps. To open Focus mode settings, touch and hold.

• Bedtime mode - Turn grayscale on and off. Grayscale turns the screen black and white, reducing phone

distractions and improving battery life.

Editing Icons on the Quick Settings Bar

The first several setting tiles from the Quick Access panel become the Quick Settings bar.

Open the Quick Access panel and touch to edit, add, or remove settings tiles.

Battery Management

Observe the recommended battery optimization tips for your device.

• Set the screen to turn off after a short period of non-use.

• Reduce screen brightness.

• Turn off all wireless radios when not in use.

• Turn off automatic syncing for Email, Calendar, Contacts, and other apps.

• Minimize use of apps that keep the device from suspending, for example, music and video apps.

NOTE: Before checking the battery charge level, remove the device from any AC power source (cradle or

cable).

Checking Battery Status

• Open Settings and touch About phone > Battery Information.

Or, swipe up from the bottom of the screen and touch to open the Battery Manager app. See

Battery Manager on page 74.

• Battery present status indicates if the battery is present.

• Battery level lists the battery charge (as a percentage of fully charged).

• Swipe down with two fingers from the status bar to open the quick access panel.

• Battery percentage is displayed next to the battery icon.

Monitoring Battery Usage

The Battery screen provides battery charge details and power management options to extend battery life.

1. Go to Settings.

2. Touch Battery.

Display battery information and power management options for a specific app.

1. Go to Settings.

2. Touch Apps & notifications.

3. Touch an app.

4. Touch Advanced > Battery.

Different apps display different information. Some apps include buttons that open screens with settings to adjust power use. Use the DISABLE or FORCE STOP buttons to turn off apps that consume too much power.

Using the Device

Low Battery Notification

When the battery charge level drops below 18%, the device displays a notice to connect the device to power. The user should charge the battery using one of the charging accessories.

When the battery charge drops below 10%, the device displays a notice to connect the device to power. The user must charge the battery using one of the charging accessories.

When the battery charge drops below 4%, the device turns off. The user must charge the battery using one of the charging accessories.

Interactive Sensor Technology

The device contains sensors that monitor movement, orientation and ambient light.

• Gyroscope - Measures angular rotational velocity to detect rotation of the device.

• Accelerometer - Measures the linear acceleration of movement to detect the orientation of the device.

• Digital Compass - The digital compass or magnetometer provides simple orientation in relation to the

Earth's magnetic field. As a result, the device always knows which way is North so it can auto rotate digital maps depending on the physical orientation of the device.

• Light Sensor - Detects ambient light and adjusts the screen brightness.

• Proximity Sensor - Detects the presence of nearby objects without physical contact. The sensor detects

when the device close to your face during a call and turns off the screen, preventing unintentional screen touches.

In order to take advantage of these sensors, applications use API commands. Refer to the Google Android Sensor APIs for more information. For information on the Zebra Android EMDK, go to:

techdocs.zebra.com

Waking the Device

The device goes into Suspend mode when you press the Power button or after a period of inactivity (set in the Display settings window).

To wake the device from Suspend mode, press the Power button.

The Lock screen displays.

2. Swipe the screen up to unlock.

• If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock

screen.

• If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking

the screen.

NOTE: If you enter the PIN, password, or pattern incorrectly five times, you must wait 30 seconds before trying again.

If you forget the PIN, password, or pattern contact your system administrator.

USB Communication

Connect the device to a host computer to transfer files between the device and the host computer.

When connecting the device to a host computer, follow the host computer’s instructions for connecting and disconnecting USB devices, to avoid damaging or corrupting files. For information on USB communication accessories available for this device, see Accessories.

Using the Device

Transferring Files

Use Transfer files to copy files between the device and the host computer.

1. Connect the device to a host computer using a USB accessory.

2. On the device, pull down the Notification panel and touch Charging this device via USB.

By default, No data transfer is selected.

3. Touch File Transfer.

NOTE: After changing the setting to File Transfer, and then disconnect the USB cable, the setting reverts back to No data transfer. If the USB cable is reconnected, select File Transfer again.

4. On the host computer, open a file explorer application.

5. Locate the device as a portable device.

6. Open the SD card or the Internal storage folder.

7. Copy files to and from the device or delete files as required.

Transferring Photos

Use PTP to copy photos from the device to the host computer.

1. Connect the device to a host computer using a USB accessory.

2. On the device, pull down the Notification panel and touch Charging this device via USB.

3. Touch PTP.

4. On the host computer, open a file explorer application.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Using the Device

Disconnect from the Host Computer

CAUTION: Carefully follow the host computer’s instructions to unmount the microSD card and disconnect

USB devices correctly to avoid losing information.

To disconnect the device from the host computer:

1. On the host computer, unmount the device.

2. Remove the device from the USB accessory.

Settings

Accessing Settings

There are multiple ways to access settings on a device.

• Swipe down with two fingers from the top of the Home screen to open the Quick Access panel and touch .

• Double-swipe down from the top of the Home screen to open the Quick Access panel and touch .

• Swipe up from the bottom of the Home screen to open APPS and touch Settings.

Display Settings

Use Display settings to change the screen brightness, enable night light, change the background image, enable screen rotation, set sleep time, and change font size.

Setting the Screen Brightness Manually

Manually set the screen brightness using the touchscreen.

1. Swipe down with two fingers from the Status bar to open the Quick Access panel.

2. Slide the icon to adjust the screen brightness level.

Setting the Screen Brightness Automatically

Automatically adjust the screen brightness using the built-in light sensor.

1. Go to Settings.

2. Touch Display.

3. If disabled, touch Adaptive brightness to automatically adjust the brightness.

By default, Adaptive brightness is enabled. Toggle the switch to disable.

4. Touch the Home button.

Setting Night Light

The Night Light setting tints the screen amber, making the screen easier to look at in low light.

1. Go to Settings.

2. Touch Display.

Touch Night Light.

4. Touch Schedule.

5. Select one of the schedule values:

• None (default)

• Turns on at custom time

• Turns on from sunset to sunrise.

6. By default, Night Light is disabled. Touch TURN ON NOW to enable.

7. Adjust the tint using the Intensity slider.

8. Touch the Home button.

Setting Screen Rotation

By default, screen rotation is enabled.

1. Go to Settings.

2. Touch Display > Advanced.

Settings

3. Touch Auto-rotate screen.

NOTE: To change the Home screen rotation, see Setting Home Screen Rotation on page 52.

4. Touch the Home button.

Setting Screen Timeout

Set the screen sleep time.

1. Go to Settings.

2. Touch Display > Advanced > Screen timeout.

3. Select one of the sleep values.

• 15 seconds

• 30 seconds

• 1 minute (default)

• 2 minutes

• 5 minutes

• 10 minutes

• 30 minutes

4. Touch the Home button.

Lock Screen Display

The lock screen display setting wakes the screen when notifications are received.

1. Go to Settings.

2. Touch Display > Advanced.

Touch Lock screen display.

4. In the When to show section, enable or disable an option using the switch.

5. Touch the Home button.

Setting Touch Key Light

The four touch keys under the screen are backlit. Configure the touch key light to save battery power.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Touch key light.

4. Select an option to choose how long the touch key light stays on:

• Always off

• 6 seconds (default)

• 10 seconds

• 15 seconds

Settings

• 30 seconds

• 1 minute

• Always on.

5. Touch the Home button.

Setting Font Size

Set the size of the font in system apps.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Font size.

4. Select one of the font size values.

• Small

• Default

• Large

• Largest.

5. Touch the Home button.

Notification LED Brightness Level

Set the brightness of the Notification LED.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Notification LED Brightness Level.

4. Use the slider to set the brightness value (default: 15).

Touch the Home button.

Touch Panel Mode

The device display is able to detect touches using a finger, a conductive-tip stylus, or gloved finger.

NOTE: A glove can be made of medical latex, leather, cotton, or wool. For optimal performance use a Zebra certified stylus.

1. Go to Settings.

2. Touch Display > Advanced.

3. Touch Touch panel mode.

4. Select:

• Glove and Finger (Screen Protector off) to use a finger or a gloved finger on the screen without a

screen protector.

• Stylus and Finger (Screen Protector off) to use a finger or a stylus on the screen without a screen protector.

• Finger Only (Screen Protector off) to use a finger on the screen without a screen protector.

Settings

• Glove and Finger (Screen Protector on) to use a finger or a gloved finger on the screen with a screen protector.

• Stylus and Finger (Screen Protector on) to use a finger or a stylus on the screen with a screen protector.

• Finger and Stylus to use a finger or a stylus on the screen.

• Finger and Glove to use a finger or a gloved finger on the screen.

5. Touch the Home button.

Setting the Date and Time

The date and time is automatically synchronized using an NITZ server when the device is connected to a cellular network. You are only required to set the time zone or set the date and time if the wireless LAN does not support Network Time Protocol (NTP) or when not connected to a cellular network.

1. Go to Settings.

2. Touch System > Date & time.

3. Touch Use network-provided time to disable automatic date and time synchronization.

4. Touch Use network-provided time zone to disable automatic time zone synchronization.

5. Touch Update Interval.

6. Select the interval time to synchronize your device time from the network.

7. Touch Date.

8. In the calendar, set today’s date.

9. Touch OK.

10. Touch Time.

11. Touch the green circle, drag to the current hour and then release.

12. Touch the green circle, drag to the current minute and then release.

Touch AM or PM.

13.

14. Touch OK.

15. Touch Time zone.

16. Select the current time zone from the list.

17. Touch Use 24-hour format.

18. Touch the Home button.

General Sound Setting

Use the Sound settings to configure media and alarm volumes.

1. Go to Settings.

2. Touch Sound.

3. Touch an option to set sounds.

Sound Options

Settings

• Zebra volume controls

• Ring volume - Controls the ringtone volume.

• Media volume - Controls the music, games, and media volume.

• Alarm volume - Controls the alarm clock volume.

• Notifications volume - Controls the notification volume.

• In call volume - Controls the volume during a call.

• Scanner volume - Controls the scanner volume.

• Volume presets

• - Mutes the ring, notifications, and scanner so that the device does not make sounds or vibrate.

• - All sounds except media and alarms are silenced and vibrate mode is active.

• - Enables all sounds at the user defined levels.

• Vibrate for calls - Switch on or off.

• Do Not Disturb - Mutes some or all sounds and vibrations.

• Shortcut to prevent ringing - Select how the shortcut method prevents ringing.

• Phone ringtone - Select a sound to play when the phone rings.

• Default notification sound - Select a sound to play for all system notifications.

• Default alarm sound - Select a sound to play for alarms.

• Other sounds and vibrations

• Dial pad tones - Play a sound when pressing keys on dial pad (default - disabled).

• Screen locking sounds - Play a sound when locking and unlocking the screen (default – enabled).

• Charging sounds and vibration - Plays a sound and vibrates when power is applied to the device

(default - enabled).

• Touch sounds - Play a sound when making screen selections (default – disabled).

• Touch vibration - Vibrate the device when making screen selections (default – disabled).

• Wireless Emergency alerts - Touch to configure emergency broadcast settings and notifications.

Setting Wake-Up Sources

By default the device wakes from suspend mode when the user presses the Power button. The device can be configured to wake when the user presses the PTT or Scan buttons on the left side of the device.

1. Go to Settings.

2. Touch Wake-Up Sources.

• LEFT_TRIGGER_2 - PTT button.

• RIGHT_TRIGGER_1 - Right scan button.

• SCAN - Left scan button.

3. Touch a checkbox. A check appears in the checkbox.

4. Touch the Home button.

Remapping a Button

Settings

Buttons on the device can be programmed to perform different functions or as shortcuts to installed apps. For a list of key names and descriptions, refer to: techdocs.zebra.com

NOTE: It is not recommended to remap the scan button.

1. Go to Settings.

2. Touch Key Programmer. A list of programmable buttons displays.

3. Select the button to remap.

4. Touch the BUTTON REMAPPING tab or the SHORTCUT tab that lists the available functions and

applications.

5. Touch a function or application shortcut to map to the button.

NOTE: If you select an application shortcut, the application icon appears next to the button on the Key

Programmer screen.

6. Touch the Home button.

7. If remapping the Back, Home, Search, or Menu button, perform a Soft Reset.

Keyboards

The device provides multiple keyboard options.

• Android Keyboard - AOSP devices only

• Gboard - GMS devices only

• Enterprise Keyboard

NOTE: By default the Enterprise and Virtual Keyboards are disabled.

Settings

Keyboard Configuration

Enabling Keyboards

1. Go to Settings.

2. Touch System > Languages & input > Virtual keyboard > Manage keyboards.

3. Touch a keyboard to enable.

Switching Between Keyboards

• To switch between keyboards, touch in a text box to display the current keyboard.

• On the Gboard keyboard, touch and hold (GMS devices only).

• On the Android keyboard, touch and hold (AOSP devices only).

• On the Enterprise keyboard, touch . Only available with Mobility DNA Enterprise License.Not

pre-installed on the device. Contact Zebra Support for more information.

Using the Android and Gboard Keyboards

Use the Android or Gboard keyboards to enter text in a text field.

To configure the keyboard settings, touch and hold

, (comma) and then select Android keyboard settings.

Edit Text

Edit entered text and use menu commands to cut, copy, and paste text within or across apps. Some apps do not support editing some or all of the text they display; others may offer their own way to select text.

Entering Numbers, Symbols, and Special Characters

1. Enter numbers and symbols.

• Touch and hold one of the top-row keys until a menu appears then select a number or special character.

• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch

the Shift key a third time to unlock Capslock.

• Touch

• Touch the

2. Enter special characters.

• Touch and hold a number or symbol key to open a menu of additional symbols. A larger version of the

key displays briefly over the keyboard.

?123 to switch to the numbers and symbols keyboard.

=\< key on the numbers and symbols keyboard to view additional symbols.

Using the Enterprise Keyboard

The Enterprise Keyboard contains multiple keyboard types.

• Numeric

• Alpha

• Special characters

• Data capture.

Numeric Tab

The numeric keyboard is labeled 123. The keys displayed vary on the app being used. For example, an arrow displays in Contacts, however Done displays in Email account setup.

Alpha Tab

The alpha keyboard is labeled using the language code. For English, the alpha keyboard is labeled EN.

Additional Character Tab

The additional characters keyboard is labeled #*/.

Touch to enter emoji icons in a text message.

Touch ABC to return to the Symbols keyboard.

Scan Tab

The Scan tab provides an easy data capture feature for scanning barcodes.

Language Usage

Settings

Use the Language & input settings to change the device’s language, including words added to the dictionary.

Changing the Language Setting

1. Go to Settings.

2. Touch System > Languages & input.

3. Touch Languages. A list of available languages displays.

4. If the desired language is not listed, touch Add a language and select a language from the list.

5. Touch and hold to the right of the desired language, then drag it to the top of the list.

6. The operating system text changes to the selected language.

Adding Words to the Dictionary

1. Go to Settings.

2. Touch System > Languages & input > Advanced > Personal dictionary.

3. If prompted, select the language where this word or phase is stored.

4. Touch + to add a new word or phrase to the dictionary.

5. Enter the word or phrase.

6. In the Shortcut text box, enter a shortcut for the word or phrase.

7. Touch the Home button.

Notifications

Setting App Notifications

To set notification settings for a specific app:

1. Go to Settings.

2. Touch Apps & notifications > SEE ALL XX APPS. The App info screen displays.

3. Select an app.

4. Touch Notifications.

Options vary depending on the app selected.

5. Select an available option:

Show notifications - Select to turn all notifications from this app on (default) or off.

Touch a notification category to display additional options.

• Alerting - Allow notifications from this app to make sound or vibrate the device.

• Pop on screen - Allow notifications from this app to pop notifications on the screen.

Settings

• Silent - Do not allow notifications from this app to make sound or vibrate.

• Minimize - In the Notification panel, collapse notifications to one line.

• Advanced - Touch for additional options.

• Sound - Select a sound to play for notifications from this app.

• Vibrate - Allow notifications from this app to vibrate the device.

• Blink light - Allow notifications from this app the light the Notification LED blue.

• Show notification dot - Allow notifications from this app to add a notification dot to the app icon.

• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is enabled.

Advanced

• Allow notification dot - Do not allow this app to add a notification dot to the app icon.

• Additional settings in the app - Open the app settings.

Viewing Notification Settings for All Apps

To view the notification settings for all apps:

1. Go to Settings.

2. Touch Apps & Notifications.

3. Scroll down to Notifications to view how many apps have notifications turned off.

4. To set or view notifications settings for a specific app, see Setting App Notifications on page 69.

Controlling Lock Screen Notifications

To control whether notifications can be seen when the device is locked:

1. Go to Settings.

2. Touch Apps & notifications > Notifications.

Settings

Touch Notifications on lockscreen and select one of the following:

• Show alerting and silent notifications (default)

• Show alerting notifications only

• Don’t show notifications.

Blink Light

The Notification LED lights blue when an app, such as email and VoIP, generates a programmable notification or to indicate when the device is connected to a Bluetooth device. By default, LED notifications are enabled.

To change the notification setting:

1. Go to Settings.

2. Touch Apps & notifications > Notifications > Advanced.

3. Touch Blink light to toggle the notification on or off.

Applications

The APPS screen displays icons for all installed apps. See Application Deployment for information on installing and uninstalling apps. For information on standard Android apps, go to the Google Play Apps

store.

The following table describes the apps installed on the device.

Table 7 Apps

Icon Description

Battery Manager - Displays battery information, including charge level, status, health and

wear level.

Bluetooth Pairing Utility – Use to pair a Zebra Bluetooth scanner with the device by scanning a barcode.

Calculator - Provides the basic and scientific arithmetic functions.

Calendar - Use to manage events and appointments. GMS/GMS-Restricted only.

Calendar - Use to manage events and appointments. AOSP only.

Camera - Take photos or record videos. For more information, see Camera on page 77.

Chrome - Use to access the Internet or intranet. GMS/GMS-Restricted only.

Chromium - Use to access the Internet or intranet. AOSP only.

Clock - Use to schedule alarms for appointments or as a wake-up.

Applications

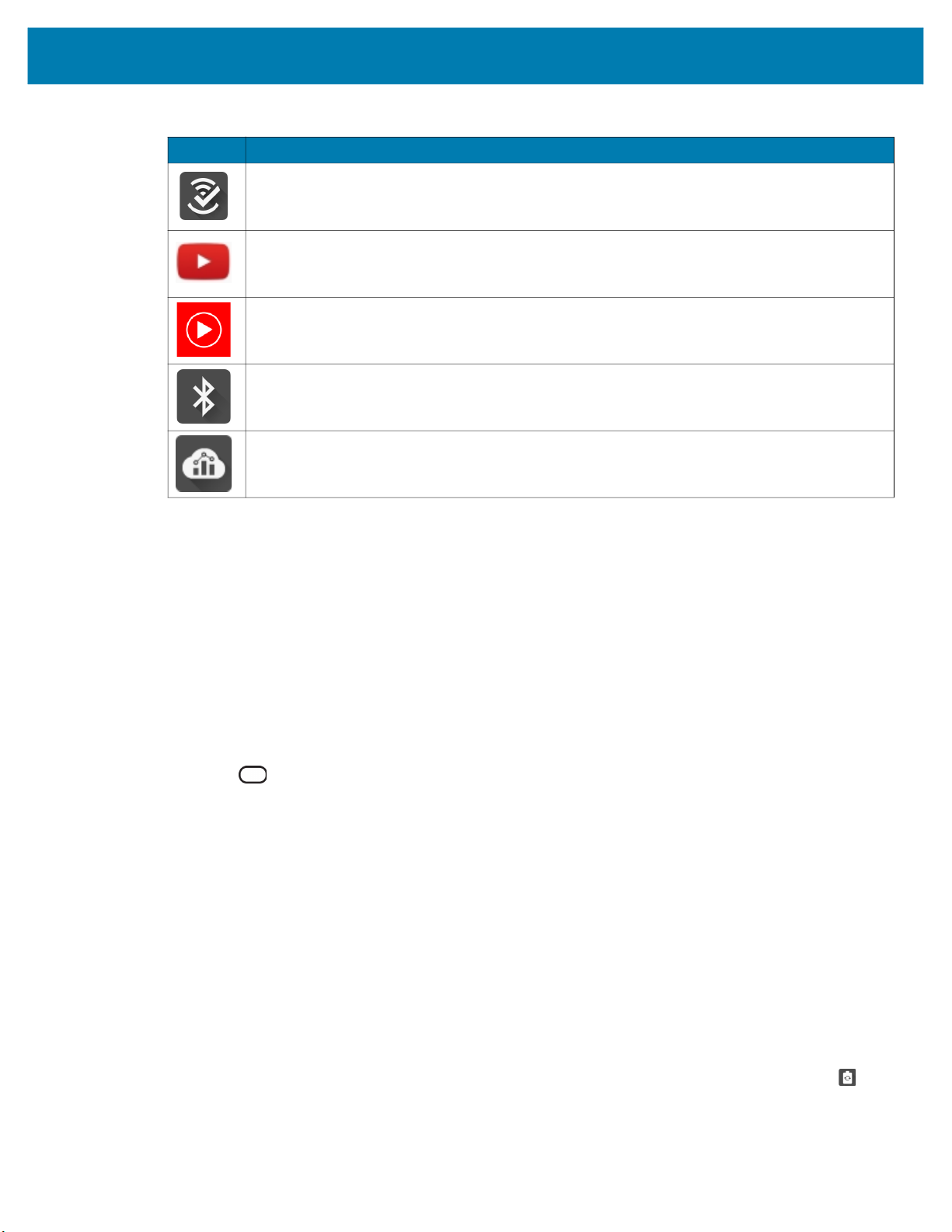

Table 7 Apps (Continued)

Icon Description

Contacts - Use to manage contact information.

DataWedge - Enables data capture using the imager. For more information, see DataWedge

Demonstration on page 82.

DisplayLink Presenter - Use to present the device screen onto a connected monitor.

Drive - Upload photos, videos, documents, and other files to personal storage site.

GMS/GMS-Restricted only.

Duo - A one-to-one video calling app. GMS/GMS-Restricted only.

DWDemo - Provides a way to demonstrate the data capture features using the imager. For

more information, see DataWedge Demonstration on page 82.

Email - Use to send and receive email. AOSP only.

Files - Organize and manage files on the device.

Gallery - Use to view photos stored on the microSD card. AOSP only.

Gmail - Use to send and receive email using a Google email account. GMS/GMS-Restricted

only.

Google - Launches Google ™ search app. GMS/GMS-Restricted only.

Keep Notes - Use to create, edit, and share notes. GMS/GMS-Restricted only.

License Manager - Use to manage software licenses on the device.

Maps - Use to see your location on a map (with public transit, traffic, or satellite overlays).

Search for any business or place of interest. Provides turn-by-turn navigation with voice guidance, traffic-avoidance, and alternate routes, for drivers, cyclists, walkers, and users of public transportation. GMS/GMS-Restricted only.

Applications

Table 7 Apps (Continued)

Icon Description

Messages - Send SMS and MMS messages. WAN devices only. GMS/GMS-Restricted

only.

Messaging - Send SMS and MMS messages. WAN devices only.

MSRN - Use to verify authenticity of the paired Snap-on MSR and to provision the Snap-on

MSR.

Music - Play music stored on the microSD card. AOSP only.

Phone - Use to dial a phone number when used with some Voice over IP (VoIP) clients

(VoIP telephony ready only). WAN devices only.

Photos - Use to sync photos with Google account. GMS/GMS-Restricted only.

Play Movies & TV - View movies and video on your device. GMS/GMS-Restricted only.

Play Store - Download music, movies, books, and Android apps and games from the

Google Play Store. GMS/GMS-Restricted only.

PTT Express - Use to launch PTT Express client for VoIP communication.

RxLogger - Use to diagnose device and app issues. For more information, see RxLogger on

page 88.

Search - Use to search the Web. Requires an Internet connection. AOSP only.

Settings - Use to configure the device.

Sound Recorder - Use to record audio. For more information, see Sound Recorder on

page 89.

StageNow - Allows the device to stage a device for initial use by initiating the deployment of settings, firmware, and software.

Applications

Table 7 Apps (Continued)

Icon Description

Worry Free Wifi Analyzer - A diagnostic intelligent app. Use to diagnose surrounding area

and display network stats, such as coverage hole detection, or AP in vicinity. Refer to the Worry Free Wi-Fi Analyzer Administrator Guide for Android.

Accessing Apps

All apps installed on the device are accessed using the APPS window.

1. On the Home screen, swipe up from the bottom of the screen.

2. Slide the APPS window up or down to view more app icons.

3. Touch an icon to open the app.

YouTube - Use to view videos on the YouTube

YT Music - Use to listen to music. GMS/GMS-Restricted only.

Zebra Bluetooth Settings - Use to configure Bluetooth logging.

Zebra Data Services - Use to enable or disable Zebra Data Services. Some options are set

by the system administrator.

™ web site. GMS/GMS-Restricted only.

Switching Between Recent Apps

Use the Recent button to switch between recently used apps.

1. Touch .

A window appears on the screen with icons of recently used apps.

2. Slide the apps displayed up and down to view all recently used apps.

3. Swipe left or right to remove app from the list and force close the app.

4. Touch an icon to open an app or touch Back button to return to the current screen.

Battery Manager

The Battery Manager provides detailed information about the battery and battery swap procedures on supported devices.

Opening Battery Manager

To open the Battery Manager app, swipe up from the bottom of the Home screen, and then touch .

Battery Manager Information Tab

The Battery Manager displays detailed information about battery charging, health, and status.

Table 8 Battery Icon Description

Battery Icon Description

Battery charge level is between 85% and 100%.

Battery charge level is between 19% and 84%.

Battery charge level is between 0% and 18%.

• Level - The current battery charge level as a percentage. Displays -% when level is unknown.

• Wear - The health of the battery in graphical form. When the wear level exceeds 80%, the bar color

changes to red.

Applications

• Health - The health of the battery. If a critical error occurs, appears. Touch to view the error description.

• Decommission - The battery is past its useful life and should be replaced. See system

administrator.

• Good - The battery is good.

• Charge error - An error occurred while charging. See system administrator.

• Over Current - An over-current condition occurred. See system administrator.

• Dead - The battery has no charge. Replace the battery.

• Over Voltage - An over-voltage condition occurred. See system administrator.

• Below Temperature - The battery temperature is below the operating temperature. See system

administrator.

• Failure Detected - A failure has been detected in the battery. See system administrator.

• Unknown - See system administrator.

• Charge Status

• Not charging - The device is not connected to AC power.

• Charging-AC - The device is connected to AC power and charging, or is fast charging via USB.

• Charging-USB - The device is connected to a host computer with a USB cable and charging.

• Discharging - The battery is discharging.

• Full - That the battery is fully charged.

• Unknown - The battery status is unknown.

• Time until Full - The amount of time until the battery is fully charged.

• Time since charging - The amount of time since the device began charging.

Applications

• Time until empty - The amount of time until the battery is empty.

• Advanced info - Touch to view additional battery information.

• Battery present status - Indicates that the battery is present.

• Battery level - The battery charge level as a percentage of scale.

• Battery scale - The battery scale level used to determine battery level (100).

• Battery voltage - The current battery voltage in millivolts.

• Battery temperature - The current battery temperature in degrees Centigrade.

• Battery technology - The type of battery.

• Battery current - The average current into or out of the battery over the last second in mAh.

• Battery manufacture date - The date of manufacture.

• Battery serial number - The battery serial number. The number matches the serial number printed

on the battery label.

• Battery part number - The battery part number.

• Battery decommission status - Indicates if the battery is past its life span.

• Battery Good - The battery is in good health.

• Decommissioned Battery - The battery is past its useful life and should be replaced.

• Base cumulative charge - Cumulative charge using Zebra charging equipment only.

• Battery present capacity - Maximum amount of charge that could be pulled from the battery under

the present discharge conditions if the battery were fully charged.

• Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to

“design_capacity” at a discharge rate of “design_capacity”.

• % decommission threshold - The default % decommission threshold for a gifted battery as 80%.

• Battery present charge - Amount of usable charge remaining in the battery at present under the

current discharge conditions.

• Battery total cumulative charge - The total accumulated charge in all chargers.

• Battery time since first use - The time passed since the battery was placed in a Zebra terminal for

the first time.

• Battery error status - The error status of the battery.

• Battery usage number - The health of the battery as a result of charging and discharging. A high

number indicates low battery health.

• Usage decommission threshold - When the Battery usage number is greater than or equal to the

Usage decommission threshold, the battery is past its useful life and should be replaced.

• App version - The application version number.

Battery Manager Swap Tab

NOTE: The Swap tab also appears when the user presses the Power button and selects Battery Swap.

Use to place the device in Battery Swap mode when replacing the battery. Follow the instructions on the screen. Touch Proceed with battery swap button.

Camera

Taking Photos

Applications

NOTE: The device saves photos and videos on the microSD card, if installed and the storage path is changed manually. By default, or if a microSD card is not installed, the device saves photos and videos on the internal storage.

This section provides information for taking photos and recording videos using the integrated digital cameras.

NOTE: See Photo Settings on page 79 for camera setting descriptions.

1. Swipe up from the bottom of the Home screen and touch Camera.

Filters

Scene Mode

Camera Switch

HDR

Settings

Gallery

Shutter Button

2. If necessary, touch the Camera Mode icon and touch .

3. To switch between the rear camera and front camera (if available), touch .

4. Frame the subject on the screen.

5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls

Camera Mode

appear on the screen.

Touch an area on the screen to focus. The focus circle appears. The two bars turn green when in focus.

7. Touch .

The camera takes a photo and a shutter sound plays.

The photo momentarily displays as a thumbnail in the lower left corner.

Taking a Panoramic Photo

Panorama mode creates a single wide image by panning slowly across a scene.

1. Swipe up from the bottom of the Home screen and touch Camera.

Applications

2. Touch the Camera Mode icon and touch .

3. Frame one side of the scene to capture.

4. Touch and slowly pan across the area to capture. A small white square appears inside the button

indicating the capture is in progress.

If you are panning too quickly, the message Too fast appears.

5. Touch to end the shot. The panorama appears immediately and a progress indicator displays while

it saves the image.

Recording Videos

1. Swipe up from the bottom of the Home screen and touch Camera.

2. Touch the camera mode menu and touch .

Color Effect

Applications

Camera Switch

Audio

Settings

Gallery

To switch between the rear camera and front camera (if available), touch .

4. Point the camera and frame the scene.

5. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls

appear on the screen.

6. Touch to start recording.

The video time remaining appears in the top left of the screen.

7. Touch to end the recording.

The video momentarily displays as a thumbnail in the lower left corner.

Photo Settings

In Photo mode, photo settings appear on screen. Touch to display the photo settings options.

Rear Camera Photo Settings

• Flash - Select whether the camera relies on its light meter to decide whether a flash is necessary, or to

turn it on or off for all shots.

Camera Mode

Shutter Button

• Off - Disable flash.

• Auto - Adjust flash automatically depending upon light meter (default).

• On - Enable flash upon taking a photo.

Applications

• GPS location - Add GPS location information to the photo meta-data. Turn On or Off (default).

• Picture size - The size (in pixels) of the photo to: 13M pixels (default), 8M pixels, 5M pixels, 3M pixels, HD 1080, 2M pixels, HD720, 1M pixels, WVGA, VGA, or QVGA.

• Picture quality - Set the picture quality setting to: Low, Standard (default) or High.

• Countdown timer - Select Off (default), 2 seconds, 5 seconds or 10 seconds.

• Storage – Set the location to store the photo to: Phone or SD Card.

• Continuous Shot - Select to take a series of photos quickly while holding the capture button. Off (default) or On.

• Face Detection - Set the camera to automatically adjust the focus for faces.

• ISO - Set camera sensitivity to light to: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400, ISO800 or ISO1600.

• Exposure - Set the exposure settings to: +2, +1, 0(default), -1 or -2.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors:

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

• Redeye reduction - Helps eliminate redeye effect. Options: Disabled (default), or Enable.

• ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled).

• Shutter Sound - Select to play a shutter sound when taking a photo. Options: Disable (default) or Enable.

• Anti Banding - Allows the camera to avoid problems caused by artificial light sources that are not

constant. These sources cycle (flicker) fast enough to go unnoticed to the human eye, appearing continuous. The camera’s eye (its sensor) can still see this flicker. Options: Auto (default), 60 Hz, 50

Hz, or Off.

Front Camera Photo Settings

• Selfie Flash - Turns screen white to help produce a little extra light in dimmer settings. Options: Off (default), or On.

• GPS location - Add GPS location information to the photo meta-data. Options: On or Off (default).

• Picture size - Set the size (in pixels) of the photo to: 5M pixels (default), 3M pixels, HD1080, 2M pixels, HD720, 1M pixels, WVGA, VGA, or QVGA.

• Picture quality - Set the picture quality setting to: Low, Standard (default) or High.

• Countdown timer - Set to: Off (default), 2 seconds, 5 seconds or 10 seconds.

• Storage – Set location to store the photo to: Phone or SD Card.

• Continuous Shot - Select to take a series of photos quickly while holding the capture button. Off

(default) or On.

Applications

• Face Detection - Select to turn face detection Off (default) or On.

• ISO - Set how sensitive the camera is to light. Options: Auto (default), ISO Auto (HJR), ISO100, ISO200, ISO400, ISO800 or ISO1600.

• Exposure - Touch to adjust the exposure settings. Options: +2, +1, 0 (default), -1 or -2.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors:

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

• Redeye reduction - Helps eliminate redeye effect. Options: Disabled (default), or Enable.

• ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled)

• Selfie Mirror - Select to save a mirror image of the photo. Options: Disable (default), or Enable.

• Shutter Sound - Select to play a shutter sound when taking a photo. Options: Disable (default) or Enable.

• Anti Banding - Allows the camera to avoid problems caused by artificial light sources that are not

Hz, or Off.

Video Settings

In Video mode, video settings appear on screen. Touch to display the video settings options.

Rear Camera Video Settings

• Flash - Select whether Rear-facing Camera relies on its light meter to decide whether a flash is

necessary, or to turn it on or off for all shots.

• Off - Disable flash (default).

• On - Enable flash.

• Video quality - Set video quality to: 4k DCI, 4k UHD, HD 1080p (default), HD 720p, SD 480p, VGA, CIF, or QVGA.

• Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).

• GPS location - Add GPS location information to the photo meta-data. Turn On or Off (default).

• Storage – Set the location to store the photo to: Phone (default) or SD Card.

• White balance - Select how the camera adjusts colors in different kinds of light, to achieve the most

natural-looking colors.

• Incandescent - Adjust the white balance for incandescent lighting.

• Fluorescent - Adjust the white balance for florescent lighting.

• Auto - Adjust the white balance automatically (default).

• Daylight - Adjust the white balance for daylight.

• Cloudy - Adjust the white balance for a cloudy environment.

• Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off

(default).

Front Camera Video Settings

• Video quality - Set video quality to: HD1080 (default), HD 720p (default), HD720, or SD 480p, VGA, CIF, or QVGA.

• Video duration - Set to: 30 seconds (MMS), or 30 minutes (default).

• GPS location - Add GPS location information to the photo meta-data. Turn On or Off (default).

• Storage – Set the location to store the photo to: Phone (default) or SD Card.

• Image Stabilization - Set to reduce blurry videos due to device movement. Options: On or Off

(default).

Applications

DataWedge Demonstration

Use DataWedge Demonstration to demonstrate data capture functionality. To configure DataWedge, refer to techdocs.zebra.com/datawedge/

Table 9 DataWedge Demonstration Icons

Icon Description

Illumination Imager illumination is on. Touch to turn illumination off.

Data Capture The data capture function is through the internal imager.

Imager illumination is off. Touch to turn illumination on.

An RS507 or RS6000 Bluetooth imager is connected.

An RS507 or RS6000 Bluetooth imager is not connected.

The data capture function is through the rear camera.

Scan Mode Imager is in picklist mode. Touch to change to normal scan mode.

Imager is in normal scan mode. Touch to change to picklist mode.

Menu Opens a menu to view the application information or to set the

application DataWedge profile.

Scanner Selection

To select a scanner, touch > Settings > Scanner selection.

See the Data Capture section for more information.

Press the programmable button or touch the yellow scan button to capture data. The data appears in the text field below the yellow button.

Applications

PTT Express Voice Client

NOTE: Requires a PTT Express License.

PTT Express Voice Client enables Push-To-Talk (PTT) communication between disparate enterprise devices. Leveraging existing Wireless Local Area Network (WLAN) infrastructure, PTT Express delivers simple PTT communication without requiring a voice communication server.

• Group Call: Press and hold the PTT (Talk) button to start communicating with other voice client users.

• Private Response: Double-press the PTT button to respond to the originator of the last broadcast or to

make a Private Response.

PTT Express User Interface

Figure 25 PTT Express Default User Interface

Notification Icon

Applications

Settings

Service Indication

Talk Group

Table 10 PTT Express Default User Interface Descriptions

Item Description

Notification Icon Indicates the current state of the PTT Express client.

Service Indication Indicates the status of the PTT Express client. Options: Service Enabled,

Service Disabled or Service Unavailable.

Talk Groups Lists all 32 Talk Groups available for PTT communication.

Settings Opens the PTT Express Settings screen.

Enable/Disable Switch

Turns the PTT service on and off.

Enable/Disable Switch

PTT Audible Indicators

The following tones provide helpful cues when using the voice client.

• Talk Tone: Double chirp. Plays when the Talk button is depressed. This is a prompt for you to start talking.

• Access Tone: Single beep. Plays when another user just finished a broadcast or response. You can now initiate a Group Broadcast or Private Response.

• Busy Tone: Continuous tone. Plays when the Talk button is depressed and another user is already communicating on the same talkgroup. Plays after the maximum allowed talk time is reached (60 seconds).

• Network Tone:

• Three increasing pitch beeps. Plays when PTT Express acquires the WLAN connection and the

service is enabled.

• Three decreasing pitch beeps. Plays when PTT Express loses the WLAN connection or the service

is disabled.

PTT Notification Icons

Applications

Notification icons indicate the current state of the PTT Express Voice client.

Table 11 PTT Express Icon Descriptions

Status Icon Description

The PTT Express Voice client is disabled.

The PTT Express Voice client is enabled but not connected to a WLAN.

The PTT Express Voice client is enabled, connected to a WLAN, and listening on the Talk Group indicated by the number next to the icon.

The PTT Express Voice client is enabled, connected to a WLAN, and communicating on the Talk Group indicated by the number next to the icon.

The PTT Express Voice client is enabled, connected to a WLAN, and in a private response.

The PTT Express Voice client is enabled and muted.

The PTT Express Voice client is enabled but it is not able to communicate due to a VoIP telephony call in progress.

Enabling PTT Communication

1. Swipe up from the bottom of the Home screen and touch .

2. Slide the Enable/Disable Switch to the ON position. The button changes to ON.

Selecting a Talk Group

One of 32 Talk Groups can be selected by PTT Express users. However, only one talk group may be enabled at a time on the device. Touch one of the 32 Talk Groups. The selected Talk Group is highlighted.

PTT Communication

NOTE: This section describes the default PTT Express client configuration. Refer to the PTT Express V1.2

User Guide for detailed information on using the client.

PTT communication may be established as a Group Call. When PTT Express is enabled, the PTT button on the left side of the device is assigned for PTT communication. When the Wired Headset is used, Group Calls can also be initiated using the headset Talk button.

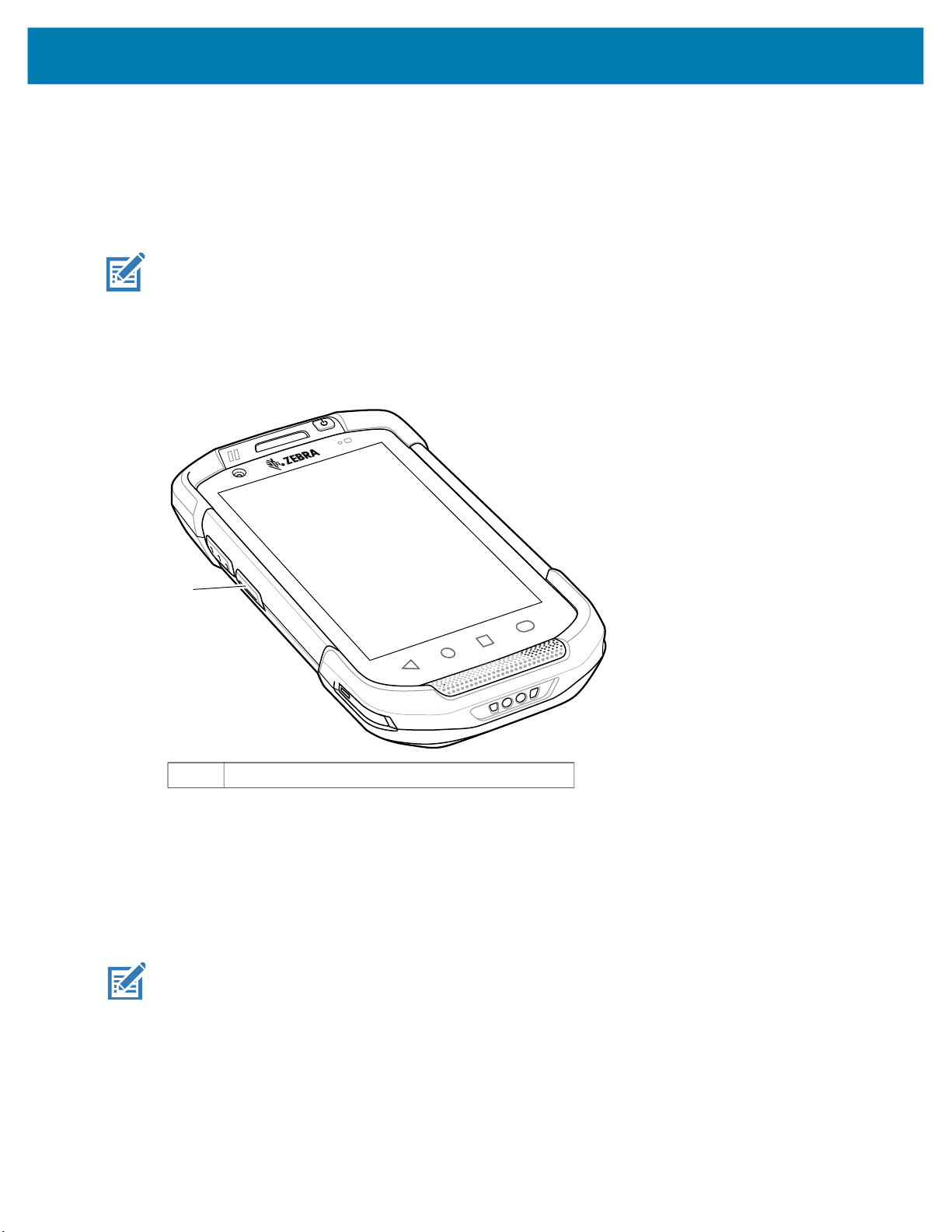

Figure 26 PTT Button

Applications

1 PTT button

Creating a Group Call

1. Press and hold the PTT button (or the Talk button on the headset) and listen for the talk tone.

If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure that PTT Express and the WLAN are enabled.

2. Start talking after hearing the talk tone.

NOTE: Holding the button for more than 60 seconds (default) drops the call, allowing others to make

Group calls. Release the button when finished talking to allow others to make calls.

Responding with a Private Response

The Private Response can only be initiated once a Group Call has been established. The initial Private Response is made to the originator of the Group Call.

1. Wait for an access tone.

Within 10 seconds, double-press the PTT button, and listen for the talk tone.

3. If you hear a busy tone, release the button and wait a moment before making another attempt. Ensure

that PTT Express and the WLAN are enabled.

4. Start talking after the talk tone plays.

5. Release the button when finished talking.

Disabling PTT Communication

1. Swipe up from the bottom of the Home screen and touch .

2. Slide the Enable/Disable Switch to the OFF position. The button changes to OFF.

3. Touch the Home button.

Applications

RxLogger

RxLogger is a comprehensive diagnostic tool that provides application and system metrics, and diagnoses device and application issues. RxLogger logs the following information: CPU load, memory load, memory snapshots, battery consumption, power states, wireless logging, cellular logging, TCP dumps, Bluetooth logging, GPS logging, logcat, FTP push/pull, ANR dumps, etc. All generated logs and files are saved onto flash storage on the device (internal or external).

RxLogger Configuration

RxLogger is built with an extensible plug-in architecture and comes packaged with a number of plug-ins already built-in. For information on configuring RxLogger, refer to techdocs.zebra.com/rxlogger/

To open the configuration screen, from the RxLogger home screen touch Settings.

Configuration File

RxLogger configuration can be set using an XML file. The config.xml configuration file is located on the microSD card in the connection. Edit the configuration file and then replace the XML file on the device. There is no need to stop

and restart the RxLogger service since the file change is automatically detected.

Applications

RxLogger\config folder. Copy the file from the device to a host computer using a USB

Enabling Logging

To enable logging:

1. Swipe the screen up and select .

2. Touch Start.

3. Touch the Home button.

Disabling Logging

To disable logging:

1. Swipe the screen up and select .

2. Touch Stop.

3. Touch the Home button.

Extracting Log Files

1. Connect the device to a host computer using an USB connection.

2. Using a file explorer, navigate to the RxLogger folder.

3. Copy the file from the device to the host computer.

4. Disconnect the device from the host computer.

Backing Up

RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default contains all the RxLogger logs stored in the device.

To save the backup data, touch > BackupNow.

RxLogger Utility

RxLogger Utility is a data monitoring application for viewing logs in the device while RxLogger is running. Logs and RxLogger Utility features are accessed using Main Chat Head.

Initiating the Main Chat Head

To initiate the Main Chat Head:

1. Open RxLogger.

2. Touch > Toggle Chat Head. The Main Chat Head icon appears on the screen.

3. Touch and drag the Main Chat head icon to move it around the screen.

Removing the Main Chat Head

To remove the Main Chat Head icon:

1. Touch and drag the icon. A circle with an X appears.

Applications

2. Move the icon over the circle and then release.

Viewing Logs

To view logs:

1. Touch the Main Chat Head icon. The RxLogger Utility screen appears.

2. Touch a log to open it. The user can open many logs with each displaying a new sub Chat Head.

3. If necessary, scroll left or right to view additional Sub Chat Head icons.

4. Touch a Sub Chat Head to display the log contents.

Removing a Sub Chat Head Icon

To remove a sub chat Head icon, press and hold the icon until it disappears.

Backing Up In Overlay View

RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default contains all the RxLogger logs stored in the device.

The Backup icon is always available in Overlay View.

1. Touch . The Backup dialog box appears.

2. Touch Yes to create the back up.

Sound Recorder

Use Sound Recorder to record audio messages.

Recordings are saved on the microSD card (if installed) or the internal storage, and are available in the Music application (AOSP devices) or the Play Music application (GMS devices).

Touch to open options menu.

Applications

• File type - Select the file type for the recording file.

• AMR

• 3GPP

• AAC

• WAV

• AMR-WB

• AMR-WB-3GPP.

• Storage location - Select the location for the recording file.

• Phone storage

• SD card

Wireless

This section provides information on the following wireless features:

• Wireless Wide Area Network (WWAN)

• Wireless Local Area Network (WLAN)

• Bluetooth

• Cast

• Near Field Communications (NFC)

Wireless Local Area Networks

Wireless local area networks (WLANs) allow the device to communicate wirelessly inside a building. Before using the device on a WLAN, the facility must be set up with the required hardware to run the WLAN (sometimes known as infrastructure). The infrastructure and the device must both be properly configured to enable this communication.

Refer to the documentation provided with the infrastructure (access points (APs), access ports, switches, Radius servers, etc.) for instructions on how to set up the infrastructure.

Once the infrastructure is set up to enforce the chosen WLAN security scheme, use the Wireless & networks settings configure the device to match the security scheme.

The device supports the following WLAN security options:

• None

• Enhanced Open

• Wireless Equivalent Privacy (WEP)

• Wi-Fi Protected Access (WPA)/WPA2 Personal (PSK)

• WPA/WPA2/WPA3 Enterprise (EAP)

• Protected Extensible Authentication Protocol (PEAP) - with MSCHAPV2 and GTC authentication.

• Transport Layer Security (TLS)

• Tunneled Transport Layer Security (TTLS) - with Password Authentication Protocol (PAP),

MSCHAP and MSCHAPv2 authentication

• Password (PWD)

• Lightweight Extensible Authentication Protocol (LEAP).

• WPA3-Enterprise 192-bit

The Status bar displays icons that indicate Wi-Fi network availability and Wi-Fi status.

NOTE: To extend the life of the battery, turn off Wi-Fi when not in use.

Connecting to a Wi-Fi Network

To connect to a Wi-Fi network:

1. Go to Settings.

2. Touch Wi-Fi to open the Wi-Fi screen. The device searches for WLANs in the area and lists them.

3. Scroll through the list and select the desired WLAN network.

4. For open networks, touch profile once or press and hold and then select Connect or for secure

networks enter the required password or other credentials then touch Connect. See the system administrator for more information.

The device obtains a network address and other required information from the network using the dynamic host configuration protocol (DHCP) protocol. To configure the device with a fixed internet protocol (IP) address, see Configuring the Device to Use a Static IP Address on page 5.

5. In the Wi-Fi setting field, Connected appears indicating that the device is connected to the WLAN.

Wireless

Removing a Wi-Fi Network

To remove a remembered or connected network:

1. Go to Settings.

2. Touch Network & Internet > W-Fi.

3. Scroll down to the bottom of the list and touch Saved networks.

4. Touch the name of the network.

5. Touch FORGET.

6. Touch the Home button.

WLAN Configuration

This section provides information on configuring Wi-Fi settings.

Configuring a Secure Wi-Fi Network

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the switch to the ON position.

4. The device searches for WLANs in the area and lists them on the screen.

5. Scroll through the list and select the desired WLAN network.

6. Touch the desired network. If the network security is Open, the device automatically connects to the

network. For all other network security a dialog box appears.

7. If the network security is WPA/WPA2-Personal, WPA3-Personal, or WEP, enter the required password

and then touch Connect.

Wireless

If the network security is WPA/WPA2/WPA3 Enterprise:

• Touch the EAP method drop-down list and select one of the following:

• PEAP

• TLS

• TTLS

• PWD

• LEAP.

• Touch the Phase 2 authentication drop-down list and select an authentication method.

• If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:

Certificates are installed using the Security settings.

• If required, touch User certificate and select a user certificate. Note: User certificates are installed

using the Security settings.

• If required, in the Identity text box, enter the username credentials.

• If desired, in the Anonymous identity text box, enter an anonymous identity username.

• If required, in the Password text box, enter the password for then given identity.

9. If the network security is WPA3-Enterprise 192-bit:

• Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are

installed using the Security settings.

• Touch User certificate and select a user certificate. Note: User certificates are installed using the

Security settings.

• In the Identity text box, enter the username credentials.

NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring

for a Proxy Server for setting connection to a proxy server and see Configuring the Device to Use a Static IP Address for setting the device to use a static IP address.

10. Touch Connect.

11. Touch the Home button.

Manually Adding a Wi-Fi Network

Manually add a Wi-Fi network if the network does not broadcast its name (SSID) or to add a Wi-Fi network when out of range.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. Scroll to the bottom of the list and select Add network.

5. In the Network name text box, enter the name of the Wi-Fi network.

6. In the Security drop-down list, set the type of security to:

• None

• Enhanced Open

• WEP

Wireless

• WPA/WPA2-Personal

• WPA3-Personal

• WPA/WPA2/WPA3-Enterprise

• WPA3-Enterprise 192-bit

7. If the network security is None , touch Save.

8. If the network security is WEP, WPA3-Personal, or WPA/WPA2-Personal, enter the required

password and then touch Save.

9. If the network security is WPA/WPA2/WPA3-Enterprise:

• Touch the EAP method drop-down list and select one of the following:

• PEAP

• TLS

• TTLS

• PWD

• LEAP.

• Touch the Phase 2 authentication drop-down list and select an authentication method.

• If required, touch CA certificate and select a Certification Authority (CA) certificate. Note:

Certificates are installed using the Security settings.

• If required, touch User certificate and select a user certificate. Note: User certificates are installed

using the Security settings.

• If required, in the Identity text box, enter the username credentials.

• If desired, in the Anonymous identity text box, enter an anonymous identity username.

• If required, in the Password text box, enter the password for the given identity.

10. If the network security is WPA3-Enterprise 192-bit:

• Touch CA certificate and select a Certification Authority (CA) certificate. Note: Certificates are

installed using the Security settings.

• Touch User certificate and select a user certificate. Note: User certificates are installed using the

Security settings.

• In the Identity text box, enter the username credentials.

NOTE: By default, the network Proxy is set to None and the IP settings is set to DHCP. See Configuring

for a Proxy Server on page 5 for setting connection to a proxy server and see Configuring the Device to Use a Static IP Address on page 5 for setting the device to use a static IP address.

11. Touch Save. To connect to the saved network, touch and hold on the saved network and select

Connect to network.

12. Touch the Home button.

Configuring for a Proxy Server

A proxy server is a server that acts as an intermediary for requests from clients seeking resources from other servers. A client connects to the proxy server and requests some service, such as a file, connection, web page, or other resource, available from a different server. The proxy server evaluates the request according to its filtering rules. For example, it may filter traffic by IP address or protocol. If the request is validated by the filter, the proxy provides the resource by connecting to the relevant server and requesting the service on behalf of the client.

It is important for enterprise customers to be able to set up secure computing environments within their companies, making proxy configuration essential. Proxy configuration acts as a security barrier ensuring that the proxy server monitors all traffic between the Internet and the intranet. This is normally an integral part of security enforcement in corporate firewalls within intranets.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. In the network dialog box, select and touch a network.

5. Touch Advanced options.

6. Touch Proxy and select Manual.

Wireless

7. In the Proxy hostname text box, enter the address of the proxy server.

8. In the Proxy port text box, enter the port number for the proxy server.

9. In the Bypass proxy for text box, enter addresses for web sites that are not required to go through the

proxy server. Use a comma “,” between addresses. Do not use spaces or carriage returns between addresses.

10. Touch Connect.

11. Touch the Home button.

Configuring the Device to Use a Static IP Address

By default, the device is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an Internet protocol (IP) address when connecting to a wireless network.

1. Go to Settings.

2. Touch Network & Internet > Wi-Fi.

3. Slide the Wi-Fi switch to the On position.

4. In the network dialog box, select and touch a network.

5. Touch Advanced options.

6. Touch IP settings and select Static.

7. In the IP address text box, enter an IP address for the device.

8. If required, in the Gateway text box, enter a gateway address for the device.

9. If required, in the Network prefix length text box, enter the prefix length.

10. If required, in the DNS 1 text box, enter a Domain Name System (DNS) address.

11. If required, in the DNS 2 text box, enter a DNS address.

12. Touch Connect.

Touch the Home button.

13.

Wi-Fi Preferences

Use the Wi-Fi preferences to configure advanced Wi-Fi settings. From the Wi-Fi screen scroll down to the bottom of the screen and touch Wi-Fi preferences.

• Turn on Wi-Fi automatically - When enabled, Wi-Fi automatically turns back on when near high quality saved networks.

• Open network notification - When enabled, notifies the user when an open network is available.

• Advanced - Touch to expand options.

• Additional settings - See Additional Settings.

• Install Certificates – Touch to install certificates.

• Network rating provider - Disabled (AOSP devices). To help determine what constitutes a good

Wi-Fi network, Android supports external Network rating providers that provide information about the quality of open Wi-Fi networks. Select one of the providers listed or None. If none are available or selected, the Connect to open networks feature is disabled.

• Wi-Fi Direct - Displays a list of devices available for a direct Wi-Fi connection.

Wireless

• MAC address - Displays the Media Access Control (MAC) address of the device when connecting

to Wi-Fi networks.

• IP address - Displays the IP address of the device when connecting to Wi-Fi networks.

Additional Wi-Fi Settings

NOTE: Additional Wi-Fi settings are for the device, not for a specific wireless network.

Use the Additional Settings to configure additional Wi-Fi settings. To view the additional Wi-Fi settings, scroll to the bottom of the Wi-Fi screen and touch Wi-Fi Preferences > Advanced > Additional settings.

• Regulatory

• Country Selection - Displays the acquired country code if 802.11d is enabled, else it displays the

currently selected country code.

• Region code - Displays the current region code.

• Band and Channel Selection

• Wi-Fi frequency band - Set the frequency band to: Auto (default), 5 GHz only or 2.4 GHz only.

• Available channels (2.4 GHz) - Touch to display the Available channels menu. Select specific

channels and touch OK.

• Available channels (5 GHz) - Touch to display the Available channels menu. Select specific

channels and touch OK.

• Logging

• Advanced Logging – Touch to enable advanced logging or change the log directory.

• Wireless logs - Use to capture Wi-Fi log files.

• Fusion Logger - Touch to open the Fusion Logger application. This application maintains a

history of high level WLAN events which helps to understand the status of connectivity.

• About

• Version - Displays the current Fusion information.

Wi-Fi Direct

Wi-Fi Direct devices can connect to each other without having to go through an access point. Wi-Fi Direct devices establish their own ad-hoc network when required, letting you see which devices are available and choose which one you want to connect to.

1. Go to Settings.

2. Touch Wi-Fi > Wi-Fi preferences > Advanced > Wi-Fi Direct. The device begins searching for

another Wi-Fi Direct device.

3. Under Peer devices, touch the other device name.

4. On the other device, select Accept.

Connected appears on the device. On both devices, in their respective Wi-Fi Direct screens, the other

device name appears in the list.

Wireless

• Fusion Status - Touch to display live status of WLAN state. Also provides information about the device and connected profile.

Wireless Wide Area Networks

NOTE: TC77 only.

Use Wireless wide area networks (WWANs) to access data over a cellular network. This section provides information on:

• Sharing a data connection

• Monitoring data usage

• Changing Cellular Network settings

Sharing the Mobile Data Connection

The Tethering & Portable Hotspot settings allows sharing the mobile data connection with a single computer via USB tethering or Bluetooth tethering. Share the data connection with up to eight devices at once, by turning it into a portable Wi-Fi hotspot. While the device is sharing its data connection, an icon displays at the top of the screen and a corresponding message appears in the notification list.

Enabling USB Tethering

NOTE: USB tethering is not supported on computers running Mac OS. If the computer is running Windows

or a recent version of Linux (such as Ubuntu), follow these instructions without any special preparation. If running a version of Windows that precedes Windows 7, or some other operating system, you may need to prepare the computer to establish a network connection via USB.

1. Connect the device to a host computer with the USB cable.

2. The notification Charging this device via USB appears in the Notifications panel.

3. Go to Settings.

Touch Network & Internet.

5. Touch Hotspot & tethering.

6. Touch the USB tethering switch to enable.

The host computer is now sharing the device’s data connection.

To stop sharing the data connection, touch the USB tethering switch again or disconnect the USB cable.

Enabling Bluetooth Tethering

Use Bluetooth tethering to share the data connection with a host computer.

Configure the host computer to obtain its network connection using Bluetooth. For more information, see the host computer’s documentation.

1. Pair the device with the host computer.

2. Go to Settings.

3. Touch Networking & Internet.

4. Touch Hotspot & tethering.

5. Touch the Bluetooth tethering switch to enable.

Wireless

The host computer is now sharing the device’s data connection.

To stop sharing the data connection, touch the Bluetooth tethering switch again.

Enabling Wi-Fi Hotspot

To enable the Wi-Fi Hotspot:

1. Go to Settings.

2. Touch Network & Internet.

3. Touch Hotspot & tethering.

4. Touch Wi-Fi hotspot.

5. Toggle the switch to enable.

After a moment, the device starts broadcasting its Wi-Fi network name (SSID). Connect to it with up to eight computers or other devices. The Hotspot icon appears in the Status bar.

To stop sharing the data connection, touch the toggle switch again.

Configuring the Wi-Fi Hotspot

1. Go to Settings.

2. Touch Network & Internet.

3. Touch Hotspot & tethering.

4. Touch Wi-Fi hotspot.

5. In the Hotspot name text field, edit the name for the hotspot.

6. Touch Security and select a security method from the drop-down list.

• WPA2-Personal

a. Touch Hotspot password.

b. Enter a password.

• None - If None is selected in the Security option, a password is not required.

7. Touch Advanced.

8. If desired, touch Turn off hotspot automatically to turn off Wi-Fi Hotspot when no devices are

9. In the AP Band drop-down list, select 2.4 GHz Band or 5.0 GHz Band.

Data Usage

Data usage refers to the amount of data uploaded or downloaded by the device during a given period. Depending on the wireless plan, you may be charged additional fees when your data usage exceeds your plan's limit.

To monitor your data usage:

1. Go to Settings.

2. Touch Network & internet > Mobile network > Data usage.

CAUTION: The usage displayed on the data usage settings screen is measured by your device. Your

carrier's data usage accounting may differ. Usage in excess of your carrier plan's data limits can result in steep overage charges. The feature described here can help you track your usage, but is not guaranteed to prevent additional charges.

Touch OK.

connected.

Wireless

Data usage settings allow:

• Enable Data Saver.

• Set the data usage warning level.

• Set a data usage limit.

• View or restrict data usage by app.

• Identify mobile hotspots and restrict background downloads that may result in extra charges.

By default, the data usage settings screen displays the mobile data settings. That is, the data network or networks provided by your carrier.

Setting Data Usage Warning

To set a warning alert when the device has used a certain amount of mobile data:

1. Go to Settings.

2. Touch Network & internet > Mobile network > Data usage > .

3. If necessary, touch Set data warning to enable it.

4. Touch Data warning.

5. Enter a number. To switch between megabytes (MB) and gigabytes (GB), touch the down arrow.

6. Touch SET.

When the usage reaches the set level, a notification appears.

Setting Data Limit

1. Go to Settings.

2. Touch Network & internet > Mobile network > Data usage > .

Touch Set data limit.

4. Touch OK.

5. Touch Data limit.

6. Enter a number. To switch between megabytes (MB) and gigabytes (GB), touch the down arrow.

7. Touch Set.

When the limit is reached, data automatically turns off and a notification appears.

Cellular Network Settings

Cellular network settings applies to WWAN devices only.

Data When Roaming

Roaming is disabled by default to prevent the device from transmitting data over other carriers’ mobile networks when leaving an area that is covered by the carrier’s networks. This is useful for controlling expenses if the service plan does not include data roaming.

Enabling Data on GSM Devices

Wireless

1. Go to Settings.

2. Touch Network & Internet > Mobile network.

3. Touch Roaming.

The switch moves to the on position.

Setting Preferred Network Type

Change the network operating mode.

1. Go to Settings.

2. Touch Network & Internet > Mobile network > Advanced > Preferred network type.

3. In the Preferred network type dialog box, select a mode to set as default:

• LTE only

• Automatic

• CDMA only

Using Search for MicroCell

A MicroCell acts like a mini cell tower in a building or residence and connects to an existing broadband Internet service. It improves cell signal performance for voice calls, texts, and cellular data applications like picture messaging and Web surfing.

1. Go to Settings.

2. Touch Network & Internet > Mobile network.

3. Touch Search for MicroCell.

Configuring the Access Point Name
