Zebra TC70x, TC75x integrator Guide

Download

TC70x/TC75x

MN-002882-05

Touch Computer

Integrator Guide

for Android™ Version 6.0.1

TC70X/TC75X INTEGRATOR GUIDE

FOR ANDROID VERSION 6.0.1

MN-002882-05

Rev A

August 2019

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. Google, Android, Google Play and other marks are trademarks of Google LLC. All other trademarks are the property of their respective owners. ©2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to www.zebra.com/copyright

WARRANTY: For complete warranty information, go to www.zebra.com/warranty

END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula

•

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

•

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

•

Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

•

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Revision History

Changes to the original manual are listed below:

Change Date Description

Rev A 1/2017 Initial release.

-02 Rev. A 2/2017 Add TC70x support.

-03 Rev. A 5/2018 Update approved cleanser active ingredients.

iii

-04 Rev. A 11/2018 Add step to Remapping a Button. When remapping the

Menu button, perform a Soft Reset

-05 Rev A 8/2019 Add note to battery installation warning user to not put anything in the battery well.

Back, Home, Search, or

Revision History ................................................................................................................................. iii

Table of Contents

About This Guide

Introduction ..................................................................................................................................... xvii

Documentation Set ......................................................................................................................... xvii

Configurations................................................................................................................................. xvii

Software Versions.......................................................................................................................... xviii

Chapter Descriptions ..................................................................................................................... xviii

Notational Conventions.................................................................................................................... xix

Icon Conventions ............................................................................................................................. xix

Related Documents ......................................................................................................................... xx

Service Information .......................................................................................................................... xx

Chapter 1: Getting Started

Introduction .................................................................................................................................... 1-1

Setup .............................................................................................................................................. 1-1

Installing the SIM Card ............................................................................................................. 1-1

Installing the SAM Card ........................................................................................................... 1-2

Installing a microSD Card ........................................................................................................ 1-3

Installing the Hand Strap and Battery ............................................................................................ 1-4

Installing the Battery ...................................................................................................................... 1-6

Charging the Battery ................................................................................................................ 1-6

Charging Indicators ............................................................................................................ 1-7

Replacing the Battery ..................................................................................................................... 1-8

Replacing the SIM or SAM Card .................................................................................................. 1-10

Replacing the microSD Card ....................................................................................................... 1-12

Resetting the Device .................................................................................................................... 1-13

Performing a Soft Reset ......................................................................................................... 1-13

Performing a Hard Reset ....................................................................................................... 1-14

Table of Contents v

Chapter 2: Accessories

Introduction .................................................................................................................................... 2-1

Accessories .................................................................................................................................... 2-1

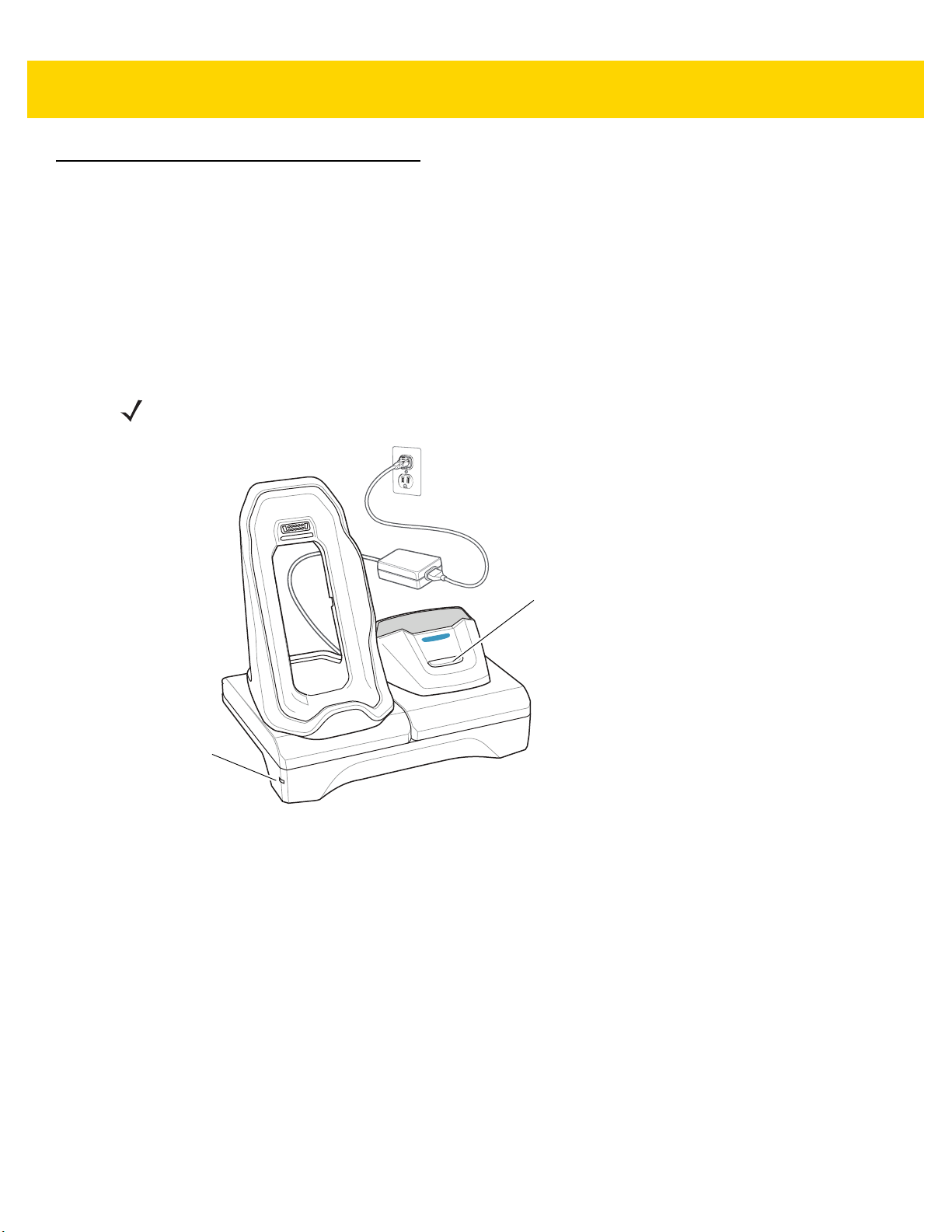

2-Slot Charge Only Cradle ............................................................................................................. 2-4

Setup ........................................................................................................................................ 2-5

Charging the Device ................................................................................................................. 2-5

Charging the Spare Battery ...................................................................................................... 2-6

Battery Charging ...................................................................................................................... 2-7

Main Battery Charging ....................................................................................................... 2-7

Spare Battery Charging ...................................................................................................... 2-7

Charging Temperature ............................................................................................................. 2-7

2-Slot USB/Ethernet Cradle ........................................................................................................... 2-8

Setup ........................................................................................................................................ 2-9

Charging the Device ................................................................................................................. 2-9

Charging the Spare Battery .................................................................................................... 2-10

Battery Charging .................................................................................................................... 2-11

Main Battery Charging ..................................................................................................... 2-11

Spare Battery Charging .................................................................................................... 2-11

Charging Temperature ........................................................................................................... 2-12

USB/Ethernet Communication ............................................................................................... 2-12

Ethernet LED Indicators ................................................................................................... 2-12

Ethernet Settings .............................................................................................................. 2-13

Configuring Ethernet Proxy Settings ................................................................................ 2-13

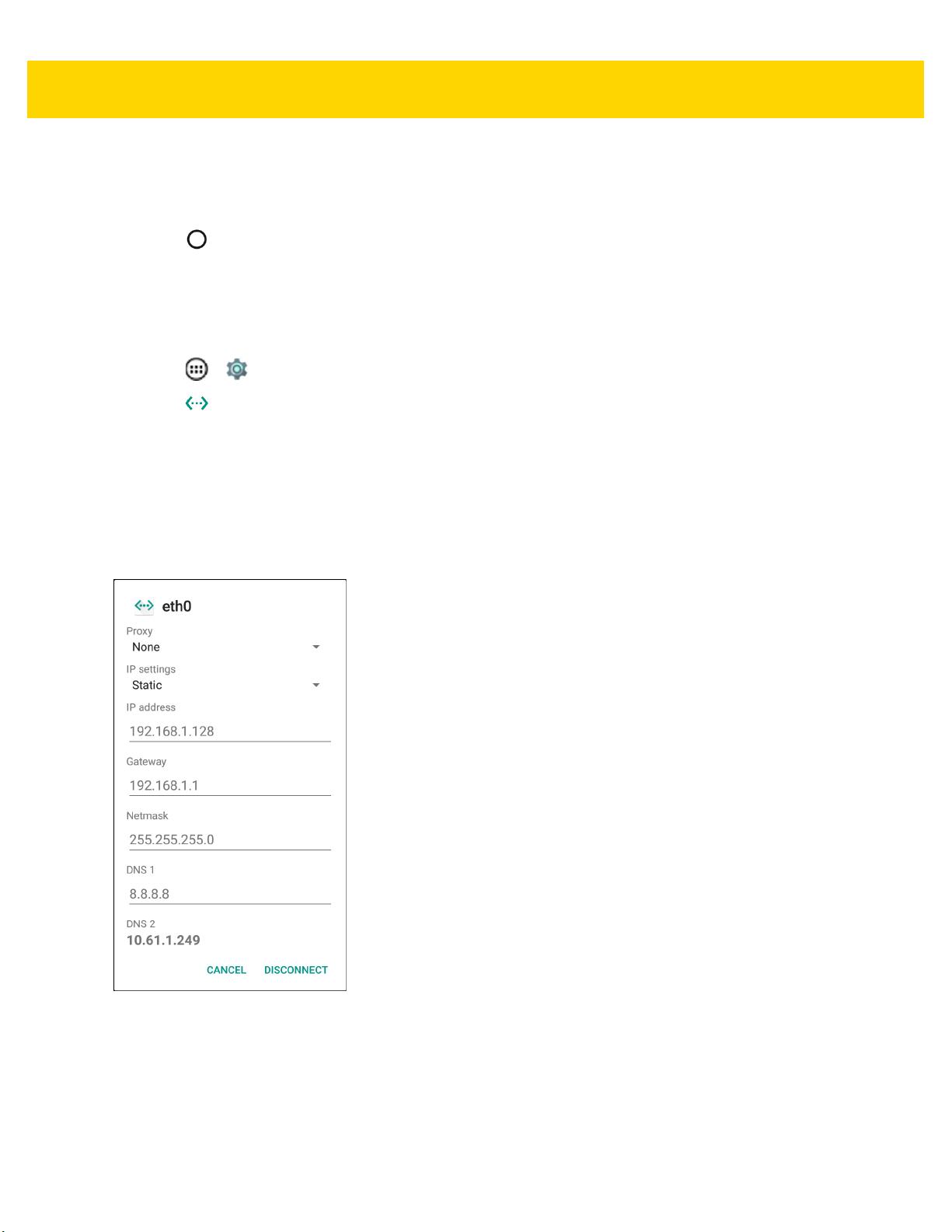

Configuring Ethernet Static IP Address ............................................................................ 2-14

5-Slot Charge Only Cradle ........................................................................................................... 2-16

Setup ...................................................................................................................................... 2-16

Charging the Device ............................................................................................................... 2-17

Battery Charging .................................................................................................................... 2-18

Main Battery Charging ..................................................................................................... 2-18

Charging Temperature ........................................................................................................... 2-18

Installing the Four Slot Battery Charger ................................................................................. 2-19

Removing the 4-Slot Battery Charger .................................................................................... 2-23

5-Slot Ethernet Cradle ................................................................................................................. 2-24

Setup ...................................................................................................................................... 2-25

Daisy-chaining Ethernet Cradles ............................................................................................ 2-25

Ethernet Settings .............................................

Configuring Ethernet Proxy Settings ................................................................................ 2-26

Configuring Ethernet Static IP Address ............................................................................ 2-27

LED Indicators ........................................................................................................................ 2-28

Charging the Device ............................................................................................................... 2-28

Battery Charging .................................................................................................................... 2-30

Main Battery Charging ..................................................................................................... 2-30

Spare Battery Charging .................................................................................................... 2-30

Charging Temperature ........................................................................................................... 2-31

Establishing Ethernet Connection .......................................................................................... 2-31

Installing the 4-Slot Battery Charger ...................................................................................... 2-31

Removing the 4-Slot Battery Charger .................................................................................... 2-36

4-Slot Battery Charger ................................................................................................................. 2-37

Setup ...................................................................................................................................... 2-37

Charging Spare Batteries ....................................................................................................... 2-37

................................................................. 2-26

Table of Contents vi

Battery Charging .................................................................................................................... 2-38

Spare Battery Charging .................................................................................................... 2-38

Charging Temperature ........................................................................................................... 2-39

Trigger Handle ............................................................................................................................. 2-40

Installing the Attachment Plate to Trigger Handle .................................................................. 2-40

Installing the Trigger Handle Plate ......................................................................................... 2-40

Inserting the Device into the Trigger Handle .......................................................................... 2-41

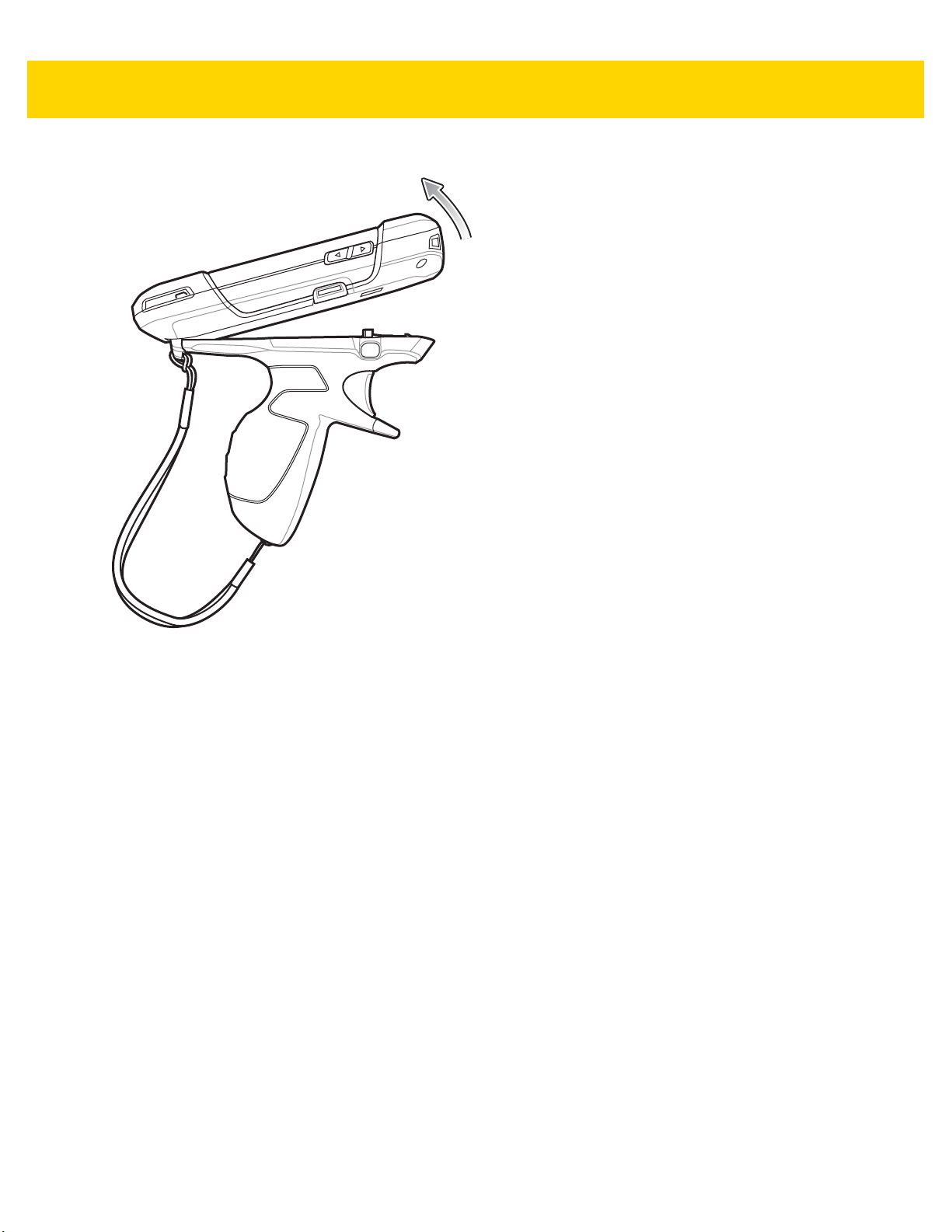

Removing the Device from the Trigger Handle ...................................................................... 2-43

Hand Strap Replacement ............................................................................................................. 2-45

Chapter 3: USB Communication

Introduction .................................................................................................................................... 3-1

Connecting to a Host Computer via USB ....................................................................................... 3-1

Transferring Files using Media Transfer Protocol .................................................................... 3-1

Transferring Files using Photo Transfer Protocol ..................................................................... 3-2

Disconnect from the Host Computer ........................................................................................ 3-3

Chapter 4: DataWedge

Introduction .................................................................................................................................... 4-1

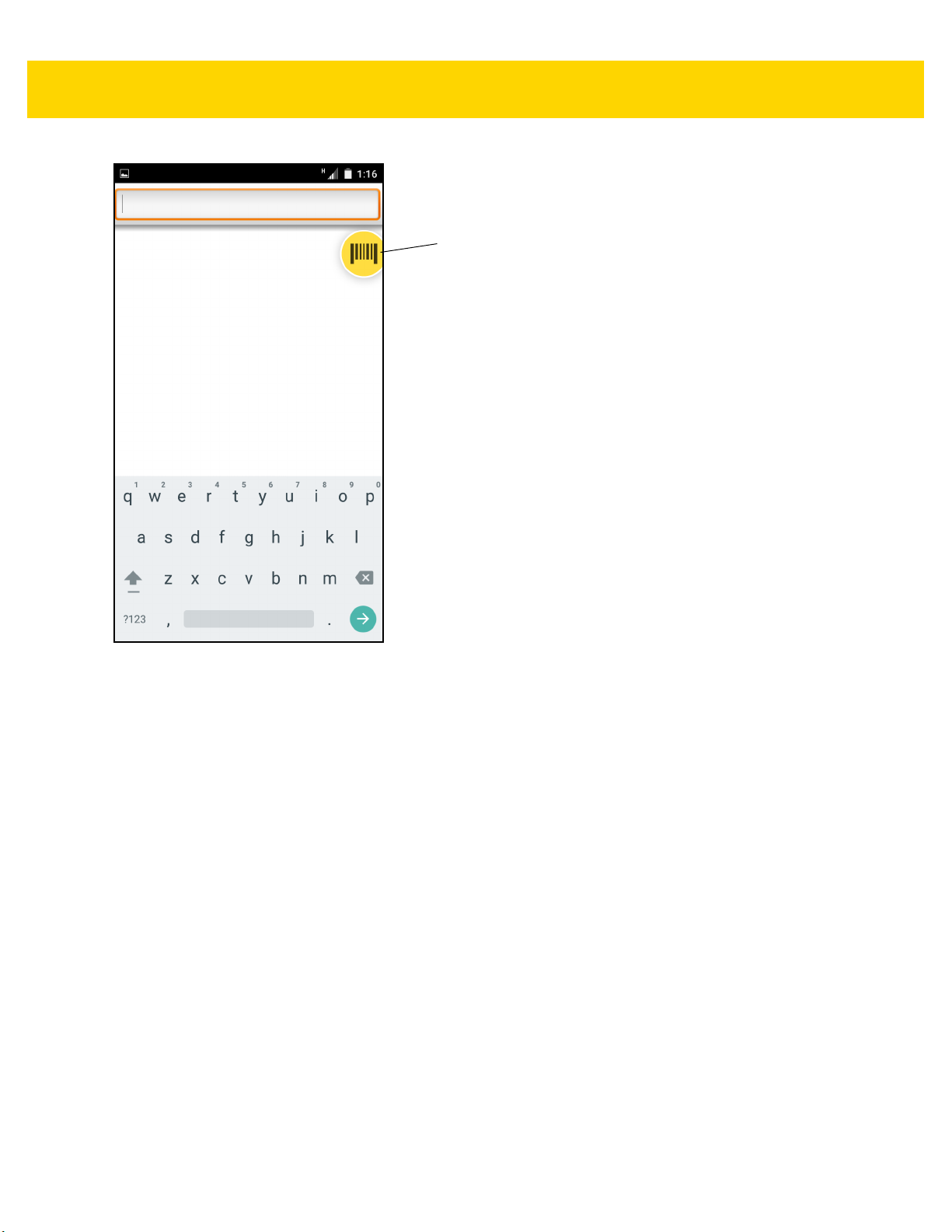

Basic Scanning .............................................................................................................................. 4-1

Profiles ........................................................................................................................................... 4-2

Profile0 ..................................................................................................................................... 4-2

Plug-ins .......................................................................................................................................... 4-2

Input Plug-ins ........................................................................................................................... 4-3

Process Plug-ins ...................................................................................................................... 4-3

Output Plug-ins ........................................................................................................................ 4-3

Profiles Screen ............................................................................................................................... 4-4

Profile Context Menu ................................................................................................................ 4-4

Options Menu ........................................................................................................................... 4-5

Disabling DataWedge .............................................................................................................. 4-5

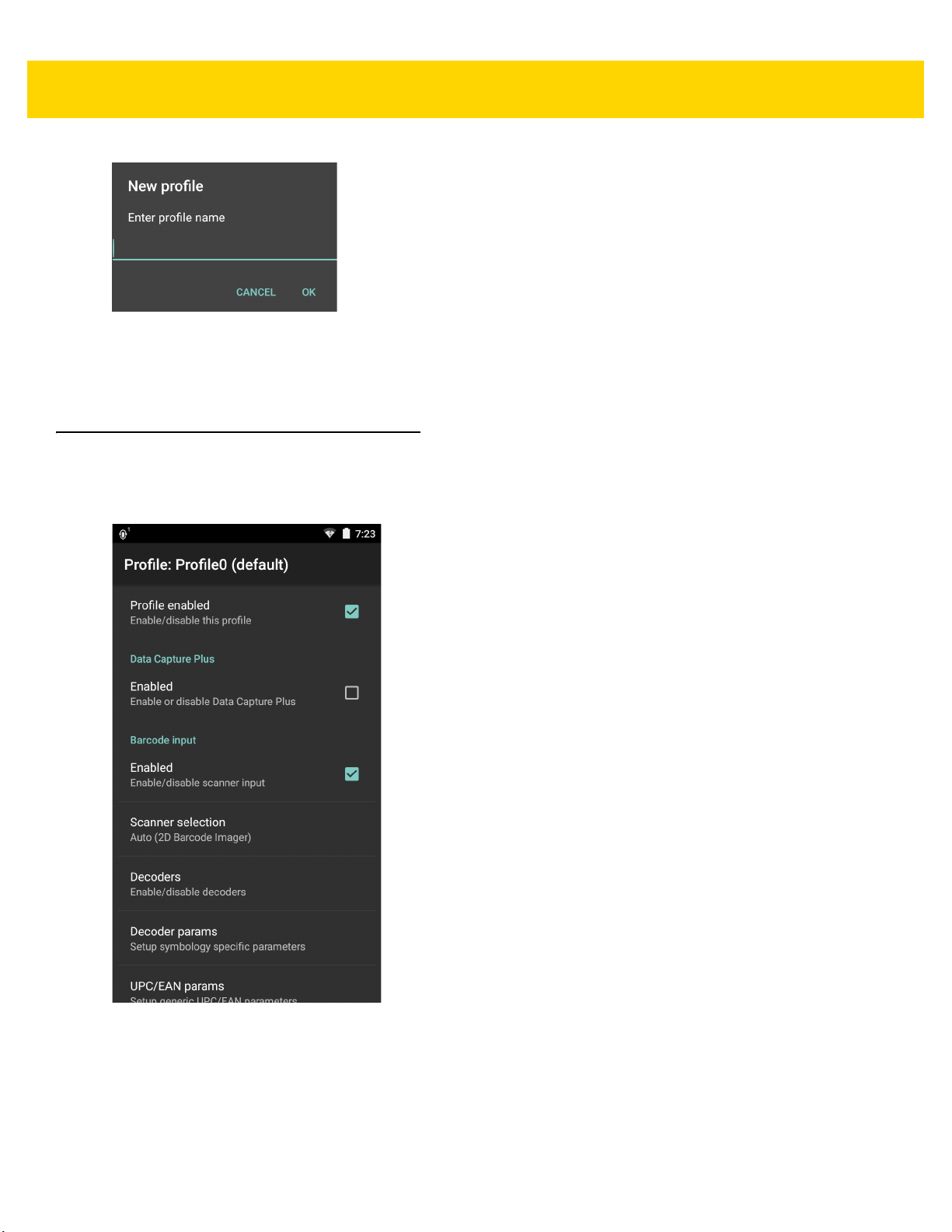

Creating a New Profile ................................................................................................................... 4-5

Profile Configuration ...................................................................................................................... 4-6

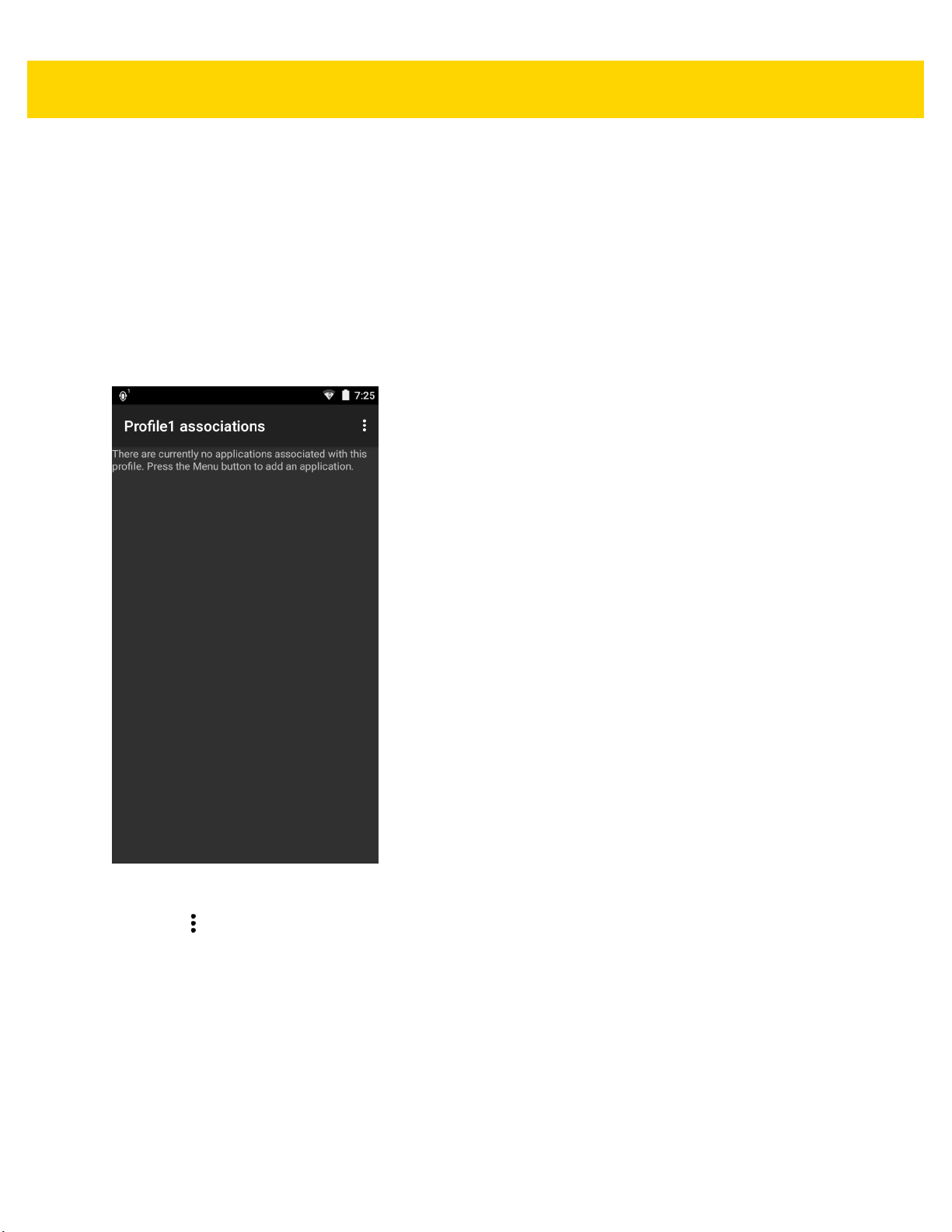

Associating Applications .......................................................................................................... 4-7

Data Capture Plus .................................................................................................................... 4-9

Bar Code Input ....................................................................................................................... 4-12

Enabled ............................................................................................................................ 4-12

Scanner Selection ............................................................................................................ 4-12

Decoders ................................................................................................................................ 4-12

Decoder Params ................................................

.................................................................... 4-14

Codabar ........................................................................................................................... 4-14

Code 11 ............................................................................................................................................................ 4-15

Code128 ........................................................................................................................... 4-15

Code39 ............................................................................................................................. 4-16

Code93 ............................................................................................................................. 4-16

Composite AB .................................................................................................................. 4-17

Discrete 2 of 5 .................................................................................................................. 4-17

GS1 DataBar Limited ....................................................................................................... 4-17

HAN XIN ........................................................................................................................................................... 4-17

Table of Contents vii

Interleaved 2 of 5 ............................................................................................................. 4-17

Matrix 2 of 5 ..................................................................................................................... 4-18

MSI ................................................................................................................................... 4-18

Trioptic 39 ........................................................................................................................ 4-18

UK Postal ......................................................................................................................... 4-18

UPCA ............................................................................................................................... 4-19

UPCE0 ............................................................................................................................. 4-19

UPCE1 ............................................................................................................................. 4-19

US Planet ......................................................................................................................... 4-19

Decode Lengths ............................................................................................................... 4-20

UPC EAN Params .................................................................................................................. 4-20

Reader Params ...................................................................................................................... 4-22

Scan Params .......................................................................................................................... 4-23

Keystroke Output ................................................................................................................... 4-24

Intent Output .......................................................................................................................... 4-25

Intent Overview ...................................................................................................................... 4-26

IP Output ................................................................................................................................ 4-27

Usage ..................................................................................................................................... 4-28

Using IP Output with IPWedge ............................................................................................... 4-29

Using IP Output without IPWedge .......................................................................................... 4-30

Generating Advanced Data Formatting Rules ............................................................................. 4-31

Configuring ADF Plug-in ........................................................................................................ 4-31

Creating a Rule ................................................................................................................ 4-32

Defining a Rule ................................................................................................................. 4-32

Defining Criteria ............................................................................................................... 4-33

Defining an Action .................................................................................................................. 4-34

Deleting a Rule ....................................................................................................................... 4-35

Order Rules List ..................................................................................................................... 4-35

Deleting an Action .................................................................................................................. 4-36

ADF Example ......................................................................................................................... 4-37

DataWedge Settings .............................................................................................................. 4-40

Importing a Configuration File ................................................................................................ 4-41

Exporting a Configuration File ................................................................................................ 4-42

Importing a Profile File ........................................................................................................... 4-42

Exporting a Profile .................................................................................................................. 4-42

Restoring DataWedge ............................................................................................................ 4-42

Configuration and Profile File Management ................................................................................. 4-43

Enterprise Folder .................................................................................................................... 4-43

Auto Import ............................................................................................................................. 4-43

Programming Notes ..................................................................................................................... 4-43

Overriding Trigger Key in an Application ................................................................................ 4-43

Capture Data and Taking a Photo in the Same Application ................................................... 4-44

Disable DataWedge on Device and Mass Deploy ................................................................. 4-44

Soft Scan Feature .................................................................................................................. 4-44

Sample ................................................................................................................................... 4-44

Scanner Input Plugin .............................................................................................................. 4-45

Function Prototype ........................................................................................................... 4-45

Parameters ....................................................................................................................... 4-45

Return Values .................................................................................................................. 4-45

Example ........................................................................................................................... 4-46

Table of Contents viii

Comments ........................................................................................................................ 4-46

Enumerate Scanners ............................................................................................................. 4-46

Function Prototype ........................................................................................................... 4-46

Parameters ....................................................................................................................... 4-47

Return Values .................................................................................................................. 4-47

Example ........................................................................................................................... 4-48

Comments ........................................................................................................................ 4-48

Set Default Profile .................................................................................................................. 4-48

Default Profile Recap ....................................................................................................... 4-48

Usage Scenario ................................................................................................................ 4-49

Function Prototype ........................................................................................................... 4-49

Parameters ....................................................................................................................... 4-49

Return Values .................................................................................................................. 4-49

Example ........................................................................................................................... 4-50

Comments ........................................................................................................................ 4-50

Reset Default Profile .............................................................................................................. 4-51

Function Prototype ........................................................................................................... 4-51

Parameters ....................................................................................................................... 4-51

Return Values .................................................................................................................. 4-51

Example ........................................................................................................................... 4-51

Comments ........................................................................................................................ 4-51

Switch To Profile .................................................................................................................... 4-52

Profiles Recap .................................................................................................................. 4-52

Usage Scenario ................................................................................................................ 4-52

Function Prototype ........................................................................................................... 4-52

Parameters ....................................................................................................................... 4-52

Return Values .................................................................................................................. 4-53

Example ........................................................................................................................... 4-53

Comments ........................................................................................................................ 4-53

Notes ................................................................................................................................ 4-54

Chapter 5: Settings

Introduction .................................................................................................................................... 5-1

WWAN Configuration ..................................................................................................................... 5-1

Default SIM Slot Configuration ................................................................................................. 5-1

WLAN Configuration ............................................

Configuring a Secure Wi-Fi Network ........................................................................................ 5-2

Manually Adding a Wi-Fi Network ............................................................................................ 5-4

Configuring for a Proxy Server ................................................................................................. 5-5

Configuring the Device to Use a Static IP Address .................................................................. 5-6

Advanced Wi-Fi Settings .......................................................................................................... 5-6

Screen Unlock Settings .................................................................................................................. 5-9

Set Screen Unlock Using PIN ................................................................................................ 5-10

Set Screen Unlock Using Password ...................................................................................... 5-11

Set Screen Unlock Using Pattern ........................................................................................... 5-11

Passwords ................................................................................................................................... 5-13

Button Remapping ....................................................................................................................... 5-14

Remapping a Button .............................................................................................................. 5-14

Accounts ...................................................................................................................................... 5-15

.......................................................................... 5-2

Table of Contents ix

Language Usage .......................................................................................................................... 5-15

Changing the Language Setting ............................................................................................. 5-16

Adding Words to the Dictionary .............................................................................................. 5-16

Keyboard Settings ........................................................................................................................ 5-16

PTT Express Configuration .......................................................................................................... 5-16

About Phone ................................................................................................................................ 5-16

Chapter 6: Application Deployment

Introduction .................................................................................................................................... 6-1

Security .......................................................................................................................................... 6-1

Secure Certificates ......................................................................................................................... 6-1

Installing a Secure Certificate ........................................................................................................ 6-1

Configuring Credential Storage Settings .................................................................................. 6-2

Development Tools ........................................................................................................................ 6-2

Android ..................................................................................................................................... 6-2

EMDK for Android .................................................................................................................... 6-4

StageNow ................................................................................................................................. 6-4

ADB USB Setup ............................................................................................................................. 6-4

Enabling USB Debugging ........................................................................................................ 6-4

Application Installation ................................................................................................................... 6-5

Installing Applications Using the USB Connection ................................................................... 6-5

Installing Applications Using the Android Debug Bridge .......................................................... 6-7

Installing Applications Using a microSD Card .......................................................................... 6-8

Uninstalling an Application ....................................................................................................... 6-8

Performing a System Update ......................................................................................................... 6-9

Download the System Update Package ................................................................................... 6-9

Using microSD Card .............................................................................................................. 6-10

Using ADB .............................................................................................................................. 6-10

Verify System Update Installation .......................................................................................... 6-11

Performing an Enterprise Reset ................................................................................................... 6-11

Download the Enterprise Reset Package .............................................................................. 6-12

Using microSD Card .............................................................................................................. 6-12

Using ADB .............................................................................................................................. 6-12

Performing a Factory Reset ......................................................................................................... 6-13

Download the Factory Reset Package ................................................................................... 6-13

Using microSD Card .............................................................................................................. 6-13

Using ADB .............................................................................................................................. 6-14

Storage ......................................................................................................................

Random Access Memory ....................................................................................................... 6-15

Internal Storage ...................................................................................................................... 6-16

External Storage .................................................................................................................... 6-17

Formatting a microSD Card ............................................................................................. 6-19

Format as Internal Memory .............................................................................................. 6-21

Enterprise Folder .................................................................................................................... 6-23

Application Management ............................................................................................................. 6-23

Viewing Application Details .................................................................................................... 6-24

Managing Downloads .................................................................................................................. 6-25

RxLogger ..................................................................................................................................... 6-25

RxLogger Configuration ......................................................................................................... 6-26

.................. 6-15

Table of Contents x

Main Log Plug-in .............................................................................................................. 6-27

Snapshot Plug-in .............................................................................................................. 6-28

Logcat Plug-in .................................................................................................................. 6-28

PushPullClient Plug-in ...................................................................................................... 6-29

TCPDump Plug-in ............................................................................................................ 6-30

ANR Plugin ....................................................................................................................... 6-30

Kernal Plug-in ................................................................................................................... 6-30

Configuration File ................................................................................................................... 6-31

Enabling Logging ................................................................................................................... 6-31

Disabling Logging ................................................................................................................... 6-31

Extracting Log Files ................................................................................................................ 6-31

Chapter 7: Maintenance and Troubleshooting

Introduction .................................................................................................................................... 7-1

Maintaining the TC70x/TC75x ....................................................................................................... 7-1

Battery Safety Guidelines .............................................................................................................. 7-1

Cleaning Instructions ..................................................................................................................... 7-2

Approved Cleanser Active Ingredients ..................................................................................... 7-2

Harmful Ingredients .................................................................................................................. 7-3

Cleaning Instructions ................................................................................................................ 7-3

Special Cleaning Notes ............................................................................................................ 7-3

Cleaning Materials Required .................................................................................................... 7-3

Cleaning Frequency ................................................................................................................. 7-3

Cleaning the TC70x/TC75x ............................................................................................................ 7-4

Housing .................................................................................................................................... 7-4

Display ..................................................................................................................................... 7-4

Camera and Exit Window ......................................................................................................... 7-4

Connector Cleaning ................................................................................................................. 7-5

Cleaning Cradle Connectors .................................................................................................... 7-5

Troubleshooting ............................................................................................................................. 7-5

TC70x/TC75x ........................................................................................................................... 7-6

2-Slot Charge Only Cradle ....................................................................................................... 7-9

2-Slot USB/Ethernet Cradle ................................................................................................... 7-10

5-Slot Charge Only Cradle Troubleshooting .......................................................................... 7-11

5-Slot Ethernet Cradle Troubleshooting ................................................................................. 7-12

4-Slot Battery Charger Troubleshooting ................................................................................. 7-12

Appendix A: Technical Specifications

Introduction ................................................................................................................................... A-1

TC70x/TC75x ................................................................................................................................ A-1

SE4750-SR Decode Distances ............................................................................................... A-4

I/O Connector Pin-Outs ........................................................................................................... A-5

2-Slot Charge Only Cradle Technical Specifications .............................................................. A-6

2-Slot USB/Ethernet Cradle Technical Specifications ............................................................. A-6

5-Slot Charge Only Cradle Technical Specifications .............................................................. A-7

5-Slot Ethernet Cradle Technical Specifications ..................................................................... A-8

4-Slot Battery Charger Technical Specifications ..................................................................... A-8

Charge Only Vehicle Cradle Technical Specifications ............................................................ A-9

Index

Table of Contents xi

Trigger Handle Technical Specifications ................................................................................. A-9

Charging Cable Cup Technical Specifications ...................................................................... A-10

Snap-On USB Cable Technical Specifications ..................................................................... A-10

Snap-On Serial Cable Technical Specifications .................................................................... A-11

DEX Cable Technical Specifications ..................................................................................... A-11

ABOUT THIS GUIDE

Introduction

This guide provides information about using the TC70x and TC75x touch computers and accessories.

NOTE Screens and windows pictured in this guide are samples and can differ from actual screens.

Documentation Set

The documentation set provides information for specific user needs, and includes:

•

TC70x/TC75x Quick Start Guide - describes how to get the TC70x/TC75x up and running.

•

TC70x/TC75x User Guide for Android Version 6.0.1 - describes how to use the TC70x and TC75x.

•

TC70x/TC75x Integrator Guide for Android Version 6.0.1 - describes how to set up the TC70x and TC75x

and accessories.

Configurations

This guide covers the following configurations:

About This Guide xviii

Configuration Radios Display Memory

TC700K WLAN: 802.11

a/b/g/n/d/h/i/r WPAN: Bluetooth v4.0 Low Energy

TC75EK WWAN:

HSPA+/LTE/ CDMA WLAN: 802.11 a/b/g/n/d/h/i/r WPAN: Bluetooth v4.0 Low Energy

TC75FK WWAN:

HSPA+/LTE WLAN: 802.11 a/b/g/n/d/h/i/r WPAN: Bluetooth v4.0 Low Energy

TC75GK WWAN:

HSPA+/LTE WLAN: 802.11 a/b/g/n/d/h/i/r WPAN: Bluetooth v4.0 Low Energy

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

4.7” High Definition (1280 x

720) LCD

2 GB RAM/16 GB Flash

2 GB RAM/16 GB Flash (SLC High Reliability Flash)

Data Capture

Options

2D imager, camera, or integrated NFC

2D imager, camera and integrated NFC

Operating

System

Android 6.0.1

Software Versions

To determine the current software versions touch > About phone.

•

Model number- Displays the model number.

•

Android version - Displays the operating system version.

•

Kernel version - Displays the kernel version number.

•

Build number - Displays the software build number.

To determine the device serial number touch > About phone > Status.

•

Serial number - Displays the serial number.

Chapter Descriptions

Topics covered in this guide are as follows:

•

Chapter 1, Getting Started provides information on getting the TC70x/TC75x up and running for the first time.

•

Chapter 2, Accessories describes the available accessories and how to use them with the TC70x/TC75x.

•

Chapter 3, USB Communication describes how to connect the TC70x/TC75x to a host computer using USB.

•

Chapter 4, DataWedge describes how to use and configure the DataWedge application.

•

Chapter 5, Settings provides the settings for configuring the TC70x/TC75x.

•

Chapter 6, Application Deployment provides information for developing and managing applications.

•

Chapter 7, Maintenance and Troubleshooting includes instructions on cleaning and storing the

TC70x/TC75x, and provides troubleshooting solutions for potential problems during TC70x/TC75x operation.

•

Appendix A, Technical Specifications provides the technical specifications for the TC70x/TC75x.

Notational Conventions

The following conventions are used in this document:

•

Italics are used to highlight the following:

• Chapters and sections in this and related documents

•

Bold text is used to highlight the following:

• Dialog box, window, and screen names

• Drop-down list and list box names

• Check box and radio button names

• Button names on a screen.

• Icons on a screen.

About This Guide xix

•

Bullets (•) indicate:

• Action items

• Lists of alternatives

• Lists of required steps that are not necessarily sequential

•

Sequential lists (for example, lists that describe step-by-step procedures) appear as numbered lists.

Icon Conventions

The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. These icons and their associated meanings are described below.

NOTE NOTE contains information more important than the surrounding text, such as exceptions or

preconditions. They also refer the reader elsewhere for additional information, remind the reader how to complete an action (when it is not part of the current procedure, for instance), or tell the reader where something is located on the screen. There is no warning level associated with a note.

CAUTION The word CAUTION with the associated safety icon implies information that, if disregarded, may result

in minor or moderate injury, or serious product damage.

WARNING! The word WARNING with the associated safety icon implies information that, if disregarded,

could result in death or serious injury, or serious product damage.

Service Information

If you have a problem with the equipment, contact Customer Support in the region. Contact information is available at: http://www.zebra.com/support

When contacting support, please have the following information available:

•

Serial number of the unit (found on manufacturing label)

About This Guide xx

•

Model number or product name (found on manufacturing label)

•

Software type and version number

•

IMEI number

Customer Support responds to calls by email or telephone within the time limits set forth in support agreements.

If the problem cannot be solved by Customer Support, the user may need to return the equipment for servicing and will be given specific directions. We are not responsible for any damages incurred during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the SIM card and/or microSD card from the device before shipping for service.

About This Guide xxi

If the device was purchased from a business partner, contact that business partner for support.

CHAPTER 1 GETTING STARTED

Introduction

This chapter provides information for getting the device up and running for the first time.

Setup

Perform this procedure to start using the TC70x/TC75x for the first time.

• Install a SIM card (TC75x only).

• Install a SAM card.

• Install a micro secure digital (SD) card (optional).

• Install hand strap (optional).

• Install the battery.

• Charge the TC70x/TC75x.

• Power on the TC70x/TC75x.

Installing the SIM Card

NOTE TC75x only.

CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

NOTE The TC75x may contain one mini SIM slot and two nano SIM slots. If using a micro SIM card, a third-party SIM

adapter is required. By default, use a nano SIM card in slot 1.

1. Remove access cover.

Getting Started 1 - 2

nano SIM Slot 2

nano SIM Slot 1

(default)

mini SIM/SAM

Slot

Figure 1-1 TC75x SIM Slot Locations

2. Insert a SIM card into the SIM slot with the cut edge toward the middle of the device and the contacts facing

down.

Figure 1-2 nano SIM Card Installation

Figure 1-3 Mini SIM Card Installation

3. Ensure that the SIM card is seated properly.

Installing the SAM Card

CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

Getting Started 1 - 3

Mini SAM Slot

NOTE The TC70x/TC75x contains one slot for a mini SAM card. If using a micro SAM card, a third-party adapter

is required. On the TC75x, when using a SAM card, only a nano SIM card can be used.

1. Remove access cover.

2. Insert a SAM card into the SAM slot with the cut edge toward the middle of the device and the contacts facing

down.

Figure 1-4 SAM Card Installation

3. Ensure that the SAM card is seated properly.

Installing a microSD Card

The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to the documentation provided with the card for more information, and follow the manufacturer’s recommendations for use.

CAUTION For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD

precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly grounded.

1. Remove the hand strap, if installed.

2. Lift the access door.

Figure 1-5 Lift Access Door

3. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each

side of the door.

Figure 1-6 Insert microSD Card in Holder

4. Re-install the access door.

Installing the Hand Strap and Battery

Getting Started 1 - 4

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

stickers, etc., may compromise the intended performance of the device or accessories. Performance levels such as sealing (Ingress Protection (IP)), impact performance (drop and tumble), functionality, temperature resistance, etc. could be effected. DO NOT put any labels, asset tags, engravings, stickers, etc. in the battery well.

To install the hand strap and battery:

NOTE Installation of the hand strap is optional. Skip this section if not installing the hand strap.

1. Remove the hand strap filler from the hand strap slot. Store the hand strap filler in a safe place for future

replacement.

Figure 1-7 Remove Filler

2. Insert the hand strap plate into the hand strap slot.

Getting Started 1 - 5

Figure 1-8 Insert Hand Strap

3. Insert the battery, bottom first, into the battery compartment in the back of the TC70x/TC75x.

Figure 1-9 Insert Bottom of Battery into Battery Compartment

4. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 1-10 Press Down on Battery

5. Place hand strap clip into hand strap mounting slot and pull down until it snaps into place.

Figure 1-11 Secure Hand Strap Clip

Installing the Battery

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

To install the battery:

Getting Started 1 - 6

1. Insert the battery, bottom first, into the battery compartment in the back of the TC70x/TC75x.

Figure 1-12 Insert Bottom of Battery into Battery Compartment

2. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 1-13 Press Down on Battery

Charging the Battery

Before using the TC70x/TC75x for the first time, charge the main battery until the green Charging/Notification light emitting diode (LED) remains lit. To charge the TC70x/TC75x, use a cable or a cradle with the appropriate power supply. For information about the accessories available for the TC70x/TC75x, see Chapter 2, Accessories for more information.

• Snap-On USB Cable

• Charging Cable Cup

Getting Started 1 - 7

• 2-Slot Charge Only Cradle

• 2-Slot USB/Ethernet Cradle

• 5-Slot Charge Only Cradle

• 5-Slot Ethernet Cradle

• Charge Only Vehicle Cradle

• Auto Charging Cable Cup.

• Serial Cable Cup

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The TC70x/TC75x or accessory always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the TC70x/TC75x or accessory may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The TC70x/TC75x or accessory indicates when charging is disabled due to abnormal temperatures via its LED.

1. To charge the main battery, connect the charging accessory to the appropriate power source.

2. Insert the TC70x/TC75x into a cradle or attach to a cable. The TC70x/TC75x turns on and begins charging.

The Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.

Charging Indicators

Table 1-1 Charging/Notification LED Charging Indicators

State Indication

Off The device is not charging. The device is not inserted correctly in the cradle or

connected to a power source. Charger/cradle is not powered.

Slow Blinking Amber (1 blink every 4 seconds)

Solid Green Charging complete.

Fast Blinking Amber (2 blinks/second)

Slow Blinking Red (1 blink every 4 seconds)

Solid Red Charging complete but the battery is at end of useful life.

Fast Blinking Red (2 blinks/second)

The device is charging.

Charging error, e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically eight hours).

Thedevice is charging but the battery is at end of useful life.

Charging error but the battery is at end of useful life., e.g.:

• Temperature is too low or too high.

• Charging has gone on too long without completion (typically eight hours).

Replacing the Battery

CAUTION Do not add or remove SIM, SAM or microSD card during battery replacement.

NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,

1. Remove any accessory attached to the device.

2. For devices with the Battery Swap mode feature:

a. Press the Power button until the menu appears.

b. Touch Battery Swap.

c. Follow the on-screen instructions.

d. Wait for the LED to turn off.

3. For devices without Battery Swap mode feature:

a. Press the Power button until the menu appears.

b. Touch Power off.

c. Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the TC70x/TC75x and then lift.

Getting Started 1 - 8

Figure 1-14 Remove Hand Strap Clip

5. Press the two battery latches in.

Getting Started 1 - 9

Figure 1-15 Press Battery Latches

6. Lift the battery from the TC70x/TC75x.

Figure 1-16 Lift the Battery

CAUTION Replace the battery within two minutes. After two minutes the device reboots and data may be lost.

7. Insert the replacement battery, bottom first, into the battery compartment in the back of the TC70x/TC75x.

8. Press the battery down until the battery release latch snaps into place.

9. Replace the hand strap, if required.

10. Press and hold the Power button to turn on the TC70x/TC75x.

Replacing the SIM or SAM Card

NOTE SIM replacement applies to TC75x only.

To replace the SIM or SAM card:

1. Press and hold the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the TC70x/TC75x and then lift.

Getting Started 1 - 10

Figure 1-17 Remove Hand Strap Clip

5. Press the two battery latches in.

6. Lift the battery from the TC70x/TC75x.

7. Lift the access door.

Figure 1-18 Remove Access Door

8. Remove card from holder.

Figure 1-19 Remove Mini SIM/SAM Card

Getting Started 1 - 11

Figure 1-20 Remove Nano SIM Card

9. Insert the replacement card.

Figure 1-21 Insert Mini SIM/SAM Card

Figure 1-22 Insert Nano SIM Card

Getting Started 1 - 12

10. Replace the access door.

Figure 1-23 Replace Access Door

11. Press the access door down and ensure that it is properly seated.

12. Insert the battery, bottom first, into the battery compartment in the back of the TC70x/TC75x.

13. Press the battery down until the battery release latch snaps into place.

14. Replace the hand strap, if required.

15. Press and hold the Power button to turn on the TC70x/TC75x.

Replacing the microSD Card

To replace the microSD card:

1. Press the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

4. If hand strap is attached, slide the hand strap clip up toward the top of the TC70x/TC75x and then lift.

Figure 1-24 Remove Hand Strap Clip

5. Press the two battery latches in.

6. Lift the battery from the TC70x/TC75x.

7. Lift the access door.

Figure 1-25 Remove Access Door

8. Remove microSD card from holder.

9. Press the access door down and ensure that it is properly seated.

10. Insert the replacement microSD card.

11. Replace the access door.

Getting Started 1 - 13

Figure 1-26 Replace Access Door

12. Insert the battery, bottom first, into the battery compartment in the back of the TC70x/TC75x.

13. Press the battery down until the battery release latch snaps into place.

14. Replace the hand strap, if required.

15. Press and hold the Power button to turn on the TC70x/TC75x.

Resetting the Device

There are four reset functions:

• Soft reset

• Hard reset

• Enterprise reset. See Performing an Enterprise Reset on page 6-11.

• Factory reset. See Performing a Factory Reset on page 6-13.

Performing a Soft Reset

Perform a soft reset if applications stop responding.

1. Press and hold the Power button until the menu appears.

2. Touch Reset.

3. The device reboots.

Performing a Hard Reset

CAUTION Performing a hard reset with a SD card installed in the TC70x/TC75x may cause damage or data

corruption to the SD card.

Perform a hard reset if the TC70x/TC75x stops responding.

1. Simultaneously press the Power, Scan and Volume Up buttons for at least four seconds.

2. When the screen turns off, release the buttons.

3. The TC70x/TC75x reboots.

Getting Started 1 - 14

CHAPTER 2 ACCESSORIES

Introduction

This chapter provides information for using the accessories for the device.

Accessories

This table lists the accessories available for the TC70x/TC75x.

Table 2-1 Accessories

Accessory Part Number Description

Cradles

2-Slot Charge Only Cradle

2-Slot USB/Ethernet Cradle

5-Slot Charge Only Cradle

5-Slot Ethernet Cradle CRD-TC7X-SE5EU1–01 Provides device charging and provides Ethernet

Cradle Mount BRKT-SCRD-SMRK-01 Mounts the 5-Slot Charge Only Cradle, 5-Slot Ethernet

CRD-TC7X-SE2CPP-01 Provides device and spare battery charging. Use with

power supply, p/n PWRS-14000-148R.

CRD-TC7X-SE2EPP-01 Provides device and spare battery charging and USB

communication with a host computer and Ethernet communication with a network. Use with power supply, p/n PWRS-14000-148R.

CRD-TC7X-SE5C1-01 Charges up to five devices. Use with power supply, p/n

PWRS-14000-241R and DC line cord, p/n 50-16002-029R. Can accommodate one 4-Slot Battery Charger using the Battery Adapter Cup.

communication for up to five devices. Use with power supply, p/n PWRS-14000-241R and DC line cord, p/n 50-16002-029R. Can accommodate one 4-Slot Battery Charger using the Battery Adapter Cup.

Cradle, and 4-Slot Battery Charger to a wall or rack.

Table 2-1 Accessories (Continued)

Accessory Part Number Description

Batteries and Chargers

Accessories 2 - 2

4,620 mAh PowerPrecision+ battery

4-Slot Spare Battery Charger

Battery Charger Adapter Cup

Vehicle Solutions

Charging Cable Cup CHG-TC7X-CLA1-01 Provides power to the device from a cigarette lighter

Charge Only Vehicle Cradle

Cigarette Light Adapter Auto Charge Cable

Hard-wire Auto Charge Cable

RAM Mount RAM-B-166U Provides window mounting option for the Vehicle

BTRY-TC7X-46MPP-01

BTRY-TC7X-46MPP-10

SAC-TC7X-4BTYPP-01 Charges up to four battery packs. Use with power

CUP-SE-BTYADP1-01 Allows for one 4-Slot Battery Charger to be charged

CRD-TC7X-CVCD1-01 Charges and securely holds the device. Requires

CHG-AUTO-CLA1-01 Provides power to the Vehicle Cradle from a cigarette

CHG-AUTO-HWIRE1-01 Provides power to the Vehicle Cradle from the

Replacement battery (single pack).

Replacement battery (10–pack).

supply, p/n PWRS-14000-148R.

and docked on the left most slot of the 5-Slot cradles (maximum one per cradle).

socket.

power cable CHG-AUTO-CLA1-01 or CHG-AUTOHWIRE1-01, sold separately.

lighter socket.

vehicle's power panel.

Cradle. RAM Twist Lock Suction Cup with Double Socket Arm and Diamond Base Adapter. Overall Length: 6.75”.

RAM Mount Base RAM-B-238U RAM 2.43" x 1.31" Diamond Ball base with 1" ball.

Charge and Communication Cables

Charging Cable Cup CHG-TC7X-CBL1-01 Provides power to the device. Use with power supply,

p/n PWRS-14000-249R, sold separately.

Snap-On USB Cable CBL-TC7X-CBL1-01 Provides power to the device and USB communication

with a host computer. Use with power supply, p/n PWRS-14000-249R, sold separately.

Snap-On Serial Cable CBL-TC7X-SERL1-01 Provides power and serial communication with a host

computer. Use with power supply, p/n PWRS-14000-249R, sold separately.

Snap-On DEX Cable CBL-TC7X-DEX1-01 Provides electronic data exchange with devices such

as vending machines.

Audio Accessories

Premium Headset RCH51 Premium Rugged headset.

3.5 mm Audio Adapter ADP-TC7X-AUD35-01 Snaps onto the device and provides audio to a wired headset with 3.5 mm plug.

Table 2-1 Accessories (Continued)

Accessory Part Number Description

3.5 mm Headset HDST-35MM-PTVP-01 Use for PTT and VoIP calls.

Accessories 2 - 3

3.5 mm Quick

Disconnect

Adapter Cable

Scanning

Trigger Handle TRG-TC7X-SNP1-01 Adds gun-style handle with a scanner trigger for

Carrying Solutions

Soft Holster SG-TC7X-HLSTR1-01 TC7X soft holster.

Rigid Holster SG-TC7X-RHLSTR1-01 TC7X rigid holster.

Hand Strap SG-TC7X-HSTRP1-03 Replacement hand strap with hand strap mounting clip

Stylus and Coiled Tether SG-TC7X-STYLUS-03 TC7X stylus with coiled tether (3-pack).

Power Supplies

Power Supply PWRS-14000-249R Provides power to the device using the Snap-On USB

Power Supply PWRS-14000-148R Provides power to the 2–Slot cradles and 4-Slot Spare

ADP-35M-QDCBL1-01 Provides connection to the 3.5 mm Headset.

comfortable and productive scanning.

(3–pack).

Cable, Snap-on Serial Cable or Charging Cable Cup. Requires AC line cord.

Battery Charger. Requires AC line cord.

Power Supply PWRS-14000-241R Provides power to the 5-Slot Charge Only cradle and

the 5-Slot Ethernet Cradle. Requires DC Line Cord, p/n 50–16002–029R and country specific three wire grounded AC line cord sold separately.

DC Line Cord 50-16002-029R Provides power from the power supply to the 5-Slot

Charge Only Cradle and 5-Slot Ethernet Cradle.

2-Slot Charge Only Cradle

Spare battery Charging LED

Power LED

The 2-Slot Charge Only Cradle:

• Provides 5 VDC power for operating the device.

• Charges the device’s battery.

• Charges a spare battery.

Accessories 2 - 4

Figure 2-1 2–Slot Charge Only Cradle

Setup

Accessories 2 - 5

Figure 2-2 2–Slot Charge Only Cradle

Charging the Device

1. Insert the device into the slot to begin charging.

Accessories 2 - 6

Figure 2-3 Battery Charging

2. Ensure the device is seated properly.

Charging the Spare Battery

1. Insert the battery into the right slot to begin charging.

Figure 2-4 Spare Battery Charging

2. Ensure the battery is seated properly.

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Spare Battery Charging

The Spare battery Charging LED on the cup indicates the status of the spare battery charging.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Table 2-2 Spare Battery Charging LED Indicators

LED Indication

Slow Blinking Amber Spare battery is charging.

Solid Green Charging complete.

Accessories 2 - 7

Fast Blinking Amber Error in charging; check placement of spare battery.

Slow Blinking Red Spare battery is charging and battery is at the end of

useful life.

Solid Red Charging complete and battery is at the end of useful

life.

Fast Blinking Red Error in charging; check placement of spare battery and

battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Charging Temperature

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device or cradle always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device and cradle indicates when charging is disabled due to abnormal temperatures via its LED.

2-Slot USB/Ethernet Cradle

Spare Battery Charging LED

Power LED

The 2-Slot USB/Ethernet Cradle:

• Provides 5.0 VDC power for operating the device.

• Charges the device’s battery.

• Charges a spare battery.

• Connects the device to an Ethernet network.

• Provides communication to a host computer using a USB cable.

NOTE Remove all attachments on the device, except the hand strap, before place onto the cradle.

Accessories 2 - 8

Figure 2-5 2-Slot USB/Ethernet Cradle

Setup

Accessories 2 - 9

Figure 2-6 2–Slot USB/Ethernet Cradle

Charging the Device

1. Place the bottom of the device into the base.

Accessories 2 - 10

Figure 2-7 Battery Charging

2. Rotate the top of the device until the connector on the back of the device mates with the connector on the

cradle.

3. Ensure the device is connected properly. The charging Charging/Notification LED on the device begins blinking

amber indicating that the device is charging.

Charging the Spare Battery

1. Insert the battery into the right slot to begin charging.

Figure 2-8 Spare Battery Charging

Accessories 2 - 11

2. Ensure the battery is seated properly.

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Spare Battery Charging

The Spare battery Charging LED on the cup indicates the status of the spare battery charging.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Table 2-3 Spare Battery Charging LED Indicators

LED Indication

Slow Blinking Amber Spare battery is charging.

Solid Green Charging complete.

Fast Blinking Amber Error in charging; check placement of spare battery.

Slow Blinking Red Spare battery is charging and battery is at the end of

useful life.

Solid Red Charging complete and battery is at the end of useful

life.

Accessories 2 - 12

Table 2-3 Spare Battery Charging LED Indicators (Continued)

LED Indication

Fast Blinking Red Error in charging; check placement of spare battery and

battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Charging Temperature

USB/Ethernet Communication

The 2–Slot USB/Ethernet Cradle provides both Ethernet communication with a network and USB communication with a host computer. Prior to using the cradle for Ethernet or USB communication. Ensure that the switch on the USB/Ethernet module is set properly.

Turn the cradle over to view the module.

Figure 2-9 2–Slot USB/Ethernet Cradle Module Switch

For Ethernet communication, slide the switch to the position.

For USB communication, slide the switch to the position.

Place the switch in the center position to disable communications.

Ethernet LED Indicators

There are two LEDs on the USB/Ethernet Module RJ-45 connector. The green LED lights to indicate that the transfer rate is 100 Mbps. When the LED is not lit the transfer rate is 10 Mbps. The yellow LED blinks to indicate activity, or stays lit to indicate that a link is established. When it is not lit it indicates that there is no link.

Figure 2-10 LED Indicators

Accessories 2 - 13

Table 2-4 USB/Ethernet Module LED Data Rate Indicators

Data Rate (1) Amber LED (2) Green LED

100 Mbps On/Blink On

10 Mbps On/Blink Off

Ethernet Settings

The following settings can be configured when using Ethernet communication:

• Proxy Settings

• Static IP.

Configuring Ethernet Proxy Settings

The TC70x/TC75x includes Ethernet cradle drivers. After inserting the TC70x/TC75x, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC70x/TC75x into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch and hold Eth0 until the menu appears.

6. Touch Modify Proxy.

7. Touch the Proxy drop-down list and select Manual.

Figure 2-11 Ethernet Proxy Settings

8. In the Proxy hostname field, enter the proxy server address.

9. In the Proxy port field, enter the proxy server port number.

NOTE When entering proxy addresses in the Bypass proxy for field, do not use spaces or carriage returns

between addresses.

Accessories 2 - 14

10. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy

server. Use the separator “|” between addresses.

11. Touch MODIFY.

12. Touch .

Configuring Ethernet Static IP Address

The TC70x/TC75x includes Ethernet cradle drivers. After inserting the TC70x/TC75x, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC70x/TC75x into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch Eth0.

6. Touch Disconnect.

7. Touch Eth0.

8. Touch and hold the IP settings drop-down list and select Static.

Figure 2-12 Static IP Settings

9. In the IP address field, enter the proxy server address.

10. If required, in the Gateway field, enter a gateway address for the device.

11. If required, in the Netmask field, enter the network mask address

12. If required, in the DNS address fields, enter a Domain Name System (DNS) addresses.

13. Touch CONNECT.

14. Touch .

Accessories 2 - 15

5-Slot Charge Only Cradle

Power LED

The 5-Slot Charge Only Cradle:

• Provides 5 VDC power for operating the TC70x/TC75x.

• Simultaneously charges up to five devices and up to four devices and on 4-Slot Battery Charger using the

Battery Charger Adapter. See the TC70x/TC75x Integrator Guide for information on installing the 4-Slot

Battery Charger onto the cradle.

• Consists of a cradle base and cups that can be configured for various charging requirements.

Accessories 2 - 16

Figure 2-13 5-Slot Charge Only Cradle

Setup

Figure 2-14 5-Slot Charge Only Cradle

Charging the Device

1. Insert the TC70x/TC75x into a slot to begin charging.

Accessories 2 - 17

Figure 2-15 Battery Charging

Accessories 2 - 18

Figure 2-16 5-Slot Charge Only Cradle with Four Slot Battery Charger

2. Ensure the TC70x/TC75x is seated properly.

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Charging Temperature

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The device always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the device may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The device indicates when charging is disabled due to abnormal temperatures via its LED.

Installing the Four Slot Battery Charger

NOTE The Battery Charger must be installed in the first slot only.

1. Remove power from the cradle.

Accessories 2 - 19

Figure 2-17 Remove Power from Cradle

2. Using a Phillips screwdriver, remove the screw securing the cup to the cradle base.

Figure 2-18 Remove Screw

3. Slide the cup to the front of the cradle.

Figure 2-19 Remove Cup

4. Carefully lift the cup up to expose the cup power cable.

5. Disconnect the cup power cable.

Accessories 2 - 20

Figure 2-20 Disconnect Cup Power Cable

NOTE Place power cable into adapter to avoid pinching cable.

6. Connect the Battery Adapter power cable to the connector on the cradle.

Figure 2-21 Connect Adapter Power Cable

7. Place adapter onto cradle base and slide toward rear of cradle.

Accessories 2 - 21

Figure 2-22 Install Adapter

8. Using a Phillips screwdriver, secure adapter to cradle base with screw.

Accessories 2 - 22

Figure 2-23 Secure adapter to Cradle

9. Align mounting holes on the bottom of the Four Slot Battery Charger with the stubs on the Battery Adapter.

Figure 2-24 Install Four Slot Battery Charger

10. Slide the Four Slot battery Charger down toward the front of the cradle.

11. Connect the output power plug into the power port on the Four Slot Battery Charger.

Figure 2-25 Connect Adapter Power Cable

Removing the 4-Slot Battery Charger

Accessories 2 - 23

1. Disconnect the output power plug from the 4-Slot Battery Charger.

2. At the back of the cup, press down on the release latch.

Figure 2-26 Press Release Latch

3. Slide the 4-Slot Battery Charger toward the front of the cradle.

4. Lift the 4-Slot off the cradle cup.

5-Slot Ethernet Cradle

100/10 LED

1000 LED

CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page

7-1.

The 5-Slot Ethernet Cradle:

• Provides 5.0 VDC power for operating the device.

• Connects the device (up to five) to an Ethernet network.

• Simultaneously charges up to five devices or up to four devices and one 4-Slot Battery Charger using the

Battery Charger Adapter.

Accessories 2 - 24

Figure 2-27 5-Slot Ethernet Cradle

Setup

Connect the 5-Slot Ethernet cradle to a power source.

Figure 2-28 5-Slot Ethernet Cradle Setup

Accessories 2 - 25

Daisy-chaining Ethernet Cradles

Daisy-chain up to ten 5-Slot Ethernet cradles to connect several cradles to an Ethernet network. Use either a straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection to the first cradle is 10 Mbps as throughput issues will almost certainly result.

To daisy-chain 5-Slot Ethernet cradles:

1. Connect power to each 5-Slot Ethernet cradle.

2. Connect an Ethernet cable to the one of the ports on the back of the first cradle and to the Ethernet switch.

3. Connect the other end of the Ethernet cable to one of the ports of the back of the second 5-Slot Ethernet

cradle.

Accessories 2 - 26

To Switch To Power Supply

To Power SupplyTo Next

Cradle

Figure 2-29 Daisy-chaining 5-Slot Ethernet Cradles

4. Connect additional cradles as described in step 2 and 3.

Ethernet Settings

The following settings can be configured when using Ethernet communication:

• Proxy Settings

• Static IP.

Configuring Ethernet Proxy Settings

The TC70x/TC75x includes Ethernet cradle drivers. After inserting the TC70x/TC75x, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC70x/TC75x into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch and hold Eth0 until the menu appears.

6. Touch Modify Proxy.

7. Touch the Proxy drop-down list and select Manual.

Figure 2-30 Ethernet Proxy Settings

8. In the Proxy hostname field, enter the proxy server address.

9. In the Proxy port field, enter the proxy server port number.

Accessories 2 - 27

NOTE When entering proxy addresses in the Bypass proxy for field, do not use spaces or carriage returns

between addresses.

10. In the Bypass proxy for text box, enter addresses for web sites that do not require to go through the proxy

server. Use the separator “|” between addresses.

11. Touch MODIFY.

12. Touch .

Configuring Ethernet Static IP Address

The TC70x/TC75x includes Ethernet cradle drivers. After inserting the TC70x/TC75x, configure the Ethernet connection:

1. Touch > .

2. Touch Ethernet.

3. Place the TC70x/TC75x into the Ethernet cradle slot.

4. Slide the switch to the ON position.

5. Touch Eth0.

6. Touch Disconnect.

7. Touch Eth0.

8. Touch and hold the IP settings drop-down list and select Static.

Accessories 2 - 28

Figure 2-31 Static IP Settings

9. In the IP address field, enter the proxy server address.

10. If required, in the Gateway field, enter a gateway address for the device.

11. If required, in the Netmask field, enter the network mask address

12. If required, in the DNS address fields, enter a Domain Name System (DNS) addresses.

13. Touch CONNECT.

14. Touch .

LED Indicators

There are two green LEDs on the side of the cradle. These green LEDs light and blink to indicate the data transfer rate.

Table 2-5 LED Data Rate Indicators

Data Rate 1000 LED 100/10 LED

1 Gbps On/Blink Off

100 Mbps Off On/Blink

10 Mbps Off On/Blink

Charging the Device

1. Insert the TC70x/TC75x into a slot to begin charging.

Accessories 2 - 29

Figure 2-32 Battery Charging

2. Ensure the TC70x/TC75x is seated properly.

Accessories 2 - 30

Figure 2-33 5-Slot Ethernet Cradle with 4-Slot Battery Charger

Battery Charging

Main Battery Charging

The device’s Charging/Notification LED indicates the status of the battery charging in the device.

The 4,620 mAh battery fully charges in less than sixfive hours at room temperature.

Spare Battery Charging

The Spare battery Charging LED on the cup indicates the status of the spare battery charging.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Table 2-6 Spare Battery Charging LED Indicators

LED Indication

Slow Blinking Amber Spare battery is charging.

Solid Green Charging complete.

Fast Blinking Amber Error in charging; check placement of spare battery.

Slow Blinking Red Spare battery is charging and battery is at the end of

useful life.

Accessories 2 - 31

Table 2-6 Spare Battery Charging LED Indicators (Continued)

LED Indication

Solid Red Charging complete and battery is at the end of useful

life.

Fast Blinking Red Error in charging; check placement of spare battery

and battery is at the end of useful life.

Off No spare battery in slot; spare battery not placed

correctly; cradle is not powered.

Charging Temperature

Establishing Ethernet Connection

1. Touch > .

2. Touch Ethernet.

3. Insert the device into a slot.

4. Slide the Ethernet switch to the ON position.

The icon appears in the Status bar.

5. Touch Eth0 to view Ethernet connection details.

Installing the 4-Slot Battery Charger

NOTE The Battery Charger must be installed in the first slot only.

1. Remove power from the cradle.

Accessories 2 - 32

Figure 2-34 Remove Power from Cradle

2. Using a Phillips screwdriver, remove the screw securing the cup to the cradle base.

Figure 2-35 Remove Screw

3. Slide the cup to the front of the cradle.

Figure 2-36 Remove Cup

Accessories 2 - 33

4. Carefully lift the cup up to expose the cup power cable.

5. Disconnect the cup power cable and USB cable.

Figure 2-37 Disconnect Cup Cables

NOTE Place power cable into adapter to avoid pinching cable.

6. Connect the Battery Adapter power cable to the connector on the cradle.

Figure 2-38 Connect Adapter Power Cable

7. Place adapter onto cradle base and slide toward rear of cradle.

Accessories 2 - 34

Figure 2-39 Install Adapter

8. Using a Phillips screwdriver, secure adapter to cradle base with screw.

Accessories 2 - 35

Figure 2-40 Secure adapter to Cradle

9. Align mounting holes on the bottom of the 4-Slot Battery Charger with the stubs on the Battery Adapter.

Figure 2-41 Install 4-Slot Battery Charger

10. Slide the 4-Slot battery Charger down toward the front of the cradle.

11. Connect the output power plug into the power port on the 4-Slot Battery Charger.

Figure 2-42 Connect Adapter Power Cable

Accessories 2 - 36

Removing the 4-Slot Battery Charger

1. Disconnect the output power plug from the 4-Slot Battery Charger.

2. At the back of the cup, press down on the release latch.

Figure 2-43 Press Release Latch

3. Slide the 4-Slot Battery Charger toward the front of the cradle.

4. Lift the 4-Slot off the cradle cup.

4-Slot Battery Charger

This section describes how to use the 4-Slot Battery Charger to charge up to four TC70x/TC75x batteries.

Setup

Accessories 2 - 37

Figure 2-44 Four Slot Battery Charger Power Setup

Charging Spare Batteries

1. Connect the charger to a power source.

2. Insert the battery into a battery charging well and gently press down on the battery to ensure proper contact.

Accessories 2 - 38

Battery

Battery Charge LED

Battery Slot

Figure 2-45 Four Slot Battery Charger

Battery Charging

Spare Battery Charging

Each Battery Charging LED indicates the status of the battery charging in each slot. The table below describes the Battery Charging LED status.

The 4,620 mAh battery fully charges in less than five hours at room temperature.

Table 2-7 Battery LED Charging Indicators

Slow Blinking Amber Spare battery is charging.

Solid Green Charging complete.

Fast Blinking Amber Error in charging; check placement of spare battery.

Slow Blinking Red Spare battery is charging and battery is at the end of useful life.

Solid Red Charging complete and battery is at the end of useful life.

Fast Blinking Red Error in charging; check placement of spare battery and battery is at the

LED Indication

end of useful life.

Off No spare battery in slot; spare battery not placed correctly; cradle is not

powered.

Accessories 2 - 39

Charging Temperature

Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The battery charger always performs battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the battery charger may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures via its LED.

Trigger Handle

Trigger

Attachment Plate with

Te th e r

Latch

Release Button

The Trigger Handle adds a gun-style handle with a scanning trigger to the device. It increases comfort when using the device in scan-intensive applications for extended periods of time.

Accessories 2 - 40

Figure 2-46 Trigger Handle

Installing the Attachment Plate to Trigger Handle

To install the attachment plate to the Trigger Handle:

1. Insert the loop end of the tether into the slot on the bottom of the handle.

2. Feed the attachment plate through the loop.

Figure 2-47 Install Attachment Plate to Handle

3. Pull the attachment plate until the loop tightens on the tether.

Installing the Trigger Handle Plate

1. Press and hold the Power button until the menu appears.

2. Touch Power off.

3. Touch OK.

Accessories 2 - 41

4. Press in the two battery latches.

5. Lift the battery from the device.

6. Remove the hand strap filler plate from the hand strap slot. Store the hand strap filler plate in a safe place for

future replacement.

Figure 2-48 Remove Hand Strap Plate

7. Insert the attachment plate into the hand strap slot.

Figure 2-49 Insert Trigger Handle Plate

8. Insert the battery, bottom first, into the battery compartment in the back of the device.

9. Rotate the top of the battery into the battery compartment.

10. Press the battery down into the battery compartment until the battery release latches snap into place.

Inserting the Device into the Trigger Handle

1. Align the back of the Trigger handle with the Trigger Mounting Plate.

Accessories 2 - 42

Figure 2-50 Connect Device to Trigger Handle

2. Press the two release latches.

3. Rotate the device down and press down until it snaps into place.

Figure 2-51 Rotate Device onto Trigger Handle

Removing the Device from the Trigger Handle

1. Press both Trigger Handle release latches.

Accessories 2 - 43

Figure 2-52 Press Release Latches

2. Rotate the device up and remove from the Trigger handle.

3. Rotate the device down and press down until it snaps into place.

Accessories 2 - 44

Figure 2-53 Rotate Device onto Trigger Handle

Hand Strap Replacement

CAUTION Close all running applications prior to replacing the hand strap.

1. Press and hold the Power button until the menu appears.

2. Touch Power Off.

3. Touch OK.

4. Remove the hand strap clip from the hand strap mounting slot.

Figure 2-54 Remove Hand Strap Clip

Accessories 2 - 45

5. Press the two battery latches in.

Figure 2-55 Press Battery Latches

6. Lift the battery from the TC70x/TC75x.

Accessories 2 - 46

Figure 2-56 Lift the Battery

7. Remove the battery.

8. Remove the hand strap plate from the hand strap slot.

9. Insert the replacement hand strap plate into the hand strap slot.

Figure 2-57 Insert Hand Strap

10. Insert the battery, bottom first, into the battery compartment.

Accessories 2 - 47

Figure 2-58 Insert Bottom of Battery into Battery Compartment

11. Rotate the top of the battery into the battery compartment.

12. Press the battery down into the battery compartment until the battery release latches snap into place.

Figure 2-59 Press Down on Battery

13. Place hand strap clip into hand strap mounting slot and pull down until it snaps into place.

Figure 2-60 Secure Hand Strap Clip

CHAPTER 3 USB COMMUNICATION

Introduction

This chapter provides information for transferring files between the device and a host computer.

Connecting to a Host Computer via USB

Connect the TC70x/TC75x to a host computer using the USB Charging cable to transfer files between the TC70x/TC75x and the host computer.

When connecting the TC70x/TC75x to a host computer, follow the host computer’s instructions for connecting and disconnecting USB devices, to avoid damaging or corrupting files.

Transferring Files using Media Transfer Protocol

NOTE Use Media Transfer Protocol (MTP) to copy files between the TC70x/TC75x (internal memory or microSD

card) and the host computer.

1. Connect the USB Charge cable to the TC70x/TC75x and then to the host computer.

2. Pull down the Notification panel and touch USB for Charging.

Figure 3-1 Use USB Dialog Box

3. Touch File transfers.

4. On the host computer, open a file explorer application.

5. Locate the TC70x/TC75x as a portable device.

6. Open the SD card or the Internal storage folder.

7. Copy or delete files as required.

Getting Started 3 - 2

Transferring Files using Photo Transfer Protocol

NOTE Use Photo Transfer Protocol (PTP) to copy photos from either the microSD card or internal memory to the

host computer.

1. Connect the USB Charge cable to the TC70x/TC75x and then to the host computer.

2. Pull down the Notification panel and touch USB for Charging.

Figure 3-2 Use USB Dialog Box

3. Touch Photo transfer (PTP).

4. On the host computer, open a file explorer application.

5. Open the SD card or the Internal storage folder.

6. Copy or delete photos as required.

Disconnect from the Host Computer

CAUTION Carefully follow the host computer’s instructions to unmount the microSD card and disconnect USB

devices correctly to avoid losing information.

1. On the host computer, unmount the device.

2. Remove the USB Charging cable from the device.

Getting Started 3 - 3

CHAPTER 4 DATAWEDGE

Introduction

This chapter applies to DataWedge on Android devices. DataWedge is an application that reads data, processes the data and sends the data to an application.

Basic Scanning

To capture bar code data:

1. Ensure that an application is open on the TC70x/TC75x and a text field is in focus (text cursor in text field).

2. Aim the exit window at a bar code.

3. Press and hold the a Scan button. The red laser aiming pattern turns on to assist in aiming. Ensure that the bar

code is within the area formed by the aiming pattern. The Data Capture LED lights red to indicate that data capture is in process.

Figure 4-1 TC70x/TC75x Data Capture

4. The Data Capture LED lights green, a beep sounds and theTC70x/TC75x vibrates, by default, to indicate the

bar code was decoded successfully. The captured data appears in the text field.

Profiles

DataWedge is based on profiles and plug-ins. A profile contains information on how DataWedge should behave with different applications.

Profile information consists of:

• Associated application

• data capture plus configurations

• Input plug-in configurations

• Output plug-in configurations

• Process plug-in configurations.

Using profiles, each application can have a specific DataWedge configuration. For example, each user application can have a profile which outputs scanned data in the required format when that application comes to the foreground. DataWedge can be configured to process the same set of captured data differently based on the requirements of each application.

DataWedge includes the following pre-configured profiles which support specific built-in applications:

DataWedge 4 - 2

•Profile0 - created automatically the first time DataWedge runs. Generic profile used when there are no user

• Launcher - enables scanning when the Launcher is in foreground. Note: to save battery power, disable this

•DWDemo - provides support for the DWDemo application.

Some Zebra applications are capable of capturing data by scanning. DataWedge is pre-loaded with private and hidden profiles for this purpose. There is no option to modify these private profiles.

Profile0

Profile0 can be edited but cannot be associated with an application. That is, DataWedge allows manipulation of plug-in settings for Profile0 but it does not allow assignment of a foreground application. This configuration allows DataWedge to send output data to any foreground application other than applications associated with user-defined profiles when Profile0 is enabled.

Profile0 can be disabled to allow DataWedge to only send output data to those applications which are associated

in user-defined profiles. For example, create a profile associating a specific application, disable Profile0 and then scan. DataWedge only sends data to the application specified in the user-created profile. This adds additional security to DataWedge enabling the sending of data only to specified applications.

Plug-ins

created profiles associated with an application.

profile when not required.

A plug-in is a software module utilized in DataWedge to extend its functionality to encompass technologies such as bar code scanning. The plug-ins can be categorized into three types based on their operations:

• Input Plug-ins

• Output Plug-ins

• Process Plug-ins.

DataWedge 4 - 3

Input Plug-ins

An Input Plug-in supports an input device, such as a bar code scanner contained in, or attached to the device.

DataWedge contains base plug-ins for these input devices.

• Bar Code Scanner Input Plug-in – The Bar Code Scanner Input Plug-in is responsible for reading data from

the integrated bar code scanner and supports different types of bar code readers including laser, imager and internal camera. Raw data read from the bar code scanner can be processed or formatted using Process Plug-ins as required. DataWedge has built-in feedback functionality for the bar code scanner to issue user alerts. The feedback settings can be configured according to user requirement.

Process Plug-ins

Process Plug-ins are used in DataWedge to manipulate the received data according to the requirement, before sending to the foreground application via the Output Plug-in.

• Advanced Data Formatting Process Plug-in– The Advanced Data Formatting Plug-in allows DataWedge to apply rules (actions to be performed based on defined criteria) to the data received via an input plug-in before passing it to an Output Plug-in.

• Basic Data Formatting Process Plug-in– The Basic Data Formatting Plug-in allows DataWedge to add a prefix and/or a suffix to the captured data before passing it to an Output Plug-in.

Output Plug-ins

Output Plug-ins are responsible for sending the data from Input Plug-ins to a foreground application on the device.

• Keystroke Output Plug-in – The Keystroke Output Plug-in collects and sends data received from the Input Plug-in to the foreground applications by emulating keystrokes.

• Intent Output Plug-in – The Intent Output Plug-in collects and sends data received from the Input Plug-ins to foreground applications using the Android Intent mechanism.

• IP Output Plug-in – The IP Output Plug-in collects and sends data received from the Input Plug-ins to a host computer via a network connection. Captured data can be sent over an IP network to a specified IP address and port using either TCP or UDP transport protocols.

Profiles Screen

To launch DataWedge, touch > . By default, three profiles appear:

•Profile0

• Launcher

•DWDemo.

Profile0 is the default profile and is used when no other profile can be applied.

DataWedge 4 - 4

Figure 4-2 DataWedge Profiles Screen

Profile names are color coded. Enabled profiles are white and disabled profiles are gray.

To configure a profile touch the profile name.

Profile Context Menu

Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected profile.

DataWedge 4 - 5

Figure 4-3 Profile Context Menu

The profile context menu allows the profile to be edited (same as just tapping on a profile), renamed or deleted.

Options Menu

Figure 4-4 DataWedge Options Menu

The menu provides options to create a new profiles, access to general DataWedge settings and DataWedge version information.

Disabling DataWedge

1. Touch > .

2. Touch .

3. Touch Settings.

4. Touch DataWedge enabled.

The blue check disappears from the checkbox indicating that DataWedge is disabled.

Creating a New Profile

5. Touch > .

6. Touch .

7. Touch New profile.

8. In the New profile dialog box, enter a name for the new profile. It is recommended that profile names be

unique and made up of only alpha-numeric characters (A-Z, a-z, 0-9).

Figure 4-5 New Profile Name Dialog Box

9. Touch OK.5

The new profile name appears in the DataWedge profile screen.

Profile Configuration

To configure the Profile0 or a user-created profile, touch the profile name.

DataWedge 4 - 6

Figure 4-6 Profile Configuration Screen

The configuration screen lists the following sections:

• Profile enabled

• Applications

• Data Capture panel (DCP)

• Barcode Input

DataWedge 4 - 7

• Keystroke output

• Intent Output

• IP Output.

Associating Applications

Use Applications option to associate applications with this profile. User created profiles should be associated with one or more applications and its activities.

1. Touch Associated apps. A list of applications/activities associated with the profile displays. Initially the list

does not contain any applications/activities.

Figure 4-7 Associated Apps Screen

2. Touch .

3. Touch New app/activity.

DataWedge 4 - 8

Figure 4-8 Select Application Menu

4. In the Select application screen, select the desired application from the list.

5. In the Select activity menu, selecting the activity adds that application/activity combination to the associated

application list for that profile. Selecting * as the activity results in all activities within that application being associated to the profile. During operation, DataWedge tries to match the specific application/activity combinations with the foreground application/activity before trying to match the general application/* combinations.

6. Touch .

DataWedge 4 - 9

Figure 4-9 Selected Application/Activity

Data Capture Plus

Data Capture Plus (DCP) is a DataWedge feature that enables the user to initiate data capture by touching a designated part of the screen. A variable screen overlay acts like a scan button.

DataWedge 4 - 10

DCP Button

Figure 4-10 Minimized Data Capture Panel

The DataWedge profile configuration screen allows the user to configure how the DCP appears on the screen once the particular profile is enabled. The DCP is hidden by default. Enabling DCP option displays seven additional configuration parameters.

DataWedge 4 - 11

Figure 4-11 Data Capture Panel Settings

• Enable - Select to enable Data Capture Plus (default - disabled).

• Dock button on - Select position of the button.

• Left or right - Allows user to place the button on either the right or left edge of the screen.

• Left only - Places the button on left edge of the screen.

• Right only - Places the button on the right edge of the screen.

•Start in - Select the initial DCP state.

• Fullscreen mode - DCP covers the whole screen.

• Button mode - DCP displays as a circular button on the screen and can be switched to fullscreen mode.

• Button only mode - DCP displays as a circular button on the screen and cannot be switched to fullscreen

mode.

• Button highest position - Select the top of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 0).

• Button lowest position - Select the bottom of the range the user is allowed to move the DCP, given as a percent of the screen height (default - 100).

• Drag detect time - Select the time in milliseconds that the scanner waits before activating scanner. This allows the user to drag the button without initiating scanner (default - 100 ms, maximum 1000 ms).

NOTE The DCP does not appear if the scanner is disabled in the profile even though the Enabled option is set.

In Button mode, the user can place DCP in full screen mode by dragging the button over Fullscreen mode. The overlay covers the screen.

DataWedge 4 - 12

Figure 4-12 Maximized DCP

Swipe down to return to button mode.

Bar Code Input

Use the Bar Code Input options to configure the Bar Code Scanner Input Plug-in for the profile.

Enabled

Enables or disables this plug-in. A check in the checkbox indicates that the plug-in is enabled.

Scanner Selection

Configures which scanning device to use for bar code data capture when the profile is active.

•Auto - The software automatically determines the best scanning device.

• 2D Barcode Imager - Scanning is performed using the 2D Imager.

• Bluetooth Scanner - Scanning is performed using the option Bluetooth scanner.

Decoders

Configures which bar code decoders are enabled or disabled. For best performance disable all unnecessary decoders.

DataWedge 4 - 13

Touch Decoders. The Barcode input screen appears. A check in the checkbox indicates that the decoder is enabled. By default the most commonly used decoders are enabled (shown below with an asterisk). The supported decoders are:

NOTE DataWedge supports the decoders listed below but not all are validated on this device.

Table 4-1 Supported Decoders

Decoders Imager RS507 RS6000

Australian Postal Disabled Disabled Disabled

Aztec Enabled Enabled Enabled

Canadian Postal Disabled Not supported Disabled

Chinese 2 of 5 Disabled Disabled Disabled

Codabar Enabled Enabled Enabled

Code 11 Disabled Disabled Disabled

Code 128 Enabled Enabled Enabled

Code 39 Enabled Enabled Enabled

Code 93 Disabled Disabled Disabled

Composite AB Disabled Disabled Disabled

Composite C Disabled Disabled Disabled

Discrete 2 of 5 Disabled Disabled Disabled

Datamatrix Enabled Enabled Enabled

Dutch Postal Disabled Disabled Disabled

EAN-13 Enabled Enabled Enabled

EAN-8 Enabled Enabled Enabled

GS1 DataBar Enabled Enabled Enabled

GS1 DataBar Expanded Enabled Enabled Enabled

GS1 DataBar Limited Disabled Disabled Disabled

HAN XIN Disabled Not supported Disabled

Interleaved 2 of 5 Disabled Disabled Disabled

Japanese Postal Disabled Disabled Disabled

Korean 3 of 5 Disabled Disabled Disabled

MAIL MARK Enabled Not supported Enabled

Matrix 2 of 5 Disabled Disabled Disabled

DataWedge 4 - 14

Table 4-1 Supported Decoders (Continued)

Decoders Imager RS507 RS6000

Maxicode Enabled Enabled Enabled

MicroPDF Disabled Disabled Disabled

MicroQR Disabled Disabled Disabled

MSI Disabled Disabled Disabled

PDF417 Enabled Enabled Enabled

QR Code Enabled Enabled Enabled

Decoder Signature Disabled Disabled Disabled

TLC 39 Disabled Disabled Disabled

Trioptic 39 Disabled Disabled Disabled

UK Postal Disabled Disabled Disabled

UPC-A Enabled Enabled Enabled

UPC-E0 Enabled Enabled Enabled

UPC-E1 Disabled Disabled Disabled

US4state Disabled Disabled Disabled

US4state FICS Disabled Disabled Disabled

US Planet Disabled Disabled Disabled

US Postnet Disabled Disabled Disabled

Touch to return to the previous screen.

Decoder Params

Use Decode Params to configure individual decoder parameters.

Codabar

• CLSI Editing - Enable this parameter to strip the start and stop characters and insert a space after the

first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format (default - disabled).

• Length1 - Use to set decode lengths (default - 6). See Decode Lengths on page 4-20 for more

information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-20 for more

information.

• NOTIS Editing - Enable this parameter to strip the start and stop characters from a decoded Codabar

symbol. Enable this feature if the host system requires this data format (default - disabled).

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

DataWedge 4 - 15

Code 11

• Length1 - Use to set decode lengths (default - 4). See Decode Lengths on page 4-20 for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-20 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit Code 11 data with or without the check digit. A check in the checkbox indicates to send Code 11 data with check digit (default - disabled).

• Verify Check Digit - Check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 bar code.

• No Check Digit - Do not verify check digit.

• 1 Check Digit - Bar code contains one check digit (default).

• 2 Check Digits - Bar code contains two check digits.

Code128

• Code128 Reduced Quiet Zone - Enables decoding of margin-less Code 128 bar codes (default - disabled)

(Imager and RS6000 only).

• Ignore Code128 FCN4 - When enabled, and a Code 128 bar code has an embedded FNC4 character, it will be removed from the data and the following characters will not be changed. When the feature is disabled, the FNC4 character will not be transmitted but the following character will have 128 added to it (default disabled) (Imager and RS6000 only).

• Check ISBT Table - The ISBT specification includes a table that lists several types of ISBT bar codes that are commonly used in pairs. If ISBT128 Concat Mode is set, enable Check ISBT Table to concatenate only those pairs found in this table. Other types of ISBT codes are not concatenated. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Enable GS1-128 - Set the GS1 128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).

• Enable ISBT128 - Set the ISBT128 subtype. A check in the checkbox indicates that the option is enabled (default - enabled).

• ISBT128 Concatenation Mode - Select an option for concatenating pairs of ISBT code types:

• Concat Mode Never - Do not concatenate pairs of ISBT codes encountered (default).

• Concat Mode Always - There must be two ISBT codes in order to decode and perform concatenation.

Does not decode single ISBT symbols.

• Concat Mode Auto - Decodes and concatenates pairs of ISBT codes immediately. If only a single ISBT

symbol is present, the device must decode the symbol the number of times set via DataWedge Configuration 4 - 11 Redundancy - Code128 before transmitting its data to confirm that there is no additional ISBT symbol.

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-20 for more information.

• Length2- Use to set decode lengths (default - 55). See Decode Lengths on page 4-20 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - disabled).

DataWedge 4 - 16

• Security Level - The scanner offers four levels of decode security for Code 128 bar codes. Select increasing levels of security for decreasing levels of bar code quality. There is an inverse relationship between security and scanner aggressiveness, so choose only that level of security necessary for any given application.

• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing

sufficient security in decoding most “in-spec” bar codes.

• Security Level 1 - This setting eliminates most misdecodes (default).

• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.

• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be

advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.

Code39

• Code39 Reduced Quiet Zone - Enables decoding of margin-less Code 39 bar codes (default - disabled)

(imager and RS6000 only).

• Convert Code39 To Code32 - Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32 (default - disabled).

• Full ASCII- Code 39 Full ASCII is a variant of Code 39 that pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII (default - disabled),

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-20 for more information.

• Length2 - Use to set decode lengths 4 (default - 55). See Decode Lengths on page 4-20 for more

information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

• Report Check Digit - Transmit Code 39 data with or without the check digit. A check in the checkbox indicates to send Code 39 data with check digit (default - disabled).

• Report Code32 Prefix - Scan the appropriate bar code to enable or disable adding the prefix character “A” to all Code 32 bar codes (default - disabled).

• Security Level - Options: Security level 0, Security Level 1, Security Level 2 and Security Level 3 (default - Security level 1).

• Security Level 0 - This setting allows the scanner to operate in its most aggressive state, while providing

sufficient security in decoding most “in-spec” bar codes.

• Security Level 1 - This setting eliminates most misdecodes (default).

• Security Level 2 - Select this option if Security level 1 fails to eliminate misdecodes.

• Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be

• Verify Check Digit - Enable this feature to check the integrity of all Code 39 symbols to verify that the data complies with a specified check digit algorithm. The digital scanner decodes only those Code 39 symbols that include a modulo 43 check digit. Enable this feature only if the Code 39 symbols contain a modulo 43 check digit (default - disabled).

Code93

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-20 for more information.

• Length2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-20 for more information.

DataWedge 4 - 17

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox indicates that redundancy is enabled (default - disabled).

Composite AB

• UCC Link Mode

• Link Flag ignored - 1D component is transmitted regardless of whether a 2D component is detected.

• Always Linked - 1D and the 2D components are transmitted. If 2D is not present, the 1D component is

not transmitted.

• Auto Discriminate - the digital scanner determines if there is a 2D portion, then transmits the 1D

component, as well as the 2D portion if present. (default).

Discrete 2 of 5

• Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-20 for more information.

• Length2 - Use to set decode lengths (default - 14). See Decode Lengths on page 4-20 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

GS1 DataBar Limited

• GS1 Limited Security Level

• GS1 Security Level 1 - This setting allows the scanner to operate in its most aggressive state, while

providing sufficient security in decoding most “in-spec” bar codes.

• GS1 Security Level 2 - This setting eliminates most misdecodes (default).

• GS1 Security Level 3 - Select this option if Security level 2 fails to eliminate misdecodes.

• GS1 Security Level 4 - If Security Level 3 is selected and misdecodes still occur, select this security level.

Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes. Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is needed, try to improve the quality of the bar codes.

HAN XIN

• HAN XIN Inverse (Imager and RS6000 only)

• Disable - Disables decoding of HAN XIN inverse bar codes (default).

• Enable - Enables decoding of HAN XIN inverse bar codes.

•Auto - Decodes both HAN XIN regular and inverse bar codes.

Interleaved 2 of 5

• Check Digit

• No Check Digit - A check digit is not used. (default)

• USS Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data

complies with either the Uniform Symbology Specification (USS) check digit algorithm.

• OPCC Check Digit - Select to check the integrity of all Interleaved 2 of 5 symbols to verify the data

complies with either the Optical Product Code Council (OPCC) check digit algorithm.

• Length1 - Use to set decode lengths (default - 14). See Decode Lengths on page 4-20 for more information.

• Length2 - Use to set decode lengths (default - 10). See Decode Lengths on page 4-20 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

DataWedge 4 - 18

• Report Check Digit - Transmit Interleaved 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Interleaved 2 of 5 data with check digit (default - disabled).

• I2of5 Security Level - Options: I2of5 Security level 0, I2of5 Security Level 1, I2of5 Security Level 2 and I2of5 Security Level 3 (default - I2of5 Security level 1).

• Convert ITF-14 To EAN13 - Convert 14-character Interleaved 2 of 5 bar codes to EAN-13, and transmit as

EAN-13. The Interleaved 2 of 5 bar code must be enabled and must have a leading zero and a valid EAN-13 check digit. A check in the checkbox indicates that the option is enabled (default - disabled).

• I2of5 Reduced Quiet Zone - Enables decoding of margin-less I2of5 bar codes (imager only).

Matrix 2 of 5

• Length1 - Use to set decode lengths (default - 10). See Decode Lengths on page 4-20 for more information.

• Length2 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-20 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - disabled).

• Report Check Digit - Transmit Matrix 2 of 5 data with or without the check digit. A check in the checkbox indicates to send Matrix 2 of 5 data with check digit (default - enabled).

• Verify Check Digit - Enable this feature to check the integrity of all Matrix 2 of 5 symbols to verify that the data complies with a specified check digit algorithm (default - enabled).

MSI

• Check Digit - With MSI symbols, one check digit is mandatory and always verified by the reader. The second

check digit is optional.

• One Check Digit - Verify one check digit (default).

• Two Check Digits - Verify two check digits.

• Check Digit Scheme - Two algorithms are possible for the verification of the second MSI check digit. Select

the algorithm used to encode the check digit.

• Mod-11-10 - First check digit is MOD 11 and second check digit is MOD 10 (default).

• Mod-10-10 - Both check digits are MOD 10.

• Length 1 - Use to set decode lengths (default - 4). See Decode Lengths on page 4-20 for more information.

• Length 2 - Use to set decode lengths (default - 55). See Decode Lengths on page 4-20 for more information.

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled).

• Report Check Digit - Transmit MSI data with or without the check digit. A check in the checkbox indicates to send MSI data with check digit (default - disabled).

Trioptic 39

• Redundancy - Sets the reader to read the bar code twice before accepting data. A check in the checkbox

indicates that redundancy is enabled (default - enabled) (RS507 and RS6000 only).

UK Postal

• Report Check Digit - Transmit UK Postal data with or without the check digit. A check in the checkbox

indicates to send UK Postal data with check digit (default - disabled).

DataWedge 4 - 19

UPCA

•Preamble- Preamble characters are part of the UPC symbol consisting of Country Code and System

Character. Select the appropriate option to match the host system.

There are three options for transmitting a UPCA preamble:

• Preamble None - Transmit no preamble.

• Preamble Sys Char - Transmit System Character only (default).

• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA). Select

the appropriate option to match the host system.

• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default enabled).

UPCE0

• Convert UPCE0 To UPCA - Enable to convert UPCE0 (zero suppressed) decoded data to UPC-A format

before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections. Disable to transmit UPCE0 decoded data as UPCE0 data, without conversion (default - disabled).

•Preamble- Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.

There are three options for transmitting a UPCE0 preamble:

• Preamble Sys Char - Transmit System Character only.

• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).

• Preamble None - Transmit no preamble (default).

• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the

data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default disabled).

UPCE1

• Convert UPCE1 To UPCA - Enable this to convert UPCE1 decoded data to UPC-A format before

transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections. Disable this to transmit UPCE1 decoded data as UPCE1 data, without conversion (default disabled).

•Preamble- Preamble characters are part of the UPC symbol consisting of Country Code and System Character. Select the appropriate option to match the host system.

There are three options for transmitting a UPCE1 preamble:

• Preamble Sys Char - Transmit System Character only.

• Preamble Country and Sys Char - Transmit System Character and Country Code (“0” for USA).

• Preamble None - Transmit no preamble (default).

• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the

data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default disabled).

US Planet

• Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the

data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default disabled).
