TC56
Touch Computer
User Guide
for Android ™ 7.1.2 Nougat
MN-003151-04
Table of Contents
Copyright ........................................................................................................................................... 2
Terms of Use .................................................................................................................................... 2
Revision History ................................................................................................................................ 2
About This Guide
Introduction ..................................................................................................................................... 12
Documentation Set ......................................................................................................................... 12
Configurations ................................................................................................................................. 12
Software Versions ........................................................................................................................... 13
Chapter Descriptions ...................................................................................................................... 13
Notational Conventions ................................................................................................................... 14
Related Documents ........................................................................................................................ 14
Service Information ......................................................................................................................... 14
Provide Documentation Feedback .................................................................................................. 15
Getting Started
Introduction ..................................................................................................................................... 16
Unpacking ....................................................................................................................................... 16
Features .......................................................................................................................................... 17
Setup ............................................................................................................................................... 19
Installing a microSD Card ......................................................................................................... 19
Installing the SIM Card .............................................................................................................. 22
Installing the Battery .................................................................................................................. 24
Charging the Battery ................................................................................................................. 25
Charging Indicators ................................................................................................................... 26
Google Account Setup .............................................................................................................. 26
Replacing the Battery ...................................................................................................................... 26
Replacing the microSD Card .......................................................................................................... 28
Replacing the SIM Card .................................................................................................................. 29
Accessing Device Settings .............................................................................................................. 31
Battery Management ....................................................................................................................... 32
Monitor Battery Usage .............................................................................................................. 32
Low Battery Notification ............................................................................................................ 33
Battery Optimization .................................................................................................................. 33
Turning Off the Radios ........................................................................................................ 33
Setting the Date and Time .............................................................................................................. 34
4
Table of Contents
Display Setting ................................................................................................................................ 34
Setting the Screen Brightness ................................................................................................... 34
Setting Screen Rotation ............................................................................................................ 34
Setting Home Screen Rotation .................................................................................................. 35
Setting Screen Timeout Setting ................................................................................................ 35
Setting Font Size ....................................................................................................................... 36
Ambient Display ........................................................................................................................ 36
Touch Panel Mode .................................................................................................................... 36
Setting Notification LED ............................................................................................................ 37
Cast ........................................................................................................................................... 37
General Sound Setting .................................................................................................................... 38
Wake-Up Sources ........................................................................................................................... 39
Using the TC56
Introduction ..................................................................................................................................... 41
Google Mobile Services .................................................................................................................. 41
Home Screen .................................................................................................................................. 42
Status Bar ................................................................................................................................. 43
Status Icons ........................................................................................................................ 43
Notification Icons ................................................................................................................. 45
Managing Notifications .............................................................................................................. 45
Setting Application Notifications .......................................................................................... 46
Viewing Notification Settings for All Apps ........................................................................... 47
Controlling Lock Screen Notifications ................................................................................. 47
Quick Access Panel .................................................................................................................. 47
Edit Icons on Quick Settings ............................................................................................... 48
Application Shortcuts and Widgets ........................................................................................... 49
Adding an Application to the Home Screen ........................................................................ 49
Adding a Widget to the Home Screen ................................................................................. 49
Moving Items on the Home Screen ..................................................................................... 49
Removing an Application Shortcut or Widget from the Home Screen ................................ 49
Folders ...................................................................................................................................... 50
Creating a Folder ................................................................................................................ 50
Naming Folders ................................................................................................................... 50
Removing a Folder .............................................................................................................. 50
Home Screen Wallpaper ........................................................................................................... 50
Using the Touchscreen ................................................................................................................... 50
Keyboards ....................................................................................................................................... 51
Editing Text ............................................................................................................................... 51
Entering Numbers, Symbols and Special Characters ......................................................... 51
Configuring the Keyboard ......................................................................................................... 52
AOSP Keyboard .................................................................................................................. 52
GMS Keyboard .................................................................................................................... 52
Do Not Disturb Feature ................................................................................................................... 52
Limit Sounds and Vibrations ..................................................................................................... 52
Total Silence ....................................................................................................................... 52
Alarms Only ......................................................................................................................... 53
Priority Notifications Only .................................................................................................... 53
Automatically Block Sounds and Vibrations .................................................................................... 54
Silence Sounds During Certain Times ...................................................................................... 54
5
Table of Contents
Silence Sounds During Events and Meetings ........................................................................... 54
Turn Sounds Back On ............................................................................................................... 54
Override Do Not Disturb for Specific Apps ................................................................................ 54
Applications ..................................................................................................................................... 55
Accessing Applications ............................................................................................................. 58
Switching Between Recent Applications ................................................................................... 59
Un-Locking the Screen ................................................................................................................... 60
Resetting the Device ....................................................................................................................... 64
Performing a Soft Reset ............................................................................................................ 64
Performing a Hard Reset .......................................................................................................... 64
Suspend Mode ................................................................................................................................ 65
Transferring Files with a Host Computer via USB .......................................................................... 65
Transferring Files using Media Transfer Protocol ..................................................................... 66
Transferring Files using Photo Transfer Protocol ...................................................................... 66
Disconnect from the Host Computer ......................................................................................... 67
Calls
Introduction ..................................................................................................................................... 68
Emergency Calling .......................................................................................................................... 68
Audio Modes ................................................................................................................................... 68
Using a Bluetooth Headset ............................................................................................................. 68
Using a Wired Headset ................................................................................................................... 69
Adjusting Audio Volume .................................................................................................................. 69
Making a Call Using the Dialer ........................................................................................................ 70
Dialer Dialing Options ............................................................................................................... 72
Making a Call Using Contacts ......................................................................................................... 73
Using the Dialer ......................................................................................................................... 73
Using the Contacts Application ................................................................................................. 73
Making a Call Using Call History ..................................................................................................... 75

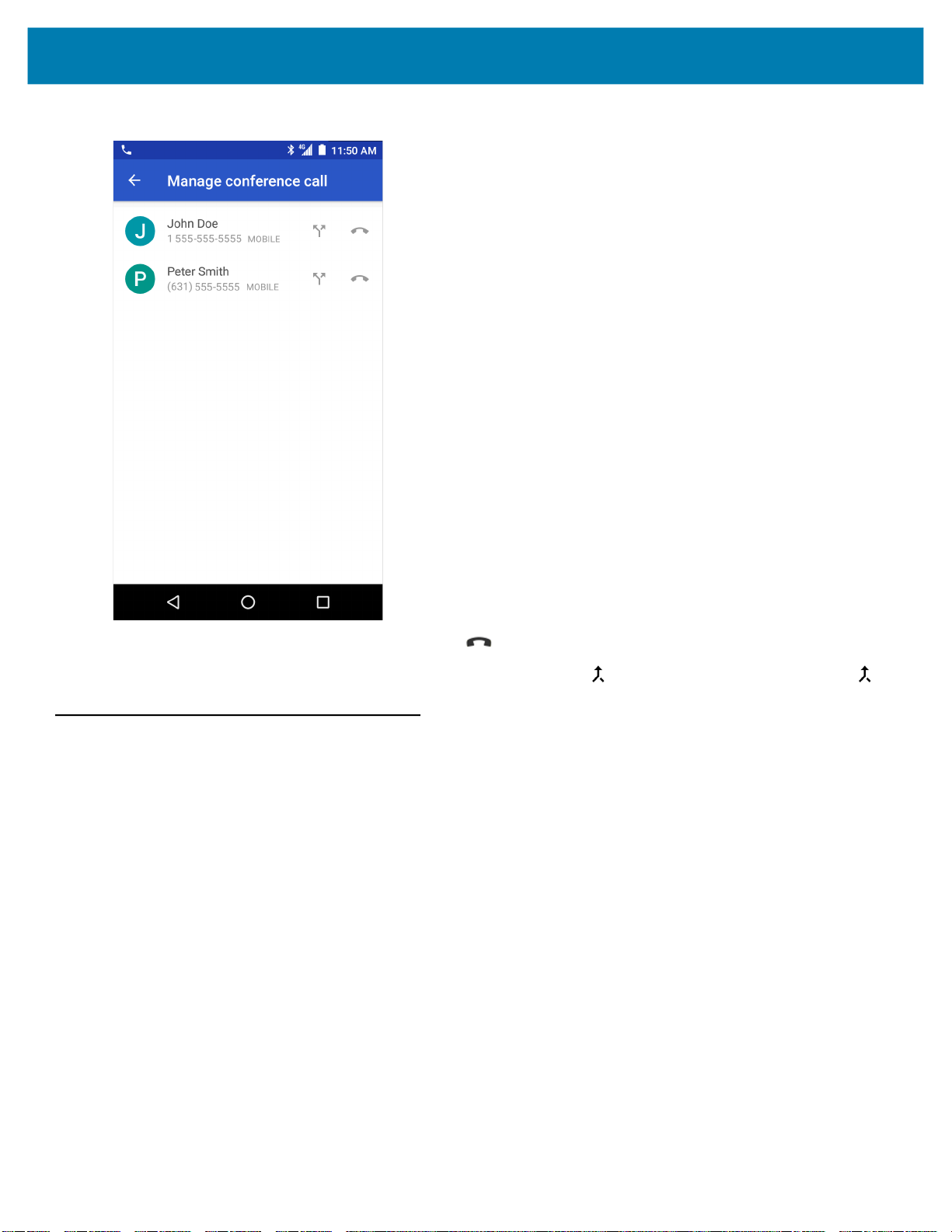

Making a Conference Call on GSM ................................................................................................ 76
Making a Call Using a Bluetooth Headset ...................................................................................... 79
Answering Calls .............................................................................................................................. 80
Call Settings .................................................................................................................................... 81
Applications
Introduction ..................................................................................................................................... 83
ActiveEdge Touch Zone .................................................................................................................. 83

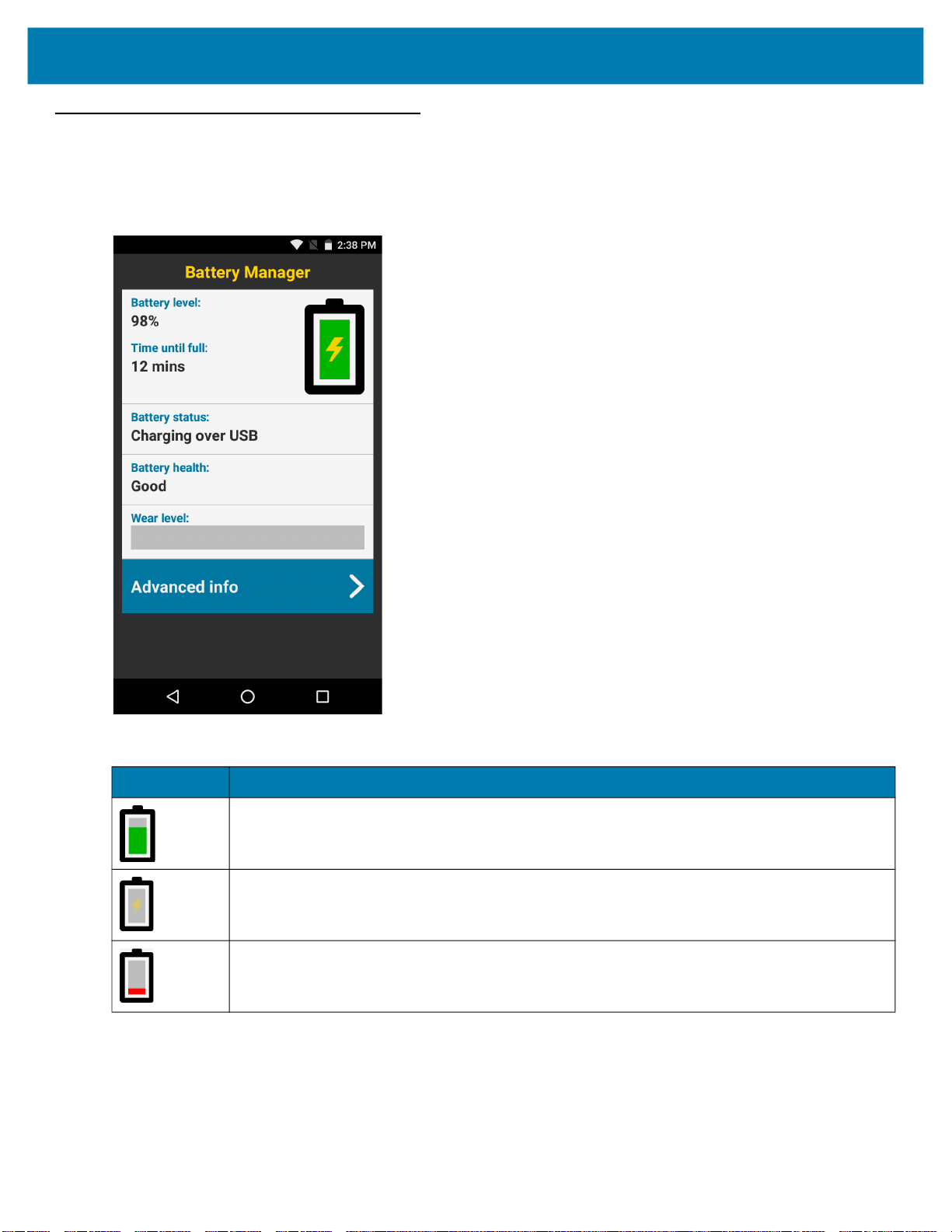

Battery Manager ............................................................................................................................. 87
Device Central ................................................................................................................................ 90
Device Central Tabs .................................................................................................................. 91
Paging an RS6000 Ring Scanner ............................................................................................. 91
File Browser .................................................................................................................................... 92
Messaging ....................................................................................................................................... 94
Sending a Text Message .......................................................................................................... 94
Sending a Multimedia Message ................................................................................................ 94
Contacts .......................................................................................................................................... 96
Adding a Contact ....................................................................................................................... 96
Editing Contacts ........................................................................................................................ 96
Deleting Contacts ...................................................................................................................... 96
6
Table of Contents
Camera ........................................................................................................................................... 97
Taking Photos ........................................................................................................................... 97
Taking a Panoramic Photo ........................................................................................................ 98

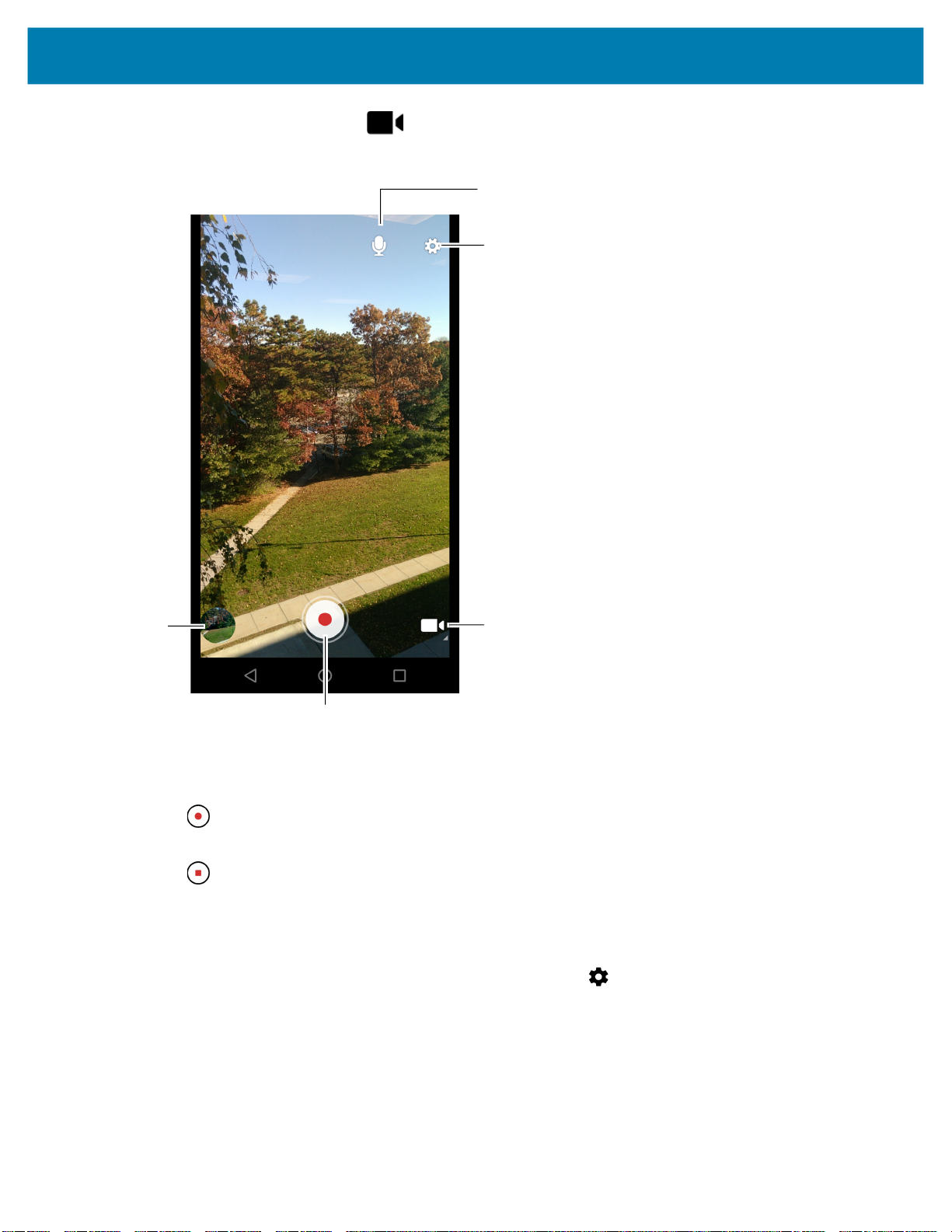

Recording Videos ...................................................................................................................... 98
Photo Settings ........................................................................................................................... 99
Video Settings ......................................................................................................................... 100
Gallery ........................................................................................................................................... 102
Working with Albums ............................................................................................................... 103
Share an Album ................................................................................................................ 104
Get Album Information ...................................................................................................... 104
Deleting an Album ............................................................................................................. 104
Working with Photos ............................................................................................................... 105
Viewing and Browsing Photos ........................................................................................... 105
Cropping a Photo .............................................................................................................. 105
Setting a Photo as a Contact Icon ..................................................................................... 106
Share a Photo ................................................................................................................... 106
Deleting a Photo ................................................................................................................ 107
Working with Videos ................................................................................................................ 107
Watching Videos ............................................................................................................... 107
Sharing a Video ................................................................................................................. 107
Deleting a Video ................................................................................................................ 107
Photos ........................................................................................................................................... 108
Working with Albums ............................................................................................................... 109
Share an Album ................................................................................................................ 110
Deleting an Album ............................................................................................................. 110
Working with Photos ............................................................................................................... 111
Viewing and Browsing Photos ........................................................................................... 111
Cropping a Photo .............................................................................................................. 111
Setting a Photo as a Contact Icon ..................................................................................... 112
Share a Photo ................................................................................................................... 112
Deleting a Photo ................................................................................................................ 113
Working with Videos ................................................................................................................ 113
Watching Videos ............................................................................................................... 113
Sharing a Video ................................................................................................................. 113
Deleting a Video ................................................................................................................ 113
DataWedge Demonstration ........................................................................................................... 114
Sound Recorder ............................................................................................................................ 116
PTT Express Voice Client ............................................................................................................. 117
PTT Audible Indicators ............................................................................................................ 117
Notification Icons ..................................................................................................................... 118
Enabling PTT Communication ................................................................................................ 119
Selecting a Talk Group ............................................................................................................ 119
PTT Communication ............................................................................................................... 119
Creating a Group Call ....................................................................................................... 120
Responding with a Private Response ............................................................................... 120
Disabling PTT Express Voice Client Communication ............................................................. 120
RxLogger ...................................................................................................................................... 121
RxLogger Utility ............................................................................................................................. 122
Diagnostic Tool ............................................................................................................................. 123
Settings ............................................................................................................................. 127
Battery Test Information .................................................................................................... 127
7
Table of Contents
GPS Test Information ........................................................................................................ 128
System Test Information ................................................................................................... 128
WLAN Test Information ..................................................................................................... 128
WWAN Test Information ................................................................................................... 128
Bluetooth Test Information ................................................................................................ 128
Data Capture
Introduction ................................................................................................................................... 130
Imaging ......................................................................................................................................... 130
Operational Modes .................................................................................................................. 130
RS507 Hands-Free Imager ........................................................................................................... 131
RS6000 Bluetooth Ring Scanner .................................................................................................. 131
DS3678 Digital Scanner ................................................................................................................ 131
Scanning Considerations .............................................................................................................. 132
Bar Code Scanning with Internal Imager ...................................................................................... 132
Bar Code Capture with RS6000 Bluetooth Ring Scanner ............................................................. 134
Bar Code Capture with RS507 Hands-Free Imager ..................................................................... 135
Bar Code Capture with DS3678 Bluetooth Scanner ..................................................................... 136
Pairing the RS507/RS6000 Hands-Free Imager ........................................................................... 137
Pairing Using Near Field Communication ............................................................................... 138
Pairing in HID Mode Using Near Field Communication .......................................................... 138
Pairing Using Simple Serial Interface ...................................................................................... 139
Pairing Using Bluetooth Human Interface Device ................................................................... 140
Pairing the DS3678 Digital Scanner ............................................................................................. 141
Pairing Using Simple Serial Interface ...................................................................................... 141
Pairing Using Bluetooth Human Interface Device ................................................................... 142
DataWedge ................................................................................................................................... 143
Enabling DataWedge .............................................................................................................. 143
Disabling DataWedge ............................................................................................................. 143
Wireless
Introduction ................................................................................................................................... 144
Wireless Wide Area Networks ...................................................................................................... 144
Sharing the Mobile Data Connection ...................................................................................... 144
USB Tethering ................................................................................................................... 144
Bluetooth Tethering ........................................................................................................... 145
Portable Wi-Fi Hotspot ...................................................................................................... 145
Cellular Network Settings ........................................................................................................ 146
Disabling Data When Roaming ......................................................................................... 146
Preferred Network Type .................................................................................................... 147
Enhanced 4G LTE Mode ................................................................................................... 147
Search for MicroCell .......................................................................................................... 147
System Select ................................................................................................................... 148
Editing the Access Point Name ......................................................................................... 148
Locking the SIM Card .............................................................................................................. 148
Data Usage ............................................................................................................................. 149
Set Data Usage Warning .................................................................................................. 150
Set Data Limit .................................................................................................................... 150
Wireless Local Area Networks ...................................................................................................... 151
8
Table of Contents
Scan and Connect to a Wi-Fi Network .................................................................................... 151
Remove a Wi-Fi Network ........................................................................................................ 152
Bluetooth ....................................................................................................................................... 153
Adaptive Frequency Hopping .................................................................................................. 153
Security ................................................................................................................................... 153
Bluetooth Profiles .................................................................................................................... 154
Bluetooth Power States ........................................................................................................... 154
Bluetooth Radio Power ........................................................................................................... 155
Enabling Bluetooth ............................................................................................................ 155
Disabling Bluetooth ........................................................................................................... 155
Discovering Bluetooth Device(s) ............................................................................................. 155
Changing the Bluetooth Name ................................................................................................ 155
Connecting to a Bluetooth Device ........................................................................................... 156
Selecting Profiles on the Bluetooth Device ............................................................................. 156
Unpairing a Bluetooth Device .................................................................................................. 156
Near Field Communications .......................................................................................................... 157
Reading NFC Cards ................................................................................................................ 157
Sharing Information Using NFC .............................................................................................. 158
Accessories
Introduction ................................................................................................................................... 159
Accessories ................................................................................................................................... 159
1-Slot USB Charge Cradle ............................................................................................................ 163
Charging the Device ................................................................................................................ 163
Inserting a TC56 with Rugged Boot into Cradle ...................................................................... 164
Battery Charging ..................................................................................................................... 165
Charging Temperature ...................................................................................................... 165
4-Slot Charge Only Cradle with Battery Charger .......................................................................... 166
Charging the TC56 .................................................................................................................. 166
Inserting a TC56 with Rugged Boot into Cradle ...................................................................... 168
Battery Charging ..................................................................................................................... 168
Main Battery Charging ...................................................................................................... 168
Spare Battery Charging ..................................................................................................... 168
Charging Temperature ...................................................................................................... 169
5-Slot Charge Only Cradle ............................................................................................................ 170
Charging the TC56 .................................................................................................................. 170
Inserting a TC56 with Rugged Boot into Cradle ...................................................................... 171
Battery Charging ..................................................................................................................... 172
Charging Temperature ...................................................................................................... 172
5-Slot Ethernet Cradle .................................................................................................................. 173
Charging the TC56 .................................................................................................................. 173
Inserting a TC56 with Rugged Boot into Cradle ...................................................................... 174
Battery Charging ..................................................................................................................... 174
Charging Temperature ...................................................................................................... 175
Establishing Ethernet Connection ........................................................................................... 175
LED Indicators ......................................................................................................................... 175
4-Slot Battery Charger .................................................................................................................. 176
Charging Spare Batteries ........................................................................................................ 176
Battery Charging ..................................................................................................................... 177
Spare Battery Charging ..................................................................................................... 177
9
Table of Contents
Charging Temperature ...................................................................................................... 177
Rugged Boot ................................................................................................................................. 178
Installation ............................................................................................................................... 178
Installing Stylus ....................................................................................................................... 179
Charging with Cradles ............................................................................................................. 180
2.5 mm Audio Adapter .................................................................................................................. 182
3.5 mm Audio Adapter .................................................................................................................. 183
Rugged Charge/USB Cable .......................................................................................................... 184
Connecting to TC56 ................................................................................................................ 184
Connecting to TC56 with Rugged Boot ................................................................................... 185
USB Communication ............................................................................................................... 186
Charging the Device ................................................................................................................ 186
Disconnecting the Rugged Charge/USB Cable ...................................................................... 187
Battery Charging ..................................................................................................................... 188
Main Battery Charging ...................................................................................................... 188
Charging Temperature ...................................................................................................... 188
Trigger Handle .............................................................................................................................. 189
Installing the Rugged Boot ...................................................................................................... 189
Installing the Optional Lanyard ................................................................................................ 191
Inserting the Device into the Trigger Handle ........................................................................... 192
Removing the Device from the Trigger Handle ....................................................................... 193
Power Supply ................................................................................................................................ 195
Maintenance and Troubleshooting
Introduction ................................................................................................................................... 196
Maintaining the TC56 .................................................................................................................... 196
Display Best Practices .................................................................................................................. 197
Image Retention ...................................................................................................................... 197
Battery Safety Guidelines ............................................................................................................. 197
Cleaning Instructions .................................................................................................................... 198
Approved Cleanser Active Ingredients .................................................................................... 198
Harmful Ingredients ................................................................................................................. 198
Cleaning Instructions ............................................................................................................... 198
Special Cleaning Notes ........................................................................................................... 199
Cleaning Materials Required ................................................................................................... 199
Cleaning Frequency ................................................................................................................ 199
Cleaning the TC56 ........................................................................................................................ 199
Housing ................................................................................................................................... 199
Display .................................................................................................................................... 199
Camera and Exit Window ........................................................................................................ 199
Connector Cleaning ...................................................................................................................... 199
Cleaning Cradle Connectors ......................................................................................................... 200
Troubleshooting ............................................................................................................................ 201
TC56 ....................................................................................................................................... 201
Technical Specifications
Introduction ................................................................................................................................... 204
TC56 ............................................................................................................................................. 204
10
Index
Table of Contents
11
About This Guide
Introduction
This guide provides information about using the TC56 mobile computer and accessories.
NOTE: Screens and windows pictured in this guide are samples and can differ from actual screens.
Documentation Set
The documentation set for the TC56 provides information for specific user needs, and includes:
• TC56 Touch Computer Quick Start Guide - describes how to get the TC56 up and running.
• TC56 Touch Computer User Guide for Android Version 7.1.2 - describes how to use the TC56.
• TC56 Touch Computer Integrator Guide for Android Version 7.1.2 - describes how to set up the TC56 and
accessories.
Configurations
This guide covers the following configurations:
12
About This Guide
Configuration Radios Display Memory
TC56CJ WLAN: 802.11
a/b/g/n/d/h/i/k/r
WPAN:
Bluetooth v4.1
Low Energy
WWAN:
HSPA+/
LTE/CDMA
TC56DJ WLAN: 802.11
a/b/g/n/d/h/i/k/r
WPAN:
Bluetooth v4.1
Low Energy
WWAN:
HSPA+/
LTE
Software Versions
5.0” High
Definition (1280
x 720) LCD
5.0” High
Definition (1280
x 720) LCD
2 GB RAM / 16
GB Flash or 4
GB RAM / 32
GB Flash
2 GB RAM / 16
GB Flash or 4
GB RAM / 32
GB Flash
Data Capture
Options
2D imager
(SE-4710) and
integrated NFC
2D imager
(SE-4710) and
integrated NFC
Operating
System
Android Open
Source Project
(AOSP) 7.1.2 or
Google ™
Mobile Services
(GMS) 7.1.2.
Android Open
Source Project
(AOSP) 7.1.2 or
Google ™
Mobile Services
(GMS) 7.1.2.
To determine the current software versions, swipe down with two fingers from the status bar to open the quick
access panel and then touch .
Touch About phone.
• Model number- Displays the model number.
• Android version - Displays the operating system version.
• Kernel version - Displays the kernel version number.
• Build number - Displays the software build number.
• Serial number - Displays the serial number.
To determine the device serial number, touch About phone > Status.
• Serial number - Displays the serial number.
Chapter Descriptions
Topics covered in this guide are as follows:
• Getting Started provides information on getting the TC56 up and running for the first time.
• Using the TC56 provides information for operating the TC56.
• Calls provides instructions for making phone calls.
• Applications provides information on using applications installed on the TC56.
• Data Capture provides information for capturing bar code data using the imager.
13
• Wireless provides information on the various wireless options.
• Accessories provides information for using the accessories for the TC56.
• Maintenance and Troubleshooting includes instructions on cleaning and provides troubleshooting
solutions for potential problems during TC56 operation.
• Technical Specifications provides the technical specifications for the TC56.
Notational Conventions
The following conventions are used in this document:
• Bold text is used to highlight the following:
• Dialog box, window, and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen.
• Key names on a keyboard
• Button names on a screen.
• Bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (for example, lists that describe step-by-step procedures) appear as numbered lists.
About This Guide
Related Documents
• TC56 Touch Computer Quick Start Guide, p/n MN-002859-xx.
• TC56 Touch Computer Regulatory Guide, p/n MN002860-xx.
• TC56 Touch Computer Integrator Guide for Android Version 7.1.2, p/n MN002869-xx.
• RS507 Hands-free Imager Product Reference Guide, p/n 72E-12082-xx.
• DS36X8 Product Reference Guide, p/n MN-002689-xx.
• RS6000 User Guide, MN-002704-xx.
For the latest version of this guide and all guides, go to: www.zebra.com/support
Service Information
If you have a problem with the equipment, contact Customer Support in the region. Contact information is available
at: www.zebra.com/support
When contacting support, please have the following information available:
• Serial number of the unit (found on manufacturing label)
• Model number or product name (found on manufacturing label)
.
.
14
About This Guide
• Software type and version number
• IMEI number.
Customer Support responds to calls by email or telephone within the time limits set forth in support agreements.
If the problem cannot be solved by Customer Support, the user may need to return the equipment for servicing and
will be given specific directions. We are not responsible for any damages incurred during shipment if the approved
shipping container is not used. Shipping the units improperly can possibly void the warranty. Remove the SIM card
and/or microSD card from the device before shipping for service.
If the device was purchased from a business partner, contact that business partner for support.
Provide Documentation Feedback
If you have comments, questions, or suggestions about this guide, send an email to EVM-Techdocs@zebra.com.
15
Getting Started
Introduction
This chapter provides information for getting the device up and running for the first time.
Unpacking
1. Carefully remove all protective material from the TC56 and save the shipping container for later storage and
shipping.
2. Verify that the following were received:
• TC56 touch computer
• >15.48 Watt hours (typical) / >4,150 mAh PowerPercision+ Lithium-ion battery
• Regulatory Guide.
3. Inspect the equipment for damage. If any equipment is missing or damaged, contact the Global Customer
Support center immediately.
4. Prior to using the TC56 for the first time, remove the protective shipping film that covers the scan window,
display and camera window.
16
Features
Figure 1 TC56 Front View
1
Getting Started
9
10
11
12
2
8
7
6
5
3
4
Table 1 Front View Features
Number Item Function
1 PTT Button Initiates push-to-talk communications (programmable).
2 Scan Button Initiates data capture (programmable).
3 Microphone Use for communications in Handset mode.
4 Interface Connector Provides USB host and client communications, audio and device
charging via cables and accessories.
CAUTION: Do not remove the interface connector to ensure proper
device sealing.
5 Speaker Provides audio output for video and music playback. Provides audio in
speakerphone mode.
6 Touch Screen Displays all information needed to operate the TC56.
7 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
8 Light Sensor Determines ambient light for controlling display backlight intensity.
9 Proximity Sensor Determines proximity for turning off display when in handset mode.
17
Getting Started
Table 1 Front View Features (Continued)
Number Item Function
10 Microphone Use for communications in Speakerphone mode.
11 Data Capture LED Indicates data capture status.
12 Receiver Use for audio playback in Handset mode.
Figure 2 TC56 Rear View
13
14
23
15
22
14
16
21
17
18
19
20
Table 2 Back View Features
Number Item Function
13 Battery Provides power to the device.
14 Battery Release Latches Press to remove the battery.
15 Programmable Button Programmable.
16 Headset Jack For audio output to headset.
17 Exit Window Provides data capture using the imager.
18 Power Button Turns the display on and off. Press and hold to reset the device, power
off or swap battery.
19 Camera Takes photos and videos.
20 Camera Flash Provides illumination for the camera.
21 Volume Up/Down Button Increase and decrease audio volume (programmable).
22 Scan Button Initiates data capture (programmable).
23 NFC Antenna Provides communication with other NFC-enabled devices.
18
Setup
Perform this procedure to start using the TC56 for the first time.
1. Install a micro secure digital (SD) card (optional).
2. Installing a nano SIM card (optional)
3. Install hand strap (optional).
4. Install the battery.
5. Charge the TC56.
6. Power on the TC56.
Installing a microSD Card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery pack. Refer to
the documentation provided with the card for more information, and follow the manufacturer’s recommendations for
use.
CAUTION:Follow proper electrostatic discharge (ESD) precautions to avoid damaging the microSD card. Proper
ESD precautions include, but are not limited to, working on an ESD mat and ensuring that the operator
is properly grounded.
Getting Started
1. Lift the access door.
Figure 3 Lift Access Door
2. Slide the microSD card holder to the Open position.
19
Figure 4 Open microSD Card Holder
3. Lift the microSD card holder.
Figure 5 Lift microSD Card Holder
Getting Started
4. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
Figure 6 Lift the SIM Card Holder
5. Insert the microSD card into the card holder door ensuring that the card slides into the holding tabs on each
side of the door.
20
Figure 7 Insert microSD Card into Holder
6. Close the microSD card holder door.
Figure 8 Insert microSD Card in Holder
Getting Started
7. Slide the microSD card holder door to the Lock position.
CAUTION:Access door must be replaced and securely seated to ensure proper device sealing.
8. Re-install the access door.
Figure 9 Replace Access Door
21
Installing the SIM Card
NOTE: Only use a nano SIM card.
CAUTION:For proper electrostatic discharge (ESD) precautions to avoid damaging the SIM card. Proper ESD
precautions include, but not limited to, working on an ESD mat and ensuring that the user is properly
grounded.
1. Remove access cover.
Figure 10 Remove Access Door
Getting Started
2. Slide the SIM card holder to the unlock position.
Figure 11 Unlock SIM Card Holder
3. Lift the SIM card holder door.
22
Getting Started
Figure 12 Lift the SIM Card Holder
4. Place the nano SIM card into the card holder with contacts facing down.
Figure 13 Place SIM Card in Holder
5. Close the SIM card holder door.
Figure 14 Close SIM Card Holder Door
6. Slide to SIM card holder door to the lock position.
23
Figure 15 Lock SIM Card Holder Door
CAUTION:Access door must be replaced and securely seated to ensure proper device sealing.
7. Re-install the access door.
Figure 16 Replace Access Door
Getting Started
Installing the Battery
NOTE: User modification of the device, particularly in the battery well, such as labels, asset tags, engravings,
stickers, etc., may compromise the intended performance of the device or accessories. Performance levels such
as sealing (Ingress Protection (IP)), impact performance (drop and tumble), functionality, temperature resistance,
etc. could be effected. DO NOT put any labels, asset tags, engr
1. Insert the battery, bottom first, into the battery compartment in the back of the TC56.
24
avings, stickers, etc. in the battery well.
Getting Started
Figure 17 Insert Bottom of Battery into Battery Compartment
2. Press the battery down into the battery compartment until the battery release latches snap into place.
Charging the Battery
Before using the TC56 for the first time, charge the main battery until the green Charging/Notification light emitting
diode (LED) remains lit. To charge the TC56 use a cable or a cradle with the appropriate power supply. For
information about the accessories available for the TC56 see Accessories for more information.
The >
15.48 Watt hours (typical) / >4,150 mAh battery charges from fully depleted to 90% in approximately 2.5
hours and from fully depleted to 100% in approximately three hours.
NOTE: In many cases the 90% charge provides plenty of charge for daily use. A full 100% charge lasts for
approximately 14 hours of use.
To achieve the best fast charging results use only Zebra charging accessories and batteries. Charge
batteries at room temperature with the TC56 in sleep mode.
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). The TC56 or accessory always performs
battery charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37°C (+98°F)) the
TC56 or accessory may for small periods of time alternately enable and disable battery charging to keep the
battery at acceptable temperatures. The TC56 or accessory indicates when charging is disabled due to abnormal
temperatures via its LED and a notification appears on the display.
1. To charge the main battery, connect the charging accessory to the appropriate power source.
2. Insert the TC56 into a cradle or attach to a cable. The TC56 turns on and begins charging. The
Charging/Notification LED blinks amber while charging, then turns solid green when fully charged.
25
Getting Started
Charging Indicators
Table 3 Charging/Notification LED Charging Indicators
State LED Indication
Off TC56 is not charging. TC56 is not inserted correctly in the
cradle or connected to a power source. Charger/cradle is
not powered.
Slow Blinking Amber (1 blink every 4
seconds)
Slow Blinking Red (1 blink every 4
seconds)
Solid Green Charging complete.
Solid Red Charging complete but the battery is at end of useful life.
Fast Blinking Amber (2 blinks/second) Charging error, e.g.:
TC56 is charging.
TC56 is charging but the battery is at end of useful life.
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
Fast Blinking Red (2 blinks/second) Charging error but the battery is at end of useful life., e.g.:
• Temperature is too low or too high.
• Charging has gone on too long without completion
(typically eight hours).
Google Account Setup
NOTE: The TC56 has to be connected to the internet in-order to set up a Google account.
Google account only required on devices with GMS software.
The first time the TC56 starts, the Setup Wizard displays. Follow the on-screen instructions to set up a Google
account, configure Google Wallet for purchasing items from the Play Store, entering your personal information, and
enabling backup/restore features.
Replacing the Battery
CAUTION:Do not add or remove microSD card during battery replacement.
1. Press the Power button until the menu appears.
2. Touch Battery Swap.
3. Follow the on-screen instructions.
4. Wait for the LED to turn off.
5. If hand strap is attached, remove hand strap.
26
6. Press the two battery latches in.
Figure 18 Press Battery Latches
Getting Started
7. Lift the battery from the TC56.
Figure 19 Lift the Battery
CAUTION:Replace the battery within 90 seconds. After 90 seconds the device reboots and data may be lost.
8. Insert the replacement battery, bottom first, into the battery compartment in the back of the TC56.
9. Press the battery down until the battery release latch snaps into place.
10. Replace the hand strap, if required.
27
11. Press the Power button to turn on the TC56.
Replacing the microSD Card
To replace the microSD card:
1. Press the Power button until the menu appears.
2. Touch Power off.
3. Touch OK.
4. If hand strap is attached, slide the hand strap clip up toward the top of the TC56 and then lift.
5. Press the two battery latches in.
6. Lift the battery from the TC56.
7. Lift the access door.
Figure 20 Remove Access Door
Getting Started
8. Slide the microSD card holder to the Open position.
9. Lift the microSD card holder.
10. Remove microSD card from holder.
11. Insert the replacement microSD card into the card holder door ensuring that the card slides into the holding
tabs on each side of the door.
12. Close the microSD card holder door.
Figure 21 Insert microSD Card in Holder
28
Getting Started
13. Slide the microSD card holder door to the Lock position.
14. Press the access door down and ensure that it is properly seated.
CAUTION:Access door must be replaced and securely seated to ensure proper device sealing.
15. Replace the access door.
Figure 22 Replace Access Door
16. Insert the battery, bottom first, into the battery compartment in the back of the TC56.
17. Press the battery down until the battery release latch snaps into place.
18. Replace the hand strap, if required.
19. Press and hold the Power button to turn on the TC56.
Replacing the SIM Card
To replace the SIM card:
1. Press the Power button until the menu appears.
2. Touch Power off.
3. Touch OK.
4. If hand strap is attached, slide the hand strap clip up toward the top of the TC56 and then lift.
5. Press the two battery latches in.
6. Lift the battery from the TC56.
7. Lift the access door.
29
Getting Started
Figure 23 Remove Access Door
8. Slide the SIM card door to the unlock position.
Figure 24 Unlock SIM Card Door
9. Lift the SIM card holder door.
Figure 25 Lift the SIM Card Door
10. Remove the SIM card.
11. Place the new SIM card into the card holder with contacts facing down.
12. Close the SIM card holder.
30
Getting Started
Figure 26 Close the SIM Card Door
13. Slide the SIM card holder door to the lock position.
CAUTION:Access door must be replaced and securely seated to ensure proper device sealing.
14. Replace the access door.
Figure 27 Replace Access Door
15. Insert the battery, bottom first, into the battery compartment in the back of the TC56.
16. Press the battery down until the battery release latch snaps into place.
17. Replace the hand strap, if required.
18. Press and hold the Power button to turn on the TC56.
Accessing Device Settings
Throughout this guide, the user can access device:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. On the Home screen, swipe up from the bottom of the screen and touch .
31
Battery Management
NOTE: Prior to checking the battery charge level, remove the TC56 from any AC power source (cradle or
cable).
To check the charge status of the main battery, open Settings and touch About phone > Battery Information.
Battery status indicates that the battery is discharging and Battery level lists the battery charge (as a percentage
of fully charged). The battery percentage can also be viewed next to the battery icon in the quick access panel.
Swipe down with two fingers from the status bar to open the quick access panel.
Monitor Battery Usage
The Battery screen lists which applications consume the most battery power. Also use it to turn off applications
that were downloaded if they are consuming too much power.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Battery.
Getting Started
Figure 28 Battery Screen
The Battery screen lists the applications using the battery. The discharge graph at the top of the screen shows the
rate of the battery discharge since last charged (short periods of time when connected to a charger are shown as
thin green lines at the bottom of the chart), and how long it has been running on battery power.
32
Getting Started
Touch an application in the Battery screen to display details about its power consumption. Different applications
display different information. Some applications include buttons that open screens with settings to adjust power
use.
Low Battery Notification
When the battery charge level drops below 18%, the TC56 displays a notice to connect the TC56 to power.The
user should charge the battery using one of the charging accessories.
Figure 29 Low Battery Notification
When the battery charge drops below 10%, the TC56 displays a notice to connect the TC56 to power. The user
must charge the battery using one of the charging accessories.
When the battery charge drops below 4%, the TC56 turns off.
The user must charge the TC56 using one of the charging accessories.
Battery Optimization
Observe the following battery saving tips:
• Disable DataWedge Launcher profile. Refer to the TC56 Touch Computer Integrator Guide for Android
7.1.2 for instructions.
• Set the screen to turn off after a short period of non-use. See Setting Screen Timeout Setting on page 35.
• Reduce screen brightness. See Setting the Screen Brightness on page 34.
• Turn off all wireless radios when not in use.
• Turn off automatic syncing for Email, Calendar, Contacts and other applications.
• Minimize use of applications that keep the TC56 from suspending, for example, music and video
applications.
Turning Off the Radios
To turn off all the radios:
1. Press the Power button until the menu appears.
2. Touch Airplane mode. The airplane icon appears in the Status bar indicating that all the radios are off.
33
Setting the Date and Time
The date and time is automatically synchronized using a NITZ server when the TC56 is connected to a cellular
network.The user is only required to set the time zone or set the date and time when not connected to a cellular
network or if the wireless LAN does not support Network Time Protocol (NTP).
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Date & time.
3. Touch Automatic date & time to disable automatic date and time synchronization.
4. Touch Set date.
5. Move the sliders up and down to select the month, date and year.
6. Touch Done.
7. Touch Set time.
8. Move the sliders up and down to select the hour, minutes and part of the day.
9. Touch Done.
10. Touch Select time zone.
11. Select the current time zone from the list.
Getting Started
12. Touch .
Display Setting
Use Display settings to change the screen brightness, change the background image, enable screen rotation, set
sleep time and change font size.
Setting the Screen Brightness
To manually set the screen brightness:
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Slide the icon to adjust the screen brightness level.
Figure 30 Brightness Dialog Box
To let the TC56 automatically adjust the screen brightness using the built-in light sensor:
1. Touch Display.
2. Touch Brightness Level.
3. Touch Adaptive brightness to automatically adjust the brightness.
4. Touch .
Setting Screen Rotation
By default, screen rotation is disabled. To enable screen rotation:
34
Getting Started
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch When device is rotated and select Rotate to contents of the screen to set the TC56 to automatically
switch orientation when the TC56 is rotated.
4. Touch .
Setting Home Screen Rotation
By default the Home screen rotation is disabled. To enable Home screen rotation:
1. Touch and hold anywhere on the Home screen until the options appear.
2. Touch .
3. Touch Allow rotation switch.
4. Touch .
5. Rotate the device.
Figure 31 Rotated Home Screen
Setting Screen Timeout Setting
To set the screen sleep time:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch Sleep.
4. Select one of the sleep values.
• 15 seconds
• 30 seconds
• 1 minute (default)
• 2 minutes
• 5 minutes
• 10 minutes
35
Getting Started
• 30 minutes
5. Touch .
Setting Font Size
To set the size of the font is system applications:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch Font size.
4. Select one of the font size values.
• Small
• Normal (default)
• Large
• Largest
5. Touch .
Ambient Display
The Ambient display setting wakes the screen when notifications are received. To disable ambient display:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch Ambient display to disable.
4. Touch .
Touch Panel Mode
The TC56 display is able to detect touches using a finger, a conductive-tip stylus or gloved finger with or without a
screen protector.
NOTE: A glove can be made of medical latex, leather, cotton or wool.
For optimal performance use Zebra certified stylus.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch Touch panel mode.
36
Getting Started
Figure 32 Screen Protector Mode Dialog Box
4. Select:
a. Glove and Finger (Screen Protector off) to use a finger or a gloved finger on the screen without a screen
protector.
b. Stylus and Finger (Screen Protector off) to use a finger or a stylus on the screen without a screen
protector.
c. Glove and Finger (Screen Protector on) to use a finger or a gloved finger on the screen with a screen
protector.
d. Stylus and Finger (Screen Protector on) to use a finger or a stylus on the screen with a screen protector.
5. Touch .
Setting Notification LED
The Charging/Notification LED lights blue when an application, such as email and VoIP, generates a
programmable notification or to indicate when the TC56 is connected to a Bluetooth device. By default, LED
notifications are enabled. To change the notification setting:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Notifications.
3. Touch > Pulse notification light to toggle the notification on or off.
4. Touch .
Cast
Use Cast to mirror the TC56 screen on a Miracast enabled wireless display.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Display.
3. Touch Cast.
4. Touch > Enable wireless display. The TC56 searches for nearby Miracast devices and lists them.
5. Touch a device to begin casting.
6. Touch .
37
General Sound Setting
Use the Sounds settings to configure media and alarm volumes.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Sound.
Figure 33 Sound Screen
Getting Started
• Zebra Volume Control
• Ring volume - Controls the ringtone volume.
• Media volume - Controls the music, games and media volume.
• Alarm volume - Controls the alarm clock volume.
• Notifications volume - Controls the notification volume.
• Scanner volume - Controls the scanner volume.
• Volume Presets
• - Mutes the ring, notifications and scanner so that the TC51 does not make sounds or vibrate.
• - All sounds except media and alarms are silenced and vibrate mode is active.
• - Enables all sounds at the user defined levels.
• Also vibrate for calls - Turn on the switch to make the device vibrate when a call is received (default –
disabled).
38
Getting Started
• Do not disturb - Mutes the TC51 so that it does not make sounds or vibrate when you do not want it to.
• Priority only allows - Use to set priorities.
• Alarms - Disabled.
• Reminders and Events - Switch on or off.
• Messages - Choose from anyone, starred contacts, any contact, or none. To star contacts, use
the Contacts app.
• Repeat callers - Choose whether to let the TC51 ring if the same person calls again within 15
minutes.
• Automatic rules - To automatically silence the TC51 during certain times, like at night or on
weekends. Touch a default rule Weekend or Weeknight. Or, to make your own rule, tap Add rule and
then Time rule.
• Block visual disturbances
• Block when screen is on - option pertains to notifications you receive when you are actively
using the device. If you would like to disable the banner like notifications when Do not Disturb is
enabled, turn this option On. This will also prevent you from peeking at notifications.
• Block when screen is off - option pertains to notifications you receive when you are not using
your device i.e. the display is asleep. If you want to prevent the display from waking up when a
new notification is received, turn this option On. This will additionally disable the LED light alerts
your phone sends you when you have new notifications.
• Phone ringtone - Touch to select a sound to play for incoming calls.
• Default notification ringtone - Touch to select a sound to play for all system notifications.
• Default alarm ringtone - Touch to select a sound to play for alarms.
• Emergency Broadcasts - Touch to configure emergency broadcast settings and notifications.
• Other sounds
• Dial pad tones - Play a sound when pressing keys on dial pad (default - disabled).
• Screen locking sounds - play a sound when locking and unlocking the screen (default – enabled)
• Charging sounds - Not applicable.
• Touch sounds - Play a sound when making screen selections (default – enabled).
• Vibrate on tap - Device vibrates when making screen selections (default – disabled).
Wake-Up Sources
By default the TC56 wakes from suspend mode when the user presses the power button. The TC56 can be
configured to wake when the user presses the PPT or Scan buttons on the left side of the device.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Wake-Up Sources.
3. Touch SCAN checkbox. A check appears in the checkbox.
4. Touch SCAN_R checkbox. A check appears in the checkbox.
5. Touch LEFT_TRIGGER_2 checkbox. A check appears in the checkbox.
6. Touch REAR_BUTTON checkbox. A check appears in the checkbox.
39
Figure 34 Wake-Up Sources
Getting Started
7. Touch .
40
Using the TC56
Introduction
This chapter explains the buttons, status icons, and controls on the TC56, and provides basic instructions for using
the TC56 including resetting the TC56 and entering data.
Google Mobile Services
NOTE: This section only applies to TC56 devices with Google Mobile Services (GMS) software.
The TC56 with GMS contains applications and services that provide additional functionality to the TC56.
GMS includes:
• Applications - GMS adds a variety of Google applications and associated widgets including Chrome,
Gmail, Drive and Maps.
• Services:
• Speech to Text - Allows for free format speech to text, in many languages for both connected and
disconnected network. Launch by touching the microphone icon on the keyboard.
• TalkBack Service - Provides spoken feedback on various parts of the user interface. To enable, go to
Settings > Accessibility.
• Network Location Provider - Adds a location provider which uses mobile network tower information
and Wi-Fi access point information to provide a location without using GPS. To enable, go to Settings
> Location access.
• Widevine DRM - Enables the digital rights management so that protected content can be played.
Enable via DRM Info from the Play Store.
• Google Cloud Messaging - Allows the sending of data from your server to your TC56 and also to
receive messages from devices on the same connection.
• Backup and Restore - Allows the users settings and applications to be backed up to a Google server
and subsequently restored from that server after a factory reset.
• Google accounts - Create and use a Google account to synchronize mail, files, music, photos, contacts
and calendar events.
41
Home Screen
The Home screen displays when the TC56 turns on. Depending upon the configuration, the Home screen might
appear different. Contact your system administrator for more information.
After a suspend or screen time-out, the Home screen displays with the lock sliders. Touch the screen and slide up
to unlock. For screen locking information see Un-Locking the Screen on page 60.
Figure 35 Home Screen
Using the TC56
6
5
4
6
5
4
123
Non-GMS GMS
Table 4 Home Screen Items
Item Description
1 — Recent Button Displays recently used applications.
2 — Home Displays the Home screen.
3 — Back Displays the previous screen.
4 — Shortcut Icons Opens applications installed on the TC56. See Application Shortcuts
and Widgets on page 49 for more information.
123
42
Using the TC56
Table 4 Home Screen Items (Continued)
Item Description
5 — Widgets Launches stand-alone applications that run on the Home screen. See
Application Shortcuts and Widgets on page 49 for more information.
6 — Status Bar Displays the time, status icons (right side), and notification icons (left
side). For more information see Status Bar on page 43 and Managing
Notifications on page 45.
The Home screen provides four additional screens for placement of widgets and shortcuts. Swipe the screen left or
right to view the additional screens.
Status Bar
The Status bar displays the time, notification icons (left side) and status icons (right side).
NOTE: Some Status icons might not appear in the Status Bar if there are too many icons to display.
Figure 36 Notification and Status Icons
Notifications
Icons
If there are more notifications than can fit in the Status bar, displays indicating that more notifications exist.
Open the Notifications panel to view all notifications and status.
Status Icons
Status Icons
Table 5 Status Icons
Icon Description
Indicates that the Alarm is active.
Indicates that the main battery is fully charged.
Indicates that the main battery is partially drained.
Indicates that the main battery charge is low.
Indicates that the main battery charge is very low.
Indicates that the main battery is charging.
Note 1: Cellular network icon that appears is dependent upon the carrier/network.
43
Using the TC56
Table 5 Status Icons (Continued)
Icon Description
Indicates that all sounds except media and alarms are silenced and vibrate mode is active.
Indicates that the Airplane Mode is active. All radios are turned off.
Indicates that Bluetooth is on.
Indicates that the TC56 is connected to a Bluetooth device.
Connected to a Wi-Fi network.
Not connected to a Wi-Fi network or no Wi-Fi signal.
Connected to an Ethernet network.
Portable Wi-Fi Hotspot is active.
Mobile network signal strength.
No mobile network signal.
Connected to a 4G LTE/LTE-CA network (see Note 1).
Connected to a DC -HSPA, HSDPA, HSPA+, HSUPA, LTE/LTE-CA or WCMDMA network (see
Note 1).
Connected to a 1x-RTT (Sprint), EGDGE, EVDO, EVDV or WCDMA network (see Note 1).
Connected to an DC - HSPA, HSDPA, HSPA+ or HSUPA network (see Note 1).
Connected to an EDGE network (see Note 1).
Connected to a GPRS network (see Note 1).
Connected to a GPRS network (see Note 1).
Connected to a 1x-RTT (Verizon) network (see Note 1).
Roaming from a network.
No SIM card installed.
Note 1: Cellular network icon that appears is dependent upon the carrier/network.
44
Using the TC56
Notification Icons
Table 6 Notification Icons
Icon Description
Indicates the main battery is low.
Indicates that more notifications are available for viewing.
Indicates that data is syncing.
Indicates an upcoming event.
Indicates that an open Wi-Fi network is available.
Indicates that a song is playing.
Indicates that a problem with sign-in or sync has occurred.
Indicates that the TC56 is uploading data.
Indicates that the TC56 is downloading data when animated and download is complete when static.
Indicates that USB tethering is active.
Indicates that the TC56 is connected to or disconnected from virtual private network (VPN).
Preparing Internal Storage.
Indicates that USB debugging is enabled on the TC56.
Headset is connected to device.
Indicates the status of the PTT Express Voice Client. See Notification Icons for complete list of PTT
Express notification icons.
Indicates that RxLogger application is running.
Indicates the RS507 or the RS6000 is connected to the TC56.
Indicates the RS507 or RS6000 is connected to the device in HID mode.
Managing Notifications
Notification icons report the arrival of new messages, calendar events, and alarms, as well as ongoing events.
When a notification occurs, an icon appears in the Status bar with a brief description. See Notification Icons on
page 45 for a list of possible notification icons and their description. Open the Notifications panel to view a list of all
the notifications.
To open the Notification panel drag the Status bar down from the top of the screen.
45
Figure 37 Notification Panel
Using the TC56
To respond to a notification, open the Notifications Panel and then touch a notification. The Notifications Panel
closes and the subsequent activity is dependent on the notification.
To clear all notifications, open the Notifications Panel and then touch CLEAR ALL. All event-based notifications
are removed. Ongoing notifications remain in the list. Ongoing notifications remain in the list.
To close the Notification Panel, swipe the Notifications Panel up.
Setting Application Notifications
To change notification settings for a specific app:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Notifications.
3. Select an application.
4. Select an available option:
• Block all - Never show notifications from this application.
• Show silently - Do not allow notifications from this application to make sound, vibrate or peek into view.
• Override Do Not Disturb - Allow these notifications to interrupt when Do Not Disturb is set to Priority Only.
IMPORTANT: In the notification, slide the notification slightly left or right and touch .
46
Using the TC56
Viewing Notification Settings for All Apps
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Notifications.
3. Touch down-arrow next to All apps.
4. To see all the apps currently set to a specific setting, touch that setting.
Controlling Lock Screen Notifications
To control whether notifications can be seen when the TC56 is locked.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Notifications.
3. Touch > On the lock screen and select one of the following:
• Show all notification content (default)
• Don’t show notifications at all.
Quick Access Panel
Use Quick Access Panel to get to frequently used settings, like turning on airplane mode. To open Quick Access
Panel, swipe down from the top of the screen with two fingers or twice with one finger.
Figure 38 Quick Settings
To see the full Quick Settings panel:
• If the TC56 is locked, swipe down once.
• If the TC56 is unlocked, swipe down once with two fingers, or twice with one finger.
• If the Quick Settings bar is open, touch the Down arrow.
47
Using the TC56
Figure 39 Quick Settings Panel
To change a setting, just touch the icon:
• Display brightness: Slide to lower or increase the brightness of the screen.
• Wi-Fi network: Turn Wi-Fi on or off. To open Wi-Fi settings, touch the Wi-Fi network name.
• Bluetooth settings: Turn Bluetooth on or off. To open Bluetooth settings, touch the Bluetooth.
• Battery Power - Indicates percentage of battery power remaining. Touch to view battery usage.
• Invert colors - Invert the display colors.
• Do not disturb: Control how and when to receive notifications.
• Airplane mode: Turn airplane mode on or off. Airplane mode means device will not connect to Wi-Fi or
Bluetooth.
• Auto-rotate: Lock the device’s orientation in portrait or landscape mode or set to automatically rotate.
• Flashlight: Turn camera flash on or off.
• Location: Enable or disable locationing feature.
• Data Saver - Turn on to prevent some apps from sending or receiving data in the background.
Edit Icons on Quick Settings
The first several setting tiles become the Quick Settings bar.
To move a setting tile:
1. Open Quick Settings panel.
2. Touch .
3. Touch and drag a setting tile to another location.
4. Release the tile.
5. Touch to save tiles and return to quick settings.
To add a setting tile:
1. Open Quick Settings panel.
2. Touch .
48
Using the TC56
3. Slide Quick Settings panel up to reveal additional tiles.
4. Touch and drag a setting tile from the Drag to add tiles area to the main area.
5. Release the tile.
6. Touch to save tiles and return to quick settings.
To remove a setting tile:
1. Open Quick Settings.
2. Touch .
3. Touch and drag a setting tile to the Drag here to remove area.
4. Release the tile.
5. Touch to save tiles and return to quick settings.
Application Shortcuts and Widgets
Application shortcuts placed on the Home screen allow quick and easy access to applications. Application Widgets
are self-contained applications placed on the Home screen to access frequently used features.
Adding an Application to the Home Screen
1. Go to the desired Home screen.
2. Swipe up from the bottom of the screen.
3. Scroll through the list to find the application icon.
4. Touch and hold the icon until the Home screen appears.
5. Position the icon on the screen and then release.
Adding a Widget to the Home Screen
To add a widget to the Home screen:
1. Go to the desired Home screen.
2. Touch and hold onto the menu appears.
3. Touch WIDGETS.
4. Scroll through the list to find the widget.
5. Touch and hold the widget until the Home screen appears.
6. Position the widget on the screen and then release.
Moving Items on the Home Screen
1. Touch and hold the item until it floats on the screen.
2. Drag the item to a new location. Pause at the edge of the screen to drag the item onto an adjacent Home
screen.
3. Lift finger to place the item on the Home screen.
Removing an Application Shortcut or Widget from the Home Screen
1. Go to the desired Home screen.
2. Touch and hold the application shortcut or widget icon until it floats on the screen.
3. Drag the icon to on the top of the screen and then release.
49
Using the TC56
Folders
Use Folders to organize similar applications together. Tap the folder to open and display items in the folder.
Creating a Folder
To create a folder, there must be at least two app icons on the Home screen.
1. Go to the desired Home screen.
2. Touch and hold on one application icon.
3. Drag the icon and stack on top of another icon.
4. Lift and release.
Naming Folders
To name a folder:
1. Touch the folder.
Figure 40 Open Folder
2. Touch the title area and enter a folder name using the keyboard.
3. Touch on the keyboard.
4. Touch anywhere on the Home screen to close the folder. The folder name appears under the folder.
Removing a Folder
To remove a folder:
1. Touch and hold the folder icon until it enlarges.
2. Drag the folder to and release.
Home Screen Wallpaper
To change the Home screen wallpaper:
1. Touch and hold on the screen until the menu appears.
2. Touch WALLPAPERS.
3. Touch My photos to select a photo from Gallery or select one of the pre-installed photos.
4. Touch Save wallpaper.
Using the Touchscreen
Use the multi-tap sensitive screen to operate the device.
50
Using the TC56
• Tap - Tap to:
• select items on the screen
• type letters and symbols using the on-screen keyboard
• press on-screen buttons.
• Tap and Hold - Tap and hold:
• an item on the Home screen to move it to a new location or to the trash.
• an item in Apps to create a shortcut on the Home screen.
• the Home screen to open a menu for customizing the Home screen.
• an empty area on the Home screen until the menu appears.
• Drag - Tap and hold an item for a moment and then move finger on the screen until reaching the new
position.
• Swipe- Move finger up and down or left and right on the screen to:
• unlock the screen
• view additional Home screens
• view additional application icons in the Launcher window
• view more information on an application’s screen.
• Double-tap - Tap twice on a web page, map, or other screen to zoom in and out.
• Pinch - In some applications, zoom in and out by placing two fingers on the screen and pinching them
together (to zoom out) or spreading them apart (to zoom in).
Keyboards
Use the on-screen keyboard to enter text in a text field.
Editing Text
Edit entered text and use menu commands to cut, copy, and paste text within or across applications. Some
applications do not support editing some or all of the text they display; others may offer their own way to select text.
Entering Numbers, Symbols and Special Characters
To enter numbers and symbols:
• Touch and hold one of the top-row keys until a menu appears then select a number. Keys with alternate
characters display an ellipsis ( ... ) below the character.
• Touch the Shift key once for a single capital letter. Touch the Shift key twice to lock in uppercase. Touch
the Shift key a third time to unlock Capslock.
• Touch to switch to the numbers and symbols keyboard.
• Touch on the numbers and symbols keyboard to view additional symbols.
• Touch on the AOSP keyboard or on the GMS keyboard to enter emoji icons in a text message.
To enter special characters, touch and hold a number or symbol key to open a menu of additional symbols.
• A larger version of the key displays briefly over the keyboard.
• Keys with alternate characters display an ellipsis ( ... ) below the character.
51
Configuring the Keyboard
To configure the keyboard, See the Keyboard Settings section in the TC56 Integrator Guide for Android Version
7.1.2.
AOSP Keyboard
To configure the keyboard settings, touch and hold (comma) > and then select Android Keyboard Settings
(AOSP).
GMS Keyboard
To configure the keyboard settings, touch and hold (comma) > and then select Gboard Keyboard settings.
Do Not Disturb Feature
This mode mutes the TC56 so that it does not make sounds or vibrate.
For example, use Do Not Disturb to:
• Automatically limit sounds at night or during events
• Mute interruptions other than alarms
• Get alerted to messages only from favorite contacts.
Using the TC56
Limit Sounds and Vibrations
Mute the TC56 completely, or let through the important alarms or important calls.
Total Silence
To completely mute the TC56 so that it does not make a sound or vibrate, choose Total silence.
In Total silence mode:
• Alarms do not make noise.
• TC56 does not vibrate or make sounds when receiving a message, or notification.
• Sounds from music, videos, games, and other media are muted.
NOTE: The user will not hear alarms in Total silence mode.
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch Do not disturb > Total silence.
3. Choose Until you turn it off or select a time period.
4. Touch Done.
When Total Silence is on, appears in the quick access panel and the Status Bar.
To turn off Total Silence, open quick access panel and touch Total silence.
52
Using the TC56
Alarms Only
To mute the TC56 so that the user hears alarms, choose Alarms only. This option does not mute sounds from
music, videos, games, or other media.
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch Do not disturb > Alarms only.
3. Choose Until you turn it off or select a time period.
4. Tap Done.
When Alarms Only is on, appears in the quick access panel and the Status Bar.
To turn off Alarms Only, open quick access panel and touch Alarms only.
NOTE: To quickly turn on Alarms Only, with the screen on, press and hold the Volume Down button until the
volume is all the way down. Then, press Volume Down again to turn on Alarms Only.
To turn off Alarms Only, press either the Volume Up or Volume Down button and the touch END NOW in the alert
message. Then, press Volume Up again to turn on Alarms Only.
Priority Notifications Only
To only be interrupted by important notifications, choose Priority Only. This option does not mute sounds from
music, videos, games, or other media.
Before turning on Priority Only mode, set the notification priorities:
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Sound > Do not disturb > Priority only allows.
3. Set priorities.
• Alarms: Disabled by default.
• Reminders and Events: Switch on or off.
• Messages and Calls: Choose From anyone, From contacts only, From starred contacts only, or
none. To star contacts, use the Contacts app.
• Repeat callers: Choose whether to let the TC56 ring if the same person calls again within 15 minutes.
After setting notification priorities, turn on Priority only mode to limit interruptions. The priority notifications make a
sound or vibrate based on the current ringer volume, but other notifications will be silenced.
1. Swipe down with two fingers from the status bar to open the quick access panel.
2. Touch Do not disturb > Priority only.
3. Choose Until you turn it off or select a time period.
4. Tap Done.
When Priority Only is on, appears in the quick access panel and the Status Bar.
To turn off Priority Only, open quick access panel and touch Priority only.
53
Using the TC56
Automatically Block Sounds and Vibrations
Silence Sounds During Certain Times
To automatically silence the TC56 during certain times, like at night or on weekends, set the time rules.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Sound > Do not disturb > Automatic rules.
3. Touch a default Weekend or Weeknight. Or, to make a new rule, touch Add rule and then Time rule.
4. Edit the new rule:
• Rule name: Name the rule.
• Days, Start time, and End time: Set the rule's schedule.
• Do not disturb: Choose whether the rule uses Alarms only, Priority only, or Total silence.
5. Touch the On/Off text or switch at the top to turn on the rule.
Silence Sounds During Events and Meetings
To automatically silence the TC56 during events or meetings, set an event rules.
1. Swipe down with two fingers from the status bar to open the quick access panel and then touch .
2. Touch Sound > Do not disturb > Automatic rules.
3. To edit the default rule, touch Event. Or, to create a new rule, touch Add rule > Event rule.
4. Edit the rule settings.
• During events for: Select which Google Calendar events the rule uses.
• Where reply is: Options: Yes, Maybe, or Not replied, Yes or Maybe, or Yes.
• Do not disturb: Choose whether the rule uses Priority only, Alarms only, or Total silence.
5. Touch the On/Off switch at the top to turn on the rule.
Turn Sounds Back On
When the TC56 is in Do Not Disturb mode, Alarms or Priority only or Total silence display.
To turn off Do Not Disturb, either:
• In the quick access panel, touch Alarms only, Priority only, or Total silence.
• Press the Volume Down button and touch End Now.
Override Do Not Disturb for Specific Apps
To let through notifications from specific apps:
1. Open Settings > Notifications.
2. Touch an app.
3. Touch Override Do Not Disturb.
54
Applications
The APPS screen displays icons for all installed applications. The table below lists the applications installed on the
TC56. Refer to the TC56 Touch Computer Integrator Guide for Android Version 7.1.2 for information on installing
and uninstalling application.
Table 7 Applications
Icon Description
Using the TC56
ActiveEdge Touch Zone - Provides quick and convenient on-touch access to key features or
applications while users are in the middle of other workflow applications or tasks.
AppGallery - Provides links to utilities and demonstration applications that can be installed on
the TC56.
Battery Management - Displays battery information, including charge level, status, health and
wear level.
Battery Swap – Use to place device in Battery Swap mode when replacing the battery.
Bluetooth Pairing Utility – Use to pair the RS507 Hans-free Imager with the TC56 by scanning
a bar code.
Calculator - Provides the basic and scientific arithmetic functions.
Calendar - Use to manage events and appointments (Available only on devices without GMS
software).
Calendar - Use to manage events and appointments (Available only on devices with GMS
software).
Chrome - Use to access the Internet or intranet (Available only on devices with GMS software).
Chromium- Use to access the Internet or intranet. TC56 without GMS only.
Clock - Use to schedule alarms for appointments or as a wake-up.
55
Using the TC56
Table 7 Applications (Continued)
Icon Description
Contacts - Use to manage contact information. See Contacts on page 96 for more information.
DataWedge - Enables data capture using the imager.
Device Central - Use to display detailed information about the TC56 and connected peripherals
See Device Central on page 86 for more information.
Diagnostic Tool - Use to diagnose the TC56.
Downloads - lists all downloads files.
Drive - Upload photos, videos, documents, and other files to personal storage site (Available
only on devices with GMS software).
Duo - A one-to-one video calling application (Available only on devices with GMS software).
DWDemo - Provides a way to demonstrate the data capture features using the imager. See
DataWedge Demonstration on page 114 for more information.
Email - Use to send and receive email.
File Browser - Organize and manage files on the TC56. See File Browser on page 92 for more
information.
Gallery - Use to view photos stored on the microSD card. For more information, see Gallery on
page 102 for more information. TC56 without GMS only.
Gmail - Use to send and receive email using a Google email account (Available only on devices
with GMS software).
Google - Launches Google search application (Available only on devices with GMS software).
56
Using the TC56
Table 7 Applications (Continued)
Icon Description
Maps - Use to see you location on a map (with public transit, traffic or satellite overlays). Search
for any business or place of interest. Provides turn-by-turn navigation with voice guidance and
traffic-avoidance and alternate routes, for drivers, cyclist, walkers and users of public
transportation (Available only on devices with GMS software).
Messaging - Send SMS and MMS messages. See Messaging on page 94 for more information.
Music - Play music stored on the microSD card (Available only on devices without GMS
software).
Notes - Use to take and save notes.
Phone - Use to make cellular calls or to dial a phone number when used with some Voice over
IP (VoIP) clients.
Photos - Use to sync photos with Google account (Available only on devices with GMS
software).
Play Movies & TV - View movies and video on your device (Available only on devices with GMS
software).
Play Music - Use to listen to music (Available only on devices with GMS software).
Play Store - Download music, movies, books, and Android apps and games from the Google
Play Store (Available only on devices with GMS software).
PTT Express - Use to launch PTT Express client for VoIP communication.
RxLogger - Use to diagnose device and application issues. See the TC56 Touch Computer
Integrator Guide for Android Version 7.1.2 for more information.
RxLogger Utility - Use to view, backup, and archive RxLogger data.
Search - (Available only on devices without GMS software).
57
Using the TC56
Table 7 Applications (Continued)
Icon Description
Settings - Use to configure the TC56.
SimulScan Demo - Use to demonstrate the document capture feature of the TC56.
SMARTMU - A diagnostic intelligent app. Use to diagnose surrounding area and display network
stats, such as coverage hole detection, or AP in vicinity.
Snapdragon Camera - Take photos or record videos.For more information see Camera on page
97.
Sound Recorder - Use to record audio (Available only on devices without GMS software).
StageNow - Allows the TC56 to stage a device for initial use by initiating the deployment of
settings, firmware and software.
Voice Search - Use to perform searches by asking questions (Available only on devices with
GMS software).
YouTube - Use to view videos on the YouTube web site (Available only on devices with GMS
software).
Accessing Applications
All applications installed on the device are accessed using the APPS window.
1. On the Home screen, swipe up from the bottom of the screen.
58
Figure 41 APPS Window Example
Using the TC56
2. Slide the APPS window left or right to view more application icons. Touch an icon to open the application.
See Application Shortcuts and Widgets on page 49 for information on creating a shortcut on the Home screen.
Switching Between Recent Applications
1. Touch . A window appears on the screen with icons of recently used applications.
59
Figure 42 Recently Used Applications
Using the TC56
2. Slide the window up and down to view all recently used applications.
3. Swipe left or right to remove application from the list and force close the application.
4. Touch an icon to open it or touch to return to the current screen.
Un-Locking the Screen
Use the Lock screen to protect access to data on the TC56. Some email account require locking the screen. Refer
to the TC56 Touch Computer Integrator Guide for Android Version 7.1.2 for information on setting up the locking
feature.
When locked, a pattern, PIN or password is required to unlock the device. Press the Power button to lock the
screen. The device also locks after a pre-defined time-out.
Press and release the Power button to wake the device.
The Lock screen displays. Swipe the screen up to unlock.
If the Pattern screen unlock feature is enabled, the Pattern screen appears instead of the Lock screen.
If the PIN or Password screen unlock feature is enabled, enter the PIN or password after unlocking the screen.
60
Figure 43 Lock Screen
Using the TC56
61
Figure 44 PIN Screen
Using the TC56
62
Figure 45 Pattern Screen
Using the TC56
63
Figure 46 Password Screen
Using the TC56
Resetting the Device
There are two reset functions, soft reset and hard reset.
Performing a Soft Reset
Perform a soft reset if applications stop responding.
1. Press and hold the Power button until the menu appears.
2. Touch Reset.
3. The device reboots.
Performing a Hard Reset
CAUTION:Performing a hard reset with a microSD card installed in the TC56 may cause damage or data
corruption to the microSD card.
Perform a hard reset if the TC56 stops responding.
1. Simultaneously press the Power, PTT and Volume Up buttons for at least four seconds.
2. When the screen turns off, release the buttons.
3. The TC56 reboots.
64
Suspend Mode
The TC56 goes into suspend mode when the user presses the Power button or after a period of inactivity (set in
the Display settings window).
To wake the TC56 from Suspend mode, press the Power button.
The Lock screen displays. Swipe the screen up to unlock. If the Pattern screen unlock feature is enabled, the
Pattern screen appears instead of the Lock screen. If the PIN or Password screen unlock feature is enabled, enter
the PIN or password after unlocking the screen. See Un-Locking the Screen on page 60.
NOTE: If the user enters the PIN, password or pattern incorrectly five times, they must wait 30 seconds before
trying again.
If the user forgets the PIN, password or pattern contact the system administrator.
Figure 47 Lock Screen
Using the TC56
Transferring Files with a Host Computer via USB
Connect the TC56 to a host computer using the USB Charging cable or the 1-Slot USB cradle to transfer files
between the TC56 and the host computer. See Accessories for more information.
When connecting the TC56 to a host computer, follow the host computer’s instructions for connecting and
disconnecting USB devices, to avoid damaging or corrupting files.
65
Using the TC56
Transferring Files using Media Transfer Protocol
NOTE: Use Media Transfer Protocol (MTP) to copy files between the TC56 (internal memory or microSD card)
and the host computer.
1. Connect the Rugged Charge/USB Cable to the TC56 or place the TC56 into the 1-Slot USB/Charge Only
Cradle. See Accessories for setup information.
2. Pull down the Notification panel and touch USB charging this device.
Figure 48 Use USB Dialog Box
3. Touch Transfer files.
4. On the host computer, open a file explorer application.
5. Locate the TC56 as a portable device.
6. Open the SD card or the Internal storage folder.
7. Copy files to and from the TC56 or delete files as required.
Transferring Files using Photo Transfer Protocol
NOTE: Use Photo Transfer Protocol (PTP) to copy photos from either the microSD card or internal memory to
the host computer.
1. Connect the Rugged Charge/USB Cable to the TC56 or place the TC56 into the 1-Slot USB/Charge Only
Cradle. See Accessories for setup information.
2. Pull down the Notification panel and touch USB charging this device.
66
Using the TC56
Figure 49 Use USB Dialog Box
3. Touch Transfer photos (PTP).
4. On the host computer, open a file explorer application.
5. Open the SD card or the Internal storage folder.
6. Copy or delete photos as required.
Disconnect from the Host Computer
CAUTION:Carefully follow the host computer’s instructions to unmount the microSD card and disconnect USB
devices correctly to avoid losing information.
1. On the host computer, unmount the device.
2. Remove the USB Charging cable from the device or remove the device from the cradle.
67
Calls
Introduction
Make a phone call from the Phone application, the Contacts application or other applications or widgets that
display contact information.
Emergency Calling
The service provider programs one or more emergency phone numbers, such as 911 or 999, that the user can call
under any circumstances, even when the phone is locked, a SIM card is not inserted or the phone is not activated.
The service provider can program additional emergency numbers into the SIM card. However, the SIM card must
be inserted in the device in order to use the numbers stored on it. See the service provider for additional
information.
NOTE: Emergency numbers vary by country. The phone’s pre-programmed emergency number(s) may not
work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or
interference issues.
Audio Modes
The device offers three audio modes for use during phone calls:
• Handset Mode: Switches audio to the receiver at the top front of the device, so the user can use the
device as a handset. This is the default mode.
• Speaker Mode: Use the device as if on speaker phone.
• Headset Mode: Connect a Bluetooth or wired headset to automatically switch audio to the headset.
Using a Bluetooth Headset
Use a Bluetooth headset for audio communication when using an audio-enabled application. See Bluetooth on
page 153 for information on connecting a Bluetooth headset to the device. Set the volume appropriately before
putting on the headset. When a Bluetooth headset is connected, the speakerphone is muted.
68
Using a Wired Headset
Use a wired headset and Audio Adapter for audio communication when using an audio-enabled application. Set
the volume appropriately before putting on the headset. When a wired headset is connected, the speakerphone is
muted.
To end a call using the wired headset, press and hold the headset button until the call ends.
Figure 50 3.5 mm Headset Adapter
Calls
Adjusting Audio Volume
Use the Volume buttons to adjust the volume of the ringer when not in a call and the audio volume when in a call.
NOTE: Adjust the conversation phone volume during a call. Adjusting the volume while not in a call affects the
ring and notification sound levels.
69
Making a Call Using the Dialer
Use the dialer tab to dial phone numbers.
1. On the Home screen touch .
2. Touch .
Figure 51 Dialer Screen
Calls
3. Touch the keys to enter the phone number.
4. Touch below the dialer to initiate the call.
70
Figure 52 Call in Progress
Calls
• - touch to send audio to the speakerphone.
• - touch to mute the call.
• - touch to display the dial pad.
• - touch to place the call on hold (not available on all services).
• - touch to create a conference call.
• - touch to increase audio level.
5. Touch to end the call.
If using a Bluetooth headset, additional audio options are available. Touch the audio icon to open the audio menu.
71
Figure 53 Bluetooth Audio Options
Calls
• - indicates that audio is routed to the Bluetooth headset.
• - indicates that audio is routed to the speakerphone.
• - indicates that audio is routed to the earpiece.
Dialer Dialing Options
The dialer provides options to save the dialed number to contacts, insert pauses and wait into the dial string and
options for setting the Call settings. Enter at least one digit to access these options. Touch to access the
following.
• Add 2–sec pause - pause the dialing of the next number for two seconds. Multiple pauses can be added
sequentially.
• Add wait - wait for confirmation to send the rest of the digits.
72
Making a Call Using Contacts
There are two ways to make a call using contacts:
• Using the Dialer
• Using the Contacts application.
Using the Dialer
1. On the Home screen touch .
2. Touch the tab.
Figure 54 Dialer Contacts Tab
Calls
3. Touch the contact.
4. Touch to initiate the call.
5. Touch to end the call.
Using the Contacts Application
To make a call from the Contacts application:
1. Touch .
73
Figure 55 Contact Application
Calls
2. Touch a contact name.
74
Figure 56 Contact Information
Calls
3. Touch to initiate a call.
Making a Call Using Call History
Call History is a list of all the calls placed, received, or missed. It provides a convenient way to redial a number,
return a call, or add a number to Contacts.
Arrow icons beside a call indicate the type of call. Multiple arrows indicate multiple calls:
• - Missed incoming call
• - Received incoming call
• - Outgoing call.
1. On the Home screen touch .
2. Touch the tab.
75
Figure 57 Call History Tab
Calls
3. Touch next to the contact to initiate the call.
4. Touch the contact to perform other functions.
5. Touch to end the call.
Making a Conference Call on GSM
To create a conference phone session with multiple people.
NOTE: Conference Calling and the number of conference calls allowed may not be available on all services.
Please check with the service provider for Conference Calling availability.
1. On the Home screen touch .
2. Touch .
3. Touch the keys to enter the phone number.
4. Touch below the dialer to initiate the call.
5. When the call connects, touch .
The first call is placed on hold.
6. Touch .
7. Touch the keys to enter the second phone number.
76
Calls
8. Touch below the dialer to initiate the call.
9. When the call connects, the first call is placed on hold and the second call is active.
Figure 58 Two Calls
10. Touch icon to create a conference call with three people.
77
Figure 59 Merged Calls
Calls
11. Touch to add another call.
The conference is placed on hold.
12. Touch .
13. Touch the keys to enter another phone number.
14. Touch below the dialer to initiate the call.
15. Touch icon to add the third call to the conference.
16. Touch Manage Conference call to view all callers.
78
Figure 60 Un-merge Calls
Calls
17. To remove a caller from the conference, touch next to the caller.
To speak privately with one party during a conference call, touch . To include all parties again, touch .
Making a Call Using a Bluetooth Headset
To make a call using a Bluetooth headset:
1. Pair the Bluetooth headset with the device.
2. Press the Call button on the Bluetooth headset.
3. Press the Call button on the Bluetooth headset to end the call.
79
Answering Calls
When you receive a phone call, the Incoming Call screen displays, displaying the caller ID and any additional
information about the caller that is in the Contacts application.
Figure 61 Incoming Call Screen
Touch Answer to answer the call or Dismiss to send the caller to voice mail.
If the screen lock is enabled, the user can still answer the call without unlocking the device.
Figure 62 Incoming Call Locked Screen
Calls
When a call arrives, touch the white phone icon and slide over one of these icons:
• Answer call - Start talking to the caller.
• Send to voice mail - Direct the caller to leave a voice mail message.
• Send a message - Opens a list of quick text responses. Touch one to send it to the caller immediately.
When the calls ends, the device remains locked.
80
If using a Bluetooth headset, when a call arrives, touch the Call button on the Bluetooth headset to answer the call.
To end the call press the headset Call button.
All incoming calls are recorded in the Phone application Call log tab. If you miss a call, you receive a notification.
To silence the ringer before answering the call, press the volume down button on the side of device.
Call Settings
NOTE: Not all options are available for all configurations.
To modify options related to the phone call feature, on the Home screen touch > > Settings.
• Display options
• Sort by - Options: First name or Last name.
• Name format - Options: First name first or Last name first.
• Sounds and vibrations
• Phone ringtone - Touch to select a ringtone to sound when an incoming call is received.
• Also vibrate for calls - Check to make the device vibrate when a call is received (default - disabled).
• Dialpad tones - Check to play a sound when a phone key is touched (default - enabled).
• Quick responses - Touch to edit quick responses to use instead of answering a call.
• Speed dial settings - Set speed dial contact shortcuts.
• Calls
• Calling accounts
• Voicemail - Touch to configure voicemail settings.
• Fixed Dialing Numbers - Use Fixed Dialing to restrict the device to dial only the phone number(s) or
• Call forwarding - Use call forwarding to forward incoming calls to a different phone number.
Calls
• SIP accounts - Choose to receive Internet calls for accounts added to the device, view or change
SIP accounts, or add an Internet calling account.
• Use SIP calling - Options: For all calls or Only for SIP calls (default).
• Receive incoming calls - When enabled, allows incoming calls (deafult - disabled).
• Service - Set the service provider or other provider for voicemail service.
• Setup - Touch to update the phone number used to access voicemail.
• Sound - Touch to select a sound to play when a voicemail is received.
• Vibrate - Set vibrate option. (default – disabled).
area code(s) specified in a Fixed Dialing list.
NOTE: Call Forwarding may not be available on all networks. Check with the service provider for availability.
• Additional settings
• Caller ID - Enable caller ID to reveal the identity of the person making an outgoing call. Options:
Network default (default), Hide number, Show number.
81
Calls
• Call waiting - set to be notified of an incoming call while on a call.
• Call barring - Use call barring to block certain types of incoming and/or outgoing calls. Select the type
of incoming and/or outgoing calls to block.
• Call blocking - Use to block calls and texts from certain phone numbers. Touch ADD NUMBER to block a
phone number.
• Accessibility
• TTY mode - Touch to set the TTY setting. Use an optional teletypewriter (TTY) device with the TC56
to send and receive calls. Plug the TTY device into the TC56 headset jack and set the TC56 to operate
in one of the TTY modes.
NOTE: Use a TSB-121 compliant cable (provided by the TTY manufacturer) to connect the TTY device to the
TC56.
Set the TC56 volume to a middle level setting for proper operation. If you experience a high number of
incorrect characters, adjust the volume as needed to minimize the error rate.
For optimal performance, the TC56 should be at least 30 cm (12 inches) from the TTY device. Placing
the TC56 too close to the TTY device may cause high error rates.
• TTY off - TTY is off (default).
• TTY Full - Transmit and receive TTY characters.
• TTY HCO - Transmit TTY characters but receive by listening to earpiece.
• TTY VCO - Receive TTY characters but transmit by speaking into microphone.
82
Applications
Introduction
This section describes the applications installed on the device.
ActiveEdge Touch Zone
The ActiveEdge Touch Zone application provides configurable settings which enables quick and convenient
one-touch access to key features or applications while users are in the middle of other applications or tasks. Once
configured, soft keys near the perimeter of the display provide access to those frequently used applications or
functions.
NOTE: The ActiveEdge Touch Zone is only available when the display is set to Portrait mode.
83
Figure 63 ActiveEdge App Settings
Applications
• Start or Stop ActiveEdge Service - Touch to start/stop the ActiveEdge Service to enable/disable the
ActiveEdge Zone.
• Start ActiveEdge Service on Boot Up - Automatically start the ActiveEdge Service when the device
boots up. the Service is always running and always available.
• Left ActiveEdge Zone - Configure the left ActiveEdge Zone to Scanner, Drawer, or None.
• Right ActiveEdge Zone - Configure the right ActiveEdge Zone to Scanner, Drawer, or None.
• Select Apps for Drawer - Select up to three applications to appear on the Drawer.
• Restore - Restore the settings to the factory defaults.
Select the Settings menu > About to open the About ActiveEdge window, which displays the version number.
Figure 64 Left and Right ActiveEdge Zones
NOTE: The Left ActiveEdge Zone and the Right ActiveEdge Zone can be configured to any
combination of
Scanner, Drawer, or None, except that both zones cannot be configured to Drawer.
84
Applications
If the Left ActiveEdge Zone or the Right ActiveEdge Zone is set to Drawer, select Select Apps for Drawer from
the Settings menu, select the menu options button , choose Select Apps, and choose up to three applications
to appear on the Drawer.
Figure 65 Select Apps for Drawer
85
Figure 66 ActiveEdge Touch Zone Soft Key
Applications
ActiveEdge Touch
Zone Soft Key
Figure 67 Left ActiveEdge Zone set to Scanner and Right ActiveEdge Zone set to Drawer
ActiveEdge Touch
Zone Soft Key
86
Battery Manager
The Battery Manager provides detailed information about the battery.
Figure 68 Battery Manager Screen
Applications
Table 8 Battery Icon Description
Battery Icon Description
Indicates battery charge level.
Indicates battery charging.
Indicates battery charge level is below 20%.
• Battery level - Indicate the current battery charge level as a percentage. Displays -% when level is
unknown.
• Time until full - Indicates the amount of time until the battery is fully charged.
• Time since charging - Indicates the amount of time since the device began charging.
• Time until empty - Indicates the amount of time until the battery is empty.
87
Applications
• Battery status
• Not charging - Indicates that the device is not connected to AC power.
• Charging over AC - Indicates that the device is connected to AC power and charging.
• Charging over USB - Indicates that the device is connected to a host computer with a USB cable and
charging.
• Discharging - Indicates that the battery is discharging.
• Full - Indicates that the battery is fully charged.
• Unknown - Indicates that the battery status is unknown.
• Battery health - Indicates the health of the battery. If a critical error occurs, appears. Touch to view
error description.
• Decommission - The battery is past it’s useful life and should be replaced. See system administrator.
• Good - The battery is good.
• Charge error - An error occurred while charging. See system administrator.
• Over Current - An over-current condition occurred. See system administrator.
• Dead - The battery has no charge. Replace the battery.
• Over Voltage - An over-voltage condition occurred. See system administrator.
• Below Temperature - The battery temperature is below the
• Failure Detected - A failure has been detected in the battery. See system administrator.
• Unknown - See system administrator.
• Wear level - Indicates the health of the battery in graphical form. When the wear level exceeds 80%, the
bar color changes to red.
• Advanced info - Touch to view additional battery information.
• Battery present status - Indicates the maximum amount of charge (in mAh) that could be pulled from
the battery under the present discharge conditions if the battery is fully charged.
• Battery level - Indicates battery charge level as a percentage of scale.
• Battery scale - Battery scale level used to determine battery level (100).
• Battery voltage - Indicates current battery voltage in millivolts.
• Battery temperature - Indicates current battery temperature in degrees Centigrade.
• Battery technology - Lists the type of battery.
• Battery Current - Lists battery current in uA. (Available on builds BSP 19-01.4 and above).
• Battery manufacture date - Lists the date of manufacture.
• Battery serial number - Lists the battery serial number. The number matches the serial number
printed on the battery label.
• Battery part number - Lists the battery part number.
• Battery rated capacity - Lists the battery capacity in mAh.
• Battery decommission status - Indicates if the battery is past it’s life span.
• Battery Good - Battery is in good health.
88
Applications
• Decommissioned Battery - Battery is past it’s useful life and should be replaced.
• Base cumulative charge - Cumulative charge using Zebra charging equipment only.
• Battery present capacity - Maximum amount of charge that could be pulled from the battery under
the present discharge conditoins if the battery were fully charged. (Available on builds BSP 19-01.4
and above).
• Battery health percentage - With a range from 0 to 100, this is the ratio of “present_capacity” to
“design_capacity” at a discharge rate of “design_capacity”.(Available on builds BSP 19-01.4 and
above).
• % decommission threshold - Lists the default % decommission threshold for a gifted battery as 80%.
(Available on builds BSP 19-01.4 and above).
• Battery present charge - Amount of usable charge remaining in the battery at present under the
current discharge conditions. (Available on builds BSP 19-01.4 and above).
• Battery total cumulative charge - Lists the total accumulated charge in all chargers. (Available on
builds BSP 19-01.4 and above).
• Battery time since first use - Lists the time passed since the battery was placed in a Zebra terminal
for the first time. (Available on builds BSP 19-01.4 and above).
• App version - Lists the application version number.
89
Device Central
Device Central displays detailed information about the TC56 and connected peripherals and supports the following
Zebra devices:
• RS507 Hands-free Imager
• RS6000 Bluetooth Ring Scanner
• DS3678 Digital Scanner.
Device Central features include:
• Discovering and pairing with supported peripherals via Bluetooth or corded connection.
• Paging a connected RS6000 Ring Scanner.
• Updating the firmware of supported ring scanners. For information on updating ring scanner firmware
using Device Central, refer to the RS5000 Quick Start Guide or RS6000 User Guide.
• Displaying the connection status of peripherals.
• Displaying information for a connected peripheral in the notification bar.
Applications
Figure 69 Device Central Screen
90
Applications
Device Central Tabs
• Peripherals Tab - displays all currently connected and previously connected peripherals. Connected
peripherals display the length of time (in minutes) that they have been connected. When an RS6000 is
connected the Page button displays. See Paging an RS6000 Ring Scanner on page 91.
Touch the peripheral information to display the Device Details screen.
• Device Details - displays detailed device information for the selected peripheral.
• My Device Tab - displays information about the WT6000 and the current version of Device Central.
• Device Details - displays the About device screen.
• Device Battery Details - displays the Battery screen.
Paging an RS6000 Ring Scanner
Use the Page button to easily locate the currently connected RS6000 Ring Scanner:
1. With the RS6000 Ring Scanner connected, swipe up from the bottom of the screen and touch .
NOTE: The RS6000 Ring Scanner must be within 10 m (32 ft) of the TC56.
2. Under the RS6000 peripheral information, touch Page to begin paging the RS6000. The paged RS6000 beeps
and vibrates.
Figure 70 Page RS6000
To stop paging, press the scan trigger of the RS6000. On a triggerless RS6000, stop paging by resetting the
RS6000. Refer to the RS6000 User Guide.
91
File Browser
Use the File Browser application to view and mange files on the device.
To open File Browser, swipe up from the bottom of the screen and touch .
Figure 71 File Browser Screen
Applications
The address bar indicates the current folder path. Touch the current folder path to manually enter a path and folder
name.
Use to select multiple files/folder.
Use to view the internal storage root folder.
Use to view the microSD card root folder.
Use to view the previous folder or to exit the application.
Touch and hold an item to perform an operation on that item. Select one of the options from the File Operations
menu:
• Information - View detailed information about the file or folder.
• Move - Move the file or folder to a new location.
• Copy - Copy the select file.
• Delete - Delete the selected file.
• Rename - Rename the select file.
• Open as - Open the selected file as a specific file type.
• Share - Share the file with other devices.
92
Applications
Touch to open menu options:
• New Folder - Create a new folder.
• Search - Search for a specific file on the device.
• Sort - Select the sort order of the files by name, type, size or date.
• Refresh - Refresh the current folder.
• List View - Change the folder to display item is a list.
• Grid View - Change the folder to display item is a grid.
• Change Size - Change the size of the icons.
• About File Browser - Displays the app version.
93
Messaging
Use Messaging to send and receive SMS and MMS messages.
To open Messaging, Swipe up from the bottom of the screen and touch .
Sending a Text Message
1. In the main Messaging screen, touch .
Figure 72 New Text Message Screen
Applications
2. In the To field, enter a name or a mobile phone number.
3. In the Send message field, enter the text message.
The 160-character limit counter indicates how many characters are left. If it goes over that limit, a new
message is created, which is joined with its predecessors when received.
If the user presses the Back button while composing a message, it’s saved as a draft in the Messaging screen.
Touch the conversation to resume composing it.
4. Touch to send the message.
Sending a Multimedia Message
1. In the main Messaging screen, touch .
2. In the To field, enter a name or a mobile phone number.
3. Touch to attach the media file of your choice:
94
Figure 73 New Multimedia Message Screen
Applications
• Subject - Enter a message subject.
• Pictures - Select a picture to attach.
• Capture picture - Camera opens to take a picture and attach it.
• Videos - Select a video to attach.
• Capture video - Camcorder opens to record a video and attach it to the message.
• Audio - Choose a sound file to attach.
• Record audio - Sound Recorder opens to record a spoken message and attach it to the message.
• Slideshow - Opens a screen to assemble text, photos, videos, and recordings into a slideshow of up to 10
slides to attach to the message.
• Insert contact info - Opens the Contacts app - Select one or more contacts to insert the contact
information into the message.
• Contact vCard - Send a contact’s information.
• Import Template - Import a message template.
4. Touch to send the message.
95
Contacts
Use the Contacts application to manage contacts.
From a Home or Apps screen, touch . People opens to the main list of contacts. View contacts in three ways at
the top of the screen: Groups, All contacts, and Favorites. Touch the tabs to change how to view the contacts.
Swipe up or down to scroll through the lists.
Adding a Contact
1. In the Contacts application, touch .
2. If there are more than one account with contacts, touch the one to use.
3. Type the contact’s name and other information. Touch a field to start typing, and swipe down to view all
categories.
4. To open a menu with preset labels, such as Home or Work for an email address, touch the label to the right of
the item of contact information. Or, to create your own label, touch Custom in the menu.
5. Touch the check mark next to Add New Contact.
Editing Contacts
Applications
1. In the Contacts application, touch a contact name to edit.
2. Touch .
3. Edit the contact information.
4. Touch the check mark next to Edit contact.
Deleting Contacts
1. In the Contacts application, touch a contact name to delete.
2. Touch .
3. Touch Delete.
4. Touch DELETE to confirm.
96
Camera
This section provides information for taking photos and recording videos using the integrated digital cameras.
Taking Photos
1. Swipe up from the bottom of the Home screen and touch .
Figure 74 Camera Mode
Applications
NOTE: If a microSD card is installed, The TC56 saves photos and videos on the microSD card. If a microSD
card is not installed, the TC56 saves photos and videos on the internal storage.
NOTE: Camera settings are described in Photo Settings on page 99.
Beautification
Scene Mode
Gallery
Settings
Camera Mode
Shutter Button
2. If necessary, touch the Camera Mode icon and touch .
3. Frame the subject on the screen.
4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear on
the screen.
5. Touch an area on the screen to focus. The focus circle appears on the screen. The two bars turn green when
in focus.
97
Applications
6. Touch .
The camera takes a photo and a shutter sound plays.
The photo momentarily displays as a thumbnail in the lower left corner.
Taking a Panoramic Photo
Panorama mode lets the user create a single wide image by panning slowly across a scene.
1. Swipe up from the bottom of the Home screen and touch .
Figure 75 Panoramic Mode
2. Touch the Camera Mode and touch .
3. Frame one side of the scene to capture.
4. Touch and slowly start panning across the area to capture. A small white square appears inside the button
indicating the capture is in progress.
If panning too quickly, the message Too fast appears.
5. Touch to end the shot. The panorama appears immediately and a progress indicator displays while it saves
the image.
Recording Videos
To record a video:
1. Swipe up from the bottom of the Home screen and touch .
98
2. Touch the options bar and touch .
Figure 76 Video Mode
Applications
Audio
Settings
Gallery
Shutter Button
3. Point the camera and frame the scene.
4. To zoom in or out, press two fingers on the display and pinch or expand fingers. The zoom controls appear on
Camera Mode
the screen.
5. Touch to start recording.
The device starts recording the video. The video time remaining appears in the top left of the screen.
6. Touch to end recording.
The video momentarily displays as a thumbnail in the lower left corner.
Photo Settings
When in Photo mode, photo settings are displayed on screen. Touch to display the photo settings options.
99
Applications
• Flash - Touch to set whether the camera relies on its light meter to decide whether a flash is necessary, or
to turn it on or off for all shots.
• Off - Disable flash.
• Auto - Camera adjusts flash automatically depending upon light meter (default).
• On - Enable flash upon taking a photo.
• Torch - Turn flash on continuously.
• GPS location - Options: On or Off (default).
• Picture size - Touch to set the size (in pixels) of the photo. Options: 13M pixels (default), 8M pixels, 5M
pixels, 3M pixels, HD 1080, 2M pixels, HD 720, 1M pixels, WVGA, VGA, or QVGA.
• Picture quality - Touch to select picture quality setting. Options: Low, Standard (default) or High.
• Countdown timer - Options: Off (default), 2 seconds, 5 seconds or 10 seconds.
• Storage – Touch to select location to store the photo. Options: Phone or SD Card.
• Face Detection - Select to enable face detection. Options: Off (default) or On.
• ISO - Set how sensitive the camera is to light. Options: Auto (default), ISO Auto (HJR), ISO100, ISO200,
ISO400, ISO800 or ISO1600.
• Exposure - Touch to adjust the exposure settings. Options: +2, +1, 0(default), -1 or -2.
• White balance - Touch to select how Camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors.
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
• Focus mode - Touch to select the camera focus setting. Options: Auto, Infinity, Macro or CAF
(Continuous Auto Focus) (default).
• ZSL - Set the camera to immediately take a picture when the button is pressed (default – enabled)
Video Settings
When in Video mode, video settings are displayed on screen. Touch to display the video settings options.
• Flash - Touch to set whether Rear-facing Camera relies on its light meter to decide whether a flash is
necessary, or to turn it on or off for all shots.
• Off - Disable flash (default).
• Torch - Turn flash on continuously.
• Video quality - Touch to select video quality. Options: HD 1080p (default), HD 720p, or SD 480p.
• Video duration - Options: 30 seconds (MMS), or 30 minutes (default).
• GPS location - Options: On or Off (default).
• Storage – Touch to select location to store the photo. Options: Phone (default) or SD Card.
100
Applications
• White balance - Touch to select how Camera adjusts colors in different kinds of light, to achieve the most
natural-looking colors.
• Incandescent - Adjust the white balance for incandescent lighting.
• Fluorescent - Adjust the white balance for florescent lighting.
• Auto - Adjust the white balance automatically (default).
• Daylight - Adjust the white balance for daylight.
• Cloudy - Adjust the white balance for a cloudy environment.
101
Gallery
Use Gallery to:
Gallery presents all photos and videos stored on the microSD card and internal memory.
To open the Gallery application, swipe up from the bottom of the Home screen and touch or in the camera
application touch the thumbnail image at the bottom left.
Applications
NOTE: The device supports the following image formats: jpeg, gif, png and bmp.
The device supports the following video formats: H.263, H.264 and MPEG4 Simple Profile.
Available on TC56 without GMS only.
• view photos
• play videos
• perform basic editing of photos
• set photos as wallpaper
• set photos as a contact photo
• share photos and videos.
By default, Gallery open to the Timeline view.
Figure 77 Gallery - Timeline View
Touch > Albums to view photos sorted by albums or > Videos to view only videos.
102
