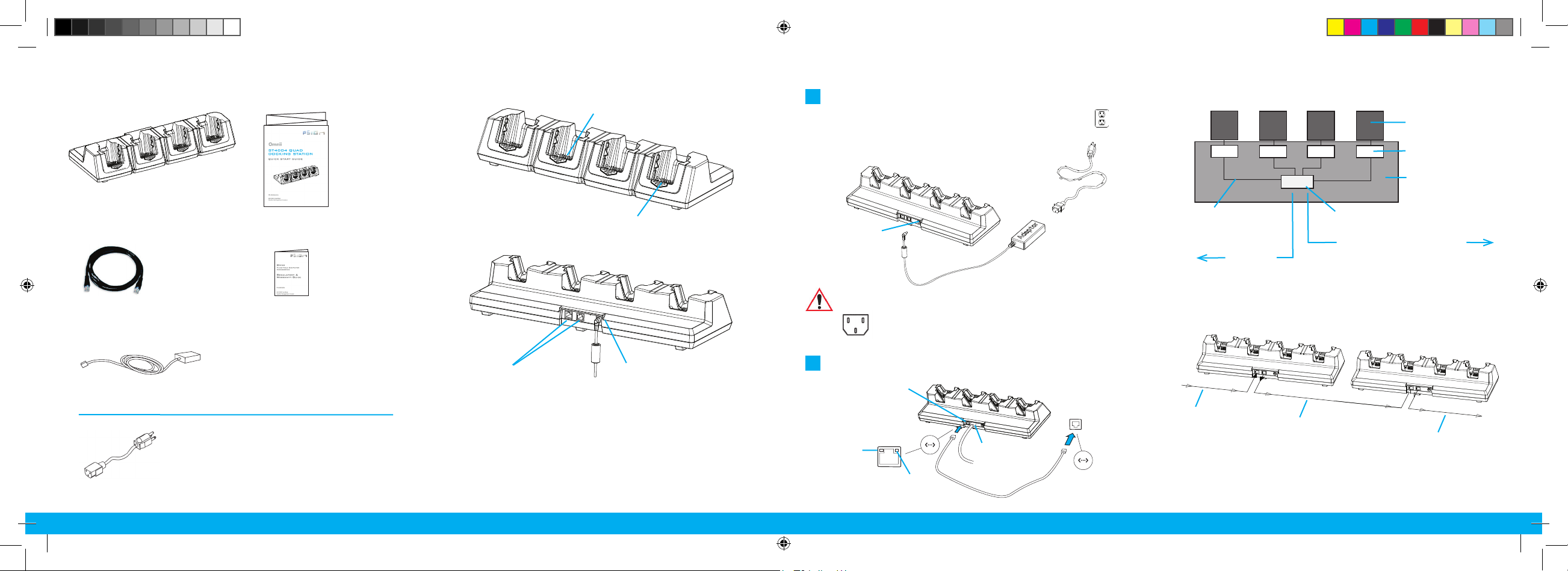

ST4004 Quad Docking Station
This Guide
FEAturESContEntS oF thE Box
Front
BACk
Charging compartment (quantity 4)
Docking connectors (quantity 4)
GEttInG StArtED
Connect the Docking Station to external power.
1
Note: Use only the universal AC power adaptor
approved by Psion for use with the Quad
Docking Station.
DC In connector
Power adaptor
AC outlet
Power
cord
The Ethernet connection in the Quad Docking Station
Internal Ethernet connection
10 or 100 Base-T Ethernet
To Ethernet
network
Ethernet hub
Daisy-chained to other ST4004
Quad Docking Stations
Omnii computers
(up to 4)
USB to Ethernet
converter (4)
Quad Docking Station
Ethernet cable (0.9 metre)
AC/DC Adaptor
Omnii Accessories
Regulatory & Warranty Guide
RJ45 Ethernet ports
DC In connector
opErAtIon
The ST4004 features:
> Fast charging of the Omnii internal battery for 4 units.
> An RJ45 10/100 Base-T Ethernet interface compatible with
the USB to Ethernet drivers included in Omnii.
Country-specific power cord, sold separately
8000222A.indd 1 8/19/2011 5:55:34 PM
> An additional Ethernet interface for connecting more
docking stations downstream, up to 4 on the same network.
Warning: Use an IEC320-C13 power cord approved by Psion,
2
Connect the Docking Station to an Ethernet network.
Left-side RJ45 port
(Ethernet connector
to network)
Activity LED
(flashing green)
with the ground pin connected to a proper earthgrounded receptacle. Check with a qualified electrician
if you are uncertain of your receptacle grounding.
Right-side RJ45 port
(Ethernet connector
to other docks)
Link LED
(solid amber)
10 or 100 Base-T
Ethernet connector
Maximum of four ST4004 Quad Docking Stations on one network cable
Ethernet
network
cable
Daisy chain cable
Daisy chain cable
ovEr
>
Insertion and removal of the Omnii computers.
3
Slide Omnii into the docking station until it latches.
Allow the Omnii computers to charge for 3-4 hours
4
before fi rst use.
To remove Omnii, push down on the release mechanism on the front face
of the docking bay. The hand-held will detach from the docking bay release
arms and can be pulled up and out.
Release arm
Note: Full battery performance is only
reached after the fi rst few
charge/discharge cycles.
0 - 40 °C
32 - 104 °F
3-4 h
Omnii Battery Charge LED Behaviour
Charge LED Behaviour Function
OFF No battery detected.
Solid Green Battery charging complete.
Flashing Green Charge in progress.
Flashing Yellow Battery is not charging due to out-of-temper-
Solid Red Unable to read battery or non Psion battery.
ature conditions.
ConnECtInG to An EthErnEt nEtWork
When an Omnii is inserted in the docking station, a dock icon is displayed in the taskbar at the bottom of the screen. The Omnii also detects the presence of the Ethernet network and automatically detects
and loads the appropriate drivers to communicate with the network.
© Copyright 2011 by Psion Inc.
2100 Meadowvale Boulevard, Mississauga, Ontario, Canada L5N 7J9
http://www.psion.com
Psion, the Psion logo, and the names of other products and services provided by
Psion are trademarks of Psion Inc. All trademarks used herein are the property of
their respective owners.
8000222
St4004 QuAD
DoCkInG StAtIon
QuICk StArt GuIDE
August 19, 2011
PN 8000222.A
ISO 9001 Certifi ed
Quality Management System
Release mechanism
8000222A.indd 2 8/19/2011 5:55:40 PM
