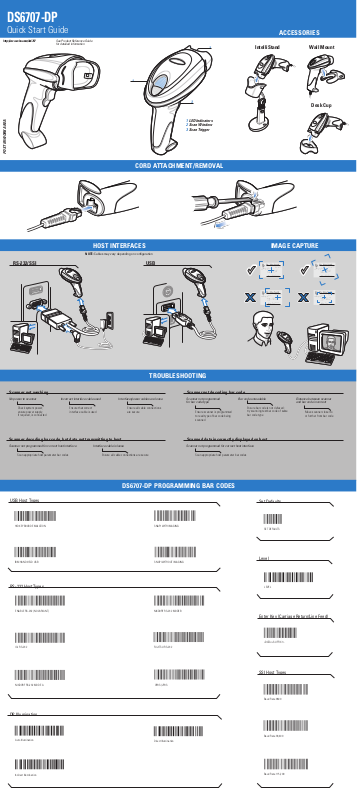

Zebra DS6707-DP Quick Start Manual

DS6707-DP

Quick Start Guide

http://www.zebra.com/ds6707

See Product Reference Guide
for detailed information

ACCESSORIES

2

1

3

1 LED Indicators
2 Scan Window
3 Scan Trigger

IntelliStand

Wall Mount

Desk Cup

POST IN WORK AREAPOST IN WORK AREA

CORD ATTACHMENT/REMOVAL

HOST INTERFACES IMAGE CAPTURE

NOTE: Cables may vary depending on configuration

RS-232/SSI

USB

Scanner not working

No power to scanner

Check system power;
ensure power supply,
if required, is connected

Incorrect interface cable used

Ensure that correct
interface cable is used

Interface/power cables are loose

Ensure all cable connections
are secure

Scanner decoding bar code, but data not transmitting to host

Scanner not programmed for correct host interface Interface cable is loose

Scan appropriate host parameter bar codes Ensure all cable connections are secure

TROUBLESHOOTING

Scanner not decoding bar code

Scanner not programmed
for bar code type

Ensure scanner is programmed
to read type of bar code being
scanned

Scanned data incorrectly displayed on host

Scanner not programmed for correct host interface

Scan appropriate host parameter bar codes

Bar code unreadable

Ensure bar code is not defaced;
try scanning test bar code of same
bar code type

Distance between scanner
and bar code incorrect

Move scanner closer to
or further from bar code

USB Host Types

HID KEYBOARD EMULATION

IBM HAND-HELD USB

RS-232 Host Types

DS6707-DP PROGRAMMING BAR CODES

SNAPI WITH IMAGING

SNAPI WITHOUT IMAGING

Set Defaults

SET DEFAULTS

Level

LEVEL

ENABLE RS-232 (NO VARIANT)

ICL RS-232

NIXDORF RS-232 MODE A

DP Illumination

NIXDORF RS-232 MODE B

Enter Key (Carriage Return/Line Feed)

<DATA><SUFFIX 1>

FUJITSU RS-232

SSI Host Types

OPOS/JPOS

Baud Rate 9600

Auto Illumination

Indirect Illumination

Baud Rate 38,400

Direct Illumination

Baud Rate 115,200

DS6707-DP

OPTIMUM SCANNING AND IMAGING

Aiming

2

1

012345

3

1 LED Indicators
2 Scan Window

012345

3 Scan Trigger

OPTIMUM ARM POSITION AVOID EXTREME WRIST ANGLES

012345

012345

AVOID BENDING AND REACHING

AVOID EXTREME

WRIST ANGLES

AVOID BENDING

AVOID REACHING

Alternate left and right hands

Alternate left and right hands

taking breaks and task rotation

taking breaks and task rotation

recommended

recommended

BEEPER INDICATIONS LED INDICATIONS

Standard Use

Low/medium/high beep

Power up

Parameter Menu Scanning

High/low/high/low beep

Successful
parameter
setting

Short medium beep

Bar code decoded

High/low beep

Correct programming
sequence performed

4 long low beeps

Transmission error
detected; data is
ignored

Low/high beep

Incorrect
programming
sequence or
“Cancel” bar code
scanned

123SCAN2

Off

Scanner is on
and ready to scan,
or no power to
scanner

Green

Bar code is successfully
decoded

Red

Transmission
error

Local Contact:

123Scan2 is an easy-to-use, PC-based software tool that enables rapid and easy customized setup

via a bar code or USB cable. For more information, visit: http://www.zebra.com/123Scan2.

DS6707-DP

© 2015 Symbol Technologies, Inc.

Zebra reserves the right to make changes to any product to improve reliability, function, or
design. Zebra does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein. No license is granted,
either expressly or by implication, estoppel, or otherwise under any patent right or patent,
covering or relating to any combination, system, apparatus, machine, material, method, or
process in which Zebra products might be used. An implied license exists only for equipment,
circuits, and subsystems contained in Zebra products.

Warranty

For the complete Zebra hardware product warranty statement, go to:
http://www.zebra.com/warranty

.

For Australia Only

For Australia Only. This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71
Robinson Road, #05-02/03, Singapore 068895, Singapore. Our goods come with guarantees
that cannot be excluded under the Australia Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major
failure. Zebra Technologies Corporation Australia’s limited warranty above is in addition to
any rights and remedies you may have under the Australian Consumer Law. If you have
any queries, please call Zebra Technologies Corporation at [phone]. You may also
visit our website: http://www.zebra.com for the most updated warranty terms.

Service Information

If you have a problem using the equipment, contact your facility’s Technical or Systems Support.
If there is a problem with the equipment, they will contact the Zebra Global Support Center at:
http://www.zebra.com/support.

For the latest version of this guide go to: http://www.zebra.com/support

Power Supply

Use ONLY a LISTED,Type no. 50-14000, or PWRS-14000, Direct Plug-In power
supply, marked Class 2 or LPS, or SELV, Rated 5 Vdc, 850 m A Min.
(IEC 60950-1). Use of alternative power supply will invalidate any approvals given
to this device and may be dangerous.

Waste Electrical and Electronic Equipment (WEEE)

English: For EU Customers: All products at the end of their life must be returned to
Zebra for recycling. For information on how to return product, please go to:
http://www.zebra.com/weee.

Bulgarish: За клиенти от ЕС: След края на полезния им живот всички продукти
трябва да се връщат на Zebra за рециклиране. За информация относно
връщането на продукти, моля отидете на адрес:

http://www.zebra.com/weee.

Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich

životnosti vrátit spoleènosti Zebra k recyklaci. Informace o zpùsobu vrácení produktu
najdete na webové stránce: http://www.zebra.com/weee.

Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når
de er udtjent. Læs oplysningerne om returnering af produkter på:
http://www.zebra.com/weee.

Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer

Lebensdauer zum Recycling an Zebra zurückgesandt werden. Informationen zur
Rücksendung von Produkten finden Sie unter

http://www.zebra.com/weee.

Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής
τους, πρέπει να επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες
πληροφορίες σχετικά με την επιστροφή ενός προϊόντος, επισκεφθείτε τη διεύθυνση
http://www.zebra.com/weee στο Διαδίκτυο.

Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada
taaskasutamise eesmärgil Zebra'ile. Lisainformatsiooni saamiseks toote tagastamise
kohta külastage palun aadressi: http://www.zebra.com/weee.

Español: Para clientes en la Unión Europea: todos los productos deberán

entregarse a Zebra al final de su ciclo de vida para que sean reciclados. Si desea
más información sobre cómo devolver un producto, visite:

http://www.zebra.com/weee.

Français: Clients de l'Union Européenne : Tous les produits en fin de cycle de vie
doivent être retournés à Zebra pour recyclage. Pour de plus amples informations sur

le retour de produits, consultez : http://www.zebra.com/weee.

Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo
ciclo di vita devono essere restituiti a Zebra al fine di consentirne il riciclaggio. Per
informazioni sulle modalità di restituzione, visitare il seguente sito Web:

http://www.zebra.com/weee.

Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā
atpakaļ Zebra otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu
Zebra, lūdzu, skatiet: http://www.zebra.com/weee.

Zebra Technologies Corporation
Lincolnshire, IL U.S.A.
http://www.zebra.com

Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The Symbol logo is a
registered trademark of Symbol Technologies, Inc., a Zebra Technologies company.

© 2015 Symbol Technologies Inc.

Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti
grąžinti utilizuoti į kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti gaminį,

rasite: http://www.zebra.com/weee.

Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz
kell eljuttatni újrahasznosítás céljából. A termék visszajuttatásának módjával
kapcsolatos tudnivalókért látogasson el a http://www.zebra.com/weee weboldalra.

Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu
tagħhom, iridu jiġu rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif
għandek tirritorna l-prodott, jekk jogħġbok żur:

http://www.zebra.com/weee.

Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun
levensduur naar Zebra te worden teruggezonden voor recycling. Raadpleeg
http://www.zebra.com/weee voor meer informatie over het terugzenden van

producten.

Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y

zwróciæ do firmy Zebra w celu ich utylizacji. Informacje na temat zwrotu produktów
znajduj¹ siê na stronie internetowej http://www.zebra.com/weee.

Português: Para clientes da UE: todos os produtos no fim de vida devem ser
devolvidos à Zebra para reciclagem. Para obter informações sobre como devolver o
produto, visite: http://www.zebra.com/weee.

Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de
funcţionare, trebuie returnate la Zebra pentru reciclare. Pentru informaţii despre
returnarea produsului, accesaţi: http://www.zebra.com/weee.

Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby
ich životnosti vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení
výrobkov nájdete na: http://www.zebra.com/weee.

Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti

Slovenski:

podjetju Zebra za reciklažo. Za informacije o vraèilu izdelka obišèite:

http://www.zebra.com/weee.

Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava

Suomi:

kierrätettäväksi Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen

palauttamisesta on osoitteessa http://www.zebra.com/weee.

För kunder inom EU: Alla produkter som uppnått sin livslängd måste

Svenska:

returneras till Zebra för återvinning. Information om hur du returnerar produkten finns

på http://www.zebra.com/weee.

AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için

Türkçe:

Zebra'ya iade edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu

adresi ziyaret edin: http://www.zebra.com/weee.

REGULATORY INFORMATION

Ergonomic Recommendations

Caution: In order to avoid or minimize the potential risk of ergonomic injury follow

the recommendations below. Consult with your local Health & Safety Manager to
ensure that you are adhering to your company's safety programs to prevent
employee injury.

• Reduce or eliminate repetitive motion

• Maintain a natural position

• Reduce or eliminate excessive force

• Keep objects that are used frequently within easy reach

• Perform tasks at correct heights

• Reduce or eliminate vibration

• Reduce or eliminate direct pressure

• Provide adjustable workstations

• Provide adequate clearance

• Provide a suitable working environment

• Improve work procedures.

Regulatory Information

This guide applies to Model Number: DS6707-DP. All Zebra devices are designed to be
compliant with rules and regulations in locations they are sold and will be labeled as
required.
Local language translations are available at the following website:
http://www.zebra.com/support.

Any changes or modifications to Zebra equipment, not expressly approved by Zebra, could
void the user’s authority to operate the equipment.
Antennas: Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could cause damage and may violate regulations.

Radio Frequency Interference Requirements

Note: This equipment has been tested and

found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide

FOR HOME OR OFFICE USE

reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
However there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

Radio Frequency Interference Requirements – Canada

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.

Marking and European Economic Area (EEA)

Statement of Compliance

Zebra hereby declares that this device is in compliance with all the applicable
Directives, 2004/108/EC, 2006/95/EC and 2011/65/EU. A Declaration of Conformity may be
obtained from http://www.zebra.com\doc.

Ukraine

Tested to comply
with FCC Standards

Laser Devices

Zebra products using lasers comply with US 21CFR1040.10
and1040.11 except for deviations pursuant to laser notice no.
50, dated June 24, 2007 and IEC 60825-1 (Ed. 2.0),
EN60825-1:2007.
The laser classification is marked on one of the labels on the product.

Class 1 Laser devices are not considered to be hazardous when used for their
intended purpose. The following statement is required to comply with US and
international regulations:
Caution: Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous laser light exposure.

Class 2 laser scanners use a low power, visible light diode. As with any very bright
light source, such as the sun, the user should avoid staring directly into the light
beam. Momentary exposure to a Class 2 laser is not known to be harmful.

Scanner Labeling

LASER LIGHT- DO NOT STARE INTO
BEAM . CLASS 2 LASER PRODUCT.

LASERSTRAHLUNG - NICHT IN DEN
STRAHL BLICKEN. LASER KLASSE 2.
LUMI»RE LASER - NE PAS REGARDER

DANS LE FAISCEAU. APPAREIL ¿ LASER

DE CLASSE 2 630-680nm, 1mW

72-117715-03 Revision B March 2015

DS6707-DP

http://www.zebra.com/ds6707

Recommended Usage Guide
