DS4608-HC
Digital Scanner
Quick Start Guide
MN-004107-01EN Rev. A
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in
many jurisdictions worldwide. All other trademarks are the property of their respective owners.
© 2021 Zebra Technologies Corporation and/or its affiliates. All rights reserved.
Information in this document is subject to change without notice. The software described in this document
is furnished under a license agreement or nondisclosure agreement. The software may be used or copied
only in accordance with the terms of those agreements.
For further information regarding legal and proprietary statements, please go to:
SOFTWARE:zebra.com/linkoslegal
COPYRIGHTS:zebra.com/copyright
WARRANTY:zebra.com/warranty
END USER LICENSE AGREEMENT: zebra.com/eula
Terms of Use
Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries
(“Zebra Technologies”). It is intended solely for the information and use of parties operating and
maintaining the equipment described herein. Such proprietary information may not be used, reproduced,
or disclosed to any other parties for any other purpose without the express, written permission of Zebra
Technologies.
Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are
subject to change without notice.
Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are
correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and
disclaims liability resulting therefrom.
Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever
(including, without limitation, consequential damages including loss of business profits, business
interruption, or loss of business information) arising out of the use of, the results of use of, or inability to
use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
Publication Date
March 12, 2021
2
Introduction
3
2
1
This guide provides basic instructions for setting up, programming, and using DS4608-HC scanners.
Features
DS4608-HC Digital Scanner Quick Start Guide
1 LED Indicator
2 Scan Window
3 Scan Trigger
Presentation Mode
3
DS4608-HC Digital Scanner Quick Start Guide
Connect a USB Host Interface
The scanner automatically detects the host interface type and uses the default setting.
Useful Barcodes
NOTE: An asterisk (*) indicates the default setting.
Set Defaults
Add a Tab Key
To add a Tab key after scanned data, scan the barcode below.
*
USB Keyboard HID
Return to Factory Defaults
Add a Tab Key
4
DS4608-HC Digital Scanner Quick Start Guide
Add an Enter Key (Carriage Return/Line Feed)
To add an Enter key after scanned data, scan the barcode below.
Add Enter Key (Carriage Return/line Feed)
USB Caps Lock Override
USB-Override Caps Lock Key
(Enable)
Night Mode with Vibrate
Enable Night Mode Trigger
* USB - Do Not Override Caps Lock Key
(Disable)
* Disable Night Mode Trigger
Toggle Night Mode
5
DS4608-HC Digital Scanner Quick Start Guide
Picklist Mode
Picklist Mode enables you to pick out and decode a barcode from a group of barcodes that are printed
close together by placing the aiming pattern on the barcode you want to decode.
Enable Picklist Mode in Hand-held Mode
ISBT Blood Bag Concatenation
* Disable Picklist Mode Always
Select an option for concatenating pairs of ISBT code types:
• Enable ISBT Concatenation (default) - Two ISBT barcodes are required for decode.
• Disable ISBT Concatenation - ISBT barcodes are decoded as individual barcodes.
• Autodiscriminate ISBT Concatenation - If a pair of ISBT barcodes is present, the scanner
concatenates. Or else, a single barcode is transmitted.
* Enable ISBT Concatenation
Disable ISBT Concatenation
Autodiscriminate ISBT Concatenation
6

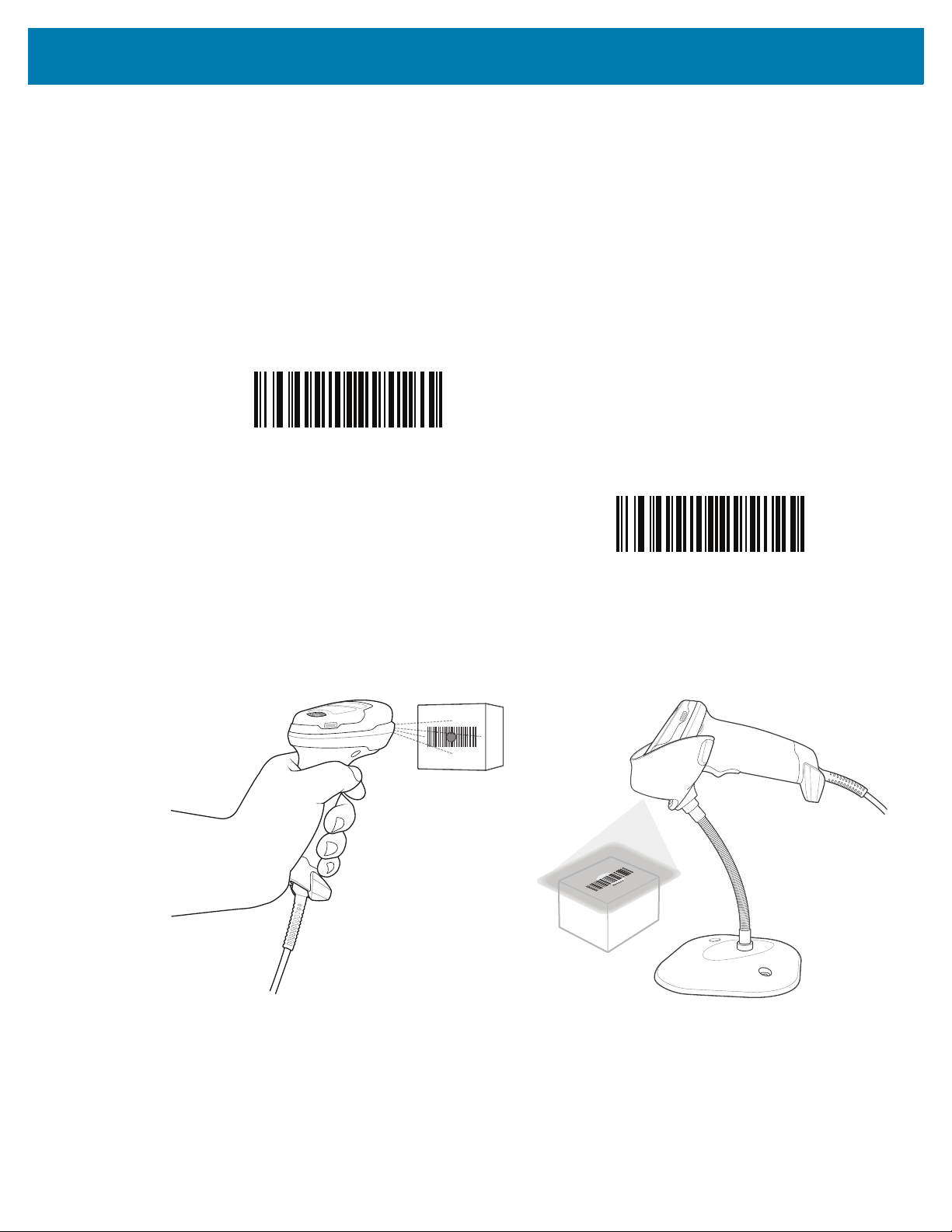

Hands-Free Mode
Hand-Held
Hands-Free (Presentation)
DS4608-HC Digital Scanner Quick Start Guide
Scan one of the following barcodes to enable or disable the
• Enable Hands-free Mode (default) - When the scanner is in the presentation cradle or Intellistand, it
turns the illumination on slightly to detect the presence of a barcode and automatically triggers when a
barcode is detected. Lifting the scanner causes it to behave according to the setting of the Hand-Held
Trigger Mode.
• Disable Hands-free Mode - The scanner behaves according to the setting of the Hand-Held Trigger
Mode whether or not it is in a cradle or Intellistand. The illumination only turns on when the scanner is
lifted or when the trigger is pulled, depending on which Hand-Held Trigger Mode is selected.
Hands-free
mode.
* Enable Hands-free Mode
Disable Hands-free Mode
Scanning
7
DS4608-HC Digital Scanner Quick Start Guide
012345 012345
Hand-Held Aiming
User Indications By Default
Indication Beeper Sequence
Power up. Low/medium/high beeps
Barcode decoded. Short beep, tone programmable
Transmission error detected; data is ignored. 4 long low beeps
Successful parameter setting. High/low/high/low beeps
Keyboard parameter selected. Enter value using numeric
barcodes.
Incorrect programming sequence, or Cancel barcode
scanned.
Indication LED Indicator
Hand-Held Scanning
Scanner is on and ready to scan, or no power to scanner. Off
Barcode is successfully decoded. Green flash
Transmission error. Red
Hands-Free (Presentation) Scanning
No power to scanner or the scanner is in low power mode. Off
Scanner is ready to scan. Green
Barcode is successfully decoded. Momentarily off
High/low beeps
Low/high beeps
Transmission error. Red
8
123Scan
123Scan is an easy-to-use, PC-based software tool that enables rapid and easy customized setup of a
scanner via a bar code or USB cable. For more information, visit: zebra.com/123Scan
Utility Functionality
• Device configuration
• Electronic programming (USB cable)
• Programming bar code(s)
• Data view - scan log (display scanned bar code data)
• Access asset tracking information
• Upgrade firmware and view release notes
• Remote management (SMS package generation).
Troubleshooting
DS4608-HC Digital Scanner Quick Start Guide
.
Imager not working
No power to scanner. Connect scanner to powered host, or connect power
supply.
Imager is disabled. Ensure that correct host interface cable is used.
Imager decoding barcode, but data not transmitting to host
Host interface not configured properly. Scan appropriate host parameter barcodes.
Interface cable is loose. Ensure all cable connections are secure.
Invalid ADF Rule. Program the correct ADF rules.
Imager not decoding barcode
Imager not programmed for barcode type. Ensure scanner is programmed to read type of barcode
being scanned.
Barcode unreadable. Ensure barcode is not defaced; try scanning test
barcode of same barcode type.
Distance between scanner and barcode
incorrect.
Scanned data incorrectly displayed on host
Host interface not configured properly. Scan appropriate host parameter barcodes.
Region improperly configured. Select appropriate country and language encoding
Move scanner closer to, or further from barcode.
scheme.
