DS4608
Digital Scanner
Quick Start Guide
MN-003599-01EN Rev. A
Copyright
ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many
jurisdictions worldwide. All other trademarks are the property of their respective owners. ©2019 Zebra
Technologies Corporation and/or its affiliates. All rights reserved.
COPYRIGHTS & TRADEMARKS: For complete copyright and trademark information, go to
www.zebra.com/copyright.
WARRANTY: For complete warranty information, go to www.zebra.com/warranty.
END USER LICENSE AGREEMENT: For complete EULA information, go to www.zebra.com/eula
For Australia Only
For Australia Only. This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71 Robinson Road,
#05-02/03, Singapore 068895, Singapore. Our goods come with guarantees that cannot be excluded under the
Australia Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any
other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Zebra Technologies Corporation Australia’s limited warranty above is in addition to any rights and remedies you
may have under the Australian Consumer Law. If you have any queries, please call Zebra Technologies
Corporation at +65 6858 0722. You may also visit our website: www.zebra.com
terms.
DS4608 Digital Scanner Quick Start Guide
.
for the most updated warranty
Terms of Use
Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra
Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment
described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for
any other purpose without the express, written permission of Zebra Technologies.
Product Improvements
Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject
to change without notice.
Liability Disclaimer
Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct;
however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability
resulting therefrom.
Limitation of Liability
In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any damages whatsoever (including,
without limitation, consequential damages including loss of business profits, business interruption, or loss of
business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra
Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
2
Features
Scan Trigger
Scan Window
LED Indicator
DS4608 Digital Scanner Quick Start Guide
Presentation Mode
3
DS4608 Digital Scanner Quick Start Guide
Connect Host Interface
USB
The imager automatically detects the host interface type and uses the default setting. If the default (*) does not
meet your requirements, scan another host barcode below.
*
USB Keyboard HID
OPOS
(IBM Hand-Held with Full Disable)
IBM Hand-Held USB
SNAPI with Imaging
4
DS4608 Digital Scanner Quick Start Guide
RS-232
The imager automatically detects the host interface type and uses the default setting. If the default (*) does not
meet your requirements, scan another host barcode below.
*Standard RS-232
Nixdorf RS-232 Mode A
OPOS/JPOS
ICL RS-232
Nixdorf RS-232 Mode B
Fujitsu RS-232
5
DS4608 Digital Scanner Quick Start Guide
IBM 46XX
Theimagerautomaticallydetectsthehostinterfacetype,butthereisnodefaultsetting.Scanoneofthe
barcodesbelowtoselecttheappropriateport.
Non-IBM Scanner Emulation (Port 5B)
Table-Top Scanner Emulation (Port 17)
Hand-Held Scanner Emulation (Port 9B)
6
DS4608 Digital Scanner Quick Start Guide
Keyboard Wedge
The imager automatically detects the host interface type and uses the default setting. If the default (*) does not
meet your requirements, scan the IBM PC/AT and IBM PC COMPATIBLE barcode below.
*IBM AT Notebook
Set Defaults
Add a Tab Key
To add a Tab key after scanned data, scan the barcode below.
IBM PC/AT & IBM PC Compatible
Return to Factory Defaults
Add a Tab Key
7
DS4608 Digital Scanner Quick Start Guide

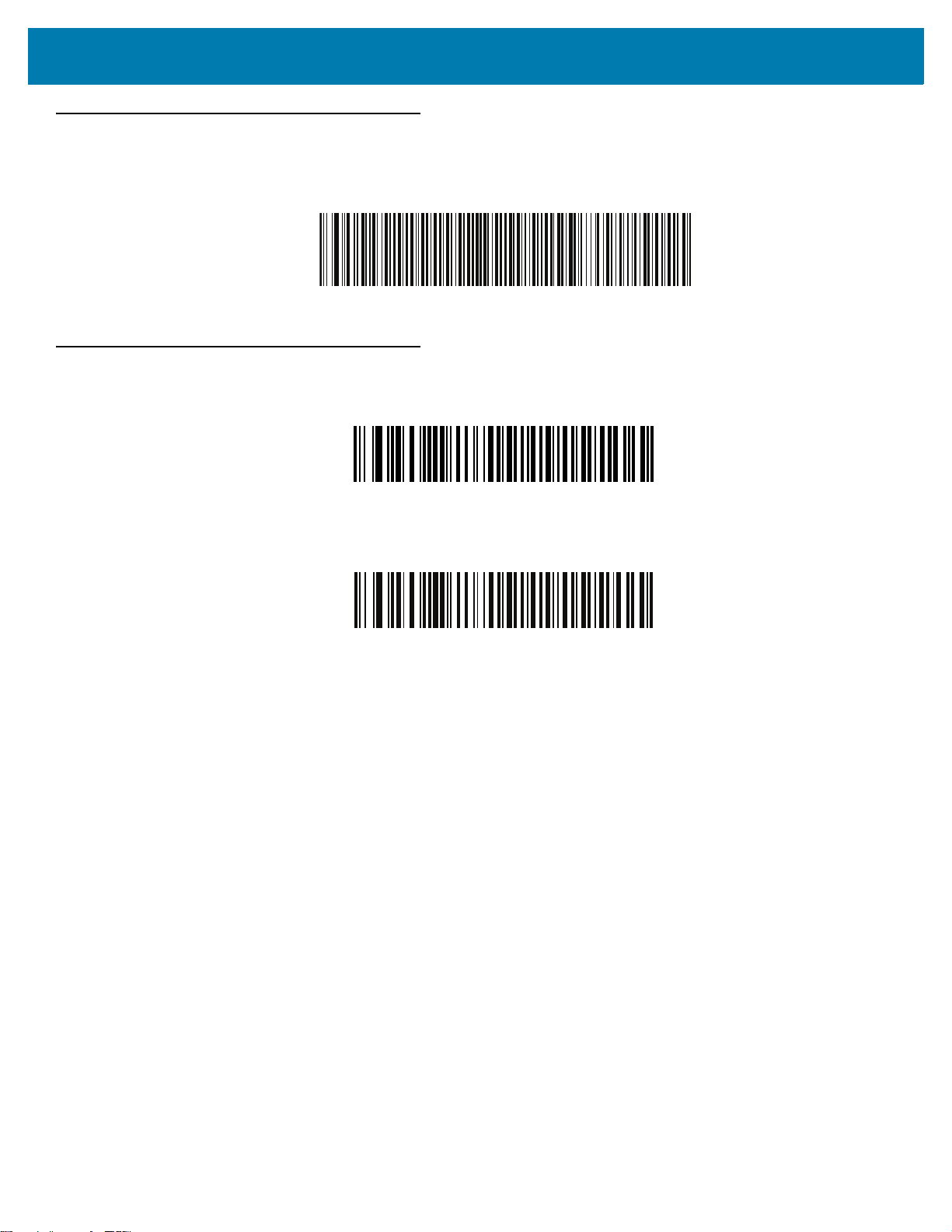

Add an Enter Key (Carriage Return /Line Feed)
To add an Enter key after scanned data, scan the barcode below.
Add Enter Key
USB Caps Lock Override
USB-Override Caps Lock Key
(Enable)
*USB - Do Not Override Caps Lock Key
(Disable)
8
Scanning
Hand-Held
Hands-Free (Presentation)
DS4608 Digital Scanner Quick Start Guide
Hand-Held Aiming
User Indications By Default
Power up. Low/medium/high beeps
Barcode decoded. Short beep, tone programmable
Indication Beeper Sequence
Transmission error detected; data is ignored. 4 long low beeps
Successful parameter setting. High/low/high/low beeps
Keyboard parameter selected. Enter value using numeric barcodes. High/low beeps
Incorrect programming sequence, or Cancel barcode scanned. Low/high beeps
9
Hand-Held Scanning
Imager is on and ready to scan, or no power to scanner. Off
Barcode is successfully decoded. Green
Transmission error. Red
Hands-Free (Presentation) Scanning
No power to scanner or the scanner is in low power mode. Off
Imager is ready to scan. Green
Barcode is successfully decoded. Momentarily off
Transmission error. Red
123Scan
DS4608 Digital Scanner Quick Start Guide
Indication LED Indicator
123Scan is an easy-to-use, PC-based software tool that enables rapid and easy customized setup of a scanner via
a barcode or USB cable. For more information, visit: www.zebra.com/123Scan
Utility Functionality
• Device configuration
• Electronic programming (USB cable)
• Programming barcode(s)
• Data view - scan log (display scanned barcode data)
• Access asset tracking information
• Upgrade firmware and view release notes
• Remote management (SMS package generation).
Troubleshooting
.
10
DS4608 Digital Scanner Quick Start Guide
Imager not working
No power to scanner. Connect scanner to powered host, or connect power supply.
Imager is disabled. Ensure that correct host interface cable is used.
Imager decoding barcode, but data not transmitting to host
Host interface not configured properly. Scan appropriate host parameter barcodes.
Interface cable is loose. Ensure all cable connections are secure.
Invalid ADF Rule. Program the correct ADF rules.
Imager not decoding barcode
Imager not programmed for barcode type. Ensure scanner is programmed to read type of barcode being
scanned.
Barcode unreadable. Ensure barcode is not defaced; try scanning test barcode of same
barcode type.
Distance between scanner and bar code
incorrect.
Scanned data incorrectly displayed on host
Host interface not configured properly. Scan appropriate host parameter barcodes.
Region improperly configured. Select appropriate country and language encoding scheme.
Move scanner closer to, or further from barcode.
11
DS4608 Digital Scanner Quick Start Guide
Alternate left and right hands taking breaks and task
rotation recommended.
Recommended Usage Guide
12
DS4608 Digital Scanner Quick Start Guide
Health and Safety Recommendations
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below.
Consult with your local Health & Safety Manager to ensure that you are adhering to your company's safety
programs to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Regulatory Information
This device is approved under Zebra Technologies Corporation.
This guide applies to Model Number DS4608.
All Zebra devices are designed to be compliant with the rules and regulations in the locations they are sold and will
be labeled as required.
Local language translations are available at the following website: www.zebra.com/support
Any changes or modifications to Zebra equipment not expressly approved by Zebra could void the user's authority
to operate the equipment.
Declared maximum operating temperature: 50°C.
LED Devices
Classified as 'EXEMPT RISK GROUP' according to IEC 62471:2006 and EN 62471:2008.
Pulse duration: 15.2 ms
Power Supply
.
Use only a Zebra approved, certified LPS power supply rated 5.2Vdc, Min. 1.1A, 50 Deg. C. Use of any alternative
power supply will invalidate the product warranty and may be dangerous.
13
DS4608 Digital Scanner Quick Start Guide
Tested to comply
with FCC Standards
FOR HOME OR OFFICE USE
ꩡ끞녅 껽驩ꓭ
넩韥韥鱉閵뇊끞%鞾냱ꈑ놹녅볁놶뼞麦ꈒ냹
뼑韥韥ꈑ늱ꈑ閵뇊꾅ꩡ끞뼍鱉阸냹ꑞ놶
냱ꈑ뼍ꐥꑝ麕덵꾢꾅ꩡ끞뼕ꯍ넽걪鱽鲙
韥 눺 ꙹ
%鞾 韥韥
閵뇊끞ꗞꭖ뭪겕韥韥
Radio Frequency Interference Requirements
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Frequency Interference Requirements - Canada
Innovation, Science and Economic Development Canada ICES-003.
Compliance Label: CAN ICES-3 (B)/NMB-3(B).
Marking and European Economic Area (EEA)
Statement of Compliance
Zebra hereby declares that this device is in compliance with all the applicable Directives, 2014/30/EU, 2014/35/EU
and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address:
www.zebra.com/doc
Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
Korea Warning Statement for Class B ITE
.
China
忂彯孧斖ẍᶳ仹⛨⎗ᶳ弥⛘宕妨㓗㊩䘬ṏ⑩宜㖶Ḏ
14
DS4608 Digital Scanner Quick Start Guide
www.zebra.com/support
China RoHS Disclosure Table
部件名称
(Parts)
金属部件
(Metal Parts)
电路模块
(Circuit Modules)
电缆及电缆组件
(Cables and Cable Assemblies)
塑料和聚合物部件
(Plastic and Polymeric Parts)
光学和光学组件
(Optics and Optical Components)
电池
(Batteries)
本表格依据SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。(企业可在此处，根据实际情况对上表中打“×”的技术原因进行进一步说
明。）
This table was created to comply with China RoHS requirements.
铅
(Pb)汞(Hg)镉(Cd)
XOO O O O
XOO O O O
OOO O O O
OOO O O O
OOO O O O
OOO O O O
有害物质
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
15
DS4608 Digital Scanner Quick Start Guide
Taiwan
臺灣
公司資訊
台灣斑馬科技股份有限公司 / 台北市信義區松高路 9 號 13 樓
Taiwan RoHS Disclosure Table
限用物質含有情況標示聲明書
設備名稱： DS4608 型號 （型式）： Scanner
Type designation (Type)
單元
Unit
印刷電路板及電子組件
金屬零件
電纜及電纜組件
塑料和聚合物零件
光學與光學元件
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值。
Note 1: “Exceeding 0.1 wt%” and “exceeding 0.01 wt%” indicate that the percentage content of the restricted substance exceeds the reference percentage value of
presence condition.
備考2.〝O〞係指該項限用物質之百分比含量未超出百分比含量基準值。
Note 2: “O” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
備考3.〝−〞係指該項限用物質為排除項目。
Note 3: The “−” indicates that the restricted substance corresponds to the exemption.
Restricted substances and its chemical symbols
鉛
(Pb)汞(Hg)鎘(Cd)
−OO O O O
−OO O O O
OOO O O O
OOO O O O
OOO O O O
限用物質及其化學符號
(Cr
多溴聯苯
+6
)
(PBB)
六價鉻
多溴二苯醚
(PBDE)
Eurasian Customs Union
Евразийский Таможенный Союз
Данный продукт соответствует требованиям знака EAC.
TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
16
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling. For
information on how to return product, please go to: www.zebra.com/weee
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie doivent être retournés à Zebra
pour recyclage. Pour de plus amples informations sur le retour de produits, consultez : www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de su ciclo
de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto, visite:
www.zebra.com/weee.
Български: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се връщат на
Zebra за рециклиране. За информация относно връщането на продукти, моля отидете на адрес:
www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum Recycling an
Zebra zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie unter
www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono essere
restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il
seguente sito Web: www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para reciclagem.
Para obter informações sobre como devolver o produto, visite: www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra te
worden teruggezonden voor recycling. Raadpleeg www.zebra.com/weee voor meer informatie over het
terugzenden van producten.
.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji naleźy zwrócić do firmy Zebra w celu
ich utylizacji. Informacje na temat zwrotu produktów znajdują się na stronie internetowej www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit spoleènosti Zebra
k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové stránce: www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil Zebra'ile.
Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi: www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni újrahasznosítás
céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el a www.zebra.com/weee
weboldalra.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för återvinning.
Information om hur du returnerar produkten finns på www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Zebra-yhtiöön, kun
tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs
oplysningerne om returnering af produkter på: www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται
στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή ενός προϊόντος,
επισκεφθείτε τη διεύθυνση www.zebra.com/weee στο Διαδίκτυο.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu rritornati
għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk jogħġbok żur:
www.zebra.com/weee.
www.zebra.com
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie returnate la
Zebra pentru reciclare. Pentru informaţii despre returnarea produsului, accesaţi: www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za reciklažo. Za
informacije o vračilu izdelka obiščite: www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti vrátené
spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na: www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į kompaniją
„Zebra“. Daugiau informacijos, kaip grąžinti gaminį, rasite: www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra otrreizējai
pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet: www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade edilmelidir.
Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin: www.zebra.com/weee.
Hrvatski: Za kupce u Europskoj uniji: Svi se proizvodi po isteku vijeka trajanja moraju vratiti tvrtki Zebra na
recikliranje. Informacije o načinu vraćanja proizvoda potražite na web-stranici: www.zebra.com/weee.
www.zebra.com
Loading...
