Zanussi ZDF2021 User Manual
EN
User manual
Dishwasher
ZDF2021
Contents
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Programmes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 10
Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Technical information _ _ _ _ _ _ _ _ _ _ _ 12
Environment concerns _ _ _ _ _ _ _ _ _ _ _ 13
Subject to change without notice.
Safety instructions
Before the installation and use of the appliance, carefully read the supplied instructions.
The manufacturer is not responsible if an incorrect installation and use causes injuries and
damages. Always keep the instructions with
the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or
permanent disability.
• Do not let persons, children included, with
reduced physical sensory, reduced mental
functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of
the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information on
the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof
socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact
the service or an electrician to change a
damaged mains cable.
• Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is necessary
to change the fuse in the mains plug, use a
13 amp ASTA (BS 1362) fuse.
•
This appliance complies with the E.E.C. Directives.
Water connection
• Make sure not to cause damage to the water hoses.
• The appliance is to be connected to the water mains using the new supplied hose-sets.
Old hose sets must not be reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time, let
the water flow until it is clean.
2
www.zanussi.com
• The first time you use the appliance, make
sure that there is no leakage.
Use
• This appliance is intended to be used in
household and similar applications such as:
– Staff kitchen areas in shops, offices and
other working environments
– Farm houses
– By clients in hotels, motels and other resi-
dential type environments
– Bed and breakfast type environments.
Warning! Risk of injury, burns, electrical
shock or fire.
• Do not change the specification of this appliance.
• Put knives and cutlery with sharp points in
the cutlery basket with the points down or in
a horizontal position.
• Do not keep the appliance door open without supervision to prevent to fall on it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the
appliance.
• Do not remove the dishes from the appliance until the programme is completed.
There can be detergent on the dishes.
• The appliance can release hot steam if you
open the door while a programme operates.
• Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
• Do not use water spray and steam to clean
the appliance.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children
and pets to get closed in the appliance.
Service
• Contact the Service to repair the appliance.
We recommend only the use of original
spare parts.
• When you contact the Service, ensure that
you have the following information that is
available on the rating plate.
Model :
PNC :
Serial Number :
Product description
2
1
3
4
5
10
9
7
8
6
1
Worktop
2
Lower spray arm
3
Filters
4
Rating plate
5
Rinse aid dispenser
6
Detergent dispenser
7
Salt container
8
Water hardness dial
9
Upper spray arm
10
Upper basket
3
www.zanussi.com
Control panel
3
421
5678
1
Programme marker
2
Off position
3
Indicators
4
Display
5
Delay button
6
Cancel button
7
Start button
8
Programme knob
Indicators Description
Washing phase indicator.
Drying phase indicator.
End indicator.
Rinse aid indicator. This indicator is off while the programme operates.
Salt indicator. This indicator is off while the programme operates.
Programmes
Programme
1)
Degree of soil
Type of load
Programme
phases
Duration
(min)
Energy
(kWh)
Water
(l)
2)
Normal soil
Crockery and
cutlery
Prewash
Wash 50 °C
Rinses
Dry
168 1.01 12.4
Heavy soil
Crockery, cutlery, pots and
pans
Prewash
Wash 70 °C
Rinses
Dry
90 - 100 1.9 - 2.0 20 - 22
Normal soil
Crockery and
cutlery
Prewash
Wash 65 °C
Rinses
Dry
100 - 110 1.4 - 1.5 15 - 17
4
www.zanussi.com
Programme
1)
Degree of soil
Type of load
Programme
phases
Duration
(min)
Energy
(kWh)
Water
(l)
3)
Fresh soil
Crockery and
cutlery
Wash 65 °C
Rinse
30 0.8 8
4)
All Prewash 12 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the
quantity of dishes can change the programme duration and the consumption values.
2) With this programme you have the most efficient use of water and energy consumption for crockery and
cutlery with normal soil. (This is the standard programme for test institutes).
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes
and bad odours to come out from the appliance.
Do not use detergent with this programme.
Information for test institutes
For all the necessary information for test performance. send an email to:
info.test@dishwasher-production.com
Write down the product number (PNC) that is on the rating plate.
Before first use
1. Make sure that the set level of the water
softener agrees with the water hardness in
your area. If not, adjust the water softener.
Contact your local water authority to know
the water hardness in your area.

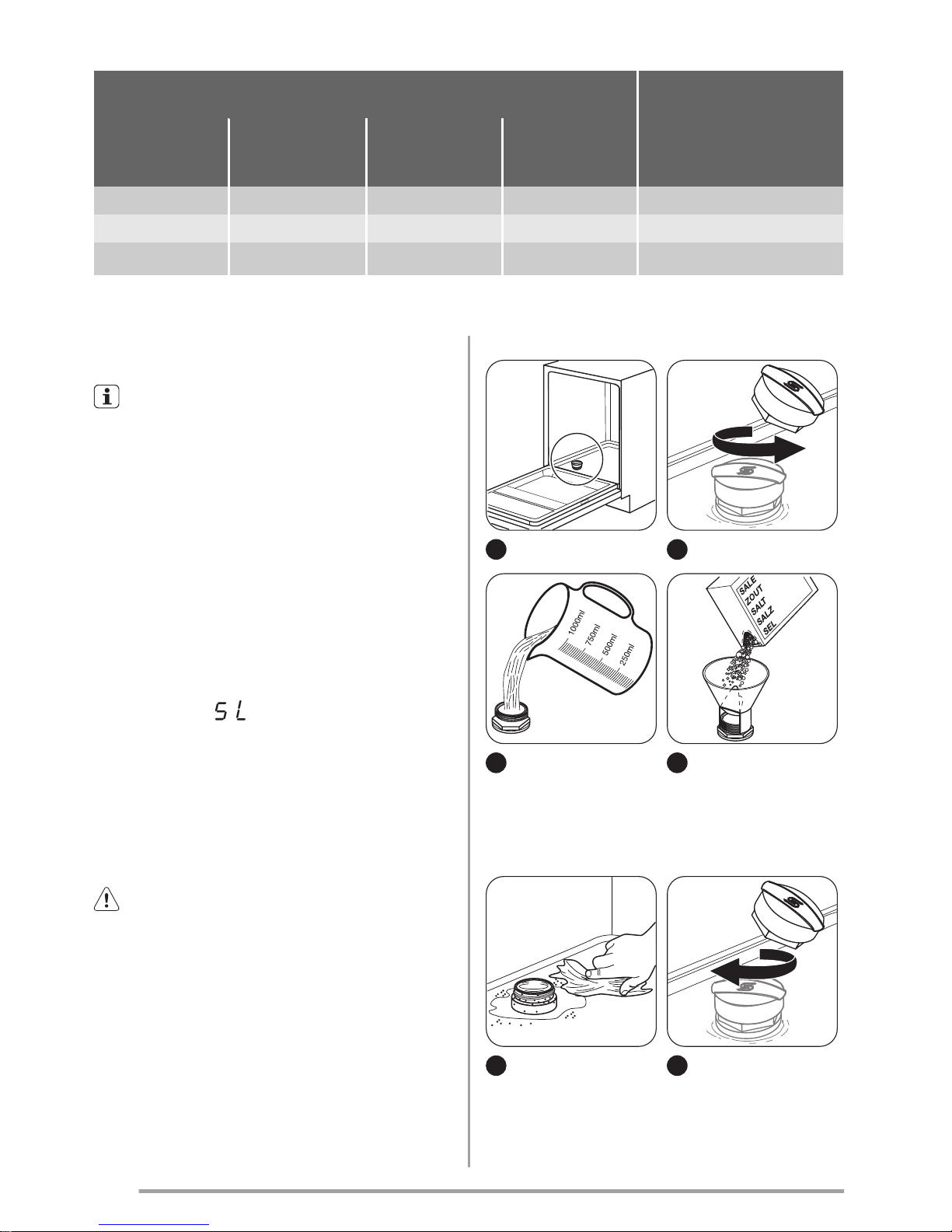

2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Processing residues can stay in the appliance. Start a programme to remove them.
Do not use detergent and do not load the
baskets.

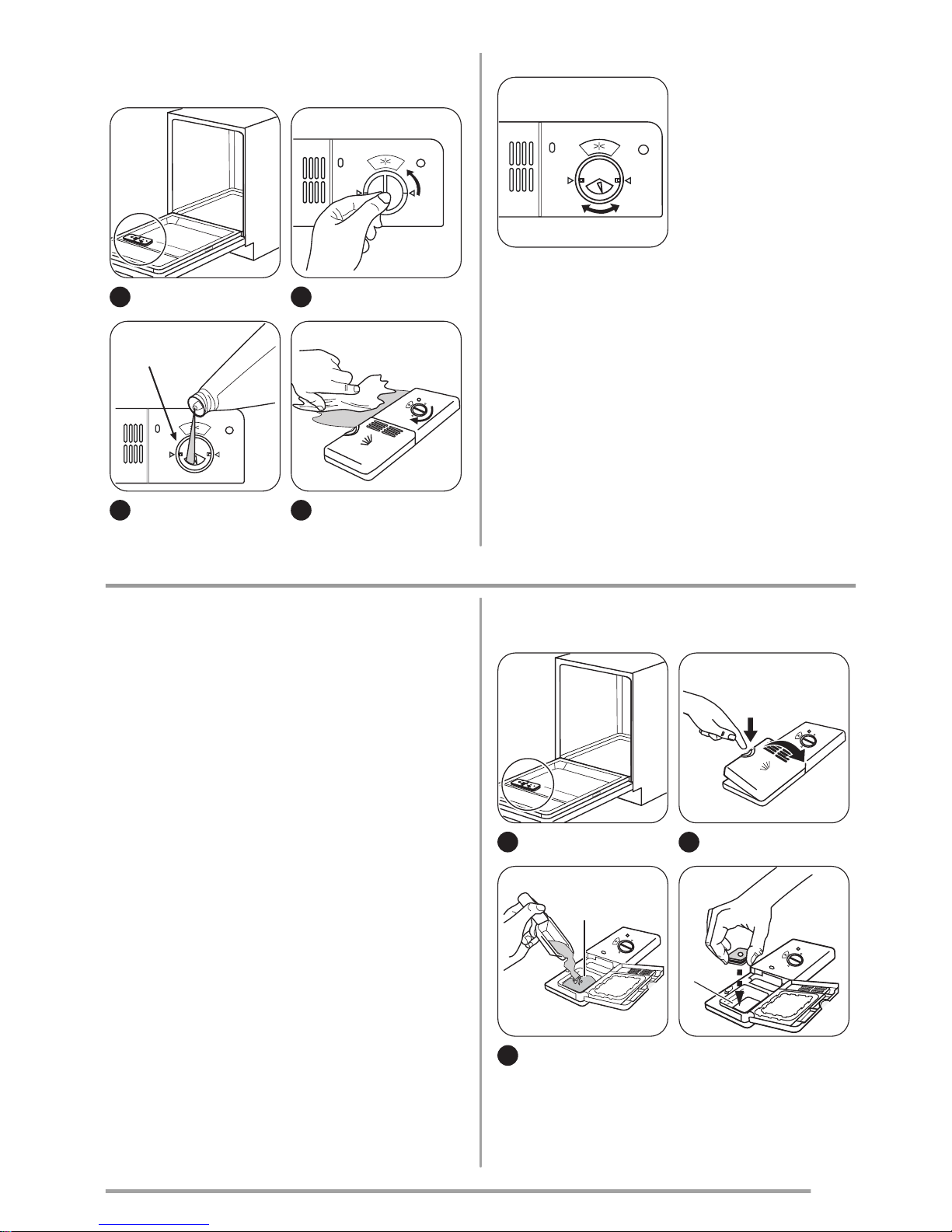

Adjusting the water softener
Water hardness
Water softener
adjustment
German
degrees
(°dH)
French
degrees
(°fH)
mmol/l Clarke
degrees
Level
47 - 50 84 - 90 8.4. - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27
5
1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
5
www.zanussi.com
Loading...
