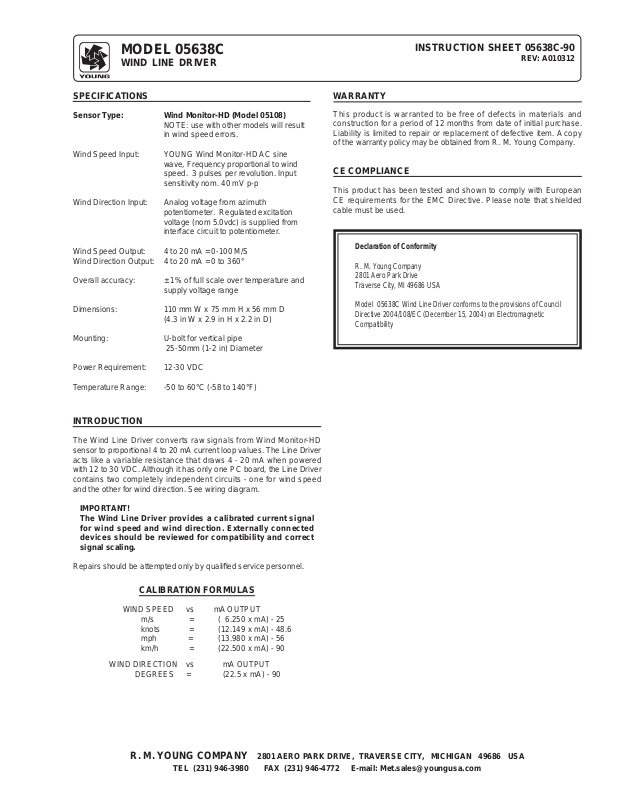

Young 05638C User Manual

MODEL 05638C

WIND LINE DRIVER

INSTRUCTION SHEET 05638C-90

REV: A010312

SPECIFICATIONS

Sensor Type: Wind Monitor-HD (Model 05108)

NOTE: use with other models will result

in wind speed errors.

Wind Speed Input: YOUNG Wind Monitor-HD AC sine

wave, Frequency proportional to wind
speed. 3 pulses per revolution. Input
sensitivity nom. 40 mV p-p

Wind Direction Input: Analog voltage from azimuth

potentiometer. Regulated excitation
voltage (nom 5.0vdc) is supplied from
interface circuit to potentiometer.

Wind Speed Output: 4 to 20 mA = 0-100 M/S
Wind Direction Output: 4 to 20 mA = 0 to 360°

Overall accuracy: ± 1% of full scale over temperature and

supply voltage range

Dimensions: 110 mm W x 75 mm H x 56 mm D

(4.3 in W x 2.9 in H x 2.2 in D)

Mounting: U-bolt for vertical pipe

25-50mm (1-2 in) Diameter
Power Requirement: 12-30 VDC
Temperature Range: -50 to 60°C (-58 to 140°F)

WARRANTY

This product is warranted to be free of defects in materials and
construction for a period of 12 months from date of initial purchase.
Liability is limited to repair or replacement of defective item. A copy
of the warranty policy may be obtained from R. M. Young Company.

CE COMPLIANCE

This product has been tested and shown to comply with European
CE requirements for the EMC Directive. Please note that shielded
cable must be used.

Declaration of Conformity

R. M. Young Company
2801 Aero Park Drive
Traverse City, MI 49686 USA

Model 05638C Wind Line Driver conforms to the provisions of Council
Directive 2004/108/EC (December 15, 2004) on Electromagnetic
Compatibility

INTRODUCTION

The Wind Line Driver converts raw signals from Wind Monitor-HD
sensor to proportional 4 to 20 mA current loop values. The Line Driver
acts like a variable resistance that draws 4 - 20 mA when powered
with 12 to 30 VDC. Although it has only one PC board, the Line Driver
contains two completely independent circuits - one for wind speed
and the other for wind direction. See wiring diagram.

IMPORTANT!
The Wind Line Driver provides a calibrated current signal
for wind speed and wind direction. Externally connected
devices should be reviewed for compatibility and correct
signal scaling.

Repairs should be attempted only by qualifi ed service personnel.

CALIBRATION FORMULAS

WIND SPEED vs mA OUTPUT

m/s = ( 6.250 x mA) - 25
knots = (12.149 x mA) - 48.6
mph = (13.980 x mA) - 56
km/h = (22.500 x mA) - 90

WIND DIRECTION vs mA OUTPUT
DEGREES = (22.5 x mA) - 90
