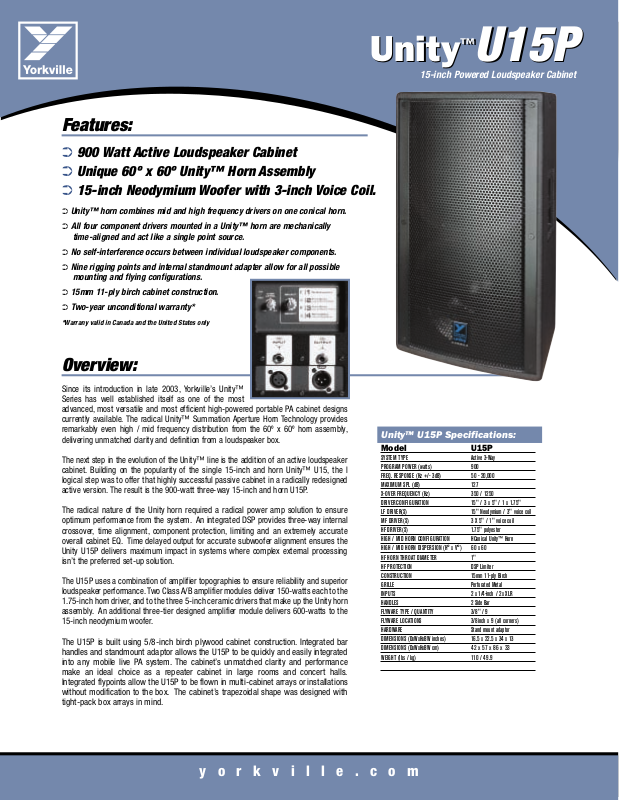

Yorkville UNITY U15P User Manual

Features:

➲ 900 Watt Active Loudspeaker Cabinet
➲ Unique 60º x 60º Unity™ Horn Assembly
➲ 15-inch Neodymium Woofer with 3-inch Voice Coil.

➲ Unity™ horn combines mid and high frequency drivers on one conical horn.

➲ All four component drivers mounted in a Unity™ horn are mechanically

time-aligned and act like a single point source.

➲ No self-interference occurs between individual loudspeaker components.

➲ Nine rigging points and internal standmount adapter allow for all possible

mounting and flying configurations.

➲ 15mm 11-ply birch cabinet construction.

➲ Two-year unconditional warranty*

*Warrany valid in Canada and the United States only

Unity

Unity

15-inch Powered Loudspeaker Cabinet

™

™

U15P

U15P

Overview:

Since its introduction in late 2003, Yorkville’s Unity™
Series has well established itself as one of the most
advanced, most versatile and most efficient high-powered portable PA cabinet designs
currently available. The radical Unity™ Summation Aperture Horn Technology provides
remarkably even high / mid frequency distribution from the 60º x 60º horn assembly,
delivering unmatched clarity and definition from a loudspeaker box.

The next step in the evolution of the Unity™ line is the addition of an active loudspeaker
cabinet. Building on the popularity of the single 15-inch and horn Unity™ U15, the l
logical step was to offer that highly successful passive cabinet in a radically redesigned
active version. The result is the 900-watt three-way 15-inch and horn U15P.

The radical nature of the Unity horn required a radical power amp solution to ensure
optimum performance from the system.
crossover, time alignment, component protection, limiting and an extremely accurate
overall cabinet EQ. Time delayed output for accurate subwoofer alignment ensures the
Unity U15P delivers maximum impact in systems where complex external processing
isn’t the preferred set-up solution.

The U15P uses a combina
loudspeaker performance. Two Class A/B amplifier modules deliver 150-watts each to the

1.75-inch horn driver,and to the three 5-inch ceramic drivers that make up the Unity horn
assembly
15-inch neod

The U15P is built using 5/8-inch birch plywood cabinet construction. Integrated bar
handles and standmount adaptor allows the U15P to be quickly and easily integrated
into any mobile live PA system. The cabinet’s unmatched clarity and performance
make an ideal choice as a repeater cabinet in large rooms and concert halls.
Integrated flypoints allow the U15P to be flown in multi-cabinet arrays or installations
without modification to the box. The cabinet’s trapezoidal shape was designed with
tight-pack box arrays in mind.

An additional three-tier designed amplifier module delivers 600-wa

.

ymium woofer

tion of amplifier topographies to ensure reliability and superior

.

An integra

ted DSP provides three-way internal

tts to the

Unity™ U15P Specifications:

Model

SYSTEM TYPE
PROGRAM POWER (watts)
FREQ. RESPONSE (Hz +/- 3dB)
MAXIMUM SP L (dB)
X-OVE R FREQUENCY (Hz)
DRIVERCONFIGURATION
LF DRI VER(S)
MF DRIVER(S)
HF DRIVER(S)
HIGH / MID HORN CONFIGURATION
HIGH / MID HORN DISPERSION (H° x V°)
HF HORN THROAT DIAMETE R
HF PROTECTION
CONSTRUCTION
GRILLE
INPUTS
HANDLES
FLYWARE TYPE / QUANTITY
FLYWARE LOCATIONS
HARDWARE
DIMENSIONS (DxWxHxBW inches)
DIMENSIONS (DxWxHxBW cm)
WEIGHT (lbs / kg)

U15P

Active 3-Way
900
50 - 20,000

7

12

0 / 1250

5

3
15" / 3 x 5" / 1 x 1.75"
15" Neodymium / 3" voice coil
3 X 5" / 1" voice coil

1.75" polyester
HConical Unity™ Horn
60 x 60
1"
DSP Limiter
15mm 11-ply Birch
Perforated Metal
2 x 1/4-inch / 2x XLR
2 Side Bar
3/8" / 9
3/8inch x 9 (all corners)
Stand mount adaptor

16.5 x 22.5 x 34 x 13

42 x 57 x 86 x 33

110 / 49.9
