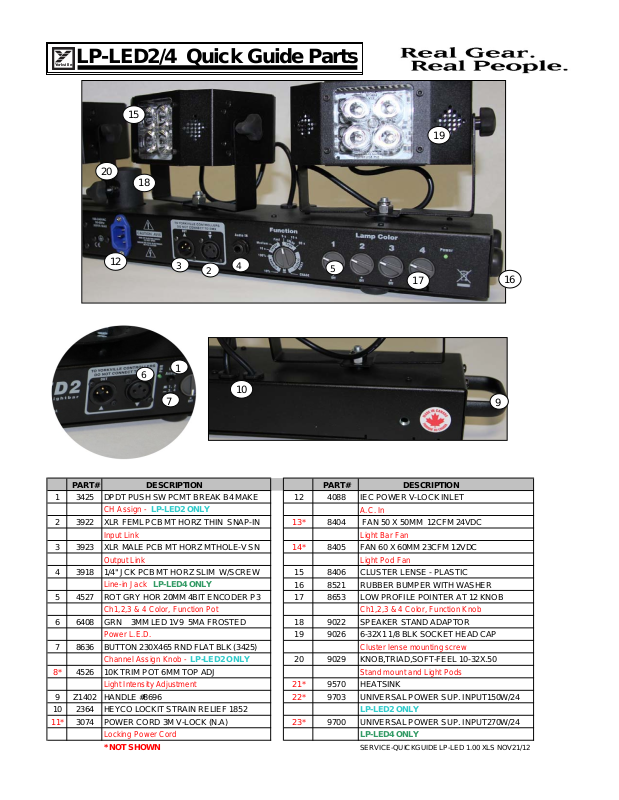

LP-LED2/4 Qu ick Guide Pa rts
York vi l le
15
20
18
19
12
6
3 4
2
1
5
17
16
10
7
PART# DESCRIPTION PART# DESCRIPTION
1 3425 DPDT PUSH SW PCMT BREAK B4 MAKE 12 4088 IEC POWER V-LOCK INLET
CH Assign - LP-LED2 ONLY
2 3922 XLR FEML PCB MT HORZ THIN SNAP-IN 13* 8404 FAN 50 X 50MM 12CFM 24VDC
Input Link Light Bar Fan
3 3923 XLR MALE PCB MT HORZ MTHOLE-V SN 14* 8405 FAN 60 X 60MM 23CFM 12VDC
Output Link Light Pod Fan
4 3918 1/4" JCK PCB MT HORZ SLIM W/SCREW 15 8406 CLUSTER LENSE - PLASTIC
Line-in Jack LP-LED4 ONLY
5 4527 ROT GRY HOR 20MM 4BIT ENCODER P3 17 8653 LOW PROFILE POINTER AT 12 KNOB
Ch1,2,3 & 4 Color, Function Pot Ch1,2,3 & 4 Color, Function Knob
6 6408 GRN 3MM LED 1V9 5MA FROSTED 18 9022 SPEAKER STAND ADAPTOR
Power L.E.D. 19 9026 6-32X1 1/8 BLK SOCKET HEAD CAP
7 8636 BUTTON 230X465 RND FLAT BLK (3425) Cluster lense mounting screw
Channel Assign Knob - LP-LED2 ONLY
8* 4526 10K TRIM POT 6MM TOP ADJ Stand mount and Light Pods
Light Intensity Adjustment 21* 9570 HEATSINK
9 Z1402 HANDLE #8696 22* 9703 UNIVERSAL POWER SUP. INPUT150W/24
10 2364 HEYCO LOCKIT STRAIN RELIEF 1852 LP-LED2 ONLY
11* 3074 POWER CORD 3M V-LOCK (N.A) 23* 9700 UNIVERSAL POWER SUP. INPUT270W/24
Locking Power Cord LP-LED4 ONLY
* NOT SHOWN
16 8521 RUBBER BUMPER WITH WASHER
20 9029 KNOB,TRIAD,SOFT-FEEL 10-32X.50
A.C. In
SERVICE-QUICKGUIDE LP-LED 1.00 XLS NOV21/12
