INSTALLATION INSTRUCTION
CHAMPION® SERIES
SINGLE PACKAGE AIR CONDITIONERS
ELECTRIC/ELECTRIC, AIR-COOLED
Supersedes: Nothing
MODELS D2EB018 THRU 060
1-1/2 THRU 5 TON
(8.8 - 9.4 EER)
EXPORT
174065-YIM-A-0206
GENERAL
Model D2EB units are factory assembled cooling only air conditioners designed for outdoor installation on a rooftop or a slab.
Field-installed electric heateraccessories are available to provide
electric heat combined with electric cooling. All units and heaters
are certified by CSA.
The units are completely assembled on rigid, but easily removable base rails.All piping, refrigerant charge, and electrical wiring is factory installed and tested. The units require only electric
power and duct connections at the point of installation.
The electric heaters have nickel-chrome resistance wire ele
ments and utilize single point power connection.
damage should be noted on the carrier's freight bill. A separate
request for inspection by the carrier's agent should be made in
writing. Refer to Form 50.15-NM for additional information.
REFERENCE
Additional information on the design, installation, operation
and service of this equipment is available in the following reference forms:
•
174065 -General Installation
•
511.26-N1.1V -Electric Heater Accessory
-
REPLACEMENT PARTS
INSPECTION
As soon as a unit is received, it should be inspected for possible
damage during transit. If damage is evident, the extent of the
Installer should pay particular attention to the words: NOTE, CAUTION and WARNING. Notes
the installation easier.Cautions
and/or equipment damage may result if installation procedure is not handled properly.
are given to prevent equipment damage. Warnings are given to alert installer that personal injury
•
Refer to Replacement Parts Manual for completelisting of
replacement parts on this equipment.
are intended to clarify or make
CAUTION
TH IS P RO DUCT M U S T B E IN S T A LLE D IN STR ICT COM P LIAN C E W ITH
THE ENCLOSED INSTALLATION INSTRUCTIONS AND ANY APPLICABLE
LOCAL, STATE, AND NATIONAL CODES INCLUDING, BUT NOT LIMITED
TO, BUILDING, ELECTRICAL, AND MECHANICAL CODES.
WARNING
INCORRECT INSTALLATION MAY CREATE A CONDITION WHERE THE
OPERATION OF THE PRODUCT COULD CAUSE PERSONAL INJURY
OR PROPERTY DAMAGE.
PRODUCT CATEGORY
D = Single Package Air Conditioner
(Air Cooled)
PRODUCT GENERATION
2 = 2nd Generation
PRODUCT IDENTIFIER
EB = 10 SEER Cooling Models
LIMITATIONS
PRODUCT NOMENCLATURE
D
2 E B A
NOMINAL COOLING
CAPACITY (MBH)
018 = 18,000 BTUH
024 = 24,000 BTUH
030 = 30,000 BTUH
036 = 36,000 BTUH
042 = 42,000 BTUH
048 = 48,000 BTUH
060 = 60,000 BTUH
INSTALLATION
174065-YIM-A-0206
20 4 0 6
VOLTAGE CODE
06 = 208/230-1-60
FACTORY
INSTALLED ELECTRIC HEAT
A = No Electric Heat Installed
These units must be installed in accordance with the following
national and local safety codes.
gle iron frame providing adequate support under the
compressor/condenser section.
5. Maintain level tolerance of unit to 1/8" maximum.
1. National Electrical Code ANSI/NFPS No. 70 or Canadian
Electrical Code Part 1, C22.1 (latest editions).
2. Local plumbing and waste water codes and other applica
ble local codes.
Refer to Table 1 for unit application data and to Table 5 for electric heat application data.
If components are to be added to a unit to meet local codes, they
are to be installed at the dealer's and/or the customer's expense.
Size of unit for proposed installation should be based on heat
loss/heat gain calculations made in accordance with industry
recognized procedures identified by the Air Conditioning Contractors of America.
TABLE 1 - UNIT APPLICATION DATA
Voltage Variation
Min. / Max
Wet Bulb Temperature (°F) of Air on
Evaporator Coil, Min. / Max.
Dry Bulb Temperature (°F) of Air on
Condenser Coil, Min.
Rated in accordance with ARI Standard 110, utilization range “A”.
A low ambient accessory is available for operation down to 0°F
!
“T1" transformer primary tap must be moved from the 230 volt connection to the 208 volt
connection for low voltage applications of 208 volt and below.
.1
2
/ Max.
208/230V
3
187 / 253
3
57/72
45 / 120
LOCATION
Use the following guidelines to select a suitable location for
these units.
1. Unit is designed for outdoor installation only.
RIGGING OR HANDLING
Care must be exercised when moving the unit. Do not remove
any packaging until the unit is near the place of installation. Rig
unit with slings placed under the unit. Spreader bars of sufficient length should be used across the top of the unit.
BEFORE LIFTING A UNIT, MAKE SURE THAT ITS WEIGHT
IS DISTRIBUTED EQUALLY ON THE CABLES SO THAT IT
WILL LIFT EVENLY.
Units may also be moved or lifted with a fork-lift. Slotted openings in the skid are provided for this purpose. Forks must pass
completely through the base.
Refer to Table 2 for unit weights and to Figure 1 for approximate
center of gravity.
TABLE 2 - UNITS WEIGHTS
ING
(lbs.)
-
CORNER WEIGHTS
(location, lbs.)
“A” “B” “C” “D”
SHIPPING
UNIT
WEIGHT
SIZE
018 318 313 86 76 73 83
024 324 319 88 77 75 85
030 333 328 85 81 82 86
036 338 333 91 80 78 88
042 347 342 94 83 80 91
048 368 363 92 88 92 97
060 376 371 105 100 84 87
(lbs.)
OPERAT
WEIGHT
2. Condenser must have an unlimited supply of air. Where a
choice of location is possible, position unit on either north or
east side of building.
3. For ground level installation, a level pad or slab should be
used. The thickness and size of the pad or slab used should
meet local codes and unit weight. Do not tie the slab to the
FRONT
OF
UNIT
building foundation.
4. For roof top installation, be sure the structure will support
the weight of the unit plus any field installed components.
Unit must be installed on a level roof curb or appropriate an
2 Unitary Products Group
FIG. 1 - CENTER OF GRAVITY
-
“A”
49
&
“D”
“B”
26
CENTER OF GRAVITY
“C”
47
"
174065-YIM-A-0206
CLEARANCES
FILTERS
All units require certain clearances for proper operation and
service. Refer to Figure 3 for the clearances required for com
bustion, construction, servicing and proper unit operation.
WARNING:Do not permit overhanging structures or shrubs to
obstruct the condenser air discharge outlet.
DUCT WORK
These units are adaptable to downflow use as well as rear sup
ply and return air duct openings. To convert to downflow, use
the following steps:
1. Remove the duct covers found in the bottom return and
supply air duct openings. There are four (4) screws secur
ing each duct cover (save these screws to use later).
2. Install the duct covers, removed in step one, tothe rear sup
ply and return air duct openings. Secure with the four (4)
screws used in step one.
3. Seal the duct covers with silicone caulking.
Downflow units must have an L-shaped supply duct without
any outlets or registers located directly below the supply outlet
of the unit.
Duct work should be designed and sized according to the
methods of the Air Conditioning Contractors of America
(ACCA), as set forth in their Manual D.
A closed return duct system shall be used. This shall not preclude use of economizers or ventilation air intake. Flexible
joints may be used in the supply and return duct work to minimize the transmission of noise.
CAUTION: When fastening duct work to the side duct flanges on
the unit, insert the screws throughthe duct flanges only.
DO NOT insert the screws through the casing. Outdoor
duct work must be insulated and waterproofed.
NOTE: Be sure to note supply and return openings.

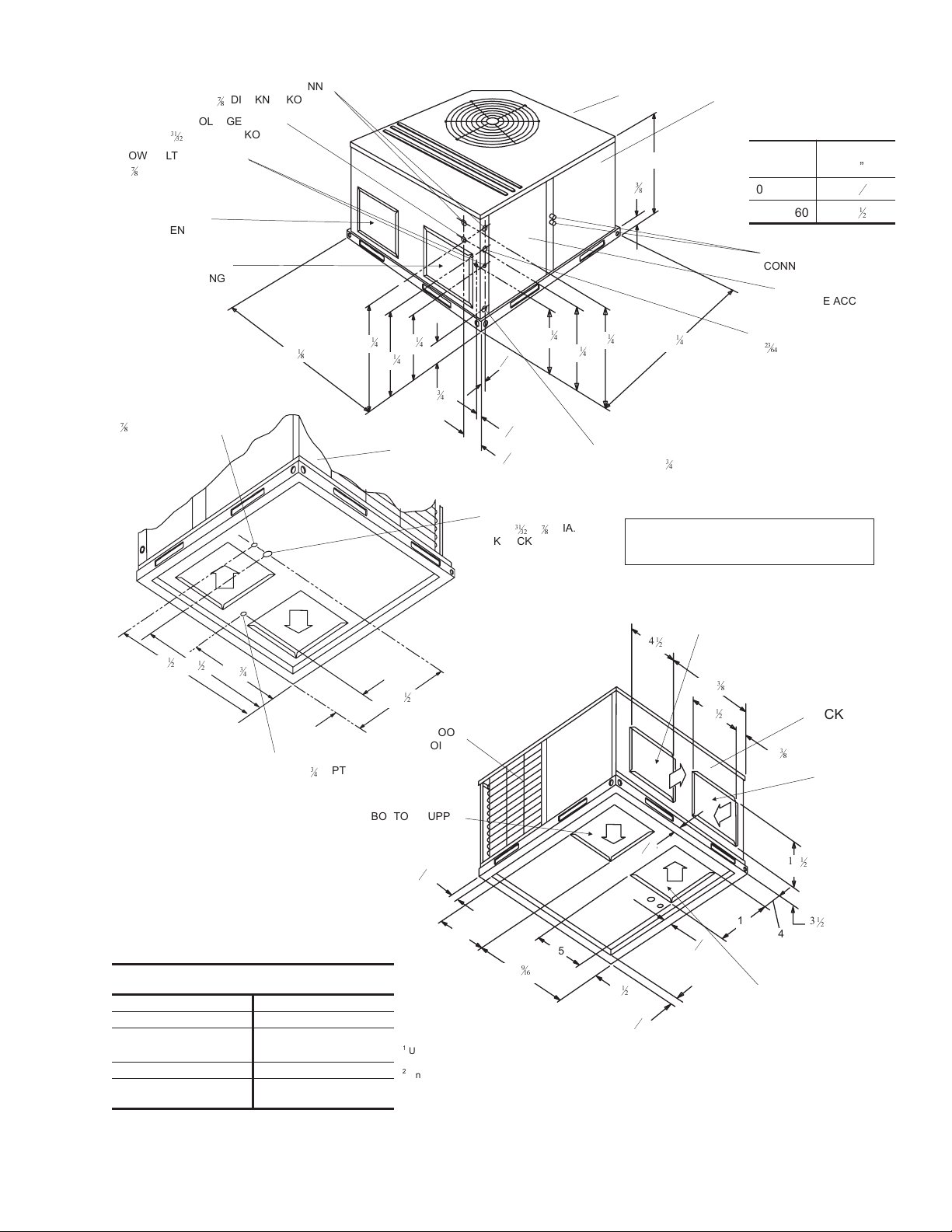

Refer to Figure 3 for information concerning rear and bottom
supply and return air duct openings.
Single phaseunits are shipped without a filter and isthe responsi
bility of the installer to secure a filter in the return air ductwork or
-
install a Filter/Frame Kit (1FF0114).
A filter rack and a filters are standard on three phase units.
Filters must always be used and must be kept clean. When fil
ters become dirt laden, insufficient air will be delivered by the
blower, decreasing your units efficiency and increasing operat
ing costs and wear-and-tear on the unit and controls.
Filters should be checked monthly especially since this unit
may be used for both heating and cooling.
-
CONDENSATE DRAIN
A condensate trap is required to be installed in the condensate
drain. The plumbing must conform to local codes. Use a seal
ing compound on male pipe threads. Install the condensate
drain line (
3
“ NPTF) to spill into an open drain.
4
SERVICE ACCESS
Access to all serviceable components is provided by thefollow
ing removable panels:
• Blower service access
• Electrical/filter access
• Compressor service access
Refer to Figure 3 for location of these access panels and minimum clearance.
THERMOSTAT
The room thermostat should be located on an inside wall approximately 56" above the floor where it will not be subject to
drafts, sun exposure or heat from electrical fixtures or appli
ances. Follow manufacturer's instructions enclosed with the
thermostat for general installation procedure. Four or five color
coded insulated wires (minimum #18 AWG) should be used to
connect thermostat to unit. See Figure 2.
-
-
-
-
-
-
TABLE 3 - PHYSICAL DATA
DEB
3
1
4
4
3
4
1
4
3
4
1
4
1
1
4
EVAPORATOR
BLOWER
EVAPORATOR
COIL
CONDENSER
FAN
CONDENSER
COIL
MODELS
CENTRIFUGAL BLOWER (Dia. x Wd. in.) 9 X 6 10 X 8 10 X 8 10 x 8 11 X 10 11 x 10 11 x 10
FAN MOTOR HP (Three Speed)
ROWS DEEP 2222223
FINS PER INCH 13 15 15 15 15 13 16
FACE AREA (Sq. Ft.) 2.19 2.81 4.38 4.38 4.38 5.62 5.26
PROPELLER DIA. (in.) 22 22 22 22 22 22 22
FAN MOTOR HP
NOM. CFM TOTAL 1,800 2,200 2,400 2,400 2,400 2,800 2,800
ROWS DEEP 1111111
FINS PER INCH 18 16 20 18 16 13 20
FACE AREA (Sq. Ft.) 8.3 8.3 8.3 8.3 11.7 16.4 16.4
018 024 030 036 042 048 060
1
2
1
4
1
2
1
4
1
2
1
4
CHARGE REFRIGERANT 22 (lbs./oz.) 3 / 4 3 / 5 3 / 13 3 / 10 4 / 7 5 / 15 5 / 15
FILTER FACE AREA (Sq. Ft. / Qty. / Size) 2.14/2/14"x22"
COMPRESSOR HERMETIC Type, (Qty. = 1) Recip Recip Recip Recip Recip Scroll Scroll
Unitary Products Group 3
POWER AND CONTROL WIRING
Field wiring to the unit must conformto provisionsof the current
N.E.C. ANSI/NFPA No. 70 or C.E.C. and/or local ordinances.
The unit must be electrically grounded in accordance with local
codes or,in their absence, with the N.E.C./C.E.C. Voltage toler
ances which must be maintained at the compressor terminals
during starting and running conditions are indicated on the unit
Rating Plate and Table 3.
The wiring entering the cabinet must be provided with me
chanical strain relief.
A fused or HACR breaker disconnect switch should be field pro
vided for the unit. If any of the wire supplied with the unit must be
replaced, replacement wire must be of the type shown on the wir
ing diagram.
CONTROL WIRING
** = Minimum wire size of 18 AWG
wire should be used for all field
installed 24 volt wire.
THERMOSTAT
4
/
UNIT TERMINAL STRIP
**
174065-YIM-A-0206
Electrical line must be sized properly to carry the load. Each
unit must be wired with a separate branch circuit fed directly
from the meter panel and properly fused.

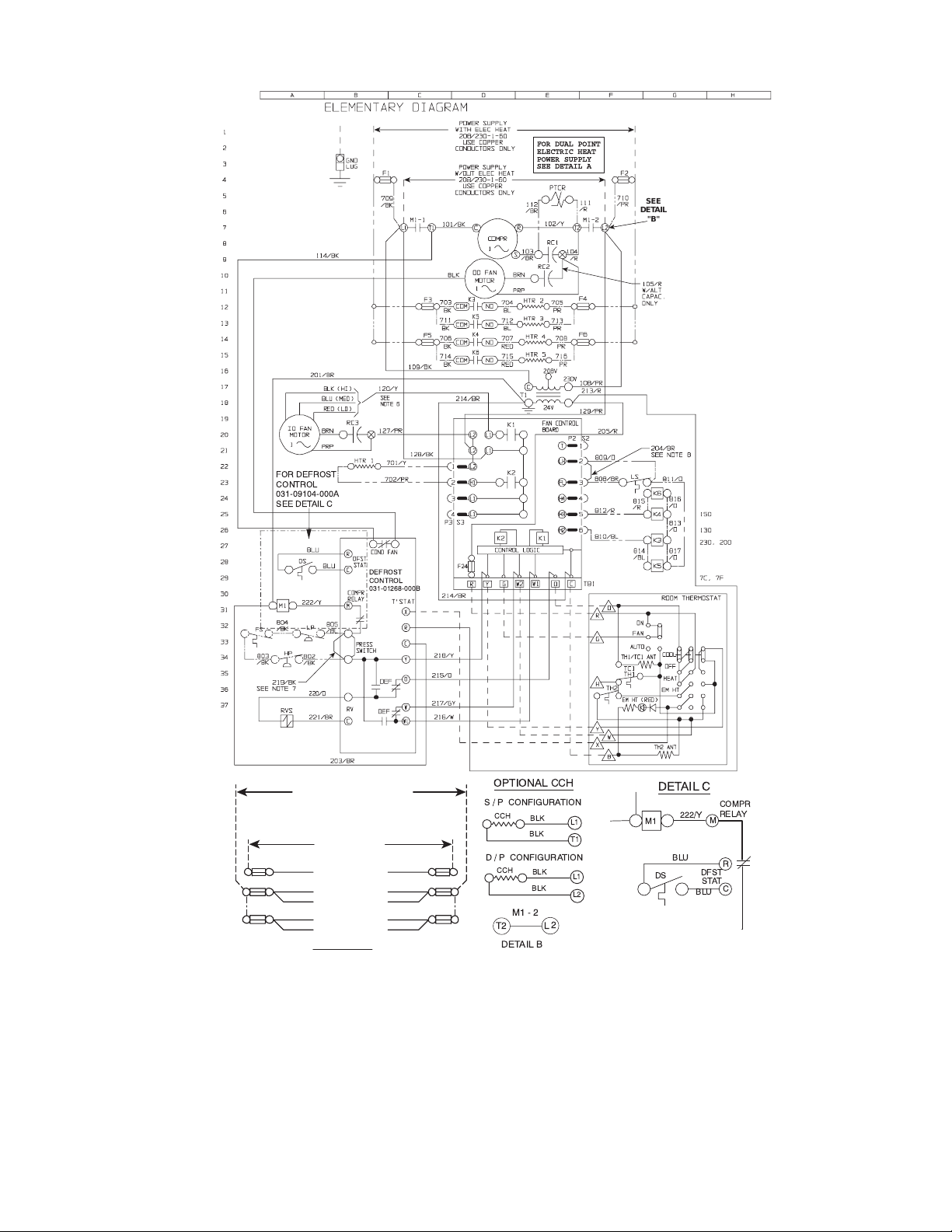

Refer to Figure 2 for typical field wiring and to the appropriate unit
wiring diagram for control circuit and power wiring information.
COMPRESSORS
Units are shipped with compressormountings factory-adjusted
for shipping. CAUTION: Loosen compressor mounting bolts
half turn before operating unit.
-
-
NOTE:
4
/
HEAT ANTICIPATOR
SHOULD BE SET AT 0.25
AMPS FOR ALL MODELS.
PROGRAMMABLE
THERMOSTAT ONLY
* = Only required on units with
supplemental electric heat.
9
+
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
REFER TO ELECTRICAL DATA
TABLES TO SIZE THE DISCON
NECT SWITCH, WIRING &
OVERCURRENT PROTECTION.
FIG. 2 - TYPICAL FIELD WIRING DIAGRAM
;;
*
9
+
POWER WIRING
-
24 VOLT TRANSFORMER
4 Unitary Products Group
174065-YIM-A-0206
TABLE 4 - ELECTRICAL DATA (BASIC UNIT)
MAX.
FUSE
SIZE,
AMPS
2
MAX.
HACR
BREAKER
SIZE,
AMPS
UNIT
POWER
FACTOR
TRANSFORMER
MODEL
DEB
POWER SUP
PLY
VOLTAGE
LIMITATIONS
-
1
COMPRESSOR
MIN. MAX. RLA LRA
COND.
FAN
MOTOR,
FLA
SUPPLY
AIR
BLOWER
MOTOR,
FLA
MINIMUM
CIRCUIT
AMPACITY
018 208/230-1-60 187 253 9.0 48.0 1.1 2.6 14.9 20 20 .96 40
024 208/230-1-60 187 253 11.5 60.0 1.1 2.6 18.1 25 25 .96 40
030 208/230-1-60 187 253 14.7 73.0 1.1 2.6 22.1 30 30 .96 40
036 208/230-1-60 187 253 17.3 94.0 1.1 3.5 26.2 35 35 .96 40
042 208/230-1-60 187 253 20.5 120.0 1.1 3.5 30.2 40 40 .96 40
048 208/230-1-60 187 253 24.4 140.0 1.3 4.0 35.8 45 45 .96 40
060 208/230-1-60 187 253 28.9 165.0 1.3 4.0 44.4 60 60 .96 40
= Rated in accordance with ARI Standard 110, utilization range “A”. = Dual element, time delay type.
* = KW listed is for 240 volts, use this table for 208 or 230 volts.
ELECTRIC HEAT
CORRECTION
FACTORS
NOMINAL VOLTAGE VOLTAGE
240
208
230
KW CAP. MULTI
SIZE (VA)
PLIER
.75
.92
-
Unitary Products Group 5
TABLE 5 - ELECTRICAL DATA (COOLING / ELECTRIC HEAT)
174065-YIM-A-0206
DEB
POWER
SUPPLY
COMPRESSOR
COND.
MOTOR
RLA LRA MODEL NO.
FAN
FLA
SUPPLY
AIR
BLOWER
MOTOR,
FLA
MODEL
018 208/230-1-60 9.0 48.0 1.1 2.6
024 208/230-1-60 11.2 60.0 1.1 2.6
030 208/230-1-60 12.0 73.0 1.1 2.6
036 208/230-1-60 17.3 94.0 1.1 3.5
042 208/230-1-60 20.5 120.0 1.1 3.5
048 208/230-1-60 24.4 140.0 1.3 4.0
060 208/230-1-60 28.9 165.0 1.3 7.0
= Dual element, time delay type. * = KW listed is for 240 volts, use table on previous page for 208 or 230 volts.
= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table on previous page for 460 volts.
over 60 amps where the heaters are separately fused.
ELECTRIC HEAT ACCESSORY
STAGE
2NH04500506
2NH0450070612
2NH04500506
2NH04500706
2NH04501006
2NH04500506
2NH04500706
2NH04501006
2NH04501506
1
2
2
1
2
2
2
2NH04501006
2NH0450150622
2NH04500506
2NH04500706
2NH04501006
2NH04501506
2NH04501006
2NH04501506
2NH04502006
2NH04502506
2NH04501006
2NH04501506
2NH04502006
2NH04502506
1
2
2
2
2
2
2
2
2
2
2
2
KW
3.8/5.0 *
5.6/7.5 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
3.8/5.0 *
5.6/7.5 *
7.5/10.0 *
11.3/15.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
7.5/10.0 *
11.3/15.0 *
15.0/20.0 *
18.8/25.0 *
TOTAL
AMPS
18.1/20.8
27.1/31.3
18.1/20.8
27.1/31.3
36.1/41.7
18.1/20.8
27.3/31.3
36.1/41.7
54.2/62.5
36.1/41.7
54.2/62.5
18.1/20.8
27.1/31.3
36.1/41.7
54.2/62.5
36.1/41.7
54.2/62.5
72.2/83.3
90.3/104.2
36.1/41.7
54.2/62.5
72.2/83.3
90.3/104.2
MINIMUM
CIRCUIT
AMPACITY
25.8/29.3
37.1/42.3
25.8/29.3
37.1/42.3
48.4/55.3
25.8/29.3
37.1/42.3
48.4/55.3
71.0/81.4
49.5/56.5
72.1/82.5
30.2/30.4
38.2/43.4
49.5/56.5
72.1/82.5
50.1/57.1
72.1/83.1
95.3/109.2
117.8/135.2
53.9/60.8
76.5/86.9
99.0/112.9
121.6/139.0
MAX.
FUSE
SIZE,
AMPS
30/30
40/45
30/30
40/45
50/60
30/30
40/45
50/60
80/90
50/60
80/90
40/40
50/50
50/60
80/90
60/60
80/90
100/110
125/150
70/70
80/90
100/125
125/150
1
BREAKER
100/110
125/150
100/125
125/150
MAX.
HACR
SIZE
30/30
40/45
30/30
40/45
50/60
30/30
40/45
50/60
80/90
50/60
80/90
40/40
50/50
50/60
80/90
60/60
80/90
70/70
80/90
2
6 Unitary Products Group
174065-YIM-A-0206
Checking Supply Air CFM
To check the supply air CFM after the initial balancing has been
completed:
1.Remove the two ¼ inch dot plugs in the duct panel.
a dry coil, the compressors should bedeactivated while the test
is being run.
4.Knowing the pressure drop across a dry coil, the actual CFM
through the unit can be determined from the curve in Coil Delta
P vs. Supply Air CFM figure.
2.Insert at least 8 inches of ¼ inch tubing into each of these
holes for sufficient penetration into the airflow on both sides of
the indoor coil.
3.Using an inclined manometer, determine the pressure drop
across the dry evaporator coil. Since the moisture on an evapo
rator coil may vary greatly, measuring the pressure dropacross
a wet coil under field conditionswould beinaccurate. To ensure
DEB Coil Delta P vs Airflow
0.4
DEB018
0.35
0.3
0.25
0.2
0.15
ID Coil Delta P
0.1
DEB024
WARNING!Failure to properly adjust the total system air quan
tity can result in extensive system damage.
After readings have been obtained, remove the tubes and rein
stall the two ¼ inch plugs removed in Step 1.
-
NOTE: De-energize the compressors before taking any test
measurements to ensure a dry indoor coil.
DEB048
DEB018
DEB048
DEB024
DEB030, 36, & 42
DEB060
-
-
0.05
0
400 600 800 16001200 1400 2000
-0.05
1000
Airflow (CFM)
DEB060
DEB030-42
22001800
Unitary Products Group 7
TABLE 6 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB018
OUTDOOR
TEMPERATURE
(F)
65 17.8 19.8 21.8 23.9 25.9 27.9 29.9 31.1 32.3 33.6 34.8
70 12.2 14.9 17.5 20.2 22.8 25.4 28.1 29.3 30.6 31.9 33.1
75 6.6 9.9 13.2 16.4 19.7 23.0 26.3 27.6 28.9 30.2 31.5
85 - - - 9.0 13.6 18.1 22.6 24.0 25.4 26.8 28.3
90 - - - 8.0 12.0 16.0 19.9 21.7 23.4 25.1 26.8
95 - - - 6.9 10.4 13.8 17.3 19.3 21.3 23.3 25.3
100 - - - 5.3 8.0 10.6 13.3 16.0 18.7 21.4 24.1
105 ----5.57.49.212.7 16.1 19.5 22.9
110 ------5.29.313.4 17.6 21.7
115 -------6.010.8 15.7 20.5
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 600 CFM/TON
INDOOR WB TEMPERATURE (F)
TABLE 7 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB024
OUTDOOR
TEMPERATURE
(F)
65 13.5 15.0 16.5 18.0 19.6 21.1 22.6 23.9 25.3 26.6 27.9
70 10.1 11.8 13.5 15.2 16.9 18.6 20.3 21.9 23.4 25.0 26.5
75 6.7 8.6 10.5 12.4 14.3 16.2 18.1 19.8 21.6 23.4 25.2
80 - 5.4 7.5 9.6 11.6 13.7 15.8 17.8 19.8 21.8 23.8
85 - - - 6.7 9.0 11.2 13.5 15.7 17.9 20.2 22.4
90 - - - 6.3 8.3 10.3 12.3 14.5 16.7 19.0 21.2
95 - - - 6.0 7.6 9.3 11.0 13.3 15.5 17.8 20.0
100 - - - 5.3 6.6 7.8 9.1 11.1 13.1 15.0 17.0
105 ----5.56.47.28.910.6 12.3 14.0
110 ------5.36.78.29.611.0
115 --------5.76.88.0
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 800 CFM/TON
INDOOR WB TEMPERATURE (F)
174065-YIM-A-0206
TABLE 8 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB030
OUTDOOR
TEMPERATURE
(F)
65 21.6 22.5 23.4 24.3 25.3 26.2 27.1 27.5 28.0 28.4 28.8
70 18.0 19.3 20.5 21.7 23.0 24.2 25.4 26.0 26.6 27.1 27.7
75 14.5 16.0 17.6 19.1 20.7 22.2 23.8 24.5 25.2 25.9 26.6
80 11.0 12.8 14.7 16.5 18.4 20.3 22.1 23.0 23.8 24.7 25.5
85 7.4 9.6 11.8 14.0 16.1 18.3 20.5 21.5 22.4 23.4 24.4
90 - 5.6 7.9 10.3 12.6 15.0 17.3 18.8 20.3 21.9 23.4
95 - - - 6.6 9.1 11.6 14.1 16.2 18.3 20.3 22.4
100 - - - 5.4 7.2 9.1 10.9 13.5 16.1 18.7 21.3
105 ----5.36.67.810.9 14.0 17.1 20.3
110 -------8.311.915.5 19.2
115 -------5.79.814.0 18.1
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 1,000 CFM/TON
INDOOR WB TEMPERATURE (F)
TABLE 9 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB036
OUTDOOR
TEMPERATURE
(F)
65 11.5 13.4 15.4 17.4 19.4 21.4 23.4 24.6 25.9 27.1 28.4
70 9.3 11.4 13.4 15.5 17.6 19.6 21.7 23.3 24.9 26.4 28.0
75 7.1 9.3 11.4 13.6 15.8 17.9 20.1 22.0 23.9 25.7 27.6
80 - 7.2 9.4 11.7 13.9 16.2 18.4 20.6 22.8 25.1 27.3
85 - 5.1 7.5 9.8 12.1 14.5 16.8 19.3 21.8 24.4 26.9
90 - 5.5 7.4 9.2 11.0 12.8 14.6 17.6 20.6 23.6 26.5
95 - 5.9 7.3 8.6 9.9 11.2 12.5 15.9 19.3 22.8 26.2
100 - 5.5 6.6 7.8 9.0 10.2 11.4 15.0 18.5 22.1 25.6
105 - - 6.0 7.1 8.2 9.3 10.3 14.0 17.7 21.4 25.1
110 - - 5.4 6.4 7.3 8.3 9.2 13.1 16.9 20.7 24.5
115 - - - 5.7 6.5 7.3 8.1 12.1 16.1 20.0 24.0
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 1,200 CFM/TON
INDOOR WB TEMPERATURE (F)
8 Unitary Products Group
174065-YIM-A-0206
TABLE 10 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB042
OUTDOOR
TEMPERATURE
(F)
65 20.3 21.9 23.5 25.0 26.6 28.1 29.7 30.6 31.6 32.6 33.6
70 16.7 18.5 20.3 22.1 23.9 25.7 27.5 28.6 29.7 30.8 32.0
75 13.0 15.1 17.1 19.2 21.2 23.2 25.3 26.6 27.8 29.1 30.4
80 9.4 11.7 13.9 16.2 18.5 20.8 23.1 24.5 25.9 27.3 28.7
85 5.7 8.2 10.8 13.3 15.8 18.4 20.9 22.5 24.0 25.6 27.1
90 - 6.5 9.1 11.7 14.2 16.8 19.4 21.0 22.6 24.1 25.7
95 - - 7.4 10.0 12.7 15.3 17.9 19.5 21.1 22.7 24.3
100 - - 5.8 7.9 10.0 12.0 14.1 16.3 18.4 20.6 22.8
105 - - - 5.8 7.3 8.7 10.2 13.0 15.8 18.6 21.4
110 -----5.56.49.813.2 16.5 19.9
115 -------6.510.5 14.5 18.5
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 1,400 CFM/TON
INDOOR WB TEMPERATURE (F)
TABLE 11 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB048
OUTDOOR
TEMPERATURE
(F)
65 13.5 15.4 17.3 19.1 21.0 22.8 24.7 26.1 27.6 29.0 30.5
70 10.7 12.7 14.7 16.8 18.8 20.9 22.9 24.7 26.5 28.2 30.0
75 7.8 10.0 12.2 14.5 16.7 18.9 21.2 23.3 25.4 27.5 29.6
80 - 7.3 9.7 12.1 14.5 17.0 19.4 21.8 24.2 26.7 29.1
85 - - 7.2 9.8 12.4 15.0 17.6 20.4 23.1 25.9 28.6
90 - - 6.1 7.7 9.4 11.0 12.7 16.6 20.5 24.4 28.3
95 - - - 5.7 6.3 7.0 7.7 12.7 17.8 22.8 27.9
100 - - - 5.3 5.9 6.5 7.1 11.1 15.1 19.1 23.0
105 ----5.56.06.69.512.4 15.3 18.2
110 ----5.05.56.07.89.711.613.4
115 ------5.46.27.07.88.6
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 1,600 CFM/TON
INDOOR WB TEMPERATURE (F)
TABLE 12 - SUPERHEAT CHARGING TABLE FOR MODEL D2EB060
OUTDOOR
TEMPERATURE
(F)
65 25.3 25.8 26.3 26.8 27.3 27.8 28.3 28.7 29.1 29.6 30.0
70 22.2 23.0 23.7 24.4 25.1 25.9 26.6 27.4 28.2 28.9 29.7
75 19.2 20.1 21.1 22.1 23.0 24.0 24.9 26.1 27.2 28.3 29.4
80 16.1 17.3 18.5 19.7 20.9 22.1 23.3 24.7 26.2 27.7 29.1
85 13.1 14.5 15.9 17.3 18.8 20.2 21.6 23.4 25.2 27.0 28.9
90 10.3 11.7 13.1 14.5 15.9 17.3 18.6 21.1 23.5 25.9 28.3
95 7.6 8.9 10.3 11.6 13.0 14.3 15.7 18.7 21.8 24.8 27.8
100 6.6 7.7 8.9 10.1 11.3 12.5 13.6 16.7 19.7 22.7 25.8
105 5.6 6.6 7.6 8.6 9.6 10.6 11.6 14.6 17.6 20.7 23.7
110 - 5.4 6.2 7.0 7.9 8.7 9.5 12.5 15.6 18.6 21.6
115 - - - 5.5 6.2 6.8 7.5 10.5 13.5 16.5 19.5
55 57 59 61 63 65 67 69 71 73 75
SUPERHEAT AT COMPRESSOR SUCTION (F), AIRFLOW = 2,000 CFM/TON
INDOOR WB TEMPERATURE (F)
Unitary Products Group 9
HIGH VOLTAGE CONN.
HIGH VOLTAGE CONN.
!
" DIA. KNOCKOUT
1
!
LOW VOLTAGE CONN.
%
“ DIA. KNOCKOUT
&
SIDE SUPPLY
AIR OPENING
SIDE RETURN
AIR OPENING
LOW VOLTAGE CONN.
%
“ DIA. KNOCKOUT
&
%
" DIA. KNOCKOUT
&
49
(OVERALL)
174065-YIM-A-0206
FRONT
“A”
(OVERALL)
3
2
8
17
&
28
"
22
"
"
FRONT
1
2
2
!
3
"
1
1
1
4
2
17
HIGH VOLTAGE
CONN.
KNOCKOUT
"
2
!
%
“x
“ DIA.
1
!
&
28
"
22
"
UNIT CONDENSATE
CONNECTION
(TRAP REQUIRED)
47
(OVERALL)
!
“ NPTI
"
All dimensions are in inches. They are
subject to change without notice. Certified
COMPRESSOR
SERVICE ACCESS
COMPARTMENT PANEL
UNIT SIZE
018 - 042
048 - 060
"
HIGH VOLTAGE CONN.
1
DIMENSION
“A”
1
33
2
1
41
2
REFRIGERANT
CONNECTIONS
ELECTRICAL/FILTER
SERVICE ACCESS
COMPARTMENT PANEL
!
" DIA. KNOCKOUT
$"
dimensions will be provided upon request.
43
40
!
26
"
CLEARANCES
(Minimum)
Front 12"
Back 0"
Left Side (Filter Access) 24"
Right Side 24"
Below Unit
Above Unit
1
2
0"
36" (For Condenser
CONDENSATE
!
DRAIN
“ NPTI
"
Air Discharge)
22
6
BOTTOM SUPPLY
AIR OPENING
14
OUTDOOR
COIL
3
2
8
3
1
4
15
15
'
28
$
3
3
1
4
Units may be installed on combustible floors made from wood or class A,
B or C roof covering material.
Units must be installed outdoors. Overhanging structures or shrubs
should not obstruct outdoor air discharge outlet.
SIDE SUPPLY
AIR OPENING
!
28
&
14
15
3
1
4
BACK
!
3
&
SIDE RETURN
AIR OPENING
14
3
4
BOTTOM RETURN
AIR OPENING
FIG. 3 - DIMENSIONS AND CLEARANCES
10 Unitary Products Group
174065-YIM-A-0206
Cooling
SEQUENCE OF OPERATION
Heating
The following sequences of operation are based on using a
standard single-stage cooling thermostat.
WITH POWER TO UNIT AND THERMOSTAT IN COOLING
MODE.
1. If the fan switch on the thermostat is in the “ON” position,
the 24 volts at “G” will energize the “K1" relay on the fan
control board, close the ”K1" relay contacts, and energize
the indoor blower motor. If the fan switch is in the “AUTO”
position, the blower will operate only when there is a call for
cooling by the thermostat.
2. On a call for cooling, the thermostat will send 24 volts to “Y”
on the fan control board. The 24 volt signal will energize
contactor “M1", and power will be supplied to the compres
sor and outdoor fan motor. If the fan switch on the thermo
stat is on the ”AUTO" position, the thermostat will also send
a 24 volt signal to “G” on the fan control board and the in
door blower will operate as indicated in step 1.
3. When the demand for cooling has been satisfied, the “M1"
contactor will be de-energized when the 24 volt ”Y" signal is
removed. If the fan switch on the thermostat is energized
when the 24 volt “Y” signal is removed. If the fan switch on
the thermostat is in the “ON” position, the indoor blower will
continue to run. If the fan switch is in the“AUTO” position, the 24 volt “G” signal willbe removed, andafter a
60 second delay, the “K1" relay will open and deenergize the indoor blower motor,
WITH POWER TO UNIT AND THERMOSTAT IN HEATING
MODE.
1. If the fan switch on the thermostat is in the “ON” position,
the 24 volts at “G” will energize the “K1" relay contacts, and
energize the indoor blower motor. If the fan switch on the
thermostat is in the ”AUTO" position, the blower will oper
ate only when there is a callfor heating by the thermostat.
2. On a call for heating, the thermostat will send 24 volts to
“W1" on the fan control board. The 24 volts signal will ener
gize relay ”K2" on the fan control board, and the first stage
of electric heat will be energized.
3. When the heating demand is satisfied, the electric heat will
-
-
be de-energized when the 24 volt “W1" and ”W2" signals
are removed. If the fan switch on the thermostat is in the
“ON” position, the indoor blower will continue to run. If the
-
fan switch isin the “AUTO” position, the “K1" relay will open
and de-energize the indoor blower motor after the appropri
ate time delay.
Please refer to Table 13 for more information.
-
-
-
TABLE 13 - THERMOSTAT SIGNALS (SINGLE PHASE UNITS)
STAT E
SIGNAL
ON FAN INSTANT ON
“G”
OFF FAN INSTANT OFF
FAN INSTANT ON
ON
“G”
“Y”
“G”
“W1"
“G”
“W1"
”W2"
COMPRESSOR AND OUTDOOR FAN INSTANT ON
COMPRESSOR AND OUTDOOR FAN INSTANT OFF
OFF
FAN 60 SECOND DELAY OFF
FAN INSTANT ON
ON
HEATER BANK 1 ELEC. HEAT INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT OFF
OFF
FAN 5 SECOND DELAY OFF
FAN INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT ON
ON
HEATER BANK 2 ELEC. HEAT 10 SECOND DELAY ON
HEATER BANK 3 ELEC. HEAT 20 SECOND DELAY ON
HEATER BANK 1 ELEC. HEAT INSTANT OFF
HEATER BANK 2 ELEC. HEAT
OFF
HEATER BANK 3 ELEC. HEAT 1 SECOND DELAY ON
FAN
6
1
SECOND DELAY OFF
2
BOARD FUNCTION
1
SECOND DELAY ON
2
“W1"
”W2"
“W1"
”W2"
STAT E
SIGNAL
ON
OFF
ON
OFF
ON
OFF
BOARD FUNCTION
FAN INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT OFF
FAN 5 SECOND DELAY OFF
FAN INSTANT ON
HEATER BANK 1 ELEC. HEAT
HEATER BANK 2 ELEC. HEAT INSTANT ON
HEATER BANK 1 ELEC. HEAT
HEATER BANK 2 ELEC. HEAT INSTANT OFF
FAN 5 SECOND DELAY OFF
FAN INSTANT ON
HEATER BANK 1 ELEC. HEAT INSTANT ON
HEATER BANK 2 ELEC. HEAT 10 SECOND DELAY ON
HEATER BANK 3 ELEC. HEAT 20 SECOND DELAY ON
STAGE 1 ELEC. HEAT INSTANT OFF
HEATER BANK 2 ELEC. HEAT
HEATER BANK 3 ELEC. HEAT 1 SECOND DELAY ON
1
FAN
SECOND DELAY OFF
6
2
1
SEC. DELAY OFF
2
1
SEC. DELAY OFF
2
1
SECOND DELAY ON
2
Unitary Products Group 11
174065-YIM-A-0206
SECURE OWNER'S APPROVAL: When the system is functioning properly, secure the owner's approval. Show him the
location of all disconnect switches and the thermostat. Teach him how to start and stop the unit and how to adjust temperature
settings within the limitations of the system.
MAINTENANCE
NORMAL MAINTENANCE
WARNING:Prior to any of the following maintenance proce
dures, shut off all power to the unit, to avoid per
sonal injury.
Periodic maintenance consists of changing or cleaning filters
and general cleaning of the outdoor coil.
-
OUTDOOR COIL - Dirt should not beallowed to accumulate on
-
the outdoor coil surface orother parts in the air circuit. Cleaning
should be as often as necessary to keep the coil clean. Use a
brush, vacuum cleaner attachment, or other suitable means. If
water is usedto clean the coil, be sure that the power to the unit
is shut off prior to cleaning.
FILTERS - Inspectonce a month. Replace Disposable or clean
Permanent Type as necessary. DO NOT replace Permanent
Type with Disposable.
MOTORS - Indoor and outdoor fan motors are permanently lu
bricated and require no maintenance.
CAUTION: Exercise care when cleaning the coil so that the
coil fins are not damaged.
Do not permit the hot condenser air discharge to be
-
obstructed by overhanging structures or shrubs.
12 Unitary Products Group
174065-YIM-A-0206
POWER SUPPLY
208/230-1-60
USE COPPER
CONDUCTORS ONLY
SECONDARY POWER SUPPLY
FOR DUAL POINT ELEC HEAT
208/230-1-60
USE COPPER
CONDUCTORS ONLY
(HTR5)
(HTR4)
(HTR3)
(HTR2)
(M1)
705/PR
708/PR
716/PR
713/PR
710/PR
F6
F4
F2
(K6)
(K4)
(K5)
(K3)
(M1)
714/BK
706/BK
711/BK
703/BK
709/BK
F1
F3
F5
DUAL POINT ELECTRIC HEAT (SEE NOTE 9)
DETAIL A
FOR DUAL POINT
ELECTRIC HEAT
POWER SUPPLY
SEE DETAIL A
SEE
DETAIL
"B"
FIG. 4 - TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY)
Unitary Products Group 13
TYPICAL WIRING DIAGRAM LEGEND
CB
CCH
COMPR
DS
F1 F2 F3
F4 F5 F6
F7 F8 F9
F24
FS
HP
HTR 1
HTR 2
HTR 3
HTR 4
HTR 5
HTR 6
K1
K2
K3
K7
LP
LS
M1
M2
M3
PTCR
RC1/RC2
RC1
RC2
RC3
RVS
S2/P2
S3/P3
S4/P4
S3/P3
T1
TB2
CIRCUIT BREAKER 24V, 3 AMP
CRANKCASE HEATER (OPTIONAL)
COMPRESSOR
DEFROST SENSOR, CLOSES @ 31˚F, OPENS @ 55˚F.
FUSES, LINE VOLTAGE - 60 AMP (10, 15, 20 & 25 KW ELEC HEAT)
FUSES, LINE VOLTAGE - 30 AMP (10, 15, 20 & 25 KW ELEC HEAT)
FUSES, LINE VOLTAGE - 30 AMP (20, 25 KW ELEC HEAT)
FUSE 24V SECONDARY, 5 AMP
FREEZESTAT SWITCH (OPTIONAL ACCESSORY) OPEN @ 26˚ F
HIGH PRESSURE SWITCH (OPTIONAL ACCESSORY) OPENS @ 280 PSIG
ELECTRIC HEATER (OPT. ACCSSRY: ALL KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 7.5, 10, 15, 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 15, 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)
RELAY INDOOR FAN MOTOR
RELAY ELECTRIC HEATER
RELAY ELECTRIC HEATER, 24 VDC COIL
RELAY LIMIT TRIP, 25 VDC COIL
LOW PRESSURE SWITCH (OPTIONAL ACCESSORY) OPEN @ 7 PSIG
LIMIT SWITCH, ELECTRIC HEAT (PART OF ELEC HEAT ACCESSORY)
CONTACTOR, COMPRESSOR & OUTDOOR FAN
CONTACTOR, ELECTRIC HEAT, 230V COIL
CONTACTOR, ELECTRIC HEAT, 230V COIL
START ASSIST (OPTIONAL DEVICE)
COMPRESSOR START & OUTDOOR FAN RUN CAPACITOR
COMPRESSOR START CAPACITOR (ALTERNATE)
OUTDOOR FAN RUN CAPACITOR (ALTERNATE)
INDOOR FAN RUN CAPACITOR
REVERSING VALVE SOLENOID
SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LOW VOLTAGE
SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LINE VOLTAGE
SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 24V
SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 230V
TRANSFORMER, 24V, 40 VA
TERMINAL BLOCK ECM MOTOR "SPEED" CONNECTIONS
IDENTIFIED TERMINAL ON RUN CAPACITOR
ROOM THERMOSTAT 24V CONNECTIONS
TB1 ON FAN/ELEC HEAT CONTROL BOARD
FACTORY WIRING AND DEVICES
OPTIONAL WIRING AND DEVICES
FIELD WIRING
174065-YIM-A-0206
TYPICAL WIRING DIAGRAM NOTES
14 Unitary Products Group
174065-YIM-A-0206
NOTES
Unitary Products Group 15
NOTES
Unitary Products Group
5005 York Drive, Norman Oklahoma 73069
Subject to change without notice. Printed in U.S.A.
Copyright © by York International Corporation 2006. All Rights Reserved.
Supersedes: Nothing
ISO 9001
Certified Quality
Management System
174065-YIM-A-0206
Loading...
