Yokogawa YPP7000 Operating Manual

YPP7000 Temperature Input Meter

Instruction Manual

 J, K, T, E, R, S, B, N, C Thermocouples

 100 or 1000  Platinum, 10  Copper, 120  Nickel RTDs

 1° or 0.1° Resolution

 Averages up to 10 RTD Sensors

 Automatic Cold Junction Compensation

 NEMA 4X, IP65 Front

 Universal 85-265 VAC, or 12/24 VDC Input Power Models

 Large Dual-Line 6-Character Display, 0.60" & 0.46"

 Programmable Displays & Function Keys

 Sunlight Readable Display Models

 2 or 4 Relays + Isolated 4-20 mA Output Options

 External 4-Relay & Digital I/O Expansion Modules

 USB, RS-232, RS-485 Serial Communication Options

 Modbus

 Free

and Programming

®

RTU Protocol Standard

PROPLUS Software for Operation, Monitoring,

2 Dart Road • Newnan, Georgia 30265
770-253-7000 • 800-888-6400
Fax: [phone] • www.yokogawa-usa.com

Model YPP7000 Temperature Input Meter Instruction Manual

Disclaimer

The information contained in this document is subject to change
without notice. Yokogawa Corporation of America makes no
representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability
or fitness for a particular purpose.

!

CAUTION: Read complete

instructions prior to instal­lation and operation of the
meter.

WARNING: Risk of
electric shock or
personal injury.

Warning!

This product is not recommended for life support applications or
applications where malfunctioning could result in personal injury or
property loss. Anyone using this product for such applications does
so at his/her own risk. Yokogawa Corporation of America shall not
be held liable for damages resulting from such improper use.

Limited Warranty

Yokogawa Corporation of America warrants this product against
defects in material or workmanship for the specified period under
“Specifications” from the date of shipment from the factory.
Yokogawa’s liability under this limited warranty shall not exceed the
purchase value, repair, or replacement of the defective unit.

Registered Trademarks

All trademarks mentioned in this document are the property of their
respective owners.

© 2011 Yokogawa Corporation of America. All rights reserved.

www.yokogawa-usa.com

2

Model YPP7000 Temperature Input Meter Instruction Manual

Table of Contents

INTRODUCTION ------------------------------------------------------------ 6
ORDERING INFORMATION --------------------------------------------- 7
SPECIFICATIONS ---------------------------------------------------------- 8

General ------------------------------------------------------------------------------- 8
Temperature Input ---------------------------------------------------------------- 9
Relays ------------------------------------------------------------------------------ 10
Isolated 4-20 mA Transmitter Output ------------------------------------ 11
Modbus® RTU Serial Communications ---------------------------------- 12
YPPA1044 Digital Input & Output Expansion Module -------------- 12

COMPLIANCE INFORMATION ---------------------------------------- 13

Safety ------------------------------------------------------------------------------- 13
Electromagnetic Compatibility --------------------------------------------- 13

SAFETY INFORMATION ------------------------------------------------ 14
INSTALLATION ------------------------------------------------------------ 15

Unpacking ------------------------------------------------------------------------- 15
Panel Mounting Instructions ------------------------------------------------ 15
Configuration for 12 or 24 VDC Power Option ------------------------ 16
Connections ---------------------------------------------------------------------- 17

Connectors Labeling --------------------------------------------------------- 18
Power Connections ---------------------------------------------------------- 18
Signal Connections ---------------------------------------------------------- 19
Connections for Averaging RTD Sensors ------------------------------ 21
Modbus RTU Serial Communications ----------------------------------- 22
Relay Connections ----------------------------------------------------------- 22
Switching Inductive Loads -------------------------------------------------- 23
4-20 mA Output Connections ---------------------------------------------- 24
Analog Output Transmitter Power Supply ------------------------------ 24
External Relays & Digital I/O Connections ----------------------------- 25
Interlock Relay Feature ----------------------------------------------------- 26

SETUP AND PROGRAMMING ---------------------------------------- 27

Front Panel Buttons and Status LED Indicators --------------------- 28
Display Functions & Messages -------------------------------------------- 29
Main Menu ------------------------------------------------------------------------ 32
Setting Numeric Values ------------------------------------------------------ 33
Reset Menu (reset) ------------------------------------------------------------ 33
Control Menu (Contrl) -------------------------------------------------------- 33
Setting Up the Meter (setup) ------------------------------------------------ 34

3

Model YPP7000 Temperature Input Meter Instruction Manual

Setting the Input Signal (input) ------------------------------------------ 36
Selecting the Temperature Scale (F or C) ---------------------------- 36
Setting the Decimal Point (dEc pt) -------------------------------------- 36
Setting the Display Parameter & Intensity (dsplay) ----------------- 36
Display Setup Menu --------------------------------------------------------- 37
Character Set for Engineering Units Display (d unit) -------------- 38
Setting the Relay Operation (relay) ------------------------------------ 39
Setting the Relay Action ---------------------------------------------------- 41
Programming Set and Reset Points ------------------------------------- 42
Setting Fail-Safe Operation ------------------------------------------------ 42
Programming Time Delay -------------------------------------------------- 42
Relay Action for Loss of Input (Input Break) --------------------------- 42
PROPLUS Software ----------------------------------------------------------- 43

Relay and Alarm Operation Diagrams ----------------------------------- 44

High Alarm Operation (Set > Reset) ------------------------------------- 44
Low Alarm Operation (Set < Reset) -------------------------------------- 45
High Alarm with Fail-Safe Operation (Set > Reset) ------------------ 46
Low Alarm with Fail-Safe Operation (Set < Reset) ------------------- 47
Relay Alternation Control Operation ------------------------------------- 48
Relay Sampling Operation ------------------------------------------------- 49
Signal Loss or Input Break Relay Operation --------------------------- 50
Time Delay Operation ------------------------------------------------------- 51

Relay Operation Details ------------------------------------------------------ 52

Overview ------------------------------------------------------------------------ 52
Relays Auto Initialization ---------------------------------------------------- 52
Fail-Safe Operation ---------------------------------------------------------- 52
Front Panel LEDs ------------------------------------------------------------- 53
Latching and Non-Latching Relay Operation -------------------------- 53
Non-Latching Relay (Auto) ------------------------------------------------- 54
Non-Latching Relay (A-nman) --------------------------------------------- 54
Latching Relay (LatcH) ----------------------------------------------------- 54
Latching Relay (Lt-Clr) ---------------------------------------------------- 55
Acknowledging Relays ------------------------------------------------------ 55
Setting Up the Interlock Relay (Force On) Feature ------------------ 56

Scaling the 4-20 mA Analog Output (Aout) ---------------------------- 57
Setting Up the Password (pass) ------------------------------------------- 58

Protecting or Locking the Meter ------------------------------------------- 58
Making Changes to a Password Protected Meter -------------------- 59
Disabling Password Protection -------------------------------------------- 59

Advanced Features Menu ---------------------------------------------------- 60

Advanced Features Menu & Display Messages ---------------------- 61
Offset Adjust (Adjust) ------------------------------------------------------ 62

4

Model YPP7000 Temperature Input Meter Instruction Manual

Recalibration of the Meter (t CAL) --------------------------------------- 63
Noise Filter (filter) -------------------------------------------------------- 65
Noise Filter Bypass (bypass) ---------------------------------------------- 65
Modbus RTU Serial Communications (serial) ---------------------- 66
Select Menu (SElect) ------------------------------------------------------- 67
Analog Output Programming (AoutPr) ---------------------------------- 68
Programmable Function Keys User Menu (user) -------------------- 69
Internal Temperature Calibration (ICAL) -------------------------------- 70
Meter Copy Function (Copy) ----------------------------------------------- 73

METER OPERATION ----------------------------------------------------- 75

Front Panel Buttons Operation -------------------------------------------- 75
Function Keys Operation ---------------------------------------------------- 75
Maximum/Minimum Readings ---------------------------------------------- 76

TROUBLESHOOTING ---------------------------------------------------- 77

Diagnostics Menu (diag) ----------------------------------------------------- 77

Determining Software Version -------------------------------------------- 77

Reset Meter to Factory Defaults ------------------------------------------- 78

Factory Defaults & User Settings ----------------------------------------- 79

Troubleshooting Tips --------------------------------------------------------- 82
DIMENSIONS --------------------------------------------------------------------- 83

5

Model YPP7000 Temperature Input Meter Instruction Manual

Table of Figures

Figure 1. 1/8 DIN Panel Cutout Dimensions ..................................... 15

Figure 2. Panel Mounting Details ...................................................... 16

Figure 3. Jumper Configuration for 12/24 VDC Power .................... 16

Figure 4. Connector Labeling for Fully Loaded YPP7000 ............... 18

Figure 5. Power Connections ............................................................ 18

Figure 6. Thermocouple Input Connections .................................... 19

Figure 7. Three-Wire RTD Input Connections .................................. 20

Figure 8. Two-Wire RTD Input Connections ..................................... 20

Figure 9. Four-Wire RTD Input Connections .................................... 21

Figure 10. Average Temperature RTD Input Connections .............. 21

Figure 11. Relay Connections ........................................................... 22

Figure 12. AC and DC Loads Protection ........................................... 23

Figure 13. Low Voltage DC Loads Protection .................................. 23

Figure 14. 4-20 mA Output Connections .......................................... 24

Figure 15. Expansion Modules & DIN Rail Mounting Kit ................. 25

Figure 16. External Relays Module Connections ............................. 25

Figure 17. Digital I/O Module Connections ....................................... 26

Figure 18. Interlock Connections ...................................................... 26

Figure 19. Acknowledge Relays w/Function Key or Digital Input .. 55

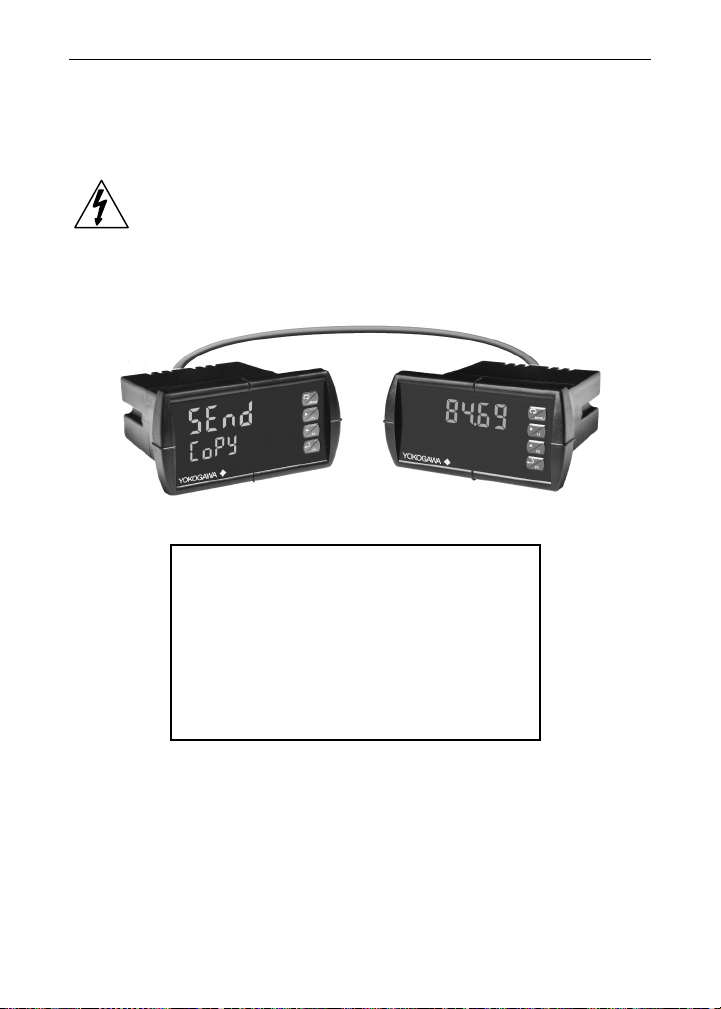

Figure 20. Meter Copy Connection ................................................... 73

Figure 21. Meter Dimensions - Side View ......................................... 83

Figure 22. Meter Dimensions - Top View .......................................... 83

Figure 23: 1/8 DIN Panel Cutout Template ....................................... 86

INTRODUCTION

The PROPLUS YPP7000 meter boasts specifications and functionality that clearly
makes it one of the most advanced temperature meters available. Its dual-line 6­character display, function keys, and optional expansion modules are only a few

of the features you will find on the PROPLUS.

A fully loaded YPP7000 meter has the following: four SPDT relays, 4-20 mA output,
and one 24 VDC power supply to power the 4-20 mA output. The YPP7000 capa­bilities may be enhanced by adding the following external expansion modules: four
SPST relays (creating an eight-relay temperature meter), two digital I/O modules
with four inputs and four outputs each, and USB, RS-232 or RS-485 communica­tion adapters.

The eight relays can be used for alarm indication or temperature control applica­tions. The 4-20 mA isolated output, Modbus RTU serial communications, and digital
I/O options make the YPP7000 an excellent addition to any system.

6

Model YPP7000 Temperature Input Meter Instruction Manual

ORDERING INFORMATION

Standard Models

85-265 VAC
Model

YPP7000-6R0 YPP7000-7R0 No options
YPP7000-6R2 YPP7000-7R2 2 relays
YPP7000-6R3 YPP7000-7R3 4-20 mA output
YPP7000-6R4 YPP7000-7R4 4 relays
YPP7000-6R5 YPP7000-7R5 2 relays & 4-20 mA output
YPP7000-6R7 YPP7000-7R7 4 relays & 4-20 mA output

SunBright Display Models

85-265 VAC
Model

YPP7000-6H0 YPP7000-7H0 No options
YPP7000-6H2 YPP7000-7H2 2 relays
YPP7000-6H3 YPP7000-7H3 4-20 mA output
YPP7000-6H4 YPP7000-7H4 4 relays
YPP7000-6H5 YPP7000-7H5 2 relays & 4-20 mA output
YPP7000-6H7 YPP7000-7H7 4 relays & 4-20 mA output

Accessories

Model Description

YPPA1002 DIN rail mounting kit for two expansion modules
YPPA1004 4 SPST (Form A) relays
YPPA1044 4 digital inputs & 4 digital outputs (2 may be connected)
YPPA1200 Meter copy cable
YPPA1232 RS-232 serial adapter
YPPA1485 RS-485 serial adapter
YPPA7485-I RS-232 to RS-422/485 isolated converter
YPPA7485-N RS-232 to RS-422/485 non-isolated converter
YPPA8008 USB serial adapter
YPPA8232-N USB to RS-232 non-isolated converter
YPPA8485-I USB to RS-422/485 isolated converter
YPPA8485-N USB to RS-422/485 non-isolated converter

YPPX6901 Suppressor (snubber): 0.01 µF/470 , 250 VAC

Enclosures

Model Description

YPPA2811 1 Meter Plastic NEMA 4X Enclosure
YPPA2812 2 Meter Plastic NEMA 4X Enclosure

12/24 VDC
Model

12/24 VDC
Model

Options Installed

Options Installed

7

Model YPP7000 Temperature Input Meter Instruction Manual

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.

General

DISPLAY

RESOLUTION

DISPLAY
INTENSITY

DISPLAY
UPDATE RATE

OVERRANGE

UNDERRANGE

PROGRAMMING
METHODS

NOISE FILTER Programmable from 2 to 199 (0 will disable filter)

FILTER BYPASS Programmable from 0.1 to 99.9% of calibrated span

RECALIBRATION All ranges are calibrated at the factory. Recalibration is

MAX/MIN
DISPLAY

PASSWORD

NON-VOLATILE
MEMORY

POWER
OPTIONS

FUSE Required external fuse: UL Recognized, 5 A max, slow

NORMAL MODE
REJECTION

ISOLATION 4 kV input/output-to-power line

Main display: 0.60" (15 mm) high red LEDs;
second display: 0.46" (12 mm) high red LEDs.
Both displays have six characters with leading zero
blanking. Temperature value is four or five-digit F/C, based
on configuration.
1 or 0.1 for all thermocouples and RTD inputs

Eight user selectable intensity levels

5/second (200 ms)

Display flashes

Display flashes

Four front panel buttons, digital inputs, PC and
software, Modbus registers, or cloning using Copy function.

recommended at least every 12 months.

Max/min readings reached by the process are stored until
reset by the user or until power to the meter is turned off.

Three programmable passwords restrict modification of
programmed settings.

Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.

All programmed settings are stored in non-volatile memory
for a minimum of ten years if power is lost.

85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
or jumper selectable 12/24 VDC  10%, 15 W max

blow; up to 6 meters may share one 5 A fuse

Greater than 60 dB at 50/60 Hz

500 V input-to-output

99999

-9999

PROPLUS

8

Model YPP7000 Temperature Input Meter Instruction Manual



OVERVOLTAGE
CATEGORY

ENVIRONMENTAL Operating temperature range: -20 to 65°C

CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG

ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: black

MOUNTING 1/8 DIN panel cutout required:

TIGHTENING
TORQUE

OVERALL
DIMENSIONS

WEIGHT 9.5 oz (269 g)

WARRANTY 3 years parts & labor

Installation Overvoltage Category II:
Local level with smaller transient overvoltages than Installa­tion Overvoltage Category III.

Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing

wire, RJ45 for external relays, digital I/O, and serial com­munication adapters.

3.622" x 1.772" (92 mm x 45 mm)
Two panel mounting bracket assemblies are provided.

Screw terminal connectors: 5 lb-in (0.56 Nm)

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
(W x H x D)

Temperature Input

INPUTS Thermocouple: J, K, T, E, R, S, B, N, C;

COLD
JUNCTION
REFERENCE

TEMPERATURE
DRIFT

OFFSET
ADJUSTMENT

INPUT
IMPEDANCE

SENSOR BREAK
DETECTION

RTD
AVERAGING

RTD: 100  platinum (0.00385 & 0.00392 coefficients),
10  copper, 120  nickel, 1000  platinum (0.00385 &

0.00392 coefficients)

Automatic, fixed, no user calibration needed

2C maximum from 0 to 65C ambient temperature
4C maximum from -20 to 0C ambient temperature

User programmable offset adjust ±50.0 degrees. This pa­rameter allows the user to apply an offset value to the tem­perature being displayed.

Greater than 100 k

Open TC or RTD sensor indicated by display flashing oPEn,
relays can be programmed to go “On”, “Off”, or to “Ignore”
(Note: Ignore is detected as an upscale condition).
Analog output goes to the programmed sensor break value.

Up to 10 RTDs connected in parallel can be averaged.

9

Model YPP7000 Temperature Input Meter Instruction Manual

ACCURACY & RANGES

Type Range (°F) Accuracy Range (°C) Accuracy

J -200 to 2000 ±1.8°F -129 to 1093 ±1°C

K -200 to 2400 ±1.8°F -129 to 1316 ±1°C

T -200 to 752 ±1.8°F -129 to 400 ±1°C

E -200 to 1800 ±1.8°F -129 to 982 ±1°C

R -50 to 3000 ±3.6°F -46 to 1649 ±2°C

S -50 to 3000 ±3.6°F -46 to 1649 ±2°C

B 752 to 3300 ±3.6°F 400 to 1816 ±2°C

N -100 to 2300 ±3.6°F -73 to 1260 ±2°C

C 32 to 4100 ±3.6°F 0 to 2260 ±2°C

10

100

120

1000

-328 to 500 ±0.2°F -200 to 260 ±0.1°C

-328 to 1562 ±0.7°F -200 to 850 ±0.4°C

-110 to 500 ±0.2°F -79 to 260 ±0.1°C

-328 to 900 ±0.7°F -200 to 482 ±0.4°C

Relays

RATING 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A)

NOISE
SUPPRESSION

DEADBAND 0-100% of span, user programmable

HIGH OR LOW
ALARM

RELAY
OPERATION

external; rated 3 A @ 30 VDC and 125/250 VAC resistive
load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads

Noise suppression is recommended for each relay contact
switching inductive loads; see page 23 for details.

User may program any alarm for high or low trip point.
Unused alarm LEDs and relays may be disabled (turn off).

Automatic (non-latching)
Latching (requires manual acknowledge)
Sampling (based on time)
Relay alternation control (2 to 8 relays)
Off (disable unused relays and enable Interlock feature)
Manual on/off control mode

10

Model YPP7000 Temperature Input Meter Instruction Manual

RELAY RESET User selectable via front panel buttons or digital inputs

TIME DELAY 0 to 999.9 seconds, on & off relay time delays

FAIL-SAFE
OPERATION

AUTO
INITIALIZATION

1. Automatic reset only (non-latching), when the input
passes the reset point.

2. Automatic + manual reset at any time (non-latching)

3. Manual reset only, at any time (latching)

4. Manual reset only after alarm condition has cleared (L)

Note: Front panel button or digital input may be assigned to

acknowledge relays programmed for manual reset.

Programmable and independent for each relay

Programmable and independent for each relay.

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

When power is applied to the meter, relays will reflect the
state of the input to the meter.

Isolated 4-20 mA Transmitter Output

OUTPUT
SOURCE

SCALING RANGE 1.000 to 23.000 mA for any display range

CALIBRATION Factory calibrated 0.0 to 2000.0 = 4-20 mA output

ANALOG OUT
PROGRAMMING

ACCURACY ± 0.1% of span ± 0.004 mA

TEMPERATURE
DRIFT

ISOLATED
TRANSMITTER
POWER SUPPLY

EXTERNAL LOOP
POWER SUPPLY

OUTPUT LOOP
RESISTANCE

35 VDC (external)

PV (temperature), max, min, set points 1-8, Modbus PV
input, or manual control mode

23.000 mA maximum for all parameters:

Overrange, underrange, max, min, and break

0.4 µA/C max from 0 to 65C ambient,

0.8 µA/C max from -20 to 0C ambient

Note: Analog output drift is separate from input drift.

Terminals I+ & R: 24 VDC  5% @ 40 mA maximum; may
be used to power the 4-20 mA output or other devices.
Refer to Figure 4 on page 18 and Figure 14 on page 24.

35 VDC maximum

Power supply Minimum Maximum

24 VDC

11

10  700 

100  1200 

Model YPP7000 Temperature Input Meter Instruction Manual

Modbus

SLAVE ID 1 – 247 (Meter address)

BAUD RATE 300 – 19,200 bps

TRANSMIT
TIME DELAY

DATA 8 bit (1 start bit, 1 or 2 stop bits)

PARITY Even, Odd, or None with 1 or 2 stop bits

BYTE-TO-BYTE
TIMEOUT

TURN AROUND
DELAY

Note: Refer to the PROPLUS Modbus Register Tables located at
www.yokogawa-usa.com for details.

®

RTU Serial Communications

Programmable between 0 and 199 ms

0.01 to 2.54 sec

Less than 2 ms (fixed)

YPPA1044 Digital Input & Output Expansion Module

CHANNELS 4 digital inputs & 4 digital outputs per module

SYSTEM Up to 2 modules for a total of 8 inputs & 8 outputs

DIGITAL INPUT
LOGIC HIGH

DIGITAL INPUT
LOGIC LOW

DIGITAL OUTPUT
LOGIC HIGH

DIGITAL OUTPUT
LOGIC LOW

SOURCE
CURRENT

SINK
CURRENT

+5 V
TERMINAL

3 to 5 VDC

0 to 1.25 VDC

3.1 to 3.3 VDC

0 to 0.4 VDC

10 mA maximum output current

1.5 mA minimum input current

To be used as pull-up for digital inputs only.
Connect normally open contacts across +5 V & DI 1-4

12

Model YPP7000 Temperature Input Meter Instruction Manual

COMPLIANCE INFORMATION

Safety

UL & c-UL LISTED USA & Canada

UL FILE NUMBER E348677

FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided

LOW VOLTAGE
DIRECTIVE

Electromagnetic Compatibility

EMISSIONS

Radiated
Emissions

AC Mains
Conducted
Emissions

IMMUNITY

RFI - Amplitude
Modulated

Electrical Fast
Transients

Electrostatic
Discharge

RFI - Conducted
AC Surge
Surge
Power-Frequency

Magnetic Field
Voltage Dips

Voltage
Interruptions

UL 508 Industrial Control Equipment

EN 61010-1:2001
Safety requirements for measurement, control, and
laboratory use

EN 55022:2006/A1:2007
Class A ITE emissions requirements

Class A

Class A

EN 61326-1:2006
Measurement, control, and laboratory equipment

EN 61000-6-2:2005
EMC heavy industrial generic immunity standard

80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

±2kV AC mains, ±1kV other

±4kV contact, ±8kV air

10V, 0.15-80 MHz, 1kHz 80% AM

±2kV Common, ±1kV Differential

1KV (CM)

3 A/m 70%V for 0.5 period

40%V for 5 & 50 periods
70%V for 25 periods

<5%V for 250 periods

13

Model YPP7000 Temperature Input Meter Instruction Manual

Note:

Testing was conducted on YPP7000 meters installed through the
covers of grounded metal enclosures with cable shields grounded at
the point of entry representing installations designed to optimize
EMC performance.

Declaration of Conformity available at www.yokogawa-usa.com

SAFETY INFORMATION

!

CAUTION: Read complete

instructions prior to instal­lation and operation of the
meter.

WARNING!
Hazardous voltages exist within enclosure. Installation and service
should be performed only by trained service personnel.

14

WARNING: Risk of
electric shock or
personal injury.

Model YPP7000 Temperature Input Meter Instruction Manual

INSTALLATION

There is no need to remove the meter from its case to com­plete the installation, wiring, and setup.

Instructions are provided for setting up a 12/24 VDC powered
meter to operate from 12 VDC power, see page 16.

Unpacking

Remove the meter from box. Inspect the packaging and con­tents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact
your supplier or the factory for assistance.

Panel Mounting Instructions

 Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm x

45 mm). Refer to Figure 1 below, for more details.

 Clearance: allow at least 6.0" (152 mm) behind the panel for wiring.

 Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).

Recommended minimum panel thickness to maintain Type 4X
rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

 Remove the two mounting brackets provided with the meter (back-off the two

screws so that there is ¼" (6.4 mm) or less through the bracket. Slide the
bracket toward the front of the case and remove).

 Insert meter into the panel cutout.

 Install mounting brackets and tighten the screws against the panel. To

achieve a proper seal, tighten the mounting bracket screws evenly until me­ter is snug to the panel along its short side. DO NOT OVER TIGHTEN, as
the rear of the panel may be damaged.

Note: See

Figure 23 on page 86 for 1/8 DIN Panel Cutout Template

A

3.622" (92mm)

1.772"

B

(45mm)

Square Corners to 0.060"

(1.5mm) Max Radius

Panel Cutout
to DIN 43700

Refer to page
83 for mounting
dimensions

Tolerances:
A: +0.032 (+0.8mm)

-0.000 (-0.0mm)
B: +0.024 (+0.6mm)

-0.000 (-0.0mm)

Figure 1. 1/8 DIN Panel Cutout Dimensions

15

Model YPP7000 Temperature Input Meter Instruction Manual

Gasket

Mounting

Bracket

Panel

Mounting

Screw

Removable
Connectors

Figure 2. Panel Mounting Details

Configuration for 12 or 24 VDC Power Option

Do not exceed voltage rating of the selected configuration.

Meters equipped with the 12/24 VDC power option are shipped
from the factory ready to operate from 24 VDC.

To configure the meter for 12 VDC power:

1. Remove all the connectors.

2. Unscrew the back cover.

3. Slide the back cover about 1 inch.

4. Configure the J9 jumper, located behind the power con­nector, for 12 V as shown below.

J9 CONFIGURATION

+
_

MAIN BOARD

J9

12 V

24 V

Factory
Default

M-LINK

24 VDC
12 VDC
POWER

Figure 3. Jumper Configuration for 12/24 VDC Power

16

Model YPP7000 Temperature Input Meter Instruction Manual

Connections

All connections are made to removable screw terminal connectors
located at the rear of the meter.

Use copper wire with 60°C or 60/75°C insulation
for all line voltage connections. Observe all safety

!

regulations. Electrical wiring should be performed
in accordance with all applicable national, state,
and local codes to prevent damage to the meter
and ensure personnel safety.

17

Model YPP7000 Temperature Input Meter Instruction Manual

Connectors Labeling

The connectors’ label, affixed to the meter, shows the location of all
connectors available with requested configuration.

Do not connect any equipment other than Yokogawa’s
expansion modules, cables, or meters to the RJ45

Warning!

M-LINK connector. Otherwise damage will occur to the
equipment and the meter.

RELAY4 RELAY3

4365 21

COM NONO NC NC COM

RTD

TC

EXC T+ COM

123

DW2111

SIGNAL

RELAY2 RELAY1

COM NONO NC NC COM

RTD

100

TC

10

TYPE

RANGE

4365 21

123 45678

M-LINK

MA OUT

+

POWER

132

RI- I+

-

21

Figure 4. Connector Labeling for Fully Loaded YPP7000

Power Connections

Power connections are made to a two-terminal connector labeled
POWER on Figure 4. The meter will operate regardless of DC polarity
connection. The + and - symbols are only a suggested wiring convention.

POWER

-

+

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

Figure 5. Power Connections

18

Model YPP7000 Temperature Input Meter Instruction Manual

Signal Connections

Signal connections are made to a three-terminal connector labeled
SIGNAL on Figure 4.

Thermocouple and RTD Connections

The following figures show examples for thermocouple and RTD con­nections.

The TYPE selector switch must be set to the proper position for the me­ter to accept the selected RTD or TC input.

The RANGE selector switch is used to select 100-ohm platinum or
10-ohm copper RTD. The 1000-ohm platinum RTD input uses the same
setting as the 100-ohm RTD.

The input type is selected using the Setup menu.
The selected thermocouple input must correspond to the thermocouple

sensor and wire type used.

SIGNAL

EXC T+ COM

123

RTD

100

TC

12 3 45678

10

TYPE

+

-

RANGE

M-LINK

TC

Figure 6. Thermocouple Input Connections

19

Model YPP7000 Temperature Input Meter Instruction Manual

SIGNAL

EXC T+ COM

123

RTD

100

TC

12 3 45678

10

TYPE

RANGE

M-LINK

RTD

Sensor

Figure 7. Three-Wire RTD Input Connections

The meter accepts two, three, or four-wire RTDs. The three-wire RTD
connection has built-in lead wire compensation.

SIGNAL

EXC T+ COM

123

RTD

TYPE

100

TC

RANGE

RTD

Sensor

Figure 8. Two-Wire RTD Input Connections

Lead wire compensation for two-wire RTDs can be applied using the
Adjust menu. See the Advanced Features Menu on page 60.

12 3 45678

10

M-LINK

20

Model YPP7000 Temperature Input Meter Instruction Manual

SIGNAL

EXC T+ COM

123

RTD

100

TC

12 3 45678

10

TYPE

RANGE

M-LINK

RTD

Sensor

NC

Figure 9. Four-Wire RTD Input Connections

The four-wire RTD connection is similar to the three-wire. One of the
leads of a four-wire RTD is not connected, and may be clipped off.

The three-wire connection provides sufficient lead wire compensation to
obtain accurate readings even with long leads.

Connections for Averaging RTD Sensors

To obtain the average temperature from 2 to 10 RTD sensors, connect
all the sensors in parallel and select the number of sensors in the RTD
Total (

rtdtot) menu. See the Advanced Features Menu on page 60.

SIGNAL

EXC T+ COM

123

RTD

TYPE

100

TC

RANGE

12 3 45678

10

M-LINK

RTD1

RTD2 RTD3

Figure 10. Average Temperature RTD Input Connections

21

Model YPP7000 Temperature Input Meter Instruction Manual

Modbus RTU Serial Communications

Serial communications connection is made to an RJ45 connector
labeled M-LINK on Figure 4. For interfacing to the PROPLUS use the

YPPA1232 for RS-232, the YPPA1485 for RS-485, or the
YPPA8008 for USB. The same port is used for interfacing with all
expansion modules (i.e. external relays, digital I/O).

Use the YPPA1200 meter copy cable for meter-to-meter interfacing for
cloning purposes (i.e. copying settings from one meter to other meters).

Relay Connections

Relay connections are made to two six-terminal connectors labeled
RELAY1 – RELAY4 on Figure 4. Each relay’s C terminal is common
only to the normally open (NO) and normally closed (NC) contacts of the
corresponding relay. The relays’ C terminals should not be confused
with the COM (common) terminal of the INPUT SIGNAL connector.

RELAY4 RELAY3

4365 21

CNONO NC NC C

Figure 11. Relay Connections

RELAY2 RELAY1

4365 21

CNONO NC NC C

22

Model YPP7000 Temperature Input Meter Instruction Manual

Switching Inductive Loads

The use of suppressors (snubbers) is strongly recommended when switching
inductive loads to prevent disrupting the microprocessor’s operation. The sup­pressors also prolong the life of the relay contacts. Suppression can be obtained
with resistor-capacitor (RC) networks assembled by the user or purchased as
complete assemblies. Refer to the following circuits for RC network assembly
and installation:

C

C

R

R

Figure 12. AC and DC Loads Protection

Choose R and C as follows:
R: 0.5 to 1  for each volt across the contacts

C: 0.5 to 1 µF for each amp through closed contacts

Notes:

1. Use capacitors rated for 250 VAC.

2. RC networks may affect load release time of solenoid loads. Check to con­firm proper operation.

3. Install the RC network at the meter's relay screw terminals. An RC network
may also be installed across the load. Experiment for best results.

Use a diode with a reverse
breakdown voltage two to
three times the circuit vol­tage and forward current at
least as large as the load
current.

Figure 13. Low Voltage DC Loads Protection

Note: Relays are de-rated to 1/14th HP (50 watts) with an inductive load.

23

Model YPP7000 Temperature Input Meter Instruction Manual

4-20 mA Output Connections

Connections for the 4-20 mA transmitter output are made to the connec­tor terminals labeled MA OUT. The 4-20 mA output may be powered
internally or from an external power supply.

24 V

24 V

RELAY1

321

MA OUT

+

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

RI- I+

132

-

RELAY1

321

+

4-20 mA

Input Meter

-

MA OUT

-

+

12-35 VDC

Power
Supply

RI- I+

132

Figure 14. 4-20 mA Output Connections

Analog Output Transmitter Power Supply

The internal 24 VDC power supply powering the analog output may be
used to power other devices, if the analog output is not used. The I+
terminal is the +24 V and the R terminal is the return. This power supply
is capable of sourcing up to 40 mA.

24

Model YPP7000 Temperature Input Meter Instruction Manual

External Relays & Digital I/O Connections

The relay and the digital I/O expansion modules YPPA1004 &
YPPA1044 are connected to the meter using a CAT5 cable provided
with each module. The two RJ45 connectors on the expansion modules
are identical and interchangeable; they are used to connect additional
modules to the system.

Note: The jumper located between the RJ45 connectors of the

YPPA1044 must be removed on the second digital I/O module
in order for the system to recognize it as module #2.

Do not connect or disconnect the expansion modules with
the power on!

Warning!

More detailed instructions are provided with each optional
expansion module.

Figure 15. Expansion Modules & DIN Rail Mounting Kit

RLY5 RLY6 RLY7 RLY8

12

NO C NO C NO C NO C

Figure 16. External Relays Module Connections

345678

25

Model YPP7000 Temperature Input Meter Instruction Manual

123456

+5 I1 I2 I3 I4 O1

5 VDC GND

DI 1-4 DO 1-4

78

O2 O3

910

O4 G

Figure 17. Digital I/O Module Connections

Interlock Relay Feature

As the name implies, the interlock relay feature reassigns one, or more,
alarm/control relays for use as interlock relay(s). Interlock contact(s) are
wired to digital input(s) and trigger the interlock relay. This feature is
enabled by configuring the relay, and relative digital input(s) (see page

56). In one example, dry interlock contacts are connected in series to

one digital input which will be used to force on (energize) the assigned
interlock power relay when all interlock contacts are closed (safe). The
interlock relay front panel LED flashes when locked out. The interlock
relay would be wired in-series with the load (N/O contact). See below.

Figure 18. Interlock Connections

26

Model YPP7000 Temperature Input Meter Instruction Manual

SETUP AND PROGRAMMING

The meter is factory calibrated prior to
shipment to read temperature in degrees
Fahrenheit. The calibration equipment is
certified to NIST standards.

Overview

There are two switches, located at the back of the meter, to set the input
selection for TC or RTD and for 100-ohm platinum or 10-ohm copper.
The 1000-ohm RTD input uses the same setting as the 100-ohm.

Setup and programming is done through the front panel buttons.
After power and input signal connections have been completed and

verified, apply power to the meter.

27

Model YPP7000 Temperature Input Meter Instruction Manual

Front Panel Buttons and Status LED Indicators

Button
Symbol

Description LED Status

Menu

1-8 Alarm 1-8 indicator

Right arrow/F1

1-8-M

Up arrow/F2

M

Enter/F3

1-4

Note:
Alarms 5-8 are enabled when

relay expansion module is
installed.

 Press the Menu button to enter or exit the Programming Mode at

any time.

 Press the Right arrow button to move to the next digit during digit or

decimal point programming.

 Press or hold the Up arrow button to scroll through the menus,

decimal point or to increment the value of a digit.

 Press the Enter button to access a menu or to accept a setting.
 Press and hold the Menu button for three seconds to access the

advanced features of the meter.

Note:
LEDs for relays in manual mode

flash with the “M” LED every 10
seconds.

28

Flashing: Relay in
manual control mode

Manual control relays
&/or analog output

Flashing: Relay inter­lock switch open

Model YPP7000 Temperature Input Meter Instruction Manual

Display Functions & Messages

The meter displays various functions and messages during setup, pro­gramming, and operation. The following table shows the main menu
functions and messages in the order they appear in the menu.

Display Parameter Action/Setting Description

reset

Rst Hi

Rst Lo

Rst HL

Contrl

Auto

mAn

setup

input

tc

Rtd

A385

A392

F or C

Dec pt

dsplay

Reset

Reset high

Reset low

Reset
high & low

Control

Automatic

Manual

Setup

Input

TC

RTD

A385

A392

F or C

Decimal point

Display

Press Enter to access the Reset menu

Press Enter to reset max display

Press Enter to reset min display

Press Enter to reset max & min displays

Enter Control menu

Press Enter to set meter for automatic
operation

Press Enter to manually control relays or
analog output operation

Enter Setup menu

Enter Input selection menu

Set meter for thermocouple input
J, K, T, E, R, S, B, N, C

Set meter for RTD input
100Pt, 1000Pt, 10Cu, 120Ni

Set meter for 0.00385 curve

Set meter for 0.00392 curve

Press Enter to select degrees F or C

Set decimal point
dddd, dddd.d, dddd

Enter the Display menu

°F, dddd.dF

big

Little

Big display

Little display

Press Enter to assign the Main display
parameter (default: PV - temperature)

Press Enter to assign the small display
parameter (default: engineering units)

29

Model YPP7000 Temperature Input Meter Instruction Manual

Display Parameter Action/Setting Description

d-Inty

RELaY

RLY 1

Act 1

Auto

A-nman

LatCH

Lt-CLr

Altern

Sanmpl

OFF

Set 1

RSt 1

RLY 2

FaiLSF

Display
intensity

Relay

Relay 1

Action 1

Automatic

Auto-manual

Latching

Latching­cleared

Alternate

Sampling

Off

Set 1

Reset 1

Relay 2

Fail-safe

Set display intensity level from 1 to 8

Enter the Relay menu

Relay 1 setup

Set relay 1 action

Set relay for automatic reset

Set relay for automatic & manual reset
any time

Set relay for latching operation

Set relay for latching operation with manual
reset only after alarm condition has cleared

Set relay for alternation control

Set relay for sampling operation

Disable relay and front panel status LED
(Select Off to enable Interlock feature)

Program set point 1

Program reset point 1

Relays 2-8 setup

Note: Relays 5-8 are shown only if
expansion relay module is installed

Enter Fail-safe menu

FLS 1

on

FLS 2

DeLAY

DLY 1

On 1

Fail-safe 1

On

Fail-safe 2

Delay

Delay 1

On 1

Set relay 1 fail-safe operation

Enable fail-safe operation

Set relays 2-8 fail-safe operation

Enter relay Time Delay menu

Enter relay 1 time delay setup

Set relay 1 On time delay

30

Model YPP7000 Temperature Input Meter Instruction Manual

Display Parameter Action/Setting Description

OFF 1

DLY 2

break

ignore

Aout

Dis 1

Out 1

Dis 2

Out 2

pass

Pass 1

Pass 2

Pass 3

On

Off

Off 1

Delay 2

Break

Ignore

On

Off

Analog output

Display 1

Output 1

Display 2

Output 2

Password

Password 1

Password 2

Password 3

Set relay 1 Off time delay

Enter relays 2-8 time delay setup

Set relay condition if input break detected

Ignore input break condition
(Processed as an upscale condition)

Relay goes to alarm condition when input
break is detected

Relay goes to non-alarm condition when
input break is detected

Enter the Analog output scaling menu

Program display 1 value

Program output 1 value (e.g. 4.000 mA)

Program display 2 value

Program output 2 value (e.g. 20.000 mA)

Enter the Password menu

Set or enter Password 1

Set or enter Password 2

Set or enter Password 3

unloc

locd

99999

-9999

Open

Unlocked

Locked

Flashing
display

Open

Program password to lock meter

Enter password to unlock meter

Overrange condition
Underrange condition

Open sensor indication

31

Model YPP7000 Temperature Input Meter Instruction Manual

Main Menu

The main menu consists of the most commonly used functions: Reset,

Control, Setup

 Press Menu button to enter Programming Mode then press the Up

arrow button to scroll main menu.

, and Password.

 Press Menu, at any time, to exit and return to Run Mode. Changes

made to settings prior to pressing Enter are not saved.

 Changes to the settings are saved to memory only after pressing

Enter.

 The display moves to the next menu every time a setting is ac-

cepted by pressing Enter.

32

Model YPP7000 Temperature Input Meter Instruction Manual

Setting Numeric Values

The numeric values are set using the Right and Up arrow buttons. Press
Right arrow to select next digit and Up arrow to increment digit value.

The digit being changed is displayed brighter than the rest.
Press the Enter button, at any time, to accept a setting or Menu button

to exit without saving changes.

00100.0

set 1

Select Next Digit Accept Setting

00100.0

set 1

Increment Digit

Value

00200.0

Set 1

Reset 1

Reset Menu (reset)

The Reset menu is used to reset the maximum or minimum reading
(peak or valley) reached by the process; both may be reset at the same
time by selecting “reset high & low” (rst HL).

Control Menu (Contrl)

The Control menu is used to control the 4-20 mA analog output and the
relays manually, ignoring the input. Each relay and analog output can
be programmed independently for manual control. Selecting automatic
control sets all relays and analog output for automatic operation.

Contrl

auto

contrl

man

contrl

Once Manual mode is initiated on any relay or
analog output, an LED labeled “M” is turned
on. Every few seconds, all LEDs representing
outputs that are in Manual mode, as well as
the “M” LED flash. This process will continue
as long as any output is in manual mode.

A out

man

1 6 .000

A out

rly 1

man

oFF

rly 1

rly 8

man

on

rly 8

33

Model YPP7000 Temperature Input Meter Instruction Manual

Setting Up the Meter (setup)

It is very important to read the following information, before proceeding
to program the meter:

 The meter is factory calibrated prior to shipment to read tem-

perature in degrees Fahrenheit. The calibration equipment is
certified to NIST standards.

 There is no need to calibrate the meter, simply select the input

type, °F or °C, and decimal point.

The

Setup menu is used to select:

1. Input type the meter will accept

2. Degrees F or C

3. Decimal point position and F or C indication

4. Display parameter and intensity

5. Relay operation

6. 4-20 mA analog output scaling

Press the Enter button to access any menu or press Up arrow button to
scroll through choices. Press the Menu button to exit at any time.

34

Model YPP7000 Temperature Input Meter Instruction Manual

setup

input

setup

F or C

setup

dec pt

setup

Dsplay

setup

relay

setup

Aout

setup

tc

Input

F

F or C

dddd

dec pt

big

dsplay

rly 1-8

relay

dis 1

Aout

rtd

Input

C

F or C

dddd.d

dec pt

Little

dsplay

Failsf

relay

004.000

dis 1

Press Enter

to Accept

ddddoF

dec pt

d-Inty

dsplay

delay

relay

Out 1

Aout

dddd.dF

dec pt

35

Model YPP7000 Temperature Input Meter Instruction Manual

Setting the Input Signal (input)

Enter the Input menu to set up the meter to accept thermocouple (tc) or

rtd) inputs. The Type selector switch, located at the rear of the

RTD (
meter, must be set accordingly.

The thermocouple input is capable of accepting various types of ther­mocouples.

The RTD input is capable of accepting various types of RTD sensors.
After selecting 100 Pt or 1000Pt, it is necessary to select either A385
(0.00385) or A392 (0.00392) coefficient.

Selecting the Temperature Scale (F or C)

The meter can display the temperature in degrees Fahrenheit or Cel­sius.

Setting the Decimal Point (dEc pt)

The temperature may be displayed with one decimal or with no decimal
point. The temperature scale can also be displayed with the reading.
The degree symbol is available only with no decimal point selected.

Pressing the Up arrow scrolls the decimal point and temperature format
selections.

Setting the Display Parameter & Intensity (dsplay)

The main display (Big) can be programmed to display:

1. Process value

2. Relay set points

3. Max & min values

4. Modbus input

5. Display reading and units

The small display (

1. Process value

2. Relay set points

3. Max & min values

4. Engineering units or custom legends

5. Modbus input

6. Off (no display)

7. Display reading and units

Display Intensity: The meter has eight display intensity levels to give

the best performance under various lighting conditions. Select intensity
8 for outdoor applications.

Little) can be programmed to display:

36

Model YPP7000 Temperature Input Meter Instruction Manual

Display Setup Menu

 Press the Up arrow to change selection
 Press Enter to accept setting
 Press Menu to exit programming

After setting up the input and display, press the Menu button to exit pro­gramming and skip the rest of the setup menu. Press the Menu button
again and the Up arrow to reach the

Setup menu again and complete

the setup of the meter.

37

Model YPP7000 Temperature Input Meter Instruction Manual

Character Set for Engineering Units Display (d unit)

The small display can be programmed to show engineering units or
custom legends using the following 7-segment character set:

Display Character Display Character

0
1
2

3
4
5
6
7
8
9
A
b
C
c
d
e
f
g
9
H
h
I
i
j

*Degree symbol (special non-ASCII character used)
The letters “m” and “w” use two 7-segment LEDs each; when selected the

characters to the right are shifted one position.
See the flow chart 37 to access the display units menu.
Press and hold up arrow to auto-scroll the characters in the display.

0

1

2
3
4
5
6
7
8
9
A
b
C
c
d
E
F

G

g

H

h

I
i

J

k
l

m

n
O
o
p
q
r
s
t
u
v

uw

x
y
z

­/
[
]
=

!

K

L

m

n

O

o
P
q

r

S

t
u
V

w

X
Y
Z

-

/

]

[
=

Space

Degree

38

Model YPP7000 Temperature Input Meter Instruction Manual

Setting the Relay Operation (relay)

This menu is used to set up the operation of the relays.

CAUTION! During setup, the relays do not follow the input and they will

remain in the state found prior to entering the Relay menu.

1. Relay action
a. Automatic reset only (non-latching)
b. Automatic + manual reset at any time (non-latching)
c. Latching (manual reset only)
d. Latching with Clear (manual reset only after alarm condi-

tion has cleared)
e. Relay alternation control (automatic reset only)
f. Sampling (the relay is activated for a user-specified time)
g. Off (relay disabled and Interlock feature enabled)

2. Set point

3. Reset point

4. Fail-safe operation
a. On (enabled)
b. Off (disabled)

5. Time delay
a. On delay (0-999.9 seconds)
b. Off delay (0-999.9 seconds)

6. Relay action for loss (break) of input (ignore, on, off)

39

Model YPP7000 Temperature Input Meter Instruction Manual

relay

setup

rly 1

relay

Act 1

rly 1

set 1

rly 1

rst 1

rly 1

Note: The setup of relays 2-8 follows the same
pattern shown here for relay 1.

Failsf

relay

Fls 1

Failsf

on

Fls 1

off

Fls 1

delay

relay

dly 1

delay

on

dly 1

off

dly 1

break

relay

break1

break

ignore

break1

On

break1

Off

break1

40

Model YPP7000 Temperature Input Meter Instruction Manual

Setting the Relay Action

Operation of the relays is programmed in the Action menu. The relays
may be set up for any of the following modes of operation:

1. Automatic reset (non-latching)

2. Automatic + manual reset at any time (non-latching)

3. Latching (manual reset only, at any time)

4. Latching with Clear (manual reset only after alarm condition
has cleared)

5. Relay alternation control (automatic reset only)

6. Sampling (the relay is activated for a user-specified time)

7. Off (relay disabled and Interlock feature enabled)

The following graphic shows relay 1 action setup; relay 2-8 are set up in
a similar fashion.

From

Relay 1

Menu

Act 1

rly 1

Auto

Act 1

A-mAn

Act 1

Latch

Act 1

41

Lt-Clr

Act 1

Altern

Act 1

Sampl

Act 1

OFF

Act 1

Model YPP7000 Temperature Input Meter Instruction Manual

Programming Set and Reset Points

High alarm indication: program set point above reset point.
Low alarm indication: program set point below reset point.
The deadband is determined by the difference between set and reset

points. Minimum deadband is one display count. If the set and reset
points are programmed with the same value, the relay will reset one
count below the set point.

Note: Changes are not saved until the reset point has been accepted.

set 1

rly 1

rst 1

rly 1

Program

Set Point

Program

Reset Point

Setting Fail-Safe Operation

In fail-safe mode of operation, the relay coil is energized when the
process variable is within safe limits and the relay coil is de-energized
when the alarm condition exists. The fail-safe operation is set indepen­dently for each relay. Select

on to enable or select off to disable fail-

safe operation.

Programming Time Delay

The On and Off time delays may be programmed for each relay be­tween 0 and 999.9 seconds. The relays will transfer only after the condi­tion has been maintained for the corresponding time delay.

The

On time delay is associated with the set point.

The

Off time delay is associated with the reset point.

Relay Action for Loss of Input (Input Break)

Each relay may be programmed to go to one of the following conditions
when the meter detects the loss of the input signal:

1. Turn

2. Turn

3. Ignore (Processed as an upscale condition)

On (Go to alarm condition)
Off (Go to non-alarm condition)

42

Model YPP7000 Temperature Input Meter Instruction Manual

PROPLUS Software

The meter can also be programmed using the PC-based PROPLUS
software available for free download at www.yokogawa-usa.com.
Data logging for one meter at the time is available with

software. More advanced data acquisition may be accomplished by
using any Modbus RTU compliant software.

PROPLUS

In order to program the meter using a computer, the meter must be
connected using a USB, RS-232, or RS-485 serial adapter, see
ORDERING INFORMATION on page 7 for details.

43

Model YPP7000 Temperature Input Meter Instruction Manual

Relay and Alarm Operation Diagrams

The following graphs illustrate the operation of the relays, status LEDs,
and ACK button.

High Alarm Operation (Set > Reset)

Input

Set

Reset

Relay

LED

energized

off

de-energized

on

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing below Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay.
To detect a new alarm condition, the signal must go below the set point,
and then go above it.

44

Model YPP7000 Temperature Input Meter Instruction Manual

Low Alarm Operation (Set < Reset)

Input

Reset

Set

Relay

LED

energized

on

de-energized

off

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

For Manual reset mode, ACK can be pressed anytime to turn "off" relay.
For relay to turn back "on", signal must go above set point, and then go
below it.

45

Model YPP7000 Temperature Input Meter Instruction Manual

High Alarm with Fail-Safe Operation (Set > Reset)

Input

Set

Reset

Relay

LED

energized

off

de-energized

on

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing below Reset (latching with clear)

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

46

Model YPP7000 Temperature Input Meter Instruction Manual

Low Alarm with Fail-Safe Operation (Set < Reset)

Input

Reset

Set

Relay

LED

de-energized

on

energized

off

Automatic (non-latching)

Relay

LED

ACK

pressed

Automatic or Manual (non-latching)

Relay

LED

ACK

pressed

Manual (latching)

Relay

LED

ACK

pressed

Manual only after passing above Reset (latching with clear)

Note: Relay coil is energized in non-alarm condition.

In case of power failure, relay will go to alarm state.

47

Model YPP7000 Temperature Input Meter Instruction Manual

LEDs indicate the relay status

Relay Alternation Control Operation

Input

Input

de-energized energized

Pump 1

Relay1 &

Relay1 Set

Relay2 Set

Relay2 Reset

Pump 2

Relay1 Set

Relay2 Set

de-energized energized

Relay2 Reset

Relay1 Reset

Pump 1

48

Input

de-energized energized

Pump 1

Pump 2

Relay1 Set

Relay2 Set

Relay1 Reset

Relay2 Reset

Pump 2

Model YPP7000 Temperature Input Meter Instruction Manual

Relay Sampling Operation

Input

Set

Reset

Relay

LED

Sample

Tim e

Sample

Tim e

Sample

Tim e

When the signal crosses the set point, the relay trips and the sample
time starts. After the sample time has elapsed, the relay resets. The
cycle repeats every time the set point is crossed, going up for high
alarms and going down for low alarms.

The sample time can be programmed between 0.1 and 5999.9 seconds.

49

Model YPP7000 Temperature Input Meter Instruction Manual

Signal Loss or Input Break Relay Operation

The following graph shows the input break relay operation for a high
alarm relay.

Set

Reset

Relay

LED

Relay

LED

Relay

Input

de-energized energized

off on

Input Break = Ignore

INPUT
BREAK

Input Break = Off

INPUT

BREAK

LED

Input Break = On

When the meter detects a break in the input, the relay will go to one of
the following selected actions:

1. Turn

2. Turn

On (Go to alarm condition)
Off (Go to non-alarm condition)

3. Ignore (Processed as an upscale condition)

50

Model YPP7000 Temperature Input Meter Instruction Manual

Time Delay Operation

The following graphs show the operation of the time delay function.

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

*

On Time Delay

Input

Set

Reset

<Tdelay <Tdelay >=Tdelay

Relay

LED

*

Off Time Delay

When the signal crosses the set point, the

On time delay timer starts

and the relay trips when the time delay has elapsed. If the signal drops
below the set point (high alarm) before the time delay has elapsed, the

On time delay timer resets and the relay does not change state. The

same principle applies to the

Off time delay.

* Note: If “

Automatic or Manual (

A-nmAn

)” reset mode is selected, the

LED follows the reset point and not the relay state when the
relay is acknowledged.

51

Model YPP7000 Temperature Input Meter Instruction Manual

Relay Operation Details

Overview

The relay capabilities of the meter expand its usefulness beyond simple
indication to provide users with alarm and control functions. These ca­pabilities include front panel alarm status LEDs as well as either 2 or 4
optional internal relays and/or 4 external relays expansion module. Typ­ical applications include high or low temperature alarms, control applica­tions such as simple on/off temperature control. There are four basic
ways the relays can be used:

1. High or Low Alarms with Latching or Non-Latching Relays

2. Simple On/Off Control with 100% Adjustable Deadband

3. Sampling (Based on Time)

4. Relay Alternation Control

Relays Auto Initialization

When power is applied to the meter, the front panel LEDs and alarm
relays will reflect the state of the input to the meter. The following table
indicates how the alarm LEDs and relays will react on power-up based
on the set and reset points:

Alarm # HI or LO

Alarm

1 HI 1000 500 499 Off
2 LO 700 900 499 On
3 LO 250 400 499 Off
4 HI 450 200 499 On

Set

Point

Reset

Point

Power-Up

Reading

Fail-Safe Operation

The following table indicates how the relays behave based on the fail­safe selection for each relay:

Fail-Safe
Selection

Off Open Closed Closed Open Relays go to

On Closed Open Open Closed Relays go to

Note: NO = Normally Open, NC = Normally Closed. This refers to the

Non-Alarm State Alarm State Power Failure

NO NC NO NC

condition of the relay contacts when the power to the meter is off.

Relay &

LED

non-alarm state

alarm state

52

Model YPP7000 Temperature Input Meter Instruction Manual

Front Panel LEDs

The LEDs on the front panel provide status indication for the following:

LED Status LED Status

1 Alarm 1 5 Alarm 5
2 Alarm 2 6 Alarm 6
3 Alarm 3 7 Alarm 7
4 Alarm 4 8 Alarm 8

The meter is supplied with four alarm points that include front panel
LEDs to indicate alarm conditions. This standard feature is particularly
useful for alarm applications that require visual-only indication. The
LEDs are controlled by the set and reset points programmed by the
user. When the display reaches a set point for a high or low alarm, the
corresponding alarm LED will turn on. When the display returns to the
reset point the LED will go off. The front panel LEDs respond differently
for latching and non-latching relays.

For non-latching relays, the LED is always off during normal condition
and always on during alarm condition, regardless of the state of the
relay (e.g. Relay acknowledged after alarm condition).

For latching relays, the alarm LEDs reflect the status of the relays, re­gardless of the alarm condition. The following tables illustrate how the
alarm LEDs function in relation to the relays and the acknowledge but­ton (Default: F3 key assigned to ACK):

Latching and Non-Latching Relay Operation

The relays can be set up for latching (manual reset) or non-latching
(automatic reset) operation.

Relay terminology for following tables
Terminology Relay Condition

On Alarm (Tripped)
Off Normal (Reset)

Ack Acknowledged

The On and Off terminology does not refer to the status of the relay’s
coil, which depends on the fail-safe mode selected.

In latching relay mode, latched relays will reset (unlatch)
when power is cycled.

Warning!

53

Model YPP7000 Temperature Input Meter Instruction Manual

Non-Latching Relay (Auto)

Automatic reset only

Condition LED Relay

Normal Off Off
Alarm On On
Ack (No effect) On On
Normal Off Off

In this application, the meter is set up for automatic reset (non-latching
relay). Acknowledging the alarm while it is still present has no effect on
either the LED or the relay. When the alarm finally goes away, the relay
automatically resets and the LED also goes off.

Non-Latching Relay (A-nman)

Automatic + manual reset at any time

Condition LED Relay

Normal Off Off
Alarm On On
Normal Off Off
Next Alarm On On
Ack On Off
Normal Off Off

In this application, the meter is set up for automatic and manual reset at
any time (non-latching relay). The LED and the relay automatically reset
when the meter returns to the normal condition.
The next time an alarm occurs, the operator acknowledges the alarm
manually while the alarm condition still exists. This causes the relay to
reset, but the LED stays on until the meter returns to the normal condi­tion.

Latching Relay (LatcH)

Manual reset any time

Condition LED Relay

Normal Off Off
Alarm On On

Ack Off Off
In this application, the meter is set up for manual reset at any time. Ac­knowledging the alarm even if the alarm condition is still present resets
the relay and turns off the LED.

54

Model YPP7000 Temperature Input Meter Instruction Manual

Latching Relay (Lt-Clr)

Manual reset only after alarm condition has cleared

Condition LED Relay

Normal Off Off
Alarm On On
Ack (No effect) On On
Normal On On

Ack Off Off
In this application, the meter is set up for manual reset only after the
signal passes the reset point (alarm condition has cleared). Acknowl­edging the alarm while it is still present has no effect on either the LED
or the relay. When the alarm is acknowledged after it returns to the
normal state, the LED and the relay go off. Notice that the LED remains
on, even after the meter returns to the normal condition. This is be­cause, for latching relays, the alarm LED reflects the status of the relay,
regardless of the alarm condition.

Acknowledging Relays

There are two ways to acknowledge relays programmed for manual
reset: via the programmable front panel function keys F1-F3 (Default:
F3 assigned to ACK) and remotely via a normally open pushbutton con­nected across one of the digital inputs and the +5 V terminals on the
digital I/O modules (Default: DI-4 assigned to ACK). When the ACK
button or the assigned digital input is closed, all relays programmed for
manual reset are acknowledged.

Figure 19. Acknowledge Relays w/Function Key or Digital Input

55

Model YPP7000 Temperature Input Meter Instruction Manual

Setting Up the Interlock Relay (Force On) Feature

Relays 1-4 can be set up as interlock relays. To set up the relays for the
interlock feature:

1. Access the

Setup – Relay – Action menu and set the action to off.

setup

relay

setup

rly 1

relay

Act 1

rly 1

Off

Act 1

2. In the Advanced features –

inputs to

Force On any of the internal relays (1-4).

user

F1

User menu program any of the digital

dI 1

user

user

F On 1

dI 1

3. Connect a switch or dry contact between the +5V terminal and the

corresponding digital input (dI-1 to dI-4) terminal.

SW2

SW1

123456

+5 I1 I2 I3 I4 O1

5 VDC GND

DI 1-4 DO 1-4

78

O2 O3

910

O4 G

Interlock Relay Operation

Relays 1 & 2 are energized when SW1 & SW2 switches are closed and
the front panel LEDs are off. If the contact to the digital input is opened,
the corresponding front panel LED flashes indicating this condition. The
processes being controlled by the interlock relay stop and will re-start
only after the interlock relay is activated by the digital inputs.

56

Model YPP7000 Temperature Input Meter Instruction Manual

Scaling the 4-20 mA Analog Output (Aout)

The 4-20 mA analog output can be scaled to provide a 4-20 mA signal
for any display range selected.

No equipment is needed to scale the analog output; simply program the
display values to the corresponding mA output signal.

The

Analog Output menu is used to program the 4-20 mA output based

on display values.

Aout

setup

dis 1

Aout

00000.0

dis 1

Out 1

Aout

04.000

Out 1

*

dis 2

Aout

02000.0

dis 2

Out 2

Aout

20.000

Out 2

*

*Note: During the analog output scaling, the display value is always

indicated with a decimal point regardless of the decimal point se­lection for the temperature display.

For instructions on how to program

numeric values see

Values

Setting Numeric

, page 33.

57

Model YPP7000 Temperature Input Meter Instruction Manual

Setting Up the Password (pass)

The Password menu is used for programming three levels of security to
prevent unauthorized changes to the programmed parameter settings.

Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs

Protecting or Locking the Meter

Enter the Password menu and program a six-digit password.
For instructions on how to program numeric values see

Values

, page 33.

.

Setting Numeric

Pass 1

Pass

Pass 2

Pass

000000

Pass 1

100000

Pass 1

Locd

Pass 1

Run Mode

Pass 3

Pass

Record the password for future reference. If appropriate, it may be rec­orded in the space provided.

Model:
Serial Number:
Password 1: __ __ __ __ __ __
Password 2: __ __ __ __ __ __
Password 3: __ __ __ __ __ __

58

Model YPP7000 Temperature Input Meter Instruction Manual

Making Changes to a Password Protected Meter

If the meter is password protected, the meter will display the message

Locd (Locked) when the Menu button is pressed. Press the Enter button

while the message is being displayed and enter the correct password to
gain access to the menu.

Note: After exiting the programming mode, the meter returns to its

password protected condition.

Disabling Password Protection

To disable the password protection, access the Password menu and
enter the correct password twice, as shown below. The meter is now
unprotected until a new password is entered.

Run Mode

75.6F

mA

Locd 000000

Locd

reset

If the correct six-digit password is entered, the meter displays the mes­sage

unLoc (unlocked) and the protection is disabled until a new pass-

word is programmed.
If the password entered is incorrect, the meter displays the message

Locd (Locked) for about two seconds, and then it returns to Run Mode.

To try again, press Enter while the

The password may be disabled by entering a master
password once. If you are authorized to make changes,
enter the master password 508655 to unlock the meter.

Pass

Did you forget the password?

100000

Locd

Enter

Password

Locked message is displayed.

59

unLoc

Locd

unLoc

Pass 1

Model YPP7000 Temperature Input Meter Instruction Manual

Advanced Features Menu

To simplify the setup process, functions not needed for most applica­tions are located in the

Press and hold the Menu button for three seconds to access the ad­vanced features of the meter.

Advanced Features menu.

60

Model YPP7000 Temperature Input Meter Instruction Manual

Advanced Features Menu & Display Messages

The following table shows the functions and messages of the Advanced

Features

Display Parameter Action/Setting

Adjust

T cal

rtdtot

filtEr

bypASs

seriAl

SelEct

menu in the order they appear in the menu.

Set adjust value to offset temperature read­ing

Enter temperature calibration menu

Apply the low temperature input (e.g. 32°F)

Apply the high temperature input
(e.g. 1000

Set the number of RTDs connected in pa­rallel to obtain average temperature

Set noise filter value

Set filter bypass value

Set serial communication parameters

Set slave ID or meter address

Select baud rate

Set transmit delay for serial communication

Select parity
Even, Odd, or None with 1 or 2 stop bits

Set byte-to-byte timeout

Enter the Select menu

Program analog output parameters

Select source for the 4-20 mA output

Program mA output for display overrange

Program mA output for display underrange

Program maximum mA output allowed

Program minimum mA output allowed

Calibrate 4-20 mA output (internal refer­ence source used for scaling the output)

Enter mA output value read by milliamp
meter with at least 0.001 mA resolution

61

T lo

T Hi

SlaveId

baud

Tr dLY

Parity

t-byt

AoutPr

Source

O-rang

u-rang

mAx

min

Calib

4 mA

Adjust

T Cal

T Low

T High

RTD Total

Filter

Bypass

Serial

Slave ID

Baud rate

Transmit delay

Parity

Time byte

Select

Analog output
programming

Source

Overrange

Underrange

Maximum

Minimum

Calibrate

4 mA output

°F)

Model YPP7000 Temperature Input Meter Instruction Manual

Display Parameter Action/Setting

20 mA

user

F1

F2

F3

dI I

dO 1

ICal

mref

0nmv

100nmv

Copy

send

done

Diag

LED t

Info

20 mA output

User I/O

F1 function key

F2 function key

F3 function key

Digital input 1

Digital output 1

Internal temp
calibration

Measured temp
reference

0 mV

100 mV

Copy

Send

Done

Diagnostics

LED test

Information

Enter mA output value read by milliamp
meter with at least 0.001 mA resolution

Assign function keys and digital I/O

Assign F1 function key

Assign F2 function key

Assign F3 function key

Assign digital input 1- 8, if expansion
modules are connected

Assign digital output 1- 8, if expansion
modules are connected

Enter internal temperature calibration (used
for factory calibration only)

Enter the measured reference temperature
in degrees Celsius (e.g. 25.0)

Apply 0.000 mV input Internal Calibration

Apply 100.000 mV input

Enter copy function

Send meter settings to another meter

Copy function completed

Display parameter settings

Test all LEDs

Display software and S/N information

Offset Adjust (Adjust)

This parameter allows the user to select an offset adjustment to the tem­perature being displayed. Offset adjustment values can be either positive
or negative and can be any number within
value is programmed through the

Adjust menu.

The offset adjustment feature can be useful to compensate for errors due
to thermocouple junctions or excessive lead wire resistance in RTDs.

Note: The offset adjustment value is not reset to zero when the type of

temperature sensor is changed (i.e. TC type or RTD curve). Cel­sius/Fahrenheit conversion must be made manually by the user.

50.0. The offset adjustment

62

Model YPP7000 Temperature Input Meter Instruction Manual

Recalibration of the Meter (t CAL)

The Calibration (t CAL) menu is used to recalibrate the thermocouple
and RTD inputs.

 The meter is factory calibrated prior to shipment to read

temperature in degrees Fahrenheit. The calibration
equipment is certified to NIST standards.

 There is no need to calibrate the meter, simply select

the input type, °F or °C, and decimal point.

 Check calibration of the meter at least every 12 months.

Allow at least 30 minutes warm-up time before performing recalibration
procedure to ensure specified accuracy.

63

Model YPP7000 Temperature Input Meter Instruction Manual

Recommended Calibration Points

To recalibrate the meter, it is recommended to use the Fahrenheit scale;
this will give a greater degree of accuracy to the calibration. The scale
can be changed to the Celsius scale after calibration is completed. The
meter will display temperature accurately in any scale. The following
table shows the recommended low and high calibration points for all
types.

Type of input Input 1

Type J

Type K

Type T

Type E

Type R

Type S

Type B

Type N

Type C

10  Cu RTD

100  Pt RTD
(0.00385)

100  Pt RTD
(0.00392)

120  Ni RTD

1000  Pt RTD
(0.00385)

1000  Pt RTD
(0.00392)

(Low)

32

32

32

32

32

32

32

32

500

32F

9.035

32F

100

32F

100

32F

120

32F

1000

32F

1000

Input 2
(High)

F 1184F 600F

F 1895F 960F

F 698F 360F

F 1652F 800F

F 3110F 1500F

F 3110F 1500F

F 3110F 1500F

F 1472F 700F

F 3650F 1800F













450F

18.032

1148F

320.12

1148F

324.49

410F

315.31

900F

2750.4

900F

2785.1













Check
(Middle)

200

12.639

590

215.61

590

217.89

221

205.22

450

1876.5

450

1893.7

F



F



F



F



F



F



64

Model YPP7000 Temperature Input Meter Instruction Manual

Recalibration Procedure

1. Connect signal to the meter using the appropriate wire (e.g. type J

thermocouple wire to recalibrate type J input), see page 19.

2. Set up the meter to accept the selected input (e.g. type J T/C), see

page 36.

3. Set up the meter to display temperature in degrees Fahrenheit.

4. Apply signal corresponding to input 1 (32°F) and program the dis-

play to read 32.0.

5. Apply signal corresponding to input 2 (1184°F for type J) and pro-

gram the display accordingly.

6. After the meter accepts input 2, the display returns to reading

mode. This completes the recalibration procedure for the selected
input.

Noise Filter (filter)

The noise filter is available for unusually noisy signals that cause an
unstable process variable display. The noise filter averages the input
signal over a certain period. The filter level determines the length of time
over which the signal is averaged. The filter level can be set between 2
and 199. The higher the filter level, the longer the averaging time and so
the longer it takes the display to settle to its final value. Setting the filter
level to zero disables the filter function.

Noise Filter Bypass (bypass)

The noise filter bypass changes the behavior of the meter so that small
variations in the signal are filtered out but large abrupt changes in the
input signal are displayed immediately. The bypass value determines
the minimum amount of signal change to be displayed immediately. All
signal changes smaller than the bypass value are filtered or averaged
by the meter. The noise filter bypass may be set between 0.1 and

99.9% of full scale.

65

Model YPP7000 Temperature Input Meter Instruction Manual

Modbus RTU Serial Communications (serial)

The meter is equipped with serial communications capability as a stan­dard feature using the Modbus RTU Serial Communication Protocol.

To communicate with a computer or other data terminal equipment, an
RS-232 or RS-485 adapter option is required; see
on page 7 for details.

Do not connect any equipment other than Yokogawa’s
expansion modules, cables, or meters to the RJ45 M-LINK

Warning!

connector. Otherwise damage will occur to the equipment
and the meter.

Note: More detailed instructions are provided with each optional serial

communications adapter.

Note: Refer to the PROPLUS

Modbus Register Tables located at

www.yokogawa-usa.com for details.

Ordering Information

serial tr dly

SlavId

Serial

baud

Serial

Serial

Parity

Serial

t-byt

Serial

When using more than one meter in a multi-drop mode, each meter
must be have its own unique Slave ID or meter address. The ID or ad­dress may be programmed between 1 and 247. The transmit delay may
be set between 0 and 199 ms. The parity can be set to even, odd, or
none with 1 or 2 stop bits.

The YPP7000 can also be connected to another YPP7000 with a spe­cial YPPA1200 cable, allowing the user to copy all the settings from one
meter to another, using the

Copy function.

66

Model YPP7000 Temperature Input Meter Instruction Manual

Select Menu (SElect)

The Select menu is used to program the analog output parameters.
There are no other selections for this model.

select AoutPr

Select

Source

AoutPr

O-rang

AoutPr

Underrange

Break

Max

Min

67

Calib

AoutPr

Model YPP7000 Temperature Input Meter Instruction Manual

Analog Output Programming (AoutPr)

The Analog Output Programming menu is used to program the behavior
of the 4-20 mA output. The following parameters and functions are pro­grammed in this menu:

1. Source: Source for generating the 4-20 mA output (e.g. PV -

temperature)

2. Overrange: Analog output value with display in overrange condition

3. Underrange: Analog output value with display in underrange condition

4. Break: Analog output value when input break is detected

5. Max: Maximum analog output value allowed regardless of input

6. Min: Minimum analog output value allowed regardless of input

7. Calibrate: Calibrate the internal 4-20 mA source reference used to

scale the 4-20 mA output

Analog Output Source

The source for generating the 4-20 mA output may be assigned to the
process variable, maximum or minimum value reached by the process,
one of the set points, or the Modbus input.

Source

AoutPr

Pv

Source

max

Source

min

Source

Set Points

1 - 8

mbus

Source

Analog Output Calibration

To perform the analog output calibration it is recommended to use a
milliamp meter with a resolution of at least 0.1 µA to measure the output
current. The values saved internally during this procedure are used for
scaling the 4-20 mA output in the

Setup menu.

68

Model YPP7000 Temperature Input Meter Instruction Manual

Programmable Function Keys User Menu (user)

The User menu allows the user to assign the front panel function keys
F1, F2, F3 and up to eight digital inputs to access most of the menus or
to activate functions immediately (e.g. Reset max & min). Up to eight
digital outputs can be assigned to a number of actions and functions
executed by the meter (e.g. Alarms, relay acknowledgement, etc.).

user

dO 8

user

F1

user

dO 1

user

F2

user

dI 8

user

F3

user

dI 1

user

Function Keys & Digital I/O Available Settings

Display Description Display Description

AcH

Rst Hi

Rst Lo

Rst HL

relay

Set 1

Rly d

Rly E

O Hold

d Hold

Big Hi

Big Lo

Big HL

Acknowledge relays

Reset max

Reset min

Reset max & min

Relay menu

Set point 1 - 8

Disable all relays

Enable all relays

Relays & output hold

Display hold

Max on big display

Min on big display

Max/min big display

Lit Hi

Lit Lo

Lit HL

disabl

menu

Right

up

Enter

Alm 1

F On 1

F On 2

F On 3

F On 4

Max on little display

Min on little display

Max/min little display

Disable function key

Menu button

Right arrow button/F1

Up arrow button/F2

Enter button/F3

Alarm 1 – 8

Force relay 1 on

Force relay 2 on

Force relay 3 on

Force relay 4 on

69

Model YPP7000 Temperature Input Meter Instruction Manual

Internal Temperature Calibration (ICAL)

The meter is factory calibrated prior to shipment to
read temperature in degrees Fahrenheit. The calibra­tion equipment is certified to NIST standards.

The Internal Calibration (
brate all the thermocouple and RTD ranges. This procedure should only
be used by qualified personnel.

To recalibrate the meter for a specific input and range, refer to page 63
Recalibration of the Meter (

Notes:

1. If meter is in operation and it is intended to

2. Allow the meter to warm up for at least

3. Use the

The

Internal calibration menu is part of the Advanced Features menu

and is described in the following pages. This procedure should only be
used by qualified personnel.

Note: Most users should not require the use of the Internal Calibration

procedure. The T CAL procedure should be used instead of the
ICAL procedure.

ICAL) is a function used at the factory to cali-

t CAL).

accept only one input type (e.g. 100 Pt),
recalibration of other inputs is not necessary.

30 minutes before performing the calibration
procedure.

Recalibration of the Meter (t CAL)

procedure found on page 63.

70

Model YPP7000 Temperature Input Meter Instruction Manual

Thermocouple Input Internal Calibration (ICAL)

1. Set the Type selector switch in the TC position and using copper

wire connect a precision mV calibrator to the input.

2. In the

Setup menu select the input: TC – Type J.

3. Press and hold the Menu button for three seconds to access the

advanced features of the meter.

4. Press the Up

(

ICAL) and press Enter.

5. The meter displays either current calibration (

arrow button to scroll to the Internal calibration menu

mref). Press Enter

to start the calibration process.

6. Measure the room temperature in degrees Celsius using a reliable

reference, enter the room temperature (e.g. 25.0), and press Enter.

7. The meter displays

0mv, apply an input equal to 0.000 mV and

press Enter. The display flashes while accepting the 0 mV input;
press Enter again when the display stops flashing.

8. The meter displays

100mv, apply an input equal to 100.000 mV

and press Enter. The display flashes while accepting the 100 mV
input; press Enter again when the display stops flashing.

9. Apply 0 mV, the meter should read room temperature.

10. This completes the calibration of all the thermocouple ranges.

ICAL

mref 25.0

mref

0mv

250

100mv

250

71

The display

flashes while

sensing the

inputs

The display

flashes while

sensing the

inputs

Model YPP7000 Temperature Input Meter Instruction Manual

RTD Input Internal Calibration (ICAL)

1. Set the Type selector switch in the RTD position and the Range

switch in the 10 position. Using 3 wires connect a precision calibra­tor resistance output to the meter.

2. In the

3. Access the

Setup menu select the input: RTD – 100 Pt – A385.

Advanced Features menu and scroll to the ICAL menu

and press Enter.

4. The meter displays the message (

10 lo). Apply 9.035 ohm and

press Enter. The display flashes for a moment while the meter is
accepting the low input signal for the 10-ohm RTD. After the display
stops flashing, press Enter again.

5. The meter displays the message (

10 Hi). Apply 18.032 ohm and

press Enter. The display flashes for a moment while the meter is
accepting the high input signal for the 10-ohm RTD. After the dis­play stops flashing, press Enter again.

6. The meter displays the message (

100 lo). Do NOT press Enter.

7. Move the Range selector switch to the 100 position. Apply 100 ohm

and press Enter. The display flashes for a moment while the meter
is accepting the low input signal for the 100-ohm RTD.

8. The meter displays the message (

100 Hi). Apply 320.12 ohm and

press Enter. The display flashes for a moment while the meter is
accepting the high input signal for the 100-ohm RTD.

9. At the end of the calibration process the meter should read 1148.0F

with the 320.12 ohm input applied.

10. This completes the calibration of all the RTD ranges.

ICAL

10 lo

ICAL

72

10 Hi

ICAL

100 Lo

ICAL

100 Hi

ICAL

The display

flashes while

sensing the

inputs

Model YPP7000 Temperature Input Meter Instruction Manual

Meter Copy Function (Copy)

The Copy function is used to copy (or clone) all the settings from one
meter to other meters requiring exactly the same setup and program­ming (i.e. type of input, decimal point, filter, bypass, etc.).

Only the YPPA1200 meter copy cable must be used for
meter-to-meter interfacing. The YPPA1200 is a special

Warning!

eight-conductor flat cable with two wires swapped.
Using standard CAT5 or other cable will cause damage to

both meters.

YPPA1200 Meter Copy Cable

Figure 20. Meter Copy Connection

Copy Function Requirements

To successfully copy settings from one
meter to another, both meters must have:

1. Same software version

2. Same baud rate setting

See Determining Software Version,

page 77 for instructions.

73

Model YPP7000 Temperature Input Meter Instruction Manual

Meter Copy or Cloning Instructions

Do not connect the two meters to

!

Caution!

1. Connect two meters using a YPPA1200 meter copy cable.

Warning!

Using standard CAT5 or other cable will cause damage to
both meters. Use YPPA1200 meter copy cable only.

2. Do not connect the two meters to the same signal source.

3. Power up both meters. Leave Clone meter in Run Mode.

4. Enter the

vanced Features Menu

5. Scroll to the

Enter.

6. The meter displays the message

flashes while sending data. The message
copying is completed.

Advanced Features menu of the Master meter; see Ad-

Copy function using the Up arrow button then press

the same signal source while
cloning. Internal calibration may
be affected.

on page 60.

Send. Press Enter, the display

done is displayed when

Copy

7. The Clone meter displays the message CPY rC while being pro-

grammed then the message
meter initializes and returns to Run Mode using the same settings
as the Master.

8. If meter to be cloned does not respond to the data being sent, refer

to

Copy Function Requirements above.

Send

Copy

Display flashes

while sending

data

done when copying is completed. The

74

done

Copy

Model YPP7000 Temperature Input Meter Instruction Manual

METER OPERATION

The meter is capable of accepting a variety of thermocouples and
RTDs.

The dual-line display can be customized by the user to operate in such
a way as to satisfy a specific application. Typically the main display is
used for the process variable; while the second display is used engi­neering units, custom legend, or set point indication.

Additionally the meter can be set up to display the thermocouple or RTD
input on the main display and the Modbus input on the second display.
The relays and analog output can be programmed to operate from the
Modbus PV input.

Front Panel Buttons Operation

Button
Symbol

Description

Press to enter or exit Programming Mode,
view settings, or exit max/min readings

Press to reset max/min readings or other pa­rameter/function assigned through the
menu

Press to display max/min readings or other
parameter/function assigned through the
menu

User

User

Press to acknowledge relays or other parame­ters/function assigned through the

User menu

Function Keys Operation

During operation, the programmable function keys operate according to
the way they have been programmed in the
menu.

The table above shows the factory default settings for F1, F2, and F3.

75

Advanced Features – User

Model YPP7000 Temperature Input Meter Instruction Manual

Maximum/Minimum Readings

The max & min readings (peak & valley) reached by the process can be
displayed either continuously or momentary:

1. Display briefly by assigning to the F1-F3 function keys or to the
digital inputs in the

2. Display continuously by assigning either display to max/min
through the

Any of the F1-F3 function keys (buttons) and the digital inputs can be
programmed to reset the max & min readings. The meters are set at the
factory to display the max reading by pressing the Up arrow/F2 button
and to use the Right arrow/F1 button to access the

To display max reading using function key with factory defaults:

1. Press Up arrow/F2 button to display maximum reading since the
last reset/power-up.

2. To reset max/min press Right arrow/F1 button to access the Reset
menu. The max & min displays are reset to actual values.

3. Press Menu to exit max/min display reading.

To display max/min readings continuously:

Assign either display to Max (d Hi), Min (d Lo), or toggle between Max
and Min (

d HL) every 10 seconds.

User menu.

Display menu.

Reset menu.

Dsplay

setup

big

dsplay

d Hi

big

Little

d Lo

76

dsplay

big

d HL

big

Model YPP7000 Temperature Input Meter Instruction Manual

TROUBLESHOOTING

The rugged design and the user-friendly interface of the meter should
make it unusual for the installer or operator to refer to this section of the
manual. However, due to the many features and functions of the meter,
it’s possible that the setup of the meter does not agree with what an
operator expects to see.

If the meter is not working as expected, refer to the
and recommendations below.

Diagnostics Menu (diag)

The Diagnostics menu is located in the Advanced Features menu, to
access

It provides an easy way to view the programmed parameter settings for
troubleshooting purposes. Press the Enter
and the Menu button to exit at any time.

For a description of the diagnostic messages,

Menu &

To determine the software version of a meter:

Diagnostics menu see Advanced Features Menu, page 60.

button to view the settings

Display Messages, page 61.

Determining Software Version

1. Go to the

2. Press Up arrow button and scroll to Information menu (

3. Press Enter to access the software number (

(

UER) information. Write down the information as it is displayed.

Continue pressing Enter until all the information is displayed.

4. The meter returns to Run Mode after displaying all the settings.

Diagnostics menu (diAG) and press Enter button.

Diagnostics menu

see Advanced Features

Info).

SFT) and version

77

Model YPP7000 Temperature Input Meter Instruction Manual

Reset Meter to Factory Defaults

When the parameters have been changed in a way that is difficult to
determine what’s happening, it might be better to start the setup
process from the factory defaults.

Instructions to load factory defaults:

1. Enter the Advanced Features menu. See Advanced Features

, page 60.

Menu

2. Press Up arrow to go to

3. Press and hold Right arrow for five seconds, press
Enter when display flashes
Note: If Enter is not pressed within three seconds, the display
returns to the

4. The meter goes through an initialization sequence (similar as on
power-up), and loads the factory default settings.

Diagnostics menu.

Diagnostics menu

reset.

Run Mode

145.6F

Stator

Press & hold Menu for

3 sec to access

Advanced features

reset diaG

Press & hold right

arrow for

3 sec to reset meter

78

146oF

temp

Model YPP7000 Temperature Input Meter Instruction Manual

Factory Defaults & User Settings

The following table shows the factory setting for most of the programm­able parameters on the meter. Next to the factory setting, the user may
record the new setting for the particular application.

Model: ______________ S/N: _______________ Date: _________

Parameter Display Default Setting User Setting

Input type

Temp scale

Adjust

RTD total

Filter

Bypass

Decimal point

Display assignment

Big display (Main)

Little display (Small)

Display intensity

Relay 1 action

Relay 1 set point

Relay 1 reset point

Relay 2 action

Relay 2 set point

Relay 2 reset point

Relay 3 action

Relay 3 set point

Relay 3 reset point

Relay 4 action

Relay 4 set point

input

F or C

Adjust

rtdtot

filter

bypass

ddddoF

Dsplay

big

Little

d-Inty

Act 1

Set 1

RSt 1

Act 2

Set 2

RSt 2

Act 3

Set 3

RSt 3

Act 4

Set 4

Type J TC

°F

0.0

1

70

0.2

No decimal

PV: Temperature

Eng units: Temp

8

Automatic

100

50

Automatic

200

150

Automatic

300

250

Automatic

400

79

Model YPP7000 Temperature Input Meter Instruction Manual

Parameter Display Default Setting User Setting

Relay 4 reset point

Fail-safe relay 1

Fail-safe relay 2

Fail-safe relay 3

Fail-safe relay 4

On delay relay 1

Off delay relay 1

On delay relay 2

Off delay relay 2

On delay relay 3

Off delay relay 3

On delay relay 4

Off delay relay 4

Input break relay 1

Input break relay 2

Input break relay 3

Input break relay 4

Display 1 analog out

Output 1 value

Display 2 analog out

Output 2 value

Source analog output

Overrange output

Underrange output

Input break output

Maximum output

RSt 4

Fls 1

Fls 2

Fls 3

Fls 4

On 1

Off 1

On 2

Off 2

On 3

Off 3

On 4

Off 4

ignore

ignore

ignore

ignore

Dis 1

Out 1

Dis 2

Out 2

Source

O-rang

u-rang

break

mAx

350

Off

Off

Off

Off

0.0 sec

0.0 sec

0.0 sec

0.0 sec

0.0 sec

0.0 sec

0.0 sec

0.0 sec

Ignore

Ignore

Ignore

Ignore

0.0

4.000 mA

2000.0

20.000 mA

Process Variable

21.000 mA

3.000 mA

1.000 mA

23.000 mA

80

Model YPP7000 Temperature Input Meter Instruction Manual

Parameter Display Default Setting User Setting

Minimum output

Slave ID

Baud rate

Transmit delay

Parity

Byte-to-byte timeout

F1 function key

F2 function key

F3 function key

Digital input 1

Digital input 2

Digital input 3

Digital input 4

Digital output 1

Digital output 2

Digital output 3

Digital output 4

Password 1

Password 2

Password 3

min

SlavId

baud

Tr dly

Parity

t-byt

F1

F2

F3

dI 1

dI 2

dI 3

dI 4

dO 1

dO 2

dO 3

dO 4

Pass 1

Pass 2

Pass 3

0.000 mA

247

9600

10 ms

Even

010 (0.1 sec)

Reset max & min

Big display: Max (Hi)

Acknowledge relays

Menu

Right arrow

Up arrow

Enter

Alarm 1

Alarm 2

Alarm 3

Alarm 4

000000 (unlocked)

000000 (unlocked)

000000 (unlocked)

81

Model YPP7000 Temperature Input Meter Instruction Manual

Troubleshooting Tips

Symptom Check/Action

No display at all

Not able to change setup or pro­gramming,

Meter displays error message dur­ing calibration (

Meter displays

1.

2.

Display is unstable

Display response is too slow

Display reading is not accurate

Display does not respond to input
changes, reading a fixed number

Display alternates between

1.

2.

Relay operation is reversed

Relay and status LED do not
respond to signal

Flashing relay status LEDs

Meter not communicating with ap­plication programs

If the display locks up or the meter
does not respond at all

Other symptoms not described
above

Locd is displayed

Error)

99999

-9999

Hi and a number
Lo and a number

Check power at power connector

Meter is password-protected, enter
correct six-digit password to unlock

Check:

1. Signal connections

2. Type and range selector switches

3. Input selected in
Check:

1. Input selected in

2. Corresponding signal at Signal
connector

Check:

1. Input signal stability and value

2. Filter and bypass values (increase)

Check filter and bypass values

Check:

1. TC wire type

2. Input selection in

Check:

1. Display assignment, it might be
displaying max, min, or set point.

Press Menu to exit max/min display
readings.

Check:

1. Fail-safe in

2. Wiring of relay contacts

Check:

1. Relay action in

2. Set and reset points

Relays in manual control mode or relay
interlock switches opened.
Check:

1. Serial adapter and cable

2. Serial settings

3. Meter address and baud rate

Cycle the power to reboot the
microprocessor.

Call Technical Support for
assistance.

Setup menu

Setup menu

Setup menu

Setup menu

Setup menu

82

Model YPP7000 Temperature Input Meter Instruction Manual

DIMENSIONS

Figure 21. Meter Dimensions - Side View

Figure 22. Meter Dimensions - Top View

83

Model YPP7000 Temperature Input Meter Instruction Manual

84

Model YPP7000 Temperature Input Meter Instruction Manual

85

Model YPP7000 Temperature Input Meter Instruction Manual

Figure 23: 1/8 DIN Panel Cutout Template

86

Model YPP7000 Temperature Input Meter Instruction Manual

87

Model YPP7000 Temperature Input Meter Instruction Manual

NOTES

88

Model YPP7000 Temperature Input Meter Instruction Manual

LIM7000YK_A

SFT063 Ver 2.200 & up

11/11
