Yokogawa VJP1 User Manual

User's Manual

Model VJP1 Pulse Repeater

(Isolated Single-output and Isolated Dualoutput Types)

Thank you for purchasing the JUXTA Signal Conditioner. Please read through this manual before use for correct handling.

IM 77J01P01-01EN

1st Edition Aug. 2013 (YK)

2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan Phone: +81-422-52-7179 Facsimile: +81-422-52-9802

CAUTIONARY NOTES FOR SAFE USE OF THE PRODUCT

This User’s Manual should be carefully read before installing and operating the product. The following symbol is used on the product and in this manual to ensure safe usage.

This symbol is displayed on the product when it is necessary to refer to the User's Manual for information on personal and instrument safety. This symbol is displayed in the User's Manual to indicate precautions to avoid danger to the operator, such as an electric shock.

The following symbols are used only in this manual.

Note

Draws attention to essential information for understanding the operations and/or functions of the product.

CHECKING PRODUCT SPECIFICATIONS AND PACKAGE

(1) Checking the Model and Product Specications

Check that the model and specications indicated on the

nameplate attached to the main unit are as ordered.

(2) Packaged Items

Check that the package contains the following items:

• VJP1: 1

• Tag number label: 1

• User's Manual (this manual)

MODEL AND SUFFIX CODES

Model Sufx codes Description

VJP1 -0 □ □ -□ □ □ 0 /□□ Pulse Repeater

Output

conguration

Power supply 6 100-240 V AC/DC

Transmitter Power Supply

Output-1 1 Open collector (30 V

Output-2 1 Open collector (30 V

Options Blank: With socket

*1 Operating range: 85-264 V *2 Operating range: 12-36 V

-0 Always 0 1 Single 2 Dual

7 15-30V DC

-1 12V DC±10%

-2 24V DC±10%

DC/200 mA)

2 Open collector (30 V DC/30

mA)

3 Contactless AC switch

DC/200 mA)

2 Open collector (30 V DC/30

mA)

3 Contactless AC switch N None

0 Always 0

/SN Without socket

[STYLE: S2]

(*1)

(*2)

GENERAL

The VJP1 is a compact, plug-in pulse repeater that receives

contact, voltage or current pulse from a eld and converts them

into isolated transistor-contact pulses or contactless AC switch pulse.

1. MOUNTING METHOD

Mounting Dimensions

Unit: mm

screw

Main unit

Mounting

Slide look

Fit into here

Input

Note

Insert/pull out the main unit into/from the socket vertically to the face of socket. Otherwise the terminals are bent and it may cause a bad contact.

1.1 Wall Mounting

Loosen the main unit-xing screw of the product and pull out the main unit from the socket. Fix the socket on the wall with screws. Next, insert the main unit into the socket and fasten the main unit with the main unit-xing screw.

screws

Socket

Threaded hole for fixing the main unit

Main unit-fixing

1.2 DIN Rail Mounting

Insert a DIN rail into the upper part of the DIN rail groove on the rear of the socket, and then slide the slide lock at the lower part of

the socket upwards until the socket is xed into position as shown

below

29.5 or more

22±0.2

59±0.3

2-M4 or 2-ø4.5 or more

Note When power of VJP1 is turned on/off, one pulse may be

counted by the pulse input device which connects to the VJP1.

Wiring should be connected to the terminals on the socket

of the product. The terminals for external connections are of

M3 screws. Use crimp-on terminal lugs for connections to the terminals.

• Recommended cables: A nominal cross-sectional area of

0.5 mm

or thicker for signal cables, and that of 1.25 mm2 or

thicker for power cables.

When receiving non-voltage contact signal or voltage pulse

When receiving current pulse by running a transmiter on an internal power supply

Transmitter

When receiving voltage pulse by running a transmiter on an internal power supply

Transmitter

PS+

Transmitter

−+

−

Output-2

Pulse output

3 2

–

PS+

−

DIN rail

Push

(Rear of socket)

DIN rail

1.3 Mounting Using

When using a multi-mounting base, see the User's Manual for VJCE (VJCE Mounting Base).

1.4 Using a Duct

When using a wiring duct, install the duct at least 30 mm away from the top and bottom faces of the main unit.

2. INSTALLATION LOCATION

• Avoid the following environments for installation locations: Areas with vibration, corrosive gases, dust, water, oil, solvents,

direct sunlight, radiation, a strong electric eld, and/or a strong magnetic eld, altitude of more than 2000m above sea level.

• If there is any risk of a surge being induced into the power line and/or signal lines due to lightning or other factors, a dedicated lightning arrester should be used as protection for

both this converter and a eld-installed device.

• Operating temperature/humidity range: 0 to 50 C/5 to 90%RH (no condensation)

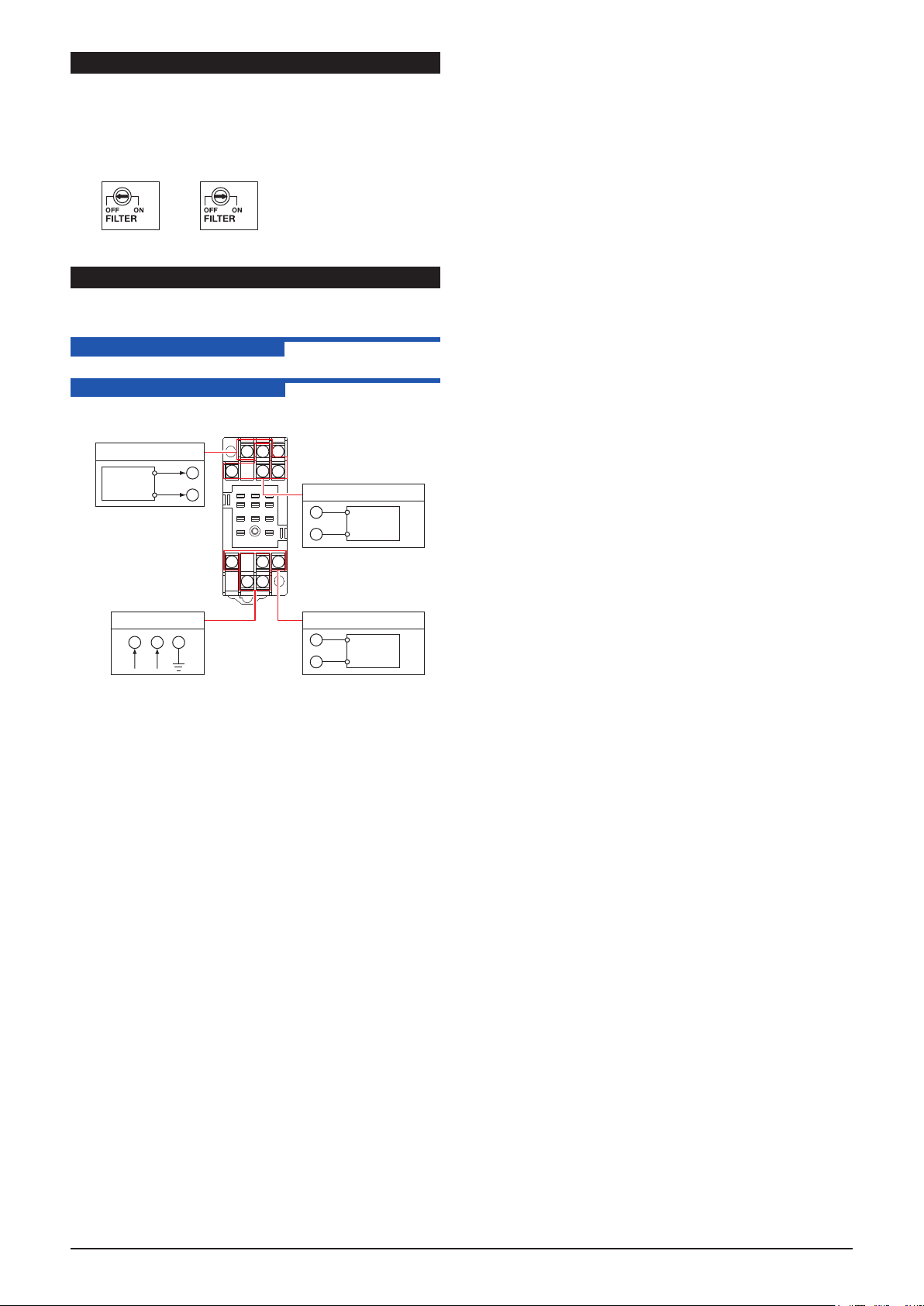

3. EXTERNAL WIRING

WARNING

Be sure to turn OFF the power supply before wiring to avoid the risk of electric shock. Use a tester or similar device to ensure that no power is being supplied to a cable to be connected.

Output-1

Power supply

1110 8

GND

N–

L+

1011

Pulse output

789

Note

● Do not use output-2 for the single-output type.

● The power line and input/output signal lines should be installed away from noise-generating sources. Other wise accuracy cannot be guaranteed.

● The grounding resistance must be 100 Ω (JIS Class D grounding). The length and thickness of the grounding cable should be as short and thick as possible. Directly connect the lead from the ground terminal (terminal no. 8) of the product to the ground. Do not carry out daisy-chained inter-ground terminal wiring

● Use of the product ignoring the specications may cause overheating or damage. Before turning on the power, ensure the following:

Power supply voltage and input signal value applied to

the product should meet the required specications.

The external wiring to the terminals and wiring to ground

are as specications.

● Do not operate the product in the presence of

ammable or explosive gases or vapors. To do so is

highly dangerous.

● The product is sensitive to static electricity;

exercise care in operating it. Before you operate

the product, touch a nearby metal part to discharge static electricity.

● For 15-30 V DC (±20%) power supply, as a safety measure, always install a circuit breaker (an IEC 60947-compatible product, 1 A, 30 V DC) in an easily accessible location near the instrument. Moreover, provide indication that the switch is a device for turning off the power to the instrument.

–

IM 77J01P01-01EN 1st Edition
