Yokogawa TC10-L User Manual
Time
350
300
250
PV
Time
350˚C
300˚C
250˚C
PV
SP
Annunciator
Buzzer
RS485
Modbus RTU communication (Option)
SMARTDAC+
Recorder
FA-M3V
or
Sensor
TC10
Solid s tate Relay
Sensor input
Sensor
TC10-L
Main controller
R1, R2: Contactors

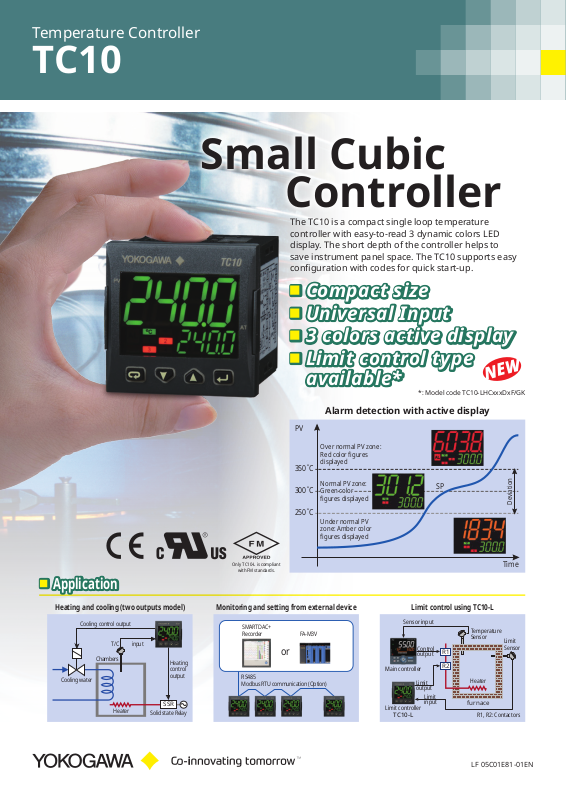

Temperature Controller
TC10
Small Cubic
Controller
The TC10 is a compact single loop temperature
controller with easy-to-read 3 dynamic colors LED
display. The short depth of the controller helps to
save instrument panel space. The TC10 supports easy
conguration with codes for quick start-up.
■ Compact size
■
Application
Only TC10-L is compliant
with FM standards.
■ Universal Input
■ 3 colors active display
■ Limit control type
available*
*: Model code TC10-LHCxxxDxF/GK
Alarm detection with active display
Over normal PV zone:
Over normal PV zone:
Red color figures
Red color figures
displayed
displayed
˚C
Normal PV zone:
Normal PV zone:
Green color
Green color
˚C
figures displayed
figures displayed
˚C
Under normal PV
Under normal PV
zone: Amber color
zone: Amber color
figures displayed
figures displayed
SP
NEW
Deviation
Deviation
Heating and cooling (two outputs model) Monitoring and setting from external device Limit control using TC10-L
Cooling control output
Cooling water
T/C
Chambers
Heater
input
SSR
Heating
control
output
SMARTDAC+
Recorder
RS485
Modbus RTU communication (Option)
or
FA-M3V
Control
output
Limit
output
Limit
Limit controller
input
Temperature
Sensor
R1
R2
Heater
furnace
LF 05C01E81-01EN
Limit
Temperature Controller
■
Specificaton Table
TC10
PV/SP Data display 4 digits 3 colors active display
PV Input 1 Universal (TC, mV, V, mA, Pt100-Pt1000)
Accuracy ±0.5% of span ±1 digit
Display updating time 500 ms
Number of Set points (SP) 4
Control type ON/OFF, PID, Heat/Cool control
Tuning Auto-tuning, Self-tuning, Overshoot control
Control Output Relay, Voltage Pulse or Analog
Control Output for Cooling
output
Contact Input/Output 1 logic input, and 1 selectable I/O
■
External Dimensions
TC10
Relay or Voltage Pulse
Alarm 9 Types
Communication RS-485 Protocol: Modbus RTU
Power supply
Regulatory Compliance CE, cULus
Front panel protection IP65 (Optional)
Size 48 × 48, depth 62 mm, (1.77 × 1.77 × 2.97 in.)
Ambient Temperature,
R.H.
TC10
24 VAC/DC (Custom order),
100 to 240 VAC
Power consumption: 4.5 VA max. (24 VAC/DC)
6.0 VA max. (100 to 240 VAC)
Operating temperature: 0 to 50˚C (32 to 122˚F)
Operating humidity: 20 to 90% RH (no condensation)
■
Terminal Arrangement
■
Model and Suffix Code
Model Code Sux codes Description
TC10 -N
Type -N Controller
Power supply
Fixed code C Always "C"
OUT1-3
IN/OUT4 (Fixed code) D
Serial communication
Fixed code F Always "F"
Option code /GK Panel gasket for IP65
C D F / Temperature Controller with an universal input, one logic input, and one selectable I/O
L 24 VAC/DC (Custom order)
H 100 to 240 VAC
R N N Relay output for On/O control
R R R Relay output with two alarm relays, or On/O Heat/Cool control with one alarm
V N N DCV output for SSR
V R R
V V R Two DCV outputs for SSR with one relay (Custom order)
A R R
S RS485 Modbus
N None
DCV output for SSR with two alarm relays, or DCV and Relay output for Heat/Cool control with one
alarm
Analog output with two alarm relays, or Analog output and Relay output for Heat/Cool control with
one alarm
Always "D"
Selectable I/O (logic input / 12 V SSR drive output / 12 VDC 20 mA transmitter power supply)
For detailed information such as drawings and terminal diagrams of TC10-L,
please see the General Specications (GS 05C01E81-11EN).
YOKOGAWA ELECTRIC CORPORATION
Edge Solution Division http://www.yokogawa.com/
E-mail: ns@cs.jp.yokogawa.com
YOKOGAWA CORPORATION OF AMERICA http://www.yokogawa.com/us/
YOKOGAWA EUROPE B.V. http://www.yokogawa.com/eu/
YOKOGAWA ENGINEERING ASIA PTE. LTD. http://www.yokogawa.com/sg/
Subject to change without notice.
All Rights Reserved. Copyright© 2016, Yokogawa Electric Corporation
KP-S-1E
Printed in Japan, 909(KP)
[Ed : 03/b]
