The following items are included in your package. If you find anything missing,
contact your system administrator.
USB3.0 Cable
Extended Display Accessories ED10
www.yealink.com

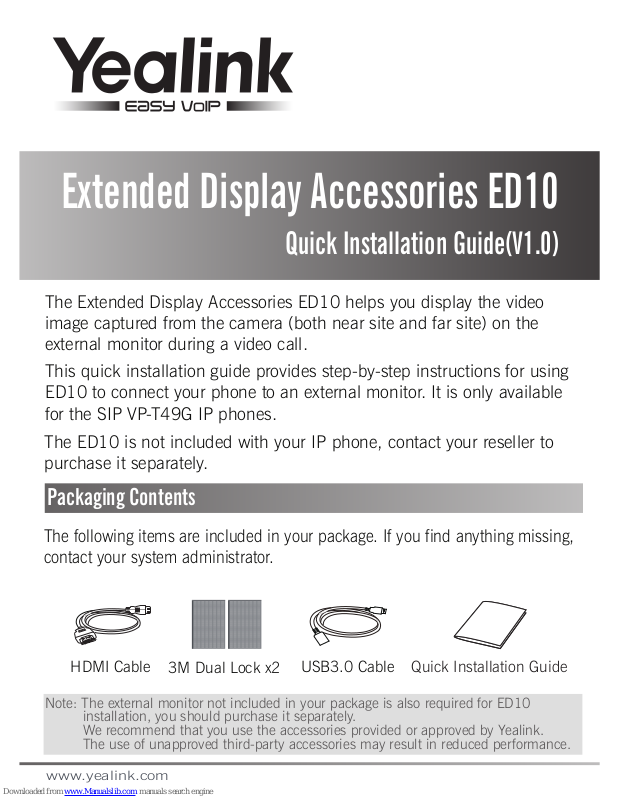

The Extended Display Accessories ED10 helps you display the video
image captured from the camera (both near site and far site) on the
external monitor during a video call.
Quick Installation Guide(V1.0)
The ED10 is not included with your IP phone, contact your reseller to
purchase it separately.
HDMI Cable
This quick installation guide provides step-by-step instructions for using
ED10 to connect your phone to an external monitor. It is only available
for the SIP VP-T49G IP phones.
Note: The external monitor not included in your package is also required for ED10
installation, you should purchase it separately.
We recommend that you use the accessories provided or approved by Yealink.
The use of unapproved third-party accessories may result in reduced performance.
Quick Installation Guide
3M Dual Lock x2
Packaging Contents
To connect your phone to an external monitor:
Remove one piece of the fastener’s liner.
1
2
3
4
Connect the other end of the USB3.0 cable to the IP phone.
Remove the other piece of the fastener’s liner.
Attach the fastener to the external monitor.
Connect one end of the HDMI cable to the HDMI port on the phone.
Connect the other end to the HDMI port on the external monitor.
3
4
2
1
Extended Display Accessories Quick Installation Guide
Step
Note:
Make sure the camera is vertical and not askew, otherwise the near-site video
will be crooked.
You are advised to attach the camera to the external monitor whose back is straight.
One Dual Lock is required for installation, the other is used for backup.
Attach the camera to the external monitor by pressing two sides of
Dual Lock together.
Take the gap of the camera as the touchline and attach the fastener
to the camera from the top.
Connect one end of the USB3.0 cable to the camera.
Step
Step
Step
Installation
