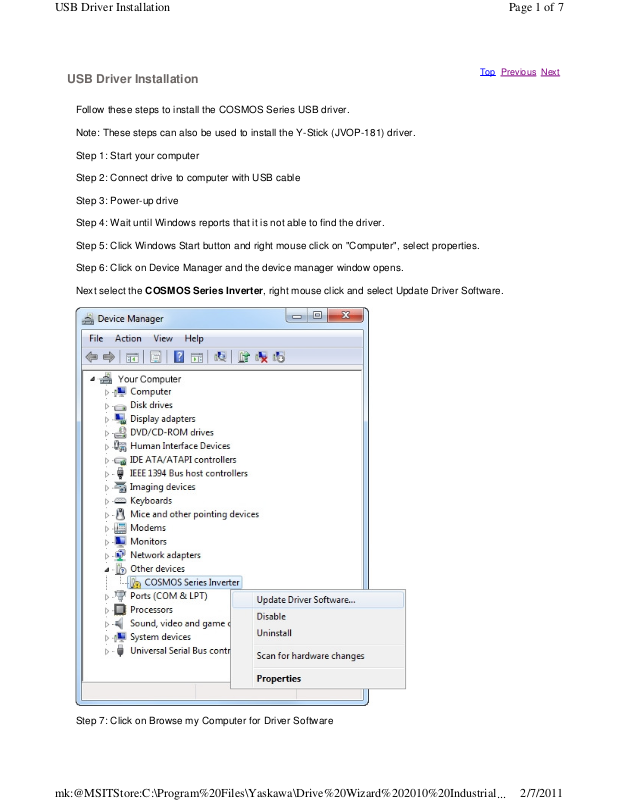

USB Driver Installation
Follow these steps to install the COSMOS Series USB driver.
Note: These steps can also be used to install the Y-Stick (JVOP-181) driver.
Step 1: Start your computer
Step 2: Connect drive to computer with USB cable
Step 3: Power-up drive
Step 4: Wait until Windows reports that it is not able to find the driver.
Step 5: Click Windows Start button and right mouse click on "Computer", select properties.
Step 6: Click on Device Manager and the device manager window opens.
Next select the COSMOS Series Inverter, right mouse click and select Update Driver Software.
Top Previous Next
Step 7: Click on Browse my Computer for Driver Software
Page
2
of 7USB Driver Installation
2/7/2011
mk:@MSITStore:C:\Program%20Files\Yaskawa\Drive%20Wizard%202010%20Industrial
...
Step 8: Select DriveWizard Installation folder and click next.
Page
3
of 7USB Driver Installation
2/7/2011
mk:@MSITStore:C:\Program%20Files\Yaskawa\Drive%20Wizard%202010%20Industrial
...
Step 9: Click Install button to install the driver.
Page
4
of 7USB Driver Installation
2/7/2011
mk:@MSITStore:C:\Program%20Files\Yaskawa\Drive%20Wizard%202010%20Industrial
...
Step 10: Driver is now installed
Page
5
of 7USB Driver Installation
2/7/2011
mk:@MSITStore:C:\Program%20Files\Yaskawa\Drive%20Wizard%202010%20Industrial
...
Page
6
of 7USB Driver Installation
2/7/2011
mk:@MSITStore:C:\Program%20Files\Yaskawa\Drive%20Wizard%202010%20Industrial
...
Important Note: Follow these step A through E in case the driver did not install properly or Windows
automatically selected another driver.
Step A: Right mouse click on the COSMOS Series Inverter or AC Drive USB Device and select Uninstall.
Step B: Next click Ok in the dialog box.
Page
7
of 7USB Driver Installation
2/7/2011
mk:@MSITStore:C:\Program%20Files\Yaskawa\Drive%20Wizard%202010%20Industrial
...
Step D: Unplug the USB cable from your computer and wait 10 sec then plug the USB cable back in.
Step E: Repeat steps 1 though 9 above to install the driver.
