Yamaha XMAX125 User Manual

OWNER’S MANUAL

YP125R

1B9-F8199-E0

INTRODUCTION

EAU10110

Welcome to the Yamaha world of motorcycling!
As the owner of the YP125R, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YP125R. The owner’s manual
does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself
and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have
any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!

IMPORTANT MANUAL INFORMATION

Particularly important information is distinguished in this manual by the following notations:

EAU34110

t

The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!

ss

WARNING Failure to follow WARNING instructions could result in severe injury or death to the

scooter operator, a bystander, or a person inspecting or repairing the scooter.

CAUTION: A CAUTION indicates special precautions that must be taken to avoid damage to

the scooter.

NOTE: A NOTE provides key information to make procedures easier or clearer.

NOTE:

● This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is

subsequently sold.

● Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the

most current product information available at the time of printing, there may be minor discrepancies between your
scooter and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.

EWA12410

ss

WARNING

PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.

IMPORTANT MANUAL INFORMATION

EAUS1171

YP125R

OWNER’S MANUAL

©2005 by YAMAHA MOTOR ESPAÑA S.A.

1st edition, October 2005

All rights reserved.

Any reprinting or unauthorized use

without the written permission of

YAMAHA MOTOR ESPAÑA S.A.

is expressly prohibited.

Printed in Spain.

TABLE OF CONTENTS

SAFETY INFORMATION.....................1-1

DESCRIPTION.....................................2-1

Left view ...........................................2-1

Right view .........................................2-2

Controls and instruments .................2-3

INSTRUMENT AND CONTROL

FUNCTIONS ........................................3-1

Immobilizer system...........................3-1

Main switch/steering lock.................3-2

Indicators, indicator lights and

warning light ..................................3-3

Speedometer ....................................3-4

Fuel gauge ........................................3-4

Coolant temperature gauge..............3-4

Multi-function display .......................3-5

Anti-theft alarm (optional) .................3-7

Handlebar switches ..........................3-8

Front brake lever...............................3-9

Rear brake lever................................3-9

Fuel tank cap ..................................3-10

Fuel .................................................3-10

Catalytic converter..........................3-11

Seat.................................................3-11

Front storage compartment............3-12

Storage compartment.....................3-12

Adjusting the shock absorber

assemblies...................................3-13

Sidestand........................................3-13

PRE-OPERATION CHECKS ...............4-1

Pre-operation check list....................4-2

OPERATION AND IMPORTANT

RIDING POINTS ..................................5-1

Starting a cold engine ......................5-1

Starting off ........................................5-2

Acceleration and deceleration..........5-2

Braking..............................................5-2

Tips for reducing fuel consumption..5-3

Engine break-in.................................5-3

Parking..............................................5-4

PERIODIC MAINTENANCE AND

MINOR REPAIR...................................6-1

Owner’s tool kit.................................6-1

Periodic maintenance and

lubrication chart ............................6-3

Removing and installing cowlings

and panels.....................................6-6

Checking the spark plug ..................6-7

Engine oil ..........................................6-8

Final transmission oil ......................6-10

Coolant ...........................................6-11

Air filter and V-belt case air filter

elements ......................................6-12

Adjusting the throttle cable

free play.......................................6-14

Valve clearance...............................6-15

Tires ................................................6-15

Cast wheels ....................................6-17

Front and rear brake lever free

play..............................................6-17

Checking the front and rear brake

pads.............................................6-17

Checking the brake fluid level ........6-18

Changing the brake fluid ................6-19

Checking and lubricating the

throttle grip and cable.................6-19

Lubricating the front and rear

brake levers .................................6-20

Checking and lubricating the

centerstand and sidestand .........6-20

Checking the front fork...................6-20

Checking the steering.....................6-21

Checking the wheel bearings .........6-22

Battery ............................................6-22

Replacing the fuses ........................6-23

Replacing a headlight bulb.............6-24

Replacing a front turn signal

light bulb......................................6-25

Replacing the tail/brake light bulb

or a rear turn signal light bulb.....6-25

Replacing the license plate light

bulb .............................................6-26

Replacing the auxiliary light bulb ...6-27

Troubleshooting ..............................6-27

Troubleshooting charts ...................6-28

SCOOTER CARE AND STORAGE .....7-1

Care ..................................................7-1

Storage .............................................7-3

SPECIFICATIONS ...............................8-1

CONSUMER INFORMATION .............9-1

Identification numbers ......................9-1

TABLE OF CONTENTS

t

SAFETY INFORMATION

SCOOTERS ARE SINGLE TRACK
VEHICLES. THEIR SAFE USE AND

1

OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE
EXPERTISE OF THE OPERATOR.
EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS SCOOTER.
HE OR SHE SHOULD:

● OBTAIN THOROUGH INSTRUC-

TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.

● OBSERVE THE WARNINGS AND

MAINTENANCE REQUIRE­MENTS IN THE OWNER’S
MANUAL.

● OBTAIN QUALIFIED TRAINING

IN SAFE AND PROPER RIDING
TECHNIQUES.

● OBTAIN PROFESSIONAL TECH-

NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES­SARY BY MECHANICAL CONDI­TIONS.

EAU10260

Safe riding

● Always make pre-operation

checks. Careful checks may help
prevent an accident.

● This scooter is designed to carry

the operator and passenger.

● The failure of motorists to detect

and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau­sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.

● Therefore:

• Wear a brightly colored jacket.

• Use extra caution when appro­aching and passing through
intersections, since intersec­tions are the most likely places
for scooter accidents to occur.

• Ride where other motorists can
see you. Avoid riding in anot­her motorist’s blind spot.

● Many accidents involve inexpe-

rienced operators. In fact, many
operators who have been invol-

1-1

ved in accidents do not even
have a current driver’s license.

• Make sure that you are quali­fied and that you only lend your
scooter to other qualified ope­rators.

• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.

• We recommend that you prac­tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.

● Many accidents have been cau-

sed by error of the scooter ope­rator. A typical error made by the
operator is veering wide on a turn
due to EXCESSIVE SPEED or
undercornering (insufficient lean
angle for the speed).

• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.

• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.

SAFETY INFORMATION

t

● The posture of the operator and

passenger is important for proper
control.

• The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.

• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo­trests.

• Never carry a passenger
unless he or she can firmly pla­ce both feet on the passenger
footrests.

● Never ride under the influence of

alcohol or other drugs.

● This scooter is designed for on-

road use only. It is not suitable for
off-road use.

Protective apparel

The majority of fatalities from scooter
accidents are the result of head inju­ries. The use of a safety helmet is the
single most critical factor in the pre­vention or reduction of head injuries.

● Always wear an approved hel-

met.

● Wear a face shield or goggles.

Wind in your unprotected eyes
could contribute to an impair­ment of vision which could delay
seeing a hazard.

● The use of a jacket, substantial

shoes, trousers, gloves, etc., is
effective in preventing or redu­cing abrasions or lacerations.

● Never wear loose-fitting clothes,

otherwise they could catch on
the control levers or wheels and
cause injury or an accident.

● Never touch the engine or

exhaust system during or after
operation. They become very hot
and can cause burns. Always
wear protective clothing that
covers your legs, ankles, and
feet.

● Passengers should also observe

the above precautions.

1-2

Modifications

Modifications made to this scooter
not approved by Yamaha, or the
removal of original equipment, may
render the scooter unsafe for use and
may cause severe personal injury.
Modifications may also make your
scooter illegal to use.

Loading and accessories

Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories. Here
are some general guidelines to follow
if loading cargo or adding accessories
to your scooter:

1

t

SAFETY INFORMATION

Loading
The total weight of the operator, pas­senger, accessories and cargo must

1

not exceed the maximum load limit of
189 Kg - 416.75 lb. When loading wit­hin this weight limit, keep the follo­wing in mind:

● Cargo and accessory weight

should be kept as low and close
to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba­lance or instability.

● Shifting weights can create a

sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre­quently.

● Never attach any large or heavy

items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.

Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res­ponsible for the proper selection, ins­tallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.
Keep the following guidelines in mind,
as well as those provided under “Loa­ding” when mounting accessories.

● Never install accessories or carry

cargo that would impair the per­formance of your scooter. Care­fully inspect the accessory befo­re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra­vel, steering travel or control ope­ration, or obscure lights or reflec­tors.

• Accessories fitted to the hand­lebar or the front fork area can
create instability due to impro­per weight distribution or

1-3

aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.

• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna­mic effects. Wind may attempt
to lift the scooter, or the scoo­ter may become unstable in
cross winds. These accesso­ries may also cause instability
when passing or being passed
by large vehicles.

• Certain accessories can dis­place the operator from his or
her normal riding position. This
improper position limits the fre­edom of movement of the ope­rator and may limit control abi­lity, therefore, such
accessories are not recom­mended.

● Use caution when adding electri-

cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system

SAFETY INFORMATION

t

an electric failure could result,
which could cause a dangerous
loss of lights or engine power.

Gasoline and exhaust gas

● GASOLINE IS HIGHLY FLAMMA-

BLE:

• Always turn the engine off
when refueling.

• Take care not to spill any gaso­line on the engine or exhaust
system when refueling.

• Never refuel while smoking or
in the vicinity of an open flame.

● Never start the engine or let it run

for any length of time in a closed
area. The exhaust fumes are poi­sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade­quate ventilation.

● Always turn the engine off before

leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:

• The engine and exhaust sys­tem may be hot, therefore,
park the scooter in a place

where pedestrians or children
are not likely to touch these hot
areas.

• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.

• Do not park the scooter near a
flammable source (e.g., a kero­sene heater, or near an open
flame), otherwise it could catch
fire.

● If you should swallow any gasoli-

ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia­tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot­hes.

EAU10371

Further safe-riding points

● Be sure to signal clearly when

making turns.

● Braking can be extremely difficult

on a wet road. Avoid hard bra­king, because the scooter could
slide. Apply the brakes slowly

1-4

when stopping on a wet surface.

● Slow down as you approach a

corner or turn. Once you have
completed a turn, accelerate
slowly.

● Be careful when passing parked

cars. A driver might not see you
and open a door in your path.

● Railroad crossings, streetcar

rails, iron plates on road cons­truction sites, and manhole
covers become extremely slip­pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.

● The brake pads could get wet

when you wash the scooter. After
washing the scooter, check the
brakes before riding.

● Always wear a helmet, gloves,

trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.

● Do not carry too much luggage

on the scooter. An overloaded
scooter is unstable.

1

DESCRIPTION

1

2

3

4

5

Left view

2

EAU10410

1. Storage compartment (page 3-12)

2. Spring preload (page 3-13)

3. Air filter (page 6-12)

4. V-Belt filter (page 6-12)

5. Sidestand (page 3-13)

2-1

Right view

1

2 3

4

10 9 876

5

DESCRIPTION

EAU10420

2

1. Grab bar

2. Fuel cap (page 3-10)

3. Battery (page 6-22)

4. Fuses box and main fuse (page 6-23)

5. Front brake pads (page 6-17)

6. Coolant reservoir cap (page 6-11)

7. Coolant level window (page 6-11)

8. Centerstand (page 6-20)

9. Engine oil filler cap (page 6-8)

10. Rear brake pads (page 6-17)

2-2

DESCRIPTION

O

P

E

N

PUSH

1

2

3

5

6

7

8 9

4

Controls and instruments

2

EAU10430

1. Rear brake lever (page 3-9)

2. Left handlebar switches (page 3-8)

3. Speedometer (page 3-4)

4. Multi-function display (page 3-5)

5. Front storage compartement (page 3-12)

6. Main switch/Steering lock (page 3-2)

7. Right handlebar switch (page 3-8)

8. Throttle grip (page 5-2)

9. Front brake lever (page 3-9)

2-3

INSTRUMENT AND CONTROL FUNCTIONS

EAU10972

Immobilizer system

1. Master key

2. Keys

This vehicle is equipped with an
immobilizer system to help prevent
theft by re-registering codes in the
standard keys. This system consists
of the following.

● a code re-registering key (with a

red bow)

● two standard keys (with a black

bow) that can be re-registered
with new codes

● a transponder (which is installed

in the code re-registering key)

● an immobilizer unit

● an ECU

● an immobilizer system indicator

light (See page 3-3.)
The key with the red bow is used to
register codes in each standard key.
Since re-registering is a difficult pro­cess, take the vehicle along with all
three keys to a Yamaha dealer to have
them re-registered. Do not use the
key with the red bow for driving. It
should only be used for re-registering
the standard keys. Always use a stan­dard key for driving.

ECA11820

CAUTION:

● DO NOT LOSE THE CODE RE-

REGISTERING KEY! CONTACT

YOUR DEALER IMMEDIATELY IF

IT IS LOST! If the code re-regis-

tering key is lost, registering new

codes in the standard keys is

impossible. The standard keys

can still be used to start the vehi-

cle, however if code re-registe-

ring is required (i.e., if a new

standard key is made or all keys

are lost) the entire immobilizer

system must be replaced. There-

fore, it is highly recommended to

use either standard key and

keep the code re-registering
key in a safe place.

● Do not submerse any key in

water.

● Do not expose any key to

excessively high temperatures.

● Do not place any key close to

magnets (this includes, but not
limited to, products such as
speakers, etc.).

● Do not place heavy items on

any key.

● Do not grind any key or alter its

shape.

● Do not disassemble the plastic

part of any key.

● Do not put two keys of any

immobilizer system on the
same key ring.

● Keep the standard keys as well

as keys of other immobilizer
systems away from this vehi­cle’s code re-registering key.

● Keep other immobilizer system

keys away from the main
switch as they may cause sig­nal interference.

3

3-1

I

G

N

I

T

I

O

N

L

O

C

K

O

F

F

O

N

O

P

E

N

PUSH

INSTRUMENT AND CONTROL FUNCTIONS

Main switch/steering lock

3

The main switch/steering lock con­trols the ignition and lighting systems,
and is used to lock the steering.

NOTE:

Be sure to use the standard key
(black bow) for regular use of the
vehicle. To minimize the risk of losing
the code re-registering key (red bow),
keep it in a safe place and only use it
for code re-registering.

ON

All electrical circuits are supplied with
power, the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-

EAU10471

EAU10550

ted. The key cannot be removed.

NOTE:

The headlights come on automatically
when the engine is started and stay
on until the key is turned to “OFF”,
even if the engine stalls.

EAU10660

OFF

All electrical systems are off. The key
can be removed.

EAU10680

LOCK

The steering is locked, and all electri­cal systems are off. The key can be
removed.
To lock the steering

1. Turn the handlebars all the way to
the left.

2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.

3. Remove the key.

To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.

EWA10060

ss

WARNING

Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi­cle is stopped before turning the
key to “OFF” or “LOCK”.

3-2

1 23 5 7

6

4

INSTRUMENT AND CONTROL FUNCTIONS

EAU33461

Indicators, indicator lights
and warning light

1. Fuel level gauge circuit

2. High beam indicator light

3. Left turning signal light

4. Immobilizer system indicator light

5. Right turning signal light

6. Engine trouble warning light

7. Coolant temperature gauge

EAU11030

Turn signal indicator lights “c” and
“d”

The corresponding indicator light flas­hes when the turn signal switch is
pushed to the left or right.

EAU11080

High beam indicator light “j”

This indicator light comes on when
the high beam of the headlight is swit­ched on.

EAU11350

Fuel level warning light “ ”

This warning light comes on when the
fuel level drops below approximately
2 L (0.44 US gal) (1.76 Imp.gal). When
this occurs, refuel as soon as possi­ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.

EAU11480

Engine trouble warning light “ ”

This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno­sis system.
The electrical circuit of the warning
light can be checked by turning the

key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.

EAUS1310

Immobilizer system indicator light
“”

The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF”, the
indicator light will start flashing indi­cating the immobilizer system is ena­bled. After 24 hours have passed, the
indicator light will stop flashing,
however the immobilizer system is
still enabled.

3

3-3

1

1

2

1

INSTRUMENT AND CONTROL FUNCTIONS

Speedometer

3

1. Speedometer

The speedometer shows the riding
speed.

EAU11590

Fuel gauge

1. Fuel gauge

2. Fuel warning light

EAU12110

EAU12171

Coolant temperature gauge

1. Temperature gauge

With the key in the “ON” position, the

The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the
fuel level decreases. When the needle
reaches “E”, approximately 2.0L (0.44
USgal) (1.76lmpgal) of fuel remain in
the fuel tank. If this occurs, refuel as

coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan­ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-29.)

soon as possible.

ECA10020

NOTE:

Do not allow the fuel tank to empty
itself completely.

CAUTION:

Do not operate the engine if it is
overheated.

3-4

1 2 3

INSTRUMENT AND CONTROL FUNCTIONS

EAUM1480

Multi-function display

1. “MODE” button

2. Multi-function display

3. “SET” button

The multi-function display is equip­ped with the following:

● an odometer (which shows the

total distance traveled)

● two tripmeters (which show the

distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra­veled during this time)

● a fuel reserve tripmeter (which

shows the distance traveled sin­ce the fuel level warning light
came on)

● a clock

● an ambient temperature display

● a service indicator (which is dis-

played when periodic maintenan­ce and lubrication is necessary)

NOTE:

● For the UK, the distance traveled

is displayed in miles and the tem­perature reading is displayed in
°F.

● For other countries, the distance

traveled is displayed in kilome­ters and the temperature reading
is displayed in °C.

1. Total

2. Trip 1

3. Trip 2

4. Trip/Fuel

3-5

Odometer and tripmeter modes

Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total Trip 1 Trip 2 Trip/fuel

Total



1. Distance

2. Time

3. Average speed

NOTE:

● The Trip/fuel odometer is only

activated if the fuel level warning
light comes on.

● The Trip 2 odometer is automati-

cally reset after turning the key to
“OFF”.

3

INSTRUMENT AND CONTROL FUNCTIONS

Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func­tions in the following order:
Distance Time Average speed

Distance



3

If the fuel level warning light comes on
(See page 3-3.), the display will auto­matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“SET” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel Trip 1 Trip 2 Total

Trip/fuel



To reset a tripmeter, select it by pus­hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis­play will return to the prior mode after
refueling and traveling 5 km.

Clock mode

To set the clock:

1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.

2. When the hour digits start flas­hing, push the “SET” button to
set the hours.

3. Push the “MODE” button, and
the minute digits will start flas­hing.

4. Push the “SET” button to set the
minutes.

5. Push the “MODE” button and
then release it to start the clock.
The display will return to the
“Total” mode.

3-6

INSTRUMENT AND CONTROL FUNCTIONS

Ambient temperature display

1. Frost warning indicator

2. Negative symbol

3. Ambient temperature

This display shows the ambient tem­perature from-30°C to 50°C.
The frost warning indicator “*” auto­matically comes on if the temperature
is lower than 3°C

Service indicator

When periodic maintenance and
lubrication is necessary (See page
6-3.), “Service” will appear in the dis­play until the Service indicator reset is
made.
To reset the service indicator:

1. Turn the key to “ON”.

2. Hold the “MODE” and “SET” but­ton pushed for two to five
seconds.

3. Release the buttons, and the ser­vice indicator will go off.

NOTE:

● The service indicator will come

on at the initial 1000 km and
every 6000 km thereafter.

● If periodic maintenance and

lubrication is performed before
the service indicator comes on,
the indicator must be reset as
soon as possible so that it comes
for the next periodic maintenance
and lubrication interval.

EAU12331

Anti-theft alarm (optional)

This motorcycle can be equipped
with an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.

3

1. Service indicator

3-7

1 2

1 2

1
2
3

4

INSTRUMENT AND CONTROL FUNCTIONS

Handlebar switches

Pass switch “PASSING”

3

1. Dimmer switch "j/k"

2. Pass switch "PASS"

3. Turn signal switch "c/d"

4. Horn switch "a"

1. Start switch “g”

2. Hazard switch ” ”

EAU12343

EAUS1300

Press this switch to flash the head­light.

EAUS1020

Dimmer switch “j/k”

Set this switch to “j” for the high
beam and to “k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.

EAU12460

Turn signal switch “c/d”

To signal a right-hand turn, push this
switch to “d”. To signal a left-hand
turn, push this switch to “c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.

EAU12500

Horn switch “a”

Press this switch to sound the horn.

3-8

EAUM1131

Start switch “g”

1. Start switch “g”

2. Hazard switch ” ”

Push this switch while applying the
front or rear brake to crank the engine
with the starter.

ECA10050

CAUTION:

See page 5-1 for starting instruc­tions prior to starting the engine.

EAUM1990

Hazard switch “ ”, “h”

With the key in the “f” position, set
this switch to “ ” to turn on the
hazard lighting (simultaneous flashing
of all turn signal lights). To turn off the
hazard lighting, set this switch to “h”
and, then turn the key to “e”.

1

1

INSTRUMENT AND CONTROL FUNCTIONS

NOTE:

Even if the key is turned from “f” to
“e” with the hazard lighting on, the
hazard lighting will continue to flash
regardless of the hazard switch posi­tion. To cancel the hazard lighting, the
key must be turned to “f” and the
hazard switch must be set to the “h”
position.

The hazard lighting is used in case of
an emergency or to warn other drivers
when your scooter is stopped where
it might be a traffic hazard.

ECA10060

CAUTION:

Do not use the hazard light for an
extended length of time, otherwise
the battery may discharge.

EAU12900

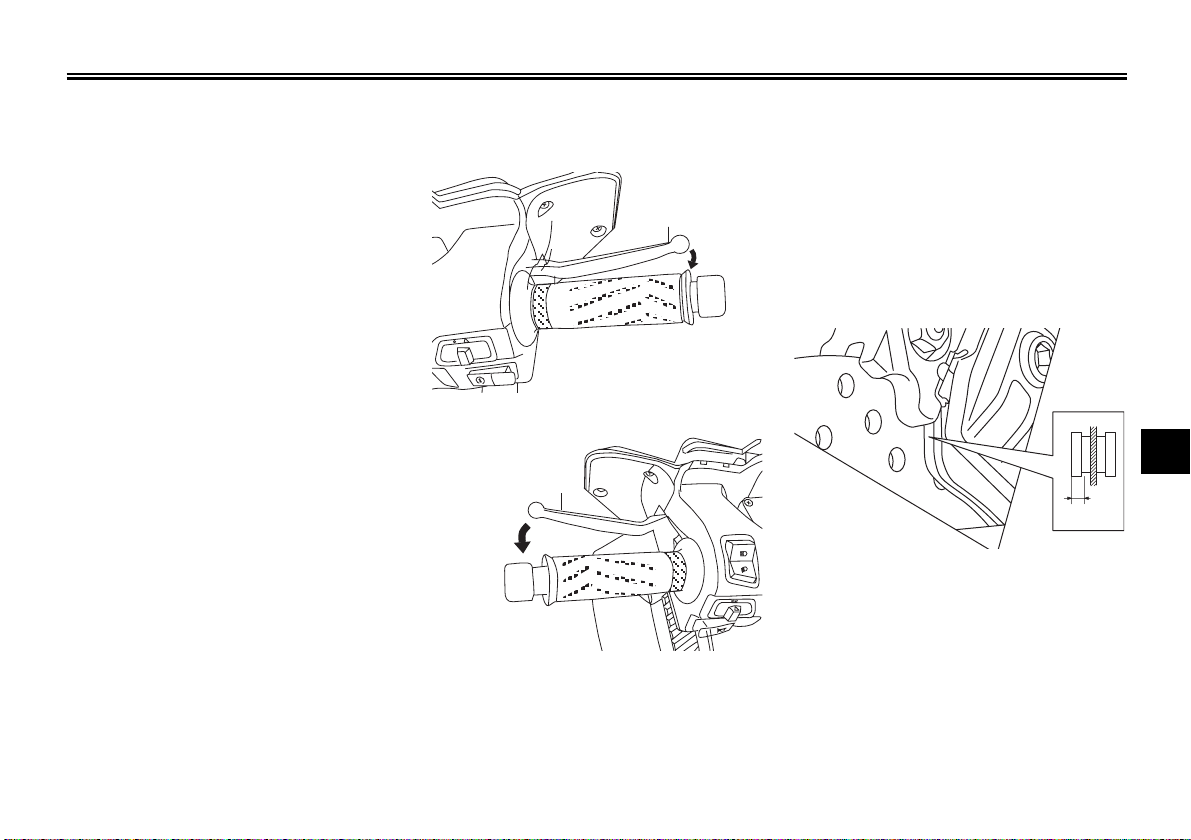

Front brake lever

1. Front brake lever

The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.

EAU12950

Rear brake lever

3

1. Rear brake lever

The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand­lebar grip.

3-9

INSTRUMENT AND CONTROL FUNCTIONS

Fuel tank cap

To open the fuel tank cap

1. Open the lid by sliding the lever
forward, and then pull the lever
up.

3

2. Insert the key into the lock and
turn it clockwise. The lock will be
released and the fuel tank cap
can be removed.

To install the fuel tank cap

1. Align the match marks, insert the
fuel tank cap into the tank ope­ning, and then push down on the
cap.

2. Turn the key counterclockwise to
the original position, and then
remove it.

3. Close the lid.

EAU13161

EWA11120

ss

WARNING

Be sure that the fuel tank cap is
properly installed and locked befo­re riding the scooter.

EAU13230

Fuel

Make sure that there is sufficient fuel
in the tank.

1. Fuel tank

2. Fuel level

ss

WARNING

Since gasoline is flammable, the
following precautions must be
observed.

● Stop the engine before refue-

ling.

3-10

EWA10990

● Never attempt to refuel the

scooter while smoking or near
an open flame.

● Take special care not to spill

gasoline over the engine or
muffler when refueling imme­diately after operation.

● Before starting the engine,

quickly wipe off any gasoline
spilled on the engine or muffler.

ECA10070

CAUTION:

Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa­ces or plastic parts.

EAU33500

Recommended fuel:

REGULAR UNLEADED GASOLINE
ONLY

Fuel tank capacity:

12,5 L (2,75 US gal) (11 Imp.gal)

Fuel reserve amount (when the fuel
level warning symbol comes on):

2 L (0,44 US gal) (1,76 Imp.gal)

INSTRUMENT AND CONTROL FUNCTIONS

ECA11400

CAUTION:

Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys­tem.

Your Yamaha engine has been desig­ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.

EAU13431

Catalytic converter

This model is equipped with a cataly­tic converter in the exhaust system.

EWA10860

ss

WARNING

The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.

ECA10700

CAUTION:

The following precautions must be
observed to prevent a fire hazard or
other damages.

● Use only unleaded gasoline.

The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

● Never park the vehicle near

possible fire hazards such as
grass or other materials that
easily burn.

● Do not allow the engine to idle

too long.

3-11

EAU13931

Seat

To open the seat

1. Place the scooter on the centers­tand.

2. Insert the key into the main
switch, and then turn it counter­clockwise.

NOTE:

Do not push inward when turning the
key.

3. Fold the seat up.

To close the seat

1. Fold the seat down, and then
push it down to lock it in place.

2. Remove the key from the main
switch if the scooter will be left
unattended.

3

1

1

1

INSTRUMENT AND CONTROL FUNCTIONS

NOTE:

Make sure that the seat is properly
secured before riding.

Front storage compartment

3

1. Lock

To open the storage compartment

Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.

EAU14540

1. Storage compartment

To close the storage compartment

Push the storage compartment lid
into the original position, and then
remove the key.

ss

WARNING

● Do not exceed the load limit of

EWA10960

1 kg (2.205 lb) for the storage
compartment.

● Do not exceed the maximum

load of 189 kg (416.75 lb) for
the vehicle.

3-12

EAU14451

Storage compartment

1. Storage compartment

The storage compartment is located
under the seat. (See page 3-11.)

ss

WARNING

● Do not exceed the load limit of

5 kg (11.02 lb) for the storage
compartment.

● Do not exceed the maximum

load of 189 kg (416.75 lb) for
the vehicle.

When storing the owner’s manual or
other documents in the storage com­partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.

EWA10961

1 2

INSTRUMENT AND CONTROL FUNCTIONS

EAU14880

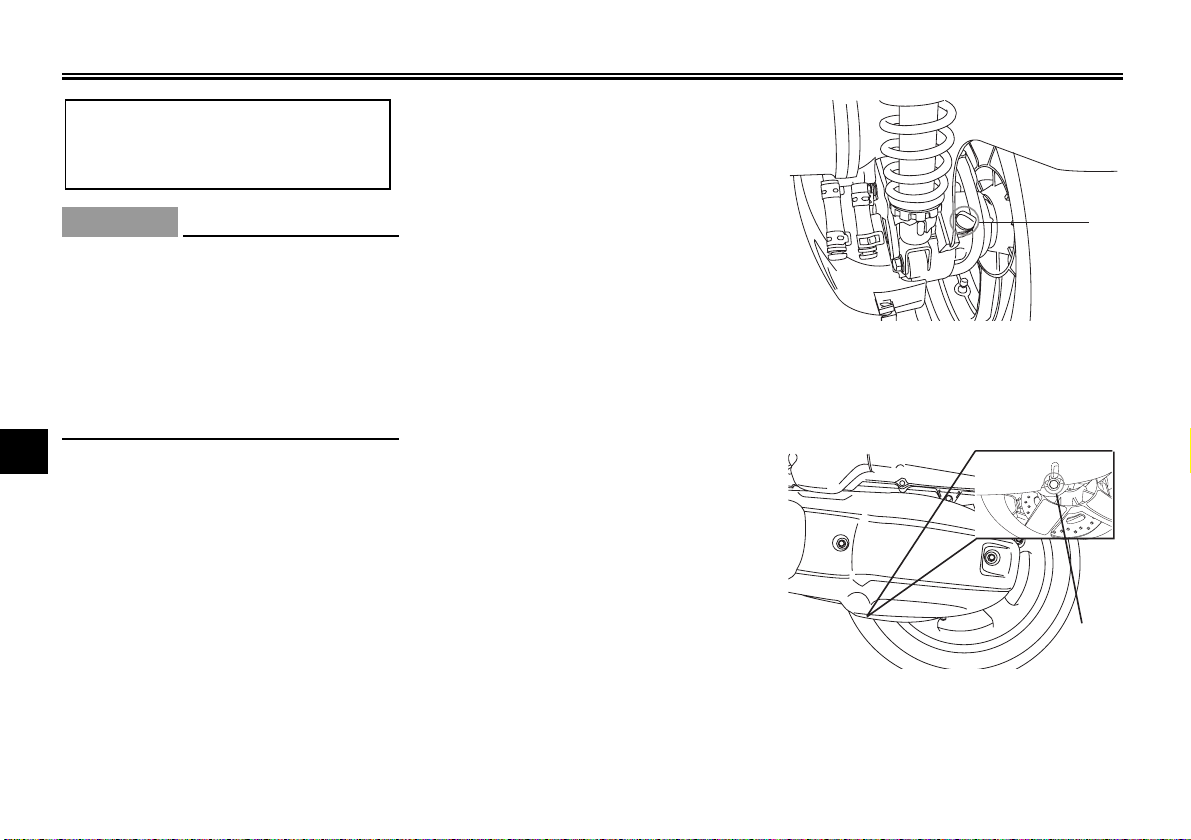

Adjusting the shock
absorber assemblies

Each shock absorber assembly is
equipped with a spring preload adjus­ting ring.

CAUTION:

Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.

ss

WARNING

Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.

Adjust the spring preload as follows.

ECA10100

EWA10210

To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the­reby soften the suspension, turn the
adjusting ring on each shock absor­ber assembly in direction (b).

NOTE:

Align the appropriate notch in the
adjusting ring with the position indica­tor on the shock absorber.

Spring preload setting:

Minimum (soft):

1

Standard:

1

Maximum (hard):

4

EAU15301

Sidestand

The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the motorcycle upright.

3

1. Sidestand switch

2. Sidestand

NOTE:

The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut­off system.)

1. Adjusting ring 2. Position indicator
3-13

INSTRUMENT AND CONTROL FUNCTIONS

EWA10240

ss

WARNING

The vehicle must not be ridden with
the sidestand down, or if the sides­tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting

3

in a possible loss of control. Yama­ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi­lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro­perly.

3-14

INSTRUMENT AND CONTROL FUNCTIONS

With the engine turned off:

1. Move the sidestand down.

2. Make sure that the engine stop switch is turned on.

3. Turn the key on.

4. Keep the front or rear brake applied.

5. Push the start switch.

Does the engine start?

With the engine still off:

6. Move the sidestand up.

7. Keep the front or rear brake applied.

8. Push the start switch.

Does the engine start?

With the engine still running:

9. Move the sidestand down.

Does the engine stall?

The system is OK. The scooter can be ridden.

This check is most reliable if performed with
a warmed-up engine.

The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.

The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.

The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.

YES NO

YES NO

NO YES

NOTE:

3

3-15

PRE-OPERATION CHECKS

EAU15591

The condition of a vehicle is the
owner’s responsibility. Vital compo­nents can start to deteriorate quickly
and unexpectedly, even if the vehicle
remains unused (for example, as a
result of exposure to the elements).
Any damage, fluid leakage or loss of
tire air pressure could have serious
consequences. Therefore, it is very
important, in addition to a thorough

4

visual inspection, to check the follo­wing points before each ride.

NOTE:

Pre-operation checks should be
made each time the vehicle is used.
Such an inspection can be accom­plished in a very short time; and the
added safety it assures is more than
worth the time involved.

EWA11150

ss

WARNING

If any item in the Pre-operation
check list is not working properly,
have it inspected and repaired
before operating the vehicle.

4-1

PRE-OPERATION CHECKS

Pre-operation check list

ITEM CHECKS PAGE

Fuel • Refuel if necessary. 3-4, 3-10

Engine oil • If necessary, add recommended oil to specified level. 6-8

Final transmission oil • Check vehicle for oil leakage. 6-10

Coolant • If necessary, add recommended coolant to specified level. 3-4, 6-11

Front brake

Rear brake

Throttle grip

Wheels and tires

• Check fuel level in fuel tank.

• Check fuel line for leakage.

• Check oil level in engine.

• Check vehicle for oil leakage.

• Check coolant level in reservoir.

• Check cooling system for leakage.

• Check operation.

• If soft or spongy, have Yamaha dealer bleed hydraulic system.

• Check brake pads for wear.

• Replace if necessary.

• Check fluid level in reservoir.

• If necessary, add recommended brake fluid to specified level.

• Check hydraulic system for leakage.

• Check operation.

• If soft or spongy, have Yamaha dealer bleed hydraulic system.

• Check brake pads for wear.

• Replace if necessary.

• Check fluid level in reservoir.

• If necessary, add recommended brake fluid to specified level.

• Check hydraulic system for leakage.

• Make sure that operation is smooth.

• Check cable free play.

• If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.

• Check for damage.

• Check tire condition and tread depth.

• Check air pressure.

• Correct if necessary.

4-2

3-9, 5-2, 6-17

3-9, 5-2, 6-17

5-2, 6-14, 6-19

6-15 ~ 6-17

EAU15603

4

PRE-OPERATION CHECKS

ITEM CHECKS PAGE

Brake levers

Centerstand, sidestand

Chassis fasteners
Instruments, lights, signals • Check operation.

and switches • Correct if necessary.

Sidestand switch

4

• Make sure that operation is smooth.

• Lubricate lever pivoting points if necessary.

• Make sure that operation is smooth.

• Lubricate pivots if necessary.

• Make sure that all nuts, bolts and screws are properly tightened.

• Tighten if necessary.

• Check operation of ignition circuit cut-off system.

• If system is defective, have Yamaha dealer check vehicle.

3-9, 6-20

6-20

—

—

3-13 ~ 3-15

4-3

OPERATION AND IMPORTANT RIDING POINTS

EAU15970

EWA11250

ss

WARNING

● Become thoroughly familiar

with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func­tion that you do not thoroughly
understand.

● Never start the engine or ope-

rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons­ciousness and death within a
short time. Always make sure
that there is adequate ventila­tion.

● For safety, always start the

engine with the centerstand
down.

● When the centerstand is down

and the engine is idling, keep
your hands and feet away from
the rear wheel.

EAUM1210

Starting a cold engine

ECA10250

CAUTION:

See page 5-3 for engine break-in
instructions prior to operating the
vehicle for the first time.

1. Turn the key to “f”.

2. Close the throttle completely.

3. Start the engine by pushing the
start switch while applying the
front or rear brake.

NOTE:

If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre­serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.

ECA11040

CAUTION:

For maximum engine life, never
accelerate hard when the engine is
cold!

5

5-1

1

OPERATION AND IMPORTANT RIDING POINTS

Starting off

NOTE:

Before starting off, allow the engine to
warm up.

5

1. Grab bar

1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand, push
the scooter off the centerstand.

2. Sit astride the seat, and then
adjust the rear view mirrors.

3. Switch the turn signal on.

4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.

5. Switch the turn signal off.

EAU16760

Acceleration and

EAU16780

EAU16791

Braking

deceleration

1. Close the throttle completely.

2. Apply both front and rear brakes

The speed can be adjusted by ope­ning and closing the throttle. To incre­ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).

5-2

simultaneously while gradually
increasing the pressure.

ss

WARNING

● Avoid braking hard or suddenly

EWA10300

(especially when leaning over
to one side), otherwise the sco­oter may skid or overturn.

● Railroad crossings, streetcar

rails, iron plates on road cons­truction sites, and manhole
covers become extremely slip­pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau­tion.

OPERATION AND IMPORTANT RIDING POINTS

● Keep in mind that braking on a

wet road is much more difficult.

● Ride slowly down a hill, as bra-

king downhill can be very diffi­cult.

EAU16820

Tips for reducing fuel
consumption

Fuel consumption depends largely on
your riding style. Consider the follo­wing tips to reduce fuel consumption:

● Avoid high engine speeds during

acceleration.

● Avoid high engine speeds with no

load on the engine.

● Turn the engine off instead of let-

ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros­sings).

EAU16841

Engine break-in

There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them­selves to the correct operating clea­rances. During this period, prolonged

full-throttle operation or any condition
that might result in engine overhea­ting must be avoided.

EAUM2010

0~1000 km (0~600 mi)

Avoid prolonged operation above 1/3
throttle.

1000~1600 km (600~1000 mi)

Avoid prolonged operation above 1/2
throttle.

ECA11660

CAUTION:

After 1000 km (600 mi) of operation,
be sure to replace the engine oil
and final transmission oil.

1600 km (1000 mi) and beyond

The vehicle can now be operated nor­mally.

ECA10270

CAUTION:

If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.

5

5-3

OPERATION AND IMPORTANT RIDING POINTS

EAU17212

Parking

When parking, stop the engine, and
then remove the key from the main
switch.

ss

WARNING

● Since the engine and exhaust

system can become very hot,
park in a place where pedes­trians or children are not likely
to touch them.

● Do not park on a slope or on

5

soft ground, otherwise the
vehicle may overturn.

CAUTION:

Never park in an area where there
are fire hazards such as grass or
other flammable materials.

EWA10310

ECA10380

5-4

1

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU17280

Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in
the safest and most efficient condi­tion possible. The most important
points of inspection, adjustment, and
lubrication are explained on the follo­wing pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING
ON THE WEATHER, TERRAIN, GEO­GRAPHICAL LOCATION, AND INDIVI­DUAL USE, THE MAINTENANCE
INTERVALS MAY NEED TO BE
SHORTENED.

EWA10320

ss

WARNING

If you are not familiar with mainte­nance work, have a Yamaha dealer
do it for you.

EWA10330

ss

WARNING

This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil­ter element should be cleaned or
replaced more frequently, otherwi­se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.

EAU17380

Owner’s tool kit

1. Owner’s tool kit

The owner’s tool kit is located under
the seat. (See page 3-11.)
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre­ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte­nance work correctly.

6

6-1

PERIODIC MAINTENANCE AND MINOR REPAIR

NOTE:

If you do not have the tools or expe­rience required for a particular job,
have a Yamaha dealer perform it for
you.

EWA10350

ss

WARNING

Modifications not approved by
Yamaha may cause loss of perfor­mance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any chan­ges.

6

6-2

PERIODIC MAINTENANCE AND MINOR REPAIR

Periodic maintenance and lubrication chart

NOTE:

● The annual checks must be performed every year, except if a kilometer-based maintenance is performed

instead.

● From 30000 km, repeat the maintenance intervals starting from 6000 km.

● Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and

technical skills.

EAU17705

ODOMETER READING (x 1000 Km)

NO. ITEM CHECK OR MAINTENANCE JOB

1 6 12 18 24

1*Fuel line • Check fuel and vacuum hoses for cracks or damage. √√√√ √

2 Spark plug • Clean and regap.

3*Valves

4 Air filter element • Replace. Every 20000 Km
5*V-Belt • Replace. Every 20000 Km

6*Front brake

7*Rear brake

• Check condition.

• Replace. √√

• Check valve clearance.

• Adjust.

• Check operation, fluid level and vehicle for fluid leakage. √√ √ √√ √

• Replace brake pads. Whenever worn to the limit

• Check operation, fluid level and vehicle for fluid leakage. √√ √ √√ √

• Replace brake pads. Whenever worn to the limit

6-3

√√

√√

ANNUAL

CHECK

6

PERIODIC MAINTENANCE AND MINOR REPAIR

ODOMETER READING (x 1000 Km)

NO. ITEM CHECK OR MAINTENANCE JOB

1 6 12 18 24

8*Brake hoses
9*Wheels • Check runout and for damage. √√√√

10 * Tires

11 * Wheel bearings • Check bearing for looseness or damage. √√√√

12 * Steering bearings

13 * Chassis fasteners

6

14 Sidestand, centerstand
15 * Sidestand switch • Check operation. √√ √ √√ √

16 * Front fork • Check operation and for oil leakage. √√√√

Shock absorber

17 *

assemblies

18 * Fuel injection • Check engine idle speed. √√ √ √√ √

19 Engine oil

20 Engine oil filter element • Replace. √√√

21 * Cooling system

• Check for cracks or damage. √√√√ √

• Replace. Every 4 years

• Check tread depth and for damage.

• Replace if necessary.

• Check air pressure.

• Correct if necessary.

• Check bearing play and steering for roughness. √√ √ √√

• Lubricate with lithium-soap-based grease. Every 20000 km

• Make sure that all nuts, bolts and screws are
properly tightened.

• Check operation.

• Lubricate.

• Check operation and shock absorbers for oil leakage. √√√√

• Change. (See page 6-8)

• Check oil level/top up. √ Every 3000 km

• Check coolant level and vehicle for coolant leakage. √√√√ √

• Change. Every 3 years

√√√√ √

√√√√ √

√√√√ √

√ When the oil change

indicator light comes on (every 6000 km)

ANNUAL

CHECK

6-4

PERIODIC MAINTENANCE AND MINOR REPAIR

ODOMETER READING (x 1000 Km)

NO. ITEM CHECK OR MAINTENANCE JOB

1 6 12 18 24

22 Final gear oil

*

V-belt case air filter

23

elements
Front and rear brake

24 *

switches

25 Moving parts and cables • Lubricate. √√√√ √

Throttle grip housing

26 *

and cable

27 * Muffler and exhaust pipe • Check the screw clamp for looseness. √√ √ √√

Lights, signals • Check operation.

28 *

and switches • Adjust headlight beam.

• Check vehicle for oil leakage. √√ √

• Change. √√√

• Clean. Every 6000 km

• Replace. Every 20000 km

• Check operation. √√ √ √√ √

• Check operation and free play.

• Adjust the throttle cable free play if necessary. √√√√ √

• Lubricate the throttle grip housing and cable.

√√ √ √√ √

ANNUAL

CHECK

EAU18660

NOTE:

● The air filter needs more frequent service if you are riding in unusually wet or dusty areas.

● Hydraulic brake service

• Regularly check and, if necessary, correct the brake fluid level.

• Every two years replace the internal components of the brake master cylinder and caliper, and change the bra­ke fluid.

• Replace the brake hoses every four years and if cracked or damaged.

6

6-5

11

PERIODIC MAINTENANCE AND MINOR REPAIR

Removing and installing
cowlings and panels

The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each
time a cowling or panel needs to be
removed and installed.

Cowling A

To remove the cowling

6

1. Screws x 6

EAU18712

Cowling B

To remove the cowling

Panel A

EAUM1250

To remove the panel

1. Open the storage compartment.
(See page 3-12.)

EAU18790

Screws

Remove the screws, and then take
the cowling off.

Screws

To install the cowling
Place the cowling in the original posi­tion, and then install the screws.

2. Remove the screw, and then take
the panel off.

To install the panel

1. Place the panel in the original
position, and then install the
screw.

2. Close the storage compartment.

6-6

PERIODIC MAINTENANCE AND MINOR REPAIR

EAUS1280

Checking the spark plug

The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.

To remove the spark plug

1. Open the seat. (See page 3-11.)

2. Remove the storage compart­ment under the seat by removing
the bolts.

1

2

3. Remove the spark plug cap.

4. Remove the spark plug as
shown, with the spark plug
wrench included in the owner’s
tool kit.

To check the spark plug

1. Check that the porcelain insula­tor around the center electrode of
the spark plug is a medium-to­light tan (the ideal color when the
motorcycle is ridden normally).

NOTE:

If the spark plug shows a distinctly
different color, the engine could be
defective. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the motorcy­cle.

2. Check the spark plug for electro­de erosion and excessive carbon
or other deposits, and replace it if
necessary.

Specified spark plug:

NGK / CPR 9EA-9

6

1. Storage compartment

2. Screws

6-7

1

ZAUM0037

PERIODIC MAINTENANCE AND MINOR REPAIR

To install the spark plug

1. Spark plug gap

1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-

6

cification.

Spark plug gap:

0.8 - 0.9 mm (0.031 - 0.035 in)

2. Clean the surface of the spark
plug gasket and its mating surfa­ce, and then wipe off any grime
from the spark plug threads.

3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.

Tightening torque:

Spark plug:

12.5 Nm (1.25m•kgf, 9.05 ft•lbf)

NOTE:

If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4~1/2 turn past finger tight. Howe­ver, the spark plug should be tighte­ned to the specified torque as soon
as possible.

4. Install the spark plug cap.

5. Install the storage compartment
by installing the bolts.

6. Close the seat.

6-8

EAUM1550

Engine oil

The engine oil level should be chec­ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the
service indicator light comes on.

To check the engine oil level

1. Place the scooter on the centers­tand.

NOTE:

Make sure that the scooter is positio­ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.

2. Start the engine, warm it up for
several minutes, and then turn it
off.

2

1

1

1

PERIODIC MAINTENANCE AND MINOR REPAIR

hole, and then tighten the oil filler
cap.

To change the engine oil

1. Start the engine, warm it up for
several minutes, and then turn it off.

2. Place an oil pan under the engine
to collect the used oil.

1. Engine oil filler cap

2. Maximum level mark

3. Minimum level mark

3. Wait a few minutes until the oil
settles, remove the oil filler cap,
wipe the dipstick clean, insert it
back into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.

NOTE:

The engine oil should be between the
minimum and maximum level marks.

4. If the engine oil is below the mini­mum level mark, add sufficient oil
of the recommended type to rai­se it to the correct level.

5. Insert the dipstick into the oil filler

1. Engine oil drain bolt

3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.

4. Check the washer for damage
and replace it if necessary.

6-9

1. Engine oil drain bolt

2. Washer

5. Install the washer and the engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.

Tightening torque:

Engine oil drain bolt:

20 Nm (2.0 m•kgf, 14.5 ft•lbf)

NOTE:

Make sure that the washer is properly
seated.

6. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil
filler cap.

6

1

1

PERIODIC MAINTENANCE AND MINOR REPAIR

Recommended engine oil:

See page 8-1.

Oil change quantity:

1.4 L (1.48 US qt) (1.23 Imp.qt)

CAUTION:

● Do not use oils with a diesel

specification of “CD” or oils of
a higher quality than specified.
In addition, do not use oils
labeled “ENERGY CONSER­VING II” or higher.

● Be sure no foreign material

enters the crankcase.

6

7. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the
engine off and check for the cau­se.

8. Reset the service indicator. (See
page 3-7.)

ECA11670

EAU20060

Final transmission oil

The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans­mission oil must be changed as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.

1. Start the engine, warm it up by
riding the scooter for several
minutes, and then stop the engi­ne.

2. Place the scooter on the centers­tand.

3. Place an oil pan under the final
transmission case to collect the
used oil.

1. Final transmission oil filler cap

4. Remove the oil filler cap and
drain bolt to drain the oil from the
final transmission case.

1. Final transmission oil drain bolt

5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.

6-10

1

PERIODIC MAINTENANCE AND MINOR REPAIR

Tightening torque:

Final transmission oil drain bolt:

20 Nm (2.0 m•kgf, 14.5 ft•lbf)

6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten
the oil filler cap.

Recommended final transmission
oil:

See page 8-1.

Oil quantity:

0.21 L (0.22 US qt) (0.18 Imp.qt)

EWA11310

ss

WARNING

● Make sure that no foreign

material enters the final trans­mission case.

● Make sure that no oil gets on

the tire or wheel.

7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.

EAU20070

Coolant

The coolant level should be checked
before each ride. In addition, the coo­lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.

EAUS1270

To check the coolant level

1. Place the vehicle on a level surface
and hold it in an upright position.

NOTE:

● The coolant level must be chec-

ked on a cold engine since the
level varies with engine tempera­ture.

● Make sure that the vehicle is

positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.

1. Maximum level mark

2. Minimum level mark

2. Check the coolant level through
the check window.

NOTE:

The coolant should be between the
minimum and maximum level marks.

6

1. Coolant reservoir cap

6-11

1

2

PERIODIC MAINTENANCE AND MINOR REPAIR

3. If the coolant is at or below the
minimum level mark, remove the
right floorboard mat by pulling it
up.

4. Open the reservoir cap, and then
add coolant to the maximum
level mark.

Coolant reservoir capacity:

0.26 L (0.28 US qt) (0.23 Imp.qt)

CAUTION:

● If coolant is not available, use

distilled water or soft tap water

6

instead. Do not use hard water
or salt water since it is harmful
to the engine.

● If water has been used instead

of coolant, replace it with coo­lant as soon as possible, other­wise the engine may not be
sufficiently cooled and the coo­ling system will not be protec­ted against frost and corrosion.

● If water has been added to the

coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi­ble, otherwise the effective-

ECA10470

ness of the coolant will be
reduced.

EWA10380

ss

WARNING

Never attempt to remove the radia­tor cap when the engine is hot.

5. Close the reservoir cap.

6. Place the floorboard mat in the
original position and push it
downward to secure it.

EAU33030

Changing the coolant

ss

WARNING

EWA10380

Never attempt to remove the radia­tor cap when the engine is hot.

The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant.

6-12

EAUM1320

Air filter and V-belt case air
filter elements

The air filter and the V-belt case air fil­ter elements should be cleaned at the
intervals specified in the periodic
maintenance and lubrication chart.
Clean both filter elements more fre­quently if you are riding in unusually
wet or dusty areas.

Replace the air filter element

1. Place the scooter on the centers­tand.

2. Remove the air filter case cover
by removing the screws.

1. Air filter case cover

2. Screw

PERIODIC MAINTENANCE AND MINOR REPAIR

3. Pull the air filter element out.

4. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air.

5. Check the air filter element for
damage and replace it if neces­sary.

6. Insert the air filter element into
the air filter case.

7. Install the air filter case cover by
installing the screws.

Cleaning the V-belt case air filter
element

1. Remove the V-belt case air filter
cover by removing the screws.

2. Remove the air filter element, and
then blow out the dirt with com­pressed air as shown.

6-13

6

3. Check the air filter element for
damage and replace it if neces­sary.

4. Install the air filter element with
the colored side facing outward.

5. Install the V-belt case air filter
cover by installing the screws.

(a)

(b)

PERIODIC MAINTENANCE AND MINOR REPAIR

CAUTION:

● Make sure that each filter ele-

ment is properly seated in its
case.

● The engine should never be

operated without the filter ele­ments installed, otherwise the
piston(s) and/or cylinder(s)
may become excessively worn.

6

ECA10530

EAUS1290

Adjusting the throttle cable
free play

1. Throttle cable free play

The throttle cable free play should
measure 4 ~ 6 mm (0.16 ~ 0.24) at the
throttle grip. Periodically check the
throttle cable free play and, if neces­sary, adjust it as follows.

NOTE:

The engine idling speed must be
correctly adjusted before checking
and adjusting the throttle cable free
play.

2. Loosen the locknut.

3. To increase the throttle cable free
play, turn the adjusting nut in
direction (a). To decrease the
throttle cable free play, turn the
adjusting nut in direction (b).

4. Tighten the locknut.

5. Install the cowling.

1. Remove cowling A (See page
6-6).

6-14

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU21401

Valve clearance

The valve clearance changes with
use, resulting in improper air-fuel mix­ture and/or engine noise. To prevent
this from occurring, the valve clearan­ce must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.

EAU21870

Tires

To maximize the performance, durabi­lity, and safe operation of your
motorcycle, note the following points
regarding the specified tires.

Tire air pressure

The tire air pressure should be chec­ked and, if necessary, adjusted befo­re each ride.

ss

WARNING

● The tire air pressure must be

EWA10500

checked and adjusted on cold
tires (i.e., when the temperatu­re of the tires equals the
ambient temperature).

● The tire air pressure must be

adjusted in accordance with
the riding speed and with the
total weight of rider, passenger,
cargo, and accessories appro­ved for this model.

Tire air pressure (measured on
cold tires):

Up to 90 kg (198 lb):

Front:

190 kPa (27 psi) (1.9 kgf/cm

Rear:

220 kPa (31 psi) (2.2 kgf/cm

90 kg (198 lb) to maximum load:

Front:

210 kPa (30 psi) (2.1 kgf/cm

Rear:

250 kPa (36 psi) (2.5 kgf/cm

Maximum load*:

189 kg (417 lb)

* Total weight of rider, passenger,

cargo and accessories

ss

WARNING

2

)

2

)

2

)

2

)

EWA10450

Because loading has an enormous
impact on the handling, braking,
performance and safety characte­ristics of your vehicle, you should
keep the following precautions in
mind.

6

6-15

PERIODIC MAINTENANCE AND MINOR REPAIR

● NEVER OVERLOAD THE VEHI-

CLE! Operation of an overloa­ded vehicle may result in tire
damage, loss of control, or
severe injury. Make sure that
the total weight of rider, cargo,
and accessories does not
exceed the specified maximum
load for the vehicle.

● Do not carry along loosely pac-

ked items, which can shift
during a ride.

● Securely pack the heaviest

items close to the center of the

6

vehicle and distribute the
weight evenly on both sides.

● Adjust the suspension and tire

air pressure with regard to the
load.

● Check the tire condition and air

pressure before each ride.

Tire inspection

1. Tire tread depth

The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama­ha dealer replace the tire immediately.

Minimum tire tread depth (front
and rear):

1.6 mm (0.06 in)

NOTE:

The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.

Tire information

This motorcycle is equipped with
tubeless tires.

Front tire:

Size:

120/70-15 M/C 56P 56S

Manufacturer/model:

Michelin / GoldStandard

Rear tire:

Size:

140/70-15 M/C 56P 56S

Manufacturer/model:

Michelin / GoldStandard

EWA10470

ss

WARNING

● Have a Yamaha dealer replace

excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.

● The replacement of all wheel

and brake related parts, inclu­ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know­ledge and experience.

6-16

1

1

1

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU21960

Cast wheels

To maximize the performance, durabi­lity, and safe operation of your
motorcycle, note the following points
regarding the specified wheels.

● The wheel rims should be chec-

ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac­ked wheel must be replaced.

● The wheel should be balanced

whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.

● Ride at moderate speeds after

changing a tire since the tire sur­face must first be “broken in” for
it to develop its optimal characte­ristics.

EAU33451

Front and rear brake lever
free play

1. Front brake lever

1. Rear brake lever

There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.

6-17

EAU22390

Checking the front and rear
brake pads

The front and rear brake pads must
be checked for wear at the intervals
specified in the periodic maintenance
and lubrication chart.

EAU22400

Front brake pads

6

1. Lining thickeness

Check each front brake pad for
damage and measure the lining thick­ness. If a brake pad is damaged or if
the lining thickness is less than 0.5
mm (0.02 in), have a Yamaha dealer
replace the brake pads as a set.

X

PERIODIC MAINTENANCE AND MINOR REPAIR

Rear brake pads

The rear brake is provided with a
check plug, which, if it is removed,
allows you to check the brake pad
wear without disassembling the bra­ke. To check the brake pad wear,
check the position of the wear indica­tor while applying the brake. If a bra­ke pad has worn to the point that the
wear indicator almost touches the
brake disc, have a Yamaha dealer
replace the brake pads as a set.

6

EAU22520

EAU22580

Checking the brake fluid
level

Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra­ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:

● When checking the fluid level,

make sure that the top of the bra­ke fluid reservoir is level.

● Use only the recommended qua-

lity brake fluid, otherwise the rub­ber seals may deteriorate, cau­sing leakage and poor braking
performance.

MAX
MIN

Recommended brake fluid:

DOT 4

● Refill with the same type of brake

fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan­ce.

● Be careful that water does not

enter the brake fluid reservoir

6-18

MA
MIN

PERIODIC MAINTENANCE AND MINOR REPAIR

when refilling. Water will signifi­cantly lower the boiling point of
the fluid and may result in vapor
lock.

● Brake fluid may deteriorate pain-

ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.

● As the brake pads wear, it is nor-

mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.

EAUM1360

Changing the brake fluid

Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica­tion chart. In addition, have the brake
hose replaced every four years or
whenever it is damaged or leaking.

EAU23111

Checking and lubricating the
throttle grip and cable

The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri­cated at the intervals specified in the
periodic maintenance chart.

6

6-19

PERIODIC MAINTENANCE AND MINOR REPAIR

Lubricating the front and
rear brake levers

The pivoting points of the front and
rear brake levers must be lubricated

6

at the intervals specified in the perio­dic maintenance and lubrication
chart.

Recommended lubricant:

Lithium-soap-based grease (all­purpose grease)

EAU23170

EAU23211

Checking and lubricating the
centerstand and sidestand

The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal­to-metal contact surfaces should be
lubricated if necessary.

ss

WARNING

If the centerstand or sidestand
does not move up and down smo­othly, have a Yamaha dealer check
or repair it.

EWA10740

EAU23271

Checking the front fork

The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio­dic maintenance and lubrication
chart.

To check the condition

ss

WARNING

Securely support the motorcycle so
that there is no danger of it falling
over.

Check the inner tubes for scratches,
damage and excessive oil leakage.

To check the operation

EWA10750

Recommended lubricant:

Lithium-soap-based grease (all­purpose grease)

6-20

1. Place the motorcycle on a level
surface and hold it in an upright
position.

PERIODIC MAINTENANCE AND MINOR REPAIR

2. While applying the front brake,
push down hard on the handle­bars several times to check if the
front fork compresses and
rebounds smoothly.

ECA10590

CAUTION:

If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.

EAU23280

Checking the steering

Worn or loose steering bearings may
cause danger. Therefore, the opera­tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica­tion chart.

1. Place a stand under the engine to
raise the front wheel off the
ground.

ss

WARNING

Securely support the motorcycle so
that there is no danger of it falling
over.

EWA10750

play can be felt, have a Yamaha
dealer check or repair the stee­ring.

6

2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free

6-21

1

PERIODIC MAINTENANCE AND MINOR REPAIR

Checking the wheel bearings

The front and rear wheel bearings
must be checked at the intervals spe­cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.

Battery

The battery is located behind panel A.
(See page 6-6.)
This model is equipped with a sealed-

6

type (MF) battery, which does not
require any maintenance. There is no
need to check the electrolyte or to
add distilled water.

CAUTION:

Never attempt to remove the bat­tery cell seals, as this would per­manently damage the battery.

EAU23290

EAU23380

ECA10620

EWA10760

ss

WARNING

● Electrolyte is poisonous and

dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con­tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.

• EXTERNAL: Flush with plenty
of water.

• INTERNAL: Drink large quan­tities of water or milk and
immediately call a physician.

• EYES: Flush with water for 15
minutes and seek prompt
medical attention.

● Batteries produce explosive

hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro­vide sufficient ventilation when
charging it in an enclosed spa­ce.

● KEEP THIS AND ALL BATTE-

RIES OUT OF THE REACH OF
CHILDREN.

To charge the battery

Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.

To store the battery

1. Battery

1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.

2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.

6-22

PERIODIC MAINTENANCE AND MINOR REPAIR

3. Fully charge the battery before
installation.

4. After installation, make sure that
the battery leads are properly
connected to the battery termi­nals.

ECA10630

CAUTION:

● Always keep the battery char-

ged. Storing a discharged bat­tery can cause permanent bat­tery damage.

● To charge a sealed-type (MF)

battery, a special (constant­voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a Yamaha
dealer charge your battery.

EAU23610

Replacing the fuses

The main fuse and the fuse box,
which contains the fuses for the indi­vidual circuits, are located behind
cowling B. (See page 6-6.)
If a fuse is blown, replace it as
follows.

1. Turn the key to “OFF” and turn off
the electrical circuit in question.

2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.

Specified fuses:

Main fuse:

30 A

Headlight fuse:

15 A

Signaling system fuse:

15 A

Ignition fuse:

5 A

Clock fuse (backup):

5 A

Radiator fan fuse:

10 A

ECA10640

CAUTION:

Do not use a fuse of a higher ampe­rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.

3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.

4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

6

6-23

1

1

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU23910

Replacing a headlight bulb

This model is equipped with quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.

1. Remove cowling B. (See page
6-6.)

6

1. Headlight coupler

2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.

3. Remove the headlight bulb hol­der according to the following
illustration, and then remove the
defective bulb.

1. Headlight bulb cover

NOTE:

The removal procedure depends on
the type of bulb holder installed on
your vehicle.

EWA10790

ss

WARNING

Headlight bulbs get very hot. The­refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.

4. Place a new bulb into position,
and then secure it with the bulb
holder.

6-24

ECA10660

CAUTION:

Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the
bulb, and the bulb life will be adver­sely affected. Thoroughly clean off
any dirt and fingerprints on the
headlight bulb using a cloth mois­tened with alcohol or thinner.

5. Install the bulb cover, and then
connect the coupler.

6. Install the cowling.

7. Have a Yamaha dealer adjust the
headlight beam if necessary.

PERIODIC MAINTENANCE AND MINOR REPAIR

EAUT1260

Replacing a front turn signal
light bulb

CAUTION:

It is advisable to have a Yamaha
dealer perform this job.

1. Place the scooter on the centers­tand.

2. Remove cowling A. (See page
6-6.)

3. Remove the socket (together
with the bulb) by turning it coun­terclockwise.

4. Remove the defective bulb by
pushing it in and turning it coun­terclockwise.

ECA10670

5. Insert a new bulb into the socket,
push it in, and then turn it clock­wise until it stops.

6. Install the socket (together with
the bulb) by turning it clockwise.

7. Install the cowling.

EAUS1250

Replacing the tail/brake light
bulb or a rear turn signal
light bulb

Tail/brake light bulb

6

1. Remove the tail/brake light bulb
lens by removing the screws.

2. Remove the defective bulb by
pushing it in and turning it coun­terclockwise.

3. Insert a new bulb into the socket,
push it in, and then turn it clock­wise until it stops.

4. Install the lens by installing the
screws.

6-25

PERIODIC MAINTENANCE AND MINOR REPAIR

Rear turn signal light bulb

1. Remove the tail/brake light lens
by removing the screw.

2. Remove the turn signal light bulb

6

lens by removing the screw.

3. Remove the defective bulb by
pushing it in and turning it coun­terclockwise.

4. Insert a new bulb into the socket,
push it in, and then turn it clock­wise until it stops.

5. Install the turn signal light bulb
lens by installing the screw.

6. Install the tail/brake light bulb
lens by installing the screw.

ECA10680

CAUTION:

Do not overtighten the screws,
otherwise the lens may break.

EAUS1150

Replacing the license plate
light bulb

1. Remove the lens by removing the
screw.

2. Remove the defective bulb by
pulling it out.

3. Insert a new bulb into the socket.

4. Install the lens by installing the
screw.

6-26

PERIODIC MAINTENANCE AND MINOR REPAIR

ECA11190

CAUTION:

Do not overtighten the screw,
otherwise the lens may break.

EAUS1260

Replacing the auxiliary light
bulb

If the auxiliary light bulb burns out,
replace it as follows.

1. Remove cowling B . (See page
6-6.).

2. Remove the socket (together
with the bulb) by pulling it out.

3. Remove the defective bulb by
pulling it out.

4. Insert a new bulb into the socket.

5. Install the socket (together with
the bulb) by pushing it in.

6. Install the cowling B.

EAU25880

Troubleshooting

Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition sys­tems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your­self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians
have the necessary tools, experience,
and know-how to service the scooter
properly.
Use only genuine Yamaha replace­ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.

6

6-27

PERIODIC MAINTENANCE AND MINOR REPAIR

Check the fuel level in
the fuel tank.

1. Fuel

There is enough fuel.

There is no fuel.

Check the compression.

Supply fuel.

The engine does not start.
Check the compression.

Operate the electric starter.

2. Compression

There is compression.

There is no compression.

Check the ignition.

Have a Yamaha dealer
check the vehicle.

Remove the spark plug
and check the electrodes.

3. Ignition

Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.

Have a Yamaha dealer check the vehicle.

The engine does not start.
Have a Yamaha dealer
check the vehicle.

The engine does not start.
Check the battery.

Operate the electric starter.

4. Battery

The engine turns over
quickly.

The engine turns over

slowly.

The battery is good.

Check the battery lead connections,
and charge the battery if necessary.

Dry

Wet

Open the throttle halfway and operate
the electric starter.

Troubleshooting charts

Starting problems or poor engine performance

ss

WARNING

Keep away open flames and do not smoke while checking or working on the fuel system.

EAU25921

EWA10840

6

6-28

PERIODIC MAINTENANCE AND MINOR REPAIR

Wait until the
engine has cooled.

Check the coolant level in the
reservoir and radiator.

The coolant level
is OK.

The coolant level is low.
Check the cooling system
for leakage.

Have a Yamaha dealer check

and repair the cooling system.

Add coolant. (See NOTE.)

Start the engine. If the engine overheats again, have a

Yamaha dealer check

and repair the cooling system.

There is
leakage.

There is
no leakage.

Engine overheating

ss

WARNING

● Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be

blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

● After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then

slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his­sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.

NOTE:

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.

6-29

EWA10400

6

SCOOTER CARE AND STORAGE

Care

While the open design of a scooter
reveals the attractiveness of the tech­nology, it also makes it more vulnera­ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go
unnoticed on a car, however, it
detracts from the overall appearance
of a scooter. Frequent and proper
care does not only comply with the
terms of the warranty, but it will also
keep your scooter looking good,
extend its life and optimize its perfor­mance.

Before cleaning

7

1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.

2. Make sure that all caps and
covers as well as all electrical
couplers and connectors, inclu­ding the spark plug cap, are
tightly installed.

3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such pro-

EAU26090

ducts onto seals, gaskets and
wheel axles. Always rinse the dirt
and degreaser off with water.

Cleaning

CAUTION:

● Avoid using strong acidic whe-

el cleaners, especially on spo­ked wheels. If such products
are used on hard-to-remove
dirt, do not leave the cleaner on
the affected area any longer
than instructed. Also, tho­roughly rinse the area off with
water, immediately dry it, and
then apply a corrosion protec­tion spray.

● Improper cleaning can damage

windshields, cowlings, panels
and other plastic parts. Use
only a soft, clean cloth or spon­ge with mild detergent and
water to clean plastic.

● Do not use any harsh chemical

products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or

7-1

ECA10780

thinner, fuel (gasoline), rust
removers or inhibitors, brake
fluid, antifreeze or electrolyte.

● Do not use high-pressure was-

hers or steam-jet cleaners sin­ce they cause water seepage
and deterioration in the follo­wing areas: seals (of wheel and
swingarm bearings, fork and
brakes), electric components
(couplers, connectors, instru­ments, switches and lights),
breather hoses and vents.

● For scooters equipped with a

windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or scrat­ching. Some cleaning com­pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid­den part of the windshield to
make sure that it does not lea­ve any marks. If the windshield
is scratched, use a quality
plastic polishing compound
after washing.

SCOOTER CARE AND STORAGE

After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottle­brush for hard-to-reach areas. Stub­born dirt and insects will come off
more easily if the area is covered with
a wet cloth for a few minutes before
cleaning.
After riding in the rain, near the sea or
on salt-sprayed roads
Since sea salt or salt sprayed on the
roads during winter are extremely
corrosive in combination with water,
carry out the following steps after
each ride in the rain, near the sea or
on salt-sprayed roads.

NOTE:

Salt sprayed on roads in the winter
may remain well into spring.

1. Clean the scooter with cold water
and a mild detergent after the
engine has cooled down.

ECA10790

CAUTION:

Do not use warm water since it
increases the corrosive action of
the salt.

2. Apply a corrosion protection
spray on all metal, including
chrome- and nickel-plated, surfa­ces to prevent corrosion.

After cleaning

1. Dry the scooter with a chamois or
an absorbing cloth.

2. Use a chrome polish to shine
chrome, aluminum and stainless­steel parts, including the exhaust
system. (Even the thermally indu­ced discoloring of stainless-steel
exhaust systems can be removed
through polishing.)

3. To prevent corrosion, it is recom­mended to apply a corrosion pro­tection spray on all metal, inclu­ding chrome- and nickel-plated,
surfaces.

4. Use spray oil as a universal clea­ner to remove any remaining dirt.

5. Touch up minor paint damage
caused by stones, etc.

6. Wax all painted surfaces.

7. Let the scooter dry completely
before storing or covering it.

ss

WARNING

● Make sure that there is no oil or

EWA10940

wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.

● Before operating the scooter

test its braking performance
and cornering behavior.

ECA10800

CAUTION:

● Apply spray oil and wax spa-

ringly and make sure to wipe
off any excess.

● Never apply oil or wax to any

rubber and plastic parts, but
treat them with a suitable care
product.

● Avoid using abrasive polishing

compounds as they will wear
away the paint.

7

7-2

SCOOTER CARE AND STORAGE

NOTE:

Consult a Yamaha dealer for advice
on what products to use.

7

EAU26300

Storage

Short-term

Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.

CAUTION:

● Storing the scooter in a poorly

ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.

● To prevent corrosion, avoid

damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi­cals are stored.

Long-term

Before storing your scooter for seve­ral months:

1. Follow all the instructions in the
“Care” section of this chapter.

2. Drain the carburetor float cham­ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the drai­ned fuel into the fuel tank.

ECA10820

3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.

4. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.

a. Remove the spark plug cap and

spark plug.

b. Pour a teaspoonful of engine oil

into the spark plug bore.

c. Install the spark plug cap onto

the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit sparking
during the next step.)

d. Turn the engine over several

times with the starter. (This will
coat the cylinder wall with oil.)

e. Remove the spark plug cap from

the spark plug, and then install
the spark plug and the spark plug
cap.

7-3

SCOOTER CARE AND STORAGE

EWA10950

ss

WARNING

To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.

5. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.

6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alter­natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra­ded in one spot.

7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.

8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla­ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more

information on storing the bat­tery, see page 6-22.

NOTE:

Make any necessary repairs before
storing the scooter.

7

7-4

SPECIFICATIONS

Dimensions

Weight

Engine

8

Overall length

2210 mm (87.0 in)

Overall width

790 mm (31.1 in)

Overall height

1380 mm (54.3 in)

Seat height

785 mm (30.9 in)

Wheelbase

1545 mm (60.8 in)

Ground clearance

113 mm (4.45 in)

Minimum turning radius

3650 mm (143.7 in)

With oil and fuel

166 kg (366 lb)

Engine type

Liquid cooled 4-stroke, SOHC

Cylinder arrangement

Forward-inclined single cylinder

Displacement

124.66 cm3(7.61 cu*in)

Bore x stroke

52 x 58.6 mm (2.05 x 2.31 in)

Compression ratio

11.2:1

Starting system

Electric starter

Lubrication system

Wet sump

Oil type or grade

Engine oil

SAE 10W30

Recommended engine oil grade

API service SH type or higher

Engine oil quantity

Without oil filter element replacement

1.4 L (1.48 US qt) (1.23 Imp qt)

With oil filter element replacement

1.5L (1.59 US qt) (1.32 Imp qt)

Final transmission oil

Type

YAMALUBE 4 (10W30) of SAE10W30
type SE motorolie

Quantity

0.21 L (0.22 US qt) (0.18 Imp qt)

Cooling system

Coolant reservoir capacity (up to the maxi­mum level mark)

0.26 L (0.28 US qt) (0.23 Imp qt)

8-1

Air filter

Air filter element

Dry element

Recommended fuel

Recommended fuel

Unleaded fuel

Fuel tank capacity

12.5 L (13.21 US qt) (11.00 Imp qt)

Fuel reserve amount

2 L (2.11 US qt) (1.76 Imp qt)

Fuel injection

Manufacturer

AISAN

Type x quantity

EFI System x 1

Spark plug (s)

Manufacturer/model

NGK / CPR 9EA-9

Spark plug gap

0.8-0.9 mm (0.031-0.035 in)

Clutch

Clutch type

Dry, automatic centrifugal

Transmission

Primary reduction system

Helical gear

Primary reduction ratio

41/14 (2.929)

Secondary reduction system

Helical gear

Secondary reduction ratio

44/13 (3.385)

Transmission type

V-belt automatic

SPECIFICATIONS

Operation

Centrifugal automatic type

Chassis

Frame type

Steel tube underbone

Caster angle

28 º

Trail

100 mm (3.94 in)

Front tire

Type

Tubeless

Size

120/70-15 M/C 56P or 56S

Manufacturer/model

Michelin / Gold Standard

Rear tire

Type

Tubeless

Size

140/70-14 M/C 68P or 68S

Manufacturer/model

Michelin / Gold Standard

Loading

Maximum load

189 kg (417 lb)
Load is total weight of the equipement, dri­ver, passenger and accessories

Tire air pressure (measured on cold
tires)

Loading condition

0–90 kg (0–198 lb)
Front

190 kPa (27 psi) (1.9 kgf/cm2)

Rear

220 kPa (31 psi) (2.2 kgf/cm2)

Loading condition

90 kg (198 lb)–Maximum load

Front

210 kPa (30 psi) (2.1 kgf/cm2)

Rear

250 kPa (36 psi) (2.5 kgf/cm2)

Front wheel

Wheel type

Aluminium wheel

Rim size

15 x MT3.5

Rear wheel

Wheel type

Aluminium wheel

Rim size

14 x MT3.75

Front brake

Type

Single disc brake

Operation

Right hand operation

Recommended fluid

DOT 4

Rear brake

Type

Single disc brake

Operation

Left hand operation

Recommended fluid

DOT 4

8-2

Front suspension

Type

Telescopic fork

Spring/shock absorber type

Coil spring/oil damper

Wheel travel

94 mm (3.70 in)

Rear suspension

Type

Unit swing

Spring/shock absorber type

Coil spring/oil damper

Wheel travel

83 mm (3.27 in)

Electrical system

Ignition system

Transistorized coil ignition (digital)

Charging system

AC magneto

Battery

Manufacturer/model

Yuasa/YTX9-BS

Voltage, capacity

12 V, 8.0 Ah

Bulb voltage, wattage x quantity

Headlight

12 V, 35.0 W / 35.0 W x 2

Auxiliary light

12 V, 5.0 W x 2

Tail/brake light

12 V, 21.0 W / 5.0 W x 2

Front turn signal light

12 V, 10.0 W x 2

8

SPECIFICATIONS

Rear turn signal light

12 V, 10.0 W x 2

License plate light

12 V, 5.0 W x 1

Meter lighting

LED

Fuel level warning lamp

LED

High beam Indicator light

LED

Turn signal indicator light

LED x 2

Engine trouble warning light

LED

Immobilizer light

LED

Reserve fuse

15 A

Reserve fuse

30 A

Fuses

Main fuse

30 A

Headlight fuse

15 A

Signaling system fuse

15 A

8

Ignition fuse

5 A

Radiator fan fuse

10 A

ECU fuse

5 A

Backup fuse

5 A

Reserve fuse

5 A

Reserve fuse

10 A

8-3

CONSUMER INFORMATION

EAU26381

Key identification number

1. Key tag

2. Master key

3. Keys

The key identification number is
stamped into the key tag.
Record this number in the space pro­vided and use it for reference when
ordering a new key.

EAU26410

Vehicle identification number

The vehicle identification number is
stamped into the frame.

NOTE:

The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho­rity in your area.

EAU26470

Model label

The model label is affixed to the frame
under the rider seat. (See page 3-11.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.

9

9-1

INDEX

A

Acceleration and deceleration ...................5-2

Adjusting the shock absorber

assemblies .............................................3-13

Adjusting the throttle cable free play.......6-14

Air filter and V-belt case air filter

elements ................................................6-12

Anti-theft alarm (optional) ..........................3-7

B

Battery......................................................6-22

Braking.......................................................5-2

C

Care............................................................7-1

Cast wheels .............................................6-17

Catalytic converter...................................3-11

Changing the brake fluid..........................6-19

Checking and lubricating the centerstand

and sidestand ........................................6-20

Checking and lubricating the throttle grip

and cable ...............................................6-19

Checking the brake fluid level .................6-18

Checking the front and rear brake pads..6-17

Checking the front fork ............................6-20

Checking the spark plug............................6-7

Checking the steering..............................6-21

Checking the wheel bearings ..................6-22

Controls and instruments ..........................2-3

Coolant.....................................................6-11

Coolant temperature gauge.......................3-4

E

Engine break-in..........................................5-3

Engine oil ...................................................6-8

F

Final transmission oil ...............................6-10

Front and rear brake lever free play.........6-17

Front brake lever........................................3-9

Front storage compartment.....................3-12

Fuel ..........................................................3-10

Fuel gauge .................................................3-4
