Yamaha SRT-1500BL User manual

TV Surround System

Owner’s Manual

English

Read the supplied booklet “Quick Reference Guide” before using the unit.

CONTENTS

Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparing remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FEATURES 5

What you can do with this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Mastering useful apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Controls and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

PREPARATIONS 11

General setup procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

a Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Raising the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

b Connecting a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

c Connecting playback devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

d Other connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting an external subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wired network connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

e Connecting the power cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

f Initial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Displaying the menu screen on the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Selecting the language for menu display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting a surround sound effect for the installation position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Operating the unit by TV’s remote control (HDMI control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

PLAYBACK 21

Basic operation for playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Enjoying sound based on your preference . . . . . . . . . . . . . . . . . . . . . . . . 22

Selecting a surround sound effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

2-channel playback (stereo playback mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Adjusting volume for each channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Viewing audio information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Clear playback of human voices (CLEAR VOICE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Wireless playback of audio via Bluetooth connection . . . . . . . . . . . . . . 25

Listening to music from a Bluetooth device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Listening to audio through Bluetooth speakers or headphones (transmitting) . . . . . . . . . . . . . . . . . . . . . . . 28

Terminating Bluetooth connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

NETWORKS 30

Connecting to a network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Wired network connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Wireless network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Connecting the unit to a wireless network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Connecting a mobile device to the unit directly (Wireless Direct) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Playing back music stored on media servers (PCs/NAS) . . . . . . . . . . . . 41

Media sharing setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Playing music files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Listening to Internet radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Playback of Internet radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Registering favorite Internet radio stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Playing back music with AirPlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Playback of iTunes/iPod music contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Playing back music stored on mobile devices . . . . . . . . . . . . . . . . . . . . . 46

Using a mobile device to play songs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

En 2

SETTINGS 47

APPENDIX 60

Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Setting the setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Setup menu list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Updating the unit’s firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using “Network Update” in the setup menu to update firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Updating firmware with connection of a USB flash drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Initializing the unit’s settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Initializing basic unit settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Initializing network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

When surround effect is not enough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

How to install YRB-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Basic Knowledge of Surround Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

What is Surround Sound? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

What is a Digital Sound Projector? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Yamaha’s Audio Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Audio/video information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Network information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Available signal information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

En 3

About this manual

Battery × 2
(AAA, R03, UM-4)

Peel off the protection sheet
before use.

Within 6m (20ft)

• In this manual, operations that can be performed using either the front panel keys or the remote control
are explained using the remote control.

• indicates supplementary explanations for better use.

• indicates precautions for use of the unit and its feature limitations.

Supplied accessories

Before connecting, make sure you have received all of the following items.

SRT-1500

The unit

Supplied accessories

Remote control Batteries

Owner’s Manual CD-ROM Quick Reference Guide MusicCast Setup Guide

• The supplied optical cable may not be needed depending upon connections.

(AAA, R03, UM-4; x2)

Preparing remote control

Before installing batteries or using the remote control, be sure to read battery and
remote control precautions in “Quick Reference Guide” (separate booklet).

Installing the batteries

Optical cable

(1.5 m (4.9 ft))

Operation range

➤ Supplied accessories En 4

FEATURES

TV

Audio Audio/

Video

HDMI

Control

Sound beams are reflected off walls using unique
real surround sound formats and techniques,
allowing listeners to enjoy their preferred
acoustic environment.

• Enjoy realistic surround sound
with five surround modes: MOVIE,
MUSIC, SPORTS, GAME, TV
PROGRAM (CINEMA DSP)

. p. 22

• Clear playback of speech (dialog,
narration, etc.; CLEAR VOICE)

. p. 24

TV remote
control

HDMI Control

BD/DVD player

Audio/
Video

This unit’s

remote control

Audio

Audio

Audio

Control

Control

Bluetooth

headphones

Network contents

Mobile

devices

The unit

Mobile

devices

Sequential operation of a TV,
this unit, and BD/DVD player
(HDMI Control)

. p. 19

Wide variety of supported content

• Media server (PC/NAS)

. p. 41

• Internet radio

. p. 42

•AirPlay

. p. 44

• Music stored on mobile
devices

. p. 46

Listen to audio input to
the unit with Bluetooth
headphones or speakers

. p. 28

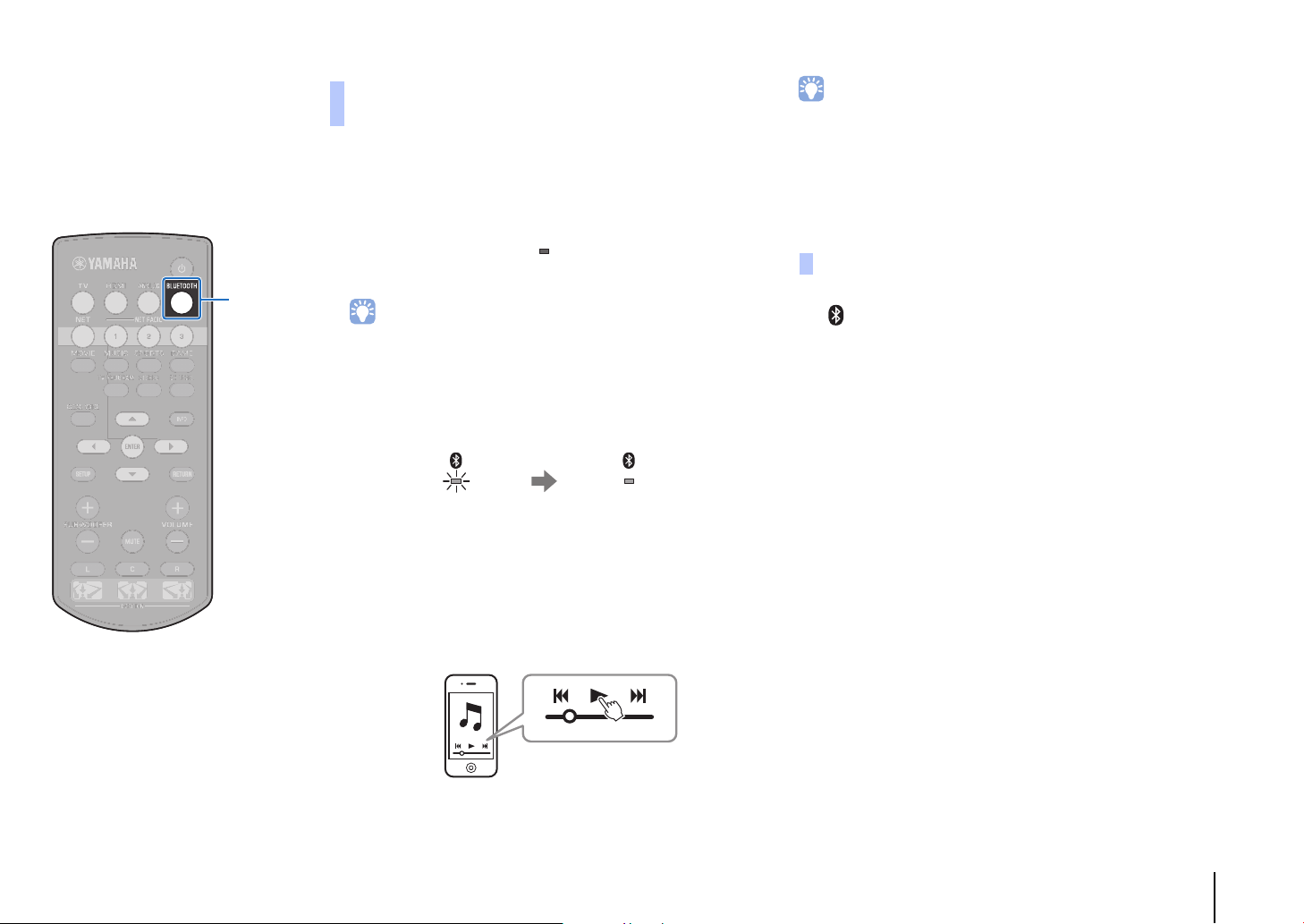

Plays back audio content
from Bluetooth

®

devices

. p. 26

Mastering
dedicated
apps

. p. 6

What you can do with this unit

FEATURES ➤ What you can do with this unit En 5

Mastering useful apps

You can operate and program the unit, or play streaming services via the unit, by installing the free dedicated apps, MusicCast CONTROLLER and HOME THEATER CONTROLLER
(WLAN) on a mobile device such as a smartphone. For details, search for MusicCast CONTROLLER and HOME THEATER CONTROLLER (WLAN) on the App Store or Google Play.

MusicCast CONTROLLER

This app allows you to play distributed content and streaming services via the unit.

MusicCast CONTROLLER capabilities

• Play songs stored on computers (servers)

• Select an Internet radio station

• Play music stored on mobile devices

• Distribute and receive audio between the unit and other Yamaha network A/V devices
See MusicCast Setup Guide for details.

HOME THEATER CONTROLLER (WLAN)

This app allows you to configure specific settings such as sound beams.

• In this manual, iOS and Android mobile devices are collectively referred to as “mobile devices”. The specific
type of mobile device is noted in explanations as needed.

FEATURES ➤ What you can do with this unit En 6

Controls and functions

7

34 5 621

Front panel

1 Indicators

Indicate the status of the unit (p. 8). The indicators will dim
automatically if no operations are performed for 5 seconds.

• “Dimmer” can adjust the brightness of the front panel display
in the setup menu (p. 51).

2 Remote control sensor

Receive infrared signals from the remote control (p. 10).

3 CONNECT key

Use to control the unit using the dedicated MusicCast
CONTROLLER app for mobile devices. See the MusicCast
Setup Guide for details.

4 INPUT key

Select an audio input source (p. 21).

5 VOLUME (+/–) keys

Adjust the volume of the unit (p. 21).

6 z key

Turn on/off the unit.

7 Dual built-in subwoofers

The built-in subwoofers are located in the bottom part of the
unit.

• When the unit is turned off, this unit consumes a small amount of
power in order to search for HDMI signals or to receive infrared
signals from the remote control.

FEATURES ➤ Controls and functions En 7

Indicators

STATUS TV HDMI ANALOG BLUETOOTH NET SURROUND

13452

STATUS

STATUS

STATUS

TV HDMI ANALOG BLUETOOTH NET

Example: when TV is selected

1 STATUS indicator

The STATUS indicator shows the unit’s power status.

Glows green: The unit is on

Glows red: The unit is off (with HDMI control or
network standby activated)

Off: The unit is off

2 Audio input indicator

The corresponding indicator glows to show the input source
to which audio is selected.

Glows Input source to be played back

TV TV audio

HDMI

ANALOG

BLUETOOTH Audio from a Bluetooth device

NET Audio input via a network

Audio from a device connected to the
HDMI IN jack

Audio from a device connected to the
ANALOG input jack

3 SURROUND indicator

Glows when surround playback is selected and turns off
when stereo playback is selected.

SURROUND

SURROUND

Glows when the MOVIE, MUSIC, SPORTS,
GAME, or TV PROGRAM key on the remote
control is pressed (surround playback).

Turns off when the STEREO key on the remote
control is pressed (stereo playback).

4 indicator

Glows when connected to a wireless network; turns off when
the connection is terminated (p. 31).

5 indicator

Glows blue when connected to a Bluetooth device; turns off
when the Bluetooth connection is terminated (p. 25).

❑ Other indications

In addition to indications explained 1–5, other indicators
on the front panel may glow or flash to indicate operation and
setting status.

In this manual, illustrations of the nine in-line indicators
are used for explanation.

: Off

: Glows

: Flashes

Example: When the STATUS indicator flashes and the TV
indicator glows

FEATURES ➤ Controls and functions En 8

Rear panel

Jack cover

Remove the jack cover from the top of the unit to
connect cables. Once cables are connected, reattach
the jack cover.

Jack cover

9

HDMI

IN OUT(ARC)

NETWORK TV

1234567 8

1 HDMI IN jack

For connecting an HDMI-compatible playback device such
as a BD/DVD player, a satellite and cable TV tuner, and a
game console (p. 15).

2 HDMI OUT (ARC) jack

For connecting to an HDMI-compatible TV and outputting
video/audio signals (p. 14).

3 NETWORK jack

For connecting to a network with a network cable (p. 16).

ANALOG SUBWOOFER

OUT

4 TV (digital optical) jack

For connecting to a playback device equipped with a digital
optical audio output jack (p. 14).

5 ANALOG jack

For connecting an external device with a 3.5 mm RCA stereo
cable (p. 15).

6 SUBWOOFER OUT jack

For connecting an external subwoofer (p. 16).

UPDATE

ONLY

7 UPDATE ONLY jack

Use to update this unit’s firmware (p. 58).

8 Power ca ble

For connecting to an AC wall outlet (p. 16).

9 Antenna

Raise the antenna after the TV is installed (p. 13).

FEATURES ➤ Controls and functions En 9

1

2

3

4

5

6

8

9

0
a
b

c
d

e

7

Infrared signal transmitter

Remote control

1 Input selector keys

Select an audio input source to be played back (p. 21).

TV TV

HDMI Device connected via the HDMI IN jack

ANALOG

BLUETOOTH Bluetooth device

NET Audio last input via a network

Device connected via the ANALOG input
jack

2 Surround mode key

Choose a surround playback mode from MOVIE, MUSIC,
SPORTS, GAME, TV PROGRAM (p. 22).

3 CLEAR VOICE key

Turns the CLEAR VOICE function on or off (p. 24).

4 S/T/W/X keys, ENTER key

Change the setting (p. 47).

5 SETUP key

Displays the setup menu (p. 47).

6 SUBWOOFER (+/–) key

Adjust the volume of the subwoofer (p. 21).

7 POSITION (L/C/R) keys

For optimum surround sound effect, select a preset position
mode according to where the unit is installed (p. 18).

8 z key

Turn on/off the unit (p. 21).

9 NET RADIO (1–3) keys

Register and play streaming services such as Internet radio
stations via the unit (p. 42).

0 CH LEVEL key

Adjust the volume balance during playback (p. 23).

a STEREO key

Switch to stereo playback mode (p. 22).

b INFO key

Use the indicator on the front panel to show information for
audio currently playing (p. 23).

c RETURN key

Return to the previous menu screen.

d MUTE key

Mute the sound (p. 21).

e VOLUME (+/–) key

Adjust the volume of the unit (p. 21).

FEATURES ➤ Controls and functions En 10

PREPARATIONS

General setup procedure

1 Installation (p. 12)

Position the unit to achieve the optimal surround sound effects.
Raise the wireless antenna in preparation for network connection using a wireless router

(access point).

2 Connecting a TV (p. 14)

3 Connecting playback devices (p. 15)

4 Other connections (p. 16)

5 Connecting the power cable (p. 16)

6 Initial settings (p. 17)

This completes all the preparations. Enjoy playing movies, music and other content with the unit!

• See “NETWORKS” (p. 30) for information regarding network connection and audio playback via a network.

Connect a TV to the unit.

Connect video devices (such as BD/DVD players) to the unit.

Connect an external subwoofer.
Use a network cable to connect the unit to a router in preparation for wired network connection.

After all the connections are complete, plug in the power cable.

Specify unit settings before use to adjust surround sound effects based on position and
conditions.

PREPARATIONS ➤ General setup procedure En 11

*1CRT TVs cannot be placed on the unit.
*

2

If the TV base is too large to fit on top of the unit, place the
unit in another location such as on an open shelf. In that
case, make sure that the shelf is well-ventilated with enough
clearance around the unit to prevent the heat from
accumulating inside the unit.

Do not install the unit near a corner
of the room.

• TVs that can be placed on the unit are flat-screen TVs that
weigh no more than 40 kg (88.1 lbs), have bases no wider
than 750 mm (29-1/2") and no deeper than 340 mm (13-3/8"),
and have screens no larger than 55 inches.*

1

• Place the TV so that its base does not protrude from the
unit’s edges. *

2

• The listening position (such as sofa, etc.)
should be located at the front of the unit.

• The distance between the listening position
and the unit should be more than 2 m (6.6 ft).

To achieve the optimal surround sound
effects, be sure that obstacles such as
furniture may not obstruct the path of
sound beams (p. 13).

1 2 3 4 5 6

a Installation

Place the unit on a flat surface, such as the top of a TV stand, and then place the TV on top of the unit. When installing this unit on a rack behind which there is limited space, for
example, it may be easier to connect external devices to this unit first. See pages 14 to 16 for information regarding the connection of external devices.

Notes

• Be sure to install this unit on a large, stable stand where it does not fall subject to vibrations, such as from an earthquake, and where it is out of the reach of children.

• Do not raise the antenna until after the TV is placed on top of the unit. The antenna, the unit, the TV, and any other devices in the near vicinity may be damaged if the TV snags the antenna when it is placed on top of the
unit. Take all necessary precautions to prevent this from happening as it may lead to unexpected injury.

• The unit’s speakers are not magnetically shielded. Do not install hard disk drives or similar devices near the unit.

• Do not stack the unit directly on top of other playback devices, or vice versa. Heat and vibrations may result in damage or malfunction.

• Never fix the unit to a wall or other surface using a fall prevention device, such as wire or bracket, supplied with the TV. Doing so may cause the unit fall together with the TV if an accident such as an earthquake occurs.
Read the instruction manual of your TV carefully and fix the TV to a wall or sturdy object following the instruction.

Recommended place for installation

PREPARATIONS ➤ a Installation En 12

Hold the base of
the antenna while
raising it to its
upright position.

1 2 3 4 5 6

❑ Unit installation position and surround sound effects

The unit achieves surround sound by reflecting sound beams off walls.

Effective surround effect may not be achieved in the following environment.

• Sound beams are blocked by obstacles such as furniture.

• The room size is not within the following dimensions;
Width: 3 meters to 7 meters (9.8 ft to 23 ft)
Depth: 3 meters to 7 meters (9.8 ft to 23 ft)
Height: 2 meters to 3.5 meters (6.6 ft to 11.5 ft)

• Listening position is too close to the unit.

• The unit is installed too close to the left or right wall.

• The unit is installed in the corner of the room.

• There is no wall for reflecting sound beam on the path of the sound beams.

Raising the antenna

Raise the antenna on the rear panel of the unit when connecting a wireless router
(access point) to use a network.

• Do not apply excessive force on the antenna. Doing so may damage it.

• Be sure to check the direction in which the antenna moves, and angle it in the proper direction.

• Do not remove the antenna.

• For details on the wireless connection, refer to p. 31.

• The optimum surround sound effect is achieved by setting a position according to the installation position of
the unit. For details, refer to “Setting a surround sound effect for the installation position” (p. 18).

PREPARATIONS ➤ a Installation En 13

HDMI

(ARC)

HDMI

OUT(ARC)

HDMI HDMI

The unit (rear)

HDMI OUT (ARC) jack

ARC-compatible HDMI input

TV

HDMI

OPTICAL

HDMI

TV

OUT(ARC)

HDMI HDMI

OO

The unit
(rear)

HDMI OUT (ARC) jack

HDMI input

TV jack

Audio output

(digital optical)

TV

1. Remove the cap 2. Check the direction of
the plug

1 2 3 4 5 6

b Connecting a TV

Connect a TV to the unit so that video input to the unit can be output to the TV. You can also enjoy playback of TV audio on the unit.

• Use a 19-pin HDMI cable with the HDMI logo printed on it. A cable with a maximum length of 5 m is recommended to prevent degradation of signal quality.

• For playback of 3D and 4K video content, use a high-speed HDMI cable.

Connect the TV to the unit with an HDMI cable (not supplied).

• This unit supports HDCP version 2.2, a copy protection technology. To enjoy playback of 4K video, connect
the unit to the HDMI IN jack (one compatible with HDCP 2.2) on an HDCP 2.2-compliant TV.

When connecting a TV that supports Audio Return Channel (ARC), enable the HDMI
control function (p. 50).

Audio Return Channel (ARC)

ARC enables input and output of audio signals via a single HDMI cable. If the TV supports ARC, audio
signals from the TV can be input to this unit via the same HDMI cable used to output video signals from
this unit to the TV.

• Use an ARC-compatible HDMI cable.

TVs that support Audio Return Channel (ARC)

TVs that do not support Audio Return Channel (ARC)

Connect the TV to the unit with an HDMI cable (not supplied) and an optical cable.

• If the TV has no optical jack

Use a 3.5 mm stereo mini plug cable to connect the unit to the TV via the ANALOG input jack on the unit
and the audio output jack on the TV. TV audio can be played through this unit by switching input to
ANALOG using the ANALOG key on the remote control.

PREPARATIONS ➤ b Connecting a TV En 14

HDMI

HDMI

IN

HDMI HDMI

The unit (rear)

HDMI IN jack

HDMI output

Video device

The unit (rear)

ANALOG jack

Audio output

(analog)

Video device

TV

To video
output jack

To video
input jack

3.5 mm stereo mini
plug cable

1 2 3 4 5 6

c Connecting playback devices

Connect video devices such as BD/DVD players, set-top boxes (STBs) and game consoles to the unit. Depending on the video/audio output jacks available on your video device,
choose one of the following connections. We recommend using an HDMI connection if the video device has an HDMI output jack.

HDMI connection

Connect a video device to the unit with an HDMI cable (not supplied).

TV audio can be played through this unit by switching input to HDMI using the HDMI
key on the remote control.

• Once the HDMI control function has been activated (p. 19), video and audio content from playback devices
can be output from the TV even when this unit is off (HDMI signal pass-through).

• Use a 19-pin HDMI cable with the HDMI logo printed on it. A cable with a maximum length of 5 m is
recommended to prevent degradation of signal quality.

• For playback of 3D and 4K video content, use a high-speed HDMI cable.

• If the video device has an HDCP 2.2-compliant HDMI output jack, connect the unit to that jack.

• Audio from the video device can be input via the TV (digital optical) jack, not via the HDMI IN jack. Use an
optical cable to connect the video device to the unit via the digital optical output jack on the video device
and the TV jack on the unit. If the video device is connected to the unit in this way, change the “HDMI”
setting in the setup menu from “Audio Assign” to “Optical”.

Analog connection

Connect a video device to this unit via a 3.5 mm stereo mini plug cable (not supplied).
Next, connect the video device’s video output to the TV’s video input.

ANALOG

TV audio can be played through this unit by switching input to ANALOG using the
ANALOG key on the remote control.

PREPARATIONS ➤ c Connecting playback devices En 15

INPUT

SUBWOOFER

OUT

The unit (rear)

SUBWOOFER OUT jack

Subwoofer pin cable

(not supplied)

Subwoofer

The unit (rear)

To an AC wall outlet

1 2 3 4 5 6

d Other connections

Connecting an external subwoofer

The unit has built-in subwoofers. However, you can connect an external subwoofer to
enhance low-frequency sounds. Connect a subwoofer via the SUBWOOFER OUT jack
on this unit.

• Use an external subwoofer with a built-in amplifier.

Wired network connections

e Connecting the power cable

After all the connections are complete, plug in the power cable.

For a wired connection, connect one end of the network cable to the NETWORK jack on
the rear panel of the unit and the other end to a router. For details, refer to
“NETWORKS” (p. 30).

PREPARATIONS ➤ d Other connections En 16

TV remote control (example)

Switch
input
sources

TVThe unit (rear)

Share Wi-Fi Settings

You can share the wireless
(Wi-Fi) settings of the
network with Sound Projector
using a device with iOS7 or
later.

[ENTER]:Start
[RETURN]:Cancel
[ ]:OSD Language

Flashes slowly

1 2 3 4 5 6

SETUP

RETURN

f Initial settings

Displaying the menu screen on the TV

Visual operation of this unit is
possible by displaying its menu
screen on the TV.

Turn on the unit and the TV, and
then use the input button on the
TV’s remote control to switch input
so that video input from this unit is
displayed.

When this unit and the TV are
connected as shown below,
select “HDMI 1”.

Initial screen display

When the unit is turned on for the first time after purchase, the
screen below will be displayed and the indicator on the front
panel will flash slowly.

HDMI

123

HDMI INPUT

HDMI

HDMI

OUT(ARC)

The menu display

The menu is displayed on the TV screen when the SETUP key is
pressed. When the TV is receiving HDMI signals, the menu is
superimposed over video content. Press the SETUP key twice to
cancel menu display.

Setup Menu

Channel Level

Dynamic Range
Audio Delay

Sound

HDMI
Function
Information

While this screen is displayed, an iOS device (such as an
iPhone) can be used to easily connect the unit to a wireless
network. See the Quick Reference Guide.

If you will not use an iOS device to connect to a wireless
network, press the RETURN key.

• You can use this function to connect to a wireless network at any time by
selecting “Share Wi-Fi Settings (iOS)” from the setup menu. However, be
aware that if a different wireless network, or a Bluetooth device, has already
been configured, doing so will erase any previous settings.

• This screen will not be displayed and the indicator will not flash if the unit
is connected to a router via its NETWORK jack (wired connection).

PREPARATIONS ➤ f Initial settings En 17

OSD Language

ENGLISH

DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
NEDERLANDS

РУССКИЙ

SVENSKA
TÜRK

L (Left)

R (Right)

C (Center)

(default setting)

Left side of room

Center of room

Right side of room

1 2 3 4 5 6

Selecting the language for menu display

1
2
3

4

5

Turn the unit and TV on.

Switch the TV’s input to display video input from this unit (p. 17).

Press and hold the SETUP key until the “OSD Language” menu
appears on the TV.

When the menu is not displayed

• Confirm the following cases.

– The HDMI input jack of your TV and the HDMI OUT (ARC) jack of the unit are connected.

– The input of your TV is set to “HDMI 1” (example).

Use the S/T key to select the desired language and press the
ENTER key.

Settings

, ENGLISH (default), DEUTSCH, FRANÇAIS, ESPAÑOL, ITALIANO, NEDERLANDS,

РУССКИЙ, SVENSKA, TÜRK

Press the SETUP key to exit the setup menu.

Setting a surround sound effect for the installation position

The surround sound is achieved by reflecting the sound beams off walls as shown in
the illustration below. For optimum surround effect, turn on the unit and select the
POSITION key according to the installation position of the unit.

Hold down the POSITION key that corresponds to the installation

1

position of the unit for more than 3 seconds.

The indicators on the front panel flash according to the set position.

Left

Center

Right

PREPARATIONS ➤ f Initial settings En 18

Remote control of TV (Example)

1. Turn on/off

Both the TV and this unit turn on/off at the same time.

3. Control volume

This unit’s volume can be adjusted when the TV’s audio
output is set to the external device.

4. Switch the audio output device (TV or this unit)

2. Switch input sources

• The input source for this unit switches accordingly when the TV’s
input source is switched. The input source for this unit also switches
when a BD/DVD player is selected as the input source from the TV’s
menu display.

• The input source can be switched while this unit is turned off.

1 2 3 4 5 6

Operating the unit by TV’s remote control (HDMI control)

What is the HDMI control function?

HDMI Control allows you to operate external devices via HDMI. If you connect a TV that
supports HDMI Control to the unit with an HDMI cable, you can control the unit (such as
power and volume) with TV remote control operations. You can also control playback
devices (such as HDMI Control-compatible BD/DVD players) connected to the unit with
an HDMI cable.

Coordinated functions via the TV remote control

With some TVs, navigating this unit’s menus displayed on the TV can be controlled.

• Even if your TV supports the HDMI control function, some functions may not be available. For details, refer
to the manual supplied with your TV.

• We suggest using devices (TV, BD/DVD player, etc.) from the same manufacturer.

First, try the operations described above with your TV’s remote control. If you are able
to perform these operations, you may continue operating this unit with your TV’s remote
control. The HDMI control function can be used with some HDMI devices by simply
activating the function. If you are not able to perform these operations, configure HDMI
control settings (p. 20).

PREPARATIONS ➤ f Initial settings En 19

HDMI

Glows (green)

1 2 3 4 5 6

HDMI

Setting the HDMI control function

Turn on the unit, TV, and playback devices.

1

Activate the HDMI control function on the unit, TV,

2

and playback devices such as BD/DVD players that
support this function.

For this unit, be sure that “HDMI Control” is set to “On”
(default; p. 50).

For playback devices, refer to the instructions supplied with
each device.

Turn off the main power of the TV and then turn off

3

the unit and playback devices.

Turn on the unit and playback devices and then turn

4

on the TV.

Switch the TV input to display the video from the

5

unit.

Press the HDMI key to select HDMI input, and check

6

that video from the playback device is properly
displayed.

If devices are not coordinated

Be sure that all devices are correctly connected to this unit, and
that settings are properly configured as described below.

– “HDMI Control” (p. 50) is set to “On” in the setup menu.
– The HDMI control function is enabled on the TV.

The example of TV settings

• From the setup menu on your TV, select “Link setting” 
“HDMI control setting”, then set a setting such as “HDMI
control function” to “ON”.

• Set audio output to any option other than TV.

If devices fail to coordinate even after the settings described
above have been applied correctly:

– Turn off this unit and the TV, and then turn them back on again.
– Disconnect the power cable of the unit and external devices

connected to the unit via HDMI cable. Plug them in again after
about 30 seconds.

– If devices fail to coordinate after ANALOG is input, repeat

steps 5 and 6 under “Setting the HDMI control function”.

Changing the connection method and
connected devices

When the connected devices and jacks are changed, configure the
settings again with the following procedure.

Check that the unit is properly coordinated with the

7

TV by turning off the TV or adjusting the TV volume
with the TV remote control.

Disable the HDMI control function of the TV and BD/

1

DVD player, turn off all connected devices, and
change the connections.

Follow steps 1 to 7 of “Setting the HDMI control

2

function”.

PREPARATIONS ➤ f Initial settings En 20

PLAYBACK

Glows

Indicator on the front panel

Volume down (–) Volume up (+)

Volume display

The number of lighted indicators increases when the volume is turned
up, and decreases when the volume is turned down.

Volume down (–) Volume up (+)

Subwoofer volume display

The lighted indicator moves to the right when the volume is turned up,
and to the left when the volume is turned down.

MUTE

VOLUME
(+/

-

)

SUBWOOFER
(+/-)

Basic operation for playback

Press the z key to turn on this unit.

1

Turn on devices (TV, BD/DVD player, game console,

2

etc.) connected to this unit.

Input
selector
keys

Select a device by pressing the input selector key

3

corresponding to the connection of external
devices.

Press the HDMI key to play audio/video content from a BD/
DVD player connected via the HDMI IN jack.

HDMI

For playback from a Bluetooth device, refer to p. 25. For
audio playback via a network, refer to p. 41 to 46.

Play back a device selected in step 3.

4

• When listening to audio or watching video from a playback device
connected to the TV, select the device as the TV's input source.

Press the VOLUME (+/–) key to adjust the volume.

5

Press the SUBWOOFER (+/–) key to adjust the
volume of the subwoofer.

When the volume is adjusted, indicators on the front panel
indicate volume level.

• When audio is output from both TV speaker and this unit,
mute the TV sound.

• When sound input to HDMI IN jack is output from the TV,
the volume level does not change even if you press the
VOLUME (+/–) key or the MUTE key.

To mute the audio output

To mute the sound, press the MUTE key.

To resume the volume, press the MUTE key again or press
the VOLUME (+/–) key.

• The subwoofer volume can be adjusted separately from the whole volume.

• Lowering the subwoofer volume is recommended at night.

Select from surround playback or stereo playback

6

mode, and configure sound setting according to
your preferences (p. 22).

Press the z key to turn off this unit after use.

PLAYBACK ➤ Basic operation for playback En 21

Enjoying sound based on your preference

SURROUND

Glows

Indicator on the front panel

SURROUND

Off

Indicator on the front panel

STEREO

INFO

Surround
mode keys

Selecting a surround sound effect

Select the surround mode to enjoy realistic surround effects that
closely resemble a movie theater, the middle of a music concert, or
a sports field event, by Yamaha’s sound field program, “CINEMA
DSP.” You can select a surround mode that best suits the source
from MOVIE, MUSIC, SPORTS, GAME, or TV PROGRAM.

Press one of the surround mode keys (MOVIE,

1

MUSIC, SPORTS, GAME, or TV PROGRAM).

Surround mode

The features of surround modes are described below.
Select the surround mode that best suits the playback source and

your personal taste.

Sound field

program

MOVIE

MUSIC

SPORTS

GAME

TV PROGRAM Creates optimum surround sound for TV programs.

Creates a broad and expansive cinematic space. With
Dolby or DTS surround effects, this program enriches
your cinematic experience.

Creates the palpable excitement, as if you were standing
at the front center of a live concert hall event.

Creates the realistic atmosphere of a live sports event or
talk show.

Enjoy three-dimensional sound effects with computer or
video games.

Features

2-channel playback (stereo playback mode)

The front channels are the primary channel sources for output of
stereo sound.

Press the STEREO key to switch to stereo playback

1

mode.

• When the source is a 2-channel stereo signal, the sound is played back as
surround sound.

PLAYBACK ➤ Enjoying sound based on your preference En 22

Returns to Front (left)

Volume down (T) Volume up (S)

Display while volume is adjusted

The lighted indicator moves to the right when the volume is turned up,
and to the left when the volume is turned down.

CH LEVEL

INFO

SUBWOOFER
(+/-)

 / 

Adjusting volume for each channel

Adjust the volume of playback for each channel (audio in each
direction) so that sounds are evenly distributed in their respective
directions.

• Refer to “Channel Level” (p. 49) when adjusting the volume of each channel with
the test sound.

Hold down the CH LEVEL key for more than 3

1

seconds.

Press the CH LEVEL key to select adjustable

2

channel from the followings.

The output channel changes as follows each time the CH
LEVEL key is pressed.

Indicators on the front panel

Front (left)

Center

Front (right)

Surround (right)

Press the S/T key to adjust the volume.

3

Example of volume balance

• If you have problems hearing words: Select C (center) to increase the level.

When the sound is not like surround sound: Select SL (surround left) and SR
(surround right) to increase the level.

• The volume of the subwoofer also can be adjusted by using the SUBWOOFER (+/
–) key.

• When the position setting is changed (p. 18), the channel level setting will be
overwritten.

Viewing audio information

Information regarding audio currently playing can be viewed.

Press the INFO key.

1

The following information regarding audio currently playing
is displayed via indicators on the front panel while the INFO
key is held down.

1 2345

Surround (left)

Subwoofer

• Subwoofer volume can only be adjusted in stereo playback mode (p. 22).

a Audio from a TV that supports ARC is currently being

input to the unit via the HDMI cable

b Input signal: DTS
c Input signal: Dolby Digital
d Dolby Pro Logic II is currently in use (2-channel audio

signal is input)

e CLEAR VOICE is enabled (p. 24)

PLAYBACK ➤ Enjoying sound based on your preference En 23

Flashes three times and then turns off

Indicators on the front panel

Flashes once and then turns off

CLEAR
VOICE

Clear playback of human voices (CLEAR VOICE)

Human voices, such as lines in movies and TV shows, or news and
sports commentary, are played back very clearly.

Press the CLEAR VOICE key to turn on the CLEAR

1

VOICE function.

Press the key again to turn off the function.

PLAYBACK ➤ Enjoying sound based on your preference En 24

Wireless playback of audio via Bluetooth connection

Bluetooth device

(such as a mobile

device)

Receive and play audio with the unit

Transmit and play audio from the unit

Bluetooth speakers/

headphones

Perform the following steps on the Bluetooth device to be connected.

For the first Bluetooth connection For subsequent Bluetooth connection

Pair the unit and Bluetooth device

When connecting to a Bluetooth
device for the first time, “pairing”
between the device and unit is
required. Pairing is required for
connecting a Bluetooth device for the
first time.

Connect Bluetooth device and play back

You can receive and play audio from a Bluetooth device, such as a mobile device or digital music player, over a wireless connection. Yamaha’s exclusive Compressed Music
Enhancer technology improves sound quality characteristics for the richness and depth of original audio before it is compressed.

You can also transmit audio input to the unit to Bluetooth speakers or headphones.
See documentation supplied with your Bluetooth device for more information.

• Audio cannot be received by the unit from mobile devices and the like, and transmitted to speakers or
headphones at the same time.

• “Bluetooth” in the setup menu must be set to “On” (default; p. 56) to use Bluetooth functions.

PLAYBACK ➤ Wireless playback of audio via Bluetooth connection En 25

Listening to music from a

BLUETOOTH

Glows

SRT-1500

PIN 0 0 0 0

123
456
7 8 9

0

BLUETOOTH

Bluetooth

device

Pairing a Bluetooth device with the unit

Press the BLUETOOTH key on the remote control.

1

Bluetooth is selected as the input.

• If you are unable to select Bluetooth as an input source, be sure that the
following settings have been applied.

– “Bluetooth” in the setup menu is set to “On” (p. 56)

– “Transmission” in the setup menu is set to “Off” (p. 56)

Turn o n t h e Bluetooth device to be paired, and

2

perform pairing.

The operation varies depending on the device. Refer to the
instruction manual supplied with the device.

Select “SRT-1500” in the Bluetooth device list on the

3

device.

If a passkey (PIN) is required, enter the number “0000”.

Play back a song on the Bluetooth device.

4

• Perform pairing with the Bluetooth device and unit within 10 m (33 ft) of each
other.

• The unit can be paired with up to 20 Bluetooth devices for receiving and
transmitting audio. If a new device is successfully paired with the unit after 20
other devices have already been paired, the device with the earliest connecting
date will have been unpaired to make room for the new device.

•If a Bluetooth device has been connected before, the unit will connect to the last
connected device when the BLUETOOTH key is pressed with step 1. Terminate
this connection to pair a new device.

• Refer to “Bluetooth” (p. 62) in “Troubleshooting” if paring is not possible.

When pairing is completed, or a completion message
appears on the Bluetooth device.

The indicator on the unit’s front panel flashes while the
unit and Bluetooth device are being paired, and glows
steadily when pairing is complete.

PLAYBACK ➤ Wireless playback of audio via Bluetooth connection En 26

BLUETOOTH

Glows

Glows steadily

Connection established

Flashes

Connecting

BLUETOOTH

Playing back audio from a Bluetooth device
on the unit

Press the BLUETOOTH key on the remote control

1

when the unit is turned on.

Bluetooth is selected as the input.

• If you are unable to select Bluetooth as an input source, be sure that the
following settings have been applied.

– “Bluetooth” in the setup menu is set to “On” (p. 56)

– “Transmission” in the setup menu is set to “Off” (p. 56)

Turn o n t h e Bluetooth device.

2

Select “SRT-1500” in the Bluetooth device list on the

3

device.

•Perform Bluetooth connection with the device and unit within 10 m (33 ft) of each
other.

• Adjust the volume level of the Bluetooth device as required.

•If a Bluetooth device has been connected before, the unit will connect to the last
connected device when the BLUETOOTH key is pressed with step 1. Terminate
this connection to connect to a different Bluetooth device.

• Setting “Network Standby” in the setup menu to “On” allows the unit to be turned
on and off with Bluetooth device operations.

Terminating Bluetooth connection

Bluetooth connection is terminated in the following cases.
The indicator on the unit’s front panel turns off when the

connection is terminated.

•The Bluetooth device is turned off.

• The BLUETOOTH key is pressed for more than 3 seconds.

• The unit is turned off.

Play back a song on the Bluetooth device.

4

PLAYBACK ➤ Wireless playback of audio via Bluetooth connection En 27

Listening to audio through

▲

ABCDE 1

FGHIJ 2
abcde 3
fghij 4
▼

[ENTER]:Confirm
[RETURN]:Cancel

Device Search

SETUP

 / 
ENTER

Bluetooth

speakers or headphones (transmitting)

Input
selector
keys

Pairing a Bluetooth device with the unit

Turn o n t h e Bluetooth device.

1

Select the input source (other than BLUETOOTH)

2

with the input selector keys.

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select “Bluetooth”, and then

4

press the ENTER key.

Use the S/T keys to select “Transmission”, and

5

then press the ENTER key.

Use the S/T keys to select “On”, and then press

6

the ENTER key.

Use the S/T keys to select “Device Search”, and

7

then press the ENTER key.

Use the S/T keys to select a Bluetooth device, and

8

then press the ENTER key.

When a connection has been established (the device has
been paired with the unit), “Completed” will be displayed on
the TV screen.

The indicator on the unit’s front panel flashes while the
unit and Bluetooth device are being paired, and glows

steadily when pairing is complete.

•A Bluetooth device that has been assigned a passkey (PIN) other than “0000”
cannot be connected to the unit.

• The unit cannot connect to a Bluetooth device if “Bluetooth” in the setup menu is
not set to “On” (p. 56).

• Perform pairing with the Bluetooth device and unit within 10 m (33 ft) of each
other.

• The unit can be paired with up to 20 Bluetooth devices for receiving and
transmitting audio. If a new device is successfully paired with the unit after 20
other devices have already been paired, the device with the earliest connecting
date will have been unpaired to make room for the new device.

•If a Bluetooth device has been connected before, the unit will connect to the last
connected device when the input source is selected in step 2. Terminate this
connection to pair a new device.

• “Not found” is displayed on the screen with step 8 when the unit cannot recognize
the name of the device.

• Refer to “Bluetooth” (p. 62) in “Troubleshooting” if paring is not possible.

PLAYBACK ➤ Wireless playback of audio via Bluetooth connection En 28

Input
selector
keys

Playing back audio input from the unit
through Bluetooth speakers or
headphones

• Be sure that “Transmission” in the setup menu is set to “On” (p. 56).

• Connection to a Bluetooth device is not possible during playback using AirPlay
(p. 44).

Turn o n t h e Bluetooth device.

1

Select the input source (other than BLUETOOTH)

2

with the input selector keys.

If a Bluetooth device has been connected before, the unit
will connect to the last connected device. Proceed to step

4.

To connect to a different device, proceed to step 3.

Follow steps 3 through 8 under “Pairing a Bluetooth

3

device with the unit” to pair the device with the unit.

When a connection has been established (the device has
been paired with the unit), “Completed” will be displayed on
the TV screen.

The indicator on the unit’s front panel flashes while the
unit and Bluetooth device are being paired, and glows

steadily when pairing is complete.

Terminating

Bluetooth connection is terminated in the following cases.
The indicator on the unit’s front panel turns off when the

connection is terminated.

• The connection is terminated from the Bluetooth device, or
the Bluetooth device is turned off.

• “Transmission” in the setup menu is set to “Off”.

• The unit is turned off.

Bluetooth

connection

Audio from the input source will play.

4

•Perform Bluetooth connection with the device and unit within 10 m (33 ft) of each
other.

•Adjust Bluetooth device volume as needed.

• Audio will also be output from the unit.

PLAYBACK ➤ Wireless playback of audio via Bluetooth connection En 29

NETWORKS

The unit (rear)

Internet

Network Attached Storage

(NAS)

PC

Modem

Mobile device

Router

Network cable

Connecting to a network

You can choose between wired network connection and wireless network connection (p. 31) depending upon your network environment.
Network connection allows you to listen to Internet radio stations and play music files with AirPlay or your computer (media service) via this unit. You can operate the unit with a mobile

device to which the MusicCast CONTROLLER app has been installed, allowing you to enjoy listening to a variety of audio sources via this unit.

Wired network connections

• Some security software installed on your computer, or network device settings (such as a firewall), may
block the unit’s access to your computer or Internet radio stations. Should this occur, change security
software and/or network device settings.

• A network connection cannot be established if the MAC address filter on your router is enabled. Check your
router’s settings.

• To configure your router’s subnet mask manually, apply the same subnet used by this unit to all devices.

• Use of a broadband connection is recommended when using Internet services.

To use a wired network connection, connect the unit to a router via an STP network
cable (category 5 or higher straight cable; not supplied).

• If your router supports DHCP, network settings for the unit need not be configured. Network parameters
(such as the IP address) will be assigned automatically. If your router does not support DHCP, or if you
prefer to configure network parameters manually, you must configure network settings yourself (p. 53).

• You can verify that network parameters (such as the IP address) have been properly assigned to the unit by
selecting “Information” (p. 53) from the setup menu.

• See our website for more information on the MusicCast CONTROLLER app.

WAN

LAN

NETWORK

• If the unit is already connected to a wireless network and you would like to switch to a wired connection,
change “Network” in the setup menu to “Wired”.

NETWORKS ➤ Connecting to a network En 30

Wireless network

The unit

Internet

Modem

Mobile device

Wireless router
(access point)

Glows (green)

Wireless(Wi-Fi)

Select a setup method.

·WPS Button

·Share Wi-Fi Settings (iOS)

·Access Point Scan

·Manual Setting

·PIN Code

[ENTER]:OK
[RETURN]:Cancel

Connecting the unit to a wireless network

Connect the unit to a wireless router (access point).

For details on connection, see “Connecting the unit to a wireless network”.
The indicator on the front panel glows when the unit is connected to a wireless

network.

• You cannot use the wireless network connection simultaneously with the wired network connection (p. 30)
or Wireless Direct (p. 39).

• If the unit and the wireless router (access point) are too far apart, the unit may not connect to a wireless
router (access point). In such case, place them close to each other.

• If the unit will not be connected to a wireless router (access point), Wireless Direct (p. 39) can be used to
play music files stored on your mobile device via the unit.

Select the connection method appropriate for your network environment from “Wireless
(Wi-Fi)” in the setup menu.

Connection method Operation

WPS Button

Use the WPS button on your wireless router
(access point) to establish a wireless
connection.

Share Wi-Fi Settings (iOS)

Access Point Scan

Apply network settings from an iOS device
(such as an iPhone).

Select an access point from a list displayed
after a search of available access points.

Establish a wireless network connection by

Manual Setting

PIN Code

entering required information, such as the SSID,
manually.

Establish a wireless connection by registering
the unit’s PIN with your wireless router (access
point). This method can be used if the wireless
router (access point) supports the WPS PIN
feature.

Choosing a connection method

If you want to: Use this connection method

Use an iOS device to easily connect to a
network

Connect to a wireless router (access point)
that supports the WPS (push button) feature

Connect to a wireless router (access point)
that supports the WPS PIN feature

Connect to a network by search for a nearby
access point

Connect directly to an access point that
cannot be located

Share Wi-Fi Settings (iOS) (p. 32)

WPS Button (p. 33)

PIN Code (p. 38)

Access Point Scan (p. 34)

Manual Setting (p. 36)

NETWORKS ➤ Connecting to a network En 31

Wireless(Wi-Fi)

Select a setup method.

·WPS Button

·Share Wi-Fi Settings (iOS)

·Access Point Scan

·Manual Setting

·PIN Code

[ENTER]:OK
[RETURN]:Cancel

SETUP

RETURN

 / 
ENTER

Sharing the iOS device setting

You can easily setup a wireless connection by applying the
connection settings on iOS devices (

Before proceeding, confirm that your iOS device is connected to a
wireless router (access point).

• You need iOS device with iOS 7.1 or later.

• The connection settings on iOS devices cannot be applied to the unit to establish
a wireless connection if your wireless router (access point) uses WEP encryption.
See “Searching for a wireless router (access point)” (p. 34) to establish a
connection.

Press the z key to turn on this unit.

1

Turn on the TV and switch the TV input to display

2

video from the unit (HDMI OUT jack; p. 17).

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select “Network”, and then

4

press the ENTER key.

Use the S/T keys to select “Network Connection”,

5

and then press the ENTER key.

Use the S/T keys to select “Wireless (Wi-Fi)”, and

6

then press the ENTER key.

such as an iPhone).

Use the S/T keys to select “Share Wi-Fi Settings

7

(iOS)”, and then press the ENTER key.

When the following screen is displayed, press the

8

ENTER key.

Share Wi-Fi Settings
If Sharing is begun, the
following settings will be
initialized.

·Network settings

·NET presets

·All music service account
information

·Bluetooth settings
[ENTER]:Start
[RETURN]:Cancel

• The settings to be deleted (initialized) will be displayed. If you do not want to
delete these settings, press the RETURN key to terminate the connection.

When the following screen is displayed, press the

9

ENTER key.

Network Connection

Wired

Wireless(Wi-Fi)

Wireless Direct

Share Wi-Fi Settings

Make sure your iOS device is
connected to your Wi-Fi
network, and then open the
Wi-Fi settings screen of
your iOS device.

[ENTER]:Confirm
[RETURN]:Cancel

NETWORKS ➤ Connecting to a network En 32

Wireless(Wi-Fi)

Select a setup method.

·WPS Button

·Share Wi-Fi Settings (iOS)

·Access Point Scan

·Manual Setting

·PIN Code

[ENTER]:OK
[RETURN]:Cancel

SETUP

 / 
ENTER

Display the Wi-Fi setup screen on the iOS device

10

and select the unit from “SETUP A NEW AIRPLAY
SPEAKER...”.

Follow the on-screen instructions displayed on the iOS
device.

Using the WPS push button configuration

You can easily set up a wireless connection with one push of the
WPS button.

Press the z key to turn on this unit.

1

Turn on the TV and switch the TV input to display

2

video from the unit (HDMI OUT jack; p. 17).

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select “Network”, and then

4

press the ENTER key.

Use the S/T keys to select “Network Connection”,

5

and then press the ENTER key.

Use the S/T keys to select “Wireless (Wi-Fi)”, and

6

then press the ENTER key.

Network Connection

Wired

Wireless(Wi-Fi)

Wireless Direct

Use the S/T keys to select “WPS Button”, and then

7

press the ENTER key.

Push the WPS button on the wireless router (access

8

point).

Press the ENTER key.

9

When a connection has been established (the device has
been paired with the unit), “Completed” will be displayed on
the TV screen.

If “Not connected” is displayed, press the ENTER key to
repeat the process beginning with step 6, or see the
information below to try another connection method.

• The WPS button cannot be used to establish a wireless connection if your
wireless router (access point) uses WEP encryption, or if the router’s MAC
address filter is enabled. See “Searching for a wireless router (access point)”
(p. 34) to establish a connection.

• The WPS button cannot be used to establish a wireless connection if your
wireless router (access point) is configured so that it does not broadcast its SSID.
See “Setting up the wireless connection manually” (p. 36) to establish a
connection.

About WPS

WPS (Wi-Fi Protected Setup) is a standard established by the
Wi-Fi Alliance, which allows easy establishment of a wireless
home network.

NETWORKS ➤ Connecting to a network En 33

Searching for a wireless router (access

Access Point Scan
▲
SSID : Access Point 1

Security: WPA2-PSK(AES)

Security Key
:

Connect
▼
[ENTER]:Confirm
[RETURN]:Cancel

*****_
( ) [ ] { } < > * ! ? # % &
. , : ; _ | / \ $ ~ ^ ' " `
0 1 2 3 4 5 6 7 8 9 @ + - =
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m ←
n o p q r s t u v w x y z →
Space BKSP DELETE CLEAR
OK
CANCEL

[]/[]: Move the cursor left and right.
[Space]: Enter a space.
[BKSP]: Delete the character to the left of the selected one.
[DELETE]: Delete the selected character.
[CLEAR]: Delete all characters entered.
[CANCEL]: Cancel character entry, and return to the previous screen.

SETUP

 / 
 / 

ENTER

point)

Find and connect to a nearby wireless router (access point).

Press the z key to turn on this unit.

1

Turn on the TV and switch the TV input to display

2

video from the unit (HDMI OUT jack; p. 17).

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select the desired access point

8

and press the ENTER key.

The wireless connection setting screen appears on the TV.

Use the S/T keys to select “Network”, and then

4

press the ENTER key.

Use the S/T keys to select “Network Connection”,

5

and then press the ENTER key.

Use the S/T keys to select “Wireless (Wi-Fi)”, and

6

then press the ENTER key.

Use the S/T keys to select “Access Point Scan”,

7

and then press the ENTER key.

The list of available access points appears on the TV
screen.

Network Connection

Wired

Wireless(Wi-Fi)

Wireless Direct

Wireless(Wi-Fi)

Select a setup method.

·WPS Button

·Share Wi-Fi Settings (iOS)

·Access Point Scan

·Manual Setting

·PIN Code

[ENTER]:OK
[RETURN]:Cancel

Press the ENTER key.

9

Use the W/X/S/T and ENTER keys to enter the

10

security key.

Once the security key been entered, select “OK”, and then
press the ENTER key. The screen will return to that
displayed in step 8.

NETWORKS ➤ Connecting to a network En 34

SETUP

 / 
ENTER

Use the S/T keys to select “Connect” and press the

11

ENTER key to start the connection process.

When a connection has been established (the device has
been paired with the unit), “Completed” will be displayed on
the TV screen.

If “Not connected” is displayed press the ENTER key to
repeat the process beginning with step 6, or see the
information below to try another connection method.

• “Access Point Scan” cannot be used to establish a wireless connection if
your wireless router (access point) is configured so that it does not
broadcast its SSID. See “Setting up the wireless connection manually”
(p. 36) to establish a connection.

Press the SETUP key to exit the setup menu.

12

NETWORKS ➤ Connecting to a network En 35

Setting up the wireless connection

Wireless(Wi-Fi)

Select a setup method.

·WPS Button

·Share Wi-Fi Settings (iOS)

·Access Point Scan

·Manual Setting

·PIN Code

[ENTER]:OK
[RETURN]:Cancel

Manual Setting
▲

SSID :

Security: None

Security Key

:
Connect
▼
[ENTER]:Confirm
[RETURN]:Cancel

abc_
( ) [ ] { } < > * ! ? # % &
. , : ; _ | / \ $ ~ ^ ' " `
0 1 2 3 4 5 6 7 8 9 @ + - =
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m ←
n o p q r s t u v w x y z →
Space BKSP DELETE CLEAR
OK
CANCEL

[]/[]: Move the cursor left and right.
[Space]: Enter a space.
[BKSP]: Delete the character to the left of the selected one.
[DELETE]: Delete the selected character.
[CLEAR]: Delete all characters entered.
[CANCEL]: Cancel character entry, and return to the previous screen.

SETUP

 / 
 / 

ENTER

manually

Setup the SSID (network name), encryption method and security
key for your network manually.

Press the z key to turn on this unit.

1

Turn on the TV and switch the TV input to display

2

video from the unit (HDMI OUT jack; p. 17).

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select “Network”, and then

4

press the ENTER key.

Use the S/T keys to select “Network Connection”,

5

and then press the ENTER key.

Use the S/T keys to select “Wireless (Wi-Fi)”, and

6

then press the ENTER key.

Use the S/T keys to select “Manual Setting”, and

7

then press the ENTER key.

Network Connection

Wired

Wireless(Wi-Fi)

Wireless Direct

Use the S/T keys to select “SSID”.

8

Use the W/X/S/T keys and the ENTER key to enter

9

the SSID of the access point.

Once the security key been entered, select “OK”, and then
press the ENTER key. The screen will return to that
displayed in step 8.

Use the S/T keys to select “Security” and the W/X

10

keys to select the encryption method.

Settings

None, WEP, WPA2-PSK (AES), Mixed Mode

• As communications are not encrypted when “None” is selected, selecting
this option poses the risk that third parties may access the unit without your
permission.

NETWORKS ➤ Connecting to a network En 36

*****_
( ) [ ] { } < > * ! ? # % &
. , : ; _ | / \ $ ~ ^ ' " `
0 1 2 3 4 5 6 7 8 9 @ + - =
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m ←
n o p q r s t u v w x y z →
Space BKSP DELETE CLEAR
OK
CANCEL

[]/[]: Move the cursor left and right.
[Space]: Enter a space.
[BKSP]: Delete the character to the left of the selected one.
[DELETE]: Delete the selected character.
[CLEAR]: Delete all characters entered.
[CLEAR]: Cancel character entry, and return to the previous screen.

SETUP

 / 
 / 

ENTER

Use the S/T keys to select “Security Key” and

11

press the ENTER key.

• If you select “None” in step 10, this item is not available.

Use the W/X/S/T and ENTER keys to enter the

12

security key.

If you select “WEP” in step 10, enter either 5 or 13
character string, or 10 or 26 hexadecimal (base 16) keys.

If you select the method other than “WEP”, enter either 8 to
63 character string, or 64 hexadecimal (base 16) keys.

• Hexadecimal (base 16) keys use combinations of the numbers 0 through 9
and the letters a through f. Letters are not case sensitive.

Use the S/T keys to select “Connect” and press the

13

ENTER key to start the connection process.

When a connection has been established (the device has
been paired with the unit), “Completed” will be displayed on
the TV screen.

If “Not connected” is displayed press the ENTER key to
repeat the process beginning with step 6.

Press the SETUP key to exit the setup menu.

14

Once the security key been entered, select “OK”, and then
press the ENTER key. The screen will return to that
displayed in step 8.

NETWORKS ➤ Connecting to a network En 37

Network Connection

Wired

Wireless(Wi-Fi)

Wireless Direct

SETUP

 / 
ENTER

Using the WPS PIN code

Register the unit’s PIN code with your wireless router (access point)
to establish a connection.

Press the z key to turn on this unit.

1

Turn on the TV and switch the TV input to display

2

video from the unit (HDMI OUT jack; p. 17).

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select “Network”, and then

4

press the ENTER key.

Use the S/T keys to select “Network Connection”,

5

and then press the ENTER key.

Use the S/T keys to select “Wireless (Wi-Fi)”, and

6

then press the ENTER key.

Use the S/T keys to select “PIN Code”, and then

7

press the ENTER key.

Wireless(Wi-Fi)

Select a setup method.

·WPS Button

·Share Wi-Fi Settings (iOS)

·Access Point Scan

·Manual Setting

·PIN Code

[ENTER]:OK
[RETURN]:Cancel

Use the S/T keys to select the desired access point

8

and press the ENTER key.

The PIN code of the unit appears on the TV screen.

PIN Code

PIN Code:00000000

Enter the PIN code
into the access point.
Press ENTER to start
the connection process.

[ENTER]:Start
[RETURN]:Cancel

Enter the unit’s PIN code into the wireless router

9

(access point).

For details on settings, refer to the instruction manual of the
wireless router (access point).

Press the ENTER key to start the connection

10

process.

When a connection has been established (the device has
been paired with the unit), “Completed” will be displayed on
the TV screen.

If “Not connected” is displayed press the ENTER key to
repeat the process beginning with step 6, or see the
information below to try another connection method.

• The PIN code cannot be used to establish a wireless connection if your
wireless router (access point) uses WEP encryption, or if the router’s MAC
address filter is enabled. See “Searching for a wireless router (access
point)” (p. 34) to establish a connection.

Press the SETUP key to exit the setup menu.

11

The list of available access points appears on the TV
screen.

NETWORKS ➤ Connecting to a network En 38

Connecting a mobile device to the unit directly (Wireless Direct)

The unitMobile device

SETUP

 / 
 / 

ENTER

Connect a mobile device directly to the unit without using a wireless
router (access point).

Wireless Direct supports the following.
– Operation of the unit using a mobile device to which the

dedicated HOME THEATER CONTROLLER (WLAN) app has
been installed.

– Use of AirPlay to play music files stored on an iOS device.

• You cannot use Wireless Direct simultaneously with the wired network connection
(p. 30) or the wireless network connection (p. 31).

• When Wireless Direct is enabled, the unit cannot connect to the Internet.
Therefore, you cannot use any kind of Internet service such as Internet radio.

Press the z key to turn on this unit.

1

Turn on the TV and switch the TV input to display

2

video from the unit (HDMI OUT jack; p. 17).

Press the SETUP key twice.

3

The setup menu is displayed on the TV screen.

Use the S/T keys to select “Network”, and then

4

press the ENTER key.

Use the S/T keys to select “Network Connection”,

5

and then press the ENTER key.

Use the S/T keys to select “Wireless Direct”, and

6

then press the ENTER key.

Network Connection

Wired
Wireless(Wi-Fi)

Wireless Direct

Use the S/T keys to select “Security” and the W/X

7

keys to select the encryption method.

Settings

None, WPA2-PSK (AES)

In most cases, “WPA2-PSK (AES)” should be selected. If
your mobile device does not support “WPA2-PSK (AES)”,
select “None”.

• As communications are not encrypted when “None” is selected, selecting
this option poses the risk that third parties may access the unit without your
permission.

Use the S/T keys to select “Security Key” and

8

press the ENTER key.

• If you select “None” in step 7, this item is not available.

NETWORKS ➤ Connecting to a network En 39

Use the W/X/S/T and ENTER keys to enter the

[]/[]: Moves the cursor left and right.
[Space]: Enter a space.
[BKSP]: Delete the character to the left of the selected one.
[DELETE]: Delete the selected character.
[CLEAR]: Delete all characters entered.
[CANCEL]: Cancel character entry, and return to the previous screen.

Wireless Direct
▲
SSID : SRT-1500 XXXXXX

Security: WPA2-PSK(AES)
Security Key
: *************

Save

▼
[ENTER]:Confirm
[RETURN]:Cancel

SETUP

 / 
 / 

ENTER

9

security key.

Enter either 8 to 63 character string, or 64 hexadecimal
(base 16) keys.

• Hexadecimal (base 16) keys use combinations of the numbers 0 through 9
and the letters a through f. Letters are not case sensitive.

*****_
( ) [ ] { } < > * ! ? # % &
. , : ; _ | / \ $ ~ ^ ' " `
0 1 2 3 4 5 6 7 8 9 @ + - =
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m ←
n o p q r s t u v w x y z →
Space BKSP DELETE CLEAR
OK
CANCEL

Use the S/T keys to select “Save” and press the

10

ENTER key to save the setting.

This completes the settings and “Set the mobile device.”
will be displayed on the TV screen. The unit functions as an
access point.

Next, configure the Wi-Fi settings of a mobile device.

Configure the Wi-Fi settings of a mobile device.

11

For details on settings of your mobile device, refer to the
instruction manual of the mobile device.

a Enable the Wi-Fi function on the mobile device.

b Select the SSID displayed in step 9 from the list of available

access points.

c When you are prompted for a password, enter the security key

displayed in step 9.

Press the SETUP key to exit the setup menu.

12

Once the security key been entered, select “OK”, and then
press the ENTER key. The screen below will be displayed.

• Before proceeding to the next step, record the following information. These
information will be needed to configure the Wi-Fi setting of a mobile device.

– SSID displayed on the TV screen

– Security key you have just entered

NETWORKS ➤ Connecting to a network En 40

Playing back music stored on media servers (PCs/NAS)

You can play back music files stored on your PC or DLNA-compatible NAS on the unit.

• To use this function, the unit and your PC must be connected to the same router (p. 30). You can check
whether the network parameters (such as the IP address) are properly assigned to the unit in “Information”
(p. 53) in the setup menu.

• The audio may be interrupted while using the wireless network connection. In this case, use the wired
network connection.

• The following file formats are supported.

– The unit supports playback of WAV (PCM format only), MP3, WMA, MPEG-4 AAC, FLAC and ALAC

(Apple Lossless Audio Codec) files (1- or 2-channel audio only).

– The unit is compatible with sampling rates of up to 192 kHz for WAV and FLAC files, 96 kHz for ALAC

files, and 48 kHz for other files.

– The unit supports gapless playback of WAV, FLAC and ALAC files.

– To play back FLAC files, you need to install server software that supports sharing of FLAC files via DLNA

on your PC or use a NAS that supports FLAC files.

– Digital Rights Management (DRM) contents cannot be played back.

Media sharing setup

To play back music files stored on your PC or DLNA-compatible NAS, first you need to
configure the media sharing setting on each music server.

For a PC with Windows Media Player installed

This unit supports Windows Media Player 11 or later. This section explains Windows
Media Player 12 setup as an example.

Start Windows Media Player 12 on your PC.

1

Select “Stream”, then “Turn on media streaming”.

2

Click “Turn on media streaming”.

3

Select “Allowed” from the drop-down list next to the unit’s model

4

name.

Click “OK” to exit.

5

For a PC or a NAS with other DLNA server software
installed

Refer to the instruction manual for the device or software and configure the media
sharing settings.

Playing music files

Use the MusicCast CONTROLLER app installed on your mobile device to play music
files.

• Configure basic settings for the MusicCast CONTROLLER app before playing music files.

• Refer to the supplied “MusicCast Setup Guide” for details.

NETWORKS ➤ Playing back music stored on media servers (PCs/NAS) En 41

Listening to Internet radio

Glows

NET RADIO
1-3

You can listen to Internet radio stations from all over the world.

• To use this function, the unit must be connected to the Internet (p. 30). You can check whether the network parameters (such as the IP address) are properly assigned to the
unit in “Information” (p. 53) in the setup menu.

• You may not be able to receive some Internet radio stations.

• The unit uses the vTuner Internet radio station database service.

• This service may be discontinued without notice.

Playback of Internet radio

Use the MusicCast CONTROLLER app installed on your mobile
device to select an Internet radio station.

• Configure basic settings for the MusicCast CONTROLLER app before selecting
an Internet radio station.

• Refer to the supplied “MusicCast Setup Guide” for details.

Registering favorite Internet radio stations

Assign Internet radio stations to the NET RADIO keys on the remote
control, or save them in the vTuner Bookmarks folder.

Assigning a station to a NET RADIO key

Select the desired Internet radio station.

1

Press and hold one of the NET RADIO keys (1–3) for

2

at least 3 seconds.

❑ Tuning into assigned Internet radio stations

Press the NET RADIO key (1–3) to which the desired

1

Internet radio station has been assigned.

The input source switches to NET, and streaming begins.

STATUS TV HDMI ANALOG BLUETOOTH NET SURROUND

NETWORKS ➤ Listening to Internet radio En 42

Registering the station on the vTuner website

You can switch the language.

Enter the vTuner ID in this area.

You can also register your favorite Internet radio stations on the vTuner website.

Select any of Internet radio stations on the unit.

1

This operation is necessary to register the radio station for the first time.

Check the vTuner ID of the unit.

2

You can find the vTuner ID in “Information” (p. 53) in the setup menu.

Access the vTuner website (http://yradio.vtuner.com/) with the web

3

browser on your PC and enter the vTuner ID.

• To use this feature, you need to create your personal account. Create your account using your e-mail
address.

Register your favorite radio stations.

4

Click the “Add” icon ( ) next to the station name.

• To remove the station from the “Bookmarks” folder, select “Bookmarks” in the Home screen, and then
click the “Remove” icon ( ) next to the station name.

NETWORKS ➤ Listening to Internet radio En 43

Playing back music with AirPlay

The unit

iTunes

iPod

Router

(wired or

wireless)

(wired or
wireless)

iTunes (example) iPod iOS7/iOS8 (example) iPod iOS6 (example)

SRT-1500 XXXX

SRT-1500 XXXX

iTunes (example) iPod (example)

Network name of the unit

The AirPlay function allows you to play back iTunes or iPod music on the unit via
network.

• This section describes “iPod touch”, “iPhone” and “iPad” as the “iPod”. “iPod” refers to “iPod touch”,
“iPhone” and “iPad”, unless otherwise specified.

• To use this function, the unit and your PC or iPod must be connected to the same router (p. 30). You can
check whether the network parameters (such as the IP address) are properly assigned to the unit in
“Information” (p. 53) in the setup menu.

• When using a multiple SSID router, access to the unit might be restricted depending on the SSID to
connect. Connect the unit and iPod to the same SSID.

• The AirPlay function can be used with an iPhone, iPad, or iPod touch running iOS 4.3.3 or later, a Mac
running OS X version 10.8 “Mountain Lion” or later, or a Mac or Windows computer with iTunes 10.2.2 or
later installed.

Playback of iTunes/iPod music contents

Follow the procedure below to play back iTunes/iPod music contents on the unit.

Turn on the unit, and start iTunes on the PC or display the playback

1

screen on the iPod.

If the iTunes/iPod recognizes the unit, the AirPlay icon ( ) appears.

• If the icon does not appear, check whether the unit and PC/iPod are connected to the router properly.

On the iTunes/iPod, click (tap) the AirPlay icon and select the unit

2

(network name of the unit) as the audio output device.

NETWORKS ➤ Playing back music with AirPlay En 44

Select a song and start playback.

Glows

3

To operate playback, use the Music app on the iPod or iTunes on the PC.

The input source switches to NET, and playback begins.

NET

• You can turn on the unit automatically when starting playback on iTunes or iPod by setting “Network
Standby” (p. 55) in the setup menu to “On”.

• You can edit the network name (the unit’s name on the network) displayed on iTunes/iPod in “Network
Name” (p. 55) in the setup menu.

• You can adjust the unit’s volume from the iTunes/iPod during playback.

Caution

• When you use iTunes/iPod controls to adjust volume, the volume may be unexpectedly loud. This could
result in damage to the unit or speakers. If the volume suddenly increases during playback, stop
playback on the iTunes/iPod immediately.

NETWORKS ➤ Playing back music with AirPlay En 45

Playing back music stored on mobile devices

The unit

Mobile device

Router

(wired or
wireless)

Use this function to play music stored on your mobile device over a network.

• To use this function, the unit and your PC or mobile device must be connected to the same router (p. 30).
You can check whether the network parameters (such as the IP address) are properly assigned to the unit
in “Information” (p. 53) in the setup menu.

• When using a multiple SSID router, access to the unit might be restricted depending on the SSID to
connect. Connect the unit and mobile device to the same SSID.

Using a mobile device to play songs

Use the MusicCast CONTROLLER app installed on your mobile device to operate
playback.

• Configure basic settings for the MusicCast CONTROLLER app before playing music.

• Refer to the supplied “MusicCast Setup Guide” for details.

Caution

• When you use mobile device controls to adjust volume, the volume may be unexpectedly loud. This
could result in damage to the unit or speakers. If the volume suddenly increases during playback, stop
playback on the mobile device immediately.

NETWORKS ➤ Playing back music stored on mobile devices En 46

SETTINGS

Setup Menu

Sound

HDMI
Function
Information

Channel Level

Dynamic Range
Audio Delay

Setup menu

Setup Menu

Sound

HDMI
Function
Information

Channel Level

Dynamic Range
Audio Delay

Setup menu

A variety of settings for this unit can be specified and adjusted from the setup menu. Among the options available are channel volume control,
HDMI settings, and network settings.

The setup menu is displayed on, and operated from, the TV screen. See “Displaying the menu screen on the TV” (p. 17) for instructions on
displaying the setup menu on the TV.

Setting the setup menu

 / 
 / 

ENTER

RETURN

SETUP

Press the SETUP key.

1

To display the Network or Bluetooth menu, press the
SETUP key again.

• Hold down the SETUP key for more than 3 seconds to display “OSD
Language” directly on the screen (p. 18, 51).

• If an update for the unit’s firmware is available, an envelope icon ( ) will be
displayed in the setup menu (p. 57).

Use the S/T key to select a menu and then press

2

the ENTER key.

Repeat these steps to display the desired menu.

The X key can be used in place of the ENTER key.

Press the W key or RETURN key to return to the previous
menu.

Use the S/T key to change the setting value of each

3

menu.

Press the SETUP key again to exit the setup menu.

4

SETTINGS ➤ Setup menu En 47

Setup menu list

Menu Item Function Page

Front L, Front R, Center, Surround L, Surround R,
Subwoofer

DHCP, IP Address, Subnet Mask, Default
Gateway, DNS Server (P), DNS Server (S)

Adjust the volume of each channel. 49

Specify the audio input from the TV jack or HDMI IN jack when HDMI is selected as
the input source.

Configure the network parameters (such as IP address). 54

Edit the network name (the unit’s name on the network) displayed on other network
devices.

Turn the function that transmits audio to a Bluetooth device, such as Bluetooth
speakers, on or off.

Search for the Bluetooth device, such as Bluetooth speakers, to which audio will be
transmitted.

50

55

56

56

Sound

HDMI

Function

Information

Network

Bluetooth

Channel Level

Dynamic Range Specify dynamic range. 49

Audio Delay Adjust the delay between video and audio output. 49

HDMI Control Turn HDMI control on or off. 50

HDMI Audio Out Choose whether HDMI audio input is played via this unit or the TV. 50

Audio Assign

Dimmer Adjust the brightness of indicators on the front panel. 51

OSD Language Change the language used for menus displayed on the TV screen. 51

Auto Power Standby Turn Auto Power Standby on or off. 51

Audio Display audio input signal information. 52

Video Display video input signal information. 52

System Display this unit’s firmware version. 52

Information Display the unit’s network information. 53

Network Connection Select the network connection method. 53

IP Address

MAC Address Filter Filter, MAC Address 1–10 Set the MAC address filter to limit access to the unit from other network devices. 54

Network Standby Enable/disable the function that turns on the unit from other network devices. 55

Network Name

Network Update Perform Update Update the firmware via the network. 55

Bluetooth Enable/disable the Bluetooth functions. 56

Transmission

Device Search

MAC Address Display the MAC address for the Bluetooth connection. 56

SETTINGS ➤ Setup menu En 48

Sound

Channel Level

Setup Menu

Adjust the volume of each channel to balance output levels. Use test sounds output
from each channel to adjust volume for optimal balance.

Item

Front L, Front R, Center, Surround L, Surround R, Subwoofer

Adjustable range

-10 to +10

➜

Sound

Channel Level

➜

Dynamic Range

Setup Menu

Adjust this unit’s dynamic range (difference between maximum and minimum volumes).

Settings

Auto (default) Set dynamic range at a level that supports comfortable listening at low volumes.

Standard The dynamic range recommended for regular home use.

Max Output sound without adjusting the dynamic range of the input signals.

➜

Sound

Dynamic Range

➜

Audio Delay

Setup Menu

TV images sometimes lag behind the sound. You can use this function to delay the
sound output to synchronize it with the video image.

Settings

0 ms–500 ms Specify audio output timing in increments of 5 ms.

Auto (default)

Adjust the delay between video and audio output automatically when a TV that
supports an automatic lipsync function is connected to the unit via HDMI.

➜

Sound

➜

Audio Delay

SETTINGS ➤ Setup menu En 49

HDMI

Use to configure the settings related to HDMI signals and the HDMI control function.

HDMI Control

Setup Menu

Turn HDMI control (p. 19) on or off.

Settings

Off (default)

On Enable the control function.

Disable the control function. The standby power consumption of this unit
decreases.

➜

HDMI

HDMI Control

➜

HDMI Audio Out

This setting can be configured only when “HDMI Control” is set to “Off”.

Setup Menu

Use to select a device to play back HDMI audio signals.

Settings

AMP (default) Play back the input sound signal.

TV

• When “HDMI Control” is set to “On”, select the audio output device based on the settings configured for the
TV connected to this unit.

• HDMI video signals input to the HDMI IN jack of this unit are always output from the HDMI OUT (ARC) jack
of this unit.

Plays audio content from the TV connected to the HDMI OUT (ARC) jack.
Volume cannot be adjusted from the unit. Use the TV to adjust volume.

➜

HDMI

HDMI Audio Out

➜

Audio Assign

Setup Menu

Specify whether audio is input via the HDMI IN jack or the TV (digital optical) jack of the
unit when HDMI is selected as the input source.

Settings

HDMI (default), Optical

➜

HDMI

Audio Assign

➜

SETTINGS ➤ Setup menu En 50

Function

5 minutes before

One indicator turns off for every minute that passes.

10 seconds before

The blinking indicator moves to the left for every second that passes.

...  9 seconds before  10 seconds before

Dimmer

Setup Menu

Adjust the brightness of indicators on the front panel.

Settings

-2 (off), -1 (normal; default), 0 (bright)

• If this function is set to “-2” or “-1”, the display brightens only when operations are performed with this unit.

➜

Function

➜

Dimmer

OSD Language

Setup Menu

Use to select the language used for menus displayed on the TV screen.

Settings

Menus are displayed in Japanese.

ENGLISH
(default)

DEUTSCH Menus are displayed in German.

FRANÇAIS Menus are displayed in French.

ESPAÑOL Menus are displayed in Spanish.

ITALIANO Menus are displayed in Italian.

NEDERLANDS Menus are displayed in Dutch.

РУССКИЙ Menus are displayed in Russian.

SVENSKA Menus are displayed in Swedish.

TÜRK

Menus are displayed in English.

Menus are displayed in Turkish.

➜

Function

OSD Language

➜

Auto Power Standby

Setup Menu

Turn Auto Power Standby on or off.
When this function is activated, the unit turns off when it is not in use.

Settings

Off (default setting other than U.K., Europe and Russia models), On (default setting for U.K., Europe
and Russia models)

When “Auto Power Standby” is set to “On”, the unit automatically turns off as indicated
below

• Audio is input to the unit, but no operations have been performed with the unit for
more than 8 hours.

• HDMI, BLUETOOTH or NET is selected as the input source, but no audio has been
input to the unit or no operations have been performed with the unit for more than 20
minutes.

• HDMI is selected as the input source, but no playback device has been connected to
the unit’s HDMI IN jack for more than 20 minutes.

5 minutes before the auto power standby function automatically turns the unit off, the
indicators on the front panel indicate a countdown until the unit is turned off.

➜

Function

Auto Power Standby

➜

• Hold down the SETUP key for more than 3 seconds to display “OSD Language” directly on the TV screen.

• The settings may be changed automatically when using the TV which supports the HDMI control function.

• Auto Power Standby can also be turned on or off using the keys on the front panel (p. 60).

SETTINGS ➤ Setup menu En 51

Information

Display information for the audio and video signal input to this unit.

Audio

Setup Menu

The following information on the current audio input signal is displayed.

Format Digital audio format

The number of channels contained within the input signal—front/
surround/low frequency effects (LFE). Example: “3/2/0.1” means signal

Number of channels

Sampling frequency The sampling frequency of the digital input signal

Bit rate The per-second bit rate of the input signal

• The audio bit rate or sampling frequency may not be displayed for some input signals.

contains 3 front channels, 2 surround channels, and LFE.
If the signal contains channels other than front, surround, and LFE, the

total number of channels may be displayed. Example: “5.1ch”.

➜

Information

➜

Audio

Video

Setup Menu

The following information on the current video input signal is displayed.

Type HDMI or DVI

Resolution Video signal resolution

➜

Information

➜

Video

System

Setup Menu

Display the version of firmware currently installed on this unit.

➜

Information

➜

System

SETTINGS ➤ Setup menu En 52

Network

Configures the network settings.

• Some menus are not superimposed over video content on the TV screen.

Information

Setup Menu

Display the network information on the unit.

• The options displayed vary according to the type of network connection (Wired/Wireless (Wi-Fi)/Wireless
Direct).

Status The connection status of the NETWORK jack

Connection Connection method

MC Network The connection status of MusicCast Network

SSID The access point to which the unit is connected

Security The encryption method for your network

MAC Address MAC address (Ethernet/Wi-Fi)

IP Address IP address

Subnet Mask Subnet mask

Default Gateway The IP address of the default gateway

DNS Server (P) The IP address of the primary DNS server

DNS Server (S) The IP address of the secondary DNS server

vTuner ID The ID of the Internet radio (vTuner)

➜

Network

➜

Information

Network Connection

Setup Menu

Select the network connection method.

Settings

Wired

Wireless (Wi-Fi)

Wireless Direct Select this option when connecting a mobile device to the unit directly.

Select this option when connecting the unit to a network with a network
cable (not supplied).

Select this option when connecting the unit to a network via the wireless
router (access point).

➜

Network

Network Connection

➜

SETTINGS ➤ Setup menu En 53

IP Address

MAC Address Filter

Setup Menu

Configure the network parameters (such as IP address).

➜

Network

➜

IP Address

❑ DHCP

Select whether to use a DHCP server.

Settings

Off

On (default)

Manual network settings

Set “DHCP” to “Off”.

1

Use the S/T keys to select a parameter type.

2

IP Address Specify an IP address.

Subnet Mask Specify a subnet mask.

Default Gateway Specify the IP address of the default gateway.

DNS Server (P) Specify the IP address of the primary DNS server.

DNS Server (S) Specify the IP address of the secondary DNS server.

Use the W/X keys to move the edit position and the S/T keys to

3

select a value.

The DHCP server is not used. Configure the network parameters
manually. For details, see “Manual network settings”.

The DHCP server is used to automatically obtain the unit’s network
parameters (such as IP address).

Setup Menu

The MAC address filter limits network devices that can be used to operate the unit.
When operating the unit via an app on a mobile device, specify the MAC address of the
device.

• Operation of the AirPlay function (p. 44) or DLNA-compatible device (p. 41) is not limited by this setting.

➜

Network

MAC Address Filter

➜

❑ Filter

Enable/disable the MAC address filter.

Settings

Off (default) Disable the MAC address filter.

On

Enable the MAC address filter. In “MAC Address 1–10”, specify the MAC
addresses of the network devices that will operate the unit.

❑ MAC Address 1–10

Specify the MAC addresses (up to 10) of the network devices that will operate the unit
when “Filter” is set to “On”.

Use the S/T keys to select an MAC address number (1 to 10).

1

Use the W/X keys to move the edit position and the S/T keys to

2

select a value.

Press the ENTER key.

3

Press the ENTER key.

4

SETTINGS ➤ Setup menu En 54

Network Standby

Network Name

SRT-1500 1B08FA

[RETURN]:Back

Network Name

Setup Menu

Turn the function that controls the unit’s power (Network Standby) when a network
device or Bluetooth device is operated on or off.

Settings

Off Disable the network standby function.

On (default)

• The unit consumes more power when “Network Standby” is set to “On” than when it is set to “Off”.

Enable the network
standby function.

➜

Network

The unit will turn on when the MusicCast CONTROLLER or
HOME THEATER CONTROLLER (WLAN) app installed on
your mobile device is used to initiate playback while the
unit is off.

The unit will turn on and off in accordance with the
following Bluetooth device operations.

Coordinated power on

When a Bluetooth device is connected to this unit while it is
off, this unit turns on and the input source switches to
BLUETOOTH.

Coordinated power off

When a Bluetooth device is disconnected from this unit
while it is on, this unit turns off.

(Only when BLUETOOTH is selected as the input source.)

Network Standby

➜

Setup Menu

Edit the name displayed for this device (the unit’s name on the network) on other
network devices. A name up to 15 characters in length may be specified.

Use the W/X keys to move the edit position and the S/T keys to

1

➜

Network

Network Name

➜

select a character.

• The following alphanumeric characters and symbols may be used.

()[]{}<>*!?#%&.,:;_|/\$~^'"`0–9@+-=A–Za–z

Press the RETURN key.

2

Network Update

Setup Menu

Update the firmware via the network.

➜

Network

Network Update

➜

Perform Update

This option is available after firmware has been updated. For details, see “Updating the
unit’s firmware” (p. 57).

SETTINGS ➤ Setup menu En 55

Bluetooth

Configures the Bluetooth settings.

• Some menus are not superimposed over video content on the TV screen.

Bluetooth

Setup Menu

Enables/disables the Bluetooth function.

Settings

Off Disable the Bluetooth function.

On (default) Enable the Bluetooth function.

➜

Bluetooth

➜

Bluetooth

Transmission

Setup Menu

Transmit audio from the unit to Bluetooth speakers or headphones.

Settings

Off (default) Audio can not be transmitted.

On

Audio input to the unit can be transmitted to Bluetooth speakers or
headphones.

➜

Bluetooth

Transmission

➜

Device Search

Setup Menu

Select the Bluetooth speakers or headphones to which audio will be transmitted, and
the pair the speakers or headphones with the unit to establish a connection.

➜

Bluetooth

Device Search

➜

MAC Address

Setup Menu

Display the MAC address for the Bluetooth connection.

➜

Bluetooth

MAC Address

➜

SETTINGS ➤ Setup menu En 56

Updating the unit’s firmware

Network Update

Perform Update

Update progress

 / 
ENTER

SETUP

New firmware that provides additional features or product
improvements will be released as needed. If the unit is connected
to the Internet, you can download the firmware via the network and
update it.

When the unit is turned on for the first time after a new version of the
unit’s firmware has been released, a message indicating that a
firmware update is available will be displayed on the TV screen,
and an envelope icon ( ) will be displayed in the setup menu
(p. 47)

The unit’s firmware can be updated as follows.

• Update firmware from “Network Update” in the setup menu.

• Update firmware by connecting a USB flash drive to which the
unit’s firmware update has been saved (p. 58).

• Update firmware using the dedicated MusicCast CONTROLLER
app installed on a mobile device. Follow MusicCast
CONTROLLER guides to operate the app and update the
firmware.

Notes

• Do not operate the unit or disconnect the power cable or network cable during

firmware update. Firmware update takes about 20 minutes or more (depending
on your Internet connection speed).

• If the Internet connection speed is slow, or the unit is connected to the wireless

network, network update may not be possible depending on the condition of
the network connection. In this case, update the firmware using the USB flash
drive (p. 58).

• To perform the following procedure, your TV must be connected to the unit via

HDMI.

• For details on update, visit the Yamaha website.

Use the S/T keys to select “Network”, and then

2

press the ENTER key.

Use the S/T keys to select “Network Update”, and

3

then press the ENTER key.

The following screen is displayed when firmware updates
are available.

• To cancel the operation without updating the firmware, press the SETUP
key.

Press the ENTER key.

4

The TV screen goes black and firmware update begins.

The indicators on the front panel glow to indicate progress
during the update.

• If there are multiple firmware updates, the indicators will start glowing as
each firmware update begins.

Using “Network Update” in the setup menu to update firmware

Press the SETUP key twice.

1

The setup menu is displayed on the TV screen.

SETTINGS ➤ Updating the unit’s firmware En 57

When the indicators on the front panel glow alternately as shown

All indicators glow

Alternates

One indicator glows

Update progress

All indicators glow

Alternates

One indicator glows

5

below, press the

z (power) key on the unit's front panel.

Press the z key on the front panel while pressing the VOLUME – key

4

on the unit.

The firmware update will begin.

The indicators on the front panel glow to indicate progress during the update.

• If there are multiple firmware updates, the indicators will start glowing as each firmware update
begins.

The firmware update is complete.

• If the firmware update fails, the indicator at far right will flash blue. Use the z (power) key to turn the unit off

and then on again, and repeat the procedure from step 1 again. If the firmware update fails again, confirm
that the unit is properly connected to a network.

Updating firmware with connection of a USB flash drive

Download the latest firmware version from the Yamaha website to a USB flash drive,
which can then be used to update the unit’s firmware.

See information provided when updating firmware for details.

Save this unit’s firmware to a USB flash drive.

1

Turn off the unit.

2

Connect the USB flash drive to the UPDATE ONLY jack on the unit’s

3

rear panel.

When the indicators on the front panel glow alternately as shown

5

below, press the

The firmware update is complete.

• If the firmware update fails, the indicator at far right will flash blue. Use the z (power) key to turn the unit off

and then on again, and repeat the procedure from step 1 again. If the firmware update fails again, confirm
the following.

– The USB flash drive is correctly connected to the UPDATE ONLY jack

– See information provided as firmware updates are performed, and be sure that the USB flash drive

contains the firmware update for this unit.

– The unit is properly connected to a network.

z (power) key on the unit's front panel.

SETTINGS ➤ Updating the unit’s firmware En 58

Initializing the unit’s settings

Various settings for the unit can be initialized. You can choose to initialize basic unit settings (does not initialize network settings), or to initialize only network settings.

Initializing basic unit settings

The basic unit settings other than network settings will be initialized.

Turn off the unit.

1

Hold down the z (power) key for more than 3 seconds on the front

2

panel of the unit.

Once settings have been initialized, the unit turns on, all indicators on the front
panel flash for a moment, and then the unit can be operated.

• In addition to basic unit settings, the following settings will also be initialized.

– Network Standby (p. 55)

– Bluetooth function (p. 56)

Initializing network settings

The following settings will be initialized.

• Settings for “Network” and “Bluetooth” in the setup menu

• Internet radio stations assigned to the NET RADIO 1–3 keys

• Bluetooth pairing information

Turn off the unit.

1

Press the z (power) key while pressing the CONNECT key on the

2

front panel of the unit.

Once settings have been initialized, the unit turns on, all indicators on the front
panel flash for a moment, and then the unit can be operated.

• When network settings are initialized, the “Share Wi-Fi Settings (iOS)” screen will be displayed the next
time the unit is turned on (p. 17).

SETTINGS ➤ Initializing the unit’s settings En 59

APPENDIX

Troubleshooting

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit,
disconnect the AC power supply cable, and contact the nearest authorized Yamaha dealer or service center.

General

Problem Cause Remedy See page

This unit does not operate
properly.

This unit fails to turn on when z
key is pressed (the STATUS
indicator flashes red), or the unit
is turned off soon after the power
has been turned on.

This unit is suddenly turned off. The internal temperature becomes too high and the overheat protection

The indicator at far right flashes
blue.

The internal microcomputer has been frozen by an external electric shock
(such as lightning or excessive static electricity) or by a power supply with
low voltage.

The AC power supply cable is not firmly connected to the AC wall outlet. Connect the AC power supply cable firmly to the AC wall outlet. 16

The internal microcomputer has been frozen by an external electric shock
(such as lightning or excessive static electricity) or by a power supply with
low voltage.

circuitry has been activated.

When the Auto Power Standby function is enabled, this unit turns off
automatically in any of the following situations:

– Audio is coming from the selected input source. However, no operations

have been performed for 8 hours or more.

– HDMI, BLUETOOTH or NET is selected as the input source, but no audio

has been input to the unit or no operations have been performed with the
unit for more than 20 minutes.

– HDMI is selected as the input source, but no playback device has been

connected to the unit’s HDMI IN jack for more than 20 minutes.

The network standby function is enabled, and the Bluetooth connection is
terminated.

Firmware update has failed. Turn the unit off and then on again, and try updating the firmware again. If

Disconnect the AC power supply cable from the outlet and plug it again in
after 30 seconds. –

Disconnect the AC power supply cable from the outlet and plug it again in
after 30 seconds.

Wait for about 1 hour for this unit to cool down, turn it back on after
confirming an adequate amount of ventilation space and not to cover this
unit with a cloth.

Turn on the power of the unit and play back the source again. If the Auto
Power Standby function is not used, set “Auto Power Standby” to “Off” from
the setup menu. Auto Power Standby can also be turned on or off using the
keys on the front panel. With the unit turned off, hold down the INPUT key
and press the z key, both on the front panel. The Auto Power Standby
setting will be reversed and the unit will turn on. The indicator on the
front panel will glow for a few seconds when Auto Power Standby is
switched off, and will not glow when Auto Power Standby is switched on.

Resume the Bluetooth connection using the Bluetooth device, or turn on
this unit and set “Network Standby” to “Off”.

the firmware update fails again, confirm that the unit is properly connected
to a network.
If firmware update using a USB flash drive fails, be sure that the USB flash
drive is properly connected to the UPDATE ONLY jack, and that it contains
the firmware update for this unit.

–

12

51

55

57

APPENDIX ➤ Troubleshooting En 60

Problem Cause Remedy See page

No sound. Incorrect input or output cable connections. Connect the cable properly. 15

No appropriate input source has been selected. Select an appropriate input source with the input selector keys. 21

The volume is turned down. Turn up the volume. 21

No sound or too small sound from
a specific channel.

Surround sound effects are
insubstantial.

No sound is coming from the
subwoofer.

The volume of low (bass) tones
from the subwoofer is low.

The sound is muted. Press the MUTE or VOLUME (+/–) key to resume audio output and adjust

There is input signal cannot be played back by this unit. Play a source whose signals can be reproduced by this unit. Change the

“HDMI Audio Out” is set to “TV”. Set to “AMP”. 50

“HDMI Control” is set to “Off”. When connecting ARC (Audio Return Channel) supported TV and this unit

Sound from an HDMI control-enabled TV is set for output from the TV’s
built-in speakers.

The output level of the channel is muted. Raise the output level of the channel. 23, 49

Position is not properly specified. Specify position in accordance with the unit’s installation position. 18

The source is played in stereo playback mode. Switch to surround playback mode. 22

When connecting this unit with playback device and TV digitally, the output
setting of the playback device and TV is not valid.

The playback device is set for constant output from 2 channels (PCM, etc.). Change the playback device’s audio output setting. –

Position is not properly specified. Specify position in accordance with the unit’s installation position. 18

There is no wall in the path of the sound beam. Place the sound reflection board in the path of the sound beam. 66

The volume of the subwoofer is low. Increase the volume of the subwoofer with the SUBWOOFER + key.

The volume of the subwoofer is low. Increase the volume of the subwoofer with the SUBWOOFER + key. 21

Content from an input source with a limited support for low tones is playing. Play content from an input source with broader support for low tones to see

the volume level.

system settings of the source device.

using an HDMI cable only, set “HDMI Control” to “On”.

To use this unit with “HDMI Control” set to “Off”, connect the TV’s audio
output jack to this unit’s TV (digital optical) jack via the optical cable.

Use the TV’s HDMI settings to set audio output to any option other than the
TV’s built-in speakers.

Refer to the manual supplied with your device and check the setting.

if volume is still low.

21

70

50

14

–

–

21

–

APPENDIX ➤ Troubleshooting En 61

Problem Cause Remedy See page

The image is not displayed on TV
screen.

The “This content can not be
viewed on your TV. Please
connect the TV which
corresponds to HDCP2.2 with
HDMI OUT of this unit.” message
is displayed on the TV screen and
the input source does not play.

Menu screen of this unit is not
displayed.

A digital or high-frequency
equipment produces noises.

The HDMI control function does
not work properly.

Audio delay control function is
not effective even “Audio Delay”
is set to “Auto”.

The HDMI cable is not securely connected. Connect the HDMI cable properly.

The HDMI IN jack on the TV, which is connected to the HDMI OUT (ARC)
jack on the unit, is not compatible with HDCP 2.2.

The input switch of TV is not set correctly. Set the TV’s input source to this unit.

The unit may be placed close to digital equipment or high-frequency
equipment.

“HDMI Control” is set to “Off”. Set “HDMI Control” to “On”. 50

The HDMI control function is disabled on your TV. Refer to the manual supplied with your TV and check the setting. –

The number of the connected HDMI devices exceeds the limit. Disconnect some of the HDMI devices. –

The TV does not support the audio delay auto adjustment feature. Adjust timing of sound output manually from “Audio Delay”.

Connect the unit to the HDMI IN jack that is compatible with HDCP 2.2 on a
TV.

Move the equipment away from the unit.

Bluetooth

Problem Cause Remedy See page

Cannot make the unit paired with the Bluetooth device.

Receiving/transmitting “Bluetooth” is set to “Off”. Set it to “On”. 56

The device does not support A2DP. Perform paring operations with a device which supports A2DP. 69

The unit and device are too far apart. Position the Bluetooth device so that it is less than 10 m (33 ft) from this unit

There is a device (microwave oven, wireless LAN, etc.) outputs signals in
the 2.4 GHz frequency band nearby.

Another Bluetooth device is connected. Terminate current Bluetooth connection, and perform pairing with the new

Receiving Bluetooth is not selected as the input source. Select Bluetooth as the input source. 21

A Bluetooth adaptor, etc. that you want to pair with the unit has a password
other than “0000”.

Transmitting “Transmission” is set to “Off”. Set it to “On”. 56

and pair the device with this unit.

Move this unit away from the device that is emitting radio frequency signals.

device.

Use a Bluetooth adaptor, etc. whose password is “0000”.

14, 15

14

17

–

49

26, 28

–

27

26

APPENDIX ➤ Troubleshooting En 62

Problem Cause Remedy See page

Cannot make a Bluetooth connection.

Receiving/transmitting “Bluetooth” is set to “Off”. Set it to “On”. 56

Another Bluetooth device is connected. The unit cannot make multiple Bluetooth connections. Terminate current

More than 20 devices are paired and the oldest pairing information is
deleted.

Transmitting Attempted to establish a connection during playback with AirPlay. Terminate AirPlay playback and try again to establish a connection. 29

No sound is produced or the sound is intermittent during playback.

Receiving/transmitting The Bluetooth connection of the unit with the device is disconnected. Perform Bluetooth connection operations again. 27

The unit and device are too far apart. Move the Bluetooth device so that it is less than 10 m (33 ft) from this unit. 26, 28

There is a device (microwave oven, wireless LAN, etc.) outputs signals in
the 2.4 GHz frequency band nearby.

The device’s Bluetooth function is off. Enable the Bluetooth function of the device. –

The device’s volume is set to minimum. Turn up the volume level on the device. –

Receiving The device is not set to send Bluetooth audio signals to the unit. Check that the Bluetooth function of the device is set properly. –

Playback on the device has not been performed. Perform playback on the device. –

Transmitting Transmitted audio does not play. Play audio from the device selected with the input selector key. 29

Bluetooth connection, and make connection for the desired device.

Perform pairing again. The unit can be paired with up to 20 Bluetooth
devices for receiving and transmitting audio. If a new device is successfully
paired with the unit after 20 other devices have already been paired, the
device with the earliest connecting date will have been unpaired to make
room for the new device.

Move this unit away from the device that is emitting radio frequency signals.

Remote control

Problem Cause Remedy See page

The remote control does not work
and/or function properly.

The wrong distance or angle. The remote control functions within a maximum range of 6 m (20 ft) and no

Direct sunlight or lighting (from an inverter type of fluorescent lamp, etc.) is
striking the remote control sensor of this unit.

The batteries are weak. Replace all batteries. 4

more than 30 degrees off-axis from the front panel.

Reposition this unit.

27

26

–

4

–

APPENDIX ➤ Troubleshooting En 63

Network

Problem Cause Remedy See page

The network feature does not
function.

“Not connected” is displayed with
“Wireless (Wi-Fi)” configuration;
unable to connect to wireless
router (access point).

“Not connected” is displayed with
“Wireless (Wi-Fi)” configuration
using the WPS function (“WPS
Button” and “PIN Code”) and
“Access Point Scan”; unable to
connect to wireless router
(access point).

“Not connected” is displayed with
“Wireless (Wi-Fi)” configuration
using the WPS function (“WPS
Button” and “PIN Code”); unable
to connect to wireless router
(access point).

Playback stops unexpectedly and
files cannot be played
continuously.

The unit does not detect the PC. The media sharing setting is not correct. Configure the sharing setting and select the unit as a device to which music

The files in the PC cannot be
viewed or played back.

The network parameters (IP address) have not been obtained properly. Enable the DHCP server function on your router and set “DHCP” in the

The wireless router’s MAC address filter is enabled. A connection cannot be established if the wireless router’s MAC address

The wireless router (access point) does not broadcast its SSID. A connection cannot be established if the wireless router (access point) is

The wireless router (access point) uses WEP encryption. A connection cannot be established using the WPS function. Try a different

The folder contains some files that cannot be played via the unit. Delete or move files (including video or hidden files) that cannot be played

Some security software installed on your PC is blocking the access of the
unit to your PC.

The unit and PC are not in the same network. Check the network connections and your router settings, and then connect

The MAC address filter is enabled on the unit. In “MAC Address Filter” in the setup menu, disable the MAC address filter

The files are not supported by the unit or the media server. Use the file format supported by both the unit and the media server.

setup menu to “On” on the unit. If you want to configure the network
parameters manually, check that you are using an IP address which is not
used by other network devices in your network.

filter is enabled. Check wireless router (access point) settings and try a
different connection method.

configured so that it does not broadcast its SSID. Check wireless router
(access point) settings and try a different connection method.

connection method.

via the unit from the folder. –

contents are shared.

Check the settings of security software installed on your PC.

the unit and the PC to the same network.

or specify the MAC address of your PC to allow it to access to the unit.

54

30, 31

33, 34, 38

33, 38

41

–

–

54

41

APPENDIX ➤ Troubleshooting En 64

Problem Cause Remedy See page

The Internet radio cannot be
played.

The dedicated apps for
mobile device does not detect
the unit.

Firmware update via the
network (Network Update)
fails.

The iPod does not recognize
the unit when using AirPlay.

The app installed on a mobile
device does not recognize the
unit.

The unit cannot connect to
the Internet via a wireless
router (access point).

Wireless network is not
found.

The selected Internet radio station is currently not available. There may be a network problem at the radio station, or the service may

The selected Internet radio station is currently broadcasting silence. Some Internet radio stations broadcast silence at certain of times of the day.

Access to the network is restricted by the firewall settings of your network
devices (such as the router).

The MAC address filter is enabled on the unit. In “MAC Address Filter” in the setup menu, disable the MAC address filter

The unit and mobile device are not in the same network. Check the network connections and your router settings, and then connect

It may not be possible depending on the condition of the network. Update the firmware via the network (Network Update) again or use a USB

The unit and iPod/mobile device are connected to different SSIDs on the
same access point.

The wireless router (access point) is turned off. Turn on the wireless router (access point). –

The unit and the wireless router (access point) are too far apart. Place the unit and the wireless router (access point) closer to each other. –

There is an obstacle between the unit and the wireless router (access
point).

There is a device (microwave oven, wireless LAN, etc.) outputs signals in
the 2.4 GHz frequency band nearby.

Access to the network is restricted by the firewall settings of the wireless
router (access point).

have been stopped. Try the station later or select another station.

Try the station later or select another station.

Check the firewall settings of your network devices. The Internet radio can
be played only when it passes through the port designated by each radio
station. The port number varies depending on the radio station.

or specify the MAC address of your mobile device to allow it to access to
the unit.

the unit and mobile device to the same network.

flash drive.

Connect them to the same SSID.

Move the unit and the wireless router (access point) in a location where
there are no obstacles between them.

Move this unit away from the device that is emitting radio frequency signals.

Check the firewall setting of the wireless router (access point).

–

–

–

54

–

57

–

–

–

–

APPENDIX ➤ Troubleshooting En 65

When surround effect is not enough

Figure 1. Ideal condition Figure 2. Surround right beam is not

being reflected because there
is no wall.

Surround right is quieter than surround
(left), or surround right is in front of its
proper location.

Figure 3. With a sound reflection board

installed

The sound beam for surround right is
reflected correctly, and correct surround
sound effect is achieved.

Position: Center

FL: Front left
FR: Front right
SL: Surround left
SR: Surround right

Position: Left Position: Right

The unit achieves its surround sound effects by projecting sound beams which reflect
off walls. The sound beams are not reflected toward to the listening position caused by
furniture, etc., in the path of sound beams, or the room shape. In this case, the sound
may become unbalanced.

If the sound beams are not reflected toward to the listening position (figure 2), you can
adjust for this by installing the optional sound reflection board YRB-100.

How to install YRB-100

The unit outputs sound beams according to the “Position” settings (p. 18) as shown in
the following illustrations.

Install the YRB-100 in the path of the sound beam.

shows the recommended install position.

• YRB-100 may not be available in some countries or regions.

• After installing the sound reflection board, refer to the YRB-100 owner’s manual to
adjust the height and angle. Playing test-tones from “Channel Level” in the setup
menu is recommended when adjusting the board (p. 49).

• By installing the board close to your listening position, you can achieve clear surround
sound positioning.

Note

• This unit does not have the function to automatically adjust sound beam angles. It is not necessary to

adjust the sound beam angles, although the procedure is described in the owner’s manual.

APPENDIX ➤ When surround effect is not enough En 66

Basic Knowledge of Surround Sound

Typical 5.1 channel speaker system

Front speakers

Subwoofer

Surround speakers

Center
speaker

Digital amplifier

Speaker

Sound beams are emitted
in the target direction

What is Surround Sound?

Surround sound offers the sense of being surrounded by sounds, an
experience common in concert halls and movie theaters. This can be
achieved by surrounding the audience with numerous speakers from
which sound is output uniformly in all directions. This “surround
sound” technology immerses the listener in sound with speakers
positioned not only in front of the listener, but also behind and to the
sides of the listener, making him or her feel as if they are actually in
the situation.

For precise directional control and quality of sound reproduction,
sounds must be split into separate audio channels for output to each
speaker. Surround sound systems for regular home use (5.1-channel
speaker systems) produce surround sound using five speakers and
a subwoofer, as shown below:

As explained above, sounds can be reproduced for a great sense of
presence by installing multiple speakers. However, this can be
difficult to do in a living room. This unit utilizes “digital sound
projector” technology to provide a realistic and engaging surround
sound experience using only a slim center unit and subwoofer.

What is a Digital Sound Projector?

A digital sound projector separately controls compact speakers
installed in orderly rows, so that optimized audio signals are output
from each speaker and synthesized as highly focused sounds
(sound beams).

When these focused sounds hit a hard wall, they are reflected off of
the wall. A digital sound projector outputs sound beams from five
channels, including front (left/right), center, and surround (left/right)
channels, by reflecting these beams off of walls so that sounds reach
the listener from the appropriate direction. It features a technology
that enables true surround sound without requiring the installation of
speakers in front of, or behind, the listener.

Yam ah a’s Au di o Tec hno log ies

This unit features many more functions based on Yamaha’s superior
audio technologies.

Compressed Music Enhancer

This technology enhances and extends bass and treble, which tend
to be weak in digitally compressed formats such as MP3 used with
portable digital audio players and computers. This makes
compressed audio sound more musically dynamic.
With this unit, Compressed Music Enhancer is automatically
activated when audio is input from a Bluetooth device.

CINEMA DSP

This technology enables precise digital recreation of actual acoustic
environments found in well-known concert halls and movie theaters.
This is achieved using Yamaha’s exclusive sound field programs,
which are based on data measured in various sound fields, and with
which the amplitude, depth, and volume of sounds have been
adjusted.

Clear Voice

This technology enables clear playback of speech (dialog,
narrations, etc.) while maintaining the quality of background sound
(music, sound effects, etc.). It enhances the acoustic characteristics
of speech sounds and increases the perceived volume level.

APPENDIX ➤ Basic Knowledge of Surround Sound En 67

Glossary

Audio/video information

Sampling Frequency and Bit Depth

These are values that represent the amount of information used to convert analog signals to digital signals.
They may be expressed as 48kHz/24bit, for example.

• Sampling Frequency

This defines the number of samples per second (sampling a finite set of discrete values in an analog
signal). The higher the sampling rate, the broader the range of frequencies that can be played back.

• Bit Depth

This defines the amplitude value of sounds when quantifying analog signals as finite values. The higher
the bit depth, the deeper sounds are reproduced.

Deep Color

This is a video technology supported by the HDMI standard. It processes RGB or YCbCr signals at bit
depths of 10, 12, or 16 bits per color, whereas conventional formats utilize only 8-bit processing, enabling
reproduction of more colors. Its gamut is comprised of a billion or more colors, while the gamuts of
conventional formats are comprised of only millions of colors or less. This broader gamut results in more
precise reproduction of colors and greater detail in darker portions.

Dolby Digital

This is a compressed audio format for 5.1 channels. It was developed by Dolby Laboratories, and is widely
used with DVD discs.

Dolby Pro Logic II

This technology converts audio signal recorded in 2 channels to 5-channel signal.

DTS Digital Surround

This is a compressed audio format for 5.1 channels developed by DTS. It is widely used with DVD discs.

FLAC

FLAC is a file format for lossless audio data compression. FLAC is inferior to lossy compressed audio
formats in compression rate but provides higher audio quality.

HDMI

High-Definition Multimedia Interface (HDMI) is a digital audio/video interface that has become an industry
standard around the world. It is capable of transmitting both digital video and audio signals intact via a
single cable. It is also compliant with the High-bandwidth Digital Content Protection (HDCP) standard. See
http://www.hdmi.org for more information.

MP3

One of the compressed digital audio format used by MPEG. With psychoacoustic technologies, this
compression method achieves a high compression rate. Reportedly, it is capable of compressing data
quantity by about 1/10 maintaining a certain level of audio quality.

MPEG-4 AAC

An MPEG-4 audio standard. It is used for mobile telephones, portable audio players, and audio streaming
services on Internet because it allows a high compression rate of data while maintaining better audio quality
than MP3.

Pulse Code Modulation (PCM)

This technology records analog audio signals in digital form, converts analog audio signals to digital audio
signals, and transmits analog audio signals in digital form. It is the underlying technology for all digital audio
signal systems, and is widely used with CDs, Blu-ray Discs, and many other types of media as a
uncompressed audio format known as Linear PCM.

WAV

Windows standard audio file format, which defines the method of recording the digital data obtained by
converting audio signals. By default, the PCM method (no compression) is used, but you can also use other
compression methods.

WMA (Windows Media Audio)

One of the compressed digital audio formats developed by Microsoft Corporation. With psychoacoustic
technologies, this compression method achieves a high compression rate. Reportedly, it is capable of
compressing data quantity by about 1/20 maintaining a certain level of audio quality.

x.v.Color

This is a color space supported by HDMI. It has become an international standard for video and offers a
broader gamut than does the sRGB standard for expression of colors never before possible. It expands the
color space while ensuring compatibility with the sRGB standard for more natural and vivid images.

Network information

SSID

SSID (Service Set Identifier) is a name that identifies a particular wireless LAN access point.

Wi-Fi

Wi-Fi is a technology that allows an electronic device to exchange data or connect to the Internet wirelessly
using radio waves. Wi-Fi offers the advantage of eliminating the complexity of making connections with
network cables by using wireless connection. Only products that complete Wi-Fi Alliance interoperability
tests can carry the “Wi-Fi Certified” trademark.

WPS

WPS (Wi-Fi Protected Setup) is a standard established by the Wi-Fi Alliance, which allows easy
establishment of a wireless home network.

APPENDIX ➤ Glossary En 68

Specifications

Amplifier

Array
speakers

Woofer

Subwoofer

Decoder

Input Jacks

Output Jacks

Other Jacks

Item Specifications

Maximum Rated
Output Power

Typ e Acoustic suspension type

Driver

Frequency
Response

Impedance 4 Ω

Typ e Acoustic suspension type

Driver

Frequency
Response

Impedance 6 Ω

Typ e Bass reflex type

Driver 8.5 cm (3-1/4") cone non-magnetic shielding type x 2

Frequency
Response

Impedance 6 Ω

Supported audio
signal (TV, BD/
DVD)

HDMI 1 (HDMI IN)

Digital (Optical) 1 (TV)

Analog
(RCA/stereo)

HDMI 1 (HDMI OUT (ARC))

Analog
(RCA/monaural)

NETWORK 1

UPDATE ONLY 1

2.8 cm (1-1/8") cone magnetic shielding type x 8

4 x 10 cm (1-1/2 x 4") cone non-magnetic shielding type

PCM (5.1ch), Dolby Digital, DTS Digital Surround

Array speakers 2 W x 8

Woofer 30 W x 2

Subwoofer 60 W

Full range

500 Hz to 21 kHz

Full range

x 2

200 Hz to 23 kHz

45 Hz to 200 Hz

1 (ANALOG)

1 (SUBWOOFER OUT)

Network

Wireless LAN
Standards

Wireless LAN
(Wi-Fi)

Direct connection with mobile
devices

Bluetooth

General

Radio Frequency
Band

WPS (Wi-Fi
Protected Setup)

Security Type WEP, WPA2-PSK (AES), Mixed Mode

Bluetooth version Ver. 2.1 +EDR

Supported
protocols

Supported codecs

Wireless output Bluetooth Class 2

Maximum
communication
distance

Supported content
protection method

Power Supply

Power
Consumption

Standby Power
Consumption

Dimensions
(W x H x D)

Weight 9.3 kg (20.5 lbs)

• HDMI Control Off, Network Standby Off............... 0.4 W

• HDMI Control On, Network Standby Off .............. 1.6 W

• HDMI Control Off, Network Standby On
(Wired/Wi-Fi/Wireless direct/Bluetooth)

........................................................... 1.9/1.8/2.0/1.9 W

• HDMI Control On, Network Standby On .............. 3.1 W

With antenna: 780 x 146 x 380 mm (30-3/4" x 5-3/4" x 15")

Without antenna: 780 x 77 x 370 mm (30-3/4" x 3" x 14-5/8")

Compatible with DLNA ver. 1.5

Push-Button-Method, PIN Method

Receiving: SBC, MPEG-4 AAC

10 m ([33 ft] without obstructions)

U.S.A. and Canada models: AC 120 V, 60 Hz

China model: AC 220 V, 50 Hz
Taiwan model: AC 110-120 V, 50/60 Hz
Other models: AC 220-240 V, 50/60 Hz

Specifications are subject to change without notice.

AirPlay supported

Internet Radio

IEEE802.11b/g/n

2.4 GHz

Wireless Direct

A2DP, AVRCP

Transmitting: SBC

SCMS-T (receiving)

25 W

APPENDIX ➤ Specifications En 69

Available signal information

HDMI signal compatibility

❑ Receivable audio signals

Audio signal types Audio signal formats Compatible media

2ch Linear PCM 2ch, 32–192 kHz, 16/20/24 bit CD, DVD-Video, DVD-Audio, etc.

Multi-ch Linear PCM 6ch, 32–192 kHz, 16/20/24 bit

Bitstream Dolby Digital, DTS DVD-Video, etc.

• Refer to the supplied instruction manuals of the input source device, and set the device appropriately.

• When CPPM copy-protected DVD-Audio is played back, video and audio signals may not be output
depending on the type of the DVD player.

• This unit is not compatible with HDCP-incompatible HDMI or DVI devices. Refer to the supplied instruction
manuals of HDMI or DVI devices for HDCP compatibility.

• To decode audio bitstream signals on this unit, set the input source device appropriately so that the device
outputs the bitstream audio signals directly (does not decode the bitstream signals on the device). Refer to
the supplied instruction manuals for details.

DVD-Audio, Blu-ray disc, HD DVD,
etc.

❑ Repeatable video signals

This unit is compatible with the following video signals.

• Deep Color

• x.v.Color

• 3D video signal

This unit is compatible with the following resolutions.

•VGA

•480i/60 Hz

•480p/60 Hz

•576i/50 Hz

• 720p/60 Hz, 50 Hz

• 1080i/60 Hz, 50 Hz

• 1080p/60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz

• 4K/60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz

•576p/50 Hz

• The resolution of transmitted video signal varies according to specifications of the TV connected to this
unit.

Digital audio signal (optical)

Audio signal types Audio signal formats Compatible media

2ch Linear PCM 2ch, 32–96 kHz, 16/20/24 bit

Bitstream Dolby Digital, DTS DVD-Video, etc.

CD, DVD-Video, DVD-Audio,
etc.

APPENDIX ➤ Specifications En 70

The “ ” logo and “Cinema DSP” are registered
trademarks of Yamaha Corporation.

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby

Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under
license from DTS Licensing Limited.

DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Digital Surround is a trademark of DTS, Inc.

© DTS, Inc. All Rights Reserved.

“HDMI,” the “HDMI” logo and “High-Definition Multimedia Interface”
are trademarks, or registered trademarks of HDMI Licensing LLC.

“x.v.Color” is a trademark of Sony Corporation.

®

The Bluetooth
owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha
Corporation is under license.

word mark and logos are registered trademarks

Bluetooth

Bluetooth is a technology for wireless communication employing the

2.4 GHz frequency band, which can be used without a license.

Handling Bluetooth communications

• The 2.4 GHz band used by Bluetooth compatible devices is a radio
band shared by many types of equipment. While Bluetooth
compatible devices use a technology minimizing the influence of
other components using the same radio band, such influence may
reduce the speed or distance of communications and in some
cases interrupt communications.

• The speed of signal transfer and the distance at which
communications is possible differs according to the distance
between the communicating devices, the presence of obstacles,
radio wave conditions and type of equipment.

• Yamaha does not guarantee all wireless connections between this
unit and devices compatible with Bluetooth function.

iTunes, AirPlay, iPad, iPhone, iPod, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.

MusicCast is a trademark or registered trademark of Yamaha
Corporation.

Windows™

Windows is a registered trademark of Microsoft Corporation in the
United States and other countries.

Internet Explorer, Windows Media Audio and Windows Media Player
are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.

Android™

Android is a trademark of Google Inc.

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance.
The Wi-Fi Protected Setup Identifier Mark is a certification mark of
Wi-Fi Alliance.
Wi-Fi, Wi-Fi Alliance, Wi-Fi CERTIFIED, Wi-Fi Protected Setup, WPA
and WPA2 are trademark or registered trademark of Wi-Fi Alliance.

“Blu-ray Disc™”, “Blu-ray™”, and the logos are trademarks of the
Blue-ray Disc Association

Explanations regarding GPL

This product utilizes GPL/LGPL open-source software in some
sections. You have the right to obtain, duplicate, modify, and
redistribute this open-source code only. For information on GPL/
LGPL open source software, how to obtain it, and the GPL/LGPL
license, refer to the Yamaha Corporation website
(http://download.yamaha.com/sourcecodes/musiccast/).

DLNA™ and DLNA CERTIFIED™ are trademarks or registered
trademarks of Digital Living Network Alliance. All rights reserved.

Unauthorized use is strictly prohibited.

Bluetooth protocol stack (Blue SDK)

Copyright 1999-2014 OpenSynergy GmbH
All rights reserved. All unpublished rights reserved.

APPENDIX ➤ Specifications En 71

Index

Numerics

2-channel playback 22
3D video 14
4K video 14

5.1-channel 67

A

Access point scan 34
AirPlay 44
Antenna 9, 13
App HOME THEATER CONTROLLER (WLAN) 6
App MusicCAST CONTROLLER 6
Audio assign 50
Audio information 23
Audio input signal information 52
Audio Return Channel (ARC) 14
Auto power standby 51

B

Bit depth 68

Bluetooth 25
Bluetooth (receiving audio) 26
Bluetooth (transmitting audio) 28
Bluetooth function (on/off) 56

Brightness of indicators 51

C

Channel level 49
CINEMA DSP 22
Compressed Music Enhancer 67

D

Deep Color 68
Default gateway 53, 54

Delay between video and audio output 49
DHCP 30, 54
DLNA 41
DNS server (P) 53, 54
DNS server (S) 53, 54
Dolby Digital 68
Dolby Pro Logic II 68
DTS Digital Surround 68
Dynamic range 49

E

Encryption method 33, 36, 38, 39

F

File format (computers/NAS) 41
Firmware update 55, 57
Firmware version 52

H

HDCP version 2.2 14
HDMI 68
HDMI audio out 50
HDMI cable 14, 15
HDMI control 19, 50

I

Indicators 7, 8
Information (audio/video/firmware) 52
Initialization 59
Installation position of the unit 18
Internet radio 42
IP address 53, 54
iPod music (AirPlay) 44
iTunes music (AirPlay) 44

J

Jack cover 9

L

Language (OSD) 18

M

MAC address 53
MAC address filter 30, 54
Manual setting (wireless connection) 36
Media sharing setup 41
Menu display 17
Mobile device music 46
MP3 68
MPEG-4 AAC 68

N

Network information 53
Network name 55
Network standby 55

O

OSD language 51

P

Pairing 26, 28
Power cable 9, 16
Pulse Code Modulation (PCM) 68

R

Reflection board 66
Remote control 4, 10
Remote control sensor 7

APPENDIX ➤ Index En 72

S

Sampling frequency 68
Security 53
Security key 37, 39
Security software 30
Setup menu 47
Sharing Wi-Fi settings (iOS device) 17, 32
SSID 33, 35, 53, 68
Stereo playback 22
Subnet mask 30, 53
Subwoofer volume 21, 23
Surround mode 22
Surround sound effect 18

T

Test sounds 49
TV 17, 19, 21

V

Video input signal information 52
Volume 21
Volume for each channel 23, 49
vTuner 42
vTuner ID 53

W

Wi-Fi 68
Wired network connections 16, 30
Wireless Direct 39
Wireless network 31
WPS 68
WPS PIN code 38

X

x.v.Color 68

APPENDIX ➤ Index En 73

© 2015 Yamaha Corporation YH259B0/EN
