SAMPLING REVERBERATOR

Owner’s Manual

MEMORY CARD

INPUT OUTPUT

12 123CH434

CLIP

SIGNAL

CD-ROM

FS LOCK

Keep This Manual For Future Reference.

POWER

48K

44.1K

ON OFF

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC

Laser Diode Properties * Material : GaAlAs * Wavelength : 765–815nm * Emission Duration : Continuous * Laser Output Power : Less than 0.22mW

Laser output is measured at a distance of 20cm from the object lens on the optical pick-up head.

(Note)

This unit is classified as a Class 1 laser product. This label is located on the rear panel.

CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

Klassmärkning för Finland.

CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

ATTENTION

TOUTE MANIPULATION DES COMMANDES, TOUT RÉGLAGE OU TOUTE UTILISATION AUTRES QUE CEUX SPÉCIFIÉS DANS CE MANUEL POURRAIENT ENTRAÎNER UNE EXPOSITION DANGEREUSE AUX RADIATIONS

VORSICHT

DIE VERWENDUNG DER BEDIENELEMENTE UND EINSTELLFUNKTIONEN BZW. DAS AUSFÜHREN VON HANDLUNGEN IN EINER NICHT AUSDRÜCKLICH IN DIESER ANLEITUNG ERWAHNTEN WEISE KÖNNEN ZU EINER GESUNDHEITSSCHADLICHEN BESTRAHLUNG FÜHREN

PRECAUCIÓN

EL USO DE CONTROLES, AJUSTES O LA APLICACIÓN DE PROCEDIMIENTOS DISTINTOS A LOS DESCRITOS EN ESTE MANUAL, PUEDE OCASIONAR UNA EXPOSICIÓN A RADIACIÓN PELIGROSA

requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA 90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

GREEN-AND-YELLOW : EARTH BLUE : NEUTRAL BROWN : LIVE As the colours of the wires in the mains lead of this apparatus may

not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

* This applies only to products distributed by YAMAHA KEMBLE

MUSIC (U.K.) LTD.

FCC INFORMATION (U.S.A.)

ADVARSEL! Lithiumbatteri—Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandoren.

VARNING Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

Important Information

Read the following before using the SREV1

Warnings

• Do not subject the unit to extreme temperatures, humidity, direct sunlight, or dust, which could be a potential ﬁre or electrical shock hazard.

• Do not allow water to enter the unit or allow it to get wet. Fire or electrical shock may result.

• Connect the power cord or AC adapter only to an AC outlet of the type stated in this

Owner’s Manual or as marked on the unit. Failure to do so is a ﬁre and electrical shock

hazard.

• Hold the power-cord plug or AC adapter when disconnecting from an AC outlet. Never pull the cord. A power cord damaged through pulling is a potential ﬁre and electrical shock hazard.

• Do not touch the power plug or AC adapter with wet hands. Doing so is a potential electrical shock hazard.

• Do not place heavy objects, including the unit, on top of the power cord. A damaged power cord is a ﬁre and electrical shock hazard. In particular, be careful not to place heavy objects on a power cord covered by a carpet.

• Do not place a container with liquid or small metal objects on top of this unit. Liquid or metal objects inside this unit are a ﬁre and electrical shock hazard.

• Do not scratch, bend, twist, pull, or heat the power cord. A damaged power cord is a ﬁre and electrical shock hazard.

• If the power cord is damaged (e.g., cut or a bare wire is exposed), ask your dealer for a replacement. Using the unit with a damaged power cord is a ﬁre and electrical shock hazard.

• Do not plug several pieces of equipment into the same AC outlet. This may overload the AC outlet, and could be a ﬁre or electrical shock hazard. It may also affect the performance of some equipment.

• If you notice any abnormality, such as smoke, odor, or noise, or if a foreign object or liquid gets inside the unit, turn it off immediately. Remove the power cord or AC adapter from the AC outlet and consult your dealer for repair. Using a unit in this condition is a ﬁre and electrical shock hazard.

• Do not place small objects on top of the unit. Metal objects falling inside is a ﬁre and electrical shock hazard.

• If a foreign object or water gets inside the unit, turn it off immediately. Remove the power cord or AC adapter from the AC outlet and consult your dealer for repair. Using a unit in this condition is a potential ﬁre and electrical shock hazard.

• If the unit is dropped or the cabinet damaged, turn off the power, remove the power plug or AC adapter from the AC outlet, and contact your dealer. If you continue using the unit without heeding this instruction, ﬁre or electrical shock may result.

• Do not remove the unit covers. You could receive an electrical shock. If you think internal inspection, maintenance, or repair is necessary, contact your dealer.

• Do not attempt to modify the unit. This is a potential ﬁre and electrical shock hazard.

SREV1—Owner’s Manual

Important Information

• Do not block the front panel air inlet, ventilation slots, or fan outlets. Doing so is a potential ﬁre hazard.

Cautions

• Allow enough free space around the SREV1 for normal ventilation. This should be 20 cm behind, 10 cm at the sides, and 30 cm above. These distances should also be adopted when rack-mounting the SREV1. If the SREV1 is mounted in a portable rack case, keep the rear of the case open when using the SREV1 so as not to obstruct the ﬂow of air from the two cooling fans. If the airﬂow is not adequate, the SREV1 will heat up inside and may cause a ﬁre. Do not mount the SREV1 above equipment that produces a lot of heat, such as a power ampliﬁer.

• Turn off all audio equipment when connecting to the unit, and use only cables of the type speciﬁed in this

• If you plan not to use the unit for a long period of time, remove the power cord or AC adapter from the AC outlet. Leaving the unit connected is a potential ﬁre hazard.

• Do not use benzene, thinner, cleaning detergent, or a chemical cloth to clean the unit. Use only a soft, dry cloth.

• If the unit is stored in a cold place (e.g., overnight in a car), and then moved to a warmer environment, or if the temperature rises sharply, condensation may form inside the unit, which may affect performance. In this case, the unit should be allowed to acclimatize for about one hour before use.

Owner’s Manual.

• When the wordclock is changed on the wordclock master device, noise may occur from the SREV1’s outputs, especially if an MY8-AT I/O card is installed, so turn down your power amps beforehand, otherwise any connected speakers may be damaged.

• If the RC-SREV1 displays the message “LOW BATTERY” when you turn on the unit, ask your Yamaha dealer to replace the internal battery as soon as possible. The unit will still work, but data other than backed up data will be lost. We recommend that you save this data to a PC Card before replacing the battery.

• For electrical safety reasons, it’s important that the SREV1 is grounded properly. The supplied power cord has a three-pin plug, and if the ground terminal of the AC outlet is grounded, then the SREV1 will be grounded sufﬁciently through the power cord. If the AC outlet does not provide a suitable ground, however, a ground connection should be made to the dedicated grounding screw.

SREV1—Owner’s Manual



Important Information

iii

Handling CD-ROMs

• Use only discs of the type speciﬁed in this Owner’s Manual .

• The CD-ROM drive is for use with data discs only. Never insert audio CDs.

• Store discs in a place free from extreme temperatures, humidity, dust, and dirt.

• Always store discs in their cases.

• When handling discs, be careful not to touch the surface. Hold discs by the edge. Fingerprints, smudges, scratches, or dirt can affect performance.

• Be careful not to scratch the labeled side of the disc. Even scratches on that side can affect performance.

• Fingerprints and dust should be removed by wiping gently from the center of the disc towards the disc edge, using a soft, dry cloth. Never wipe in a circular motion and never rub a disc hard with a dry cloth.

• For stubborn stains and dirt, use a cleaning kit designed speciﬁcally for use with CDs. Do not use benzene, thinner, cleaning detergent, or a chemical cloth.

• For disc marking, use only pens speciﬁcally designed for writing on CDs and write only on the designated area. Do not attach a label to a disc.

• If a disc is stored in a cold place (e.g., overnight in a car), and then moved to a warmer environment, or if the temperature rises sharply, condensation may form on the disc surface, which may affect performance. In this case, the disc should be allowed to acclimatize for about one hour before use.

• Do not under any circumstances attempt to use discs that are cracked or warped. Doing so may seriously damage the unit.

Handling PC Cards

• Use only PC Cards of the type speciﬁed in this Owner’s Manual .

• Some PC Cards and PC Card adapters cannot be used with the SREV1.

• Do not eject a PC Card while the activity indicator is lit. Doing so may cause data lose.

• Store PC Cards in a place free from extreme temperatures, humidity, dust, and dirt.

• Always store PC Cards in their cases.

Precautions for Transportation

During transportation, keep the CD-ROM door shut with tape, or a pad, or the like.

• When using tape, use tape that adheres well to the front panel.

• When using a pad, use a pad stiff enough that the elasticity holds the tray in place.

Front panel

Tape



CD-ROM door

Pad

SREV1—Owner’s Manual

Important Information

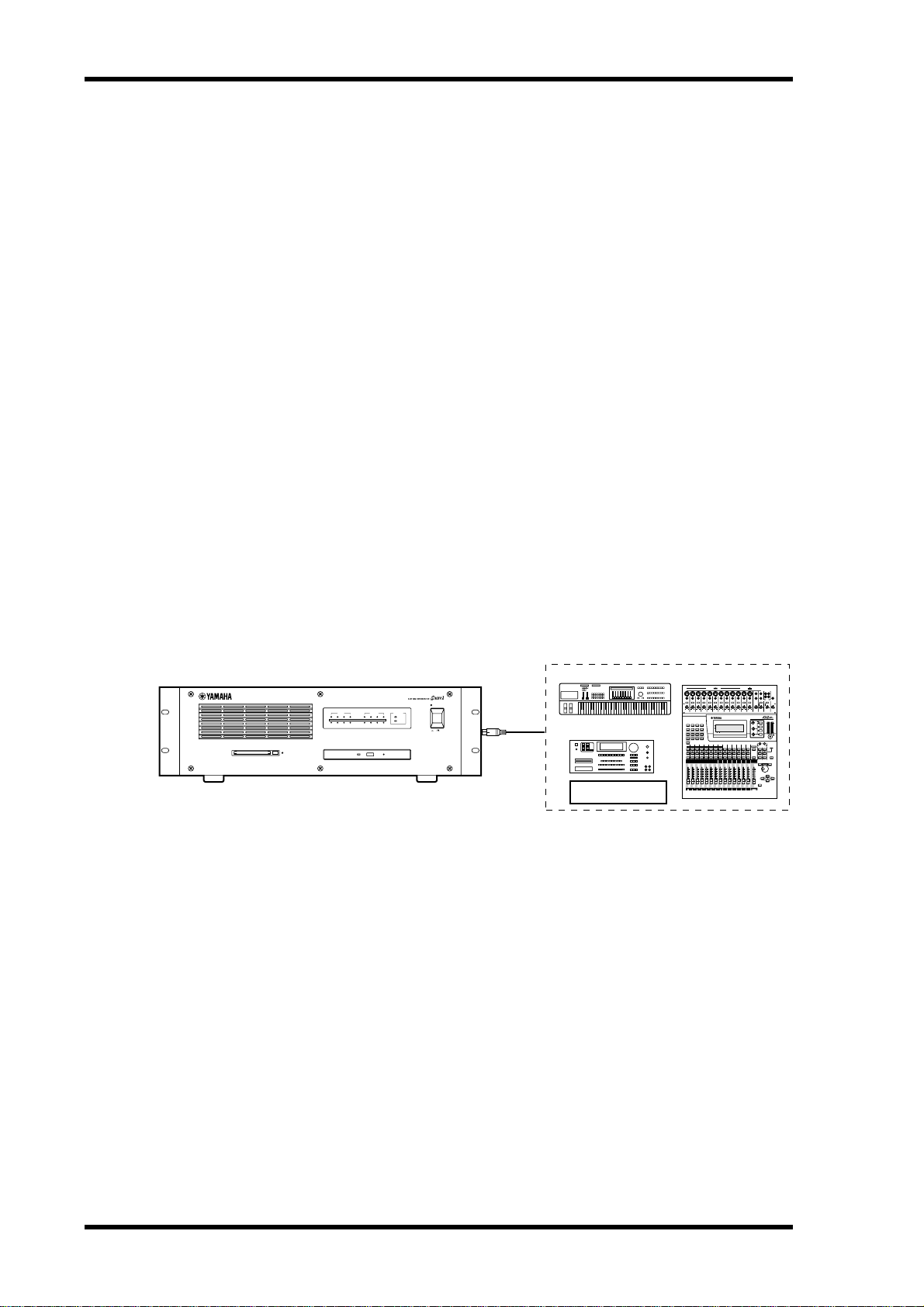

Interference

The SREV1 uses high-frequency digital circuits that may cause interference on radio and television equipment located nearby. If interference is a problem, relocate the affected equipment.

SREV1 Exclusion of Certain Responsibility

Manufacturer, importer, or dealer shall not be liable for any incidental damages including personal injury or any other damages caused by improper use or operation of the SREV1.

Package Contents

The SREV1 package contains the following items:

• SREV1 Sampling Reverberator

• CD-ROM containing preset reverb programs and SREV1 utilities

•Power cord

• This Owner’s Manual Contact your Yamaha dealer if something is missing.

Optional Extras

• RC-SREV1 Remote Controller

• DB-SREV1 DSP Expansion Board

Trademarks

ADAT MultiChannel Optical Digital Interface is a trademark and ADAT and Alesis are registered trademarks of Alesis Corporation. Intel and Pentium are registered trademarks and MMX is a trademark of Intel Corporation. PCMCIA is a registered trademark of the Personal Computer Memory Card International Association. Tascam Digital Interface is a trademark and Tascam and Teac are registered trademarks of Teac Corporation. Windows is a trademark of Microsoft Corporation. Yamaha is a trademark of Yamaha Corporation. All other trademarks are the property of their respective holders and are hereby acknowledged.

No part of the SREV1, its software, including the supplied impulse-response data, or this

Owner’s Manual

without the prior written authorization of Yamaha Corporation. Using the supplied impulse-response data with equipment other than the SREV1, or obtaining the data by sampling or any other means, is strictly prohibited.

may be reproduced or distributed in any form or by any means

SREV1—Owner’s Manual

Yamaha Web Site

Information about the SREV1, related products, and other Yamaha professional audio equipment is available on the Yamaha Professional Audio Web site at: <http://www.yamaha.co.jp/product/proaudio/homeenglish/>.

Important Information

About this Manual

This Owner’s Manual covers both the SREV1 Sampling Reverberator and the optional RC-SREV1 Remote Controller. (The SREV1 software manuals are on the CD-ROM.)

All the information you need in order to operate the SREV1 Sampling Reverberator and the optional RC-SREV1 Remote Controller is contained in this manual. Use the table of contents to familiarize yourself with its organization and locate topics, and use the index to locate speciﬁc information. A glossary of SREV1-related jargon is provided on page 93.

Installing the SREV1

When mounting the SREV1 in a rack, remove its feet and leave adequate ventilation space all around (at least 20 cm of free space behind). If the SREV1 is mounted in a portable rack case, keep the rear of the case open when using the SREV1 so as not to obstruct the ﬂow of air from the two cooling fans. Do not mount the SREV1 above equipment that produces a lot of heat, such as a power ampliﬁer.

Conventions Used in this Manual

In this manual, the SREV1 Sampling Reverberator, the optional RC-SREV1 Remote Controller, and the SREV1 software are referred to as the “SREV1,” “RC-SREV1,” and “SREV1 software” respectively.

The RC-SREV1 features two types of button: physical buttons that you can press (e.g., ENTER and UTILITY) and buttons that appear on the RC-SREV1 display pages. References to physical buttons are enclosed in square brackets, such as “press the [ENTER] button.” References to page buttons are not emphasized, for example, select the WCLK IN button.

Generally there are three versions of each RC-SREV1 display page, one for each mode: 2-channel, 4-channel, and 2-channel x2. If relevant to the task being explained, all three pages are shown. If the item being discussed is the same regardless of which mode is selected, then only one page is shown.

“PC” refers to an IBM PC-compatible computer running a Windows operating system.

SREV1—Owner’s Manual

Important Information

NEDERLAND THE NETHERLANDS

● Dit apparaat bevat een lithium batterij voor geheugen

back-up.

● Raadpleeg uw leverancier over de verwijdering van de

batterij op het moment dat u het apparaat ann het einde van de levensduur afdankt of de volgende Yamaha Service Afdeiing:

Yamaha Music Nederland Service Afdeiing Kanaalweg 18-G, 3526 KL UTRECHT Tel. 030-2828425

● Gooi de batterij niet weg, maar lever hem in als KCA.

● This apparatus contains a lithium battery for memory

back-up.

● For the removal of the battery at the moment of the

disposal at the end of the service life please consult your retailer or Yamaha Service Center as follows:

Yamaha Music Nederland Service Center Address: Kanaalweg 18-G, 3526 KL

UTRECHT

Tel: 030-2828425

● Do not throw away the battery. Instead, hand it in as small

chemical waste.

SREV1—Owner’s Manual

Contents

1 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Welcome to the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

The SREV1 in a Nutshell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SREV1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SREV1 Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SREV1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 Touring the SREV1 & RC-SREV1 . . . . . . . . . . . . . . 11

SREV1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SREV1 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

RC-SREV1 Control Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RC-SREV1 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

RC-SREV1 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

First Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting the RC-SREV1 Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . 22

Hookup Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Turning On & Off the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Turning On & Off the RC-SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using an Optional RC-SREV1 AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Adjusting the RC-SREV1 Brightness & Contrast . . . . . . . . . . . . . . . . . . . . . . 27

Using CD-ROMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

vii

4 Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

SREV1 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

RC-SREV1 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

About the Internal Operations at Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Selecting Reverb Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Assigning Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Setting Input & Output Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Metering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Setting the Meter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using Peak Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Bypassing the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Setting the Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Using the Title Edit dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Working with Quick Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Working with the Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Working with Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

5 Editing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Main 1 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Main 2 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Fine Reverb Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Pre EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

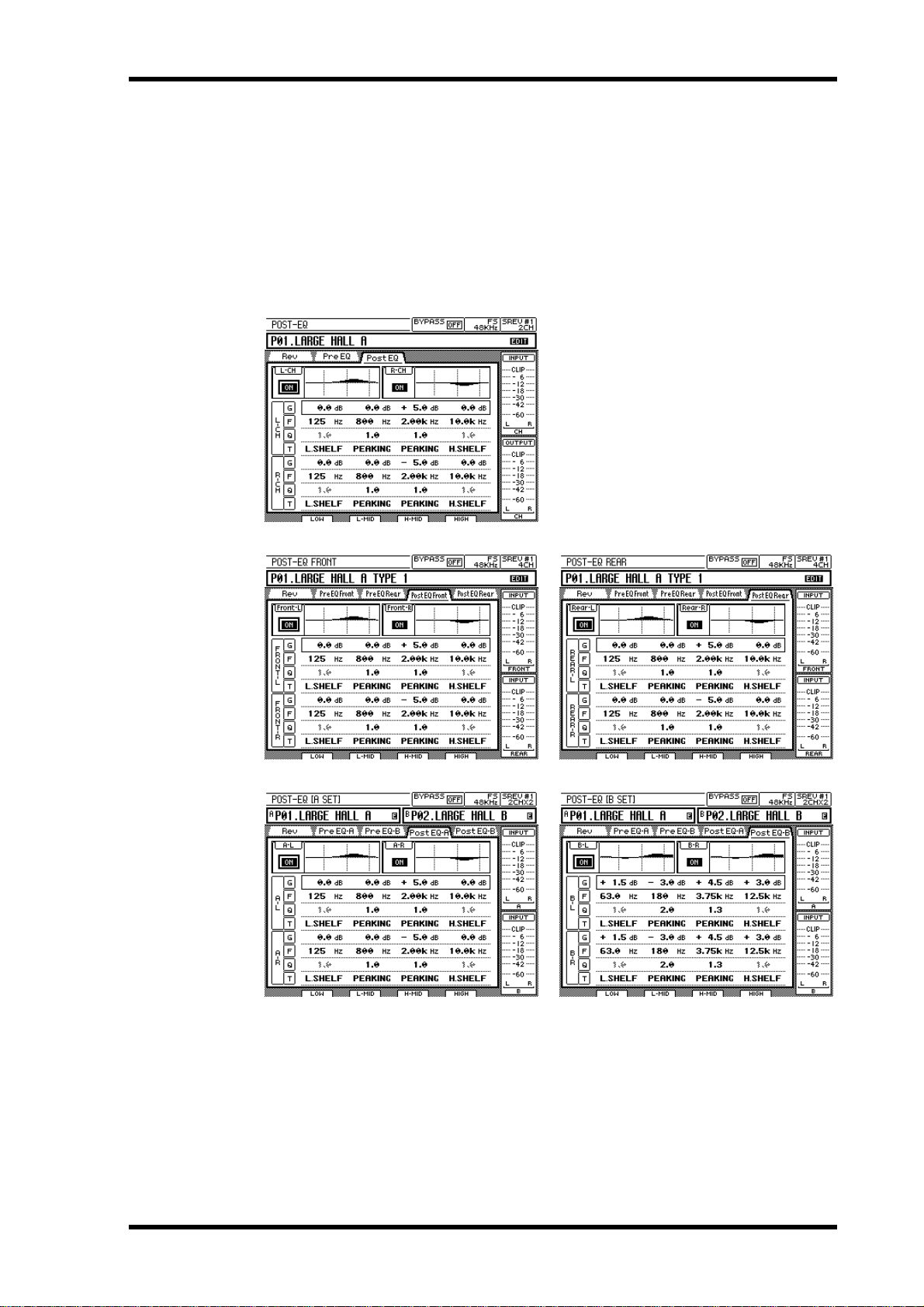

Post EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Loading Impulse-Response Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

SREV1—Owner’s Manual

viii

Contents

6 Multiple SREV1s . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

About Multiple SREV1s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Multiple-unit Hookup with the RC-SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Multiple-unit Operating Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Selecting SREV1s from the RC-SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

7 MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

MIDI & the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

MIDI Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

MIDI Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Setting the MIDI Receive Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Assigning Quick Memory Programs to Program Changes . . . . . . . . . . . . . . . 70

Assigning Parameters to Control Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

8 Wordclocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Wordclocks & the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Wordclock Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Selecting the Wordclock Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Wordclock Hookup Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9 I/O Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

I/O Options & the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Available I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Choosing I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Installing I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Confirmation Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

General Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Digital Input Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Digital Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Control I/O Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Remote Cable Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

MIDI Implementation Chart

SREV1—Owner’s Manual

In this chapter...

Welcome

Welcome to the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

The SREV1 in a Nutshell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SREV1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SREV1 Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SREV1 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SREV1—Owner’s Manual

Chapter 1—Welcome

Welcome to the SREV1

Thank you for choosing the Yamaha SREV1 Sampling Reverberator. Unlike conventional digital reverberators, which synthesize reverberation using con-

trived signal-processing algorithms, the new SREV1 Sampling Reverberator from Yamaha employs digital convolution processing to impose an acoustic “ﬁngerprint” of a previously measured environment onto any audio signal, faithfully recreating the original reverberation, with accurate reﬂection detail identical to that produced had the sound been heard in that environment. The SREV1 is perfect for recording studios, audio post, broadcast, concert halls, theaters, or anyone looking for superb quality reverb that sounds just like the real thing, with the option to sample the reverberation characteristics of any location for use back in the studio.

The SREV1 in a Nutshell

Sonic “ﬁngerprints” are produced by measuring the impulse response (i.e., acoustic characteristics) of an environment, which involves “blasting out” time-stretched pulses through an accurate speaker system and recording the results via carefully placed microphones. The resultant impulse-response data can then be used by the SREV1 to convolve the captured acoustic characteristics onto any audio signal.

Sampling on location Convolution processing

Firing time-stretched pulses

FL FR

RL RR

INPUT OUTPUT

FS LOCK

48K

CLIP

12 123CH434

44.1K

SIGNAL

MEMORY CARD

CD-ROM

INPUT OUTPUT

12 123CH434

MEMORY CARD

LLR

CLIP

30 30

LEVEL

–dB

POWER

TEMP

PROTECTION

POWER

ON OFF

Impulse-response data

PC ATA CARD

FLASH CARD

POWER

ON OFF

CLIP

SIGNAL

CD-ROM

FS LOCK

30 30

POWER

48K

44.1K

ON OFF

LLR

CLIP

LEVEL

–dB

In addition to stereo reverb (2-channel mode), the SREV1 offers four-channel processing for surround reverb (4-channel mode). Alternatively, the SREV1 can be conﬁgured as two fully independent reverberators (2-channel x2 mode), each with its own inputs, outputs, and program settings.

SREV1—Owner’s Manual

Thirty-two of Yamaha’s new convolution chips provide the necessary “horsepower” for real-time convolution of up to 5.46 seconds per channel (2-channel mode), 2.73 seconds per channel (4-channel or 2-channel x2 mode). Featuring an additional 32 convolution chips, the optional DB-SREV1 DSP Expansion Board doubles the available convolution time to a maximum of 10.92 seconds per channel (2-channel mode), 5.46 seconds per channel (4-channel or 2-channel x2 mode).

Measured impulse response data is combined with variable parameters such as reverb time and initial delay to form reverb

programs

, which can be stored in special

Quick

The SREV1 in a Nutshell

memories or the Internal Card or PC Card. Up to six programs can be stored in Quick

memory in 2-channel or 4-channel mode; 12 in 2-channel x2 mode. Programs in Quick memory can be recalled instantly via the optional RC-SREV1 Remote Controller or MIDI Program Changes.

Projects, which contain all the Quick memory programs and the current program settings, provide a convenient way to manage programs and settings for each job. Projects can be stored on the Internal Card or PC Card.

The PC Card slot is fully compatible with the PC Card ATA speciﬁcation and supports the FAT16 ﬁle system. The CD-ROM drive supports the ISO9660 Level 2 format. Both the PC Card and CD-ROM format is compatible with Windows.

The supplied CD-ROM contains preset reverb programs of famous venues from around the world, and a CD-ROM library is planned for future release. The preset programs on the supplied CD-ROM are loaded into the Internal Card at the factory.

Program editing is handled at two levels: Main parameters and Fine parameters. With Main parameter editing, channel parameters, such as reverb time, initial delay, reverb balance, EQ, etc., are grouped, so that, for example, the reverb time of all channels can be set simultaneously. Fine parameter editing adds pre-convolution 4-band PEQ, post-convolution 4-band PEQ, and impulse-response data loading. Reverb parameters can be edited individually or grouped. Reverb balance and reverb level parameters for each channel can be controlled individually via MIDI Control Changes.

Two AES/EBU inputs and outputs (providing 4 channels) are built in and two mini YGDAI (Yamaha General Digital Audio Interface) slots offer various analog and digital I/O options (AES/EBU, ADAT, Tascam). Inputs can be assigned to channels individually, allowing various input/output conﬁgurations. In 2-channel mode, for example, a single input can be assigned to both channels (left and right) for mono in/stereo out operation, or an individual input can be assigned to each channel for true stereo in/stereo out operation.

Superb sonic performance is provided by Yamaha’s new convolution chip, 24-bit I/O, 32-bit internal signal processing, and 48 kHz internal wordclock. External wordclocks of 44.1 kHz and 48 kHz are supported and can be sourced via the dedicated BNC wordclock input, AES/EBU inputs, or card slot inputs.

Up to four SREV1s can be controlled using the optional RC-SREV1 Remote Controller, which features a large 320 x 240 dot graphical display, with ﬂuorescent backlight and adjustable brightness and contrast, four motorized faders for parameter editing, and input and output clip indicators. Power is supplied by the SREV1.

SREV1—Owner’s Manual

Chapter 1—Welcome

SREV1 Features

Sonic Performance

• 32 Yamaha convolution chips

• 24-bit I/O and 32-bit internal processing

• 48 kHz internal wordclock

• 44.1 kHz or 48 kHz external wordclock

Reverb Modes & Convolution Times

• 2-channel (stereo), 4-channel (surround), and 2-channel x2 (A and B) reverb modes

• Maximum convolution time of 5.46 seconds per channel (2-channel mode), 2.73 sec-

onds per channel (4-channel mode or 2-channel x2 mode)

• Featuring an additional 32 convolution chips, the optional DB-SREV1 DSP Expansion Board doubles the available convolution time to a maximum of 10.92 seconds per channel (2-channel mode), 5.46 seconds per channel (4-channel or 2-channel x2 mode)

Programs & Projects

• Programs combine impulse-response data with variable parameters such as reverb time, initial delay, EQ, and more

• Quick memories hold six instantly recallable programs (2-channel or 4-channel mode); 12 programs (2-channel x2 mode)

• Quick memory programs can be recalled via MIDI

• Projects provide a convenient way to manage programs for each job

• Programs and projects can be saved on the Internal Card or PC Card

Storage

• PC Card slot fully compatible with the PC Card ATA speciﬁcation and supports the FAT16 ﬁle system

• CD-ROM drive supports ISO9660 Level 2 format

• PC Card and CD-ROM formats compatible with Windows

Editing

• Basic editing includes reverb time, initial delay, and reverb balance

• Advanced editing includes basic parameters plus pre-convolution 4-band PEQ,

post-convolution 4-band PEQ, and impulse-response data loading for each channel

• Reverb balance and level parameters can be controlled via MIDI

SREV1—Owner’s Manual

SREV1 Features

Flexible I/O

• Two AES/EBU format inputs and outputs (providing 4 channels)

• Two mini YGDAI (Yamaha General Digital Audio Interface) slots

• Optional mini YGDAI cards offer a variety of analog and digital I/O conﬁgurations,

with support for all the popular digital audio interconnect formats, including AES/EBU, ADAT, and Tascam

Optional RC-SREV1 Remote Controller

• Control up to four SREV1s

• Large 320 x 240 dot display, with ﬂuorescent backlight and adjustable brightness and

contrast

• Four motorized faders, data wheel, and INC/DEC buttons for parameter editing

• Input and output signal clip indicators

• Power supplied by the SREV1 (DC IN connector for use with optional AC adapter and

custom remote cables)

Others

• Yamaha CD-ROM library of famous venues from around the world

• SERIAL ports for multiple-unit operation

• MIDI IN and OUT ports

• BNC wordclock input

• 3U rack space

SREV1—Owner’s Manual

Chapter 1—Welcome

SREV1 Basics

Reverb Modes

The SREV1 offers three Reverb modes: 2-channel, 4-channel, and 2-channel x2. In 2-channel mode, the SREV1 functions as a stereo reverb processor. Use this mode if all you require is stereo outputs, as it offers the maximum convolution time per channel. In 4-channel mode, the SREV1 offers 4-channel processing for surround reverb. In 2-channel x2 mode, the SREV1 functions as two independent stereo reverb processors (A and B).

See page 34 for information on selecting Reverb modes. The onboard AES/EBU inputs and mini YGDAI slot inputs can be freely assigned to

channels. See “Assigning Inputs” on page 35 for more information.

Convolution Times

The following table shows the maximum convolution time available per channel for each mode with and without the optional DB-SREV1 DSP Expansion Board installed.

Maximum Convolution Time per Channel (Fs = 48 kHz)

Mode

2-channel 4-channel 2-channel x2

Base System

5.46 sec 10.92 sec

2.73 sec 5.46 sec

with DSP Expansion Board

(DB-SREV1)

Convolution time is not the same as reverb time. Reverb time is the time it takes the reverb to decay to –60 dB, and more convolution is required to provide reverberation to –90 dB or –120 dB, so the convolution time must be between 1.5 and 2 times more than the reverb time.

Impulse-Response Data

Impulse-response data contains the impulse-response information (i.e., acoustic characteristics) of a measured environment. Preset programs come with their own impulse-response data. Each channel of a program is assigned impulse-response data, as shown below, and data can be loaded for channels individually on the Data Load pages. See “Loading Impulse-Response Data” on page 61 for more information. The impulse-response data for the preset programs is loaded into the Internal Card at the factory. It’s also on the supplied CD-ROM.

2-channel mode 4-channel mode 2-channel x2 mode

SREV1—Owner’s Manual

Left Right

2-channel program

Front-left Front-right Rear-left Rear-right

4-channel program

A-left A-right B-left B-right

2-channel program x2

SREV1 Basics

Programs

There are two types of reverb program: 2-channel and 4-channel. Two-channel programs are for use with 2-channel mode and 2-channel x2 mode, while 4-channel programs are for use only with 4-channel mode. In 2-channel mode, 4-channel programs do not appear in the program lists and vice versa. The preset programs on the supplied CD-ROM are loaded into the Internal Card at the factory. User programs can be stored in the Quick memories, Internal Card or PC Card, where they can be write-protected.

Projects

Projects contain all the Quick memory programs and the current program settings and free you to leave a project and come back to it at any time. Projects can be saved to the Internal Card or PC Card, where they can be write-protected.

There are three types of project: 2-channel, 4-channel, and 2-channel x2. Each project type is available only when the corresponding mode is selected. You can’t, for example, select a 2-channel project in 4-channel mode. Projects are managed on the Project pages. See “Working with Projects” on page 48 for more information.

Quick Memories

Quick memories are special memories for storing programs. Unlike programs on the Internal Card, PC Cards, and CD-ROMs, which take time to load, Quick memory programs can be recalled instantly. There are six Quick memories available in 2-channel or 4-channel mode; 12 in 2-channel x2 mode. Quick memories are managed on the Program pages. See “Working with Quick Memories” on page 42 for more information.

SREV1—Owner’s Manual

Chapter 1—Welcome

Drives

Programs, projects, and impulse-response data can be loaded from the following drives: Internal Card, PC Card, or CD-ROM. The number of programs that can be stored on each drive depends on its capacity and the size of the associated impulse-response data. Programs and drives are managed on the Library pages. See “Working with the Library” on page 45 for more information.

The following diagram shows how programs and projects can be transferred to and from the drives and Quick memories, and impulse-response data transferred from the drives.

Drives

PC ATA CARD

FLASH CARD

CD-ROMPC CardInternal Card

Impulse-response

Project

Current program

Quick memories

See the Program pages for Quick memory store/recall operations See the Library pages for program and drive save/load operations See the Project pages for project and drive save/load operations See the Data Load pages for impulse-response data loading

data

P01 P02 P03 P04 P05 P06

SREV1—Owner’s Manual

SREV1 Basics 9

File Types

The SREV1 uses several ﬁle extensions to identify ﬁle types. Although these extensions do not generally appear on the RC-SREV1 pages, they may come in useful when checking the contents of a PC Card or CD-ROM on your PC.

File

Extension

TM4 Impulse-response data (Yamaha original format) TMC Compressed and encrypted impulse-response data (Yamaha original format)

SP2 2-channel program

SP4 4-channel program 2CH 2-channel mode project 4CH 4-channel mode project

2X2 2-channel x2 mode project

File Type

Parameters

SREV1 program parameters, such as reverb time, initial delay, an EQ, are stored within each program. Saved parameters include: reverb time, initial delay, reverb balance, reverb level, pre EQ, post EQ, and impulse-response data names.

Other parameters, including reverb mode, wordclock source, I/O select, I/O level, and MIDI settings, are not stored within each program, but they are stored in the SREV1’s battery-backed memory.

Output Assignments

The following table shows the ﬁxed output assignments for each mode.

Mode Channel

2-channel

4-channel

2-channel x2

Left •• • Right •• • Front-left •• • Front-right •• • Rear-left •• • Rear-right •• • A-left •• • A-right •• • B-left •• • B-right •• •

Outputs

AES1 AES2 SLOT1 SLOT2

12121234567812345678

SREV1—Owner’s Manual

10 Chapter 1—Welcome

SREV1 Block Diagram

Meter

Output

Off

Reverb

Off

Post EQ

AES/EBU

Level

Bypass

(Direct Out)

Level

Balance

Bypass

(Rev Mute)

OUT 1

OUT 2

AES/EBU

SLOT 1

SLOT 2

lution

Convo-

Pre EQ

Initial

Delay

Input

Meter

(Left, Front-left, A-left)

Input

Select

Level

As above (Right, Front-right, A-right)

As above (Rear-left, B-left)

As above (Rear-right, B-right)

IN 1

AES/EBU

SREV1—Owner’s Manual

IN 2

AES/EBU

SLOT 1

SLOT 2

Touring the SREV1 & RC-SREV1 11

Touring the SREV1 & RC-SREV1

In this chapter...

SREV1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SREV1 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

RC-SREV1 Control Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RC-SREV1 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

RC-SREV1 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

SREV1—Owner’s Manual

12 Chapter 2—Touring the SREV1 & RC-SREV1

SREV1 Front Panel

1 2 3 4

INPUT OUTPUT

12 123CH434

CLIP

SIGNAL

FS LOCK

48K

44.1K

POWER

ON OFF

MEMORY CARD

CD-ROM

J9 K85 67

A Air Inlet

The two internal cooling fans draw air into the SREV1 through this inlet. If the airﬂow is restricted, the SREV1 may overheat, so make sure that it’s not blocked.

B INPUT and OUTPUT signal indicators

The INPUT and OUTPUT signal level indicators consist of SIGNAL and CLIP indicators for each channel. The SIGNAL indicators light up when a signal is 34 dB below clipping and are intended to show the presence of a signal, while the CLIP indicators light up when a signal is actually clipping. See “Metering” on page 37 for more infor- mation.

C FS LOCK indicators

These indicators show the sampling rate—48 kHz or 44.1 kHz—and whether or not the SREV1 is locked to the selected wordclock source. See “Selecting the Wordclock Source” on page 75 for more information.

D POWER switch & indicator

E MEMORY CARD slot

F Memory card eject button

G Memory card activity indicator

SREV1—Owner’s Manual

This switch is used to turn on the power to the SREV1. The POWER indicator lights up when the SREV1 is turned on. See “Turning On & Off the SREV1” on page 26 for more information.

PC Cards can be inserted here for loading and saving programs, projects, or impulse-response data. See “Using PC Cards” on page 29 for more information.

This button is used to eject PC Cards. See “Using PC Cards” on page 29 for more infor- mation.

This indicator lights up when the inserted PC Card is being written or read. See “Using PC Cards” on page 29 for more information.

SREV1 Front Panel 13

H CD-ROM drive

The supplied CD-ROM, containing reverb programs, projects, and impulse-response data, can be inserted here. See “Using CD-ROMs” on page 28 for more information.

I Disc activity indicator

This indicator lights up when the inserted CD-ROM is being read. See “Using CD-ROMs” on page 28 for more information.

J CD-ROM eject button

This button is used to eject CD-ROMs. See “Using CD-ROMs” on page 28 for more information.

K Emergency disc eject hole

This hole is used to manually eject CD-ROMs that cannot be ejected in the normal way. Use a pin-like tool of 2 mm or less in diameter, insert it into the hole and push gently. (A straightened paper clip makes an ideal tool.) Note that this technique should only be used as a last resort. Frequent use may lead to malfunction.

SREV1—Owner’s Manual

14 Chapter 2—Touring the SREV1 & RC-SREV1

SREV1 Rear Panel

21 1

SLOT

AC IN

3 4

A Cooling fan outlets

The two cooling fans expel air out through these outlets. If the airﬂow is restricted, the SREV1 may overheat, so make sure these outlets are not blocked.

B SLOTs 1 & 2

These two slots are for use with optional mini YGDAI cards, offering a variety of analog and digital I/O options. See “I/O Options” on page 81 for more information. Slot inputs can be freely assigned to channels. See “Assigning Inputs” on page 35 for more informa- tion.

C AC IN connector

This connector is used to connect the SREV1 to a suitable AC outlet by using the supplied power cord. See “Connecting the Power Cord” on page 26 for more information.

D Grounding screw

For safety reasons, it’s important that the SREV1 is grounded properly. The supplied power cord has a three-pin plug, and if the ground terminal of the AC outlet is grounded, then the SREV1 will be grounded sufﬁciently through the power cord. If the AC outlet does not provide a suitable ground, however, a ground connection should be made to this grounding screw. Grounding is also an effective method for eliminating hum, interference, and other noise.

DIGITAL (AES/EBU

1212

231

)

INOUT

6 J987

OUT INMIDI

SERIAL 1

WORD CLOCK INREMOTE

E DIGITAL OUT (AES/EBU) connectors

F DIGITAL IN (AES/EBU) connectors

SREV1—Owner’s Manual

These two XLR-3-32-type connectors (AES1 and AES2) transmit up to four output signals, two per connection, as AES/EBU format digital audio. Output to channel assignments are ﬁxed. See “Output Assignments” on page 9 for more information. Use only

dedicated AES/EBU connecting cables (110Ω).

These two XLR-3-31-type connectors (AES1 and AES2) receive up to four input signals, two per connection, as AES/EBU format digital audio. AES/EBU inputs can be freely assigned to channels. See “Assigning Inputs” on page 35 for more information.

Use only dedicated AES/EBU connecting cables (110Ω).

SREV1 Rear Panel 15

G MIDI IN & OUT ports

These standard MIDI IN and OUT ports and are used to connect the SREV1 to other MIDI equipment for remote operation using MIDI Program Change and Control Change messages. See “MIDI & the SREV1” on page 68 for more information.

H SERIAL 1 & 2 ports

These 8-pin mini DIN connectors are used to connect up to four SREV1s in a multiple-unit system. See “Multiple SREV1s” on page 63 for more information.

I REMOTE port

This 9-pin D-sub connector is used to connect the RC-SREV1. See “Connecting the RC-SREV1 Remote Controller” on page 22 for more information.

J WORD CLOCK IN connector

This BNC connector can be used to receive an external wordclock signal. See “Wo r d- clock Connections” on page 74 for more information.

SREV1—Owner’s Manual

16 Chapter 2—Touring the SREV1 & RC-SREV1

RC-SREV1 Control Surface

BYPASS

PROGRAM

PARAMETER

MAIN

PARAMETER

FINE

UTILITY

INPUT CLIP

1234

OUTPUT CLIP

-1/DEC +1/INC PARAMETER

CURSOR

ENTER

8 9

A Display

See “RC-SREV1 Display” on page 18 for more information.

B BYPASS button & indicator

This button is used to bypass the SREV1. The BYPASS indicator lights up when the SREV1 is bypassed. See “Bypassing the SREV1” on page 40 for more information.

C PROGRAM button

This button selects the Program, Library, and Project pages.

D PARAMETER MAIN button

This button selects the Main 1 and Main 2 pages.

E PARAMETER FINE button

This button selects the Rev, Pre EQ, and Post EQ pages.

F UTILITY button

This button selects the Setup, DIO, Meter I/O, and MIDI pages.

SREV1—Owner’s Manual

RC-SREV1 Control Surface 17

G Motorized faders

These four 60-mm motorized faders are for adjusting parameter values and input and output levels.

H INPUT CLIP indicators

There are four INPUT CLIP indicators, one for each channel, which light up when the corresponding channel’s input signal is clipping.

I OUTPUT CLIP indicators

There are four OUTPUT CLIP indicators, one for each channel, which light up when the corresponding channel’s output signal is clipping.

J –1/DEC & +1/INC buttons

These buttons work in parallel with the DATA wheel and are used for selecting programs or projects and setting parameter values. Use the [–1/DEC] button to decrease a value; the [+1/INC] button to increase it.

K DATA wheel

This wheel is used for selecting programs or projects and setting parameter values. Turn it clockwise to increase a value; counterclockwise to decrease it.

L Cursor buttons ( / / / )

These buttons are used to maneuver the cursor around the display pages in order to select buttons and parameters. The left ( ) button moves the cursor to the left; the right ( ) button moves it to the right; the up ( ) button moves it up; the down ( ) button moves it down.

M ENTER button

This button is used to execute functions and set options and parameters.

SREV1—Owner’s Manual

18 Chapter 2—Touring the SREV1 & RC-SREV1

RC-SREV1 Display

This large 320 x 240 dot display, with ﬂuorescent backlight and adjustable brightness and contrast controls, displays the various program, parameter, and utility pages, system status, and signal level meters. As well as showing parameter values numerically, reverb and EQ parameters are displayed graphically, so you can see settings at a glance.

Page title

Program number & title

Page tabs

Main page area

Page title—This is the title of the currently selected page. Program number & title—This is the number and title of the current program. In

2-channel x2 mode, two numbers and titles are displayed, one for program A, the other for program B. Program numbers appear only when programs are recalled or stored in Quick memory. They do not appear when programs are loaded from a drive (i.e., Internal Card, PC Card, or CD-ROM).

Bypass status

FS status

Selected SREV1

Reverb mode

Edit status

Meters

Page tabs—Pages are grouped as program, parameter main, parameter ﬁne, and util-

ity, and these tabs show the titles of the pages available in each group.

Main page area—The various program, parameter, and utility pages appear here. Bypass status—The status of the Bypass function appears here: ON (SREV1

bypassed) or OFF. See “Bypassing the SREV1” on page 40 for more information.

FS status—The SREV1 sampling rate is displayed here—48 kHz or 44.1 kHz—and

whether or not it’s locked to the selected wordclock source—LOCK or UNLOCK. See “Selecting the Wordclock Source” on page 75 for more information.

Selected SREV1—This is the SREV1 currently selected for control from the

RC-SREV1. See “Selecting SREV1s from the RC-SREV1” on page 65 for more information.

Reverb mode—This is the current Reverb mode: 2CH, 4CH, or 2CHX2. Edit status—The Edit status indicator shows whether or not the current reverb pro-

gram has been edited since is was recalled. If it has, the word “EDIT” appears (the letter “E” appears in 2-channel x2 mode).

Meters—In 2-channel mode, input and output meters for the left and right channels

are displayed here. In 4-channel mode, meters for the front-left, front-right, rear-left, and rear-right channels are displayed. In 2-channel x2 mode, meters for the A-left, A-right, B-left, and B-right channels are displayed. For the 4-channel and 2-channel x2 modes, you can choose to display input or output meters. See “Metering” on page 37 for more information.

SREV1—Owner’s Manual

RC-SREV1 Display 19

Fader status—The status of each fader appears along the bottom of the display. For

pages selected with the [PARAMETER MAIN] button, the names of the parameters assigned to the faders appear, and for pages selected with the [PARAMETER FINE] button, the channel names appear, as shown below.

Parameter

Channel

SREV1—Owner’s Manual

20 Chapter 2—Touring the SREV1 & RC-SREV1

RC-SREV1 Rear Panel

REMOTEDC 12V INPOWER

ON OFF

LCD

BRIGHT CONT

1 2 3 4 5 6

A POWER switch

This switch is used to turn on the power to the RC-SREV1. Power is supplied by the SREV1 via the remote cable, or an optional AC adapter. See “Turning On & Off the RC-SREV1” on page 26 for more information.

B DC 12V IN connector

An optional AC adapter can be connected here (necessary when a custom-made remote cable is used). See “Using an Optional RC-SREV1 AC Adapter” on page 27 for more information.

C Adapter cable clip

This clip is used to secure the optional AC adapter’s cable in order to prevent accidental disconnection. See “Using an Optional RC-SREV1 AC Adapter” on page 27 for more information.

D REMOTE port

This 9-pin D-sub connector is used to connect the RC-SREV1 to the SREV1 with the remote cable supplied with the RC-SREV1. See “Connecting the RC-SREV1 Remote Controller” on page 22 for more information.

E BRIGHT control

This control is used to adjust the brightness of the display. See “Adjusting the RC-SREV1 Brightness & Contrast” on page 27 for more information.

F CONT control

This control is used to adjust the contrast of the display. See “Adjusting the RC-SREV1 Brightness & Contrast” on page 27 for more information.

SREV1—Owner’s Manual

In this chapter...

Getting Started 21

Getting Started

First Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting the RC-SREV1 Remote Controller . . . . . . . . . . . . . . . . . . . . . . . . 22

Hookup Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Turning On & Off the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Turning On & Off the RC-SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using an Optional RC-SREV1 AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Adjusting the RC-SREV1 Brightness & Contrast . . . . . . . . . . . . . . . . . . . . . . . 27

Using CD-ROMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

SREV1—Owner’s Manual

22 Chapter 3—Getting Started

First Steps

Here’s how to get up and running with the SREV1.

1 Familiarize yourself with the SREV1 and RC-SREV1.

See “Touring the SREV1 & RC-SREV1” on page 11.

2 Install any mini YGDAI I/O cards.

See “I/O Options” on page 81.

3 Connect the RC-SREV1.

See “Connecting the RC-SREV1 Remote Controller” below.

4 Connect your audio equipment to the inputs and outputs.

See “Hookup Examples” on page 23.

5 Connect the power cord and turn on the SREV1.

See “Connecting the Power Cord” on page 26 and “Turning On & Off the SREV1” on page 26.

6 Turn on the RC-SREV1 and Adjust the brightness and contrast.

See “Turning On & Off the RC-SREV1” on page 26 and “Adjusting the RC-SREV1 Brightness & Contrast” on page 27.

The SREV1 is now ready for use.

Connecting the RC-SREV1 Remote Controller

The RC-SREV1 should be connected to the SREV1 using the supplied 9-pin D-sub remote cable, as shown below. In addition to control signals, the cable carries power for the RC-SREV1, so make sure it’s attached securely.

SLOT

OUT INMIDI

AC IN

DIGITAL (AES/EBU

1212

231

)

INOUT

SERIAL 1

Remote cable

WORD CLOCK INREMOTE

SREV1—Owner’s Manual

ON OFF

REMOTEDC 12V INPOWER

LCD

BRIGHT CONT

Hookup Examples 23

Hookup Examples

This section contains several hookup examples for both digital and analog I/O.

Two-channel AES/EBU I/O

This example shows how a digital mixer with AES/EBU format I/O can be connected to the SREV1’s onboard AES/EBU I/O for two-channel operation. The input feed can be used to carry one or two digital-audio signals, allowing either 1 in/2 out or 2 in/2 out operation.

Digital

Mixer

AES/EBU

Remote cable

Aux send (AES/EBU)

DIGITAL RECORDING CONSOLE

SLOT

AC IN

DIGITAL (AES/EBU

1212

231

)

INOUT

SREV1

BYPASS

PROGRAM

PARAMETER

OUT INMIDI

SERIAL 1

WORD CLOCK INREMOTE

REMOTE

MAIN

PARAMETER

FINE

UTILITY

RC-SREV1

Aux return/stereo in (AES/EBU)

AES/EBU

SREV1 settings

Reverb mode: 2-channel Input assignment: AES1 (1–2) Wordclock source: AES/EBU 1

Four-channel AES/EBU I/O

This example shows how a digital mixer with AES/EBU format I/O can be connected to the SREV1’s onboard AES/EBU I/O for four-channel operation. Each input feed can be used to carry one or two digital-audio signals, four signals in total, allowing 1 in/4 out, 2 in/4 out, 4 in/4 out operation (4-channel mode), or 1 in/2 out x2 or 2 in/2 out x2 operation (2-channel x2 mode).

-1/DEC +1/INC PARAMETER

ENTER

INPUT CLIP

1234

OUTPUT CLIP

CURSOR

Digital

Mixer

Aux send (AES/EBU)

DIGITAL RECORDING CONSOLE

Aux return/stereo in (AES/EBU)

AES/EBU

AC IN

AES/EBU

Remote cable

INPUT CLIP

1234

-1/DEC +1/INC PARAMETER

ENTER

OUTPUT CLIP

CURSOR

SLOT

1212

231

)

DIGITAL (AES/EBU

INOUT

SREV1

BYPASS

PROGRAM

PARAMETER

OUT INMIDI

SERIAL 1

WORD CLOCK INREMOTE

REMOTE

MAIN

PARAMETER

FINE

UTILITY

RC-SREV1

SREV1 settings

Reverb mode: 4-channel or 2-channel x2 Input assignment: AES1 (1–2), AES2 (1–2) Wordclock source: AES/EBU 1

SREV1—Owner’s Manual

24 Chapter 3—Getting Started

Optional I/O Card Digital I/O

This example shows how a digital mixer with an AES/EBU connector can be connected to the SREV1 by using optional AES/EBU cards (MY8-AE). Up to four digital-audio input and output signals can be carried, allowing virtually any input/output conﬁgura- tion (e.g., 1 in/2 out, 2 in/4 out, 2 in/2 out x2, and so on).

Digital

Mixer

Remote cable

AES/EBU card

AES/EBU

*MY8-AE card

(AES/EBU)

DIGITAL RECORDING CONSOLE

SLOT

AES/EBU

DIGITAL I/O CARD MODEL MY8-AE

AC IN

DIGITAL (AES/EBU

SLOT

1212

231

)

INOUT

SREV1

BYPASS

PROGRAM

PARAMETER

OUT INMIDI

SERIAL 1

WORD CLOCK INREMOTE

MAIN

PARAMETER

FINE

UTILITY

REMOTE

-1/DEC +1/INC

ENTER

RC-SREV1

*Alternatives: MY8-AT (ADAT format) MY8-TD (Tascam format)

SREV1 settings

Reverb mode: 2-channel, 4-channel, or 2-channel x2 Input assignment: SLOT1 (1–8) Wordclock source: MY8-AE 1/2

Two-channel Analog I/O

This example shows how an analog mixer, or digital mixer with analog I/O, can be connected to the SREV1 by using optional A/D and D/A I/O cards (MY4-AD and MY4-DA) for two-channel operation. One or two analog audio signals can be input and output, allowing 1 in/2 out or 2 in/2 out operation.

INPUT CLIP

1234

OUTPUT CLIP

PARAMETER

CURSOR

Analog/

Digital

Mixer

Aux send (analog)

DIGITAL RECORDING CONSOLE

Aux return/stereo in (analog)

Remote cable

MY4-AD card

(analog)

INPUT CLIP

1234

-1/DEC +1/INC PARAMETER

ENTER

OUTPUT CLIP

CURSOR

DIGITAL (AES/EBU

ANALOG IN

ANALOG OUT

SLOT

1212

231

)

INOUT

4 3 2 1

AD CARD MODEL MY4-AD

4 3 2 1

DA CARD

AC IN

MODEL MY4-DA

MY4-DA card

SREV1

BYPASS

PROGRAM

PARAMETER

OUT INMIDI

SERIAL 1

WORD CLOCK INREMOTE

MAIN

PARAMETER

FINE

UTILITY

REMOTE

RC-SREV1

(analog)

SREV1 settings

Reverb mode: 2-channel Input assignment: SLOT1 (1–2) Wordclock source: INT 48K

SREV1—Owner’s Manual

Hookup Examples 25

Four-channel Analog I/O

This example shows how an analog mixer, or digital mixer with analog I/O, can be connected to the SREV1 by using optional A/D and D/A I/O cards (MY4-AD and MY4-DA) for four-channel operation. Between one and four channels can be used, allowing 1 in/4 out, 2 in/4 out, 4 in/4 out (4-channel mode), or 1 in/2 out x2 or 2 in/2 out x2 (2-channel x2 mode).

Analog/

Digital

Mixer

Aux send (analog)

DIGITAL RECORDING CONSOLE

Aux return/stereo in (analog)

Remote cable

MY4-AD card

(analog)

1234

SREV1

DIGITAL (AES/EBU

ANALOG IN

ANALOG OUT

231

)

SLOT

1212

231

INOUT

1234

OUT INMIDI

MY4-DA card

BYPASS

PROGRAM

PARAMETER

SERIAL 1

WORD CLOCK INREMOTE

MAIN

PARAMETER

FINE

UTILITY

REMOTE

RC-SREV1

4 3 2 1

AD CARD MODEL MY4-AD

4 3 2 1

DA CARD

AC IN

MODEL MY4-DA

-1/DEC +1/INC PARAMETER

ENTER

INPUT CLIP

1234

OUTPUT CLIP

CURSOR

(analog)

SREV1 settings

Reverb mode: 4-channel or 2-channel x2 Input assignment: SLOT1 (1–4) Wordclock source: INT 48K

SREV1—Owner’s Manual

26 Chapter 3—Getting Started

Connecting the Power Cord

Warning: Turn off all equipment before making any power connections.

Connect the socket-end of the supplied power cord to the AC IN socket on the rear panel of the SREV1. Connect the plug-end to a suitable AC wall outlet, one that conforms to the power supply requirements stated on the SREV1 rear panel.

Turning On & Off the SREV1

To prevent loud clicks and thumps in your speakers, turn on your audio equipment in the following order (reverse this order when turning off)—sound sources, SREV1, RC-SREV1, recorder, mixer, monitoring power ampliﬁers.

1 To turn on the SREV1, press the [POWER] switch.

The POWER indicator lights up. See “SREV1 Startup” on page 32 and “About the Internal Operations

at Startup” on page 33 for more information.

2 To turn off the SREV1, press the [POWER] switch again.

The POWER indicator goes out.

Turning On & Off the RC-SREV1

Note: In general, set the RC-SREV1 POWER switch to the ON position and use the SREV1 POWER switch to turn on and off the system. When using a custom-made remote cable, and an optional AC adapter, if the RC-SREV1 is turned on before the SREV1, the SREV1 must be turned on within 50 seconds. During this time the message “COULD NOT COMMUNICATE WITH SREV1. CHECK THE CABLE CONNECTION AND SREV1’S POWER. THEN TURN ON RC-SREV1 AGAIN.” appears. Therefore, turn on the RC-SREV1 after the SREV1.

POWER

ON OFF

1 To turn on the RC-SREV1, set its [POWER] switch to the ON

2 To turn off the RC-SREV1, set its [POWER] switch to the OFF

SREV1—Owner’s Manual

position.

The startup screen appears, and after communication is established between the SREV1 and RC-SREV1, the Program page appears.

See “RC-SREV1 Startup” on page 32 for more information.

position.

The RC-SREV1 receives its power from the SREV1 via the remote cable, so if it doesn’t come on, make sure that the remote cable is con- nected properly and that the SREV1 is turned on.

POWER

ON OFF

Using an Optional RC-SREV1 AC Adapter 27

Using an Optional RC-SREV1 AC Adapter

The remote cable, which carries power from the SREV1 to the RC-SREV1, is 20 meters in length. Since the power loss in longer cables would be too great, an optional Yamaha PA-6 AC power supply adapter (12 V DC) is required to power the RC-SREV1 when using remote cables over 20 meters in length. A wiring diagram for making custom remote cables is available on page 91. See your Yamaha dealer for more information.

The optional Yamaha PA-6 AC power supply adapter should be con-

DC 12V IN

nected to the DC 12V IN connector on the rear of the RC-SREV1.

Loop the AC adapter cable around cable clip, shown here, to prevent accidental disconnection.

12V IN

Warning: Use only the Yamaha PA-6 AC power

supply adapter with the RC-SREV1. Using any other AC adapter may cause a fault, leading to a buildup of heat, ﬁre, or an electrical shock hazard.

REMOTEDC 12V INPOWER

ON OFF

LCD

BRIGHT CONT

Adjusting the RC-SREV1 Brightness & Contrast

Both the brightness and contrast of the RC-SREV1 display can be adjusted to suit your working environment or personal preference.

1 Use the CONT control to set the display contrast.

BRIGHT CONT

LCD

Contrast adjusts the balance between pixels that are on and those that are off.

2 Use the BRIGHT control to set the display brightness.

Brightness adjusts the strength of the display’s backlight.

SREV1—Owner’s Manual

28 Chapter 3—Getting Started

Using CD-ROMs

The SREV1 can load programs, projects, and impulse-response data ﬁles stored on ISO9660 Level 2 format CD-ROMs, which are also supported by Windows.

Inserting & Ejecting CD-ROMs

CD-ROMs can only be inserted and ejected while the SREV1 is turned on.

1 Press the CD-ROM eject button, and when the disc tray appears, pull it out.

2 With the labeled-side facing up, carefully ﬁt the disc onto the central spindle.

(The disc sits ﬂat when it’s in correctly.)

3 Push the disc tray fully into the SREV1 to close it.

CD-ROM

When a CD-ROM is being read, the activity indicator lights up. The SREV1 takes between 20 and 30 seconds to recognize a CD-ROM after it’s inserted.

4 To eject a CD-ROM, press the eject button.

5 When the disc tray appears, pull it out, remove the disc, and then push the

tray back into the SREV1 in order to close it.

Always store CD-ROMs in their cases.

SREV1—Owner’s Manual

Using PC Cards

Using PC Cards 29

The SREV1 can store

MEMORY CARD

programs, projects,

PC ATA CARD

and impulse-response

FLASH CARD

data on standard PC Cards (PCMCIA). The SREV1 supports the PC Card ATA speciﬁcation and the FAT16 ﬁle system, which is also supported by Windows. Use PCMCIA ﬂash ATA cards (Type II) or CompactFlash cards with a PC Card adapter.

Inserting & Ejecting PC Cards

1 Insert the PC Card face up into the MEMORY CARD slot and push it in all the

way. (The eject button sticks out all the way when the card is fully inserted.)

The PC Card should be recognized and available for use in a few seconds. Although rare, in some cases the PC Card may not be recognized. If this happens, try

reinserting the card. If it’s not recognized after several tries, contact your Yamaha dealer. When a card is being written or read, the activity indicator lights up. Do not eject the

card, or turn off the power while this indicator is lit.

2 To eject a card, make sure that the activity indicator is not lit, and then press

the eject button.

The card ejects.

3 Remove the card from the slot.

When using a compact card with an adapter, pull the adapter to remove the card from the slot. Pulling only the card may damage it.

The speed at which data can be written and read on a PC Card depends on its type. Always store PC Cards in their cases.

SREV1—Owner’s Manual

In this chapter...

Basic Operation 31

Basic Operation

SREV1 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

RC-SREV1 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

About the Internal Operations at Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Selecting Reverb Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Assigning Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Setting Input & Output Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Metering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Setting the Meter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using Peak Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Bypassing the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Setting the Bypass Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Using the Title Edit dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Working with Quick Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Working with the Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Working with Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

SREV1—Owner’s Manual

32 Chapter 4—Basic Operation

SREV1 Startup

When the SREV1 is turned on, its INPUT and OUTPUT signal indicators light up in sequence. During this time, the SREV1 loads impulse-response data for the current program and the programs in Quick memory from the Internal Card, and, if necessary, from the PC Card or CD-ROM. At this time, the SREV1 cannot be used. After about 30 seconds, when the necessary impulse-response data has been loaded, the CLIP and SIGNAL indicators go out and the SREV1 is ready for use.

Note that the startup time will be different if the current program or the programs in Quick memory are on PC Card or CD-ROM.

If the SREV1 does not output any sound, check your audio connections, and the input assignments. See “Assigning Inputs” on page 35 for more information.

RC-SREV1 Startup

In Principle, the RC-SREV1 should be started up after the SREV1 has completed its startup. However, when the RC-SREV1 is connected to one SREV1 using the supplied remote cable, and that SREV1 is supplying power to the RC-SREV1, so long as the RC-SREV1 POWER switch is set to the ON position, the RC-SREV1 will be turned on at the same time as the SREV1 is turned on, and the RC-SREV1 will startup normally. If, however, you are using multiple SREV1s, connected together using serial cables, make sure that all SREV1s have completed startup before turning on the RC-SREV1.

When the RC-SREV1 is turned on, startup screen 1 appears for one second. Then startup screen 2 appears with an animated waveform moving from left to right. During this time, the RC-SREV1 receives necessary operating information from the SREV1 via the serial cable. When all the information has been received, the Program page appears.

When the RC-SREV1 is turned on after the SREV1 has completed its startup, the above procedure takes 15 seconds.

When the RC-SREV1 is turned on at the same time as the SREV1, it takes 45 seconds to start up, although the actual time will depend on the time it takes the SREV1 to start up.

If there is no animation on startup screen 2, there may be a communication error between the SREV1 and RC-SREV1. In this case, turn off both units and check the remote cable connections, also check for breaks in the cable.

Startup screen 1 Startup screen 2

SREV1—Owner’s Manual

About the Internal Operations at Startup 33

About the Internal Operations at Startup

During startup, the SREV1 loads the necessary programs into the current and Quick program memories in order to restore the SREV1 to the same state it was in before it was last turned off. If any of these programs were previously loaded from a PC Card or CD-ROM and then stored to a Quick memory, the same PC Card or CD-ROM will be required to restore the contents of the Quick memories. In this case, be sure to insert the necessary PC Card or CD-ROM before starting the SREV1. Although the SREV1’s battery-backed memory stores the titles of the current and Quick memory programs, it does not store the actual program or impulse-response data, so this must be loaded each time the SREV1 is started.

If a necessary PC Card or CD-ROM is not inserted, the message “DATA FILE NOT FOUND! INSERT PCMCIA CARD” or “DATA FILE NOT FOUND! INSERT CD-ROM DISC” appears once the RC-SREV1 has completed startup. In this case, insert the necessary PC Card or CD-ROM and try loading again.

Note that the above information regarding necessary PC Cards and CD-ROMs also applies to changing the Reverb mode and loading projects.

SREV1—Owner’s Manual

34 Chapter 4—Basic Operation

Selecting Reverb Modes

This section explains how to select the 2-channel, 4-channel, and 2-channel x2 Reverb modes. See page 6 for more information about each mode.

1 Use the [UTILITY] button to locate the Setup page shown below.

Reverb mode

2 Use the cursor buttons to select the 2CH, 4CH, or 2CHX2 button in the REV

MODE section of the page.

3 Press the [ENTER] button.

A conﬁrmation message appears.

4 Select YES to continue, or select NO to cancel the operation.

5 Press the [ENTER] button.

While the SREV1 switches to the selected Reverb mode, the RC-SREV1 displays the message “SETTING REV MODE...” and the SREV1 INPUT and OUTPUT signal indi- cators light up in sequence.

Note: Do not insert or eject a PC Card or CD-ROM while the SREV1 is changing Reverb modes.

Once the mode has been set, the mode title appears in the Reverb mode section of the display, the Program page is selected, and the cursor appears at the same position it does when the power is turned on.

The SREV1 switches to the selected mode, the mode title appears in the Reverb mode section of the display, and the Program page is selected.

The SREV1 stores all program parameters when the mode is changed, so when you return to a mode, the previous settings are restored.

SREV1—Owner’s Manual

Assigning Inputs 35

Assigning Inputs

This section explains how to assign the AES/EBU inputs and slot inputs to channels. When a four input I/O card, such as the MY4-AD, is installed, only the ﬁrst four inputs

of that slot are available.

1 Use the [UTILITY] button to locate the DIO page.

2-ch mode 4-ch mode

2-ch x2 mode

2 Use the cursor buttons to select the dots in the INPUT SELECT section of the

page.

A dotted circle indicates that an input is assignable; two dots indicate that an input is unavailable.

3 Press the [ENTER] button to assign an input to a channel.

The input is assigned to the channel and the dotted circle changes to a solid dot.

SREV1—Owner’s Manual

36 Chapter 4—Basic Operation

Setting Input & Output Levels

Input and output signal levels can be set on two different pages: Main 2 page or Meter I/O page. On the Main 2 page, levels are adjusted for all channels simultaneously as a group, while on the Meter I/O page, they can be adjusted for each channel individually.

This section explains how to adjust input and output levels on the Meter I/O page. See page 54 for information on the Main 2 page.

1 Use the [UTILITY] button to locate the Meter I/O page.

2-ch mode 4-ch mode

2-ch x2 mode

2 Use the cursor buttons to select the INPUT LEVEL and OUTPUT LEVEL param-

eters for each channel.

3 Use the faders to set the levels.

The DATA wheel or [–1/DEC] and [+1/INC] buttons can also be used to set levels in

0.1 dB steps.

The input and output levels can be set from –∞, –72.0 dB to +6.0 dB in steps of 0.1 dB.

SREV1—Owner’s Manual

Metering 37

Metering

Input and output signal levels can be metered in several places: the 14-segment meters on the RC-SREV1 display pages, the 11-segment meters on the Meter I/O page, the SIGNAL and CLIP indicators on the SREV1, and the CLIP indicators on the RC-SREV1. The Peak Hold function works with all of these meters. See “Using Peak Hold” on page 39 for more information.

14-segment Meters

Input and output signal levels can be metered by using the 14-segment meters that appear on most RC-SREV1 display pages. In 2-channel mode, input and output signal levels can be metered simultaneously. In 4-channel or 2-channel x2 mode, however, either the input or output levels can be metered, not both simultaneously. See “Setting the Meter Mode” on page 39 for more information.

The 14-segment LCD meters have the following resolution: CLIP / –3dB / –6dB / –9dB / –12dB / –15dB / –18dB / –24dB / –30dB / –36dB / –42dB / –48dB / –54dB / –60dB.

The following table shows how the input and output meters appear in each mode.

Mode 2-channel 4-channel 2-channel x2

Meter

I/O

Channels

INPUT &

OUTPUT

Left, right

INPUT

Use the METER MODE option on the Meter I/O page to switch

between OUTPUT and INPUT (see page 39).

Front-left, front-right,

rear-left, rear-right

OUTPUT

INPUT

A-left, A-right, B-left, B-right

OUTPUT

SREV1—Owner’s Manual

38 Chapter 4—Basic Operation

Meter I/O Page

Input and output signal levels for all channels can be metered by using the 11-segment meters on the Meter I/O pages shown below, which are located by using the [UTILITY] button.

2-ch mode 4-ch mode

2-ch x2 mode

The 11-segment LCD meters have the following resolution: CLIP, –3 dB, –6dB, –9 dB, –12dB, –15 dB, –18dB, –24 dB, –30dB, –36 dB, –42dB

SREV1 SIGNAL and CLIP indicators

Input and output signal levels for each channel can be metered by using the SIGNAL and CLIP indicators on the SREV1 front panel. The SIGNAL indicators light up when the signal is 34 dB below clipping and are intended to show the presence of a signal, while the CLIP indicators light up when the signal is actually clipping.

INPUT OUTPUT

CLIP

12 123CH434

SIGNAL

FS LOCK

48K

44.1K

RC-SREV1 CLIP indicators

Input and output signal levels for each channel can be metered for clipping by using the CLIP indicators on the RC-SREV1. These indicators light up when a signal is clipping.

SREV1—Owner’s Manual

INPUT CLIP

CH 1 2 3 4

OUTPUT CLIP

Setting the Meter Mode 39

Setting the Meter Mode

In 4-channel or 2-channel x2 mode, the 14-segment meters that appear on most RC-SREV1 display pages can be set to display either input or output signal levels by using the METER MODE option.

In 2-channel mode, meters for both the inputs and outputs (left and right) are always displayed, so the METER MODE option is not available when this mode is selected.

1 Use the [UTILITY] button to locate the Meter I/O page.

2 Use the cursor buttons to select the METER MODE button.

3 Use the [ENTER] button to toggle between INPUT and OUTPUT mode.

The 14-segment meters are set accordingly.

Using Peak Hold

By keeping the highest lit segment of each meter illuminated, the Peak Hold function offers a convenient way to check for signal peaks. In addition to the meters on the RC-SREV1 display pages, the Peak Hold function also works with the dedicated CLIP indicators on the SREV1 and RC-SREV1.

1 Use the [UTILITY] button to locate the Meter I/O page.

2 Use the cursor buttons to select the PEAK HOLD button.

3 Use the [ENTER] button to toggle between OFF and ON.

The Peak Hold function is set accordingly. To reset the Peak Hold function, turn it off and then back on again.

SREV1—Owner’s Manual

40 Chapter 4—Basic Operation

Bypassing the SREV1

The SREV1 can be bypassed by using the [BYPASS] button. When the bypass function is on, the BYPASS indicator lights up and the word “ON” appears in the BYPASS area of the display, as shown below.

Bypass BYPASS Button Display SREV1

Off

1. Depends on the Bypass mode: Direct-out/Rev-mute. See below.

Setting the Bypass Mode

BYPASS

Normal operation

Bypassed

The Bypass function can be set so that it bypasses all processing (Direct-out) or just mutes the reverb processing (Rev-mute), in which case output signals are still affected by the Reverb Balance and Reverb Level parameters.

Input

Meter

Off

Bypass

(Rev Mute)

Reverb

Balance

Reverb

Level

Input Level

Initial Delay

Pre EQ

Convo-

lution

Post EQ

1 Use the [UTILITY] button to locate the Meter I/O page.

Bypass status

Off

Bypass

(Direct Out)

Output

Level

Output

Meter

2 Use the cursor buttons to select the BYPASS MODE button.

3 Use the [ENTER] button to toggle between DIRECT-OUT and REV-MUTE.

SREV1—Owner’s Manual

The Bypass mode is set accordingly.

Using the Title Edit dialog Box 41

Using the Title Edit dialog Box

The Title Edit dialog box is used to title programs and projects, and it appears automatically when saving programs or projects, or when editing the titles of existing programs or projects. Titles can contain up to 27 characters, and both uppercase and lowercase letters and the plus (+) and minus (–) symbols are available.

Uppercase Lowercase

Use the DATA wheel or [–1/DEC] and [+1/INC] buttons to move the cursor within the title.

Use the CAPS LOCK button to access the lowercase and uppercase letters. To enter a character, use the cursor buttons to select it, and then press the [ENTER] but-

ton. The selected character is inserted into the title at the cursor position and the cursor automatically moves one place to the right.

Use the SPC button to enter a space at the cursor position. Use the INS button to insert a space at the cursor position and move the subsequent

characters to the right. Characters that are moved beyond the right-hand side of the title window are lost.

Use the DEL button to delete the character at the cursor position and move subsequent characters to the left.

When you’ve ﬁnished editing, select the OK button and then press the [ENTER] button. (The message “CHANGING TITLE...” appears as the title is changed.) To cancel the operation, select the CANCEL button and then press the [ENTER] button.

SREV1—Owner’s Manual

42 Chapter 4—Basic Operation

Working with Quick Memories

This section explains how to recall, store, title, and protect programs in Quick memory. All these operations are carried out on the Program pages shown below. In 2-channel x2 mode, two Program pages are available: Program-A and Program-B. There are six Quick memories available in 2-channel or 4-channel mode (P01–P06); 12 in 2-channel x2 mode (P01–P12). In the program list, a dotted box highlights the selected program.

2-ch mode 4-ch mode

2-ch x2 mode—A 2-ch x2 mode—B

Recalling Programs

Programs stored in Quick memories can be recalled instantly. The recalled program becomes the current program.

1 Use the [PROGRAM] button to locate the Program page.

2 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a program

from the list.

3 Use the cursor buttons to select the RECALL button, and then press [ENTER].

If the current program contains unsaved changes, a warning message appears. Select YES to discard the changes and recall the selected program, or select NO to cancel the operation.

The selected program is recalled and its number and title appear on the display. In 2-channel x2 mode, when a program is recalled for reverberator A, reverberator B is

muted, unless the optional DB-SREV1 Expansion Board is installed.

SREV1—Owner’s Manual

Working with Quick Memories 43

Storing Programs

The current program can be stored to any Quick memory.

1 Use the [PROGRAM] button to locate the Program page.

2 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a Quick

memory.

Programs cannot be stored to Quick memories containing write-protected programs.

3 Use the cursor buttons to select the STORE button, and then press [ENTER].

The Title Edit dialog box appears.

4 Enter a title.

See “Using the Title Edit dialog Box” on page 41 for more information.

5 Use the cursor buttons to select the OK button, and then press [ENTER].

(To cancel the operation, select the CANCEL button and then press [ENTER].) The current program is stored to the selected Quick memory, and the Edit status indi-

cator disappears (see page 18).

Editing Program Titles

The titles of programs already stored in the Quick memories can be edited as follows.

1 Use the [PROGRAM] button to locate the Program page.

2 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a pro-

gram.

The titles of write-protected programs cannot be edited.

3 Use the cursor buttons to select the TITLE EDIT button, and then press

[ENTER].

The Title Edit dialog box appears.

4 Edit the title.

See “Using the Title Edit dialog Box” on page 41 for more information.

5 Use the cursor buttons to select the OK button, and then press [ENTER].

(To cancel the operation, select the CANCEL button and then press [ENTER].) Note that the “CHANGING TITLE...” message does not appear in this case. The new title is stored.

SREV1—Owner’s Manual

44 Chapter 4—Basic Operation

Protecting Quick Memory Programs

Quick memory programs can be write-protected to prevent accidental overwriting.

1 Use the [PROGRAM] button to locate the Program page.

2 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a pro-

gram.

3 Use the cursor buttons to select the PROTECT button, and then press [ENTER].

The Protect icon ( ) appears to the right of the program’s title.

4 Press the [ENTER] button again to unprotect the program.

The Protect icon disappears.

SREV1—Owner’s Manual

Working with the Library 45

Working with the Library

This section explains how to load, save, title, protect, and delete programs from the Internal Card, PC Card, and CD-ROM. These operations are carried out on the Library pages shown below. In 2-channel x2 mode, two Library pages are available: Library-A and Library-B. In the program list, a dotted box highlights the selected program. In the DRIVE section of the page, INTERNAL is the Internal Card, CD-ROM is the CD-ROM drive, and PCMCIA is the PC Card.

2-ch mode 4-ch mode

2-ch x2 mode—A 2-ch x2 mode—B

Loading Programs from the Library

Programs can be loaded from the following drives: Internal Card, PC Card, or CD-ROM. The loaded program becomes the current program. The preset programs on the supplied CD-ROM are loaded into the Internal Card at the factory.

1 Use the [PROGRAM] button to locate the Library page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The programs stored on the active drive appear in the program list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a program

from the list.

4 Use the cursor buttons to select the LOAD button, and then press [ENTER].

If the current program contains unsaved changes, a warning message appears. Select YES to discard the changes and load the selected program, or select NO to cancel the operation.

The selected program, and its impulse-response data, is loaded and its title appears on the display.

SREV1—Owner’s Manual

46 Chapter 4—Basic Operation

Note that unlike the Quick memory programs, which load instantly, programs stored on the drives take time to load, depending on the size of the associated impulse-response data and the speed of the drive.

In 2-channel x2 mode, when a program is loaded for reverberator A, reverberator B is muted, unless the optional DB-SREV1 Expansion Board is installed.

Saving Programs in the Library

The current program can be saved to the following drives: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Library page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The programs stored on the active drive appear in the program list.

3 Use the cursor buttons to select the SAVE button, and then press [ENTER].

The Title Edit dialog box appears.

4 Enter a title.

See “Using the Title Edit dialog Box” on page 41 for more information.

5 Use the cursor buttons to select the OK button, and then press [ENTER].

(To cancel the operation, select the CANCEL button and then press [ENTER].) If a program with the same title already exists, a conﬁrmation dialog box appears. Select

YES to overwrite the existing program, or select NO to cancel the operation. Note that if the existing program is write-protected, it cannot be overwritten.

The current program, and its impulse-response data, is saved to the selected drive, and the Edit status indicator disappears (see page 18).

Editing Program Titles in the Library

The titles of programs stored on the following drives can be edited: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Library page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The programs stored on the active drive appear in the program list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a pro-

gram.

4 Use the cursor buttons to select the TITLE EDIT button, and then press

5 Edit the title.

6 Use the cursor buttons to select the OK button, and then press [ENTER].

SREV1—Owner’s Manual

The titles of write-protected programs cannot be edited.

[ENTER].

The Title Edit dialog box appears.

See “Using the Title Edit dialog Box” on page 41 for more information.

(To cancel the operation, select the CANCEL button and then press [ENTER].) The new title is saved.

Working with the Library 47

Protecting Library Programs

Programs stored on the following drives can be write-protected to prevent accidental deletion: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Library page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The programs stored on the active drive appear in the program list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a pro-

gram.

4 Use the cursor buttons to select the PROTECT button, and then press [ENTER].

The Protect icon ( ) appears to the right of the program’s title.

5 Press the [ENTER] button again to unprotect the program.

The Protect icon disappears.

Deleting Library Programs

Programs stored on the following drives can be deleted: Internal Card or PC Card. The preset programs loaded into the Internal Card at the factory are also available on the supplied CD-ROM.

1 Use the [PROGRAM] button to locate the Library page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The programs stored on the active drive appear in the program list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a pro-

gram.

4 Use the cursor buttons to select the DELETE button, and then press [ENTER].

A conﬁrmation dialog box appears. Select YES to delete the program, or select NO to cancel the operation. Note that if the program is write-protected, it cannot be deleted.

The program, and its impulse-response data, is deleted and disappears from the list. If the impulse-response data is required by another program, it’s not deleted.

SREV1—Owner’s Manual

48 Chapter 4—Basic Operation

Working with Projects

This section explains how to load, save, title, protect, and delete projects from the Internal, PC Card, and CD-ROM drives. All these operations are carried out on the Project pages shown below. In the project list, a dotted box highlights the selected project. See page 7 for more information about projects.

2-ch mode 4-ch mode

2-ch x2 mode

Loading Projects

Projects can be loaded from the following drives: Internal Card, PC Card, or CD-ROM.

1 Use the [PROGRAM] button to locate the Project page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The projects stored on the active drive appear in the project list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a project

from the list.

4 Use the cursor buttons to select the LOAD button, and then press [ENTER].

A conﬁrmation message appears. Select YES to load the project, or select NO to cancel the operation.

The message “LOADING PROJECT...” appears while the selected project and its pro- grams are loaded. The Program page appears when loading, which takes about 30 seconds, is complete.

SREV1—Owner’s Manual

Working with Projects 49

Saving Projects

Projects, which consist of all the Quick memory programs and the current program settings, can be saved to the following drives: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Project page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The projects already stored on the active drive appear in the project list.

3 Use the cursor buttons to select the SAVE button, and then press [ENTER].

The Title Edit dialog box appears.

4 Enter a title.

See “Using the Title Edit dialog Box” on page 41 for more information.

5 Use the cursor buttons to select the OK button, and then press [ENTER].

(To cancel the operation, select the CANCEL button and then press [ENTER].) If a project with the same title already exists, a conﬁrmation dialog box appears. Select

YES to overwrite the existing project, or select NO to cancel the operation. Note that if the existing project is write-protected it cannot be overwritten.

The project is saved to the selected drive.

Editing Project Titles

The titles of projects stored on the following drives can be edited: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Project page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The projects stored on the active drive appear in the project list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a project.

The titles of write-protected projects cannot be edited.

4 Use the cursor buttons to select the TITLE EDIT button, and then press

[ENTER].

The Title Edit dialog box appears.

5 Edit the title.

See “Using the Title Edit dialog Box” on page 41 for more information.

6 Use the cursor buttons to select the OK button, and then press [ENTER].

(To cancel the operation, select the CANCEL button and then press [ENTER].) The new title is saved.

SREV1—Owner’s Manual

50 Chapter 4—Basic Operation

Protecting Projects

Projects stored on the following drives can be write-protected to prevent accidental deletion: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Project page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The projects stored on the active drive appear in the project list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a project.

4 Use the cursor buttons to select the PROTECT button, and then press [ENTER].

The Protect icon ( ) appears to the right of the project’s title.

5 Press the [ENTER] button again to unprotect the project.

The Protect icon disappears.

Deleting Projects

Projects stored on the following drives can be deleted: Internal Card or PC Card.

1 Use the [PROGRAM] button to locate the Project page.

2 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The projects stored on the active drive appear in the project list.

3 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a project.

4 Use the cursor buttons to select the DELETE button, and then press [ENTER].

A conﬁrmation dialog box appears. Select YES to delete the project, or select NO to cancel the operation. Note that if the project is write-protected, it cannot be deleted.

The selected project is deleted and disappears from the list.

SREV1—Owner’s Manual

In this chapter...

Editing Programs 51

Editing Programs

Main 1 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Main 2 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Fine Reverb Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Pre EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Post EQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Loading Impulse-Response Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

SREV1—Owner’s Manual

52 Chapter 5—Editing Programs

Main 1 Parameters

Basic parameters, including Reverb Time, Initial Delay, Pre EQ Low Gain, and Pre EQ High Gain, can be adjusted on the Main 1 pages. In 2-channel x2 mode, two Main 1 pages are available: Main1-A and Main1-B. Channels are grouped, so adjusting, say, the Reverb Time parameter, adjusts the reverb time of all channels simultaneously. In 2-channel x2 mode, A and B parameters are grouped independently. These parameters can be adjusted for each channel individually on the Fine parameter pages. See page 56 and page 57 for more information.

The graphs and parameter values of only one channel are displayed at a time. You can choose which channel by using the buttons in the DISPLAY CHANNEL section of the page. Below that section is the REV graph, which displays the reverb parameter settings graphically, and the PRE-EQ graph, which displays the Pre EQ settings graphically. If the EQ is turned off on the Pre EQ page (see page 57), the EQ graph appears shaded.

The Main 1 pages for each mode are shown below.

2-ch mode 4-ch mode

2-ch x2 mode—A 2-ch x2 mode—B

1 Use the [PARAMETER MAIN] button to locate the Main 1 page.

2 Use the cursor buttons to select a channel button in the DISPLAY CHANNEL

section, and then press the [ENTER] button to make it the active display channel.

The button of the active display channel appears highlighted.

3 Use the cursor buttons to select the REV TIME, INITIAL DELAY, LOW-EQ, or

HIGH-EQ parameter.

4 Use the faders, DATA wheel, or [–1/DEC] and [+1/INC] buttons to adjust the

SREV1—Owner’s Manual

selected parameter.

Main 1 Parameters 53

Note that since adjustments to the REV TIME parameter do not take effect immediately, there is a small delay between adjusting the reverb time by using, for example, a fader and the new reverb time being applied.

The parameter ranges are as follows.

Parameter Range Steps Description REV TIME INITIAL DELAY LOW-EQ HIGH-EQ

1. Actual maximum reverb time depends on the impulse-response data.

0.3–

0.1 sec Reverb time

0.1–500.0 ms 0.1 ms Initial delay time

–18.0 dB to +18.0 dB 0.1 dB Pre EQ low gain –18.0 dB to +18.0 dB 0.1 dB Pre EQ high gain

The following waveforms show the reverb produced by a snare drum with reverb times of 500 milliseconds and 2.0 seconds. Initial delay is 0.1 milliseconds; reverb balance is 100%. The third waveform shows how reﬂections can be delayed by using the Initial Delay parameter. Here the reverb time is 2.0 seconds; initial delay is 200 ms (exaggerated for illustration clarity); and the reverb balance is 50%.

Amplitude Reverb time: 500 ms

Initial delay: 0.1 ms Reverb balance: 100%

Time

Amplitude Reverb time: 2.0 sec

Initial delay: 0.1 ms Reverb balance: 100%

Time

Amplitude

Direct signal

Reflections

Initial delay

Reverb time: 2.0 sec Initial delay: 200 ms Reverb balance: 50%

Time

SREV1—Owner’s Manual

54 Chapter 5—Editing Programs

Main 2 Parameters

Basic parameters, including Reverb Balance, Input Level, Output Level, and Pre EQ HPF frequency, can be adjusted on the Main 2 pages. In 2-channel x2 mode, two Main 2 pages are available: Main2-A and Main2-B. Channels are grouped, so adjusting, say, the Reverb Balance parameter, adjusts the reverb balance of all channels simultaneously. In 2-channel x2 mode, A and B parameters are grouped independently. These parameters can be adjusted for each channel individually on the Fine parameter pages. See page 56 and page 57 for more information.

The Main 2 pages for each mode are shown below.

2-ch mode

2-ch x2 mode—A 2-ch x2 mode—B

1 Use the [PARAMETER MAIN] button to locate the Main 2 page.

2 Use the cursor buttons to select a channel button in the DISPLAY CHANNEL

4-ch mode

section, and then press the [ENTER] button to make it the active display channel.

The button of the active display channel appears highlighted.

3 Use the cursor buttons to select the REV BALANCE, INPUT LEVEL, OUTPUT

LEVEL, or HPF parameter.

4 Use the faders, DATA wheel, or [–1/DEC] and [+1/INC] buttons to adjust the

SREV1—Owner’s Manual

selected parameter.

Main 2 Parameters 55

The parameter ranges are as follows.

Parameter Range Steps Description

Balance between reverb and dry

REV BALANCE

0–100% 1%

signals. 0% = all dry, 100% = all reverb.

INPUT LEVEL OUTPUT LEVEL HPF

–∞, –72.0 dB to +6.0 dB 0.1 dB Input level –∞, –72.0 dB to +6.0 dB 0.1 dB Output level

16.0 Hz–23.6 kHz 1/12 oct Pre EQ HPF frequency

Reverb Balance

The following waveforms illustrate the effect of the Reverb Balance parameter. The sound source is a snare drum

Direct signal

Amplitude

Reverb time: 2.0 sec Initial delay: 0.1 ms Reverb balance: 0%

Time

Amplitude Reverb time: 2.0 sec

Direct signal & reflections

Initial delay: 0.1 ms Reverb balance: 50%

All reflections

Initial delay: 0.1 ms Reverb balance: 100%

Time

SREV1—Owner’s Manual

56 Chapter 5—Editing Programs

Fine Reverb Parameters

Reverb Time, Initial Delay, Reverb Balance, and Reverb Level parameters can be adjusted for each channel individually on the Rev page, although there is an option to group them. In addition to numeric values, settings are displayed graphically.

The Rev pages for each mode are shown below.

2-ch mode 4-ch mode

2-ch x2 mode

1 Use the [PARAMETER FINE] button to locate the Rev page.

Use the ON/OFF button in the GROUP section to group and ungroup the channels. When set to ON, all channels are adjusted simultaneously. When set to OFF, channels can be adjusted individually.

2 Use the cursor buttons to select the REV TIME, INITIAL DELAY, REV BALANCE,

or REV LEVEL parameter.

3 Use the faders, DATA wheel, or [–1/DEC] and [+1/INC] buttons to adjust the

selected parameter.

The parameter ranges are as follows.

Parameter Range Steps Description REV TIME INITIAL DELAY

REV BALANCE

REV LEVEL

1. Actual maximum reverb time depends on the impulse-response data.

0.3–

0.1–500.0 ms 0.1 ms Delay before reverb starts

0–100% 1%

–∞, –72 dB to +6.0 dB 0.1 dB Reverb level

0.1 sec Reverb time

Balance between reverb and dry signals. 0% = all dry, 100% = all reverb.

SREV1—Owner’s Manual

Pre EQ 57

Pre EQ

The pre-convolution EQ consists of a variable frequency HPF and fully parametric 3-band EQ. Parameters can be adjusted for each channel individually on the Pre EQ pages. In 4-channel mode, two Pre EQ pages are available: Pre EQ Front and Pre EQ Rear. Likewise, in 2-channel x2 mode, with Pre EQ-A and Pre EQ-B pages. In addition to numeric values, EQ settings are displayed graphically. Inactive parameters appear shaded. Q, for example, is not active when, say, the HIGH band is set to H.SHELF.

The Pre EQ pages for each mode are shown below.

2-ch mode

4-ch mode—Front 4-ch mode—Rear

2-ch x2 mode—A 2-ch x2 mode—B

Note that the LOW band gain and HIGH band gain parameters can also be adjusted on the Main 1 page (see page 52). Likewise, the HPF frequency parameter can also be adjusted on the Main 2 page (see page 54). On these pages, however, the channels are grouped.

1 Use the [PARAMETER FINE] button to locate the Pre EQ page.

Use the ON/OFF button next to each EQ graph to turn on and off the Pre EQ for each channel. Note that these buttons also turn on and off the LOW band and HIGH band parameters on the Main 1 page.

SREV1—Owner’s Manual

58 Chapter 5—Editing Programs

2 Use the cursor buttons to select the G (gain), F (frequency), Q (width), or T

(Filter Type) parameter.

3 Use the faders, DATA wheel, or [–1/DEC] and [+1/INC] buttons to adjust the

selected parameter.

The parameter ranges are as follows.

Parameter HPF

Gain (G) Frequency (F) Q

Filter Type (T)

1. Can be used as a peaking EQ (10–0.10) or low shelving EQ (L.SHELF).

2. Peaking EQ.

3. Can be used as a peaking EQ (10–0.10), high shelving EQ (H.SHELF), or low pass ﬁlter (LPF).

4. The HPF is bypassed when set to THRU.

5. The HIGH band is bypassed when set to THRU.

—–18 dB to +18 dB (0.1 dB steps)

16.0 Hz–23.6 kHz (1/12 oct steps)

— 10.0–0.10

THRU

, HPF

LOW

PEAKING,

L.SHELF

MID

PEAKING

HIGH

PEAKING,

H.SHELF, LPF,

THRU

Note that when the HPF is set to THRU, the HPF parameter on the Main 2 page is inactive.

SREV1—Owner’s Manual

Post EQ 59

Post EQ

The post-convolution EQ consists of a fully parametric 4-band EQ. Parameters can be adjusted for each channel individually on the Post EQ page. In 4-channel mode, two Post EQ pages are available: Post EQ Front and Post EQ Rear. Likewise, in 2-channel x2 mode, with Post EQ-A and Post EQ-B pages. In addition to numeric values, EQ settings are displayed graphically. Inactive parameters appear shaded. Q, for example, is not active when, say, the HIGH band is set to H.SHELF.

The Post EQ pages for each mode are shown below.

2-ch mode

4-ch mode—Front 4-ch mode—Rear

2-ch x2 mode—A 2-ch x2 mode—B

1 Use the [PARAMETER FINE] button to locate the Post EQ page.

Use the ON/OFF button next to each EQ graph to turn on and off the Post EQ for each channel.

2 Use the cursor buttons to select the G (gain), F (frequency), Q (width) or T

(Filter Type) parameter.

SREV1—Owner’s Manual

60 Chapter 5—Editing Programs

3 Use the faders, DATA wheel, or [–1/DEC] and [+1/INC] buttons to adjust the

selected parameter.

The parameter ranges are as follows.

Parameter

Gain (G) Frequency (F)

LOW

–18 dB to +18 dB (0.1 dB steps)

16.0 Hz–23.6 kHz (1/12 oct steps)

PEAKING,

Filter Type (T)

1. Can be used as a peaking EQ (10–0.10), low shelving EQ (L.SHELF), or high pass ﬁlter (HPF).

2. Peaking EQ.

3. Peaking EQ.

4. Can be used as a peaking EQ (10–0.10), high shelving EQ (H.SHELF), or low pass ﬁlter (LPF).

5. The HPF and LPF are bypassed when set to THRU.

6. The HIGH band is bypassed when set to THRU.

L.SHELF, HPF,

THRU

L-MID

H-MID

10.0–0.10

PEAKING PEAKING

HIGH

PEAKING,

H.SHELF, LPF,

THRU

SREV1—Owner’s Manual

Loading Impulse-Response Data 61

Loading Impulse-Response Data

This section explains how to load impulse-response data for each channel of the current program from the Internal Card, PC Card, CD-ROM drive. Impulse response data stored in the following formats can be loaded: TM4 or TMC. See “File Types” on page 9 for more information. In the impulse-response ﬁle list, a dotted box highlights the selected ﬁle. The Protect icon ( ) appears to the right of write-protected ﬁles. In the DRIVE section of the page, INTERNAL is the Internal Card, CD-ROM is the CD-ROM drive, and PCMCIA is the PC Card.

The Data Load pages for each mode are shown below.

2-ch mode 4-ch mode

2-ch x2 mode

1 Use the [PARAMETER FINE] button to locate the Rev page.

2 Select the DATA LOAD button, and then press [ENTER].

The Data Load page appears.

3 Use the cursor buttons to select a drive button, and then press [ENTER] to

make it the active drive.

The impulse-response data stored on the active drive appear in the ﬁle list.

4 Use the DATA wheel or the [–1/DEC] and [+1/INC] buttons to select a ﬁle from

the list.

5 Use the cursor buttons to select the channel to which you want to load the

impulse-response data, and then press [ENTER].

A warning message appears. Select YES to load the selected ﬁle, or select NO to cancel the operation.

The selected impulse-response data is loaded.

6 To return to the Rev page, select the BACK button, and then press [ENTER].

The Rev page appears.

SREV1—Owner’s Manual

62 Chapter 5—Editing Programs

Impulse-response data (TM4 format) created by using IRSampler, the impulse-response sampling software, or IREdit, the impulse-response editing software, can be loaded into the SREV1 from a PC Card. The RC-SREV1 looks for impulse-response data stored in the “\yamaha\srev\data” folder of the PC Card, so you need to make a new folder called “data” in “x:\yamaha\srev\” and then copy your impulse-response data into it. (Note that “x” refers to the letter assigned to your PC Card while it’s inserted in your PC.)

The 2-channel (SP2) and 4-channel (SP4) programs that you create are stored in the “\yamaha\srev\prog” folder, and 2-channel, 4-channel, and 2-channel x2 projects are stored in the “\yamaha\srev\proj” folder. When you copy or move any of these ﬁles to another PC Card by using your PC, be sure to use the same folder organization and naming, otherwise, the SREV1 will not be able to ﬁnd the ﬁles.

Note that the SREV1 can only list up to 128 ﬁles in a folder, so do not put any more ﬁles than that into a folder. If you do have more than 128 ﬁles in a folder, the SREV1 lists the ﬁrst 128 ﬁles copied to the folder in alphabetical order.

SREV1—Owner’s Manual

In this chapter...

Multiple SREV1s 63

Multiple SREV1s

About Multiple SREV1s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Multiple-unit Operating Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Selecting SREV1s from the RC-SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Multiple-unit Hookup with the RC-SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

SREV1—Owner’s Manual

64 Chapter 6—Multiple SREV1s

About Multiple SREV1s

Up to four SREV1s can be controlled from a single RC-SREV1.

Connections

Multiple SREV1s are connected together in a daisy-chain

2 SERIAL 1

fashion using the SERIAL ports shown here. Connections between units are made using serial cables, which are available from your Yamaha dealer.

Multiple-unit Hookup with the RC-SREV1

The following example shows how up to four SREV1s can be connected together in a daisy-chain fashion for control from an RC-SREV1. The SREV1 connected to the RC-SREV1 is automatically assigned ID #1, and the other SREV1s are assigned IDs in order of connection, as shown.

Remote cable

SREV1 #1

POWER

FS LOCK

48K

44.1K

ON OFF

CD-ROM

REMOTE

BYPASS

PROGRAM

PARAMETER

MAIN

PARAMETER

FINE

POWER

FS LOCK

48K

44.1K

ON OFF

CD-ROM

UTILITY

SREV1 #2

INPUT OUTPUT

CLIP

12 123CH434

MEMORY CARD

SIGNAL

SERIAL 2

Serial cable

SERIAL 1

INPUT OUTPUT

CLIP

12 123CH434

MEMORY CARD

SIGNAL

INPUT CLIP

OUTPUT CLIP

-1/DEC +1/INC PARAMETER

CURSOR

ENTER

1234

SREV1 #3

SREV1 #4

SERIAL 2

RC-SREV1

Serial cable

SERIAL 1

INPUT OUTPUT

CLIP

12 123CH434

MEMORY CARD

SIGNAL

POWER

FS LOCK

48K

44.1K

ON OFF

CD-ROM

SERIAL 2

Serial cable

SERIAL 1

INPUT OUTPUT

CLIP

12 123CH434

MEMORY CARD

SIGNAL

POWER

FS LOCK

48K

44.1K

ON OFF

CD-ROM

SREV1—Owner’s Manual

Multiple-unit Operating Notes 65

Multiple-unit Operating Notes

• The RC-SREV1 should be connected to SREV1 #1.

• Connect the SREV1s together by using serial cables.

• Turn on the SREV1s ﬁrst, and then the RC-SREV1.

• Do not connect or disconnect any serial cables while the system is up and running.

• Do not turn off any of the SREV1s while the system is up and running.

Selecting SREV1s from the RC-SREV1

This section explains how to select the SREV1 to be controlled from the RC-SREV1.

1 Use the [UTILITY] button to locate the Setup page shown below.

2 Use the cursor buttons to select the SREV #1, SREV #2, SREV #3, or SREV #4

button in the CONNECT section of the page.

The button of the currently selected SREV1 appears highlighted. The buttons of unconnected SREV1s appear shaded.

3 Press the [ENTER] button.

A conﬁrmation message appears.

4 Select YES to continue, or select NO to cancel the operation.

5 Press the [ENTER] button.

The RC-SREV1 retrieves system information such as Reverb mode, and wordclock source from the selected SREV1, and then updates its display. The number of the selected SREV1 appears in the top-right corner of the display (see page 18).

SREV1—Owner’s Manual

In this chapter...

MIDI 67

MIDI

MIDI & the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

MIDI Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

MIDI Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Setting the MIDI Receive Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Assigning Quick Memory Programs to Program Changes . . . . . . . . . . . . . . . 70

Assigning Parameters to Control Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

SREV1—Owner’s Manual

68 Chapter 7—MIDI

MIDI & the SREV1

The SREV1 supports the following MIDI messages:

• Program Changes to recall up to 12 Quick memory programs

• Control Changes for Reverb Balance and Reverb Level control

These MIDI messages are not transmitted when actions are performed on RC-SREV1. Quick memory programs can be assigned to MIDI Program Changes and then recalled

remotely from other MIDI equipment. When a Program Change message is received, the program stored in the assigned Quick memory is recalled. See “Assigning Quick Memory Programs to Program Changes” on page 70 for more information.

The Reverb Balance and Reverb Level parameters for each channel can be assigned to MIDI Control Changes and then controlled remotely from other MIDI equipment. When a Control Change message is received, the assigned parameter is controlled. See “Assigning Parameters to Control Changes” on page 71 for more information.

The SREV1 can be set to receive Program Change and Control Change messages on any MIDI Channel from 1 through 16, and in 2-channel x2 mode, individual MIDI Channels can be set for A and B. See “Setting the MIDI Receive Channels” on page 69 for more information.

Note: Do not control the SREV1 by using MIDI messages and the RC-SREV1 simultaneously.

MIDI Ports

The MIDI IN and OUT ports are used to transmit and receive MIDI messages. The MIDI IN port receives messages, while the MIDI OUT port currently echoes the messages received at the MIDI IN port, essentially like a MIDI THRU port.

OUT INMIDI

SREV1—Owner’s Manual

MIDI Pages

MIDI settings are made on the MIDI pages shown below.

2-ch mode 4-ch mode

MIDI Pages 69

2-ch x2 mode

Setting the MIDI Receive Channels

The MIDI Channel used to receive MIDI Program Change and Control Change messages is set on the MIDI page. There are two MIDI Channel settings in 2-channel x2 mode, one for A and one for B.

1 Use the [UTILITY] button to locate the MIDI page.

2 Use the cursor buttons to select the CH parameter in the MIDI RECEIVE CHAN-

NEL section of the page.

3 Use the DATA wheel or [–1/DEC] and [+1/INC] buttons to select a MIDI Chan-

nel from 1 through 16 or OFF.

When OFF is selected, the SREV1 ignores received MIDI messages.

SREV1—Owner’s Manual

70 Chapter 7—MIDI

Assigning Quick Memory Programs to Program Changes

Quick memory programs P01 through P06 (2-channel or 4-channel mode), P01–P12 (2-channel x2 mode) can be assigned to Program Changes 1 through 128.

1 Use the [UTILITY] button to locate the MIDI page.

2 Use the cursor buttons to select the PGM CHG. parameter in the PROGRAM

CHANGE TABLE section of the page.

3 Use the DATA wheel or [–1/DEC] and [+1/INC] buttons to assign a Program

Change from 1 through 128 to the selected Quick memory program.

4 Use the cursor buttons to select the PROGRAM NO. parameter in the PRO-

GRAM CHANGE TABLE section of the page.

5 Use the DATA wheel or [–1/DEC] and [+1/INC] buttons to select a Quick mem-

ory program from P01 through P12, or “---” for no assignment.

Quick memory program number assignments P07 through P12 are active only in 2-channel x2 mode. In 2-channel and 4-channel mode, they are ignored.

SREV1

When a Program Change message is received, the program stored in the assigned Quick memory is recalled along with the necessary impulse-response data, and the program’s number and title appear on the display, and the Edit indicator, if displayed, disappears.

The following illustration shows the type of MIDI equipment that can be used with the SREV1 for remote Quick memory program recall using Program Change messages.

MEMORY CARD

INPUT OUTPUT

12 123CH434

FS LOCK

CLIP

SIGNAL

CD-ROM

MIDI keyboard

POWER

48K

44.1K

ON OFF

MIDI IN

MIDI Sampler

MIDI controller

MIDI mixer

OFF

PHANTOM +48V

INPUT (BAL)

PAD

26dB126dB226dB326dB426dB526dB626dB726dB826dB926dB1026dB1126dB

–60–16

+10 –34

GAIN

UTILITY MIDI SETUP VIEW

FUNCTION

PAN/

DYNAMICS EQ/ATT Ø/DELAY

ROUTING

MEMORY

FADER MODE

EFFECT 1EFFECT 2 OPTION I/O REMOTE

1 RETURN 2

AUX 1

AUX 2 AUX 3 AUX 4

HOME

232221201918

SEL

SOLO

∞

17 18 19 20 21 22 23 24

OFF

PHANTOM +48V

–10dBV (UNBAL)

131415

OUT

2TR

PHONES

MONITOR

15/16

2TR IN

–60–16

–20+10 100 100

–20+10

GAIN

LEVEL LEVELGAIN

+10 –34

GAIN

MONITOR

13/14 15/16 PHONES

OUT

DIGITAL MIXING CONSOLE

L STEREO R

HIGH

CLIP

PAN

–3 –6

PAN

HI-MID

–9 –12

–15 –18

–24

LO-MID

–30 –36 –42 –48

LOW

SELECTED CHANNEL

STEREO

15/16

13/14

1 RETURN 2

MASTER

SELSEL

SEL

SOLO

SOLO SOLO

SOLO

ON ON

MEMORY

–1/DEC

+1/INC

PARAMETER

–5

–10 –15

–20

CURSOR

–30 –40

–50

–70

– ∞

∞

ENTER

15/16

13/14

STEREO

MASTER

SREV1—Owner’s Manual

Assigning Parameters to Control Changes 71

Assigning Parameters to Control Changes

Reverb Balance and Reverb Level parameters for each channel can be assigned to MIDI Control Changes 0 through 95.

1 Use the [UTILITY] button to locate the MIDI page.

2 Use the cursor buttons to select the REV BALANCE or REV LEVEL assignments

in the CONTROL CHANGE section of the page.

In 2-channel mode, these are L-CH and R-CH. In 4-channel mode, Front-L, Front-R, Rear-L, and Rear-R. And in 2-channel x2 mode, A-L, A-R, B-L, and B-R.

3 Use the DATA wheel or [–1/DEC] and [+1/INC] buttons to assign a Control

Change to OFF or 0 through 95.

When a Control Change message is received, the assigned parameter is controlled. If the Rev page is selected, you can see the parameter value update, and if the parameter is the currently selected parameter, then the corresponding fader moves as well.

If a Control Change is assigned to more than one parameter, all the assigned parameters are controlled when that Control Change is received.

Since Control Changes are assigned to channels individually, they are not affected by the GROUP button on the Rev page. Even if channels are grouped, only the assigned channel parameter is controlled when a Control Change message is received.

SREV1

If a page selected by using the [PARAMETER FINE] button is displayed when a Control Change message is received, the corresponding fader moves and the graph and parameter values change, causing the Edit status indicator to appear.

If a page selected by using the [PARAMETER MAIN] button is displayed when a Control Change message is received, the corresponding fader, graph, and parameter value do not change. Only the Edit status indicator appears. To update the fader, graph, and parameter value, select another page, then select the previous page again.

The following illustration shows the type of MIDI equipment that can be used with the SREV1 for remote parameter control using Control Change messages.

MEMORY CARD

INPUT OUTPUT

12 123CH434

FS LOCK

CLIP

SIGNAL

CD-ROM

MIDI keyboard

POWER

48K

44.1K

ON OFF

MIDI IN

MIDI Sampler

MIDI controller

MIDI mixer

OFF

PHANTOM +48V

INPUT (BAL)

PAD

26dB126dB226dB326dB426dB526dB626dB726dB826dB926dB1026dB1126dB

–60–16

+10 –34

GAIN

UTILITY MIDI SETUP VIEW

FUNCTION

PAN/

DYNAMICS EQ/ATT Ø/DELAY

ROUTING

MEMORY

FADER MODE

EFFECT 1EFFECT 2 OPTION I/O REMOTE

1 RETURN 2

AUX 1

AUX 2 AUX 3 AUX 4

HOME

232221201918

SEL

SOLO

∞

17 18 19 20 21 22 23 24

OFF

PHANTOM +48V

–10dBV (UNBAL)

131415

OUT

2TR

PHONES

MONITOR

15/16

2TR IN

–20+10 100 100

–20+10

–60–16

GAIN

LEVEL LEVELGAIN

+10 –34

GAIN

MONITOR

13/14 15/16 PHONES

OUT

DIGITAL MIXING CONSOLE

L STEREO R

HIGH

CLIP

PAN

–3 –6

PAN

HI-MID

–9 –12

–15 –18

–24

LO-MID

–30 –36 –42 –48

LOW

SELECTED CHANNEL

STEREO

15/16

13/14

1 RETURN 2

MASTER

SELSEL

SEL

SOLO

SOLO SOLO

SOLO

ON ON

MEMORY

–1/DEC

+1/INC

PARAMETER

–5

–10 –15

–20

CURSOR

–30 –40

–50

–70

– ∞

∞

ENTER

STEREO

15/16

13/14

MASTER

SREV1—Owner’s Manual

In this chapter...

Wordclocks 73

Wordclocks

Wordclocks & the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Wordclock Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Selecting the Wordclock Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Wordclock Hookup Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

SREV1—Owner’s Manual

74 Chapter 8—Wordclocks

Wordclocks & the SREV1

Unlike analog audio equipment, digital audio equipment must be synchronized when digital audio signals are transferred from one device to another, otherwise, signals may not be received correctly and audible noise, glitches, or clicks may occur. Synchronization is achieved using what’s called a wordclock, which is a clock signal for synchronizing all the digital audio signals in a system. Note that wordclocks are not the same as SMPTE/EBU timecode or MIDI timecode, which are typically used to synchronize tape machines, MIDI sequencers, and so on. Wordclock synchronization refers to the synchronization of the digital audio processing circuits inside each digital audio device.

In a typical digital audio system, one device operates as the wordclock master, and the other devices operate as wordclock slaves, synchronizing to the wordclock master. Wordclock signals can be distributed via dedicated cables, typically BNC cables, or derived from digital audio connections, such as AES/EBU.

If you’re connecting to the SREV1 using only analog inputs and outputs, no special wordclock settings are required, and the SREV1 can be set to use its own internally generated wordclock. If you’re connecting other equipment digitally, however, you must decide which device to use as the wordclock master and which devices to use as slaves.

The SREV1 can be used as a 48 kHz wordclock master, or slaved to an external wordclock source of 44.1 kHz or 48 kHz. It can receive an external wordclock signal via an AES/EBU input, SLOT input, or the BNC WORD CLOCK IN connector.

In a system where all devices share a common wordclock, it’s important that all devices be turned on even if they’re not being used. Turn on the wordclock master ﬁrst, and then the slaves. When shutting down the system, turn off the slaves ﬁrst, and then the master. Before use, make sure that the wordclock slaves are correctly locked to the wordclock master. Most devices have front panel indicators, similar to the FS LOCK indicators on the SREV1, to show when they are wordclock locked. Refer to the relevant owner’s manuals for more information.

When the wordclock source is changed, lower the volume of your system just in case a device becomes unlocked and outputs any unpleasant noises.

Wordclock Connections

The WORD CLOCK IN BNC connector is used to receive wordclock signals from other digital audio equipment. When the wordclock source is set to WCLK IN, the SREV1 locks to the wordclock signal received at the WORD CLOCK IN connector.

See “Wordclock Hookup Examples” on page 78 for more information.

The WORD CLOCK IN is auto-terminating.

WORD CLOCK IN

An external wordclock can also be sourced from an AES/EBU input or the slot input of a digital I/O card.

SREV1—Owner’s Manual

Selecting the Wordclock Source 75

Selecting the Wordclock Source

Note: When the wordclock source is changed on the wordclock master device, noise may occur from the SREV1’s outputs, especially if an MY8-AT I/O card is installed, so turn down your power amps beforehand, otherwise any connected speakers may be damaged.

1 Use the [UTILITY] button to locate the DIO page shown below.

2 Use the cursor buttons to select a source.

The button for the currently selected source appears highlighted. The following wordclock sources can be selected.

Condition Source Description Always available INT 48K

When lockable external wordclock present

AES/EBU I/O card installed (MY8-AE) & lockable wordclock present

ADAT or Tascam I/O card installed (MY8-AT, MY8-TD) & lockable wordclock present

WCLK IN AES/EBU1 AES/EBU2 SLOT x 1/2 SLOT x 3/4 SLOT x 5/6 SLOT x 7/8

SLOT x

Internal 48 kHz wordclock (default setting) External wordclock via the BNC WORD CLOCK IN External wordclock via the AES/EBU IN 1 External wordclock via the AES/EBU IN 2 External wordclock via slot x, input pair 1/2 External wordclock via slot x, input pair 3/4 External wordclock via slot x, input pair 5/6 External wordclock via slot x, input pair 7/8

External wordclock via slot x

This button indicates that a wordclock signal is present and that it’s at the same frequency as the currently selected source. This source can be selected.

This button indicates that although a wordclock signal is present, it’s not at the same frequency as the currently selected source. This source can be selected.

This button indicates that no wordclock signal is present.

This source cannot

be selected. The button of the selected source appears highlighted, as shown here.

SREV1—Owner’s Manual

76 Chapter 8—Wordclocks

48K

44.1K

FS LOCK

48K

44.1K

FS LOCK

3 Press the [ENTER] button to activate the selected source.

The SREV1 checks the selected source to see if a usable wordclock signal is available. If such a signal exists, the SREV1 locks to it and the corresponding FS LOCK indicator,

44.1 kHz or 48 kHz, lights up. If a usable wordclock signal is not found, the SREV1 will not operate and the FS LOCK

indicators ﬂash, as shown in the following table. In this situation, you must select another wordclock source or correct the external wordclock source. This condition also occurs if a previously selected external wordclock source is disconnected, the device supplying it is turned off, or the external wordclock is neither 48 kHz nor 44.1 kHz.

The following table shows the indicator status when the SREV1 is synced and locked to its internal wordclock or an external source.

Condition

Wordclock Source

Button

FS LOCK Indicators

RC-SREV1

FS Status Indicator

Internal wordclock

Lock = yes Sync = yes

External wordclock

Lock = yes Sync = yes

The following table outlines each step in the transition from wordclock unlock to lock.

Step Condition

Lock = no

Sync = no

Lock = yes

Sync = no

Lock = yes

Sync = no

Lock = yes

Sync = yes

Wordclock

Source

Button

FS LOCK

Indicators

FS LOCK

48K

44.1K

Flashing together

FS LOCK

48K

44.1K

Alternate ﬂashing

FS LOCK

48K

44.1K

FS LOCK

48K

44.1K

RC-SREV1

FS Status Indicator

Notes

External source not connected, etc., SREV1 muted

About 0.5–1 second after external source connected, SREV1 locked, but still muted

After about 0.5–1 second, the wordclock frequency is established and the SREV1 unmuted

After about 2–3 seconds, synchronization is established and the SREV1 is ready for use

If the external wordclock frequency is neither 44.1 kHz nor 48 kHz (for example, it’s 32 kHz), the transition from unlock to lock will stop at step 2 and the SREV1 outputs will remain muted.

SREV1—Owner’s Manual

Selecting the Wordclock Source 77

48K

44.1K

FS LOCK

48K

44.1K

FS LOCK

The following table outlines each step in the transition from wordclock lock to unlock.

Step Condition

Lock = yes

Sync = yes

Lock = no

Sync = no

Wordclock

Source Button

FS LOCK

Indicators

Flashing together

RC-SREV1

FS Status Indicator

Notes

Normal condition

External source disconnected, etc., SREV1 muted

The INT 48K and WCLK IN buttons do not indicate whether or not the wordclock is locked or synchronized and never appear with diagonal lines through them. You can check the lock status of these sources by using the SREV1’s FS LOCK indicator, or the RC-SREV1’s FS status indicator.

If a previously selected wordclock source is no longer available, for example, when an I/O card is removed, the wordclock source button appears shaded. In this case, select another wordclock source in order to use the SREV1.

SREV1—Owner’s Manual

78 Chapter 8—Wordclocks

Wordclock Hookup Examples

The following diagram shows the three different ways in which an external wordclock can be fed to the SREV1: AES/EBU input, slot input, or WORD CLOCK IN.

SREV1

INPUT OUTPUT

12 123CH434

MEMORY CARD

231

DIGITAL (AES/EBU

)

Wordclock source

POWER

FS LOCK

48K

CLIP

44.1K

SIGNAL

CD-ROM

ON OFF

Digital Mixer

WC source setting: AES/EBU 1

SREV1

MEMORY CARD

WC source setting: SLOT1 1/2

INPUT OUTPUT

12 123CH434

FS LOCK

48K

CLIP

44.1K

SIGNAL

CD-ROM

DIGITAL RECORDING CONSOLE

SLOT

AES/EBU

DIGITAL I/O CARD MODEL MY8-AE

POWER

ON OFF

WORD CLOCK IN

Wordclock Master

Digital Multitrack Recorder

OVER

–dB

6 1012 1420 1830 20 42 2660

READY

RECORD READY

SOLO/

SELECT

PEAK

AUTO

ALL

HOLD

INPUT

MONITOR SELECT

TIME DISPLAY

DIGITAL MULTITRACK RECORDER

CAPTUREABS/REL

REMAIN

ABS H

MSF

OVER

0 –dB

0000 00 00

2 6

VARI

UTILITY

SETUP

YAMAHA D24

SPEED

20 30 42

LOCK

INT2448K

UNDO/

V. TRACK

EDIT

READY

SELECT

REDO

MASTER

BITFSTC

7654321

FORMAT CHASE

PROJECT SEARCH

LAST REC

AUTO

SET

OUT

PROJECT

SELECT

LOC MEM

RECALL

LOC MEM

STORE

LOCATEENTERCANCEL

0/-

PUNCH

JOG ON

RTN TO

ROLL

REPEAT

REHE

ZERO

BACK

STOP PLAY REC

REW FF

JOG/DATASHUTTLE/

CURSOR

POWER

OFF

010 PHONES

LEVEL

PHONES

SREV1

MEMORY CARD

WC source setting: WCLK IN

SREV1—Owner’s Manual

INPUT OUTPUT

12 123CH434

FS LOCK

48K

CLIP

44.1K

SIGNAL

CD-ROM

POWER

ON OFF

SREV1 #1

Wordclock Hookup Examples 79

The following diagram shows how a wordclock signal can be distributed by using coaxial BNC cables in a multiple-SREV1 system.

WORD CLOCK IN

POWER

FS LOCK

48K

CLIP

44.1K

SIGNAL

CD-ROM

ON OFF

MEMORY CARD

INPUT OUTPUT

12 123CH434

WC source setting: WCLK IN

SREV1 #2

MEMORY CARD

WC source setting: WCLK IN

SREV1 #3

MEMORY CARD

WC source setting: WCLK IN

SERIAL 2

Serial cable

SERIAL 1

INPUT OUTPUT

12 123CH434

FS LOCK

CLIP

SIGNAL

CD-ROM

SERIAL 2

Serial cable

SERIAL 1

INPUT OUTPUT

12 123CH434

FS LOCK

CLIP

SIGNAL

CD-ROM

SERIAL 2

WORD CLOCK IN

POWER

48K

44.1K

ON OFF

WORD CLOCK IN

POWER

48K

44.1K

ON OFF

Wordclock Master

SREV1 #4

MEMORY CARD

WC source setting: WCLK IN

Serial cable

SERIAL 1

INPUT OUTPUT

12 123CH434

FS LOCK

CLIP

SIGNAL

CD-ROM

WORD CLOCK IN

POWER

48K

44.1K

ON OFF

SREV1—Owner’s Manual

In this chapter...

I/O Options 81

I/O Options

I/O Options & the SREV1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Available I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Choosing I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Installing I/O Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

SREV1—Owner’s Manual

82 Chapter 9—I/O Options

I/O Options & the SREV1

In addition to the two AES/EBU inputs and outputs, the SREV1 features two mini YGDAI (Yamaha General Digital Audio Interface) slots for use with optional I/O cards, which offer several analog I/O options and digital I/O interfaces in all the popular digital audio interconnect formats, including AES/EBU, ADAT, and Tascam.

The Yamaha AW4416 Audio Workstation, 01V Digital Mixing Console, D24 Digital Multitrack Recorder, DME32 Digital Mixing Engine, AD824 AD Converter, and DA824 DA Converter also use mini YGDAI I/O cards. Note that the “CD” series of YGDAI cards used by the Yamaha 02R Digital Recording Console and 03D Digital Mixing Console are not interchangeable with mini YGDAI cards.

Slot inputs can be freely assigned to SREV1 channels. See “Assigning Inputs” on page 35 for more information. Channel-to-slot output assignments are ﬁxed. See “Output Assignments” on page 9 for more information.

Available I/O Cards

The following mini YGDAI cards are currently available. See the Yamaha Professional Audio Web site at the following URL for up-to-date news on mini YGDAI cards: <http://www.yamaha.co.jp/product/proaudio/homeenglish/>.

MY8-AD: 8 Analog Inputs

The MY8-AD card provides eight electronically balanced analog inputs via phone jack connectors, with 20-bit 128-times oversampling A/D converters.

MY4-AD: 4 Analog Inputs

The MY4-AD card provides four electronically balanced analog inputs via female XLR connectors, with 24-bit 128-times oversampling A/D converters.

MY4-DA: 4 Analog Outputs

The MY4-DA card provides four electronically balanced analog outputs via male XLR connectors, with 20-bit 128-times oversampling D/A converters.

MY8-AT: ADAT

The MY8-AT card provides ADAT format digital I/O via two MultiChannel Optical Digital Interface connectors, and supports 16-, 20-, and 24-bit wordlengths.

MY8-AE: AES/EBU

The MY8-AE card provides AES/EBU format digital I/O via a 25-pin D-sub connector, and supports 16-, 20-, and 24-bit wordlengths.

MY8-TD: Tascam

The MY8-TD card provides Tascam format digital I/O via a 25-pin D-sub connector, and supports 16-, 20-, and 24-bit wordlengths. A BNC connector is provided for wordclock output.

SREV1—Owner’s Manual

MY8-TD cards feature a device selector switch (EXT: 88/INT: 38) that should be set to match the device being connected. This should be set to “EXT: 88” when connecting a Tascam DA-88, or “INT: 38” when connecting a Tascam DA-38 or other digital audio device.

Choosing I/O Cards 83

Speciﬁcations for the currently available I/O cards are as follows.

Card Format In Out A/D D/A Wordlength Connectors

MY8-AD Analog input 8 —

MY4-AD Analog input 4 —

MY4-DA Analog output — 4 —

MY8-AT ADAT 8 8 ——16, 20, 24 Optical x2

MY8-AE AES/EBU 8 8 ——16, 20, 24

MY8-TD Tascam 8 8 ——16, 20, 24

20-bit,

128 times

24-bit,

128 times

——Phone jack (balanced) x8

——XLR-3-31 type (balanced) x4

20-bit,

128 times

— XLR-3-32 type (balanced) x4

25-pin D-sub

(cable not included)

25-pin D-sub

BNC wordclock output

As these speciﬁcations show, analog I/O cards offer either inputs or outputs, while digital I/O cards offer both inputs and outputs.

When an I/O card not listed above, for example, a future addition to the mini YGDAI series, is installed, the message “UNKNOWN CARD” appears.

Choosing I/O Cards

For analog I/O with XLR-type connectors, an MY4-AD card could be installed in, say, SLOT 1, and an MY4-DA card in SLOT 2, although it makes no difference which card is installed in each slot.

To connect the SREV1 to other digital audio equipment, you must determine which digital interconnect format—AES/EBU, ADAT, or Tascam—the other equipment supports, and then install the necessary I/O cards.

The following table shows which cards to use when connecting the SREV1 to other Yamaha digital audio products. Each product can be connected by using the AES/EBU, ADAT, or Tascam interface format.

Unit

AW4416

AD824 DA824

DME32

D24

01V

02R

03D

Max. # of

Cards

1 As above 1 As above 4 As above 4 As above 1 As above

4 single or

2 double

1 As above

Format Card for Other Unit

ADAT MY8-AT MY8-AT

Tascam MY8-TD MY8-TD

AES/EBU MY8-AE MY8-AE

ADAT CD8-AT MY8-AT

Tascam CD8-TDII MY8-TD

AES/EBU CD8-AE or CD8-AE-S MY8-AE

Card for

SREV1

An external wordclock can be sourced via digital I/O cards. See “Selecting the Word- clock Source” on page 75 for more information.

Using ADAT I/O cards in certain devices can cause wordclock-lock problems, so it’s rec- ommend that you source wordclock signals via I/O cards of another format.

See your Yamaha dealer for more information.

SREV1—Owner’s Manual

84 Chapter 9—I/O Options

Installing I/O Cards

This section explains how to install mini YGDAI cards in the SREV1.

1 Turn off the SREV1.

2 Undo the two ﬁxing screws and remove the slot cover, as shown below.

AC IN

OUT

DIGITAL

(

AES/EBU

SLOT

121

OUT INMIDI

)

SERIAL 1

WORD CLOCK INREMOTE

Keep the cover and ﬁxing screws in a safe place for future use.

3 Insert the card between the guide rails and slide it all the way into the slot,

as shown below. You may have to push ﬁrmly to plug the card into the SREV1 connector.

AC IN

OUT

DIGITAL

SLOT

(

AES/EBU

OUT

)

INMIDI

SERIAL 1

REMOTE

WORD CLOCK IN

4 Secure the card using the attached thumbscrews. Do not leave the thumb-

SREV1—Owner’s Manual

screws loose, as the card will not be grounded correctly.

You can check the type of I/O card installed in each slot, and assign slot inputs to channels on the DIO page. See “Assigning Inputs” on page 35 for more information.

Symptom Advice

Cannot turn on the SREV1.

The POWER indicator lights up when the SREV1 is turned on, but the INPUT and OUTPUT indicators ﬂash alternately.

Cannot turn on the RC-SREV1.

Troubleshooting 85

Troubleshooting

Make sure that the power cord is connected properly to a suitable AC wall outlet and the SREV1. See “Connecting the Power Cord” on page 26 for more information.

Make sure that the SREV1 POWER switch is set to ON. See “Turning On & Off the SREV1” on page 26 for more information.

If you still cannot turn on the SREV1, contact your Yamaha dealer.

Contact your Yamaha dealer.

Make sure that the remote cable is connected between the SREV1 and RC-SREV1 properly. See “Connecting the RC-SREV1 Remote Controller” on page 22.

Make sure that the RC-SREV1 POWER switch is in the ON position. See “Turning On & Off the RC-SREV1” on page 26 for more information.

The FS LOCK indicators ﬂash alternately.

The FS LOCK indicators ﬂash together.

The FS status section of the RC-SREV1 display shows “UNLOCK”.

Connected an input signal but there’s no output.

The SREV1 is locked but not synchronized to the external wordclock source. See “Selecting the Wordclock Source” on page 75 for more information.

The SREV1 is neither locked nor synchronized to the external wordclock source. See “Selecting the Wordclock Source” on page 75 for more information.

If you’re using slot inputs, make sure the I/O cards are installed properly and secured using the thumbscrews. See “Installing I/O Cards” on page 84.

Make sure the input is assigned to the proper channel. See “Assigning Inputs” on page 35 for more information.

Use the level meters to help trace the signal. See “Metering” on page 37 for more information.

Check the channel’s input and output level settings. See “Setting Input & Output Levels” on page 36 for more information.

Is the Bypass mode is set to REV-MUTE, the reverb balance set to 100%, and the reverb level set to –∞?

Are you connected to the correct outputs? See “Output Assignments” on page 9 for more information.

Is the SREV1 bypassed. See “Bypassing the SREV1” on page 40 for more information.

Can’t hear any reverb.

Recalled a program but only its title is displayed, no program number.

Make sure that the Reverb Balance parameter is not set to 0%. See “Main 2 Parameters” on page 54 and “Fine Reverb Parameters” on page 56 for more information.

Make sure that the Reverb Level parameter is not set to 0 dB. See “Fine Reverb Parameters” on page 56 for more information.

Probably because the program was recalled from a drive. Program numbers (P01–P12) are displayed only when programs are recalled from the Quick memories. See “RC-SREV1 Display” on page 18 for more information.

SREV1—Owner’s Manual

86 Troubleshooting

Symptom Advice

Cannot store a Quick memory program.

Cannot list the programs, projects, or impulse response data ﬁles on a PC Card.

Cannot list the programs, projects, or impulse response data ﬁles on a CD-ROM.

A program is being recalled unknowingly.

A parameter is being adjusted unknowingly.

Cannot receive MIDI messages.

MIDI Program Change messages do not recall programs.

Is the selected Quick memory write-protected? See “Protecting Quick Memory Programs” on page 44 for more information.

Make sure the PC Card is fully inserted. See “Using PC Cards” on page 29 for more information.

Make sure the CD-ROM is inserted correctly. See “Using CD-ROMs” on page 28 for more information.

Is the program assigned to a MIDI Program Change and being recalled by external MIDI messages? See “Assigning Quick Memory Programs to Program Changes” on page 70.

Is the parameter assigned to a MIDI Control Change and responding to external MIDI messages? See “Assigning Parameters to Control Changes” on page 71.

Check the MIDI connections.

Make sure the connected MIDI device is turned on and set to transmit on the correct MIDI Channels.

Check the MIDI settings on the RC-SREV1. See “Setting the MIDI Receive Channels” on page 69.

Make sure that the SREV1 is set to receive Program Change messages on the correct channel. See “Setting the MIDI Receive Channels” on page 69.

Check that the Program Change being transmitted is assigned to a Quick memory program. See “Assigning Quick Memory Programs to Program Changes” on page 70.

MIDI Control Change messages do not control parameters.

Several parameters are adjusted when a Control Change message is received.

Noise occurs from the outputs when the wordclock is changed on the wordclock master device.

Cannot eject a CD-ROM.

Make sure that the SREV1 is set to receive Control Change messages on the correct channel. See “Setting the MIDI Receive Channels” on page 69.

Check that the Control Change being transmitted is assigned to a parameter. See “Assigning Parameters to Control Changes” on page 71.

If a Control Change is assigned to more than one parameter, all of those parameters are adjusted when that Control Change is received. See “Assigning Parameters to Control Changes” on page 71 for more information.

This is normal, although it’s more likely to occur if an MY8-AT I/O card is installed. To eliminate the risk of speaker damage, turn down your power amps beforehand.

Use the emergency disc eject hole. See “SREV1 Front Panel” on page 12 for more information.

SREV1—Owner’s Manual

Error Messages 87

Appendix

Error Messages

Message Reason Solution

VERSION MISMATCH. PUSH ANY KEY TO DOWNLOAD.

COMMUNICATION TIMEOUT.

WRITE PROTECTED.

INSERT MEDIA. No media inserted.

TITLE IS EMPTY! No title has been entered or only spaces. Enter some characters for the title.

!!! LOW BATTERY !!!

!!! NO BATTERY !!! RESTORED FROM BACKUP.

DATA FILE NOT FOUND! INSERT PCMCIA CARD.

DATA FILE NOT FOUND! INSERT CD-ROM DISC.

EMPTY DATA! SOME DATA ISN’T LOADED. CAN’T SAVE THIS PROGRAM.

NO SUFFICIENT SPACE! CAN’T SAVE THIS PROGRAM.

DESTINATION WRITE PROTECTED!

COULD NOT COMMUNICATE WITH SREV1. CHECK THE CABLE CONNECTION AND SREV1’S POWER, THEN TURN ON RC-SREV1 AGAIN.

The software versions of the SREV1 and RC-SREV1 do not match.

Communication with the SREV1 failed.

A write protected Quick memory, program, or project was selected.

The SREV1’s internal backup battery is getting low.

The SREV1’s internal backup battery is ﬂat and the contents of the battery-backed memory were lost. The contents were restored from the backup ﬁle on the Internal card.

When the SREV1 was restarted, the Reverb mode changed, or a project loaded, the programs were loaded from the PC Card but the necessary impulse-response data could not be found.

When the SREV1 was restarted, the Reverb mode changed, or a project loaded, the programs were loaded from the CD-ROM but the necessary impulse-response data could not be found.

The impulse-response data for the program was not loaded.

The program cannot be stored due to lack of space on the PC Card or Internal card.

You tried to edit the title of a program or project on the Library page, but the destination ﬁle is write protected.

Communication between the SREV1 and RC-SREV1 failed during startup.

Press any button to download the necessary software from the SREV1 to the RC-SREV1 in order to match the software versions.

Turn off both the SREV1 and RC-SREV1 and check the remote cable connections, also check for breaks in the cable.

Turn off the protection in order to store or edit the title. The CD-ROM is always write protected.

Insert the necessary media. Note that it takes the SREV1 between 20 and 30 seconds to recognize CD-ROMs.

Ask your Yamaha dealer to change the battery as soon as possible.

Insert the PC Card containing the necessary impulse-response data.

Insert the CD-ROM containing the necessary impulse-response data.

Load the necessary impulse-response data, or load the program again.

Insert another PC Card, or delete some unnecessary programs in order to free some space.

Use another title, or turn off the write protection.

If the RC-SREV1 is powered by an optional AC adapter, make sure that the SREV1 is turned on.

Turn off both the SREV1 and RC-SREV1 and check the remote cable connections, also check for breaks in the cable.

SREV1—Owner’s Manual

88 Appendix

Conﬁrmation Messages

Message Condition Solution

CURRENT IS EDITED. RECALL PROGRAM OK?

CURRENT IS EDITED, LOAD LIBRARY OK?

SAME LIBRARY EXISTS! OVERWRITE OK?

DELETE LIBRARY OK?

CURRENT IS EDITED. LOAD PROJECT OK?

SAME PROJECT EXISTS! OVERWRITE OK?

DELETE PROJECT OK?

LOAD DATA OK?

CHANGE REV MODE OK?

Appears when you recall a program from the Quick memory page, but the current program contains unsaved changes.

Appears when you recall a program from the Library page, but the current program contains unsaved changes.

Appears when you save the current program on the Library page, but a program with the same title already exists.

Appears when you edit the title of the selected program on the Library page, but a program with the same title already exists.

Appears when you delete the selected program on the Library page.

Appears when you recall a project from the Project page, but the current program contains unsaved changes.

Appears when you save a project on the Project page, but a program with the same title already exists.

Appears when you edit the title of the selected project on the Project page, but a program with the same title already exists.

Appears when you delete the selected project on the Project page.

Appears when you load the selected impulse-response data from the Data Load page.

Appears when you select a different Reverb mode on the Setup page.

To discard the current program’s unsaved changes and recall the program, press OK. To cancel the operation, press CANCEL.

To discard the current program’s unsaved changes and load the program, press OK. To cancel the operation, press CANCEL.

To save and overwrite the existing program, press OK. To cancel the operation, press CANCEL.

To overwrite the existing program, press OK. To cancel the operation, press CANCEL.

Press OK to delete the selected program. To cancel the operation, press CANCEL.

To discard the current program’s unsaved changes and load the project, press OK. To cancel the operation, press CANCEL.

To save and overwrite the existing program, press OK. To cancel the operation, press CANCEL.

Press OK to delete the selected program. To cancel the operation, press CANCEL.

Press OK to load the selected impulse-response data. To cancel the operation, press CANCEL.

Press OK to switch to the Reverb mode. To cancel the operation, press CANCEL.

SREV1—Owner’s Manual

General Messages 89

General Messages

Message Meaning

INITIALIZING... The RC-SREV1’s internal information is being updated. SETTING REV MODE... The Reverb mode is being changed. RECALLING PROGRAM... A Quick memory program is being recalled on the Program page. STORING PROGRAM... The current program is being stored to the selected Quick memory. LOADING LIBRARY... The selected program is being loaded on the Library page. SAVING LIBRARY... The current program is being saved on the Library page. CHANGING TITLE... The title of the selected program is being changed on the Library page. DELETING LIBRARY... The selected program is being deleted on the Library page.

CHANGING PROTECT MODE...

DOWNLOADING FILE LIST...

LOADING DATA... The selected impulse-response data is being loaded on the Data Load page.

DOWNLOADING FILE LIST...

LOADING PROJECT... The selected project is being loaded on the Project page. SAVING PROJECT... The selected project is being saved on the Project page. CHANGING TITLE... The title of the selected project is being changed on the Project page. DELETING PROJECT... The selected project is being deleted on the Project page.

CHANGING PROTECT MODE...

DOWNLOADING FILE LIST...

The protection setting of the selected program is being changed on the Library page.

The program list is being downloaded from the selected drive on the Library page.

The impulse-response data list is being downloaded from the selected drive on the Library page.

The protection setting of the selected project is being changed on the Project page.

The project list is being downloaded from the selected drive on the Project page.

SREV1—Owner’s Manual

90 Appendix

General Speciﬁcations

Sampling rate

Internal processing 32 bit

Program Memories

Indicators

PC Card slot PCMCIA (Type II), PC Card ATA spec, FAT16

CD-ROM drive ISO9660 Level 2 format

Cooling fan x2

Power requirements

Power consumption 120 W

Dimensions (W

Internal 48 kHz

External 44.1 kHz or 48 kHz

2-channel, 4-channel mode

2-channel x2 mode 12 (P01–P12)

INPUT SIGNAL x4 (–34 dB), CLIP x4

OUTPUT SIGNAL x4 (–34 dB), CLIP x4

FS LOCK 48K, 44.1K

Others POWER, PC Card, CD-ROM

H × D) 480 × 141.7 × 451.8 mm (18.9 x 5.6 x 17.8 inches)

6 (P01–P06)

U.S.A. & Canada 120 V AC, 60 Hz Europe 230 V AC, 50 Hz

Weight 11.5 kg (25.3 lbs)

Free-air operating temperature 5˚ C to 40˚ C (41˚ F to 104˚ F)

Power cord length 2.5 m

Supplied accessories

Options

Power cord, CD-ROM (Reverb programs, data), Owner’s Manual

RC-SREV1, DB-SREV1, MY8-AD, MY4-AD, MY4-DA, MY8-AT, MY8-AE, MY8-TD

SREV1—Owner’s Manual

Digital Input Specifications 91

Digital Input Speciﬁcations

Connection Format Data Length Level Connector

DIGITAL IN 1, 2 AES/EBU 24 bit RS-422

1. XLR-3-31 type connectors are balanced (pin 1–ground, pin 2–hot (+), and pin 3–cold (–).

XLR-3-31 type

Digital Output Speciﬁcations

Connection Format Data Length Level Connector

DIGITAL OUT 1, 2

1. Channel status: Type: 2 audio channels. Sampling rate: depends on internal conﬁguration.

2. XLR-3-32 type connectors are balanced (pin 1–ground, pin 2–hot (+), and pin 3–cold (–).

AES/EBU

24 bit RS-422

XLR-3-32 type

Control I/O Speciﬁcations

Connection Format Level Connector

SERIAL 1, 2 — RS-422 8-pin mini DIN MIDI IN MIDI — 5-pin DIN MIDI OUT MIDI — 5-pin DIN WORD CLOCK IN — TTL 75Ω BNC REMOTE SLOT (x2) mini YGDAI ——

—

RS-422 9-pin D-sub (female)

Remote Cable Wiring Diagram

SREV1 RC-SREV1

9-pin D-sub

(male)

NC 1 1 NC RX– 2 2 TX– TX+ 3 3 RX+

NC 4 4 NC

+12V 5 5 +12V

NC 6 6 NC RX+ 7 7 TX+ TX– 8 8 RX–

GND 9 9 GND

9-pin D-sub

(female)

Note that if the resistance of the +12V or GND line between the two connectors is more

than 1.5Ω, the optional Yamaha PA-6 AC adapter should be used to power the

RC-SREV1. Note also that the screws used to secure the D-sub connectors to the SREV1 and

RC-SREV1 must be metric. Readily available D-sub connectors typically come with securing screws with an imperial thread, which cannot be used. The securing screws on the D-sub connectors on the supplied remote cable are metric.

SREV1—Owner’s Manual

92 Appendix

Dimensions

451.8

440 11.8

21.5 21.5

132

141.7

9.7

437 480

31881 81

Speciﬁcations and external appearance subject to change without notice.

For European Model Purchaser/User Information speciﬁed in EN55103-1 and EN55103-2.

Inrush Current: 70A Conformed Environment: E1, E2, E3 and E4

43.5 34362.5

Units: mm

SREV1—Owner’s Manual

Glossary 93

Glossary

2-channel mode—In this mode the SREV1 functions as a stereo processor. 4-channel mode—In this mode the SREV1 functions as a 4-channel surround pro-

cessor. 2-channel x2 mode—In this mode the SREV1 functions as two independent stereo

processors (A and B). ADAT interconnect format—The digital audio interconnect format typically

found on ADAT-compatible digital audio equipment. Eight channels of digital audio are carried per ﬁber-optic connection using Toslink connectors.

AES/EBU interconnect format—The digital audio interconnect format, estab- lished by the AES (Audio Engineering Society) and EBU (European Broadcasting Union), for transferring digital audio data between professional digital audio equipment. Two channels of digital audio (left/odd and right/even) are carried per balanced line.

CD-ROM (Compact Disc Read Only Memory)— The compact disc format for data storage. Deﬁned in the Yellow Book.

Control Change—A type of MIDI message offering real-time parameter control. Typical Control Changes include Modulation, Volume, Pan, and Portamento.

Convolution—The digital audio process of imposing the characteristics of one signal onto another signal. The SREV1 convolves an acoustic “ﬁngerprint” of a previously measured environment onto an audio signal, faithfully recreating the original reverberation, with accurate reﬂection detail identical to that produced had the sound been heard in that environment.

Convolution time—Convolution time is not the same as reverb time. Reverb time is the time it takes the reverberation to decay by –60 dB, and more convolution is required to provide reverberation down to –90 dB or –120 dB, so the convolution time must be between 1.5 and 2 times more than the reverb time.

DIO—Abbreviation for “digital input and output.” Drives—Programs, projects, and impulse-response data can be stored on the follow-

ing drives: Internal Card, PC Card, or CD-ROM. (The Internal Card is compact ﬂash memory.)

FAT16—The FAT (File Allocation Table) system, developed by Microsoft and sup- ported by MS-DOS and most Windows operating systems, is essentially a database that records where ﬁles are stored on hard disks and other storage media. FAT12 is the original 12-bit version. FAT16 is the 16-bit version, since superseded by the 32-bit version, FAT32, which supports larger storage devices.

FS—Abbreviation for “sampling frequency.” Impulse response—The sound pressure measured at a sensor position set against

the time of an acoustic pulse “ﬁred” from the source position. In other words, an envi- ronment’s acoustical response.

Initial delay—The delay before the reverb reﬂections start. ISO9660 Level 2—A standard format for storing ﬁles and directories on a CD-ROM.

Conforming discs can be read by Macintosh, Windows, UNIX, and other systems. Library—The place used to load, save, title, protect, and delete programs from the

Internal Card, PC Card, and CD-ROM. MIDI (Musical Instrument Digital Interface)—The standard digital interface

for controlling electronic musical systems and audio equipment.

SREV1—Owner’s Manual

94 Glossary

mini YGDAI (Yamaha General Digital Audio Interface)—The second-gener-

ation YGDAI interface system used on the 01V Digital Mixing Console, D24 Digital Multitrack Recorder, DME32 Digital Mixing Engine, and SREV1.

PC Card—A small, credit card-sized device for use with personal computers and other electronic devices. PC Cards come in three thicknesses, the thinnest being Type I, which is typically used for RAM or ROM memory. Type II cards, which are slightly thicker, may contain, for example, a fax/modem, while Type III cards are thick enough to contain a hard disk drive.

PCMCIA (Personal Computer Memory Card International Association)—The organization responsible for the development of the PC Card standard.

Peaking—A type of EQ circuit used to cut and boost a band of frequencies, producing

a mountain-peak type response. The width of the band is called the Q. Middle-band EQ is usually of the peaking type. Compare with Shelving.

PEQ—Abbreviation for “parametric EQ.” Program—Measured impulse response data is combined with variable parameters

such as reverb time and initial delay to form reverb programs. Preset programs are supplied on CD-ROM. User programs can be stored in the Quick memories, Internal Card or PC Card.

Program Change—A type of MIDI message for recalling programs. Project—A Project contains all the Quick memory programs and the current pro-

gram settings. Projects can be stored on the Internal Card or PC Card. Q—The unit used to express a ﬁlter’s width. High values imply a narrow frequency

band, low values, a wide frequency band. Quick memory—Quick memories are special memories for storing programs.

Unlike programs stored on the Internal Card, PC Card, or CD-ROM, which take time to load, Quick memory programs can be recalled instantly.

Reverb mode—The SREV1 offers three modes of operation: 2-channel, 4-channel, and 2-channel x2. In 2-channel mode, the SREV1 functions as a stereo processor. In 4-channel mode, the SREV1 offers 4-channel surround processing. In 2-channel x2 mode, the SREV1 functions as two independent stereo processors (A and B).

Reverb time—The time it takes the reverberation to decay by –60 dB. See also Con- volution time.

RS-232C—An interface for connecting serial devices, offering a transmission distance of approximately 15 meters, typically using 9- or 25-pin D-Sub connectors.

RS-422—A balanced interface for connecting serial devices, offering a transmission distance of approximately 1 kilometer, higher data rates, and greater immunity to interference than RS-232C.

Shelving—A type of EQ circuit used to cut and boost frequencies above or below a set frequency. It produces a shelf-looking response curve. High and low EQs are usually of the shelving type. Contrast with Peaking.

SREV1—Owner’s Manual

Tascam TDIF-1 interconnect format—The Tascam Digital InterFace audio inter- connect format typically found on Tascam TDIF-1-compatible digital audio equipment. TDIF-1 is a bidirectional, 8-channel format, which uses 25-pin D-sub connectors.

Wordclock—A clock signal used to synchronize the data processing circuits of devices digital audio equipment.

YGDAI (Yamaha General Digital Audio Interface)—Yamaha digital audio interface system offering a range of analog and digital input and output options for Yamaha digital audio equipment, including AES/EBU, ADAT, and Tascam DIO.
