Read this manual carefully before operating this vehicle.
OWNER’S MANUAL
SR400
2RD-28199-E0
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
Q
EAU46091
INTRODUCTION
WARNING
EAU10103
Welcome to the Yamaha world of motorcycling!
As the owner of the SR400, you are benefiting from Yamaha’s vast experience and newest technology regarding the design
and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your SR400. The Owner’s Manual does
not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your motorcycle and this
manual. If there is any question concerning this manual, please consult a Yamaha dealer.
Please read this manual carefully and completely before operating this motorcycle.
EWA10032
IMPORTANT MANUAL INFORMATION
WARNING
NOTICE
TIP
Particularly important information is distinguished in this manual by the following notations:
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
*Product and specifications are subject to change without notice.
EAU10134
IMPORTANT MANUAL INFORMATION
EAU10201
SR400
OWNER’S MANUAL
©2013 by Yamaha Motor Co., Ltd.
1st edition, October 2013
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
TABLE OF CONTENTS
SAFETY INFORMATION ................... 1-1
DESCRIPTION ................................... 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments................. 2-3
INSTRUMENT AND CONTROL
FUNCTIONS ....................................... 3-1
Main switch/steering lock................. 3-1
Indicator lights and warning lights ... 3-2
Speedometer unit ............................ 3-3
Tachometer ..................................... 3-4
Handlebar switches ......................... 3-4
Clutch lever...................................... 3-5
Shift pedal........................................ 3-6
Brake lever ...................................... 3-6
Brake pedal ..................................... 3-6
Fuel tank cap ................................... 3-7
Fuel.................................................. 3-7
Fuel tank breather/overflow hose .... 3-9
Catalytic converter........................... 3-9
Fuel cock ....................................... 3-10
Kickstarter...................................... 3-10
Decompression lever..................... 3-11
Seat ............................................... 3-11
Adjusting the shock absorber
assemblies ................................. 3-12
Sidestand....................................... 3-12
Ignition circuit cut-off system ......... 3-13
FOR YOUR SAFETY –
PRE-OPERATION CHECKS ............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine .......................... 5-1
Starting trouble................................ 5-2
Shifting ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ................................... 6-1
Owner’s tool kit................................ 6-2
Periodic maintenance chart for the
emission control system .............. 6-3
General maintenance and
lubrication chart ........................... 6-4
Removing and installing the
panel ............................................ 6-7
Checking the spark plug.................. 6-8
Engine oil and oil filter element ....... 6-9
Replacing the air filter element...... 6-12
Checking the engine idling
speed ......................................... 6-13
Checking the throttle grip free
play ............................................ 6-13
Valve clearance............................. 6-13
Tires .............................................. 6-14
Spoke wheels ................................ 6-16
Adjusting the clutch lever free
play............................................. 6-16
Adjusting the brake lever free
play............................................. 6-17
Adjusting the brake pedal height
and free play............................... 6-18
Checking the shift pedal ................ 6-19
Brake light switches....................... 6-19
Checking the front brake pads
and rear brake shoes ................ 6-20
Checking the brake fluid level........ 6-20
Changing the brake fluid ............... 6-21
Drive chain slack............................ 6-22
Cleaning and lubricating the drive
chain........................................... 6-23
Checking and lubricating the
cables ......................................... 6-24
Checking and lubricating the
throttle grip and cable................. 6-24
Checking and lubricating the
brake and clutch levers .............. 6-25
Checking and lubricating the
brake pedal................................. 6-25
Checking and lubricating the
centerstand and sidestand ......... 6-26
Lubricating the swingarm pivots .... 6-26
Checking the front fork................... 6-27
Checking the steering .................... 6-27
Checking the wheel bearings......... 6-28
Battery ........................................... 6-28
Replacing the fuses....................... 6-29
Replacing the headlight bulb ......... 6-31
Replacing the tail/brake light
bulb ............................................ 6-32
Replacing a turn signal light
bulb ............................................ 6-33
Replacing the auxiliary light
bulb ............................................ 6-34
Front wheel.................................... 6-35
Rear wheel .................................... 6-37
Troubleshooting............................. 6-39
Troubleshooting chart.................... 6-40
MOTORCYCLE CARE AND
STORAGE .......................................... 7-1
Matte color caution .......................... 7-1
Care................................................. 7-1
Storage............................................ 7-3
SPECIFICATIONS.............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers ..................... 9-1
INDEX ............................................... 10-1
TABLE OF CONTENTS
SAFETY INFORMATION
1
Be a Responsible Owner
2
As the vehicle’s owner, you are responsible for the safe and proper operation
3
of your motorcycle.
Motorcycles are single-track vehicles.
4
Their safe use and operation are dependent upon the use of proper riding
techniques as well as the expertise of
5
the operator. Every operator should
know the following requirements before
6
riding this motorcycle.
He or she should:
7
Obtain thorough instructions from
a competent source on all aspects
8
of motorcycle operation.
Observe the warnings and mainte-
nance requirements in this Own-
9
10
11
er’s Manual.
Obtain qualified training in safe
and proper riding techniques.
Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
12
Never operate a motorcycle with-
out proper training or instruction.
EAU1028B
Take a training course. Beginners
should receive training from a certified instructor. Contact an authorized motorcycle dealer to find out
about the training courses nearest
you.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 4-1
for a list of pre-operation checks.
This motorcycle is designed to car-
ry the operator and a passenger.
The failure of motorists to detect
and recognize motorcycles in traffic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
1-1
• Use extra caution when you are
approaching and passing
through intersections, since intersections are the most likely
places for motorcycle accidents
to occur.
• Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.
• Never maintain a motorcycle
without proper knowledge. Contact an authorized motorcycle
dealer to inform you on basic
motorcycle maintenance. Certain maintenance can only be
carried out by certified staff.
Many accidents involve inexperi-
enced operators. In fact, many operators who have been involved in
accidents do not even have a current motorcycle license.
• Make sure that you are qualified
and that you only lend your motorcycle to other qualified operators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
SAFETY INFORMATION
tice riding your motorcycle
where there is no traffic until you
have become thoroughly familiar with the motorcycle and all of
its controls.
Many accidents have been caused
by error of the motorcycle operator. A typical error made by the operator is veering wide on a turn
due to excessive speed or undercornering (insufficient lean angle
for the speed).
• Always obey the speed limit and
never travel faster than warranted by road and traffic conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator footrests during operation to maintain control of the motorcycle.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.
Never ride under the influence of
alcohol or other drugs.
This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective Apparel
The majority of fatalities from motorcycle accidents are the result of head injuries. The use of a safety helmet is the
single most critical factor in the prevention or reduction of head injuries.
Always wear an approved helmet.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on the
1-2
control levers, footrests, or wheels
and cause injury or an accident.
Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust system become very hot during or after operation and can cause burns.
A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing carbon monoxide can cause headaches,
dizziness, drowsiness, nausea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless, tasteless gas which may be present even if you do not see or smell any
engine exhaust. Deadly levels of carbon monoxide can collect rapidly and
you can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide can linger for
hours or days in enclosed or poorly
ventilated areas. If you experience any
symptoms of carbon monoxide poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
1
2
3
4
5
6
7
8
9
10
11
12
SAFETY INFORMATION
MENT.
1
Do not run engine indoors. Even if
you try to ventilate engine exhaust
2
with fans or open windows and
doors, carbon monoxide can rap-
3
idly reach dangerous levels.
Do not run engine in poorly venti-
lated or partially enclosed areas
4
such as barns, garages, or carports.
Do not run engine outdoors where
5
engine exhaust can be drawn into
6
7
a building through openings such
as windows and doors.
Loading
Adding accessories or cargo to your
motorcycle can adversely affect stabili-
8
ty and handling if the weight distribution
of the motorcycle is changed. To avoid
9
the possibility of an accident, use extreme caution when adding cargo or
10
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
11
Here, along with the information about
accessories below, are some general
12
guidelines to follow if loading cargo to
your motorcycle:
The total weight of the operator, passenger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.
Maximum load:
150 kg (331 lb)
When loading within this weight limit,
keep the following in mind:
Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Securely pack your heaviest items as
close to the center of the vehicle as
possible and make sure to distribute the weight as evenly as possible on both sides of the motorcycle
to minimize imbalance or instability.
Shifting weights can create a sud-
den imbalance. Make sure that accessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.
• Properly adjust the suspension
for your load (suspension-ad-
1-3
justable models only), and
check the condition and pressure of your tires.
• Never attach any large or heavy
items to the handlebar, front
fork, or front fender. These
items, including such cargo as
sleeping bags, duffel bags, or
tents, can create unstable handling or a slow steering response.
This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are available only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and accessories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither en-
SAFETY INFORMATION
dorse nor recommend the use of accessories not sold by Yamaha or
modifications not specifically recommended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket products similar in design and quality to
genuine Yamaha accessories, recognize that some aftermarket accessories
or modifications are not suitable because of potential safety hazards to you
or others. Installing aftermarket products or having other modifications performed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loading” when mounting accessories.
Never install accessories or carry
cargo that would impair the performance of your motorcycle. Carefully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or obscure lights or reflectors.
• Accessories fitted to the handlebar or the front fork area can
create instability due to improper
weight distribution or aerodynamic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerodynamic effects. Wind may attempt to lift the motorcycle, or
the motorcycle may become unstable in cross winds. These accessories may also cause
instability when passing or being
passed by large vehicles.
• Certain accessories can displace the operator from his or
her normal riding position. This
improper position limits the free-
1-4
dom of movement of the operator and may limit control ability,
therefore, such accessories are
not recommended.
Use caution when adding electri-
cal accessories. If electrical accessories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, braking, and comfort. Other tires, rims, sizes, and combinations may not be
appropriate. Refer to page 6-14 for tire
specifications and more information on
replacing your tires.
Transporting the Motorcycle
Be sure to observe following instructions before transporting the motorcycle in another vehicle.
Remove all loose items from the
motorcycle.
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
SAFETY INFORMATION
Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to prevent movement.
Shift the transmission in gear (for
models with a manual transmission).
Secure the motorcycle with
tie-downs or suitable straps that
are attached to solid parts of the
motorcycle, such as the frame or
upper front fork triple clamp (and
not, for example, to rubber-mounted handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
The suspension should be com-
pressed somewhat by the
tie-downs, if possible, so that the
motorcycle will not bounce excessively during transport.
12
1-5
Left view
1, 2
4
5, 6
3
78
DESCRIPTION
EAU10411
1
2
3
4
5
1. Engine oil dipstick (page 6-9)
2. Engine oil filler cap (page 6-9)
3. Fuel tank cap (page 3-7)
4. Fuel cock (page 3-10)
5. Battery (page 6-28)
6. Fuse (page 6-29)
7. Shock absorber assembly spring preload adjusting ring (page 3-12)
8. Shift pedal (page 3-6)
2-1
6
7
8
9
10
11
12
DESCRIPTION
1
2
4
56
3
7
1
Right view
2
3
4
5
EAU10421
6
7
8
9
1. Air filter element (page 6-12)
10
2. Kickstarter (page 3-10)
3. Kick indicator (page 5-1)
4. Headlight (page 6-31)
11
5. Brake pedal (page 3-6)
6. Owner’s tool kit (page 6-2)
12
7. Shock absorber assembly spring preload adjusting ring (page 3-12)
2-2
Controls and instruments
12 345 78
9
6
10
DESCRIPTION
EAU10431
1
2
3
4
5
6
1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Speedometer unit (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Tachometer (page 3-4)
6. Front brake fluid reservoir (page 6-20)
7. Right handlebar switches (page 3-4)
8. Brake lever (page 3-6)
9. Throttle grip (page 6-13)
10.Decompression lever (page 3-11)
2-3
7
8
9
10
11
12
INSTRUMENT AND CONTROL FUNCTIONS
TIP
WARNING
P
ON
OFF
LOCK
12
1
Main switch/steering lock
2
3
4
5
The main switch/steering lock controls
6
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
7
8
ON
All electrical circuits are supplied with
power, and the meter lighting and tail-
9
light come on, and the engine can be
started. The key cannot be removed.
10
11
The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
12
the engine stalls.
EAU10462
EAU45111
EAU10662
OFF
All electrical systems are off. The key
can be removed.
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10685
LOCK
The steering is locked, and all electrical
systems are off. The key can be removed.
To lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” position, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
3-1
INSTRUMENT AND CONTROL FUNCTIONS
NOTICE
12
4215
3
To unlock the steering
1. Push.
2. Turn.
Push the key in, and then turn it to
“OFF” while still pushing it.
(Parking)
The hazard lights and turn signal lights
can be turned on, but all other electrical
systems are off. The key can be removed.
The steering must be locked before the
key can be turned to “ ”.
Using the hazard or turn signal
lights for an extended length of time
EAU59680
ECA20760
may cause the battery to discharge.
EAU49395
Indicator lights and warning lights
1. Engine trouble warning light “ ”
2. Fuel level warning light “ ”
3. Neutral indicator light “ ”
4. High beam indicator light “ ”
5. Turn signal indicator light “ ”
EAU11021
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
1
2
3
4
5
6
7
8
9
10
11
12
3-2
INSTRUMENT AND CONTROL FUNCTIONS
1
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
2
on.
3
Fuel level warning light “ ”
This warning light comes on when the
4
fuel level drops below approximately
2.2 L (0.58 US gal, 0.48 Imp.gal). When
5
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
6
“ON”. The warning light should come
on for a few seconds, and then go off.
7
If the warning light does not come on
initially when the key is turned to “ON”,
8
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
9
10
Engine trouble warning light “ ”
This warning light comes on if a problem is detected in the electrical circuit
11
monitoring the engine. If this occurs,
have a Yamaha dealer check the
12
self-diagnosis system.
The electrical circuit of the warning light
EAU11081
EAU11354
EAU11485
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
3-3
EAU11631
Speedometer unit
123 4
1. Reset knob
2. Speedometer
3. Odometer
4. Tripmeter
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows riding speed. The odometer shows the total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will enable you to plan future fuel stops.
INSTRUMENT AND CONTROL FUNCTIONS
NOTICE
1
2
1
2
1
2
EAU11882
Tachometer
1
2
1. Tachometer
2. Tachometer red zone
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
Do not operate the engine in the tachometer red zone.
Red zone: 7000 r/min and above
ECA10032
Handlebar switches
Left
1. Dimmer switch “ / ”
2. Pass switch “ ”
Left
1. Turn signal switch “ / ”
2. Horn switch “ ”
3-4
EAU1234F
Right
1. Engine stop switch “ / ”
2. Hazard switch “ / ”
EAU12351
Pass switch “ ”
Press this switch to flash the headlight.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When released, the switch returns to the center
position. To cancel the turn signal
1
2
3
4
5
6
7
8
9
10
11
12
INSTRUMENT AND CONTROL FUNCTIONS
NOTICE
1
lights, push the switch in after it has re-
1
turned to the center position.
2
Horn switch “ ”
Press this switch to sound the horn.
3
Engine stop switch “ / ”
4
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
5
stop the engine in case of an emergency, such as when the vehicle overturns
or when the throttle cable is stuck.
6
7
Hazard switch “ ”
With the key in the “ON” position, use
this switch to turn on the hazard lights
8
(simultaneous flashing of all turn signal
lights).
9
The hazard lights are used in case of
an emergency or to warn other drivers
10
when your vehicle is stopped where it
might be a traffic hazard.
11
EAU12501
EAU12661
EAU12766
ECA10062
tery may discharge.
EAU12821
Clutch lever
1. Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handlebar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition circuit cut-off system. (See
page 3-13.)
Do not use the hazard lights for an
12
extended length of time with the engine not running, otherwise the bat-
3-5
INSTRUMENT AND CONTROL FUNCTIONS
1
1
1
EAU12872
Shift pedal
1. Shift pedal
The shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 5-speed constant-mesh transmission equipped on
this motorcycle.
EAU12892
Brake lever
1. Brake lever
The brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
EAU12942
Brake pedal
1. Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1
2
3
4
5
6
7
8
9
10
11
12
3-6
INSTRUMENT AND CONTROL FUNCTIONS
TIP
WARNING
WARNING
2
1
1
2
1
Fuel tank cap
To remove the fuel tank cap
2
3
4
5
6
1. Unlock.
2. Fuel tank cap lock cover
7
Slide the fuel tank cap lock cover open,
insert the key into the lock, and then
8
turn it 1/4 turn clockwise. The lock will
be released and the fuel tank cap can
9
be removed.
10
To install the fuel tank cap
1. Insert the fuel tank cap into the
11
tank opening with the key inserted
in the lock and with the “ ” mark
facing forward.
12
EAU13125
1. “ ” mark
2. Fuel tank cap lock cover
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
EWA10132
Make sure that the fuel tank cap is
properly installed before riding.
Leaking fuel is a fire hazard.
EAU13222
Fuel
Make sure there is sufficient gasoline in
the tank.
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engine and be sure that no one is sitting on the vehicle. Never refuel
while smoking, or while in the vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
3-7
INSTRUMENT AND CONTROL FUNCTIONS
WARNING
NOTICE
1
2
1. Maximum fuel level
2. Fuel tank filler tube
3. Wipe up any spilled fuel immediately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteriorate painted surfaces or plastic
parts.
[ECA10072]
4. Be sure to securely close the fuel
tank cap.
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gasoline with care. Never siphon gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor, or get some gasoline in
your eyes, see your doctor immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills on your clothing, change
your clothes.
EAU57690
Recommended fuel:
Regular unleaded gasoline (Gasohol
(E10) acceptable)
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
2.2 L (0.58 US gal, 0.48 Imp.gal)
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been designed to use regular unleaded gasoline with a research octane number of
95 or higher. If knocking (or pinging) occurs, use a gasoline of a different brand
3-8
or premium unleaded fuel. Use of unleaded fuel will extend spark plug life
and reduce maintenance costs.
Gasohol
There are two types of gasohol: gasohol containing ethanol and that containing methanol. Gasohol containing
ethanol can be used if the ethanol content does not exceed 10% (E10). Gasohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
1
2
3
4
5
6
7
8
9
10
11
12
INSTRUMENT AND CONTROL FUNCTIONS
WARNING
NOTICE
1
1
Fuel tank breather/overflow hose
2
3
4
5
6
1. Fuel tank breather/overflow hose
Before operating the motorcycle:
7
Check the fuel tank breather/over-
flow hose connection.
8
Check the fuel tank breather/over-
flow hose for cracks or damage,
9
10
11
and replace it if necessary.
Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
EAU39453
EAU13434
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
EWA10863
The exhaust system is hot after operation. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust sys-
tem has cooled down before doing any maintenance work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10702
pairable damage to the catalytic
converter.
12
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
3-9
INSTRUMENT AND CONTROL FUNCTIONS
1
1
1
EAU59490
Fuel cock
The fuel cock regulates and filters the
fuel supply from the fuel pump to the
fuel injector.
The fuel cock has two positions:
ON
1. Arrow mark positioned over “ON”
With the lever in this position, fuel will
be supplied to the engine. Normal operation is done with the lever in this position.
OFF
1. Arrow mark positioned over “OFF”
With the lever in this position, fuel will
not flow. Use this lever position when
performing certain maintenance work
or when storing the vehicle for a prolonged time.
EAU13651
Kickstarter
1. Kickstarter
To start the engine, fold out the kickstarter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but forcefully. This model is equipped with a primary kickstarter, allowing the engine to
be started in any gear if the clutch is
disengaged. However, shifting the
transmission into the neutral position
before starting is recommended.
1
2
3
4
5
6
7
8
9
10
11
12
3-10
INSTRUMENT AND CONTROL FUNCTIONS
TIP
1
1
1
1
2
1
Decompression lever
2
3
4
5
1. Decompression lever
6
When this lever is pulled, the exhaust
valve is forced open so that the com-
7
pression pressure can be reduced.
This allows the piston to be moved just
past the compression stroke before
8
kick starting. (See page 5-1.)
9
10
EAU13701
EAU13961
Seat
To remove the seat
Remove the bolts, and then pull the
seat off.
1. Bolt
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
1. Seat holder
2. Projection
2. Place the seat in the original position, and then tighten the bolts.
Make sure that the seat is properly secured before riding.
11
12
3-11
INSTRUMENT AND CONTROL FUNCTIONS
WARNING
NOTICE
TIP
WARNING
1
2
3
4
5
1
(a)
(b)
EAU14883
Adjusting the shock absorber assemblies
EWA10211
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Each shock absorber assembly is
equipped with a spring preload adjusting ring.
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock absorber assembly in direction (a). To decrease the spring preload and thereby
soften the suspension, turn the adjusting ring on each shock absorber assembly in direction (b).
Align the appropriate notch in the adjusting ring with the position indicator
ECA10102
on the shock absorber.
1. Spring preload adjusting ring
Spring preload setting:
Minimum (soft):
1
Standard:
1
Maximum (hard):
5
3-12
EAU15306

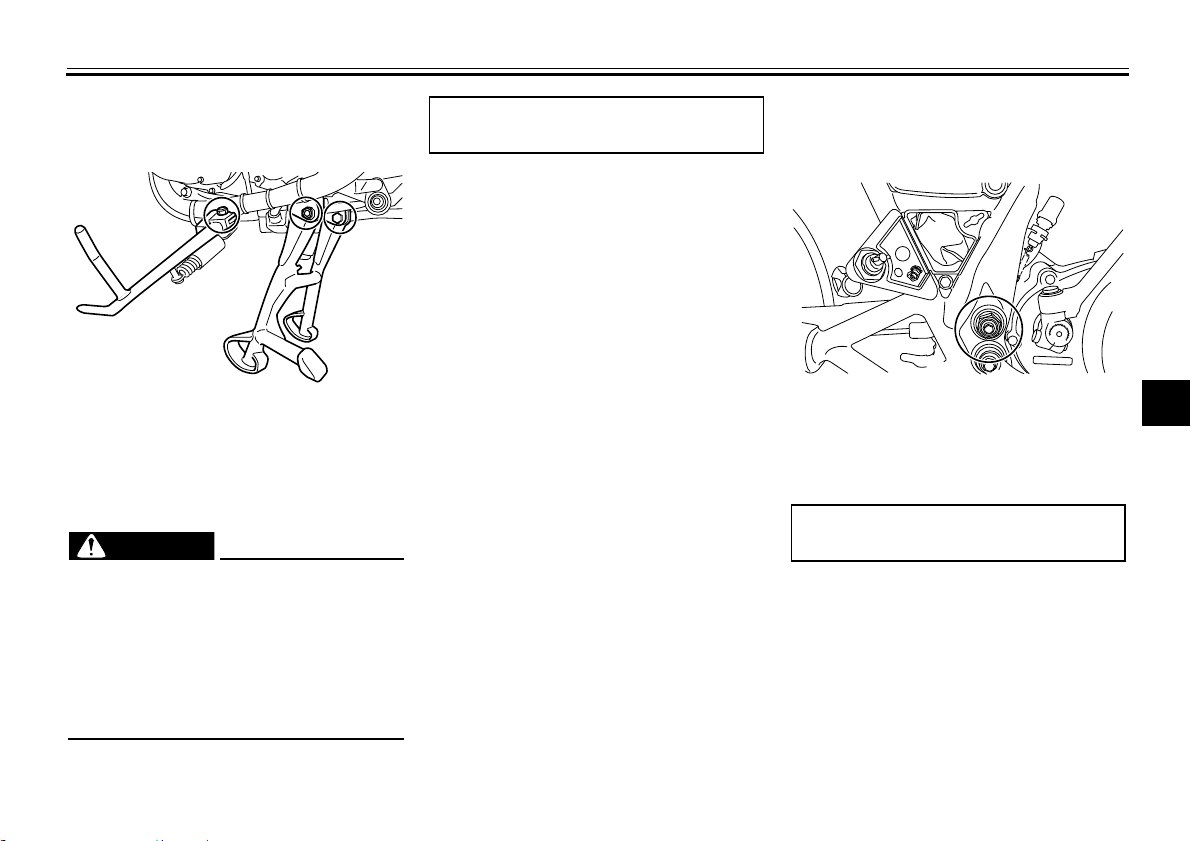

Sidestand
The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See the following section for an explanation of the ignition circuit cut-off system.)
EWA10242
The vehicle must not be ridden with
the sidestand down, or if the sidestand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the responsibility of raising the sidestand before starting off. Therefore, check
this system regularly and have a
1
2
3
4
5
6
7
8
9
10
11
12
INSTRUMENT AND CONTROL FUNCTIONS
Yamaha dealer repair it if it does not
1
function properly.
2
3
4
5
6
7
8
9
10
EAU59340
Ignition circuit cut-off system
The ignition circuit cut-off system (comprising the sidestand switch, clutch
switch and neutral switch) has the following functions.
It prevents starting when the trans-
mission is in gear and the sidestand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch lever is pulled, but the sidestand is
still down.
It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
11
12
3-13
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the kick starter lever down.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the kick starter lever down.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO
YES NO
YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The vehicle must be placed on the center-
stand during this inspection.
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
5
3-14
6
7
8
9
10
11
12
FOR YOUR SAFETY – PRE-OPERATION CHECKS
WARNING
1
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
2
3
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
4
this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
5
6
Fuel
7
Engine oil
8
9
Front brake
10
11
Rear brake
12
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank breather hose for obstructions, cracks or damage, and check
hose connection.
• Check oil level in oil tank.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• Check pedal free play.
• Adjust if necessary.
3-7, 3-9
6-9
6-17, 6-20
6-18, 6-20
EAU15598
EWA11152
4-1
FOR YOUR SAFETY – PRE-OPERATION CHECKS
ITEM CHECKS PAGE
Clutch
Throttle grip
Control cables
Drive chain
Wheels and tires
Shift pedal
Brake pedal
Brake and clutch levers
Centerstand, sidestand
Chassis fasteners
Instruments, lights, signals
and switches
Sidestand switch
• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.
• Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip free play and lubricate cable
and grip housing.
• Make sure that operation is smooth.
• Lubricate if necessary.
• Check chain slack.
• Adjust if necessary.
• Check chain condition.
• Lubricate if necessary.
• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.
• Make sure that operation is smooth.
• Correct if necessary.
• Make sure that operation is smooth.
• Lubricate pedal pivoting point if necessary.
• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.
• Make sure that operation is smooth.
• Lubricate pivots if necessary.
• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.
• Check operation.
• Correct if necessary.
• Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer check vehicle.
6-16
6-13, 6-24
6-24
6-22, 6-23
6-14, 6-16
6-19
6-25
6-25
6-26
—
—
3-12
1
2
3
4
5
6
7
8
9
10
11
12
4-2
OPERATION AND IMPORTANT RIDING POINTS
WARNING
TIP
NOTICE
1
Read the Owner’s Manual carefully to
become familiar with all controls. If
2
there is a control or function you do not
understand, ask your Yamaha dealer.
3
4
Failure to familiarize yourself with
the controls can lead to loss of control, which could cause an accident
5
or injury.
6
7
8
9
10
11
12
EAU15952
EWA10272
EAU59360
This model is equipped with:
a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, turn the key to “OFF” and
then to “ON”. Failing to do so will
prevent the engine from starting
even though the engine will crank
when pushing the kick starter lever
down.
an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the kick starter
lever down to restart the engine.
EAU59530
Starting the engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the sidestand up.
See page 3-13 for more information.
1. Turn the key to “ON” and set the
engine stop switch to “ ”.
The engine trouble warning light
and fuel level warning light should
come on for a few seconds, then
go off.
ECA16712
If the warning light does not come
on initially when the key is turned to
“ON”, or if the warning light remains
on, see page 3-2 for the warning light
circuit check.
2. Shift the transmission into the neutral position. The neutral indicator
light should come on. If not, ask a
5-1
OPERATION AND IMPORTANT RIDING POINTS
NOTICE
TIP
2
1
1
2
1
3
4
5
N
2
Yamaha dealer to check the electrical circuit.
3. Completely close the throttle and
apply the decompression lever.
4. Slowly push the kickstarter lever
down until the starting mark shows
on the kick indicator.
1. Starting mark
2. Kick indicator
5. Release the decompression lever,
release the kickstarter lever, and
then push the kickstarter lever
down forcefully to start the engine.
ECA11043
For maximum engine life, never accelerate hard when the engine is
cold!
EAU59470
Starting trouble
If the engine fails to start after 4 to 5
kicks, clear out the combustion chamber with the following procedure.
1. Turn the key to “OFF”.
2. While applying the decompression
lever, fully open the throttle grip
and push the kickstarter lever
down 4 to 5 times.
3. Turn the key to “ON” and retry
starting the engine.
5-2
EAU16672
Shifting
1. Shift pedal
2. Neutral position
Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the illustration.
To shift the transmission into the neutral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
1
2
3
4
5
6
7
8
9
10
11
12
OPERATION AND IMPORTANT RIDING POINTS
NOTICE
1
2
3
4
5
6
7
8
9
10
11
ECA10261
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long distances. The transmission is
properly lubricated only when
the engine is running. Inadequate lubrication may damage
the transmission.
Always use the clutch while
changing gears to avoid damaging the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
EAU16811
Tips for reducing fuel consumption
Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16842
Engine break-in
There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throttle operation or any condition that might
result in engine overheating must be
avoided.
EAU17094
0–1000 km (0–600 mi)
Avoid prolonged operation above 3500
r/min. NOTICE: After 1000 km (600
mi) of operation, the engine oil must
be changed and the oil filter cartridge or element replaced.
[ECA10303]
12
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 4200
5-3
OPERATION AND IMPORTANT RIDING POINTS
NOTICE
WARNING
r/min.
1600 km (1000 mi) and beyond
The vehicle can now be operated normally.
ECA10311
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehicle.
EAU17214
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10312
Since the engine and exhaust
system can become very hot,
park in a place where pedestrians or children are not likely to
touch them and be burned.
Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.
Do not park near grass or other
flammable materials which
might catch fire.
1
2
3
4
5
6
7
8
9
10
11
12
5-4
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
WARNING
WARNING
1
Periodic inspection, adjustment, and lubrication will keep your vehicle in the
2
safest and most efficient condition possible. Safety is an obligation of the vehi-
3
cle owner/operator. The most important
points of vehicle inspection, adjust-
4
ment, and lubrication are explained on
the following pages.
The intervals given in the periodic
5
maintenance charts should be simply
considered as a general guide under
6
normal riding conditions. However, depending on the weather, terrain, geo-
7
graphical location, and individual use,
the maintenance intervals may need to
be shortened.
8
9
Failure to properly maintain the vehicle or performing maintenance ac-
10
tivities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
11
you are not familiar with vehicle service, have a Yamaha dealer perform
12
service.
EAU17245
EWA10322
EWA15123
Turn off the engine when performing
maintenance unless otherwise
specified.
A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
Running the engine while ser-
vicing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-2 for more information about carbon monoxide.
EWA15461
Brake discs, calipers, drums, and
linings can become very hot during
use. To avoid possible burns, let
brake components cool before
touching them.
EAU17303
Emission controls not only function to
ensure cleaner air, but are also vital to
proper engine operation and maximum
performance. In the following periodic
maintenance charts, the services related to emissions control are grouped
separately. These services require
specialized data, knowledge, and
equipment. Maintenance, replacement,
or repair of the emission control devices and systems may be performed by
any repair establishment or individual
that is certified (if applicable). Yamaha
dealers are trained and equipped to
perform these particular services.
6-1
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
1
2
1
EAU59370

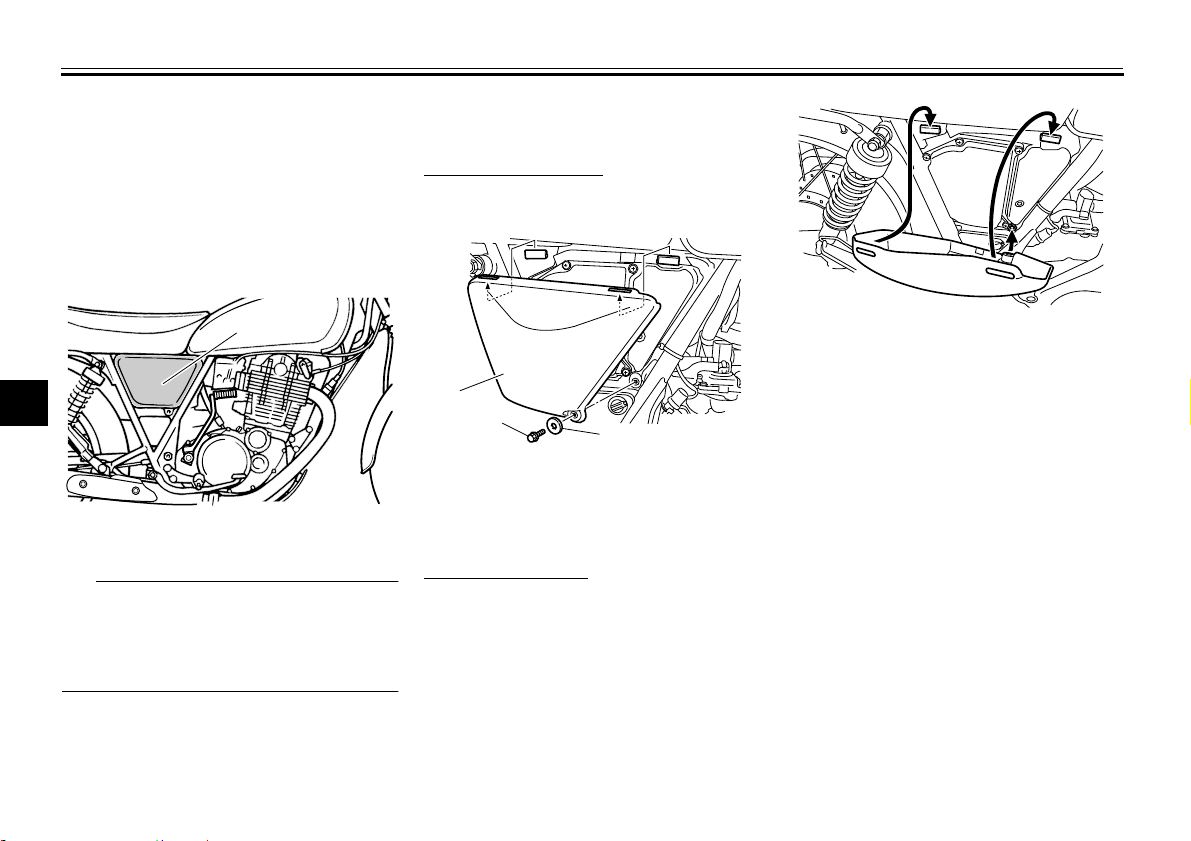

Owner’s tool kit
1. Unlock.
2. Lock cover
1. Owner’s tool kit
The owner’s tool kit is located inside the
tool box.
To access the owner’s tool kit, slide the
lock cover open, insert the key into the
lock, and then turn it 1/4 turn clockwise.
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. However, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
If you do not have the tools or experience required for a particular job, have
a Yamaha dealer perform it for you.
1
2
3
4
5
6
7
8
9
10
11
12
6-2
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
1
2
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.
From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
3
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
4
skills.
EAU46862
10
11
12
5
Periodic maintenance chart for the emission control system
6
NO. ITEM CHECK OR MAINTENANCE JOB
7
1 * Fuel line
8
2 Spark plug
3 * Valves
9
4 * Fuel injection • Check engine idle speed.
Muffler and exhaust
5 *
pipe
Air induction
6 *
system
• Check fuel hoses for cracks or
damage.
• Check condition.
• Clean and regap.
•Replace.
• Check valve clearance.
• Adjust.
• Check the screw clamp(s) for
looseness.
• Check the air cut-off valve, reed
valve, and hose for damage.
• Replace any damaged parts if
necessary.
1000 km
(600 mi)
6-3
ODOMETER READING
10000 km
(6000 mi)
20000 km
(12000 mi)
30000 km
(18000 mi)
40000 km
(24000 mi)
ANNUAL
CHECK
EAU46911
PERIODIC MAINTENANCE AND ADJUSTMENT
General maintenance and lubrication chart
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOB
1 Air filter element • Replace. Every 20000 km (12500 mi)
2Clutch
3 * Timing chain
Decompression
4 *
system
5 * Front brake
6 * Rear brake
7 * Brake hose
8 * Brake fluid • Replace. Every 2 years
9 * Wheels
10 * Tires
• Check operation.
• Adjust.
• Check timing chain tensioner.
• Adjust if necessary.
• Check operation.
• Adjust or replace cable.
• Check operation, fluid level and
vehicle for fluid leakage.
• Adjust brake lever free play.
• Replace brake pads. Whenever worn to the limit
• Check operation and adjust brake
pedal free play.
• Replace brake shoes. Whenever worn to the limit
• Check for cracks or damage.
• Check for correct routing and
clamping.
• Replace. Every 4 years
• Check runout, spoke tightness
and for damage.
• Tighten spokes if necessary.
• Check tread depth and for
damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.
1000 km
(600 mi)
10000 km
(6000 mi)
20000 km
(12000 mi)
30000 km
(18000 mi)
40000 km
(24000 mi)
EAU1770K
ANNUAL
CHECK
1
2
3
4
5
6
7
8
9
10
11
12
6-4
PERIODIC MAINTENANCE AND ADJUSTMENT
1
NO. ITEM CHECK OR MAINTENANCE JOB
2
11 * Wheel bearings
3
12 * Swingarm
4
13 Drive chain
5
6
14 * Steering bearings
7
15 * Chassis fasteners
8
9
10
11
12
Brake lever pivot
16
shaft
Brake pedal pivot
17
shaft
Clutch lever pivot
18
shaft
Sidestand,
19
centerstand
20 * Sidestand switch • Check operation.
21 * Front fork
Shock absorber
22 *
assemblies
• Check bearings for looseness or
damage.
• Check operation and for
excessive play.
• Lubricate with lithium-soap-based
grease.
• Check chain slack, alignment and
condition.
• Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.
• Check bearing play and steering
for roughness.
• Lubricate with lithium-soap-based
grease.
• Make sure that all nuts, bolts and
screws are properly tightened.
• Lubricate with silicone grease.
• Lubricate with lithium-soap-based
grease.
• Lubricate with lithium-soap-based
grease.
• Check operation.
• Lubricate with lithium-soap-based
grease.
• Check operation and for oil
leakage.
• Check operation and shock
absorbers for oil leakage.
1000 km
(600 mi)
Every 500 km (300 mi) and after washing the motorcycle, riding in the rain or
6-5
ODOMETER READING
10000 km
(6000 mi)
20000 km
(12000 mi)
Every 50000 km (30000 mi)
riding in wet areas
Every 20000 km (12000 mi)
30000 km
(18000 mi)
40000 km
(24000 mi)
ANNUAL
CHECK
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
ODOMETER READING
NO. ITEM CHECK OR MAINTENANCE JOB
23 Engine oil
Engine oil filter
24
element
Front and rear brake
25 *
switches
Moving parts and
26
cables
27 * Throttle grip
Lights, signals and
28 *
switches
• Change.
• Check oil level and vehicle for oil
leakage.
• Replace.
• Check operation.
• Lubricate.
• Check operation.
• Check throttle grip free play, and
adjust if necessary.
• Lubricate cable and grip housing.
• Check operation.
• Adjust headlight beam.
1000 km
(600 mi)
10000 km
(6000 mi)
20000 km
(12000 mi)
30000 km
(18000 mi)
40000 km
(24000 mi)
Air filter
• This model’s air intake system is equipped with a disposable oil-coated paper element. The air filter element cannot
be cleaned with compressed air, it must be replaced.
• The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake service
• After disassembling the brake master cylinder and caliper, always change the fluid. Regularly check the brake fluid
level and fill the reservoir as required.
• Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
• Replace the brake hose every four years and if cracked or damaged.
ANNUAL
CHECK
EAU59350
1
2
3
4
5
6
7
8
9
10
11
12
6-6
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
1
1
2
3
1
Removing and installing the panel
2
The panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
3
this section each time the panel needs
to be removed and installed.
4
5
6
7
8
1. Panel A
9
The panel on the left side is removable
using the key. However there is no
10
need to remove this panel for maintenance jobs described in this chapter.
11
EAU59460
EAU19152
Panel A
To remove the panel
Remove the bolt, and then pull the panel off as shown.
1. Panel A
2. Bolt
3. Washer
To install the panel
Place the panel in the original position,
and then install the bolt.
12
6-7
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
1
1
EAU19605
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic maintenance and lubrication chart. In addition,
the condition of the spark plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
1. Spark plug cap
2. Remove the spark plug as shown,
with the spark plug wrench included in the owner’s tool kit.
1. Spark plug wrench
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
If the spark plug shows a distinctly different color, the engine could be operating improperly. Do not attempt to
diagnose such problems yourself. Instead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
6-8
necessary.
Specified spark plug:
NGK/BPR6ES
3. Measure the spark plug gap with a
wire thickness gauge and, if necessary, adjust the gap to specification.
1. Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
To install the spark plug
1. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
2. Install the spark plug with the
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
TIP
3
4
1
2
10
11
12
1
2
spark plug wrench, and then tighten it to the specified torque.
Tightening torque:
Spark plug:
25 Nm (2.5 m·kgf, 18 ft·lbf)
3
If a torque wrench is not available when
4
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
5
past finger tight. However, the spark
plug should be tightened to the speci-
6
fied torque as soon as possible.
3. Install the spark plug cap.
7
8
9
EAU59622
Engine oil and oil filter element
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter element replaced at the intervals specified
in the periodic maintenance and lubrication chart.
To check the engine oil level
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. On a level surface, place the vehicle on the centerstand.
3. Wait a few minutes until the oil settles. Remove the engine oil filler
cap, wipe the dipstick clean, insert
it back into the oil filler hole (without screwing it in), and then remove it again to check the oil level.
WARNING! Never remove the
engine oil filler cap after
high-speed operation, otherwise hot engine oil could spout
out and cause damage or injury.
Always let the engine oil cool
down sufficiently before remov-
6-9
ing the oil filler cap.
[EWA17640]
The engine oil should be between the
minimum and maximum level marks.
1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
4. If the engine oil is below the minimum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
5. Install the oil filler cap.
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
TIP
1
2
21
21
2
1
To change the engine oil (with or
without oil filter element replacement)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Loosen the oil filter element cover
bleed bolt and oil filter element
drain bolt.
1. Oil filter element cover bleed bolt
2. Oil filter element drain bolt
4. Remove the engine oil drain bolt
and its gasket to drain the oil from
the crankcase.
1. Gasket
2. Engine oil drain bolt (crankcase)
5. Remove the engine oil filler cap,
the engine oil tank drain bolt and
its gasket to drain the oil from the
oil tank.
1. Engine oil drain bolt (oil tank)
2. Gasket
6. Remove the oil filter element drain
bolt to drain the oil from the oil filter
element.
Skip steps 7–9 if the oil filter element is
not being replaced.
7. Remove the oil filter element cover
by removing the bolts.
1. Oil filter element drain bolt
2. Oil filter element cover bolt
8. Remove and replace the oil filter
element and O-rings.
Make sure that the O-rings are properly
seated.
1
2
3
4
5
6
7
8
9
10
11
12
6-10
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
NOTICE
NOTICE
2
1
3
1
2
3
4
1. Oil filter element cover
5
2. O-ring
3. Oil filter element
6
9. Install the oil filter element cover by
7
installing the bolts.
10. Install the oil filter element drain
bolt.
8
11. Tighten the oil filter element cover
bolts and the oil filter element drain
9
10
11
bolt to their specified torques.
Tightening torques:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Oil filter element drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque:
Oil filter element cover bleed bolt:
5 Nm (0.5 m·kgf, 3.6 ft·lbf)
13. Install the engine oil drain bolts
and their new gasket, and then
tighten the bolts to the specified
torques.
Tightening torques:
Engine oil drain bolt (crankcase):
30 Nm (3.0 m·kgf, 22 ft·lbf)
Engine oil drain bolt (oil tank):
16 Nm (1.6 m·kgf, 12 ft·lbf)
14. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter element replacement:
2.10 L (2.22 US qt, 1.85 Imp.qt)
tem have cooled down.
ECA11621
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-
rial enters the crankcase.
15. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, immediately turn the engine off and
check for the cause.
16. Turn the engine off, and then
check the oil level and correct it if
necessary.
ECA11232
12
12. Tighten the oil filter element cover
bleed bolt to the specified torque.
Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
6-11
After changing the engine oil, make
sure to check the oil pressure as described below.
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1
2
1
1
Loosen the bleed bolt.
Start the engine and keep it
idling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.
After checking the oil pressure,
tighten the bleed bolt to the
specified torque.
1. Bleed bolt
Tightening torque:
Bleed bolt:
18 Nm (1.8 m·kgf, 13 ft·lbf)
EAU52031
Replacing the air filter element
The air filter element should be replaced at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in unusually wet or dusty areas.
To replace the air filter element
1. Remove panel A. (See page 6-7.)
2. Remove the air filter case cover by
removing the screws.
1. Screw
2. Air filter case cover
3. Pull the air filter element out.
1. Air filter element
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
be operated without the air filter
element installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
5. Install the air filter case cover by installing the screws.
6. Install the panel.
1
2
3
4
5
6
7
8
9
10
11
12
6-12
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1
Checking the engine idling speed
2
Check the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
3
Engine idling speed:
4
5
6
7
8
9
10
1200–1400 r/min
EAU44735
EAU21385
Checking the throttle grip free play
1. Throttle grip free play
The throttle grip free play should measure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodically check the throttle grip free play
and, if necessary, have a Yamaha
dealer adjust it.
EAU21402
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
11
12
6-13
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
WARNING
TIP
Tires
Tires are the only contact between the
vehicle and the road. Safety in all conditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
Operation of this vehicle with improper tire pressure may cause severe injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
EAU59632
EWA10504
weight of rider, passenger, cargo, and accessories approved
for this model.
Tire air pressure (measured on cold
tires):
Up to 90 kg (198 lbs) load:
Front:
175 kPa (1.75 kgf/cm2, 25 psi)
Rear:
200 kPa (2.00 kgf/cm
90 kg (198 lbs) to maximum load:
Front:
200 kPa (2.00 kgf/cm
Rear:
225 kPa (2.25 kgf/cm2, 33 psi)
Maximum load*:
150 kg (331 lb)
* Total weight of rider, passenger, car-
go and accessories
2
, 29 psi)
2
, 29 psi)
EWA10512
Never overload your vehicle. Operation of an overloaded vehicle could
cause an accident.
6-14
Tire inspection
1. Tire sidewall
2. Tire tread depth
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer replace the tire immediately.
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
The tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
WARNING
Tire information
1
This motorcycle is equipped with tube
tires.
2
Tires age, even if they have not been
used or have only been used occasionally. Cracking of the tread and sidewall
3
rubber, sometimes accompanied by
carcass deformation, is an evidence of
4
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
5
6
The front and rear tires should be of
the same make and design, other-
7
wise the handling characteristics of
the vehicle may be different, which
could lead to an accident.
8
After extensive tests, only the tires listed below have been approved for this
9
model by Yamaha Motor Co., Ltd.
10
11
12
EWA10462
Front tire:
Size:
90/100-18M/C 54S
Manufacturer/model:
METZELER/ME77 Front
Rear tire:
Size:
110/90-18M/C 61S
Manufacturer/model:
METZELER/ME77
EWA10572
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the motorcycle with excessively worn
tires decreases riding stability
and can lead to loss of control.
The replacement of all wheel-
and brake-related parts, including the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowledge and experience.
It is not recommended to patch
a punctured tube. If unavoidable, however, patch the tube
very carefully and replace it as
soon as possible with a
high-quality product.
Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimal
characteristics.
6-15
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
32
4
(a)
(b)
1
Spoke wheels
The wheels on this model are not designed for use with tubeless tires.
Do not attempt to use tubeless tires
on this model.
To maximize the performance, durability, and safe operation of your motorcycle, note the following points regarding
the specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or other damage, and the spokes for
looseness or damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A deformed or cracked wheel must be
replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse handling characteristics, and a short-
EAU21944
EWA10611
ened tire life.
6-16
EAU48291
Adjusting the clutch lever free play
1. Clutch lever free play
2. Rubber cover
3. Locknut (clutch lever)
4. Clutch lever free play adjusting bolt
The clutch lever free play should measure 5.0–10.0 mm (0.20–0.39 in) as
shown. Periodically check the clutch lever free play and, if necessary, adjust it
as follows.
1. Slide the rubber cover back at the
clutch lever.
2. Loosen the locknut.
3. To increase the clutch lever free
play, turn the adjusting bolt in direction (a). To decrease the clutch
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
WARNING
2
3
1
(a)
(b)
4
1
lever free play, turn the adjusting
bolt in direction (b).
4. Tighten the locknut and then slide
2
the rubber cover to its original position.
3
If the specified free play cannot be obtained as described above or if the
4
clutch does not operate correctly, have
a Yamaha dealer check the internal
5
clutch mechanism.
6
7
8
9
10
11
12
EAU48443
Adjusting the brake lever free play
The brake lever free play should measure 5.0–8.0 mm (0.20–0.31 in) as
shown. Periodically check the brake lever free play and, if necessary, adjust it
decrease the brake lever free play,
turn the adjusting screw in direction (b).
4. Tighten the locknut, and then slide
the rubber cover back to its original
position.
EWA10631
as follows.
After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.
A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hydraulic system, have a Yamaha
dealer bleed the system before
1. Locknut
2. Brake lever free play adjusting screw
3. Rubber cover
4. Brake lever free play
1. Slide the rubber cover back at the
brake lever.
operating the motorcycle. Air in
the hydraulic system will diminish the braking performance,
which may result in loss of control and an accident.
2. Loosen the locknut.
3. To increase the brake lever free
play, turn the brake lever free play
adjusting screw in direction (a). To
6-17
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
WARNING
1
1
2
(b)
(a)
1
Adjusting the brake pedal height and free play
1. Brake pedal height
It is advisable to have a Yamaha
dealer make these adjustments.
Brake pedal height
The top of the brake pedal should be
positioned approximately 20.0 mm
(0.79 in) below the top of the footrest.
Periodically check the brake pedal
height and, if necessary, adjust it as follows.
1. Loosen the locknut at the frame.
2. To raise the brake pedal, turn the
EAU60900
EWA10671
brake pedal height adjusting bolt in
direction (a). To lower the brake
pedal, turn the adjusting bolt in direction (b).
1. Locknut
2. Brake pedal height adjusting bolt
3. Tighten the locknut.
EWA11232
After adjusting the brake pedal
height, the brake pedal free play
must be adjusted.
6-18
Brake pedal free play
1. Brake pedal free play
The brake pedal free play should measure 20.0–30.0 mm (0.79–1.18 in) as
shown. Periodically check the brake
pedal free play and, if necessary, adjust
it as follows.
To increase the brake pedal free play,
turn the brake pedal free play adjusting
nut at the brake rod in direction (a). To
decrease the brake pedal free play,
turn the adjusting nut in direction (b).
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
(b)
(a)
1
2
1
(a)
(b)
1
2
3
4
1. Brake pedal free play adjusting nut
5
6
After adjusting the drive chain
7
slack or removing and installing
the rear wheel, always check the
brake pedal free play.
8
If proper adjustment cannot be
obtained as described, have a
9
Yamaha dealer make this adjustment.
10
After adjusting the brake pedal
free play, check the operation of
the brake light.
11
12
Checking the shift pedal
EAU44821
Brake light switches
EAU22274
The operation of the shift pedal should
be checked before each ride. If operation is not smooth, have a Yamaha
dealer check the vehicle.
EWA10681
1. Rear brake light switch adjusting nut
2. Rear brake light switch
The brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes effect. If necessary, adjust the rear brake
light switch as follows, but the front
brake light switch should be adjusted
by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
6-19
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
1
2
1
2
1
EAU22382
Checking the front brake pads and rear brake shoes
The front brake pads and the rear brake
shoes must be checked for wear at the
intervals specified in the periodic maintenance and lubrication chart.
EAU22432
Front brake pads
1. Brake pad
2. Brake pad wear indicator groove
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear without having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicator grooves have almost disappeared, have a Yamaha dealer replace
the brake pads as a set.
EAU22541
Rear brake shoes
1. Brake shoe wear indicator
2. Brake shoe wear limit line
The rear brake is provided with a wear
indicator, which allows you to check the
brake shoe wear without having to disassemble the brake. To check the
brake shoe wear, check the position of
the wear indicator while applying the
brake. If a brake shoe has worn to the
point that the wear indicator reaches
the wear limit line, have a Yamaha
dealer replace the brake shoes as a
set.
6-20
EAU32346
Checking the brake fluid level
Before riding, check that the brake fluid
is above the minimum level mark.
Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
1. Minimum level mark
Specified brake fluid:
DOT 4
EWA15991
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake system, reducing braking
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
NOTICE
1
performance.
Clean the filler cap before re-
moving. Use only DOT 4 brake
2
3
fluid from a sealed container.
Use only the specified brake flu-
id; otherwise, the rubber seals
may deteriorate, causing leakage.
4
Refill with the same type of
brake fluid. Adding a brake fluid
5
other than DOT 4 may result in a
harmful chemical reaction.
Be careful that water does not
6
enter the brake fluid reservoir
when refilling. Water will signifi-
7
cantly lower the boiling point of
the fluid and may result in vapor
8
lock.
9
Brake fluid may damage painted surfaces or plastic parts. Always clean
10
up spilled fluid immediately.
ECA17641
check the brake pads for wear and the
brake system for leakage. If the brake
fluid level goes down suddenly, have a
Yamaha dealer check the cause before
further riding.
EAU22724
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrication chart. In addition, have the oil seals
of the brake master cylinder and caliper
as well as the brake hose replaced at
the intervals listed below or whenever
they are damaged or leaking.
Oil seals: Replace every two
years.
Brake hose: Replace every four
years.
As the brake pads wear, it is normal for
11
the brake fluid level to gradually go
down. A low brake fluid level may indi-
12
cate worn brake pads and/or brake system leakage; therefore, be sure to
6-21
EAU22762
1
6
1
2
3
4
5
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
PERIODIC MAINTENANCE AND ADJUSTMENT
1
2
To check the drive chain slack
1. Place the motorcycle on the centerstand.
2. Shift the transmission into the neutral position.
3. Push on the drive chain at the center point between the drive axle
and the rear wheel axle with a
force of 50 N (5.0 kgf, 11 lbf).
4. Measure drive chain slack as
shown.
Drive chain slack:
30.0–40.0 mm (1.18–1.57 in)
EAU59591
1. Drive chain slack
5. If the drive chain slack is incorrect,
adjust it as follows.
EAU59641
To adjust the drive chain slack
Consult a Yamaha dealer before adjusting the drive chain slack.
1. Take the motorcycle off the centerstand, and then put the sidestand
down.
2. Loosen the brake pedal free play
adjusting nut, brake torque rod nut,
and axle nut.
6-22
1. Brake pedal free play adjusting nut
2. Drive chain slack adjusting bolt
3. Drive chain puller locknut
4. Axle nut
5. Brake torque rod nut
6. Brake torque rod
3. Loosen the drive chain puller locknut at each end of the swingarm.
4. Place the motorcycle on the centerstand.
5. To tighten the drive chain, turn the
drive chain slack adjusting bolt at
each end of the swingarm in direction (a). To loosen the drive chain,
turn the adjusting bolt at each end
of the swingarm in direction (b),
and then push the rear wheel forward. NOTICE: Improper drive
chain slack will overload the en-
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
WARNING
NOTICE
1
2
(a)
(b)
3
4
1
2
3
4
5
6
7
8
9
10
11
12
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack within the specified limits.
[ECA10572]
Using the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the same
position for proper wheel alignment.
1. Axle nut
2. Drive chain puller locknut
3. Drive chain slack adjusting bolt
4. Alignment marks
6. Take the motorcycle off the centerstand, and then put the sidestand
down.
7. Tighten both drive chain puller
locknuts, and then tighten the axle
nut and brake torque rod nut to
their specified torques.
Tightening torques:
Drive chain puller locknut:
16 Nm (1.6 m·kgf, 12 ft·lbf)
Axle nut:
129 Nm (12.9 m·kgf, 92 ft·lbf)
Brake torque rod nut:
19 Nm (1.9 m·kgf, 14 ft·lbf)
8. Adjust the brake pedal free play.
(See page 6-18.)
EWA10661
After adjusting the brake pedal free
play, check the operation of the
brake light.
9. Make sure that the drive chain pullers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.
6-23
EAU23026
Cleaning and lubricating the drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
The drive chain must be lubricated
after washing the motorcycle, riding
in the rain or riding in wet areas.
1. Clean the drive chain with kerosene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam cleaners,
high-pressure washers or inappropriate solvents.
[ECA11122]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubricants for the drive chain, as they
ECA10584
PERIODIC MAINTENANCE AND ADJUSTMENT
may contain substances that
could damage the O-rings.
[ECA11112]
EAU23098
Checking and lubricating the cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the cables and cable ends should be lubricated if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in internal rusting and cause interference with cable movement. Replace
damaged cables as soon as possible to prevent unsafe condi-
[EWA10712]
tions.
Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricant
EAU23115
Checking and lubricating the throttle grip and cable
The operation of the throttle grip should
be checked before each ride. In addition, the cable should be lubricated by a
Yamaha dealer at the intervals specified in the periodic maintenance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from water
entry. Therefore, use care not to pour
water directly onto the cover or cable
when washing the vehicle. If the cable
or cover becomes dirty, wipe clean with
a moist cloth.
1
2
3
4
5
6
7
8
9
10
6-24
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
1
Checking and lubricating the brake and clutch levers
2
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
3
bricated if necessary.
Brake lever
4
5
6
7
8
9
10
EAU23144
Clutch lever
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
EAU23184
Checking and lubricating the brake pedal
The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
11
12
6-25
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
EAU23215
Checking and lubricating the centerstand and sidestand
The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-metal contact surfaces should be
lubricated if necessary.
EWA10742
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or repair it. Otherwise, the centerstand or
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Recommended lubricant:
Lithium-soap-based grease
EAUM1653
Lubricating the swingarm pivots
The swingarm pivots must be lubricated by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease
1
2
3
4
5
6
7
8
9
10
11
12
6-26
PERIODIC MAINTENANCE AND ADJUSTMENT
NOTICE
1
Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
2
intervals specified in the periodic maintenance and lubrication chart.
3
To check the condition
4
Check the front fork for damage and excessive oil leakage.
5
To check the operation
6
1. Place the vehicle on a level surface and hold it in an upright position. WARNING! To avoid injury,
7
securely support the vehicle so
there is no danger of it falling
[EWA10752]
8
over.
2. While applying the front brake,
push down hard on the handlebars
9
several times to check if the front
fork compresses and rebounds
10
smoothly.
EAU51951
ECA10591
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or repair it.
EAU45512
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as follows at the intervals specified in the periodic maintenance and lubrication
chart.
1. Place the vehicle on the centerstand. WARNING! To avoid inju-
ry, securely support the vehicle
so there is no danger of it falling
[EWA10752]
over.
2. Hold the lower ends of the front
fork legs and try to move them forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
11
12
6-27
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
1
Checking the wheel bearings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrication chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU23292
EAU40447

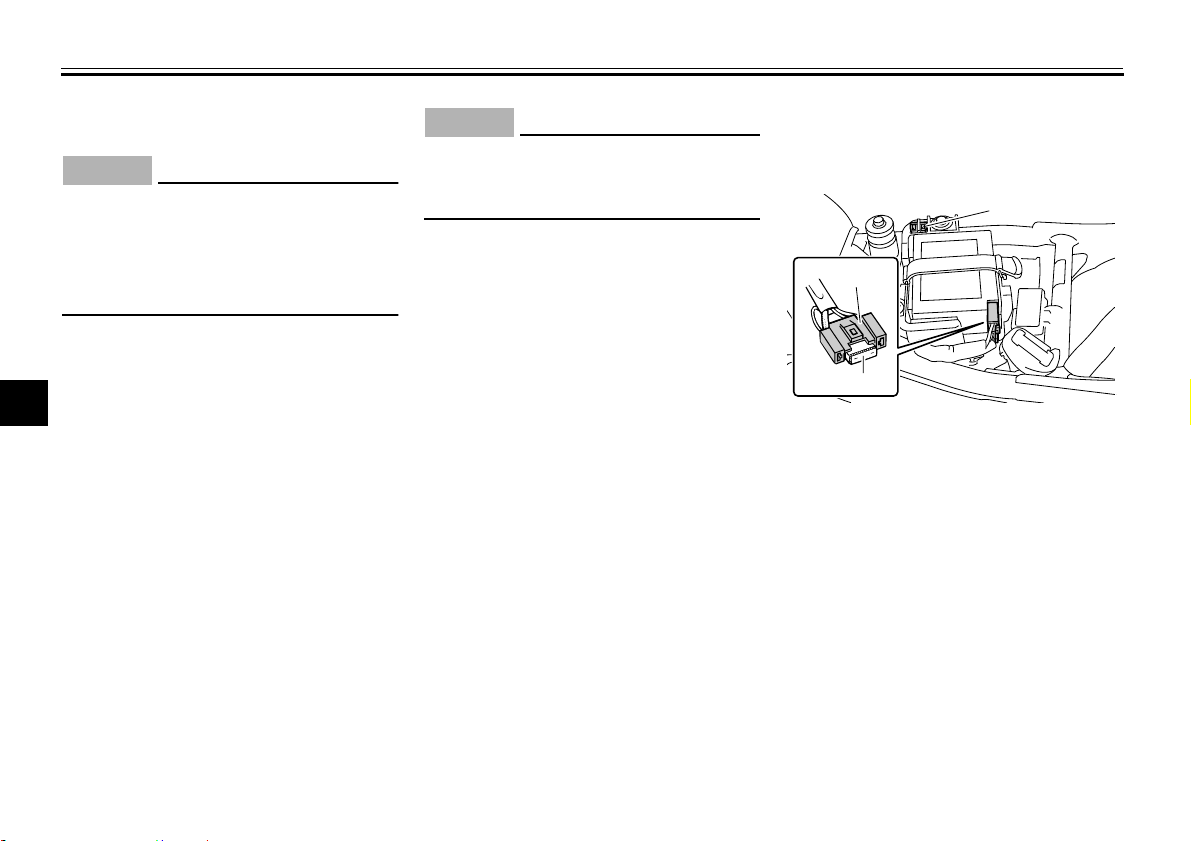

Battery
1. Battery
The battery is located under the seat.
(See page 3-11.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electrolyte or to add distilled water. However,
the battery coupler connection needs to
be checked to make sure that it is securely connected.
EWA10761
Electrolyte is poisonous and
dangerous since it contains sulfuric acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
6-28
ways shield your eyes when
working near batteries. In case
of contact, administer the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quantities of water or milk and immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and provide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the battery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
NOTICE
NOTICE
3
1
2
if the vehicle is equipped with optional
1
electrical accessories.
2
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
3
stant-voltage) battery charger is required. Using a conventional battery
4
charger will damage the battery.
5
To store the battery
1. If the vehicle will not be used for
6
more than one month, remove the
battery, fully charge it, and then
7
place it in a cool, dry place.
NOTICE: When removing the
8
battery, be sure the key is
turned to “OFF” before disconnecting the coupler.
9
2. If the battery will be stored for more
than two months, check it at least
10
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
11
12
stallation. NOTICE: When install-
ing the battery, be sure the key
is turned to “OFF” before connecting the coupler.
[ECA16323]
[ECA16931]
ECA16522
ECA16531
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU59441
Replacing the fuses
The main fuse is located inside the battery coupler. (See page 6-28.)
1. Battery coupler
2. Main fuse
3. Spare main fuse
If the main fuse is blown, replace it as
follows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the seat. (See
page 3-11.)
3. Remove the battery by removing
the battery band.
6-29
PERIODIC MAINTENANCE AND ADJUSTMENT
12
1
1
1
2
3
4
5
7
6
1. Battery
2. Battery band
4. Disconnect the battery coupler.
1. Battery coupler
5. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive damage to the electrical system and
possibly a fire.
Specified fuse:
30.0 A
[EWA15132]
6. Connect the battery coupler.
7. Install the battery by installing the
battery band.
8. Install the seat.
9. Turn the key to “ON”.
10. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
The fuse box, which contains the fuses
for the individual circuits, is located under the seat. (See page 3-11.)
1. Fuse box
6-30
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Backup fuse
5. Fuel injection system fuse
6. Parking lighting fuse
7. Spare fuse
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the seat. (See
page 3-11.)
3. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive damage to the electrical system and
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
NOTICE
1
1
2
3
4
5
6
7
8
9
10
11
possibly a fire.
Specified fuses:
Main fuse:
30.0 A
Signaling system fuse:
15.0 A
Headlight fuse:
15.0 A
Ignition fuse:
10.0 A
Backup fuse:
7.5 A
Fuel injection system fuse:
7.5 A
Parking lighting fuse:
7.5 A
[EWA15132]
4. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
5. If a fuse immediately blows again,
have a Yamaha dealer check the
electrical system.
EAU23799
Replacing the headlight bulb
This model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.
ECA10651
Take care not to damage the following parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transparency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thoroughly clean off any dirt and fingerprints on the headlight bulb
using a cloth moistened with alcohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Do not touch the glass part of the bulb.
1. Remove the headlight unit by removing the screws.
1. Screw
12
6-31
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1
2
1
1
2
1. Screw
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
1. Headlight coupler
2. Headlight bulb cover
3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
Replacing the tail/brake light
EAU24134
1
bulb
1. Remove the tail/brake light lens by
removing the screws.
1. Headlight bulb holder
4. Place a new headlight bulb into position, and then secure it with the
bulb holder.
5. Install the bulb cover, and then
connect the coupler.
6. Install the headlight unit by installing the screws.
7. Have a Yamaha dealer adjust the
1. Screw
2. Tail/brake light lens
2. Remove the burnt-out bulb by
pushing it in and turning it counterclockwise.
headlight beam if necessary.
2
3
4
5
6
7
8
9
10
11
12
6-32
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1
2
3
2
1
1
2
3
4
Replacing a turn signal light bulb
1. Remove the turn signal light lens,
turn signal light rim and gasket by
removing the screws.
EAU60010
1. Tail/brake light bulb
5
3. Insert a new bulb into the socket,
6
7
4. Install the lens by installing the
8
9
10
11
12
push it in, and then turn it clockwise until it stops.
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10682]
1. Turn signal light lens
2. Screw
6-33
1. Turn signal light lens
2. Turn signal light rim
3. Gasket
2. Remove the burnt-out bulb by
pushing it in and turning it counterclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clockwise until it stops.
4. Install the gasket, rim and lens by
installing the screws with the notch
on the rim and lens facing to inward as shown. NOTICE: Do not
overtighten the screws, otherwise the lens may break.
[ECA10682]
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1
1
1
2
EAU33416
Replacing the auxiliary light bulb
If the auxiliary light bulb burns out, re-
2. Remove the socket (together with
the bulb) by pushing it in and turning it counterclockwise.
1
2
place it as follows.
1. Remove the headlight unit by removing the screws.
3
4
5
6
7
8
1. Screw
1. Auxiliary light bulb socket
3. Remove the burnt-out bulb by
pushing it in and turning it counterclockwise.
9
10
11
1. Auxiliary light bulb socket
1. Screw
6-34
2. Auxiliary light bulb
12
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
1
1
1
1
2
3
4
5
6
7
8
9
10
11
4. Insert a new bulb into the socket,
push it in, and then turn it clockwise until it stops.
5. Install the socket (together with the
bulb) by pushing it in and turning it
clockwise until it stops.
6. Install the headlight unit by installing the screws.
EAU24361
Front wheel
EAU59600
To remove the front wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Loosen the wheel axle nut.
1. Wheel axle nut
2. Loosen the wheel axle holder nuts.
1. Axle holder nut
3. Place the motorcycle on the centerstand.
4. Disconnect the speedometer cable from the front wheel.
1. Speedometer cable
12
5. Remove the wheel axle nut and
6-35
the washer.
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
2
3
1
1
2
6. Pull the wheel axle out, and then
remove the collar and wheel.
NOTICE: Do not apply the brake
after the wheel and brake disc
have been removed, otherwise
the brake pads will be forced
shut.
[ECA11073]
To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the projections mesh with the slots.
1. Slot
2. Speedometer gear unit
3. Projection
2. Install the collar into the right side
of the wheel hub.
3. Lift the wheel up between the fork
legs.
Make sure that there is enough space
between the brake pads before inserting the brake disc and that the slot in
the speedometer gear unit fits over the
retainer on the fork leg.
1. Retainer
2. Slot
4. Insert the wheel axle from the
left-hand side, and then install the
washer and axle nut.
5. Take the motorcycle off the centerstand so that the front wheel is on
the ground, and then put the sidestand down.
6. Tighten the axle nut and the wheel
axle holder nuts to their specified
torques
Tightening torques:
Axle nut:
104 Nm (10.4 m·kgf, 74 ft·lbf)
Wheel axle holder nut:
9 Nm (0.9 m·kgf, 6.5 ft·lbf)
7. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
8. Connect the speedometer cable.
1
2
3
4
5
6
7
8
9
10
11
12
6-36
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
1
10
3
4
5
6
7
8
9
7
2
3
2
1
4
1
Rear wheel
2
3
To remove the rear wheel
4
To avoid injury, securely support the
vehicle so there is no danger of it
5
falling over.
6
1. Loosen the axle nut and the brake
torque rod nut at the brake shoe
plate.
7
2. Disconnect the brake torque rod
from the brake shoe plate by re-
8
moving the nut, washer and the
bolt.
9
10
11
12
EAU25081
EAU59611
EWA10822
1. Brake rod
2. Brake camshaft lever
3. Brake pedal free play adjusting nut
4. Drive chain slack adjusting bolt
5. Drive chain puller locknut
6. Drive chain puller
7. Washer
8. Axle nut
9. Brake torque rod nut
10.Brake torque rod
swingarm.
1. Drive chain slack adjusting bolt
2. Drive chain puller locknut
3. Axle nut
4. Washer
6. Remove the axle nut and washer.
7. While supporting the rear wheel,
pull the wheel axle out.
8. Remove the chain puller assemblies and the spacer.
3. Place the motorcycle on the centerstand.
4. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod from the brake camshaft lever.
5. Loosen the drive chain puller locknut and the drive chain slack adjusting bolt on both ends of the
6-37
PERIODIC MAINTENANCE AND ADJUSTMENT
TIP
WARNING
1
1. Drive chain
9. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
The drive chain does not need to be
disassembled in order to remove and
install the wheel.
To install the rear wheel
1. Install the spacer into left side of
the wheel hub.
2. Install the chain pullers and the
wheel by inserting the wheel axle
from the left-hand side.
3. Install the drive chain onto the rear
sprocket.
4. Install the washer and axle nut.
5. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting nut
onto the brake rod.
6. Connect the brake torque rod to
the brake shoe plate by installing
the bolt, washer and nut.
7. Adjust the drive chain slack. (See
page 6-22.)
8. Take the motorcycle off the centerstand so that the rear wheel is on
the ground, and then put the sidestand down.
9. Tighten the brake torque rod nut
and axle nut to the specified
torques.
Tightening torques:
Brake torque rod nut:
19 Nm (1.9 m·kgf, 14 ft·lbf)
Axle nut:
129 Nm (12.9 m·kgf, 92 ft·lbf)
10. Adjust the brake pedal free play.
(See page 6-18.)
EWA10661
After adjusting the brake pedal free
play, check the operation of the
6-38
brake light.
1
2
3
4
5
6
7
8
9
10
11
12
PERIODIC MAINTENANCE AND ADJUSTMENT
WARNING
1
Troubleshooting
Although Yamaha motorcycles receive
a thorough inspection before shipment
2
from the factory, trouble may occur during operation. Any problem in the fuel,
3
compression, or ignition systems, for
example, can cause poor starting and
4
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
5
for checking these vital systems yourself. However, should your motorcycle
6
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
7
the necessary tools, experience, and
know-how to service the motorcycle
properly.
8
Use only genuine Yamaha replacement parts. Imitation parts may look like
9
Yamaha parts, but they are often inferior, have a shorter service life and can
lead to expensive repair bills.
10
EAU25852
EWA15142
heaters or furnaces. Gasoline or
gasoline vapors can ignite or explode, causing severe injury or
property damage.
11
When checking the fuel system, do
not smoke, and make sure there are
12
no open flames or sparks in the area, including pilot lights from water
6-39
Troubleshooting chart
Check the fuel level in
the fuel tank.
1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the kickstarter.
4. Compression
There is compression.
There is no compression.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.
3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the kickstarter.
If the engine does not
start, check the ignition.
With the key in the on
position, operate the turn
signal switch.
2. Battery
The turn signal flashes
brightly.
The turn signal does
not flash or is weak.
The battery is good.
Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
Dry
Wet
Operate the kickstarter.
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU60030
1
2
3
4
6-40
5
6
7
8
9
10
11
12
MOTORCYCLE CARE AND STORAGE
NOTICE
NOTICE
1
Matte color caution
2
Some models are equipped with
matte colored finished parts. Be
3
sure to consult a Yamaha dealer for
advice on what products to use be-
4
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
5
these parts will scratch or damage
their surface. Wax also should not
6
be applied to any matte colored finished parts.
7
8
9
10
11
12
EAU37834
ECA15193
EAU26005
Care
While the open design of a motorcycle
reveals the attractiveness of the technology, it also makes it more vulnerable. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go unnoticed on a car, however, it detracts
from the overall appearance of a motorcycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your motorcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-
7-1
ucts onto seals, gaskets, sprockets, the drive chain and wheel
axles. Always rinse the dirt and degreaser off with water.
Cleaning
ECA10773
Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the affected area any longer than instructed. Also, thoroughly rinse
the area off with water, immediately dry it, and then apply a corrosion protection spray.
Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with water to clean plastic. However, if
the plastic parts cannot be thoroughly cleaned with water, diluted mild detergent with water
may be used. Be sure to rinse
MOTORCYCLE CARE AND STORAGE
TIP
off any detergent residue using
plenty of water, as it is harmful
to plastic parts.
Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust removers or inhibitors, brake fluid, antifreeze or electrolyte.
Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following areas: seals (of wheel and swingarm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.
For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning compounds for plastic may leave
scratches on the windshield.
Test the product on a small hidden part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea or
on salt-sprayed roads
Since sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
Salt sprayed on roads in the winter may
7-2
remain well into spring.
1. Clean the motorcycle with cold water and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10792]
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-steel parts, including the exhaust system. (Even the thermally
induced discoloring of stainless-steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recommended to apply a corrosion protection spray on all metal,
1
2
3
4
5
6
7
8
9
10
11
12
MOTORCYCLE CARE AND STORAGE
WARNING
NOTICE
TIP
NOTICE
1
including chrome- and nickel-plated, surfaces.
5. Use spray oil as a universal clean-
2
er to remove any remaining dirt.
6. Touch up minor paint damage
3
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
4
before storing or covering it.
5
Contaminants on the brakes or tires
can cause loss of control.
6
Make sure that there is no oil or
wax on the brakes or tires.
7
If necessary, clean the brake
discs and brake linings with a
8
regular brake disc cleaner or acetone, and wash the tires with
9
warm water and a mild detergent. Before riding at higher
speeds, test the motorcycle’s
10
braking performance and cornering behavior.
11
12
Apply spray oil and wax spar-
ingly and make sure to wipe off
EWA11132
ECA10801
any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wear
away the paint.
Consult a Yamaha dealer for ad-
vice on what products to use.
Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU43203
Storage
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust system are cool before covering the motorcycle.
ECA10811
Storing the motorcycle in a
poorly ventilated room or covering it with a tarp, while it is still
wet, will allow water and humidity to seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemicals are stored.
Long-term
Before storing your motorcycle for several months:
1. Follow all the instructions in the
“Care” section of this chapter.
7-3
MOTORCYCLE CARE AND STORAGE
TIP
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit sparking during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug electrodes while turning the engine over.
[EWA10952]
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alternatively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an excessively cold or warm place [less
than 0 C (30 F) or more than 30
C (90 F)]. For more information
on storing the battery, see page
6-28.
Make any necessary repairs before
storing the motorcycle.
7-4
1
2
3
4
5
6
7
8
9
10
11
12
SPECIFICATIONS
–20 –10 0
10
20 30 40 50 ˚C
10 30 50 70 90 1100 130 ˚F
SAE 10W-30
SAE 15W-40
SAE 20W-40
SAE 20W-50
SAE 10W-40
SAE 10W-50
Dimensions:
1
2
3
4
5
6
7
8
9
10
11
12
Overall length:
2085 mm (82.1 in)
Overall width:
750 mm (29.5 in)
Overall height:
1095 mm (43.1 in)
Seat height:
785 mm (30.9 in)
Wheelbase:
1410 mm (55.5 in)
Ground clearance:
130 mm (5.1 in)
Minimum turning radius:
2400 mm (94.5 in)
Weight:
Curb weight:
174 kg (384 lb)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Single cylinder
Displacement:
Bore stroke:
Compression ratio:
Starting system:
Lubrication system:
3
399 cm
87.0 67.2 mm (3.43 2.65 in)
8.50 : 1
Kickstarter
Dry sump
EAU5091H
Engine oil:
Recommended brand:
YAMALUBE
Type:
SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter element replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter element replacement:
2.10 L (2.22 US qt, 1.85 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline (Gasohol (E10)
acceptable)
8-1
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
2.2 L (0.58 US gal, 0.48 Imp.gal)
Fuel injection:
Throttle body:
ID mark:
2RD1 00
Spark plug(s):
Manufacturer/model:
NGK/BPR6ES
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction ratio:
2.567 (77/30)
Final drive:
Chain
Secondary reduction ratio:
2.947 (56/19)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
2.357 (33/14)
2nd:
1.556 (28/18)
3rd:
1.190 (25/21)
SPECIFICATIONS
4th:
0.917 (22/24)
5th:
0.778 (21/27)
Chassis:
Frame type:
Semi double cradle
Caster angle:
27.70
Trail:
111 mm (4.4 in)
Front tire:
Type:
With tube
Size:
90/100-18M/C 54S
Manufacturer/model:
METZELER/ME77 Front
Rear tire:
Type:
With tube
Size:
110/90-18M/C 61S
Manufacturer/model:
METZELER/ME77
Maximum load:
150 kg (331 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
175 kPa (1.75 kgf/cm
Rear:
200 kPa (2.00 kgf/cm
Loading condition:
90–150 kg (198–331 lb)
Front:
200 kPa (2.00 kgf/cm
Rear:
225 kPa (2.25 kgf/cm
Front wheel:
Wheel type:
Spoke wheel
Rim size:
18x1.85
Rear wheel:
Wheel type:
Spoke wheel
Rim size:
18x2.15
Front brake:
Type:
Single disc brake
Operation:
Right hand operation
Specified brake fluid:
DOT 4
Rear brake:
Type:
Drum brake
Operation:
Right foot operation
8-2
2
, 25 psi)
2
, 29 psi)
2
, 29 psi)
2
, 33 psi)
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
150 mm (5.9 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105 mm (4.1 in)
Electrical system:
Ignition system:
TCI
Charging system:
AC magneto
Battery:
Model:
GT4B-5
Voltage, capacity:
12 V, 2.5 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage quantity:
Headlight:
12 V, 60.0 W/55.0 W 1
Tail/brake light:
12 V, 5.0 W/21.0 W 1
Front turn signal light:
12 V, 21.0 W 2
1
2
3
4
5
6
7
8
9
10
11
12
SPECIFICATIONS
1
2
3
4
5
6
7
8
9
10
11
Rear turn signal light:
12 V, 21.0 W 2
Auxiliary light:
12 V, 4.0 W 1
Meter lighting:
12 V, 1.7 W 4
Neutral indicator light:
12 V, 1.7 W 1
High beam indicator light:
12 V, 1.7 W 1
Turn signal indicator light:
12 V, 1.7 W 1
Fuel level warning light:
12 V, 3.0 W 1
Engine trouble warning light:
12 V, 1.7 W 1
Fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse:
7.5 A
12
8-3
CONSUMER INFORMATION
TIP
1
1
EAU53562
Identification numbers
Record the vehicle identification number, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION
NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space provided.
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcycle with the licensing authority in your
area.
EAU26441
Engine serial number
1. Engine serial number
The engine serial number is stamped
into the crankcase.
1
2
3
4
5
6
7
8
9
10
11
12
9-1
CONSUMER INFORMATION
1
EAU26481
1
Model label
2
3
4
5
1. Model label
6
The model label is affixed to the frame
under the seat. (See page 3-11.) Re-
7
cord the information on this label in the
space provided. This information will be
needed when ordering spare parts from
8
a Yamaha dealer.
9
10
11
12
9-2
INDEX
A
Air filter element, replacing ......................6-12
Auxiliary light bulb, replacing ................... 6-34
B
Battery .....................................................6-28
Brake and clutch levers, checking and
lubricating .............................................. 6-25
Brake fluid, changing ...............................6-21
Brake fluid level, checking ....................... 6-20
Brake lever ................................................3-6
Brake lever free play, adjusting ...............6-17
Brake light switches................................. 6-19
Brake pads and shoes, checking............. 6-20
Brake pedal ...............................................3-6
Brake pedal, checking and lubricating ..... 6-25
Brake pedal height and free play,
adjusting ................................................ 6-18
C
Cables, checking and lubricating............. 6-24
Care........................................................... 7-1
Catalytic converter..................................... 3-9
Centerstand and sidestand, checking
and lubricating ....................................... 6-26
Clutch lever................................................ 3-5
Clutch lever free play, adjusting ..............6-16
D
Decompression lever ............................... 3-11
Dimmer switch ........................................... 3-4
Drive chain, cleaning and lubricating.......6-23
Drive chain slack .....................................6-22
E
Engine break-in .........................................5-3
Engine idling speed, checking ................. 6-13
Engine oil and oil filter element.................. 6-9
Engine serial number ................................ 9-1
Engine stop switch .................................... 3-5
Engine trouble warning light ...................... 3-3
F
Front fork, checking................................. 6-27
Fuel ........................................................... 3-7
Fuel cock................................................. 3-10
Fuel consumption, tips for reducing .......... 5-3
Fuel level warning light.............................. 3-3
Fuel tank breather/overflow hose .............. 3-9
Fuel tank cap............................................. 3-7
Fuses, replacing...................................... 6-29
H
Handlebar switches................................... 3-4
Hazard switch............................................ 3-5
Headlight bulb, replacing......................... 6-31
High beam indicator light........................... 3-3
Horn switch ............................................... 3-5
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system................... 3-13
Indicator lights and warning lights ............. 3-2
K
Kickstarter ............................................... 3-10
M
Main switch/steering lock .......................... 3-1
Maintenance and lubrication, periodic....... 6-4
Maintenance, emission control system ..... 6-3
Matte color, caution................................... 7-1
Model label................................................ 9-2
N
Neutral indicator light ................................ 3-2
P
Panel, removing and installing .................. 6-7
10-1
Parking.......................................................5-4
Part locations .............................................2-1
Pass switch................................................3-4
S
Safety information......................................1-1
Seat .........................................................3-11
Shifting.......................................................5-2
Shift pedal..................................................3-6
Shift pedal, checking................................6-19
Shock absorber assemblies, adjusting ....3-12
Sidestand.................................................3-12
Spark plug, checking .................................6-8
Specifications.............................................8-1
Speedometer unit ......................................3-3
Starting the engine.....................................5-1
Starting the engine, trouble........................5-2
Steering, checking ...................................6-27
Storage ......................................................7-3
Swingarm pivots, lubricating .................... 6-26
T
Tachometer................................................3-4
Tail/brake light bulb, replacing .................6-32
Throttle grip and cable, checking and
lubricating ..............................................6-24
Throttle grip free play, checking...............6-13
Tires.........................................................6-14
Tool kit .......................................................6-2
Troubleshooting .......................................6-39
Troubleshooting chart ..............................6-40
Turn signal indicator light...........................3-2
Turn signal light bulb, replacing ............... 6-33
Turn signal switch ......................................3-4
V
Valve clearance .......................................6-13
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
INDEX
Vehicle identification number .....................9-1
W
Wheel bearings, checking........................6-28
Wheel (front) ............................................6-35
Wheel (rear) .............................................6-37
Wheels .....................................................6-16
11
12
10-2
Original instructions
PRINTED ON RECYCLED PAPER
PRINTED IN JAPAN
2013.12-0.1×1
(E)
!
