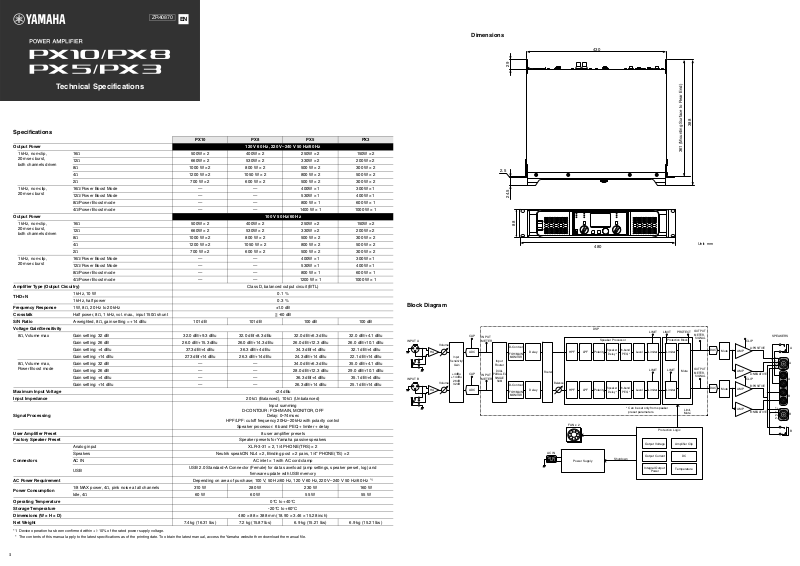

Yamaha PX10, PX8, PX5, PX3 Technical Specifications

<

=

ZR40870

EN

Technical Specifications

Specifications

PX10 PX8 PX5 PX3

Output Power

1 kHz, non-clip,
20 msec burst,
both channels driven

16Ω 500W × 2 400W × 2 250W × 2 150W × 2
12Ω 660W × 2 530W × 2 330W × 2 200W × 2
8Ω 1000 W × 2 800 W × 2 500 W × 2 300 W × 2
4Ω 1200 W × 2 1050 W × 2 800 W × 2 500 W × 2
2Ω 700 W × 2 600 W × 2 500 W × 2 300 W × 2

1 kHz, non-clip,
20 msec burst

16Ω/Power Boost Mode — — 400W × 1 300W × 1
12Ω/Power Boost Mode — — 530W × 1 400W × 1
8Ω/Power Boost mode — — 800 W × 1 600 W × 1
4Ω/Power Boost mode — — 1400 W × 1 1000 W × 1

Output Power

1 kHz, non-clip,
20 msec burst,
both channels driven

16Ω 500W × 2 400W × 2 250W × 2 150W × 2
12Ω 660W × 2 530W × 2 330W × 2 200W × 2
8Ω 1000 W × 2 800 W × 2 500 W × 2 300 W × 2
4Ω 1200 W × 2 1050 W × 2 800 W × 2 500 W × 2
2Ω 700 W × 2 600 W × 2 500 W × 2 300 W × 2

1 kHz, non-clip,
20 msec burst

16Ω/Power Boost Mode — — 400W × 1 300W × 1
12Ω/Power Boost Mode — — 530W × 1 400W × 1
8Ω/Power Boost mode — — 800 W × 1 600 W × 1
4Ω/Power Boost mode — — 1200 W × 1 1000 W × 1

Amplifier Type (Output Circuitry) Class D, balanced output circuit (BTL)

THD+N

1 kHz, 10 W 0.1 %
1 kHz, half power 0.3 %

Frequency Response 1 W, 8Ω, 20 Hz to 20 kHz ±1.0 dB
Crosstalk Half power, 8Ω, 1 kHz, vol. max., input 150Ω shunt -60 dB
S/N Ratio A-weighted, 8Ω, gain setting = +14 dBu 101 dB 101 dB 100 dB 100 dB
Voltage Gain/Sensitivity

8Ω, Volume max Gain setting: 32 dB 32.0 dB/+9.3 dBu 32.0 dB/+8.3 dBu 32.0 dB/+6.3 dBu 32.0 dB/+4.1 dBu

Gain setting: 26 dB 26.0 dB/+15.3 dBu 26.0 dB/+14.3 dBu 26.0 dB/+12.3 dBu 26.0 dB/+10.1 dBu
Gain setting: +4 dBu 37.3 dB/+4 dBu 36.3 dB/+4 dBu 34.3 dB/+4 dBu 32.1 dB/+4 dBu
Gain setting: +14 dBu 27.3 dB/+14 dBu 26.3 dB/+14 dBu 24.3 dB/+14 dBu 22.1 dB/+14 dBu

8Ω, Volume max,
Power Boost mode

Gain setting: 32 dB — — 34.0 dB/+6.3 dBu 35.0 dB/+4.1 dBu
Gain setting: 26 dB — — 28.0 dB/+12.3 dBu 29.0 dB/+10.1 dBu
Gain setting: +4 dBu — — 36.3 dB/+4 dBu 35.1 dB/+4 dBu
Gain setting: +14 dBu — — 26.3 dB/+14 dBu 25.1 dB/+14 dBu

Maximum Input Voltage +24 dBu
Input Impedance 20 kΩ (Balanced), 10 kΩ (Unbalanced)

Signal Processing

HPF/LPF: cutoff frequency 20Hz–20kHz with polarity control

User Amplifier Preset 8 user amplifier presets
Factory Speaker Preset Speaker presets for Yamaha passive speakers

Analog input XLR-3-31 × 2, 1/4 PHONE(TRS) × 2
Speakers Neutrik speakON NL4 × 2, Binding post × 2 pairs, 1/4" PHONE(TS) × 2

Connectors

AC IN AC inlet × 1 with AC cord clamp

USB

USB 2.0 Standard-A Connector (Female) for data save/load (amp settings, speaker preset, log) and

AC Power Requirement Depending on area of purchase; 100 V, 50 Hz/60 Hz, 120 V 60 Hz, 220 V–240 V 50 Hz/60 Hz

Power Consumption

1/8 MAX power, 4Ω, pink noise at all channels 310 W 280 W 230 W 160 W
Idle, 4Ω 60 W60 W55 W55 W

Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Dimensions (W × H × D) 480 × 88 × 388 mm (18.90 × 3.46 × 15.28 inch)
Net Weight 7.4 kg (16.31 lbs) 7.2 kg (15.87 lbs) 6.9 kg (15.21 lbs) 6.9 kg (15.21 lbs)

120 V 60 Hz, 220 V–240 V 50 Hz/60 Hz

100 V 50 Hz/60 Hz

Input summing

D-CONTOUR: FOH/MAIN, MONITOR, OFF

Delay: 0–74msec

Speaker processor: 6 band PEQ + limiter + delay

firmware update with USB memory

*1

Block Diagram

INPUT A

Volume

HA

INPUT B

Volume

HA

Input

Sensitivity/

Gain

+4dBu

+14dBu

26dB
32dB

Dimensions

CLIP

INPUT

METER

ADC

INPUT

METER

PARALLEL

CLIP

ADC

2.5

Input

Router

DUAL

SINGLE

SUM

29

24.5

88

D-Contour

FOH/MAIN

MONITOR

D-Contour

FOH/MAIN

MONITOR

Delay

Delay

Router

AC IN

Balance

HPF

HPF

FAN x 2

Power Supply

LPF

LPF

430

480

DSP

Speaker Processor

Speaker

Polarity

Speaker

Polarity

Delay *

Delay *

6-band

6-band

Shutdown

Level

PEQ *

Level Limiter Limiter

PEQ *

* Can be set only from speaker

preset parameters.

LIMIT PROTECT

LIMIT

Protection Block

Limiter

LIMIT LIMIT

Output Current

Integral Output

Power

Limiter

Protection Logic

Amplifier ClipOutput Voltage

Temperature

388

361 (Mounting Surface to Rear End)

Mute

Limit,
Mute

DC

Unit: mm

OUTPUT

METER,

SIGNAL

OUTPUT

METER,

SIGNAL

DAC

DAC

Mute

Mute

AMP

AMP

AMP

AMP

CLIP

A:POSITIVE

A:NEGATIVE

CLIP

B:POSITIVE

B:NEGATIVE

SPEAKERS

1+
1­2+
2-

1+
1­2+
2-

A

A

A

B

B

B

*1 Device operation has been confirmed within +/- 10% of the rated power supply voltage.

* The contents of this manual apply to the latest specifications as of the printing date. To obtain the latest manual, access the Yamaha website then download the manual file.

1

Explanation of Graphical Symbols
Explication des symboles

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.

L’éclair avec une flèche à l’intérieur d’un triangle équilatéral est destiné à attirer l’attention de l’utilisa­teur sur la présence d’une « tension dangereuse » non isolée à l’intérieur de l’appareil, pouvant être suffi­samment élevée pour constituer un risque d’électrocution.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor­tant operating and maintenance (servicing) instructions in the literature accompanying the product.

Le point d’exclamation à l’intérieur d’un triangle équilatéral est destiné à attirer l’attention de l’utilisa­teur sur la présence d’instructions importantes sur l’emploi ou la maintenance (réparation) de l’appareil
dans la documentation fournie.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION :

POUR RÉDUIRE LES RISQUES D'ÉLECTROCUTION, NE PAS RETIRER

LE CAPOT (OU LE DOS). NE CONTIENT PAS DE PIÈCES NÉCESSITANT

L'INTERVENTION DE L'UTILISATEUR. POUR TOUTE INTERVENTION,

FAIRE APPEL À DES PROFESSIONNELS QUALIFIÉS.

ATTENTION

RISQUE DE CHOC

ELECTRIQUE-NE PAS OUVRIR

The above warning is located on the top of the unit. L’avertissement ci-dessus est situé sur le dessus de l’unité.

Current Draw

 PX10

100V/50Hz

Idle 0.8 57 0 57 195 49

1/8 out

1/3 out

110V-120V/60Hz

Idle 0.7 60 0 60 205 52

1/8 out

1/3 out

220V-240V/50Hz

Idle 0.5 62 0 62 212 53

1/8 out

1/3 out

 PX8

100V/50Hz

Idle 0.8 57 0 57 195 49

1/8 out

1/3 out

Current

Draw (A)

@100V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 2.6 213 125 88 300 76
4Ω/ch 3.1 261 150 111 379 95
8Ω/ch 5.6 472 333 139 474 120
4Ω/ch 7.2 608 400 208 710 179

Current

Draw (A)

@120V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 2.2 213 125 88 300 76
4Ω/ch 2.7 263 150 113 386 97
8Ω/ch 4.6 466 333 133 454 114
4Ω/ch 5.9 597 400 197 672 169

Current

Draw (A)

@230V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 1.4 219 125 94 321 81
4Ω/ch 1.6 271 150 121 413 104
8Ω/ch 2.7 471 333 138 471 119
4Ω/ch 3.3 602 400 202 689 174

Current

Draw (A)

@100V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 2.2 178 100 78 266 67
4Ω/ch 2.9 237 131 106 362 91
8Ω/ch 4.6 386 267 119 406 102
4Ω/ch 6.4 543 350 193 659 166

 PX5

100V/50Hz

Idle 0.8 46 0 46 157 40

1/8 out

1/3 out

110V-120V/60Hz

Idle 0.8 54 0 54 184 46

1/8 out

1/3 out

220V-240V/50Hz

Idle 0.5 57 0 57 195 49

1/8 out

1/3 out

 PX3

100V/50Hz

Idle 0.8 46 0 46 157 40

1/8 out

1/3 out

Current

Draw (A)

@100V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 1.9 122 63 59 201 51
4Ω/ch 2.7 189 100 89 304 77
8Ω/ch 3.6 253 167 86 293 74
4Ω/ch 5.6 424 267 157 536 135

Current

Draw (A)

@120V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 1.7 130 63 67 229 58
4Ω/ch 2.4 196 100 96 328 83
8Ω/ch 3.1 259 167 92 314 79
4Ω/ch 4.8 428 267 161 549 138

Current

Draw (A)

@230V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 1.0 130 63 67 229 58
4Ω/ch 1.4 197 100 97 331 83
8Ω/ch 1.9 259 167 92 314 79
4Ω/ch 2.9 434 267 167 570 144

Current

Draw (A)

@100V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

8Ω/ch 1.5 94 38 56 191 48
4Ω/ch 2.0 137 63 74 253 64
8Ω/ch 2.6 174 100 74 253 64
4Ω/ch 3.9 285 167 118 403 101

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus combi-

nation to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS­TURE.

(UL60065_03)

PRÉCAUTIONS CONCERNANT LA SÉCURITÉ

1 Lire ces instructions.
2 Conserver ces instructions.
3 Tenir compte de tous les avertissements.
4 Suivre toutes les instructions.
5 Ne pas utiliser ce produit à proximité d’eau.
6 Nettoyer uniquement avec un chiffon propre et sec.
7 Ne pas bloquer les orifices de ventilation. Installer l’appareil conformément aux instructions du fabricant.
8 Ne pas installer l’appareil à proximité d’une source de chaleur comme un radiateur, une bouche de chaleur, un

poêle ou tout autre appareil (y compris un amplificateur) produisant de la chaleur.

9 Ne pas modifier le système de sécurité de la fiche polarisée ou de la fiche de terre. Une fiche polarisée dispose de

deux broches dont une est plus large que l’autre. Une fiche de terre dispose de deux broches et d’une troisième
pour le raccordement à la terre. Cette broche plus large ou cette troisième broche est destinée à assurer la sécuri­té de l’utilisateur. Si la fiche équipant l’appareil n’est pas compatible avec les prises de courant disponibles, faire
remplacer les prises par un électricien.

10 Acheminer les cordons d’alimentation de sorte qu’ils ne soient pas piétinés ni coincés, en faisant tout spéciale-

ment attention aux fiches, prises de courant et au point de sortie de l’appareil.
11 Utiliser exclusivement les fixations et accessoires spécifiés par le fabricant.
12 Utiliser exclusivement le chariot, le stand, le trépied, le support ou la table recommandés par

le fabricant ou vendus avec cet appareil. Si l’appareil est posé sur un chariot, déplacer le

chariot avec précaution pour éviter tout risque de chute et de blessure.
13 Débrancher l’appareil en cas d’orage ou lorsqu’il doit rester hors service pendant une pério-

de prolongée.
14 Confier toute réparation à un personnel qualifié. Faire réparer l’appareil s’il a subi tout dom-

mage, par exemple si la fiche ou le cordon d’alimentation est endommagé, si du liquide a

coulé ou des objets sont tombés à l’intérieur de l’appareil, si l’appareil a été exposé à la pluie ou à de l’humidité, si

l’appareil ne fonctionne pas normalement ou est tombé.

AVERTISSEMENT

POUR RÉDUIRE LES RISQUES D’INCENDIE OU DE DÉCHARGE ÉLECTRIQUE, N’EXPOSEZ PAS CET APPAREIL À
LA PLUIE OU À L’HUMIDITÉ.

(UL60065_03)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

110V-120V/60Hz

Current

Draw (A)

@120V

Power

Consumption

(In)

Idle 0.7 60 0 60 205 52

1/8 out

1/3 out

220V-240V/50Hz

8Ω/ch 1.9 182 100 82 280 71
4Ω/ch 2.5 237 131 106 362 91
8Ω/ch 3.8 385 267 118 403 101
4Ω/ch 5.4 542 350 192 655 165

Current

Draw (A)

@230V

Power

Consumption

(In)

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

Idle 0.5 62 0 62 212 53

1/8 out

1/3 out

8Ω/ch 1.2 184 100 84 287 72
4Ω/ch 1.5 242 131 111 379 95
8Ω/ch 2.2 385 267 118 403 101
4Ω/ch 3.0 544 350 194 662 167

110V-120V/60Hz

Current

Draw (A)

@120V

Power

Consumption

(In)

Idle 0.8 54 0 54 184 46

1/8 out

1/3 out

220V-240V/50Hz

8Ω/ch 1.3 100 38 62 212 53
4Ω/ch 1.8 140 63 77 263 66
8Ω/ch 2.3 183 100 83 283 71
4Ω/ch 3.4 291 167 124 423 107

Current

Draw (A)

@230V

Power

Consumption

(In)

Idle 0.5 57 0 57 195 49

1/8 out

1/3 out

Test signal: Pink noise, bandwidth limited from 22Hz to 22kHz
1 Btu = 1,055.06 J = 0.252 kcal
(W) × 0.86 = kcal

8Ω/ch 0.8 101 38 63 215 54
4Ω/ch 1.1 142 63 79 270 68
8Ω/ch 1.4 181 100 81 276 70
4Ω/ch 2.1 293 167 126 430 108

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

Watt (W) Thermal Dissipation

Power

Consumption

(out)

Watts

Dissipated

Btu/h kcal/h

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual,
meets FCC requirements. Modifications not expressly approved by Yamaha may void
your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use

only high quality shielded cables. Cable/s supplied with this product MUST be used. Fol­low all installation instructions. Failure to follow instructions could void your FCC autho­rization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in

FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these require-

2

ments provides a reasonable level of assurance that your use of this product in a resi­dential environment will not result in harmful interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not installed and used accord­ing to the instructions found in the users manual, may cause interference harmful to the
operation of other electronic devices. Compliance with FCC regulations does not guar-

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

FCC INFORMATION (U.S.A.)

antee that interference will not occur in all installations. If this product is found to be the
source of interference, which can be determined by turning the unit “OFF” and “ON”,
please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or

install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna

lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results, please contact the

local retailer authorized to distribute this type of product. If you can not locate the appro­priate retailer, please contact Yamaha Corporation of America, Electronic Service Divi­sion, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation
of America or its subsidiaries.

Manual Development Group

© 2016 Yamaha Corporation

Published 08/2018 PO-W-C0
