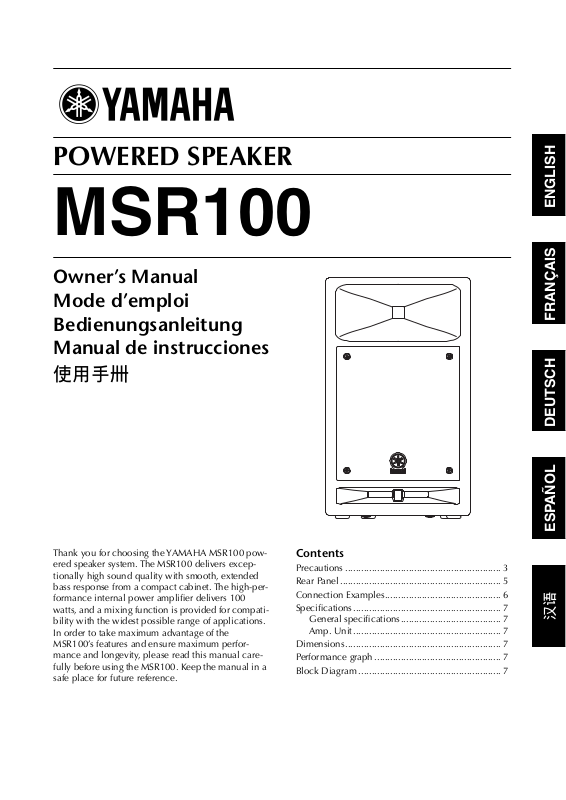

Page 1

POWERED SPEAKER

ENGLISH

MSR100

Owner’s Manual Mode d’emploi Bedienungsanleitung Manual de instrucciones

使用手卌

Thank you for choosing the YAMAHA MSR100 powered speaker system. The MSR100 delivers exceptionally high sound quality with smooth, extended bass response from a compact cabinet. The high-performance internal power ampliﬁer delivers 100 watts, and a mixing function is provided for compatibility with the widest possible range of applications. In order to take maximum advantage of the MSR100’s features and ensure maximum performance and longevity, please read this manual carefully before using the MSR100. Keep the manual in a safe place for future reference.

Contents

Precautions ........................................................... 3

Rear Panel ............................................................. 5

Connection Examples............................................ 6

Speciﬁcations........................................................ 7

General speciﬁcations...................................... 7

Amp. Unit........................................................ 7

Dimensions........................................................... 7

Performance graph................................................ 7

Block Diagram ...................................................... 7

FRANÇAISDEUTSCHESPAÑOL

漢語

Page 2

• Explanation of Graphical Symbols

ENGLISH

1 Read these instructions. 2Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings.

Install in accordance with the manufacture’s instructions.

8 Do not install near any heat sources such as

radiators, heat registers, stoves or other apparatus (including ampliﬁers) that produce heat.

9 Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magni-

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PA RTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

tude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and

The above warning is located on the rear of the unit.

maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT SAFETY INSTRUCTIONS

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus. 11 Only use attachments/accessories speciﬁed by

the manufacturer. 12 Use only with the cart, stand,

tripod, bracket, or table

speciﬁed by the manufacturer,

or sold with the apparatus.

When a cart is used, use

caution when moving the cart/

apparatus combination to

avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or

when unused for long periods of time. 14 Refer all servicing to qualiﬁed service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

Page 3

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

GREEN-AND-YELLOW : EARTH

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or coloured GREEN and YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

* This applies only to products distributed by YAMAHA KEMBLE

MUSIC (U.K.) LTD.

ENGLISH

Precautions

WARNING

Installation

• Connect this unit’s power cord only to an AC outlet of the type stated in this Owner’s Manual or as marked on the unit. Failure to do so is a fire and electrical shock hazard.

• Do not allow water to enter this unit or allow the unit to become wet. Fire or electrical shock may result.

• Do not place heavy objects, including this unit, on top of the power cord. A damaged power cord is a fire and electrical shock hazard. In particular, be careful not to place heavy objects on a power cord covered by a carpet.

• Do not place a container with liquid or small metal objects on top of this unit. Liquid or metal objects inside this unit are a fire and electrical shock hazard.

Operation

• Do not scratch, bend, twist, pull, or heat the power cord. A damaged power cord is a fire and electrical shock hazard.

• Do not insert or drop metal or flammable objects into the port of this unit. Fire or electrical shock may result.

• If lightning begins to occur, turn off the power switch of the unit as soon as possible, and unplug the power cable plug from the electrical outlet.

• If there is a possibility of lightning, do not touch the power cable plug if it is still connected. Doing so may be an electrical shock hazard.

• Do not modify the unit. Doing so is a fire and electrical shock hazard.

• Do not remove the unit’s cover. You could receive an electrical shock. If you think internal inspection, maintenance, or repair is necessary, contact your dealer.

• Use only the included power cord for this unit. Using other types may be a fire and electrical shock hazard.

In case an abnormality occurs during operation

• If the power cord is damaged (i.e., cut or a bare wire is exposed), ask your dealer for a replacement. Using the unit with a damaged power cord is a fire and electrical shock hazard.

• If you notice any abnormality, such as smoke, odor, or noise, or if a foreign object or liquid gets inside the unit, turn it off immediately. Remove the power cord from the AC outlet.

Consult your dealer for repair. Using the unit in this condition is a fire and electrical shock hazard.

• Should this unit be dropped or the cabinet be damaged, turn the power switch off, remove the power plug from the AC outlet, and contact your dealer. If you continue using the unit without heeding this instruction, fire or electrical shock may result.

Page 4

CAUTION

Installation Operation

• Keep this unit away from the following locations:

- Locations exposed to oil splashes or steam, such as near cooking stoves, humidifiers, etc.

- Unstable surfaces, such as a wobbly table or slope.

- Locations exposed to excessive heat, such as inside a car with all the windows closed, or places that receive direct sunlight.

- Locations subject to excessive humidity or dust accumulation.

ENGLISH

• Do not place the power cord close to a heater. It may melt, causing fire or electrical shock.

• Hold the power cord plug when disconnecting it from an AC outlet. Never pull the cord. A damaged power cord is a potential fire and electrical shock hazard.

• Do not touch the power plug with wet hands. Doing so is a potential electrical shock hazard.

• This unit has ventilation holes at the rear to prevent the internal temperature rising too high. Do not block them. Blocked ventilation holes are a fire hazard.

In particular, do not

place the unit on its side or upside down,

place the unit in any poorly-ventilated location such as a bookcase or closet (other than on the dedicated rack),

cover the unit with a table cloth or place it on a carpet or bed.

• To relocate the unit, turn the power switch off, remove the power plug from the AC outlet, and remove all connecting cables. Damaged cables may cause fire or electrical shock.

• Allow enough free space around the unit for normal ventilation. This should be: 30 cm at the sides, 30 cm behind, and 30 cm above. Open a ventilation hole. If the airflow is not adequate, the unit will heat up inside and may cause a fire.

• Turn off all musical instruments, audio equipment, and speakers when connecting to this unit. Use the correct connecting cables and connect as specified.

• Always lower the volume control to minimum before turning on the power to this unit. A sudden blast of sound may damage your hearing.

• Do not output distorted sounds for long periods of time, as this will cause the speaker to heat up, leading to a fire hazard.

• Do not raise the volume of speakers to a level that makes you feel uncomfortable. Listening to loud music for long periods can damage your hearing.

• If you know you will not use this unit for a long period of time, such as when going on vacation, remove the power plug from the AC outlet. Leaving it connected is a potential fire hazard.

Maintenance

• To prevent electrical shock when cleaning the unit, remove the power plug from the AC outlet.

PRECAUTIONS – FOR CORRECT OPERATION –

Connector pin assignments

• XLR-type connectors are wired as follows: pin 1: ground, pin 2: hot (+), and pin 3: cold (–).

Installation

• This speaker system is not magnetically shielded. If a nearby monitor exhibits any distortion or unnatural color shift, move the speaker further away from the monitor.

Influence on cell phone usage

• Using a cell phone (mobile telephone) near this unit may induce noise. If noise occurs, use the telephone away from the unit.

Page 5

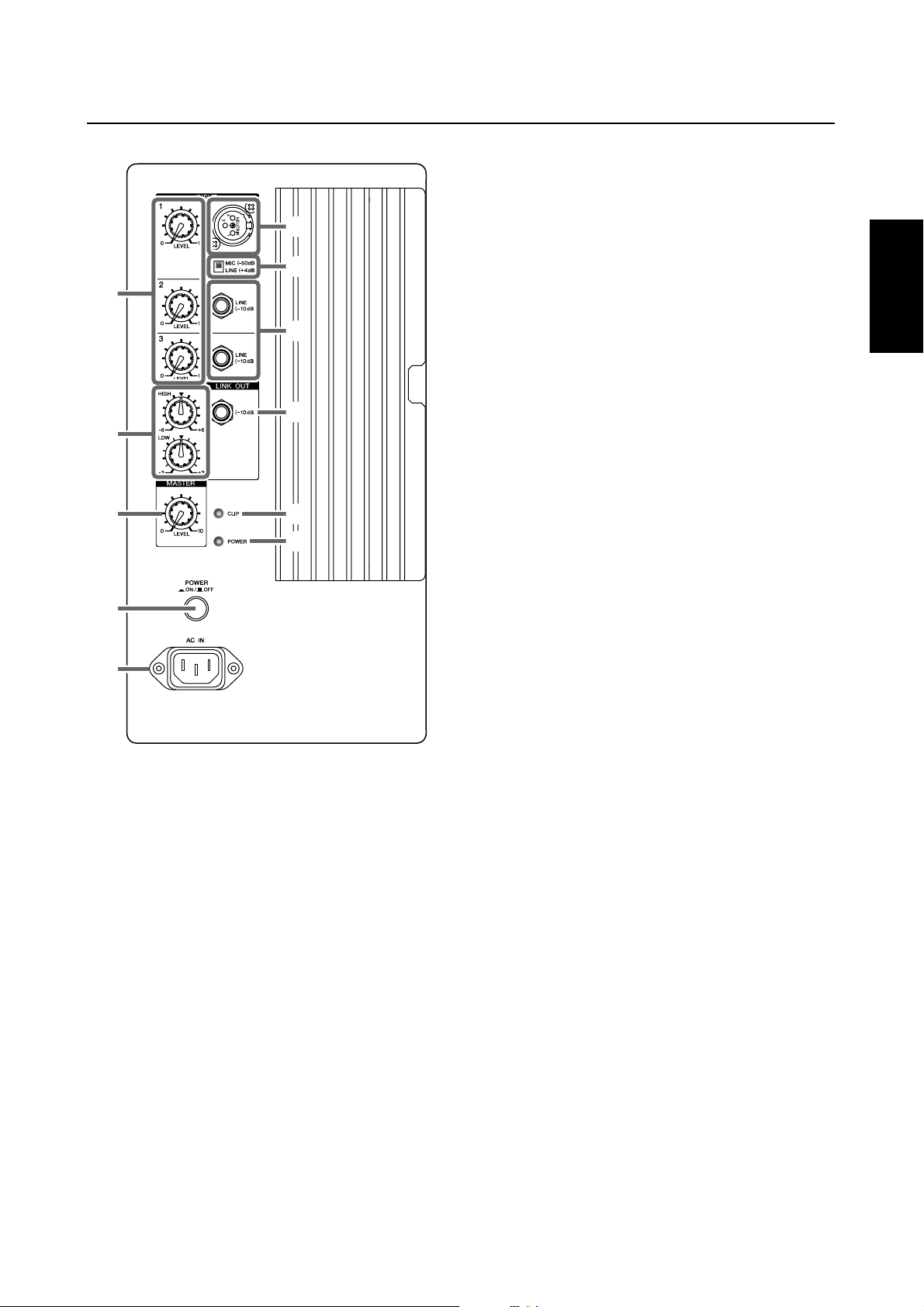

Rear Panel

1 POWER Switch

Turns power to the MSR100 on and off. When the power is turned on the POWER indicator (J) will light green.

⑤

⑥

⑧

①

⑪

② ③

④

⑦

⑨ ⑩

2 INPUT1 Connector

This dual-mode input connector is a balanced XLR-3-31 type. The INPUT1 connector can be set for two types of input: when the sensitivity switch (C) is set to MIC microphone-level signals can be connected directly to the input; when the sensitivity switch (C) is set to LINE the input accepts line-level signals such as those from a preampliﬁer or mixer.

3 Sensitivity Switch

Use this switch to set the sensitivity of the INPUT1 connector to match MIC (microphonelevel) or LINE (line-level) input signals.

4 INPUT2 and INPUT3 Connectors

The INPUT2 and INPUT3 connectors are unbalanced phone jacks for direct connection of linelevel audio signals and musical instruments.

5 LEVEL Controls

Adjust the level of the signals received at the INPUT1, INPUT2, and INPUT3 connectors (2,

4).

6 EQ Controls

HIGH: The HIGH control adjusts the output level at 10 kHz over a ±6 dB range. Rotate clockwise to boost or counterclockwise to cut. LOW: The LOW control adjusts the output level at 60 Hz over a ±3 dB range. Rotate clockwise to boost or counterclockwise to cut.

ENGLISH

7 LINK OUT Connector

This is a “direct output“ connector that outputs a mix of the signals received at the INPUT1, INPUT2 and INPUT3 connectors (2, 4).

8 MASTER LEVEL Control

Adjusts the overall output level.

9 CLIP Indicator

The CLIP indicator will light red if excessively high signal levels cause ampliﬁer clipping. If this occurs, reduce the level of LEVEL controls (5) or MASTER LEVEL controls (8).

J POWER Indicator

Light green when the POWER switch (A) is turned on.

K AC IN Connector

Connect the supplied power cord here.

Page 6

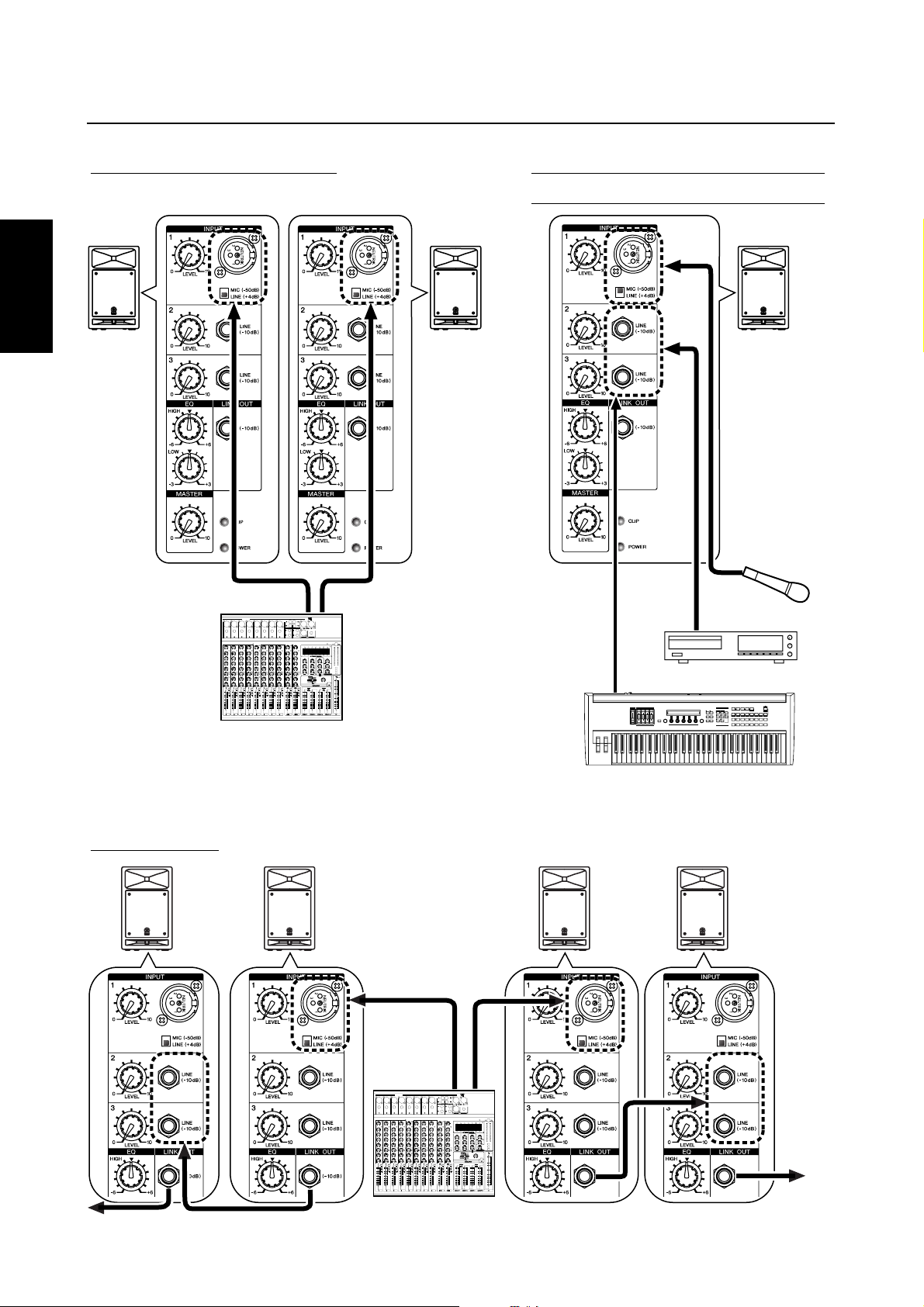

Connection Examples

Connecting to a mixer

ENGLISH

LINE OUT L R

Connecting a microphone and other sources directly

Microphone

Daisy chain

Mixer

LINE OUT

CD player or Tape deck

Keyboad

Mixer

Page 7

Speciﬁcations

General speciﬁcations

Type

2way Bass Reﬂex Powered Speaker

Speaker Unit

LF: 200 mm Cone

HF: 25.4 mm Compression Driver

Frequency Range ..................55 Hz—20 kHz (–10 dB)

Cross Over Frequency...........4 kHz

Maximum Output Level........112 dB (1 m)

Dimension (W×H×D)............275 × 455.5 × 255 mm

Weight..................................11 kg

Color ....................................Black (Approximate Munsell

Value 5 PB2/1)

Accessories...........................Power supply cord 2.5 m (AC

Inlet type)

Option..................................BWS50-190/260/320,

BCS251, BBS251

Amp. Unit

Max Power ...........................100W at 1 kHz, THD=1%,

RL=6Ω

Input Sensitivity ....................INPUT 1: –50 dB* (MIC),

+4 dB* (LINE)

INPUT 2, 3: –10 dB*

Intput Impedance..................INPUT 1, 2, 3: 10 kΩ

Output Sensitivity .................LINK OUT: –10 dB*

Output Impedance................LINK OUT: 10 kΩ

Controls

LEVEL Control.................INPUT 1, 2, 3, MASTER

EQ Control......................LOW: ±3 dB at 60 Hz

HIGH: ±6 dB at 10 kHz

POWER Switch ...............ON/OFF

Connectors

INPUT 1..........................XLR-3-31 (balanced)

INPUT 2, 3......................Phone (unbalanced

LINK OUT.......................Phone (unbalanced

) )

Indicator

POWER Indicator............Green LED

CLIP Indicator .................Red LED

Power Requirement

USA and Canada.............AC 120 V, 60 Hz

Europe ............................AC 230 V, 50 Hz

Australia..........................AC 240 V, 50 Hz

Korea

..................................A

C 220 V, 60 Hz

Power Consumption .............70 W

* 0 dB=0.775 V Speciﬁcations and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or speciﬁcations at any time without prior notice. Since speciﬁcations, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

For European Model Purchaser/User Information speciﬁed in EN55103-1 and EN55103-2. Inrush Current: 10 A Conformed Environment: E1, E2, E3 and E4

ENGLISH

Dimensions

455.5

275

137

120

2-M8x25

Block Diagram

INPUT1

(ｰ50/+4dB)

+4dB

-50dB

INPUT2

(ｰ10dB)

255

SUM

LOW

BOOST

LOW CUT

Performance Graph

+10

-10

-20

RESPONSE (dB)

-30

-40 20

FREQUENCY (Hz)

LOW

HIGH

MASTER

LEVEL

P.AMP

10k1k100

INPUT3

(ｰ10dB)

LINKOUT

(ｰ10dB)

Page 8

MEMO

ENGLISH
