Yamaha MAgicstomp Guitar Effects Professor User Manual

GUITAR EFFECTS PROCESSOR
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow in­structions could void your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital de­vices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environ­ment will not result in harmful interference with other electronic devices. This equipment gener­ates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/ reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co­axial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620
The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.
CANADA
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
• This applies only to products distributed by Yamaha Canada Music Ltd.
• Ceci ne s’applique qu’aux produits distribués par Yamaha Canada Musique Ltée.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
The lightning flash with arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
2

IMPORTANT SAFETY INSTRUCTIONS

INFORMATION RELATING TO PERSONAL INJURY, ELECTRICAL SHOCK,
AND FIRE HAZARD POSSIBILITIES HAS BEEN INCLUDED IN THIS LIST.
WARNING-
uct, basic precautions should always be followed. These precau­tions include, but are not limited to, the following:
When using any electrical or electronic prod-
1. Read all Safety Instructions, Installation Instructions,
Special Message Section items, and any Assembly Instructions found in this manual BEFORE making any connections, includ­ing connection to the main supply.
2. Do not attempt to service this product beyond that
described in the user-maintenance instructions. All other servic­ing should be referred to qualified service personnel.
3. Main Power Supply Verification: Yamaha products are
manufactured specifically for the supply voltage in the area where they are to be sold. If you should move, or if any doubt exists about the supply voltage in your area, please contact your dealer for supply voltage verification and (if applicable) instruc­tions. The required supply voltage is printed on the name plate. For name plate location, please refer to the graphic found in the Special Message Section of this manual.
4. WARNING: Do not place this product or any other
objects on the power cord or place it in a position where anyone could walk on, trip over, or roll anything over power or connect­ing cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, the minimum wire size for a 25' cord (or less) is 18 AWG. NOTE: The smaller the AWG number, the larger the current handling capacity. For longer extension cords, consult a local electrician.
5. Ventilation: Electronic products, unless specifically
designed for enclosed installations, should be placed in locations that do not interfere with proper ventilation. If instructions for enclosed installations are not provided, it must be assumed that unobstructed ventilation is required.
6. Temperature considerations: Electronic products should
be installed in locations that do not seriously contribute to their operating temperature. Placement of this product close to heat sources such as; radiators, heat registers etc., should be avoided.
7. This product was NOT designed for use in wet/damp
locations and should not be used near water or exposed to rain. Examples of wet /damp locations are; near a swimming pool, spa, tub, sink, or wet basement.
8. This product should be used only with the components
supplied or; a cart ,rack, or stand that is recommended by the manufacturer. If a cart, rack, or stand is used, please observe all safety markings and instructions that accompany the accessory product.
9. The power supply cord (plug) should be disconnected
from the outlet when electronic products are to be left unused for extended periods of time. Cords should also be disconnected when there is a high probability of lightening and/or electrical storm activity.
10. Care should be taken that objects do not fall and liquids
are not spilled into the enclosure through any openings that may exist.
11. Electrical/electronic products should be serviced by a
qualified service person when:
a. The power supply cord has been damaged; or b. Objects have fallen, been inserted, or liquids have been
spilled into the enclosure through openings; or c. The product has been exposed to rain; or d. The product does not operate, exhibits a marked change
in performance; or e. The product has been dropped, or the enclosure of the
product has been damaged.
12. This product, either alone or in combination with an
amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for a long period of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audi­ologist.
IMPORTANT: The louder the sound, the shorter the time
period before damage occurs.
13. Some Yamaha products may have benches and/or acces-
sory mounting fixtures that are either supplied as a part of the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that benches are stable and any optional fixtures (where appli­cable) are well secured BEFORE using. Benches supplied by Yamaha are designed for seating only. No other uses are recom­mended.
92-469-3
PLEASE KEEP THIS MANUAL
3
4
GUITAR EFFECTS PROCESSOR
Thank you for purchasing the Yamaha MAGICSTOMP. To get the most out of this product, we urge you to thoroughly read this manual before use. Also, please keep the manual in a safe place for future reference.
Precautions ............................................................................ 6
Package Contents .................................................................. 6
MAGICSTOMP’s Main Features ............................................... 7
Component Names & Functions............................................. 8
Top Panel ...................................................................................... 8
Rear Panel ..................................................................................... 8
Connections ......................................................................... 10

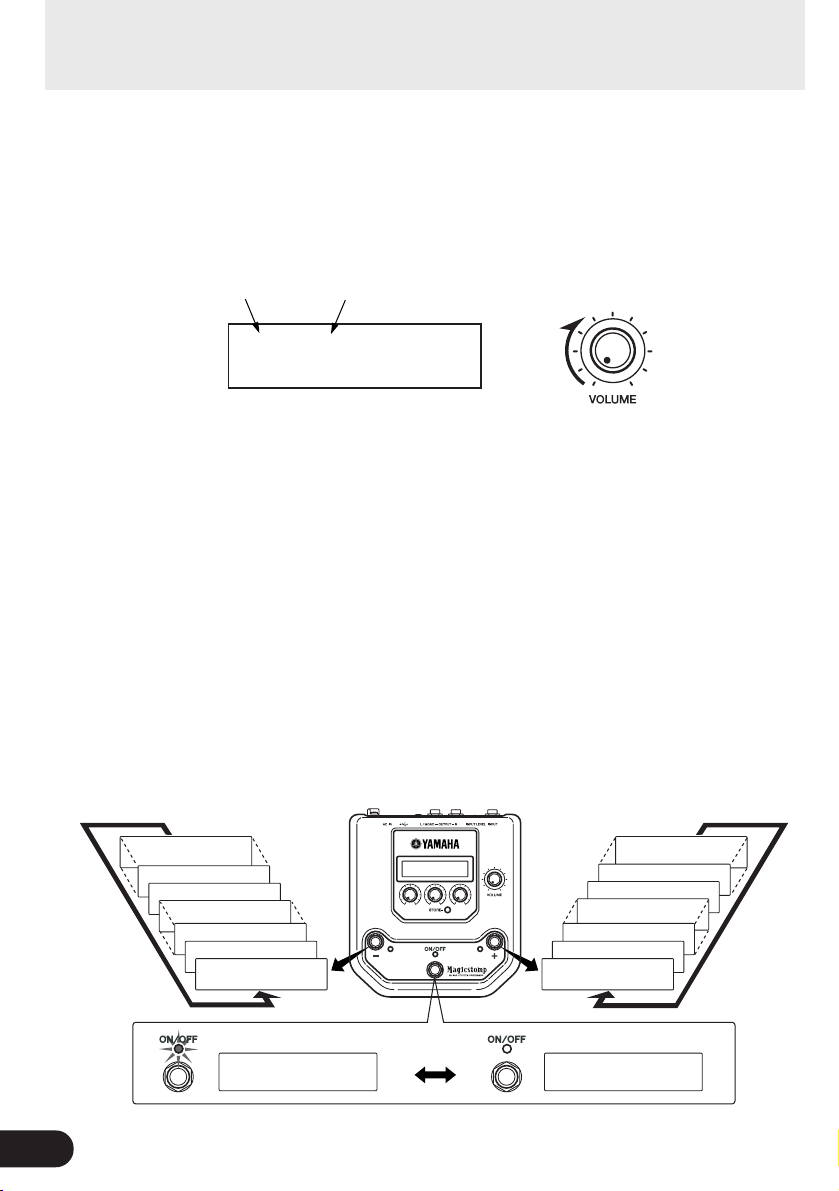

Using the MAGICSTOMP ...................................................... 12
Turn on the amplifier and play..................................................... 12
Try out some of the other patches ............................................... 12
Create your own sound ........................................................ 14
Use the knobs to adjust the effect ................................................ 14

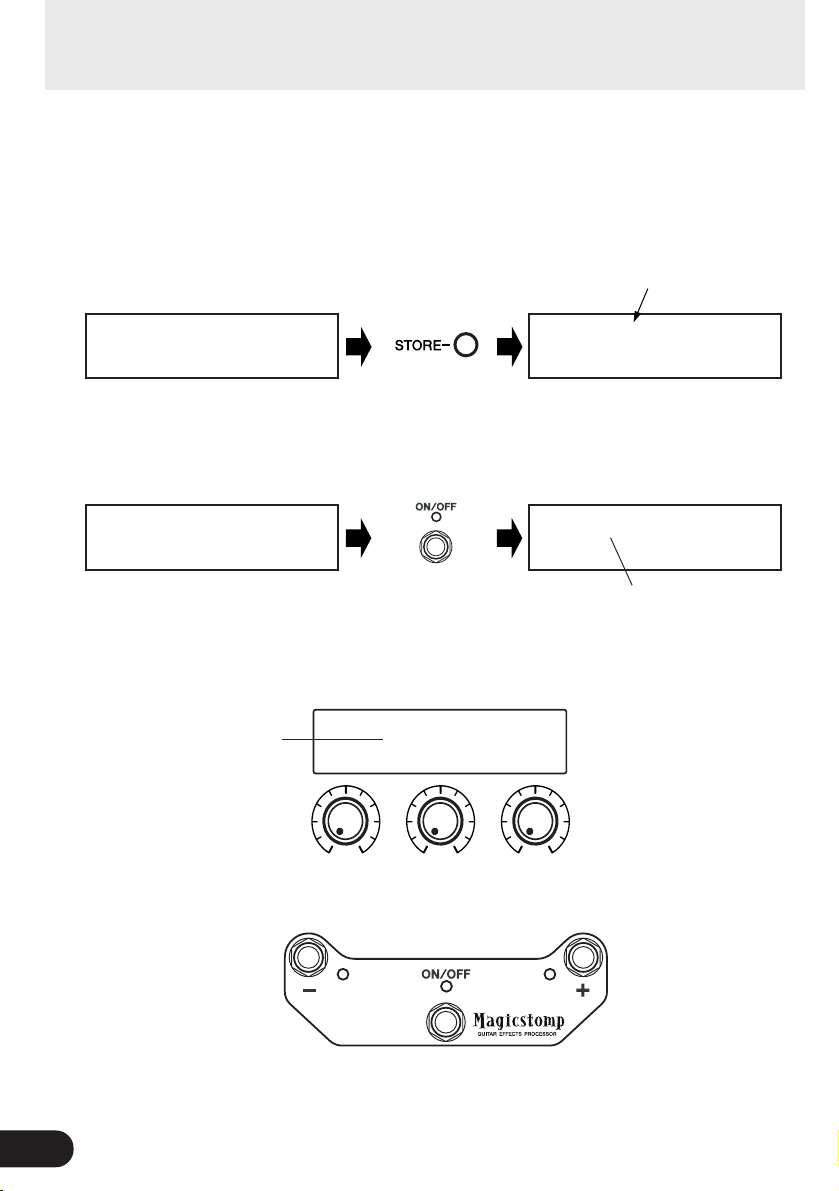

Saving Patches .....................................................................16
Storing edited patches (STORE) ................................................... 16
Giving the patch a name ..................................................... 18
Giving the patch a name (Name Edit Mode) ............................... 18
Tuner Mode .......................................................................... 20
Using the tuner ........................................................................... 20
Factory Set (Restore Factory Defaults) ................................ 21
Restoring the factory defaults ...................................................... 21
Editing Patches with a Computer ........................................ 22
Data Flow .................................................................................... 23
Using the Sound Editor for MAGICSTOMP .................................. 23
Error Messages ..................................................................... 28
Trouble Shooting .................................................................28
Specifications ....................................................................... 29
SOFTWARE LICENSING AGREEMENT ..................................... 30
Owner’s Manual

Contents

For Windows Users ........................................................................... 24
For Macintosh Users ......................................................................... 26
5

Precautions

•Avoid using the MAGICSTOMP in the following locations to prevent possible damage:
• In direct sunlight or next to heating equipment.
• In extremely cold or hot locations.
• Locations exposed to high humidity or excessive dust.
• Locations subject to strong shocks or vibration.
• Before making any connections, make sure that the power is switched OFF on the MAGICSTOMP and any external devices.
•To protect speakers from possible damage, always set the VOLUME knob to “0” before switching the power ON/OFF.
• When connecting any devices to this unit, make sure that the power is switched OFF first.
• Do not apply excessive force to the switches, knobs and controls.
• The MAGICSTOMP is a precision device. Handle it with care and avoid dropping or jarring it.
•For safety, always remove the power adaptor from the AC wall outlet if there is any danger of lightning striking in your area.
•Keep the MAGICSTOMP away from neon signs or fluorescent lighting to prevent noise pickup.
•To prevent damage and possibly electrical shock, never open the case and tamper with the internal circuitry.
• Never use benzene, thinner or other volatile liquids for cleaning, as these chemicals may cause damage or discoloration to the finish. Always use a dry, soft cloth to wipe off dust and dirt.

Package Contents

The following items are included in the MAGICSTOMP package. Check to see that you have every­thing listed here.
•MAGICSTOMP ............................... 1
• CD-ROM ......................................... 1
•Power Adaptor (AC-10) ...................1
•USB Cable ...................................... 1
• Owner’s Manual (this booklet) ........ 1
• Patch List ........................................ 1
CAUTION
• Before breaking the seal on the CD-ROM package, please carefully read the “Software Licensing Agreement” on page 30.
•Never attempt to play back the included CD-ROM on an audio CD player. Doing so may result in damage to your hearing as well as to your CD player/audio speakers.
6
MAGICSTOMP’s Main Features
[Harnessing the power of Yamaha’s DSP technology]
• The MAGICSTOMP utilizes a powerful 32-bit DSP designed by Yamaha to deliver amp simula­tions and effects from the DG series amplifiers and DG, AG, and UD-Stomp effects. It also produces a variety of digital effects derived from the Yamaha SPX series with unprecedented audio quality and function.
[New algorithms deliver stunning effects and powerful amplifier simula­tions for guitarists]
•New “Distortion & Amp type” effect creates a variety of sounds from overdrive to powerful fuzz effects.
•New algorithms created by VCM (Virtual Circuitry Modeling) technology delivers vintage type phaser and flanger effects.
[Professional quality preset tone patches make the MAGICSTOMP ready to use out of the box]
• Close collaboration with artists from around the world have produced a variety of ready to use, professional quality effects.
<<99 On-board preset patches + CD-ROM patch library>> <<99 User patches allow editing and storing>>
[Feels and operates like a compact effector]
• Simple design and controls (4 knobs, 3 footswitches) provide guitarists with a familiar operating environment. Operation is simple and straightforward to provide quick sound creation.
[Upload new patch data via USB]
•Patches supplied on the accompanying CD-ROM or downloaded from the internet can be up­loaded into the MAGICSTOMP via the USB cable. You can also store customized sound patches in your computer.
[Create custom effects on your computer with dedicated software based patch editor]
• Use the supplied USB cable to connect the MAGICSTOMP to your computer, then use the accompanying “Sound Editor For MAGICSTOMP” application to edit the effects parameters and set parameters that can be controlled with the MAGICSTOMP’s three control knobs. Cre­ate your own custom patches to make your own MAGICSTOMP.
[Built-in chromatic auto tuner]
• The MAGICSTOMP also includes a built-in chromatic auto tuner, which is extremely useful in live performances and recording.
7

Component Names & Functions

Top Panel

q
w

Rear Panel

U99¤MAGICSTOMP ó‡GAINfiMSTRáTONE
t
e
r
yu
8
i
o!0
Component Names & Functions
q Display
Displays information for the currently selected patch or operating conditions of the MAGICSTOMP.
w CONTROL Knobs
These are used to control patch parameters. ( page 14)
e VOLUME Knob
Controls the overall output volume of the MAGICSTOMP. ( page 12)
r STORE Button
This button is used to store patches that have been edited in the MAGICSTOMP. ( page 16)
t – Switch, + Switch, ON/OFF Switch
These switches select patches, switch the patch ON or OFF, or switch modes. ( page 12, 13, 18,
20)
y INPUT Jack
For connecting an instrument such as a guitar, synthesizer, etc., to the MAGICSTOMP. (page 11)
u INPUT LEVEL HIGH/LOW Switch
Selects HIGH or LOW impedance to match the input level with the output level of the instrument connected to the INPUT jack. (→ page 11)
i OUTPUT L/MONO, R Jacks
For connecting the MAGICSTOMP to a guitar amplifier, recorder, PA mixer, etc. Use the L/MONO jack when connecting to monaural devices. ( page 11)
o USB Jack
For connecting the MAGICSTOMP to a computer. This lets you edit patch voices on the computer or move patch data between the computer and the MAGICSTOMP. ( page 23)
!0 AC IN Jack (Power Adaptor)
Connect the supplied power adaptor to this jack. ( page 10)
*Power is switched ON when the power adaptor is connected (and supplying power) to the main unit.
9

Connections

CAUTION
• In order to prevent electric shock or damage to your equipment, turn OFF the power on the guitar amp, etc., and set the MAGICSTOMP’s volume to its minimum level before making any connections.
• Only use the supplied AC-10 adaptor to power the unit. Using another adaptor may result in damage, overheating or fire, which can be very dangerous.
• Make sure to use the recommended AC voltage as indicated on the power adaptor.
• The supplied power adaptor AC-10 is designed specifically for use with the MAGICSTOMP. Never use this adaptor with any other device.
• The MAGICSTOMP automatically switches “ON” when power is connected and supplied to the device.
• Connect a guitar, bass or any line level instrument such as a synthesizer, etc., to the INPUT jack. The MAGICSTOMP can also be connected to the effect loop of an amplifier, mixer, or other similar device.
• Set the INPUT LEVEL switch to match the output level of the instrument or device that is connected to the MAGICSTOMP. If the sound is distorted when the switch is set to the HIGH position, change the setting to LOW. If you feel output is low when the switch is set to the LOW position, change the setting to HIGH.
• When using patches with stereo output, we recommend connecting the MAGICSTOMP’s out­put jacks to a stereo device.
• When connecting to a monaural device, use the OUTPUT L/MONO jack.
• When connecting the power adaptor to the MAGICSTOMP’s AC IN jack, you can wrap the power adaptor cord around the cord hook as shown in the illustration below (this helps keeping the plug from being accidentally pulled out).
10
CAUTION
• Don’t let the cord bend sharply or kink when wrapping the cord around the hook. An excessive bend can cut the cord or start a fire.
AC IN jack
Cord hook
Power adaptor cord
