OWNER’S MANUAL

Read this manual carefully before operating this

outboard motor.

F30B F40F

6BG-28199-71-E0

EMU25052

Read this manual carefully before operating this outboard motor. Keep this manual onboard in a waterproof bag when boating. This manual should stay with the outboard motor if it is sold.

Important manual information

EMU25105

To the owner

Thank you for choosing a Yamaha outboard motor. This Owner’s Manual contains information needed for proper operation, maintenance and care. A thorough understanding of these simple instructions will help you obtain maximum enjoyment from your new Yamaha. If you have any question about the operation or maintenance of your outboard motor, please consult a Yamaha dealer. In this Owner’s Manual particularly important information is distinguished in the following ways.

: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

EWM00781

WARNING

A WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

ECM00701

NOTICE

A NOTICE indicates special precautions that must be taken to avoid damage to the outboard motor or other property.

there is any question concerning this manual, please consult your Yamaha dealer. To ensure long product life, Yamaha recommends that you use the product and perform the specified periodic inspections and maintenance by correctly following the instructions in the owner’s manual. Any damage resulting from neglect of these instructions is not covered by warranty. Some countries have laws or regulations restricting users from taking the product out of the country where it was purchased, and it may be impossible to register the product in the destination country. Additionally, the warranty may not apply in certain regions. When planning to take the product to another country, consult the dealer where the product was purchased for further information. If the product was purchased used, please consult your closest dealer for customer reregistration, and to be eligible for the specified services.

IP:

The F30BEHD, F30BET, F40FED, F40FEHD, F40FET and the standard accessories are used as a base for the explanations and illustrations in this manual. Therefore some items may not apply to every model.

EMU25121

IP:

A TIP provides key information to make procedures easier or clearer.

Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current product information available at the time of printing, there may be minor discrepancies between your machine and this manual. If

F30B, F40F

OWNER’S MANUAL

1st Edition, December 2008

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd. is expressly prohibited.

Printed in Japan

Table of contents

Safety information............................. 1

Outboard motor safety .................... 1

Propeller............................................ 1

Rotating parts.................................... 1

Hot parts ........................................... 1

Electric shock.................................... 1

Power trim and tilt .............................1

Engine shut-off cord (lanyard)........... 1

Gasoline............................................ 1

Gasoline exposure and spills ............ 2

Carbon monoxide.............................. 2

Modifications ..................................... 2

Boating safety ................................. 2

Alcohol and drugs .............................2

Personal flotation devices ................. 2

People in the water ...........................2

Passengers ....................................... 2

Overloading....................................... 2

Avoid collisions ................................. 3

Weather ............................................ 3

Passenger training ............................ 3

Boating safety publications ...............3

Laws and regulations ........................ 3

General information .......................... 4

Identification numbers record.......... 4

Outboard motor serial number .......... 4

Key number....................................... 4

EC Declaration of Conformity

(DoC)............................................. 4

CE Marking ..................................... 4

Read manuals and labels................ 6

Warning labels ..................................6

Specifications and requirements..... 9

Specifications .................................. 9

Installation requirements ............... 11

Boat horsepower rating................... 11

Mounting motor ............................... 11

Yamaha Security System................ 11

Remote control requirements........ 11

Battery requirements..................... 11

Battery specifications ...................... 11

Mounting battery .............................11

Multiple batteries............................. 11

Propeller selection......................... 12

Start-in-gear protection ................. 12

Engine oil requirements ................ 13

Fuel requirements......................... 13

Gasoline .......................................... 13

Anti-fouling paint ........................... 13

Motor disposal requirements......... 14

Emergency equipment.................. 14

Components .................................... 15

Components diagram.................... 15

Fuel tank .........................................16

Fuel joint.......................................... 16

Fuel gauge ......................................17

Fuel tank cap................................... 17

Air vent screw.................................. 17

Remote control transmitter..............17

Receiver .......................................... 17

Yamaha Security System lock and

unlock mode.................................. 18

Remote control box ......................... 18

Remote control lever ....................... 18

Neutral interlock trigger ................... 19

Neutral throttle lever........................19

Tiller handle..................................... 19

Gear shift lever................................19

Throttle grip ..................................... 20

Throttle indicator .............................20

Throttle friction adjuster................... 20

Engine shut-off cord (lanyard) and

clip................................................. 21

Engine stop button ..........................21

Main switch .....................................22

Steering friction adjuster .................22

Power trim and tilt switch on remote

control or tiller handle.................... 23

Power trim and tilt switch on bottom

engine cowling ..............................23

Variable trolling RPM switches........ 23

Trim tab with anode......................... 24

Tilt lock mechanism......................... 24

Tilt support knob.............................. 24

Top cowling lock lever(s)

(turn type)...................................... 25

Flushing device ...............................25

Fuel filter/Water separator............... 25

Alert indicator ..................................26

Instruments and indicators............ 27

Table of contents

Indicators....................................... 27

Low oil pressure-alert indicator ....... 27

Overheat-alert indicator .................. 27

Digital tachometer ......................... 27

Tachometer..................................... 28

Trim meter....................................... 28

Hour meter ...................................... 28

Low oil pressure-alert indicator ....... 28

Overheat-alert indicator .................. 29

Digital speedometer ...................... 29

Speedometer .................................. 29

Fuel gauge ...................................... 29

Trip meter / Clock / Voltmeter .........30

Fuel level-alert indicator.................. 31

Low battery voltage-alert

indicator ........................................ 31

6Y8 Multifunction meters............... 31

6Y8 Multifunction tachometers...... 31

Start-up checks ............................... 32

Yamaha Security System

information .................................... 33

Low oil pressure-alert...................... 33

Overheat alert .................................34

Water separator alert ......................34

Engine trouble alert......................... 35

Low battery voltage-alert................. 35

6Y8 Multifunction speed & fuel

meters ......................................... 36

6Y8 Multifunction

speedometers ............................. 37

6Y8 Multifunction fuel

management meters ................... 37

Engine control system.................... 39

Alert system .................................. 39

Overheat alert .................................39

Low oil pressure alert...................... 39

Installation .......................................41

Installation ..................................... 41

Mounting the outboard motor.......... 41

Operation .........................................43

First-time operation ....................... 43

Fill engine oil ................................... 43

Breaking in engine ..........................43

Getting to know your boat ............... 43

Checks before starting engine ...... 43

Fuel level.........................................44

Remove cowling..............................44

Fuel system.....................................44

Controls...........................................44

Engine shut-off cord (lanyard).........45

Engine oil ........................................45

Engine ............................................. 46

Flushing device ...............................46

Install cowling..................................46

Power trim and tilt system ............... 47

Battery.............................................47

Filling fuel...................................... 47

Operating engine .......................... 48

Sending fuel (portable tank) ............ 48

Starting engine ................................ 49

Checks after starting engine ......... 52

Cooling water ..................................52

Warming up engine....................... 52

Manual start and electric start

models ..........................................52

Checks after engine warm-up....... 53

Shifting ............................................53

Stop switches .................................. 53

Shifting.......................................... 53

Stopping boat................................ 54

Trolling .......................................... 55

Adjusting trolling speed ................... 55

Stopping engine............................ 55

Procedure........................................ 55

Trimming outboard motor.............. 56

Adjusting trim angle

(Power trim and tilt).......................57

Adjusting trim angle for hydro tilt

models ..........................................57

Adjusting boat trim ..........................58

Tilting up and down....................... 59

Procedure for tilting up

(hydro tilt models) .........................59

Procedure for tilting up

(power trim and tilt models)........... 60

Procedure for tilting down

(hydro tilt models) .........................61

Procedure for tilting down

(power trim and tilt models)........... 61

Shallow water................................ 62

Table of contents

Hydro tilt models .............................62

Power trim and tilt models............... 63

Cruising in other conditions........... 64

Maintenance..................................... 65

Transporting and storing

outboard motor............................ 65

Storing outboard motor ...................65

Procedure ....................................... 66

Lubrication ...................................... 68

Flushing power unit......................... 68

Cleaning the outboard motor .......... 69

Checking painted surface of

motor............................................. 69

Periodic maintenance.................... 70

Replacement parts.......................... 70

Severe operating conditions ........... 70

Maintenance chart 1 ....................... 71

Maintenance chart 2 ....................... 73

Greasing ......................................... 74

Cleaning and adjusting spark

plug ............................................... 75

Inspecting idling speed ................... 76

Changing engine oil ........................77

Checking wiring and connectors ..... 78

Checking propeller .......................... 79

Removing propeller......................... 79

Installing propeller........................... 80

Changing gear oil............................ 80

Cleaning fuel tank ...........................81

Inspecting and replacing

anode(s)........................................ 82

Checking battery

(for electric start models) ..............83

Connecting the battery.................... 83

Disconnecting the battery ............... 84

Storing the battery........................... 84

Trouble Recovery............................ 85

Troubleshooting ............................ 85

Temporary action in

emergency .................................. 88

Impact damage ...............................88

Replacing fuse ................................88

Power trim and tilt will not

operate.......................................... 89

Water separator-alert indicator

blinks while cruising ......................89

Starter will not operate ....................91

Emergency starting engine .............92

Treatment of submerged motor .... 93

Safety information

EMU33622

Outboard motor safety

Observe these precautions at all times.

EMU36500

Propeller

People can be injured or killed if they come in contact with the propeller. The propeller can keep moving even when the motor is in neutral, and sharp edges of the propeller can cut even when stationary.

●

Shut off the engine when a person is in the water near you.

●

Keep people out of reach of the propeller, even when the engine is off.

EMU33630

Rotating parts

Hands, feet, hair, jewelry, clothing, PFD straps, etc. can become entangled with internal rotating parts of the engine, resulting in serious injury or death. Keep the top cowling in place whenever possible. Do not remove or replace the cowling with the engine running. Only operate the engine with the cowling removed according to the specific instructions in the manual. Keep hands, feet, hair, jewelry, clothing, PFD straps, etc. away from any exposed moving parts.

EMU33640

Hot parts

During and after operation, engine parts are hot enough to cause burns. Avoid touching any parts under the top cowling until the engine has cooled.

EMU33650

Electric shock

Do not touch any electrical parts while starting or operating the engine. They can cause shock or electrocution.

EMU33660

Power trim and tilt

Body parts can be crushed between the mo-

tor and the clamp bracket when the motor is trimmed or tilted. Keep body parts out of this area at all times. Be sure no one is in this area before operating the power trim and tilt mechanism. The power trim and tilt switches operate even when the main switch is off. Keep people be away from the switches whenever working around the motor. Never get under the lower unit while it is tilted, even when the tilt support lever is locked. Severe injury could occur if the outboard motor accidentally falls.

EMU33671

Engine shut-off cord (lanyard)

Attach the engine shut-off cord so that the engine stops if the operator falls overboard or leaves the helm. This prevents the boat from running away under power and leaving people stranded, or running over people or objects. Always attach the engine shut-off cord to a secure place on your clothing or your arm or leg while operating. Do not remove it to leave the helm while the boat is moving. Do not attach the cord to clothing that could tear loose, or route the cord where it could become entangled, preventing it from functioning. Do not route the cord where it is likely to be accidentally pulled out. If the cord is pulled during operation, the engine will shut off and you will lose most steering control. The boat could slow rapidly, throwing people and objects forward.

EMU33810

Gasoline

Gasoline and its vapors are highly flammable and explosive.

cording to the procedure on page 48 to reduce the risk of fire and explosion.

Always, refuel ac-

Safety information

EMU33820

Gasoline exposure and spills

Take care not to spill gasoline. If gasoline spills, wipe it up immediately with dry rags. Dispose of rags properly. If any gasoline spills onto your skin, immediately wash with soap and water. Change clothing if gasoline spills on it. If you swallow gasoline, inhale a lot of gasoline vapor, or get gasoline in your eyes, get immediate medical attention. Never siphon fuel by mouth.

EMU33900

Carbon monoxide

This product emits exhaust gases which contain carbon monoxide, a colorless, odorless gas which may cause brain damage or death when inhaled. Symptoms include nausea, dizziness, and drowsiness. Keep cockpit and cabin areas well ventilated. Avoid blocking exhaust outlets.

EMU33780

Modifications

Do not attempt to modify this outboard motor. Modifications to your outboard motor may reduce safety and reliability, and render the outboard unsafe or illegal to use.

EMU33740

Boating safety

This section includes a few of the many important safety precautions that you should follow when boating.

EMU33710

Alcohol and drugs

Never operate after drinking alcohol or taking drugs. Intoxication is one of the most common factors contributing to boating fatalities.

EMU33720

Personal flotation devices

Have an approved personal flotation device (PFD) on board for every occupant. Yamaha

recommends that you must wear a PFD whenever boating. At a minimum, children and non-swimmers should always wear PFDs, and everyone should wear PFDs when there are potentially hazardous boating conditions.

EMU33730

People in the water

Always watch carefully for people in the water, such as swimmers, skiers, or divers, whenever the engine is running. When someone is in the water near the boat, shift into neutral and shut off the motor. Stay away from swimming areas. Swimmers can be hard to see. The propeller can keep moving even when the motor is in neutral. Shut off the engine when a person is in the water near you.

EMU33750

Passengers

Consult your boat manufacturer’s instructions for details about appropriate passenger locations in your boat and be sure all passengers are positioned properly before accelerating and when operating above an idle speed. Standing or sitting in non-designated locations may result in being thrown either overboard or within the boat due to waves, wakes, or sudden changes in speed or direction. Even when people are positioned properly, alert your passengers if you must make any unusual maneuver. Always avoid jumping waves or wakes.

EMU33760

Overloading

Do not overload the boat. Consult the boat capacity plate or boat manufacturer for maximum weight and number of passengers. Be sure that weight is properly distributed according to the boat manufacturers instructions. Overloading or incorrect weight distribution can compromise the boats han-

Safety information

dling and lead to an accident, capsizing or swamping.

EMU33772

Avoid collisions

Scan constantly for people, objects, and other boats. Be alert for conditions that limit your visibility or block your vision of others.

ZMU06025

Operate defensively at safe speeds and keep a safe distance away from people, objects, and other boats.

Do not follow directly behind other boats or

●

waterskiers.

●

Avoid sharp turns or other maneuvers that make it hard for others to avoid you or understand where you are going.

●

Avoid areas with submerged objects or shallow water.

●

Ride within your limits and avoid aggressive maneuvers to reduce the risk of loss of control, ejection, and collision.

●

Take early action to avoid collisions. Remember, boats do not have brakes, and stopping the engine or reducing throttle can reduce the ability to steer. If you are not sure that you can stop in time before hitting an obstacle, apply throttle and turn in another direction.

EMU33790

Weather

Stay informed about the weather. Check weather forecasts before boating. Avoid

boating in hazardous weather.

EMU33880

Passenger training

Make sure at least one other passenger is trained to operate the boat in the event of an emergency.

EMU33890

Boating safety publications

Be informed about boating safety. Additional publications and information can be obtained from many boating organizations.

EMU33600

Laws and regulations

Know the marine laws and regulations where you will be boating- and obey them. Several sets of rules prevail according to geographic location, but all are basically the same as the International Rules of the Road.

General information

EMU25171

Identification numbers record

EMU25183

Outboard motor serial number

The outboard motor serial number is stamped on the label attached to the port side of the clamp bracket. Record your outboard motor serial number in the spaces provided to assist you in ordering spare parts from your Yamaha dealer or for reference in case your outboard motor is stolen.

ZMU06390

1. Outboard motor serial number location

EMU25190

Key number

If a main key switch is equipped with the motor, the key identification number is stamped on your key as shown in the illustration. Record this number in the space provided for reference in case you need a new key.

1. Key number

EMU37290

EC Declaration of Conformity

(DoC)

This outboard motor conforms to certain portions of the European Parliament directive relating to machinery. Each conformed outboard motor accompanied with EC DoC.EC DoC contains the following information;

Name of Engine Manufacture

●

Model name Product code of model (Approved model

●

code)

●

Code of conformed directives

EMU25203

CE Marking

Outboard motors affixed with this “CE”mark- ing conform with the directives of; 98/37/EC, 94/25/EC - 2003/44/EC and 2004/108/EC.

General information

1. CE marking location

ZMU06391

ZMU06040

General information

EMU33520

Read manuals and labels

Before operating or working on this motor:

●

Read this manual.

●

Read any manuals supplied with the boat.

●

Read all labels on the outboard motor and the boat.

If you need any additional information, contact your Yamaha dealer.

EMU33831

Warning labels

If these labels are damaged or missing, contact your Yamaha dealer for replacements.

F30B, F40F

ZMU06393

General information

EMU33912

Contents of labels

The above warning labels mean as follows.

EWM01691

WARNING

Emergency starting does not have startin-gear protection. Ensure shift control is in neutral before starting engine.

EWM01681

WARNING

●

Keep hands, hair, and clothing away from rotating parts while the engine is running.

●

Do not touch or remove electrical parts when starting or during operation.

ZMU05706

EWM01671

WARNING

Read Owner’s Manuals and labels.

●

Wear an approved personal flotation device (PFD). Attach engine shut-off cord (lanyard) to

●

your PFD, arm, or leg so the engine stops if you accidentally leave the helm, which could prevent a runaway boat.

General information

EMU33843

Symbols

The following symbols mean as follows.

Notice/Warning

ZMU05696

Read Owner’s Manual

ZMU05664

Electrical hazard

ZMU05666

Remote control lever/gear shift lever operating direction, dual direction

ZMU05667

Engine start/ Engine cranking

Hazard caused by continuous rotation

ZMU05665

ZMU05668

Specifications and requirements

EMU35950

Specifications

IP:

“*” means, select the engine oil referring to the chart of engine oil paragraph. For further information, see page 13.

EMU2821D

Dimension:

Overall length:

F30BEHD 1362 mm (53.6 in) F30BET 717 mm (28.2 in) F40FED 717 mm (28.2 in) F40FEHD 1362 mm (53.6 in) F40FET 717 mm (28.2 in)

Overall width:

384 mm (15.1 in)

Overall height S:

F30BET 1228 mm (48.3 in) F40FED 1228 mm (48.3 in) F40FEHD 1228 mm (48.3 in) F40FET 1228 mm (48.3 in)

Overall height L:

1350 mm (53.1 in)

Transom height S:

F30BET 414 mm (16.3 in) F40FED 414 mm (16.3 in) F40FEHD 414 mm (16.3 in) F40FET 414 mm (16.3 in)

Transom height L:

536 mm (21.1 in)

Weight (AL) S:

F40FED 93.3 kg (206 lb) F40FEHD 98.3 kg (217 lb) F40FET 94.8 kg (209 lb)

Weight (AL) L:

F40FED 98.9 kg (218 lb) F40FEHD 103.9 kg (229 lb) F40FET 100.8 kg (222 lb)

Weight (without propeller) S:

F40FED 92.1 kg (203 lb)

F40FEHD 97.1 kg (214 lb)

F40FET 93.6 kg (206 lb)

Weight (without propeller) L:

F40FED 97.7 kg (215 lb)

F40FEHD 102.7 kg (226 lb)

F40FET 99.6 kg (220 lb)

Performance:

Full throttle operating range:

5000–6000 r/min

Maximum output:

F30BEHD 22.1 kW@5500 r/min

(30 HP@5500 r/min)

F30BET 22.1 kW@5500 r/min

(30 HP@5500 r/min)

F40FED 29.2 kW@5500 r/min

(40 HP@5500 r/min)

F40FEHD 29.2 kW@5500 r/min

(40 HP@5500 r/min)

F40FET 29.2 kW@5500 r/min

(40 HP@5500 r/min)

Idling speed (in neutral):

800 ±50 r/min

Engine:

Type:

4-stroke L

Displacement:

747.0 cm

Bore × stroke:

65.0 × 75.0 mm (2.56 × 2.95 in)

Ignition system:

CDI

Spark plug with resistor (NGK):

DPR6EB-9

Spark plug gap:

0.8–0.9 mm (0.031–0.035 in)

Control system:

F30BEHD Tiller

F30BET Remote control

F40FED Remote control

F40FEHD Tiller

F40FET Remote control

Specifications and requirements

Starting system:

Electric

Starting carburetion system:

Electronic fuel injection

Valve clearance (cold engine) IN:

0.15–0.25 mm (0.0059–0.0098 in)

Valve clearance (cold engine) EX:

0.25–0.35 mm (0.0098–0.0138 in)

Min. cold cranking amps (CCA/EN):

430.0 A

Min. rated capacity (20HR/IEC):

70.0 Ah

Maximum generator output:

17 A

Drive unit:

Gear positions:

Forward-neutral-reverse

Gear ratio:

2.00 (26/13)

Trim and tilt system:

F30BEHD Hydro tilt F30BET Power trim and tilt F40FED Hydro tilt F40FEHD Hydro tilt F40FET Power trim and tilt

Propeller mark:

Fuel and oil:

Recommended fuel:

Regular unleaded gasoline

Min. research octane:

Fuel tank capacity:

25 L (6.60 US gal, 5.50 Imp.gal)

Recommended engine oil:

4-stroke outboard motor oil

Recommended engine oil group 1*:

SAE 10W-30/10W-40/5W-30 API SE/SF/SG/SH/SJ/SL

Recommended engine oil group 2*:

SAE 15W-40/20W-40/20W-50

API SH/SJ/SL

Lubrication:

Wet sump

Total engine oil quantity (oil pan capacity): Without oil filter replacement:

F40FED 1.5 L (1.59 US qt, 1.32

Imp.qt)

F40FEHD 1.5 L (1.59 US qt, 1.32

Imp.qt)

F40FET 1.5 L (1.59 US qt, 1.32

Imp.qt)

With oil filter replacement:

F30BEHD 1.9 L (2.01 US qt, 1.67

Imp.qt)

F30BET 1.9 L (2.01 US qt, 1.67

Imp.qt)

F40FED 1.7 L (1.80 US qt, 1.50

Imp.qt)

F40FEHD 1.7 L (1.80 US qt, 1.50

Imp.qt)

F40FET 1.7 L (1.80 US qt, 1.50

Imp.qt)

Recommended gear oil:

Hypoid gear oil SAE#90

Gear oil quantity:

0.430 L (0.455 US qt, 0.378 Imp.qt)

Tightening torque for engine:

Spark plug:

18.0 Nm (1.84 kgf-m, 13.3 ft-lb)

Propeller nut:

35.0 Nm (3.57 kgf-m, 25.8 ft-lb)

Engine oil drain bolt:

27.0 Nm (2.75 kgf-m, 19.9 ft-lb)

Engine oil filter:

18.0 Nm (1.84 kgf-m, 13.3 ft-lb)

Noise and vibration level:

Operator sound pressure level (ICOMIA 39/94 and 40/94):

F40FED 80.7 dB(A)

F40FEHD 80.7 dB(A)

F40FET 80.7 dB(A)

Specifications and requirements

Vibration on tiller handle (ICOMIA 38/94):

F40FEHD Vibration on tiller handle is under 2.5 m/s

EMU33554

Installation requirements

EMU33563

Boat horsepower rating

EWM01560

WARNING

Overpowering a boat can cause severe instability.

Before installing the outboard motor(s), confirm that the total horsepower of your motor(s) does not exceed the boats maximum horsepower rating. See the boat’s capacity plate or contact the manufacturer.

EMU33571

Mounting motor

EWM01570

WARNING

Improper mounting of the outboard mo-

●

tor could result in hazardous conditions such as poor handling, loss of control, or fire hazards. Because the motor is very heavy, spe-

●

cial equipment and training is required to mount it safely.

stallation of the receiver.

EMU33581

Remote control requirements

EWM01580

WARNING

●

If the engine starts in gear, the boat can move suddenly and unexpectedly, possibly causing a collision or throwing passengers overboard.

●

If the engine ever starts in gear, the start-in-gear protection device is not working correctly and you should discontinue using the outboard. Contact your Yamaha dealer.

The remote control unit must be equipped with a start-in-gear protection device(s). This device prevents the engine from starting unless it is in neutral.

EMU25694

Battery requirements

EMU25721

Battery specifications

Minimum cold cranking amps (CCA/EN):

430.0 A

Minimum rated capacity (20HR/IEC):

70.0 Ah

Your dealer or other person experienced in proper rigging should mount the motor using correct equipment and complete rigging instructions. For further information, see page

41.

EMU38580

Yamaha Security System

This outboard motor is equipped with the Yamaha Security System to protect against theft, which consists of the receiver and remote control transmitter. The engine can not be started if the security system is in the lock mode, and only be started in the unlock mode. Consult your Yamaha dealer for in-

The engine cannot be started if battery voltage is too low.

EMU36290

Mounting battery

Mount the battery holder securely in a dry, well-ventilated, vibration-free location in the boat.

WARNING! Do not put flammable items, or loose heavy or metal objects in the same compartment as the battery. Fire, explosion or sparks could result.

[EWM01820]

EMU36300

Multiple batteries

To connect multiple batteries, such as for

Specifications and requirements

multiple engine configurations or for an accessory battery, consult your Yamaha dealer about battery selection and correct wiring.

EMU34191

Propeller selection

Next to selecting an outboard, choosing the right propeller is one of the most important purchasing decisions a boater can make. The type, size, and design of your propeller have a direct impact on acceleration, top speed, fuel economy, and even engine life. Yamaha designs and manufactures propellers for every Yamaha outboard motor and every application. Your outboard motor came with a Yamaha propeller chosen to perform well over a range of applications, but there may be uses where a different propeller would be more appropriate. Your Yamaha dealer can help you select the right propeller for your boating needs. Select a propeller that will allow the engine to reach the middle or upper half of the operating range at full throttle with the maximum boatload. Generally, chose a larger pitch propeller for a smaller operating load and a smaller pitch propeller for a heavier load. If you carry loads that vary widely, chose the propeller that lets the engine run in the proper range for your maximum load but remember that you may need to reduce your throttle setting to stay within the recommended engine speed range when carrying lighter loads. For instructions on propeller removal and installation, see page 79.

1. Propeller diameter in inches

2. Propeller pitch in inches

3. Type of propeller (propeller mark)

EMU25770

Yamaha outboard motors or Yamaha-approved remote control units are equipped with start-in-gear protection device(s). This feature permits the engine to be started only when it is in neutral. Always select neutral before starting the engine.

123

Start-in-gear protection

ZMU04606

Specifications and requirements

EMU37472

Engine oil requirements

Recommended engine oil:

4-stroke motor oil with a combination of the following SAE and API oil classifications

Engine oil type SAE:

10W-30 or 10W-40

Engine oil grade API:

SE, SF, SG, SH, SJ, SL Total engine oil quantity (oil pan capacity):

Without oil filter replacement:

F40FED 1.5 L (1.59 US qt, 1.32 Imp.qt) F40FEHD 1.5 L (1.59 US qt, 1.32 Imp.qt) F40FET 1.5 L (1.59 US qt, 1.32 Imp.qt)

With oil filter replacement:

F30BEHD 1.9 L (2.01 US qt, 1.67 Imp.qt) F30BET 1.9 L (2.01 US qt, 1.67 Imp.qt) F40FED 1.7 L (1.80 US qt, 1.50 Imp.qt) F40FEHD 1.7 L (1.80 US qt, 1.50 Imp.qt) F40FET 1.7 L (1.80 US qt, 1.50 Imp.qt)

If the recommended engine oil grades are not available, select an alternative from the following chart according to the average temperatures in your area.

EMU36360

Fuel requirements

EMU36801

Gasoline

Use a good quality gasoline that meets the minimum octane rating. If knocking or pinging occurs, use a different brand of gasoline or premium unleaded fuel.

Recommended gasoline:

Regular unleaded gasoline with a minimum octane rating of 90 (Research Octane Number).

ECM01980

NOTICE

●

Do not use leaded gasoline. Leaded gasoline can seriously damage the engine.

●

Avoid getting water and contaminants in the fuel tank. Contaminated fuel can cause poor performance or engine damage. Use only fresh gasoline that has been stored in clean containers.

EMU36330

Anti-fouling paint

A clean hull improves boat performance. The

Specifications and requirements

boat bottom should be kept as clean of marine growth as possible. If necessary, the boat bottom can be coated with an anti-fouling paint approved for your area to inhibit marine growth. Do not use anti-fouling paint which includes copper or graphite. These paints can cause more rapid engine corrosion.

EMU36341

Motor disposal requirements

Never illegally discard (dump) the motor. Yamaha recommends consulting the dealer about discarding the motor.

EMU36351

Emergency equipment

Keep the following items onboard in case there is trouble with the motor.

●

A tool kit with assorted screwdrivers, pliers, wrenches (including metric sizes), and electrical tape.

●

Waterproof flashlight with extra batteries.

●

An extra engine shut-off cord (lanyard) with clip.

●

Spare parts, such as an extra set of spark plugs.

Consult your Yamaha dealer for details.

Components

EMU2579M

Components diagram

IP:

* May not be exactly as shown; also may not be included as standard equipment on all models.

F30B, F40F

1. Top cowling

2. Water separator

3. Top cowling lock lever

4. Anode

5. Anti-cavitation plate

6. Trim tab (anode)

7. Propeller

8. Cooling water inlet

9. Clamp bracket

10. Power trim and tilt switch*

11. Variable trolling RPM switch*

12. Gear shift lever*

13. Tiller handle*

14. Engine stop button/Engine shut-off switch*

15. Main switch*

16. Alert indicator*

17. Steering friction lever*

18. Tilt lock lever*

19. Tilt support knob

20. Flushing device

21. Remote control box (side mount type)*

22. Remote control transmitter

23. Receiver

24. Fuel tank

25. Digital tachometer*

26. Digital speedometer*

SPEED

TRIP TIME BATT

set

YAMAHA

Km/h knot mph

km mile

mode

ZMU06392

Components

1. Tachometer unit (Square type)*

2. Tachometer unit (Round type)*

3. Speedometer unit (Square type)*

4. Speed & fuel meter unit (Square type)*

5. Speed & fuel meter unit (Round type)*

6. Fuel management meter (Square type)*

ZMU05429

EMU25802

Fuel tank

If your model was equipped with a portable fuel tank, its function is as follows.

EWM00020

WARNING

The fuel tank supplied with this engine is its dedicated fuel reservoir and must not be used as a fuel storage container. Commercial users should conform to relevant licensing or approval authority regulations.

1. Fuel joint

2. Fuel gauge

3. Fuel tank cap

4. Air vent screw

EMU25830

Fuel joint

This joint is used to connect the fuel line.

Components

EMU25841

Fuel gauge

This gauge is located on either the fuel tank cap or on the fuel joint base. It shows the approximate amount of fuel remaining in the tank.

EMU25850

Fuel tank cap

This cap seals the fuel tank. When removed, the tank can be filled with fuel. To remove the cap, turn it counterclockwise.

EMU25860

Air vent screw

This screw is on the fuel tank cap. To loosen the screw, turn it counterclockwise.

EMU38590

Remote control transmitter

The lock and unlock modes of the Yamaha Security System are selected using the remote control transmitter. While the engine is running, input from the remote control transmitter is not received.

ZMU06455

Store the remote control transmitter carefully so it will not be lost.

ECM02100

NOTICE

The remote control transmitter is not

●

completely waterproof. Do not submerge the transmitter or operate it underwater. If the transmitter is submerged, dry it with a soft, dry cloth, and then check that it is operating prop-

erly. If the transmitter is not operating properly, contact a Yamaha dealer. Keep the remote control transmitter

●

away from high temperatures and do not place it in direct sunlight. Do not drop the remote control trans-

●

mitter, subject it to strong shocks, or place any heavy items on it. Use a soft, dry cloth to clean the remote

●

control transmitter. Do not use detergent, alcohol, or other chemicals. Do not attempt to disassemble the re-

●

mote control transmitter yourself. Otherwise, the transmitter may not operate properly. If the transmitter needs a new battery, contact a Yamaha dealer.

●

If you have lost the remote control transmitter, consult your Yamaha dealer. Keep the least 2 transmitters at all the time. If you have lost both transmitters, consult your Yamaha dealer.

IP:

●

Since the receiver is programmed to recognize the internal code from this transmitter only, the security system setting can only be changed with this transmitter. If the remote control transmitter does not operate properly, contact a Yamaha dealer.

●

Replace the battery cell after 1 year, and every two years thereafter as a standard measure.

●

Refer to local hazardous waste regulations when disposing of transmitter batteries.

●

The Yamaha Security System permits to register up to 5 remote control transmitters. Consult your yamaha dealer for details.

EMU38600

Receiver

The receiver control the ECM (Electronic control module) to prevent the engine from

Components

starting. Consult your Yamaha dealer for installation of the receiver.

EMU38610

Yamaha Security System lock and unlock mode

The Yamaha Security System settings are selected by pressing the lock or unlock button on the remote control transmitter briefly.

ZMU06456

1. Lock button

2. Unlock button

LOCK

When the lock button on the remote control transmitter is pressed briefly, the beeper sounds once. This indicates the lock mode is selected and the engine cannot be started. The lock mode is selected only when the main switch is in the “” (off) position. The engine cranks but can not be started while the Yamaha Security System is on lock mode.

UNLOCK

When the unlock button on the remote control transmitter is pressed briefly, the beeper sounds twice. This indicates the unlock mode is selected and the engine can be started.

Yamaha Security

System

mode

Lock 1 beep

Unlock 2 beeps

EMU26181

Number

of beeps

Main

switch

“”

“”/

“”

Engine can be started

YES

Remote control box

The remote control lever actuates both the shifter and the throttle. The electrical switches are mounted on the remote control box.

1. Power trim and tilt switch

2. Remote control lever

3. Neutral interlock trigger

4. Neutral throttle lever

5. Main switch

6. Engine shut-off switch

7. Throttle friction adjuster

EMU26190

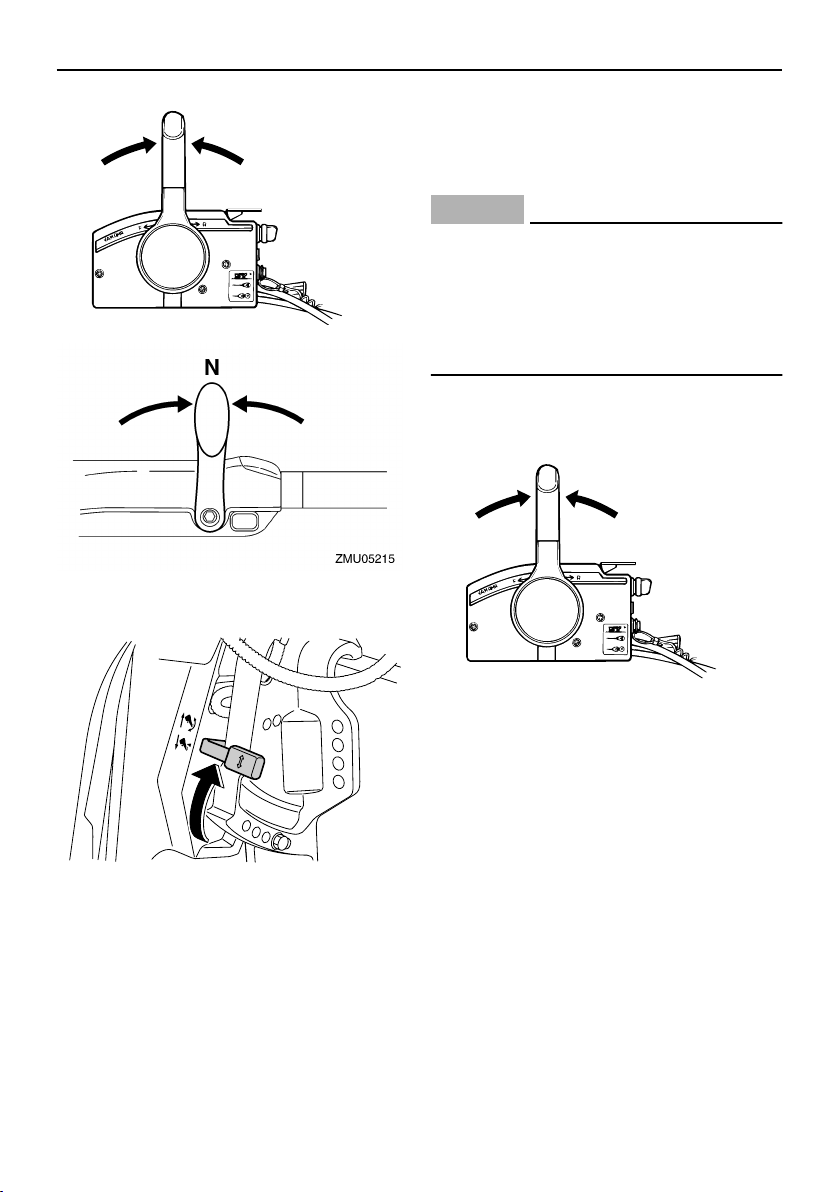

Remote control lever

Moving the lever forward from the neutral position engages forward gear. Pulling the lever back from neutral engages reverse. The engine will continue to run at idle until the lever is moved about 35° (a detent can be felt). Moving the lever farther opens the throttle, and the engine will begin to accelerate.

1. Neutral “”

2. Forward “”

3. Reverse “”

4. Shift

5. Fully closed

6. Throttle

7. Fully open

EMU26201

Neutral interlock trigger

To shift out of neutral, first pull the neutral interlock trigger up.

Components

when the remote control lever is in neutral. The remote control lever will operate only when the neutral throttle lever is in the closed position.

1. Fully open

2. Fully closed

EMU25911

Tiller handle

To change direction, move the tiller handle to the left or right as necessary.

1. Neutral interlock trigger

EMU26211

Neutral throttle lever

To open the throttle without shifting into either forward or reverse, put the remote control lever in the neutral position and lift the neutral throttle lever.

IP:

The neutral throttle lever will operate only

EMU25922

Gear shift lever

Pulling the gear shift lever towards you puts the engine in forward gear so that the boat moves ahead. Pushing the lever away from you puts the engine in reverse gear so that the boat moves astern.

Components

1. Forward “”

2. Neutral “”

3. Reverse “”

EMU25941

Throttle grip

The throttle grip is on the tiller handle. Turn the grip counterclockwise to increase speed and clockwise to decrease speed.

EMU25961

Throttle indicator

The fuel consumption curve on the throttle indicator shows the relative amount of fuel consumed for each throttle position. Choose the setting that offers the best performance and fuel economy for the desired operation.

1. Throttle indicator

EMU25974

Throttle friction adjuster

A friction device provides adjustable resistance to movement of the throttle grip or the remote control lever, and can be set according to operator preference. To increase resistance, turn the adjuster clockwise. To decrease resistance, turn the adjuster counterclockwise.

not overtighten the friction adjuster. If there is too much resistance, it could be difficult to move the remote control lever or throttle grip, which could result in an accident.

[EWM00032]

WARNING! Do

Components

When constant speed is desired, tighten the adjuster to maintain the desired throttle setting.

EMU25993

Engine shut-off cord (lanyard) and clip

The clip must be attached to the engine shutoff switch for the engine to run. The cord should be attached to a secure place on the operator’s clothing, or arm or leg. Should the operator fall overboard or leave the helm, the cord will pull out the clip, stopping ignition to the engine. This will prevent the boat from running away under power.

tach the engine shut-off cord to a secure place on your clothing, or your arm or leg while operating. Do not attach the cord to clothing that could tear loose. Do not route the cord where it could become entangled, preventing it from functioning. Avoid accidentally pulling the cord during normal operation. Loss of engine power means the loss of most steering control. Also, without engine power, the boat could slow rapidly. This could cause people and objects in the boat to be thrown forward.

[EWM00122]

WARNING! At-

1. Cord

2. Clip

3. Engine shut-off switch

1. Cord

2. Clip

3. Engine shut-off switch

EMU26001

Engine stop button

To open the ignition circuit and stop the engine, push this button.

Components

EMU26090

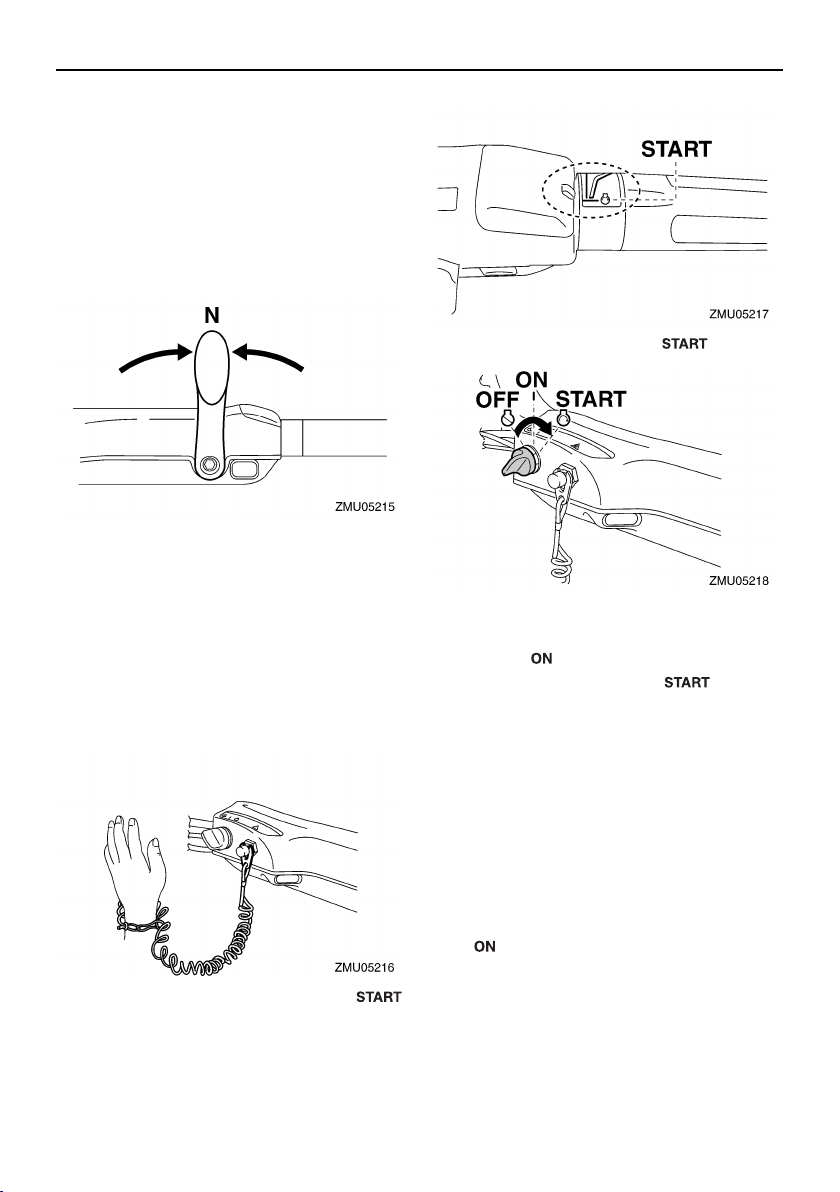

Main switch

The main switch controls the ignition system; its operation is described below.

●

“”

(off)

With the main switch in the “” (off) posi- tion, the electrical circuits are off, and the key can be removed.

●

“”

(on)

With the main switch in the “” (on) posi- tion, the electrical circuits are on, and the key cannot be removed.

“”

●

With the main switch in the “” (start) po- sition, the starter motor turns to start the engine. When the key is released, it returns automatically to the “” (on) position.

(start)

set according to operator preference. An adjuster lever is located on the bottom of the tiller handle bracket. To increase resistance, turn the lever to the port side “A”. To decrease resistance, turn the lever to the starboard side “B”.

EWM00040

WARNING

Do not overtighten the friction adjuster. If there is too much resistance, it could be difficult to steer, which could result in an accident.

ZMU02810

If the resistance does not increase even when the lever is turned to the port side “A”, make sure that the nut is tightened to the specified torque.

EMU31432

Steering friction adjuster

A friction device provides adjustable resistance to the steering mechanism, and can be

1. Nut

Components

Nut tightening torque:

3.7 Nm (0.4 kgf-m, 2.7 ft-lb)

IP:

●

Steering movement is blocked when the adjuster lever is set to the “A” position.

●

Check the tiller handle for smooth movement when the lever is turned to the starboard side “B”.

●

Do not apply lubricants such as grease to the friction areas of the steering friction adjuster.

EMU26143

Power trim and tilt switch on remote control or tiller handle

The power trim and tilt system adjusts the outboard motor angle in relation to the transom. Pressing the switch “” (up) trims the outboard motor up, and then tilts it up. Pressing the switch “” (down) tilts the outboard motor down and trims it down. When the switch is released, the outboard motor will stop in its current position. For instructions on using the power trim and tilt switch, see pages 56 and 59.

motor up, and then tilts it up. Pressing the switch “” (down) tilts the outboard motor down and trims it down. When the switch is released, the outboard motor will stop in its current position. For instructions on using the power trim and tilt switch, see page 59.

EWM01030

WARNING

Use the power trim and tilt switch located on the bottom engine cowling only when the boat is at a complete stop with the engine off. Attempting to use this switch while the boat is moving could increase the risk of falling overboard and could distract the operator, increasing the risk of collision with another boat or an obstacle.

EMU26153

Power trim and tilt switch on bottom engine cowling

The power trim and tilt switch is located on the side of the bottom engine cowling. Pressing the switch “” (up) trims the outboard

ZMU06394

1. Power trim and tilt switch

EMU30900

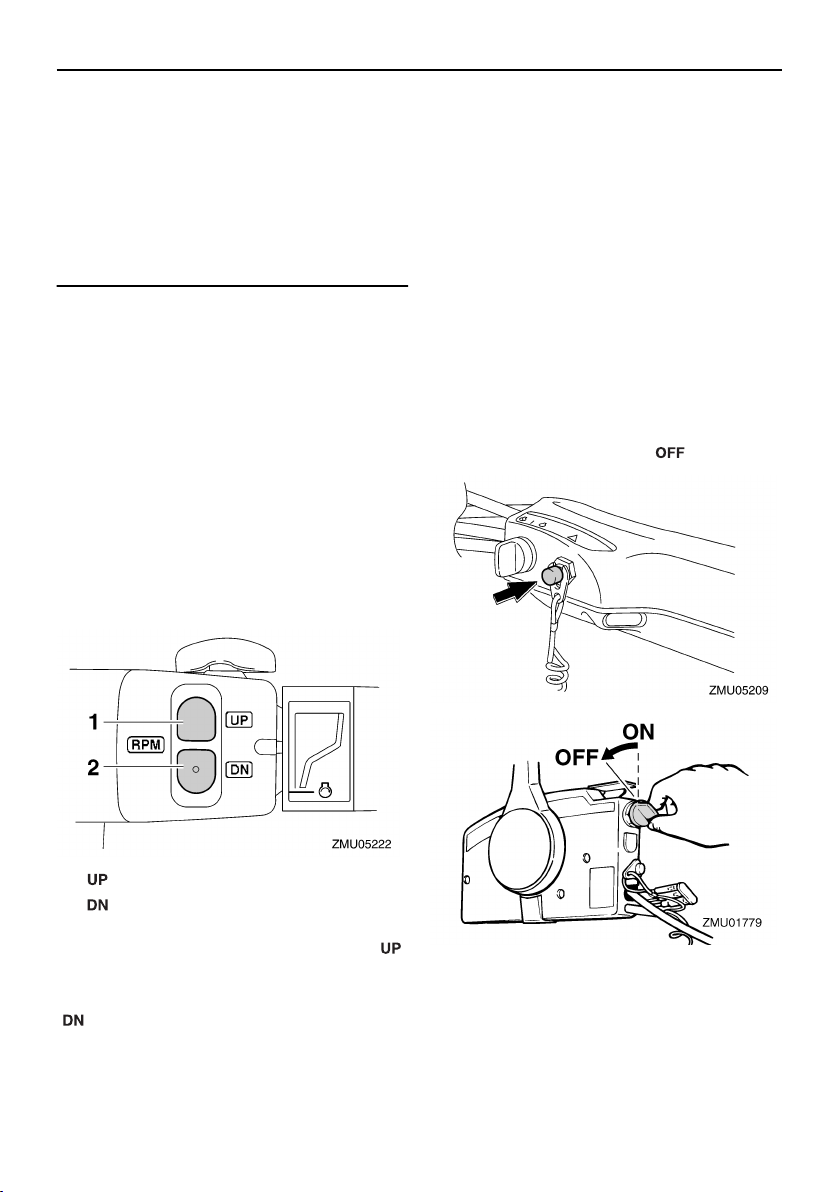

Variable trolling RPM switches

The trolling speed can be adjusted when the outboard motor is trolling. Press the “” switch to increase the trolling speed and press the “” switch to decrease the trolling speed.

IP:

●

The trolling speed changes approximately 50 r/min each time a switch is pressed.

●

If the trolling speed has been adjusted, the

Components

engine returns to the normal trolling speed when the engine is stopped and restarted or when the engine speed exceeds approximately 3000 r/min.

●

For instructions on using the variable trolling RPM switches, see page 55.

1. Variable trolling RPM switch

EMU26244

Trim tab with anode

EWM00840

WARNING

An improperly adjusted trim tab could cause difficult steering. Always test run after the trim tab has been installed or replaced to be sure steering is correct. Be sure you have tightened the bolt after adjusting the trim tab.

corrosion. Never paint the trim tab as it will become ineffective as an anode.

1. Trim tab

2. Bolt

Bolt tightening torque:

18.0 Nm (1.8 kgf-m, 13 ft-lb)

EMU26312

Tilt lock mechanism

The tilt lock mechanism is used to prevent the outboard motor from lifting out of the water when in reverse gear.

ZMU03097

The trim tab should be adjusted so that the steering control can be turned to either the right or left by applying the same amount of force. If the boat tends to veer to the left (port side), turn the trim tab rear end to the port side “A” in the figure. If the boat tends to veer to the right (starboard side), turn the trim tab end to the starboard side “B” in the figure.

ECM00840

NOTICE

The trim tab also serves as an anode to protect the engine from electrochemical

1. Tilt lock lever

ZMU06395

To lock it, set the tilt lock lever in the “” (lock) position. To release, push the tilt lock lever in the “” (release) position.

EMU26321

Tilt support knob

To keep the outboard motor in the tilted up

Components

position, push the tilt support knob under the swivel bracket.

ZMU06396

ECM00660

NOTICE

Do not use the tilt support lever or knob when trailering the boat. The outboard motor could shake loose from the tilt support and fall. If the motor cannot be trailered in the normal running position, use an additional support device to secure it in the tilt position.

EMU26372

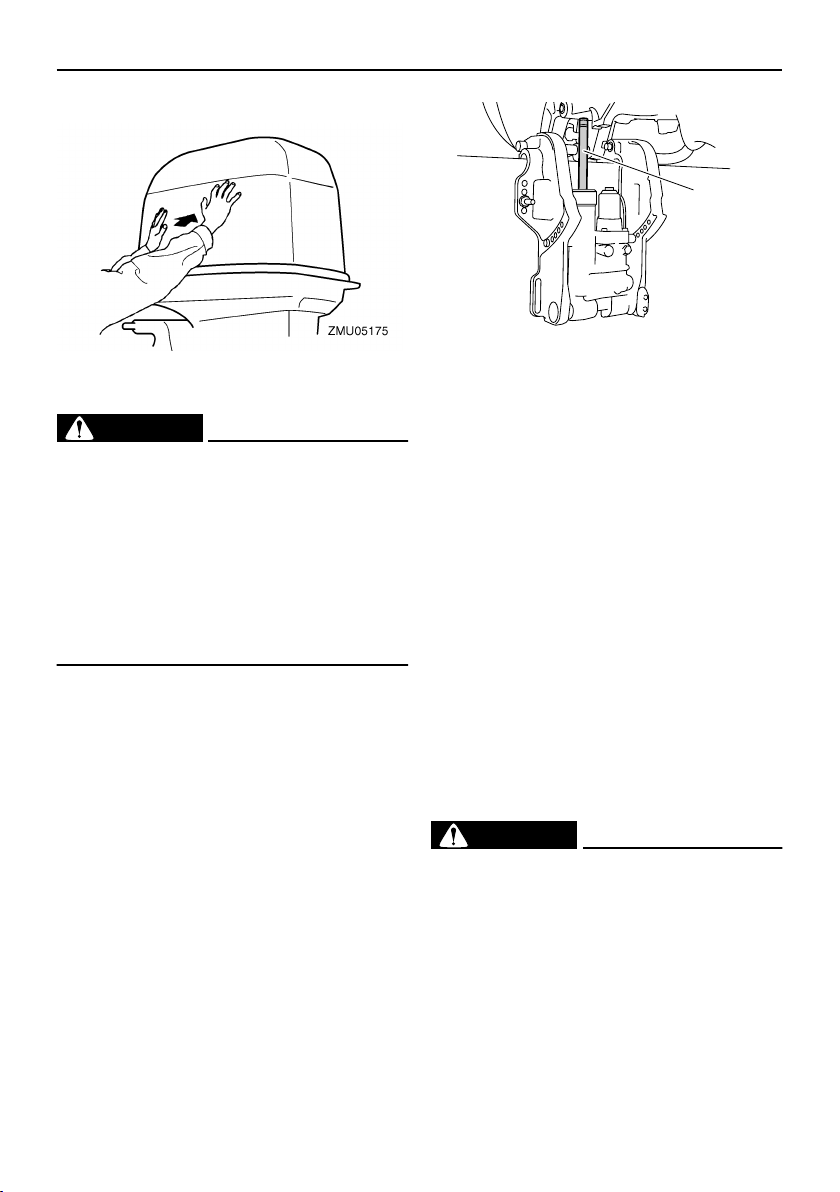

Top cowling lock lever(s) (turn type)

To remove the engine top cowling, turn the lock lever(s) and lift off the cowling. When installing the cowling, check to be sure it fits properly in the rubber seal. Then lock the cowling again by returning the lever(s) to the lock position.

EMU26460

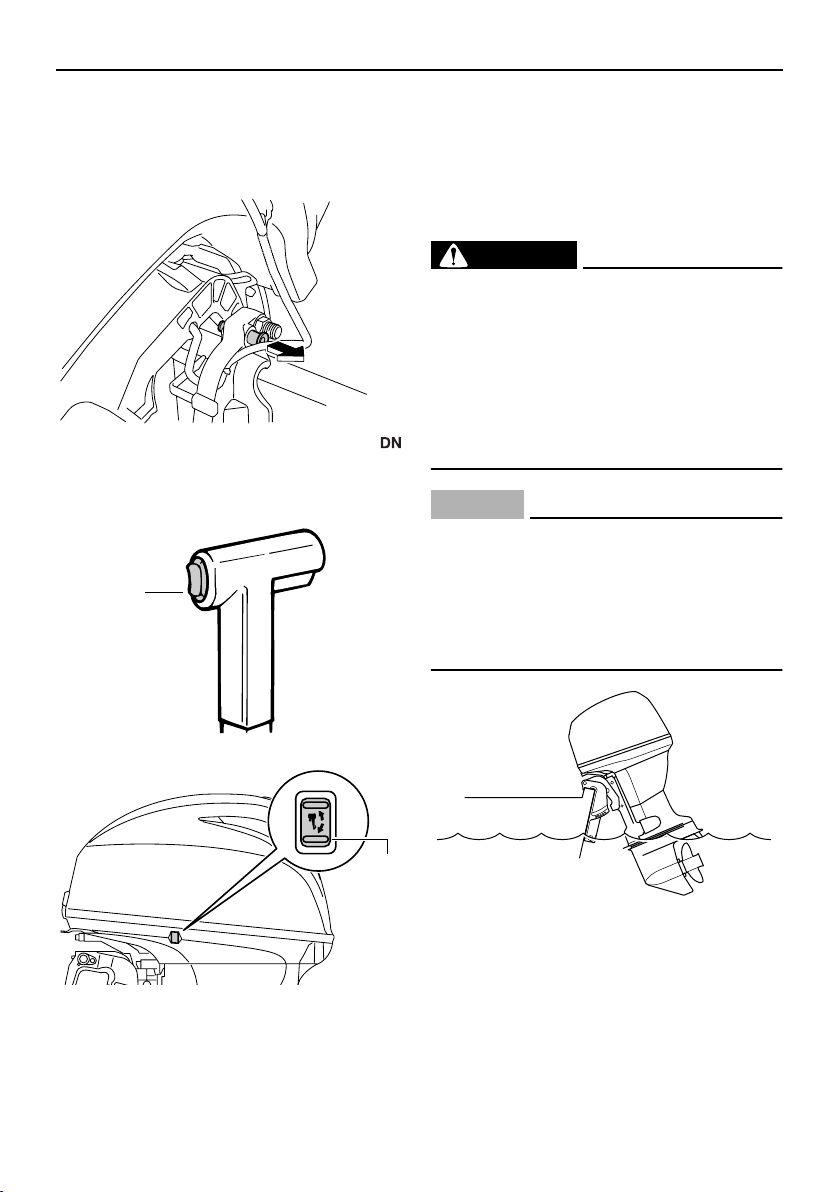

Flushing device

This device is used to clean the cooling water passages of the motor using a garden hose and tap water.

IP:

For details on usage, see page 68.

1. Flushing device

EMU35561

ZMU06398

Fuel filter/Water separator

This engine has a combination fuel filter/water separator and associated alert system. If water separated from the fuel exceeds a specific volume, the alert device of 6Y8 Multifunction Tachometer will activate.

ZMU06399

ZMU04041

1. Top cowling lock lever(s)

Activation of alert device

●

The water separator-alert indicator of 6Y8 Multifunction Tachometer will blink. The buzzer will sound intermittently only

●

when the gear shift is in neutral.

Components

●

If the alert system has activated, stop the engine and consult a Yamaha dealer immediately.

EMU26303

Alert indicator

If the engine develops a condition which is cause for alert, the indicator lights up. For details on how to read the alert indicator, see page 39.

1. Alert indicator

Instruments and indicators

EMU36014

Indicators

EMU36023

Low oil pressure-alert indicator

If oil pressure drops too low, this indicator will light up. For further information, see page 39.

ECM00022

NOTICE

Do not continue to run the engine if the

●

low oil pressure-alert indicator is on and the engine oil level is lower. Serious engine damage will occur.

●

The low oil pressure-alert indicator does not indicate the engine oil level. Use the oil dipstick to check the remaining oil quantity. For further information, see page 45.

1. Overheat-alert indicator

EMU26493

Digital tachometer

The tachometer shows the engine speed and has the following functions. All segments of the display will light momentarily after the main switch is turned on and will return to normal thereafter.

1. Low oil pressure-alert indicator

EMU36032

Overheat-alert indicator

If the engine temperature rises too high, this indicator will light up. For further information on reading the indicator, see page 39.

ECM00052

NOTICE

Do not continue to run the engine if the overheat-alert indicator is on. Serious engine damage will occur.

1. Tachometer

2. Trim meter

3. Hour meter

4. Low oil pressure-alert indicator

5. Overheat-alert indicator

6. Set button

7. Mode button

IP:

The water separator and engine trouble-alert indicators only operate when the engine is equipped with the appropriate functions.

ZMU03601

Instruments and indicators

EMU36050

Tachometer

The tachometer displays engine speed in hundreds of revolutions per minute (r/min). For example, if the tachometer display reads “22” then the engine speed is 2200 r/min.

EMU26621

Trim meter

This meter shows the trim angle of your outboard motor.

Memorize the trim angles that work best

●

for your boat under different conditions. Adjust the trim angle to the desired using the power trim and tilt switch.

●

If the trim angle of your motor exceeds the trim operating range, the top segment on the trim meter display will blink.

ZMU01740

EMU26651

Hour meter

This meter shows the number of hours the engine has been run. It can be set to show the total number of hours or the number of hours for the current trip. The display can also be turned on and off.

To change the display format, press the “” (mode) button. The display can show total hours or trip hours, or turn off. To reset the trip hours, simultaneously press the “” (set) and “” (mode) buttons for more than 1 second while the trip hours are displayed. This resets the trip counter to 0 (zero). The total number of hours the engine has been run cannot be reset.

EMU26524

Low oil pressure-alert indicator

If oil pressure drops too low, the alert indicator will start to blink. For further information, see page 39.

ECM00022

NOTICE

●

ZMU01741

Do not continue to run the engine if the low oil pressure-alert indicator is on and the engine oil level is lower. Serious engine damage will occur. The low oil pressure-alert indicator does not indicate the engine oil level. Use the oil dipstick to check the remaining oil quantity. For further information, see page 45.

Instruments and indicators

ZMU01736

1. Low oil pressure-alert indicator

EMU26583

Overheat-alert indicator

If the engine temperature rises too high, the alert indicator will start to blink. For further information on reading the indicator, see page

39.

ECM00052

NOTICE

Do not continue to run the engine if the overheat-alert indicator is on. Serious engine damage will occur.

ZMU01737

1. Overheat-alert indicator

EMU26602

Digital speedometer

This gauge shows the boat speed and other information.

1. Speedometer

2. Fuel gauge

3. Trip meter/clock/voltmeter

4. Alert indicator(s)

All segments of the display will light momentarily after the main switch is turned on and will return to normal thereafter.

EMU36061

Speedometer

The speedometer displays km/h, mph, or knots, according to operator preference. Select the desired units of measurement by setting the selector switch on the back of the gauge. See the illustration for settings.

1. Cap

2. Selector switch (for speed unit)

3. Selector switch (for fuel sensor)

EMU26712

Fuel gauge

Eight segments indicate the fuel level. When

Instruments and indicators

all segments are showing, the fuel tank is full.

ZMU01745

The fuel level reading can be inaccurate due to by the position of the sensor in the fuel tank and the attitude of the boat in the water. Operation with bow-up trim or continuous turning can give false readings. Do not adjust the selector switch for fuel sensor. Incorrectly setting the selector switch on the gauge will give false readings. Consult your Yamaha dealer on how to correctly set the selector switch.

of fuel can damage the engine.

EMU36071

NOTICE:

Running out

[ECM01770]

tery power. The stored data will be lost if the battery is disconnected.

EMU26701

Clock

To set the clock:

1. Be sure the gauge is in the “” (time)

2. Press the “” (set) button; the hour dis-

3. Press the “” (mode) button until the

4. Press the “” (set) button again, the

5. Press the “” (mode) button until the

Trip meter / Clock / Voltmeter

The display shows either the trip meter, the clock, or the voltmeter. To change the display, press the “” (mode) button repeatedly until the indicator on the face of the gauge points to “” (trip meter), “” (clock), or “” (voltmeter).

EMU26691

Trip meter

This gauge displays the distance the boat has traveled since the gauge was last reset. The trip distance is shown in kilometers or miles depending upon the unit of measurement selected for the speedometer. To reset the trip meter to zero, press the “” (set) and “” (mode) buttons at the same time. The trip distance is kept in memory by bat-

6. Press the “” (set) button again to start

The clock operates on battery power. Disconnecting the battery will stop the clock. Reset the clock after connecting the battery.

mode.

play will begin blinking.

desired hour is displayed.

minute display will begin blinking.

desired minute is displayed.

the clock.

Instruments and indicators

EMU36080

Voltmeter

The voltmeter displays the charge of the battery in volts(V).

EMU26721

Fuel level-alert indicator

If the fuel level decreases to one segment, the fuel level alert segment will blink. Do not continue to operate the engine with full throttle if an alert device has activated. Get back to the port within trolling engine speed.

damage the engine.

EMU26732

Low battery voltage-alert indicator

If battery voltage drops, the display will automatically turn on and blink. Get back to the port soon if an alert device has activated. For charging the battery, consult your Yamaha dealer.

NOTICE:

1. Fuel level-alert segment

Running out of fuel can

[ECM01770]

1. Low battery indicator

EMU31653

6Y8 Multifunction meters

Multifunction meters have 6 kinds of meter units; tachometer unit (square or round types), speedometer unit (square type), speed & fuel meter unit (square or round types), and fuel management meter (square type). The indicator system is slightly different between the round and square types. Check the model and type of your unit carefully. This manual describes mainly the alert indicators. For more details on setting meters or changing indicator systems, see the attached operation manual.

EMU36184

6Y8 Multifunction tachometers

The tachometer shows the engine revolutions per minute. It has functions of trim meter, adjusting trolling speed, cooling water/engine temperature display, battery voltage display, total hour/trip hour display, oil pressure display, water detection alert, engine trouble alert, and periodic maintenance notification. If the cooling water pressure sensor is installed, the unit can also show the cooling water pressure display. However, even if the cooling water pressure sensor is not installed, the cooling water pressure display can be shown by connecting an optional

Instruments and indicators

sensor to the unit. For the optional sensor, consult your Yamaha dealer. The tachometer unit is available in round or square types. Check your tachometer unit type.

1. Set button

2. Mode button

1. Tachometer

2. Trim meter

3. Multifunction display

4. Cooling water pressure

5. Cooling water/engine temperature

6. Water detection-alert indicator

7. Battery voltage

8. Oil pressure (4-stroke models)

ZMU05415

ZMU05416

1. Set button

2. Mode button

ZMU05417

1452

6879

1. Tachometer

2. Trim meter

3. Multifunction display

4. Water detection-alert indicator

5. Engine trouble alert/maintenance indicator

6. Cooling water pressure

7. Oil pressure (4-stroke models)

8. Cooling water/engine temperature

9. Battery voltage

EMU36190

Start-up checks

Place the remote control lever / gear shift lever in neutral and turn the main switch to “” (on). After all the displays come on and the total hour display comes on, the gauge will change to normal operation. If the buzzer sounds and the water separator-alert indicator blinks, consult your Yamaha dealer im-

ZMU05418

Instruments and indicators

mediately.

IP:

To stop the buzzer, press the “” (set) or “” (mode) button.

EMU38620

Yamaha Security System information

Turn the main switch to the “” (on) posi- tion, the currently selected Yamaha Security System mode (Lock / Unlock) will show on the display.

Unlock mode

ZMU06457

Lock mode

ZMU06459

ZMU06460

EMU36210

Low oil pressure-alert

If the engine oil pressure drops too low, the low oil pressure-alert indicator will start to blink, and the engine speed will automatically decrease to about 3000 r/min.

ZMU06458

ZMU05430

Instruments and indicators

ZMU05431

Stop the engine immediately if the buzzer sounds and the low oil pressure-alert indicator blinks. Check the engine oil quantity and replenish oil if necessary. If the alert device has activated while the appropriate engine oil quantity is maintained, consult your Yamaha dealer.

ECM01601

NOTICE

Do not continue to run the engine if the low oil pressure alert device has activated. Serious engine damage will occur.

EMU36140

Overheat alert

If the engine temperature rises too high while cruising, the overheat-alert indicator will start to blink. The engine speed will automatically decrease to about 3000 r/min.

ZMU05422

Stop the engine immediately if the buzzer sounds and the overheat alert device has activated. Check the cooling water inlet for clogging.

ECM01592

NOTICE

●

Do not continue to run the engine if the overheat-alert indicator blinks. Serious engine damage will occur.

●

Do not continue to operate the engine if a alert device has activated. Consult your Yamaha dealer if the problem cannot be located and corrected.

EMU36150

Water separator alert

This indicator will blink if water has accumulated in the water separator (fuel filter) while cruising. In such an event, stop the engine immediately and see page 88 of this manual to drain the water from the fuel filter. Get back to the port soon and consult a Yamaha dealer immediately.

ZMU05421

Instruments and indicators

ZMU05423

ZMU05424

ECM00910

NOTICE

Gasoline mixed with water could cause damage to the engine.

EMU36160

Engine trouble alert

This indicator will blink if the engine malfunctions while cruising. Get back to the port soon and consult a Yamaha dealer immediately.

ZMU05426

ECM00920

NOTICE

In such an event, the engine will not operate properly. Consult a Yamaha dealer immediately.

EMU36170

Low battery voltage-alert

If the battery voltage drops, the low battery voltage-alert indicator and the battery voltage value will start to blink. Get back to the port soon if the low battery voltage-alert device has activated. For charging the battery, consult your Yamaha dealer.

ZMU05427

ZMU05425

Instruments and indicators

ZMU05428

EMU36232

6Y8 Multifunction speed & fuel

meters

The speed & fuel meter unit shows the boat speed and has the functions of fuel meter, total fuel consumption display, fuel economy display, fuel flow display, and system voltage display. The chosen display is selected by using the “” (set) and “” (mode) but- tons as described in this section. If the speed sensor is installed, the unit can also show the trip display. However, even if the speed sensor is not installed, the trip display can be shown by connecting an optional sensor to the unit. In addition, if optional sensors are connected to the unit, water surface temperature display, depth display, and clock will also be available. For the optional sensors, consult your Yamaha dealer. The speed & fuel meter unit is available in round or square types. Check your speed & fuel meter unit type for operation information. After the main switch is first turned on, all the displays come on as a test. After a few seconds, the gauge will change to normal operation. For more information, see the operation manual originally supplied with the meter.

1. Set button

2. Mode button

1. Speedometer

2. Fuel meter

3. Multifunction display

1. Set button

2. Mode button

ZMU05432

ZMU05433

ZMU05434

Instruments and indicators

1. Speedometer

2. Fuel meter

3. Multifunction display

EMU36241

ZMU05435

6Y8 Multifunction

speedometers

The speedometer unit shows the boat speed and has functions of fuel meter and system voltage display. The chosen display is selected by using the “” (set) and “” (mode) buttons as described in this section. In addition, the speedometer can show the desired unit of measurement such as km/h, mph, or knots. If the speed sensor is installed, the unit can also show the trip display. However, even if the speed sensor is not installed, the trip display can be shown by connecting an optional sensor to the unit. In addition, if optional sensors are connected to the unit, water surface temperature display, depth display, and clock will also be available. For the optional sensors, consult your Yamaha dealer. After the main switch is first turned on, all the displays come on as a test. After a few seconds, the gauge will change to normal operation. For more information, see the operation manual originally supplied with the meter.

EMU36250

The fuel management meter has the functions of fuel flow meter, total consumption display, fuel economy display, and remaining fuel display. The chosen display is selected by using the “” (set) and “” (mode) buttons as described in this section. For more information, see the operation manual originally supplied with the meter. After the main switch is first turned on, all the displays come on as a test. After a few seconds, the gauge will change to normal oper-

1. Set button

2. Mode button

1. Speedometer

2. Fuel meter

3. Multifunction display

6Y8 Multifunction fuel

management meters

ZMU05436

ZMU05437

Instruments and indicators

ation. For more information, see the operation manual originally supplied with the meter.

1. Set button

2. Mode button

1. Fuel ﬂow meter

2. Multifunction display

ZMU05438

ZMU05439

EMU26803

Alert system

ECM00091

NOTICE

Do not continue to operate the engine if a alert device has activated. Consult your Yamaha dealer if the problem cannot be located and corrected.

EMU26837

Overheat alert

This engine has an overheat-alert device. If the engine temperature rises too high, the alert device will activate.

The engine speed will automatically de-

●

crease to about 3000 r/min. The overheat-alert indicator will light or

●

blink.

Engine control system

ZMU03025

If the alert system has activated, stop the engine and check the cooling water inlets:

●

Check trim angle to be sure that the cooling water inlet is submerged.

●

Check the cooling water inlet for clogging.

The buzzer will sound.

●

ZMU04227

ZMU02630

EMU26865

Low oil pressure alert

If the oil pressure drops too low, the alert device will activate.

●

The engine speed will automatically decrease to about 3000 r/min. The low oil pressure-alert indicator will light or blink.

Engine control system

ZMU04254

ZMU05232

●

The buzzer will sound.

If the alert system has activated, stop the engine as soon as it is safe to do so. Check the oil level and add oil as needed. If the oil level is correct, consult your Yamaha dealer.

EMU26902

Installation

The information presented in this section is intended as reference only. It is not possible to provide complete instructions for every possible boat and motor combination. Proper mounting depends in part on experience and the specific boat and motor combination.

EWM01590

WARNING

●

Overpowering a boat could cause severe instability. Do not install an outboard motor with more horsepower than the maximum rating on the capacity plate of the boat. If the boat does not have a capacity plate, consult the boat manufacturer.

●

Improper mounting of the outboard motor could result in hazardous conditions such as poor handling, loss of control, or fire hazards. For permanently mounted models, your dealer or other person experienced in proper rigging should mount the motor.

EMU33470

Mounting the outboard motor

The outboard motor should be mounted so that the boat is well balanced. Otherwise, the boat could be hard to steer. For single-engine boats, mount the outboard motor on the centerline (keel line) of the boat.

Installation

1. Center line (keel line)

EMU26932

Mounting height (boat bottom)

The mounting height of your outboard motor affects its efficiency and reliability. If it is mounted too high, propeller ventilation may occur, which will reduce propulsion due to excessive propeller slip, and the water intakes for the cooling system may not get adequate water supply, which can cause engine overheating. If the engine is mounted too low, water resistance (drag) will increase, thereby reducing engine efficiency and performance. Most commonly, outboard motor should be mounted so that the anti-cavitation plate is in alignment with the bottom of the boat. The optimum mounting height of the outboard motor is affected by the boat/motor combination and the desired use. Test runs at different heights can help determine the optimum mounting height. Consult your Yamaha dealer or boat manufacturer for further information on determining the proper mounting height.

ZMU01760

Installation

ZMU01762

ECM01631

NOTICE

Check that the idle hole stays high

●

enough to keep out water getting inside engine even if the boat is in stationary with maximum load.

●

Incorrect engine height or obstructions to the smooth flow of water (such as the design or condition of the boat, or accessories such as transom ladders or depth finder transducers) can create airborne water spray while the boat is cruising. If the motor is operated continuously in the presence of airborne water spray, enough water could enter the engine through the intake opening on the cowling to cause severe engine damage. Eliminate the cause of the airborne water spray.

Operation

EMU36380

First-time operation

EMU36390

Fill engine oil

The engine is shipped from the factory without engine oil. If your dealer did not fill the oil, you must fill it before starting the engine.

NOTICE:

with oil before first-time operation to avoid severe engine damage.

The engine is shipped with the following sticker, which should be removed after engine oil is filled for the first time. For more information on checking the engine oil level, see page 45.

EMU30174

Breaking in engine

Your new engine requires a period of breakin to allow mating surfaces of moving parts to wear in evenly. Correct break-in will help ensure proper performance and longer engine life.

procedure could result in reduced engine life or even severe engine damage.

EMU27084

Procedure for 4-stroke models

Your new engine requires a period of 10 hours break-in to allow mating surfaces of moving parts to wear in evenly. Correct break-in will help ensure proper performance and longer engine life.

Check that the engine is filled

[ECM01780]

NOTICE:

Failure to follow the break-in

ZMU01710

[ECM00801]

IP:

Failure to follow the break-in procedure could result in reduced engine life or even severe engine damage. Run the engine in the water, under load (in gear with a propeller installed) as follows. For ten hours for breaking in engine avoid extended idling, rough water and crowded areas.

1. For the first hour of operation: Run the engine at varying speeds up to 2000 r/min or approximately half throttle.

2. For the second hour of operation: Increase engine speed as much as necessary to put the boat on plane (but avoid full-throttle operation), then back off on the throttle while keeping the boat at a planing speed.

3. Remaining eight hours: Run the engine at any speed. However, avoid operating at full throttle for more than 5 minutes at a time.

4. After the first 10 hours: Operate the engine normally.

EMU36400

Getting to know your boat

Different boats handle differently. Operate cautiously while you learn how your boat handles under different conditions and with different trim angles (see page 56).

EMU36412

Checks before starting engine

EWM01920

WARNING

If any item in the checks before starting engine is not working properly, have it inspected and repaired before operating the outboard motor. Otherwise an accident could occur.

ECM00120

NOTICE

Do not start the engine out of water. Over-

Operation

heating and serious engine damage can occur.

EMU36420

Fuel level

Be sure you have plenty of fuel for your trip. A good rule is to use 1/3 of your fuel to get to the destination, 1/3 to return, and to keep 1/ 3 as an emergency reserve. With the boat level on a trailer or in the water, turn the key to “”(on) and check the fuel level. For fuel filling instructions, see page 47.

EMU36570

Remove cowling

For the following checks, remove the top cowling from the engine. To remove the engine top cowling, release the lock lever and lift off the cowling.

system must be repaired by a qualified mechanic. Improper repairs can make the outboard unsafe to operate.

EMU36450

Check for fuel leaks

Check under top cowling and in the boat

●

for fuel leaks or gasoline fumes.

●

Check fuel line connections to be sure they are tight. Check fuel lines for cracks, swelling, or

●

other damage.

EMU36470

Check the fuel filter

Check that the fuel filter is clean and free of water. If enough water to raise the float ring is found in the fuel, or if a significant amount of debris is found, the fuel tank should be checked and cleaned by a Yamaha dealer.

ZMU06085

EMU36442

Fuel system

EWM00060

WARNING

Gasoline and its vapors are highly flammable and explosive. Keep away from sparks, cigarettes, flames, or other sources of ignition.

EWM00910

WARNING

Leaking fuel can result in fire or explosion.

●

Check for fuel leakage regularly.

●

If any fuel leakage is found, the fuel

ZMU06399

EMU36900

Controls

Tiller handle models:

Turn the tiller handle fully to the left and

●

right to make sure operation is smooth.

●

Turn the throttle grip from the fully closed to the fully open position. Make sure that it turns smoothly and that it completely returns to the fully closed position. Look for loose or damaged connections of

●

the throttle and shift cables under the engine cowling.

Remote control models:

●

Turn the steering wheel full-right and fullleft. Make sure operation is smooth and unrestricted throughout the whole range with no binding or excessive free play.

●

Operate the throttle levers several times to make sure there is no hesitation in their travel. Operation should be smooth over the complete range of motion, and each lever should return completely to the idle position.

●

Look for loose or damaged connections of the throttle and shift cables under the engine cowling.

EMU36481

Engine shut-off cord (lanyard)

Inspect the engine shut-off cord for damage, such as cuts, breaks, and wear.

1. Cord

2. Clip

3. Engine shut-off switch

Operation

1. Cord

2. Clip

3. Engine shut-off switch

EMU37051

Engine oil

1. Put the outboard motor in an upright position (not tilted).

is not level, the oil level indicated on the dipstick may not be accurate.

[ECM01790]

2. Remove the top cowling.

3. Remove oil dipstick and wipe it clean.

4. Insert the dipstick and remove it again. Be sure to completely insert the dipstick into the dipstick guide, otherwise the oil level measurement will be incorrect.

5. Check the oil level using the dipstick to be sure the level falls between the upper level mark and lower level mark. Consult your Yamaha dealer if the oil level is out of specified level or if it appears milky or dirty.

NOTICE:

If the motor

Operation

ZMU06400

ZMU06401

1. Oil dipstick

132

ZMU05091

1. Lower level mark

2. Oil dipstick

3. Upper level mark

EMU27152

Engine

●

Check the engine and engine mounting. Look for loose or damaged fasteners.

●

Check the propeller for damage.

●

Check for engine oil leaks.

EMU36490

Flushing device

Check that flushing device’s garden hose connector is securely screwed on to the fitting on the bottom cowling.

flushing device is not properly connected, cooling water can leak out and the engine can overheat during operation.

[ECM01800]

NOTICE:

If the

1. Fitting

2. Flushing device

EMU36952

Install cowling

1. Be sure that a cowling lock lever is released.

2. Be sure that the rubber seal is seated all the way around the engine.

3. Place the cowling on top of the seal.

4. Check to be sure the rubber seal fits correctly all the way around the engine.

5. Move the lever to lock the cowling as shown.

installed correctly, water spray under the cowling can damage the engine, or the cowling can blow off at high speeds.

After installing, check the fitting of the top cowling by pushing it with both hands. If the top cowling is loose, have it repaired by your

NOTICE:

[ECM01990]

If the cowling is not

ZMU06110

Yamaha dealer.

Operation

ZMU06402

EMU34581

Power trim and tilt system

EWM01930

WARNING

Never get under the lower unit while it

●

is tilted, even when the tilt support lever is locked. Severe injury could occur if the outboard motor accidentally falls.

●

Body parts can be crushed between the motor and the clamp bracket when the motor is trimmed or tilted.

●

Be sure no one is near the outboard motor before performing this check.

1. Check the power trim and tilt unit for any sign of oil leaks.

2. Operate each of the power trim and tilt switches to check that all switches work.

3. Tilt the outboard motor up and check that the trim and tilt rod is pushed out completely.

1. Trim and tilt rod

4. Check that the trim and tilt rod is free of corrosion or other flaws.

5. Tilt the outboard motor down. Check that the trim and tilt rod operates smoothly.

EMU36581

Battery

Check that the battery is in good condition, and fully charged. Check that the battery connections are clean, secure and covered by insulating covers. The electrical contacts of the battery and cables must be clean and properly connected or the battery will not start the engine. Refer to the battery manufacturer’s instructions for checks for your particular battery.

EMU27436

Filling fuel

EWM01830

WARNING

●

Gasoline and its vapors are highly flammable and explosive. Always refuel according to this procedure to reduce the risk of fire and explosion.

●

Gasoline is poisonous and can cause injury or death. Handle gasoline with care. Never siphon gasoline by mouth. If you should swallow some gasoline or inhale a lot of gasoline vapor, or get

Operation

some gasoline in your eyes, see your doctor immediately. If gasoline spills on your skin, wash with soap and water. If gasoline spills on your clothing, change your clothes.

1. Stop the engine.

2. Remove the portable tank from the boat.

3. Be sure you are in a well-ventilated outdoor area, either securely moored or trailered.

4. Do not smoke and keep away from sparks, flames, static electric discharge, or other sources of ignition.

5. If you use a portable container to store and dispense fuel, use only an approved GASOLINE container.

6. Touch the fuel nozzle to the filler opening or funnel to help prevent electrostatic sparks.

7. Fill the fuel tank, but do not overfill. Fuel can expand and overflow if the temperature increases.

Fuel tank capacity:

25 L (6.60 US gal, 5.50 Imp.gal)

EMU27451

Operating engine

EMU27465

Sending fuel (portable tank)

EWM00420

WARNING

●

Before starting the engine, make sure that the boat is tightly moored and that you can steer clear of any obstructions. Be sure there are no swimmers in the water near you.

●

When the air vent screw is loosened, gasoline vapor will be released. Gasoline is highly flammable, and its vapors are flammable and explosive. Refrain from smoking, and keep away from open flames and sparks while loosening the air vent screw.

●

This product emits exhaust gases which contain carbon monoxide, a colorless, odorless gas which could cause brain damage or death when inhaled. Symptoms include nausea, dizziness, and drowsiness. Keep cockpit and cabin areas well ventilated. Avoid blocking exhaust outlets.

ZMU04047

8. Tighten the filler cap securely.

9. Wipe up any spilled gasoline immediately with dry rags. Dispose rags properly. According to local laws or regulations.

1. If there is an air vent screw on the fuel tank cap, loosen it 2 or 3 turns.

ZMU02295

2. If there is a fuel joint on the motor, firmly connect the fuel line to the joint. Then firmly connect the other end of the fuel

Operation

line to the joint on the fuel tank.

ZMU06403

ZMU02024

3. Squeeze the primer pump, with the arrow pointing up, until you feel it become firm. During engine operation place the tank horizontally, otherwise fuel cannot be drawn from the fuel tank.

EMU27493

Starting engine

EWM01600

WARNING

Before starting the engine, make sure that the boat is tightly moored and that you can steer clear of any obstructions. Be sure there are no swimmers in the water near you.

EMU38630

Electric start / prime start models

EWM01840

WARNING

●

Failure to attached engine shut-off cord could result in a runaway boat if operator is ejected. Attach the engine shutoff cord to a secure place on your clothing, or your arm or leg while operating. Do not attach the cord to clothing that could tear loose. Do not route the cord where it could become entangled, preventing it from functioning.

●

Avoid accidentally pulling the cord during normal operation. Loss of engine power means the loss of most steering control. Also, without engine power, the boat could slow rapidly. This could cause people and objects in the boat to be thrown forward.

1. If the lock mode of the Yamaha Security System is selected, use the remote control transmitter to select the unlock mode. Short beep will sound twice when unlocking the Yamaha Security System. For further information, see page 18.

IP:

●

1. Arrow

If you lost track of the current security mode, press the lock or unlock button to reset the security system.

●

The signal transmission range of the remote control transmitter varies depending

Operation

on the mounting position of the receiver. To operate the Yamaha Security System correctly, use the transmitter as close as possible from the receiver.

●

If Yamaha Security System may not operate correctly, repeat the activating procedure once again.

2. Place the gear shift lever in neutral.

5. Turn the main switch to “” (start).

IP:

The start-in-gear protection device prevents the engine from starting except when in neutral.

3. Attach the engine shut-off cord to a secure place on your clothing, or your arm or leg. Then install the clip on the other end of the cord into the engine shut-off switch.

4. Place the throttle grip in the “” (start) position. After the engine starts, return the throttle to the fully closed position.

6. Immediately after the engine starts, re-

●

lease the main switch and allow it to return to “” (on).

the main switch to “” (start) while the engine is running. Do not keep the starter motor turning for more than 5 seconds. If the starter motor is turned continuously for more than 5 seconds, the battery will be quickly discharged, thus making it impossible to start the engine. The starter can also be damaged. If the engine will not start after 5 seconds of cranking, return the main switch to “” (on), wait 10 seconds, then crank the engine again.

NOTICE:

[ECM00192]

Never turn

IP:

When the engine is cold, it needs to be warmed up. For further information, see page 52.

Operation

●

If the engine is warm and fails to start, open the throttle slightly and try to start the engine again. If the engine still fails to start, see page 85.

EMU38640

Electric start and remote control models

EWM01840

WARNING

Failure to attached engine shut-off cord

●

could result in a runaway boat if operator is ejected. Attach the engine shutoff cord to a secure place on your clothing, or your arm or leg while operating. Do not attach the cord to clothing that could tear loose. Do not route the cord where it could become entangled, preventing it from functioning. Avoid accidentally pulling the cord dur-

●

ing normal operation. Loss of engine power means the loss of most steering control. Also, without engine power, the boat could slow rapidly. This could cause people and objects in the boat to be thrown forward.

IP:

If you lost track of the current security

●

mode, press the lock or unlock button to reset the security system. The signal transmission range of the re-

●

mote control transmitter varies depending on the mounting position of the receiver. To operate the Yamaha Security System correctly, use the transmitter as close as possible from the receiver. If Yamaha Security System may not oper-

●

ate correctly, repeat the activating procedure once again.

2. Place the remote control lever in neutral.

IP:

The start-in-gear protection device prevents the engine from starting except when in neutral.

3. Attach the engine shut-off cord to a secure place on your clothing, or your arm or leg. Then install the clip on the other end of the cord into the engine shut-off switch.

4. Turn the main switch to “” (on).

5. Turn the main switch to “” (start).

Operation

6. Immediately after the engine starts, release the main switch and allow it to return to “” (on).

IP:

●

When the engine is cold, it needs to be warmed up. For further information, see page 52.

●

If the engine is warm and fails to start, open the throttle slightly and try to start the engine again. If the engine still fails to start, see page 85.

EMU36510

Checks after starting engine

EMU36520

Cooling water

Check for a steady flow of water from the cooling water pilot hole. A continuous flow of water from the pilot hole shows that the wa-

NOTICE:

[ECM00192]

Never turn

ter pump is pumping water through the cooling passages. If the cooling passages are frozen, it may take a while for water to start flowing out of the pilot hole.

ECM01810

NOTICE

If water is not flowing out of the pilot hole at all times while the engine is running, overheating and serious damage could occur. Stop the engine and check whether the cooling water inlet on the lower case or the cooling water pilot hole is blocked. Consult your Yamaha dealer if the problem cannot be located and corrected.

Check that no water leaks from the joints between the exhaust cover, cylinder head, and body cylinder.

EMU27670

Warming up engine

EMU27715

Manual start and electric start models

1. After starting the engine, allow it to idle for 3 minutes to warm up. Failure to do so will shorten engine life.

2. Be sure the low oil pressure-alert indicator goes off after starting the engine.

NOTICE:

indicator blinks after the engine starts, stop the engine. Otherwise se-

If the low oil pressure-alert

Operation

rious engine damage could occur. Check the oil level and add oil if necessary. Consult your Yamaha dealer if the cause for the low oil pressurealert indicator cannot be found.

[ECM01830]

EMU36530

Checks after engine warm-up

EMU36540

Shifting

While tightly moored, and without applying throttle, confirm that the engine shifts smoothly into forward and reverse, and back to neutral.

EMU36980

Stop switches

●

Turn the main switch to “”, or press the engine stop button and make sure the engine stops.

●

Confirm that removing the clip from the engine shut-off switch stops the engine.

●

Confirm that the engine cannot be started with the clip removed from the engine shut-off switch.

EMU34530

Shifting

EWM00180

WARNING

Before shifting, make sure there are no swimmers or obstacles in the water near you.

ECM01610

NOTICE

Warm up the engine before shifting into gear. Until the engine is warm, the idle speed may be higher than normal. High idle speed can prevent you from shifting back to neutral. If this occurs, stop the engine, shift to neutral, then restart the engine and allow it to warm up.

To shift out of neutral

1. Pull the neutral interlock trigger up (if equipped).

1. Neutral interlock trigger

2. Move the remote control lever / gear shift lever firmly and crisply forward (for forward gear) or backward (for reverse gear) [about 35° (a detent can felt) for remote control models]. Be sure to check that the tilt lock lever is in the lock/down position (if equipped) before operating in reverse.

ZMU06404

Operation

To shift from in gear (forward/reverse) to neutral

1. Close the throttle so that the engine slows to idle speed.

2. After the engine is at idle speed in gear move the remote control lever / gear shift lever firmly and crisply into the neutral position.

EMU31742

Stopping boat

EWM01510

WARNING

●

Do not use the reverse function to slow down or stop the boat as it could cause you to lose control, be ejected, or im-

Operation

pact the steering wheel or other parts of the boat. This could increase the risk of serious injury. It could also damage the shift mechanism.

●

Do not shift into reverse while traveling at planing speeds. Loss of control, boat swamping, or damage to the boat could occur.

The boat is not equipped with a separate braking system. Water resistance stops it after the throttle lever is moved back to idle. The stopping distance varies depending on gross weight, water surface conditions, and wind direction.

EMU30880

Trolling

EMU30890

Adjusting trolling speed

The trolling speed on outboard motors equipped with the variable trolling RPM switches can be adjusted approximately 50 r/min with each press of a switch.

50 r/min each time a switch is pressed.

●

If the trolling speed has been adjusted, the engine returns to the normal trolling speed when the engine is stopped and restarted or when the engine speed exceeds approximately 3000 r/min.

EMU27821

Stopping engine

Before stopping the engine, first let it cool off for a few minutes at idle or low speed. Stopping the engine immediately after operating at high speed is not recommended.

EMU38650

Procedure

1. Push and hold the engine stop button or turn the main switch to “” (off).

1. “” switch

2. “” switch

To increase the trolling speed, press the “” switch. To decrease the trolling speed, press the “” switch.

IP:

●

The trolling speed changes approximately

Operation

2. After stopping the engine, disconnect the fuel line if there is a fuel joint on the outboard motor.

ZMU06405

3. Tighten the air vent screw on the fuel tank cap (if equipped).

remote control transmitter. Short beep will sound once when locking the security system. The lock mode is selected only when the main switch is in the “” (off) position. For further information, see page 18.

WARNING! Do not set the Yamaha Security System in the lock mode when you stop the engine at offshore.

[EWM02150]

IP:

The engine can also be stopped by pulling the cord and removing the clip from the engine shut-off switch, then turning the main switch to “” (off).

EMU27862

Trimming outboard motor

EWM00740

WARNING

Excessive trim for the operating conditions (either trim up or trim down) can cause boat instability and can make steering the boat more difficult. This increases the possibility of an accident. If the boat begins to feel unstable or is hard to steer, slow down and/or readjust the trim angle.

4. Remove the key if the boat will be left unattended.

5. When you leave your boat, set the Yamaha Security System to the lock mode by pressing the lock button of the

ZMU02301

The trim angle of the outboard motor helps determine the position of the bow of the boat in the water. Correct trim angle will help improve performance and fuel economy while reducing strain on the engine. Correct trim angle depends upon the combination of boat, engine, and propeller. Correct trim is also affected by variables such as the load in the boat, sea conditions, and running speed.

Operation

1. Trim operating angle

EMU27885

Adjusting trim angle (Power trim and tilt)

EWM00753

WARNING

Be sure all people are clear of the out-

●

board motor when adjusting the trim angle. Body parts can be crushed between the motor and the clamp bracket when the motor is trimmed or tilted.

●

Use caution when trying a trim position for the first time. Increase speed gradually and watch for any signs of instability or control problems. Improper trim angle can cause loss of control. If equipped with a power trim and tilt

●

switch located on the bottom cowling, use the switch only when the boat is at a complete stop with the engine off. Do not adjust the trim angle with this switch while the boat is moving.

Adjust the outboard motor trim angle using the power trim and tilt switch.

1. Power trim and tilt switch

ZMU06394

1. Power trim and tilt switch

To raise the bow (trim-out), press the switch “” (up). To lower the bow (trim-in), press the switch “” (down). Make test runs with the trim set to different angles to find the position that works best for your boat and operating conditions.

EMU27892

Adjusting trim angle for hydro tilt models

EWM00491

WARNING

●

Stop the engine before adjusting the trim angle. Be sure all people are clear of the out-

●

board motor when adjusting the trim angle, also be careful not to pinch any

Operation

body parts between the drive unit and clamp bracket. Use caution when trying a trim position

●

for the first time. Increase speed gradually and watch for any signs of instability or control problems. Improper trim angle can cause loss of control.

1. Stop the engine.

2. Place the tilt lock lever in the release position.

ZMU06406

3. Hold the rear of the top cowling with one hand and tilt the engine to the desired angle.

4. Place the tilt lock lever back into the lock position to support the engine.

To raise the bow (“trim-out”), tilt the engine up. To lower the bow (“trim-in”), tilt the engine down. Make test runs with the trim set to different angles to find the position that works best for your boat and operating conditions.

EMU27911

Adjusting boat trim

When the boat is on plane, a bow-up attitude results in less drag, greater stability and efficiency. This is generally when the keel line of the boat is up about 3 to 5 degrees. With the bow up, the boat may have a greater tendency to steer to one side or the other. Compensate for this as you steer. The trim tab can

also be adjusted to help offset this effect. When the bow of the boat is down, it is easier to accelerate from a standing start onto plane.

Bow Up

Too much trim-out puts the bow of the boat too high in the water. Performance and economy are decreased because the hull of the boat is pushing the water and there is more air drag. Excessive trim-out can also cause the propeller to ventilate, which reduces performance further, and the boat may “por- poise” (hop in the water), which could throw the operator and passengers overboard.

Bow Down

Too much trim-in causes the boat to “plow” through the water, decreasing fuel economy and making it hard to increase speed. Operating with excessive trim-in at higher speeds also makes the boat unstable. Resistance at the bow is greatly increased, heightening the

Operation

danger of “bow steering” and making operation difficult and dangerous.

IP:

Depending on the type of boat, the outboard motor trim angle may have little effect on the trim of the boat when operating.

EMU27934

Tilting up and down

If the engine will be stopped for some time or if the boat is moored in shallows, the outboard motor should be tilted up to protect the propeller and lower casing from damage by collision with obstructions, and also to reduce salt corrosion.

EWM00221

WARNING

Be sure all people are clear of the outboard motor when tilting up and down, Body parts can be crushed between the motor and the clamp bracket when the motor is trimmed or tilted.

EWM00250

WARNING

Leaking fuel is a fire hazard. If there is a fuel joint on the outboard motor, disconnect the fuel line or close the fuel cock if the engine will be tilted for more than a

few minutes. Otherwise fuel may leak.

ECM00241

NOTICE

●

Before tilting the outboard motor, stop the engine by following the procedure on page 55. Never tilt the outboard motor while the engine is running. Severe damage from overheating can result.

●

Do not tilt up the engine by pushing the tiller handle (if equipped) because this could break the handle.

EMU27999

Procedure for tilting up (hydro tilt models)

1. Place the remote control lever / gear shift lever in neutral.

ZMU03196

2. Place the tilt lock lever in the release position.

Operation

ZMU06406

3. Hold the rear of the top cowling with one hand, tilt the engine up, and turn the tilt support lever toward you or tilt support knob into the clamp bracket, and then place the tilt lock lever back into the lock position to support the outboard motor.

NOTICE:

[ECM01641]

ZMU03196

2. Press the power trim and tilt switch “” (up) until the outboard motor has tilted up completely.

ZMU01935

ZMU06407

ZMU06396

EMU32723

Procedure for tilting up (power trim and tilt models)

1. Place the remote control lever / gear shift lever in neutral.

3. Push the tilt support knob into the clamp bracket to support the engine.

WARNING! After tilting the outboard motor, be sure to support it with the tilt support knob or tilt support lever. Otherwise the outboard motor could fall back down suddenly if oil in the

power trim and tilt unit or in the power tilt unit loses pressure.

NOTICE:

Do not use the tilt support

[EWM00262]

lever or knob when trailering the boat. The outboard motor could shake loose from the tilt support and fall. If the motor cannot be trailered in the normal running position, use an additional support device to secure it in the tilt position. For more detailed information, see page 65.

[ECM01641]

ZMU06396

4. Models equipped with trim rods: Once the outboard motor is supported with the tilt support lever, press the power trim and tilt switch “” (down) to retract the trim rods.

NOTICE:

Be sure to retract the trim rods completely during mooring. This protects the rods from marine growth and corrosion which could damage the power trim and tilt mechanism.

EMU34480

[ECM00251]

Procedure for tilting down (hydro tilt models)

1. Release the tilt lock lever.

Operation

ZMU06412

2. Hold the rear of the top cowling with one hand, tilt the outboard motor up slightly and pull out the tilt support knob or return the tilt support lever.

ZMU06408

3. Slowly tilt the outboard motor down.

4. Place the tilt lock lever in the lock position.

ZMU06404

EMU33120

Procedure for tilting down (power trim and tilt models)

1. Push the power trim and tilt switch “”

Operation

(up) until the outboard motor is supported by the tilt rod and the tilt support knob becomes free.

2. Pull out the tilt support knob.

ZMU06408

3. Push the power trim and tilt switch “” (down) to lower the outboard motor to the desired position.

EMU28061

Shallow water

EMU28081

Hydro tilt models

The outboard motor can be tilted up partially to allow operation in shallow water.

EWM00271

WARNING

●

Run the boat at the lowest possible speed when using the shallow water cruising system.

●

Use extra care when operating in reverse. Too much reverse thrust can cause the outboard motor to lift out of the water, increasing the chance of accident and personal injury.

ECM00260

NOTICE

Do not tilt the outboard motor up so that the cooling water inlet on the lower unit is above the surface of the water when setting up for and cruising in shallow water. Otherwise severe damage from overheating can result.

ZMU01936

ZMU06410

ZMU03646

EMU28175

Procedure for hydro tilt models

1. Place the remote control lever / gear shift lever in neutral.

ZMU03196

2. Pull the tilt lock lever up to the release position.

Operation

EMU32851

Power trim and tilt models

The outboard motor can be tilted up partially to allow operation in shallow water.

ECM00260

NOTICE

EMU32922

Procedure for power trim and tilt models

1. Place the remote control lever in neutral.

ZMU06406

3. Slightly tilt the outboard motor up to the desired position and push the tilt lock lever down to the lock position.

4. To return the outboard motor to the normal running position, pull the tilt lock lever up to the release position and slowly tilt the outboard motor down.

5. Push the tilt lock lever down to the lock position.

ZMU03196

2. Slightly tilt the outboard motor up to the desired position using the power trim and tilt switch.

WARNING! Using the power trim and tilt switch on the bottom cowling while the boat is moving or engine is on could increase the risk of falling overboard and could distract the operator, increasing the risk of collision with another boat or an obstacle.

[EWM01850]

Operation

UP DN

ZMU01935

ZMU06407

3. To return the outboard motor to the normal running position, press the power trim and tilt switch and slowly tilt the outboard motor down.

EMU35390

Cruising in other conditions

Cruising in salt water

After operating in salt water, flush the cooling water passages with fresh water to prevent them from becoming clogged. Also rinse the outside of the outboard motor with fresh water and, if possible, rinse the power head under the cowling.

Cruising in acidic water

Water in some areas can be acidic. After operating in such water, flush the cooling passages with fresh water to prevent corrosion. Also rinse the outside of the outboard motor with fresh water.

EMU28226

Transporting and storing

outboard motor

EWM00692

WARNING

●

USE CARE when transporting fuel tank, whether in a boat or car.

●

DO NOT fill fuel container to maximum capacity. Gasoline will expand considerably as it warms up and can build up pressure in the fuel container. This can cause fuel leakage and a potential fire hazard.

EWM01860

WARNING

Leaking fuel is a fire hazard. When transporting and storing the outboard motor, close the fuel cock to prevent fuel from leaking. Never get under the engine while it is tilted. Severe injury could occur if the outboard motor accidentally falls.

ECM00660

NOTICE

The outboard motor should be trailered and stored in the normal running position. If there is insufficient road clearance in this position, then trailer the outboard motor in the tilt position using a motor support device such as a transom saver bar. Consult your Yamaha dealer for further details.

Maintenance

ZMU03659

EMU28290

Storing outboard motor

When storing your Yamaha outboard motor for prolonged periods of time (2 months or longer), several important procedures must be performed to prevent excessive damage. It is advisable to have your outboard motor serviced by an authorized Yamaha dealer prior to storage. However, you, the owner, with a minimum of tools, can perform the following procedures.

ECM00600

NOTICE

●

To prevent problems which can be caused by oil entering the cylinder from the sump, keep the outboard motor in the attitude shown when transporting and storing it. If storing or transporting the outboard motor on its side (not upright), put it on a cushion after draining the engine oil.

●

Do not place the outboard motor on its side before the cooling water has drained from it completely, otherwise water may enter the cylinder through the exhaust port and cause engine trouble.

●

Store the outboard motor in a dry, wellventilated place, not in direct sunlight.

●

Drain the remaining gasoline from the vapor separator. Gasoline left in the va-

Maintenance

por separator for a prolonged period of time will break down and could cause damage to the fuel line.

EMU28304

Procedure

EMU28334

Flushing in a test tank

ECM00300

NOTICE

Do not run the engine without supplying it with cooling water. Either the engine water pump will be damaged or the engine will be damaged from overheating. Before starting the engine, be sure to supply water to the cooling water passages.

1. Wash the outboard motor body using fresh water.

ter into the air intake.

ther information, see page 69.

2. Disconnect the fuel line from the motor or shut off the fuel cock, if equipped.

3. Remove the engine top cowling and silencer cover. Remove the propeller.

4. Install the outboard motor on the test tank. Fill the tank with fresh water to above the level of the anti-cavitation plate.

is below the level of the anti-cavitation plate, or if the water supply is insufficient, engine seizure may occur.

[ECM00291]

NOTICE:

Do not spray wa-

[ECM01840]

For fur-

If the fresh water level

ZMU02051

1. Lowest water level

2. Water surface

5. Cooling system flushing is essential to prevent the cooling system from clogging up with salt, sand, or dirt. In addition, fogging/lubricating of the engine is mandatory to prevent excessive engine damage due to rust. Perform the flushing and fogging at the same time.

WARNING! Do not touch or remove electrical parts when starting or during operation. Keep hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.

6. Run the engine at a fast idle for a few minutes in neutral position.

7. Just prior to turning off the engine, quickly spray “Fogging Oil” alternately into each carburetor or the fogging hole of the silencer cover, if equipped. When properly done, the engine will smoke excessively and almost stall.

8. Remove the outboard motor from the test tank.

9. Install the silencer cover/cap of fogging hole and top cowling.

10. If the “Fogging Oil” is not available, run the engine at a fast idle until the fuel system becomes empty and the engine

[EWM00091]

stops.

11. Drain the cooling water completely out of the motor. Clean the body thoroughly.

12. If the “Fogging Oil” is not available, remove the spark plug(s). Pour a teaspoonful of clean engine oil into each cylinder. Crank several times manually. Replace the spark plug(s).

13. Drain the fuel from the fuel tank.

IP:

Store the fuel tank in a dry, well-ventilated place, not in direct sunlight.

EMU29955

Flushing with the flushing attachment

1. Wash the outboard motor body using fresh water.

ter into the air intake.

ther information, see page 69.

2. Disconnect the fuel line from the motor or shut off the fuel cock, if equipped.

3. Remove the top cowling and propeller.

4. Install the flushing attachment over the cooling water inlet.

the engine without supplying it with cooling water. Either the engine water pump will be damaged or the engine will be damaged from overheating. Before starting the engine, be sure to supply water to the cooling water passages. Avoid running the outboard motor at high speed while on the flushing attachment, otherwise overheating could occur.

[ECM02000]

NOTICE:

Do not spray wa-

For fur-

[ECM01840]

Do not run

Maintenance

1. Flushing attachment

5. Cooling system flushing is essential to prevent the cooling system from clogging up with salt, sand, or dirt. In addition, fogging/lubricating the engine is mandatory to prevent excessive engine damage due to rust. Perform the flushing and fogging at the same time.

WARNING! Do not touch or remove electrical parts when starting or during operation. Keep hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.

IP:

●

When using the flushing attachment, maintain adequate water pressure and a steady water flow. If the overheat alert device is activated,

●

turn the engine off, and consult your Yamaha dealer.

6. Run the engine at a fast idle for a few minutes in neutral position.

7. Just prior to turning off the engine, quickly spray “Fogging Oil” alternately into the intake silencer or the fogging hole of the silencer cover, if equipped. When properly done, the engine will smoke excessively and almost stall.

8. Drain the remained gasoline in the vapor

[EWM00091]

Maintenance

separator with a container. Loosen the drain screw, and then remove the cap. Push in the air valve with a screwdriver to introduce air into the float chamber, so that the gasoline will drain smoothly. Then, tighten the drain screw.

ZMU06413

1. Vapor separator

2. Drain screw

ZMU05115

1. Air valve

2. Cap

9. Remove the flushing attachment.

10. Install the top cowling.

11. If “Fogging Oil” is not available, turn off the engine after the 6 step. Then perform the 8 step procedure.

12. Drain the cooling water completely out of the motor. Clean the body thoroughly.

13. If the “Fogging Oil” is not available, remove the spark plug(s). Pour a tea-

spoonful of clean engine oil into each cylinder. Crank several times manually. Replace the spark plug(s).

IP:

A flushing attachment is available from your Yamaha dealer.

EMU28402

Lubrication

1. Install the spark plug(s) and torque to proper specification. For information on spark plug installation, see page 75.

2. Change the gear oil. For instructions, see page 80. Inspect the oil for the presence of water that indicates a leaky seal. Seal replacement should be performed by an authorized Yamaha dealer prior to use.

3. Grease all grease fittings. For further details, see page 74.

IP:

For long-term storage, fogging the engine with oil is recommended. Contact your Yamaha dealer for information about fogging oil and procedures for your engine.

EMU28443

Flushing power unit

Perform this procedure right after operation for the most thorough flushing.

ECM01530

NOTICE

Do not perform this procedure while the engine is running. The water pump may be damaged and severe damage from overheating can result.

1. After shutting off the engine, unscrew the garden hose connector from the fitting on the bottom cowling.

1. Fitting

2. Garden hose adapter

3. Garden hose connector

ZMU06415

Maintenance

of cooling the engine, which can cause serious overheating. Be sure the connector is tightened securely on the fitting after flushing the engine.

[ECM00541]

IP:

●

When flushing the engine with the boat in the water, tilting up the outboard motor until it is completely out of the water will achieve better results.

●

For cooling system flushing instructions, see page 65.

EMU28450

Cleaning the outboard motor

After use, wash the exterior of the outboard motor with fresh water. Flush the cooling system with fresh water.

2. Screw the garden hose adapter onto a garden hose, which is connected to a fresh water supply, and then connect it to the garden hose connector.

3. With the engine off, turn on the water tap and let the water flush through the cooling passages for about 15 minutes. Turn off the water and disconnect the garden hose adapter from the garden hose connector.

4. Reinstall the garden hose connector onto the fitting on the bottom cowling. Tighten the connector securely.

NOTICE:

Do not leave the garden hose connector loose on the bottom cowling fitting or let the hose hang free during normal operation. Water will leak out of the connector instead

IP:

For cooling system flushing instructions, see page 65.

EMU28460

Checking painted surface of motor

Check the motor for scratches, nicks, or flaking paint. Areas with damaged paint are more likely to corrode. If necessary, clean and paint the areas. A touch-up paint is available from your Yamaha dealer.

Maintenance

EMU2847C

Periodic maintenance

EWM01871

WARNING

These procedures require mechanical skills, tools, and supplies. If you do not have the proper skills, tools, or supplies to perform a maintenance procedure, have a Yamaha dealer or other qualified mechanic do the work. The procedures involve disassembling the motor and exposing dangerous parts. To reduce the risk of injury from moving, hot, or electrical parts:

●

Turn off the engine and keep the key(s) and engine shut-off cord (lanyard) with you when you perform maintenance unless otherwise specified.

●

The power trim and tilt switches operate even when the ignition key is off. Keep people away from the switches whenever working around the motor. When the motor is tilted, keep away from the area under it or between it and the clamp bracket. Be sure no one is in this area before operating the power trim and tilt mechanism.

●

Allow the engine to cool before handling hot parts or fluids.

●

Always completely reassemble the motor before operation.

EMU28511

Replacement parts

If replacement parts are necessary, use only genuine Yamaha parts or parts of equivalent design and quality. Any part of inferior quality may malfunction, and the resulting loss of control could endanger the operator and passengers. Yamaha genuine parts and accessories are available from your Yamaha dealer.

EMU34150

Severe operating conditions

Severe operating conditions involve one or more of the following types of operation on a regular basis:

●

Operating continuously at or near maximum engine speed (rpm) for many hours

●

Operating continuously at a low engine speed (rpm) for many hours Brief periods of rapid acceleration and de-

●

celeration followed by engine shut off before the engine has reached proper operating temperature

●

Frequent quick acceleration and deceleration Frequent shifting

●

Frequently starting and stopping the engine(s) Operation that fluctuates often between

●

light and heavy cargo loads Outboard motors operating under any of these above conditions require more frequent maintenance. Yamaha recommends that you do this service twice as often as specified in the maintenance chart. For example, if a particular service should be done at 50 hours, do it instead at 25 hours. This will help prevent more rapid deterioration of engine components.

Maintenance

EMU34445

Maintenance chart 1

IP:

●

Refer to the sections in this chapter for explanations of each owner-specific action.

●

The maintenance cycle on these charts assume usage of 100 hours per year and regular flushing of the cooling water passages. Maintenance frequency should be adjusted when operating the engine under adverse conditions such as extended trolling.

●

Disassembly or repairs may be necessary depending on the outcome of maintenance checks.

●

Expendable or consumable parts and lubricants will lose their effectiveness over time and through normal usage regardless of the warranty period.

●

When operating in salt water, muddy, other turbid (cloudy), acidic water, the engine should

be flushed with clean water after each use. The “” symbol indicates the check-ups which you may carry out yourself. The “” symbol indicates work to be carried out by your Yamaha dealer.

Initial Every

Item Actions

Anode(s) (external)

Anode(s) (cylinder head)

Anodes (exhaust cover, exhaust guide)

Battery (electrolyte level, terminal)

Cooling water leakage

Cowling clamp Inspection

Engine starting condition/Noise

Engine idling speed/ Noise

Engine oil Replacement

Engine Oil ﬁlter (cartridge)

Fuel ﬁlter (can be disassembled)

Fuel line(High pressure)

Inspection or replacement as necessary

Replacement

Inspection

Fill, charging or replacing as necessary

Inspection or replacement as necessary

Inspection

Replacement

Inspection or replacement as necessary

Inspection

20 hours

months)

100

hours (1

year)

300

hours (3

years)

500

hours (5

years)

Maintenance

Item Actions

Fuel line(High pressure)

Fuel line(Low pressure)

Fuel pump

Fuel/oil leakage Inspection

Gear oil Replacement

Greasing points Greasing

Impeller/water pump housing

Power trim & tilt unit Inspection

Propeller/Propeller nut/ Cotter pin

PCV (Pressure Control Valve)

Shift link/shift cable

Spark plug(s)

Spark plug caps/high tension cords

Water from the cooling water pilot hole

Throttle link/throttle cable

Thermostat

Timing belt

Valve clearance

Water inlet Inspection

Inspection or replacement as necessary

Inspection

Inspection or replacement as necessary

Replacement

Inspection or replacement as necessary

Inspection, adjustment or replacement as necessary

Inspection or replacement as necessary

Inspection

Inspection, adjustment or replacement as necessary

Inspection or replacement as necessary

Inspection and adjustment

Initial Every

20 hours

months)

100

hours (1

year)

hours (3

years)

300

500

hours (5

years)

Item Actions

Main switch/stop switch

Wire harness connections/Wire coupler connections

(Yamaha) Meter/gauge Inspection

(Yamaha) Fuel tank

EMU34451

Inspection or replacement as necessary

Inspection and cleaning as necessary

Maintenance chart 2

Item Actions

Guide exhaust/exhaust manifold

Timing belt Replacement

Inspection or replacement as necessary

Maintenance

Initial Every

20 hours

months)

100

hours (1

year)

1000 hours

hours (3

years)

Every

300

500

hours (5

years)

Maintenance

EMU28941

Greasing

Yamaha grease A (water resistant grease) Yamaha grease D (corrosion resistant grease; for propeller shaft)

F30BEHD, F40FEHD

ZMU06417

F30BET, F40FED, F40FET

Maintenance

EMU28955

Cleaning and adjusting spark plug

The spark plug is an important engine component and is easy to inspect. The condition of the spark plug can indicate something about the condition of the engine. For example, if the center electrode porcelain is very white, this could indicate an intake air leak or carburetion problem in that cylinder. Do not attempt to diagnose any problems yourself. Instead, take the outboard motor to a Yamaha dealer. You should periodically remove and inspect the spark plug because

ZMU06416

heat and deposits will cause the spark plug to slowly break down and erode. If electrode erosion becomes excessive, or if carbon and other deposits are excessive, you should replace the spark plug with another of the correct type.

1. Remove the spark plug caps from the spark plugs.

2. Remove the spark plug. If electrode erosion becomes excessive, or if carbon and other deposits are excessive, you should replace the spark plug with an-

Maintenance

other of the correct type.

WARNING! When removing or installing a spark plug, be careful not to damage the insulator. A damaged insulator could allow external sparks, which could lead to explosion or fire.

[EWM00561]

Standard spark plug:

DPR6EB-9

3. Be sure to use the specified spark plug, otherwise the engine may not operate properly. Before fitting the spark plug, measure the electrode gap with a wire thickness gauge; adjust the gap to specification if necessary.

1. Spark plug gap

2. Spark plug I.D. mark (NGK)

3. Spark plug part number

Spark plug gap:

0.8–0.9 mm (0.031–0.035 in)

4. When fitting the plug, wipe off any dirt from the threads, and then screw it in to the correct torque.

Spark plug torque:

18.0 Nm (1.84 kgf-m, 13.3 ft-lb)

IP:

If a torque-wrench is not available when you

are fitting a spark plug, a good estimate of the correct torque is 1/4 to 1/2 a turn past finger-tight. Have the spark plug adjusted to the correct torque as soon as possible with a torque-wrench.

EMU29041

Inspecting idling speed

EWM00451

WARNING

●

Do not touch or remove electrical parts when starting or during operation.

●

Keep hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.

ECM00490

NOTICE

This procedure must be performed while the outboard motor is in the water. A flushing attachment or test tank can be used.

A diagnostic tachometer should be used for this procedure. Results may vary depending on whether testing is conducted with the flushing attachment, in a test tank, or with the outboard motor in the water.

1. Start the engine and allow it to warm up fully in neutral until it is running smoothly.

IP:

Correct idling speed inspection is only possible if the engine is fully warmed up. If not warmed up fully, the idle speed will measure higher than normal. If you have difficulty verifying the idle speed, or the idle speed requires adjustment, consult a Yamaha dealer or other qualified mechanic.

2. Verify whether the idle speed is set to specification. For idle speed specifications, see page 9.

EMU37492

Changing engine oil

ECM01710

NOTICE

Change the engine oil after the first 20 hours of operation or 3 months, and every 100 hours or at 1-year intervals thereafter. Otherwise the engine will wear quickly.

The engine oil should be extracted with an oil changer.

1. Put the outboard motor in an upright position (not tilted).

is not level, the oil level indicated on the dipstick may not be accurate.

[ECM01860]

NOTICE:

If the motor

Maintenance

ZMU06418

1. Oil changer

6. Add the correct amount of oil through the filler hole. Put back the filler cap and the dipstick.

could cause leakage or damage. If the oil level is above the upper level mark, drain until the level meets the specified capacity.

NOTICE:

Overfilling the oil

[ECM01850]

ZMU03659

2. Start the engine. Warm it up and keep the idle speed for 5-10 minutes.

3. Stop the engine and leave it for 5-10 minutes.

4. Remove the top cowling.

5. Remove the oil filler cap. Pull out the dipstick and use the oil changer to extract the oil completely.

ZMU06419

1. Oil ﬁller cap

Maintenance

Recommended engine oil:

4-stroke outboard motor oil Total engine oil quantity (oil pan capacity):

Without oil filter replacement:

F40FED 1.5 L (1.59 US qt, 1.32 Imp.qt) F40FEHD 1.5 L (1.59 US qt, 1.32 Imp.qt) F40FET 1.5 L (1.59 US qt, 1.32 Imp.qt)

With oil filter replacement:

F30BEHD 1.9 L (2.01 US qt, 1.67 Imp.qt) F30BET 1.9 L (2.01 US qt, 1.67 Imp.qt) F40FED 1.7 L (1.80 US qt, 1.50 Imp.qt) F40FEHD 1.7 L (1.80 US qt, 1.50 Imp.qt) F40FET 1.7 L (1.80 US qt, 1.50

Imp.qt) Replacement engine oil quantity (at periodic maintenance):

Without oil filter replacement:

1.5 L (1.59 US qt, 1.32 Imp.qt)

With oil filter replacement:

1.7 L (1.80 US qt, 1.50 Imp.qt)

7. Leave the outboard motor for 5-10 minutes.

8. Remove oil dipstick and wipe it clean.

9. Insert the dipstick and remove it again. Be sure to completely insert the dipstick into the dipstick guide, otherwise the oil level measurement will be incorrect.

10. Recheck the oil level using the dipstick to be sure the level falls between the upper and lower marks. Consult your Yamaha dealer if the oil level is out of specified level.

132

ZMU05091

1. Lower level mark

2. Oil dipstick

3. Upper level mark

11. Start the engine and make sure that the low oil pressure-alert indicator remains off. Also, make sure that there are no oil leaks.

NOTICE:

alert indicator comes on or if there are oil leaks, stop the engine and find the cause. Continued operation with a problem could cause severe engine damage. Consult your Yamaha dealer if the problem cannot be located and corrected.

12. Dispose of used oil according to local regulations.

IP:

●

For more information on the disposal of used oil, consult your Yamaha dealer. Change the oil more often when operating

●

the engine under adverse conditions such as extended trolling.

EMU29112

Checking wiring and connectors

●

Check that each grounding wire is properly secured. Check that each connector is engaged se-

●

curely.

If the low oil pressure-

[ECM01622]

Maintenance

ZMU06436

ZMU06437

EMU32111

Checking propeller

EWM01880

WARNING

You could be seriously injured if the engine accidentally starts when you are near the propeller.

●

Before inspecting, removing, or installing the propeller, place the shift control in neutral, turn the main switch to “” (off) and remove the key, and remove the clip from the engine shut-off switch. Turn off the battery cut-off switch if your boat has one.

Do not use your hand to hold the propeller when loosening or tightening the propeller nut. Put a wood block between the anti-cavitation plate and the propeller to prevent the propeller from turning.

ZMU01897

Checkpoints

●

Check each of the propeller blades for wear, erosion from cavitation or ventilation, or other damage.

●

Check the propeller shaft for damage.

●

Check the splines for wear or damage. Check for fish line tangled around the pro-

●

peller shaft.

●

Check the propeller shaft oil seal for damage.

EMU30662

Removing propeller

EMU29197

Spline models

1. Straighten the cotter pin and pull it out using a pair of pliers.

2. Remove the propeller nut, washer, and spacer (if equipped).

not use your hand to hold the propeller when loosening the propeller nut.

[EWM01890]

WARNING! Do

Maintenance

1. Cotter pin

2. Propeller nut

3. Washer

4. Spacer

5. Propeller

6. Thrust washer

3. Remove the propeller, washer (if equipped), and thrust washer.

EMU30672

Installing propeller

EMU29233

Spline models

ECM00500

NOTICE

Be sure to use a new cotter pin and bend the ends over securely. Otherwise the propeller could come off during operation and be lost.

1. Apply Yamaha marine grease or a corrosion resistant grease to the propeller shaft.

2. Install the spacer (if equipped), thrust washer, washer (if equipped), and propeller on the propeller shaft.

Be sure to install the thrust washer before installing the propeller, otherwise the lower case and propeller boss could be damaged.

3. Install the spacer (if equipped) and the washer. Tighten the propeller nut to the

NOTICE:

[ECM01880]

specified torque.

Propeller nut tightening torque:

35.0 Nm (3.57 kgf-m, 25.8 ft-lb)

4. Align the propeller nut with the propeller shaft hole. Insert a new cotter pin in the hole and bend the cotter pin ends.

NOTICE:

Do not reuse the cotter pin installed. Otherwise the propeller can come off during operation.

[ECM01890]

IP:

If the propeller nut does not align with the propeller shaft hole after tightening to the specified torque, tighten the nut further to align it with the hole.

EMU29287

Changing gear oil

EWM00800

WARNING

●

Be sure the outboard motor is securely fastened to the transom or a stable stand. You could be severely injured if the outboard motor falls on you.

●

Never get under the lower unit while it is tilted, even when the tilt support lever or knob is locked. Severe injury could occur if the outboard motor accidentally falls.

1. Tilt the outboard motor so that the gear oil drain screw is at the lowest point pos-

Maintenance

sible.

2. Place a suitable container under the gear case.

3. Remove the gear oil drain screw and gasket.

NOTICE:

If there is an excessive quantity of metal particles on the magnetic gear oil drain screw, this can indicate lower unit problem. Consult your Yamaha dealer.

[ECM01900]

ZMU03273

1. Gear oil drain screw

2. Oil level plug

IP:

If a magnetic gear oil drain screw is

●

equipped, remove all metal particles from the screw before installing it. Always use new gaskets. Do not reuse the

●

removed gaskets.

4. Remove the oil level plug and gasket to allow the oil to drain completely.

NOTICE:

has been drained. If the oil is milky, water is getting into the gear case which can cause gear damage. Consult a Yamaha dealer for repair of the lower unit seals.

IP:

For disposal of used oil, consult your Yamaha dealer.

5. Put the outboard motor in a vertical position. Using a flexible or pressurized fill-

Inspect the used oil after it

[ECM00711]

ing device, inject the gear oil into the gear oil drain screw hole.

Recommended gear oil:

Hypoid gear oil SAE#90

Gear oil quantity:

0.430 L (0.455 US qt, 0.378 Imp.qt)

ZMU03274

6. Put a new gasket on the oil level plug. When the oil begins to flow out of the oil level plug hole, insert and tighten the oil level plug.

Tightening torque:

9 Nm (0.9 kgf-m, 6.6 ft-lb)

7. Put a new gasket on the gear oil drain screw. Insert and tighten the gear oil drain screw.

Tightening torque:

9 Nm (0.9 kgf-m, 6.6 ft-lb)

EMU29302

Cleaning fuel tank

EWM00920

WARNING

Gasoline is highly flammable, and its vapors are flammable and explosive.

If you have any question about properly

●

doing this procedure, consult your Yamaha dealer. Keep away from sparks, cigarettes,

●

Maintenance

flames, or other sources of ignition when cleaning the fuel tank. Remove the fuel tank from the boat be-

●

fore cleaning it. Work only outdoors in an area with good ventilation. Wipe up any spilled fuel immediately.

●

Reassemble the fuel tank carefully. Improper assembly can result in a fuel leak, which could result in a fire or explosion hazard.

●

Dispose of old gasoline according to local regulations.

1. Empty the fuel tank into an approved container.

2. Pour a small amount of suitable solvent into the tank. Install the cap and shake the tank. Drain the solvent completely.

3. Remove the screws holding the fuel joint assembly. Pull the assembly out of the tank.

from the surfaces of the anodes. Consult a Yamaha dealer for replacement of external anodes.

ECM00720

NOTICE

Do not paint anodes, as this would render them ineffective.

IP:

Inspect ground leads attached to external anodes on equipped models. Consult a Yamaha dealer for inspection and replacement of internal anodes attached to the power unit.

ZMU02924

4. Clean the filter (located on the end of the suction pipe) in a suitable cleaning solvent. Allow the filter to dry.

5. Replace the gasket with a new one. Reinstall the fuel joint assembly and tighten the screws firmly.

EMU29312

Inspecting and replacing anode(s)

Yamaha outboard motors are protected from corrosion by sacrificial anodes. Inspect the external anodes periodically. Remove scales

ZMU02066

ZMU03664

ZMU06420

ZMU06421

EMU29322

Checking battery (for electric start models)

EWM01900

WARNING

Battery electrolytic fluid is poisonous and caustic, and batteries generate explosive hydrogen gas. When working near the battery:

Wear protective eye gear and rubber

●

gloves.

●

Do not smoke or bring any other source

of ignition near the battery. Refer to page 11 for detailed safety information about batteries.

The procedure for checking the battery varies for different batteries. This procedure contains typical checks that apply to many batteries, but you should always refer to the

Maintenance

battery manufacturer’s instructions.

ECM01920

NOTICE

A poorly maintained battery will quickly deteriorate.

1. Check the electrolyte level.

2. Check the battery’s charge. If your boat is equipped with the digital speedometer, the voltmeter and low battery alert functions will help you monitor the battery’s charge. If the battery needs charging, consult your Yamaha dealer.

3. Check the battery connections. They should be clean, secure, and covered by an insulating cover.

connections can produce shorting or arcing and cause an explosion.

[EWM01910]

EMU29333

Connecting the battery

EWM00570

WARNING

Mount the battery holder securely in a dry, well-ventilated, vibration-free location in the boat. Install a fully charged battery in the holder.

ECM01123

NOTICE

Reversal of the battery cables will damage the electrical parts.

WARNING! Bad

Maintenance

1. Make sure the main switch (on applicable models) is “” (off) before working on the battery.

2. Connect the red battery cable to the POSITIVE (+) terminal first. Then connect the black battery cable to the NEGATIVE (-) terminal.

1. Red cable

2. Black cable

3. Battery

3. The electrical contacts of the battery and cables must be clean and properly connected, or the battery will not start the engine.

EMU29371

Disconnecting the battery

1. Turn off the battery cut-off switch (if equipped) and main switch.

they are left on, the electrical system can be damaged.

[ECM01930]

2. Disconnect the negative cable(s) from the negative (-) terminal.

ways disconnect all negative (-) cables first to avoid a short circuit and damage to the electrical system.

[ECM01940]

3. Disconnect the positive cable(s) and remove the battery from the boat.

4. Clean, maintain, and store the battery according to the manufacturer’s instruc-

NOTICE:

Al-

tions.

EMU38660

Storing the battery

When storing your Yamaha outboard motor for prolonged periods of time (2 months or longer), remove the battery and store it in a cool, dry place. Check the battery and charge it if necessary.

EMU38670

Troubleshooting

A problem in the fuel, compression, or ignition systems can cause poor starting, loss of power, or other problems. This section describes basic checks and possible remedies, and covers all Yamaha outboard motors. Therefore some items may not apply to your model. If your outboard motor requires repair, bring it to your Yamaha dealer. If the engine trouble-alert indicator is flashing, consult your Yamaha dealer.

Starter will not operate.

Q. Is battery capacity weak or low? A. Check battery condition. Use battery of recommended capacity.

Q. Are battery connections loose or corroded? A. Tighten battery cables and clean battery terminals.

Trouble Recovery

Q. Is fuel tank empty? A. Fill tank with clean, fresh fuel.

Q. Is fuel contaminated or stale? A. Fill tank with clean, fresh fuel.

Q. Is fuel filter clogged? A. Clean or replace filter.

Q. Is starting procedure incorrect? A. See page 49.

Q. Has fuel pump malfunctioned? A. Have serviced by a Yamaha dealer.

Q. Are spark plug(s) fouled or of incorrect type? A. Inspect spark plug(s). Clean or replace with recommended type.

Q. Are spark plug cap(s) fitted incorrectly? A. Check and re-fit cap(s).

Q. Is fuse for electric start relay or electric circuit blown? A. Check for cause of electric overload and repair. Replace fuse with one of correct amperage.

Q. Are starter components faulty? A. Have serviced by a Yamaha dealer.

Q. Is shift lever in gear? A. Shift to neutral.

Engine will not start (starter operates).

Q. Is your Yamaha Security System in the lock mode? A. Set the security system to the unlock mode.

Q. Is ignition wiring damaged or poorly connected? A. Check wires for wear or breaks. Tighten all loose connections. Replace worn or broken wires.

Q. Are ignition parts faulty? A. Have serviced by a Yamaha dealer.

Q. Is engine shut-off cord (lanyard) not attached? A. Attach cord.

Q. Are engine inner parts damaged? A. Have serviced by a Yamaha dealer.

Trouble Recovery

Engine idles irregularly or stalls.

Q. Are spark plug(s) fouled or of incorrect type? A. Inspect spark plug(s). Clean or replace with recommended type.

Q. Is fuel system obstructed? A. Check for pinched or kinked fuel line or other obstructions in fuel system.

Q. Is fuel contaminated or stale? A. Fill tank with clean, fresh fuel.

Q. Is fuel filter clogged? A. Clean or replace filter.

Q. Have ignition parts failed? A. Have serviced by a Yamaha dealer.

Q. Has alert system activated? A. Find and correct cause of alert.

Q. Is spark plug gap incorrect? A. Inspect and adjust as specified.

Q. Is ignition wiring damaged or poorly connected? A. Check wires for wear or breaks. Tighten all loose connections. Replace worn or broken wires.

Q. Is specified engine oil not being used? A. Check and replace oil as specified.

A. Have serviced by a Yamaha dealer.

Q. Is air vent screw on fuel tank closed? A. Open air vent screw.

Q. Is choke knob pulled out? A. Return to home position.

Q. Is motor angle too high? A. Return to normal operating position.

Q. Is carburetor clogged? A. Have serviced by a Yamaha dealer.

Q. Is fuel joint connection incorrect? A. Connect correctly.

Q. Is throttle valve adjustment incorrect? A. Have serviced by a Yamaha dealer.

Q. Is battery cable disconnected? A. Connect securely.

Alert buzzer sounds or indicator lights.

Q. Is cooling system clogged? A. Check water intake for restriction.

Q. Is engine oil level low? A. Fill oil tank with specified engine oil.

Q. Is heat range of spark plug incorrect? A. Inspect spark plug and replace it with recommended type.

Q. Is thermostat faulty or clogged? A. Have serviced by a Yamaha dealer.

Q. Are carburetor adjustments incorrect? A. Have serviced by a Yamaha dealer.

Q. Is fuel pump damaged?

Q. Is specified engine oil not being used? A. Check and replace oil with specified type.

Q. Is engine oil contaminated or deteriorated? A. Replace oil with fresh, specified type.

Trouble Recovery

Q. Is oil filter clogged? A. Have serviced by a Yamaha dealer.

Q. Has oil feed/injection pump malfunctioned? A. Have serviced by a Yamaha dealer.

Q. Is load on boat improperly distributed? A. Distribute load to place boat on an even plane.

Q. Is water pump or thermostat faulty? A. Have serviced by a Yamaha dealer.

Q. Is there excess water in fuel filter cup? A. Drain filter cup.

Engine power loss.

Q. Is propeller damaged? A. Have propeller repaired or replaced.

Q. Is propeller pitch or diameter incorrect? A. Install correct propeller to operate outboard at its recommended speed (r/min) range.

Q. Is trim angle incorrect? A. Adjust trim angle to achieve most efficient operation.

Q. Is motor mounted at incorrect height on transom? A. Have motor adjusted to proper transom height.

Q. Are spark plug(s) fouled or of incorrect type? A. Inspect spark plug(s). Clean or replace with recommended type.

Q. Are weeds or other foreign matter tangled on gear housing? A. Remove foreign matter and clean lower unit.

Q. Is fuel system obstructed? A. Check for pinched or kinked fuel line or other obstructions in fuel system.

Q. Is fuel filter clogged? A. Clean or replace filter.

Q. Is fuel contaminated or stale? A. Fill tank with clean, fresh fuel.

Q. Is spark plug gap incorrect? A. Inspect and adjust as specified.

Q. Is ignition wiring damaged or poorly connected? A. Check wires for wear or breaks. Tighten all loose connections. Replace worn or broken wires.

Q. Have electrical parts failed? A. Have serviced by a Yamaha dealer.

Q. Is specified fuel not being used? A. Replace fuel with specified type.

Q. Has alert system activated? A. Find and correct cause of alert.

Q. Is boat bottom fouled with marine growth? A. Clean boat bottom.

Q. Is specified engine oil not being used? A. Check and replace oil with specified type.

Q. Is thermostat faulty or clogged? A. Have serviced by a Yamaha dealer.

Trouble Recovery

Q. Is air vent screw closed? A. Open the air vent screw.

Q. Is fuel pump damaged? A. Have serviced by a Yamaha dealer.

Q. Is fuel joint connection incorrect? A. Connect correctly.

Q. Is heat range of spark plug incorrect? A. Inspect spark plug and replace it with recommended type.

Q. Is high pressure fuel pump drive belt broken? A. Have serviced by a Yamaha dealer.

Q. Is engine not responding properly to shift lever position? A. Have serviced by a Yamaha dealer.

Engine vibrates excessively.

Q. Is propeller damaged? A. Have propeller repaired or replaced.

The Yamaha Security System does not operate correctly.

Q. Has the battery cell of the remote control transmitter discharged? A. Contact your Yamaha dealer to replace the battery cell.

EMU29433

Temporary action in

emergency

EMU29440

Impact damage

EWM00870

WARNING

The outboard motor can be seriously damaged by a collision while operating or trailering. Damage could make the outboard motor unsafe to operate.

If the outboard motor hits an object in the water, follow the procedure below.

Q. Is propeller shaft damaged? A. Have serviced by a Yamaha dealer.

Q. Are weeds or other foreign matter tangled on propeller? A. Remove and clean propeller.

Q. Is motor mounting bolt loose? A. Tighten bolt.

Q. Is steering pivot loose or damaged? A. Tighten or have serviced by a Yamaha dealer.

1. Stop the engine immediately.

2. Inspect the control system and all components for damage. Also inspect the boat for damage.

3. Whether damage is found or not, return to the nearest harbor slowly and carefully.

4. Have a Yamaha dealer inspect the outboard motor before operating it again.

EMU30681

Replacing fuse

If a fuse has blown, open the fuse holder and

Trouble Recovery

remove the fuse with a fuse puller. Replace it with a spare one of the proper amperage.

EWM00631

WARNING

Substituting an incorrect fuse or a piece of wire could allow excessive current flow. This could cause electric system damage and a fire hazard.

Consult your Yamaha dealer if the new fuse immediately blows again.

ZMU06422

1. Fuse (20 A × 2, 30 A)

2. Spare fuse (20 A × 2, 30 A)

3. Fuse puller

EMU29512

Power trim and tilt will not operate

If the engine cannot be tilted up or down with the power trim and tilt because of a discharged battery or a failure with the power trim and tilt unit , the engine can be tilted manually.

1. Loosen the manual valve screw by turning it clockwise until it stops.

ZMU04095

1. Manual valve screw

2. Put the engine in the desired position, then tighten the manual valve screw by turning it counterclockwise.

EMU37571

Water separator-alert indicator blinks while cruising

EWM01500

WARNING

Gasoline is highly flammable, and its vapors are flammable and explosive.

●

Do not perform this procedure on a hot or running engine. Allow the engine to cool.

●

There will be fuel in the fuel filter. Keep away from sparks, cigarettes, flames or other sources of ignition.

●

This procedure will allow some fuel to spill. Catch fuel in a rag. Wipe up any spilled fuel immediately.

●

The fuel filter must be reassembled carefully with the O-ring, filter cup, and hoses in place. Improper assembly or replacement could result in a fuel leak, which could result in a fire or explosion hazard.

If the water separator-alert indicator on the 6Y8 Multifunction tachometer blinks, perform

Trouble Recovery

the following procedure.

1. Water separator-alert indicator

1. Stop the engine.

2. Remove the top cowling.

3. Remove the holder.

ZMU06425

1. Water detection switch coupler

5. Unscrew the filter cup from the filter housing.

NOTICE:

Be careful not to twist the water detection switch lead when unscrewing the filter cup.

[ECM01960]

ZMU06424

1. Holder

4. Disconnect the water detection switch coupler.

NOTICE:

Be careful not to get any water on the water detection switch coupler, otherwise a malfunction could occur.

[ECM01950]

ZMU06426

1. Filter cup

2. Water detection switch lead

6. Drain the water in the filter cup by soaking it up with a rag.

7. Firmly screw the filter cup onto the filter housing.

twist the water detection switch lead when screwing the filter cup onto the filter housing.

8. Connect the water detection switch coupler securely until a click is heard.

NOTICE:

[ECM01970]

Be careful not to

ZMU06427

1. Water detection switch coupler

9. Fasten the water detection switch lead with the holder.

ZMU06434

1. Holder

10. Install the top cowling.

11. Start the engine and make sure that the water separator-alert indicator remains off. Have a Yamaha dealer inspect the outboard motor after returning to port.

EMU29542

Starter will not operate

If the starter mechanism does not operate (the engine cannot be cranked with the starter), the engine can be started manually with an emergency starter rope. However, the engine cannot be started manually if the battery voltage is low. If the battery is discharged to 9 volts or below, the electric fuel pump will

Trouble Recovery

not operate.

EWM01022

WARNING

Use this procedure only in an emergen-

●

cy to return to the nearest port for repairs. When the emergency starter rope is

●

used to start the engine, the start-ingear protection device does not operate. Make sure the remote control lever is in neutral. Otherwise the boat could unexpectedly start to move, which could result in an accident.

●

Attach the engine shut-off cord to a secure place on your clothing, or your arm or leg while operating the boat.

●

Do not attach the cord to clothing that could tear loose. Do not route the cord where it could become entangled, preventing it from functioning.

●

you when pulling the starter rope. It could whip behind you and injure someone.

●

An unguarded, rotating flywheel is very dangerous. Keep loose clothing and other objects away when starting the engine. Use the emergency starter rope only as instructed. Do not touch the flywheel or other moving parts when the engine is running. Do not install the starter mechanism or top cowling after the engine is running.

●

Do not touch the ignition coil, spark

Trouble Recovery

plug wire, spark plug cap, or other electrical components when starting or operating the motor. You could get an electrical shock.

EMU38680

Emergency starting engine

1. Remove the top cowling.

2. Remove the flywheel cover.

ZMU06429

3. Prepare the engine for starting. For further information, see page 49. Be sure the engine is in neutral and that the clip is attached to the engine shut-off switch.

4. Turn on the main switch.

ON STARTOFF

ZMU01906

5. Insert the knotted end of the emergency starter rope into the notch in the flywheel rotor and wind the rope around the flywheel several turns clockwise.

6. Give a strong pull straight out to crank the engine. Repeat if necessary.

WARNING! Do not install the top cowling when engine is running.

[EWM00621]

ZMU02334

ZMU06430

IP:

The engine can be started only when the Yamaha Security System is in the unlock mode.

EMU33501

Treatment of submerged motor

If the outboard motor is submerged, immediately take it to a Yamaha dealer. Otherwise some corrosion may begin almost immediately.

NOTICE:

outboard motor until it has been completely inspected.

Do not attempt to run the

[ECM00401]

Trouble Recovery
