YAMAHA F30A’03, F40B’03 PARTS CATALOGUE 03

F30A ’03

(69H3)

F40B ’03

(67C2)

2B69H−300F1

A1

FOREWORD

This Parts Catalogue is related to the parts for the model(s) in the below frame. When you are ordering replace­ment parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

F30A’03(69H3), F40B’03(67C2)

1. Modifications or additions which have been made after issue of the Parts Catalogue will
be announced in the Yamaha Parts News.
It is advisable that you make necessary corrections to the Parts Catalogue according to
the Yamaha Parts News.

2. Abbreviations
The Following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number.

“UN” Use as many as needed.

“AP” Alternate Parts

“LM” Local Made

(Parts need to be ordered locally)

“O/S” Over Size

3. Parts, which are to be supplied in an assembly, are listed with a dot(.) in front of the part
name as shown below.

EXAMPLE

CARBURETOR ASSY

.JET, PILOT

.NOZZLE, MAIN

4. Number of component for assembly
The numeral appearing to the right of each component part indicates the quantity of
parts for each assembly unit.

EXAMPLE

PART NO. DESCRIPTION REMARKS

6E0−85500−70 C.D.I. MAGNETO ASSY 1

6E0−85550−70 .ROTOR ASSY 1

6E0−15723−00−94..PULLY, STARTER 1

E

EHT

EH

5. Quantity Column Information

NAME for Q’TY COLUMN

MHD F30AMHD, F40BMHD

ED F40BED

ET F30AET, F40BET

6. Applicable Starting Serial No. and Color Code

1) Engine Starting Sserial No.

F30AMHD S/L 69H : 1000001
F30AET S/L 69H : 1000001

2) Color Code

Color Code

004D DARK BLUISH GRAY METALLIC 2 DBNM2

7. Note that the illustrations for reference in finding parts numbers, not to be used for as­sembling. When assembling, please use the applicable service manual.

8. The asterisk (*) before a reference number indicates modification items after the first
edition.

Color Name Abbreviation

APPLICABLE MODEL

F40BMHD S/L 67C : 1000001
F40BED L 67C : 1000001
F40BET S/L 67C : 1000001

A2

CONTENTS

SHEET 1/2

TOP COWLING A4.....................................

CYLINDER. CRANKCASE 1 A5..........................

CRANKSHAFT. PISTON A6..............................

CYLINDER. CRANKCASE 2 A7..........................

VALVE B2.............................................

INTAKE B3............................................

CARBURETOR B5.....................................

OIL PUMP C1..........................................

FUEL C2..............................................

STARTER C4..........................................

GENERATOR C6.......................................

ELECTRICAL 1 C7.....................................

ELECTRICAL 2 D1.....................................

ELECTRICAL 3 D3.....................................

ELECTRICAL 4 D4.....................................

STARTING MOTOR D5..................................

BOTTOM COWLING D6.................................

STEERING E2.........................................

CONTROL E5.........................................

BRACKET 1 E7........................................

BRACKET 2 F2........................................

BRACKET 3 F4........................................

POWER TRIM & TILT ASSY F6..........................

INDEX

NUMERICAL INDEX G1.................................

SHEET

POWER TRIM & TILT ASSY A4*..........................

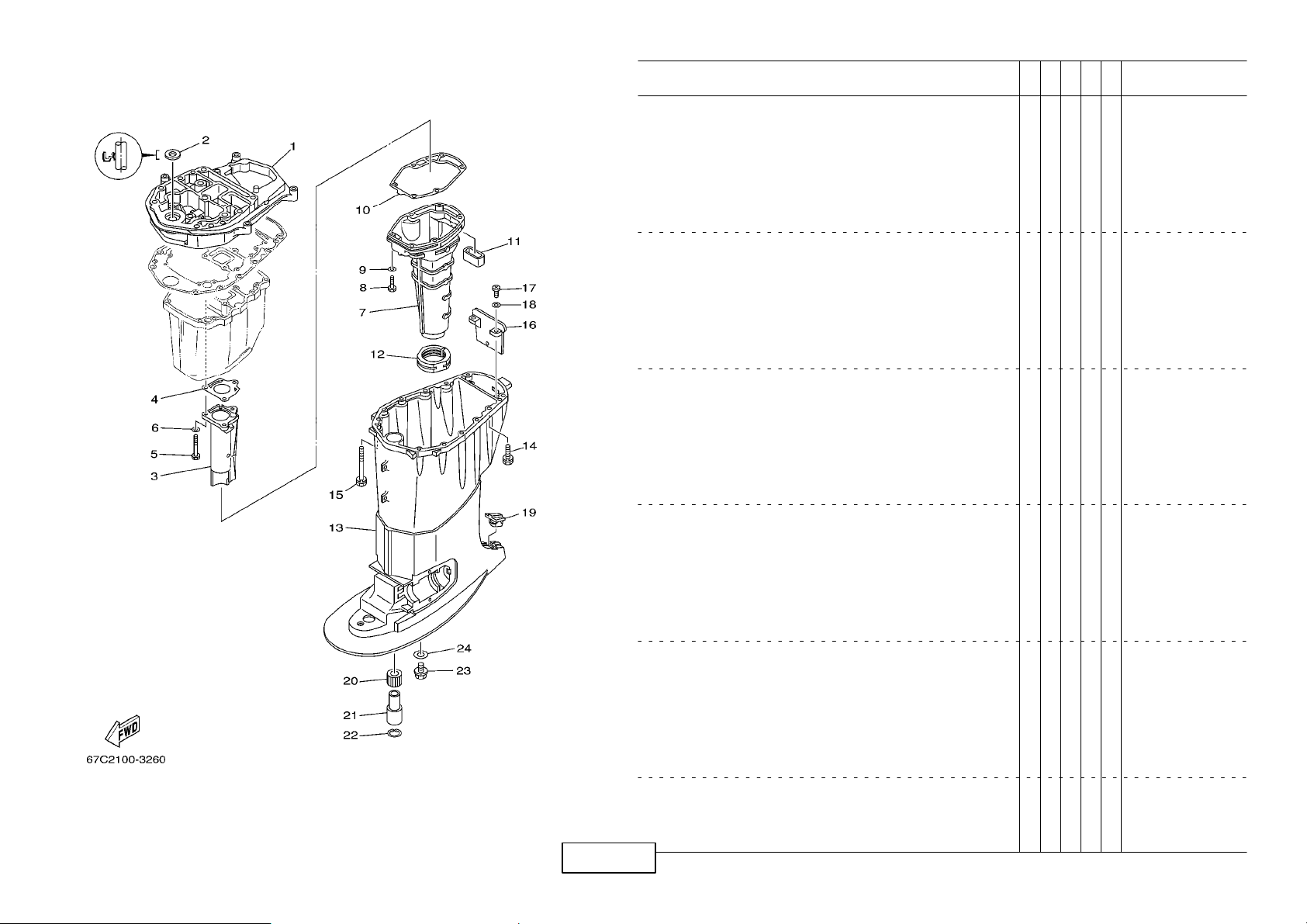

UPPER CASING A5*....................................

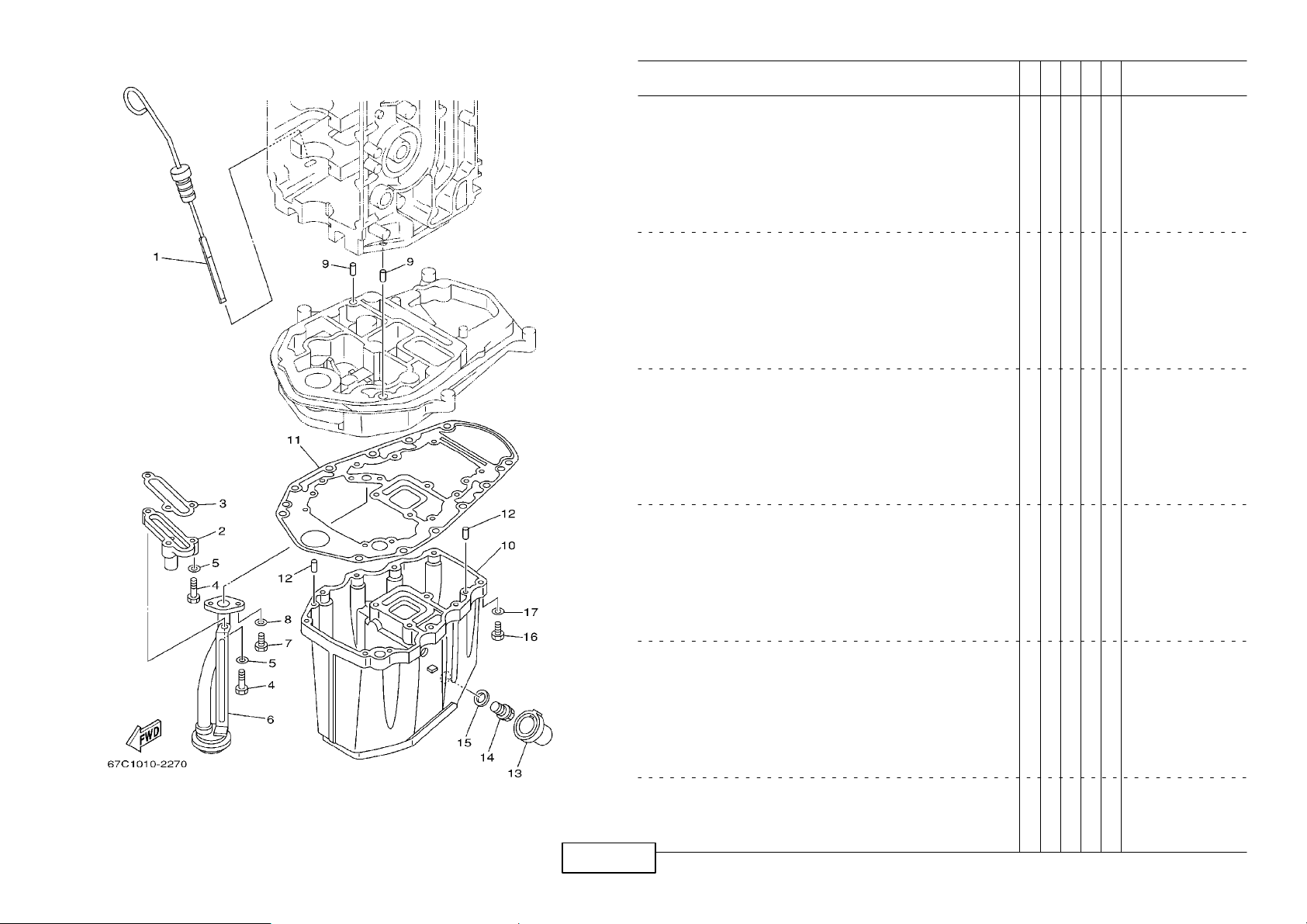

OIL PAN A6*............................................

LOWER CASING. DRIVE 1 A7*...........................

LOWER CASING. DRIVE 2 B3*...........................

FUEL TANK B5*........................................

STEERING GUIDE B6*..................................

REMOTE CONTROL BOX B7*............................

REMOTE CONTROL ASSY C1*...........................

METER C4*............................................

REPAIR KIT 1 C5*.......................................

REPAIR KIT 2 C6*.......................................

REPAIR KIT 3 C7*.......................................

2/2

INDEX

NUMERICAL INDEX G1*.................................

A3

FIG. 1 TOP COWLING CAPOT SUPERIEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 67C−42610−20−4D TOP COWLING ASSY 1 1 F40B

CAPOT (ENS.)

67C−42610−30−4D TOP COWLING ASSY 1 F40B

CAPOT (ENS.)

69H−42610−20−4D TOP COWLING ASSY 1 F30A

CAPOT (ENS.)

69H−42610−30−4D TOP COWLING ASSY 1 F30A

CAPOT (ENS.)

2 67C−42613−00−4D .MOLDING, AIR DUCT 1 1

.MANCHON A AIR

67C−42613−10−4D .MOLDING, AIR DUCT 1

.MANCHON A AIR

3 90179−06M24 .NUT 4 4 4

.ECROU

4 62Y−42651−00 .HOOK 1 1 1

.CROCHET

5 90266−06M02 .RIVET 2 2 2

.RIVET

6 67C−42652−00 .HOOK 1 1 1

.CROCHET

7 90109−06MA4 .BOLT 2 2 2

.BOULON

8 95380−06700 .NUT 2 2 2

.ECROU

9 67C−42677−00 .GRAPHIC, FRONT 1 1 1 F40B

.ADHESIF, AVANT

69H−42677−10 .GRAPHIC, FRONT 1 1 F30A

.ADHESIF, AVANT

10 67C−42678−00 .GRAPHIC, REAR 1 1 1 F40B

.ADHESIF, ARRIERE

69H−42678−10 .GRAPHIC, REAR 1 1 F30A

.ADHESIF, ARRIERE

11 67C−W0070−10 .GRAPHIC SET 1 1 1

.JEU DIEMBLEMES

12 67C−42681−10 .MARK, COWLING 1 1 1

.ADHESIF, CAPOT

13 67C−42682−10 .MARK, COWLING 1 1 1

.ADHESIF, CAPOT

14 67C−42615−00 .SEAL 1 1 1

.JOINT

15 61N−42628−00 .SEAL 1 1 1

.JOINT

16 67F−13434−02 LABEL, CAUTION 1 1 1

ETIQUETTE, ATTENTION

MHDEDET

A4

FIG. 2 CYLINDER. CRANKCASE 1 CYLINDRE. CARTER 1

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 67C−W009B−02−1S CYLINDER BLOCK ASSY 1 1 1

CYLINDRE GROUPE (ENS.)

2 67C−15100−01−94 CRANKCASE ASSY 1 1 1

CARTER DE MOTEUR COMPLET

3 99530−08012 PIN, DOWEL 2 2 2

GOUJON, D’ASSEMBLAGE

4 90119−08M01 BOLT, WITH WASHER 8 8 8

BOULON, AVEC RONDELLE

5 97013−06035 BOLT 8 8 8

BOULON

6 92903−06600 WASHER, PLATE 8 8 8

RONDELLE, PLATE

7 90344−51M01 PLUG, TAPER SCREW 1 1 1

PLOT, FILETE CONIQUE

8 90340−14M06 PLUG, STRAIGHT SCREW 1 1 1

PLOT, FILETE DROIT

9 90430−14115 GASKET 1 1 1

JOINT

10 67C−11351−00 GASKET, CYLINDER 1 1 1

JOINT, D’EMBASE

11 65W−11119 −00 HANGER, ENGINE 1 1 1

ANNEAU, LEVAGE

12 90105−08M87 BOLT, FLANGE 1 1 1

BOULON

13 6G8−12411−02 THERMOSTAT 1 1 1

THERMOSTAT

14 6H3−12413−00−1S COVER, THERMOSTAT 1 1 1

COUVERCLE, THERMOSTAT

15 62Y−12414−00 GASKET, COVER 1 1 1

JOINT, COUVERCLE

16 90445−09068 HOSE (L110) 1 1 1

DURITE (L110)

17 688−24378−00 PIPE, JOINT 4 1 1 1

DURITE RACCORDEMENT 4

18 90445−09095 HOSE (L215) 1 1 1

DURITE (L215)

19 90445−09105 HOSE (L300) 1 1 1

DURITE (L300)

20 90465−11M10 CLAMP 5 5 5

BRIDE

21 90467−08004 CLIP 1 1 1

JONC

22 67C−41114−10 GASKET, EXHAUST OUTER COVER 1 1 1

JOINT, COUVERCLE D’ECHAPPEMENT

23 90119−06MA5 BOLT, WITH WASHER 10 10 10

BOULON, AVEC RONDELLE

24 67C−41113−01−1S OUTER COVER, EXHAUST 1 1 1

COUVERCLE, ECHAPPEMENT

25 62Y−11372−01 NIPPLE, HOSE 1 1 1 FOR FLUSHING KIT

RACCORD, TUYAU

26 5GH−13440−00 ELEMENT ASSY, OIL CLEANER 1 1 1

ELEMENT, FILTRE A HUILE

27 90401−20M00 BOLT, UNION 1 1 1

BOULON, RACCORD

MHDEDET

A5

FIG. 3 CRANKSHAFT. PISTON VILEBREQUIN. PISTON

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 93102−43M42 OIL SEAL 1 1 1

JOINT SPY

2 93102−35M47 OIL SEAL 1 1 1

JOINT SPY

3 67C−11411−00 CRANKSHAFT 1 1 1

VILEBREQUIN COMPLET

4 62Y−11416−00 PLANE BEARING, CRANKSHAFT 1 8 8 8 UR BROWN

COUSSINET DE VILEBREQUIN 1

62Y−11416−10 PLANE BEARING, CRANKSHAFT 1 8 8 8 UR BLACK

COUSSINET DE VILEBREQUIN 1

62Y−11416−20 PLANE BEARING, CRANKSHAFT 1 8 8 8 UR BLUE

COUSSINET DE VILEBREQUIN 1

5 67C−11650−00 CONNECTING ROD ASSY 3 3 3

BIELLE COMPLETTE

6 62Y−11654−00 .BOLT, CONNECTING ROD 2 2 2

.BOULON, BIELLE

7 62Y−11656−00 PLANE BEARING, CONNECTING ROD 6 6 6 UR BROWN

ROULEMENT DE BIELLE

62Y−11656−10 PLANE BEARING, CONNECTING ROD 6 6 6 UR BLACK

ROULEMENT DE BIELLE

62Y−11656−20 PLANE BEARING, CONNECTING ROD 6 6 6 UR BLUE

ROULEMENT DE BIELLE

8 65W−11631−00−96 PISTON (STD) 3 3 3

PISTON (STD)

65W−11635−00 PISTON (0.25MM O/S) 3 3 3 AP

PISTON (0.25MM O/S)

65W−11636−00 PISTON (0.50MM O/S) 3 3 3 AP

PISTON (0.50MM O/S)

9 67C−11603−00 PISTON RING SET (STD) 3 3 3

JEU DE SEGMENTS (STD)

67C−11604−00 PISTON RING SET (0.25MM O/S) 3 3 3 AP

JUE DE SEGMENTS (0.25MM O/S)

67C−11605−00 PISTON RING SET (0.50MM O/S) 3 3 3 AP

JEU DE SEGMENTS (0.50MM O/S)

10 62Y−11633−00 PIN, PISTON 3 3 3

AXE, PISTON

11 93450−17129 CIRCLIP 6 6 6

CIRCLIP

MHDEDET

A6

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE. CARTER 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 67C−W009A−01−1S CYLINDER HEAD ASSY 1 1 1 FOR STD

CULASSE (ENS.)

67C−W009A−11 −1S CYLINDER HEAD ASSY 1 1 1 FOR SAV

CULASSE (ENS.)

2 67C−11111 −03−1S HEAD, CYLINDER 1 1 1 1 FOR STD

CULASSE

67C−11111−12−1S HEAD, CYLINDER 1 1 1 1 FOR SAV

CULASSE

3 62Y−11133−10 .GUIDE, INTAKE VALVE 6 6 6

.GUIDE, SOUP D’ADM

4 93450−09M01 .CIRCLIP 6 6 6

.CIRCLIP

5 62Y−11325−00 ANODE 3 3 3

ANODE

6 66M−11328−00 GROMMET, ANODE 3 3 3

PASSE−FIL

7 66M−11327−00−94 COVER, ANODE 3 3 3

COUVERCLE

8 66M−12535−00 PLATE 3 3 3

PLAQUE

9 97095−05012 BOLT 3 3 3

BOULON

10 92995−05600 WASHER 3 3 3

RONDELLE

11 97095−06020 BOLT 3 3 3

BOULON

12 92995−06600 WASHER 3 3 3

RONDELLE

13 90430−06014 GASKET 1 1 1

JOINT

14 90109−06M65 BOLT 1 1 1

BOULON

15 67C−11181−01 GASKET, CYLINDER HEAD 1 1 1 1

JOINT, DE CULASSE 1

16 99530−08012 PIN, DOWEL 2 2 2

GOUJON, D’ASSEMBLAGE

17 90119−09M00 BOLT, WITH WASHER 8 8 8

BOULON, AVEC RONDELLE

18 90119−06MA3 BOLT, WITH WASHER 4 4 4

BOULON, AVEC RONDELLE

19 67C−11191−00−1S COVER, CYLINDER HEAD 1 1 1 1

COUVERCLE, CULASSE 1

20 62Y−14485−00 .PIPE, JOINT 1 1 1

.DURITE

21 67C−11356−00 SEAL, CYLINDER 2 1 1 1

JOINT, SPY CYLINDRE

22 97595−06520 BOLT, WITH WASHER 7 7 7

VIS HEXAGONAL AVC RONDELLE

23 67C−11168−00 COVER, BREATHER 1 1 1

COUVERCLE, RENIFLARD

24 98507−04010 SCREW 4 4 4

VIS

25 92907−04600 WASHER 4 4 4

RONDELLE

MHDEDET

A7

FIG. 4 CYLINDER. CRANKCASE 2 CYLINDRE. CARTER 2

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

26 97095−06010 BOLT 3 3 3

BOULON

27 90430−06014 GASKET 3 3 3

JOINT

28 90430−08143 GASKET 3 3 3 FOR SAV

JOINT

29 97095−08014 BOLT 3 3 3 FOR SAV

BOULON

30 6G8−15363−00 PLUG, OIL 1 1 1

PLOT, HUILE

31 93210−24M79 O−RING 1 1 1

JOINT TORIQUE

32 62Y−12138−60 MARK, CAUTION 1 1 1

MAKER

33 94701−00375 PLUG, SPARK (NGK DPR6EA−9) 3 3 3

BOUGIE D’ALLUMAGE (NGK DPR6EA−9)

MHDEDET

B1

FIG. 5 VALVE SOUPAPE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 67C−12111−00 VALVE, INTAKE 3 3 3

SOUPAPE, ADMISSION

2 62Y−12121−00 VALVE, EXHAUST 3 3 3

SOUPAPE, ECHAPPEMENT

3 62Y−12116−00 SEAT, VALVE SPRING 6 6 6

SIEGE, RESSORT DE SOUPAPE

4 51Y−12114−00 SPRING, VALVE OUTER 6 6 6

RESSORT DE SOUPAPE, EXTERNE

5 30X−12117−00 RETAINER, VALVE SPRING 6 6 6

BUTEE DE RESSORT DE SOUPAPA

6 30X−12118−00 COTTER, VALVE 12 12 12

FRAISE, SOUPAPE

7 51Y−12119−00 SEAL, VALVE STEM 6 6 6

JOINT, QUEUE DE SOUPAPE

8 67C−12146−00 SHAFT, ROCKER 1 1 1

AXE, CULBUTEUR

9 65W−12151−00 ARM, VALVE ROCKER 6 6 6

CULBUTEUR

10 62Y−12159−00 SCREW, VALVE ADJUSTING 6 6 6

VIS, REGLAGE DE SOUPAPE

11 62Y−12158−00 NUT, LOCK 6 6 6

CONTRE−ECROU

12 62Y−12238−00 PLATE, BOLT STOPPER 1 1

PLAQUE, BUTEE DE BOULON

64J−12238−00 PLATE, BOLT STOPPER 1

PLAQUE, BUTEE DE BOULON

13 62Y−12279−00 PLATE 1 1

PLAQUE

64J−12279−00 PLATE 1

PLAQUE

14 62Y−12216−00 SPRING 1 1 1

RESSORT

15 67C−12113−00 SPRING, VALVE INNER 1 1 1

RESSORT DE SOUPAPE, INTERNE

16 90109−08M63 BOLT 4 4 4

BOULON

17 62Y−12231−00 GUIDE, STOPPER 1 2 2 2

GUIDE, BUTEE 1

MHDEDET

B2

FIG. 6 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 90445−09M34 HOSE 1 1 1

DURITE

2 90465−11M10 CLAMP 11 11 11

BRIDE

3 67C−14585−00 LINK, ACCEL. 1 1 1

BIELLETTE, ACCELERATION

4 67C−13589−00 CARBURETOR JOINT COMP. 1 1 1

RACCORD, CARBURATEUR

5 67C−14271−00 .INSULATOR 1 1 1

.ISOLATEUR

6 90338−04M17 .PLUG 2 2 2

.PLOT

7 67C−14561−00 .O−RING 9 9 9

.JOINT TORIQUE

8 67C−14243−01−94 PLATE 1 1 1

PLAQUE

9 97595−06590 BOLT, WITH WASHER 6 6 6

VIS HEXAGONAL AVC RONDELLE

10 67C−14562−00 O−RING 3 3 3

JOINT TORIQUE

11 67C−13971−00 PIPE, FUEL 1 1 1 1

TUBE 1, CARBURANT

12 67C−13972−00 PIPE, FUEL 2 1 1 1

TUBE 2, CARBURANT

13 67C−13973−00 PIPE, FUEL 3 1 1 1

TUBE 3, CARBURANT

14 67C−13974−00 PIPE, FUEL 4 1 1 1

TUBE 4, CARBURANT

15 67C−13975−00 PIPE, FUEL 5 1 1 1

TUBE 5, CARBURANT

16 67C−13976−00 PIPE, FUEL 6 1 1 1

TUBE 6, CARBURANT

17 67C−14318−00 PIPE, JOINT 4 1 1 1

DURITE RACCORDEMENT 4

18 67C−14255−00 CLAMP 1 1 1

BRIDE

19 92990−04600 WASHER, PLATE 2 2 2

RONDELLE, PLATE

20 91490−06012 PIN, COTTER 2 2 2

GOUPILLE

21 93608−16M16 PIN, DOWEL 2 2 2

AXE

22 97095−06025 BOLT 6 6 6

BOULON

23 92995−06600 WASHER 6 6 6

RONDELLE

24 67C−14440−00 SILENCER ASSY, INTAKE 1 1 1

SIENCIEUX D’ADMISSION

25 93210−34MJ6 O−RING 3 3 3

JOINT TORIQUE

26 90119−06M82 BOLT, WITH WASHER 5 5 5

BOULON, AVEC RONDELLE

27 90119−06M86 BOLT, WITH WASHER 1 1 1

BOULON, AVEC RONDELLE

MHDEDET

B3

FIG. 6 INTAKE ADMISSION

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 97095−06020 BOLT 2 2 2

BOULON

29 92995−06600 WASHER 2 2 2

RONDELLE

30 90387−06M70 COLLAR 2 2 2

COLLERETTE

31 67C−15373−00 PIPE, BREATHER 1 1 1

DURITE DE RENIFLARD

32 90467−15M14 CLIP 2 2 2

JONC

MHDEDET

B4

FIG. 7 CARBURETOR CARBURATEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 67C−14901−03 CARBURETOR ASSY 1 1 1 1 F40B−FOR STD

CARBURATEUR 1 COMPLET

67C−14901−23 CARBURETOR ASSY 1 1 1 F40B−FOR SAV

CARBURATEUR 1 COMPLET

69H−14901−02 CARBURETOR ASSY 1 1 F30A−FOR STD

CARBURATEUR 1 COMPLET

69H−14901−22 CARBURETOR ASSY 1 1 1 F30A−FOR SAV

CARBURATEUR 1 COMPLET

2 67C−14902−03 CARBURETOR ASSY 2 1 1 1 F40B−FOR STD

CARBURATEUR 2 COMPLET

67C−14902−23 CARBURETOR ASSY 2 1 1 F40B−FOR SAV

CARBURATEUR 2 COMPLET

69H−14902−02 CARBURETOR ASSY 2 1 F30A−FOR STD

CARBURATEUR 2 COMPLET

69H−14902−22 CARBURETOR ASSY 2 1 1 F30A−FOR SAV

CARBURATEUR 2 COMPLET

3 67C−14903−03 CARBURETOR ASSY 3 1 1 1 F40B−FOR STD

CARBURATEUR 3 COMPLET

67C−14903−23 CARBURETOR ASSY 3 1 1 F40B−FOR SAV

CARBURATEUR 3 COMPLET

69H−14903−02 CARBURETOR ASSY 3 1 F30A−FOR STD

CARBURATEUR 3 COMPLET

69H−14903−22 CARBURETOR ASSY 3 1 1 F30A−FOR SAV

CARBURATEUR 3 COMPLET

4 65W−14572−00 .PLATE 3 3 3

.PLAQUE

5 65W−14126−10 .GASKET 3 3 3

.JOINT

6 97803−04010 .SCREW, PAN HEAD 13 13 13

.VIS, CRUCIFORME

7 67C−14948−02 .JET (#38) 3 3 3 F40B−FOR STD

.GICLEUR (#38)

67C−14948−00 .JET (#40) 3 3 3

.GICLEUR (#40)

8 679−14966−00 .RUBBER CAP 3 3 3

.CAOUTCHOUC CASQUILLO

9 90501−10326 .SPRING, COMPRESSION 1 1 1 #3

.RESSORT, COMPRESSION

10 63V−14523−00 .SCREW, STOP 1 1 1 #3

.VIS, BUTEE

11 67C−14948−01 .JET (#35) 3 3 3 F40B−FOR STD

.GICLEUR (#35)

67C−14947−00 .JET, NEEDLE 3 3 F40B−FOR SAV

.GICLEUR DE STARTER

69H−14947−00 .JET, NEEDLE 3 3 F30A

.GICLEUR DE STARTER

12 67C−14943−25 .JET, MAIN (#95) 3 3 3 F40B

.GICLEUR, PRINCIPAL (#95)

69H−14943−22 .JET, MAIN (#88) 3 3 F30A

.GICLEUR, PRINCIPAL (#88)

13 63V−14985−00 .FLOAT 3 3 3

.FLOTTEUR

14 6G1−14546−01 .VALVE, NEEDLE 3 3 3

.POINTEAU

MHDEDET

B5

FIG. 7 CARBURETOR CARBURATEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

15 676−14186−00 .PIN, FLOAT 3 3 3

.AXE, FLOTTEUR

16 663−14159−00 .CLIP 3 3 3

.JONC

17 98580−04008 .SCREW, PAN HEAD 3 3 3

.VIS

18 6H4−14548−00 .PIN, FLOAT ARM 3 3 3

.AXE, BRAS DE FLOTTEUR

19 65W−14373−00 .COVER, PLUNGER CAP 3 3 3

.COUVERCLE DE PLONGEUR

20 67C−14379−10 .ROD, STARTER 3 3 3 F40B−FOR STD

.TRINGLE, STARTER

67C−14379−00 .ROD, STARTER 3 3 3

.TRINGLE, STARTER

21 65W−14335−00 .SPRING, PLUNGER 3 3 3

.RESSORT, PLONGEUR

22 67C−14371−00 .PLUNGER, STARTER 3 3 3

.PLONGEUR, STARTER

23 65W−14384−00 .GASKET, FLOAT CHAMBER 3 3 3

.JOINT, CUVE DE FLOTTEUR

24 67C−14980−00 .BODY, FLOAT CHAMBER 1 1 1 F40B−#1

.CORPS, CUVE DE FLOTTEUR

69H−14980−00 .BODY, FLOAT CHAMBER 1 1 F30A−#1

.CORPS, CUVE DE FLOTTEUR

25 67C−14981−00 .BODY, FLOAT CHAMBER 1 1 1 F40B−#2

.CORPS, CUVE DE FLOTTEUR

69H−14981−00 .BODY, FLOAT CHAMBER 1 1 F30A−#2

.CORPS, CUVE DE FLOTTEUR

26 65W−14398−00 .GASKET 3 3 3

.JOINT

27 65W−14992−00 .SCREW, DRAIN 2 2 2 #1,2

.BOUCHON, PURGE

28 97980−04114 .SCREW, WITH WASHER 12 12 12

.VIS, AVEC RONDELLE

29 67C−14923−00 .SCREW, PILOT 3 3 3

.VIS, RALENTI

67C−14923−20 .SCREW, PILOT 3 3 F30A−FOR SAV

.VIS, RALENTI

30 67C−14397−00 .O−RING 3 3 3

.JOINT TORIQUE

31 67C−14555−00 .SPRING 3 3 3

.RESSORT

32 67C−14982−00 .BODY, FLOAT CHAMBER 1 1 1 F40B−#3

.CORPS, CUVE DE FLOTTEUR

69H−14982−00 .BODY, FLOAT CHAMBER 1 1 F30A−#3

.CORPS, CUVE DE FLOTTEUR

33 67C−14992−00 .SCREW, DRAIN 1 1 1 #3

.BOUCHON, PURGE

34 65W−14346−00 .PLATE 1 1 1

.PLAQUE

35 67C−14380−00 .PRIME STARTER ASSY 1 1 1

.DEMARREUR D’AMARCAGE ENS.

36 67C−14567−00 .SCREW 3 3 3

.VIS

MHDEDET

B6

FIG. 7 CARBURETOR CARBURATEUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

37 67C−14369−00 DIAPHRAGM ASSY 2 1 1 1

DIAPHRAGME 2

38 92990−04600 WASHER, PLATE 1 1 1

RONDELLE, PLATE

39 91490−06012 PIN, COTTER 1 1 1

GOUPILLE

40 67C−13974−00 PIPE, FUEL 4 3 3 3

TUBE 4, CARBURANT

41 67C−14974−00 LEVER, CONNECT 1 1 1

LEVIER, CONNECTEUR

42 67C−14356−00 CLIP 1 1 1

JONC

43 67C−14398−00 WASHER 1 1 1

RONDELLE

44 67C−14325−00 SCREW, PAN HEAD 2 2 2

VIS TETE CONIQUE

45 67C−14245−00 SCREW, STOP 1 1 1

VIS, BUTEE

46 67C−14242−00 SPRING 1 1 1

RESSORT

MHDEDET

B7

FIG. 8 OIL PUMP POMPE A HUILE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 93102−37M40 OIL SEAL 1 1 1

JOINT SPY

2 67C−12171−00 CAMSHAFT 1 1 1

ARBRE A CAMES 1

67C−12170−11 CAMSHAFT ASSY 1 1

ENS ARBRE A CAMES 1

3 67C−11537−01 GEAR, DRIVEN 1 1 1

PIGNON SECONDAIRE

4 93605−14143 PIN, DOWEL 1 1 1

AXE

5 90201−10M06 WASHER, PLATE 1 1 1

RONDELLE, PLATE

6 95895−10040 BOLT, FLANGE 1 1 1

BOULON

7 65W−46241−00 V−BELT 1 1 1

COURROIE TRAPEZOIDALE

8 65W−1 1536−10 GEAR, DRIVE 1 1 1

ENGRENAGE, MENANT

9 65W−1 1476−00 SPRING 1 1 1

RESSORT

10 90280−04M06 KEY, WOODRUFF 1 1 1

CLAVETTE, DEMI−LUNE

11 69W−13300−00 OIL PUMP ASSY 1 1 1

POMPE A HUILE COMPLET

12 93210−33MH2 .O−RING 1 1 1

.JOINT TORIQUE

13 93210−12MG9 .O−RING 1 1 1

.JOINT TORIQUE

14 93210−14515 .O−RING 1 1 1

.JOINT TORIQUE

15 90119−06025 BOLT, WITH WASHER 4 4 4

BOULON, AVEC RONDELLE

MHDEDET

C1

FIG. 9 FUEL CARBURANT

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 62Y−24410−03 FUEL PUMP ASSY 1 1 1

POMPE A ESSENCE

2 62Y−24413−01 .BODY 2 1 1 1

.CORPS 2

3 62Y−24421−01 .VALVE, CHECK 2 2 2

.SOUPAPE, RETENUE

4 62Y−24411−02 .DIAPHRAGM 1 1 1

.DIAPHRAGME

5 62Y−24423−00 .SPRING, DIAPHRAGM 1 1 1

.RESSORT, DIAPHRAGME

6 62Y−13131−01 .PLUNGER 1 1 1

.PLONGEUR

7 62Y−24454−00 .SPRING 1 1 1

.RESSORT

8 62Y−24444−01 .SCREW 4 4 4

.VIS

9 62Y−24471−00 .DIAPHRAGM 1 1 1

.DIAPHRAGME

10 6A0−14325−00 .SCREW, PAN HEAD 2 2 2

.VIS TETE CONIQUE

11 95380−03600 .NUT 2 2 2

.ECROU

12 62Y−24452−00 .PACKING 1 1 1

.JOINT

13 95380−05600 .NUT 4 4 4

.ECROU

14 62Y−24374−01 .PIN 1 1 1

.PIN

15 62Y−24422−00 .PLATE 2 2 2

.PLAQUETTE

16 93210−24M79 O−RING 1 1 1

JOINT TORIQUE

17 65W−24474−00 COVER 1 1 1

COUVERCLE

18 97095−06030 BOLT 2 2 2

BOULON

19 92995−06600 WASHER 2 2 2

RONDELLE

20 90467−10M04 CLIP 1 1 1

JONC

21 90467−09M17 CLIP 1 1 1

JONC

22 90445−10MG6 HOSE (L180) 1 1 1

DURITE (L180)

23 90467−10M04 CLIP 1 1 1

JONC

24 90467−09M03 CLIP 1 1 1

JONC

25 65W−24251−00 STRAINER 1 1 1 1

FILTRE 1

26 90445−10MH8 HOSE (L430) 1 1 1

DURITE (L430)

27 90446−14M12 HOSE 1 1 1

DURITE

MHDEDET

C2

FIG. 9 FUEL CARBURANT

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

28 90467−09M03 CLIP 2 2 2

JONC

29 6G1−24304−02 FUEL PIPE JOINT COMP. 1 1 1 1

DURITE RACCORDEMT. A ESSENCE

30 97095−06025 BOLT 1 1 1

BOULON

31 92995−06600 WASHER 1 1 1

RONDELLE

32 62Y−28100−00 TOOL KIT 1 1 1

TROUSSE A OUTILS

33 67C−28199−73−A0 MANUAL,OWNER’S 1 1 1 UR (E,F,S)

MANUEL D’UTILISATION

67C−28199−73−B0 MANUAL,OWNER’S 1 1 1 UR (D,NL,I)

MANUEL D’UTILISATION

34 67C−28199−84−A0 MANUAL,OWNER’S 1 1 1 UR (DK,P,GR)

MANUEL D’UTILISATION

67C−28199−84−B0 MANUAL,OWNER’S 1 1 1 UR (N,S,SS)

MANUEL D’UTILISATION

MHDEDET

C3

FIG. 10 STARTER DEMARREUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 67C−15710−00 STARTER ASSY 1

2 67C−15711−00 .CASE, STARTER 1

3 66T−15714−00 .DRUM, SHEAVE 1

4 63V−15741−00 .PAWL, DRIVE 1

5 66T−15713−00 .SPRING, STARTER 1

6 66T−15716−00 .PLATE, DRIVE 1

7 66T−15705−00 .SPRING, DRIVE PAWL 1

8 66T−15767−00 .SPRING 1

9 66T−15784−00 .SPRING, RETURN 1

10 63V−15744−00 .CIRCLIP 1

11 63V−15768−00 .BOLT 1

12 * .WIRE, STARTER (L:1800MM) 1

13 66T−15794−00 .STOPPER 1

14 66T−15734−00 .SPRING, RETURN 1

15 6F5−15791−00 .WASHER, LOCK 1

16 6F5−15752−00 .ROLLER, WIRE 1

17 6F5−15753−00 .BUSH 1

18 97523−06425 .BOLT, WITH WASHER 1

19 97095−06025 BOLT 4

20 92995−06600 WASHER 4

21 67C−15758−00 GUIDE, ROPE 1

22 67C−15762−00 SEAL, RUBBER 2 1

23 97095−06025 BOLT 3

24 92995−06600 WASHER 3

25 90387−06M89 COLLAR 3

*

CUT FROM 50M ROLLS, PART NO. 90890−44374,
CUTTING LENGTH 1.8M

*

A PRELEVER SUR BOBINE 50M, REFERENCE 90890−44374,
LONGUEUR DE COUPE 1.8M

DEMARREUR COMPLET

.CARTER DE DEMARREUR

.TAMBOUR, POULIE

.CLIQUET, ENTRAINEMENT

.RESSORT DE DEMARREUR

.PLAQUE, ENTRAINEMENT

.RESSORT DE CLIQUET

.RESSORT

.RESSORT, RAPPEL

.CIRCLIP

.BOULON

.CABLE DE DEMARREUR (L:1800MM)

.BUTEE

.RESSORT, RAPPEL

.RONDELLE−FREIN

.GALET, CABLE

.CHARBON

.VIS HEXAGONAL AVC RONDELLE

BOULON

RONDELLE

GUIDE DE CABLE

JOINT CAOUTCHOUC 2

BOULON

RONDELLE

COLLERETTE

MHDEDET

C4

FIG. 10 STARTER DEMARREUR

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

26 689−15755−01 HANDLE, STARTER 1

POIGNEE, DE DEMARREUR

27 6F5−15779−02 COVER 1

COUVERCLE

28 6A0−15789−00 DAMPER 1

AMORTISSEUR

29 67C−15723−00 PULLEY, STARTER 1

POULIE DE DEMARREUR

30 97095−06010 BOLT 4

BOULON

31 92995−06600 WASHER 4

RONDELLE

32 67C−46297−00 COVER, DUST 1

COUVERCLE, POUSSIERE

33 90109−06MA1 BOLT 1

BOULON

34 90480−10M16 GROMMET 2

PASSE−FIL

35 90480−12072 GROMMET 1

PASSE−FIL

36 66M−15774−00 STAY 4 1

SUPPORT 4

37 90109−06M86 BOLT 1

BOULON

38 67C−15770−00 CABLE COMP., STARTER STOP 1

CABLE, BUTEE DE DEMAR

39 66T−15731−00 SPRING, RETURN 1

RESSORT, RAPPEL

40 90446−10M86 HOSE 1

DURITE

41 65W−81639−10 PLATE, ARMATURE FITTING 1

PLAQUE, FIXATION D’INDUIT

42 62Y−13437−61 MARK, CAUTION 1

MAKER

43 6A1−83625−41 MARK 5 1

ETIQUETTE 5

44 6A1−83625−51 MARK 5 1

ETIQUETTE 5

MHDEDET

C5

FIG. 11 GENERATOR GENERATRICE

REF. PART NO. DESCRIPTION REMARKS
NO. NO. PIECES DESCRIPTION REMARQUES

1 65W−85550−01 ROTOR ASSY 1 1

ROTOR CPLT

65W−85550−11 ROTOR ASSY 1

ROTOR CPLT

2 65W−85510−10 STATOR ASSY 1 1

STATOR CPLT

65W−85510−00 STATOR ASSY 1

STATOR CPLT

3 65W−85580−00 COIL, PULSER 1 1 1

BOBINE, PULSEUR

4 90446−10M82 HOSE 1 1 1

DURITE

5 65W−1 1545−00 KEY, WOODRUFF 1 1 1

CLAVETTE, DEMI−LUNE

6 90170−20137 NUT 1 1 1

ECROU

7 90201−21M18 WASHER, PLATE 1 1 1

RONDELLE, PLATE

8 91380−05030 BOLT 3 3

BOULON

91380−05025 BOLT 3

BOULON

9 97095−05016 BOLT 2 2 2

BOULON

10 92995−05600 WASHER 2 2 2

RONDELLE

11 67C−81337−00 COVER, FLYWHEEL 1 1

COUVERCLE, VOLANT

12 97095−06025 BOLT 4 4

BOULON

13 92995−06600 WASHER 4 4

RONDELLE

14 65W−81639−10 PLATE, ARMATURE FITTING 1 1

PLAQUE, FIXATION D’INDUIT

15 62Y−13437−61 MARK, CAUTION 1 1

MAKER

16 6A1−83625−41 MARK 5 1 1

ETIQUETTE 5

17 6A1−83625−51 MARK 5 1 1

ETIQUETTE 5

MHDEDET

C6
