F80BET’10 (6D76)
F100DET’10 (6D96)
1J6D7-370E1
()
F80BET/F100DET
PARTS CATALOGUE
©2009 by Yamaha Motor Co., Ltd.
1st edition, June 2009
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
FOREWORD
This Parts Catalogue is related to the parts for the model(s) on the cover page. When you are
ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers
and part names correctly.
1. Modifications or additions which have been made after the issue of the Parts Catalogue
will be announced in the Parts News.
It is advisable that you make the necessary corrections to the Parts Catalogue according
to the Parts News.
2. Abbreviations
The following abbreviations are used in this Parts Catalogue.
“UR” Use specified parts number.
“UN” Use as many as needed.
“AP” Alternate Parts
“LM” Locally Made (Parts need to be ordered locally)
“F#” Frame No. (Applicable machine No.)
“O/S” Over Size
3. The number of components for assembly
• Parts, which are to be supplied in an assembly, are listed with a dot (.) in front of the
part name as shown below.
• The numeral appearing to the right of each component part indicates the quantity of
parts for each assembly unit.
PART NO. DESCRIPTION Q’TY REMARKS
2F5–83310–60 FRONT FLASHER LIGHT ASSY 2
115–83311–60 .BULB (6V–18W) 1
4. Applicable colours of graphics are represented in the “REMARKS” as shown below.
PART NO. DESCRIPTION Q’TY REMARKS
2N4–24110–00–X5 FUEL TANK COMP. 2 MXR
3J1–24240–10 .GRAPHIC, FUEL TANK 1 FOR MXR
5. Note that the illustrations for reference in finding parts numbers are not to be used for
assembling. When assembling, please use the applicable service manual.
6. The asterisk (*) before a reference number indicates modified items after the first edition.
7. Applicable Serial No.
Engine Serial No.
8. Applicable Engine Starting Serial No.
Model Serial No. Model Serial No.
F80B 6D7-1010597 F100D 6D9-1014011
9. Applicable Colour Code
Abbreviation Colour Name Colour Code
DBN1 DARK BLUISH GRAY 1 008D
10. Quantity Column Information
Column No. Name Of Q’ty Column Applicable Model
1 6D76 F80BET
2 6D96 F100DET
TOP COWLING .....................................................................1
CYLINDER & CRANKCASE 1 ..............................................2
CRANKSHAFT & PISTON ....................................................4
CYLINDER & CRANKCASE 2 ..............................................5
VALVE ...................................................................................7
INTAKE 1 ..............................................................................10
INTAKE 2 ..............................................................................11
INTAKE 3 ..............................................................................12
FUEL INJECTION PUMP 1 ...................................................14
FUEL INJECTION PUMP 2 ...................................................15
FUEL 1 ..................................................................................16
FUEL 2 ..................................................................................18
GENERATOR ........................................................................19
ELECTRICAL 1 .....................................................................21
ELECTRICAL 2 .....................................................................23
ELECTRICAL 3 .....................................................................25
ELECTRICAL 4 .....................................................................27
STARTING MOTOR ..............................................................28
BOTTOM COWLING .............................................................30
CONTROL .............................................................................33
BRACKET 1 ..........................................................................35
BRACKET 2 ..........................................................................37
OPTIONAL PARTS ...............................................................39
POWER TRIM & TILT ASSY 1 .............................................. 40
POWER TRIM & TILT ASSY 2 .............................................. 44
UPPER CASING ...................................................................45
OIL PAN ................................................................................47
LOWER CASING & DRIVE 1 ................................................49
LOWER CASING & DRIVE 2 ................................................52
FUEL TANK 1 ........................................................................54
FUEL TANK 2 ........................................................................55
STEERING GUIDE ................................................................56
REMOTE CONTROL BOX ....................................................57
REMOTE CONTROL ASSY ..................................................58
REPAIR KIT 1 .......................................................................61
REPAIR KIT 2 .......................................................................62
INDEX
NUMERICAL INDEX .............................................................64
CONTENTS
FIG. 1 TOP COWLING
REF.
NO.
1
PART NO. DESCRIPTION
6D7–42610–00–8D
TOP COWLING ASSY 1
6D76
6D96
REMARKS
6D9–42610–00–8D
2
67F–42647–00
3
92990–06100
4
95380–06600
5
68V–42652–00
6
97095–06012
7
92995–06600
8
67F–42649–00
9
67F–42662–00
10
67F–42613–00–8D
11
90179–06M24
12
61N–42628–00
13
67F–42615–00
14
67G–42677–10
67F–42677–10
15
6D7–42678–00
6D9–42678–00
TOP COWLING ASSY 1
.HOLDER, CLAMP BAND 1 1
.WASHER, SPRING 4 4
.NUT, HEXAGON 4 4
.HOOK 2 2
.BOLT 4 4
.WASHER 4 4
.HOLDER, CLAMP BAND 1 1
.DAMPER 3 3
.MOLDING, AIR DUCT 1 1
.NUT 4 4
.SEAL 1 1
.SEAL 1 1
.GRAPHIC, FRONT 1
.GRAPHIC, FRONT 1
.GRAPHIC, REAR 1
.GRAPHIC, REAR 1
16
67F–W0070–10
17
67F–42681–10
18
67F–42682–10
19
67F–42628–00
20
67F–13434–10
.GRAPHIC SET 1 1
.MARK, COWLING 1 1
.MARK, COWLING 1 1
.SEAL 2 2
LABEL, CAUTION 1 1
1
FIG. 2 CYLINDER & CRANKCASE 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–W009B–04–9S
6D8–15100–01–9S
93606–12019
90119–10M88
90119–08M66
90340–14M06
90430–14115
62Y–11119–00
97095–06020
92995–06600
67F–15142–00
6D8–41113–30–9S
676–11372–00
90340–18M09
90430–18130
CYLINDER BLOCK ASSY 1 1
CRANKCASE ASSY 1 1
.PIN, DOWEL 10 10
BOLT, WITH WASHER 10 10
BOLT, WITH WASHER 10 10
PLUG, STRAIGHT SCREW 1 1
GASKET 1 1
HANGER, ENGINE 2 2
BOLT 4 4
WASHER 4 4
GUIDE 1 2 2
OUTER COVER, EXHAUST 1 1
.NIPPLE, HOSE 1 1
PLUG, STRAIGHT SCREW 1 1
GASKET 1 1
6D76
6D96
REMARKS
16
6E5–11325–00
17
98780–04016
18
67F–41114–A2
19
90119–06MA4
20
6D8–42541–00
21
90465–11M10
22
90464–18004
23
90464–10010
24
90464–11009
25
688–24378–00
26
61A–24316–00
27
90465–11M10
ANODE 3 3
SCREW, FLAT HEAD 3 3
GASKET, EXHAUST OUTER COVER 1 1
BOLT, WITH WASHER 18 18
PIPE 1 1 1
CLAMP 4 4
CLAMP 1 1
CLAMP 1 1
CLAMP 1 1
PIPE, JOINT 3 1 1
PIPE 6 1 1
CLAMP 1 1
2
FIG. 2 CYLINDER & CRANKCASE 1
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART NO. DESCRIPTION
6G5–12416–00
90501–16M11
90480–20M05
67F–1246A–01–9S
67F–12435–A0
90119–06MA2
69J–11301–00
67F–11325–01
67F–11328–00
90105–06M07
90430–06M03
97575–08540
67F–1243A–00
90465–11M10
90467–20M15
VALVE, PRESSURE CONTROL 1 1
SPRING, COMPRESSION 1 1
GROMMET 1 1
COVER 1 1 1
GASKET 1 1
BOLT, WITH WASHER 3 3
ANODE COVER ASSY 1 1
.ANODE 1 1
.GROMMET, ANODE 1 1
.BOLT, FLANGE 1 1
.GASKET 1 1
BOLT, WITH WASHER 1 1
HOSE 1 1 1
CLAMP 1 1
CLIP 1 1
6D76
6D96
REMARKS
43
68V–11351–00
44
5GH–13440–00
45
90401–20007
46
90464–16001
GASKET, CYLINDER 1 1
ELEMENT ASSY, OIL CLEANER 1 1
BOLT, UNION 1 1
CLAMP 1 1
3
FIG. 3 CRANKSHAFT & PISTON
REF.
NO.
1
2
PART NO. DESCRIPTION
6D8–11411–00
67F–11416–00
CRANKSHAFT 1 1
PLANE BEARING, CRANKSHAFT 1 4 4 UR GREEN
6D76
6D96
REMARKS
67F–11416–10
67F–11416–20
3
67F–11417–00
67F–11417–10
67F–11417–20
67F–11417–30
4
67F–11418–00
67F–11418–10
67F–11418–20
5
6D8–W1164–21
6D8–W1164–31
6
K1C–A3275–00
7
6D8–11603–01
6D8–11604–01
8
6D8–11656–00
6D8–11656–10
6D8–11656–20
PLANE BEARING, CRANKSHAFT 1 4 4 UR BLUE
PLANE BEARING, CRANKSHAFT 1 4 4 UR RED
PLANE BEARING, CRANKSHAFT 2 5 5 UR YELLOW
PLANE BEARING, CRANKSHAFT 2 5 5 UR GREEN
PLANE BEARING, CRANKSHAFT 2 5 5 UR BLUE
PLANE BEARING, CRANKSHAFT 2 5 5 UR RED
PLANE BEARING, CRANKSHAFT 3 1 1 UR GREEN
PLANE BEARING, CRANKSHAFT 3 1 1 UR BLUE
PLANE BEARING, CRANKSHAFT 3 1 1 UR RED
PISTON/CON-ROD ASSY(STD) 4 4
PISTON/CON-ROD ASSY(0.25MM OS) 4 4 AP
.BOLT, CONNECTING ROD 2 2
PISTON RING SET (STD) 4 4
PISTON RING SET (0.25MM O/S) 4 4 AP
PLANE BEARING, CONNECTING ROD 8 8 UR YELLOW
PLANE BEARING, CONNECTING ROD 8 8 UR GREEN
PLANE BEARING, CONNECTING ROD 8 8 UR BLUE
6D8–11656–30
9
93102–48008
10
93101–48001
PLANE BEARING, CONNECTING ROD 8 8 UR RED
OIL SEAL 1 1
OIL SEAL 1 1
4
FIG. 4 CYLINDER & CRANKCASE 2
REF.
NO.
1
PART NO. DESCRIPTION
6D8–W009A–02–9S
CYLINDER HEAD ASSY 1
6D76
6D96
REMARKS
6D9–W009A–02–9S
2
6D8–11110–01–9S
3
67F–11133–10
4
90344–51019
5
90119–07235
6
91809–08006
7
K0F–A9904–20
8
69J–11301–00
9
67F–11325–01
10
67F–11328–00
11
90105–06M07
12
90430–06M03
13
97575–08540
14
67F–11181–03
15
90387–10M08
16
90105–10M89
17
90119–08M91
CYLINDER HEAD ASSY 1
CYLINDER HEAD ASSY 1 1
.GUIDE, VALVE 1 16 16
.PLUG, TAPER SCREW 4 4
.BOLT/WASHER-CAM CAPS 4 4
.PIN, DOWEL 4 4
.BOLT, WITH WASHER 16 16
ANODE COVER ASSY 2 2
.ANODE 1 1
.GROMMET, ANODE 1 1
.BOLT, FLANGE 1 1
.GASKET 1 1
BOLT, WITH WASHER 2 2
GASKET, CYLINDER HEAD 1 1 1
COLLAR 2 2
BOLT, FLANGE 10 10
BOLT, WITH WASHER 5 5
18
6D8–11191–00–9S
19
67F–11168–00
20
98507–04008
21
92907–04600
22
90480–12072
23
6D8–11356–01
24
97095–06030
25
92995–06600
26
67F–11192–01
COVER, CYLINDER HEAD 1 1 1
.COVER, BREATHER 1 1
.SCREW, PAN HEAD 8 8
.WASHER 8 8
GROMMET 2 2
SEAL, CYLINDER 2 1 1
BOLT 14 14
WASHER 14 14
COVER, CYLINDER HEAD 2 1 1
5
FIG. 4 CYLINDER & CRANKCASE 2
REF.
NO.
27
28
PART NO. DESCRIPTION
90159–06M29
67F–12411–01
SCREW, WITH WASHER 5 5
THERMOSTAT 1
6D76
6D96
REMARKS
6D9–12411–00
29
67F–12412–00
30
68V–12413–00–9S
31
97095–06025
32
92995–06600
33
6G8–15363–00
34
93210–24M79
35
6D8–83626–00
36
94702–00391
THERMOSTAT 1
.SEAL, THERMOSTAT 1 1
COVER, THERMOSTAT 1 1
BOLT 2 2
WASHER 2 2
PLUG, OIL 1 1
O-RING 1 1
MARK 6 1 1
PLUG, SPARK (NGK LFR5A-11) 4 4
6
FIG. 5 VALVE
REF.
NO.
1
2
3
4
5
6
7
8
9
10
PART NO. DESCRIPTION
68V–12111–00
68V–12121–00
67F–12116–00
67F–12114–00
67F–12117–00
67F–12118–00
K0A–A3721–00
K0A–A3722–00
67F–12153–00
67F–12168–00
VALVE, INTAKE 8 8
VALVE, EXHAUST 8 8
SEAT, VALVE SPRING 16 16
SPRING, VALVE OUTER 16 16
RETAINER, VALVE SPRING 16 16
COTTER, VALVE 32 32
SEAL, VALVE STEM 8 8
SEAL, VALVE STEM 2 8 8
LIFTER, VALVE 16 16
PAD, ADJUSTING (2.000) 16 16 UR
6D76
6D96
REMARKS
67F–12168–10
67F–12168–20
67F–12168–30
67F–12168–40
67F–12168–50
67F–12168–60
67F–12168–70
67F–12168–80
67F–12168–A0
67F–12168–B0
67F–12168–C0
67F–12168–D0
67F–12168–E0
67F–12168–F0
67F–12168–G0
67F–12168–H0
67F–12168–J0
PAD, ADJUSTING (2.025) 16 16 UR
PAD, ADJUSTING (2.050) 16 16 UR
PAD, ADJUSTING (2.075) 16 16 UR
PAD, ADJUSTING (2.100) 16 16 UR
PAD, ADJUSTING (2.125) 16 16 UR
PAD, ADJUSTING (2.150) 16 16 UR
PAD, ADJUSTING (2.175) 16 16 UR
PAD, ADJUSTING (2.200) 16 16 UR
PAD, ADJUSTING (2.225) 16 16 UR
PAD, ADJUSTING (2.250) 16 16 UR
PAD, ADJUSTING (2.275) 16 16 UR
PAD, ADJUSTING (2.300) 16 16 UR
PAD, ADJUSTING (2.325) 16 16 UR
PAD, ADJUSTING (2.350) 16 16 UR
PAD, ADJUSTING (2.375) 16 16 UR
PAD, ADJUSTING (2.400) 16 16 UR
PAD, ADJUSTING (2.425) 16 16 UR
7
FIG. 5 VALVE
REF.
NO.
10
PART NO. DESCRIPTION
67F–12168–K0
PAD, ADJUSTING (2.450) 16 16 UR
6D76
6D96
REMARKS
67F–12168–L0
67F–12168–M0
67F–12168–N0
67F–12168–P0
67F–12168–R0
67F–12168–S0
67F–12168–T0
67F–12168–U0
67F–12168–V0
67F–12168–W0
67F–12168–X0
67F–12168–Y0
11
67F–12169–00
67F–12169–10
67F–12169–20
67F–12169–30
67F–12169–40
PAD, ADJUSTING (2.475) 16 16 UR
PAD, ADJUSTING (2.500) 16 16 UR
PAD, ADJUSTING (2.525) 16 16 UR
PAD, ADJUSTING (2.550) 16 16 UR
PAD, ADJUSTING (2.575) 16 16 UR
PAD, ADJUSTING (2.600) 16 16 UR
PAD, ADJUSTING (2.625) 16 16 UR
PAD, ADJUSTING (2.650) 16 16 UR
PAD, ADJUSTING (2.675) 16 16 UR
PAD, ADJUSTING (2.700) 16 16 UR
PAD, ADJUSTING (2.725) 16 16 UR
PAD, ADJUSTING (2.750) 16 16 UR
PAD, ADJUSTING (2.775) 16 16 UR
PAD, ADJUSTING (2.800) 16 16 UR
PAD, ADJUSTING (2.825) 16 16 UR
PAD, ADJUSTING (2.850) 16 16 UR
PAD, ADJUSTING (2.875) 16 16 UR
67F–12169–50
67F–12169–60
67F–12169–70
67F–12169–80
67F–12169–A0
67F–12169–B0
67F–12169–C0
67F–12169–D0
67F–12169–E0
PAD, ADJUSTING (2.900) 16 16 UR
PAD, ADJUSTING (2.925) 16 16 UR
PAD, ADJUSTING (2.950) 16 16 UR
PAD, ADJUSTING (2.975) 16 16 UR
PAD, ADJUSTING (3.000) 16 16 UR
PAD, ADJUSTING (3.025) 16 16 UR
PAD, ADJUSTING (3.050) 16 16 UR
PAD, ADJUSTING (3.075) 16 16 UR
PAD, ADJUSTING (3.100) 16 16 UR
8
FIG. 5 VALVE
REF.
NO.
11
PART NO. DESCRIPTION
67F–12169–F0
PAD, ADJUSTING (3.125) 16 16 UR
6D76
6D96
REMARKS
67F–12169–G0
67F–12169–H0
67F–12169–J0
67F–12169–K0
67F–12169–L0
67F–12169–M0
67F–12169–N0
12
6D8–12171–00
6D9–12171–00
13
67F–12181–00
14
93605–10108
15
67F–11537–00
16
68V–12157–00
17
67F–46241–00
18
67F–11590–00
19
90506–16M39
20
90445–15M03
PAD, ADJUSTING (3.150) 16 16 UR
PAD, ADJUSTING (3.175) 16 16 UR
PAD, ADJUSTING (3.200) 16 16 UR
PAD, ADJUSTING (3.225) 16 16 UR
PAD, ADJUSTING (3.250) 16 16 UR
PAD, ADJUSTING (3.275) 16 16 UR
PAD, ADJUSTING (3.300) 16 16 UR
CAMSHAFT 1 1
CAMSHAFT 1 1
CAMSHAFT 2 1 1
PIN, DOWEL 2 2
GEAR, DRIVEN 2 2
BOLT 2 2
BELT 1 1
TENSIONER ASSY 1 1
SPRING, TENSION 1 1
HOSE (L23) 1 1
21
67F–11595–00
22
90119–10M72
23
6D8–11536–00
24
90170–40008
25
90280–04008
26
93102–38008
PLATE,VALVE 1 1
BOLT, WITH WASHER 1 1
GEAR, DRIVE 1 1
NUT 1 1
KEY, WOODRUFF 1 1
OIL SEAL 2 2
9
FIG. 6 INTAKE 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–14200–00
6D8–13641–00
6D8–13645–00
6D8–13557–00
6D8–13750–00
6C5–85885–00
6C5–81145–00
6C5–8182L–00
6C5–14496–00
6D8–13105–01
6C5–14397–00
6C5–81146–00
6D8–13161–00
6C5–14446–00
6D8–13761–00
INTAKE ASSY 1 1
.MANIFOLD 1 1 1
..GASKET, MANIFOLD 1 1 1
..GASKET 1 1
.THROTTLE BODY ASSY 1 1
..THROTTLE SENSOR ASSY 1 1
..SCREW 1 2 2
..O-RING 1 1 1
.BOLT 3 3
.CONTROL VALVE ASSY 1 1
..O-RING 1 1
.SCREW 2 4 4
.PIPE, DELIVERY 1 1 1
.BOLT 2 2
.INJECTOR 4 4
6D76
6D96
REMARKS
16
6C5–1410B–00
17
68F–83688–00
18
90464–18246
..PACKING KIT 1 1
.SENSOR ASSY 1 1
.CLAMP 1 1
10
FIG. 7 INTAKE 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
PART NO. DESCRIPTION
90119–08069
90387–08033
90119–08M03
91690–50014
6D8–14291–00–94
97095–06030
92995–06600
90119–06087
6D8–14292–00–94
97095–06020
92995–06600
90119–06087
6D6–14440–00
BOLT, WITH WASHER 4 4
COLLAR 1 1
BOLT, WITH WASHER 1 1
PIN, SPRING 2 2
BRACKET 1 1 1
BOLT 2 2
WASHER 2 2
BOLT, WITH WASHER 1 1
BRACKET 2 1 1
BOLT 2 2
WASHER 2 2
BOLT, WITH WASHER 2 2
SILENCER ASSY, INTAKE 1
6D76
6D96
REMARKS
6D9–14440–01
14
90386–08001
15
90387–07013
16
90119–06113
17
90464–76001
18
6D8–15373–00
19
90465–11M59
20
90467–20M15
21
90465–12M03
22
97095–06012
23
92995–06600
24
6D8–82544–00
25
95895–06025
SILENCER ASSY, INTAKE 1
BUSH 4 4
COLLAR 2 2
BOLT, WITH WASHER 2 2
CLAMP 1 1
PIPE, BREATHER 1 1
CLAMP 1 1
CLIP 1 1
CLAMP 1 1
BOLT 1 1
WASHER 1 1
CLAMP 1 1
BOLT, FLANGE 1 1
11
FIG. 8 INTAKE 3
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
90119–06M08
90464–15007
6D8–13428–00
97095–06012
92995–06600
6D8–24314–01
90465–11M10
69J–24170–00
6D8–24315–00
90465–11M10
6D8–2417H–00
97095–06010
92995–06600
69J–24502–00
6D8–24316–00
BOLT, WITH WASHER 3 3
CLAMP 2 2
BRACKET, STRAINER 1 1 1
BOLT 1 1
WASHER 1 1
PIPE 4 1 1
CLAMP 2 2
CANISTER ASSY 1 1
PIPE 5 1 1
CLAMP 2 2
CLAMP 1 1 1
BOLT 1 1
WASHER 1 1
FILTER, FUEL 1 1
PIPE 6 1 1
6D76
6D96
REMARKS
16
90465–11M10
17
90467–09M03
18
69J–44391–00
19
6D8–2413X–00
20
6D8–24317–01
21
90465–11M10
22
69J–2419A–00
23
97095–06016
24
92995–06600
25
6D8–2134X–00
26
90480–10M23
27
90387–06M60
CLAMP 1 1
CLIP 1 1
NIPPLE, HOSE 1 1
PLATE 1 1
PIPE 7 1 1
CLAMP 2 2
HOLDER 1 1
BOLT 1 1
WASHER 1 1
BRACKET, CANISTER 1 1
GROMMET 2 2
COLLAR 2 2
12
FIG. 8 INTAKE 3
REF.
NO.
28
PART NO. DESCRIPTION
90119–06M59
BOLT, WITH WASHER 2 2
6D76
6D96
REMARKS
13
FIG. 9 FUEL INJECTION PUMP 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–14180–20
6D8–14182–00
6C5–14985–00
6C5–14546–00
6C5–14386–00
6C5–2441R–00
6C5–2441T–00
6C5–24453–00
6C5–13906–01
6C5–24592–00
6C5–87226–00
6D8–14960–00
6C5–14191–00
6C5–14397–00
6C5–14567–00
FLOAT CHAMBER ASSY 1 1
COVER, FLOAT CHAMBER 1 1
FLOAT 1 1
VALVE, NEEDLE 1 1
PIN, FLOAT 1 1
PLATE, BAFFLE 1 1 1
PLATE, BAFFLE 2 1 1
SCREW 3 3
REGULATOR, PRESSURE 1 1
BOLT 2 2
WIRE HARNESS ASSY 1 1
BODY ASSY 1 1
PLUG, DRAIN 1 1
O-RING 1 1
SCREW 6 6
6D76
6D96
REMARKS
16
6C5–13910–00
17
6C5–13907–00
18
6C5–14127–00
19
6C5–13915–00
20
6C5–13593–00
21
6C5–13781–00
22
6C5–13716–00
23
6C5–14984–00
24
6C5–21337–00
25
6C5–14225–00
26
90387–06M69
27
90480–09M12
FUEL PUMP ASSY 1 1
.FUEL PUMP COMP. 1 1
.CLIP 1 1
.FILTER 1 1
DAMPER 1 1
DAMPER, PUMP 1 1
COLLAR 1 1
GASKET, FLOAT CHAMBER 1 1
CLAMP, CABLE 1 1
CAP 1 1
COLLAR 3 3
GROMMET 3 3
14
FIG. 10 FUEL INJECTION PUMP 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–13546–01
6D8–13542–01
6C5–24321–00
6C5–24322–00
6C5–24323–00
6D8–24324–01
6D8–24325–10
6C5–14149–00
6C5–24444–00
6C5–13577–00
6C5–21841–00
6C5–14251–00
6C5–2411M–00
6D8–14148–00
6C5–24387–00
HOSE 2 1 1
HOSE, VACUUM SENSING 1 1 1
PIPE 10 1 1
PIPE 11 1 1
PIPE 12 1 1
PIPE 13 1 1
PIPE 14 1 1
PIPE (L200) 1 1
SCREW 2 2
CLIP 1 1
COOLER 1 1
NIPPLE 2 2
CLIP 1 1
PIPE 1 1
CLIP 3 3
6D76
6D96
REMARKS
16
6D8–13974–00
17
90465–11M10
18
6C5–24379–00
19
6C5–13545–00
20
6C5–24251–00
21
6D8–2451B–00
22
6C5–13739–00
PIPE, FUEL 4 1 1
CLAMP 12 12
PIPE, JOINT 4 1 1
HOSE 1 1 1
STRAINER 1 1 1
HOSE, FUEL INLET 1 1
O-RING 2 2
15
FIG. 11 FUEL 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
689–85547–00
90445–13M37
6D8–24560–00
6D8–24563–00
6D8–24564–00
6D8–24562–00
6D8–24469–00
6D8–24519–00
90465–11M10
6D8–24566–00
95380–08600
97095–06016
92995–06600
6D8–24311–00
6D8–24410–00
DAMPER 1 1
HOSE (L2300) 1 1
FILTER ASSY 1 1
.ELEMENT, FILTER 1 1
.GASKET 1 1
.CUP, FILTER 1 1
..FLOAT, WATER LEVEL 1 1
..CLIP 1 1
CLAMP 2 2
BRACKET, FILTER 1 1
NUT 1 1
BOLT 1 1
WASHER 1 1
PIPE, FUEL 1 1 1
FUEL PUMP ASSY 1 1
6D76
6D96
REMARKS
16
68V–24412–00
17
68V–24454–00
18
63P–13131–00
19
68V–24423–00
20
68V–24411–00
21
68V–24374–00
22
68V–24413–00
23
6D8–24414–00
24
68V–24444–00
25
68V–24149–00
26
90465–11M10
27
93210–30682
.BODY 1 1 1
.SPRING 1 1
.PLUNGER 1 1
.SPRING, DIAPHRAGM 1 1
.DIAPHRAGM 1 1
.PIN 1 1
.BODY 2 1 1
.BODY 3 1 1
.SCREW 3 3
.NUT 3 3
CLAMP 2 2
O-RING 1 1
16
FIG. 11 FUEL 1
REF.
NO.
28
29
PART NO. DESCRIPTION
90119–06M83
67F–28100–01
BOLT, WITH WASHER 2 2
TOOL KIT 1 1
6D76
6D96
REMARKS
17
FIG. 12 FUEL 2
REF.
NO.
1
PART NO. DESCRIPTION
6YK–24306–44
FUEL PIPE COMP. 1 1 AP FOR TUR
6D76
6D96
REMARKS
18
FIG. 13 GENERATOR
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–81450–00
6D8–81460–00
6D8–85580–00
6D8–81410–00
63D–81345–20
97607–04110
445–81328–20
68V–81673–00
99530–08012
97095–06030
92995–06100
92995–06600
90280–05015
90201–24014
90179–24002
ROTOR ASSY 1 1
BASE ASSY 1 1
.COIL, PULSER 1 1
.STATOR ASSY 1 1
.SCREW, WITH WASHER (M6X30) 3 3
.SCREW,WITH WASHER 1 1
.CLAMP 1 1
ROTOR 1 1
PIN, DOWEL 2 2
BOLT 4 4
WASHER, SPRING 4 4
WASHER 4 4
KEY, WOODRUFF 1 1
WASHER, PLATE 1 1
NUT 1 1
6D76
6D96
REMARKS
16
6D8–81332–00
17
97985–06210
18
6D8–81337–00
19
90480–12072
20
6D8–85547–00
21
663–82317–01
22
67F–12138–60
23
68V–13437–62
24
6AH–81995–40
25
6AH–81995–50
26
6AH–81994–40
27
6AH–81994–50
PLATE, TIMING 1 1
SCREW, WITH WASHER 1 1
COVER, FLYWHEEL 1 1
GROMMET 1 1
DAMPER 1 1
DAMPER, IGNITION COIL 2 2
MARK, CAUTION 1 1
MARK, CAUTION 1 1
LABEL, WARNING 1 1
LABEL, WARNING 1 1
LABEL, SAFETY 1 1
LABEL, SAFETY 1 1
19
FIG. 13 GENERATOR
REF.
NO.
28
PART NO. DESCRIPTION
6AG–81996–00
MARK 1 1
6D76
6D96
REMARKS
20
FIG. 14 ELECTRICAL 1
REF.
NO.
1
PART NO. DESCRIPTION
6D7–8591A–13
ENGINE CONTROL UNIT ASSY 1
6D76
6D96
REMARKS
6D9–8591A–13
2
68V–82317–00
3
90387–06119
4
90119–06M59
5
63P–82310–01
6
67F–82341–00
7
67F–82342–00
8
67F–82361–00
9
67F–82362–00
10
67F–82343–00
11
67F–82344–00
12
67F–82361–00
13
67F–82362–00
14
67F–82361–00
15
97095–06025
16
92995–06100
17
92995–06600
ENGINE CONTROL UNIT ASSY 1
DAMPER, IGNITION COIL 4 4
COLLAR 4 4
BOLT, WITH WASHER 4 4
IGNITION COIL ASSY 2 2
CORD, HIGH TENSION 1 1 1 #1
CORD, HIGH TENSION 2 1 1 #2
CLAMP, CORD 1 1
CLAMP, CORD 2 1 1
CORD, HIGH TENSION 3 1 1 #3
CORD, HIGH TENSION 4 1 1 #4
CLAMP, CORD 1 1
CLAMP, CORD 2 1 1
CLAMP, CORD 1 1
BOLT 4 4
WASHER, SPRING 4 4
WASHER 4 4
18
6D8–82388–01
19
90464–08004
20
90480–14329
21
90465–08M23
22
97095–06014
23
92995–06600
24
6D3–81960–00
25
97095–06025
26
92995–06100
PLATE 2 2
CLAMP 2 2
GROMMET 1 1
CLAMP 1 1
BOLT 1 1
WASHER 1 1
RECTIFIER & REGULATOR ASSY 1 1
BOLT 2 2
WASHER, SPRING 2 2
21
FIG. 14 ELECTRICAL 1
REF.
NO.
27
28
29
30
PART NO. DESCRIPTION
92995–06600
97095–06016
92995–06100
92995–06600
WASHER 2 2
BOLT 1 1
WASHER, SPRING 1 1
WASHER 1 1
6D76
6D96
REMARKS
22
FIG. 15 ELECTRICAL 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
68V–82105–00
97013–06020
92903–06100
92903–06600
60E–81950–00
97780–60625
68V–8194A–00
68V–81953–00
97780–60620
97095–06010
92995–06100
92995–06600
6G5–82119–00
63P–81950–00
97095–06010
WIRE HARNESS 1 1
BOLT 1 1
WASHER, SPRING 1 1
WASHER, PLATE 1 1
RELAY ASSY 1 1
SCREW, TAPPING 1 1
RELAY 1 1
STAY, RELAY 1 1
SCREW, TAPPING 1 1
BOLT 2 2
WASHER, SPRING 2 2
WASHER 2 2
COVER, LEAD WIRE 2 2
RELAY ASSY 1 1
BOLT 2 2
6D76
6D96
REMARKS
16
92995–06100
17
92995–06600
18
97013–06020
19
92903–06600
20
61A–81949–00
21
68V–81948–02
22
6A0–82317–00
23
90387–06119
24
90119–06M59
25
68V–82594–00
26
90464–12M58
27
6D8–81518–00
WASHER, SPRING 2 2
WASHER 2 2
BOLT 2 2
WASHER, PLATE 2 2
WIRE, LEAD 1 1
BRACKET 1 1
DAMPER, IGNITION COIL 5 5
COLLAR 5 5
BOLT, WITH WASHER 5 5
CLAMP 1 1
CLAMP 1 1
GROMMET 1 1
23
FIG. 15 ELECTRICAL 2
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
PART NO. DESCRIPTION
6D8–81528–00
90480–13M24
97095–06014
92995–06600
68V–81942–03
67F–2812A–00
682–82119–01
6A0–82317–00
90465–12M53
90387–06M05
97780–60625
90465–13M18
68V–81919–00
6D8–81919–00
CLAMP 1 1 1
GROMMET 1 1
BOLT 1 1
WASHER 1 1
COVER 1 1
PULLER, FUSE 1 1
COVER, LEAD WIRE 2 2
DAMPER, IGNITION COIL 1 1
CLAMP 1 1
COLLAR 1 1
SCREW, TAPPING 1 1
CLAMP 2 2
GRAPHIC, REGULATOR 1 1
GRAPHIC, REGULATOR 1 1
6D76
6D96
REMARKS
24
FIG. 16 ELECTRICAL 3
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–82590–30
67F–82151–00
67F–82151–10
67F–8215B–10
67F–8215B–20
6P2–82582–00
6P2–82582–10
90464–76001
97095–06016
92995–06100
92995–06600
6D8–82588–00
97095–06012
92995–06600
6D8–82581–00
WIRE HARNESS ASSY 1 1
.FUSE (20A) 6 6
.FUSE (30A) 2 2
.CAP (YELLOW) 3 3
.CAP (GREEN) 1 1
.CAP 1 (FEMALE) 1 1
.CAP 1 (MALE) 1 1
CLAMP 1 1
BOLT 1 1
WASHER, SPRING 1 1
WASHER 1 1
PLATE 1 1
BOLT 1 1
WASHER 1 1
STAY, CORD CLAMP 1 1
6D76
6D96
REMARKS
16
97095–06014
17
92995–06600
18
6D8–82389–00
19
97095–06012
20
92995–06600
21
6D8–82398–00
22
97095–06012
23
92995–06600
24
90465–13M18
25
97095–06016
26
92995–06100
27
92995–06600
BOLT 1 1
WASHER 1 1
PLATE 2 1 1
BOLT 1 1
WASHER 1 1
PLATE 3 1 1
BOLT 1 1
WASHER 1 1
CLAMP 2 2
BOLT 1 1
WASHER, SPRING 1 1
WASHER 1 1
25
FIG. 16 ELECTRICAL 3
REF.
NO.
28
PART NO. DESCRIPTION
90465–13M11
CLAMP 1 1
6D76
6D96
REMARKS
26
FIG. 17 ELECTRICAL 4
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–8132G–00
97095–06016
92995–06600
67F–85790–00
67F–85757–00
68V–85753–00
97095–06016
92995–06600
90465–06M86
97095–06012
92995–06600
68V–82504–00
63D–82563–10
6E5–82587–00
67F–83614–00
PLATE 1 1
BOLT 2 2
WASHER 2 2
THERMOSENSOR ASSY 1 1
RETAINER 1 1
GASKET, SENDER UNIT 1 1
BOLT 2 2
WASHER 2 2
CLAMP 1 1
BOLT 1 1
WASHER 1 1
OIL PRESSURE SWITCH ASSY 1 1
TRIM & TILT SWITCH ASSY 1 1
GASKET 1 1
BRACKET 1 1
6D76
6D96
REMARKS
16
90109–06M86
17
90464–30003
18
6D8–8252H–00
19
97095–06012
20
92995–06600
BOLT 2 2
CLAMP 2 2
PLATE, HOLDER 1 1
BOLT 1 1
WASHER 1 1
27
FIG. 18 STARTING MOTOR
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
68V–81800–01
67F–81850–00
67F–81810–00
68F–81840–00
67F–81801–00
67F–81813–00
68F–81820–00
67F–81808–00
67F–81857–00
67F–81807–00
67F–81832–00
67F–81836–00
67F–81821–00
67F–81841–00
67F–81891–00
STARTING MOTOR ASSY 1 1
.ARMATURE ASSY 1 1
.STATOR ASSY 1 1
.BRUSH HOLDER ASSY 1 1
..BRUSH SET 1 1
..SPRING, BRUSH 4 4
.REAR BRACKET ASSY 1 1
.PINION ASSY 1 1
.PINION STOPPER SET 1 1
.GEAR ASSY, STARTING MOTOR 1 1
..CLUTCH, OVER RUN 1 1
..SHAFT, PINION 1 1
..BRACKET, CENTER 1 1 1
..BEARING 1 1
..GEAR, RING 1 1
6D76
6D96
REMARKS
16
67F–8183R–00
17
67F–81830–00
18
60V–8183T–00
19
67F–81809–00
20
67F–81842–00
21
67F–81839–00
22
68V–81941–01
23
67F–81869–00
24
6K7–81826–11
25
67F–81828–00
26
67F–81846–00
27
90179–08003
...GASKET 1 1
..BRACKET, CENTER 2 1 1
..GEAR, IDLER 3 3
..WASHER KIT 1 1
.COVER 1 1
.LEVER ASSY 1 1
.STARTER RELAY ASSY 1 1
.COVER, DUST 1 1
.BOLT 2 2
.BOLT 2 2 2
.SCREW 2 2
NUT 1 1
28
FIG. 18 STARTING MOTOR
REF.
NO.
28
29
30
31
32
33
34
PART NO. DESCRIPTION
60V–81925–00
68F–82582–00
97013–08045
92903–08600
95333–08600
92903–08100
67F–83627–01
TERMINAL 1 1
COVER, WIRE HARNESS 1 1
BOLT 3 3
WASHER, PLATE 3 3
NUT 1 1
WASHER, SPRING 1 1
LABEL, CAUTION 7 1 1
6D76
6D96
REMARKS
29
FIG. 19 BOTTOM COWLING
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–42710–00–8D
90119–08M22
90480–22M15
90387–08M37
67F–42815–00–8D
67F–42816–00–8D
67F–42828–00–8D
90109–06M82
68V–42818–01
90386–15M73
90206–15M18
90201–06068
97095–06016
64D–43144–00
90109–06M86
BOTTOM COWLING ASSY 1 1
BOLT, WITH WASHER 4 4
GROMMET 4 4
COLLAR 4 4
LEVER, CLAMP 1 1
LEVER, CLAMP 1 1
PLATE, CLAMP 2 2
BOLT 4 4
LEVER, CLAMP 2 2
BUSH 4 4
WASHER, WAVE 2 2
WASHER, PLATE 2 2
BOLT 2 2
HOOK, SPRING 2 2
BOLT 2 2
6D76
6D96
REMARKS
16
90506–16M34
17
67F–42738–00–8D
18
90109–06M96
19
68V–42725–00
20
6D8–42756–00
21
6D8–42717–00
22
90109–06M86
23
6H1–42726–21
24
6BL–44391–00
25
6H4–42748–00
26
67F–42717–00
27
6E5–82588–00
SPRING, TENSION 2 2
PLATE, FITTING 1 1
BOLT 2 2
GROMMET 1 1
STAY, CLAMP 1 1
RUBBER, SEAL 2 1 1
BOLT 1 1
GROMMET 1 1 FLUSHING KIT
NIPPLE, HOSE 1 1
GROMMET 3 3
RUBBER, SEAL 2 4 4
PLATE 3 3
30
FIG. 19 BOTTOM COWLING
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART NO. DESCRIPTION
90109–06M81
90465–08M23
90109–06M86
68T–12572–00
67F–12535–01
90462–06018
97095–06008
92995–06100
92995–06200
90167–06002
90109–06M86
6R3–12581–00
6R3–12582–00
6R3–12583–00
67F–24312–00
BOLT 3 3
CLAMP 1 1
BOLT 1 1
ADAPTER 1 1 FLUSHING KIT
PLATE 1 1 FLUSHING KIT
CLAMP 1 1 FLUSHING KIT
BOLT 1 1 FLUSHING KIT
WASHER, SPRING 1 1 FLUSHING KIT
WASHER 1 1 FLUSHING KIT
SCREW, TAPPING 2 2 FLUSHING KIT
BOLT 1 1 FLUSHING KIT
JOINT, HOSE 1 1 1 FLUSHING KIT
JOINT, HOSE 2 1 1 FLUSHING KIT
GASKET, HOSE JOINT 1 1 FLUSHING KIT
PIPE 2 1 1 FLUSHING KIT
6D76
6D96
REMARKS
43
90465–11M10
44
61A–42716–00
45
67F–42741–01–8D
46
95380–06600
47
90159–06M28
48
90109–06M80
49
90480–13M24
50
90387–06M43
51
68F–42753–00
52
90464–20258
53
67F–82377–00
54
6AH–42794–40
CLAMP 2 2 FLUSHING KIT
RUBBER, SEAL 1 1 1
APRON 1 1
NUT, HEXAGON 2 2
SCREW, WITH WASHER 2 2
BOLT 5 5
GROMMET 5 5
COLLAR 5 5
FASTNER 1 1 AP FOR TUR
CLAMP 1 1 AP FOR TUR
LABEL 1 1
LABEL, WARNING (GENERAL) 1 1
31
FIG. 19 BOTTOM COWLING
REF.
NO.
55
PART NO. DESCRIPTION
6AH–42794–50
LABEL, WARNING (GENERAL) 1 1
6D76
6D96
REMARKS
32

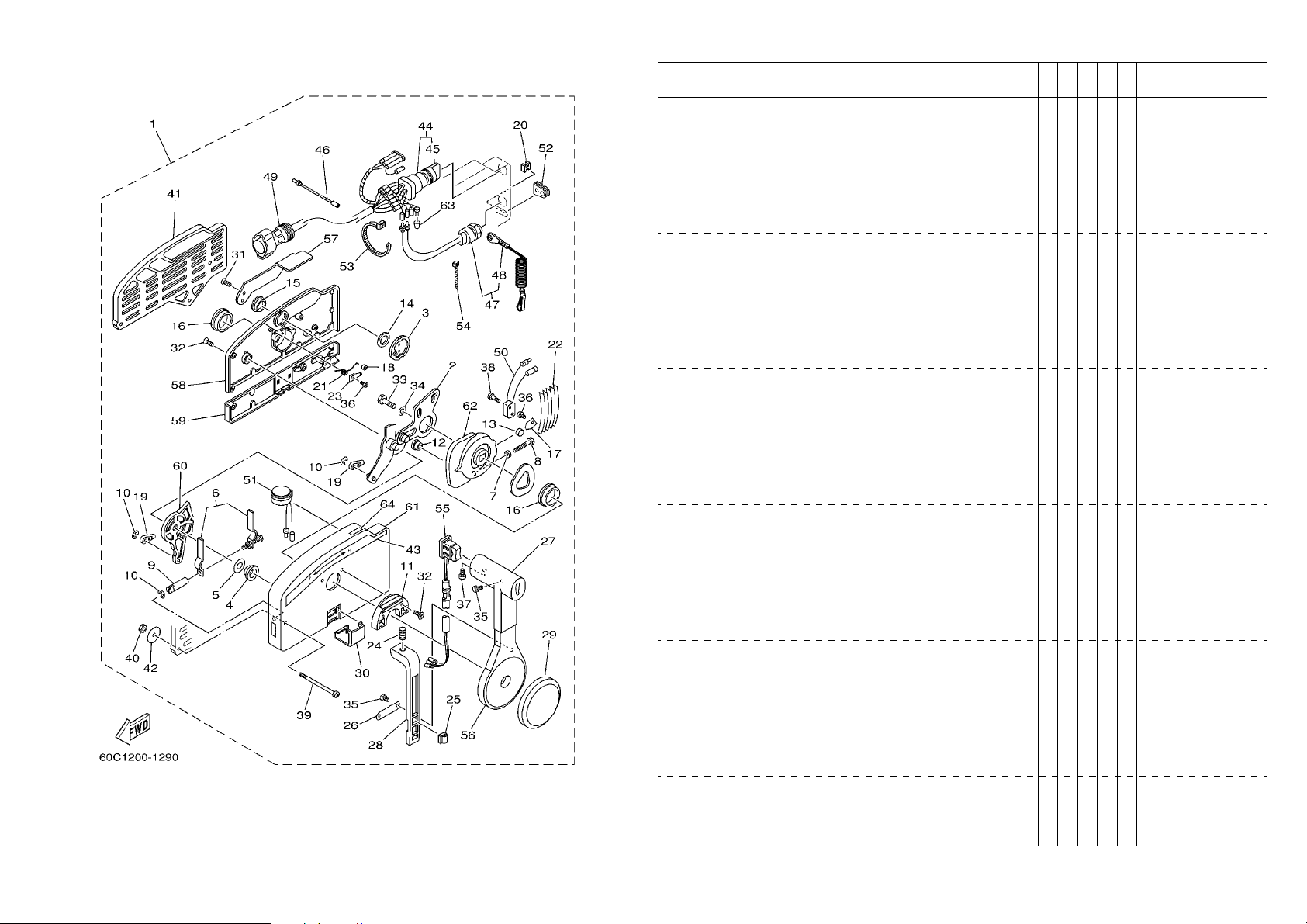

FIG. 20 CONTROL
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
67F–48538–00
90109–06M86
663–48344–00
90468–18008
6D8–44117–00
97595–06550
90462–10027
68V–44122–01
90202–07M07
90468–18008
67F–44121–00
90386–06M12
90468–18008
67F–44120–10
90386–90M90
CLAMP, CABLE 1 1 1
BOLT 1 1
CABLE END, REMOTE CONTROL 1 1
CLIP 1 1
BRACKET 1 1
BOLT, WITH WASHER 2 2
CLAMP 1 1
BUSHING, SHIFT ROD LEVER 1 1
WASHER, PLATE 1 1
CLIP 1 1
LEVER, SHIFT ROD 1 1
BUSH 1 1
CLIP 1 1
HANDLE GEAR SHIFT ASSY 1 1 L(21.1")
BUSH 2 2
6D76
6D96
REMARKS
16
90201–09M02
17
91490–20015
18
67F–44118–00
19
97075–06025
20
92995–06600
21
93501–04M02
22
90501–12082
23
648–42715–00
24
663–48344–00
25
90468–18008
26
6D8–42154–00
27
90387–06M21
WASHER, PLATE 1 1
PIN. COTTER 1 1
BRACKET 1 1
BOLT 2 2
WASHER 2 2
BALL 1 1
SPRING, COMPRESSION 1 1
BUSHING 1 1
CABLE END, REMOTE CONTROL 1 1
CLIP 1 1
LEVER, THROTTLE CONTROL 1 1
COLLAR 1 1
33
FIG. 20 CONTROL
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART NO. DESCRIPTION
90201–06M62
90201–10M02
90206–10M04
67F–44135–00
97095–06035
92995–06100
92995–06600
6D8–42157–00
68V–42171–00
90387–06013
90201–06M31
90201–10M02
90206–10M04
97095–06025
92995–06600
WASHER, PLATE 1 1
WASHER, PLATE 1 1
WASHER, WAVE 1 1
SPRING 1 1
BOLT 1 1
WASHER, SPRING 1 1
WASHER 1 1
LEVER, THROTTLE 1 1
BUSHING 1 1
COLLAR 1 1
WASHER, PLATE 1 1
WASHER, PLATE 1 1
WASHER, WAVE 1 1
BOLT 1 1
WASHER 1 1
6D76
6D96
REMARKS
43
6D8–41237–00
44
682–41237–00
45
95380–05600
46
60V–8259F–00
47
61A–82588–01
48
97985–04116
JOINT, LINK 1 1
JOINT, LINK 1 1
NUT 1 1
SWITCH ASSY 1 1
PLATE 1 1
SCREW, WITH WASHER 2 2
34

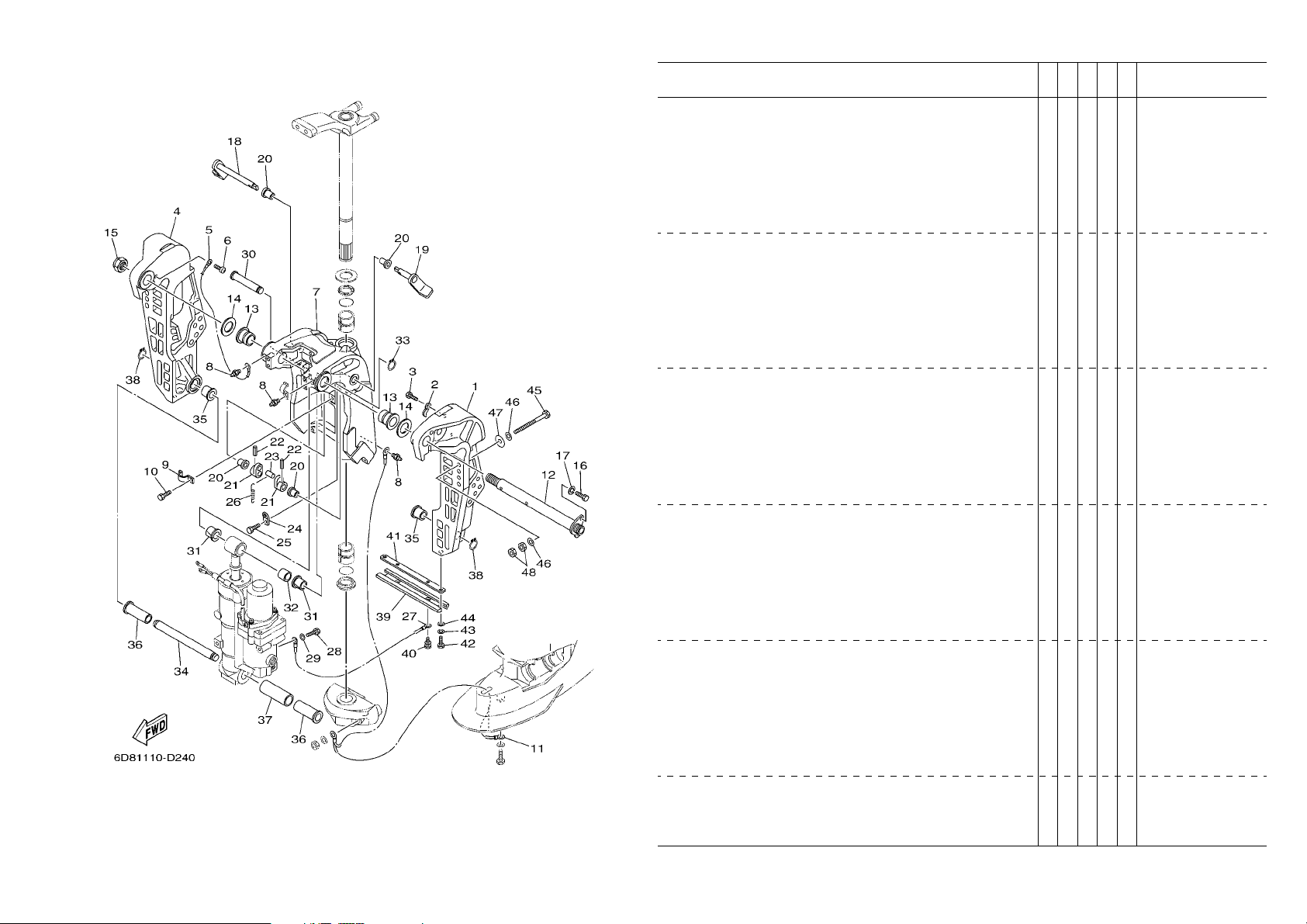

FIG. 21 BRACKET 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
67F–43111–00–8D
90465–10M77
97095–06010
67F–43112–00–8D
6E5–82148–00
97880–06012
6D8–43311–00–8D
93700–06M03
90465–08M63
97095–06010
67F–82127–00
64E–43131–01
90386–25M31
90201–26M59
90185–22M11
BRACKET, CLAMP 1 1 1
CLAMP 2 2
BOLT 2 2
BRACKET, CLAMP 2 1 1
WIRE, LEAD 4 1 1
SCREW, PAN HEAD 1 1
BRACKET, SWIVEL 1 1 1
NIPPLE, GREASE 3 3
CLAMP 1 1
BOLT 1 1
WIRE, LEAD 2 1 1
BOLT, CLAMP BRACKET 1 1
BUSH 2 2
WASHER, PLATE 2 2
NUT, SELF-LOCKING 1 1
6D76
6D96
REMARKS
16
97095–08020
17
92995–08100
18
6D8–43181–00
19
6D8–43185–00
20
90386–10M16
21
6G5–43148–00
22
91690–30020
23
90249–06M19
24
66T–43144–00
25
97095–06010
26
90506–14M24
27
6D8–82148–00
BOLT 1 1
WASHER 1 1
LEVER, TILT STOP 1 1
LEVER, TILT STOP 1 1
BUSH 4 4
COLLAR, DISTANCE 2 2
PIN, SPRING 2 2
PIN 1 1
HOOK, SPRING 1 1
BOLT 1 1
SPRING, TENSION 1 1
WIRE, LEAD 4 1 1
35
FIG. 21 BRACKET 1
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART NO. DESCRIPTION
97095–06010
92995–06600
6D8–43126–00
90386–18M35
90386–18001
93410–18M05
67F–43818–00
90387–18M01
90386–18MA0
90387–22M01
93410–18M05
6H1–45251–03
90119–06M81
6H1–44526–00
97095–06016
BOLT 1 1
WASHER 1 1
PIN, UPPER SHOCK MOUNT 1 1
BUSH 2 2
BUSH 1 1
CIRCLIP 1 1
PIN, LOWER SHOCK MOUNT 1 1
COLLAR 2 2
BUSH 2 2
COLLAR 1 1
CIRCLIP 2 2
ANODE 1 1
BOLT, WITH WASHER 2 2
PLATE 1 1
BOLT 2 2
6D76
6D96
REMARKS
43
92995–06100
44
92995–06600
45
90101–12M03
46
90201–13M01
47
90201–12M05
48
95380–12600
WASHER, SPRING 2 2
WASHER 2 2
BOLT (L:115MM) 4 4
WASHER, PLATE 8 8
WASHER, PLATE 4 4
NUT 8 8
36

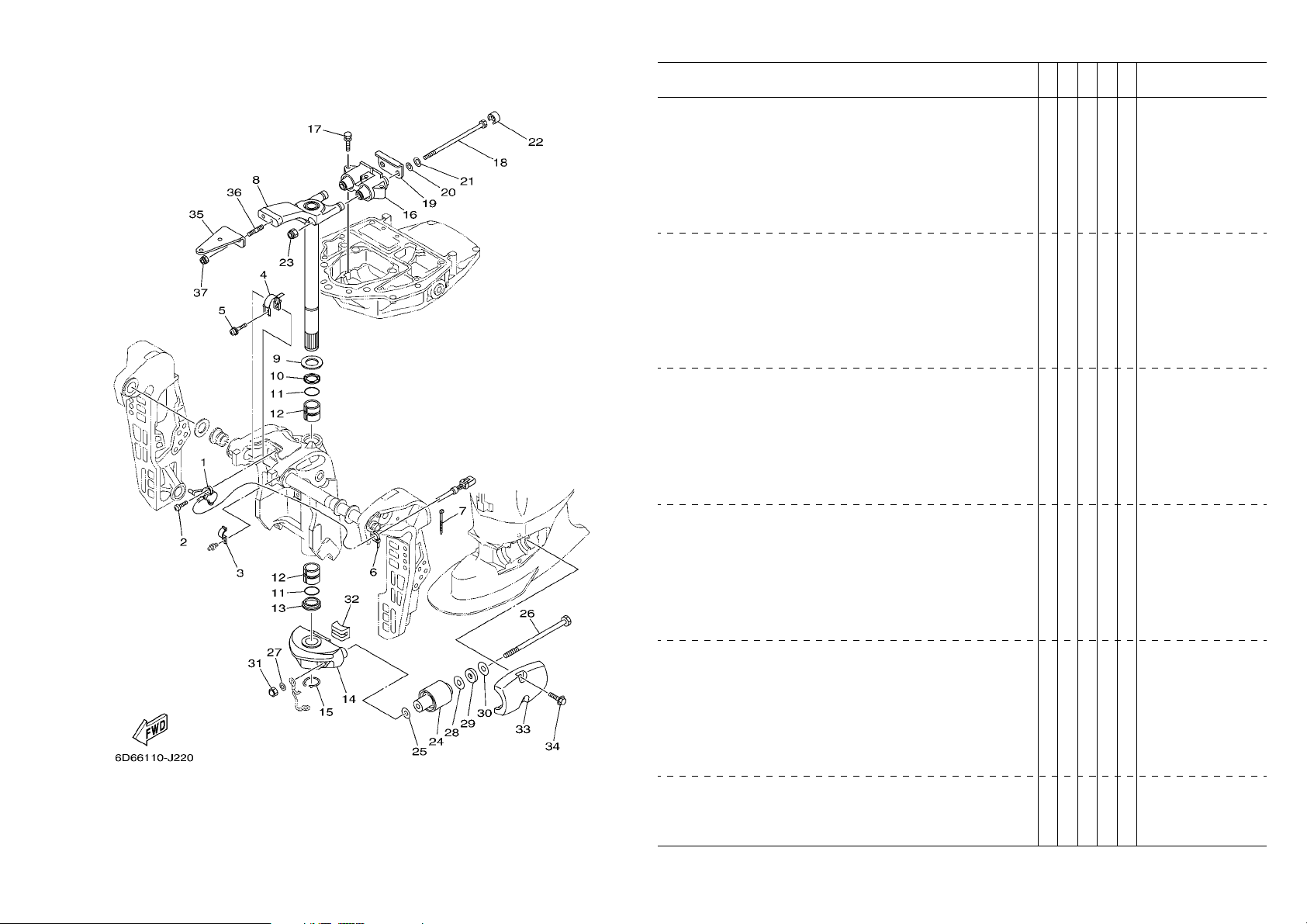

FIG. 22 BRACKET 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
67H–83672–01
97885–06016
90465–08M63
64E–43139–10
90159–05059
90465–11M10
90465–11M10
67F–42510–11–8D
90201–30M00
90386–30M78
93210–29M94
90386–30M77
90386–30M60
67F–44551–00–8D
93410–28M06
TRIM SENDER 1 1
SCREW, PAN HEAD 2 2
CLAMP 1 1
CAM, TRIM SENDER 1 1
SCREW, WITH WASHER 1 1
CLAMP 1 1
CLAMP 3 3
STEERING BRACKET ASSY 1 1
WASHER, PLATE 1 1
BUSH 1 1
O-RING 2 2
BUSH 2 2
BUSH 1 1
HOUSING, LOWER MOUNT RUBBER 1 1
CIRCLIP 1 1
6D76
6D96
REMARKS
16
67F–44514–01–94
17
90119–08091
18
90109–12007
19
67F–44526–00
20
90201–12M16
21
90201–13M01
22
67F–44533–00
23
95780–12300
24
67F–44555–00–94
25
90201–13M03
26
90109–12012
27
90201–12M16
MOUNT DAMPER, UPPER SIDE 1 1
BOLT, WITH WASHER 3 3
BOLT 2 2
PLATE 1 1
WASHER, PLATE 2 2
WASHER, PLATE 2 2
DAMPER, UPPER MOUNT RUBBER 2 2
NUT, FLANGE 2 2
MOUNT DAMPER, LOWER SIDE 2 2
WASHER, PLATE 2 2
BOLT 2 2
WASHER, PLATE 2 2
37
FIG. 22 BRACKET 2
REF.
NO.
28
29
30
31
32
33
34
35
36
37
PART NO. DESCRIPTION
90201–24M02
90202–25M04
90201–13M19
95380–12800
67F–44575–00
67F–44553–00–8D
90119–10049
67F–48511–10
90116–10175
90185–10051
WASHER, PLATE 2 2
WASHER, PLATE 2 2
WASHER, PLATE 2 2
NUT, CROWN 2 2
DAMPER, LOWER MOUNT RUBBER 1 1
COVER, LOWER MOUNT 2 2
BOLT, WITH WASHER 4 4
HOOK, STEERING 1 1
BOLT, STUD 2 2
NUT, SELF-LOCKING 2 2
6D76
6D96
REMARKS
38
FIG. 23 OPTIONAL PARTS
REF.
NO.
1
2
3
4
5
6
PART NO. DESCRIPTION
67F–45180–00–4D
90201–12M01
95380–12700
90110–12M00
90201–12M16
95780–12300
PLATE, SPLASH 1 1 AP
WASHER, PLATE 2 2 AP
NUT 4 4 AP
BOLT, HEXAGON SOCKET HEAD 2 2 AP
WASHER, PLATE 2 2 AP
NUT, FLANGE 2 2 AP
6D76
6D96
REMARKS
39

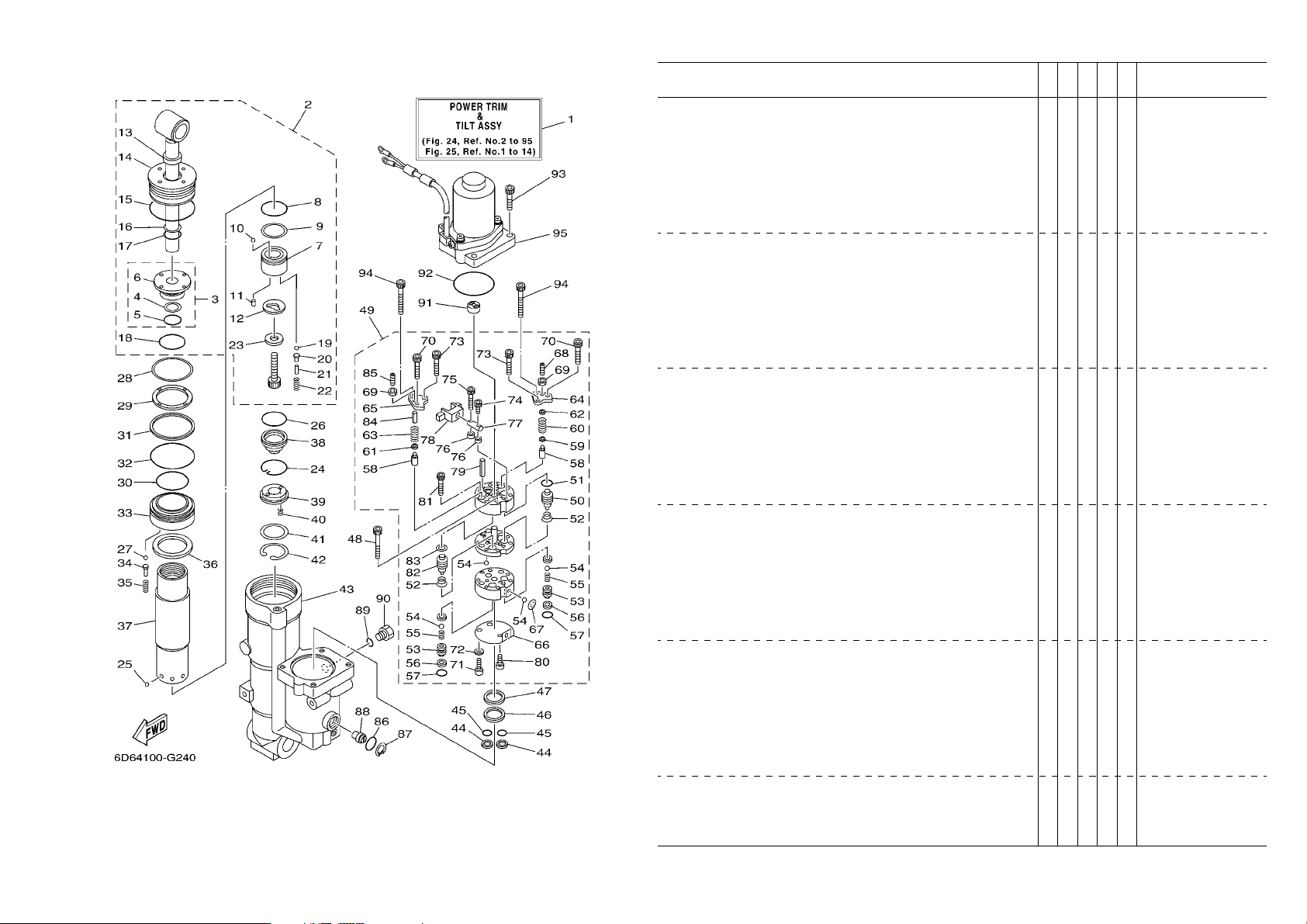

FIG. 24 POWER TRIM & TILT ASSY 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–43800–01–8D
67F–43810–01
67F–4380R–00
6H1–43872–10
93210–18397
67F–43862–00
67F–4385A–01
93210–29375
62X–43871–00
93501–08001
93602–07244
67F–22435–00
6H1–43812–00
67F–43821–00
67F–43861–00
POWER TRIM & TILT ASSY 1 1
TILT PISTON SUB ASSY 1 1
.CYLINDER END SUB ASSY 1 1
..RING, BACK UP 1 1
..O-RING 1 1
..SCREW, CYLINDER END 1 1
.PISTON, TILT 1 1
.O-RING 1 1
.RING, BACK UP 1 1
.BALL 1 1
.PIN, DOWEL 2 2
.PLATE, VALVE 2 1 1
.SEAL, DUST 1 1
.SCREW, TRIM CYLINDER END 1 1
.O-RING 1 1
6D76
6D96
REMARKS
16
6H1–43872–10
17
93210–18397
18
62X–43862–00
19
93501–08001
20
65W–4386A–00
21
688–4386F–00
22
65W–43853–00
23
67F–43893–00
24
67F–43875–00
25
93503–16003
26
67F–43863–00
27
93501–08001
.RING, BACK UP 1 1
.O-RING 1 1
.O-RING 1 1
.BALL 2 2
.PIN, ABSORBER VALVE 2 2
.PIN, STRAIGHT 2 2
.SPRING, MAIN VALVE 2 2
.WASHER 1 1
RING, SNAP 1 1
BALL 6 6
O-RING 1 1
BALL 5 5
40
FIG. 24 POWER TRIM & TILT ASSY 1
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART NO. DESCRIPTION
67F–43899–00
67F–43816–00
67F–43862–00
67F–43871–00
62X–43865–00
67F–4388A–00
6T4–4386A–00
67F–43857–00
67F–4381J–00
67F–22471–01
67F–4381B–00
62X–43899–00
62X–4384H–00
1UF–22434–00
62X–43875–00
PLATE STOPPER 1 1
FILTER 1 1 1
SCREW, CYLINDER END 1 1
RING, BACK UP 1 1
O-RING 1 1
PISTON, TRIM 1 1
PIN, ABSORBER VALVE 5 5
SPRING, ABSORBER VALVE 5 5
PLATE 1 1
CYLINDER, SHOCK ABSORBER 1 1
FREE PISTON SUB ASSY 1 1
PLATE STOPPER 1 1
SPRING 2 2
PLATE, VALVE 1 1 1
RING, SNAP 1 1
6D76
6D96
REMARKS
43
6D8–4380K–00
44
6C6–43817–00
45
69J–4389J–00
46
6C5–43816–00
47
6C5–4380G–00
48
91312–05045
49
6D8–43830–00
50
6C6–43841–00
51
6H1–43883–00
52
6C6–43894–00
53
6C6–4382E–00
54
93505–32038
CYLINDER, TILT SUB ASSY 1 1
FILTER 2 2 2
O-RING 2 2
FILTER 1 1 1
PLATE 1 1
BOLT 2 2
GEAR PUMP ASSY 1 1
.PISTON, SHUTTLE 1 1
.O-RING 1 1
.SPRING, SHUTTLE RETURN 2 2
.ADAPTOR 2 2 2
.BALL 6 6
41
FIG. 24 POWER TRIM & TILT ASSY 1
REF.
NO.
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
PART NO. DESCRIPTION
6C6–43853–00
6C6–4387G–00
69J–4389J–00
6C5–43851–00
6C5–43893–00
6D8–43855–00
6C6–43893–00
6C5–4381K–00
6D8–43856–00
6C5–4382K–00
6C5–4382L–00
6C5–43895–00
6C5–43854–00
92A08–03110
95302–03600
.SPRING, MAIN VALVE 2 2
.WASHER 2 2
.O-RING 2 2
.SEAT, RELIEF VALVE 2 2
.WASHER 1 1
.SPRING, UP RELIEF 1 1
.WASHER 1 1
.HOLDER 1 1
.SPRING, DOWN RELIEF 1 1
.CAP, RELIEF VALVE 1 1
.CAP, RELIEF VALVE 1 1
.SEAT, RELIEF VALVE 1 1
.SPRING, MANUAL RELEASE 1 1
.SCREW SET 1 1
.NUT 2 2
6D76
6D96
REMARKS
70
91312–05030
71
6C6–43878–00
72
62Y–4387G–00
73
91312–04030
74
91312–03016
75
6C6–4388E–00
76
6C6–4388F–00
77
6C6–4386G–00
78
6C6–4386E–00
79
91609–50028
80
91312–03005
81
91312–05025
.BOLT 2 2
.BOLT, SOCKET 2 2
.WASHER 2 2
.BOLT 2 2
.BOLT 1 1
.PLUG, TAPER SCREW 1 1
.SPACER 2 2
.PIN, STRAIGHT 2 1 1
.LEVER 1 1 1
.PIN, SPRING 2 2
.BOLT 1 1
.BOLT 2 2
42
FIG. 24 POWER TRIM & TILT ASSY 1
REF.
NO.
82
83
84
85
86
87
88
89
90
91
92
93
94
95
PART NO. DESCRIPTION
6C5–43841–00
6C5–43872–00
6D8–4381G–00
92A08–03012
93210–18397
6H1–43875–00
6D8–43845–00
93210–09165
6H1–43829–00
6D8–43831–00
93210–64488
65W–43888–00
91312–05050
6D8–43880–01
.PISTON, SHUTTLE 1 1
.RING, BACK UP 1 1
.PIN 1 1 1
.SCREW SET 1 1
O-RING 1 1
RING, SNAP 1 1
SCREW, MANUAL RELEASE 1 1
O-RING 1 1
PLUG, RESERVOIR 1 1
CONNECTOR, SHAFT 1 1
O-RING 1 1
BOLT, SOCKET 4 4
BOLT 2 2
MOTOR ASSY 1 1 REFER TO FIG.25
6D76
6D96
REMARKS
43
FIG. 25 POWER TRIM & TILT ASSY 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PART NO. DESCRIPTION
6D8–43880–01
6D8–43805–01
6D8–43804–01
6H1–43891–11
6H1–43892–11
6H1–82181–10
62X–43807–00
6H1–4380F–11
62X–4386K–00
97980–05225
97602–04216
6D8–43881–01
93102–08414
93210–554A9
MOTOR ASSY 1 1
.ARMATURE ASSY 1 1
.STATOR ASSY 1 1
.BRUSH 1 1 1
.BRUSH 2 1 1
.CIRCUIT BREAKER COMP. 1 1
.WIRE SUB ASSY 1 1
.PLATE, BRUSH HOLDER 1 1
.SPRING, BRUSH 2 2
.SCREW, WITH WASHER 3 3
.SCREW, PAN HEAD WITH WASHER 2 2
.FRAME, END 1 1
.OIL SEAL 1 1
.O-RING 1 1
6D76
6D96
REMARKS
44

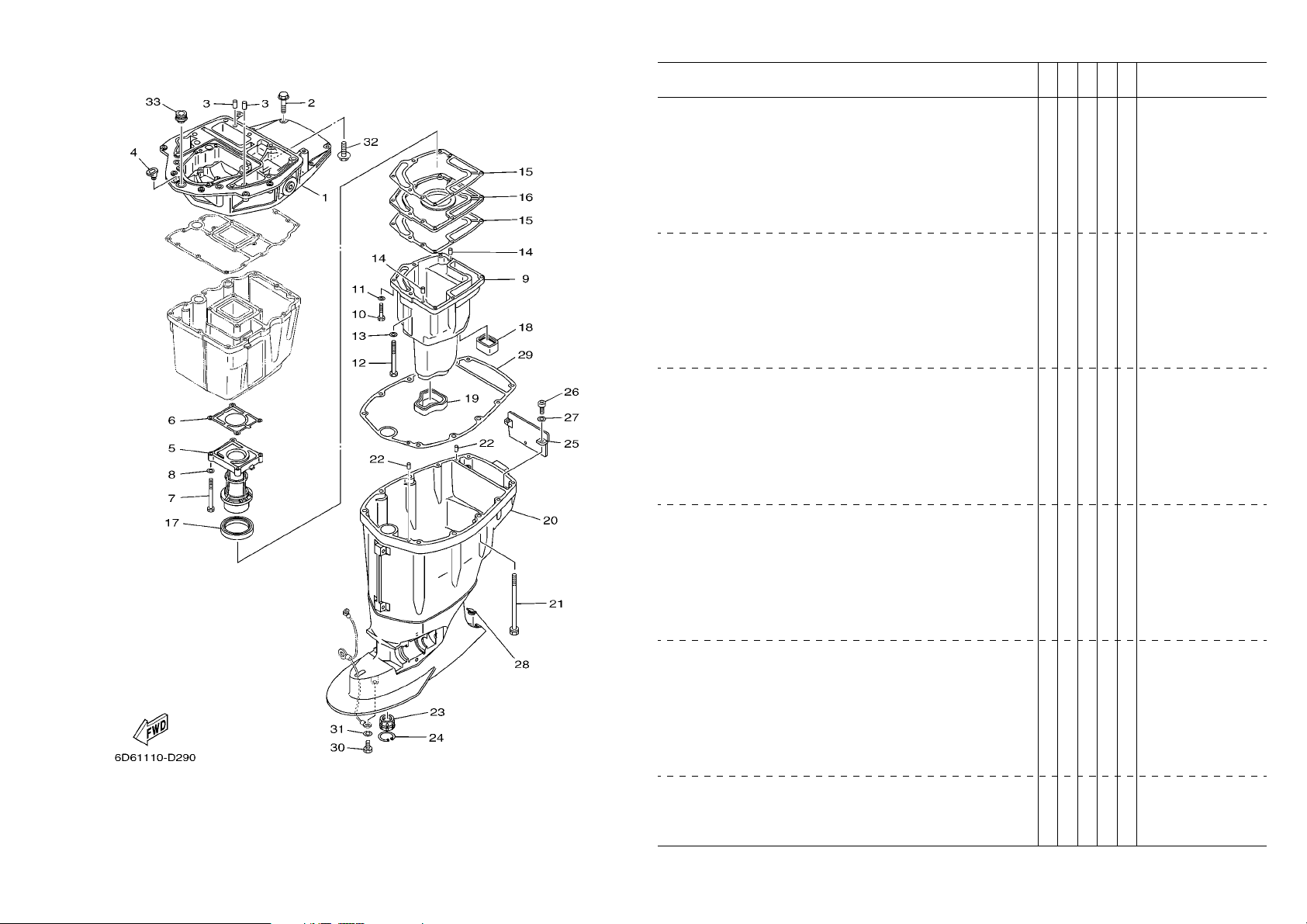

FIG. 26 UPPER CASING
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D8–41137–00–CA
97575–08540
93608–16M16
6G1–42727–00
67F–41131–01–CA
67F–41133–A1
97075–06070
92995–06600
67F–14711–00–CA
97075–06030
92995–06600
97075–06050
92995–06600
93606–19M23
67F–41134–A0
GUIDE, EXHAUST 1 1
BOLT, WITH WASHER 4 4
PIN, DOWEL 2 2
GROMMET 1 1
MANIFOLD, EXT. 1 1 1
GASKET, EXHAUST MANIFOLD 1 1 1
BOLT 4 4
WASHER 4 4
MUFFLER 1 1 1
BOLT 6 6
WASHER 6 6
BOLT 1 1
WASHER 1 1
PIN, DOWEL 2 2
GASKET, EXHAUST MANIFOLD 2 2
6D76
6D96
REMARKS
16
67F–45181–00–CA
17
67F–41138–00
18
67F–45127–00
19
67F–45123–00
20
67F–45111–11–8D
21
90119–10M08
22
93608–16M16
23
67F–45318–00
24
93420–36M01
25
67F–45151–00
26
97880–06016
27
92990–06600
PLATE 1 1
SEAL, EXT. 1 1 1
SEAL 1 1
GASKET, MUFFLER 1 1
CASING, UPPER 1 1
BOLT, WITH WASHER 6 6
PIN, DOWEL 2 2
BUSHING, DRIVE SHAFT 1 1
CIRCLIP 1 1
COVER, UPPER CASING 1 1
SCREW, PAN HEAD 2 2
WASHER, PLATE 2 2
45
FIG. 26 UPPER CASING
REF.
NO.
28
29
30
31
32
33
PART NO. DESCRIPTION
67F–45155–00
67F–45113–00
97095–08016
92995–08100
90119–08M58
67F–42724–00
CAP 1 1
GASKET, UPPER CASING 1 1
BOLT 1 1
WASHER 1 1
BOLT, WITH WASHER 2 2
GROMMET 1 1
6D76
6D96
REMARKS
46
FIG. 27 OIL PAN
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
67F–15311–03–CA
63P–15316–00
90340–14M06
90430–14M09
97075–06025
92995–06600
93606–12019
68V–15312–00
67F–13411–00
97027–06025
92907–06600
90387–06M64
67F–13415–00
67F–13300–10
67F–13314–02
OIL PAN 1 1
DAMPER 1 1 1
PLUG, STRAIGHT SCREW 1 1
GASKET 1 1
BOLT 12 12
WASHER 12 12
PIN, DOWEL 2 2
GASKET, OIL PAN 1 1
STRAINER, OIL 1 1
BOLT, HEXAGON 3 3
WASHER, PLATE 3 3
COLLAR 3 3
SEAL, OIL STRAINER 1 1
OIL PUMP ASSY 1 1
.SHAFT, PUMP 1 1
6D76
6D96
REMARKS
16
67F–13473–01
17
67F–13329–00
18
67F–13495–00
19
67F–13119–01
20
67F–13769–00
21
67F–13914–00
22
67F–13631–03
23
67F–13149–00
24
67F–13339–00
25
67F–13338–00
26
97095–06045
27
92995–06600
.O-RING 1 1
.GASKET, PUMP COVER 1 1
.SCREW 10 10
.OIL SEAL 1 1
.O-RING 1 1
.HOUSING, PUMP 1 1
.OIL SEAL 1 1
.OIL SEAL 2 2
.GASKET, PUMP COVER 1 1
SEAL 1 1
BOLT 6 6
WASHER 6 6
47
FIG. 27 OIL PAN
REF.
NO.
28
29
30
PART NO. DESCRIPTION
93604–12M07
93210–19MJ1
6D8–15362–00
PIN, DOWEL 2 2
O-RING 2 2
PLUG, OIL LEVEL 1 1
6D76
6D96
REMARKS
48
FIG. 28 LOWER CASING & DRIVE 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
6D9–45300–12–8D
67F–45301–00–8D
90340–08002
688–45341–10
90430–08020
6E5–45378–00
90445–07M31
6E5–83558–10
90465–11M10
67F–45501–10
6D9–45551–00
90170–16M01
93315–52563
688–45536–01
93332–000U3
LOWER UNIT ASSY 1 1 L(21.1")
CASING, LOWER 1 1
PLUG, STRAIGHT SCREW 1 1
PLUG, DRAIN 1 1
GASKET 2 2
NIPPLE, HOSE 1 1
HOSE (L200) 1 1 L(21.1")
END, NIPPLE 1 1
CLAMP 4 4
DRIVE SHAFT COMP. 1 1 L(21.1")
PINION (13T) 1 1
NUT 1 1
BEARING 1 1
SLEEVE, DRIVE SHAFT 1 1
BEARING 1 1
6D76
6D96
REMARKS
16
688–45587–01
688–45587–10
688–45587–20
688–45587–30
688–45587–40
688–45587–50
688–45587–60
17
67F–44311–01
18
93604–10M03
19
90119–08M87
20
90119–08M13
21
663–44366–00
SHIM (T:0.10MM) 1 1 UR
SHIM (T:0.12MM) 1 1 UR
SHIM (T:0.15MM) 1 1 UR
SHIM (T:0.18MM) 1 1 UR
SHIM (T:0.30MM) 1 1 UR
SHIM (T:0.40MM) 1 1 UR
SHIM (T:0.50MM) 1 1 UR
HOUSING, WATER PUMP 1 1
PIN, DOWEL 2 2
BOLT, WITH WASHER 2 2
BOLT, WITH WASHER 2 2
DAMPER, WATER SEAL 1 1
49
FIG. 28 LOWER CASING & DRIVE 1
REF.
NO.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
PART NO. DESCRIPTION
90480–19M06
90160–04006
67F–44322–00
67F–44352–00
90280–04M04
688–44315–A0
67F–44323–00
688–44324–A0
6D8–44341–01–CA
93450–44166
93101–25M03
93210–46044
688–44316–A0
688–45321–00
93106–09014
GROMMET 1 1
SCREW, ROUND TAPPING 2 2
INSERT, CARTRIDGE 1 1
IMPELLER 1 1
KEY, WOODRUFF 1 1
GASKET, WATER PUMP 1 1
OUTER PLATE, CARTRIDGE 1 1
GASKET, CARTRIDGE 1 1
HOUSING, WATER PUMP 1 1
CIRCLIP 1 1
OIL SEAL 2 2
O-RING 1 1
GASKET, WATER PUMP 1 1
PLATE 1 1
OIL SEAL 1 1
6D76
6D96
REMARKS
37
97095–06016
38
92995–06600
39
93210–49046
40
67F–44150–01
41
93210–07003
42
99001–08600
43
93503–16003
44
67F–45634–00
45
6H1–45668–00
46
6H1–45635–00
47
90501–12M48
48
90201–03313
BOLT 2 2
WASHER 2 2
O-RING 1 1
SHIFT CAM ASSY 1 1
O-RING 1 1
CIRCLIP 1 1
BALL 2 2
SLIDE, SHIFT 1 1
SHAFT, FREE 1 1
PLUNGER, SHIFT 2 2
SPRING, COMPRESSION 1 1
WASHER, PLATE 1 1
50
FIG. 28 LOWER CASING & DRIVE 1
REF.
NO.
49
50
51
52
53
54
55
56
PART NO. DESCRIPTION
90183–02M03
6D8–45631–00
90250–07M02
688–45633–00
67F–45560–00
93317–322V0
93332–000UD
688–45567–01
NUT, SPRING 2 2
CLUTCH, DOG 1 1
PIN, STRAIGHT 1 1
RING, CROSS PIN 1 1
GEAR 1 (30T) 1 1
.BEARING 1 1
BEARING 1 1
SHIM (T:0.10MM) 1 1 UR
6D76
6D96
REMARKS
688–45567–10
688–45567–20
688–45567–30
688–45567–40
688–45567–50
688–45567–60
57
6D9–45571–00
58
93306–207U0
59
90201–25M05
60
67F–45611–01
61
67F–45331–00–CA
62
93317–325U0
63
93101–25M03
64
93210–86M39
65
67F–45576–00
66
90282–04010
67
688–45383–02
SHIM (T:0.12MM) 1 1 UR
SHIM (T:0.15MM) 1 1 UR
SHIM (T:0.18MM) 1 1 UR
SHIM (T:0.30MM) 1 1 UR
SHIM (T:0.40MM) 1 1 UR
SHIM (T:0.50MM) 1 1 UR
GEAR 2 (30T) 1 1
BEARING 1 1
WASHER, PLATE 1 1
SHAFT, PROPELLER 1 1
HOUSING, BEARING 1 1
BEARING 1 1
OIL SEAL 2 2
O-RING 1 1
WASHER, THRUST 1 1
KEY, STRAIGHT 1 1
WASHER, CLAW 1 1
68
688–45384–00
NUT 1 1
51

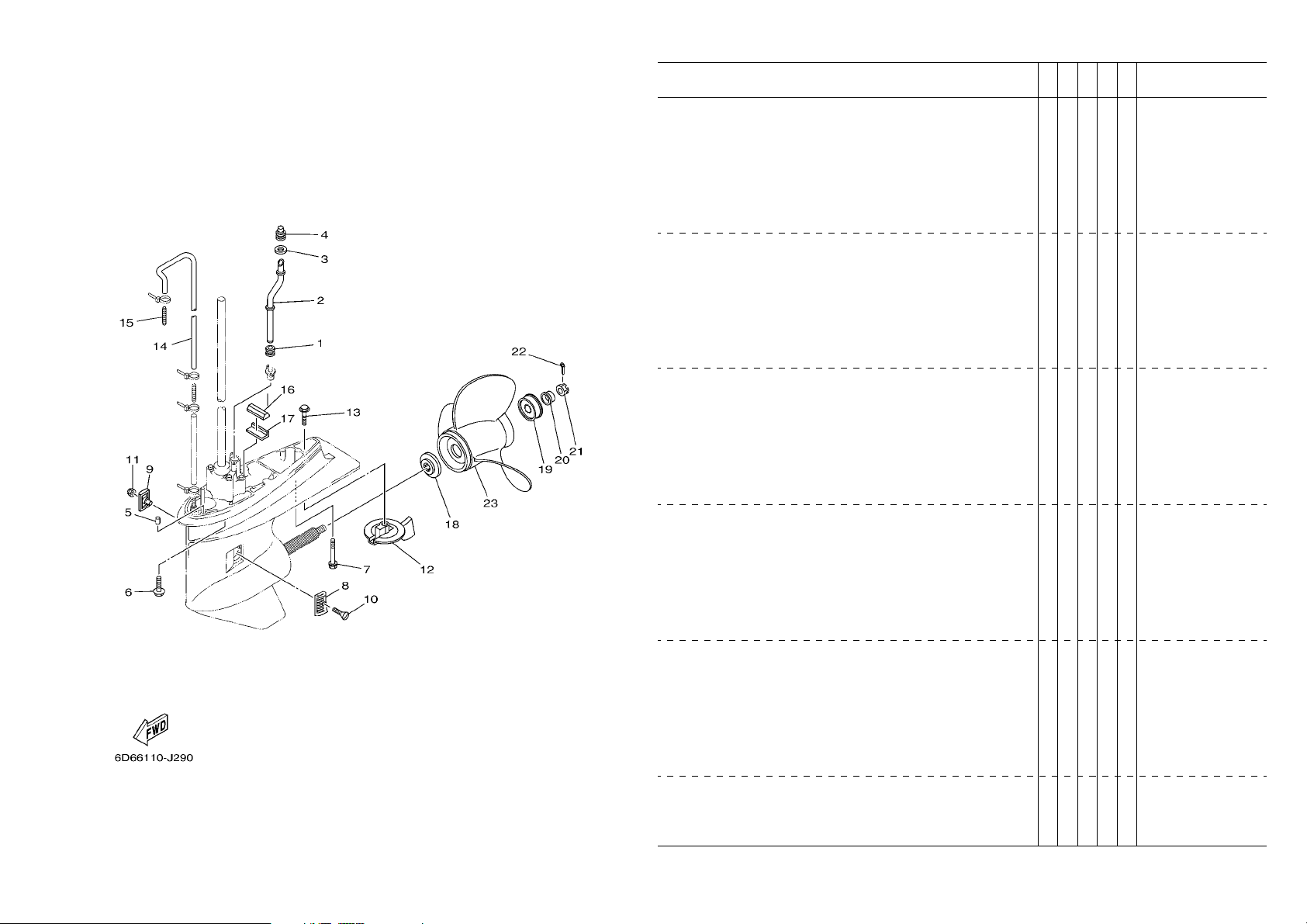

FIG. 29 LOWER CASING & DRIVE 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
663–44367–00
6D8–44361–00
6D8–44314–00
67F–44365–00
93606–12019
90119–10030
90119–08M84
6H1–45214–00
6H1–45215–00
90151–05M00
90185–05002
67F–45371–00
90105–10M67
90445–07ME0
6E5–83558–00
DAMPER, WATER SEAL 1 1
TUBE, WATER 1 1 L(21.1")
SPACER 1 1
DAMPER, WATER SEAL 1 1
PIN, DOWEL 2 2
BOLT, WITH WASHER 4 4 L(21.1")
BOLT, WITH WASHER 1 1 L(21.1")
COVER, WATER INLET 1 1 1
COVER, WATER INLET 2 1 1
SCREW, COUNTERSUNK 1 1
NUT, NYLON 1 1
TAB-TRIM 1 1
BOLT, FLANGE 1 1
HOSE (L1220) 1 1
END, NIPPLE 1 1
6D76
6D96
REMARKS
16
688–45375–00
17
663–45376–00–94
18
688–45987–01
19
67F–45997–00
20
90389–25M00
21
90171–16011
22
91490–40025
23
6E5–45941–00–EL
6E5–45943–00–EL
6E5–45945–01–EL
6E5–45947–00–EL
6E5–45949–00–EL
DAMPER, SEAL 1 1
GUIDE, SEAL DAMPER 1 1
SPACER 1 1
SPACER 1 1
BUSH 1 1
NUT, CASTLE 1 1
PIN. COTTER 1 1
PROPELLER (3X13"X19"-K) 1 1 UR
PROPELLER (3X12-5/8"X21"-K) 1 1 UR
PROPELLER (3X13-1/4"X17"-K) 1 1 UR
PROPELLER (3X13-1/2"X15"-K) 1 1 UR
PROPELLER (3X13-5/8"X13"-K) 1 1 UR
52
FIG. 29 LOWER CASING & DRIVE 2
REF.
NO.
23
PART NO. DESCRIPTION
6E5–45952–00–EL
PROPELLER (3X13"X23"-K) 1 1 UR
6D76
6D96
REMARKS
6E5–45954–00–EL
6E5–45956–00–EL
6E5–45958–00–EL
688–45970–03–98
688–45972–02–98
688–45974–02–98
688–45976–01–98
688–45978–60–98
688–45930–02–98
688–45932–60–98
PROPELLER (3X14"X11"-K) 1 1 UR
PROPELLER (3X13"X25"-K) 1 1 UR
PROPELLER (3X13-5/8"X14"-K) 1 1 UR
PROPELLER (3X13"X19"-K) 1 1 UR
PROPELLER (3X13"X21"-K) 1 1 UR
PROPELLER (3X13"X23"-K) 1 1 UR
PROPELLER (3X13"X25"-K) 1 1 UR
PROPELLER (3X13-1/2"X16"-K) 1 1 UR
PROPELLER (3X13"X17"-K) 1 1 UR
PROPELLER (3X13-1/2"X14"-K) 1 1 UR
53
FIG. 30 FUEL TANK 1
REF.
NO.
1
2
3
4
5
6
7
PART NO. DESCRIPTION
6YK–24201–03
6YL–24268–01
6YK–24610–01
6YK–24260–01
90157–05M16
6YL–24329–00
6YK–24306–44
FUEL TANK ASSY (25L) 1 AP FOR TUR
.GASKET, FUEL METER 1
.CAP ASSY 1
.FUEL METER ASSY 1
.SCREW, PAN HEAD 4
.SEAL 4
FUEL PIPE COMP. 1 1 AP FOR TUR
6D76
6D96
REMARKS
54
FIG. 31 FUEL TANK 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PART NO. DESCRIPTION
6YJ–24201–10
6YJ–24610–01
6Y1–24260–12
90157–05M19
6Y1–24329–00
6Y1–24268–00
6YJ–24167–00
6Y2–24306–45
90445–13M01
6E5–24351–51
90445–13M35
6Y2–24360–60
6Y2–24305–06
93210–08287
FUEL TANK ASSY (24L) 1 1 AP FOR RUS
.CAP ASSY 1 1
.FUEL METER ASSY 1 1 WITH INDICATOR
.SCREW, PAN HEAD 4 4
.SEAL 4 4
.GASKET, FUEL METER 1 1
.STRAINER 1 1
FUEL PIPE COMP. 1 1 1 AP FOR RUS
.HOSE (L2050) 1 1
.BAND 1 3 3
.HOSE (L250) 1 1
.PRIMER PUMP ASSY 1 1
.FUEL PIPE JOINT COMP. 2 1 1
..O-RING 1 1
6D76
6D96
REMARKS
55

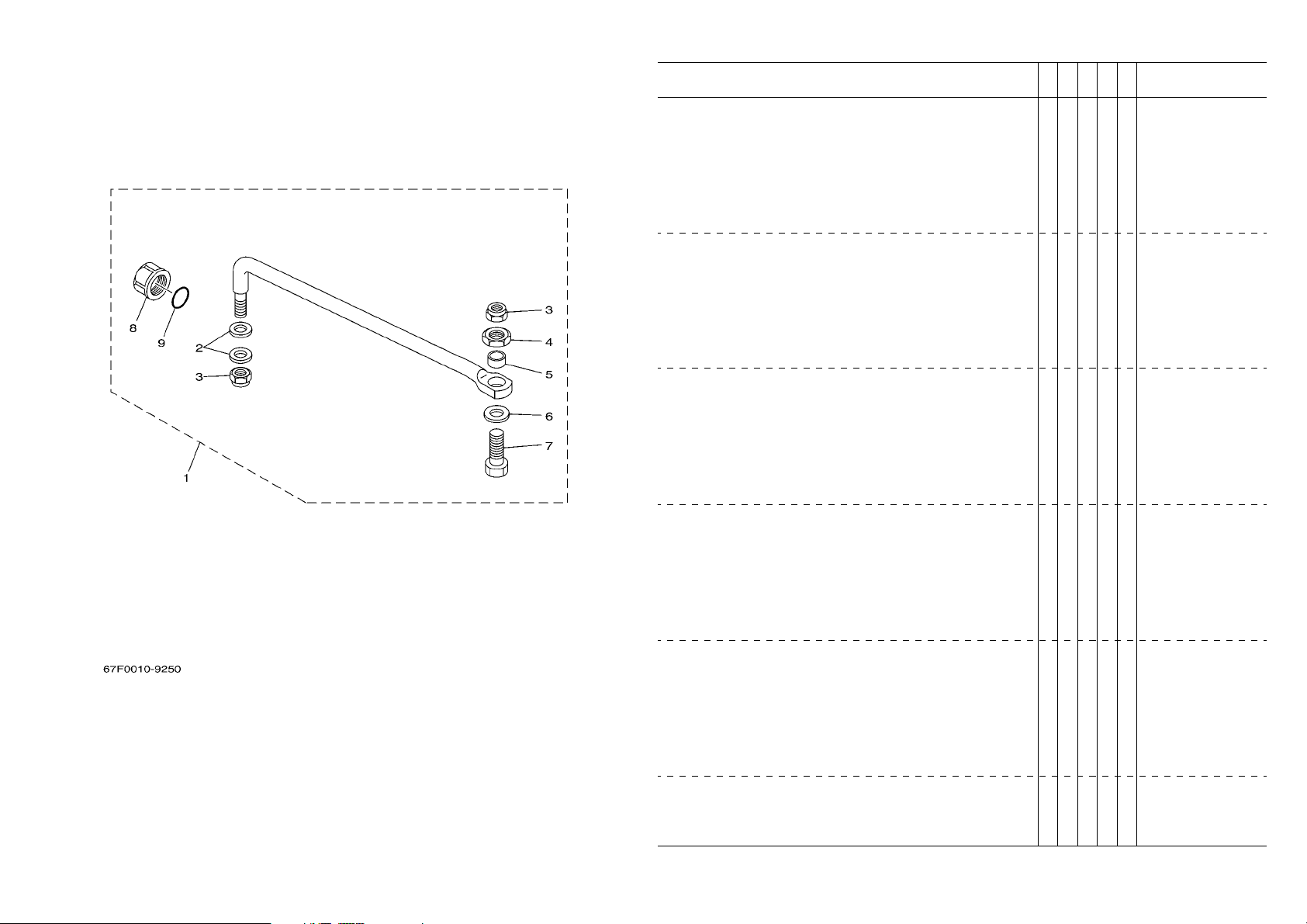

FIG. 32 STEERING GUIDE
REF.
NO.
1
2
3
4
5
6
7
8
9
PART NO. DESCRIPTION
67F–61350–00
90201–10M20
90185–09M01
90170–09M03
90387–10M42
90201–10M63
90101–09M01
6E5–43145–01
93210–16275
STEERING GUIDE ATTACHMENT KIT 1 1 AP
.WASHER, PLATE 2 2
.NUT, SELF-LOCKING 2 2
.NUT 1 1
.COLLAR 1 1
.WASHER, PLATE 1 1
.BOLT 1 1
.CAP, CLAMP BRACKET 1 1
.O-RING 1 1
6D76
6D96
REMARKS
56

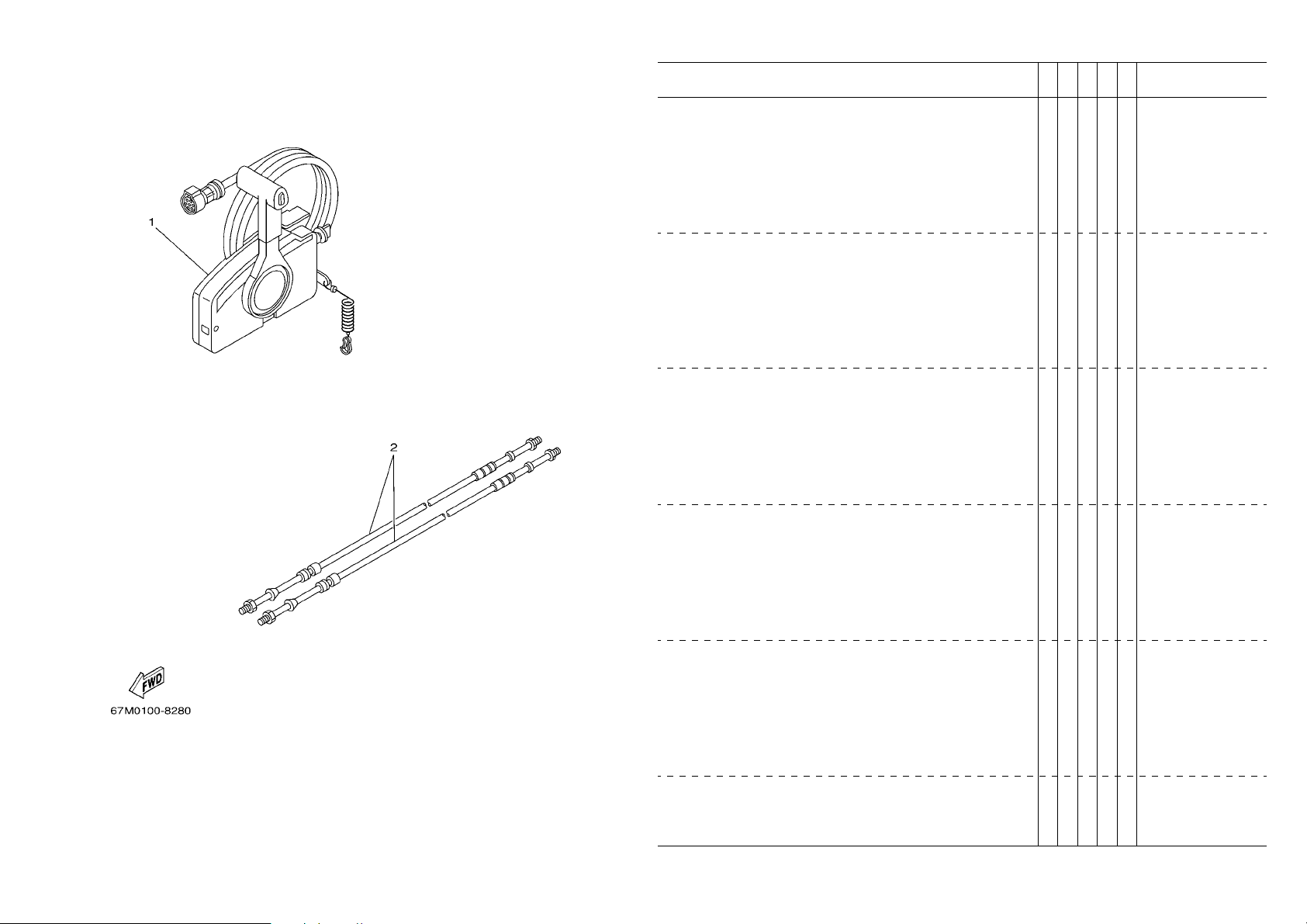

FIG. 33 REMOTE CONTROL BOX
REF.
NO.
1
2
PART NO. DESCRIPTION
703–48205–A5
701–48320–30
REMOTE CONTROL ASSY (10P) 1 1 AP RUS WITH PT/T SW.
CABLE, REMOTE CONTROL L=14F 2 2 UR
6D76
6D96
REMARKS
701–48320–50
701–48320–60
701–48320–80
701–48320–40
701–48350–00
CABLE, REMOTE CONTROL L=15F 2 2 UR
CABLE, REMOTE CONTROL L=16F 2 2 UR
CABLE, REMOTE CONTROL L=17F 2 2 UR
CABLE, REMOTE CONTROL L=19F 2 2 UR
CABLE, REMOTE CONTROL L=21F 2 2 UR
57
FIG. 34 REMOTE CONTROL ASSY
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
703–48205–A5
703–48261–01
703–48153–00
703–48235–00
703–48268–00
703–48264–00
95380–05600
97380–05025
703–48265–00
93430–06024
703–48245–00
703–48252–00
701–48248–00
703–48198–00
703–48243–00
REMOTE CONTROL ASSY (10P) 1 1 AP RUS WITH PT/T SW.
.ARM, THROTTLE 1 1
.SHAFT, FREE ACCEL. 1 1
.BUSHING 1 1
.SPACER 1 1
.FRICTION, THROTTLE 1 1
.NUT 1 1
.BOLT 1 1
.SHAFT, FRICTION 1 1
.CIRCLIP 3 3
.PLATE, LOCK 1 1
.ROLLER, CAM 1 1
.ROLLER, FREE ACCEL. 1 1
.WASHER, WAVE 1 1
.BUSHING 1 1
6D76
6D96
REMARKS
16
703–48236–00
17
703–48189–00
18
703–48234–00
19
703–48345–01
20
703–48358–00
21
703–48244–00
22
703–48238–00
23
703–48246–00
24
703–48227–00
25
703–82594–00
26
703–48226–00
27
703–48222–00
.BUSHING 1 2 2
.RETAINER 1 1
.ROLLER, DETENT 1 1
.CABLE END, REMOTE CONTROL 2 2 2
.ANCHOR, CABLE 1 1
.SPRING, FREE ACCEL. 1 1
.SPRING, DETENT 5 5
.SPACER 1 1
.SPRING, NEUTRAL LOCK 1 1
.CLAMP 1 1 WITH PT/T SW.
.PLATE, STOPPER 1 1
.GRIP, CONTROL LEVER 1 1 SINGLE
58
FIG. 34 REMOTE CONTROL ASSY
REF.
NO.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
PART NO. DESCRIPTION
703–48223–00
703–48225–00
703–48219–00
703–48281–00
703–48282–00
97380–08030
92990–08600
98580–04010
98580–04006
98580–05010
98580–03015
703–48291–10
95380–06600
703–48293–10
701–48287–00
.LOCK, NEUTRAL 1 1
.COVER 1 1
.COVER, LEAD 1 1
.SCREW 2 2
.SCREW 7 7
.BOLT 1 1
.WASHER, PLATE 1 1
.SCREW, PAN HEAD 3 3
.SCREW, PAN HEAD 2 2
.SCREW, PAN HEAD 1 1
.SCREW, PAN HEAD 2 2
.SCREW (M6) 3 3
.NUT, HEXAGON 3 3
.SPACER, REMOTE CONTROL 1 1 SINGLE
.WASHER 3 3
6D76
6D96
REMARKS
43
703–48215–00
44
703–82510–12
45
676–82577–00
46
703–82531–00
47
688–82575–01
48
682–82556–00
49
688–8258A–20
50
703–82540–00
51
703–83383–B0
52
703–48284–00
53
703–82591–00
54
703–82592–00
.GRAPHIC 1 1
.MAIN SWITCH ASSY 1 1 PRIME START
..CAP, KEY 1 1
.WIRE, LEAD (L70) 1 1
.ENGINE STOP SWITCH ASSY 1 1
..LANYARD, STOP SWITCH 1 1
.EXTENSION, WIRE HARNESS (4.9M) 1 1 (10P)
.NEUTRAL SWITCH ASSY 1 1
.BUZZER 1 1
.GROMMET 1 1
.BAND 1 1
.BAND 1 1
59
FIG. 34 REMOTE CONTROL ASSY
REF.
NO.
55
56
57
58
59
60
61
62
63
64
PART NO. DESCRIPTION
703–82563–02
703–48221–00
703–48152–00
703–48212–00
703–48213–00
703–48271–00
703–48211–01
703–48232–00
703–82542–00
703–48218–00
.TRIM & TILT SWITCH ASSY 1 1 WITH PT/T SW.
.LEVER, CONTROL 1 1
.KNOB, FREE ACCEL. 1 1
.BACK PLATE 1 1 1
.BACK PLATE 2 1 1
.ARM, SHIFT 1 1
.HOUSING,1 1 1
.GEAR 1 1
.CAP 1 1
.GRAPHIC 1 1
6D76
6D96
REMARKS
60
FIG. 35 REPAIR KIT 1
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PART NO. DESCRIPTION
6D8–W0001–02
93210–24M79
67F–11181–03
93102–38008
90430–14115
67F–12435–A0
68V–85753–00
67F–41114–A2
93102–48008
93101–48001
90430–18130
68V–11351–00
93210–30682
6D8–11356–01
POWER HEAD GASKET KIT 1 1
.O-RING 1 1
.GASKET, CYLINDER HEAD 1 1 1
.OIL SEAL 2 2
.GASKET 1 1
.GASKET 1 1
.GASKET, SENDER UNIT 1 1
.GASKET, EXHAUST OUTER COVER 1 1
.OIL SEAL 1 1
.OIL SEAL 1 1
.GASKET 1 1
.GASKET, CYLINDER 1 1
.O-RING 1 1
.SEAL, CYLINDER 2 1 1
6D76
6D96
REMARKS
61
FIG. 36 REPAIR KIT 2
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PART NO. DESCRIPTION
67F–W0001–21
90430–08020
688–44315–A0
688–44324–A0
93101–25M03
93210–46044
688–44316–A0
93106–09014
93210–49046
93210–07003
93210–86M39
90430–14M09
68V–15312–00
67F–13415–00
93210–19MJ1
LOWER UNIT GASKET KIT 1 1
.GASKET 2 2
.GASKET, WATER PUMP 1 1
.GASKET, CARTRIDGE 1 1
.OIL SEAL 4 4
.O-RING 1 1
.GASKET, WATER PUMP 1 1
.OIL SEAL 1 1
.O-RING 1 1
.O-RING 1 1
.O-RING 1 1
.GASKET 1 1
.GASKET, OIL PAN 1 1
.SEAL, OIL STRAINER 1 1
.O-RING 2 2
6D76
6D96
REMARKS
16
67F–41133–A1
17
67F–41134–A0
18
67F–41138–00
19
67F–45127–00
20
67F–45123–00
21
67F–45113–00
22
67F–W0078–00
23
67F–44322–00
24
67F–44352–00
25
688–44315–A0
26
67F–44323–00
27
688–44324–A0
.GASKET, EXHAUST MANIFOLD 1 1 1
.GASKET, EXHAUST MANIFOLD 2 2
.SEAL, EXT. 1 1 1
.SEAL 1 1
.GASKET, MUFFLER 1 1
.GASKET, UPPER CASING 1 1
WATER PUMP REPAIR KIT 1 1
.INSERT, CARTRIDGE 1 1
.IMPELLER 1 1
.GASKET, WATER PUMP 1 1
.OUTER PLATE, CARTRIDGE 1 1
.GASKET, CARTRIDGE 1 1
62
FIG. 36 REPAIR KIT 2
REF.
NO.
28
29
30
31
32
PART NO. DESCRIPTION
688–44316–A0
93210–46044
90119–08M87
90119–08M13
90280–04M04
.GASKET, WATER PUMP 1 1
.O-RING 1 1
.BOLT, WITH WASHER 2 2
.BOLT, WITH WASHER 2 2
.KEY, WOODRUFF 1 1
6D76
6D96
REMARKS
63
PA RT NO.
6D8–11110–01–9S
62Y–11119–00
67F–11133–10
67F–11168–00
67F–11181–03
6D8–11191–00–9S
67F–11192–01
69J–11301–00
6E5–11325–00
67F–11325–01
67F–11328–00
68V–11351–00
6D8–11356–01
676–11372–00
6D8–11411–00
67F–11416–00
67F–11416–10
67F–11416–20
67F–11417–00
67F–11417–10
67F–11417–20
67F–11417–30
67F–11418–00
67F–11418–10
67F–11418–20
6D8–11536–00
67F–11537–00
67F–11590–00
67F–11595–00
6D8–11603–01
6D8–11604–01
6D8–11656–00
6D8–11656–10
6D8–11656–20
6D8–11656–30
68V–12111–00
67F–12114–00
67F–12116–00
67F–12117–00
67F–12118–00
68V–12121–00
67F–12138–60
REF.
NO.
4– 2
2– 8
4– 3
4–19
4–14
35 – 3
4–18
4–26
2–34
4– 8
2–16
2–35
4– 9
2–36
4–10
2–43
35 – 12
4–23
35 – 14
2–13
3– 1
3– 2
3– 2
3– 2
3– 3
3– 3
3– 3
3– 3
3– 4
3– 4
3– 4
5–23
5–15
5–18
5–21
3– 7
3– 7
3– 8
3– 8
3– 8
3– 8
5– 1
5– 4
5– 3
5– 5
5– 6
5– 2
13 – 22
PA RT NO.
67F–12153–00
68V–12157–00
67F–12168–00
67F–12168–10
67F–12168–20
67F–12168–30
67F–12168–40
67F–12168–50
67F–12168–60
67F–12168–70
67F–12168–80
67F–12168–A0
67F–12168–B0
67F–12168–C0
67F–12168–D0
67F–12168–E0
67F–12168–F0
67F–12168–G0
67F–12168–H0
67F–12168–J0
67F–12168–K0
67F–12168–L0
67F–12168–M0
67F–12168–N0
67F–12168–P0
67F–12168–R0
67F–12168–S0
67F–12168–T0
67F–12168–U0
67F–12168–V0
67F–12168–W0
67F–12168–X0
67F–12168–Y0
67F–12169–00
67F–12169–10
67F–12169–20
67F–12169–30
67F–12169–40
67F–12169–50
67F–12169–60
67F–12169–70
67F–12169–80
67F–12169–A0
67F–12169–B0
67F–12169–C0
67F–12169–D0
67F–12169–E0
67F–12169–F0
REF.
NO.
5– 9
5–16
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–10
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–11
PA RT NO .
67F–12169–G0
67F–12169–H0
67F–12169–J0
67F–12169–K0
67F–12169–L0
67F–12169–M0
67F–12169–N0
6D8–12171–00
6D9–12171–00
67F–12181–00
6D9–12411–00
67F–12411–01
67F–12412–00
68V–12413–00–9S
6G5–12416–00
67F–12435–A0
67F–1243A–00
67F–1246A–01–9S
67F–12535–01
68T–12572–00
6R3–12581–00
6R3–12582–00
6R3–12583–00
6D8–13105–01
67F–13119–01
63P–13131–00
67F–13149–00
6D8–13161–00
67F–13300–10
67F–13314–02
67F–13329–00
67F–13338–00
67F–13339–00
67F–13411–00
67F–13415–00
6D8–13428–00
67F–13434–10
68V–13437–62
5GH–13440–00
67F–13473–01
67F–13495–00
6D8–13542–01
6C5–13545–00
6D8–13546–01
6D8–13557–00
6C5–13577–00
NUMERICAL INDEX
REF.
NO.
5–11
5–11
5–11
5–11
5–11
5–11
5–11
5–12
5–12
5–13
4–28
4–28
4–29
4–30
2–28
2–32
35 – 6
2–40
2–31
19 – 32
19 – 31
19 – 39
19 – 40
19 – 41
6–10
27 – 19
11 – 18
27 – 23
6–13
27 – 14
27 – 15
27 – 17
27 – 25
27 – 24
27 – 9
27 – 13
36 – 14
8– 3
1–20
13 – 23
2–44
27 – 16
27 – 18
10 – 2
10 – 19
10 – 1
6– 4
10 – 10
PA RT NO .
6C5–13593–00
67F–13631–03
6D8–13641–00
6D8–13645–00
6C5–13716–00
6C5–13739–00
6D8–13750–00
6D8–13761–00
67F–13769–00
6C5–13781–00
6C5–13906–01
6C5–13907–00
6C5–13910–00
67F–13914–00
6C5–13915–00
6D8–13974–00
6C5–1410B–00
6C5–14127–00
6D8–14148–00
6C5–14149–00
6D8–14180–20
6D8–14182–00
6C5–14191–00
6D8–14200–00
6C5–14225–00
6C5–14251–00
6D8–14291–00–94
6D8–14292–00–94
6C5–14386–00
6C5–14397–00
6D6–14440–00
6D9–14440–01
6C5–14446–00
6C5–14496–00
6C5–14546–00
6C5–14567–00
67F–14711–00–CA
6D8–14960–00
6C5–14984–00
6C5–14985–00
6D8–15100–01–9S
67F–15142–00
67F–15311–03–CA
68V–15312–00
63P–15316–00
6D8–15362–00
REF.
NO.
9–20
27 – 22
6– 2
6– 3
9–22
10 – 22
6– 5
6–15
27 – 20
9–21
9– 9
9–17
9–16
27 – 21
9–19
10 – 16
6–16
9–18
10 – 14
10 – 8
9– 1
9– 2
9–13
6– 1
9–25
10 – 12
7– 5
7– 9
9– 5
6–11
9–14
7–13
7–13
6–14
6– 9
9– 4
9–15
26 – 9
9–12
9–23
9– 3
2– 2
2–11
27 – 1
27 – 8
36 – 13
27 – 2
27 – 30
PA RT NO .
6G8–15363–00
6D8–15373–00
6C5–21337–00
6D8–2134X–00
6C5–21841–00
1UF–22434–00
67F–22435–00
67F–22471–01
6C5–2411M–00
6D8–2413X–00
68V–24149–00
6YJ–24167–00
69J–24170–00
6D8–2417H–00
69J–2419A–00
6YK–24201–03
6YJ–24201–10
6C5–24251–00
6YK–24260–01
6Y1–24260–12
6Y1–24268–00
6YL–24268–01
6Y2–24305–06
6YK–24306–44
6Y2–24306–45
6D8–24311–00
67F–24312–00
6D8–24314–01
6D8–24315–00
61A–24316–00
6D8–24316–00
6D8–24317–01
6C5–24321–00
6C5–24322–00
6C5–24323–00
6D8–24324–01
6D8–24325–10
6Y1–24329–00
6YL–24329–00
6E5–24351–51
6Y2–24360–60
68V–24374–00
688–24378–00
6C5–24379–00
6C5–24387–00
6D8–24410–00
68V–24411–00
REF.
NO.
4–33
7–18
9–24
8–25
10 – 11
24 – 41
24 – 12
24 – 37
10 – 13
8–19
11 – 25
31 – 7
8– 8
8–11
8–22
30 – 1
31 – 1
10 – 20
30 – 4
31 – 3
31 – 6
30 – 2
31 – 13
12 – 1
30 – 7
31 – 8
11 – 14
19 – 42
8– 6
8– 9
2–26
8–15
8–20
10 – 3
10 – 4
10 – 5
10 – 6
10 – 7
31 – 5
30 – 6
31 – 10
31 – 12
11 – 21
2–25
10 – 18
10 – 15
11 – 15
11 – 20
PART NO.
68V–24412–00
68V–24413–00
6D8–24414–00
6C5–2441R–00
6C5–2441T–00
68V–24423–00
68V–24444–00
6C5–24444–00
6C5–24453–00
68V–24454–00
6D8–24469–00
69J–24502–00
6D8–24519–00
6D8–2451B–00
6D8–24560–00
6D8–24562–00
6D8–24563–00
6D8–24564–00
6D8–24566–00
6C5–24592–00
6YJ–24610–01
6YK–24610–01
67F–28100–01
67F–2812A–00
6D8–41113–30–9S
67F–41114–A2
67F–41131–01–CA
67F–41133–A1
67F–41134–A0
6D8–41137–00–CA
67F–41138–00
682–41237–00
6D8–41237–00
6D8–42154–00
6D8–42157–00
68V–42171–00
67F–42510–11–8D
6D8–42541–00
6D7–42610–00–8D
6D9–42610–00–8D
67F–42613–00–8D
67F–42615–00
61N–42628–00
67F–42628–00
REF.
NO.
11 – 16
11 – 22
11 – 23
9– 6
9– 7
11 – 19
11 – 24
10 – 9
9– 8
11 – 17
11 – 7
8–14
11 – 8
10 – 21
11 – 3
11 – 6
11 – 4
11 – 5
11 – 10
9–10
31 – 2
30 – 3
11 – 29
15 – 33
2–12
2–18
35 – 8
26 – 5
26 – 6
36 – 16
26 – 15
36 – 17
26 – 1
26 – 17
36 – 18
20 – 44
20 – 43
20 – 26
20 – 35
20 – 36
22 – 8
2–20
1– 1
1– 1
1–10
1–13
1–12
1–19
64
PA RT NO.
67F–42647–00
67F–42649–00
68V–42652–00
67F–42662–00
67F–42677–10
67G–42677–10
6D7–42678–00
6D9–42678–00
67F–42681–10
67F–42682–10
6D8–42710–00–8D
648–42715–00
61A–42716–00
67F–42717–00
6D8–42717–00
67F–42724–00
68V–42725–00
6H1–42726–21
6G1–42727–00
67F–42738–00–8D
67F–42741–01–8D
6H4–42748–00
68F–42753–00
6D8–42756–00
6AH–42794–40
6AH–42794–50
67F–42815–00–8D
67F–42816–00–8D
68V–42818–01
67F–42828–00–8D
67F–43111–00–8D
67F–43112–00–8D
6D8–43126–00
64E–43131–01
64E–43139–10
64D–43144–00
66T–43144–00
6E5–43145–01
6G5–43148–00
6D8–43181–00
6D8–43185–00
6D8–43311–00–8D
6D8–43800–01–8D
6D8–43804–01
6D8–43805–01
62X–43807–00
6H1–4380F–11
6C5–4380G–00
REF.
NO.
1– 2
1– 8
1– 5
1– 9
1–14
1–14
1–15
1–15
1–17
1–18
19 – 1
20 – 23
19 – 44
19 – 26
19 – 21
26 – 33
19 – 19
19 – 23
26 – 4
19 – 17
19 – 45
19 – 25
19 – 51
19 – 20
19 – 54
19 – 55
19 – 5
19 – 6
19 – 9
19 – 7
21 – 1
21 – 4
21 – 30
21 – 12
22 – 4
19 – 14
21 – 24
32 – 8
21 – 21
21 – 18
21 – 19
21 – 7
24 – 1
25 – 3
25 – 2
25 – 7
25 – 8
24 – 47
PA RT NO.
6D8–4380K–00
67F–4380R–00
67F–43810–01
6H1–43812–00
67F–43816–00
6C5–43816–00
6C6–43817–00
67F–43818–00
67F–4381B–00
6D8–4381G–00
67F–4381J–00
6C5–4381K–00
67F–43821–00
6H1–43829–00
6C6–4382E–00
6C5–4382K–00
6C5–4382L–00
6D8–43830–00
6D8–43831–00
6C5–43841–00
6C6–43841–00
6D8–43845–00
62X–4384H–00
6C5–43851–00
65W–43853–00
6C6–43853–00
6C5–43854–00
6D8–43855–00
6D8–43856–00
67F–43857–00
67F–4385A–01
67F–43861–00
62X–43862–00
67F–43862–00
67F–43863–00
62X–43865–00
65W–4386A–00
6T4–4386A–00
6C6–4386E–00
688–4386F–00
6C6–4386G–00
62X–4386K–00
62X–43871–00
67F–43871–00
6C5–43872–00
6H1–43872–10
REF.
NO.
24 – 43
24 – 3
24 – 2
24 – 13
24 – 29
24 – 46
24 – 44
21 – 34
24 – 38
24 – 84
24 – 36
24 – 62
24 – 14
24 – 90
24 – 53
24 – 64
24 – 65
24 – 49
24 – 91
24 – 82
24 – 50
24 – 88
24 – 40
24 – 58
24 – 22
24 – 55
24 – 67
24 – 60
24 – 63
24 – 35
24 – 7
24 – 15
24 – 18
24 – 6
24 – 30
24 – 26
24 – 32
24 – 20
24 – 34
24 – 78
24 – 21
24 – 77
25 – 9
24 – 9
24 – 31
24 – 83
24 – 4
24 – 16
PA RT NO .
62X–43875–00
67F–43875–00
6H1–43875–00
6C6–43878–00
62Y–4387G–00
6C6–4387G–00
6D8–43880–01
6D8–43881–01
6H1–43883–00
65W–43888–00
67F–4388A–00
6C6–4388E–00
6C6–4388F–00
6H1–43891–11
6H1–43892–11
67F–43893–00
6C5–43893–00
6C6–43893–00
6C6–43894–00
6C5–43895–00
62X–43899–00
67F–43899–00
69J–4389J–00
6D8–44117–00
67F–44118–00
67F–44120–10
67F–44121–00
68V–44122–01
67F–44135–00
67F–44150–01
67F–44311–01
6D8–44314–00
688–44315–A0
688–44316–A0
67F–44322–00
67F–44323–00
688–44324–A0
6D8–44341–01–CA
NUMERICAL INDEX
REF.
NO.
24 – 42
24 – 24
24 – 87
24 – 71
24 – 72
24 – 56
24 – 95
25 – 1
25 – 12
24 – 51
24 – 93
24 – 33
24 – 75
24 – 76
25 – 4
25 – 5
24 – 23
24 – 59
24 – 61
24 – 52
24 – 66
24 – 39
24 – 28
24 – 45
24 – 57
20 – 5
20 – 18
20 – 14
20 – 11
20 – 8
20 – 31
28 – 40
28 – 17
29 – 3
28 – 27
36 – 3
36 – 25
28 – 34
36 – 7
36 – 28
28 – 24
36 – 23
28 – 28
36 – 26
28 – 29
36 – 4
36 – 27
28 – 30
PA RT NO .
67F–44352–00
6D8–44361–00
67F–44365–00
663–44366–00
663–44367–00
69J–44391–00
6BL–44391–00
67F–44514–01–94
67F–44526–00
6H1–44526–00
67F–44533–00
67F–44551–00–8D
67F–44553–00–8D
67F–44555–00–94
67F–44575–00
67F–45111–11–8D
67F–45113–00
67F–45123–00
67F–45127–00
67F–45151–00
67F–45155–00
67F–45180–00–4D
67F–45181–00–CA
6H1–45214–00
6H1–45215–00
6H1–45251–03
6D9–45300–12–8D
67F–45301–00–8D
67F–45318–00
688–45321–00
67F–45331–00–CA
688–45341–10
67F–45371–00
688–45375–00
663–45376–00–94
6E5–45378–00
688–45383–02
688–45384–00
67F–45501–10
688–45536–01
6D9–45551–00
67F–45560–00
688–45567–01
688–45567–10
REF.
NO.
28 – 25
36 – 24
29 – 2
29 – 4
28 – 21
29 – 1
8–18
19 – 24
22 – 16
22 – 19
21 – 41
22 – 22
22 – 14
22 – 33
22 – 24
22 – 32
26 – 20
26 – 29
36 – 21
26 – 19
36 – 20
26 – 18
36 – 19
26 – 25
26 – 28
23 – 1
26 – 16
29 – 8
29 – 9
21 – 39
28 – 1
28 – 2
26 – 23
28 – 35
28 – 61
28 – 4
29 – 12
29 – 16
29 – 17
28 – 6
28 – 67
28 – 68
28 – 10
28 – 14
28 – 11
28 – 53
28 – 56
28 – 56
PA RT NO .
688–45567–20
688–45567–30
688–45567–40
688–45567–50
688–45567–60
6D9–45571–00
67F–45576–00
688–45587–01
688–45587–10
688–45587–20
688–45587–30
688–45587–40
688–45587–50
688–45587–60
67F–45611–01
6D8–45631–00
688–45633–00
67F–45634–00
6H1–45635–00
6H1–45668–00
688–45930–02–98
688–45932–60–98
6E5–45941–00–EL
6E5–45943–00–EL
6E5–45945–01–EL
6E5–45947–00–EL
6E5–45949–00–EL
6E5–45952–00–EL
6E5–45954–00–EL
6E5–45956–00–EL
6E5–45958–00–EL
688–45970–03–98
688–45972–02–98
688–45974–02–98
688–45976–01–98
688–45978–60–98
688–45987–01
67F–45997–00
67F–46241–00
703–48152–00
703–48153–00
703–48189–00
703–48198–00
703–48205–A5
703–48211–01
703–48212–00
703–48213–00
REF.
NO.
28 – 56
28 – 56
28 – 56
28 – 56
28 – 56
28 – 57
28 – 65
28 – 16
28 – 16
28 – 16
28 – 16
28 – 16
28 – 16
28 – 16
28 – 60
28 – 50
28 – 52
28 – 44
28 – 46
28 – 45
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 23
29 – 18
29 – 19
5–17
34 – 57
34 – 3
34 – 17
34 – 14
33 – 1
34 – 1
34 – 61
34 – 58
34 – 59
PART NO.
703–48215–00
703–48218–00
703–48219–00
703–48221–00
703–48222–00
703–48223–00
703–48225–00
703–48226–00
703–48227–00
703–48232–00
703–48234–00
703–48235–00
703–48236–00
703–48238–00
703–48243–00
703–48244–00
703–48245–00
703–48246–00
701–48248–00
703–48252–00
703–48261–01
703–48264–00
703–48265–00
703–48268–00
703–48271–00
703–48281–00
703–48282–00
703–48284–00
701–48287–00
703–48291–10
703–48293–10
701–48320–30
701–48320–40
701–48320–50
701–48320–60
701–48320–80
663–48344–00
703–48345–01
701–48350–00
703–48358–00
67F–48511–10
67F–48538–00
67F–61350–00
6C5–81145–00
6C5–81146–00
445–81328–20
6D8–8132G–00
REF.
NO.
34 – 43
34 – 64
34 – 30
34 – 56
34 – 27
34 – 28
34 – 29
34 – 26
34 – 24
34 – 62
34 – 18
34 – 4
34 – 16
34 – 22
34 – 15
34 – 21
34 – 11
34 – 23
34 – 13
34 – 12
34 – 2
34 – 6
34 – 9
34 – 5
34 – 60
34 – 31
34 – 32
34 – 52
34 – 42
34 – 39
34 – 41
33 – 2
33 – 2
33 – 2
33 – 2
33 – 2
20 – 3
20 – 24
34 – 19
33 – 2
34 – 20
22 – 35
20 – 1
32 – 1
6– 7
6–12
13 – 7
17 – 1
65
PA RT NO.
6D8–81332–00
6D8–81337–00
63D–81345–20
6D8–81410–00
6D8–81450–00
6D8–81460–00
6D8–81518–00
6D8–81528–00
68V–81673–00
68V–81800–01
67F–81801–00
67F–81807–00
67F–81808–00
67F–81809–00
67F–81810–00
67F–81813–00
68F–81820–00
67F–81821–00
6K7–81826–11
67F–81828–00
6C5–8182L–00
67F–81830–00
67F–81832–00
67F–81836–00
67F–81839–00
67F–8183R–00
60V–8183T–00
68F–81840–00
67F–81841–00
67F–81842–00
67F–81846–00
67F–81850–00
67F–81857–00
67F–81869–00
67F–81891–00
68V–81919–00
6D8–81919–00
60V–81925–00
68V–81941–01
68V–81942–03
68V–81948–02
61A–81949–00
68V–8194A–00
60E–81950–00
63P–81950–00
68V–81953–00
6D3–81960–00
6AH–81994–40
REF.
NO.
13 – 16
13 – 18
13 – 5
13 – 4
13 – 1
13 – 2
15 – 27
15 – 28
13 – 8
18 – 1
18 – 5
18 – 10
18 – 8
18 – 19
18 – 3
18 – 6
18 – 7
18 – 13
18 – 24
18 – 25
6– 8
18 – 17
18 – 11
18 – 12
18 – 21
18 – 16
18 – 18
18 – 4
18 – 14
18 – 20
18 – 26
18 – 2
18 – 9
18 – 23
18 – 15
15 – 40
15 – 41
18 – 28
18 – 22
15 – 32
15 – 21
15 – 20
15 – 7
15 – 5
15 – 14
15 – 8
14 – 24
13 – 26
PA RT NO.
6AH–81994–50
6AH–81995–40
6AH–81995–50
6AG–81996–00
68V–82105–00
6G5–82119–00
682–82119–01
67F–82127–00
6D8–82148–00
6E5–82148–00
67F–82151–00
67F–82151–10
67F–8215B–10
67F–8215B–20
6H1–82181–10
63P–82310–01
68V–82317–00
6A0–82317–00
663–82317–01
67F–82341–00
67F–82342–00
67F–82343–00
67F–82344–00
67F–82361–00
67F–82362–00
67F–82377–00
6D8–82388–01
6D8–82389–00
6D8–82398–00
68V–82504–00
703–82510–12
6D8–8252H–00
703–82531–00
703–82540–00
703–82542–00
6D8–82544–00
682–82556–00
703–82563–02
63D–82563–10
688–82575–01
676–82577–00
6D8–82581–00
68F–82582–00
6P2–82582–00
REF.
NO.
13 – 27
13 – 24
13 – 25
13 – 28
15 – 1
15 – 13
15 – 34
21 – 11
21 – 27
21 – 5
16 – 2
16 – 3
16 – 4
16 – 5
25 – 6
14 – 5
14 – 2
15 – 22
15 – 35
13 – 21
14 – 6
14 – 7
14 – 10
14 – 11
14 – 8
14 – 12
14 – 14
14 – 9
14 – 13
19 – 53
14 – 18
16 – 18
16 – 21
17 – 12
34 – 44
17 – 18
34 – 46
34 – 50
34 – 63
7–24
34 – 48
34 – 55
17 – 13
34 – 47
34 – 45
16 – 15
18 – 29
16 – 6
PA RT NO .
6P2–82582–10
6E5–82587–00
6D8–82588–00
6E5–82588–00
61A–82588–01
688–8258A–20
6D8–82590–30
703–82591–00
703–82592–00
68V–82594–00
703–82594–00
60V–8259F–00
703–83383–B0
6E5–83558–00
6E5–83558–10
67F–83614–00
6D8–83626–00
67F–83627–01
67H–83672–01
68F–83688–00
689–85547–00
6D8–85547–00
6D8–85580–00
68V–85753–00
67F–85757–00
67F–85790–00
6C5–85885–00
6D7–8591A–13
6D9–8591A–13
6C5–87226–00
K1C–A3275–00
K0A–A3721–00
K0A–A3722–00
K0F–A9904–20
6D8–W0001–02
67F–W0001–21
67F–W0070–10
67F–W0078–00
6D8–W009A–02–9S
6D9–W009A–02–9S
6D8–W009B–04–9S
6D8–W1164–21
6D8–W1164–31
90101–09M01
90101–12M03
90105–06M07
NUMERICAL INDEX
REF.
NO.
16 – 7
17 – 14
16 – 12
19 – 27
20 – 47
34 – 49
16 – 1
34 – 53
34 – 54
15 – 25
34 – 25
20 – 46
34 – 51
29 – 15
28 – 8
17 – 15
4–35
18 – 34
22 – 1
6–17
11 – 1
13 – 20
13 – 3
17 – 6
35 – 7
17 – 5
17 – 4
6– 6
14 – 1
14 – 1
9–11
3– 6
5– 7
5– 8
4– 7
35 – 1
36 – 1
1–16
36 – 22
4– 1
4– 1
2– 1
3– 5
3– 5
32 – 7
21 – 45
2–37
4–11
PA RT NO .
90105–10M67
90105–10M89
90109–06M80
90109–06M81
90109–06M82
90109–06M86
90109–06M96
90109–12007
90109–12012
90110–12M00
90116–10175
90119–06087
90119–06113
90119–06M08
90119–06M59
90119–06M81
90119–06M83
90119–06MA2
90119–06MA4
90119–07235
90119–08069
90119–08091
90119–08M03
90119–08M13
90119–08M22
90119–08M58
90119–08M66
90119–08M84
90119–08M87
90119–08M91
90119–10030
90119–10049
90119–10M08
90119–10M72
90119–10M88
90151–05M00
90157–05M16
90157–05M19
REF.
NO.
29 – 13
4–16
19 – 48
19 – 28
19 – 8
17 – 16
19 – 15
19 – 22
19 – 30
19 – 38
20 – 2
19 – 18
22 – 18
22 – 26
23 – 4
22 – 36
7– 8
7–12
7–16
8– 1
8–28
14 – 4
15 – 24
21 – 40
11 – 28
2–33
2–19
4– 5
7– 1
22 – 17
7– 3
28 – 20
36 – 31
19 – 2
26 – 32
2– 5
29 – 7
28 – 19
36 – 30
4–17
29 – 6
22 – 34
26 – 21
5–22
2– 4
29 – 10
30 – 5
31 – 4
PA RT NO .
90159–05059
90159–06M28
90159–06M29
90160–04006
90167–06002
90170–09M03
90170–16M01
90170–40008
90171–16011
90179–06M24
90179–08003
90179–24002
90183–02M03
90185–05002
90185–09M01
90185–10051
90185–22M11
90201–03313
90201–06068
90201–06M31
90201–06M62
90201–09M02
90201–10M02
90201–10M20
90201–10M63
90201–12M01
90201–12M05
90201–12M16
90201–13M01
90201–13M03
90201–13M19
90201–24014
90201–24M02
90201–25M05
90201–26M59
90201–30M00
90202–07M07
90202–25M04
90206–10M04
90206–15M18
90249–06M19
90250–07M02
90280–04008
REF.
NO.
22 – 5
19 – 47
4–27
28 – 23
19 – 37
32 – 4
28 – 12
5–24
29 – 21
1–11
18 – 27
13 – 15
28 – 49
29 – 11
32 – 3
22 – 37
21 – 15
28 – 48
19 – 12
20 – 38
20 – 28
20 – 16
20 – 29
20 – 39
32 – 2
32 – 6
23 – 2
21 – 47
22 – 20
22 – 27
23 – 5
21 – 46
22 – 21
22 – 25
22 – 30
13 – 14
22 – 28
28 – 59
21 – 14
22 – 9
20 – 9
22 – 29
20 – 30
20 – 40
19 – 11
21 – 23
28 – 51
5–25
PART NO.
90280–04M04
90280–05015
90282–04010
90340–08002
90340–14M06
90340–18M09
90344–51019
90386–06M12
90386–08001
90386–10M16
90386–15M73
90386–18001
90386–18M35
90386–18MA0
90386–25M31
90386–30M60
90386–30M77
90386–30M78
90386–90M90
90387–06013
90387–06119
90387–06M05
90387–06M21
90387–06M43
90387–06M60
90387–06M64
90387–06M69
90387–07013
90387–08033
90387–08M37
90387–10M08
90387–10M42
90387–18M01
90387–22M01
90389–25M00
90401–20007
90430–06M03
90430–08020
90430–14115
90430–14M09
90430–18130
REF.
NO.
28 – 26
36 – 32
13 – 13
28 – 66
28 – 3
2– 6
27 – 3
2–14
4– 4
20 – 12
7–14
21 – 20
19 – 10
21 – 32
21 – 31
21 – 36
21 – 13
22 – 13
22 – 12
22 – 10
20 – 15
20 – 37
14 – 3
15 – 23
15 – 37
20 – 27
19 – 50
8–27
27 – 12
9–26
7–15
7– 2
19 – 4
4–15
32 – 5
21 – 35
21 – 37
29 – 20
2–45
2–38
4–12
28 – 5
36 – 2
2– 7
35 – 5
27 – 4
36 – 12
2–15
66
PA RT NO.
90430–18130
90445–07M31
90445–07ME0
90445–13M01
90445–13M35
90445–13M37
90445–15M03
90462–06018
90462–10027
90464–08004
90464–10010
90464–11009
90464–12M58
90464–15007
90464–16001
90464–18004
90464–18246
90464–20258
90464–30003
90464–76001
90465–06M86
90465–08M23
90465–08M63
90465–10M77
90465–11M10
90465–11M59
90465–12M03
90465–12M53
90465–13M11
90465–13M18
90467–09M03
REF.
NO.
35 – 11
28 – 7
29 – 14
31 – 9
31 – 11
11 – 2
5–20
19 – 33
20 – 7
14 – 19
2–23
2–24
15 – 26
8– 2
2–46
2–22
6–18
19 – 52
17 – 17
7–17
16 – 8
17 – 9
14 – 21
19 – 29
21 – 9
22 – 3
21 – 2
2–21
2–27
2–41
8– 7
8–10
8–16
8–21
10 – 17
11 – 9
11 – 26
19 – 43
22 – 6
22 – 7
28 – 9
7–19
7–21
15 – 36
16 – 28
15 – 39
16 – 24
8–17
PA RT NO.
90467–20M15
90468–18008
90480–09M12
90480–10M23
90480–12072
90480–13M24
90480–14329
90480–19M06
90480–20M05
90480–22M15
90501–12082
90501–12M48
90501–16M11
90506–14M24
90506–16M34
90506–16M39
91312–03005
91312–03016
91312–04030
91312–05025
91312–05030
91312–05045
91312–05050
91490–20015
91490–40025
91609–50028
91690–30020
91690–50014
91809–08006
92903–06100
92903–06600
92903–08100
92903–08600
92907–04600
92907–06600
92990–06100
92990–06600
92990–08600
92995–06100
REF.
NO.
2–42
7–20
20 – 4
20 – 10
20 – 13
20 – 25
9–27
8–26
4–22
13 – 19
15 – 29
19 – 49
14 – 20
28 – 22
2–30
19 – 3
20 – 22
28 – 47
2–29
21 – 26
19 – 16
5–19
24 – 80
24 – 74
24 – 73
24 – 81
24 – 70
24 – 48
24 – 94
20 – 17
29 – 22
24 – 79
21 – 22
7– 4
4– 6
15 – 3
15 – 4
15 – 19
18 – 33
18 – 31
4–21
27 – 11
1– 3
26 – 27
34 – 34
13 – 11
14 – 16
14 – 26
PA RT NO .
92995–06100
92995–06200
92995–06600
NUMERICAL INDEX
REF.
NO.
14 – 29
15 – 11
15 – 16
16 – 10
16 – 26
19 – 35
20 – 33
21 – 43
19 – 36
1– 7
2–10
4–25
4–32
7– 7
7–11
7–23
8– 5
8–13
8–24
11 – 13
13 – 12
14 – 17
14 – 23
14 – 27
14 – 30
15 – 12
15 – 17
15 – 31
16 – 11
16 – 14
16 – 17
16 – 20
16 – 23
16 – 27
17 – 3
17 – 8
17 – 11
17 – 20
20 – 20
20 – 34
20 – 42
21 – 29
21 – 44
26 – 8
26 – 11
26 – 13
27 – 6
27 – 27
PA RT NO .
92995–06600
92995–08100
92A08–03012
92A08–03110
93101–25M03
93101–48001
93102–08414
93102–38008
93102–48008
93106–09014
93210–07003
93210–08287
93210–09165
93210–16275
93210–18397
93210–19MJ1
93210–24M79
93210–29375
93210–29M94
93210–30682
93210–46044
93210–49046
93210–554A9
93210–64488
93210–86M39
93306–207U0
93315–52563
93317–322V0
93317–325U0
93332–000U3
93332–000UD
REF.
NO.
28 – 38
21 – 17
26 – 31
24 – 85
24 – 68
28 – 32
28 – 63
36 – 5
3–10
35 – 10
25 – 13
5–26
35 – 4
3– 9
35 – 9
28 – 36
36 – 8
28 – 41
36 – 10
31 – 14
24 – 89
32 – 9
24 – 5
24 – 17
24 – 86
27 – 29
36 – 15
4–34
35 – 2
24 – 8
22 – 11
11 – 27
35 – 13
28 – 33
36 – 6
36 – 29
28 – 39
36 – 9
25 – 14
24 – 92
28 – 64
36 – 11
28 – 58
28 – 13
28 – 54
28 – 62
28 – 15
28 – 55
PA RT NO .
93410–18M05
93410–28M06
93420–36M01
93430–06024
93450–44166
93501–04M02
93501–08001
93503–16003
93505–32038
93602–07244
93604–10M03
93604–12M07
93605–10108
93606–12019
93606–19M23
93608–16M16
93700–06M03
94702–00391
95302–03600
95333–08600
95380–05600
95380–06600
95380–08600
95380–12600
95380–12700
95380–12800
95780–12300
95895–06025
97013–06020
97013–08045
97027–06025
97075–06025
97075–06030
97075–06050
97075–06070
REF.
NO.
21 – 33
21 – 38
22 – 15
26 – 24
34 – 10
28 – 31
20 – 21
24 – 10
24 – 19
24 – 27
24 – 25
28 – 43
24 – 54
24 – 11
28 – 18
27 – 28
5–14
2– 3
27 – 7
29 – 5
26 – 14
26 – 3
26 – 22
21 – 8
4–36
24 – 69
18 – 32
20 – 45
34 – 7
1– 4
19 – 46
34 – 40
11 – 11
21 – 48
23 – 3
22 – 31
22 – 23
23 – 6
7–25
15 – 2
15 – 18
18 – 30
27 – 10
20 – 19
27 – 5
26 – 10
26 – 12
26 – 7
PART NO.
97095–06008
97095–06010
97095–06012
97095–06014
97095–06016
97095–06020
97095–06025
97095–06030
97095–06035
97095–06045
97095–08016
97095–08020
97380–05025
97380–08030
97575–08540
97595–06550
REF.
NO.
19 – 34
8–12
15 – 10
15 – 15
21 – 3
21 – 10
21 – 25
21 – 28
1– 6
7–22
8– 4
16 – 13
16 – 19
16 – 22
17 – 10
17 – 19
14 – 22
15 – 30
16 – 16
8–23
11 – 12
14 – 28
16 – 9
16 – 25
17 – 2
17 – 7
19 – 13
21 – 42
28 – 37
2– 9
7–10
4–31
14 – 15
14 – 25
20 – 41
4–24
7– 6
13 – 10
20 – 32
27 – 26
26 – 30
21 – 16
34 – 8
34 – 33
2–39
4–13
26 – 2
20 – 6
67
PA RT NO.
97602–04216
97607–04110
97780–60620
97780–60625
97880–06012
97880–06016
97885–06016
97980–05225
97985–04116
97985–06210
98507–04008
98580–03015
98580–04006
98580–04010
98580–05010
98780–04016
99001–08600
99530–08012
REF.
NO.
25 – 11
13 – 6
15 – 9
15 – 6
15 – 38
21 – 6
26 – 26
22 – 2
25 – 10
20 – 48
13 – 17
4–20
34 – 38
34 – 36
34 – 35
34 – 37
2–17
28 – 42
13 – 9
PA RT NO.
REF.
NO.
PA RT NO .
NUMERICAL INDEX
REF.
NO.
PA RT NO .
REF.
NO.
PA RT NO .
REF.
NO.
PART NO.
REF.
NO.
68
Loading...
