Xerox Phaser 3600DN User Manual

This manual is provided for information purposes only. All information included herein is subject to change without notice. Xerox Corporation is not responsible
for any changes, direct or indirect, arising from or related to use of this manual.

© 2008 by Xerox Corporation. All rights reserved.

• Phaser 3600, Phaser 3600/B, Phaser 3600/N and Phaser 3600/DN are trademarks of Xerox Corporation.

• Xerox and Xerox logo are trademarks of Xerox Corporation.

• Centronics is a trademark of Centronics Data Computer Corporation.

• IBM and IBM PC are trademarks of International Business Machines Corporation.

• PCL and PCL 6 are trademarks of Hewlett-Packard company.

• Microsoft, Windows, Windows 2000, Windows NT 4.0, Windows XP, and Windows 2003 are registered trademarks of Microsoft Corporation.

• PostScript 3 is a trademark of Adobe System, Inc.

• UFST® and MicroType™ are registered trademarks of Agfa division of Bayer Corp.

• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

CONTENTS

1. Introduction

Special features ...................................................................................................................................................... 1.1

Printer overview ...................................................................................................................................................... 1.2

Finding more information ........................................................................................................................................ 1.4

2. System setup

Using control panel menus ...................................................................................................................................... 2.1

Menu overview ........................................................................................................................................................ 2.1

Printing a demo page .............................................................................................................................................. 2.9

Changing the display language ............................................................................................................................... 2.9

3. Software overview

Supplied software .................................................................................................................................................... 3.1

Printer driver features .............................................................................................................................................. 3.2

System requirements .............................................................................................................................................. 3.2

4. Network setup (Phaser 3600/N, Phaser 3600/DN only)

Introduction ............................................................................................................................................................. 4.1

Supported operating systems ................................................................................................................................. 4.1

Configuring TCP/IP ................................................................................................................................................. 4.2

Configuring EtherTalk ............................................................................................................................................. 4.2

Configuring IPX frame types ................................................................................................................................... 4.2

Setting Ethernet speed ............................................................................................................................................ 4.3

Restoring the network configuration ........................................................................................................................ 4.3

Printing a network configuration page ..................................................................................................................... 4.3

Configuring 802.1x .................................................................................................................................................. 4.3

Configuring Port 9100 ............................................................................................................................................. 4.3

Configuring LPR ...................................................................................................................................................... 4.4

Configuring IPP ....................................................................................................................................................... 4.4

Configuring SLP ...................................................................................................................................................... 4.4

Configuring CentreWare IS ..................................................................................................................................... 4.4

5. Loading print media

Selecting print media ............................................................................................................................................... 5.1

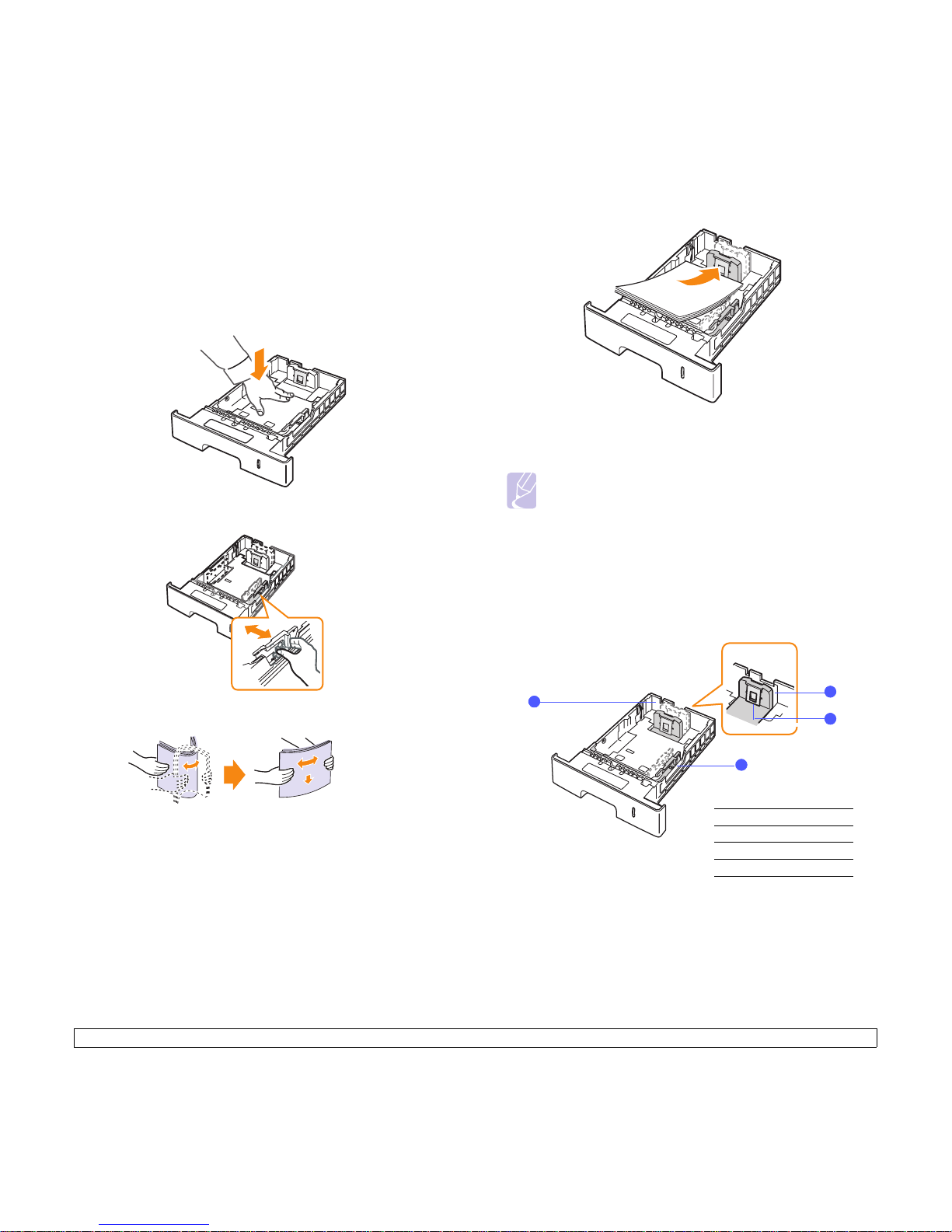

Loading paper ......................................................................................................................................................... 5.4

Selecting an output location .................................................................................................................................... 5.8

6. Basic printing

Printing a document ................................................................................................................................................ 6.1

Canceling a print job ............................................................................................................................................... 6.1

7. Ordering supplies and accessories

Supplies .................................................................................................................................................................. 7.1

Accessories ............................................................................................................................................................. 7.1

How to purchase ..................................................................................................................................................... 7.1

8. Maintenance

Printing information page ........................................................................................................................................ 8.1

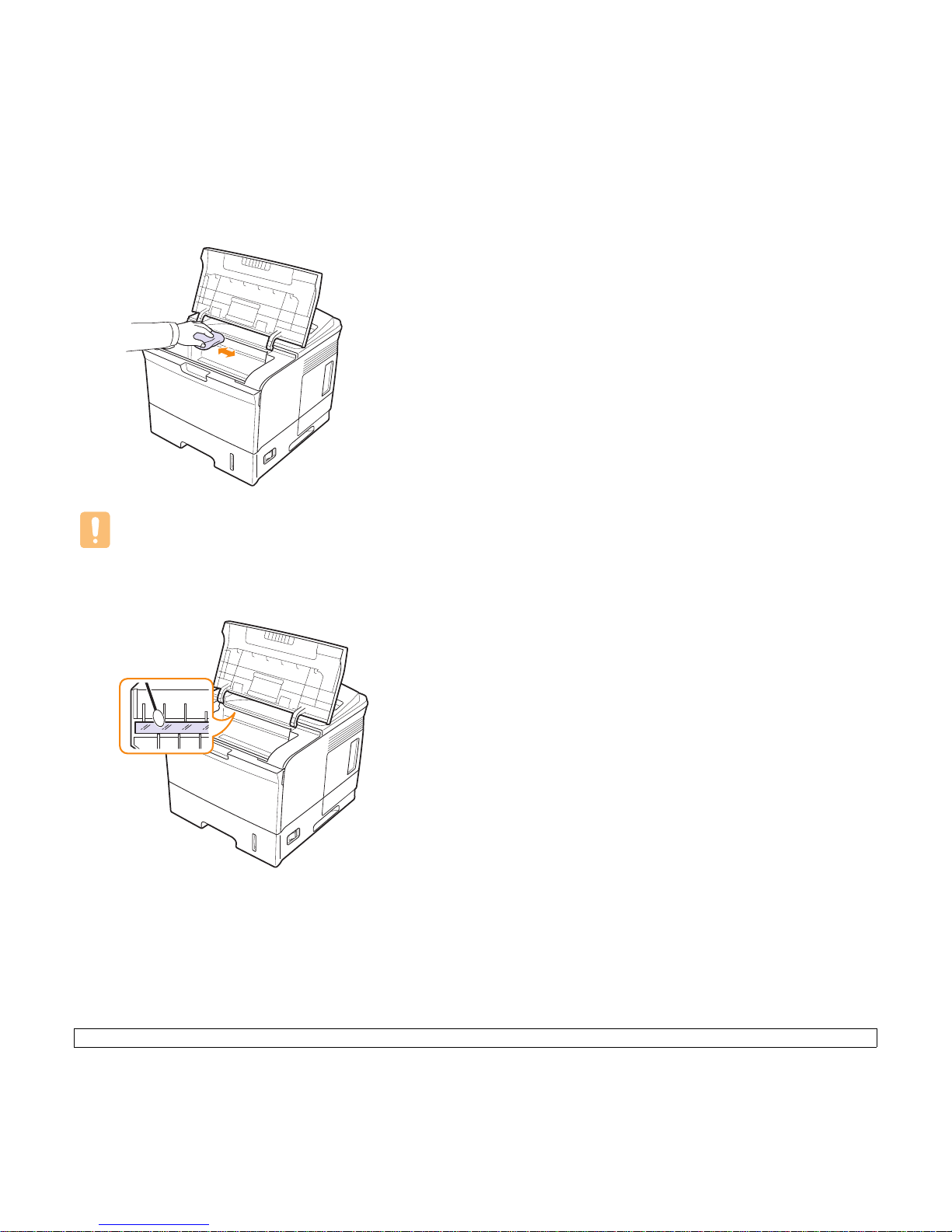

Cleaning the printer ................................................................................................................................................. 8.1

Maintaining the print cartridge ................................................................................................................................. 8.3

Maintenance parts ................................................................................................................................................... 8.6

9. Troubleshooting

Clearing paper jams ................................................................................................................................................ 9.1

Troubleshooting checklist ........................................................................................................................................ 9.7

Understanding the Status LED ................................................................................................................................ 9.7

Understanding display messages ........................................................................................................................... 9.8

Print cartridge-related messages .......................................................................................................................... 9.10

Solving general printing problems ......................................................................................................................... 9.11

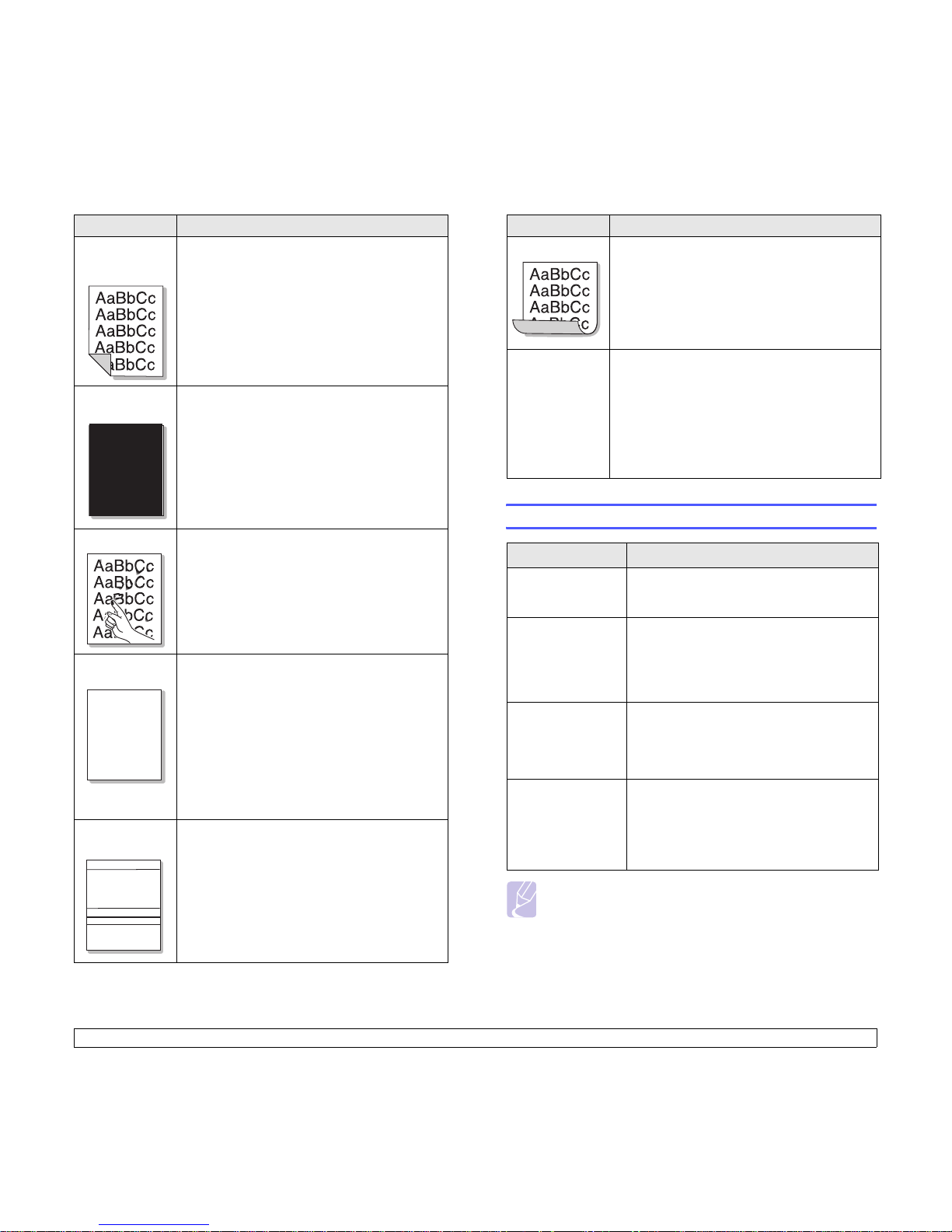

Solving print quality problems ............................................................................................................................... 9.13

Common Windows problems ................................................................................................................................ 9.15

Common PostScript problems .............................................................................................................................. 9.16

Common Linux problems ...................................................................................................................................... 9.16

Common Macintosh problems .............................................................................................................................. 9.17

10. Installing accessories

Precautions when installing accessories ............................................................................................................... 10.1

Installing a memory DIMM .................................................................................................................................... 10.1

11. Specifications

Printer specifications ............................................................................................................................................. 11.1

i

Safety

Read these safety notes carefully before using this product to
ensure you operate the equipment safely.

Your Xerox product and supplies have been designed and tested to
meet strict safety requirements. These include safety Agency
approval, and compliance to established environmental standards.
Please read the following instructions carefully before operating the
product and refer to them as needed to ensure the continued safe
operation of your product.

The safety testing and performance of this product have been
verified using Xerox materials only.

WARNING: This WARNING mark alerts users to the

possibility of personal injury.

WARNING: This WARNING mark alerts users to

heated surfaces.

CAUTION: This symbol indicates a Laser is being

used in the equipment and alerts the user to refer to
the appropriate safety information.

WARNING: This product must be connected to a

protective earth circuit.

Operator Accessible Areas

This equipment has been designed to provide operator access to
safe areas only. Operator access to hazardous areas is restricted
using covers or guards, which require a tool to enable removal.
Never remove these covers or guards.

Maintenance Information

1. Any operator product maintenance procedures will be

described in the user documentation supplied with the product.

2. Do not carry out any maintenance on this product which is not

described in the customer documentation

WARNING: Do not use aerosol cleaners. Aerosol

cleaners can be explosive or flammable when used
on electromechanical equipment.

3. Use supplies and cleaning materials only as directed in the

Operator section of this manual.

4. Do not remove covers or guards that are fastened with screws.

There are no parts behind these covers that you can maintain
or service.

Operational Safety Information

Your Xerox equipment and supplies have been designed and tested
to meet strict safety requirements. These include safety agency
examination, approval, and compliance with established
environmental standards.

To ensure the continued safe operation of your Xerox equipment,
follow these safety guidelines at all times:

Do These:

• Always follow all warnings and instructions that are marked on
or supplied with the equipment.

• Before cleaning this product, unplug the product from the
electrical outlet. Always use materials specifically designated for
this product, the use of other materials may result in poor
performance and create a hazardous situation.

WARNING: Do not use aerosol cleaners. Aerosol

cleaners can be explosive or flammable when used
on electromechanical equipment.

• Always exercise care when moving or relocating equipment.
Please contact your local Xerox Service Department to arrange
relocation of the copier to a location outside of your building.

• Always locate the machine on a solid support surface (not on
plush carpet) that has adequate strength to support the weight
of the machine.

• Always locate the machine in an area that has adequate
ventilation and room for servicing.

• Always unplug this equipment from the electrical outlet before
cleaning.

NOTE: Your Xerox machine is equipped with an energy saving

device to conserve power when the machine is not in use. The
machine may be left on continuously.

CAUTION: The metallic surfaces in the fuser area

are hot. Please use caution when removing paper
jams from this area and avoid touching any metallic
surfaces.

Do Not Do These:

• Never use a ground adapter plug to connect the equipment to a
power outlet that lacks a ground connection terminal.

• Never attempt any maintenance function that is not specifically
described in this documentation.

ii

• Never obstruct ventilation openings. They are provided to
prevent overheating.

• Never remove covers or guards that are fastened with screws.
There are no operator serviceable areas within these covers.

• Never locate the machine near a radiator or any other heat
source.

• Never push objects of any kind into the ventilation openings.

• Never override or "cheat" any of the electrical or mechanical
interlock devices.

• Never place this equipment where people might step on or trip
on the power cord.

• This equipment should not be placed in a room unless proper
ventilation is provided. Please contact your local Authorized
dealer for further information.

Electrical Safety Information

1. The power receptacle for the machine must meet the

requirements stated on the data plate on the rear of the
machine. If you are not sure that your electrical supply meets
the requirements, please consult your local power company or
an electrician for advice.

2. The socket outlet shall be installed near the equipment and

shall be easily accessible.

3. Use the power cable that is supplied with your machine. Do not

use an extension cord or remove or modify the power cord
plug.

4. Plug the power cable directly into a correctly grounded

electrical outlet. If you are not sure whether or not an outlet is
correctly grounded, consult an electrician.

5. Do not use an adapter to connect any Xerox equipment to an

electrical outlet that lacks a ground connection terminal.

6. Do not place this equipment where people might step or trip on

the power cable.

7. Do not place objects on the power cable.

8. Do not override or disable electrical or mechanical interlock

devices.

9. Do not push objects into slots or openings on the machine.

Electrical shock or fire may result.

10. Do not obstruct ventilation openings. These openings are used

to provide proper cooling to the Xerox machine.

Electrical Supply

1. This product shall be operated from the type of electrical supply

indicted on the product's data plate label. If you are not sure
that your electrical supply meets the requirements, please
consult a licensed electrician for advice.

WARNING: This equipment must be connected to a

protective earth circuit. This equipment is supplied
with a plug that has a protective earth pin. This plug
will only fit into an earthed electrical outlet. This is a
safety feature. If you are unable to insert the plug into
the outlet, contact a licensed electrician to replace
the outlet.

2. Always connect equipment to a correctly grounded power

outlet. If in doubt, have the outlet checked by a qualified
electrician.

Disconnect Device

The power cable is the disconnect device for this equipment. It is
attached to the back of the machine as a plug-in device. To remove
all electrical power from the equipment, disconnect the power cable
from the electrical outlet.

Emergency Power Off

If any of the following conditions occur, turn off the machine
immediately and disconnect the power cable(s) from the electrical
outlet(s). Contact anauthorized Xerox Service Representative to
correct the problem:

The equipment emits unusual odours or makes unusual noises. The
power cable is damaged or frayed. A wall panel circuit breaker, fuse,
or other safety device has been tripped. Liquid is spilled into the
machine. The machine is exposed to water. Any part of the machine
is damaged.

WARNING: Risk of explosion if battery is replaced

by an incorrect type. Dispose of used batteries
according to the instruction.

iii

Quality Standards

The product is manufactured under a registered ISO 9002 Quality
system.

If you need additional safety information concerning this XEROX
product or XEROX supplied materials you may call the following
number: EUROPE: [phone] USA/CANADA: 1 800 928

6571.

Safety Standards

EUROPE: This XEROX product is certified by the following Agency

using the Safety Standards listed.

• Agency: TUV Rheinland

• Standard: IEC60950-1, 2001 USA/CANADA: This XEROX
product is certified by the following Agency using the Safety
Standards listed. Agency: UNDERWRITERS LABORATORIES
Standard: UL60950-1, 2003 Edition. Certification is based on
reciprocity agreements, which include requirements for
Canada.

Laser Safety Information

CAUTION: Use of controls, adjustments or

performance of procedure other than those specified
herein may result in hazardous light exposure.

With specific regard to laser safety, the equipment complies with
performance standards for laser product set by government,
national and international agencies as a Class 1 laser product. It
does not emit hazardous light, as the beam is totally enclosed during
all phases of customer operation and maintenance.

Ozone Safety Information

This product will produce ozone during normal operation. The ozone
produced is heavier than air and is dependent on copy volume.
Providing the correct environmental parameters as specified in the
Xerox installation procedure will ensure that the concentration levels
meet safe limits.

If you need additional information about ozone, please request the
Xerox publication Ozone by calling 1-800-828-6571 in the United
States and Canada. In other markets please contact your authorized
local dealer or Service Provider.

For Consumables

• Store all consumables in accordance with the instructions given
on the package or container.

• Keep all consumables away from the reach of children.

• Never throw print cartridges or toner containers into an open
flame.

• Cartridges: When handing cartridges, for example ink, fuser,
etc, avoid skin or eye contact. Eye contact can cause irritation
and inflammation. Do not attempt to disassemble the cartridge.
This can increase the risk of skin or eye contact.

Product Safety Certification

This product is certified by the following Agency using the Safety
standards listed.

This product has been manufactured under a registered ISO 9001
Quality system.

Agency Standard

Underwriters Laboratories Inc. UL60950-1st Edition (2003) (USA/

Canada)

SEMKO IEC60950-1st Edition 1 (2001)

iv

Regulatory Information

CE Mark

The CE mark applied to this product, symbolizes XEROX's
declaration of conformity with the following applicable European
Union Directives, as of the dates indicated:

December 12, 2006:

Council Directive 2006/95/EC as amended. Approximation of the
laws of the member states related to low voltage equipment.

December 15, 2004:

Council Directive 2004/108/EC as amended. Approximation of the
laws of the member states related to electromagnetic compatibility.

March 9, 1999:

Council Directive 99/5/EC, on radio equipment and
telecommunications terminal equipment and the mutual recognition
of the conformity.

A full declaration of conformity, defining the relevant directives and
referenced standards, can be obtained from your XEROX Limited
representative.

WARNING: In order to allow this equipment to

operate in proximity to Industrial Scientific and
Medical (ISM) equipment, the external radiation from
the ISM equipment may have to be limited or special
mitigation measures taken.

NOTE: Changes or modifications to this equipment not specifically

approved by the Xerox Corporation may void the user’s authority to
operate this equipment.

WARNING: Shielded cables must be used with this

equipment to maintain compliance with Council
Directive 2004/108/EC.

OpenSSL License

Copyright (c) 1998-2001 The OpenSSL Project. All rights
reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.

3. All advertising materials mentioning features or use of this

software must display the following acknowledgment: "This
product includes software developed by the OpenSSL Project
for use in the OpenSSL Toolkit. (http://www.openssl.org/)"

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must

not be used to endorse or promote products derived from this
software without

5. prior written permission. For written permission, please contact

[e-mail].

6. Products derived from this software may not be called

"OpenSSL" nor may "OpenSSL" appear in their names without
prior written permission of the OpenSSL Project.

7. Redistributions of any form whatsoever must retain the

following acknowledgment: "This product includes software
developed by the OpenSSL Project for use in the OpenSSL
Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT
``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

v

This product includes cryptographic software written by Eric
Young([e-mail]). This product includes software written
by Tim Hudson ([e-mail]).

Original SSLeay License

Copyright (C) 1995-1998 Eric Young ([e-mail]) All
rights reserved.

This package is an SSL implementation written by Eric Young
([e-mail]). The implementation was written so as to
conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long
as the following conditions are aheared to. The following conditions
apply to all code found in this distribution, be it the RC4, RSA, lhash,
DES, etc., code; not just the SSL code. The SSL documentation
included with this distribution is covered by the same copyright
terms except that the holder is Tim Hudson ([e-mail]).
Copyright remains Eric Young's, and as such any Copyright notices
in the code are not to be removed. If this package is used in a
product, Eric Young should be given attribution as the author of the
parts of the library used. This can be in the form of a textual
message at program startup or in documentation (online or textual)
provided with the package.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are
met:

1. Redistributions of source code must retain the copyright notice,

this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.

3. All advertising materials mentioning features or use of this

software must display the following acknowledgement: "This
product includes cryptographic software written by Eric Young
([e-mail])" The word 'cryptographic' can be left out if
the rouines from the library being used are not cryptographic
related.

4. If you include any Windows specific code (or a derivative

thereof) from the apps directory (application code) you must
include an acknowledgement: "This product includes software
written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR
TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available
version or derivative of this code cannot be changed. i.e. this code
cannot simply be copied and put under another distribution licence
[including the GNU Public Licence.]

vi

Environmental Compliance

USA

Energy Star

As an ENERGY STAR® partner, Xerox Corporation
has determined that (the basic configuration of) this
product meets the ENERGY STAR guidelines for
energy efficiency.

The ENERGY STAR and ENERGY STAR MARK
are registered United States trademarks.

The ENERGY STAR Office Equipment Program is
a team effort between U.S., European Union and
Japanese governments and the office equipment
industry to promote energy-efficient copiers,
printers, fax, multifunction machine, personal
computers, and monitors. Reducing product energy
consumption helps combat smog, acid rain and
long-term changes to the climate by decreasing the
emissions that result from generating electricity.

Xerox ENERGY STAR equipment is preset at the
factory. Your machine will be delivered with the
timer for switching to Power Save Mode from the
last copy/print out, set at 30 minutes. A more
detailed description of this feature can be found in
the Machine Setup Section of this guide.

Product Recycling and Disposal

European Union

Domestic/Household Environment

Application of this symbol on your equipment is
confirmation that you should not dispose of the
equipment in the normal household waste stream. In
accordance with European legislation, end of life
electrical and electronic equipment subject to disposal
must be segregated from household waste. Private
households within EU member states may return
used electrical and electronic equipment to
designated collection facilities free of charge. Please
contact your local disposal authority for information. In
some member states, when you purchase new
equipment, your local retailer may be required to take
back your old equipment free of charge. Please ask
you retailer for information.

Prior to disposal, please contact your local dealer or
Xerox representative for end of life takeback
information.

Professional/Business Environment

Application of this symbol on your equipment is
confirmation that you must dispose of this equipment
in compliance with agreed national procedures.

In accordance with European legislation, end of life
electrical and electronic equipment subject to disposal
must be managed within agreed procedures.

North America

Xerox operates an equipment takeback and reuse/recycle program.
Contact your Xerox sales representative (1-800-ASK-XEROX) to
determine whether this Xerox product is part of the program. For
more information about Xerox environmental programs, visit

www.xerox.com/environment or for recycling and disposal

information, contact your local authorities. In the United States, you
may also refer to the Electronic Industries Alliance web site:

www.eiae.org.

Xerox operates a worldwide equipment take back and reuse/recycle
program. Contact your Xerox sales representative (1-800-ASK­XEROX) to determine whether this Xerox product is part of the
program. For more information about Xerox environmental
programs, visit www.xerox.com/environment.

vii

If you are managing the disposal of your Xerox product, please note
that the product may contain lead, Perchlorate and other materials
whose disposal may be regulated due to environmental
considerations. The presence of these materials is fully consistent
with global regulations applicable at the time that the product was
placed on the market. For recycling and disposal information,
contact your local authorities. In the United States, you may also
refer to the Electronic Industries Alliance web site: www.eiae.org.

Perchlorate Material - This product may contain one or more
Perchlorate-containing devices, such as batteries. Special handling
may apply, please see www.dtsc.ca.gov/hazardouswaste/

perchlorate/.

Others Countries

Please contact your local waste authorities and request disposal
guidance.

EH&S Contact Information

For more information on Environment, Health and Safety in relation
to this Xerox product and supplies, please contact the following
customer help lines: USA: 1-800 828-6571 Canada: 1-800 828­6571 Europe: [phone].

• Product Safety information for US

www.xerox.com/about-xerox/environment/enus.html

• Product Safety information for EU

www.xerox.com/about-xerox/environment/eneu.html

1.1 <

Introduction>

1 Introduction

Congratulations on the purchase of your printer!

This chapter includes:

• Special features

• Printer overview

• Finding more information

Special features

Your new printer is equipped with several special features that improve
the print quality. You can:

Print with excellent quality and high speed

• You can print up to 1200 x 1200 dpi effective
output. See the Software section.

• Your printer prints A4-sized paper at up to 38 ppm

a

and letter-sized paper at up to 40 ppm. For duplex
printing, your printer prints A4-sized paper at up to
26 ipm

b

and letter-sized paper at up to 27 ipm.

a. pages per minute
b. images per minute

Handle paper flexibly

• Tray1(MPT) supports letterheads, envelopes,
labels, transparencies, custom-sized materials,
postcards, and heavy paper. Tray1(MPT) holds up
to 100 sheets of plain paper.

• 500-sheet tray 2 and 500-sheet optional tray 3
support plain paper in various sizes.

• Multiple output tray; select either the output tray
(face-down) or the rear cover (face-up) for the
most convenient access.

• Straight-through paper path capability from
Tray1(MPT) to the rear cover.

Create professional documents

•Print Watermarks. You can customize your
documents with words, such as “Confidential”. See
the Software section.

•Print Booklets. This feature enables you to easily
print a document to create a book. Once printed, all
you have to do is fold and staple the pages. See the
Software section.

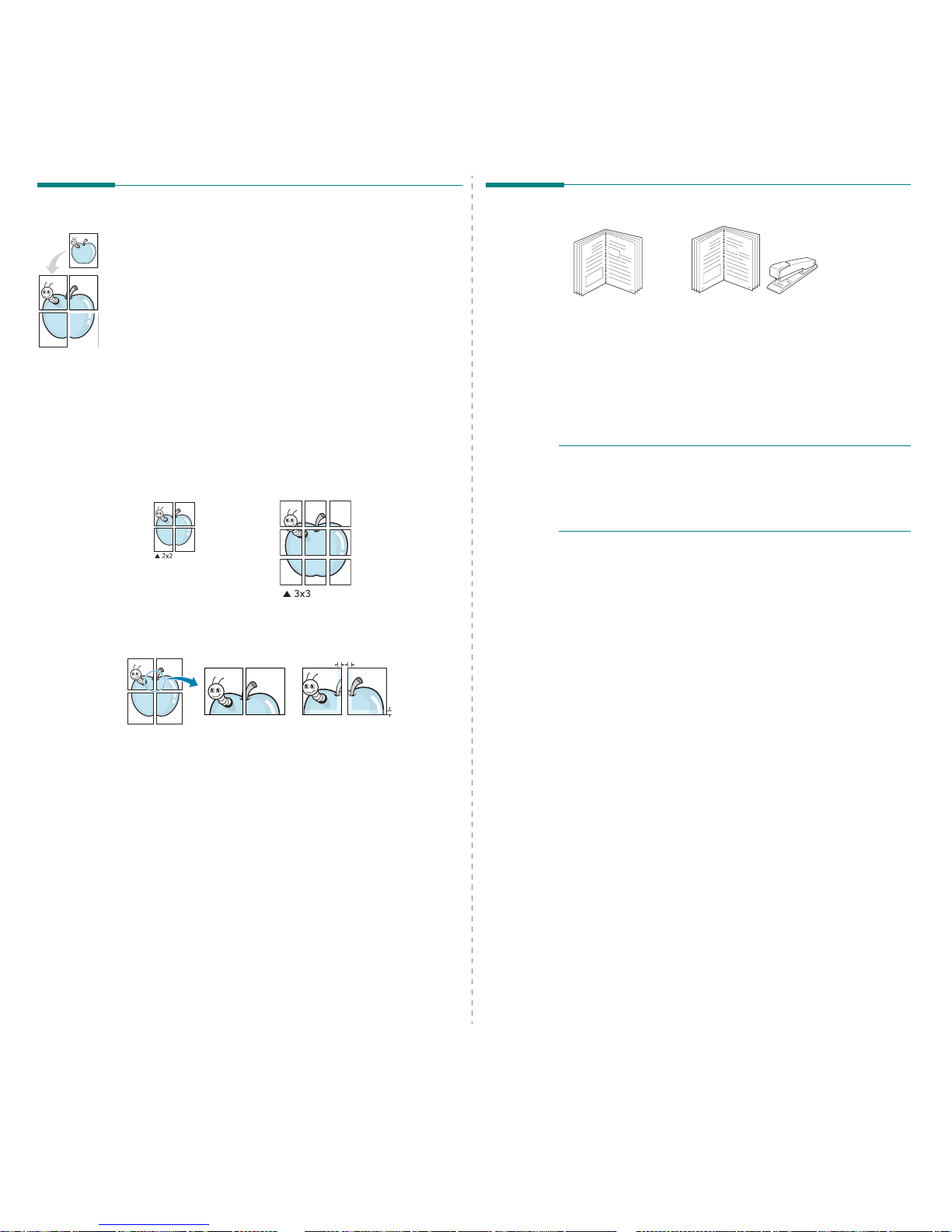

•Print Posters. The text and pictures of each page
of your document are magnified and printed across
the sheet of paper and can then be taped together
to form a poster. See the Software section.

9

8

Save time and money

• You can print on both sides of the paper to save
paper (Double-sided printing).

• You can print multiple pages on a single sheet of
paper to save paper (2-Up printing). See the
Software section.

• You can use preprinted forms and letterhead with
plain paper. See the Software section.

• This printer automatically conserves electricity
by substantially reducing power consumption
when not in use.

Expand the printer capacity

•The Phaser 3600 series have 64 MB or 128 MB of
memory which can be expanded to 512 MB. See
page 10.1.

•A Network interface enables network printing.

•A PostScript 3 Emulation* (PS) enables PS
printing.

* Zoran IPS Emulation compatible with PostScript 3

• © Copyright 1995-2005, Zoran Corporation.
All rights reserved. Zoran, the Zoran logo, IPS/PS3
and OneImage are trademarks of Zoran
Corporation.

* 136 PS3 fonts

• Contains UFST and MicroType from Monotype Imaging Inc.

Print in various environments

• You can print in Windows 2000/XP/Vista/2003.

• Your printer is compatible with Macintosh.

• Your printer comes with both Parallel and USB interfaces.

• You can also use a network interface. The Phaser 3600/N or
Phaser 3600/DN comes with a built-in network interface, 10/100
Base TX.

1 2

3 4

1.2 <

Introduction>

Printer features

The table below lists a general overview of features supported by your
printer.

(I: Installed, O: Option, NA: Not Available)

Features

Phaser
3600/B

Phaser
3600/N

Phaser

3600/DN

IEEE 1284 Parallel I I I

USB 2.0 I I I

Network Interface

(Ethernet 10/100 Base TX)

NA I I

PostScript* Emulation I I I

Duplex printing

a

a. Printing on both sides of paper.

OOI

Printer overview

Front view

1

output tray

7

optional tray 3

2

control panel

8

tray 2

3

control board cover

9

Tray1( MPT)

4

handle

10

Tray1(MPT) handle

5

power switch

11

top cover

6

paper level indicator

12

output support

* The figure above shows an Phaser 3600/DN

with all available options.

1.3 <

Introduction>

Rear view

1

rear cover

5

parallel port

2

duplex unit

6

power receptacle

3

network port

7

power switch

4

USB port

* The figure above shows an Phaser 3600/DN

with all available options.

Control panel overview

1

Start/Stop: Cancel an operation at any time; resume printing.

2

Back: Sends you back to the upper menu level.

3

Status: Shows the status of your printer. See page 9.7.

4

Menu: Enters Menu mode and arrows through the available

menus.

5

LCD: Displays the printer status, error messages and menus

in progress.

6

Up Arrow button: The option available in the selected menu

increase values.

7

OK: Confirms the selection on the display.

8

Down Arrow button: The option available in the selected

menu decrease values.

/

1.4 <

Introduction>

Finding more information

You can find information for setting up and using your from the following
resources, either printed or onscreen.

Quick Install
Guide

Provides information on setting up your printer
and, therefore, be sure to follow the
instructions in the guide to get the printer
ready.

Quick Use Guide Provides information on using your printer or

cleaning jam and, therefore, be sure to follow
the instructions in the guide to use the printer.

Online User’s
Guide

Provides you with step-by-step instructions for
using your printer’s full features, and contains
information for maintaining your printer,
troubleshooting, and installing accessories.

This user’s guide also contains the Software
Section providing you with information on how
to print documents with your printer on various
operating systems, and how to use the
supplied software utilities.

Note

You can access the user’s guides in
other languages from the Manual
folder on the printer driver CD.

Printer Driver
Help

Provides you with help information on printer
driver properties and instructions for setting up
the properties for printing. To access a printer
driver help screen, click Help from the printer
properties dialog box.

Xerox website If you have Internet access, you can get help,

support, printer drivers, manuals, and order
information from the Xerox website,

www.xerox.com/office/support

.

Workcentre 3428

Workcentre 3428

Selecting a location

Select a level, stable place with adequate space for air circulation. Allow
extra space for opening covers and trays.

The area should be well-ventilated and away from direct sunlight or
sources of heat, cold, and humidity. Do not set the printer close to the
edge of your desk or table.

Clearance space

Front: 500 mm (enough space

so that trays can be opened or
removed)

Back: 350 mm (enough space
to allow opening of the rear

cover or the duplex unit)

Right: 100 mm (enough space

for ventilation)

Left: 100 mm (enough space
to allow opening of the control
board cover)

2.1 <

System setup>

2 System setup

This chapter provides step by step information on setting up your printer.

This chapter includes:

• Using control panel menus

• Menu overview

• Printing a demo page

• Changing the display language

Using control panel menus

A number of menus are available to make it easy for you to change the
printer settings. The diagram on the next column shows the menus and
all of the menu items available in each menu. The items in each menu
and the options you can select are described in more detail in the tables
beginning on page 2.2.

Accessing control panel menus

You can control your printer from the printer’s control panel. You can
also set the control panel menus while the printer is in use.

1 Press Menu until the menu you want appears on the bottom line of

the display and press OK.

2 Press the Up/down arrow buttons until the desired menu item

appears and press OK.

3 If the menu item has sub menus, repeat step 2.

4 Press the Up/down arrow buttons to access the desired setting

option or the required value.

5 Press OK to save your selection.

An asterisk (*) appears next to the selection on the display,
indicating that it is now the default.

6 Press Start/Stop to return to Standby mode.

After 30 seconds of inactivity (no key being pressed), the printer
automatically returns to Standby mode.

Note

Print settings made from the printer driver on a connected
computer override the settings on the control panel.

Note

Some menus may not appear in the display depending on
options or models. If so, it is not applicable to your machine.

Menu overview

The control panel menus are used to configure the printer. The control
panel provides access to the following menus:

a. Available when the installed memory is larger than 128 MB.
b. Available when duplex unit is installed.
c. Available when optional tray 3 is installed.

Information

(See page 2.2.)

Menu Map
Configuraton
Demo Page
PCL Font List
PS3 Font List

a

FlashDirectory
EPSON Font

Layout

(See page 2.2.)

Orientation
Simplex Margin
Duplex

b

Duplex Margin

b

Image Adjust

Emulation

(See page 2.7.)

Emulation Type
Setup
Hex Mode

Paper

(See page 2.4.)

Copies
Tray 1MPT Size
Tray 1MPT Type
Tray 2 Type
Tray 3 Type

c

Paper Source
Bypass MP Tray
Tray Chaining

System Setup

(See page 2.5.)

Language
Power Save
Auto Continue
Altitude Adj.
Auto CR
Collation

a

SmartDuplexing

b

Job Timeout
Job Held Timer

a

Maintenance
Parallel Setup
USB Setup
Panel Lockout
Secure Print
Low Toner
Cm or inches
Clear Setting

Graphic

(See page 2.5.)

Resolution
Darkness

Network

a

(See page 2.8.)

TCP/IP
EtherTalk
NetWare
Ethernet Speed
Clear Setting
Network Info.

802.1x
Port 9100
LPR
IPP
SLP
CentreWare IS
SNMP

Secure Print

a

(See page 2.2.)

Release

a

Delete

a

2.2 <

System setup>

Information menu

This menu contains printer information pages that give details about the
printer and its configuration.

Secure Print menu

Use the Secure Print menu to print or delete a secured page. The
passcode is validated against the one submitted with the page.

Note

This item is available when the installed memory is larger than
128 MB.

Item Explanation

Menu Map The menu map shows the layout and current

settings of the control panel menu items.

Configuraton The configuration page shows the printer’s

current configuration. See page 8.1.

Demo Page The demo page allows you to check if your

printer properly performs printing. See
page 2.9.

PCL Font List
PS3 Font List

The font sample list shows all of the fonts
currently available in the selected language.

FlashDirectory You can print the list pages about all of fonts

and macros which you downloaded into the
machine.

EPSON Font The font sample list shows all of the fonts

currently available in the selected language.

Item Explanation

Release To print a protected page, enter passcode for

the page. The page will be printed only when
both user name and the passcode is validated.
If the Release All item in Secure Print of
System Setup menu is set as On, all files
which match with both user name and
passcode are printed out.

Delete To delete a protected page, enter passcode for

the page. Only if the passcode is validated, the
page will be deleted.

Layout menu

Use the Layout menu to define all settings relating to output.

Item Explanation

Orientation

Choose the default orientation of the print image
on the page.

Simplex
Margin

Set the margin of print materials for one-sided
printing. You can increase or decrease the value in

0.1 mm increments. The margins may differ
according to the paper size and printing
orientation.

You can select the unit either millimeters or inches.
See Cm or inches item on page 2.7 to configure
the unit.

• Top Mar gi n: Set the top margin, from 0.0 to
250 mm.

• Left Margin: Set the left margin, from 0.0 to
164 mm.

Value s: Portrait, Landscape

Portrait

Landscape

2.3 <

System setup>

Duplex

To print on both sides of paper, choose the binding
edge as follows.

• Long Edge: Flip on the long edge. Prints pages
to read like a book.

• Short Edge: Flip on the short edge. Prints
pages to read by flipping over like a note pad.

Select Off to print on one side of the paper.

Duplex
Margin

In this menu, you can set the margins for double­sided printing. You can increase or decrease the
value in 0.1 mm increments.

• Top Margin: Set the top margin, from 0.0 to 9.9
mm. The default is 5.0 mm.

• Left Margin: Set the left margin, from 0.0 to 9.9
mm. The default is 5.0 mm.

• Short Binding: Set the bottom margin of the
back of the page for short binding, from 0.0 to 22
mm. The default is 0 mm.

• Long Binding: Set the right margin of the back
of the page for long binding, from 0.0 to 22 mm.
The default is 0 mm.

Item Explanation

Values: Off, Long Edge, Short Edge

Long Edge in the
Portrait orientation

Long Edge in the
Landscape orientation

25

3

2

5

3

2

5

3

2

5

3

Short Edge in the
Landscape orientation

Short Edge in the
Portrait orientation

Image Adjust In this menu, you can set the margins to each

paper tray. Each tray has 9 items to adjust
margins. You can increase or decrease the value
from -3.5 to 3.5 mm at intervals of 0.5 mm. The
defaults are 0 mm.

• Simplex Image: Print a test page to adjust
margins in simplex printing.

• Side1 Top: Set the top margin of a simplex
page.

• Side1 Left: Set the left margin of a simplex
page.

• Duplex Long: Print a test page to adjust
margins in duplex printing with long edge
binding.

• Long Top: Set the top margin of a duplex page
with long edge binding.

• Long Left: Set the left margin of a duplex page
with long edge binding.

• Duplex Short: Print a test page to adjust
margins in duplex printing with short edge
binding.

• Short Top: Set the top margin of a duplex page
with short edge binding.

• Short Left: Set the left margin of a duplex page
with short edge binding.

Item Explanation

2.4 <

System setup>

Paper menu

Use the Paper menu to define all settings relating to print material input
and output, as well as the specific print material you are using with your
printer.

Item Explanation

Copies

Set the default number of copies by selecting any
number from 1 to 999. The default is 1.

Tray 1MPT
Size

Select the paper size currently loaded in tray.

• Custom Size: You can configure the size for your
own custom paper. Set the width from 98 mm to
216 mm, and the height from 148 mm to 356 mm.
You can select the unit either millimeters or
inches. See Cm or inches item on page 2.7 to
configure the unit.

Tray 1MPT
Typ e

Select the paper type currently loaded in tray.

Tray 2 Type

Select the paper type currently loaded in tray.

Tray 3 Type

Available only when optional tray is installed. Refer
to the Tray 2 Type to select the paper type.

Paper
Source

Using this item, you can set which tray you want to
use.

• Auto Select: The printer can automatically
determine the source.

• Manual Feed: The printer uses Tray 1(MPT).

• Tray 3: Available only when optional tray is
installed.

Values: 1 ~ 999

Values: A4, A5, A6, JIS B5, ISO B5, JIS B6,
Letter, Legal, Executive, No.10 Env., Monarch
Env., DL Env., C5 Env., C6 Env., US Folio,
Oficio, Statement, US Postcard, Index Card,
Custom Size

Values: Plain Paper, Bond, Transparency,
Envelope, Labels, Card Stock, Preprinted,
Color, Cotton Paper, Recycled, Thick, Thin,
Custom1, Custom2, Custom3, Custom4,
Custom5

Values: Plain Paper, Preprinted, Color,
Recycled, Thick, Thin, Custom1, Custom2,
Custom3, Custom4, Custom5

Values: Plain Paper, Preprinted, Color,
Recycled, Custom1, Custom2, Custom3,
Custom4, Custom5

Values: Tray 1(MPT), Tray 2, Tray 3,

Manual Feed, Auto Select

Bypass MP
Tray

If a paper mismatch occurs in Tray 1(MPT), you
can set whether to stop printing or continue to print
ignoring the error.

If this menu item is set to On, the printer will
continue to print regardless the paper mismatch
error of Tray 1(MPT).

Tray
Chaining

When you select any other value except Auto
Select from Paper Source and the selected tray is

empty, the printer automatically prints from other
trays.

If this menu item is set to Off, the Status LED lights
red and the printer doesn’t work until you insert
paper into the specified tray.

Item Explanation

Values: Off, On

Values: Off, On

2.5 <

System setup>

Graphic menu

Use the Graphic menu to change settings affecting the quality of the
printed characters and images.

Item Explanation

Resolution

Specify the number of dots printed per inch (dpi).
The higher the setting, the sharper printed
characters and graphics.

• If your print jobs are mostly text, select 600dpi-
Normal for the highest quality printing.

•Select 1200dpi-Best when your job contains
bitmapped images, such as scanned photos or
some graphics, that will benefit from enhanced
line screening.

Darkness

You can lighten or darken the print on the page by
changing the toner density setting. The Normal
setting usually produces the best result. Use the
Light toner density setting to save toner.

Values: 600dpi-Normal, 1200dpi-Best

Values: Normal, Light, Dark

System Setup menu

Use the System Setup menu to configure a variety of printer features.

Item Explanation

Language

This setting determines the language of the text
that appears on the control panel display and
information printing.

Power Save

When the printer does not receive data for an
extended period of time, power consumption is
automatically lowered. You can set how long
the printer waits before going to power save
mode.

Auto Continue

This item determines whether or not the printer
continues printing when it detects the paper is
mismatched with your paper setting.

• Off: If a paper mismatch occurs, the message
will remain on the display and the printer will
remain off-line until you insert the correct
paper.

• On: If a paper mismatch occurs, an error
message will display. The printer will go
offline for 30 seconds, then automatically
clear the message and continue printing.

Altitude Adj.

You can optimize print quality according to your
altitude.

Auto CR

This item allows you to append the required
carriage return to each line feed.

Refer to the following samples:

Values: English, FRANCAIS, Espanol,
Portugues B., Deutsch, Italiano...

Values: [1] Min, [5] Min, [10] Min, [15] Min,
[20] Min, [30 ] Min, [45] Min, [60] Min,
[ 120 ] Min, [ 240 ] Min

Values: Off, On

Values: Normal, High1, High2, High3

Values: LF, LF+CR

LF LF+CR

AA
BB
CC

AA
BB
CC

2.6 <

System setup>

Collation

This item allows you to collate the received data
through the print driver. The printer will print
output in sets to match the sequence of the
originals.

• Off: When the printer receives data from the
PC driver, it will print out as received.

• On: When the printer receives data from PC
driver, it will print out after storing and
collating the data.

SmartDuplexing

If this menu is set to

On, the printer will detect a

single page job and print it as a simplex-single­page even though the printer driver on your PC
was set to duplex printing as a default.

Job Timeout

You can set the length of time the printer waits
before printing the last page of a print job that
does not end with a command to print the page.
The default is 15 sec.

When a print time-out occurs, the printer prints
the page in the print buffer.

Job Held Timer

The machine holds a secure print job for a
specific time period. The default is 24 hours.
You can set a time period for a maximum of 72
hours.

Item Explanation

Values: Off, On

Values: Off, On

Value s: 0 ~ 1800 sec

Value s: 1 ~ 72 hours

Maintenance This item allows you to maintain your printer.

• Clean Drum: Cleans the OPC drum of the
cartridge and produces a cleaning sheet with
toner debris on it.

• Clean Fuser: Cleans the fuser unit inside of
the printer and produces a cleaning sheet
with toner debris on it.

• Supplies Life: This item allows you to check
how many pages have printed and how much
toner is left in the cartridge.

Parallel Setup • Parallel Port: You can enable or disable the

parallel port.

• Port Timeout: You can set the length of time
the printer waits before printing the last page
of a print job that does not end with a
command to print the page. When a print
time-out occurs, the printer prints the page in
the print buffer.

• Parallel PDL: This item defines the printer
language to communicate between computer
and printer through the parallel port. You can
set among Auto Select, PCL, PostScript,

EPSON, IBM.

USB Setup • Usb Port: You can enable or disable the USB

port as a security measure.

• Port Timeout: You can set the length of time
the printer waits before printing the last page
of a print job that does not end with a
command to print the page. When a print
time-out occurs, the printer prints the page in
the print buffer.

• USB PDL: This item defines the printer
language to communicate between computer
and printer through the USB port. You can set
among Auto Select, PCL, PostScript,

EPSON, IBM.

Panel Lockout

You can lock or unlock. If you set this item On,
you have to enter a passcode to access some
of the panel.

Item Explanation

Value s: Off, On

2.7 <

System setup>

Emulation menu

Use the Emulation menu to configure printer language emulation.

Secure Print

• Release All: If this menu is configured to Off,
Release item in Secure Print menu launches

only one file which agrees with the user name
and the passcode for the file.
If this menu is configured to On, Release
item in Secure Print menu releases every file
that matches the user name and the
passcode.
The default is Off.

• Delete: You can delete all of the pages
regardless of the user name or the passcode.

Low Toner

• Stop: When the toner in the cartridge
becomes almost empty, the machine will not
resume printing until you install a new Xerox­genuine print cartridge.

• Continue: Even though the toner in the
cartridge becomes almost empty, the
machine will continue the printing job.

Cm or inches

You can set the unit in the machine with your
preferences either in centimeters or inches.
This selection affects the following menus.

• Simplex Margin in Layout menu.

• Custom Size of Tray 1MPT Size in Paper
menu.

Clear Setting This menu item allows you to restore the

printer’s factory default settings.

Item Explanation

Emulation
Typ e

The printer language defines how the computer
communicates with the printer.
If you select Auto, your printer can change the
printer language automatically.

Setup

See the tables on page 2.7 to configure the printer
language.

Item Explanation

Value s: Release All, Delete

Values: Stop, Continue

Value s: cm, inches

Values: Auto, PCL, PostScript, EPSON, IBM

Values: PCL, PostScript, EPSON, IBM

PCL

This menu sets the PCL emulation configuration. You can set the font
type, symbol type, lines per page, and point size.

Hex Mode

When you set this menu on, the printer will print the
unprocessed hex data.

Item Explanation

Typeface

You can select the standard font to be used in PCL
emulation.

• PCL 1~PCL 7’s interval between letters is fixed, and
PCL 8~PCL 45’s interval is proportional to the font
type and point size. You can adjust the font size of
PCL 1~PCL 7 using the Pitch item, and
PCL 8~PCL 45 can do using Point Size item.

• PCL 46~PCL 54’s interval and point size are fixed.

Symbol

This item selects the symbol to be used in PCL
emulation. The symbol is the group of numbers,
marks, and special signs being used when printing
letters. The default is PC8.

Point Size

When you select one between PCL 8 and PCL 45 from
the Typeface menu, you can determine the font size
by setting the height of the characters in the font. The
default is 12.00.

Courier

This item lets you select the version of Courier font to
use.

Pitch

When you select a font between PCL 1 and PCL 7
from the Typ efa ce menu, you can determine the font
size by setting the number of characters that will print
in one horizontal inch of type. The default value, 10 is
the best size.

Item Explanation

Values: Off, On

Values: PCL 1 ~ PCL 54

Values: ROMAN8 ~ PCYRIL

Values: 4.00 ~ 999.75 (0.25 unit)

Value s: Regular, Dark

Values: 0.44 ~ 99.99 (0.01 unit)

2.8 <

System setup>

PostScript

This menu provides you with the Print PS Error menu item.

EPSON

This menu sets the EPSON emulation configuration.

Lines

This item allows you to set vertical spacing from 5 to
128 lines for the default paper size. The lines may
differ according to the paper size and printing
orientation.

Item Explanation

Print PS
Error

You can select whether or not your printer prints an
error list when a PS error occurs.

•Select On to print PS 3 emulation errors. If an error
occurs, the job stops processing, the error message
prints, and the printer flushes the job.

• If this menu is set to Off, the job is flushed without an
indication of the error.

Item Explanation

Font

You can select the standard font that will be used in
EPSON emulation.

Character
Set

This item allows you to select a character set of the
desired language.

Character
Tab .

This item selects the character set.

Pitch

You can determine the font size by setting the number
of characters that will print in one horizontal inch of
type.

Item Explanation

Values: 5 ~ 128 (1 unit)

Values: On, Off

Values: SANSERIF, ROMAN

Values: USA, FRANCE, GERMANY, UK,
DENMARK1, SWEDEN, ITALY, SPAIN1, JAPAN,
NORWAY, DENMARK2, SPAIN2, LATIN

Values: ITALIC, PC437US, PC850

Values: 10, 12, 17.14, 20

Network menu
(Phaser 3600/N, Phaser 3600/DN only)

This menu lets you configure the network interface installed in your
printer. You can reset the network interface and print a configuration
page.

LPI

You can set the number of lines printed in one vertical
inch.

Auto
Wrap

This item determines whether or not the printer
automatically performs line feed when the data
overflows the printable area of the print material.

Item Explanation

TCP/IP

This item allows you to manually set the TCP/IP
addresses or receive the addresses from the
network.

• DHCP: The DHCP server assigns the IP address
to you automatically.

• BOOTP: The BOOTP server assigns the IP
address to you automatically.

• Static: You can enter IP address, subnet mask,
and gateway manually.

EtherTalk

This item lets you select whether or not you use the
EtherTalk protocol.

• Off: You can disable the EtherTalk protocol.

• On: You can enable the EtherTalk protocol.

NetWare

This item lets you select the IPX frame type.

• Auto: You can set the frame type automatically.

• 802.2: Select this value to use the IEEE 802.2
frame type.

• 802.3: Select this value to use the IEEE 802.3
frame type.

• Ethernet II: Select this value to use the Ethernet 2
frame type.

• SNAP: Select this value to use the SNAP frame
type.

• Off: You can disable the NetWare protocol.

Item Explanation

Values: 6, 8

Values: Off, On

Value s: DHCP, BOOTP, Static

Values: Off, On

Value s: Auto, 802.2, 802.3, Ethernet II, SNAP, Off

2.9 <

System setup>

Ethernet
Speed

This item allows you to select the ethernet speed.

Clear
Setting

This item performs a simple reset and restores the
factory default settings for the network
configuration. This setting will only take effect after
you have reset the printer.

Network
Info.

This item prints a page showing the network
parameters you set.

802.1x

This item is for connecting with an authentication
server. If you need to connect this product to an
authentication server, set this item On, and select
one of the following authentication method. You can
select any method which the authentication server
supports among EAP-MD5, EAP-MSCHAPv2 and

PEAP.

Port 9100

This item lets you select whether or not you use port

9100.

• Off: You can disable the Port 9100 printing port.

• On: You can enable the Port 9100 printing port.

LPR

This item lets you select whether or not you use
LPR.

• Off: You can disable the LPR printing port.

• On: You can enable the LPR printing port.

IPP

This item lets you select whether or not you use the
IPP (Internet Printing Protocol) network connection.

• Off: You can disable the IPP.

• On: You can enable the IPP.

Item Explanation

Values: Auto, 10M Half, 10M Full, 100M Half,
100M Full

Values: Off, On

Values: Off, On

Values: Off, On

Values: Off, On

Printing a demo page

Print a demo page to make sure that the printer is operating correctly.

1 Press Menu and then OK when Information appears.

2 Press the Up/down arrow buttons until Demo Page appears and

press OK.

A demo page prints out.

Changing the display language

To change the language that is displayed on the control panel, follow
these steps:

1 Press Menu until System Setup appears on the bottom line of the

display and press OK.

2 Press OK when Language appears.

3 Press the Up/down arrow buttons to select the language you want

and press OK.

4 Press Start/Stop to return to Standby mode.

SLP

This item lets you select whether or not you use the
SLP (Service Location Protocol) network
connection.

• Off: You can disable the SLP.

• On: You can enable the SLP.

CentreWare
IS

This item lets you select whether or not you use the
embeded web server called CentreWare IS. If you
turn this item Off, you cannot connect to the
printer’s embeded web server.

Item Explanation

Values: Off, On

Values: Off, On

3.1 <

Software overview>

3 Software overview

This chapter gives you an overview of the software that comes with your
printer. Further details about installing and using the software are
explained in the Software Section.

This chapter includes:

• Supplied software

• Printer driver features

• System requirements

Supplied software

You must install the printer software using the supplied CD after you
have set up your printer and connected it to your computer.

CD provides you with the following software:

CD Contents

Printer
software CD

Windows • Printer driver: Use this driver to

take full advantage of your printer’s
features.

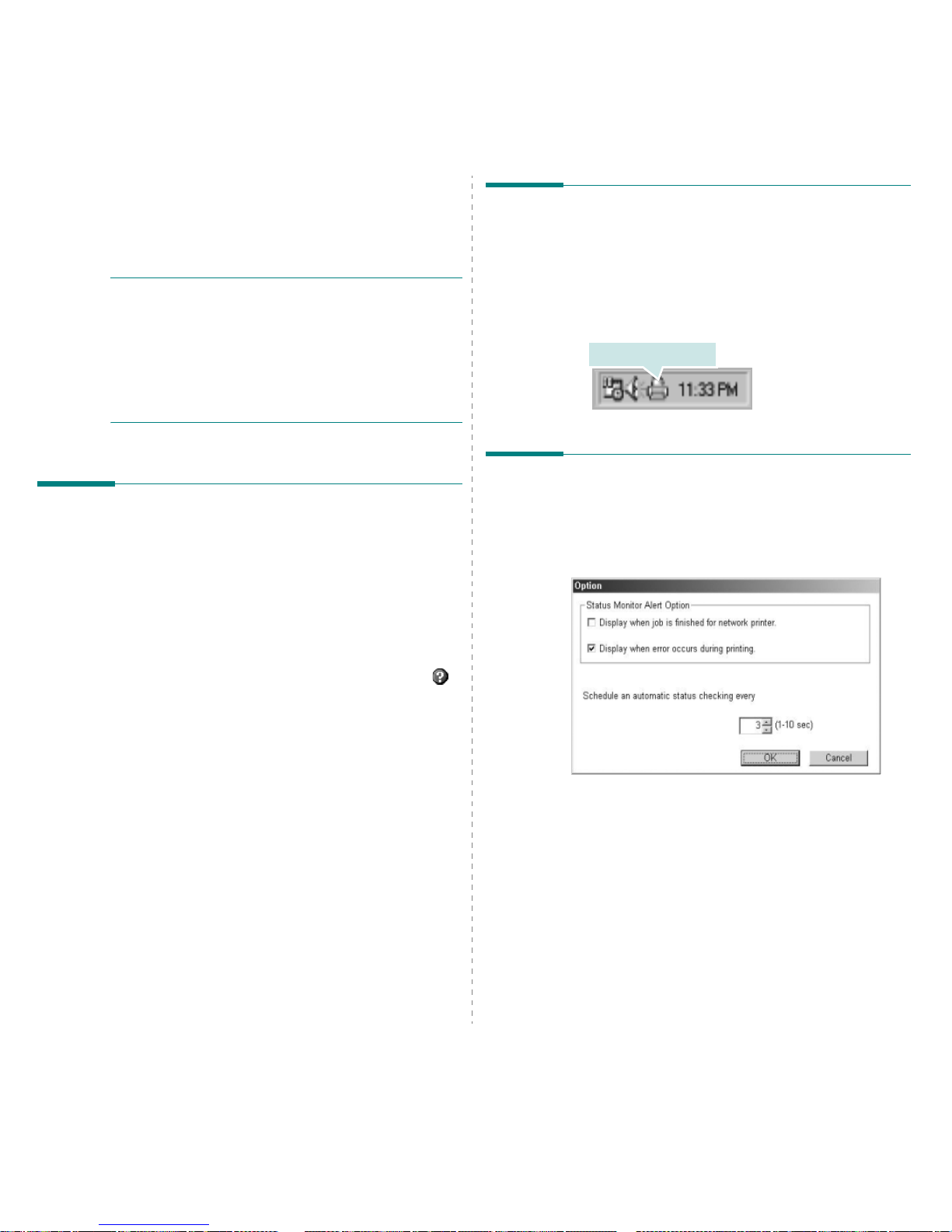

• Status Monitor: Appears when
printing errors occur.

• Printer Settings Utility: You can
configure print settings.

• PostScript Printer Description
(PPD) file: Use the PostScript
driver to print documents with
complex fonts and graphics in the
PostScript language.

•

SetIP: Use this program to set your
printer’s TCP/IP addresses.
(

Phaser 3600/N, Phaser 3600/DN

only)

•User Guide in PDF.

Linux • Printer driver: Use this driver to

run your machine from a Linux
computer and print documents.

Mac OS • PostScript Printer Description

(PPD) file: Use this file to run your
printer from a Macintosh computer
and print documents.

3.2 <

Software overview>

Printer driver features

Your printer drivers support the following standard features:

• Paper source selection

• Paper size, orientation and media type

• Number of copies

In addition, you can use various special printing features. The following
table shows a general overview of features supported by your printer
drivers:

Feature

Windows Mac OS

PCL 6 PostScript PostScript

Print quality option O O O

Poster printing O

X X

Multiple pages per sheet
(N-up)

OO O

Fit to page printing O O O

Scale printing O O O

Different source for first
page

O

XO

Watermark O X X

Overlay O

X X

System requirements

Before you begin, ensure that your system meets the following
requirements:

Windows

Note

Users who have administrator rights can install the software.

Mac OS

Item Requirements Recommended

Operating
system

Windows 2000/XP/Vista/2003

CPU Windows 2000 Pentium II

400 MHz or
higher

Pentium III
933 MHz

Windows XP/
2003

Pentium III
933 MHz or
higher

Pentium IV
1GHz

Windows Vista Pentium IV

3 GHz or higher

Pentium IV
3GHz

RAM Windows 2000 64 MB or more 128 MB

Windows XP/
2003

128 MB or more 256 MB

Windows Vista 512 MB or more 1024 MB

Free disk
space

Windows 2000 300 MB or more 1 GB

Windows XP/
2003

1GB or more 5GB

Windows Vista 15 GB or more 15 GB

Internet
Explorer

5.0 or higher

Item Requirements

Operating system Mac OS 10.2 ~ 10.5

CPU Intel processor PowerPC G4/G5

RAM Intel-based Mac 512 MB

Power-PC based Mac 128 MB

Free HDD space 1 GB

Connection USB interface, Network interface

4.1 <

Network setup (Phaser 3600/N, Phaser 3600/DN only)>

4 Network setup (Phaser 3600/N,

Phaser 3600/DN only)

This chapter gives you step-by-step instructions for setting up your
printer for network connections.

This chapter includes:

• Introduction

• Supported operating systems

• Configuring TCP/IP

• Configuring EtherTalk

• Configuring IPX frame types

• Setting Ethernet speed

• Restoring the network configuration

• Printing a network configuration page

• Configuring 802.1x

• Configuring Port 9100

• Configuring LPR

• Configuring IPP

• Configuring SLP

• Configuring CentreWare IS

Introduction

Once you have connected your printer to a network with an RJ-45
Ethernet cable, you can share the printer with other network users.

You need to set up the network protocols on the printer to use it as your
network printer.

Via network administration programs

You can configure your printer’s print server settings and manage the
printer via the following programs that came with your printer:

• CentreWare IS: A web server embedded in your network printer,
which allows you to remotely configure the printer settings and
network parameters necessary for the printer to be connected to
various network environments.

• SetIP: A utility program allowing you to select your network printer
and manually configure the printer's TCP/IP addresses.

Via the control panel

You can set up the following basic network parameters through the
printer’s control panel:

• Configure TCP/IP

• Configure IPX frame types for NetWare

• Configure EtherTalk, 802.1x, Port 9100, LPR, IPP, SLP,
CentreWare IS, and SNMP

Supported operating systems

The following table shows the network environments supported by the
printer:

• IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange

• TCP/IP: Transmission Control Protocol / Internet Protocol

• LPR: Line Printer Protocol

• IPP: Internet Printing Protocol

• SLP: Service Location Protocol

• SNMP: Simple Network Management Protocol

• DHCP: Dynamic Host Configuration Protocol

• BOOTP: Bootstrap Protocol

Item Requirements

Network interface • 10/100 Base-TX

Network operating
system

• Novell NetWare 4.x, 5.x, 6.x

• Windows 2000/XP/Vista/2003

• Mac OS 10.2 ~ 10.4, 10.5

• Various Linux OS

Network protocols • NetWare IPX/SPX

• TCP/IP on Windows

•EtherTalk

•802.1x

• Port 9100

•LPR

•IPP

•SLP

• CentreWare IS

•SNMP

Dynamic addressing
server

•DHCP, BOOTP

4.2 <

Network setup (Phaser 3600/N, Phaser 3600/DN only)>

Configuring TCP/IP

Your printer can be set up with a variety of TCP/IP network information,
such as an IP address, a subnet mask, a gateway, and DNS addresses.
There are several ways in which your printer can be assigned a TCP/IP
address, depending on your network.

• Static addressing: A TCP/IP address is assigned manually by the
system administrator.

• Dynamic addressing via BOOTP/DHCP (default): A TCP/IP address
is assigned automatically by the server.

Note

Before configuring TCP/IP, you need to set the network
protocol to TCP/IP.

Static addressing

To enter a TCP/IP address from your printer’s control panel, take the
following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press OK when TCP/IP appears.

3 Press the Up/down arrow buttons until Static appears and press

OK.

4 Press OK when IP Address appears.

5 Set the first byte between 0 and 255 using the Up/down arrow

buttons and press OK to move to the next byte.

Repeat this to complete the address from the 1st byte to the 4th
byte.

6 When you have finished, press OK.

7 Repeat step 5 and 6 to configure the other TCP/IP parameters:

subnet mask and gateway address.

8 Press Start/Stop to return to Standby mode.

Dynamic addressing (BOOTP/DHCP)

To have a TCP/IP address assigned automatically by the server, take the
following step:

1 Press Menu until Network appears on the bottom line of the

display.

2 Press OK when TCP/IP appears.

3 Press the Up/down arrow buttons until DHCP or BOOTP appears

and press OK.

4 Press Start/Stop to return to Standby mode.

Configuring EtherTalk

EtherTalk is AppleTalk used in an Ethernet network. This protocol is
widely used in Macintosh network environments. To use EtherTalk, take
the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until EtherTalk appears and

press OK.

3 Press the Up/down arrow buttons until On appears and press OK.

4 Press Start/Stop to return to Standby mode.

Configuring IPX frame types

To use IPX/SPX protocol networks (for example, Novell NetWare), the
format of the network communication frames must be specified for the
printer. In most cases, you can keep the

Auto setting. However, you can

manually set the frame type format, if required. Take the following steps
to change the frame type format:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until NetWare appears and

press OK.

3 Press the Up/down arrow buttons until the desired frame type

appears.

• Auto: Automatically senses and limits the frame type to the first
one detected.

• 802.2: Limits the frame type to IPX over IEEE 802.2 with IEEE

802.3 frames. All others will be discarded.

• 802.3: Limits the frame type to IPX over IEEE 802.3 frames. All
others will be discarded.

• Ethernet II: Limits the frame type to IPX over Ethernet Frames.
All others will be discarded.

• SNAP: Limits the frame type to IPX over SNAP with IEEE 802.3
frames. All others will be discarded.

• Off: The IPX/SPX protocol is disabled.

4 Press OK to save the selection.

5 Press Start/Stop to return to Standby mode.

4.3 <

Network setup (Phaser 3600/N, Phaser 3600/DN only)>

Setting Ethernet speed

You can select the communication speed for Ethernet connections.

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until Ethernet Speed appears

and press OK.

3 Press the Up/down arrow buttons until the speed you want

appears and press OK.

4 Press Start/Stop to return to Standby mode.

Restoring the network configuration

You can return the network configuration to its default settings.

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until Clear Setting appears and

press OK.

3 Press OK when Yes appears to restore the network configuration.

4 Power the printer off and back on.

Printing a network configuration page

The network configuration page shows how the network interface card
on your printer is configured.

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until Network Info. appears and

press OK.

3 Press OK when Yes appears.

The network configuration page prints out.

Configuring 802.1x

Your printer has 802.1x protocol on its network. 802.1x is a security
standard for port based network access control. It secures your network
against unauthorized access by requiring authentication before network
access and data transmission are allowed. There are 3 mutually
exclusive options for 802.1x authentication.

To use 802.1x, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until 802.1x appears and press

OK.

3 Press the Up/down arrow buttons until On appears and press OK.

4 Press the Up/down arrow buttons until the desired authentication

method appears.

• EAP-MD5: EAP-MD5 (Extensible Authentication Protocol
Message Digest algorithm 5) is a message hashing scheme
between client and server to allow the transfer of user data in a
secure fashion.

• EAP-MSCHAPv2: EAP-MSCHAP (Extensible Authentication
Protocol Microsoft version of the Challenge-Handshake
Authentication Protocol). MSCHAP v2 is a one-way encrypted
password, mutual authentication process. MS-CHAPv2 uses
different hashing/encryption algorithms to encode the UserID and
passwords.

• PEAP: PEAP (Protected EAP).

5 Enter user name and passcode using Up/down arrow button.

6 Press OK to save the selection.

7 Press Start/Stop to return to Standby mode.

Configuring Port 9100

Your printer can use port 9100. To enable port 9100, take the following
steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until Port 9100 appears and

press OK.

3 Press the Up/down arrow buttons until On appears and press OK.

4.4 <

Network setup (Phaser 3600/N, Phaser 3600/DN only)>

Configuring LPR

Your printer can use LPR (Line Printer Protocol) which transmit the
printing data through port 510. To enable LPR, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until LPR appears and press

OK.

3 Press the Up/down arrow buttons until On appears and press OK.

Configuring IPP

Your printer can use IPP ( Internet Printing Protocol) which transmit the
printing data through port 631. To enable IPP, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until IPP appears and press OK.

3 Press the Up/down arrow buttons until On appears and press OK.

Configuring SLP

Your printer can use SLP (Service Location Protocol) which transmit the
printing information through port 427. To enable SLP, take the following
steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until SLP appears and press

OK.

3 Press the Up/down arrow buttons until On appears and press OK.

Configuring CentreWare IS

Your printer can use CentreWare IS (Internet Services). To enable
CentreWare IS, take the following steps:

1 Press Menu until Network appears on the bottom line of the

display and press OK.

2 Press the Up/down arrow buttons until CentreWare IS appears

and press OK.

3 Press the Up/down arrow buttons until On appears and press OK.
