Xerox Phaser 3400 Network Guide

PHASER™ 3400 PERSONAL LASER PRINTER

Network Guide

Phaser™ 3400 Personal Laser Printer Network Guide

June 2001

Copyright © 2001, Xerox Corporation. All Rights Reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation.

Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

Ethernet trademarks of Xerox Corporation.

Adobe trademarks and Adobe Jenson™, Adobe Brilliant Screens™ technology, and IntelliSelect™ are trademarks of Adobe Systems Incorporated or its subsidiaries which may be registered in certain jurisdictions.

Apple QuickDraw™ is a trademark of Apple Computer Incorporated.

MS-DOS

PCL

The X-Window System™ is a trademart of Massachusetts Institute of Technology.

Novell

UNIX Limited.

Other marks are trademarks or registered trademarks of the companies with which they are associated.

, the stylized X, and XEROX® are registered trademarks of Xerox Corporation. Phaser ™ and infoSMART™ are

, Acrobat®, Acrobat® Reader, Illustrator®, PageMaker®, Photoshop®, and PostScript®, and ATM® are registered

, LaserWriter®, LocalTalk®, Macintosh®, Mac® OS, AppleTalk®, and EtherTalk® are registered trademarks, and

and Windows® are registered trademarks of Microsoft Corporation.

and HP-GL® are registered trademarks of Hewlett-Packard Corporation.

and NetWare® are registered trademarks of Novell, Incorporated.

is a registered trademark in the US and other countries, licensed exclusively through X/Open Company

Network Printing with Xerox Phaser Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Configuration Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Networking software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Connecting Your Printer to a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting up an Ethernet connection to a Macintosh or PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Running the Xerox installer from the printer’s CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TCP/IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Host (computer) configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting up the printer for TCP/IP printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation on Windows workstations for peer-to-peer printing. . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation on Windows workstations for client-server printing . . . . . . . . . . . . . . . . . . . . . . . . . 5

Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

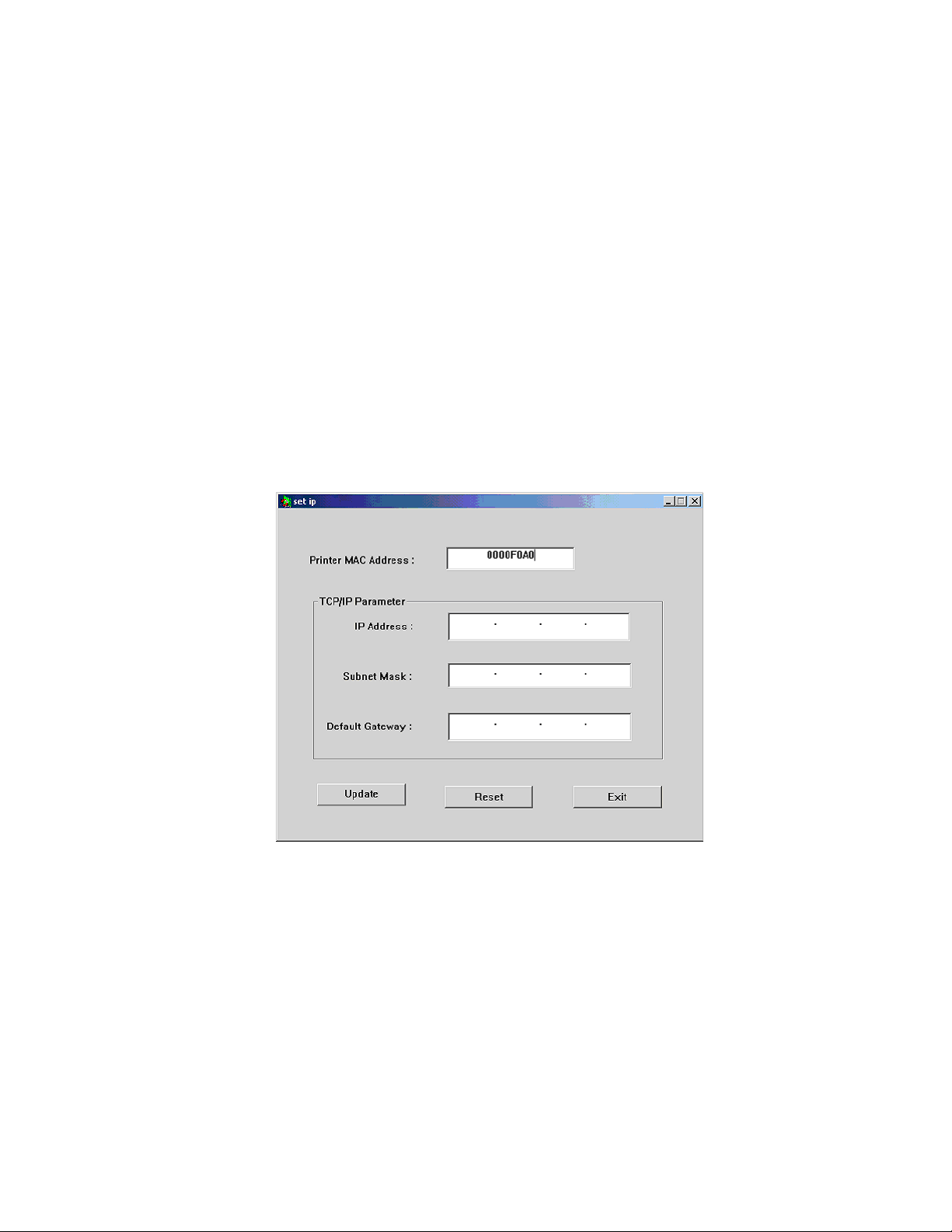

Setting the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Automatic IP addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Other Methods for setting the printer's IP address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Dynamic Host Configuration Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

EtherTalk Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting up the Macintosh Ethernet port for EtherTalk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting up the printer for EtherTalk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Finding the printer's name in the Chooser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Changing the printer's name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing the printer's EtherTalk zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Novell NetWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Configuration software for NetWare networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

The Phaser 3400 Web Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Accessing the printer from a web browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Network Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Determining enabled protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Disabling and enabling protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Getting Help from the World Wide Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Network Guide iii

Network Printing with Xerox Phaser Printers

This guide provides information to help you quickly install your printer when you have one of the following operating systems:

■

Windows 95, Windows 98, Windows 98se, and Windows Me

■

Windows NT 4.0 and Windows 2000

■

Mac OS 7.5 or higher

With the following protocols:

■

TCP/IP

■

Novell NetWare

■

EtherTalk or AppleTalk

Set up your printer and connect it to the network. For information about setting up the printer, refer to the Installation poster. For information about connecting the printer to the network, see page 3.

To speed the setup process and avoid conflicts, familiarize yourself with the components of your network. You should know which version(s) of NetWare are installed, which versions of the client software are used, and the network topology (frame types, routers, hubs, and cabling).

Network Guide 1

Network Printing with Xerox Phaser Printers

Configuration Sheet

The information supplied on the Configuration Sheet is helpful when you are installing and configuring the printer on a network. It consists of three pages. You can print the Configuration Sheet:

■

From the Control Panel

■

Using the Phaser 3400 web server

Printing a Configuration Sheet from the control panel

You can use this method even if your printer is not yet configured on the network.

1. Make sure the printer has been turned on.

2. Hold down the Print button until all lights blink.

3. Release the button.

The printer prints the Configuration Sheet.

Printing a Configuration Sheet using the Phaser 3400 web server

With a TCP/IP connection, you can view and change printer options by accessing internal web pages in your printer. To print the Configuration Sheet:

1. Open the Internet Explorer web browser (version 4.0 or higher).

2. For the Address, type http://, then the IP address of the Phaser 3400 printer, then

press the Enter key. For example, if the IP address is 192.25.26.81, type:

http://192.25.26.81

3. On the main page, click the Print button.

The printer prints the Configuration Sheet.

For more information on the Phaser 3400 web server, see page 14.

Networking software

The Phaser 3400 printer CD-ROM contains software for installing the printer on a network. The CD-ROM also contains online documentation, printer drivers, and other printer software. A single integrated installer is used to install printer drivers and other software. For information on using the installer, see page 4.

2 Phaser 3400 Personal Laser Printer

Connecting Your Printer to a Network

Setting up an Ethernet connection to a Macintosh or PC

Requirements

■

Two RJ-45, twisted-pair, Ethernet 10BaseT or 100BaseT cables

■

An Ethernet hub

The Phaser 3400 printer's Ethernet interface conforms to IEEE 802.3 and Ethernet II standards. Use twisted pair (10BaseT or 100BaseT) connections. Thick coax (10Base5) and thin coax (10Base2) connections require adapters; contact your dealer to obtain adapters, cables, and terminators.

Caution

To avoid damaging the Ethernet interface, turn off the printer before making any Ethernet connections.

Procedure

1. If the printer is on, turn it off.

2. Connect one end of an Ethernet cable to the Ethernet port on the printer.

3. Connect the other end of the cable to the hub. (Do not connect the cable to a port on

the hub labeled Uplink).

4. Turn on the printer.

5. Refer to the configuration instructions for your environment.

Network Guide 3
