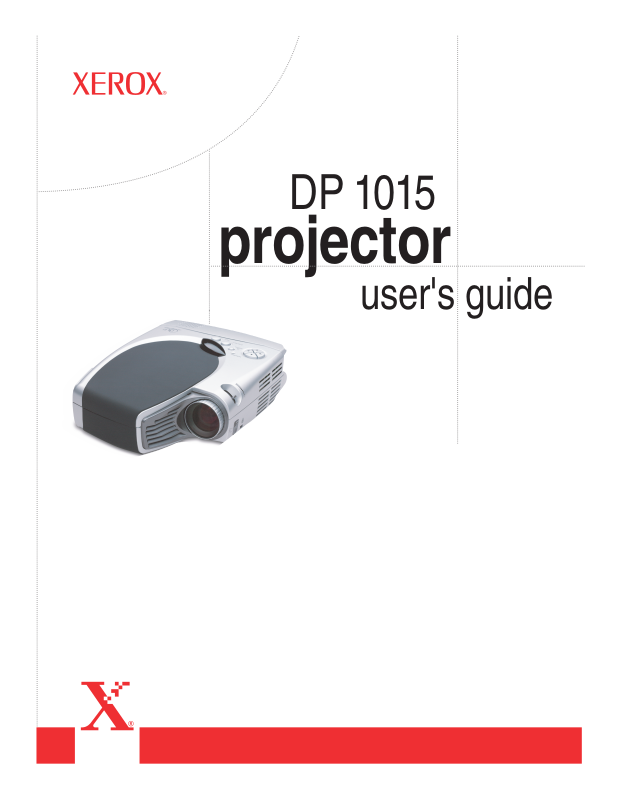

DP 1015
projector
user's guide
Xerox DP1015
projector
C
opyright ©
2004 Visi
Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.
Xerox ®, the digital X ® are registered trademarks of Xerox Corporation in the United States and/or other countries and are used under license. All other Xerox product names and product numbers mentioned in this publication are trademarks of Xerox Corporation. Apple, the Apple logo, and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
The Visioneer brand name and logo are registered trademarks of Visioneer, Inc.
Microsoft is a U.S. registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. All Rights Reserved. All other products mentioned herein may be trademarks of their respective companies.
Information is subject to change without notice and does not represent a commitment on the part of Visioneer. The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.
Part Number: 05-0603-000
Restricted Rights Legend
Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227-FAR14. Material scanned by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.
oneer, Inc.

Table of Contents

Welcome
Precautions
Do’s and Don’ts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
The Xerox DP1015 Projector
What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The Xerox DP1015 Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Video Adapter Connection Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Removing and Replacing the Video Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the Projector
Connecting the Projector for a Data-Only Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Connecting the Projector for a Video and Audio Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect to an S-Video DVD Player or VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect to a Composite Video DVD Player or VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connect to a Digital Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Powering On/Off the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjusting the Projected Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adjusting the Projector Zoom/Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjusting Projection Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
User Controls
Panel Control and Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Panel Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
On-Screen Display (OSD) Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Displaying Menus and Selecting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adjust the Projector Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Adjust the Computer Display Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Adjust the Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Choose a Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Projector Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Maintenance
Changing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Xerox DP1015 User’s Guide iii
Cleaning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Xerox DP1015 Projector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Setting the Screen Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Federal Communications Commission (FCC) for USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Product Recycling and Disposal for USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Xerox DP1015 User’s Guide iv

Welcome

Your new Xerox DP1015 projector is an XGA/SVGA single chip
0.7” DLP™ (Digital Light Processing) projector with these outstanding features:
True XGA, 1024 x 768 addressable pixels SVGA, 800 x 600 addressable pixels
3.5 lbs (1.58 kgs) compact design
Single chip DLP™ technology
Compatible with NTSC, NTSC4.43, PAL, PAL-M, and PAL-N
Compatible with most interfaces comprising YCbCr, YPbPr, S-Video, and Composite Video/Audio
Compatible with Windows 98 (or above) and Apple Macintosh
Full-function remote control that can be used as a mouse and a laser pointer
User-friendly multilingual on-screen display menu
User-friendly control panel
DVI connector that can be connected to digital or standard image signals
150 Watt user-replaceable lamp (VIP R150/P16)
Xerox DP1015 User’s Guide 1

Precautions

Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s guide to avoid injury, fire, electric shock, and to maximize the life of your projector.
Warning—Do not look into the projector’s lens when the lamp is on. The bright light may hurt your eyes.
Warning—Do not look into the laser beam or shine it into others’ eyes when using the remote control as a laser pointer. Laser light
seriously damage eyes.
can
Warning—Make sure that the projector is grounded properly by connecting the power cord to a grounded electric AC outlet. Always use the power cord that comes with your projector. Do not use an ungrounded adapter with the grounded plug.
Warning—Do not open or disassemble the product as this may cause electric shock.
Warning—To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Do not place drinks on top of the projector. Spilled drinks can cause an electric shock hazard and can also damage the projector.
Warning—Do not cover the lens while the lamp lights.
Warning—When switching the projector off, please ensure the
projector completes its cooling cycle before disconnecting power.
Warning—Turn on the projector first and then the signal sources.
Warning—Be sure to change the lamp when it shows warning
messages. If the lamp burns out while in the projector, it may crack and scatter glass shards into the projector. To replace the lamp, follow the procedures in “Changing the Lamp” on page 27.
Warning—Reset the “Reset Lamp Hours” function from the On Screen Display “Management” menu after replacing the lamp module (refer to “Projector Management” on page 26).
2 Xerox DP1015 User’s Guide

Do’s and Don’ts

Precautions
Do:
Turn off the projector before cleaning.
Use a soft cloth moistened with mild detergent to clean the display housing.
Disconnect the power plug from AC outlet if the projector is not being used for a long period of time.
Don’t:
Block the ventilation slots and openings on the projector.
Use abrasive cleaners, waxes or solvents to clean the projector.
Use under the following conditions:
— In extremely hot, cold or humid environment.
— In areas susceptible to excessive dust and dirt.
— Near any appliance generating a strong magnetic field.
— In direct sunlight.
Xerox DP1015 User’s Guide 3

The Xerox DP1015 Projector

What’s in the Box

The Xerox DP1015 Projector
Before proceeding, check the contents of the box. If items are missing or damaged, contact the dealer where you purchased the projector.
Projector with lens cap
Carrying Case with Shoulder Strap
Batteries
M1DA/VGA and USB cable
S-Video Cable
Power Cord
VGA Cable
USB Cable
Audio In/Out Cable
Remote Control
User’s Guide CD, Quick Installation Card, and Technical Support Card
Composite Video Cable
4 Xerox DP1015 User’s Guide

The Xerox DP1015 Features and Controls

Audio Speaker
Control Panel
Focus Ring
Zoom Wheel
Kensington™ Lock Slot
Foot Adjustor Release Button
The Xerox DP1015 Projector
Projection Lens
Lens Cap
Infrared Remote Sensor
M1DA Connector
Video Adapter (Removed)
Power Connector (on this side)
Audio Speaker—Provides audio if the Video Adapter is attached.
Control Panel—Control buttons and Power Indicator light. See
“Panel Control” on page 16 for a description of the Control Panel.
Focus Ring—Rotate to manually adjust the focus of the image.
Zoom Wheel—Rotate to zoom the image in or out.
Kensington™ Lock Slot—Slot for inserting a Kensington cable
and lock to protect your projector from theft.
Foot Adjustor Release Button—Press to release the foot adjustor to lower or raise the projector.
Projection Lens—Projects the image onto the screen.
Lens Cap—Protective cap to keep the lens from dirt or damage.
Always attach the cap when the projector is not in use.
Infrared Remote Sensor—Infrared receiver that receives signals from the remote control. Do not cover or block this sensor.
Video Adapter—Removable module. Connect for video presentations. Remove for computer-only presentations.
M1DA Connector—Connector for computer-only (non-video and non-audio) input, or for connecting the Video Adapter.
Power Connector—Plug the power cord into this connector.
Xerox DP1015 User’s Guide 5
The Xerox DP1015 Projector

Video Adapter Connection Ports

VGA Port—Plug the VGA cable into this VGA port, and plug the
other end into the video port on your computer. Use this port to project video from your computer with the projector.
USB Port—Plug the USB cable into this port, and plug the other end into USB port on your computer so you can use the remote control as the computer mouse.
S-Video Port—Plug your S-Video source in here, such as a professional-quality DVD player or VCR with an S-Video port.
Video Port (Yellow)—Plug your composite video source in here, such as a DVD player or VCR. Connect the yellow (video) plug to your video source and to this video port.
Audio/R Port (Red)—Plug in the red connector of the composite video cable here. Plug the other red end into the audio out port of your composite source, such as a DVD player or VCR.
Audio/L Port (White)—Plug in the white connector of the composite video cable here. Plug the other white end into the audio out port of your composite source, such as a DVD player or VCR.
Audio In Port—Plug in the audio cable to this port, and plug the other end into the audio out port of an audio source, such as the audio out port of your computer.
Audio Out Port—Plug external speakers into this port.
6 Xerox DP1015 User’s Guide

Removing and Replacing the Video Adapter

Remove the video adapter if you want to project non-video data— such as spreadsheets or text documents—from your computer.
1. Make sure the projector’s power is turned off.
2. Unscrew the two thumbscrews.
3. Carefully pull the video adapter straight out and away from the projector body.
The Xerox DP1015 Projector
Thumbscrews
The video adapter plugs into the M1DA port on the back of the projector body. Be careful not to bend the pins of the M1DA connector on the back of the video adapter as you pull it free.
The M1DA port is now exposed so you can connect your computer.
M1DA Port
4. See “Connecting the Projector for a Data-Only Display” on page 8 for the connections to the M1DA port.
5. To replace the video adapter, align the pins of the M1DA connector on its inside with the M1DA port and then push the video adapter onto the projector body. Tighten the thumbscrews.
NOTE: If the video adapter is not connected properly, or is loose,
the projector will not project an image.
Xerox DP1015 User’s Guide 7

Connecting the Projector

Connecting the Projector

Connecting the Projector for a Data-Only Display

In this configuration, the projector displays data (such as spreadsheets or text files) from your computer. Video and audio are not available.
USB and VGA connectors
Power Cord
M1DA/VGA and USB cable
Video Adapter (Removed)
M1DA Connector
1. Make sure the projector and computer are turned off.
2. Remove the video adapter from the back of the projector.
3. Using the M1DA/VGA and USB cable, connect the M1DA connector to the projector’s M1DA port. Connect the VGA connector to the VGA port on the computer.
4. Connect the USB connector to the USB port on your computer. You can then use the remote control as a remote mouse.
5. Plug the power cord into the projector and then into an electrical outlet.
6. Turn on the projector first, and then the computer.
NOTE: Your DP1015 projector works best when the computer
screen resolution is set to 1024 x 768 or less. To reset the computer screen resolution, see “Setting the Screen Resolution” on page 35.
8 Xerox DP1015 User’s Guide
Connecting the Projector

Connecting the Projector for a Video and Audio Display

Your projector can display video and play audio from a variety of sources, as shown in the following figure.
S-Video Source, (DVD player or VCR)
Composite Video Cable (used for Audio In/Out)
Digital Tuner
Computer Video In with Remote Control as the Mouse
Computer Audio In
S-Video Cable
Audio In/Out
VGA Cable
VGA Cable
USB Cable
Cable
Power Cord
Audio In/Out Cable
External Speakers for Audio Out
Composite Video Cable (used for Audio and Video)
Composite Video Source (DVD player or VCR)
1. Make sure the projector and computer are turned off.
2. Attach the video adapter to the back of the projector.
3. Connect the cables for the video and audio sources. See the next section for a description of the connections.
4. Plug the power cord into the projector and then into an electrical outlet.
5. Turn on the projector first, and then the computer and other components.
6. Press the Source key to view the current video image.
If you have multiple video sources connected, press the
Source key or the keys to select among the sources.
NOTE: Your DP1015 projector works best at computer screen
resolutions of 1024 x 768 or less. To reset the computer screen resolution, see “Setting the Screen Resolution” on page 35.
Xerox DP1015 User’s Guide 9
Connecting the Projector

Connecting Components

You can connect your projector to several types of video and audio devices. Refer to the figure on the previous page as a guide for the different connections described below.

Connect to a Computer

Typic a l Set up: You have a video file on your computer and want to project it through your projector.
1. Plug the VGA cable into the VGA port on the computer, and then into the VGA port on the projector.
2. If you want to use the remote control as a mouse, plug the USB cable into the USB port on the computer, and then into the USB port on the projector.
3. If your video file includes audio, plug the Audio In/Out cable into the Audio Out port on your computer, and then into the Audio In port on the projector.
The audio will play through the built-in audio speaker on the projector’s Video Adapter.
4. If you want to play the audio through external speakers, plug another Audio In/Out cable into the Audio Out port on the projector, and then into the Audio In port on the speakers.
NOTE: Some Notebook computers deactivate their screens
when a second display device is attached, or will not display an image through the projector until the screen settings are adjusted for the second display device. Please see the user’s manual that you received with your Notebook for the steps to reactivate its screen and display the projected image.

Connect to an S-Video DVD Player or VCR

Typic a l Set up: You have a DVD or Videotape that you want to project through your projector.
1. Plug the S-Video cable into the S-Video port on the DVD Player or VCR, and then into the S-Video port on the projector.
2. If the DVD or Videotape includes audio, plug the red and white connectors on the Composite Video Cable into the corresponding red and white ports on the projector. Then plug the red and white connectors on the other end of the cable into the corresponding ports on the DVD Player or VCR.
10 Xerox DP1015 User’s Guide
3. Do NOT plug the yellow connector into the projector or the DVD Player or VCR.
The audio will play through the built-in audio speaker on the projector’s Video Adapter.
4. If you want to play the audio through external speakers, plug the Audio In/Out cable into the Audio Out port on the projector, and then into the Audio In port on the speakers.

Connect to a Composite Video DVD Player or VCR

Typic a l Set up: You have a DVD or Videotape that you want to project through your projector.
1. Plug the red, white, and yellow connectors on the Composite Video Cable into the corresponding red, white, and yellow ports on the DVD Player or VCR.
2. Plug the red, white, and yellow connectors on the Composite Video Cable into the corresponding red, white and yellow ports on the projector.
Connecting the Projector
The audio will play through the built-in audio speaker on the projector’s Video Adapter.
3. If you want to play the audio through external speakers, plug the Audio In/Out cable into the Audio Out port on the projector, and then into the Audio In port on the speakers.

Connect to a Digital Tuner

Typic a l Set up: You want to play programs from your digital tuner through your projector.
1. Plug the VGA Cable into the VGA port on the digital tuner.
2. Plug the VGA Cable into the VGA port on the projector.
The audio will play through the built-in audio speaker on the projector’s Video Adapter.
3. If you want to play the audio through external speakers, plug the Audio In/Out cable into the Audio Out port on the projector, and then into the Audio In port on the speakers.
Xerox DP1015 User’s Guide 11
Connecting the Projector

Powering On/Off the Projector

To turn on the projector power
1. Remove the lens cap.
2. Make sure that the power cord and the cables from the video and audio sources are securely connected to the projector. The LED indicator flashes slowly.
3. Turn on the lamp by pressing and holding down the
Power button on the remote control or control panel.
The LED indicator turns a steady green.
A warm-up message appears on the screen.
4. Turn on all the other connected components.
The projector then automatically detects the type of components attached to it.
After about 30 seconds, the image for your projection appears.
5. Press the Source key to view the image from the current video source.
If you have multiple video sources connected, press the Source key or the keys to select among the sources.
6. (Optional, but recommended) Press the Auto/Enter button on the control panel to optimize the projector to the attached components.
If the screen displays “No Signal”, please make sure the signal cables are securely connected.
NOTE: Turn the projector on first, then the computer and other
components.
Power
Lens cap
12 Xerox DP1015 User’s Guide
Connecting the Projector
To turn off the projector power
1. Press the Power button on the projector or remote control to turn off the projector lamp.
An on-screen message appears asking if you’re sure you want to turn off the lamp.
2. Press the Power button again to confirm.
If you don’t press the button within ten seconds, the message disappears and the lamp remains lit. This convenient design is
in case you accidently press the Power button in the middle of a show and do not want to turn off the projector.
If you do press the Power button a second time, the LED indicator flashes rapidly. Then the projector automatically shuts itself down.
3. Do not turn on the projector again for at least two minutes. When the LED indicator is again flashing slowly it is safe to turn the lamp back on.

LED Indicator

4. After two minutes, disconnect the power cord.
NOTE: Do not disconnect the power cord until the projector’s
cooling fan stops (about two minutes). This protects the lamp from overheating and possible damage
LED Indicator
Slow flash—Normal operation; the power cord is plugged in.
Steady light, not flashing—Normal operation; the lamp power is on and the projector is operating normally.
Rapid flashing during lamp shutdown—Normal operation; the fan runs for about 30 seconds to cool down the lamp.
Rapid flashing while the lamp is poweredWarning: either the lamp has overheated and the fan runs automatically, or the fan has malfunctioned. You cannot turn off the power to the lamp until it has cooled down.
Xerox DP1015 User’s Guide 13
Connecting the Projector

Adjusting the Projected Image

NOTE: The projector is equipped with a “foot adjustor” for
adjusting the projector height.
To raise the projector
1. Lift the projector up and press the foot adjustor release button.
The foot adjustor pops out.
2. Press the foot adjustor release button and hold it in while raising the projector to the display angle you want, then release the button to lock the foot in position.
Foot Adjuster Release Button
Foot Adjuster
To lower the projector
1. Hold the projector with one hand, then press and hold down the foot adjustor release button.
2. Lower the projector, then release the foot adjustor release button to lock the foot in position.
NOTE: When placing the projector in its carrying case, please
first retract the foot adjustor to avoid breakage.
14 Xerox DP1015 User’s Guide

Adjusting the Projector Zoom/Focus

You adjust the focus and zoom in/out with the focus ring and zoom wheel. To focus the image, rotate the focus ring until the image is clear. The projector can focus to distances from 4.58 feet to 32.81 feet (1.4m to 10.0m).

Adjusting Projection Image Size

Use the following figure and table to select the best projection distance and screen size. Maximum and minimum screen sizes are diagonal measurements. The table is for reference only.
Connecting the Projector
Zoom Wheel
Focus Ring
Maximum Screen Size
Projection Distance
Minimum Screen
Size (XGA)
Maximum Screen
Size (XGA)
Minimum Screen
Size (SVGA)
Minimum Screen Size
1.45m (57”)’ 2.0m (78”) 4.0m (157”) 6.0m (236”) 10.0m (393”)
1.45m (57”)
42” 49” 99” 148” 247”
48” 57” 113” 170” 283”
27” 38” 77” 115” 191”
*
2.0m (78”) 4.0m (157”) 6m (236”) 10m (393”)
Maximum Screen
Size (SVGA)
Xerox DP1015 User’s Guide 15
31” 44” 88” 132” 219”
*
1.40 (55”) for SVGA

User Controls

User Controls

Panel Control and Remote Control

Panel Control

Control Description
Indicator (LED) Flashes during power startup; remains steady
when projector is ready; flashes rapidly if lamp overheats or fan fails.
Power
Auto/Enter OSD menus displayed: Confirms your
Menu Opens the On-Screen Display (OSD) menus.
Directional Selection
Keys
( )
Turns projector power on and off. See “Powering On/Off the Projector” on page 12 for the specific power on/off sequences.
selection of items on the menus. OSD menus not displayed: Synchronizes the projector with the connected components to produce the optimum projected image.
To close the OSD, press the Menu button again.
OSD menus displayed: Selects items or adjusts settings of items. OSD menus not displayed, and you have multiple video sources connected: Press the
keys to select among the sources and
pick the one to display its image.
16 Xerox DP1015 User’s Guide

Remote Control

User Controls
Laser Pointer Button
Button Description
Laser Pointer Press to activate a laser beam for use as a
pointer. Warning—Do not look into the laser beam or shine it into others’ eyes when using the remote control as a laser pointer. Laser light can seriously damage eyes.
Freeze/Esc/L OSD menus displayed: Exits the OSD menus.
OSD menus not displayed: Holds the current image still on the screen. Press again to resume the action. Only for use with presentations, not video. Remote used as a mouse: Left mouse button.
Enter/R OSD menus displayed: Selects OSD option.
Remote used as a mouse: Right mouse button.
Directional Selection
Keys ( )
OSD menus displayed: Selects items or adjusts settings of items. OSD menus not displayed, and you have multiple video sources connected: Press the
keys to select among the sources and pick the one to display its image. Remote used as a mouse: Moves the mouse cursor. Zoom active: Moves the zoomed image.
Xerox DP1015 User’s Guide 17
User Controls
Pg.Up Zooms in (enlarges) the image.
Remote used as a mouse: Go to previous page.
Press in to activate image correction for images that are wider at the top or bottom due
to tilting the projector. Press the keys to adjust the image. Not recommended for spreadsheets or text displays to avoid text distortion.
Pg.Dn Zooms out (reduces) the image.
Remote used as a mouse: Go to next page.
Power Turns projector power on and off.
Mode Activates the remote control as a mouse. The
green LED indicator on the Mode button turns on indicating mouse active mode. Press again to turn off mouse mode. A USB cable must be connected to the projector for the mouse mode to work.
Menu Press to display the OSD menus. Press again
to exit the OSD menus.
Source Press to view the current video image.
If you have multiple video sources connected, press again to select among the sources.
Blank Hides image being displayed and displays a
blank blue screen. Press again to resume display of the image. Typically used for a pause in a presentation.
Auto Automatically adjusts the projected image to
the optimum settings for the attached components.
NOTE: The infrared emitter is at the top of the remote control
near the laser pointer. It has a range of 9m (29.5 feet). Do not block the infrared emitter. If the projector does not pick up the signals from the remote control, make sure the emitter and sensor on the projector are not blocked and that the emitter is within range.
18 Xerox DP1015 User’s Guide
Using the Remote Control as a Mouse
If a USB cable is connected to your computer and the projector, the remote control can be used in place of the computer’s mouse. This is especially helpful when giving a presentation in front of an audience so you can move the mouse cursor on the screen without having to be near the computer.
1. Press the Mode button on the remote control to switch it into mouse mode.
The LED indicator on the Mode button turns green indicating mouse mode is active.
2. The remote control can now be used as the mouse.
To de-activate the mouse mode, press the Mode button again.
User Controls
Button Mouse Function
Freeze/Esc/L Left mouse button.
Enter/R Right mouse button.
Pg.Up Go to previous page.
Pg.Dn Go to next page.
Mode Turns on/off the remote control as a mouse.
Directional Selection
Keys ( )
Xerox DP1015 User’s Guide 19
Moves the mouse cursor.
User Controls

On-Screen Display (OSD) Menus

The On-Screen Display (OSD) menus provide the options to make image adjustments and change a variety of settings.

Displaying Menus and Selecting Items

1. To open the OSD Menu, press the Menu button on the remote control or on the projector’s control panel.
To close the OSD Menu, press the Freeze/ESC/L button. The menus close if you don’t select from them within 10 seconds.
This example shows the Management menu selected from the OSD Main menu.
OSD Main menu Selected menu (Management
menu in this example)
2. To select one of the menus on the OSD Main menu, press the
keys.
3. Press the key or Enter/R button to get to the selected menu.
4. Press the keys to highlight a control on the selected menu, then press the Enter/R button. In the example above, the OSD Location control is highlighted.
5. Press the keys to adjust the highlighted control.
6. To accept your new setting, press the Menu button to return to the OSD Main menu.
7. When you’re finished changing settings, press the Menu button or the Freeze/ESC/L button. The OSD menu closes and your new settings are in effect.
NOTE: As you’re adjusting a control, you can return it to its
previous setting by pressing the Auto button.
NOTE: The menus in this section show typical settings, but the
actual settings you will see depend on the type of video signal.
20 Xerox DP1015 User’s Guide

Adjust the Projector Image

The Image menus are slightly different for Video Mode (the Video Adapter is attached to the projector) and VGA Mode (the Video Adapter is removed).
Image Menu (Video Mode)
Brightness—Lightens or darkens the image. The higher the
number, the brighter the image.
User Controls
You may need to readjust the Brightness after the projector warms up.
Contrast—Controls the degree of difference between the lightest and darkest parts of the image. Adjusting the contrast changes the amount of black and white in the image. The higher the number the greater the contrast.
Hue—Adjusts the balance between the red and green colors in the image. Increasing the Hue increases the amount of red in the image. Decreasing the Hue increases the amount of green in the image.
Saturation—Adjusts the image from black and white to fully saturated color. The higher the number, the greater the color saturation.
Sharpness—Adjusts the sharpness of the image. The higher the number the sharper the image.
Xerox DP1015 User’s Guide 21
User Controls
Image Menu (VGA Mode)
[
Brightness—Lightens or darkens the image. The higher the number, the brighter the image.
You may need to readjust the Brightness after the projector warms up.
Contrast—Controls the degree of difference between the lightest and darkest parts of the image. Adjusting the contrast changes the amount of black and white in the image. The higher the number the greater the contrast.
Keystone—Adjusts image distortion caused by tilting the projector.
Do not change this setting when displaying text or spreadsheets. Changing the Keystone setting may distort the displayed text.
Zoom—Enlarges or reduces the image size. The higher the number the more the image is enlarged.
Sometimes when you zoom an image, you will then want to move it left or right to center it on the screen. To zoom the image and also move it:
1. With the Zoom control selected on the menu, press the
Enter/R key.
Now the Pg.Up or Pg.Dn keys on the remote control will enlarge or reduce the image, and the keys will move
the image left or right
2. Press the Pg.Up or Pg.Dn keys on the remote control to
enlarge or reduce the image.
3. Press the keys to move the image left or right.
4. Press the Enter/R key again to return to the menu.
22 Xerox DP1015 User’s Guide

Adjust the Computer Display Image

The Display menus are slightly different for Video Mode (the Video Adapter is attached to the projector) and VGA Mode (the Video Adapter is removed).
Display Menu (Video Mode)
Keystone—Adjusts image distortion caused by tilting the projector.
User Controls
Do not change this setting when displaying text or spreadsheets. Changing the Keystone setting may distort the displayed text.
Proportion—Switches the length-to-width aspect ratio between 4:3 and 16:9. The correct proportion to select is based on the type of video source you are using. If the image seems to be distorted or stretched, change the proportion.
User Color—Select Yes to adjust individual colors manually. The menu on the left appears. Select No to adjust the color temperature. The menu on the right, with the Color Temp control, appears.
User Red, User Green, User Blue—Adjust the amount of colors in the Display image.
Color Temp—Adjusts the color temperature range. Higher temperatures make the screen look colder, lower temperatures make the screen look warmer. The available color temperature range is between 6100K and 9300K.
Xerox DP1015 User’s Guide 23
User Controls
Display Menu (VGA Mode)
Frequency—Changes the display data frequency to match the
frequency of your computer’s graphics card. If vertical flickering lines appear on the image, adjust the frequency until they disappear.
Phase—Synchronizes the signal timing of the display with the timing of your computer’s graphics card. If the image flickers or is unstable, adjust the tracking until the image is stable.
V Position—Moves the image up and down on the screen.
H Position—Moves the image left and right on the screen.
Proportion—Switches the length-to-width aspect ratio between
4:3 and 16:9. The correct proportion to select is based on the type of video source you are using. If the image seems to be distorted or stretched, change the proportion.
User Color—Select Yes to adjust individual colors manually. The menu on the left appears. Select No to adjust the color temperature. The menu on the right, with the Color Temp control, appears.
User Red, User Green, User Blue—Adjust the amount of colors in the Display image.
Color Temp—Adjusts the color temperature range. Higher temperatures make the screen look colder, lower temperatures make the screen look warmer. The available color temperature range is between 6100K and 9300K.
24 Xerox DP1015 User’s Guide

Adjust the Audio

Volum e—Adjusts the overall volume.
Treble—Adjusts the treble volume.
Bass—Adjusts the amount of medium and lower audio
frequencies.
Mute—Mutes the audio.

Choose a Language

User Controls
1. Use the keys to select the language you want.
2. Press the Menu button.
The menus will be displayed in the selected language.
Xerox DP1015 User’s Guide 25
User Controls

Projector Management

OSD Location—Sets the screen location of the OSD menu.
Projection:
Front-Desktop—Projects onto a screen in front of the projector. The factory default setting.
Rear-Desktop—Projects a reversed image so you can project from behind a translucent screen.
Front-Ceiling—Projects an image turned upside down for ceiling-mounted projection.
Rear-Ceiling—Projects a reversed, upside-down image for ceiling-mounted projection from behind a translucent screen.
Lamp Remind—Displays the lamp’s elapsed operating time (in hours), and lets you set a warning message that is displayed when the lamp is within 30 hours of its maximum life.
Lamp Reset—Resets the timer that monitors the lamp’s elapsed operating time. Reset this option only after installing a new lamp.
Auto Adjust—Automatically adjusts the display image to its optimum settings for the type of display source.
Reset All—Resets the projector to its original factory settings.
Source Type—Switches among the available video sources.
Select the type of video source connected to your projector. Select Auto Scan to have the projector automatically scan the connected video sources and select the type that is connected.
NOTE: The RGB and Digital RGB Source Type options are for
use when connecting a computer to the projector. RGB is for older computers, Digital RGB is for newer computers with a DVI or Digital RGB capability. When using Digital RGB as the Source Type, be sure to remove the video adapter from the projector.
26 Xerox DP1015 User’s Guide

Changing the Lamp

Maintenance

Maintenance
The projector’s lamp life is approximately 1500 hours of use. The projector automatically monitors the lamp life. After 1500 hours of use, the projector displays a message that the lamp life is over and the lamp needs to be replaced.
When you see the message, please change the lamp as soon as possible.
Warning—The lamp module is the only user-replaceable part in the projector. To prevent electric shock, do not open the projector case.
Warning—To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The high-pressure lamp module may explode if handled incorrectly, and may shatter and cause injury if dropped.
Warning—The lamp compartment is hot! Allow the projector to cool down at least thirty minutes.
To change the lamp module
1. Turn off the projector’s power.
2. Disconnect the power cord.
3. Let the projector lamp cool completely, at least thirty minutes.
4. Use a screwdriver to remove the cover screw.
5. Then, press down on the cover lock to free the cover.
Cover Lock
Xerox DP1015 User’s Guide 27
Maintenance
6. Remove the cover.
7. Remove the three lamp module retaining screws.
8. Lift up the handle and pull out the lamp module.
Lamp Module
9. Put the new lamp module into the lamp bay and gently press it down. The lamp can only be inserted in one direction. If the lamp does not seem to fit, do not press down hard. Make sure the connections on the lamp module are aligned with the connectors in the lamp bay.
10. Replace the retaining screws, cover, and cover screw.
Make sure the cover is securely in place. If the cover is loose, the projector will not start.
28 Xerox DP1015 User’s Guide

Cleaning the Projector

Keeping the vents and lens clean will help maximize the projector’s performance.

Cleaning the Lens

1. Turn off the projector and let it cool down.
2. Pour a small amount of glass cleaner into the center of a soft
3. Wipe the lens in a circular motion.
Always keep the lens cap on the lens when the projector is not in use.

Cleaning the Projector

1. Turn off the projector and let it cool down.
Maintenance
cloth. Never squirt cleaner directly onto the lens.
2. Unplug the power cord.
3. Using a damp cloth, clean the projector’s case, and then carefully remove any dust blocking the projector’s cooling vents.
Never use an abrasive cleanser or cleaning solvent on the case or the vents.
Do not try to clean dust from the inside the projector’s case.
Xerox DP1015 User’s Guide 29
Maintenance

Troubleshooting

If you try the troubleshooting procedures described in this section and the problem persists, you may have a malfunctioning projector. Refer to the technical support card that you received with your projector or contact the retailer where you purchased your projector. Also visit our web site at www.xeroxprojectors.com for additional technical information.
Problem: No image appears on the screen.
Check for one of these possible problems:
Is the video adapter loose? Make sure the video adapter is properly secured at the back of the projector with the two thumbscrews.
Are the cables loose or not plugged in securely? Inspect the cable connections. Make sure the cables are plugged in securely.
Are any of the pins on the cables bent or broken? Inspect the pins on the cable plugs to make sure none of the pins are bent or broken.
Is the projection lamp securely installed? Check that the projection lamp is securely installed, especially if you just changed it. See the section “Changing the Lamp” on page 27 for details about the lamp installation.
Is the power on? Check that the projector’s power switch is turned on and that the power cord is plugged in securely to a working power outlet. If you are using a power strip, make sure it is turned on and plugged in.
Is the lens cap still on? Make sure you have removed the lens cap from the lens at the front of the projector.
Are the Brightness and Contrast set incorrectly? Adjust the Brightness and Contrast until a picture appears. See “Adjust the Projector Image” on page 21.
If none of the above solves the problem, press the Source button on the remote control to select the correct video source.
Problem: The image is incorrectly displayed, or scrolls, or is only partially displayed.
Press the Auto button on the remote control, or the Auto/Enter button on the projector control panel.
If the image is still not projected correctly, the resolution setting of your computer screen is too high (greater than 1024 x 768) and you must reset it.
30 Xerox DP1015 User’s Guide
Maintenance
For Windows 3.x:
1. In the Windows Program Manager, click the Windows Setup icon in the Main group.
2. Verify that your display resolution setting is less than or equal to 1024 x 768.
For Windows 95, 98, 2000, XP:
1. From the Windows Start menu, select Settings/Control Panel and then double-click the Display icon.
2. Select the Setting tab.
The Desktop Area shows the resolution setting.
3. Verify that the resolution setting is 1024 x 768 or less.
If the projector is still not projecting the whole image, you will also need to select another monitor display for your computer. Use the following steps.
To select another monitor display:
1. On the Display dialog box that you opened in the steps above, click the Advanced Properties button.
2. Select the Monitor tab and click the Change button.
3. Click Show all devices.
4. Under the Manufacturers box, select Standard monitor types.
5. Under the Models box, choose the resolution mode.
6. Verify that the resolution setting of the monitor display is less than or equal to 1024 x 768.
If you are using a Notebook PC:
1. Follow the steps above to set the resolution to 1024 x 768 or less.
2. Switch the Notebook PC display to the external display only or CRT only mode.
If you experience difficulty changing resolutions or your monitor freezes, restart all the equipment and the projector.
Problem: The screen of your Notebook or PowerBook computer is not displaying your presentation
If you are using a Notebook PC:
Some Notebook PCs deactivate their own screens when a second display device is attached. Please see the user’s manual that you received with your Notebook PC for the steps to reactivate its screen.
Xerox DP1015 User’s Guide 31
Maintenance
If you are using an Apple PowerBook:
1. From the Apple menu, choose Control Panels/PowerBook Display.
2. Turn on Video Mirroring.
3. Click the Close box.
Problem: The image is flickering or otherwise unstable
Try one of these possible solutions:
Press the Auto button on the remote control, or the Auto/Enter button on the projector Control Panel.
Change the Phase setting on the OSD Display menu. See “Display Menu (VGA Mode)” on page 24.
Change the number of colors that your computer displays on its monitor. See the documentation that you received with your computer for the steps to change the number of colors its monitor can display.
Problem: Image has vertical flickering stripes.
Try one of these possible solutions:
Press the Auto button on the remote control, or the Enter button on the projector control panel.
Change the Frequency setting on the OSD Display menu. See “Display Menu (VGA Mode)” on page 24.
Reset the display mode of your computer’s graphic card to make it compatible with the projector. See “Setting the Screen Resolution” on page 35 for details.
Problem: Image is out of focus.
Try one of these possible solutions:
Adjust the focus ring on the projector. Turn the focus ring until the image comes into focus.
Make sure the distance between the projector and the screen is between 1.45m and 10.0m. See “Adjusting Projection Image Size” on page 15 for details.
32 Xerox DP1015 User’s Guide
Maintenance
Problem: When the projector is connected to a DVD player, playing a film with a 16:9 aspect ratio makes the image looks stretched out.
Try one of these possible solutions:
Reset your DVD player to display at a 4:3 aspect ratio. See the DVD player user’s guide for the steps to adjust its aspect ratio.
Using the OSD Menus, go to the Display Menu page and select a new Proportion. Change the Proportion to 4:3.
Problem: The colors of the projected image look different than the colors of the image on the computer screen.
Use the OSD Image and Display menus to adjust the colors.
Problem: Image is reversed.
Use the OSD Management Menu to change the projection direction to display the image properly.
Problem: No sound.
Make sure the audio cables and other cables are connected properly.
Problem: Remote control does not work.
Check for one of these possible problems:
Are you too far from the projector? The remote control has a range of 29.5 ft (9m). Move closer to the projector and try the remote control again
Is anything blocking the infrared sensors on the projector? Make sure the infrared sensors are not covered or blocked from receiving signals from the remote control.
Are the batteries in the remote control dead? Replace the batteries in the remote control.
Problem: Lamp burns out or make a popping sound.
When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. See “Changing the Lamp” on page 27 to replace the lamp. If the lamp burns out while in the projector, it may crack and scatter glass shards into the projector which can block a blower fan and stop it from turning.
Xerox DP1015 User’s Guide 33
Maintenance

Xerox DP1015 Projector Specifications

Resolution XGA: 1024x 768
SVGA: 800 x 600
Lamp 150W user-replaceable VIP lamp Brightness 1500 lumens Number of Pixels 1024 pixels (horizontal) by 768 lines (vertical) Displayable Colors 16.7 million colors Projection Distance 4.76 ~ 32.81 feet (1.45m ~ 10m) Throw Ratio 1.34:1~ 1.6:1 (Distance: Diagonal) Zoom Ratio 1.2:1 (Manual Zoom/Focus) Uniformity 85% Aspect Ratio 4:3 or 16:9, screen selectable Contrast Ratio 900:1 Video Compatibility NTSC/PAL VGA Compatibility RGB/DVD Horizontal Frequency 31.5 ~ 80kHz Vertical Scan Rate 56Hz ~ 85Hz Power Supply AC input 100~240V; 0.91 A ~ 2.2A, 50-60Hz Power Consumption 220W Input/Output Connectors Composite Video RCA cable, Mini DIN 4-pin S-Video cable,
RGB (M1DA-D-Sub 15 pin), DVI (M1DA), RS232 (M1DA), YPbPr (M1DA, VGA), Mini Jack (3.5 mm), Audio RCA Jack, USB, Audio Output 1 Watt speaker
Weight 3.5 pounds (1.6 kg) Dimensions (W x H x D) 9.01 x 2.72 x 7.60 inches (229 x 69 x 193 mm) Operating Temperature 41° ~ 95° F (5° ~ 35° C) Safety and agency certifications FCC Class B, UL 1950
34 Xerox DP1015 User’s Guide

Setting the Screen Resolution

For best viewing on your computer screen, its resolution should be set to 1024 x 768 or less. To reset the screen resolution, follow the steps below, referring to the chart on page 36 for the correct settings for your type of computer and monitor.
If you have a Windows PC:
1. From the Windows Start menu, select Settings/Control Panel and double-click the Display icon.
2. Click the Settings tab.
3. Drag the resolution slider.
4. Click the Advanced button and select the Monitor tab.
5. Select the Refresh rate from the drop-down menu.
Refer to the chart on page 36 for Windows computers for the correct refresh rate for the resolution you selected.
Maintenance
6. Click OK, then click OK on the Display Properties dialog box.
If you have an Apple Macintosh:
1. From the Apple menu, select Control Panels/Monitors & Sound.
2. Click the Monitor icon.
3. Select the resolution and refresh rate from the resolution menu.
Refer to the chart page 37 for Apple Macintosh computers for the compatible resolutions for you type of Apple computer.
4. Click the Close box.
Xerox DP1015 User’s Guide 35
Maintenance
Compatibility Modes—Windows Computers
Mode Resolution (Analog)
V. Frequency
(Hz)
VESA VGA 640 x 350 70 31.5
VESA VGA 640 x 350 85 37.9
VESA VGA 640 x 400 85 37.9
VESA VGA 640 x 480 60 31.5
VESA VGA 640 x 480 72 37.9
VESA VGA 640 x 480 75 37.5
VESA VGA 640 x 480 85 43.3
VESA VGA 720 x 400 70 31.5
VESA VGA 720 x 400 85 37.9
SVGA 800 X 600 56 35.2
SVGA 800 X 600 60 37.9
SVGA 800 X 600 72 48.1
SVGA 800 X 600 75 46.9
SVGA 800 X 600 85 53.7
VESA XGA 1024 x 768 43.4 35.5
VESA XGA 1024 x 768 60 48.4
VESA XGA 1024 x 768 70 56.5
H. Frequency
(Hz)
VESA XGA 1024 x 768 75 60.0
VESA XGA 1024 x 768 85 68.7
VESA SXGA* 1152 x 864 70 63.8
VESA SXGA* 1152 x 864 75 67.5
VESA SXGA* 1152 x 864 85 77.1
VESA SXGA* 1280 x 960 60 60
VESA SXGA* 1280 x 960 75 75
VESA SXGA* 1280 x 1024 43 46.4
VESA SXGA* 1280 x 1024 60 63.98
VESA SXGA* 1280 x 1024 75 79.98
* Compression computer image.
36 Xerox DP1015 User’s Guide
Compatibility Modes—Macintosh Computers
Mode Resolution (Analog)
Maintenance
V. Frequency
(Hz)
MAC 16”* 832 x 624 74.55 49.725
MAC 19”* 1024 x 768 75 60.24
MAC* 1152 x 670 75.06 68.68
MAC G4 640 x 480 60 31.35
MAC G4 640 x 480 120 68.03
MAC G4 1024 x 768 120 97.09
IMAC DV 640 x 480 117 60
IMAC DV 800 x 600 95 60
IMAC DV 1024 x 768 75 60
IMAC DV 1152 x 670 75 68.49
IMAC DV 1280 x 960 75 75
* Compression computer image.
H. Frequency
(Hz)
Xerox DP1015 User’s Guide 37
Maintenance
38 Xerox DP1015 User’s Guide

Appendix A Notices

Federal Communications Commission (FCC) for USA

This equipment has been tested and found to comply with the limits for the class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Recycling and Disposal for USA

Xerox operates a worldwide equipment takeback and reuse/ recycle program. Contact your Xerox sales representative (1-800­ASK-XEROX) to determine whether this Xerox product is part of the program.
Xerox DP1015 User’s Guide 39
If your product is not part of the Xerox program and you are managing its disposal, please note that the product may contain lead and other materials whose disposal may be regulated due to environmental considerations. For recycling and disposal information, contact your local authorities.
40 Xerox DP1015 User’s Guide
05-0603-000
Loading...
