Xerox 6030/6050/6050A Wide Format Printer User Guide

701P47273

Version 2.0 August 2007

Xerox Corporation Global Knowledge & Language Services 800 Phillips Road Bldg. 845-17S Webster, NY 14580

Printed in the United States of America.

Copyright protection claimed includes all forms and matters of copyrighted material and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs that are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

AIX is a trademark of International Business Machines Corporation.

AutoCAD is a registered trademark of AutoDesk, Inc. HDI is an acronym for Heidi® Device Interface. Heidi is a registered trademark of AutoDesk, Inc.

HP-GL is a trademark of Hewlett-Packard Company.

Macintosh and AppleTalk are registered trademarks of Apple Computer, Inc.

Microsoft® Windows, Windows 95/98, Windows Me, Windows NT®, Windows® XP, Windows® 2000, Windows® Server 2003 are trademarks of Microsoft Corporation.

Internet Explorer is a copyright protected program of Microsoft Corporation.

Netscape is a registered trademark of Netscape Communications Corporation. Solaris and SunOS are registered trademarks of Sun Microsystems, Inc.

UNIX is a registered trademark of Open Group Company Limited

Preface

Thank you for using the Xerox 6030/6050/6050A Wide Format Copier/Printer User Guide (hereinafter known as 6030/6050/6050A Wide Format).

This User Guide describes the basic operations and the detailed functions of the Xerox 6030/6050/6050A Wide Format Copier, Printer, and integrated Scanner. It also includes usage precautions, safety, replenishing toner, replacing paper, troubleshooting, and other general instructions.

The explanations provided in this User Guide assume that the user has a basic knowledge of operating the computer and network configuration in use. Refer to the manuals supplied with the computer, Windows related documentation, and the manuals supplied with the network system for details on computer and network operations.

This User Guide, originally dedicated exclusively to the Xerox 6030/6050 Wide Format, has been revised to accomodate the Xerox 6050A Wide Format. The reader should assume that any topic, section, heading, sentence, or bullet not denoted as being related to either the 6030/6050 or 6050A Wide Format is applicable to both products.

Conventions

This User Guide uses the following symbols and conventions:

< > key Indicates the keys on the keyboard.

Press the <Enter> key.

[ ] Indicates the menus and display items on the screens.

Select either the [On] or [Off] buttons to display [Job

Name], [Owner], and [Reason] in that order.

" " Indicates areas of reference within this User Guide.

Also indicates messages.

Refer to "3.2 Print Services".

A message stating "Additional Port Information Required.

The Device could not be identified

Indicates important information which you should read.

appears.

Indicates additional information on operations or features.

Indicates reference sources.

Indicates examples.

Preface

Safety Notes

Read these safety notes carefully before using this product to ensure you operate the equipment safely.

Your Xerox product and recommended supplies have been designed and tested to meet strict safety requirements. These include safety agency approval, and compliance with established environmental standards. Please read the following instructions carefully before operating the product and refer to them as needed to ensure the continued safe operation of your product. The safety and environment testing and performance of this product have been verified using Xerox materials only.

WARNING: Any unauthorized alteration, which may include the addition of new

functions or connection of external devices, may affect the product

certification. Please contact your authorized local dealer for more

information

WARNING MARKINGS

Warning Markings

All warning instructions marked on or supplied with the product should be fol-

Warning This WARNING alerts users to areas of the product where there are heated surfaces,

lowed.

Warning This WARNING alerts user to areas of the product where there is the

possibility of personal injury.

which should not be touched.

WARNING

This product is certified manufactured and tested in compliance with strict safety and radio frequency interference regulations. Any unauthorized alteration which, includes the addition of new functions or the connection of external devices, may affect this certification. Please contact your local XEROX Limited representative for a list of approved accessories.

Safety Notes

WARNING

In order to allow this equipment to operate in proximity to Industrial, Scientific, and Medical (ISM) equipment, the external radiation from the ISM equipment may have

to be limited or special mitigation measures taken.

WARNING

Shielded cables must be used with this equipment to maintain compliance with Council Directive 89/336/EEC.

The Electricity at Work Regulation (in England and Wales) UK ONLY

Electricity at Work Regulations

The Electricity at Work Regulation 1989 came into force in England and Wales on the 1 April

1990. This 1989 Regulation places a duty on all employers and self-employed persons to ensure the electrical system in their premises are constructed, maintained and operated in such a manner as to prevent, so far as reasonably practical, danger. This includes ensuring all electrical equipment connected to such electrical systems are safely constructed, maintained and operated. All Xerox equipment have been designed to exacting safety standards. They have all undergone a variety of stringent safety tests including earth bond, insulation resis tance and electrical strength tests. Xerox manufacturing plants have been awarded ISO 9000 quality certification and are subject to regular audits by the British Standards Institution or equivalent national standards body. Xerox equipment which has been properly and regularly serviced and maintained should not have to undergo additional specific safety tests pursuant to the 1989 Regulation. Customers wishing to complete safety testing should contact Xerox for advice prior to any test implementation. Xerox equipment should, however, be properly and regularly serviced and maintained at all times.

QUESTION: What is the Electricity at Work Regulation? ANSWER: The Electricity at Work Regulation 1989 came into force in England and Wales on

the 1 April 1990. This 1989 Regulation places a duty on all employers and self-employed persons to ensure the electrical systems in their premises are constructed, maintained and operated in such a manner as to prevent, so far as reasonably practicable, danger. This includes ensuring all electrical products connected to such electrical systems are safely constructed, maintained and operated.

QUESTION: Does Xerox comply with the Electricity at Work Regulation? ANSWER: The regulation places a duty on all employers and self-employed persons to ensure

the electrical systems in their premises are, effectively safe. The regulation does not impose on, amongst others, manufacturers or suppliers of such electrical systems. However, rest assured that all Xerox equipment which Xerox and its authorized distributors supplies to cus tomers, conform with all the relevant safety legislation and standards.

Safety Notes

QUESTION: Is Xerox equipment safe? ANSWER: All Xerox equipment supplied by Xerox and their authorized distributors conform to

all relevant safety legislation and standards.

QUESTION: Is the Xerox equipment in my premises safe? ANSWER: All Xerox equipment supplied by Xerox and its authorized distributors conform to all

relevant safety legislation and standards. However, like all electrical equipment, they have to be regularly serviced and maintained by competent persons. Xerox Customer Service Engi

neers ensure Xerox equipment is serviced and maintained to exacting Xerox safety standards. If you would like your Xerox equipment to be serviced and maintained to such high standards, please contact your local Xerox Customer Service Organization. They will be pleased to assist you.

QUESTION: Does the Xerox equipment in my premises comply with the Electricity at Work Regulations? ANSWER: All employers and self-employed persons must ensure that the electrical systems in their premises are safe. This will include ensuring Xerox equipment in such premises is safe. Xerox Product Safety function has prepared a guide which contains a list of tests which may be completed by your Xerox Customer Service Organization.

THESE TESTS MUST BE CARRIED OUT ONLY BY PERSONS WHO POSSESS THE RELEVANT SKILL, KNOWLEDGE AND EXPERIENCE TO CARRY OUT SUCH TESTS.

Please contact the Xerox Customer Service Organization for further information.

THE USE OF INAPPROPRIATE TEST PROCEDURES AND TEST EQUIPMENT MAY PROVIDE MISLEADING RESULTS AND MAY CAUSE DEATH, PERSONAL INJURY AND/OR DAMAGE TO PROPERTY.

QUESTION: I would like to carry out my own safety tests on the Xerox equipment in my premises. ANSWER: You may, of course, request such tests as you deem necessary to satisfy yourself that your Xerox equipment is safe. Your Xerox Customer Support will be pleased to advise you on such testing.

QUESTION: I require records of all tests ANSWER: After safety testing, your Xerox Customer Service Engineer will provide you with a

certificate which details the results of all tests completed. In the event of any defect being noted, the Xerox equipment will be switched off and disconnected from the supply until the defect has been corrected. You will be advised of such action to enable such defects to be cor rected.

Safety Notes

iii

PLEASE NOTE: YOU MUST ENSURE THAT YOUR XEROX EQUIPMENT IS SAFE AT ALL TIMES

Electrical Supply

This product shall be operated from the type of electrical supply indicted on the product 's data plate label. If you are not sure that your electrical supply meets the requirements, please consult your local power company for advice.

WARNING

This product is supplied with a plug that has a protective earth pin. This plug will fit only into an earthed electrical outlet. This is a safety feature. To avoid risk of elec tric shock, contact your electrician to replace the electrical outlet if you are unable to insert the plug into it. Never use an earthed adapter plug to connect the product to an electrical outlet that lacks an earth connection terminal.

This product must be connected to a protective earth circuit.

Operator Accessible Areas

This equipment has been designed to restrict operator access to safe areas only. Operator access to hazardous areas is restricted with covers or guards, which would require a tool to remove. Never remove these covers or guards.

Maintenance

Any operator product maintenance procedures will be described in the user documentation supplied with the product. Do not to carry out any maintenance on this product, which is not described in the customer documentation.

Cleaning Your Product

Before cleaning this product, unplug the product from the electrical outlet. Always use materials specifically designated for this product; the use of other materials may result in poor performance and may create a hazardous situation. Do not use aerosol cleaners; they may be explosive and flammable under certain circum stances.

Safety Notes

WARNING - Electrical Safety Information

CAUTION

Ensure that the power connection for your machine satisfies these requirements

• Use only the power cord supplied with this equipment.

• The socket outlet shall be installed near the equipment and shall be easily accessible.

• Plug the power cord directly into a grounded electrical outlet. Do not use an extension cord. If

you do not know whether or not an outlet is grounded, consult a qualified electrician.

• This equipment is to be used on a dedicated 20A, 208-240 Vac 60Hz circuit or 16A, 220-240 Vac 50Hz circuit. The equipment must be connected to a grounded main outlet. If this machine needs to be moved to a different location, contact a Xerox service representative or your authorized local representative or service support organization.

• Improper connection of the equipment-grounding conductor can result in electrical shock.

• Do not place this equipment where people might step on or trip on the power

cord.

• Do not place objects on the power cord.

• Do not override or disable electrical or mechanical interlocks.

• Do not obstruct the ventilation openings.

• Never push objects of any kind into slots or openings on this equipment.

Emergency Power Off

If any of the following conditions occur, switch off the power to the machine immediately and disconnect the power cord from the electrical outlet. Call an authorized local service representative to correct the problem.

• The equipment emits unusual noise or odors.

• The power cord is damaged or frayed.

• A wall panel circuit breaker, fuse, or other safety device has been tripped.

• Liquid is spilled into the copier/printer.

• The equipment is exposed to water.

• Any part of the equipment is damaged.

The only method to remove all power from the machine is to disconnect the power cord plug from the electrical outlet.

Safety Notes

Disconnect Device

The power cable is the disconnect device for this equipment. It is attached to the back of the machine as a plug-in device. To remove all electrical power from the equipment, disconnect the power cable from the electrical outlet.

Operational Safety Information

Xerox equipment and supplies have been designed and tested to meet strict safety requirements. These include safety agency examination, approval and com pliance with established environmental standards. To ensure the continued safe operation of your Xerox/Fuji Xerox equipment, follow these safety guidelines at all times.

Do These:

• Always connect equipment to a correctly grounded power outlet. If in doubt, have the outlet checked by a qualified electrician.

• Always locate the machine on a solid support surface (not on plush carpet) that has adequate strength to support the weight of the machine.

• This equipment must be connected to a protective earth circuit.

This equipment is supplied with a plug that has a protective earth pin. This plug will fit only into an earthed electrical outlet. This is a safety feature. To avoid risk of electric shock, contact your electrician to replace the electrical outlet if you are unable to insert the plug into it. Never use a plug that lacks an earth connection terminal to connect the product to an electrical outlet.

• Always follow all warnings and instructions that are marked on or supplied with the equipment.

• Always exercise care when moving or relocating equipment. Please contact your local Xerox/ Fuji Xerox Service Department, or your local support organization to arrange relocation of the product to a location outside of your building.

• Always locate the equipment in an area that has adequate ventilation, and the room for servicing. See the Install guide for minimum dimensions.

• Always use materials and supplies specifically designed for your Xerox/Fuji Xerox equipment. Use of unsuitable materials may result in poor performance.

• Always unplug this equipment from the electrical outlet before cleaning.

Do Not Do These:

• Never use a plug that lacks an earth connection terminal to connect the product to an electrical outlet.

• Never attempt any maintenance function that is not specifically described in this documentation.

• This equipment should not be placed in a built-in installation unless proper ventilation is provided, please contact your Authorized local dealer for further information.

Safety Notes

• Never remove covers or guards that are fastened with screws. There are no operator serviceable areas within these covers.

• Never locate the equipment near a radiator or any other heat source.

• Never push objects of any kind into the ventilation openings.

• Never override or "cheat" any of the electrical or mechanical interlock devices.

• Never operate the equipment if you notice unusual noises or odors. Disconnect the power

cord from the electrical outlet and contact your local Xerox/Fuji Xerox Service Representative or Service Provider immediately.

Maintenance Information

Do not attempt any maintenance procedure that is not specifically described in the documentation that is supplied with your copier/printer.

• Do not use aerosol cleaners. The use of cleaners that are not approved may cause poor performance of the equipment, and could create a dangerous condition.

• Use supplies and cleaning materials only as directed in this manual. Keep all of these materials out of the reach of children.

• Do not remove covers or guards that are fastened with screws. There are no parts behind these covers that you can maintain or service.

• Do not perform any maintenance procedures unless you have been trained to do them by an authorized local dealer or unless a procedure is specifically described in the user manuals.

Ozone Safety Information

This product will produce ozone during normal operation. The ozone produced is heavier than air and is dependent on copy volume. Providing the correct environ

mental parameters as specified in the Xerox installation procedure will ensure that the concentration levels meet safe limits.

If you need additional information about ozone, please request the Xerox publication Ozone by calling 1-800-828-6571 in the United States and Canada. In other markets please contact your authorized local dealer or Service Provider.

State of Vermont Mercury Labeling Law

Xerox operates a worldwide equipment takeback and reuse/recycle program. Contact your Xerox sales representative (1-800-ASK-XEROX) to determine whether this Xerox product is part of the program. For more information about Xerox environmental programs, visit http://www.xerox.com/environment. If you are managing the disposal of your Xerox product, please note that the prod-

Safety Notes

vii

uct contains lamp(s) with mercury*, and may contain lead*, Perchlorate* and other materials whose disposal may be regulated due to environmental consider ations. The presence of these materials is fully consistent with global regulations applicable at the time that the product was placed on the market. For recycling and disposal information, contact your local authorities. In the United States, you may also refer to the Electronic Industries Alliance web site: http://www.eiae.org. Perchlorate Material-This product may contain one or more Perchlorate-containing devices, such as batteries. Special handling may apply, please see http:// www.dtsc.ca.gov/hazardouswaste/perchlorate.

For Consumables

Store all consumables in accordance with the instructions given on the package or container.

• Keep all consumables away from the reach of children.

• Never throw toner, toner cartridges, or toner containers into an open flame.

Radio Frequency Emissions

United States, Canada, Europe, Australia/

New Zealand

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interfer ence in which case the user will required to correct the interference at his own expense.

Changes and modifications to this equipment not specifically approved by Xerox/ Fuji Xerox may void the user's authority to operate this equipment.

viii

Shielded interface cables must be used with this equipment to maintain compliance with FCC regulations in the United States and the Radio Communications Act 1992 in Australia/New Zealand as applicable.

Safety Notes

Canadian EME

This Class "A" digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe "A" est conforme à la norme NMB-003 du Canada.

Product Safety Certification

This product is certified by the following Agencies using the Safety standards listed.

AgencyStandard TUV Rheinland of North America, Inc. UL60950:2000 (USA) Can/CSA-c22.2 No. 60950-00 (Canada) TUV Rheinland Japan Ltd.IEC60950:1999

Safety Notes

Regulatory Information

CE Mark

The CE mark applied to this product symbolizes Xerox's declaration of conformity with the following applicable Directives of the European Union as of the dates indi cated:

January 1, 1995: Council Directive 72/23/EEC amended by Council directive 93/ 68/EEC, approximation of the laws of the member states related to low voltage equipment. January 1, 1996: Council directive 89/336/EEC, approximation of the laws of the member states related to electromagnetic compatibility. March 9, 1999: Council Directive 99/5/EC, on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration of conformity, defining the relevant directives and referenced standards, can be obtained from your Authorized local dealer.

WARNING: In order to allow this equipment to operate in proximity to Industrial Scientific and Medical (ISM) equipment, the external radiation from the ISM equip ment may have to be limited or special mitigation measures taken.

WARNING: This is a Class A product. In a domestic environment the product may cause radio frequency interference, in which case the user may be required to take adequate measures.

WARNING: Shielded interface cables must be used with this product to maintain compliance with Council Directive 89/336/EEC.

Regulatory Information

Environmental Compliance

USA - Energy Star (6030/6050 Wide Format)

As an ENERGY STAR partner, Xerox Corporation/Fuji Xerox has determined that (the basic configuration of) **this** product meets the ENERGY STAR guidelines for energy efficiency.

The ENERGY STAR and ENERGY STAR MARK are registered United States trademarks.

The ENERGY STAR Office Equipment Program is a team effort between U.S., European Union and Japanese governments, and the office equipment industry to promote energy-efficient copiers, printers, fax, multifunction machine, personal computers, and monitors. Reducing product energy consumption helps combat smog, acid rain and long-term changes to the climate by decreasing the emissions that result from generating electricity.

Xerox ENERGY STAR equipment is preset at the factory to enter a ”low power” state and/or shut off completely after a specified period of use. These energy-sav ing features can reduce product energy consumption in half when compared to conventional equipment.

USA - Energy Star (6050A Wide Format)

As an ENERGY STAR partner, Xerox Corporation/Fuji Xerox has determined that (the basic configuration of) **this** product does not meet the ENERGY STAR guidelines for energy efficiency.

Environmental Compliance

Canada - Environmental Choice

Terra Choice Environmental Services, Inc. of Canada has verified that this product conforms to all applicable Environmental Choice EcoLogo requirements for mini mized impact to the environment.

As a participant in the Environmental Choice program, Xerox Corporation has determined that this product meets the Environmental Choice guidelines for energy efficiency.

Environment Canada established the Environmental Choice program in 1988 to help consumers identify environmentally responsible products and services. Copier, printer, digital press and fax products must meet energy efficiency and emissions criteria, and exhibit compatibility with recycled supplies. Currently, Envi ronmental Choice has more than 1,600 approved products and 140 licensees. Xerox has been a leader in offering EcoLogo approved products.

xii

Environmental Compliance

Product Recycling and Disposal

USA

Xerox operates a world wide equipment take back and reuse/recycle program. Contact your Xerox Sales Representative (1-800-ASK-XEROX) to determine whether this Xerox product is part of the program. For more information about Xerox environmental programs, visit www.xerox.com/environment.

If you are managing the disposal of your Xerox product, please note that the product contains lead, mercury and other materials whose disposal may be regulated due to environmental considerations. The presence of lead and mercury is fully consistent with global regulations applicable at the time that the product was placed on the market. For recycling and disposal information, contact your local authorities. In the United States, you may also refer to the Electronic Industries Alliance web site: www.eiae.org.

Product Recycling and Disposal

xiii

Illegal Copies and Printouts

USA

Congress, by statute, has forbidden the reproduction of the following subjects under certain circumstances. Penalties of fine or imprisonment may be imposed on those guilty of making such reproductions.

1. Obligations or Securities of the United States Government, such as:

Certificates of Indebtedness National Bank Currency

Coupons from Bonds Federal Reserve Bank Notes

Silver Certificates Gold Certificates

United States Bonds Treasury Notes

Federal Reserve Notes Fractional Notes

Certificates of Deposit Paper Money

Bonds and Obligations of certain agencies of the government, such as FHA, etc.

Bonds. (U.S. Savings Bonds may be photographed only for publicity purposes in connection with the campaign for the sale of such bonds.)

Internal Revenue Stamps. (If it is necessary to reproduce a legal document on which there is a canceled revenue stamp, this may be done provided the reproduction of the document is performed for lawful purposes.)

Postage Stamps, canceled or uncanceled. (For philatelic purposes, Postage Stamps may be photographed, provided the reproduction is in black and white and is less than 75% or more than 150% of the linear dimensions of the original.)

Postal money Orders.

Bills, Checks, or Draft of money drawn by or upon authorized officers of the United

States.

xiv

Illegal Copies and Printouts

1. Stamps and other representatives of value, of whatever denomination, which have been or may be issued under any Act of Congress.

2. Adjusted Compensation Certificates for Veterans of the World Wars.

3. Obligations or Securities of any Foreign Government, Bank, or Corporation.

4. Copyrighted materials, unless permission of the copyright owner has been obtained or the reproduction falls within the "fair use" or library reproduction rights provisions of the copyright law. Further information of these provisions may be obtained from the Copyright Office, Library of Congress, Washington, D.C. 20559. Ask for Circular R21.

5. Certificates of Citizenship or Naturalization. (Foreign Naturalization Certificates may be photographed.)

6. Passports. (Foreign Passports may be photographed.)

7. Immigration Papers.

8. Draft Registration Cards.

9. Selective Service Induction Papers that bear any of the following Registrant's information:

Earnings or Income Dependency Status

Court Record Previous military service

Physical or mental condition

Exception: United States military discharge certificates may be photographed.

10. Badges, Identification Cards, Passes, or Insignia carried by military personnel,

or by members of the various Federal Departments, such as FBI, Treasury, etc. (unless photograph is ordered by the head or such department or bureau.)

Reproducing the following is also prohibited in certain states:

Automobile Licenses - Drivers' Licenses - Automobile Certificates of Title.

The above list is not all-inclusive, and no liability is assumed for its completeness or accuracy. In case of doubt, consult your attorney.

Illegal Copies and Printouts

Canada

Parliament, by statute, has forbidden the reproduction of the following subjects under certain circumstances. Penalties of fine or imprisonment may be imposed on those guilty of making such reproductions.

1. Current bank notes or current paper money.

2. Obligations or securities of a government or bank.

3. Exchequer bill paper or revenue paper.

4. The public seal of Canada or of a province, or the seal of a public body or authority in Canada, or of a court of law.

5. Proclamations, orders, regulations or appointments, or notices thereof (with intent to falsely cause same to purport to have been printed by the Queen's Printer for Canada, or the equivalent printer for a province).

6. Marks, brands, seals, wrappers or designs used by or on behalf of the Government of Canada or of a province, the government of a state other than Canada or a department, board, Commission or agency established by the Government of Canada or of a province or of a government of a state other than Canada.

7. Impressed or adhesive stamps used for the purpose of revenue by the Government of Canada or of a province or by the government of a state other than Canada.

8. Documents, registers or records kept by public officials charged with the duty of making or issuing certified copies thereof, where the copy falsely purports to be a certified copy thereof.

9. Copyrighted material or trademarks of any manner or kind without the consent of the copyright or trademark owner.

The above list is provided for your convenience and assistance, but it is not allinclusive, and no liability is assumed for its completeness accuracy. In case of doubt, consult your solicitor.

xvi

Illegal Copies and Printouts

Other Countries

Copying certain documents may be illegal in your country. Penalties of fine or imprisonment may be imposed on those found guilty of making such reproductions.

- Currency notes

- Bank notes and cheques

- Bank and government bonds and securities

- Passports and identification cards

- Copyright material or trademarks without the consent of the owner

- Postage stamps and other negotiable instruments

This list is not inclusive and no liability is assumed for either its completeness or accuracy. In case of doubt, contact your legal counsel.

Safety Extra Low Voltage Approval

These Xerox Digital Copiers/Printers are in compliance with various governmental agencies and national safety regulations. All system ports meet the requirements for Safety Extra Low Voltage (SELV) circuits for connection to customer-owned devices and networks. Additions of customer-owned or third-party accessories that are attached to these printers/copiers must meet or exceed the require ments previously listed. All modules that require external connection must be installed per Xerox installation procedures.

Illegal Copies and Printouts

xvii

xviii

Illegal Copies and Printouts

1.1 Product Configurations .................................................................................................... 2

1.2 Major Components .......................................................................................................... 4

1.3 Power On/Off................................................................................................................... 7

1.4 Power Save Mode ......................................................................................................... 10

1.5 Printer Control Panel Overview ..................................................................................... 12

1.6 Print Services on Web Overview (6030/6050) .............................................................. 13

Operating Modes ....................................................................................................... 14

1.7 Logical Printers Overview (6030/6050) ......................................................................... 16

1.8 Loading Roll Media........................................................................................................ 17

1.9 Drawer Media Size Indicators........................................................................................ 20

Inserting media size sheets....................................................................................... 21

1.10 Loading Media for Manual Feeding ............................................................................... 23

1.11 Cutting Roll Media ......................................................................................................... 24

Cutting Roll Media Manually...................................................................................... 25

Chapter 2 Printer Overview

2.1 Overview of the 6030/6050/6050A Wide Format Printer............................................... 32

What is the 6030/6050/6050A Wide Format Printer?................................................ 32

Print Service Operations ........................................................................................... 36

Main Printing Functions............................................................................................. 38

2.2 Printer Control Panel Usage .......................................................................................... 44

Basic Printer Control Panel Operations ..................................................................... 45

Overview of the Operation Menu............................................................................... 46

2.3 Print Services on Web (6030/6050) .............................................................................. 51

Operating Environment ............................................................................................. 51

Starting and Exiting Print Services on Web .............................................................. 52

Print Services on Web Organization ......................................................................... 53

2.4 FreeFlow Accxes Web Print Management Tool (6050A) ............................................... 56

Users ......................................................................................................................... 57

Using Web Print Management Tool Main Menu ........................................................ 58

Chapter 3 Printer Setup

3.1 Communication Parameters .......................................................................................... 60

Communication Parameters Definitions .................................................................... 60

3.2 Communication Parameter Setup (Printer Control Panel, 6030/6050) .......................... 69

3.3 Communication Parameter Setup (Printer Control Panel, 6050A) ................................ 74

3.4 Communication Parameter Setup (Print Services on Web, 6030/6050)........................ 75

3.5 Communication Parameter Setup (Web Printer Management Tool, 6050A) ................. 78

3.6 System Parameter Setup (Printer Control Panel, 6030/6050)....................................... 79

3.7 System Settings Setup (Printer Control Panel, 6050A) ................................................. 82

3.8 System Parameter Setup (Print Services on Web, 6030/6050)..................................... 84

3.9 System Parameter Setup (Web Printer Management Tool, 6050A) .............................. 92

3.10 Printing a Configuration List (6030/6050) ...................................................................... 93

3.11 Printing a Configuration List (6050A) ............................................................................ 97

3.12 Software Option (Print Services on Web, 6030/6050) ................................................. 101

3.13 Software Option (Web Printer Management Tool, 6050A) .......................................... 102

3.14 Change Password (Print Services on Web, 6030/6050) ............................................. 103

3.15 Change Password (Web Printer Management Tool, 6050A) ....................................... 104

3.16 Change Default Language (Print Services on Web, 6030/6050)................................. 105

3.17 Change Default Language (Web Printer Management Tool, 6050A) .......................... 106

Chapter 4 Logical Printer Setup and Operation (6030/6050 only)

4.1 Creating a New Logical Printer.................................................................................... 108

4.2 Defining the Print Settings........................................................................................... 111

4.3 Logical Printer Print Settings ....................................................................................... 112

Media Series ........................................................................................................... 115

Size/Media Mapping ................................................................................................ 117

Media Source .......................................................................................................... 120

Media Type .............................................................................................................. 121

User-Defined Size ................................................................................................... 122

Input Option ............................................................................................................. 123

Input Size Margin .................................................................................................... 125

Plot Area.................................................................................................................. 127

Priority ..................................................................................................................... 132

Title Block................................................................................................................ 133

Split Drawing ........................................................................................................... 134

Message Option ...................................................................................................... 136

Printed Copy............................................................................................................ 138

Output Option .......................................................................................................... 139

Size Recognition ..................................................................................................... 142

Color Option ............................................................................................................ 144

Transform ................................................................................................................ 145

Define Single Pen.................................................................................................... 147

Define Multi Pen ...................................................................................................... 151

Pen Option............................................................................................................... 152

Emulation ................................................................................................................ 153

PS Command .......................................................................................................... 154

EOP Command ....................................................................................................... 155

VCGL Pen Style (VCGL Define Pen)....................................................................... 156

VCGL Pen Width ..................................................................................................... 158

VRF Define Pen (Define Single Pen)....................................................................... 159

VRF Define Multi Pen.............................................................................................. 161

TIFF Option ............................................................................................................. 162

CALS Option ........................................................................................................... 163

PS/PDF Option ........................................................................................................ 164

4.4 Logical Printer Operations........................................................................................... 165

Selecting the Media Type ........................................................................................ 166

Using Media Other Than the Default Series............................................................ 167

Changing Output Roll Media for an Entire Job ........................................................ 168

Reduction and Enlargement Using Size Mapping................................................... 169

Printing Long Documents ........................................................................................ 170

4.5 Print Services on Web: Job and Log ........................................................................... 171

Display the Print Queue .......................................................................................... 171

Cancel and Change the Priority of Jobs.................................................................. 174

Manage the Job and Error Logs.............................................................................. 176

4.6 Print Services on Web: Status..................................................................................... 187

Display Printer Status.............................................................................................. 187

Start and Stop Job Reception, Printing, and the Print Service ............................... 190

4.7 Print Services on Web: Tools ...................................................................................... 191

Print a Test Pattern .................................................................................................. 191

Print a Diagnostic Report ........................................................................................ 192

4.8 Manual Feed Printing .................................................................................................. 193

Chapter 5 Additional Operations from the Printer Menu

5.1 Introduction.................................................................................................................. 196

5.2 Printer Control Panel Menu (6030/6050)..................................................................... 197

5.3 Printer Control Panel Menu (6050A) ........................................................................... 203

5.4 Test Printing (6030/6050 only)..................................................................................... 207

5.5 Managing the Job and Error Logs (6030/6050 only) ................................................... 208

Job Log.................................................................................................................... 208

Error Log (6030/6050 only) ..................................................................................... 210

5.6 Reprinting (6030/6050 only) ........................................................................................ 212

5.7 Billing Meter Confirmation (6030/6050)....................................................................... 213

5.8 Billing Meter Confirmation (6050A) ............................................................................. 214

5.9 Print Setup Menu......................................................................................................... 215

Setting Up Media ..................................................................................................... 215

5.10 Automatic Cut Using the Printer Control Panel ........................................................... 220

Chapter 6 Ethernet Print Service (for UNIX)

6.1 Overview of the Ethernet Print Service ....................................................................... 224

6.2 Registering the Xerox 6030/6050 Wide Format Printer System.................................. 225

Host System Registration........................................................................................ 225

Registering the Remote Printer ............................................................................... 226

6.3 Registering the Xerox 6050A Wide Format Printer System ........................................ 228

Host System Registration........................................................................................ 228

Registering the Remote Printer ............................................................................... 229

6.4 Printing Using the ftp Command (6030/6050 only) ..................................................... 231

Printing .................................................................................................................... 231

Other Subcommands .............................................................................................. 234

Message List ........................................................................................................... 235

6.5 Printing Using the lp/lpr Command.............................................................................. 240

Printing (lpr Command) ........................................................................................... 240

Printing (lp Command) (for SunOS 5.x) .................................................................. 243

Status Display (lpq Command)................................................................................ 244

Cancel (lprm Command) ......................................................................................... 246

Message List (6030/6050 only) ............................................................................... 249

Chapter 7 Maintenance

7.1 Loading Toner.............................................................................................................. 252

Chapter 8 Problem Solving

8.1 Check the Control Panel(s) ......................................................................................... 256

8.2 Poor Image Quality...................................................................................................... 257

8.3 Other Problems ........................................................................................................... 258

8.4 Printer Troubleshooting................................................................................................ 259

Jams in the Feeder (Roll Media) ............................................................................. 261

Jams in the Printer and Ejection Port ...................................................................... 263

Chapter 9 Specifications

9.1 Main Specifications (6030/6050) ................................................................................. 266

9.2 Main Specifications (6050A)........................................................................................ 272

9.3 Media Specifications ................................................................................................... 277

9.4 Machine Specifications (6030/6050) ........................................................................... 278

9.5 Machine Specifications (6050A) .................................................................................. 281

Command List ......................................................................................................... 284

Chapter

Product Overview

Chapter 0

1.1

Xerox 6030/6050/6050A Wide Format Printer

Product Configurations

The following product configurations and options are available for the Xerox 6030/6050/6050A Wide Format Printer and the Xerox 6030/6050/6050A Wide Format Copier/Printer.

This unit is a printer only. Refer to the printer sections of this guide for information about its setup, features, and usage.

Xerox 6030/6050/6050A Wide Format Printer

Xerox 6030/6050 Wide Format Copier/Printer

This unit features copier functionality through an integrated scanner and copier control panel, plus the ability to receive and print jobs submitted to it from remote workstations.

Xerox 6030/6050 Wide Format Copier/Printer

Xerox 6030/6050/6050A Wide Format Printer with Scan System

This unit features copier and printer functionality, plus the Wide Format Scan System and the FreeFlow Accxes

Xerox 6030/6050 Wide Format Printer with Scan System (HFT controller shown is not available with the 6050A)

® Controller.

Xerox 6030/6050/6050A Wide Format Options

You may acquire additional hardware and software options for all units. Contact your Xerox Sales Representative to obtain additional information on options.

1.1 Product Configurations

1.2

Major Components

Major Components: Front

( *6030/6050 Copier/Printer only )

Name Function

*1 Document table Documents to be scanned are inserted here.

*2 Setup screen

(touch screen)

*3 Control panel Contains a numeric keypad, Start/Stop

*4 Document insertion

guide

5 Printer control panel Used to change the media size and type, set

6 MSI*/Manual Feed Unit

(*Multi Sheet Inserter) (optional)

Used to set up copy jobs, map originals to the installed media, display messages and procedures, and provide troubleshooting help, e.g., for jam clearance.

buttons, and selection buttons for copy setups.

Helps the user align the edge of a document when feeding it into the scanner.

up printing and communication parameters, etc.

Used for printing or copying on cut sheet media.

7 Feeder LED Illuminates red when the media tray is in use.

8 Media tray (6050 only) A dual-roll media tray that feeds roll paper.

9 Media tray (Standard) A dual-roll media tray that feeds roll paper.

Name Function

*10 Scanner power switch Switches the power to the scanner on and off.

Name Function

1 Toner supply port The toner is refilled through this port.

Major Components: Rear

( *6030/6050 Copier/Printer only )

*1 Document ejection port Documents exit the scanner from this location.

*2 Power outlet socket Not available

3 Print ejection port Fused copies and prints exit the machine from

1.2 Major Components

Name Function

this location.

Name Function

*4 Remote switch A selector switch that enables the user to

switch the power to both the scanner and the printer on and off from the Main Power Switch.

*5 Interface connector The connector to which the printer is

connected.

*6 Serial port connector Used by the service representative for

maintenance.

7 Circuit Breaker Switch Provides circuit breaker protection for the

Copier/Printer or Printer.

8 Paper Heater Switch Switches the paper heaters on and off.

9 Main Power Switch Switches the printer power on and off (if the

Circuit Breaker Switch is already switched on).

Connections to the host computer and other necessary connections will be taken care of by your service representative.

1.3

Powering On 6030/6050

Power On/Off

The scanner and the printer are each equipped with a power switch. The Circuit Breaker Switch must be in the ON position to switch the printer and scanner power on and off. No power is consumed when the Circuit Breaker Switch is in the OFF position, even though the power plug is connected to the power source.

1 Set the Remote Switch to [Connect].

When the Remote Switch is set to [Connect], and the Scanner Power Switch is set to ON, the Main Power Switch controls power to both the Printer and the Scanner.

Scanner Power Switch

Main Power Switch

2 Switch ON the Scanner Power Switch.

3 Switch ON the Circuit Breaker Switch. 4 Switch ON the Main Power Switch.

Circuit Breaker

Powering On 6050A

1.3 Power On/Off

1 Switch ON the Main Power Switch. 2 Switch ON the Circuit Breaker Switch.

Powering Off 6030/6050

Switch off the power following the steps below.

Never switch off the power while the machine is printing. Failure to observe this precaution may result in paper jams in the high-temperature areas of the printer.

Main Power Switch

3 Press power button on Accxes® Controller.

The 6050A will not operate unless

Accxes controller is ON.

1 Switch OFF the Main Power Switch.

When the remote switch is set to [Connect], and the Scanner Power Switch is set to ON, the power to the Printer and Scanner can be switched on and off with the Main Power Switch.

Scanner Power Switch

Circuit Breaker

2 Switch OFF the Scanner Power Switch.

Switch off the Circuit Breaker Switch if the machine will not be used for a long period of time.

3 Switch the Circuit Breaker Switch to the

OFF position.

Powering Off 6050A

Switch off the power following the steps below.

Never attempt to switch off the power while the machine is printing. Failure to observe this precaution may result in paper jams in the high-temperature areas of the printer.

1 Press the <Menu> button. 2 Press < > twice to display the Utilities

menu option.

3 Press the < > button. 4 Press < > once to display the Shut Down

menu option.

5 Press the <Set> button.

1.3 Power On/Off

1.4

Power Save Mode

The Power Save Mode automatically lowers the power consumption of the machine by reducing the fuser power. The machine will enter the power save mode when no prints or copies have been made for a preset period of time.

• Low power mode 1

This mode reduces the temperature of the fuser, thereby reducing power

consumption. The parameters that can be set up are only [ON] and [OFF],

on the 6030/6050 and the time that must elapse before the mode activates

are:

6030/6050 Copier Printer: 1 to 120 minutes; the default setting is

[5 minutes].

6050A: 15-240 minutes; the default setting is [15 minutes].

• Low power mode 2 (6030/6050 only)

This mode reduces the temperature of the fuser more than Low power

mode 1.

The parameters that can be set up are only [ON] and [OFF] on the 6030/

6050, and the time that must elapse before the mode activates is 5 to 120

minutes; the default setting is [15 minutes].

• Sleep Mode

The sleep mode automatically switches off the power to the printer. The

parameters that can be set up are only [ON] and [OFF] on the 6030/6050,

and the time that must elapse before the mode activates are:

6030/6050 Copier/Printer:15 to 120 minutes; the default setting is [90

minutes].

6050A: 15 to 240 minutes; the default setting is [55 minutes].

Power is restored to normal levels when a print job is received by the printer, and when the <Power Saver> key on the printer control panel is pressed.

The Power Save Mode settings can be accessed and changed using either the <Custom Presets/Meter Check> key on the copier control panel, or the setup menu on the printer control panel.

Refer to "3.8 System Parameter Setup (Print Services on Web, 6030/6050)" for changing the power save mode settings from the printer control panel.

1.4 Power Save Mode

1.5

Printer Control Panel Overview

Both the Printer and the Copier/Printer versions of the 6030/6050/6050A Wide Format are equipped with a printer control panel. This section provides an overview of this device.

Refer to section "2.2 Printer Control Panel Usage" and Chapter 5 for detailed explanations of the use of the printer control panel.

It is seldom necessary to use the printer control panel on the 6030/6050 Wide Format Copier/Printer because the same settings usually can be made using either the copier control panel or Print Services on Web, the built-in web interface.

[Processing] lamp (green)

Indicates the printing status.

ON Printing in process

Blinking Receiving print data OFF Not printing

Printer display

Used for setting up the various functions. Displays various messages.

[Online] lamp (green)

Indicates the data processing status.

ON Ready to print.

Blinking Moving to the

offline mode.

OFF The offline mode.

Printing is not possible.

(6030/6050 only)

<Power Saver> button

Activates the energy-saving mode. Also cancels the energy-saving mode.

ON Energy-saving mode

activated.

OFF Energy-saving mode

deactivated.

[Error] lamp (red)

Indicates a printing error.

ON Indicates that an error,

such as paper jamming, has occurred.

OFF Printer operating

normally.

<Pause> button

Temporarily suspends a job during printing.

<Set> button

Sets the values specified on the menu screen.

<Manual Feed Mode> button

Currently not supported.

<Menu> button

Alternates between the online mode and offline mode.

<Cancel Job> button

Cancels a job during printing.

< > < > < > < > buttons

Displays the items and specified values on the menu screen.

1.6

Print Services on Web Overview (6030/

6050)

Print Services on Web is web server software which is pre-installed in the 6030/ 6050 Wide Format Printer and Copier/Printer. Print Services on Web provides a user-friendly way to perform printer setup, communication (port) setup, job and error log management, and other procedures via a web browser. Print Services on Web also enables the user to perform operations which can not be performed from the printer control panel, for example, displaying job lists and changing job priority.

Refer to the topic " Starting and Exiting Print Services on Web" in "2.3 Print Services on Web (6030/6050)" to learn how to log on to Print Services on Web.

1.6 Print Services on Web Overview (6030/6050)

Operating Modes

User Mode

The user mode interface (user page) is shown in the image below. This page displays immediately after a user logs on to Print Services on Web. The selections on the tabs enable the user to do the following.

[Job and Log] tab Check the status of a print job.

[Status tab] Check the status of the Printer or Copier/Printer.

[Print Setup] tab View the logical printer settings.

View and print a job log.

Start a print job.

Refer to section "1.7 Logical Printers Overview (6030/6050)" to learn more about logical printers.

Administrator Mode

To enter the administrator mode, log on to Print Services on Web, select the [Administrator page] button, and then enter the administrator login and password when prompted to do so. The administrator page displays two additional tabs, [Properties] and [Tools], and expands the capabilities of the [Job and Log], [Status], and [Print Setup] tabs. The selections on the Administrator page tabs enable the administrator to perform the tasks listed below.

[Job and Log] tab • Check the status of jobs in the print queue.

[Status tab] •Check the status of the Printer or Copier/Printer.

• View and print the job log and the error log.

• Cancel a print job.

• Change the priority of a print job.

• Stop and start print services (job reception and

printing).

• Stop and start job reception from client computers.

• Stop and resume print jobs.

[Print Setup] tab • Set up new logical printers for each of the allowable

data formats (HP-GL, TIFF, CALS, VERSATEC, PS/ PDF).

• Edit the settings of existing logical printers.

[Properties] tab • View and change the machine configuration.

• View and change communications configurations.

• Manage ftp users.

[Tools] tab • Print a test pattern to verify machine (printer) operation.

• Print a Diagnostic Report.

1.6 Print Services on Web Overview (6030/6050)

1.7

Logical Printers Overview (6030/6050)

A logical printer (virtual printer) is a group of saved print job settings for a particular data format, i.e., HP-GL, Versatec, TIFF, CALS, and PS/PDF. These saved settings, which are created using Print Services on Web, may include pen attributes, media type, print quantity, and the other parameters that define the print job that the logical printer will be required to perform. Logical printers are to printing as Stored Jobs are to copying, that is, both reduce setup time and increase efficiency by using previously saved job settings. A maximum of one hundred logical printers can be set up within one 6030/6050 Wide Format Printer or Copier/Printer for each supported data format.

Refer to "Chapter 4 Logical Printer Setup and Operation (6030/6050 only)" to learn how to set up logical printers.

How Logical Printers are Named

P L T 0 0 H

Number

Format

Logical printer names are assigned based on the following. This naming structure can not be changed.

1st to 3rd digits [PLT] or [plt] character strings 4th to 5th digits (number) Two-digit number from 00 to 99 6th digit (data format) Any of the following.

H: HP-GL format V: Versatec format T: TIFF format C: CALS format A: PS/PDF format (optional)

1.8

Procedure

Loading Roll Media

The message ‘Replace xxx media." will display when there is no media loaded or when the roll in use runs out. The media size displayed on the control panel will turn off when there is no media in the machine. Two rolls of media can be loaded in each of the media trays.

Refer to the instructions provided in " Setting Up Media" and set up the media parameters after the roll media has been loaded.

Media can be reloaded in the lower media tray while printing is occurring from the upper media tray. Be sure that the Feeder LED on the lower media tray is off (not illuminated) before opening the lower media tray.

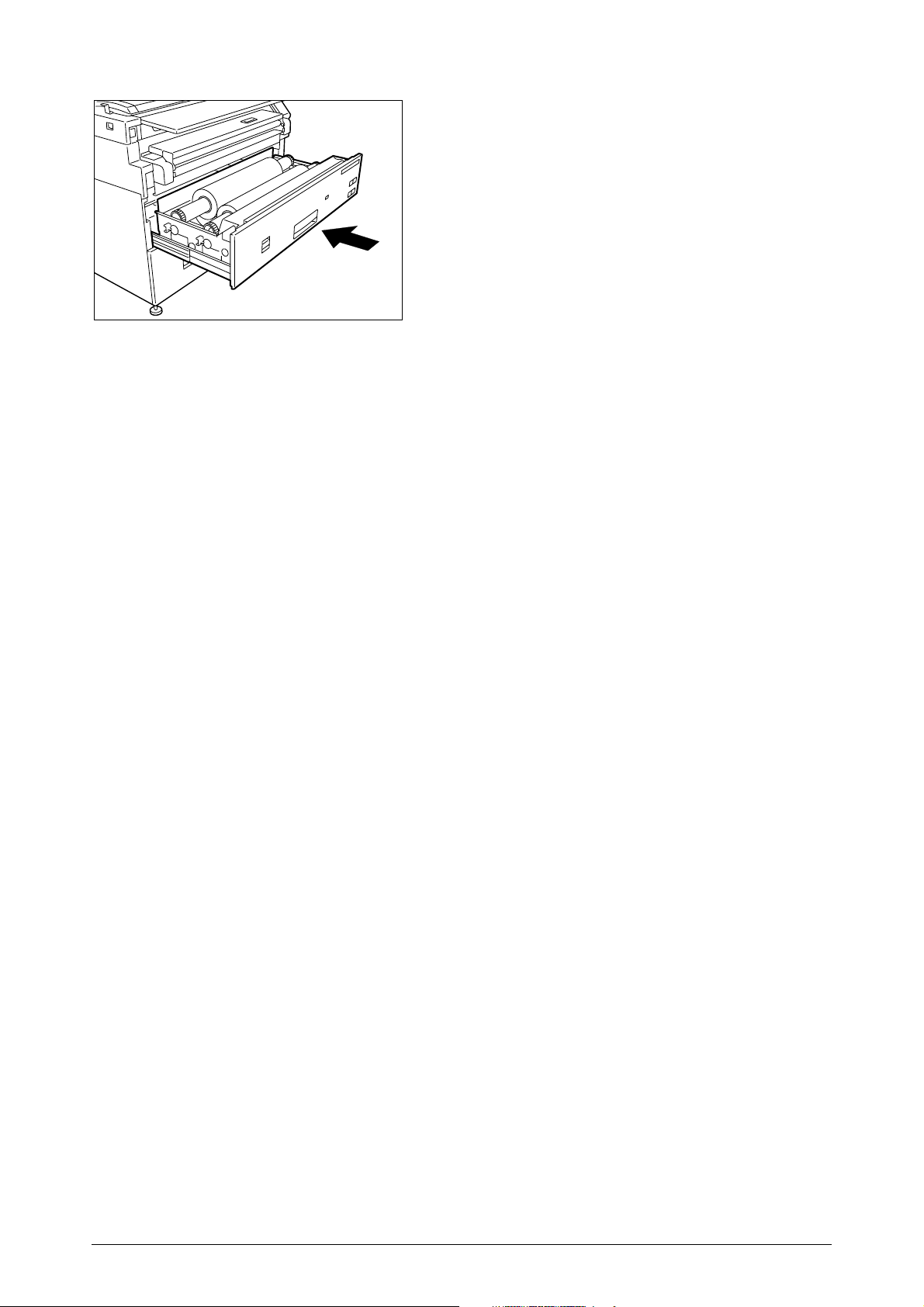

1 Open the media tray.

2 Remove the shaft containing the roll paper

that is to be replaced.

1.8 Loading Roll Media

3 While pulling on the lever located in the end

of the roll paper shaft, remove the paper

core in the direction of the arrow.

Pulling the lever releases the lock and allows the roll to be removed from the shaft.

There is an area at the front of the tray on which the roll paper can be placed.

4 While pulling the lever located in the end of

the roll paper shaft, align the roll paper with

the paper size marks on the shaft and set

the roll in place.

5 Align the roll paper following the directions

displayed inside the media tray and load the

roll on the shaft guide.

Cut the lead edge of the media before setting it in place if it is damaged. Refer to Media" for details on how to do this.

"1.11 Cutting Roll

6 Rotate the roll media until the lead edge is

gripped in the roller.

Rotate the knob until the leading edge of the paper can be seen in the window.

7 Gently but firmly close the media tray.

The LED on the front of the tray will illuminate,

and the roll paper will feed automatically to its

starting position.

8 Set up the media parameters on the copier

control panel.

" Setting Up Media"

For the 6050A an d 6030/6050 Print ers without copiers, the media parameters also may be set up on the printer control panel.

"Chapter 5 Additional Operations from the Printer Menu"

1.8 Loading Roll Media

1.9

Drawer Media Size Indicators

The media size indictors help the user identify the media that is loaded in each of the drawers. These indicators are visible on the right hand side of the drawers. Usage instructions begin on the next page. The following types are available.

• Standard size A

• Inch size A

Standard size A

SB1Sp.A1A3A1

B2 Sp.A2 Sp.A0 A2 A0

Inch size A

12”18”24”34”

11” 17” 22” 30” 36”

Inserting media size sheets

1 Open the tray.

2 Remove the media size sheet.

3 Fold the sheet so that the size loaded is

displayed.

4 Insert the media size sheet.

1.9 Drawer Media Size Indicators

5 Gently but firmly close the media tray.

1.10

Loading Media for Manual Feeding

1 Adjust the (MSI) Multi Sheet Inserter/

Manual Feed Unit's side guides to fit the

size of the media that is to be printed.

Set the correct media series for the manual feed sheet.

2 Place the side of the media to be printed

face up, and align it with the (MSI) Multi

Sheet Inserter/Manual Feed Unit's side

guides.

• The optional (MSI) Multi Sheet Inserter/Manual Feed Unit is required when making manually fed copies.

• Standard paper having a width of 297 to 914 mm and a length of 210 to 2,000 mm can be used with the (MSI) Multi Sheet Inserter/Manual Feed Unit.

3 Push the front edge of the media as far into

the machine as it will go. You will hear the

sound of a motor as the machine lifts the

media to the feed position.

Two or more sheets of A3 (horizontal feed) and A4 (horizontal/vertical feed) size paper can be placed in the MSI. Paper sizes other than A3 (horizontal feed) and A4 (horizontal/vertical feed) sizes must be in se rted o n e sh ee t a t a time. Only Bond paper can be used in the (MSI) Multi Sheet Inserter/Manual Feed Unit.

4 Make the required media settings on the copier control panel.

1.10 Loading Media for Manual Feeding

1.11

Cutting Roll Media

The lead edge of the media should be cut when the media is loaded, on recovery from a media jam, and when the lead edge of the roll is damaged. There are two methods for cutting the lead edge of the roll media:

• Automatic cut: This involves making selections on the printer control panel.

Refer to the section "5.7 Billing Meter Confirmation (6030/6050)" for the 6030/6050 and "5.8 Billing Meter Confirmation (6050A)" for the 6050A in "Chapter 5 Additional Operations from the Printer Menu" for details about automatic cutting.

• Manual cut: Open the media tray and slide the cutter manually.

Refer to section " Cutting Roll Media Manually" in this chapter.

Cutting Roll Media Manually

Cutting the Front Roll

1 Open the media tray.

2 Pull the lever to open the tray cover.

Lever

3 Rotate the roll media until the lead edge is

gripped by the roller.

1.11 Cutting Roll Media

4 Rotate the knob until the media's lead edge

protrudes from the tray outlet.

5 Grasp the cutter by the handle and slide it

to the opposite side of the tray to cut the

paper.

CAUTION: Use the cutter handle to prevent personal injury which may result from sliding your fingers along the sharp, metal cutting bar.

Window

6 Remove the cut off media. 7 Close the tray cover.

8 Return the media to its original location by

rotating the knob until the lead edge can be

seen in the window.

Cutting the Rear Roll

9 Close the media tray.

1 Open the media tray.

2 Rotate the roll paper until the lead edge is

gripped by the roller.

1.11 Cutting Roll Media

3 Rotate the knob until the media's lead edge

protrudes from the tray outlet.

4 Pull the lever to open the tray cover.

5 Rotate the knob until the paper passes

through the tray outlet.

6 Grasping the cutter by the handle, slide the

cutter to the opposite side of the tray to cut

the paper.

CAUTION: Use the cutter handle to prevent personal injury which may result from sliding your fingers along the sharp, metal cutting bar.

7 Remove the media that was cut off. 8 Close the tray cover.

9 Return the media to its original location by

rotating the knob until the lead edge can be

seen in the window.

10 Close the media tray.

1.11 Cutting Roll Media

Chapter

Chapter 0

Printer Overview

Chapter 2

2.1

Overview of the 6030/6050/6050A Wide

Format Printer

This section provides an overview of the 6030/6050/6050A Wide Format printer.

What is the 6030/6050/6050A Wide Format Printer?

The 6030/6050/6050 Wide Format printer processes print jobs that it receives from a client. The 6030/6050/6050A Wide Format printer enables all types of image data to be printed in the supported formats, including standard and nonstandard size documents, enlarged and reduced images, and split (fragmented) images. It also allows the user to view the status of print jobs, cancel print jobs, and change print job priority.

Data Formats that can be Processed (6030/6050)

Processing is possible for the following data formats.

• HP-GL formats (HP-GL, HP-GL/2, HP-RTL)

• VERSATEC formats (VRF, VCGL)

• TIFF formats (conforming to TIFF Revision 6.0)

• CALS formats (CALS Type 1)

• PS/PDF formats (PostScript 3.0, PDF Version 1.3)(Optional)

Chapter 2 Printer Overview

Data Formats that can be Processed (6050A)

Processing is possible for the following data formats.

• HP-GL formats using HP750C emulation (HP-GL2, HP-RTL)

• TIFF 6.0 (including LZW)

• CALS 1&2

• CalComp 906/907/951/PCI

• FileNET

• NIRS

• CGM

• VCGL

• VRF

• Versatec Data Standards

• Xerox Emulation 150

• C4

• JPEG

• Optional (Adobe

PostScript® 3™, PDF (1.6), DWF, BMP, JPEG 2000, PNG,

GIF, DGN)

Communication Interfaces (6030/6050)

The following communication interfaces are supported.

• Ethernet (100Base-TX and 10Base-T)

• RS232C

• Centronics (optional)

• VPI (optional)

Communication Interfaces (6050A)

The following communication interfaces are supported.

• TCP/IP 10/100/1000

• LPR

• TFTP

2.1 Overview of the 6030/6050/6050A Wide Format Printer

Printing Methods (6030/6050)

Documents may be submitted from a client to the 6030/6050 Wide Format Printer using any of the following.

• Ethernet (Direct) Printing

This capability is for UNIX systems. Printing takes place over TCP/IP networks using the ftp and lpr commands.

Refer to "Chapter 6 Ethernet Print Service (for UNIX)" for details on available functions.

• Wide Format Windows Driver

The Microsoft® Windows® signed print drivers (32/64 bit) enable users to print documents from various Windows applications.

Serial output is not supported by the Wide Format Windows Driver. Refer to the Xerox 6030/6050/6204 Wide Format Windows Driver User Guide

for details on available functions.

• BT-PlotAssistant (Ver. 3.4.0 or later)

BT-PlotAssistant is printer support software that runs on Windows operating systems. Using BT-PlotAssistant’s simple user interface, the user can submit documents to the 6030/6050 Wide Format printer.

Refer to the Xerox 6030/6050/6204 Wide Format BT Plot Assistant User Guide for details on available functions.

• PostScript/PDF Driver (PS/PDF)(Optional)

The PostScript/PDF driver provides enhanced printing performance and enables users to print PDF documents. A feature key is required for the Accxes controller to print files using the PostScript driver.

Refer to the Xerox 6030/6050/6204 Wide Format PostScript Driver User Guide for details on available functions.

Chapter 2 Printer Overview

Printing Methods (6050A)

Documents may be submitted from a client to the 6050A Wide Format Printer using any of the following.

• Ethernet (Direct) Printing

Printing takes place over TCP/IP networks using lpr protocol or raw sockets.

Refer to "Chapter 6 Ethernet Print Service (for UNIX)" for details on available functions.

• Wide Format Windows Driver / PostScript Driver

The Microsoft® Windows® Signed print drivers (32/64 bit) enable users to print documents from various Windows applications. A feature key is required for the Accxes controller to print Postscript/PDF files.

Serial output is not supported by the Wide Format Windows Driver. Refer to the Xerox 6030/6050/6204 Wide Format Windows Driver User Guide

for details on available functions.

• Accxes Client Tools (Ver. 12.01.41)

Accxes Client Tools is printer support software that runs on Windows® and Sun Solaris operating systems. Using the Accxes Client Tools simple user interface, the user can submit documents to the 6050A Wide Format printer.

Refer to the Xerox 6050A Accxes Client Tools User Guide for details on available functions.

• Instant Accxes (Ver. 12.5)

Provides pubicly shared "Instant Folders" (networked folders) to which print options are applied automatically allowing for the automation of document printing. Instant Folders show up within your Microsoft Neighborhood" once InstantAccxes is configured and enabled. InstantAccxes is officially supported on Microsoft

Windows® and Apple® Mac OS X.

Windows® "Network

2.1 Overview of the 6030/6050/6050A Wide Format Printer

Print Service Operations

The printer control panel and Print Services on Web are the two main features that enable users to set up and perform print service operations.

Printer Control Panel

The printer control panel can be used to perform a variety of tasks, among them:

• media setup for roll media and the MSI (Multi Sheet Inserter/Manual Feed

Tray)

• communication (port) setup

• system parameter setup

• printing of test patterns to verify printer operation

• job log and error log management

• reprinting of the most recent print job (6030/6050 only)

• displaying billing meter information

Refer to "2.2 Printer Control Panel Usage" for more details on the printer control panel and its usage.

Chapter 2 Printer Overview

Print Services on Web (6030/6050 only)

Print Services on Web is web server software which is pre-installed in the 6030/ 6050 Wide Format. Print Services on Web provides a user-friendly way to perform printer setup, communication (port) setup, log management, and other procedures via a web browser.

Print Services on Web also enables the user to perform operations which can not be performed from the printer control panel, for example, displaying job lists, changing job priority, and starting and stopping the server.

Refer to "2.3 Print Services on Web (6030/6050)" for further details on Print Services on Web and its operation.

2.1 Overview of the 6030/6050/6050A Wide Format Printer

Main Printing Functions

This section describes the main printing functions which are available with the 6030/6050 Wide Format Printer and Copier/Printer.

Logical Printers (6030/6050 only)

A logical (virtual) printer is a group of saved print job settings for a particular data format, i.e., HP-GL, Versatec, TIFF, CALS, and PS/PDF. These saved settings, which are created using Print Services on Web, may include pen attributes, media type, print quantity, and the other parameters that define the print job that the logical printer will be required to perform. Logical printers are to printing as Stored Jobs are to copying, that is, both reduce setup time and increase efficiency by using previously saved settings. A maximum of one hundred logical printers can be set up within one 6030/6050 Wide Format Printer or Copier/ Printer for each supported data format.

Logical printer names are assigned based on the following. It is not possible to change these names.

P L T 0 0 H

Number

Format

1st to 3rd digits [PLT] or [plt] character strings 4th to 5th digits (number) Two-digit number from 00 to 99 6th digit (format) Any of the following.

H: HP-GL format V: Versatec format T: TIFF format C: CALS format A: PS/PDF format (optional)

The sixth digit can be omitted when Ethernet multi-data format functions are in use. When this digit is omitted, the relevant software to be started will be selected according to the extension log of the transmitted data file. If a logical printer is selected that has a different sixth digit than the format of the print file, the file may be forwarded to a logical printer that has the same extension as the transmitted file.

Chapter 2 Printer Overview

Document Size Input

The following two methods are available for judging the size of the input document:

• Automatic Calculates the coordinates of the input document and

• Size SpecificationEnables the user to manually select the media size of the

The Automatic setting is used under normal circumstances. Specify the size manually if restrictions are to be placed on the input coordinates. When the size is specified, all areas that exceed that size will be cut off.

• Refer to "3.8 System Parameter Setup (Print Services on Web, 6030/6050)" for details on setting up the logical printer extensions.

• Refer to "4.1 Creating a New Logic al Printer" for help in sett ing up logical printers.

automatically selects the closest size.

input image. The media size can be selected from standard

sizes and user-defined sizes.

Refer to the "Input Option" section of "4.3 Logical Printer Print Settings" for details on available functions.

Media Size Output

The following two methods for judging the size of the output media are available:

• Automatic When Automatic is selected, the print size is enlarged or

• Size SpecificationWhen Size Specification is selected, the output media size is

"Automatic" is used under normal circumstances. Specify the media size manually if all output is to be printed on a single media size.

reduced automatically based on a size mapping table

(explained later). Also, the size of the media that is selected

is determined based on a media mapping table, or by

automatic mapping (explained later).

specified manually. If the specified media size is different

from the input document size, the document will be enlarged

or reduced to match the size of the paper.

Refer to "4.3 Logical Printer Print Settings" for details on available functions.

2.1 Overview of the 6030/6050/6050A Wide Format Printer

Size Mapping

Size mapping is the process of setting up a table that establishes relationships between input document sizes and output image sizes. When size mapping is finished (must be done prior to printing), documents can be enlarged or reduced automatically based on the table entries.

Enlarge

Input document size

Reduce

Refer to " Size/Media Mapping" in "4.3 Logical Printer Print Settings" for more details.

Media Mapping/Automatic Mapping

Media mapping is the process of setting up a table that establishes relationships between output image sizes and media sizes. This process, like size mapping, must be performed prior to printing. Once the media mapping table is finished, the media size is determined by the entries in the media mapping table. When Automatic Mapping is selected, the output media size that matches the output image size will be selected.

Check media mapping to be sure the media size selected matches the media loaded in the printer. Refer to

Output image size

"4.3 Logical Printer Print Settings" for more details.

A3 A3

Output document size

Rotated 90 degrees

Paper

Output on A3 roll media

Output on A2 roll media

Chapter 2 Printer Overview

Plot Area, Auto-Layout, and Offset

It is possible to print a specified area of an input document. The specified area can be printed in the center of the media or moved to another position (autolayout, offset).

Refer to the "Plot Area" section of "4.3 Logical Printer Print Settings" for details on available functions.

Plot area

Input document

Mirror Image, 90-Degree Rotation

These functions perform mirroring (Mirror Image) or 90-degree rotation processing on the output image.

Refer to the "Transform" section of "4.3 Logical Printer Print Settings" for details on available functions.

Auto-layout

Offset

Output images

Input document

Output images

2.1 Overview of the 6030/6050/6050A Wide Format Printer

Mirror image

90-degree rotation

Split Drawing (Image Fragmentation)

Long images (those that exceed 1,189 mm in length) may be split into several parts and printed. Positioning marks can be added to the split prints for positioning purposes.

Refer to "Split Drawing" in "4.3 Logical Printer Print Settings" for more details.

Fragment

Printing the Output Time

The date and time a document is printed can be added to the edge of the document.

Refer to the "Message Option" section of "4.3 Logical Printer Print Settings" for details on available functions.

Log Management

It is possible to print out a log of completed print jobs, an error log, and other information.

Refer to " Manage the Job and Error Logs" for details on printer control panel operations.

Reprinting

The most recently printed document can be reprinted. The print quantity also can be specified.

1/3

2/3

3/3

Reprinting is not possible with the Xerox 6030 WF or Xerox 6050 WF if a copy job is performed after the print operation.

Refer to "5.6 Reprinting (6030/6050 only)" for details on available functions.

Chapter 2 Printer Overview

Canceling Jobs

Jobs transmitted to the 6030/6050/6050A Wide Format can be deleted by pressing the <Cancel Job> key on the printer control panel. It is also possible to cancel jobs from Print Services on Web.

Meter Display

The billing meters can be checked from both Print Services on Web (6030/6050 only) and the printer control panel.

Job Recovery

This machine is equipped with a recovery function for media jams and when media runs out.

Refer to "2.2 Printer Control Panel Usage" for details on the <Cancel Job> key, and "4.5 Print Services on Web: Job and Log" for details on Print Service on Web operations.

Refer to "4.6 Print Services on Web: Status" for details on web operations, and "5.7 Billing Meter Confirmation (6030/6050)" for the 6030/6050 and "5.8 Billing Meter Confirmation (6050A)" for the 6050A for details on printer control panel operations.

• Media Jams

Documents that failed to print because of a media jam will print when the jam is cleared.

• No Media

Printing of a print job that is stored in memory will restart when the media is loaded in the printer.

The printer also can be set up to print (or not print) jobs that remained in the print queue when the printer was switched off.

Refer to "3.2 Communication Parameter Setup (Printer Control Panel, 6030/

6050)" for the 6030/6050 and "3.3 Communic ati on Param eter Setup (Printer

Control Panel, 6050A)" for the 6050A, and also to the topic "Setting Up [Job Recovery]" in "3.8 System Parameter Setup (Print Services on Web, 6030/

6050)" for details on job processing after the power is switched on.

2.1 Overview of the 6030/6050/6050A Wide Format Printer

2.2

Printer Control Panel Usage

This section describes the names and functions of the printer control panel components.

[Processing] lamp (green)

Indicates the printing status.

ON Printing in process

Blinking Receiving print data OFF Not printing

Printer display

Used for setting up the various functions. Displays various messages.

[Online] lamp (green)

Indicates the data processing status.

ON Ready to print.

Blinking Moving to the

offline mode.

OFF The offline mode.

Printing is not possible.

<Power Saver> button

Activates the energy-saving mode. Also cancels the energy-saving mode.

ON Energy-saving mode

activated.

OFF Energy-saving mode

deactivated.

[Error] lamp (red)

Indicates a printing error.

ON Indicates that an error,

such as paper jamming, has occurred.

OFF Printer operating

normally.

<Pause> button

Temporarily suspends a job during printing.

<Set> button

Sets the values specified on the menu screen.

<Manual Feed Mode> button

Currently not supported.

<Menu> button

Alternates between the online mode and offline mode.

Press the < > and < > keys simultaneously to reset the printer when an error code is displayed.

<Cancel Job> button

Cancels a job during printing.

< > < > < > < > buttons

Displays the items and specified values on the menu screen.

Chapter 2 Printer Overview

Basic Printer Control Panel Operations

The printer must be in the offline mode before settings can be changed. Pressing the <Menu> key switches the printer to the offline mode and displays the menu screen.

Button Functions

The following buttons are used to navigate the menu screen.

<Menu> key Switches the printer to the offline mode and displays the menu

screen. The printer returns to the online mode when this button is pressed again.

< > key

< > key Displays the higher level menu item.

<Set> key

Displays the previous menu item or value on the same menu level.

Displays the next menu item or value on the same menu level.

Displays the lower level menu item.

Accepts the value selected by the user. An asterisk [*] displays on the right side of the value once it is selected by pressing the <Set> key.

2.2 Printer Control Panel Usage

Overview of the Operation Menu

The printer control panel’s operation menu is depicted in the image below. Descriptions of the sub-menus follow.

Online Mode

Ready to print

<Menu> button

< > button

MENU NETWORK/PORT SET

MENU PRINT SETUP

< > button

Offline Mode

Return to higher level

Move to lower level

MENU SYSTEM PARAMETER

MENU PORT SETTING

MENU TEST PLOT

MENU JOB LOGGING

MENU OFFLINE PLOT

< > button

SYSTEM PARAMETER Set Date

SYSTEM PARAMETER AUTO ROLL

SYSTEM PARAMETER SPA PAPER WIDTH

Specified values: Select with the < > and < > buttons, and set with the <Set> button.

SPA PAPER WIDTH Sp A1

SPA PAPER WIDTH Sp A2

Return to the previous

Return to higher level

SYSTEM PARAMETER MENU

Sets up the system management information, such as the system date and power save mode settings.

Refer to "3.2 Communication Parameter Setup (Printer Control Panel, 6030/

6050)" for the 6030/6050 and "3.3 Communic ati on Param eter Setup (Printer

Control Panel, 6050A)" for the 6050A for setup procedures.

MENU BILLING INFO

Operation menu

Chapter 2 Printer Overview

PORT SETTING MENU

Sets up the communication parameters that are required for connecting to the host.

Refer to "3.2 Communication Parameter Setup (Printer Control Panel, 6030/

6050)" for the 6030/6050 and "3.3 Communic ati on Param eter Setup (Printer

Control Panel, 6050A)" for the 6050A for set up procedures.

TEST PLOT MENU

Prints test patterns to help verify printer operation.

Refer to "5.4 Test Printing (6030/6050 only)" for logical printer details and operations.

JOB LOGGING MENU

Prints job and error logs.

Refer to "5.5 Managing the Job and Error Logs (6030/6050 only)" for logical printer details and operations.

OFFLINE PLOT MENU

Reprints the most recently printed job.

BILLING INFO MENU

Displays the amount of roll media that has been used for both copy and print jobs in linear and square feet and meters.

Refer to "5.6 Reprinting (6030/6050 only)" for logical printer details and operations.

Refer to "5.7 Billing Meter Confirmation (6030/6050)" for the 6030/6050 and "5.8 Billing Meter Confirmation (6050A)" for the 6050A for logical printer details and operations.

2.2 Printer Control Panel Usage

Operation Examples

This section provides examples of how to select menu items.

<Menu> key

Ready to print

1 Press the <Menu> key.

MENU NETWORK/PORT SET

<> key

MENU SYSTEM PARAMETER

<> key

MENU PORT SETTING

<> key

PORT SETTING TCP/IP

The machine will enter the offline mode.

2 Press the < > key.

The top selection in the [NETWORK/PORT

SET] menu will display.

3 Press the < > key.

The menu items will display in order.

The previous menu will display if the <

> key is pressed.

4 Press the < > key.

The sub-menu items will display.

<><> key

PORT SETTING SERIAL

<> key

SERIAL Handshake

<> key

PORT SETTING SERIAL

<> key

MENU PORT SETTING

5 Press the < > key.

The menu items on the same level will

display in order.

6 Press the < > key.

The menu items on the next level will

display.

7 Press the < > key to return to the higher

level.

8 Press the < > key to return to an even

higher level.

Chapter 2 Printer Overview

Setting Up a Value

This section provides an example of setting up a value.

SYSTEM PARAMETER Smoothing

<> key

Smoothing ON *

<><> key

Smoothing OFF

<Set> key

Smoothing OFF *

1 Select the menu item that you want to set

up so that it displays on the screen.

2 Press the < > key.

The current value will display.

An asterisk [*] is displayed beside the current value.

3 Use the < > and < > keys to change the

setting.

The asterisk [*] will be removed when the setting is changed.

4 Press the <Set> key to specify and confirm

the new value.

The asterisk [*] will display beside the new

value.

<> key

SYSTEM PARAMETER Smoothing

5 Press the < > key to return to the next

higher menu level.

2.2 Printer Control Panel Usage

Entering Numbers and Characters

This section provides examples of how to enter numbers and characters.

SYSTEM PARAMETER Low power mode1

<> key

Timer Value 05 *

<><> key

Timer Value 15

<> key

Timer Value 15

1 Select the menu item that you want to set

up.

2 Press the < > key.

The current setting for the selected item will

display.

3 Set up the first number using the < > and

< > keys. The value will increase or

decrease sequentially between 0 and 9.

In the example on the left, press the <

> key to display [2].

4 Press the < > key.

The cursor will move to the second number.

Press the < > key to return to the previous number.

<><> key

Timer Value 16

<Set> key

Timer Value 16 *

<> key

Timer Value 16 *

<> key

MENU SYSTEM PARAMETER

5 Set up the second number using the < >

and < > keys.

6 Set up all other numbers in the same way.

Press the <Set> key after all numbers are

set up.

The [*] mark will display beside the new

value.

7 Press the < > key to move the cursor to

the first number.

8 Press the < > key to return to the higher

level menu.

Chapter 2 Printer Overview

2.3

Print Services on Web (6030/6050)

Print Services on Web is web server software which is pre-installed in the 6030/ 6050 Wide Format. Print Services on Web enables the user to perform the following procedures from a workstation using a web browser.

• Set up communication parameters

• Set up logical printers (print setup)

• Display the machine status

• Manage print jobs

• Manage job and error logs

• Set up system parameters

• Print test patterns

Operating Environment

Print Services on Web operates in the following environment. Operating Systems Microsoft® Windows®2000

Microsoft® Windows®XP Microsoft® Windows® Server 2003

Browsers Microsoft® Internet Explorer 6.x or later

Enable the java script setting when using Print Services on Web. Also, set the browser at [Don't use proxy server].

2.3 Print Services on Web (6030/6050)

Starting and Exiting Print Services on Web

This section explains how to start and exit Print Services on Web.

Start Print Services on Web

1 Start the browser. 2 Enter the URL for the 6030/6050 Wide Format (http://Home name or IP

address) in the browser's address field, and then press the <Enter>

key.

Exit Print Services on Web

1 To exit Print Services on Web, either click the [¥] button located at the

top right corner of the browser, or select [File] > [Exit].

Chapter 2 Printer Overview

Print Services on Web Organization

This section explains the various pages contained within Print Services on Web.

User Page

This is the first page displayed when connecting with the Print Services on Web.

The user page allows users to do the following.

[Job and Log] tab Check the status of a print job.

[Status tab] Check the status of the Printer or Copier/Printer.

[Print Setup] tab View the logical printer settings.

Administrator Page

The administrator page (see next page) displays after the user selects the [Administrator page] button on the user page, and then enters the user name and password in the logon dialog box.

View and print a job log.

Start a print job.

2.3 Print Services on Web (6030/6050)

The administrator page permits the following.

[Job and Log] tab • Check the status of jobs in the print queue.

• View and print the job log and the error log.

• Cancel a print job.

• Change the priority of a print job.

[Status tab] •Check the status of the Printer or Copier/Printer.

• Stop and start print services (job reception and

printing).

• Stop and start job reception from client computers.

• Stop and resume print jobs.

[Print Setup] tab • Set up new logical printers for each of the supported

data formats (HP-GL, TIFF, CALS, VERSATEC, PS/ PDF).

• Edit the settings of existing logical printers.

[Properties] tab • View and change the machine configuration.

• View and change communications configurations.

• Manage ftp users.

[Tools] tab • Print a test pattern to verify machine (printer) operation.

• Print a Diagnostic Report.

Chapter 2 Printer Overview

Online Help

Click the Help [?] button displayed at the top, right corner of the window to display the online help. The online help enables you to answer many questions related to using Print Services on Web.

2.3 Print Services on Web (6030/6050)

2.4

FreeFlow Accxes Web Print

Management Tool (6050A)

The Freeflow Accxes Web Print Managment Tool (Web Printer Management Tool) is a web-based utility that resides on the controller as a web server. It has the look and feel of a web page even though you are not on the World Wide Web. There are multiple versions of Web Printer Management Tool that are supported on FreeFlow Accxes controllers.

The address window uses the URL address, which is the IP Address of the controller you want to access. A customer's workstation, connected to a network, has access to any controller connected to the same network. It can be used to monitor jobs and/or administer the printer's parameters or configuration.

The performance of the Web Print Management Tool, in terms of user wait time, is determined primarily by:

• Network bandwidth and speed

• Amount of data being transmitted to or from the printer’s Controller

• Network traffic

The Web Printer Management Tool provides the following services to users of Xerox Wide Format Printers.

Chapter 2 Printer Overview

Users

• View printer status (including media inventory) and the print queue

• View the printer defaults

• View the Job Accounting mode for remote print jobs

• Generate test prints showing configuration data (such as the Controller’s TCP/

IP address)

System Administrators with the Password

• Change the priority of, or delete any job in, the print queue

• Set up all printer defaults

• Load stamps

• Specify the Job Accounting mode for remote print jobs

• Upload controller and printer firmware updates

• Upload Feature Keys to the Controller

• Enable or disable the media mismatch queue

• Any remaining functionality

Web Print Managment Tool Requirements

To use the Web Print Managment Tool with firmware version 12.0 or greater, you must have the following software and hardware:

• Desktop/laptop computer with Netscape Navigator 8.0 (or newer), Microsoft

Internet Explorer 6.0 (or newer), Mozilla 1.7.5 (or newer), or Mozilla FireFox

1.5 (or newer) installed. Screen resolution required is 800x600 (or higher).

• A network connection based on the TCP/IP protocol

Web Printer Management Tool Security

Any user can view the Web Print Management Tool pages to monitor and manage their jobs. However, the System Administrator password (SA) is required to make any changes to printer defaults and configurations. The SA needs to change the default password, which is "0", to prevent users from making changes.

2.4 FreeFlow Accxes Web Print Management Tool (6050A)

Using Web Print Management Tool Main Menu

The Main Menu contains six selections in hypertext form allowing you to jump to other web pages.

Printer Queue

Configuration

Emulation

Printer Queue

This selection contains 3 tabs for viewing the Job Queue, Mismatched Job Queue and the Active Job Queue. Each Queue lists the Jobs Queued inside the Controller. The lists contain information about all submitted print jobs from all sources currently queued in the Controller's internal spool queue. The Job Queue will be clear when the controller is restarted.

This selection reveals seven tabs for configuring a variety of things including Scanner destinations, Accounting modes, Network settings, feature enablement and Date and Time.

This selection contains multiple tabs for setting the properties of certain file emulations and pen/plotter properties.

Configuration Emulations System

Defaults

Utilities

Help

System Defaults

This selection contains multiple tabs for setting default properties such as margins, media characteristics, scaling and rotation, brightness and contrast, and finishing options to name a few.

Utilities

This selection allows the user to upload files, print test pages, change a password, and restart or shut down the controller.

Help

This selection contains directions, explanations and links to main topics as well as an index.

Chapter 2 Printer Overview

Chapter

Chapter 0

Printer Setup

Chapter 3

3.1 Communication Parameters

The 6030/6050/6050A Wide Format Printer and Copier/Printer must be connected to a host PC before printing can be performed. Once the Printer or Copier/Printer is connected to the network, the communication parameters must be set up. The communication parameters can be set up from the printer control panel or from Print Services on Web (6030/6050). This section explains how to use both methods to perform the setup procedures. Explained, too, is the procedure for printing a list of the communication parameters.

Communication Parameters Definitions

Communication parameters may be defined for the following. (*6030/6050 Only)

• TCP/IP

• *Serial

• *Centronics (optional)

• *VPI (optional)

• *SNMP

SNMP can only be set up from Print Services on Web.

Chapter 3 Printer Setup

TCP/IP

The communication parameter nomenclature on the printer control panel will sometimes differ from the nomenclature on Print Services on Web (6030/

6050) or Web Printer Management Tool (6050A). The Print Service on Web

and Web Printer Management Tool nomenclature appears in bold type in the table below.

The following TCP/IP communication parameters must be set up for the 6030/6050.

Menu Item Description

Default Parser Selects the parser or data format interpreter that

will be used when the input data format has not been specified from among the available selections, that is, [HPGL], [VERSATEC], [TIFF], [CALS], or [PS/PDF]. The default setting is [HPGL].

Ethernet Setting (Physical Layer)

Selects the ethernet setting/physical layer. The default setting is [AUTO]. [AUTO] Automatic recognition [10BASE_T] Fixed at 10BASE_T [100BASE_T] Fixed at 100BASE_T

IP Address The IP address of the machine in the format

XXX.XXX.XXX.XXX. The IP address can be changed, if necessary.

MASK Value (Net mask)

The sub-net mask set up on the machine in the format XXX.XXX.XXX.XXX. The subnet mask can be changed, if necessary.

E-Net Address (Ethernet address)

Displays the Ethernet address. The value displayed is unique for the hardware and cannot be changed.

FTP Determines whether or not to enable FTP. The

default setting is [Enable].

Dynamic Routing Determines if dynamic routing will be enabled.

The default setting is [ON].

Static Routing* Determines if static routing will be enabled. The

3.1 Communication Parameters

default setting is [OFF]. Set Static Routing to [ON] when you need to view the device through a gateway or router.

\*The ROUTING TABLE can be edited if [Static Routing] is set to [Enable].

A maximum of 512 items can be saved in the routing table. The [Registration Not Possible] screen will display if the number of items exceeds 512.

Menu Item Description

ROUTING TABLE Select [ADD] to enter additional routing

information.

Dest. Address

Router Address Sets the router address for the local machine or

Sets the network address for the destination. Enter in the XXX.XXX.XXX.XXX format. Typically not needed.

subnet. Enter in the XXX.XXX.XXX.XXX format.

Chapter 3 Printer Setup

The following TCP/IP communication parameters can be set up for the 6050A using using the printer control panel on the device itself or using the Web Printer Management Tool.

Menu Item Description

Ethernet Setting Selects the ethernet setting/speed duplex layer.

The default setting is [AUTO]. The 6050A is capable of gigabit (1000mbps full duplex) connections, however this is only possible when in [AUTO] mode and when using a CAT6 ethernet cable. [AUTO] Automatic recognition [10mbps] Half-duplex/Full-duplex [100mbps] Half-duplex-Full duplex

IP Address The IP address of the machine in the format

XXX.XXX.XXX.XXX. The IP address can be changed, if necessary.

MASK Value The sub-net mask set up on the machine in the

format XXX.XXX.XXX.XXX. The subnet mask can be changed, if necessary.

Gateway The gateway set up on the machine in the format

XXX.XXX.XXX.XXX. The gateway can be changed, if necessary.

*E-Net Address Displays the Ethernet address. The value

displayed is unique for the hardware and cannot be changed.

DHCP Dynamic Host Configuration Protocol

automatically gives the 6050A an IP address at startup, providing there is a DHCP server already on the network.

RARP/BOOTP (UNIX) Reverse Address Resolution Protocol (RARP) is

used to manually obtain an IP address for the 6050A, providing there is a RARP server already on the network. Bootstrap Protocol (BOOTP) is used to automatically obtain an IP address for the 6050A, providing there is a BOOTP server already on the network.

3.1 Communication Parameters

Features marked * cannot be changed.

Serial (6030/6050 Only)

The serial communication parameters are listed below.

The communication parameter nomenclature on the printer control panel will sometimes differ from the nomenclature on Print Services on Web. The Print Service on Web nomenclature appears in bold type in the table below.

Menu Item Description

Default Parser The default setting is [HP-GL].

Logical printer number

Handshake Selects the handshake method from the following choices.

Baud Rate Sets the communication speed to [300], [1200], [2400],

Parity Sets the parity bit to [NONE], [EVEN], or [ODD].

Data Bit Sets the data bit length to [7_BITS] or [8_BITS].

Stop Bit Sets the stop bit length to [1_BIT] or [2_BIT].

Sets up a logical printer number to be use if a logical printer is not defined in the print job.

The default setting is [XON/XOFF]. [XON/XOFF] Handshake using the XON/XOFF protocol. [HARDWARE] Handshake using the hardware. [ENQ-ACK] Handshake using the ENQ-ACK protocol

(HP-GL only).

[SOFTWARE] Handshake using the application program

(HP-GL only).

[4800], [9600], or [19200]. The default setting is [9600].

The default setting is [EVEN].

The default setting is [7_BIT].

The default setting is [1_BIT].

EOP Timeout Determines whether or not to enable EOP timeout.

The default setting is [ON] or [Enable].

Timeout Value Sets up the EOP timeout value within a range of 1 to 255

seconds. If a value greater than 255 is entered, the timeout value will be set to 255. The default setting is [10].

Output Response

Enables [YES] or disables [NO] the output response. This must be set to [YES] if the printer requires a response when data is transmitted from the host to the printer. The default setting is [NO].

Chapter 3 Printer Setup

Menu Item Description

Job Separation (Page limit)

Sets up the job separation option. The default setting is [NO]. [YES] Starts data conversion once the command

that recognizes the end of the data is received, even if it occurs midway through the file.

[NO] Spools data on the hard disk until the

timeout is issued.

3.1 Communication Parameters

Centronics (optional, 6030/6050 Only)

The Centronics communication parameters are presented below.

Menu Item Description

Ack Mode The Ack mode is selected from [MODE0], [MODE1],

[MODE2], [MODE3], and [MODE7]. The default setting is [MODE0].

DMA Timeout The timeout value for data input is entered within a range

of 1 to 255 seconds. The default setting is [5 sec].

EOP Timeout Determines if the EOP Timeout will be enabled [TIMEOUT]

or disabled [NO_TIMEOUT]. If set to [TIMEOUT], a Timeout Value must be entered. The timeout value is entered within a range of 0 to 99 seconds. The default setting is [10 sec].

Job Separation Sets the job separation. The default setting is [NO].

[YES] Starts conversion processing once the

[NO] Performs the spooling process on the hard

command that recognizes the end of the data is received, even if this occurs midway through the file.

disk until a timeout is issued.

• If a value higher than [255] is entered for the DMA Timeout value, [255] will be set as the value.

• Changes to the [Ack Mode] and [DMA Timeout] values will have no effect on operations.

Chapter 3 Printer Setup

VPI (optional, 6030/6050 Only)

The following VPI communication parameters must be set up.

Menu Item Description

REPORT OFFLINE

EOP Timeout Determines if the EOP Timeout will be enabled [TIMEOUT]

Job Separation Sets the job separation. The default setting is [NO].

*If a value higher than [255] is entered for the timeout value, [255] will be set as the value.

Determines if the host will be notified offline of the media running out. The default setting is [NO]. [YES] Issues offline notification. [NO] Does not issue offline notification.

or disabled [NO_TIMEOUT]. If set to [TIMEOUT], a Timeout Value must be entered. The timeout value is entered within a range of 1 to 255* seconds. The default setting is [10 sec].

[YES] Starts conversion processing once the

command that recognizes the end of the data is received, even if this occurs midway through the file.

[NO] Performs the spooling process on the hard disk

until a timeout is issued.

3.1 Communication Parameters

SNMP (6030/6050 Only)

The communication parameters listed below must be set up.

SNMP must be set up in Print Services on Web.

Menu Item Description

SNMP Sets whether or not to enable SNMP.

Community String

Trap address Sets the IP address of the destinations (trap transmission

Transmission Port (Send port)

Version Sets the version of the trap to be transmitted.

Permanence (Persistence)

Sets the community String to be imbedded when the client transmits SNMP packets.

destinations) to which notifications are to be sent in the event of an error occurring with the printer. A maximum of 128 trap transmission destinations can be saved.

Sets the port numbers of the trap transmission destinations.

Sets whether the trap transmission destination information is to be stored or not after the printer has been switched off. A maximum of eight items can be enabled for permanence.

Chapter 3 Printer Setup

3.2

Communication Parameter Setup

(Printer Control Panel, 6030/6050)

This section explains the procedures for setting up the communication parameters from the printer control panel.

SNMP must be set up from Print Services on Web. The changed parameters become valid after the machine is rebooted.

Procedure

MENU PORT SETTING

PORT SETTING TCP/IP

TCP/IP Ethernet Setting

Ethernet Setting AUTO *

1 Press the < > key with [PORT SETTING]

displayed.

2 Select the interface that is to be set up with

the use of the <

then press the < > key.

[TCP/IP], [SERIAL], [CENTRO], and [VPI]

will be displayed, in that order.

[CENTRO] and [VPI] are optional.

> and < > keys, and

3 Select the parameters with the use of the

> and < > keys, and then press the

<Set> key.

An asterisk [*] will be displayed on the right

side of the value once it has been set up.

The changed parameters are saved to the system when the <Set> key is pressed. It is not necessary to save each change individually.

Refer to the previous section for detailed information about each of the communication parameters.

4 After setting up all of the parameters, switch

the printer power off and then on for the

changes to take effect.

TCP/IP Setup

3.2 Communication Parameter Setup (Printer Control Panel, 6030/6050)

PORT SETTING TCP/IP

1 Display [TCP/IP] on the selection screen,

and then press the <

> key.

TCP/IP Default Parser

Default Parser HPGL *

2 Select the item that is to be set up with the

use of the < press the < > key. [Ethernet Setting], [Default Parser], [IP Address], [Mask Value], [E-Net Address], [Dynamic Routing], and [Static Routing] will be displayed in that order.

> and < > keys, and then

• Additions can be made to the routing table when [Static Routing] is enabled.

• The [E-Net Address] can only be displayed, not changed.

3 Select the parameters with the use of the

> and < > keys, and then press the <Set> key. An asterisk [*] will be displayed on the right side of the parameters once they have been set.

IP Address

100. 000. 000. 000

IP Address

120. 000. 000. 000

IP Address

123. 123. 123. 001 *

Entering addresses

1. Move the cursor to the left and right with

the use of the <

2. Select the required value with the use of

the <

increase or decrease sequentially

between 0 and 9.

3. Press the <Set> key once all values have

been entered.

> and < > keys. The value will

• T o proceed to the next menu, move the cursor to the right-hand side and press the <

• To return to the previous menu, move the cursor to the left-hand side and press the <

> and < > keys.

> key.

Chapter 3 Printer Setup

Static Routing ON *

Adding items to the routing table

1. Select [ON] for [Static Routing], and then

ROUTING TABLE ADD

Dest. Address

123. 000. 000. 000

Router Address

123. 000. 000. 000

press the <Set> key.

Now press the < > key.

2. Select [ADD] for the [ROUTING TABLE],

and then press the <

3. Enter the destination address, and then

press the <Set> key.

After setting up the destination address,

move the cursor to the right-hand side

and press the <

4. Enter the routing address, and then press

the <Set> key.

T o return to the previous menu, move the cursor to the left-hand side and press the <

> key.

Serial Setup

PORT SETTING SERIAL

SERIAL Baud Rate

1 Display [SERIAL] on the setup item

selection screen, and then press the <

key.

2 Select the item that is to be set up with the

use of the <

press the < > key.

[Handshake], [Baud Rate], [Parity], [Data

Bit], [Stop Bit], [EOP Timeout], [Output

Response], and [Job Separation] will be

displayed in that order.

> and < > keys, and then

3.2 Communication Parameter Setup (Printer Control Panel, 6030/6050)

Baud Rate 300 *

Centronics (optional) Setup

3 Select the parameters with the use of the

> and < > keys, and then press the

<Set> key.

An asterisk [*] will display on the right side

of the parameters once they have been set.

PORT SETTING CENTRO

CENTRO DMA Timeout

DMA Timeout 005 sec *

1 Display [CENTRO] on the setup item

selection screen, and then press the <

key.

2 Select the item that is to be set up with the

use of the <

press the < > key.

[Ack Mode], [DMA Timeout], [EOP

Timeout], and [Job Separation] will display,

in that order.

> and < > keys, and then

3 Select the parameters with the use of the

> and < > keys, and then press the

<Set> key.

An asterisk [*] will display on the right side

of the parameters once they have been set.

VPI (optional) Setup

PORT SETTING VPI

VPI Job Separation

1 Display [VPI] on the setup item selection

screen, and then press the <

> key.

2 Select the item that is to be set up with the

use of the <

press the < > key.

[REPORT OFFLINE], [EOP Timeout], and

[Job Separation] will display, in that order.

> and < > keys, and then

Chapter 3 Printer Setup
