Xerox 4090, 4050 User Manual

Xerox DocuPrint
4050/4090 NPS/IPS

System Overview Guide

721P90190
Version 8.0
October 2002

Xerox Corporation
701 S. Aviation Boulevard
El Segundo, CA 90245

©2002 by Xerox Corporation. All rights reserved.
Copyright protection claimed includes all forms and matters of copyrightable

material and information now allowed by statutory or judicial law or hereinafter
granted, including without limitation, material generated from the software
programs which are displayed on the screen, such as icons, screen displays,
looks, etc.

Printed in the United States of America.
Publication number: 721P90190
Xerox® and all Xerox products mentioned in this publication are trademarks of

Xerox Corporation. Products and trademarks of other companies are also
acknowledged.

Changes are periodically made to this document. Changes, technical
inaccuracies, and typographic errors will be corrected in subsequent editions.

Table of contents

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Laser safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Ozone information: U. S. only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Operation safety: U. S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii

Operation safety: Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Warning markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Electrical supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Operator accessible areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Before cleaning your product . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

CE mark: Europe only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Radio and telecommunications equipment directive (Europe only) . . . . xii

For further information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xiii

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xvi

Related publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

1. System overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Functional overview of the NPS/IPS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

System components overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Connectivity configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

NPS/IPS concurrent printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

SNMP support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

IPP support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Sixth Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Software license . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2. Printer controller overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Printer controller components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Sun Ultra 60 workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Printer controller software and fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

System Overview Guide iii

Table of contents

3. Printer components and options . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Printer components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Printer control console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Printer configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

High-capacity feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Dual stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Stitcher/stacker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Additional printer features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Paper paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

4. Network prin ting environment . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1

Client workstations and system software . . . . . . . . . . . . . . . . . . . . . . . 4-1

Client software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Submitting print jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Communicating with the network . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Job status feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Ethernet LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Token Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Multiple network connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

5. IPDS printing environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Host connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Host environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Channel interface —channel-attached systems only . . . . . . . . . 5-3

Host Channel Unit (HCU)—channel-attached systems only . . . 5-4

IPDS data stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Software features for IPDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

IOCA Replicate and Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Trace facility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Overstrike, underscore, subscript, and superscript . . . . . . . . . . 5-6

Color image support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Background color for OCA colors . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Bi-level IOCA colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Outline font support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

A. Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

Paper and other throughput stocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Selecting paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Paper care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Other supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5

Dry ink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Fuser lubricant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Developer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Stitcher wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Diskettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

iv System Overview Guide

Table of conte nts

Fonts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Consumable supplies tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Paper and special stocks tables . . . . . . . . . . . . . . . . . . . . . . . . . A-8

Complete supplies list—4050/4090 printers . . . . . . . . . . . . . . . A-11

Ordering supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-11

System Overview Guide v

Table of contents

vi System Overview Guide

Laser safety

Safety

WARNING

Adjustments, use of controls, or performance of procedures
other than those specified herein may result in hazardous
light exposure.

The Xerox DocuPrint printers are certified to comply with the
performance stan dards of the U.S. Department of Health,
Education, and Welfare for Class 1 laser products. Class 1 laser
products do not emit hazardous radiation. The DocuPrint printers
do not emit hazardous radiation because the laser beam is
completely enclosed during all modes of customer operation.

The laser danger labels on the system are for Xerox service
representatives and are on or near panels or shields that must
be removed with a tool.

DO NOT REMOVE LABELED PANELS OR PANELS NEAR
LABELS. ONLY XEROX SERVICE REPRESENTATIVES HAVE
ACCESS TO THESE PANELS.

System Overview Guide vii

Safety

Ozone information: U. S. only

This product produces ozone during normal operation. The
amount of ozone produced depends on copy volume. Ozone is
heavier than air. The environmental parameters specified in the
Xerox installation instructions ensure that concentration levels
are within safe limits. If you need additional informat ion
concerning ozone, call 1-800-828-6571 to request the Xerox
publicat ion 600P83222, OZONE.

Operation safety: U. S.

Your Xerox equipment and supplies have been designed and
tested to meet strict safety requirements. They have been
approved by safety agencies, and they comply with
environmental standards. Please observe the following
precautions to ensure your continued safety.

WARNING

Improper connection of the equipment grounding conductor
may result in risk of electrical shock.

• Always connect equipment to a properly grounded electrical
outlet. If in doubt, have the outlet checked by a qualified
electrician.

• Never use a ground adapter plug to connect e qu ipm ent to an
electrical outlet that lacks a ground connection terminal.

• Always place equipment on a solid support surface with
adequate strength for its weight.

• Always use materials and supplies specifically designed for
your Xerox equipment. Use of unsuitable materials may result
in poor performance and may create a hazardous situation.

• Never move either the printer or the printer controller without
first contacting Xerox for approval.

• Never attempt any maintenance that is not specifically
described in this documentation.

• Never remove any covers or guards that are fastened with
screws. Th ere are no oper ator-serviceable areas within these
covers.

• Never override electrical or mechanical interlocks.

viii System Overview Guide

• Never use supplies or cleaning materials for other than the ir
intended purposes. Keep all materials out of the reach of
children.

• Never operate the equipment if you notice unusual noises or
odors. Disconnect the power cord from the electrical outlet
and call service to correct the problem.

If you need any additional safety information concerning the
equipment or materials Xerox supplies, call Xerox Product Safety
at the following toll-free number in the United States:

1-800-828-6571

For customers outside the United States, contact your loc al
Xerox representative or operating company.

Operation safety: Eur o pe

Safety

This Xerox product and supplies are manufactured, test ed and
certified to strict safety regulations, electromagnetic regulations
and established environmental standards.

Any unauthorised al teration, which may include the addition of
new functions or conn ection of external devices, may impact the
product certification.

Please contact your Xerox representative for more information.

Warning markings

All warning ins tructions ma rked on or supplied with the product
should be followed.

This WARNING alerts users to areas of the product where there
is the possibility of personal damage.

This WARNING alerts users to areas of the product where there
are heated surf ace s, which should not be touched.

System Overview Guide ix

Safety

Electrical supply

This product shall be operated from the type of electrical supply
indicated on the product’s data plate label. If you are not sure
that your electrical supply meet s the requirem ents, please
consult your local power co mpany for advice.

WARNING

This product must b e connected t o a protectiv e earth circuit. This
product is supplied with a plug that has a protective earth pin.
This plug will fit only into an earthed electrical outlet. This is a
safety f eature . Always co nnect equipment to a properly gr ounded
electrical outlet. If in doubt, ha ve the ou tlet check ed b y a qualified
electrician.

To disconnect all electrical power to the product, the disconnect
device is the power cord. Remove the plug from the electrical
outlet.

Ventilation

Slots and ope ning in the enclosure of the product are provid ed
for ventilation. Do not block or cover the ventilation vents, as this
could result in the product overheating.

This product should not be placed in a built-in installation unless
proper ventilation is provided, please contact your Xerox
representative for advice.

Never push objects of any kind into the ventilation vents of the
product.

Operator accessible areas

This product has been designed to restrict operator access to
safe areas only. Operator access to hazardo us areas is restricted
with covers or guards, which would require a tool to remove.
Never remove these covers or guards.

x System Overview Guide

Maintenance

Any operator product maintenance procedures will be described
in the user docume ntation supplied with the product. Do not
carry out any maintenance on the product, which is not
described in the customer documentation.

Before cleaning your product

Before cleaning this product, unplug the product from the
electrical outlet. Always use materials specifically designated for
this product, the use of other materials may result in poor
performance and may create a hazardous situation. Do not use
aerosol cleaners , they may be flammable under certain
circumstances.

Safety

CE mark: Europe only

January 1, 1995: Council Directive 73/23/EEC, amended by
Council Directive 93/68/EEC, approximation of the laws of the
member states related to low voltage equipment.

January 1, 1996: Council Directive 89/336 /EEC, approximation
of the laws of the member states related to electr omagnetic
compatibility.

March 9, 1999: Council Directive 99/5/EC, on radio equipment
and telecommunications terminal equipment and the mutual
recognition of their conformity.

A full declaration of conformity, defining the relevant directives
and referenced standards, can be obtained from your Xerox
representative.

In order to allow this equipment to operate in proximity to
Industrial, Scientific and Medical (ISM) equipment, the external
radiation for the ISM equipment may have to be limited or special
mitigation measures taken.

This is a Class A product. In a domestic environment this product
may cause radio frequency interference, in which case the user
may be required to take adequate measures.

Shielded interface cables must be used with this product to
maintain compliance with Council Directive 89/36/EEC.

System Overview Guide xi

Safety

Radio and telecommunications equipment directive (Europe only)

Certification to 1999/5/EC Radio Equipment and
Telecommunications Terminal Equipment Directive:

This Xerox product has been self-certified by Xerox for pan­European single terminal connection to the analog public
switched telephone network (PSTN) in accordance with Directive
1999/5/EC.

The product has been design ed to w ork with the nation al PSTNs
and compatible PBXs of th e following countries:

Austria Germany Luxembourg Sweden
Belgium Greece Netherlands Switzerland
Denmark Iceland Norway United Kingdom
Finland Ireland Portugal
France Italy Spain

In the event of problems, contact y our local Xe ro x r epres entative
in the first instance.

This product has bee n tested to, and is compliant with, TBR2 1, a
specification for terminal equipment for use on analog switched
telephone networks in the European Economic area.

The product may be configured to be compatible with other
country networks. Please contact your Xerox representative if
your product needs to be reconnected to a network in another
country. This product has no us er-adjustable settings.

NOTE: Although this product can use either loop disconnect
(pulse) or DTMF (tone) signaling, it should be set to use DTMF
signaling. DTMF signaling provides reliable and faster call setup.

Modification or connection to external control software, or to
external control apparatus not authorized by Xerox, invalidates
its certification.

xii System Overview Guide

For further information

For more information on Enviro nment, Health and Safety in
relation to this Xerox product and supplies, please contact the
following customer help lines:

Europe:[phone]
USA:1 800 8286571
Canada:1 800 8286571

Safety

System Overview Guide xiii

Safety

xiv System Overview Guide

About this guide

Introduction

This guide prov ides a n overview of the individual component s of
the NPS/IPS printing system and how they work together. It is
designed to pro vide yo u with b ac kgro und information that can be
used to make informed decisions regarding printer use and
performance.

This guide provides information to help you quickly determine
hardware, software, and connectivity requirements fo r printing
from various clients to the DocuPrint NPS/IPS.

This reference is useful for users who want to understand the
overall DocuPrint NPS/IPS. Managers can use the reference
information to assist them in making planning decisions.

Contents

This section lists the contents of this guide:

• Chapter 1, “System overview,” describes the features of the
DocuPrint 4050/4090 NPS/IPS.

• Chapter 2, “Printer controller overview,” describes the
hardware and software components of the printer controller.

• Chapter 3, “Printer components and options,” describes the

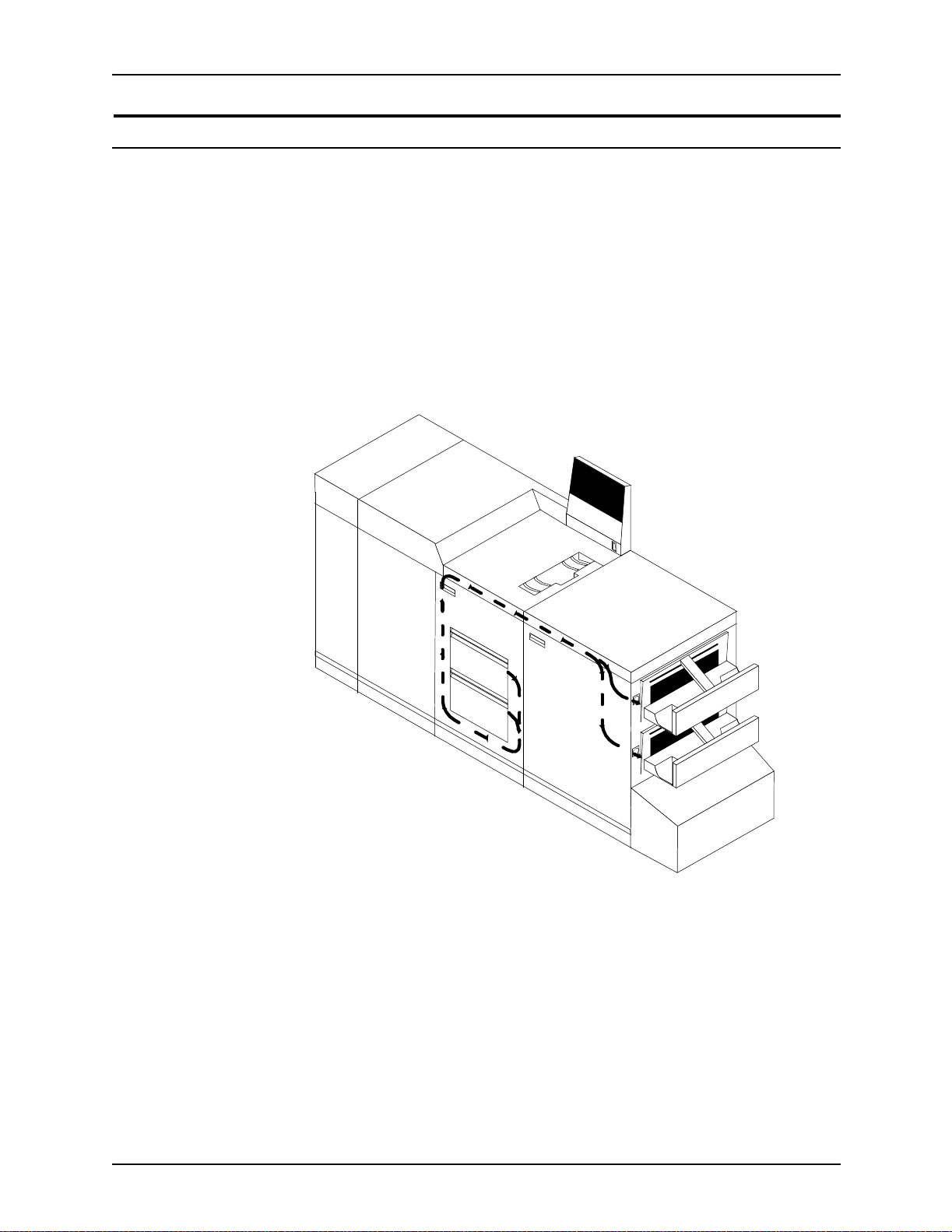

printer components and possible configurations. It also traces
the path of the paper through printer, which is helpful in
locating possible paper jams.

• Chapter 4, “Network printing,” provides information that is
specific to network printing.

• Chapter 5, “IPDS printing,” provides information that is
specific to IPDS printing.

• Appendix A, “Suppl ie s ,” provides in formation and
specifications on paper and other media used with the NPS/
IPS, as well as instructions for ordering supplies.

System Overview Guide xv

Introduction

Conventions

This guide uses the following conventions:

• All caps and angle brackets: Withi n procedures , the names
of keys are shown in all caps within angle brackets (for
example, press <ENTER>).

• Angle brackets: Variable information, or the positi on of a
specified argument in the command syntax, appears in angle
brackets (for example, List Fonts <Pattern>).

• Bold: Within procedures , te xt and number s that you e nter are
shown in bold (for example, enter privilege operator).

• The word “enter” within pr ocedures: The two-step process
of keying in data and p ressing <ENT ER> (for example,
enter y).

• Italics: Document and library names are shown in italics (for
example, the Xerox DocuPrint NPS/IPS Guide to Managing
Print Jobs).

• Quotation marks: Keywords you can enter as arguments
appear in quotes (for example, “USLetter”).

• Vertical bars: Alternatives to specifie d ar guments are
separated by vertical bars (for example, Set Time <Time |
Remote Host Name | IP Address>).

xvi System Overview Guide

NOTE: Notes are hints that help you perform a task or
understand the text.

Cautions alert you to an action that could damage hardware or
software.

Warnings alert you to conditions that may affect the safety
of people.

Related publications

The Xerox DocuPrint NPS/IPS documentation set includes the
documents listed below.

Introduction

CAUTION

WARNING

NOTE: For a list of IBM reference manuals for IPDS printing,
refer to the Solutions Guide for IPDS Printing.

• Guide to Configuring and Managing the System

• Guide to Managing Print Jobs

• Guide to Performing Routine Maintenance

• Guide to Submitting Jobs from the Client

• Guide to Using Page Description Languages

• System Overview Guide

• Troubleshooting G uide

• Solutions Guide for IPDS Printing

• Decomposition Service and Tools Guide

• Glossary

• Master Index

• Customer Information Quick Reference Card

• Printer Contr o ller Comman d s Qu ick Reference Card

• Operator Quick Reference Card

• Submitting your Jobs from Macintosh Quick Reference Card

• Submitting your Jobs from UNIX & DOS Quick Reference

Card

System Overview Guide xvii

Introduction

• Submitting your Jobs from Windows NT 4.0 (QuickPrint)

Quick Reference Card

• Submitting your Jobs Using Windows NT 4.0 Drivers Quick
Reference Card

The documentation set also includes an electronic version, the
DocuPrint NPS/IPS Interactive Custome r Documenta tion CD.

xviii System Overview Guide

1. System overview

This chapter introduces the DocuPrint NPS/IPS printing system
and describes its major and optional components.

Functional overview of the NPS/IPS

The NPS/IPS printers support the processing and printing of
PDL and ASCII jobs fr om ne twork workstations, as well as IPDS
jobs from an IBM host. Supported PDL formats are PostScript
levels 1 and 2, HP PCL 5e, and TIFF.

Your organization may print only IPDS jobs , network PDL jobs , or
jobs from both environments.

DocuPrint 4050 and 4090 NPS/IPS printers support:

Resolution

• Printing at a rated speed of up to 50 ppm (4050) or 92 ppm
(4090) in black and white in 300 dpi

• Printing simplex and duplex

• Processing and printing of network PDL jobs and IPDS jobs
without soft boot to switch modes

• Multiple weights, sizes and types of paper (refer to the
“Supplies” appen dix for details)

• Optional bypass transport for enhanced finishing and output
to third-party finishing devices

• Optional high-capacity feeder

• Optional stitcher/stacker.

The 4050/4090 NPS/IPS provides high print quality at 300 dpi
resolution. It can receive data at 240, 300, or 600 dpi. The
controller converts 240 and 600 to 300 dpi data.

System Overview Guide 1-1

System overview

The following table shows how data streams of different
resolutions are interpolated.

Table 1-1. Data stream conversion

Incoming input resolution of document
Printer 240 dpi data 300 dpi data 600 dpi data
4050/4090 NPS/

IPS

Converted by controller to

300 dpi

NOTE: For more information on specifying appropriate
resolution settings, refer to the Guide to Managing Print Jobs
and the Guide to Configuring and Managing the System. For
IPDS printing, refer to the to Solutions Guide for IPDS printing.

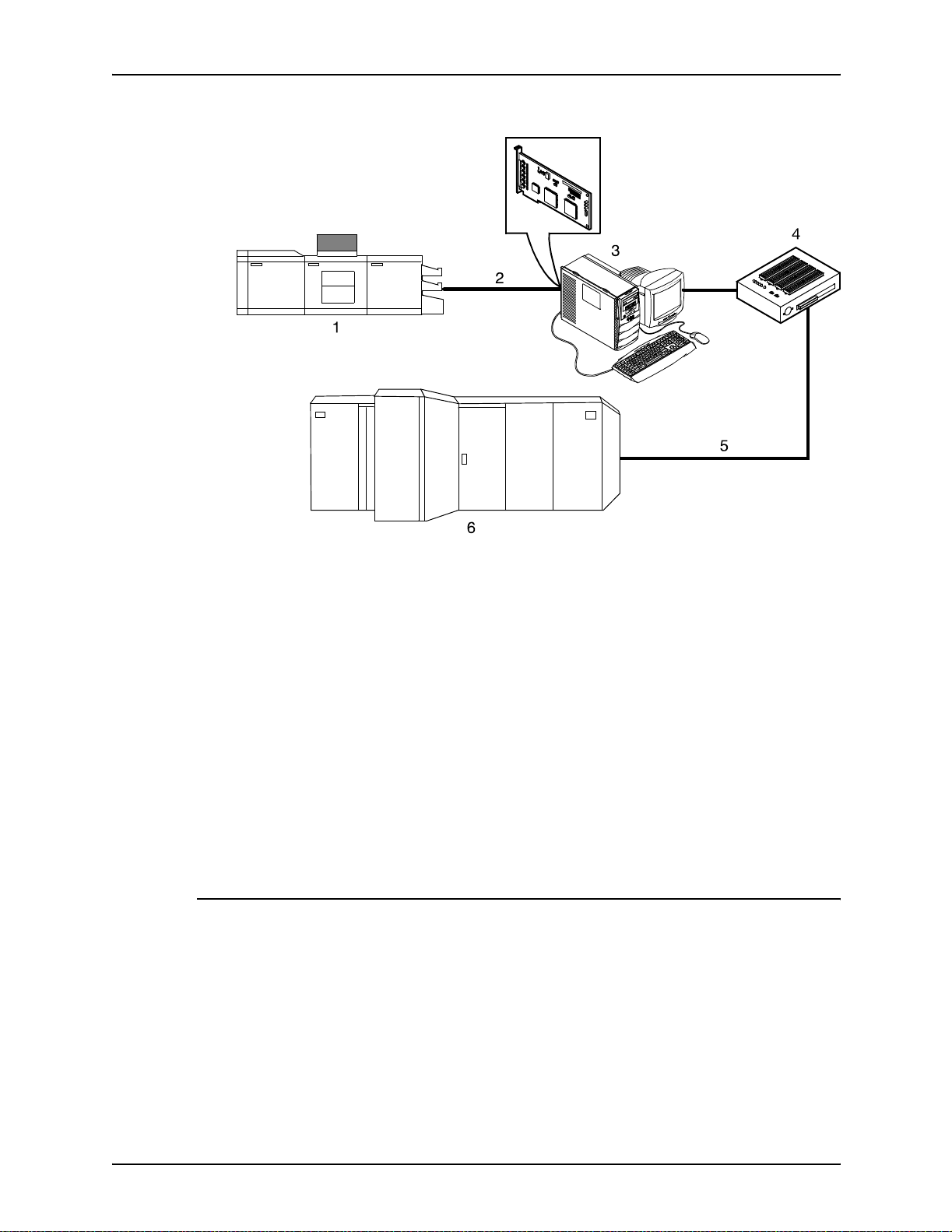

System components overview

DocuPrint NPS/

IPS

Xerox-supplied

printer controller

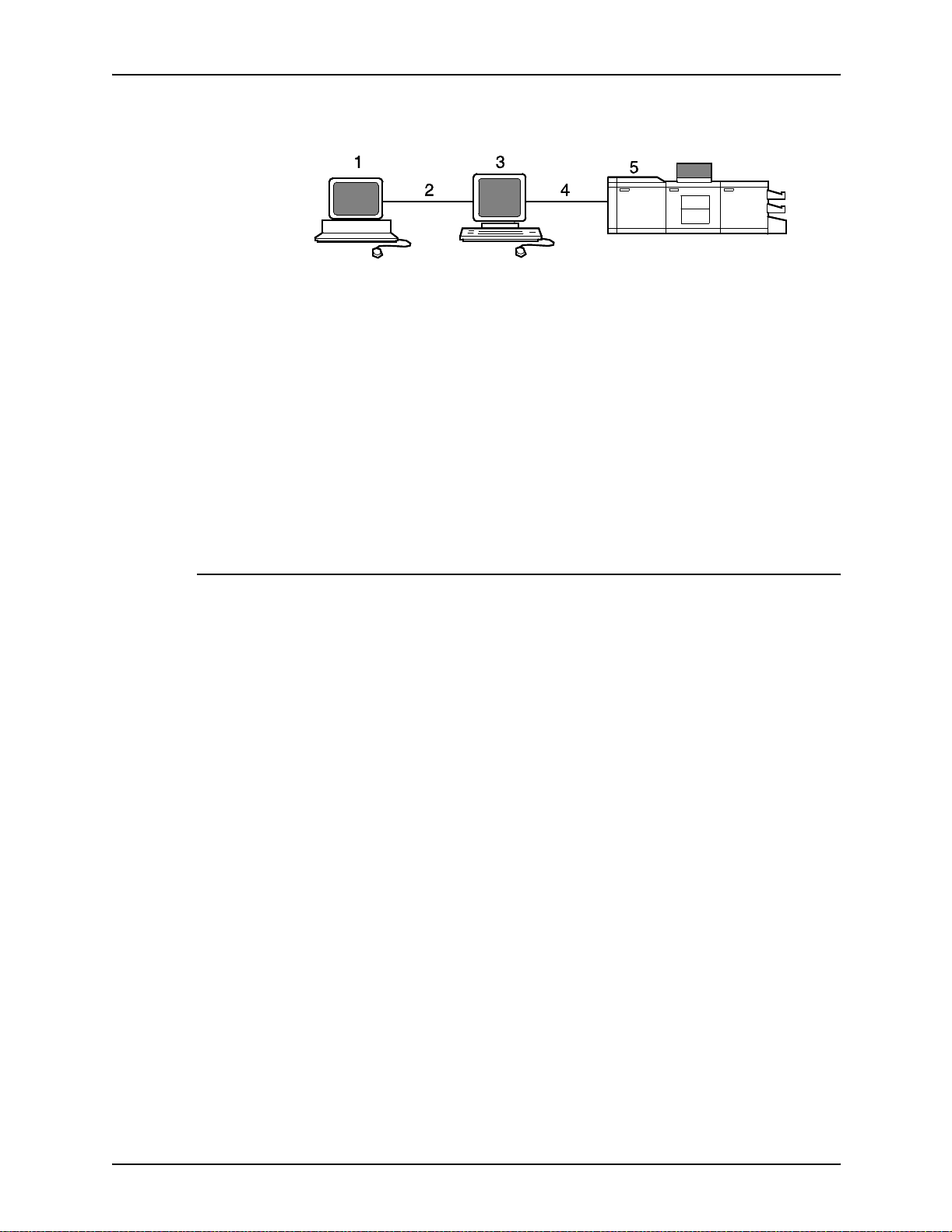

The entire DocuPrint NPS/IPS system includes the printer (also
known as an IOT or print engine), printer controller, printer
interface, and all appropriate software. “DocuPrint printer” or
“printer” refers to the base printer e ng ine (IOT) only, without the
printer controller and interface.

The printer controller includes a processor, CD-ROM drive,
diskette drive, keyboard, mouse, and a monitor. The printer
controller accepts the print job from the client workstation or
host, conv e rts the files into page images, and sends the page
images to the printer. The user interface at the printer controller
allows you to perform tasks such as monitoring job status,
prioritizing jobs, and configuring the system.

Print at 300 x 300 dpi Converted by controller to

300 dpi

Xerox-supplied

printer interface

The printer interface cable provides high-speed data transport
and communication between the printer controller and the
printer.

Xerox-supplied

DocuPrint printer

The printer accepts data from the printer co ntroller and prints the
document according to the print options specified by the user.
The printer also provides optional paper stacking and collating.

1-2 System Overview Guide

Connectivity configurations

The NPS/IPS ca n process network PDL and IPDS jobs
concurrently.

To support the submission of jo bs from a variety of hosts,
configuration possibilities include:

• The same T ok en Ring or Ethernet connection can be used for
both IPDS and PostScript/PCL.

• Both a Token Ring card and an Ethernet card can reside in
the Sun workstation controller, with one being used for IPDS
and the other for PostScript/PCL.

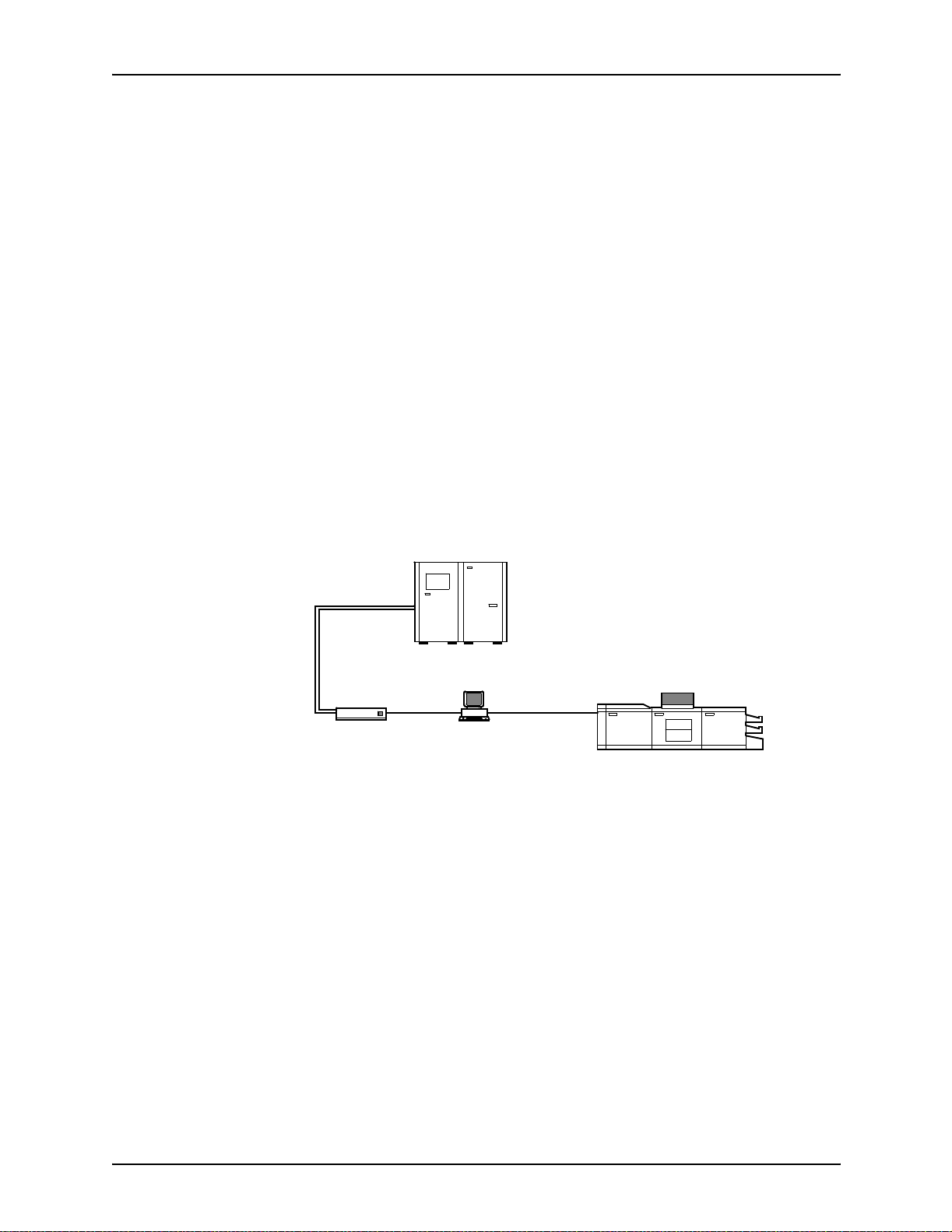

• Bus and tag attachment through the channel interface board
or through the Host Channel Unit (HCU) can be used for
IPDS jobs from a channel-attached host; Token Ring or
Ethernet connection can be used for jobs submitted over the
network.

System overview

NPS/IPS concurrent printing

SNMP support

The Xerox NPS/IPS can receive a variety of data streams
including IPDS, PostScript Levels 1 and 2, PCL 5 e, TIFF, and
ASCII. The system automatically senses the type of job and
processes it appropriately.

When your system is printing IPDS jobs, it can accept network
PDL data streams in the background. When network PDL jobs
are printing, only one IPDS job can be queued.

The system provides functionality to export the state of a printer
using the Simple Network Management Protocol (SNMP), thus
allowing printer management software to monitor and report on

the printer state.
SNMP is a standardized communications protocol for managing

arbitrary networked devices from different vendors, such as
workstations, servers, printers, or routers. The infor m ation to be
communicated is presented as variable name/value pairs,
defined in a set of standardized management information bases
(MIBs). The MIBs define the legal variables, their types, and
possibly a fixed set of values.

System Overview Guide 1-3

System overview

SNMP was designed to facilitate managing a heterogeneous set
of networked devices that communicate using TCP/IP.
Specifically, it addressed management of the network itself and
the network traffic betw een th ose devices. Over time, MIBs were
defined to expand the types of devices that could be managed
using SNMP. For example, MIBs were defined specific to
managing a wor kstation or a printer.

The system currently supports variables defined in the following
MIBs:

• MIB-II (RFC 1156)
This MIB defines the basic set of variables any device

running TCP/IP should make accessible . It includes, for a
particular device, variables for information such as a system
description, information about each of the network interfaces
present on the device, and information abou t all the IP
datagrams sent and received by the device.

• Host Resources MIB (RFC 1514)
This MIB defines variables useful in managing a “host”

system. In this context, a host is a computer that is directly
used by human beings and that communicates with other
similar computers attached through a network. The Host
Resources MIB includes information such as how long the
system has been up, descriptions of the processors and
attached storage devices, and possibly information about
software running on the host.

• Printer MIB (RFC 1759)
This MIB defines information useful in managing a printer. It

includes information about the physical status of the printer,
such as the number of input trays, the media loaded in them,
and the numbe r and types of marking en gines inclu ded in the
printer.

Most variables in these MIBs are supported in a standard way,
as described in the standard documentation, except that writing
to read/write variables is not supported. All variables are treated
as read-only. In all cases, the NPS/IPS SNMP implementation
supplies textual information only in English.

1-4 System Overview Guide

IPP support

Sixth Sense

System overview

The system supports the Internet Printing Protocol (IPP), which
allows you to:

• Add the printer to your PC directly as an Internet printer with
a URL, rather than indirectly as an lpr-connected local printer.

• Use an IPP client to access the printer. A limited subset of
IPP operations is supported; query the IPP client for details.

Sixth Sense is a unique suite of diagnostic tools that allows
Xerox customer service engineers, analysts, and consultants to
serve customers more effectively.

Sixth Sense is intended to automate and expedite the range of
service-related support functions. Sixth Sense is a tool that
enables Xerox to provide benchmark service support. Xerox
customers benefit from the ability to bring broader support to
focus more quickly.

For example, Sixth Sense can allow the Service Representative
to repeatedly "preview" the condition of the system prior to an
actual site visit. This may provide the ability to determine the
correct part or piece of information to have on hand when the site
visit is made.

Sixth Sense is a no-charge feature available to customers
through Xerox Service. The customer need only provide an
analog phone line for use by the Sixth Sense modem
connection. F or thos e customers una ble to d edicate a phon e line
to the Sixth Sense connection, three and five port phone share
devices are available for purchase.

To take advantage of Sixth Sense, the customer needs to:

• Request Sixth Sense enablement through Xerox Service

• Provide an analog phone line

• If necessary, purchase an optional phone share device.

More information abou t the Sixth Sen s e can be found in the
Troubleshooting Guide for your system.

System Overview Guide 1-5

System overview

Software license

In order to use the operating system software, the owner must
obtain a software license from Xerox. The license, which is a 20­character te xt string, is entered at th e printer controller ke yboard.

Your Xerox service representative can obtain this license text
string for you and enter it when the printer is installed or when
the software is upgraded. Although your service representative
usually does this f or you, y ou are ab le to ente r yo ur license string
yourself from the NPS/IPS main window.

Until the license string is entered, your printer cannot print or
receive data. You can, however , perform all offline tasks, such as
setting up virtual printers.

For details on obtaining and entering the license string, refer to
the Guide to Configuring and Managing the System.

1-6 System Overview Guide

2. Printer controller overview

The printer controller manages print options, provides the user
interface, and runs system management and diagnostic
operations on demand. The following is an explanation of tasks
that enable the job to be printed:

• The printer controller detects which job protocol is being sent.

• Print option parameters are stored in the Job Pool Manager
(JPM) database, which maintains a database of all jobs. This
database contains a reference to the print data on the fixed
disk, as well as the print optio ns paramete rs for the prin t data.
The JPM responds to the printer controller commands for
deleting, hol ding, and prioritizing jobs.

• Print data is is stored on the printer cont roller disk f or queuing
and while printing.

• When the printer controller begins processing a job, it sends
the print data to the decomposer. The decomposer converts
the print data into a bitmap in the resolution appropriate to
the printing device.

The decomposer utilizes font data from font files stored on
the printer c ontroller disk or font information sent to the
printer controller with the print job.

• When processed da ta come s back from the decomposer, the
printer controller Device Driver transmits the print data and
print option parameters to the printer. Printing is then
initiated.

• After the job has been printed successfully, the print data file
is deleted from the disk. If an error inhibits job completion, the
printer controller manages the recovery and completion of
the job.

The system can manage the processing of multiple jobs and the
printing of another job simultaneously. When you are printing
IPDS jobs, the printer controller is able to queue multiple
PostScript, and PCL jobs at the same time. When you are
printing PostScript and PCL jobs, you can send only one IPDS
job.

Xerox DocuPrint 4050/4090 NPS/IPS System Overview Guide 2-1

Printer controller overview

Printer controller components

The printer controller consists of a specially-configured Sun
workstation and uses prop rietary Xerox h ardware, firmware, and
software.

Sun Ultra 60 workstation

A PCIM2 card for the Sun Ultra 60 is installed in the processor.
The printer cable is connected to the processor. In addition, the
processor contains the connectivity boards for Ethernet and
optional Token Ring. The disk stores the operating system, the
system software, and any buffered pages.

Optional

components

For channel connection to a host for IPDS printing, the system
may use a Host Channel Unit (HCU).

An external 4 mm ta pe drive is available and recommended for
backing up site files. A typical color calibration file is 1.5 MB.

Figure 2-1. Printer controller components (Sun Ultra 60)

1. Monitor

2. Keyboard

3. Mouse

4. Processor

5. Diskette drive

2-2 Xerox DocuPrint 4050/4090 NPS/I PS System Over view Guide

Printer controller overview

6. CD-ROM

7. Optional cartridge tape drive

8. Optional HCU

Processor The central processing unit contains the memory, internal disk

drive, a CD-ROM drive, a diskette drive, power receptacle and
outlet, connectors and ports.

• Diskette drive: The floppy disk drive is located in the
processor. It uses industry standard 3.5 inch, 1.44-MB,
double-sided, high-den sity floppy disks. This disk drive is not
an input source for print jobs or for any other data or
application. It is reserved exclusively for use by a service
representative to update software and to store files.

• CD-ROM: The CD-ROM drive, located in the processor
above the diskette drive, is a high-density, read-only, optical
laser storage device used for loading the software, fonts and
other files.

• Cartridge tape drive: The Sun Ultra 60 offers an optional 8
GB, 4 mm external SCSI cartridge tape drive. Unlike the
diskette and CD drives, this tape drive is not an input source
for print jobs or for any other data or application. It provides
the service representative with another means of loading
system maintenance files or saving diagnostic information.

Keyboard The keyboard consists of alphanumeric keys similar to a

typewriter, symbols and special character keys, an extended
character set, and function keys. You can use the keyboard to
make selections, and to enter commands that control fu nctions
such as requesting sample prints, or shutting down the system.

Mouse Use the mouse to select, move, or resize windows.

Display monitor The display monitor has a high-resolution color screen, which

displays the user interface screen.

NOTE: For information on channel-attached systems, refer to
the chapter, “IPDS printing enviro nment”.

NOTE: Printer controller hardware configurations are subject to
upgrade.

Xerox DocuPrint 4050/4090 NPS/IPS System Overview Guide 2-3

Printer controller overview

Printer controller software and fonts

The installation of printer controller software is performed by your
service representative once all the hardware components are in
place and properly connected. The following is a summary of
major software components installed on the printer controller:

• Xerox printer controller software
– UNIX Sun operating system

NOTE: The Sun operating system used on the controller
is based on the standard Sun operating system; however ,
it has been customized for use with the Xerox printer
controller. Therefore, not all standard Sun operating
system features are available.

– DocuPrint Print Service Software including software

components for the user interface, driver, decomposers,
Job Pool Manager, and other operating system utilities.

• Xerox Client Software
– Xerox client protocol software (print command) can be

downloaded to client workstations or PCs as a means of
sending jobs.

• Adobe Type 1 PostScript fonts
– Courier (Courier, Bold, Oblique, Bold Oblique)
– Helvetica (Helvetica, Bold, Oblique, Bold Oblique, Light,

Light Oblique, Black, Black Oblique Condensed,
Condensed Oblique, Condensed Bold, Condensed Bold
Oblique Narrow, Narrow Bold, Narrow Oblique, Narrow
Bold Oblique)

– ITC Av antGard e Gothic (Book, Book Ob lique , Demi, Demi

Oblique)
– ITC Bookman (Demi, Demi Italic, Light, Light Italic)
– ITC Garamond (Light, Light Italic, Bold, Bol d Italic)
– ITC Korinna (Korinna, Kursiv Regular, Bold, Kursive Bold)
– ITC Zapf Chancery (Medium Italic)
– ITC Zapf Dingbats (Medium)
– New Century Schoolbook (Roman, Bold, Italic, Bold Italic)
– Palatino (Roman, Bold, Italic, Bold Italic)
– Symbol (Medium)

2-4 Xerox DocuPrint 4050/4090 NPS/I PS System Over view Guide

Printer controller overview

– Times (Roman, Bold, Italic, Bold Italic)
Using font installation commands, you can load oth er Type 1

PostScript fonts in *.PFB file format from a MS-DOS­formatted, 3.5-inch diskette or CD-ROM or DVD-ROM. Refer
to the Guide to Configuring and Managing the System for
more information on the font installation commands. Type 1
and Type 3 PostScript fonts can also be downloaded with a
print job.

• PCL fonts: Intellifont (scalable)
– CG Times (Medium, Italic, Bold, Bold Italic)
– Universe (Medium, Italic, Bold, Bold Italic)
– Universe Condensed (Medium, Italic, Bold, Bold Italic)
– Courier (Medium, Italic, Bold, Bold Italic)
– Letter Gothic (Medium, Italic, Bold)
– Albertus [Medium (semi-bold), Extra Bold
– Antique Olive (Medium, Italic, Bold)
– Clarendon Condensed (Bold)
– Coronet (Medium Italic)
– Garamond [Antique (medium), Kursiv (Italic), Halbfett

(Bold), Kursiv Halbfett (Bold Italic)]
– Marigold (Medi um )
– CG Omega (Medium, Italic, Bold, Bold Italic

• PCL fonts: Truetype (scalable)
– Arial (Medium, Italic, Bold, Bold Italic)
– Times new Roman (Medium, Italic, Bold, Bold Italic)
– Symbol (Medium)
– Wingdings (Medium)

• PCL fonts: Bitmap
– Line Printer (16.67 pitch / 8.5 point medium)

NOTE: The resident fonts are used for PostScript and PCL
printing.

Xerox DocuPrint 4050/4090 NPS/IPS System Overview Guide 2-5

Printer controller overview

2-6 Xerox DocuPrint 4050/4090 NPS/I PS System Over view Guide

Printer components

3. Printer components and options

The printer processes the electronic data and images received
from the control ler and p roduces th e printed out put. This ch apter
describes the components and options available for the printer.

The DocuPrint NPS/IPS printers contain th e x erog raphic engi ne,
two standard feeder trays, a sample tray, the printer control
console, and one of three possible output configurations: the
dual stacker, dual stacker with bypass transport, or the st itcher/
stacker.

For installation purposes, the 4050 and 4090 printers have the
same appearance, options, and installation requirements. Both
printers contain a xer ogra phic engine , tw o standard f ee der tra ys ,
a sample tray, the printer control console, and one of three
possible output configurations.

System Overview Guide 3-1

Printer components and options

1

2

3

4

6

5

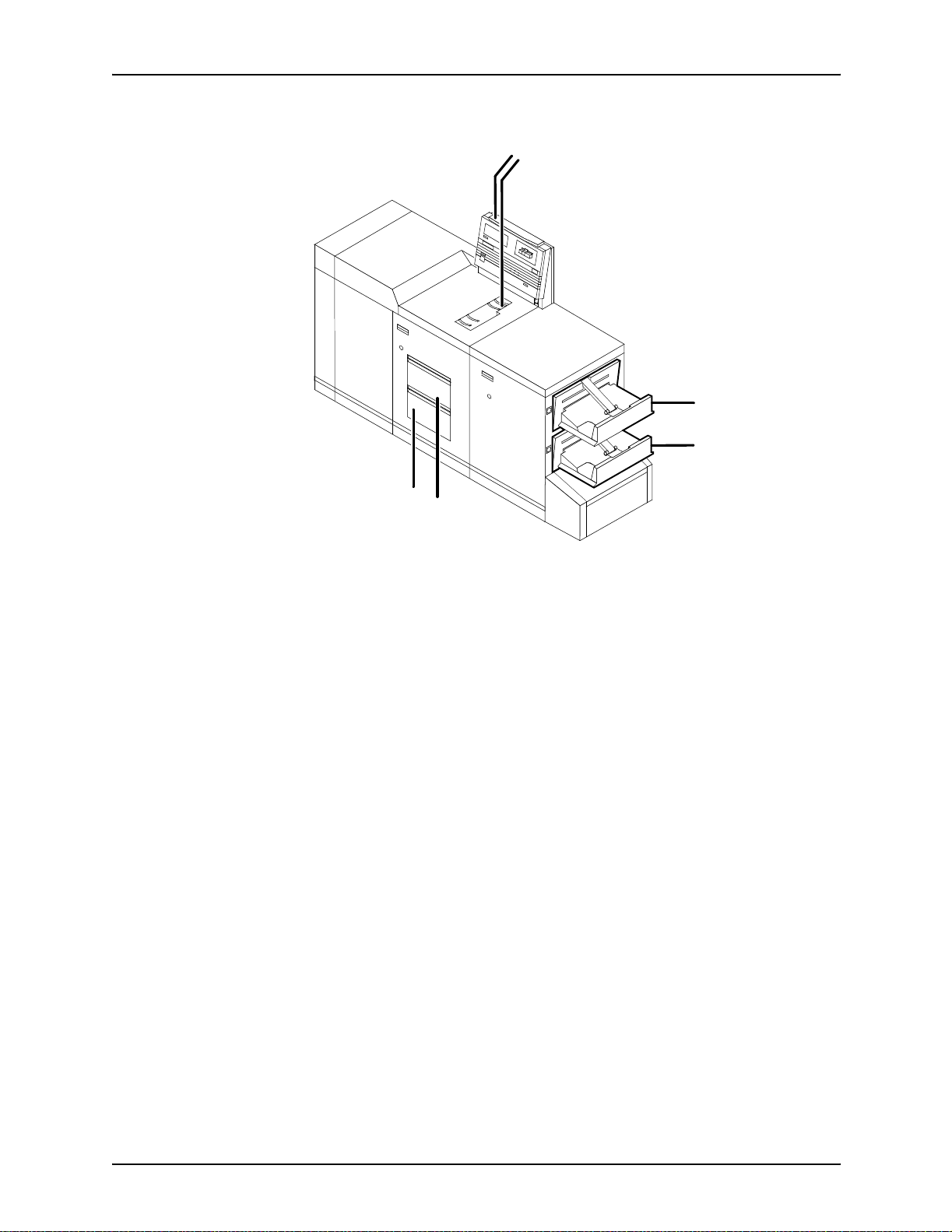

Figure 3-1. DocuPrint 4050/4090 printer shown with dual
stacker trays

1. Printer control console

2. Sample tra y

3. Stack e r tr ay 1

4. Stack e r tr ay 2

5. Feeder tray 1

6. Feeder tray 2

Printer control

console

The printer control consol e contains mess age and graphic
displays, information, and Stop and Continue buttons. The
DocuPrint 4050 or 4090 does not provide sample prints;
therefore, the Sample Print button has no ef fect on operation. A
power s witch (f or the printer only) is lo cated on the prin ter control
console. Indicato r l i ght s sh o w w h ich feeder tray is active and the
paper size in use.

Sample tray This output tra y is used for sample prints , rejecte d prints and

transparencies. The capacity of the sample tray is 100 sheets of
20-pound or 80-grams per square meter (gsm) paper.

3-2 System Overview Guide

Printer components and options

Dual stacker trays

1 and 2

Printer control console

Each output stacker tray has a capacity of 750 sheets of 20­pound or 80-gsm paper (1,500 sheets total capacity). The
alternatives to the dual stacker configuration are the stitcher/
stacker or bypass transport option.

Feeder tray 1: The capacity of tray 1 is 1,000 shee ts of 20­pound or 80-gsm paper.

Feeder tray 2: The capacity of tray 2 is 500 sheets of 20-pound
or 80-gsm paper. Except for capacity, this tray is identical to tray

1.

The printer control consol e contains mess age and graphic
displays, as well as printer status indicator lights that alert you to
printer conditions. These indicators and the Information button
help you to solve printer problems. The Stop and Continue
buttons give you temporary control of the printer, without
interrupting input processing.

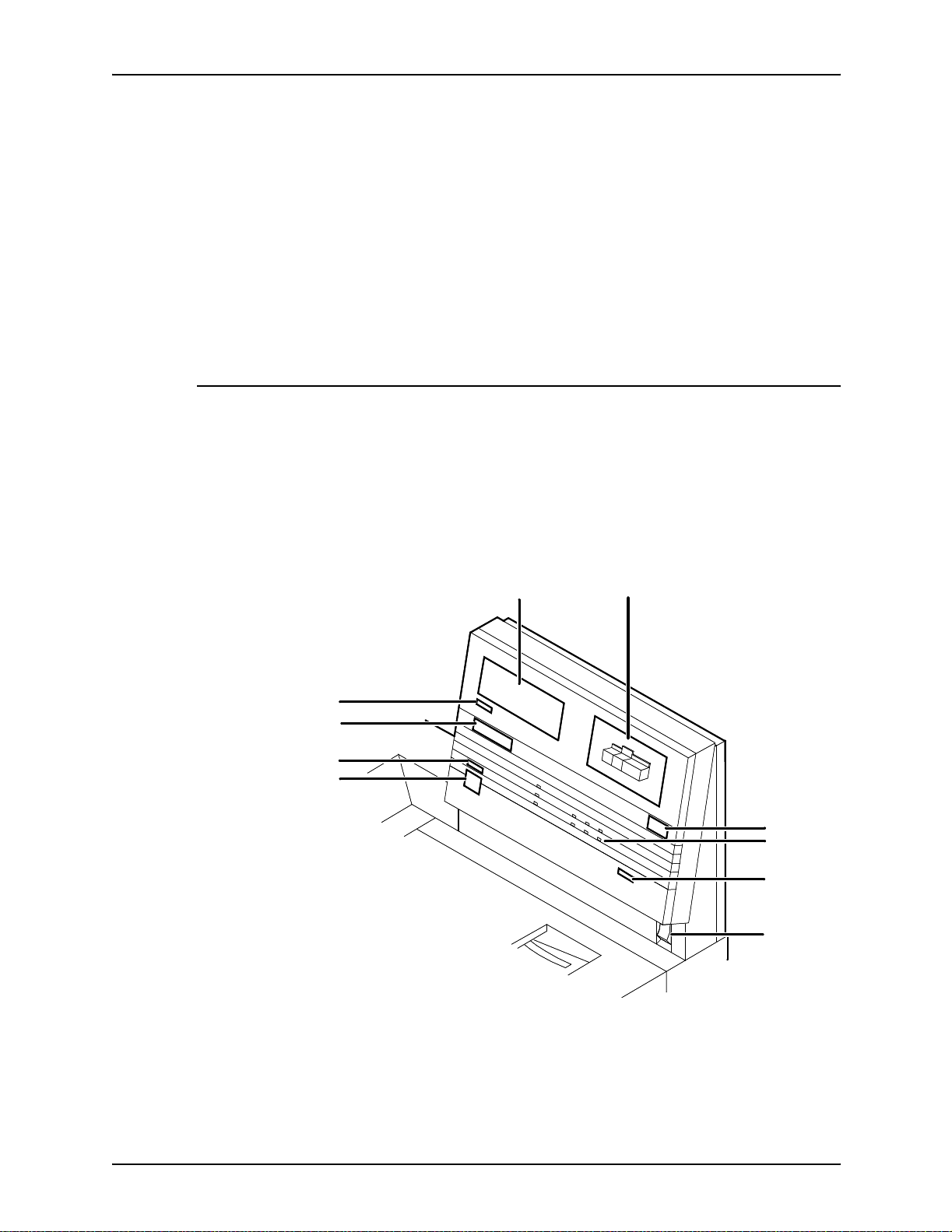

10

10

9

9

8

8
7

7

1. Message display

12

12

3

3
4

4

5

5

6

6

2. Graphic display

3. Wire percentage indicator

System Overview Guide 3-3

Printer components and options

4. Feeder tray indicator lights

5. Message display

6. P ower on/off switch

7. Continue button

8. Stop button

9. Fault code display

10.Information button

Message display Shows printer status and simple operating and maintenance

instructions in a two-line message display.

Graphic display Assists you in locating the area wher e the printer problem

occurred, as indicated by the message in the message display.

Wire percentage

indicator

Message display Shows printer status and simple operating and maintenance

Continue button Use the Continue button to resume printing.

Graphic display Assists you in locating the area wher e the printer problem

Displays the percentage of stitcher wire remaining on the spool.
This indicator appear s only if yo ur printer has the stitche r/stack er
output configur ation.

instructions in a two-line message display.

While it is formatting a complex page, the printer controller may
cycle down the printer if the page image is not available within a
certain time frame. If this occurs , the f ol lowin g message ap pears:

Press <CONTINUE> to resume printing
You can ignore this message. As soon as the page image is

available, the printer controller cycles up the printer and printing
automatically resumes.

occurred, as indicated by the message in the message
display.You can ignore this message . As soon as th e page image
is available, the printer controller cycles up the printer and
printing automatically resumes.

Stop button Use the Stop button to interrupt printing.

3-4 System Overview Guide

Printer components and options

Fault code display Shows the number of prints completed and configured by

technician, and displays the printer fault messages, such as
L152. When a fault messa ge displays, the corresponding
message (for example, “Stitcher is out of wire” or “Spool not
rotating”) appears in the message display.

Information button When “i” appears on the message display, you can press this

button for additional information on printer operation. You ca n
press the button repeatedly for more information as long as “i”
appears.

System Overview Guide 3-5

Printer components and options

Printer configurations

The DocuPrint 4050 and 4090 NPS may be configured with a
high-capacity feeder, a dual stacker, or a wire stitcher/stacker.

High-capacity feeder

Two feeder trays are provided as part of the printer base
configuration ( feeder trays 1 and 2). For the DocuPrint 4050 and
4090, the high-capacity feeder option increases the versatility
and productivity of the printer, which increases the feeder
capacity by approximately 2,000 sheet s.

1

2

3

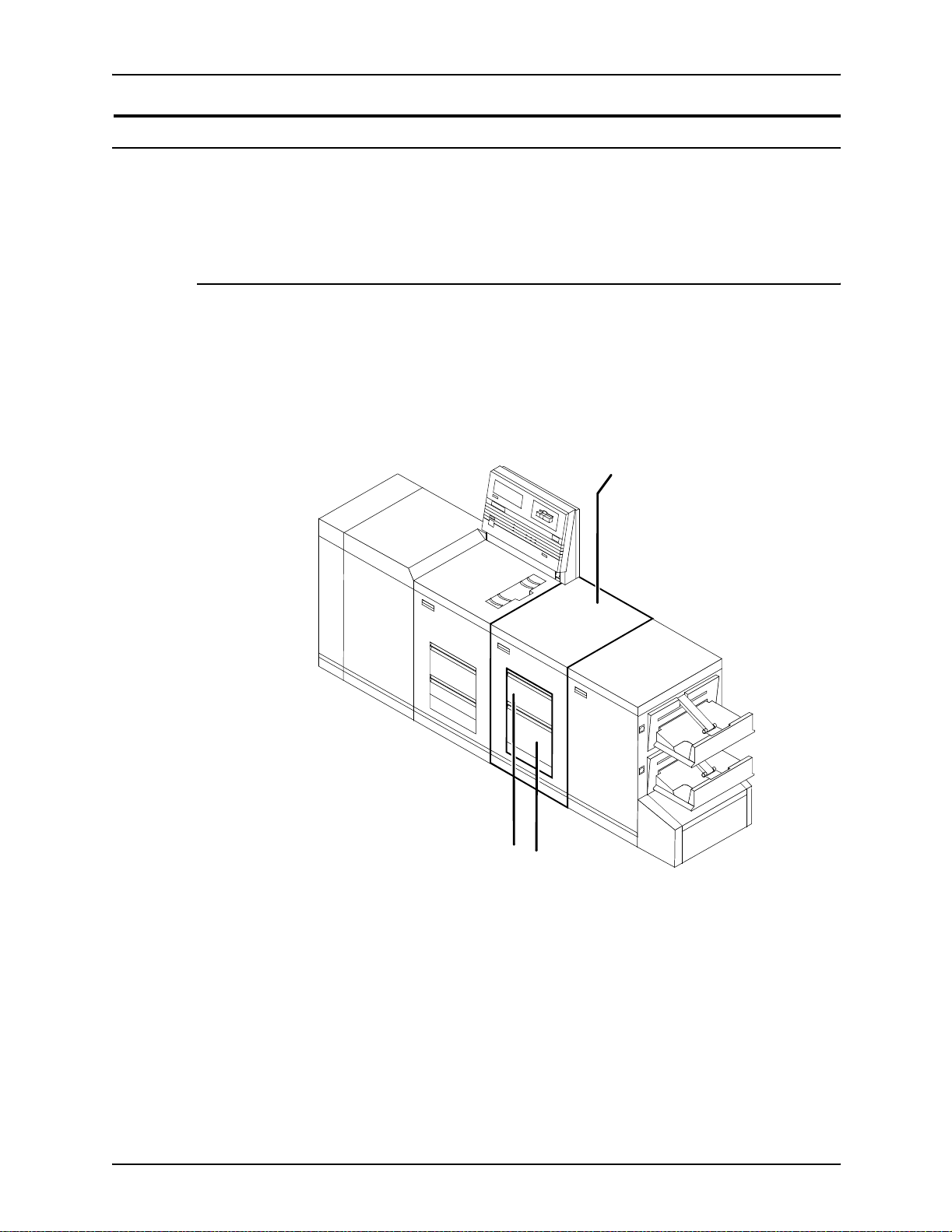

Figure 3-2. DocuPrint 4050/4090 printer with high-capacity
feeder

1. High-capacity feeder unit

2. Feeder tray 3

3. Feeder tray 4

3-6 System Overview Guide

Dual stacker

Printer components and options

The dual stacker trays each hold 750 sheets of 20-pound or 80­gsm paper (1,500 sheets total capacity).

1

2

Figure 3-3. DocuPrint 4050/4090 NPS dual stacker
configuration

1. Stack e r tr ay 1

2. Stack e r tr ay 2

System Overview Guide 3-7

Printer components and options

Stitcher/stacker

The stitcher/stacker wire-stitches documents of up to 50 sheets
of paper. The stacker tray holds up to 2,000 sheets of unstitched
20-pound or 80 -gsm paper.

1

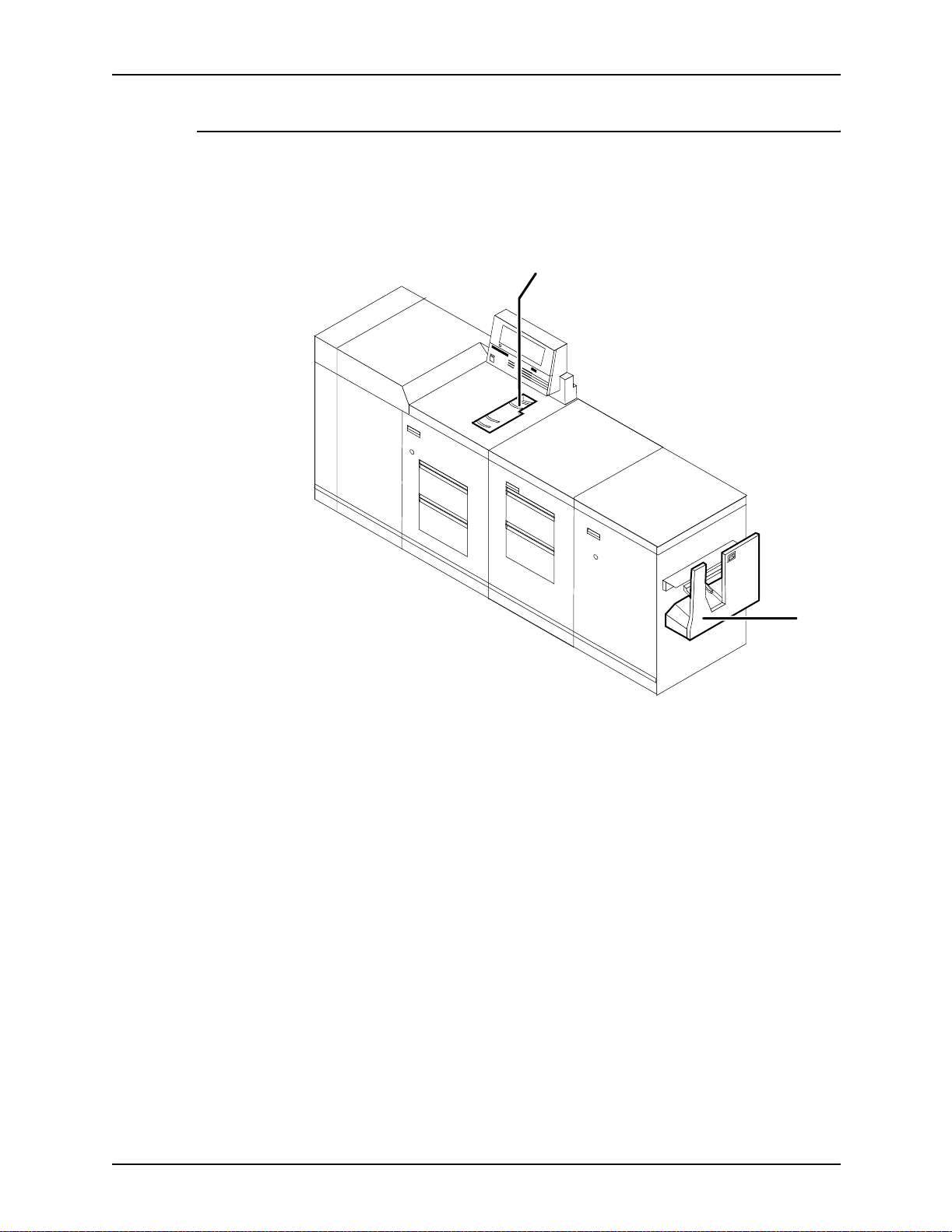

Figure 3-4. DocuPrint 4050/4090 NPS/IPS stitcher/stacker
configuration

1. Stitcher/stacker tray

2. Sample tra y

Sample tray Used for sample prints, rejected prints, and transparencies.

Holds up to 100 sheets of 20-pound or 80 gsm paper.

Stitcher/stacker

tray

A single tray for output that is stitched (stapled) and /or offset.
The tray holds up 2000 sheets of unsti tched 20 -pound o r 80 gsm
paper , o r an equ ally h igh stac k of stitched sets ( 200 two- sheet s).
A stitched set consists of up to 50 sheet s of 20- pound or 80 gs m
paper. The wire supply provides up to 35000 staple s.

2

3-8 System Overview Guide

Printer components and options

Additional printer features

Instruction labels Located throughout the printer to assist you with a variety of

tasks.

Audible tones Alert you to certain conditions. Volume may be adjusted by a

service representative.

Power savers To conserve energy, the printer has two power savers: one for

the raster output scanner (ROS) and one for the fuser.
After a predetermined period, e ach of these parts times itself out

and shuts down. The t i me-out peri od can be adjusted by a
service representative to meet your needs. The printer controller
automatically brings the printer out of power saver mode when
there is a document to be printed.

• The ROS power saver times itself out after about an hour of
inactivity and requires about 30 seconds to warm back up.

• The fuser power saver times itself out after about four hours
and requires four to seven minutes to warm up.

Language button Systems with the dual language option have this button to select

a different language, such as French instead of English, for the
message display.

System Overview Guide 3-9

Printer components and options

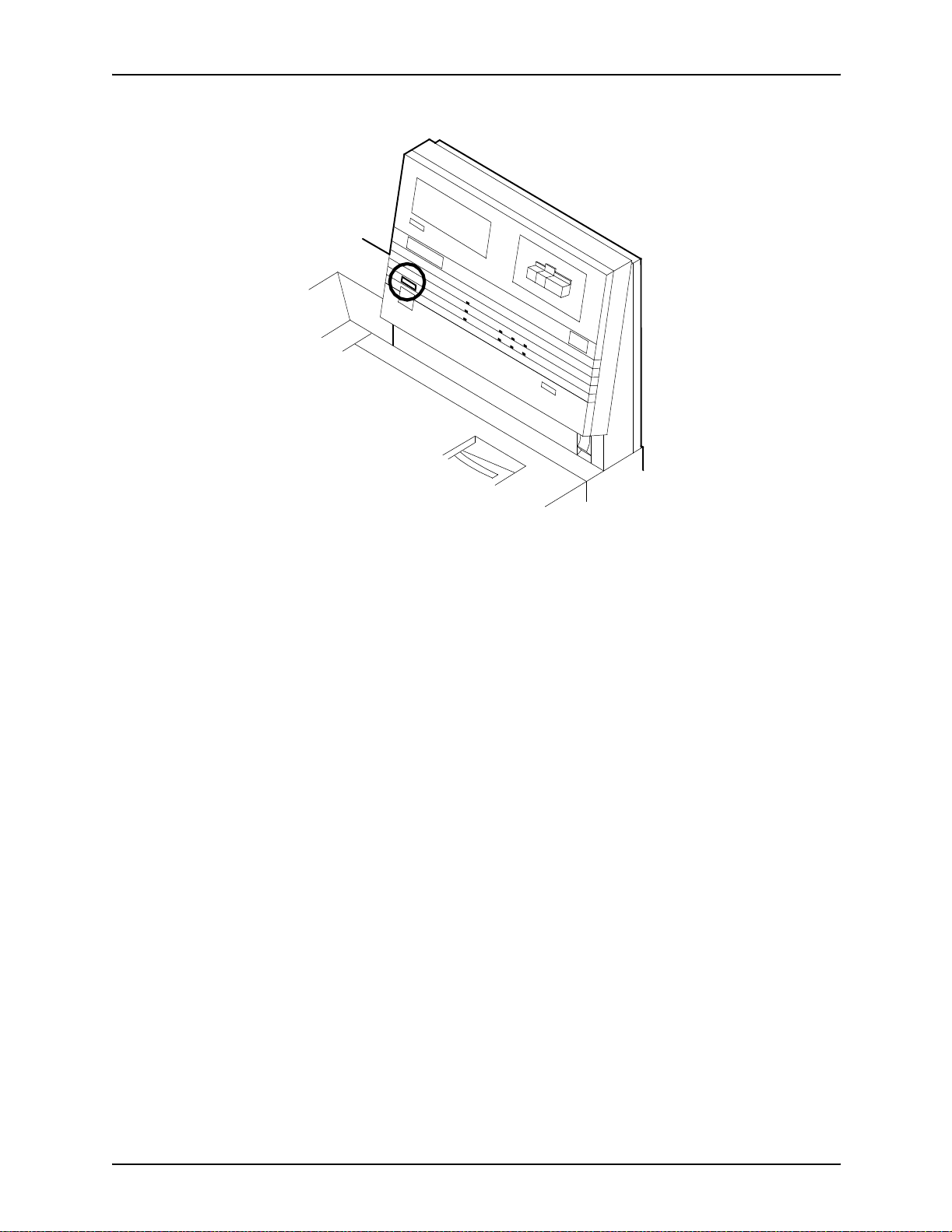

Figure 3-5. Language button on printer control console

3-10 System Overv iew Guide

Paper paths

Printer components and options

The paper path is the route that materials (paper,
transparencies, labels, and so on) follow through the printer from
the feeder trays to the output trays.

The figure belo w illust ra tes the simp lex (one-sided output) paper
path of a printer with a dual stacker tray and a standard feeder
tray. The materials move from eithe r f eeder tra y 1 o r feed er tra y 2
and are stacked in either stacker tray 1, stacker tray 2, or the
sample tray, depending on your selection at the beginning of the
job.

Figure 3-6. Simplex paper path (dual stacker configuration)

System Overview Guide 3-11

Printer components and options

The following figure illustrates the duplex (two-sided output)
paper path of a printer wit h a dual stac k er and a standa rd f e eder.
Materials may originate in either feeder tray 1 or feeder tray 2.
The duplex paper tray receives the materials before they go
through a second time to receive the second image. As the
pages move through for the second image, they follow the
simplex path . The pages are then stac k ed i n either stac k er tr a y 1
or stack er tra y 2, dep ending on y our selectio n at the beginn ing of
the job.

Figure 3-7. Duplex paper path (dual stacker configuration)

When you add a high-capacity feeder to your system, only the
beginning of the paper path changes, which is the source of
paper supply.

3-12 System Overv iew Guide

Printer components and options

The follo wing figure il lustrate s the sim ple x paper pa th of a printer
with the high-capacity feeder.

Figure 3-8. Simplex paper path (printer with high-capacity
feeder)

If you have the stitcher/stacker option, the paper path is the
same, except there is onl y on e t r ay for the output (othe r t han th e
sample tray).

System Overview Guide 3-13

Printer components and options

3-14 System Overv iew Guide

4. Network printing environment

The NPS/IPS system su pports the person al comp ut er (PC) , Sun
workstation, DEC workstation, HP/Apollo, IBM RS/6000 and
Apple Macintosh. It accepts PostScr ipt levels 1 and 2, PCL 5,
TIFF, and ASCII output.

Client workstations and system software

To send print jobs to the printer, the customer needs to provide
the proper client hardware, operating system, and network

software.
Print data originates at the client workstation, mainframe or

minicomputer. This is where a user creates and formats
documents according to specifications with the help of
application software. The printer supports the following types of
networked client workstations and operating systems:

• Sun workstation running a Sun or Linux operating system

• PC running MS-DOS 6.2 and Microsoft Windows 95, 98, NT,

4.0, 2000, and ME using Ethernet with TCP/IP or Novell
NetWare 3.11 and 3.12.

NOTE: Customers using Novell 4.1 must set the “Bindery
Emulation Mode” to be backwards compatible with Novell 3.11
and 3.12.

• IBM RS/6000 running IBM AIX, version 4.1

• HP/Apollo running HP-UX, version 10.01

• DECStation 5000/200 running DEC Ultrix, version 4.3

• Apple Macintosh, System 7, 7.5, or 8.x, using AppleTalk
through EtherTalk, phase 1 or 2

• Any system that supports RFC-1179 lpr/lpd.

The software may be compatible with workstation models and
software versions other than those listed above.

System Overview Guide 4-1

Network printi ng environment

Client software

On your PC or workstation, you must install or set up a
supported means of submitting jobs to the printer. Depending on
your system, you can use the following:

• Xerox drivers for Windows 3.x, 95/98, or NT/2000

• Xerox Document Submission Software for DOS, Windows

3.x, 95/98, NT/2000, or Macintosh

• Third-party dr ivers
– Some PostScript drivers can be used in conjunction with

– HP Color LaserJet for PCL 5c jobs
– HP LaserJet 4 for monochrome jobs

• Third-party TCP/IP lpd utility

• Apple/Macintosh Printer Access Protocol (PAP)

Xerox-supplied PPD files

NOTE: The printing options vary according to the network
software that is loaded on the client workstation.

Submitting print jobs

There are basically two ways you can submit print jobs: You can
send print data directl y fro m the ap pl i cati on to the printer; or y o u
can create a PDL data file on the workstation and then send the
data file to the printer. The method you choose depends on the
workstation configuration and the job submission requirements.

Sending the print data directly from the application to the printer
is accomplished with a Xerox print driver or a third-party driver.
This method is sometimes referred to as “transparent printing.” It
may not support all available print options, such as number of
copies, simplex or duplex printing, and stitching.

The other way to submit print jobs to the printer is by creating a
PDL data file. After the file is created, the user closes the
document and submits the job using one of the following
methods:

• lpr command: Provides opt ions fo r submitting prin t jobs. The
functionality of the lpr command is dependent on the TCP/IP
software installed on the workstation.

4-2 System Overview Guide

Network printing enviro nm en t

• Xerox Client Software: Provides a print command for
submitting jobs and s pecifyi ng print op tions . Th e fun ction ality
of the print command is dependent on the TCP/IP software
installed on the workstation.

• Xerox DocuPrint Document Submission Client software
for the Macintosh: Provides a graphical user interface for
submitting jobs and specifying print options.

• Xero x DocuPrint Print Submis sion software f or Windo ws

3.x, Windows 95/98, Windows NT, and Windows 2000:
Provides graphical user interfaces for submitting jobs a nd
specifying print options.

• Internet Printing Protocol for Windows 2000: Allows job
submission over the Internet.

In many cases, the workstation can be set up for more than one
method of job submission.

The application software provides the capability to print the
document using a page description language (PDL). The
application produces print data in one of the supported page
description language formats, for example PostScript level 2.

Communicating with the network

After the print data has be en pr epar ed for printing and combined
with print options data—eithe r by the application soft ware or by a
print job submission u tility—t he prin t jo b is sent o ver the network.

The printer supports TCP/IP, AppleTalk, and Novell NetWare
network communic ations protocols.

Client workstations require a network software utility that submits
the job using the appropriate network protocol. This software
must be installed an d running for jobs to be submitted
successfully to the printer . Once this software is installed, its
operation is transparent to the user.

The Macintosh uses Printer Access Protocol (PAP) to
communicate with one or more DocuPrint printers. For
convenience, your internet may be divided into zones. A zone
can be any logical group i ng of individual workstations and
printers. Your ne twork administrator defines your zone when
setting up the network.

System Overview Guide 4-3

Network printi ng environment

Shown below are the workstations, networking options, and job
submission methods available for each client.

Table 4-1. Clients

Client
workstation
hardware

Sun
Microsystems

IBM PC and
compatible

IBM PC and
compatible

IBM PC and
compatible

Operating
system

Solaris
SunOS

MS-DOS Optional

Windows 3.1 Optional

Windows 95/98Optional

Ethernet
connection

Standard TCP/IP;

Ethernet
interface card
(for example,
3Com 3C503)

Ethernet
interface

Ethernet
interface

Protocol;

Translation
requirements

none

TCP/IP;

network
communication
utility recommended

TCP/IP or Novell
Netware 3.1x;

network
communication
utility recommended
with TCP/IP

TCP/IP or Novell
Netware 3.1x;

network
communication
utility recommended
with TCP/IP

Job submission
method

Print using the lpr
command or Xerox
Client Software.

Print to disk file, then
send using the lpr
command or Xerox
Client Software.

Print directly from
application or use Xerox
DocuPrint Print
Submission software for
Windows.

Print directly from
application or use Xerox
DocuPrint Print
Submission software for
Windows.

IBM PC and
compatible

IBM PC and
compatible

Digital
Equipment
Corporation
DECstation

Windows NT Opti ona l

Ethernet
interface

Windows
2000

ULTRIX Optional

Optional
Ethernet
interface

Ethernet
interface

TCP/IP or Novell
Netware 3.1x;

network
communication
utility recommended
with TCP/IP

TCP/IP or Novell
Netware 3.1x;

network
communication
utility recommended
with TCP/IP

TCP/IP;

none

Print directly from
application or use Xerox
DocuPrint Print
Submission software for
Windows.

Print directly from
application or use Xerox
DocuPrint Print
Submission software for
Windows, or the Internet
Printing Protocol (IPP)

Print directly from
application, or use the
lpr command or Xerox
Client Software.

4-4 System Overview Guide

Table 4-1. Clients (Continued)

Network printing enviro nm en t

Client
workstation
hardware

Apple
Macintosh

IBM RS/6000 IBM AIX Standard TCP/IP;

HP/Apollo HP-UX Standard TCP/IP;

Operating
system

Apple OS Optional

Ethernet
connection

Ethernet
interface

Protocol;

Translation
requirements

AppleTalk using
EtherT alk Phase I or
II; none

none

none

Job status feedback

Client workstations display fault messages and additional
information, such a s th e sta tus of fee de r trays and output bins. I f
properly configured, the workstations may be able to display job
status, as shown below.

Job submission
method

Print directly from
application or use Xerox
DocuPrint Print
Submission Client
software for the
Macintosh.

Print using Xerox Client
Software.

Print using Xerox Client
Software.

Table 4-2. Job status feedback

Platform Job status capability

Sun workstation Job status and job deletion are available by issuing the appropriate

command at the command line.
Job status information is available for jobs submitted using Xerox Client
Software.

IBM and compatible
personal computers

Apple Macintosh Job status information is available at the workstation through AppleTalk.
IBM RS/6000 and HP/

Apollo

Job status and job deletion are available depending on the TCP/IP
software installed on the workstation. You must issue the appropriate
command at the command line.
Job status information is available for jobs submitted using Xerox Client
Software.
Job status information is available using the Novell PCONSOLE utility if
the printer is configured with a RPRINTER or PSERVER enabled.

Job status information is available for jobs submitted using Xerox Client
Software or Ipstat (native utility).

To determine the status of jobs submitted using the lpr
command, you must issue an lpq command at the command line.
Some application software packages may provide a simplified
means of obtaining job status, such as through the use of icons.

System Overview Guide 4-5

Network printi ng environment

The job status command (lpq) is available at client workstations
unless your TCP/IP network communication s utilities do not
support it.

Xerox Client Software provides commands for listing the status
of the job and for listing the queue. These command s are
available fo r jobs submitted using Xerox Client Software.

AppleTalk provid es job status information at the client
workstation throu gh the print mon itor functio n. Wo rkstation users
can also determine the status of a virtual printer.

NOTE: Job status is also available by establishing a telnet
connection to the Printer Controller to access the user interface
from your w orkstation. Printer and ad ditional status inf ormation is
also available. You can also use a Web browser to obtain job
status. See the Guide to Configuring and Managing the System
for more information.

Ethernet LAN

Token Ring

Users of networke d client workstatio ns may send print jobs to the
printer ov er th e E the rnet LAN using ei th er th e TCP/IP, AppleTalk
using EtherTalk Link Access Protocol (ELAP), or Nove ll NetW are
as the network protocol.

Regardless of printing or transmission protocol, the Ethernet
connection to the Printer Controller must be compatible with the
Institute of Electrical and Electronics Engineers (IEEE) 802.3
standard.

Users of networke d client workstatio ns may send print jobs to the
printer ove r a Token Ring network using TCP/IP, Nov el l NetWare
or AppleTalk network protocol.

Regardless of the prin ti ng transmission protoco l, the Token Ring
connection to the Printer Controller must be compatible with the
Institute of Electrical and Electronics Engineers (IEEE) 802.5
standard.

4-6 System Overview Guide

Multiple network connectivity

The system supports multiple network connectivity, that is, the
ability for protocols such as TCP/IP to run on more th an one
network interface. For TCP/IP, the system can support any
combination of Ethernet or Token Ring. One interface is
designated as the primary network interface. Novell NetWare
can run on only the primary network interface, but the type of
interface can be selected.

AppleTalk c an run on on ly one network interface, but it does not
have to be the primary one.

Network printing enviro nm en t

System Overview Guide 4-7

Network printi ng environment

4-8 System Overview Guide

Host connectivity

5. IPDS printing environment

The NPS/IPS emulates an IBM AFP Group 3 page printer with
the Advanced Function Image and Graphi cs (AFIG) option. It can
print in all the following PSF environments: MVS, VM (channel­attached only), V SE ( c h an nel - at tach ed onl y, OS/2, OS/400 (with
TCP/IP only), and AIX.

NOTE: Although PSF/VSE does not support TCP/IP directly, a
printing system with PSF/2, PSF/6000, or IBM Inf oPrint Manager
can attach to a PSF/VSE system and the PSF/2, PSF/6000, or
IBM InfoPrint Manager can furnish the TCP/IP support for the
printer.

Host environments

The system emulates an IB M A FP G roup 3 p age printer with t he
Advanced Function Image and Graphics (AFIG) option and can
print in all the following PSF environments:

•MVS

• VM (channel-attached only)

• VSE (channel-attached only)

•OS/2

• OS/400 (with TCP/IP only)

•AIX

NOTE: Although PSF/VSE does not support TCP/IP directly, a
printing system with PSF/2, PSF/6000, or Inf oP rint Manager can
attach to a PSF/VSE system and the PSF/2, PSF/6000, or
InfoPrint Mana ge r can furnish the TCP /IP support for the printer.

NOTE: There is no minimum host operating system software
level required. The minimum PSF level needed to support full
color is v.3.2.

System Overview Guide 5-1

IPDS printing environment

The NPS/IPS can be set up to receive data from the IBM host in
one of two ways:

• Through a bus and tag channel connection.

• Through a Token Ring or Ethernet interface using TCP/IP.

NOTE: If your system will be channel-attached, the printer
controller requires an additional component—either a
channel interface board and channel cable connector box, or
a Host Channel Unit (HCU) that serves as an interface
between the IBM host and the printer controller.

NOTE: Your system supports only one other connectivity
option in addition to Ethernet. For example, Ethernet and
channel connection or Ethernet and Token Ring.

NOTE: A transmission rate of at least 16 megabits per
second should be used with a Token Ring interface. (Overall
performance depends on network traffic and job density.)

1

IBM
Host

7

4

6

5

3

2

Figure 5-1. Printing system: channel-attached configuration

1. Host system (PC or mainframe)

2. Printer

3. Printer interface cab l e s

4. Printer controller

5. Internal channel cable

6. Host Channel Unit (HCU)

7. Bus and tag cables

5-2 System Overview Guide

IPDS printing environm ent

Figure 5-2. Printing system: TCP/IP configuration

1. Host system (PC or mainframe)

2. Interface network (Ethernet or Token Ring)

3. Printer controller

4. Printer interface cab l e s

5. Printer

For in formation on the various printer configuration options, refer
to the “Printer components and options” chapter of this guide.

Channel interface —channel-attached systems only

Your system may use a channel interface board and connector
box for channel connection to a ho st for IPDS printing. The
channel interf ace board, connected to a channel cab le connector
box, handles all IPDS communications and handshaking with
PSF on the host when the NPS/IPS is receiving data over a
channel. (It is not used when the NPS/IPS is printing data using
TCP/IP.)

System Overview Guide 5-3

IPDS printing environment

Figure 5-3. Channel board and control unit

1. Printer

2. Printer control and video cable

3. Printer controller with channel interface board

4. Channel cable connector box

5. Channel cables

6. Host system

NOTE: The customer is r esponsible for obtaining, stringing, and
maintenance of the bus and tag cables. The bus and tag cables
must be fully populated cable sets.

Host Channel Unit (HCU)—channel-attached systems only

Your system may use a Host Channel Unit (HCU) for channel
connection to a host for IPDS printing.

The HCU handles all IPDS communications and handshaking
with PSF on the host when the system is receiving data over a
channel. It is not used when the system is printing data using
TCP/IP.

5-4 System Overview Guide

IPDS printing environm ent

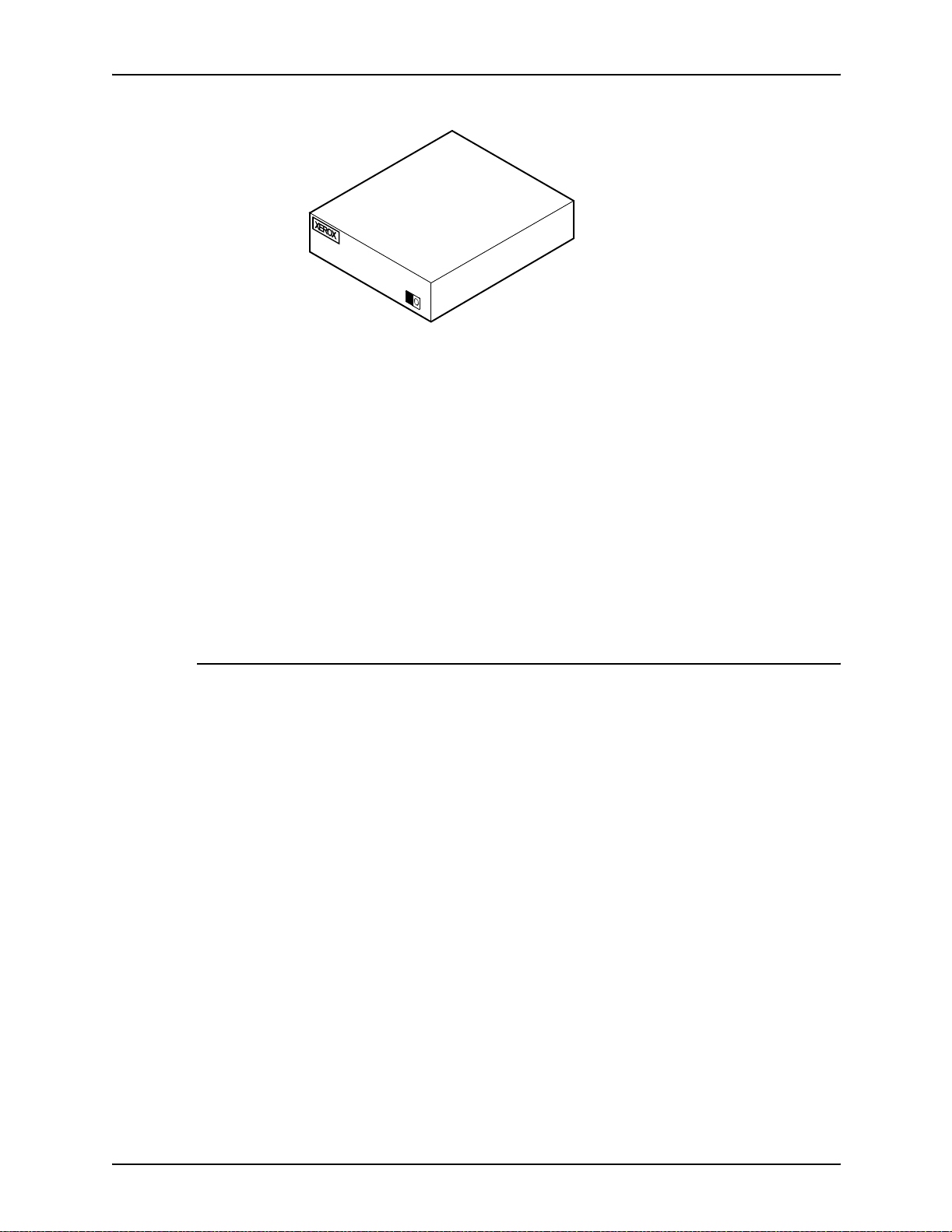

Figure 5-4. Host Channel Unit (HCU)

The front panel of the HCU provides a single-digit LED display
that enables you to monitor power-up and offline status, and
alerts you to error conditions. (Refer to the Messages Guide for
an explanation of the HCU codes.)

The back panel of the HCU has a power switch and outlet, bus
and tag cable input and bypass connectors, and a dual serial
port.

NOTE: The customer is r esponsible for obtaining, stringing, and
maintenance of the bus and tag cables. The bus and tag cables
must be fully populated cable sets.

IPDS data stream

All IPDS resources (print data sets, page definitions, form
definitions, page segments, fonts, and overlays) that are
supported by the IBM 3825 and 3827 printers are supported by
the Xerox software. Additionally, the data towers that are
supported within the AFP en vironmen t by the IBM 3825 an d IBM
3827 printers are fully supported by the software. Data towers
supported are:

• IM Image IMD1

• FOCA: Font Object Content Architecture

• MO:DCA-P: Mixed Obj ect Document Cont ent Architecture f or
Presentation

• PTOCA PT1, PT2, and PT3: Presentation Text Object
Content Architecture

• IOCA: Image Object Content Architecture

• GOCA: Graphics Object Content Architecture

• BCOCA: Bar code Object Content Architecture

System Overview Guide 5-5

IPDS printing environment

• OL1: Overlay One

• PS1: Page Segment One

• Line mode data streams

Each of the data objects f ollo w the same object rule of conta ining
delimiting fields with structure d fields describing each object.

Software features for IPDS

This section describes some of the software features for IPDS
printing.

IOCA Replicate and Trim

The printer supports Replicate and Trim, which improves the
processing of IM and IO images that contain large areas of
shaded graphics. (IM images are resolution-dependent images
that cannot be compressed or scaled; IO images are resolution­independent.)

The IOCA Replicate and Trim capability allows for faster
transmission to the printer of AFP applications with IM images
that have large or widespread shaded areas. It also reduces the
storage area required on the host and on the printer.

Tr ace facility

To help diagnose problems, the system provides a trace
mechanism. Trace files store system configuration information,
maintain TCP/IP protocol headers, and time-stamp all records.

For detailed information on this feature, refer to the “Using utility
commands” chapter in the Guide to Configuring and Managing
the System.

Overstrike, underscore, subscript, and superscript

Support for the PT2 Subset of PTOCA enables the printer to
print overstrikes, underscores, subscripts, and superscripts
where specified in jobs.

5-6 System Overview Guide

Color image support

Some IM1 images (for example, logos) can be converted to
IOCA for resolution corre ction. The bi-le v el IOCA f eature ena bles
such IM1 images to be printed in color on the highlight-color
printer. PSF does not strip the color information from the print
job.

Also supported are JPEG compressed IOCA, as well as JPEG
and EPS files in object containers.

NOTE: Hosts may not support JPEG files in object containers.

Background color for OCA colors

Users can specify COLOR on DRAWBOX (i.e., ba ckground
color) as long as the color is restricted to colors defined with the
OCA model.

IPDS printing environm ent

Bi-level IOCA colors

The printer accepts the new IOCA color spaces in the extended
controls (ref erred to as the “4E” col or trip lets) . Th ese in cl ude th e
Highlight Color and Standard OCA Color.

Outline font support

The printer su ppor ts the use of IBM outline fonts for both single­byte and double-byte applications. These fonts must be
downloaded during the jobs.

These outline fonts allow users to specify a single font that can
be rasterized in a variety of point sizes by the printer. The IBM
outline f onts ar e based on Adob e type 1 and type 0 f on ts that a re
in Post Script format.

System Overview Guide 5-7

IPDS printing environment

5-8 System Overview Guide

A. Supplies

This appendix provides information and specifications for the
media you use with your Xerox DocuPrint 4050/4090 NPS/IPS
printer. Instru ctions for ordering supplies are also provided.

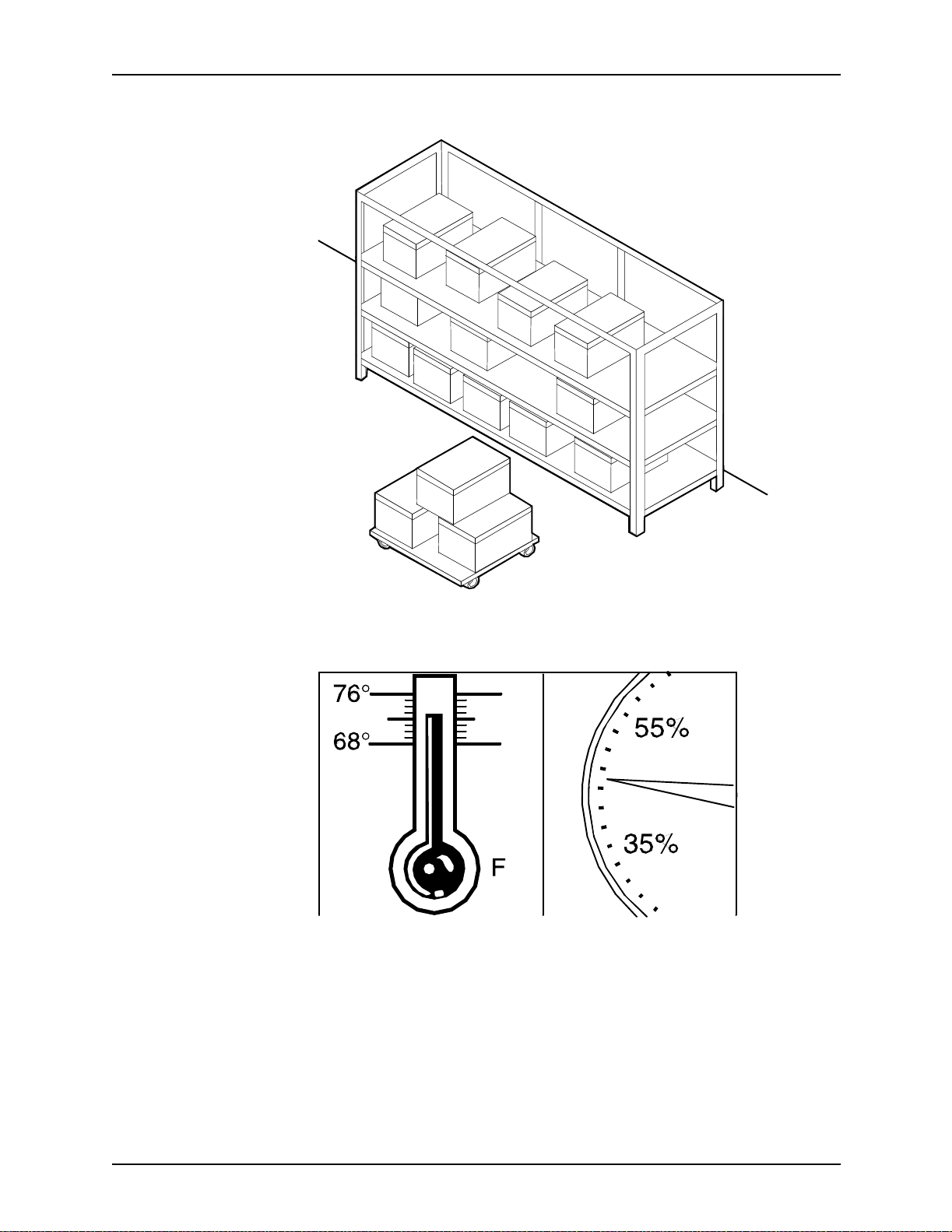

Consumable supplies (those that are depleted during operation
of the system), such as paper, dry ink, developer, fuser lubricant,
etc., must be ordered for your printer. It is important that an
adequate supply of these items be on hand for installation, and
that your supply be maintained afterwards.

Paper and other throughput stocks

The success of any print run is greatly dependent on the proper
selection, care, and handling of the stock used.

Selecting paper

Acceptable paper

stocks and sizes

You need to select your paper carefully. If you do not use the
proper paper, you increase the probability of paper jams and
misfeeds. The stocks you use must meet the specifications set
forth by Xerox for operability in the printer. For additional
information about paper specifications, refer to Helpful Facts
about Paper, delivered with your printer.

Your DocuPrint 4050/4090 printer accepts the f o llow ing standa rd
size cut-sheet papers:

• US Letter: 8.5 by 11 inches / 216 by 279 mm

• US Legal: 8.5 by 14 inches / 216 by 356 mm

• A4: 8.27 by 11.69 inches / 210 by 297 mm

System Overview Guide A-1
