Freedom HF InvChg Owners Guide.book Page i Tuesday, April 29, 2014 12:10 PM

Owner’s Guide

Freedom HF Inverter/Chargers

Model Product Numbers

806-1020

806-1054, 806-1054-01

806-1055, 806-1055-02

806-1544

806-1840, 806-1840-01, 806-1840-02

Freedom HF InvChg Owners Guide.book Page ii Tuesday, April 29, 2014 12:10 PM

Freedom HF InvChg Owners Guide.book Page i Tuesday, April 29, 2014 12:10 PM

Exclusion for Documentation

UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER (A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY

TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION;

(

B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK; AND

ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION WHICH IS POSTED AT WWW.XANTREX.COM.

Document Part Number

975-0390-01-01

Contact Information

Telephone: +1 800 670 0707

Web: www.xantrex.com

+1 408 987 6030

Information About Your System

As soon as you open your product, record the following information and be sure to keep your proof of purchase.

Serial Number

Product Number

_________________________________

Date and Revision

April 2014 Rev E

Product Numbers

1000-watt Models:

806-1020 (Freedom HF 1000)

Purchased From

Purchase Date

To view, download, or print the latest revision, visit the website shown under Contact Information.

_________________________________

806-1055, 806-1054, 806-1054-01 (Freedom HF 1055) 806-1055-02 (Freedom HF 1055 EMS)

1500-watt Model:

806-1544 (Freedom HF 1500)

1800-watt Models:

806-1840 (Freedom HF 1800) 806-1840-01 (Freedom HF 1800 T) 806-1840-02 (Freedom HF 1800 EMS)

975-0390-01-01 i

Freedom HF InvChg Owners Guide.book Page ii Tuesday, April 29, 2014 12:10 PM

About This Guide

Purpose

The purpose of this Owner’s Guide is to provide explanations and procedures for operating, maintaining, and troubleshooting a Freedom HF Inverter/Charger for Recreational, Fleet Vehicle, or Marine installations.

For complete information to help in installing a Freedom HF Inverter/ Charger see the installation guide, part number 975-0395-01-01.

Scope

The Guide provides safety guidelines, as well as information about operating and troubleshooting the installation. It does not provide details about particular brands of batteries. You need to consult individual battery manufacturers for this information.

Audience

The Guide is intended for users and operators of the Freedom HF Inverter/ Charger.

Conventions Used

The following conventions are used in this guide.

DANGER indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation, which, if not avoided, can result in death or serious injury.

CAUTION indicates a potentially hazardous situation, which, if not avoided, can result in moderate or minor injury.

NOTICE indicates a potentially hazardous situation, which, if not avoided, can result in equipment damage.

IMPORTANT:

to know, however, they are not as serious as a caution or warning.

These notes describe things which are important for you

ii Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page iii Tuesday, April 29, 2014 12:10 PM

Related Information

You can find more information about Xantrex products and services at www.xantrex.com.

NOTE: The Installation Guide (Document Part Number: 975-0395-01-01) is intended for qualified personnel. Qualified personnel have training, knowledge, and experience in:

• Installing electrical equipment and PV power systems (up to 1000

volts).

• Applying all applicable installation codes.

• Analyzing and reducing the hazards involved in performing electrical

work.

• Selecting and using Personal Protective Equipment (PPE).

975-0390-01-01 iii

Failure to follow these instructions will result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page iv Tuesday, April 29, 2014 12:10 PM

Important Safety Instructions

IMPORTANT: READ AND SAVE THIS OWNER’S GUIDE

FOR FUTURE REFERENCE.

This chapter contains important safety instructions for the Freedom HF Inverter/Charger (Freedom HF). Each time, before using the Freedom HF, READ ALL instructions and cautionary markings on or provided with the inverter/charger, the batteries, and all appropriate sections of this guide.

NOTE: The Freedom HF contains no user-serviceable parts. See Warranty Card for guidance.

ELECTRICAL SHOCK HAZARD

• Do not expose the Freedom HF to rain, snow, spray, or bilge water. This inverter/charger is designed for marine applications only when additional drip protection is installed in certain orientations. See the installation guide for information.

• Do not operate the inverter/charger if it has received a sharp blow, been dropped, has cracks or openings in the enclosure including if the fuse cover has been lost, damaged, or will not close, or otherwise damaged in any other way.

• Do not disassemble the inverter/charger. Internal capacitors remain charged after all power is disconnected.

• Disconnect both AC and DC power from the inverter/charger before attempting any maintenance or cleaning or working on any circuits connected to the inverter/charger. See note below.

• Do not operate the inverter/charger with damaged or substandard wiring. Make sure that all wiring is in good condition and is not undersized.

iv Freedom HF Owner’s Guide

NOTE: Turning off the inverter/charger using the on/off switch on the front panel will not reduce an electrical shock hazard.

Failure to follow these instructions will result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page v Tuesday, April 29, 2014 12:10 PM

FIRE AND BURN HAZARD

• Do not cover or obstruct the air intake vent openings and/or install in a zero-clearance compartment.

• Do not use transformerless battery chargers in conjunction with the inverter/charger due to overheating.

EXPLOSION HAZARD

• Charge only properly rated (such as 12 V) lead-acid (GEL, AGM, Flooded, or lead-calcium) rechargeable batteries because other battery types may explode.

• Do not work in the vicinity of lead-acid batteries. Batteries generate explosive gases during normal operation. See note #1.

• Do not install and/or operate in compartments containing flammable materials or in locations that require ignition-protected equipment. See notes #2 and #3.

NOTES:

1. Follow these instructions and those published by the battery manufacturer and the manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and on the engine.

2. This inverter/charger contains components which tend to produce arcs or sparks.

3. Locations include any space containing gasoline-powered machinery, fuel tanks, as well as joints, fittings, or other connections between components of the fuel system.

975-0390-01-01 v

Failure to follow these instructions can result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page vi Tuesday, April 29, 2014 12:10 PM

Precautions When Working With Batteries

BURN FROM HIGH SHORT-CIRCUIT CURRENT, FIRE AND EXPLOSION FROM VENTED GASES HAZARDS

• Always wear proper, non-absorbent gloves, complete eye protection, and clothing protection. Avoid touching your eyes and wiping your forehead while working near batteries. See note #4.

• Remove all personal metal items, like rings, bracelets, and watches when working with batteries. See notes #5 and #6 below.

• Never smoke or allow a spark or flame near the engine or batteries.

• Never charge a frozen battery.

NOTES:

1. Mount and place the Freedom HF Inverter/Charger unit away from batteries in a well ventilated compartment.

2. Always have someone within range of your voice or close enough to come to your aid when you work near a lead-acid battery.

3. Always have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.

4. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters your eye, immediately flood it with running cold water for at least twenty minutes and get medical attention immediately.

5. Use extra caution to reduce the risk or dropping a metal tool on the battery. It could spark or short circuit the battery or other electrical parts and could cause an explosion.

6. Batteries can produce a short circuit current high enough to weld a ring or metal bracelet or the like to the battery terminal, causing a severe burn.

7. When removing a battery, always remove the negative terminal from the battery first for systems with grounded negative. If it is grounded positive, remove the positive terminal first. Make sure all loads connected to the battery and all accessories are off so you don’t cause an arc.

vi Freedom HF Owner’s Guide

Failure to follow these instructions can result in death or serious injury.

Failure to follow these instructions can damage the unit and/or damage other equipment.

Freedom HF InvChg Owners Guide.book Page vii Tuesday, April 29, 2014 12:10 PM

Precautions When Preparing to Charge

EXPOSURE TO CHEMICALS AND GASES HAZARD

• Make sure the area around the battery is well ventilated.

• Make sure the voltage of the batteries matches the output voltage of the inverter/charger.

• Be careful to keep corrosion from coming into contact with your eyes and skin when cleaning battery terminals.

NOTES:

• Study and follow all of the battery manufacturer's specific precautions, such as removing or not removing cell caps while charging, whether equalization is acceptable for your battery, and recommended rates of charge.

• For flooded non-sealed batteries, add distilled water in each cell until battery acid reaches the level specified by the battery manufacturer. This helps to purge excessive gas from cells. Do not overfill. For a battery without removable cell caps, carefully follow manufacturer's instructions.

Precautions When Placing the Inverter/Charger

FIRE HAZARD

Do not install the inverter/charger or any part of its supplied wiring in engine compartments.

RISK OF DAMAGE TO THE INVERTER/CHARGER

• Never allow battery acid to drip on the inverter/charger when reading gravity, or filling battery.

• Never place the Freedom HF Inverter/Charger unit directly above batteries; gases from a battery will corrode and damage the inverter/ charger.

• Do not place a battery on top of the inverter/charger.

975-0390-01-01 vii

Failure to follow these instructions can damage the unit and/or damage other equipment.

Failure to follow these instructions can result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page viii Tuesday, April 29, 2014 12:10 PM

Precautions for Using Rechargeable Appliances

RISK OF DAMAGE TO RECHARGEABLE APPLIANCES

Most rechargeable battery-operated equipment uses a separate charger or transformer that is plugged into an AC receptacle and produces a low voltage charging output. Some chargers for small rechargeable batteries can be damaged if connected to the Freedom HF. Avoid using the following with the Freedom HF:

• Small battery-operated appliances like flashlights, razors, and night lights that can be plugged directly into an AC receptacle to recharge.

• Some chargers for battery packs used in power hand tools. These affected chargers display a warning label stating that dangerous voltages are present at the battery terminals.

If you are unsure about using your rechargeable appliance with the Freedom HF, contact the equipment manufacturer to find out if the appliance is acceptable for use with an inverter that has a modified sine wave output voltage.

Regulatory

The Freedom HF Inverter/Charger is certified to appropriate US and Canadian standards. For more information see “Regulatory Approvals” on page 45.

The Freedom HF Inverter/Charger is intended to be used for mobile or commercial applications. This inverter/charger is designed for marine applications only when additional drip protection is installed in certain orientations. See the installation guide for information.

It is not intended for other applications as it may not comply with the additional safety code requirements needed for those other applications. See “Limitations On Use” below.

LIMITATIONS ON USE

Do not use in connection with life support systems.

NOTE: The Freedom HF Inverter/Charger is a modified sine wave inverter/ charger. Please ensure your equipment or devices are compatible with modified sine wave prior to usage.

viii Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page ix Tuesday, April 29, 2014 12:10 PM

FCC Information to the User

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Unauthorized changes or modifications to the equipment could void the user’s authority to operate the equipment.

KKK Information to the User

The Freedom HF 1055 EMS and 1800 EMS models are marked “KKK-A1822D Ready”. These models are marketed for use in ambulances and emergency vehicle applications. For information of compliance of the ambulance as a whole, please refer to specifications as laid out in Federal Specification for the Star-of-Life Ambulance also known as KKK-A-1822.

975-0390-01-01 ix

Freedom HF InvChg Owners Guide.book Page x Tuesday, April 29, 2014 12:10 PM

Freedom HF InvChg Owners Guide.book Page i Tuesday, April 29, 2014 12:10 PM

Important Safety Instructions

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Freedom Inverter/Charger Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Freedom Inverter/Charger Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Operating in Shore Power Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Operating During Transition Between Shore Power and Inverter Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

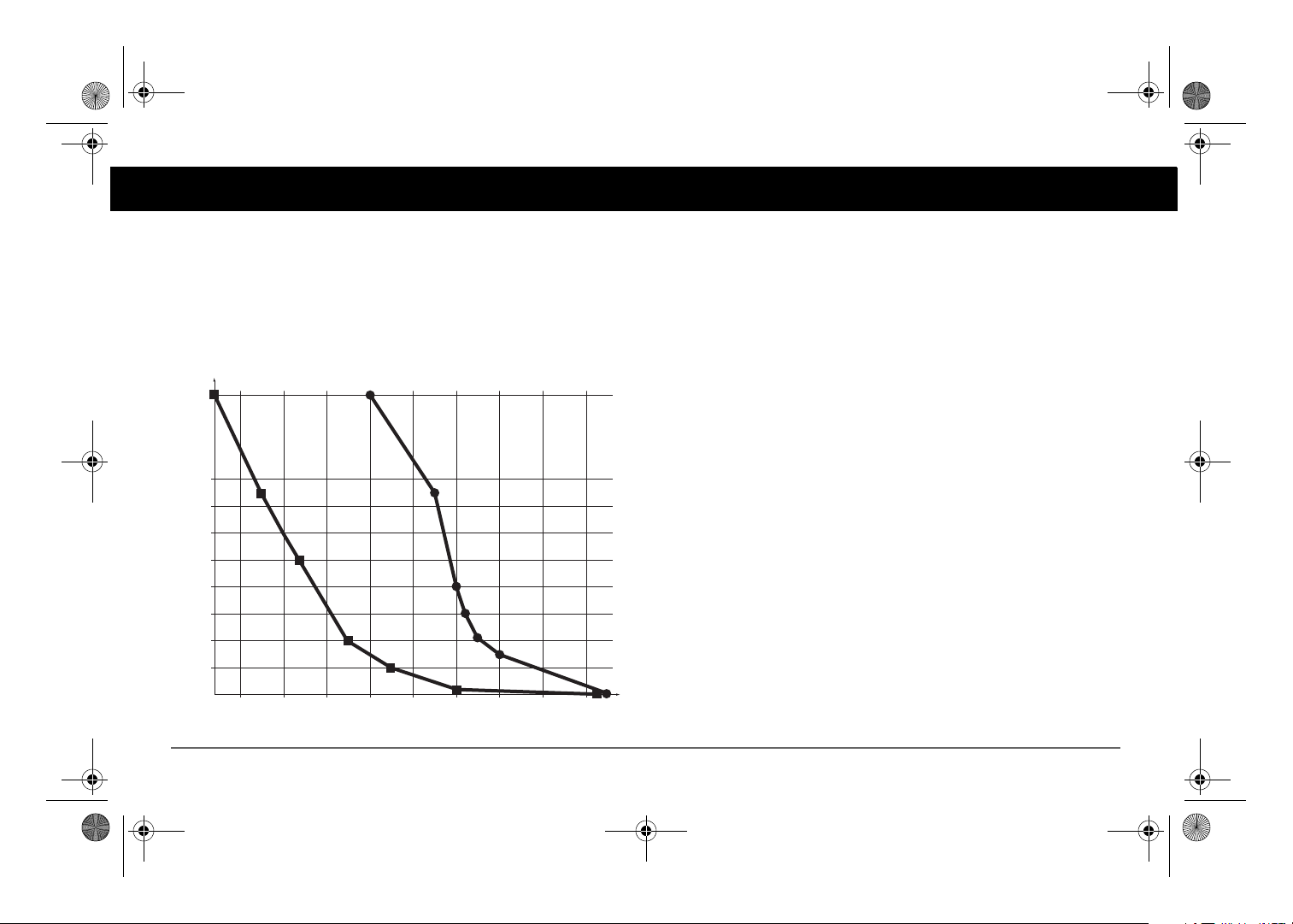

Inverter Overload Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

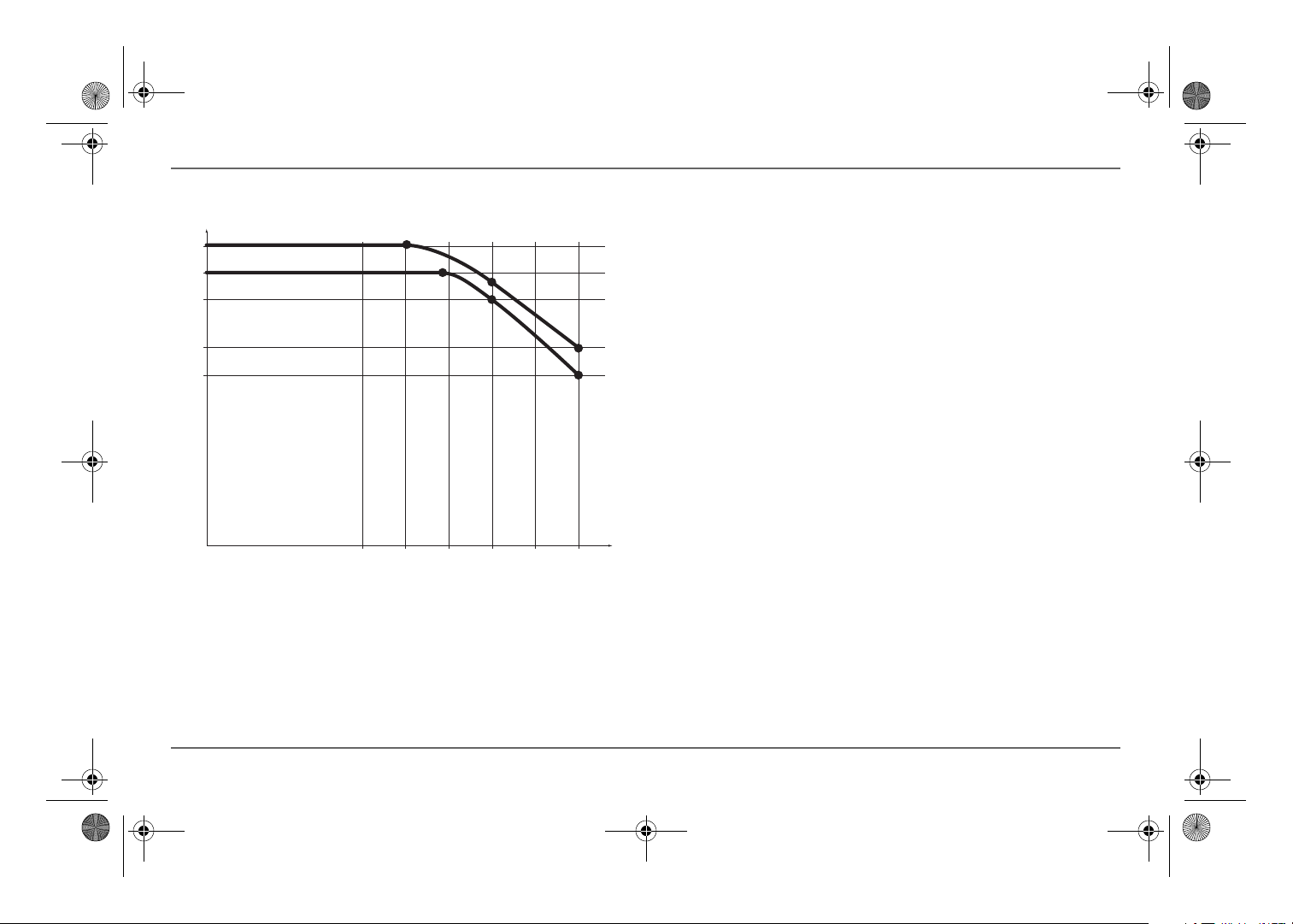

Invert Power Derating vs. Ambient Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Troubleshooting Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Inverter Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

Freedom HF InvChg Owners Guide.book Page ii Tuesday, April 29, 2014 12:10 PM

Display panel is attached to the unit.

Freedom HF unit

communications cable

DC terminal covers

GFCI cover plate

strain-relief clamp

’

Product image shown may vary from actual product. See “Features” for comparisons.

Freedom HF 1800 shown.

Owner’s and Installation Guides and mounting template

Freedom HF InvChg Owners Guide.book Page 1 Tuesday, April 29, 2014 12:10 PM

Introduction

The Freedom HF Inverter/Charger (Freedom HF) is designed with integrated inverting–charging functions and power management features suitable for marine, recreational, and commercial vehicle installations.

Please read this chapter to familiarize yourself with the main performance and protection features of the Freedom HF.

Materials List

The Freedom HF (PNs: 806-1840, 806-1020) base package includes the minimum following items:

• one Freedom HF unit

• one set of owner’s and installation guides and a mounting template

• one display panel with 7-inch (0.17 m) cable

• one communications cable (25 feet) (7.5 m)

• two DC terminal covers

• one strain-relief clamp

• one GFCI cover plate with knockout

• one display panel blanking plate (not shown)

• one display panel mounting bezel (not shown)

• one set of lock washers and nuts (not shown)

NOTE: If any of the items are missing, contact Xantrex or any authorized Xantrex dealer for replacement. See “Contact Information” on page i.

Other Freedom HF OEM models may include other DC and/or AC connectors.

975-0390-01-01 1

Figure 1 What’s In The Box

Freedom HF InvChg Owners Guide.book Page 2 Tuesday, April 29, 2014 12:10 PM

Introduction

Key Features

Power for Most Appliances The Freedom HF inverter/charger provides up to 1000 watts (Models HF 1055, and Freedom HF 1055 EMS), up to 1500 watts (Freedom HF 1500

), or up to 1800 watts (Modelsc Freedom HF 1800,

Freedom HF 1000, Freedom

Freedom HF 1800 T, and Freedom HF 1800 EMS) of continuous modified sine wave power derived from a battery bank. It is designed to handle loads such as microwave ovens, TVs, VCRs, and mid-sized power tools. In addition, the Freedom HF’s high-surge capability lets you handle many hard-to-start loads, including large TVs and small refrigerators.

The built-in transfer switch automatically transfers between inverter power and shore power from recreational facilities such as boat docks or campsites to ensure power is always available. The built-in charger also automatically charges the battery bank when the Freedom HF is connected to shore power.

Comprehensive Protection The Freedom HF’s built-in protection features safeguard your batteries and equipment, such as:

• The low battery voltage alarm and shutdown prevents your batteries from becoming completely discharged,

• the three-stage charging capability ensures that batteries receive efficient charge, and

• automatic switching between inverter power to passthrough shore power.

Back-up Capability If incoming shore power is interrupted by external events like brownouts, the Freedom HF automatically becomes an independent power source

that supplies quality AC to

your loads.

Overload Alarm and Shutdown During inverter mode, the Freedom HF automatically alerts you if the loads that are connected and drawing power from the unit are close to approaching the maximum operating limit. If so, the Freedom HF automatically shuts down when the maximum operating limit is exceeded.

a.Freedom HF 1000 (PN: 806-1020), Freedom HF 1055 (PNs: 806-1055,

806-1054, 806-1054-01), and Freedom HF 1055 EMS (PN: 806-1055-02). b.Freedom HF 1500 (PN: 806-1544). c.Freedom HF 1800 (PN: 806-1840), Freedom HF 1800 T (PN: 806-1840-01),

and Freedom HF 1800 EMS (PN: 806-1840-02).

d.Assuming the inverter/charger is connected to a battery source with an adequate charge at the time of the power interruption.

2 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 3 Tuesday, April 29, 2014 12:10 PM

Over-temp Alarm and Shutdown During inverter mode, the Freedom HF automatically alerts you if it is overheating and approaching the over-temperature shutdown limit.

The Freedom HF automatically shuts down when the limit is exceeded.

Low Power Consumption When the Freedom HF is inverting without a load, it draws less than 1 amp of current from the battery (or battery bank).

This feature allows the unit to operate without draining too much stored energy.

Battery-friendly Charging For the inverter to perform effectively, the batteries must be charged correctly. The Freedom HF has a built-in three-stage charging system that extends the life and optimizes the performance of the batteries.

In addition to the numerous features which let you maximize your battery’s life and performance, the Freedom HF—unlike many chargers—also has the ability to recharge a near-zero

voltage

battery and an ignition-switched 20-amp auxiliary 12-volt power

source

a.Near-zero or dead batteries can be recharged. However, some batteries which have been left uncharged for days can become severely damaged thus, recharging is futile. b.Available on the Freedom HF 1055 EMS model and Freedom HF 1800 EMS model. The inverter/charger features a 20-amp fused and switched output voltage supplied from the inverter/charger's positive terminal. When connected to a vehicle's ignition signal, a switched positive voltage is available to power auxiliary circuits that are required to operate only when the vehicle is operational.

Introduction

Selectable Low Battery Shutdown The low battery shutdown for the inverter can be manually selected by the user by choosing a low, middle, or high setting. The low setting default for low battery shutdown is 10.5 volts except Freedom HF 1500 (PN: 806-1544).

Model PN

Shutdown Settings (V)

Low Mid High

Freedom HF 1000 806-1020 10.5 n/a 11.8 Freedom HF 1055 806-1054 10.5 n/a 11.8

806-1054-01 10.5 n/a 11.8

806-1055 10.5 n/a 11.8 Freedom HF 1055 EMS 806-1055-02 10.5 n/a 11.8 Freedom HF 1500 806-1544 12.1 12.1 12.1 Freedom HF 1800 806-1840 10.5 n/a 11.8 Freedom HF 1800 T 806-1840-01 10.5 11.8 12.1 Freedom HF 1800 EMS 806-1840-02 10.5 n/a 11.8

Table 1 Shutdown Settings

Ignition Control The Freedom HF features the ability to inhibit the inverter from operating in the absence of a voltage signal from a vehicle's ignition circuit. This is particularly useful if the inverter is required to operate only when a vehicle's engine is running.

975-0390-01-01 3

3a 3b

Freedom HF 1000 shown

4 4

Freedom HF InvChg Owners Guide.book Page 4 Tuesday, April 29, 2014 12:10 PM

Features

Table 2 lists the default settings for the Freedom HF system.

You may record your settings in the right-hand column after you have configured the Freedom HF.

Table 2 Freedom HF Default Values

Item Default Setting Your Setting

Alarm* ON

Charger Current* 20 A

Battery Type ** Flooded(14.4/13.5)

* adjustable from the display panel.

** adjustable from the main unit behind the display panel assembly.

(Freedom HF 1000 model)

55 A (Freedom HF 1055 models)

40 A (Freedom HF 1500 models)

40 A (Freedom HF 1800 models)

Front Panel (Freedom HF 1000, 1055, 1500, 1800)

Feature Description

1 Display panel displays inverter status and battery status information on the

screen. The panel can be detached to expose the dip switches behind it and to extend and mount the panel on a wall or other location.

2 GFCI receptacles during inverter mode provide 1000 watts (Freedom HF

1000, 1055) or 1500 watts (Freedom HF 1500) or 1800 watts (Freedom HF

1800) of power to operate AC devices.

4 Mounting flange allows you to mount the inverter permanently.

a. WAGO® manu factures connection devices such as terminal blocks and related accessories. Freedom HF models indicated above use WAGO terminal blocks as AC input and output connections.

AC terminals for connecting AC input (3a) and AC output (3b)

WA GO

wiring.

4 Freedom HF Owner’s Guide

RESET

TEST

RESET

FREEDOM HF 1800 T

3a 3b

4 4

3a 3b

4 4

Freedom HF InvChg Owners Guide.book Page 5 Tuesday, April 29, 2014 12:10 PM

Features

Front Panel (Freedom HF 1800 T) Front Panel (

Feature Description

1 Display panel displays inverter status and battery status information on the

screen. The panel can be detached to expose the dip switches behind it and to extend and mount the panel on a wall or other location.

2 GFCI receptacles provide 1800 watts of power to operate AC devices. The

GFCI unit can be detached and reinstalled to a separate location. Replace the GFCI unit with the GFCI blanking plate with knockout. The GFCI unit is also removed to access the AC wiring compartment for hard wiring the inverter to an existing AC power system.

(3a) Male PTI

cable with a female PTI plug. (3b) Female PTI Connector for plugging in a compatible AC Output cordset cable with a male PTI plug.

4 Mounting flange allows you to mount the inverter permanently.

a. Phillips & Temro Industries manufactures accessories for heating, cooling, silencing, emission and hybrid/electric vehicle technologies. The electrical cables with PTI connectors referred to in this manual are custom cables that are available for the trucking industry.

Connector for plugging in a compatible AC Input cordset

Feature Description

1 Power module contains 12-volt DC terminals for ignition controls, an

auxiliary power source, and a remote port for attaching the display panel using a communications cable.

2 GFCI unit receptacles provide 1000 watts (1055 EMS) and 1800 watts

(1800 EMS) of power to operate AC devices. The GFCI unit can be detached and reinstalled to a separate location. Replace the GFCI unit with the GFCI blanking plate with knockout. The GFCI unit is also removed to access the AC wiring compartment for hard wiring the inverter to an existing AC power system.

3 (3a) 18-inch (0.45m) AC Input electrical cord with 3-prong plug. (3b)

Knockout for routing AC output wiring.

4 Mounting flange allows you to mount the inverter permanently.

5 Display panel displays inverter status and battery status information on the

screen. Mount the panel on a wall or other location.

Freedom HF 1055 EMS,1800 EMS

12V

Ignition

Power

Enable

FREEDOM HF 1800 EMS

Remote

Control

FREEDOM HF 1800 EMS

RESET

TEST

RESET

STATUS

Utility

Battery

Fault

FREEDOM HF

InputVoltage(V ) InputCurrent (A)

Select

OutputPower (kW)

)

975-0390-01-01 5

Freedom HF 1000 shown

Freedom HF InvChg Owners Guide.book Page 6 Tuesday, April 29, 2014 12:10 PM

Features

Rear Panel (

Freedom HF 1055 EMS,1800 EMS

)

Rear Panel (All Other Models)

Feature Description

1 Negative DC cabling terminal that is pre-connected to an 18-inch (0.45m)

battery cable

2 Ventilation grille (openings) must not be obstructed for the proper operation

of the cooling fan and inverter. When the inverter is mounted, the ventilation grille must not point up or down.

3 Positive DC cabling terminal that is pre-connected to an 18-inch (0.45m)

battery cable

4 Serial number of your unit.

a. Freedom HF 1055 EMS has a cable size of 2 AWG with SB175 Anderson connector and 1800 EMS has a cable size of 2/0 AWG with SB350 Anderson connector. b. Anderson Power Products® manufactures power interconnects and accessories. An Anderson connector is a term used in this manual to mean a connector manufactured by Anderson Power Products and refers to either SB175 or SB350.

with an Andersonb connector.

with an Anderson connector.

1 Negative DC cabling terminal connects to the negative terminal of the

battery using a battery cable.

2 Ventilation grille (openings) must not be obstructed for the proper operation

of the cooling fan and inverter. When the inverter is mounted, the ventilation grille must not point up or down.

3 Positive DC cabling terminal connects to the positive terminal of the battery

using a battery cable.

4 Serial number of your unit.

6 Freedom HF Owner’s Guide

FREEDOM HF

Input Voltage (V)

Sel ec t

STATU S

Bat t e ry

Fa u l t

Ut il ity

Input Current (A) Output Power (kW)

Freedom HF InvChg Owners Guide.book Page 7 Tuesday, April 29, 2014 12:10 PM

Display Panel (All Models)

Feature Description

Remote and Power Module Panel (

Freedom HF 1055 EMS,1800 EMS

)

Features

1 Inverter Power button is the main unit switch that turns the Freedom HF’s

inverter function ON or OFF. See page 15 for additional information.

2 Three-digit LED display screen shows status information and fault codes.

See page 15 for additional information.

3 Status LED indicates the mode of operation with a three-color LED. See

page 15 for additional information.

4 Select button changes status information displayed on the display screen. See

page 15 for additional information.

IMPORTANT: See “Display Panel Operation” on page 15 starting on page 15 for detailed information on operating the panel’s buttons.

Feature Description

1 Remote jack is used for connecting the Display panel that ships with the

Freedom HF 1055 EMS and 1800 EMS. Each shipment comes with a 25-foot communications cable as well.

2 Power module has one fuse and three contacts for wires that connect to:

• an auxiliary 12-volt DC OUT terminal,

• an Ignition Control terminal, and

• a Disabled terminal.

NOTE: The Ignition Control and Disabled terminals are connected by a jumper wire that acts to disable ignition control. Removing the jumper wire will enable ignition control.

For instructions on how to enable or disable Ignition Control, see the Installation Guide.

975-0390-01-01 7

Freedom HF InvChg Owners Guide.book Page 8 Tuesday, April 29, 2014 12:10 PM

Features

Side Panel (All Models)

Feature Description

1 15 A supplementary protector provides overload protection for the GFCI

receptacles. In a hard wired installation, the supplementary protector does not protect output wiring. However, for models Freedom HF 1055 (PNs: 8061054, 806-1054-01), Freedom HF 1500 (PN: 806-1544), and Freedom HF 1800 T (PN: 806-1840-01), the hard-wired AC output connector is protected by both the 15 A supplementary protector and the GFCI.

2 Grounding stud provides a ground path for the Freedom HF chassis to the

DC system ground.

3 Main cooling fan turns on when powering loads above 500 watts or when the

internal temperature reaches a set point temperature.

4 Auxiliary cooling fan (1800-watt models only) performs the same function

as the main cooling fan.

8 Freedom HF Owner’s Guide

ONOFF

Switch 1 | Switch 2

Freedom HF InvChg Owners Guide.book Page 9 Tuesday, April 29, 2014 12:10 PM

Freedom Inverter/Charger Configuration

Setting Battery Types on the Main Unit

You can attach different types of lead-acid batteries to the Freedom HF. Before installing batteries make sure that you configure the unit to optimize the charging process.

The settings can be changed by adjusting the dip switches found on the main unit behind the display panel.

Battery

Type

Fixed OFF|OFF 13.5 13.5

Flooded OFF|ON (default) 14.4 13.5

GEL ON|OFF 14.2 13.8

AGM ON|ON 14.3 13.4

975-0390-01-01 9

Dip Switch

Setting

Switch 1|Switch 2

Bulk/

Absorption

Float

To adjust the battery type setting:

By default the battery type is set to Flooded (OFF|ON).

1. Detach the Display Panel to expose the Dip Switches.

2. Use the tip of your fingernail or a small screw driver with a flat tip to adjust the switches.

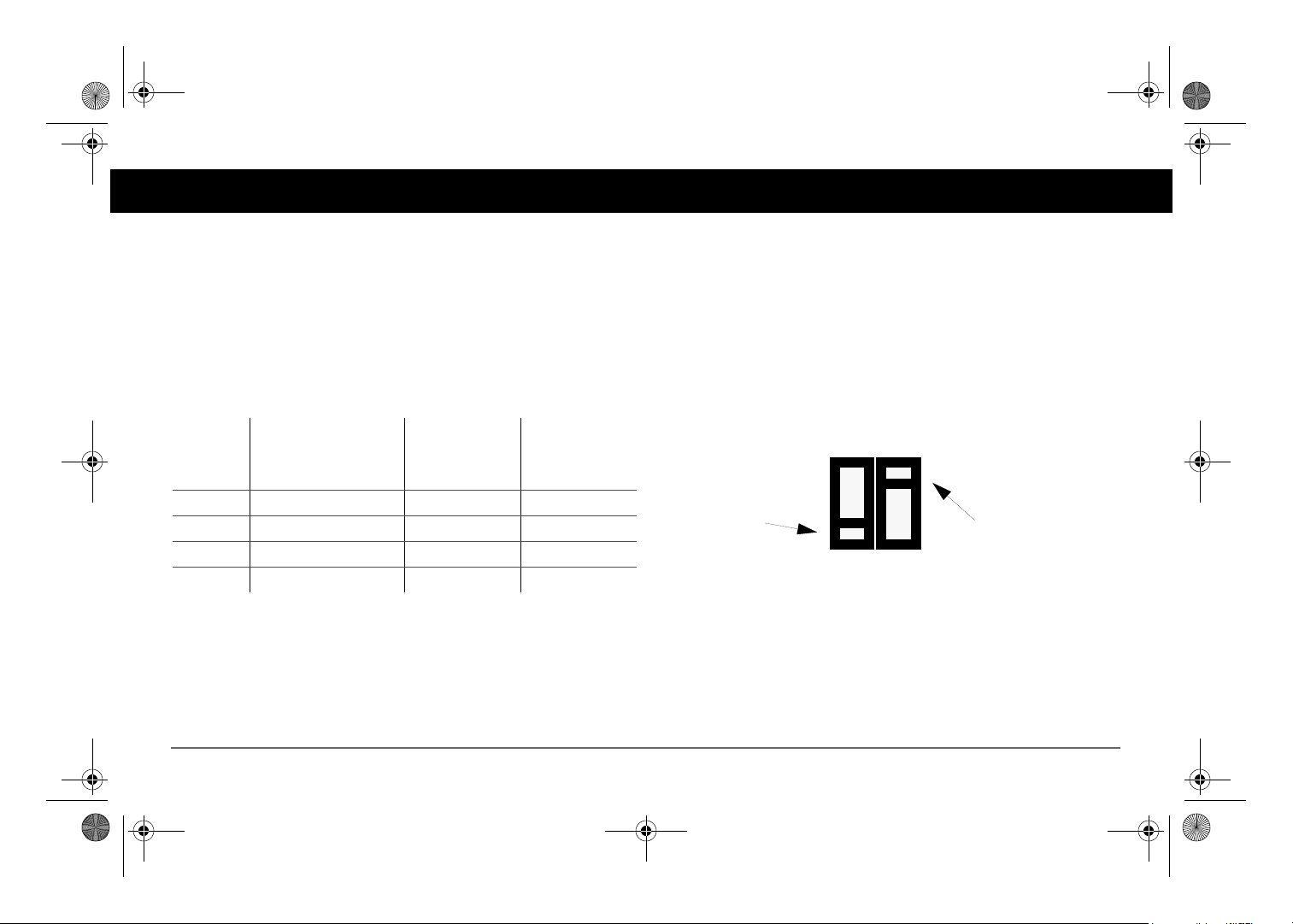

Figure 2 Dip Switches (Default Settings Shown)

Freedom HF InvChg Owners Guide.book Page 10 Tuesday, April 29, 2014 12:10 PM

Freedom Inverter/Charger Configuration

Viewing Inverter/Charger Information

The LED screen displays inverter/charger information as well as feature settings in coordination with the LED lights underneath the screen.

◆ Press the Select button to toggle between the following

information:

Info and Setting LED Screen Info and Settings LED

DC Input Voltage .

(example)

DC Input Current (example) Solid – Input Current (A)

AC Output Power .

(example)

Charging Current

Setting

Charging Current

Setting

Charging Current

Setting

Inverter Mode

 or  or 

 or  or  or 

 or  or  or 

 or  none

Setting

Solid – Input Voltage (V)

Solid – Output Power (kW)

none

Info and Setting LED Screen Info and Settings LED

Alarm Setting  or  none

Low Voltage

Setting

a. Settings available only for Freedom HF 1000 (PN: 806-1020). b. Settings available only for Freedom HF 1055 (PNs: 806-1054, 806-1054-01, 806-1055, 806-1055-02). c. Settings available only for Freedom HF 1500 and 1800 models (PNs: 806-1544, 806-1840, 806-1840-01, 806-1840-02). d. The middle setting “ ” is available only for Freedom HF 1500 and 1800 T models (PNs: 806-1544, 806-1840, 806-1840-01).

 or  or 

none

10 Freedom HF Owner’s Guide

FREEDOM HF

Input Voltage (V)

Se l e c t

STATU S

Battery

Fa u l t

Ut il ity

Input Current (A) Out pu t Pow er ( kW)

LED screen

Status LED light

Info and Settings LED lights

Inverter Power

Freedom HF InvChg Owners Guide.book Page 11 Tuesday, April 29, 2014 12:10 PM

Adjusting Feature Settings

Freedom Inverter/Charger Configuration

The Power and Select buttons can be used to:

• change the charging current setting

• change the inverter mode setting

• disable or enable the audible alarm

• change the shutdown setting

• return to factory default settings

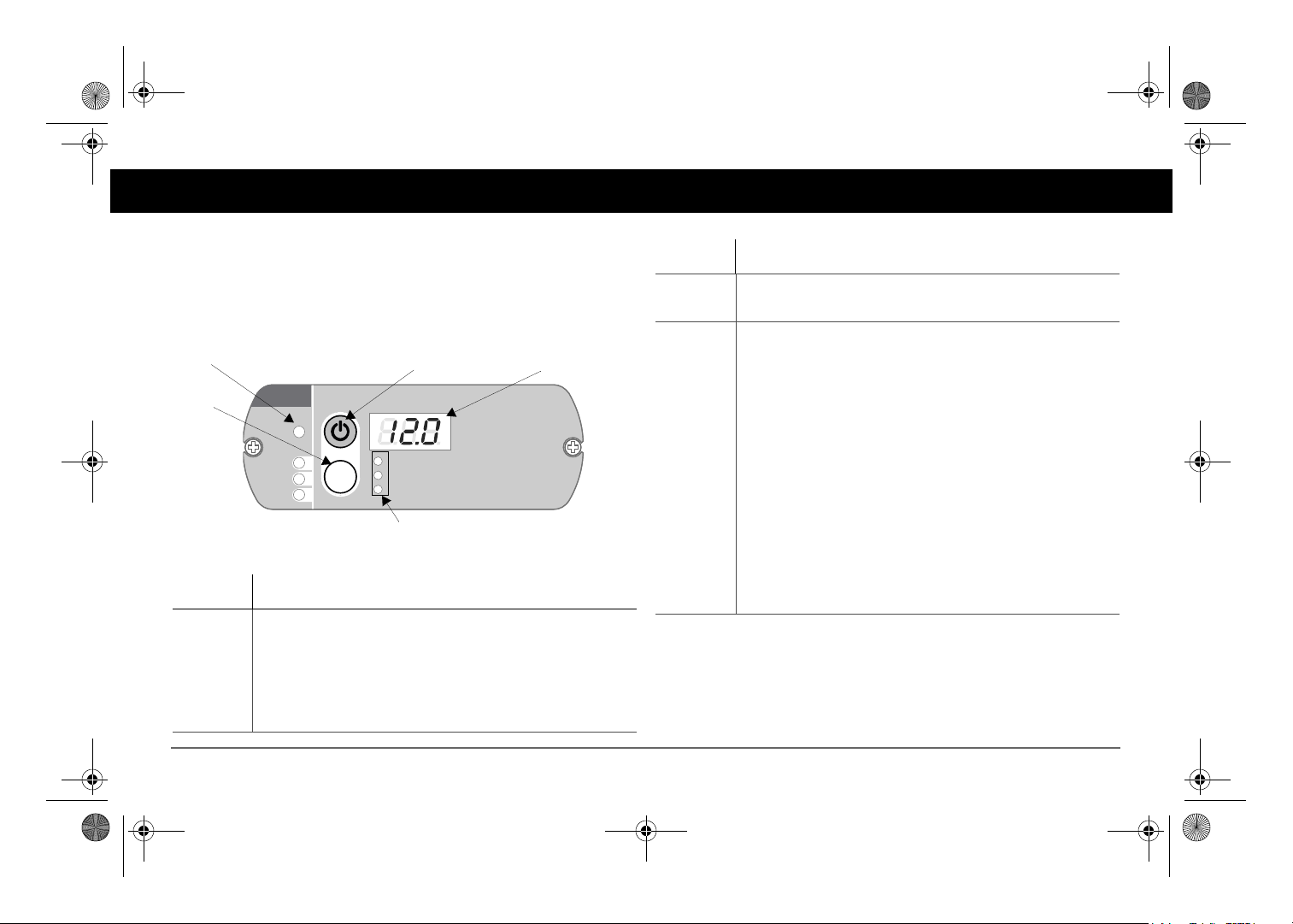

Figure 3 Display Panel

To cycle through the various feature settings:

1. Press and hold the Inverter Power button for five seconds to enter the feature settings mode.

2. Press the Inverter Power button to toggle between the following information:

LED

Setting

Charging Current Setting 

Inverter Mode Setting 

Alarm Setting 

Shutdown Setting 

Factory Setting 

Screen

975-0390-01-01 11

Freedom HF InvChg Owners Guide.book Page 12 Tuesday, April 29, 2014 12:10 PM

Freedom Inverter/Charger Configuration

To change the charger’s charging current setting:

By default the charging current is set to  for Freedom HF 1000,  for Freedom HF 1055, and  for Freedom HF 1500/1800

models.

1. Press and hold the Inverter Power button for five seconds.

The LED screen will flash “” intermittently.

2. Press the Select button once.

The LED screen will display the present charging current setting. Example, “” for a 40 A setting.

3. Press the Select button again to change to the next setting.

The LED screen shows the next setting. Example, “” for a 2 A setting.

4. Continue pressing the Select button to cycle through each of the

available settings – “”, “”, “”, and “”, such as in the case of Freedom HF 1800, until you reach the desired setting.

5. Press and hold the Select button for five seconds to make the setting permanent.

AC Input Circuit

Breaker or fuse size

Charger DC Current

Setting (Amps)

(Amps)

All other

models

15 2

20 2

30 2

a. Available only for the Freedom HF 1000 and 1055 models. b. Available only for Freedom HF 1500/1800 models.

Freedom HF

1055

10 15 9.5

20 35 4.0

10 15 14.5

20 35 9.0

10 15 24.5

20 35 19.0

55 0

55 5.0

55 15.0

Maximum By-pass AC

Current Available

(Amps)

12.5

17.5

27.5

12 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 13 Tuesday, April 29, 2014 12:10 PM

To change the inverter mode setting:

By default the inverter mode is set to ON (“”).

ON (“”) will put the inverter on standby. This means when shore power is present, AC shore power will pass through as AC output. And when shore power is not available, the inverter function will take power from the battery and provide AC output power. When the inverter mode is ON, you can manually turn the inverter function ON or OFF by using the Inverter Power button. See “Operating in Inverter Mode” on page 17.

OFF (“”) will completely disable inverter function. This means when shore power is present, AC shore power will still pass through as AC output. However, when shore power is not available, the inverter function remains disabled and therefore no AC output power. When the inverter mode is OFF, you cannot manually turn the inverter function ON or OFF by using the Inverter Power button.

1. Press and hold the Inverter Power button for five seconds.

2. Press the Inverter Power button once. The LED screen will flash “” intermittently.

3. Press the Select button once. The LED screen will display the present (or most recent)

inverter mode setting. Example, “” for an inverter mode setting of ON or “” for an inverter mode setting of OFF.

4. Continue pressing the Select button to cycle through the two settings – “” and “” until you reach the desired setting.

5. Press and hold the Select button for five seconds to make the setting permanent.

Freedom Inverter/Charger Configuration

To adjust the alarm setting:

By default the alarm is set to ON.

ON (“”) will sound the alarm on all warning and fault conditions.

OFF (“”) will mute the alarm.

1. Press and hold the Inverter Power button for five seconds.

2. Press the Inverter Power button twice.

The LED screen will flash “” intermittently.

3. Press the Select button once.

The LED screen will display the present (or most recent) alarm setting. Example, “” for an inverter mode setting of ON.

4. Continue pressing the Select button to cycle through the two

settings – “” and “” until you reach the desired setting.

5. Press and hold the Select button for five seconds to make the setting permanent.

975-0390-01-01 13

Freedom HF InvChg Owners Guide.book Page 14 Tuesday, April 29, 2014 12:10 PM

Freedom Inverter/Charger Configuration

To adjust the low battery shutdown setting:

By default the low voltage setting is set to Low (“”).

Low (“”) sets the low battery shutdown threshold to 10.5 V for all models except Freedom HF 1500.

Middle (“”) is only available to Freedom HF 1500 and Freedom HF 1800 T. It sets the low battery shutdown threshold to 12.1 V and 11.8 V respectively.

High (“”) sets the low battery shutdown threshold to 11.8 V for all models except Freedom HF 1800 T which sets the low battery shutdown threshold to 12.1 V.

See “Shutdown Settings” on page 3 for a summary.

1. Press and hold the Inverter Power button for five seconds.

2. Press the Inverter Power button three times.

The LED screen will flash “” intermittently.

3. Press the Select button once.

The LED screen will display the present (or most recent) low voltage setting. Example, “” for a low shutdown voltage setting.

4. Continue pressing the Select button to cycle through the two –

“” and “” settings (or through three settings

) until you

reach the desired setting.

5. Press and hold the Select button for five seconds to make the setting permanent.

To return all feature settings to factory default settings:

1. Press and hold the Inverter Power button for five seconds.

2. Press the Inverter Power button four times. The LED screen will flash “” intermittently.

3. Press and hold the Select button for five seconds to return all feature settings to their factory default settings.

a.In addition to two settings “” and “”, the middle setting “” is available only for Freedom HF 1500 and 1800 T models (PNs: 806-1544, 806-1840, 806-1840-

01).

14 Freedom HF Owner’s Guide

FREEDOM HF

Input Voltage (V)

Se l e c t

STATU S

Battery

Fa u l t

Ut il ity

Input Current (A) Out pu t Pow er ( kW)

See NOTE in Feature # 4.

Freedom HF InvChg Owners Guide.book Page 15 Tuesday, April 29, 2014 12:10 PM

Freedom Inverter/Charger Operation

Display Panel Operation

The Freedom HF features a display panel with three-digit LED display to show inverter, AC source, and battery status information.

Feature Description

2 Three-digit LED display screen shows status information

and fault codes.

3 Status LED Indicates the mode of operation with a three-

color LED.

• Green pertains to Utility status.

• Solid indicates the Freedom HF is in shore power mode and battery is fully charged.

• Flashing indicates the Freedom HF is in shore power mode and the unit is currently charging the battery.

• Ye l lo w pertains to Battery status.

• Solid indicates the Freedom HF is in inverter mode and using the battery to provide AC power.

• Flashing indicates the Freedom HF is in inverter mode but AC shore power is detected thus transferring to shore power mode within 20 seconds.

Feature Description

• Red indicates a Fault condition and the Freedom HF has shut down. See “Troubleshooting Reference” on page 38.

1 Inverter Power button

• Press and hold for one second to turn the Freedom HF’s Inverter function ON or OFF (when AC Shore Power is NOT present.)

• Press and hold for five seconds to adjust feature settings. Go back to page 11 for instructions.

975-0390-01-01 15

Freedom HF InvChg Owners Guide.book Page 16 Tuesday, April 29, 2014 12:10 PM

Freedom Inverter/Charger Operation

Feature Description

4 Select button

• In Inverter mode, press the button to choose what appears in the three-digit LED display: Input Voltage, Input Current, or Output Power. See “To change the inverter mode setting:” on page 13. NOTE: A corresponding LED lights up for each of the three items.

• In an Alarm condition, press and hold for two seconds to disable (or enable) the audible alarm. See “To adjust the alarm setting:” on page 13.

• In Charger Current Select Mode, press to select the charger current. See “To change the charger’s charging current setting:” on page 12.

16 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 17 Tuesday, April 29, 2014 12:10 PM

Operating in Shore Power Mode

The Freedom HF operates in shore power mode when an AC source (a generator or utility power) is present at the AC input terminals. When the AC source is within operating range, the Freedom HF unit bypasses inverter function and powers the appliances connected to the unit. See “Transitioning from Inverter Mode to Shore Power” on page 21.

The Freedom HF also automatically charges the battery bank that is connected while in shore power mode. See “Battery Charging” on page 26.

The Green status LED lights up to indicate that the Freedom HF is using utility (or generator) power and the battery is full. A flashing Green LED indicates that the unit is charging the battery.

When shore power is present, AC power will automatically pass through the Freedom HF. Pressing the Inverter Power button on the display panel will not interrupt the supply of shore power. Shore Power mode supersedes Inverter mode.

When the Freedom HF ‘s Inverter Power button is turned ON and the AC source is outside the operating range or is disconnected, the transfer switch automatically switches to inverter mode. See “Transitioning from Shore Power to Inverter Mode” on page 21.

Operating in Inverter Mode

The Freedom HF is in inverter mode when shore power is not presently available and the unit is using the battery (by inverting DC to AC) to power the appliances connected to the Freedom HF.

The Yellow status LED lights up to indicate the Freedom HF is using the battery to power the appliances.

The table on the next page illustrates the battery status during inverter mode as shown on the display panel.

Inverter Mode Setting is ON (“Standby”)

When the Freedom HF’s Inverter mode setting is turned on (“”) and the AC source is outside the operating range or is disconnected, the transfer switch automatically switches to inverter function. This means that the AC output terminals will provide power from the battery and any appliance connected to the AC output terminals will operate.

975-0390-01-01 17

Failure to follow these instructions can result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page 18 Tuesday, April 29, 2014 12:10 PM

Operating in Shore Power Mode

Turning the Inverter Function On and Off

Inverter Mode Setting is OFF

The Inverter Power button on the display panel turns the Freedom HF’s Inverter function ON and OFF. To operate, press the button and hold for one second.

When shore power is NOT present and Inverter mode is ON:

• the AC outlets will supply power to any attached appliances when the Inverter Power button is turned ON and

• the AC outlets will not supply power to any attached appliances when the Inverter Power button is turned OFF

ELECTRICAL SHOCK HAZARD

Turning the Inverter mode setting to OFF and/or turning the Inverter Power button off do not disconnect DC battery power from the Freedom HF. You must disconnect both AC and DC power before working on any circuits connected to the Freedom HF.

To prevent unnecessary battery discharge, turn the Inverter Power button off when you are not using the Freedom HF.

When the Freedom HF’s Inverter function is turned off (“”) and the AC source is outside the operating range or is disconnected, the Freedom HF will not switch to invert mode. This means that even if the Inverter Power button is pressed to try and turn inverter function on, there will be no power coming from the battery to the AC output terminals. Therefore, any appliance connected to the AC output terminals will not operate.

Energy Saver 25-hour Automatic Shut Off

During invert mode, a 25-hour countdown is initiated when the AC load drops to less than approximately 80 watts and remains below this level. After 25 hours the inverter automatically shuts off to reduce battery discharge and preserve battery life.

18 Freedom HF Owner’s Guide

a.The feature is available only for Freedom HF 1500 (PN: 806-1544) and Freedom HF 1800 T (PN: 806-1840-01).

Freedom HF InvChg Owners Guide.book Page 19 Tuesday, April 29, 2014 12:10 PM

Status LED During Inverter Mode

Tab le 3

Operating in Shore Power Mode

Status LED during Inverter Mode

The following summarizes the behavior of the Status LED during Inverter mode.

Table 3

Status LED

Solid YELLOW

Status LED during Inverter Mode

Display Screen Condition

.

(where 12.8 is an example of battery voltage)



(where 11 is an example of current)

.

(where 0.85 is an example of output power in Kilowatts)

through 

Select button is pressed to display Input Battery Voltage. The Input Battery Voltage LED lights up. Value in display screen is shown as Volts.

Select button is pressed to display Input Current. The Input Current LED lights up. Value in display screen is shown as Amps.

Select button is pressed to display Output Power. The Output Power LED lights up. Value in display screen is shown as Kilowatts.

Warning condition detected while AC output power is still available. See Table 7, “Error Codes Displayed on the Display Panel Screen” on page 35.

Status LED

Solid RED through

Off

Off (or Yellow)

a. Available in all models except Freedom HF 1500 and 1800 T. See page 22. b. Available only for the Freedom HF 1500 and 1800 T models. See page 23.

Display Screen Condition

Fault condition detected and AC output



Off

. No communication between the Freedom

power is not available. The unit will sound an alarm and will shutdown completely within 30 seconds shutdown is available in some modelsb. See Table 7, “Error Codes Displayed on the Display Panel Screen” on page 35.

Inverter is OFF.

HF and the Display Panel because the battery voltage was too low to start the Inverter.

. A five-minute delayed

975-0390-01-01 19

Freedom HF InvChg Owners Guide.book Page 20 Tuesday, April 29, 2014 12:10 PM

Operating in Shore Power Mode

Checking Battery Status

During inverter mode, you can check the battery status by pressing the Select button until the Input Voltage LED (or Input Current LED) illuminates. The battery voltage (or battery current) appears in the three-digit LED display screen when the Input Voltage LED (or Input Current LED) illuminates.

The normal operating battery voltage range is between 11 and 15 volts.

Checking Output Power

During Inverter mode, you can check how much power (displayed in kW) the Freedom HF is supplying to the connected loads by pressing the Select button until the Output Power LED illuminates.

Operating Several Loads at Once

If you are going to operate several loads from the Freedom HF, turn them on one at a time after you have turned the inverter on.

Turning loads on separately helps to ensure that the inverter does not have to deliver the starting current for all the loads at once, and will help prevent an overload shutdown.

Turning the Audible Alarm ON or OFF

The Freedom HF’s audible alarm can be turned ON or OFF. Any warnings such as fault conditions or imminent shutdown are both displayed on the display panel’s screen and sounded on the alarm speakers.

It is not possible to turn OFF the screen and prevent it from displaying error codes but it is possible to turn OFF the audible alarm.

NOTE: The alarm setting will reset to its default setting when the Freedom HF’s Inverter Power button is turned OFF then turned ON again.

20 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 21 Tuesday, April 29, 2014 12:10 PM

Operating During Transition Between Shore Power and Inverter Mode

The Freedom HF’s advanced power management is capable of transitioning power from an AC source to DC source within a fraction of a second and vice-versa.

The Freedom HF automatically detects when shore power is present and when it becomes unavailable or drops to less than 90 volts AC.

Transitioning from Shore Power to Inverter Mode

When the unit is operating in shore power mode and shore power is lost, the Freedom HF has less than 30 milliseconds to switch to inverter mode and start drawing power from the battery.

The Status LED will turn from solid or flashing GREEN to a solid YELLOW.

Transitioning from Inverter Mode to Shore Power

When the unit is operating in inverter mode and shore power becomes available, the Freedom HF begins a 20-second countdown to verify the stability of the shore power. If shore power remains stable within 20 seconds, at the end of the countdown, the Freedom HF has less than 30 milliseconds to switch to shore power mode and start drawing power from the AC source.

The Status LED will turn from solid YELLOW to flashing YELLOW during the 20-second countdown, then turn to GREEN when battery power is transitioned successfully to shore power.

975-0390-01-01 21

Freedom HF InvChg Owners Guide.book Page 22 Tuesday, April 29, 2014 12:10 PM

Operating During Transition Between Shore Power and Inverter Mode

Operating Limits

Power Output

The Freedom HF can deliver up to 1000 watts (Freedom HF 1000 and 1055), 1500 watts (Freedom HF 1500), or 1800 watts (Freedom HF 1800) continuous power. The wattage rating applies to resistive loads such as incandescent lights.

Input Voltage

The allowable Freedom HF input voltage ranges are shown in the following table for all models except Freedom HF 1500 and Freedom HF 1800 T:

Operating Condition

Full Operating Range

Optimum Performance

Low Voltage Alarm

Low Voltage Shutdown

High Voltage Shutdown

Voltage Range Comment

Low:

10.5–15.5 volts High:

11.8–15.5 volts

12.0–13.0 volts

Low: <11.0 volts High: <12.3 volts

Low: <10.5 volts High: <11.8 volts

15.5 volts or more The over-voltage alarm beeps every second and

Low refers to low limit of the low voltage threshold. High refers to high limit of the low voltage threshold.

The low battery alarm beeps once every two seconds and the display shows fault code .

The low battery alarm beeps every second and the display shows fault code . The status LED turns red and the display screen is turned OFF within 30 seconds to protect the battery from being over-discharged.

the display shows fault code  alternating with the battery voltage. The status LED turns red and the display screen is turned OFF within 30 seconds to protect itself from excessive input voltage. NOTE: Although the Freedom HF incorporates over-voltage protection, it can still be damaged if input voltage exceeds 16 volts.

22 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 23 Tuesday, April 29, 2014 12:10 PM

Operating During Transition Between Shore Power and Inverter Mode

The allowable Freedom HF input voltage ranges are shown in the following table for Freedom HF 1500 and Freedom HF 1800 T:

Operating Condition

Full Operating Range

Optimum Performance

Low Voltage Alarm

Low Voltage Shutdown

Instant Low Voltage Shutdown

High Voltage Shutdown

Voltage Range Freedom HF 1500 only

Low, Mid, High:

12.1–15.5 volts

12.1–13.0 volts 12.1–13.0 volts

Low, Mid, High: <12.6 volts

Low, Mid, High: <12.1 volts

<10.2 volts <10.2 volts After two seconds below the limit,

15.5 volts or more

Voltage Range Freedom HF 1800 T only

Low:

10.5–15.5 volts Mid:

11.8–15.5 volts High:

12.1–15.5 volts

Low: <11.0 volts Mid: <12.3 volts High:<12.6 volts

Low: <10.5 volts Mid: <11.8 volts High:<12.1 volts

15.5 volts or more

Comment

Low refers to low limit of the low voltage threshold. Mid refers to middle limit of the low voltage threshold. High refers to high limit of the low voltage threshold.

A silent low battery warning shows fault code  on the display.

A single one-second low battery alarm beeps and the display shows fault code . After five minutes, the unit shuts down completely.

the unit shuts down and the low battery alarm sounds a long beep continuously for 30 seconds.

The over-voltage alarm beeps every second and the display shows fault code  alternating with the battery voltage. The status LED turns red and the display screen is turned OFF within 30 seconds to protect itself from excessive input voltage. NOTE: Although the Freedom HF incorporates over-voltage protection, it can still be damaged if input voltage exceeds 16 volts.

975-0390-01-01 23

Freedom HF InvChg Owners Guide.book Page 24 Tuesday, April 29, 2014 12:10 PM

Operating During Transition Between Shore Power and Inverter Mode

Inverter Loads

The Freedom HF will operate most AC loads within its power rating of 1000 watts (Freedom HF 1000), 1500 watts (Freedom HF 1500), or 1800 watts (Freedom HF 1800). However, some appliances and equipment may be difficult to operate, and other appliances may actually be damaged if you try to operate them with the Freedom HF. Please read “High Surge Loads” and “Trouble Loads” carefully.

Overload Conditions

There are two kinds of overload conditions:

• an overload warning

• an overload shutdown

Overload Warning When the Freedom HF’s AC load is approximately 100 W below the overload shutdown limit of ~1000 W (Freedom HF 1000) and ~1800 W (Freedom HF 1500/

1800), the audible alarm beeps once every two seconds and the

display screen shows a fault code .

Overload Shutdown When the Freedom HF’s AC load increases to near ~1100 W (Freedom HF 1000 models) and ~2000 W (Freedom HF 1500/1800 models), the audible alarm beeps every second and the display screen shows a fault code . The Status

LED turns solid RED and in 30 seconds, both the unit and the display screen will shut down to prevent damage to the inverter and protect the battery from being over-discharged.

High Surge Loads

Some induction motors used in freezers, pumps, and other motoroperated equipment require high surge currents to start. The Freedom HF may not be able to start some of these motors even though their rated steady state current draw is within the inverter’s limits. The unit will shut down and indicate an overload shutdown.

Over-temperature Conditions

During Inverter mode, when the Freedom HF’s internal temperature starts to approach its preset shutdown limit, the alarm will beep every two seconds and the display will show fault code . If the over-temperature condition persists, the alarm will beep once per second and the display will show fault code . The Status LED turns solid RED and the inverter will shut down to prevent damage to the inverter and protect the battery from being over-discharged.

24 Freedom HF Owner’s Guide

Failure to follow these instructions can damage the unit and/or damage other equipment.

Freedom HF InvChg Owners Guide.book Page 25 Tuesday, April 29, 2014 12:10 PM

Operating During Transition Between Shore Power and Inverter Mode

However, when the internal temperature drops and falls within normal operating temperature, the Freedom HF will recover automatically and will continue inverting.

During AC shore power mode, when the Freedom HF’s charger temperature starts to approach its limit, the charging current will be reduced to 10 amps (Freedom HF 1000 models) or 20 amps (Freedom HF 1500/1800 models).

The Freedom HF also monitors the internal transfer relay temperature. It automatically turns on the fan when the relay starts to approach its preset temperature limit and turns off when it cools down. If the relay exceeds its preset temperature limit, the display shows a fault code . See “To reset error codes  to :” on page 37.

Trouble Loads

EQUIPMENT DAMAGE

Some equipment may be damaged by the Freedom HF’s modified sine wave output, which has a different wave form than utilitysupplied electricity.

Some appliances, including the types listed below, may be damaged if they are connected to the Freedom HF:

• Speed controllers found in some fans, power tools, kitchen appliances, and other loads may be damaged.

• Some chargers for small rechargeable batteries can be damaged. See “Precautions for Using Rechargeable Appliances” on page viii for details.

• Metal halide arc (HMI) lights can be damaged.

975-0390-01-01 25

IMPORTANT:

Freedom HF, contact the manufacturer of the device to ensure that it is compatible with the modified sine waveform.

If you are unsure about operating any device with the

15 min

Absorption V

Float V

10V

Absorption Bulk Float

8 hrs

5 hrs

Voltage

Time

Charge Current Setting

Absorption to Float transition

Absorption Bulk Float

Current

Time

NOTE:

If an external DC load is connected to the battery and it drains the battery down to 12.8 Vdc, the charger will start a new bulk stage.

NOTE: During the Float stage, the charger will provide up to the maximum set charge current to compensate for an external DC load on demand.

Maximum Charge Current Setting

1 min

Freedom HF InvChg Owners Guide.book Page 26 Tuesday, April 29, 2014 12:10 PM

Battery Charging

Battery charging is possible only when shore power is present and the Freedom HF unit is connected to a battery (or battery bank).

The frequency of battery charging is determined by how much energy in the battery is used up during inverting. Whenever the Freedom HF detects a battery voltage that falls below 12.8 volts, the unit will begin charging the battery, i.e., enter into bulk and absorption stages then settle in float stage. If battery voltage does not reach 5 volts after one minute or 10 volts after 15 minutes as shown in the graph, the unit will terminate the charging process and the error code  will show on the display screen.

Figure 4 illustrates the three-stage charging process used to maximize Freedom HF’s charging efficiency.

Figure 4 Three-stage Charging Process

26 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 27 Tuesday, April 29, 2014 12:10 PM

Table 4 illustrates the battery charging status as shown on the Status LED and display screen.

Battery Charging

Table 5 illustrates the battery charging voltage and current settings for the Freedom HF 1000 model and all Freedom HF 1800 models.

Table 4

Battery Charging Status LED

Status LED Display Screen Condition

Solid GREEN

Flashing GREEN

Solid RED



— —.

(where 12.8 is an example of battery voltage)

— — .

(where 14.2 is an example of battery voltage)

to

Battery is FULL.

Battery is in BULK CHARGE.

Battery is in ABSORPTION CHARGE.

See Table 7, “Error Codes Displayed on the Display Panel Screen” on page 35.

Tab le 5

Battery Charging Voltage and Current Settings

Bulk/ Battery Type

Flooded 14.4 13.5 2

GEL 14.2 13.8 2

AGM 14.3 13.4 2

Fixed 13.5 13.5

a. Applicable to Freedom HF 1000 models only. b. Applicable to Freedom HF 1500/1800 models only.

Absorption

(Volts)

Float (Volts)

Charge Current (Amps)

, 10, 20

2, 5

, 10, 20, 40

Absorption to Float transition (Amps)

2, 5a, 10, 20, 40

975-0390-01-01 27

Freedom HF InvChg Owners Guide.book Page 28 Tuesday, April 29, 2014 12:10 PM

Battery Charging

Table 6 illustrates the battery charging voltage and current settings for the Freedom HF 1055 models.

Table 6

Battery Charging Voltage and Current Settings

Bulk/ Battery Typ e

Flooded 14.4 13.5 5, 15

GEL 14.2 13.8 5, 15

AGM 14.3 13.4 5, 15

Fixed 13.5 13.5 5, 15

Absorption

(Volts)

Float (Volts)

Charge Current (Amps)

35, 55

Absorption to Float transition (Amps)

2 5

28 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 29 Tuesday, April 29, 2014 12:10 PM

Routine Maintenance

Freedom HF Unit

Minimal maintenance is required to keep your Freedom HF operating properly. Periodically you should:

• Clean the exterior of the unit with a damp cloth to prevent the accumulation of dust and dirt.

• Ensure that the DC cables are secure and fasteners are tight.

• Make sure the ventilation openings are not clogged.

Batteries

When possible, you should recharge your batteries whenever a low voltage warning or a shutdown occurs with the Freedom HF. This gives the batteries a much longer life than recharging when the batteries have been almost completely discharged.

Battery Charging

975-0390-01-01 29

Freedom HF InvChg Owners Guide.book Page 30 Tuesday, April 29, 2014 12:10 PM

Inverter Overload Operation

This graph shows how long (measured in milliseconds) the Freedom HF will operate for a given output current (measured in Amps).

Both the Freedom HF 1000/1055 models and Freedom HF 1500/ 1800 models are represented in the illustration below.

The graph illustrates surge operation at 25 °C.

Time (ms)

Freedom HF 1000/1055 Freedom HF 1500/1800

4000

1600

1400

1200

1000

800

600

400

200

10 12 14 16 18 20 30 40 50

Output Current (amps)

30 Freedom HF Owner’s Guide

25 30 35 40 45 50

750

800

850

900

1000

@12.5 volts

30°C

900 watts

800 watts

750 watts

850 watts

~33°C

@11.5 volts

Freedom HF 1000/1055

watts

°C

Freedom HF InvChg Owners Guide.book Page 31 Tuesday, April 29, 2014 12:10 PM

Invert Power Derating vs. Ambient Temperature

If the unit is in inverter mode and in elevated ambient temperature above 25 °C, you will have to reduce power draw according to the following chart to avoid over-temperature shutdown.

watts

1500

1400

1300

1100

1000

30°C

@11.5 volts

@12.5 volts

Freedom HF 1500

1450 watts

1350 watts

1100 watts

1000 watts

25 30 35 40 45 50

°C

975-0390-01-01 31

25 30 35 40 45 50

1000

1100

1350

1600

1800

@12.5 volts

30°C

1450 watts

1100 watts

1000 watts

1350 watts

~33°C

@11.5 volts

Freedom HF 1800

watts

°C

Freedom HF InvChg Owners Guide.book Page 32 Tuesday, April 29, 2014 12:10 PM

Invert Power Derating vs. Ambient Temperature

32 Freedom HF Owner’s Guide

Failure to follow these instructions can result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page 33 Tuesday, April 29, 2014 12:10 PM

Troubleshooting

ELECTRICAL SHOCK AND ENERGY HAZARD

Do not disassemble the Freedom HF. It does not contain any userserviceable parts. Attempting to service the unit yourself could result in an electrical shock or burn.

IMPORTANT:

page i.

This section will help you narrow down the source of any problem you encounter. Before contacting customer service, please work through the steps listed below:

1. Check for any error codes displayed on the display screen. If a message is displayed, record it before doing anything further.

2. As soon as possible, record the conditions at the time the problem occurred so you can provide details when you contact customer service for help. Include the following information:

• What loads the Freedom HF was running or attempting to run

• What the battery condition was at the time (voltage, state

• Recent sequence of events

To obtain service go to “Contact Information” on

of charge, etc.) if known

• Any known unusual AC shore power factors such as low voltage, unstable generator output, etc.

• Whether any extreme ambient conditions existed at the time (temperature, vibrations, moisture, etc.)

3. If your Freedom HF is not displaying an error code, check the following to make sure the present state of the installation allows proper operation:

• Is the inverter located in a clean, dry, adequately ventilated place?

• Are the battery cables adequately sized as recommended in

the Installation guide?

• Is the battery in good condition?

• Are all DC connections tight?

• Are the AC input and output connections and wiring in

good condition?

• Are the configuration settings correct for your particular

installation?

• Are the display panel and the communications cable

properly connected and undamaged?

• Are all disconnects and AC breakers closed and operable?

• Have any of the fuses blown in the installation?

4. Contact customer support for further assistance. Please be prepared to describe details or your system installation and to provide the model and serial number of the unit.

975-0390-01-01 33

Freedom HF InvChg Owners Guide.book Page 34 Tuesday, April 29, 2014 12:10 PM

Common Problems

Buzz in Audio Equipment

Some inexpensive stereo systems may emit a buzzing noise from their loudspeakers when operated from the Freedom HF. This occurs because the power supply in the audio system does not adequately filter the modified sine wave produced by the inverter. The only solution is to use a sound system that has a higher quality power supply.

Television Reception

When the Freedom HF is operating, it can interfere with television reception on some channels. If interference occurs, try the following:

1. Make sure that the chassis ground stud on the Freedom HF is solidly connected to the ground system of your vehicle or vessel.

2. Make sure that the television antenna provides an adequate (“snow-free”) signal, and that you are using good quality cable between the antenna and the television.

3. Keep the cables between the battery and the Freedom HF as short as possible, and twist them together with two to three twists per foot. (This minimizes radiated interference from the cables.)

4. Move the television as far away from the Freedom HF as possible.

5. Do not operate high power loads with the Freedom HF while the television is on.

34 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 35 Tuesday, April 29, 2014 12:10 PM

Warning Messages

Warning messages in the form of audible alarms and error codes that appear on the display panel screen to alert you to an impending

The error codes are listed in Table 7 below. The text in the Error Code column appears on the display screen of the display panel.

system change. Warnings do not affect operation.

With the exception of the error codes displayed on the screen, only the audible alarm can be turned ON or OFF. Follow the steps in “To adjust the alarm setting:” on page 13 to change the alarm settings.

Table 7

Error Codes Displayed on the Display Panel Screen

Error Code Condition Mode Action

 Low battery voltage shutdown

is imminent depending on the setting, see “Operating Limits” on page 22.

 High battery voltage shutdown

> 15.5 volts DC

 AC output overload shutdown Inverting • Reduce the loads connected to the AC outlet of the unit.

 Over-temperature shutdown Inverting • Reduce the loads connected to the AC outlet of the unit.

Inverting • Check battery status and recharge if necessary.

• Check for proper DC cable sizing.

• Check for loose connections and tighten if necessary.

Inverting • Check for external charging sources, such as an over voltage

alternator, and disconnect if necessary.

• Check appliances that have high-surge ratings and disconnect if necessary.

• Check that the ventilation grille is not blocked.

• Check for ambient temperature and move the unit to a cooler location whenever possible.

975-0390-01-01 35

Freedom HF InvChg Owners Guide.book Page 36 Tuesday, April 29, 2014 12:10 PM

Warning Messages

Table 7

Error Codes Displayed on the Display Panel Screen

Error Code Condition Mode Action

 Low battery voltage detected

depending on setting, see “Operating Limits” on page 22.

 AC output overload warning Inverting • Reduce the loads connected to the AC outlet of the unit.

 Over-temperature warning Inverting • Reduce the loads connected to the AC outlet of the unit.

 not used

 not used

 High battery voltage (> 15.5 V) AC shore power • Check for external charging sources, such as an over voltage

 Over-temperature detected on

the AC transfer relay

Inverting • Check battery status and recharge if necessary.

• Check for proper DC cable sizing.

• Check for loose connections and tighten if necessary.

• Check that the ventilation grille is not blocked.

• Check for ambient temperature and move the unit to a cooler location whenever possible.

alternator, and disconnect if necessary.

• Confirm that the external charging source is not the cause. The error may be caused by the internal battery charger system. Call Xantrex for support.

AC shore power • Reduce the loads connected to the AC outlet of the unit.

• Check that the ventilation grille is not blocked.

• Check for ambient temperature and move the unit to a cooler location whenever possible.

36 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 37 Tuesday, April 29, 2014 12:10 PM

Table 7

Error Codes Displayed on the Display Panel Screen

Error Code Condition Mode Action

Warning Messages

 Battery is bad or external DC

load is connected to the battery.

AC shore power • Check the battery bank.

For error code :

• the display screen and the alarm will turn off after 30 seconds

• after a five-minute shutdown delayb, the unit will immediately stop inverting

For error codes  to :

• the unit will stop inverting

For error codes  and :

• the unit will stop charging, but

• the error code will still show on the display screen and the alarm will remain on, and

• AC power will continue to pass through to the AC outlets

a.Available in all models except Freedom HF 1500 and 1800 T. See page 22. b.Available only for the Freedom HF 1500 and 1800 T models. See page 23.

NOTE: The battery voltage did not rise above 5 volts DC after 1 minute or 10 volts DC after 15 minutes.

• Check that the external DC load current consumption is below the charging current setting.

• Disconnect the DC load or increase the charger current setting.

For error code 

• the unit will stop charging and shut down, and

• the error code will show on the display screen briefly, and

• AC power will not pass through to the AC outlets

To reset error codes  to :

1. Remove the AC input.

2. Turn the unit OFF and then turn ON again using the Inverter Power button on the display panel.

975-0390-01-01 37

Failure to follow these instructions can result in death or serious injury.

Freedom HF InvChg Owners Guide.book Page 38 Tuesday, April 29, 2014 12:10 PM

Troubleshooting Reference

ELECTRICAL SHOCK AND ENERGY HAZARD

Do not disassemble the Freedom HF. It does not contain any userserviceable parts. Attempting to service the unit yourself could result in an electrical shock or burn.

Table 8

Troubleshooting Reference

Problem Possible Cause Solution

Battery charging current is lower than the charging set point during bulk charge mode.

Alarm does not sound when an error is encountered.

38 Freedom HF Owner’s Guide

Ambient (environment) temperature is high.

Alarm is turned OFF. Press and hold the Select button for two seconds to disable (or

Do not be alarmed, the unit is performing normally. The charging current automatically de-rates at high ambient temperature.

Improve ventilation. Make sure the unit’s ventilation openings are not blocked.

enable) the audible alarm. See “Display Panel Operation” on page 15.

Freedom HF InvChg Owners Guide.book Page 39 Tuesday, April 29, 2014 12:10 PM

Table 8

Troubleshooting Reference

Problem Possible Cause Solution

Troubleshooting Reference

Low output voltage (96 volts AC–104 volts AC) during Inverter mode.

No output voltage. The status LED is red. AC shore power is not available or out of operating range and the inverter has shut down with the display

You are using a voltmeter that cannot accurately read the RMS voltage of a modified sine wave.

screen showing one of the following error codes:

• Low input voltage (fault code ) • Check the DC connections and the cable.

• High input voltage (fault code ) • Verify the unit is connected to a 12V battery.

• Unit overload or AC output short

circuit (fault code )

• Thermal shutdown (fault code ) • Allow the unit to cool off.

• AC transfer relay has overheated (during shore power mode).

Use a true RMS reading voltmeter such as the Fluke 87.

• Recharge the battery.

• Check the voltage regulation of the external charging system (if any).

• Reduce the load. Make sure the load does not exceed the output rating.

• Reduce the load if continuous operation is required.

• Improve ventilation. Make sure the inverter’s ventilation openings are not blocked.

• Improve ventilation. Make sure the inverter’s ventilation grille is not blocked.

• Reduce the load.

975-0390-01-01 39

Freedom HF InvChg Owners Guide.book Page 40 Tuesday, April 29, 2014 12:10 PM

Troubleshooting Reference

Table 8

Troubleshooting Reference

Problem Possible Cause Solution

No output voltage. The Status LED is green or yellow.

No output voltage. The status LED is not lighting up.

GFCI has tripped or 15A supplementary breaker has tripped.

Circuit breaker on the AC load panel or AC output disconnect has tripped.

Battery voltage is too low (depending on setting, see “Operating Limits” on page 22) to start inverting. Display screen may show DC voltage as ..

AC shore power is not available or out of operating range and the inverter is OFF.

AC shore power is not available and the inverter is OFF due to a shutdown for more than 30 seconds.

The inverter’s DC input polarity is reversed.

Check load and reset the GFCI or supplementary breaker.

Reset the circuit breaker or check the AC output disconnect circuits.

Check DC connections and cable. Recharge battery.

• Check AC shore power.

• Turn the inverter ON.

• Check AC shore power and battery voltage.

• Turn the inverter ON and look at the display panel for any error code.

• See Table 7, “Error Codes Displayed on the Display Panel Screen” on page 35.

The inverter was probably damaged due to the reverse polarity. This type of damage is NOT covered by the warranty.

• Return the unit.

• See Warranty Card for information on returning the unit.

40 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 41 Tuesday, April 29, 2014 12:10 PM

Table 8

Troubleshooting Reference

Problem Possible Cause Solution

Troubleshooting Reference

No output voltage. The status LED is not lighting up.

The fan turns on and off during AC shore power mode.

The fan turns on and off during inverter mode.

The jumper wire on the power module panel connecting the “Ignition Control” and “Disabled” terminals is removed and there is no ignition signal present.

• The battery is discharged and demands high current from the charger.

• AC pass-through current is high.

The inverter is running continuously at high power.

Ensure the jumper wire is installed if the ignition control feature is not in use. If the ignition control feature is in use, ensure the vehicle’s ignition is on.

Do not be alarmed, the unit is performing normally.

Do not be alarmed, the unit is performing normally. The fan is activated automatically.

975-0390-01-01 41

Freedom HF InvChg Owners Guide.book Page 42 Tuesday, April 29, 2014 12:10 PM

Inverter Applications

The Freedom HF performs differently depending on the AC loads connected to it. If you are having problems with any of your loads, read this section.

Resistive Loads

These are the loads that the inverter finds the simplest and most efficient to drive. Voltage and current are in phase (i.e. in step with one another). Resistive loads usually generate heat in order to accomplish their tasks. Toasters, coffee pots, and incandescent lights are typical resistive loads. It is usually impractical to run larger resistive loads—such as electric stoves and water heaters— from an inverter due to their high current requirements. Even though the inverter can most likely accommodate the load, the size of battery bank required would be impractical if the load is to be run for long periods.

Motor Loads

Induction motors (motors without brushes) require two to six times their running current on start up. The most demanding are those that start under load (e.g. compressors and pumps). Of the capacitor start motors (typical in drill presses, band saws, etc.), the largest you can expect to run is 1/2 to 1 hp (the transfer relays are rated at 2 hp).

Universal motors are generally easier to start. Since motor characteristics vary, only testing will determine whether a specific load can be started and how long it can be run.

If a motor fails to start within a few seconds or loses power after running for a time, it should be turned off. When the inverter attempts to start a load that is greater than it can handle, it will turn itself off after a few seconds.

Long Transfer Times

A specific situation has been observed where the Freedom HF may take a long time (~ 0.1–0.2 seconds) to transfer to inverter mode when shore power fails. This can occur when the Freedom HF is used to power motor loads where the motor is able to “freewheel” when power is removed (for example, a grinder). This long transfer may cause connected computers or other sensitive equipment to operate incorrectly. To avoid this effect, it is recommended not to connect motor loads together with sensitive equipment to the inverter for power.

42 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 43 Tuesday, April 29, 2014 12:10 PM

Specifications

NOTE: Specifications are subject to change without prior notice.

Physical Specifications 1000-watt models 1500 and 1800-watt models

L × W × H 15.5” (393mm) × 9.5” (241mm)× 4.2” (106mm) 18” (457mm) × 9.5” (241mm)× 4.2” (106mm)

Net Weight 10 lbs (4.5 kg) 12.8 lbs (5.8 kg)

NOTE: Excludes any external AC or DC wiring

harnesses included on some models.

Environmental Specifications 1000-watt models 1500 and 1800-watt models

Ambient Temperature:

Operating Temperature Range Storage Temperature Range

Humidity: Operation/Storage 5–95% RH, non-condensing

-20–60 ºC, with output derated above 25 °C

System Specifications 1000-watt models 1500 and 1800-watt models

Transfer relay rating 30A, 2.0hp

Transfer time <30ms (milliseconds)

Transfer on bad voltage 90–100V for low AC and 130–140 for high AC

Cooling Fan, activated by any of the following:

0–40 ºC

-40–70 ºC

•High internal temperature

•High AC output power

43 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 44 Tuesday, April 29, 2014 12:10 PM

Specifications

NOTE: These specifications refer to inverter mode.

DC Input 1000-watt models 1500 and 1800-watt models

Operating voltage range for all models 10.5–15.5 VDC (low limit)

11.8–15.5 VDC (high limit)

Operating voltage range for Freedom HF 1500 and Freedom HF 1800 T

Safe non-operating voltage range 0–16 VDC 0–16 VDC

Nominal voltage for all models 12.5 VDC 12.5 VDC

Nominal current at full load 100 ADC 180 ADC

n/a 10.5–15.5 VDC (low limit)

10.5–15.5 VDC (low limit)

11.8–15.5 VDC (high limit)

11.8–15.5 VDC (mid limit)

12.1–15.5 VDC (high limit)

AC Output 1000-watt models 1500 and 1800-watt models

Output voltage 115 VAC 115 VAC

Continuous power 1.0kW @ 25 °C 1.8kW @ 25 °C

1.5kW @ 25 °C (Freedom HF 1500 only)

Surge power 17 AAC

(2kW for 200 ms)

Max short-circuit current 55 AAC peak 55 AAC peak

Frequency 60 Hz 60 Hz

Wave shape Modified Sine Wave Modified Sine Wave

Power derating above 40 °C ambient temp See “Invert Power Derating vs. Ambient Temperature” on page 31.

Peak efficiency 87% 87%

Full load efficiency 80% 80%

30 AAC (3.6kW for 300 ms)

Other 1000-watt models 1500 and 1800-watt models

No load input power (producing output voltage) 10W 10W

Off mode current draw 1mA 1mA

44 Freedom HF Owner’s Guide

Freedom HF InvChg Owners Guide.book Page 45 Tuesday, April 29, 2014 12:10 PM

NOTE: These specifications refer to charger mode.

AC Input 1000-watt models 1500 and 1800-watt models

Operating voltage range for all models 90–130 VAC 90–130 VAC

Operating voltage range for Freedom HF 1500 and Freedom HF 1800 T

Nominal current 5 AAC at 20 A charge, 120 VAC IN 10 AAC at 40 A charge, 120 VAC IN

Nominal frequency 60 Hz 60 Hz

5 AAC at 20 A charge, 120 VAC IN 10 AAC at 40 A charge, 120 VAC IN

DC Output 1000-watt models 1500 and 1800-watt models

Nominal voltage 12.0 VDC 12.0 VDC

Min battery voltage for charging 0.0 VDC 0.0 VDC

Max output voltage 14.4 VDC 14.4 VDC

Nominal output current User selectable:

2A, 5A, 10A, 20A (Freedom HF 1000) 5A, 15A, 35A, 55A (Freedom HF 1055)

Charger current derating Charger current will automatically derate as

internal temperature exceeds 80 °C.

Efficiency at nominal output 75% 75%

User selectable: 2A, 10A, 20A, 40A

Charger current will automatically derate as internal temperature exceeds 80 °C.

Other 1000-watt models 1500 and 1800-watt models

No load input power (producing output voltage) 10W 10W

Off mode current draw 1mA 1mA

Specifications

Regulatory Approvals 1000-watt models 1500 and 1800-watt models

ETL approved to CSA 107.1, UL458, and UL458 Marine Supplement (drip shield with product

number 808-9531 required).

975-0390-01-01 45

Freedom HF InvChg Owners Guide.book Page 46 Tuesday, April 29, 2014 12:10 PM

Freedom HF InvChg Owners Guide.book Page i Tuesday, April 29, 2014 12:10 PM

Freedom HF InvChg Owners Guide.book Page ii Tuesday, April 29, 2014 12:10 PM

Schneider Electric Solar Inverters USA Inc.

+1 800 670 0707 +1 408 987 6030

www.xantrex.com

975-0390-01-01 Printed in China

Xantrex Technology 806-1840-02, 806-1840-01, 806-1020, 806-1055, 806-1054-01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Guide

Contents

Introduction

Materials List

Key Features

Features

Front Panel (Freedom HF 1000, 1055, 1500, 1800)

Front Panel (Freedom HF 1800 T) Front Panel (

Rear Panel (All Other Models)

Display Panel (All Models)

Side Panel (All Models)

Freedom Inverter/Charger Configuration

Setting Battery Types on the Main Unit

Viewing Inverter/Charger Information

Adjusting Feature Settings

Freedom Inverter/Charger Operation

Display Panel Operation

Operating in Shore Power Mode

Operating in Inverter Mode

Inverter Mode Setting is ON (“Standby”)

Inverter Mode Setting is OFF

Energy Saver 25-hour Automatic Shut Off

Status LED During Inverter Mode

Checking Battery Status

Checking Output Power

Operating Several Loads at Once

Turning the Audible Alarm ON or OFF

Operating During Transition Between Shore Power and Inverter Mode

Transitioning from Shore Power to Inverter Mode

Transitioning from Inverter Mode to Shore Power

Operating Limits

Power Output

Input Voltage

Inverter Loads

Overload Conditions

High Surge Loads

Over-temperature Conditions

Trouble Loads

Battery Charging

Routine Maintenance

Freedom HF Unit

Batteries

Inverter Overload Operation

Invert Power Derating vs. Ambient Temperature

Troubleshooting

Common Problems

Buzz in Audio Equipment

Television Reception

Warning Messages

Troubleshooting Reference

Inverter Applications

Resistive Loads

Motor Loads

Long Transfer Times

Specifications
