Xanboo X1000 First-time Setup

X1000
FIRST TIME SET-UP ///
2
I
FIRST TIME SET-UP ///
THERE ARE TWO BASIC STEPS TO THE FIRST TIME SET UP:
1. Registering your Gateway with the website.
Click ‘NEXT’ to begin Step 1.
To register your Gateway with the website, you will need the User Name and Registration Token. This information is provided to you when you create your account at http://ces.xanboo.us or the website in which you are registering your Gateway.
Input the User Name and Registration Token in the corresponding fields.
Click on the ‘REGISTER GATEWAY’ button to begin registration.
Note: Registration may take up to 30 seconds.
Once your Gateway has successfully been registered, you may begin the second portion of the first time set-up process DEVICE DISCOVERY by clicking on the ‘NEXT’ button.

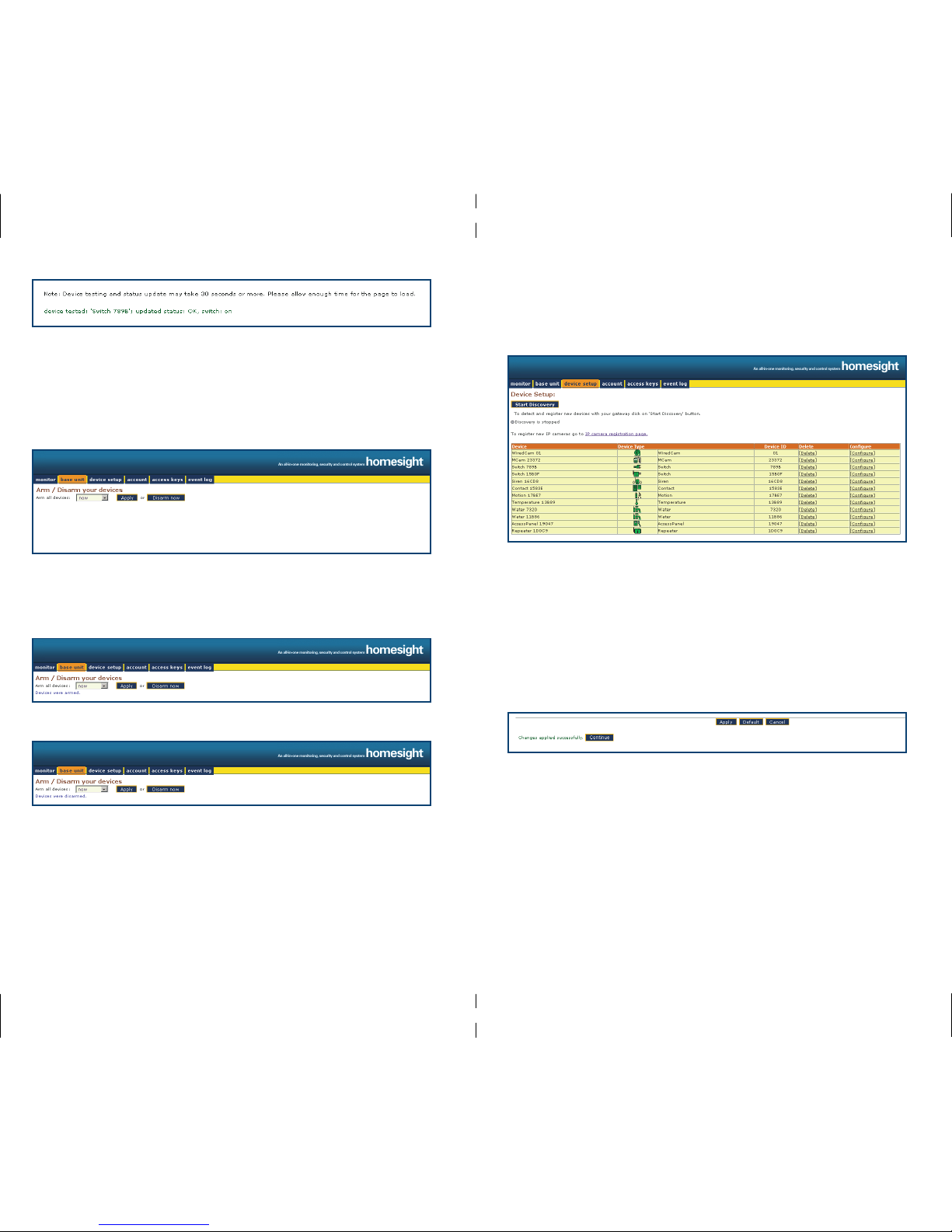

Upon hitting ‘NEXT’, you will be instructed to plug in your wired cameras and push the discover button on your devices. All Homesight products work with the X1000 HomeGenie system.
Each wireless device (sensors, repeaters) has a Discover button. To begin the device discovery process, you must press the discover button (a device discovery tool is provided with each Homesight product). This must be pressed while Discovery is in progress in order to be Discovered to the Gateway.
After you press the Discovery button on a device you will see a listing informing you that your Gateway has detected a wireless device and that the registration is in progress.
Once the device has been successfully registered, it will appear in the Device list. The discover process will run until either all devices or discovered, or 15 minutes has elapsed. Click ‘NEXT’ to proceed.

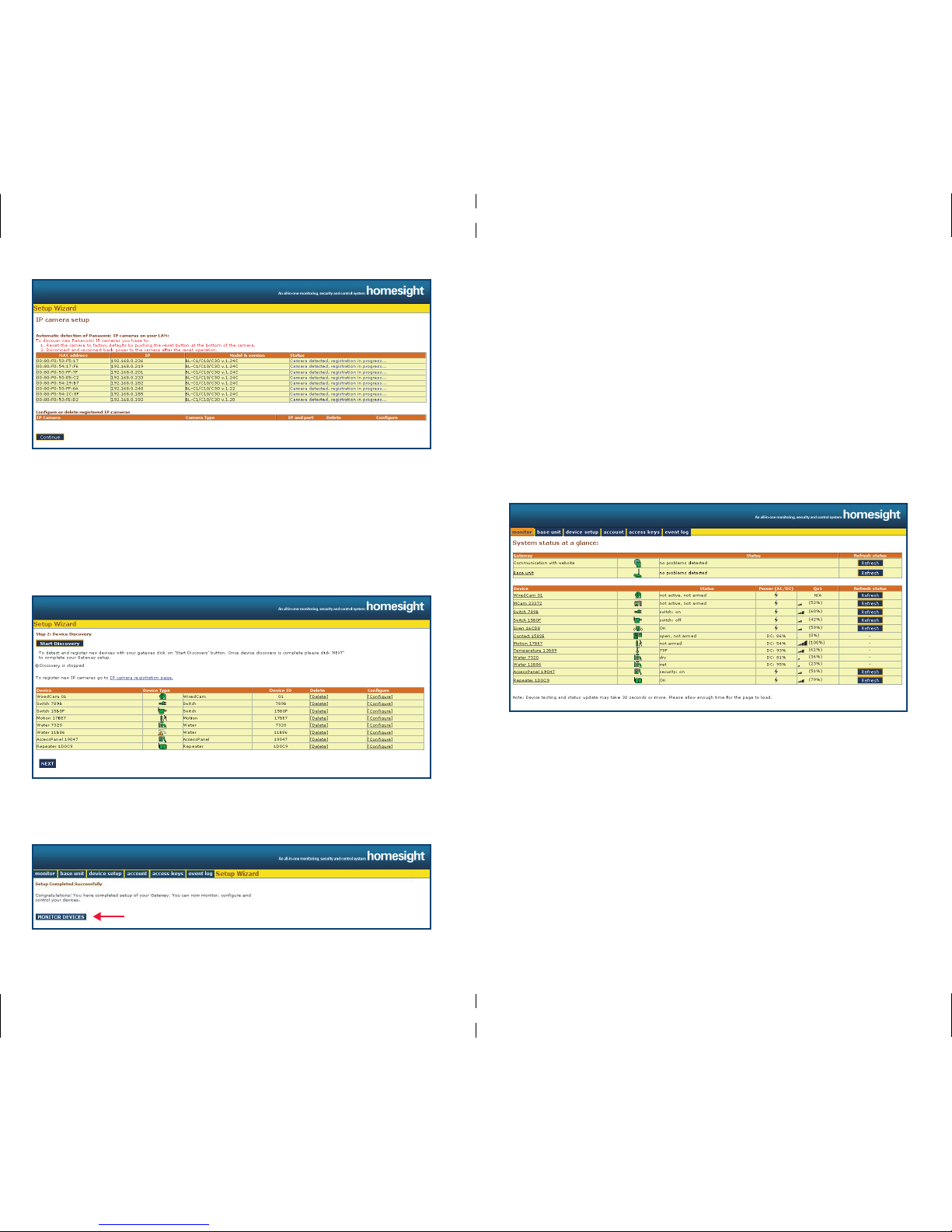

IP CAMERA REGISTRATION PAGE:
Should you wish to register a IP Camera, click on the link IP Camera Registration Page
.
