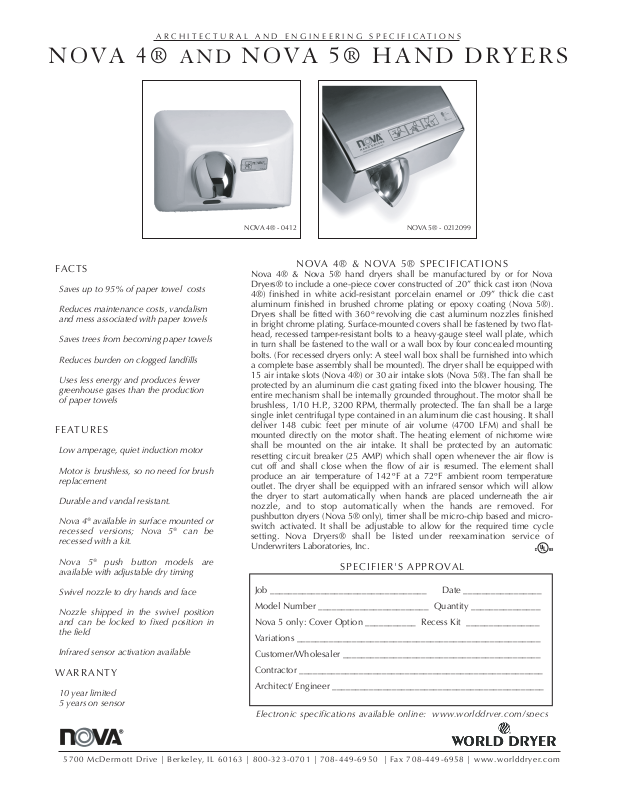

ARCHITECTURAL AND ENGINEERING SPECIFICATIONS

NOVA 4® AND NOVA 5® HAND DRYERS

NOVA 5® - 0212099NOVA 4® - 0412

FACTS

Saves up to 95% of paper towel costs

Reduces maintenance costs, vandalism
and mess associated with paper towels

Saves trees from becoming paper towels

Reduces burden on clogged landfills

Uses less energy and produces fewer
greenhouse gases than the production
of paper towels

FEAT U R E S

Low amperage, quiet induction motor

Motor is brushless, so no need for brush
replacement

Durable and vandal resistant.

Nova 4® available in surface mounted or
recessed versions; Nova 5® can be
recessed with a kit.

Nova 5® push button models are
available with adjustable dry timing

NOVA 4® & NOVA 5® SPECIFICATIONS

Nova 4® & Nova 5® hand dryers shall be manufactured by or for Nova
Dryers® to include a one-piece cover constructed of .20” thick cast iron (Nova
4®) finished in white acid-resistant porcelain enamel or .09” thick die cast
aluminum finished in brushed chrome plating or epoxy coating (Nova 5®).
Dryers shall be fitted with 360 revolving die cast aluminum nozzles finished
in bright chrome plating. Surface-mounted covers shall be fastened by two flat­head, recessed tamper-resistant bolts to a heavy-gauge steel wall plate, which
in turn shall be fastened to the wall or a wall box by four concealed mounting
bolts. (For recessed dryers only: A steel wall box shall be furnished into which
a complete base assembly shall be mounted). The dryer shall be equipped with
15 air intake slots (Nova 4®) or 30 air intake slots (Nova 5®). The fan shall be
protected by an aluminum die cast grating fixed into the blower housing. The
entire mechanism shall be internally grounded throughout. The motor shall be
brushless, 1/10 H.P., 3200 RPM, thermally protected. The fan shall be a large
single inlet centrifugal type contained in an aluminum die cast housing. It shall
deliver 148 cubic feet per minute of air volume (4700 LFM) and shall be
mounted directly on the motor shaft. The heating element of nichrome wire
shall be mounted on the air intake. It shall be protected by an automatic
resetting circuit breaker (25 AMP) which shall open whenever the air flow is
cut off and shall close when the flow of air is resumed. The element shall
produce an air temperature of 142 F at a 72 F ambient room temperature
outlet. The dryer shall be equipped with an infrared sensor which will allow
the dryer to start automatically when hands are placed underneath the air
nozzle, and to stop automatically when the hands are removed. For
pushbutton dryers (Nova 5® only), timer shall be micro-chip based and micro­switch activated. It shall be adjustable to allow for the required time cycle
setting. Nova Dryers® shall be listed under reexamination service of
Underwriters Laboratories, Inc.

SPECIFIER'S APPROVAL

Swivel nozzle to dry hands and face

Nozzle shipped in the swivel position
and can be locked to fixed position in
the field

Infrared sensor activation available

WA R R ANTY

10 year limited
5 years on sensor

5700 McDermott Drive | Berkeley, IL 60163 | 800-323-0701 | 708-449-6950 | Fax [phone] | www.worlddryer.com

Job __________________________________ Date _________________

Model Number ________________________ Quantity _______________

Nova 5 only: Cover Option ___________ Recess Kit ________________

Variations _____________________________________________________

Customer/Wholesaler ___________________________________________

Contractor _____________________________________________________

Architect/ Engineer ______________________________________________

Electronic specifications available online: www.worlddryer.com/specs

ELECTRI CAL
SPECIFI CATI O N S

60 Hz

60 Hz

60 Hz

ELECTRICAL

Volts Amps Watts Freq

Push button 120 15 1800

kit0112

0412 0712 Automatic 120 15 1800 60 Hz

0422 0722 Automatic 208/240 9 1350/1800 60 Hz

Push button 208/240 6.5/7.5 1350/1800

kit

kit

0122

0212 Automatic 120 15 1800

Automatic 120 15 1800 60 Hz

---

0512*

*Institutional surface mount hand dryer with top knockout for surface wiring installation

ACTIVATION

NOVA 5

Surface Recessed

ELECTRICAL

Volts Amps Watts Freq

ACTIVATION

NOVA 4

Surface Recessed

0222 Automatic 208/240 6.5/7.5 1350/1800 60 Hz kit

Optional brushed chrome cover av ailable for the No va 5 Model only. Please specify when ordering.

PLANNIN G G U I D E

QUANTITY ESTIMATE
Average traffic:
1 dryer per 2 washbasins
Heavy traffic: 1 dryer per washbasin
54” Bradley sink: 4 dryers per sink

INSTALLATION
Hand dryers require a dedicated 20
AMP circuit, and must be properly
grounded. GFI Circuit protection is
recommended. One side of dryer
should be mounted to a stud.

DRYER PLACEMENT
Hand dryers should be placed at least
2 feet apart, near but not over the
washbasin. In congested areas dryers
should be placed to create a traffic
flow from wash basin to dryer to exit.
Automatic dryers should be placed
more than 18” above or away from
projections, which may interfere with
the operation of the automatic sensor.

RECESSING KITS
For Nova 5® only, if recessing is
desired, specify a kit number along
with the model number.
37-058500 Steel box w/ white trim
37-058589 Steel box w/ chrome trim

REPLACEMENT MODEL NUMBERS
The following new model numbers
may be used to replace the
associated older model numbers for
specification purposes:
NOV A 4®

• 0412 and 0712 replace:

0410, 0411 and 0710, 0711

• 0422 and 0722 replace:
0420, 0421, 0480 and 0720, 0721,
0780

• 0512 replaces: 0511

NOV A 5®

• 0112 and 0212 replace:

0110, 0111 and 0210, 0211

• 0122 and 0222 replace:
0120, 0180, 1121 and 0220, 0280,
0221

MOUNTING HEIGHTS

Surface Recessed

Men

Women

Children
ages 3-7

Children
ages 8-10

Children
ages 11-13

Children
ages 14-17

Disabled

Measured from floor to the bottom of the unit

46" (117cm)

44" (112cm)

32" (81cm)

36" (91cm)

40" (102cm)

44" (116cm)

37" (94cm)

42" (107cm)

40" (102cm)

28" (71cm)

32" 81cm)

36" (91cm)

40" (102cm)

34" (86cm)

NOVA 4® SURFA C E M O UNTED

9.3"

(236 mm)

9.2"

(232 mm)

2.7"

(69 mm)

NOVA 4® RECESS M O U N T ED

(204 mm)

12.05"

(306 mm)

NOVA 5® SURFA C E M O UNTED

9.3"

(236 mm)

2"

(51 mm)

2.7"

(69 mm)

MEASUREMENTS

NOVA 4

MOUNTING

Surface
Recessed

NOVA 5

MOUNTING

Surface

Recessed

- White Cover

MEASUREMENTS

12.3" W x 9.2" H x 9.3" D
12" W x 8" H x 5.9" D

- Brushed Chrome Cover

MEASUREMENTS WEIGHT DIMENSIONS

12" W x 8.7" H x 9.3" D

15" W x 13.2" H x 5.9" D

12.3"

(312 mm)

5.9"

(150 mm)

8.05"

2.7"

(69 mm)

12"

(305 mm)

Drawings are not to scale.

SHIPPING MEASUREMENTS

WEIGHT

27 lbs
22 lbs

SHIPPING MEASUREMENTS

18 lbs

18 lbs

DIMENSIONS

14" L x 11" W x 13" H
14" L x 11" W x 13" H

13" L x 10" W x 11" H
13" L x 10" W x 11" H

16" L x 14" W x 5-1/2" H

3.5"

(89 mm)

8.7"

(220 mm)
