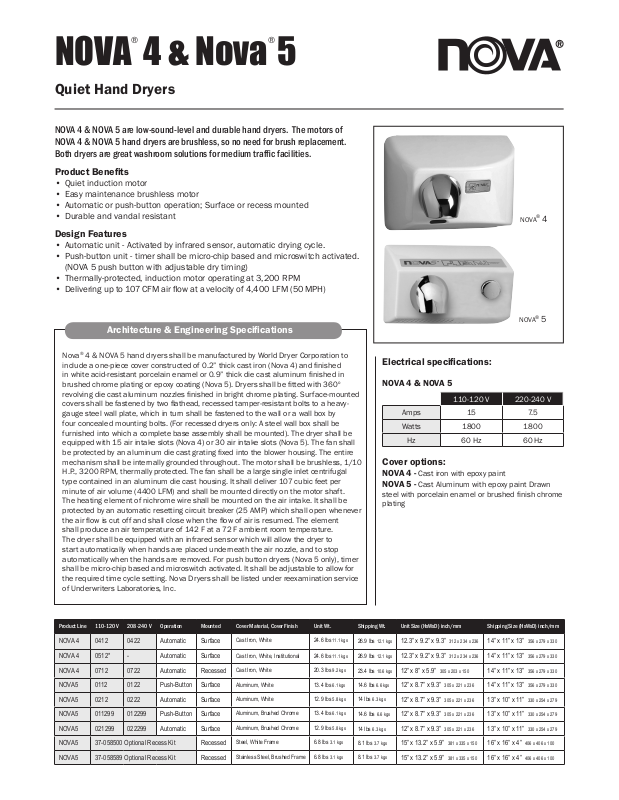

NOVA

®

4 & Nova

®

5

Quiet Hand Dryers

NOVA 4 & NOVA 5 are low-sound-level and durable hand dryers. The motors of
NOVA 4 & NOVA 5 hand dryers are brushless, so no need for brush replacement.
Both dryers are great washroom solutions for medium trafc facilities.

Product Benets

• Quiet induction motor

• Easy maintenance brushless motor

• Automatic or push-button operation; Surface or recess mounted

• Durable and vandal resistant

Design Features

• Automatic unit - Activated by infrared sensor, automatic drying cycle.

• Push-button unit - timer shall be micro-chip based and microswitch activated.
(NOVA 5 push button with adjustable dry timing)

• Thermally-protected, induction motor operating at 3,200 RPM

• Delivering up to 107 CFM air ow at a velocity of 4,400 LFM (50 MPH)

Architecture & Engineering Specications

NOVA

NOVA

®

4

®

5

Nova® 4 & NOVA 5 hand dryers shall be manufactured by World Dryer Corporation to
include a one-piece cover constructed of 0.2” thick cast iron (Nova 4) and nished
in white acid-resistant porcelain enamel or 0.9” thick die cast aluminum nished in
brushed chrome plating or epoxy coating (Nova 5). Dryers shall be tted with 360o
revolving die cast aluminum nozzles nished in bright chrome plating. Surface-mounted
covers shall be fastened by two athead, recessed tamper-resistant bolts to a heavy­gauge steel wall plate, which in turn shall be fastened to the wall or a wall box by
four concealed mounting bolts. (For recessed dryers only: A steel wall box shall be
furnished into which a complete base assembly shall be mounted). The dryer shall be
equipped with 15 air intake slots (Nova 4) or 30 air intake slots (Nova 5). The fan shall
be protected by an aluminum die cast grating xed into the blower housing. The entire
mechanism shall be internally grounded throughout. The motor shall be brushless, 1/10
H.P., 3200 RPM, thermally protected. The fan shall be a large single inlet centrifugal
type contained in an aluminum die cast housing. It shall deliver 107 cubic feet per
minute of air volume (4400 LFM) and shall be mounted directly on the motor shaft.
The heating element of nichrome wire shall be mounted on the air intake. It shall be
protected by an automatic resetting circuit breaker (25 AMP) which shall open whenever
the air ow is cut off and shall close when the ow of air is resumed. The element
shall produce an air temperature of 142 F at a 72 F ambient room temperature.
The dryer shall be equipped with an infrared sensor which will allow the dryer to
start automatically when hands are placed underneath the air nozzle, and to stop
automatically when the hands are removed. For push button dryers (Nova 5 only), timer
shall be micro-chip based and microswitch activated. It shall be adjustable to allow for
the required time cycle setting. Nova Dryers shall be listed under reexamination service
of Underwriters Laboratories, Inc.

Product Line 110-120 V 208-240 V Operation Mounted Cover Material, Cover Finish Unit Wt. Shipping Wt. Unit Size (HxWxD) inch/mm Shipping Size (HxWxD) inch/mm

NOVA 4 0412 0422 Automatic Surface

NOVA 4 0512* - Automatic Surface

NOVA 4 0712 0722 Automatic Recessed

NOVA5 0112 0122 Push-Button Surface

NOVA5 0212 0222 Automatic Surface

NOVA5 011299 012299 Push-Button Surface

NOVA5 021299 022299 Automatic Surface

NOVA5 37-058500 Optional Recess Kit Recessed

NOVA5 37-058589 Optional Recess Kit Recessed

Cast Iron, White 24.6 lbs 11.1 kgs

Cast Iron, White, Institutional 24.6 lbs 11.1 kgs

Cast Iron, White 20.3 lbs 9.2 kgs

Aluminum, White 13.4 lbs 6.1 kgs 14.6 lbs 6.6 kgs

Aluminum, White 12.9 lbs 5.8 kgs 14 lbs 6.3 kgs

Aluminum, Brushed Chrome 13.4 lbs 6.1 kgs

Aluminum, Brushed Chrome 12.9 lbs 5.8 kgs

Steel, White Frame 6.8 lbs 3.1 kgs

Stainless Steel, Brushed Frame 6.8 lbs 3.1 kgs 8.1 lbs 3.7 kgs

Electrical specications:

NOVA 4 & NOVA 5

110-120 V 220-240 V

Amps 15 7.5

Watts 1800 1800

Hz 60 Hz 60 Hz

Cover options:

NOVA 4 - Cast iron with epoxy paint
NOVA 5 - Cast Aluminum with epoxy paint Drawn

steel with porcelain enamel or brushed nish chrome
plating

26.9 lbs 12.1 kgs 12.3” x 9.2” x 9.3” 312 x 234 x 236 14” x 11” x 13” 356 x 279 x 330

26.9 lbs 12.1 kgs 12.3” x 9.2” x 9.3” 312 x 234 x 236 14” x 11” x 13” 356 x 279 x 330

23.4 lbs 10.6 kgs 12” x 8” x 5.9” 305 x 203 x 150 14” x 11” x 13” 356 x 279 x 330

12” x 8.7” x 9.3” 305 x 221 x 236 14” x 11” x 13” 356 x 279 x 330

12” x 8.7” x 9.3” 305 x 221 x 236 13” x 10” x 11” 330 x 254 x 279

14.6 lbs 6.6 kgs 12” x 8.7” x 9.3” 305 x 221 x 236 13” x 10” x 11” 330 x 254 x 279

14 lbs 6.3 kgs 12” x 8.7” x 9.3” 305 x 221 x 236 13” x 10” x 11” 330 x 254 x 279

8.1 lbs 3.7 kgs 15” x 13.2” x 5.9” 381 x 335 x 150 16” x 16” x 4” 406 x 406 x 100

15” x 13.2” x 5.9” 381 x 335 x 150 16” x 16” x 4” 406 x 406 x 100

NOVA 4

Surface Mounted Units

9.3"

(236 mm)

9.2"

(232 mm)

NOVA 4

Recess Mounted Units

8.05"

(204 mm)

2.7"

(69 mm)

12.3"

(312 mm)

NOVA 5

9.3"

(236 mm)

12"

(305 mm)

2"

(51 mm)

8.7"

(220 mm)

2.7"

(69 mm)

Placement Instruction

• Hand dryers should be spaced at least 2 feet apart, near but not over the wash
basin

• In congested areas, dryers should be located to create a ow from wash basin to
dryer to exit

• NOVA 4 & NOVA 5 should be mounted at least 18” above or away from reective
surfaces which may interfere with the automatic sensor operation.

• Dryer Quantity Recommendation:

Average Trafc: 1 dryer per 2 wash basins
Heavy Trafc: 1 dryer per wash basin
Industrial 54” Circular wash fountains: 4 dryers per sink

• Recommended mounting heights from oor to dryer bottom edge

12.05"

(306 mm)

5.9"

(150 mm)

2.7"

(69 mm)

Certications

3.5"

(89 mm)

Men’s washrooms 46” (117 cm)

Women’s washrooms 44” (112 cm)

Children’s washrooms, ages 4-7 32” (81 cm)

Children’s washrooms, ages 7-10 36” (91 cm)

Children’s washrooms, ages 10-13 40” (102 cm)

Children’s washrooms, ages 13-17 44” (112 cm)

Handicap Mounting Height 37” (94 cm)

Installation Guide

• NOVA 4 & NOVA 5 hand dryers require a dedicated circuit with a minimum rating
of 15 amps and must be properly grounded

• GFI circuit protection is recommended

• One side of dryer should be mounted to a stud to minimize noise

5700 McDermott Drive
Berkeley, IL 60163 U.S.A.
800-323-0701
www.worlddryer.com

Warranty

5 year limited warranty
3 year sensor

92-MT014 Rev01
