World Dryer NOVA1-0830 Specifications

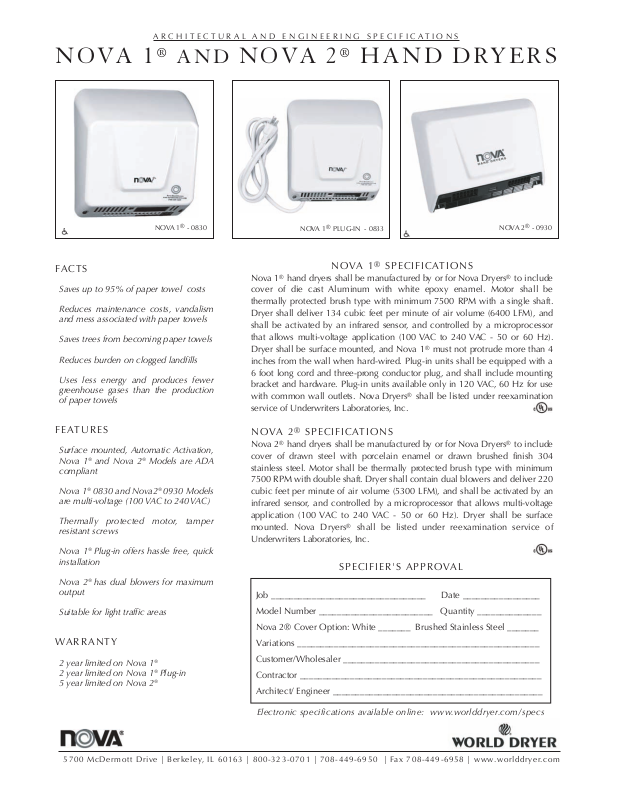

ARCHITECTURAL AND ENGINEERING SPECIFICATIONS
NOVA 1® AND NOVA 2® HAND DRYERS
NOVA 1® - 0830
FAC TS
Saves up to 95% of paper towel costs
Reduces maintenance costs, vandalism
and mess associated with paper towels
Saves trees from becoming paper towels
Reduces burden on clogged landfills
Uses less energy and produces fewer
greenhouse gases than the production
of paper towels
FE ATU RES
Surface mounted, Automatic Activation,
Nova 1® and Nova 2® Models are ADA
compliant
Nova 1® 0830 and Nova2® 0930 Models
are multi-voltage (100 VAC to 240 VAC)
Thermally protected motor, tamper
resistant screws
Nova 1® Plug-in offers hassle free, quick
installation
Nova 2® has dual blowers for maximum
output
Suitable for light traffic areas
WA RR A NT Y
2 year limited on Nova 1®
2 year limited on Nova 1® Plug-in
5 year limited on Nova 2®
NOVA 1® PLUG-IN - 0833
NOVA 2® - 0930
NOVA 1® SPECIFICATIONS
Nova 1® hand dryers shall be manufactured by or for Nova Dryers® to include
cover of die cast Aluminum with white epoxy enamel. Motor shall be
thermally protected brush type with minimum 7500 RPM with a single shaft.
Dryer shall deliver 134 cubic feet per minute of air volume (6400 LFM), and
shall be activated by an infrared sensor, and controlled by a microprocessor
that allows multi-voltage application (100 VAC to 240 VAC - 50 or 60 Hz).
Dryer shall be surface mounted, and Nova 1
inches from the wall when hard-wired. Plug-in units shall be equipped with a
6 foot long cord and three-prong conductor plug, and shall include mounting
bracket and hardware. Plug-in units available only in 120 VAC, 60 Hz for use
with common wall outlets. Nova Dryers
service of Underwriters Laboratories, Inc.
®
must not protrude more than 4
®
shall be listed under reexamination
NOVA 2® S P EC IFI CATI ONS
Nova 2® hand dryers shall be manufactured by or for Nova Dryers® to include
cover of drawn steel with porcelain enamel or drawn brushed finish 304
stainless steel. Motor shall be thermally protected brush type with minimum
7500 RPM with double shaft. Dryer shall contain dual blowers and deliver 220
cubic feet per minute of air volume (5300 LFM), and shall be activated by an
infrared sensor, and controlled by a microprocessor that allows multi-voltage
application (100 VAC to 240 VAC - 50 or 60 Hz). Dryer shall be surface
mounted. Nova Dryers
Underwriters Laboratories, Inc.
®
shall be listed under reexamination service of
SPECIFIER'S APPROVAL
Job __________________________________ Date _________________
Model Number _________________________ Quantity ______________
Nova
2® Cover Option: White _______ Brushed Stainless Steel _______
riations _____________________________________________________
Va
Customer/Wholesaler ___________________________________________
ctor _____________________________________________________
Contra
Arch
itect/ Engineer ______________________________________________
Electronic specifications available online: www.worlddryer.com/specs
5700 McDermott Drive | Berkeley, IL 60163 | 800-323-0701 | 708-449-6950 | Fax 708-449-6958 | www.worlddryer.com
EL E CT RICA L
SP E CI FICAT IO NS
NOVA 1 ®
7.0"
(178 mm)
9.0"
(228 mm)
4"
(100 mm)
Volts Amps Watts Freq
50 Hzor60 Hz
1000
1000
1000
867
120
208
240
NOVA 1
0830 - White Cover
120 8 1000 60 Hz
NOVA 1 Plug-in
0833 - White Cover
50 Hzor60 Hz
2300
2300
2300
9
15
10
120
208
240
NOVA 2
0930 - White Cover
093079 - Brushed Stainless Steel Cover
6.4"
(163 mm)
4.4"
(112 mm)
Front Mounting
2.3"
(59 mm)
2.8"
(72 mm)
Front View
NOVA 1 ® PL UG- IN
3.1"
(79 mm)
3.9"
(99 mm)
(46 mm)
1.8"
Front Mounting Front View
(46 mm)
9.7"
(246 mm)
9.0"
(228 mm)
9.7"
(246 mm)
Side View
4.2"
(107 mm)
Side View
PL A NN ING GU ID E
QUANTITY ESTIMATE
Average traffic:
1 dryer per 2 washbasins
Heavy traffic:
1 dryer per washbasin
54” Bradley sink:
4 dryers per sink
INSTALLATION
Hand dryers require a
dedicated 15 AMP circuit
(Model 0930 requires 20 amp
circuit), and must be properly
grounded. GFI Circuit
protection is recommended.
One side of dryer should be
mounted to a stud.
DRYER PLACEMENT
Hand dryers should be placed
at least 2 feet apart, near but
not over the washbasin. In
congested areas dryers should
be placed to create a traffic
flow from wash basin to dryer
to exit. Automatic dryers should
be placed more than 18” above
or away from projections,
which may interfere with the
operation of the automatic
sensor.
ADA COMPLIANCE
Nova 1 Model 0830 and Nova
2 Model 0930 dryers are ADA
compliant
NOVA 2 ®
7.75"
(197 mm)
2.27"
(58 mm)
6.0"
(152 mm)
11.75"
(298 mm)
Front Mounting
MOUNTING HEIGHTS
Surface Recessed
Men
Women
Children
ages 3-7
Children
ages 8-10
Children
ages 11-13
Children
ages 14-17
Disabled
Measured from floor to the bottom of the unit
46" (117cm)
44" (112cm)
32" (81cm)
36" (91cm)
40" (102cm)
44" (116cm)
37" (94cm)
42" (107cm)
40" (102cm)
28" (71cm)
32" 81cm)
36" (91cm)
40" (102cm)
34" (86cm)
8.46"
(215 mm)
2.7"
(69 mm)
Front View
MEASUREMENTS
MODEL
Nova 1
Nova 1 Plug-in
Nova 2
MEASUREMENTS WEIGHT
9.2 W x 9.7" H x 4" D 10 lbs 13" L x 12" W x 8" H
9.2 W x 9.7" H x 4.2" D 10 lbs 13" L x 12" W x 8" H
14" W x 10" H x 4" D 12 lbs 16" L x 13" W x 8" H
13.8"
(350 mm)
4"
(100 mm)
9.9"
(251 mm)
Side View
Drawings not to scale
SHIPPING MEASUREMENTS
DIMENSIONS
