MOW’N MACHINE

MZ2252K

872500G

22HP KAW W/52” SIDE DISCHARGE

(S/N 000050 AND ABOVE)

MZ2661K

872502G

26HP KAW W/61” SIDE DISCHARGE

(S/N 000050 AND ABOVE)

Instructions

MAN0866

REV A 12-2010

RF4166233

Includes Maintenance

OPERATOR’S MANUAL

CALIFORNIA

Proposition 65 Warning

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm.

Californie Proposition 65 Avertissement

Les échappements des moteurs diesel et certains de leurs composés sont reconnus par l’Etat de Californie pour être cancérigènes, provoquer des défauts congénitaux et d’autres dangers en matière de reproduction.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

AVERTISSEMENT

L’émission du moteur de ce matériel contient des produits chimiques que l’Etat de Californie considère être cancérigènes, provoquer des défauts congénitaux et d’autres dangers en matière de reproduction.

California Advertencia

de la Proposicion 65

El estado de California hace saber que los gases de escape de los motores diesel y algunos de sus componentes producen cáncer, defectos de nacimiento y otros daños en el proceso de reproducción humana.

CALIFORNIA

Proposition 65 Warning

Battery posts, terminals, wiring insulation, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WASH HANDS AFTER HANDLING.

ADVERTENCIA

El estado de California hace saber que los gases de escape de este producto contienen productos quÍmicos que producen cáncer, defectos de nacimiento y otros daños en el proceso de reproducción humana.

WOODS

IMPORTANT MESSAGE

TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the Woods® dealer. Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Set-Up instructions are completed before releasing equipment to the owner.

The dealer must complete the Product Registration online at the Woods Dealer Website or complete the mail-in form included with the Operator’s Manual. If using the mail-in form, the dealer is to return the prepaid postage portion to Woods, give one copy to the customer, and retain one copy. Failure to register the product

does not diminish customer’s warranty rights.

TO THE OWNER:

Read the Operator’s Manual before operating your Woods equipment. The information presented will prepare you to do a better and safer job. Keep the manual handy for ready reference. Require all operators to read the Operator’s Manual carefully and become acquainted with all adjustment and operating procedures before attempting to operate the equipment. Replacement manuals can be obtained from your dealer. To locate your nearest dealer, check the Dealer Locator at www.WoodsEquipment.com, or in the United States and Canada call 1-800-319-6637.

The equipment you have purchased has been carefully engineered and manufactured to provide dependable and satisfactory use. Like all mechanical products, it will require cleaning and upkeep. Lubricate the unit as

specied. Observe all safety information in this manual and safety decals on the equipment.

For service, your authorized Woods dealer has trained mechanics, genuine Woods service parts, and the necessary tools and equipment to handle all your needs.

Use only genuine Woods service parts. Substitute parts will void the warranty and may not meet standards required for safe and satisfactory operation. Record the model number and serial number of your equipment in the spaces provided:

Model: _______________________________ Date of Purchase: _____________________

Serial Number: (located on left side panel near cut-off switch.) ________________________________

Provide this information to your dealer to obtain correct repair parts.

ALITEC

BMP

CENTRAL FABRICATORS

GANNON

GILL

WAIN-ROY

WOODS

™

® ®

See MAN0865 for Parts Manual

12-2010

WOODS

TABLE OF CONTENTS PAGE

SAFETY .......................................................................................................................................................5-11

LABELS .....................................................................................................................................................12-16

CONTROLS ...............................................................................................................................................17-20

PRE-OPERATION CHECK LIST .................................................................................................................... 21

OPERATION .............................................................................................................................................22-24

\MAINTENANCE CHART ..............................................................................................................................25

MAINTENANCE RECORD ............................................................................................................................. 26

MAINTENANCE .......................................................................................................................................27-33

ADJUSTMENTS ........................................................................................................................................34-38

BELT REPLACEMENT .................................................................................................................................. 39

SAFETY

WOODS

NOTICE !!!

Unauthorized modications may present extreme safety hazards to operators and bystanders and could also result in product damage.

Woods strongly warns against, rejects and disclaims

any modications, add-on accessories or product

alterations that are not designed, developed, tested and approved by Woods Engineering Department.

Any Woods product that is altered, modied or changed in any manner not specically authorized

after original manufacture–including the addition of “after-market” accessories or component parts not specically approved by Woods–will result in the Woods Warranty being voided.

Any and all liability for personal injury and/or property

damage caused by any unauthorized modications,

add-on accessories or products not approved by Woods will be considered the responsibility of the individual(s) or company designing and/or making such changes. Woods will vigorously pursue full

indemnication and costs from any party responsible for such unauthorized post-manufacture modications

and/or accessories should personal injury and/or property damage result.

This symbol means:

ATTENTION! BECOME ALERT!

Your safety and the safety of others is involved.

Signal word denitions:

The signal words below are used to identify levels of hazard seriousness. These words appear in this manual and on the safety labels attached to Woods machines. For your safety and the safety of others, read and follow the information given with these signal words and/or the symbol shown above.

DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices or property damage.

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, MAY result in property damage.

MODEL NUMBER: This number appears on sales literature, technical manuals and price lists.

SERIAL NUMBER: This number appears only on your mower. It contains the model number followed consecutively by the serial number. Use this number when ordering parts or seeking warranty information.

SAFETY

PREPARING FOR SAFE OPERATION

Operator preparation and training

Read the Operation & Safety Manual

– If an operator or mechanic

cannot read English, it is the owner's responsibility to explain this material to them. If any portion of this material is unclear, contact

your dealer representative for clarication.

– Become familiar with the safe operation of the

equipment, operator controls and safety signs. Be prepared to stop the engine and attachments quickly in an emergency. Do not operate or allow another person to operate this machine if there are any questions about safety.

– All operators and mechanics should be trained.

The owner is responsible for training the users.

– Wear appropriate clothing, including long

trousers and safety goggles or safety glasses with side shields when operating mower. Do not operate barefoot or wearing open sandals. Long hair, loose clothing or jewelry may get tangled in moving parts.

– Wear hearing protection.

– Never allow underage children, unskilled

or improperly trained people to operate this equipment. Local regulations can restrict the age of the operator.

– Data indicates that those operators age 60 years

and above are involved in a large percentage of riding mower-related injuries. Those operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from injury.

– Do not carry passengers, especially small chil-

dren. They may fall off and be seriously injured.

– Keep warning labels and this operator's manual

legible and intact. Replacement labels and manuals are available from the factory.

– Do not operate machine while under the

inuence of drugs or alcohol.

– The owner/user can prevent and is responsible

for accidents or injuries occurring to themselves, other people or property.

WOODS

WARNING

All rotary lawnmowers are potentially dangerous. They can amputate hands and feet and throw objects. Failure to follow these safety and operating instructions could result in serious injury or death.

Site preparation and circumstances

– Evaluate the terrain to determine what

accessories and attachments are needed to properly and safely perform the job. Only use accessories and attachments approved by the manufacturer.

– Clear the area to be mowed of objects such as

rocks, toys, wire or other debris that may be picked up or thrown by the mower.

– Be sure the area is clear of pets and people,

especially young children. Never assume they will remain where you last saw them. Stop the machine if any enter the area.

– Mow only in daylight or in good articial light.

– Do not mow wet grass as tires may lose traction.

SAFETY

WOODS

MACHINE OPERATION

– Check operator present interlock system and

brake operation. Adjust or repair any problems before using.

– Do not tamper with or defeat safety devices.

Keep guards, shields and interlock safety devices in place and in proper working condition. They are for your protection.

– Keep all fasteners such as nuts, bolts and pins

well secured.

– Visually inspect blades, blade bolts and the cutter

assembly for wear or damage. Replace worn or damaged blades and bolts to preserve balance.

– Verify that machine and attachments, if any, are

in good operating condition.

– Do not engage blades until ready to mow.

OPERATING SAFELY

In general

– Use extra care when loading or unloading the

machine onto a trailer or truck.

– Watch out for trafc when near or crossing

roadways.

– Do not run the engine in an enclosed area where

dangerous carbon monoxide fumes can collect.

– Do not place your foot on the ground while

operating the machine.

– Before operating, lower the discharge chute,

install the mulcher or put the entire grass catcher in place.

– Keep clear of the discharge opening at all times.

Never direct the discharge toward a bystander. Stop operation if someone approaches.

– Keep washout ports and other mower housing

service openings closed when mowing.

– Use care when pulling loads or using heavy

equipment.

- Use only approved drawbar hitch points.

- Limit loads to those you can safely control.

- Do not turn sharply. Use care when reversing.

- Use counterweight(s) or wheel weights when suggested in the operator's manual.

– Never leave a machine unattended. Always turn

off blades, set parking brake, stop engine and remove keys before dismounting.

Starting

– Start only according to instructions in this manual

or on the machine.

– Before attempting to start the engine, make sure:

- the parking brake is on;

- the PTO is disengaged;

- the traction drive is in NEUTRAL.

– When starting the engine, make sure hands and

feet are clear of the blades.

– Do not start the machine while standing in front

of the discharge chute or with the chute directed at someone.

– Do not engage PTO at full throttle. Throttle to

idle or lowest possible engine speed.

– Do not change engine governor settings or

overspeed the engine. Operating the engine at excessive speed can increase the hazard of personal injury.

SAFETY

WOODS

Interrupting operation

– Before leaving the operator's position:

- Park on level ground;

- Disengage the PTO;

- Set the parking brake;

- Shut off the engine and remove the key.

– Disengage the PTO and wait until the blades quit

rotating:

- before raising cutterdeck;

- when not mowing;

- for transport;

- when crossing surfaces other than grass.

– Stop the engine, disengage the PTO and wait

until the blades quit rotating:

- before refueling;

- before removing grass catcher;

- before making height adjustment unless the adjustment can be made from the operator's position.

– Stop the engine, disengage the PTO and

disconnect the spark plug wire(s) or remove the key:

- before clearing blockages or unclogging chute;

- before checking, cleaning or working on the machine;

- after striking a foreign object. Inspect the machine for damage and make repairs before restarting.

- if the machine begins to vibrate abnormally: Inspect and make repairs as needed before restarting;

- except for repairs or adjustments as specically

noted, such as for carburetor adjustment, where the engine must be running. Keep hands and feet clear of moving parts in these circumstances.

– Allow the blades to come to a complete stop

when stopping operation to clear blockages, unclog, inspect the machine, do maintenance or repair.

– Reduce the throttle setting during engine shut-

down and, if the engine is provided with a shutoff valve, turn the fuel off at the conclusion of mowing.

MANEUVERING SAFELY

In general

– Slow down before turning.

– Do not mow in reverse unless absolutely

necessary. Always look behind and down for small children and pets before and during backing.

– Be aware when approaching blind corners,

shrubs, trees, tall grass or other objects that may obscure vision.

– If tires lose traction, disengage the blades. If on

a slope, head down.

SAFETY

WOODS

MOWING SLOPES

Slopes are a major factor in loss-of-control and tipover accidents that sometimes lead to severe injury or death. All slopes require extra caution.

– Do not mow on slopes

if uneasy or uncertain. Ultimate reponsibility for safe operation on slopes rests with the operator.

– Do not mow excessively steep slopes.

– With ride-on machines, including articulated

steering machines, mow up and down slopes, not across, except for zero turn machines. Zero turn machines should mow across slopes.

– With walk-behind machines, always mow across

slopes, not up and down.

– Avoid starting or stopping on a slope. If tires

lose traction, disengage the blades and proceed slowly straight down the slope.

– With a zero turn machine, if tires lose traction

going down a slope, steering control may be regained by speeding up.

– Mid-mount zero turns (belly mounted deck) have

much greater traction pointed up slope than down slope. Be aware that traction may be lost going down a slope. Do not operate a mid-mount zero turn on slopes it cannot back up.

– Keep all movement on the slopes slow and

gradual. Do not make sudden changes in speed or direction.

– Do not turn on slopes unless necessary, and then

turn slowly and downhill when possible.

– Stay away from slopes if the ground is loose or if

caught in the rain during mowing.

– Use lower speeds on a slope to avoid stopping or

shifting.

– Use extra care with grass catchers or other

attachments. These can change the stability of the machine.

– Avoid driving over ruts, holes, rocks and roots

whenever possible. Be alert to dips and rises. Uneven terrain can overturn a mower or cause it to slide.

– Do not mow dropoffs, ditches or embankments.

The machine could suddenly turn over if a wheel runs over the edge or an edge caves in.

WARNING

– Follow the manufacturer's recommendations

for wheel weights or counterweights to improve stability.

Rollover Protection Structure (ROPS)

• Fixed and folding Rollover Protection Structures

(ROPS) are available as optional accessories for this machine.

• If a ROPS is installed and the machine is

overturning, hold onto the steering levers. Do not attempt to jump out or leave the seat. Wear the seatbelt

SEAT BELT USEAGE Fixed ROPS

• WEAR the seat belt whenever a xed ROPS is

installed. Always keep seat belt snugly adjusted. DO NOT use seat belts on a machine without a ROPS.

Folding ROPS ROPS in Vertical Position

• The ROPS should be in the vertical position for

normal operation. WEAR the seatbelt when the ROPS is in the vertical position.

ROPS in Folded Position

• A folding ROPS allows the overall height of the

machine to be reduced for increased clearance to get into a low ceiling height trailer or under low hanging branches. DO NOT wear the seatbelt when the ROPS is folded. Stop the machine and restore the ROPS to the vertical position as soon as the need for increased clearance is past.

A ROPS is a Roll Over Protective Structure. It is intended to provide protection to the operator in the event a machine turns over in the course of operation. It is not designed or made to provide protection for a machine that is driven off an embankment, retaining wall or similar structure or terrain feature. A ROPS does not replace the need to exercise care when operating on slopes.

SAFETY

WOODS

MAINTENANCE SAFETY

IN GENERAL

– Maintain machine according to manufacturer's

schedule and instructions for maximum safety and best mowing results.

– Park machine on level ground.

– Never allow untrained personnel to service ma-

chine.

– Adjust or repair only after the engine has been

stopped and the blades have stopped rotating.

– Inspect grass catcher components regularly. If

worn, damaged or deteriorated, they may expose moving parts or allow objects to be thrown.

– Replace parts if worn, damaged or faulty.

For best results, always replace with parts recommended by the manufacturer.

– Disconnect battey or remove spark plug wire(s)

before making any repairs. Disconnect the nega-

tive terminal rst and the positive last. Reconnect positive rst and negative last.

– Do not dismantle the machine without releasing

or restraining forces which may cause parts to move suddenly.

– Provide adequate support for lifted machine or

parts if working beneath.

– Do not put hands or feet near or under rotating

parts.

– Clean up oil or fuel spillage thoroughly.

– Replace faulty mufers.

– To reduce re hazards, keep the engine, mufer,

battery compartment and fuel storage area free of grass, leaves, debris buildup or grease.

BLADES

– Mower blades are sharp and

can cut. Use extra caution when handling. Remove obstructions with care. Wrap the blade(s) or wear gloves.

– Be aware that rotating one blade

on multiblade mowers can cause other blades to rotate.

– Only replace blades. Never straighten or weld

them.

– Keep other persons away from blades.

WARNING

FUEL

– Gasoline and diesel fuels are

ammable; gasoline vapors are

explosive. Use extra care when handling.

– Store only in containers speci-

cally designed for fuel.

– When refueling or checking fuel level:

- Stop the engine and allow to cool;

- Do not smoke;

- Refuel outdoors only;

- Use a funnel;

- Do not overll;

- If fuel is spilled, do not attempt to start the engine until the spill is cleaned up and vapors have cleared.

Sparks from static electricity can start res or couse

explosions. Flowing fuel can generate static electricity. To prevent static electricity sparks:

– Do not ll containers in a vehicle or on a truck or

trailer bed with a plastic liner. Fill containers on the ground away from the vehicle.

– When practical, remove gas powered equip-

ment from the truck or trailer and refuel it on the ground. If equipment must be refueled on the truck or trailer, refuel from a portable container rather than a dispenser nozzle.

– Keep the dispenser nozzle in contact with the rim

of the fuel tank or container opening until fueling is complete. Do not use a nozzle lock-open device

– Replace caps on fuel cans and tanks securely.

HYDRAULIC SYSTEM

The machine's hydraulic system operates under high pressure.

– When checking for leaks, do

not use your hands to attempt

to nd a leak. Instead, use

cardboard or paper.

– Escaping hydraulic uid can be under sufcient

pressure to penetrate skin and cause serious injury.

– If hydraulic uid is injected into the skin, it must

be promptly removed by a doctor familiar with this form of injury or gangrene may result.

– Check that all hydraulic uid connections are

tight and all hydraulic hoses and lines are in good condition before applying pressure to the system.

WARNING

SAFETY

WOODS

BATTERY

Battery acid is caustic and fumes are explosive and can cause serious injury or death.

To reduce the risk of personal injury when working near a battery:

– When working with battery

acid, use protective equipment such as, but not limited to, goggles, face shield, rubber gloves and apron.

– Avoid leaning over a battery.

– Do not expose a battery to open ames or

sparks.

– Be sure batteries with ller caps are properly

lled with uid.

– Do not allow battery acid to contact eyes or skin.

Flush any contacted area with water immediately and get medical help.

– Charge batteries in an open, well ventilated area,

away from sparks and ames. Unplug charger

before connecting or disconnecting from battery.

STORAGE SAFETY

– Stop the engine and allow to cool before storing.

– Drain the fuel tank outdoors only.

– Store fuel in an approved container in a cool, dry

place.

– Keep the machine and fuel containers in a

locked storage place to prevent tampering and to keep children from playing with them.

– When the machine is to be parked, stored or left

unattended, lower the cutterdeck unless a positive mechanical lock is used.

– Do not store the machine or fuel container near

heating appliances with an open ame such as a

water heater or an appliance with a pilot light.

– Keep gasoline storage area free of grass, leaves

and excessive grease to reduce re hazard.

WARNING

JUMP STARTING

1. Be sure the jumper cables are in good condition. Turn off the ignition and all electrical accessories on both machines.

2. Position the machine with a good (charged) battery next to but not touching the machine with the dead battery so jumper cables will reach.

3. When making cable connections:

- make sure the clamps do not touch anywhere

except to intended metal parts,

- Never connect a positive ("+" or red) terminal

to a negative ("–" or black) terminal.

- Make sure the cables won't get caught in any

parts after the engines are started.

4. Connect one end of the rst jumper cable to the

positive terminal on one battery. Connect the other end to the positive terminal on the other battery.

5. Connect one end of the other cable to the negative terminal of the machine with a good

(charged) battery. Make the nal connection on

the engine of the machine to be started, away from the battery.

6. Start the vehicle with the good battery, then the machine with the discharged battery.

7. Remove the cables in the exact reverse order of installation. When removing each clamp, take care it does not touch any other metal parts while the other end remains attached.

LABELS

WOODS

PTO SWITCH

DECK SIZE

52 IN 61 IN

61 IN GENERAC

72 IN

72 IN GENERAC

BELT P/N

4165619 4165618 4165644 4165645 4165617

BLADE P/N

112111-02 112111-03 112111-03 112111-07 112111-07

LOCATED UNDER THE FLOOR PLATE

4165653

4165639

LABELS

WOODS

LH TANK

OFF

RH TANK

4147617

LABELS

HYDRAULIC OIL

Fill to level shown with

any of the following oils:

Min eral base motor oils

15W40 or 20W50

Synthet ic base motor oil

15W50

4165722

WOODS

BEFORE STARTING OR SERVICING:

Read and understand the Operator's Manual & labels.

- Be sure machine is in safe operating condition.

- Move traction levers to neutral lock, parking brake to ON.

- Set PTO switch to OFF.

BEFORE LEAVING SEAT:

- Move traction levers to neutral lock, parking brake to ON.

- Set PTO switch to OFF.

- Turn engine keyswitch to OFF.

- Remove key.

AVOID SERIOUS INJURY OR DEATH:

- Read and obey the Operation & Safety Manual.

- Remove objects that could be thrown by the blades.

- Use caution on slopes. Stay off slopes the machine cannot back up.

- Stop blades and drive down slowly if machine slides or stops going on slope.

- Do not mow when children or others are around.

- Do not carry a child or passenger-even with blades off.

- Look down and behind before and while backing.

- Do not operate unless trained.

- Do not operate unless guards, shields and interlocks are in place and working.

- Replace labels and Operation and Safety Manual if lost or damaged.

OPERATOR'S MANUAL

IS LOCATED UNDER

THE FOOT PLATE.

4165730

- Remove debris buildup. Debris under belt cover or near muffler can cause fires.

- Blades continue to rotate for a few seconds after

blades are turned off.

- Blades must be at least 1/8" above bottom of housing.

- All blades must be identical. Check blade bolts daily for tightness.

- Inspect for damage after striking a foreign object. Make repairs before restarting operation.

- Find and repair cause of any abnormal vibration.

- Leer el manual del operador. No permitir que personas no capacitadas para ello usen la máquina.

- Mantener los protectores en su lugar y sus tornillos debidamente fijados.

- Antes de limpiar, ajustar o reparar este equipo, apagar todos los mandos, aplicar el freno de estacionamiento y apagar el motor.

- Mantener las manos, los pies y la ropa alejados de las piezas en movimiento.

- No conducir como pasajero ni llavar pasajeros en máquinas sin asiento para ello.

- Mantener a las demás personas alejadas durante el funcionamiento de la máquina.

- Si no sabe leer inglés, solicitarie a otra persona que le lea y explique el contenido de las etiquetas y del manual de la máquina.

4165610

LABELS

WOODS

4165655

TRANSPORT

4165654

LABELS

4165615

4165616

WOODS

CONTROLS

WOODS

At operator's right side

KEYSWITCH (K) - The keyswitch has three

positions: OFF, RUN, and START. Insert the key and turn it clockwise to move the switch from OFF to RUN. Turn it further to START and hold to engage the starter. Release the key and the switch will return to RUN from START. Turn the key counterclockwise to OFF to stop the engine.

THROTTLE (T) - Move the throttle lever forward to

increase engine speed until the maximum governed engine RPM is reached. Move the lever rearward to decrease engine speed until the engine reaches its idle speed.

CHOKE (C) - Pull the choke control out to set the

choke ON. Push it in to set the choke OFF.

POWER TAKE OFF (PTO) SWITCH (P) -

The operator must be in the seat when engaging the PTO or the engine will kill. Pulling the PTO switch out engages (turns on) the PTO and starts the blades or other attachment. Pushing the PTO switch in disengages (turns off) the PTO and stops the blades

or other attachment. NOTE: The PTO switch does not control attachments powered by a separate engine.

– Disengage the PTO whenever you stop or leave

the operator’s position.

– Shut off engine with the key and remove the

spark plug wires before making adjustments or unplugging a clogged mower.

– Do not engage the PTO until ready to start

mowing.

HOUR METER (M) - Records accumulated time

the machine is in operation and provides service alerts. Push and release MODE button to toggle between functions. Provided service alerts include

change engine oil and lter, change hydraulic oil, and service air lter. When the service time is approaching, an alert message will ash temporarily,

interrupting whatever mode the meter is in. This will continue until the alert is reset. When the service interval reaches "0" hours, the word "NOW" replaces the hours remaining. To reset the service alert, depress and hold down the mode button for 6 seconds while in the alert to be cleared.

12 VOLT POWER OUTLET (X) - A 12 volt

power outlet is provided to operate 12 volt personal accessories.

CONTROLS

WOODS

Reverse movement - To move the machine straight

back, pull both traction levers back equally from their neutral position. Reverse speed increases as the levers are moved back farther. Maximum reverse speed is reached when the levers hit the rear of the forward-reverse slot. When moving in reverse, pushing the levers forward slows the machine, and the machine stops when the neutral position is reached.

NOTE: Reverse is spring loaded to return to neutral. This spring resistance may be felt when moving the traction levers into reverse. When the levers are released in reverse, spring tension will slowly return them to the neutral position.

STEERING - To steer, move one lever forward and

one back.

Turns during forward movement:

Lift and traction levers

(operator's right side)

HEIGHT OF CUT PIN (C) - Sets height of cut

and allows easy return from transport to desired height of cut. Raise the deck to transport with the lift lever F. Position pin C in the hole corresponding to th desired height of cut. Lower the lift lever until it rests on pin C.

TRACTION LEVERS (L) - Each of the two trac-

tion levers controls the drive wheel located on the same side. They control the forward and reverse movement of the machine, provide steering and also provide dynamic braking.

The operator must be in the seat and the parking brake must be OFF or the traction drive cannot be engaged. To engage traction drive, move the traction levers toward the center of the machine until they are out of neutral lock slot S.

Forward movement - To move the machine straight ahead, push both traction levers forward equally from their neutral position. Forward speed increases as the levers are moved farther forward from the neutral position. Maximum forward speed is reached when the levers hit the front of the forward-reverse slot. When traveling forward, pulling the traction levers rearward slows the machine, and the machine stops when the neutral position is reached.

– Right turn - move the right traction lever back

toward neutral to slow the right drive wheel.

– Left turn - move the left traction lever back to-

ward neutral to slow the left drive wheel.

Turns during reverse movement:

– Reverse right turn - move the right traction lever

forward toward neutral to slow the right drive wheel.

– Reverse left turn - move the left traction lever

forward toward neutral to slow the left drive wheel.

Slow, sweeping turns are made with both traction levers on the same side of neutral and slightly apart. True zero radius turns about the center of the machine are made by having one lever in reverse while the other is in forward. By varying the relative positions of the two levers, the rate of turn is varied to suit the mowing situation.

Slow down before making sharp turns. The machine is capable of turning very rapidly when the levers are moved further apart from each other. Loss of control and/or turf damage may result.

CONTROLS

WOODS

FUEL VALVES (U) - A fuel tank selector valve is

provided on oil cooler mounting bracket.The fuel tank selector valve has three positions:

Off: The tank selector is off when the lever points toward the machine. The selector should be off whenever the machine is transported or stands unused for any length of time. Shutting off the fuel supply avoids

the possibility of ooding should any dirt get under the carburetor oat needle. Leaving the tank selector in either tank position can allow severe ooding,

which may ruin the engine by diluting the oil.

Right Tank: Fuel ows from the right tank when the

selector is turned 1/4 turn toward the left, when facing the valve.

Left Tank: Fuel ows from the left tank when the

selector is turned 1/4 turn toward the right, when facing the vlave.

Located on oil cooler behind seat.

FOOT LIFT PEDAL

The foot lift pedal A, allows the operator to raise the mower deck to the highest position without removing his/her hands from the traction controls.

To use the foot lift pedal A, press on it to raise the deck. The picture shows the foot lift pedal mounted on the RH side of the machine. If you prefer to have the foot mounted lift pedal on the left hand side, simply loosen the existing hardware and mount the foot lift pedal in a similar manner to the left hand side. Tighten the hardware to secure the foot lift pedal.

CONTROLS

PARKING BRAKE (R) - Pull the parking brake

lever up and back to put the parking brake ON. Push it forward and down to put the parking brake OFF.

The parking brake must be ON to start the engine. It must also be ON to keep the engine running if the operator leaves the seat. The parking brake must be OFF to keep the engine running when a traction lever is moved out of neutral lock.

WOODS

PUSHING THE MACHINE

Hydrostat bypass valves (“dump valves”) on each hydrostatic pump allow the machine to be pushed or towed without the engine running. Raise the seat to gain access to these two valves V. Turn both valves counterclockwise 1 turn to release the hydrostatic system. Restore the hydrostatic system by turning the valves clockwise only until they re-seat. DO NOT overtighten.

Use caution if it is necessary to tow the machine. With the bypass valves open, the dynamic braking and steering provided by the hydrostats is disabled. Towing should be done only if a disabled machine cannot be repaired where it broke down.

Parking brake in ON position

(operator's left side)

Compartment beneath the seat,

viewed from above

PRE-OPERATION CHECK LIST

WOODS

PRE-OPERATION CHECK LIST (OWNER’S RESPONSIBILITY)

___ Review and follow all safety rules and safety decal instructions. ___ Check that all safety decals are installed and in

good condition. Replace if damaged.

___ Check to make sure all shields and guards

are properly installed and in good condition. Be sure that either the discharge shield or

complete vacuum attachment is installed. ___ Check that all hardware is properly installed. and secured. ___ Check that equipment is properly and securely

attached to power unit. ___ Check to be sure engine is free of dirt and debris. Pay particular attention to the cooling

ns, governor parts and mufer. Clean air

intake screen. Check air cleaner; service if

necessary.

___ Never allow riders. ___ Inspect area and remove stones, branches or other hard objects that might be thrown,

causing injury or damage.

___ Clean area around oil ll dipstick. Remove

dipstick and check to be sure oil is in operating range (between marks on dipstick). Add oil if necessary but Do Not Overll. Install dipstick

assembly rmly until cap bottoms out on tube.

Dipstick assembly must always be secured into

ll tube when engine is running.

___ Check all lubrication points and grease as instructed in manual.

___ Check hydrostatic uid level. Check to be sure

cooling ns on hydrostat are clean.

___ Perform a functional check of the safety

interlock system each time you operate the unit.

OPERATION

WOODS

FUELING

– Fill fuel tanks with good quality, clean, unleaded

gasoline. Do not use hi-test fuel.

– Use a funnel to avoid spillage.

WARNING

TO CHECK OR ADD FUEL:

– Do it outdoors

– Do not smoke – Stop engine; allow to cool – Fill to one inch below bottom

of ller neck

– Do not overll

– Clean up spilled fuel

BEFORE STARTING THE ENGINE

– Be familiar with all controls, how each functions

and what each operates.

– Check the engine oil level and add if necessary.

Open the fuel valves under each fuel tank. Select which tank to draw fuel from with the fuel selector valve.

– Choke: For cold starts, set the throttle lever to

the half-open position and pull the choke out to the ON position. For warm starts set the throttle to the half-open position and the choke to the OFF position.

OPERATOR PRESENCE INTERLOCK SYSTEM

To start the engine:

– The PTO switch must be OFF.

– Both traction levers must be in the neutral lock

position.

– The parking brake must be ON.

To operate the machine:

1. The operator must be in the seat or engaging the PTO will kill the engine.

2. The parking brake must be OFF and the operator must be in the seat, or moving a traction lever from the neutral lock position will kill the engine.

STARTING THE ENGINE

1. Turn the key to operate the electric starter to start the engine. Release the key when the engine starts.

2. If the engine does not start immediately, do not crank for more than 10 seconds at a time. Allow 60 seconds for the starter motor to cool down between starting attempts to prevent the starter motor from burning out.

3. If the choke is ON when the engine starts, gradually back it off until the engine runs with no choke at all.

OPERATION

WOODS

OPERATING NOTES

– Practice at slow engine and travel speeds with the

PTO off until fully familiar with the controls.

– For normal cutting the throttle should be set at

the full open position. By using the traction levers to speed up or slow down the machine during

use,maximum control and cutting efciency can

be maintained.

– Using the machine at less than full throttle in

heavy conditions will cause the engine to labor and result in excessive wear to the engine and hydraulic system.

DRIVING

1. With the PTO disengaged, move the parking brake to OFF.

2. Move both traction levers out of neutral lock.

3. Push both traction levers forward evenly to drive forward in a straight line. Pull both traction levers back evenly to drive backward in a straight line.

4. Steering - Move one lever forward and one back.

Turns during forward movement:

– Right turn - move the right traction lever back

toward neutral to slow the right drive wheel.

– Left turn - move the left traction lever back to-

ward neutral to slow the left drive wheel.

Turns during reverse movement:

– Reverse right turn - move the right traction lever

forward toward neutral to slow the right drive wheel.

– Reverse left turn - move the left traction lever

forward toward neutral to slow the left drive wheel.

Use caution when making turns. Slow down before making sharp turns to help maintain control and to prevent torn turf from skidding or spinning tires. To help prevent turf damage, keep both drive tires moving whenever a turn is made.

TIP: The best way to make a sharp "zero" turn is to come to a stop, get the machine moving in reverse with both drive wheels and then powering the machine around with the outside wheel. This technique keeps the drive tires turning and results in less turf damage.

OPERATION

CUTTING

1. Place the discharge chute in the down position or

correctly t a grass collector or mulcher plate.

2. Sit in the seat.

3. Start the engine.

4. Turn the blades on by pulling up on the PTO switch. Do not start the blades at full throttle. Instead, use the slowest throttle setting that will allow the engine to pick up the blade load to reduce the wear on the belts and electric clutch.

5. After the blades are rotating, set the throttle to maximum. Use the traction levers to obtain the required cutting speed, to steer around obstacles and to turn at the end of a cut.

WOODS

DANGER

ROTATING BLADES

– KEEP HANDS AND FEET AWAY. – STOP ENGINE AND LET BLADES STOP

BEFORE REMOVING GRASS COLLECTOR OR UNCLOGGING.

WARNING

CUTTING TIPS

– When mowing large areas, start by turning to the

right so that clippings will be discharged away from shrubs, fences, driveways, etc. After two or three rounds, mow in the opposite direction, left

hand turns, until nished.

– If grass is extremely tall, it should be mowed

twice, the rst cut relatively high, the second cut to

the desired height.

– Use the left side of the mower for trimming.

– Choose cutting directions so that clippings are

thrown onto areas that already have been cut. This method results in the most even distribution of clippings and more uniform, better appearing cuts.

– Use a different mowing pattern each time a prop-

erty is cut where possible. This helps prevent rutting and leads to a more uniform cut by keeping the grass from always laying the same way.

THROWN OBJECTS

– KEEP AREA CLEAR OF PEOPLE AND PETS. – REMOVE OBJECTS BLADE MAY

STRIKE AND THROW.

– STOP BLADES TO CROSS GRAVEL

AREAS

– DO NOT OPERATE WITHOUT CHUTE,

MULCHER OR ENTIRE GRASS COLLECTOR IN PLACE.

MAINTENANCE CHART

WOODS

NOITAREPO

ffOpoT/kcehC

leveL

ffOpoT/kcehC

leveLliO

neercS

renaelcerP

tnemelE

ECNANETNIAM

5TSRIF

SRUOH

YLIAD

YREVE

SRUOH

ENIGNE

tnalooCenignE

)elbacilppAerehW(

skaeLroFkcehCX

ekatnIriAnaelC

renaelCriAnaelC

YREVE

SRUOH

YREVE

001

SRUOH

X**X

neewtebsemitmumixameraslavretniesehT.bojgniognonasiecnanetniaM

.snoitidnocerevesrednunetfoerommrofreP.snoitarepoecnanetniam

YREVE

002

SRUOH

snoitcurtsnidnanoitamrofnilanoitiddaroflaunamenigneehttlusnoC

YREVE

005

SRUOH

sniFgnilooCnaelC X

dnAliOegnahC

retliF

ecalpeR/kcehC

sgulPkrapS

A/N

unams'rerutcafunamenigneeeS

ENAELCRIACINOLCYCYTUDYVAEHHTIWDEPPIUQEFI

RENAELCRIACINOLCYCYTUDYVAEHHTIWDEPPIUQEFI**

SCILUARDYH

skaeLroFkcehCX

ffOpoT/kcehC

leveLliO

dnAliOegnahC

retliF

ENIHCAM

kcolretnIkcehC

noitarepO

eriTkcehC

serusserP

ffOpoT/kcehC

yrettaB

stnioPllAetacirbuL

MAINTENANCE RECORD

LARENEG

ETAD SRH ETAD SRH ETAD SRH ETAD SRH ETAD SRH ETAD SRH

serusserPeriTkcehC

stnioPllAetacirbuL

stloB&stuNkcehC

ENIGNE

tnalooCenignEkcehC

leveL

)elbacilppAerehW(

leveLliOkcehC

liOegnahC

naelC

tnemelErenaelCriA

sniFgnilooCnaelC

ecalpeR

tnemelErenaelCriA

paG&naelC

sgulPkrapS

.sretlifhtobdnaliociluardyh,lioenigneecalpernoitarepofosruoh5tsrifretfA:ETON

WOODS

NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________

MAINTENANCE

WOODS

CHECK DAILY

Operator Presence Interlock System - Start Operation

For the engine to crank, the parking brake must be on, the PTO (blades) off and traction levers in the neutral lock position. Sit in the seat and check, one by one, if the engine will crank with the parking brake off, the blades on, and either traction lever out of neutral lock.

Operator Presence Interlock System - Run Operation

The operator must be in the seat for the engine to run with the parking brake off, the traction levers moved out of the neutral lock position, or the blades on. To check:

1. Start the engine and run at 1/2 throttle with the operator on the machine but raised off the seat.

2. One by one: move the parking brake to the OFF position, traction levers out of the neutral lock position (check each independently), and turn the blades on. Each check should kill the engine after 1/2 second. (A 1/2 second delay is built into the system to prevent engine cutout when traversing rough terrain.)

Repair machine before using if the Operator Presence Interlock System does not operate correctly in start or run. Contact your authorized Woods dealer.

Hardware

Tighten any nuts and bolts found loose. Replace any broken or missing cotter pins. Repair any other problems before operating.

Tire pressure

Tires should be kept inated at 14 lbs/in2 (1.0 kg/cm2). Improper tire ination can cause rapid tire wear and poor traction. Uneven ination can cause uneven cutting.

BATTERY

Battery acid is caustic and fumes

are explosive and can cause serious injury or death.

Use insulated tools, wear protective glasses or goggles and protective clothing when working with batteries. Read and obey the battery manufacturer’s instructions.

Be certain the ignition switch is OFF and the key has been removed before servicing the battery.

1. Verify battery polarity before connecting or disconnecting the battery cables.

2. When installing the battery, always assemble

the RED, positive ( + ) battery cable rst and the

ground, BLACK, negative ( - ) cable last.

4. Check the electrolyte level every 100 hours of operation.

5. Clean the cable ends and battery posts with steel wool. Use a solution of baking soda and water to clean the battery. Do not allow the solution to enter into the battery cells.

6. Tighten cables securely to battery terminals and apply a light coat of silicone dielectric grease to terminals and cable ends to prevent corrosion. Keep terminal covers in place.

3. When removing the battery, always remove the ground, negative ( - ) cable rst and the red, positive ( + ) cable last.

MAINTENANCE

WOODS

2 2

LUBRICATION

Every 50 hours of operation, lubricate the following points (1-4) with grease:

1. Deck lift rockshaft (1 point)

2. Deck lift pivots (6 points)

3. Brake lever pivot (1 point)

4. Push arms (2 points located at rear of cutterdeck under each fuel tank)

5. Isolation mounts (4 points located under seatt at front of machine)

6. Caster wheel pivots (2 points) (Lubricate every 500 hours or once a year)

NOTE ON BLADE SPINDLES - The blade spindles on these machines use a superior sealed bearing that does not require relubrication.

MAINTENANCE

WOODS

HYDRAULIC SYSTEM

Fluid level in the hydraulic system should be checked

after the rst 5 hours of operation, and every 100

hours thereafter, or when a leak has occurred. If the

uid is low, check all components for leaks.

To check, remove reservoir cap M. The uid level should be at the bottom of the ller tube. If low, top up (do not overll). Use one of the oils listed below:

– SAE 15W40 motor oil – SAE 20W50 motor oil – 15W50 synthetic motor oil

AFTER FIRST FIVE (5) HOURS

1. Remove plug N to drain hydraulic reservoir. Dis-

pose of used oil in accordance with local requirements.

2. Clean and replace the plug.

3. Change hydraulic oil lter G.

4. Fill the reservoir with fresh oil to the bottom of

the reservoir ller tube, using an oil from the list above. Do not overll.

PERIODIC OIL CHANGES

Change the hydraulic uid and hydraulic lter

after each 500 hours of operation using the same procedure given above.

NOTES:

Before servicing the hydraulic system, stop the engine, disconnect spark plug wires and disengage the PTO.

– After any hydraulic line is opened, plug or cap it

promptly to reduce the risk of contamination.

– Do not use sealant tape on hydraulic pipe ttings.

Use a liquid sealant that will dissolve into the system.

– Make sure all hydraulic connections are tight and

hydraulic hoses and lines are in good condition before applying pressure to system.

The machine's hydraulic system operates under high pressure. When checking for leaks, do not use your

hands to attempt to nd a leak. Instead, use cardboard or paper. Escaping hydraulic uid can be under sufcient pressure to penetrate skin and cause serious injury. If hydraulic uid is injected into the skin, it must

be promptly removed by a doctor familiar with this form of injury or gangrene may result.

View from below machine

MAINTENANCE

ENGINE OIL

Do not perform engine maintenance without the engine off, spark plug wires disconnected and PTO disengaged.

AFTER FIRST FIVE (5) HOURS

While the engine is warm:

1. Release the oil drain hose assembly from the

engine clip J. Lay hose assembly over the frame edge.

2. Remove the rubber cap D from the tip of the

hose assembly and turn the drain valve to allow oil to drain from the engine. Dispose of used oil in accordance with local requirements.

3. Clean drain valve and tighten the plastic portion of the drain valve back into the metal portion of the valve. Replace rubber cap over the tip of the valve. Replace hose assembly back into engine clip.

4. Change oil lter.

5. Fill the crankcase with fresh oil to the full mark.

Do not overll. See engine manual for oil specications.

WOODS

DAILY

1. Check oil level with the dipstick.

2. If oil is needed, add fresh oil of proper viscosity and grade. See engine manual for oil

specications. Do not overll.

3. Replace dipstick before starting engine.

PERIODIC OIL CHANGES

1. See engine manual for oil and lter change intervals after the break-in period.

2. Follow instructions for rst oil change, above.

SPARK PLUGS

Remove each plug and check condition.

– Good operating conditions are indicated if the plug has a light coating of grey or tan deposit.

– A white blistered coating indicates overheating. A black coating indicates an “over rich” fuel mixture. Both

may be caused by a clogged air cleaner or improper carburetor adjustment.

– Do not sandblast, wire brush or otherwise attempt to repair a plug in poor condition. Best results are

obtained with a new plug.

– Set plug gap as specied in engine manual..

FUEL FILTER

An inline fuel lter is located in the fuel supply line. Inspect at every oil change to make sure it is clean and

unobstructed. Replace if dirty.

MAINTENANCE

WOODS

ENGINE COOLING

Continued operation with a clogged cooling system will cause severe overheating and can result in engine damage.

- Daily: Clean air intake screen S on air cooled

engines.

- Every 100 hours: Clean cooling ns beneath blower housing H with reference to information in the engine manufacturer's manual.

HEAVY DUTY CYCLONIC AIR CLEANER

Clean and replace the air cleaner element as

specied in the service chart. Uneven running, lack

of power or black exhaust fumes may indicate a dirty air cleaner.

To replace air cleaner elements:

1. Unclamp end cover X and remove existing cleaner elements.

2. Insert new elements Y and Z and replace cover. Ensure the breathing port A is pointing down and towards the front of the tractor.

MAINTENANCE

CLEANING MACHINE

Clean the machine after use. The machine will run cooler and last longer if kept free of clippings and other debris. A clean machine also reduces the risk

of re due to accumulation of combustible debris and

chaff

Brush or blow clippings and debris off the cutterdeck and engine deck.

WASHING MACHINE

WOODS

CAUTION: Improperly washing a machine can cause water to enter bearings and other components. This can greatly reduce component life.

– Do not use a pressure washer. Do not direct

water at bearings or seals. High pressure water can blow past seals ad enter seal bearings.

– Allow the machine to cool down before washing.

Water on a warm machine can be sucked into sealed bearings as they cool.

– Avoid getting electrical connections wet. Water

can cause electrical faults and corrosion of electrical components.

MAINTENANCE

WOODS

BLADE REMOVAL

Follow these instructions to prevent injury during blade removal:

1. Loosen with a box wrench or a socket and long

breaker bar. To gain additional leverage, slip a long pipe or thick-walled tube over breaker bar or wrench.

2. Insert wood block A as shown, with grain

perpendicular to blade, to prevent blade from turning when loosening.

3. Wear thickly padded gloves. Keep hands clear

of blade path. Blades may rotate when bolt releases.

BLADE BALANCE

Blade balance must be maintained at 5/8 oz-in (19.4 g-cm) or less. Failure to keep blades balanced causes excess vibration, wear, and shortened life of most components of the machine.

To balance a blade:

1. Sharpen blade rst.

2. Balance the blade at the center.

3. Attach a 1/8 oz (3.9 g) weight at a distance 5" (127 mm) from center on the light end. This should make the light end the heavy end:

– If it does, the blade is balanced.

– If does not, le or grind the heavy end until

the addition of the weight makes the light end the heavy end.

BLADE INSTALLATION

SHARPENING

Blades may be sharpened by ling or grinding.

– Inspect blades before sharpening. – Replace bent or cracked blades. – Replace blades when the lift portion has worn

thin.

– Maintain cut angle at 30

– Do not overheat blades when sharpening. – Always use Woods blades. Use of another

manufacturer’s blades may be dangerous.

1. Wear thickly padded gloves to prevent cuts from the sharp blade.

2. Insert the blade bolt, in order, through the conical washer (cup side toward the blade, as shown), the blade, and the blade spacer.

3. Install assembly on the blade spindle.

4. Torque the blade bolt to 70 ft-lbs.

SPECIFIC TORQUES

BLADE BOLT TORQUE: 70 FT-LBS (95 Nm)

WHEEL HUB NUTS: 175 FT-LBS (237 Nm)

ENGINE CRANKSHAFT BOLT: 50 FT-LBS (68 Nm)

LUG NUTSl 75-100 FT-LBS

ADJUSTMENTS

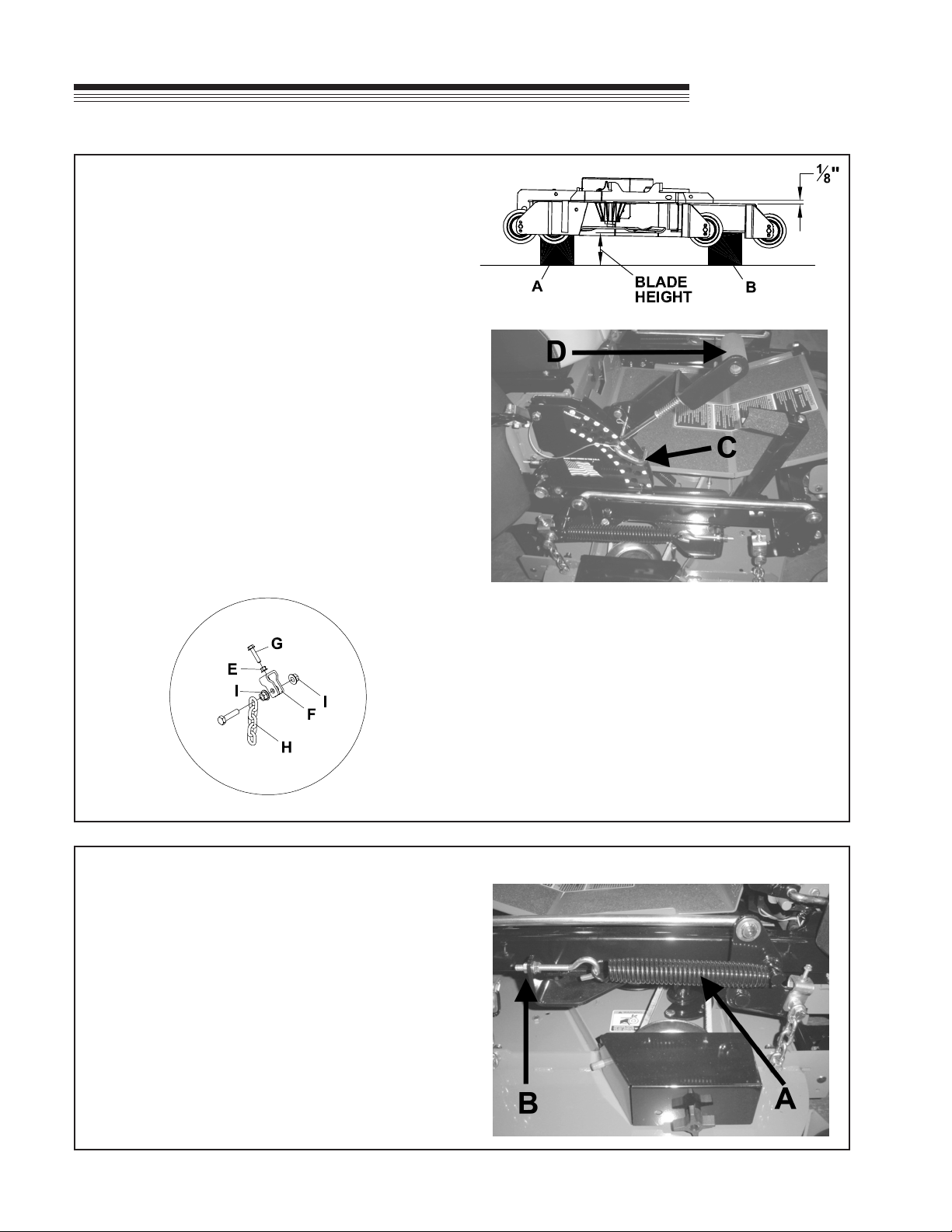

DECK LEVELING

1. Park the machine on a smooth, level surface. Raise the deck to the transport position.

2. Lower the deck onto a set of equal height blocks A under the rear corners of the deck. Place another set of blocks B under the front of the deck so that the deck top is pitched forward 1/8".

NOTE: The front and rear of the deck are at different heights.

3. Measure the height of the blade cutting edge above the ground. Remove pin C and set the height of cut lever D to that height.

4. Loosen nuts I at all four corners of the deck.

NOTE: This will relieve tension on chains H.

5. Loosen the jam nuts E on the height of cut clips F and adjusting screws G. Turn the adjusting screws G until the play is taken out of the chains H at all four corners. Tighten the jam nuts

E against the clips F and at the adjusting screws G. Retighten nuts I at this time.

WOODS

6. COUNTERBALANCE SPRINGS

a) Raise the cutterdeck all the way.

b) Adjust the spring A with nut B:

Approximately 1" of threads should be extending

past the spring mounting bracket at nut B.

The springs may be tightened or loosened from

this point according to personal preference.

ADJUSTMENTS

WOODS

HEIGHT OF CUT

The height of cut is set by moving height of cut pin C to the hole designated for the height of cut desired.

To change the height of cut:

1. Lift the deck to the highest position.

2. Move pin C to the selected hole.

3. Lower the deck until the lift lever is stopped by

the pin.

NOTES:

– Height of cut may vary due to the amount of

tread on the tires, tire diameter or ination pressure.

– For best results, adjust the rear deck rollers for

the height of cut to be used (see below).

REAR DECK ROLLERS

The rear outside deck rollers are adjustable up and down to provide improved deck otation and scalping protection at various heights of cut. They are not intended to ride continuously on the ground. Adjust no closer than 3/8" (10mm) to the ground.

FRONT DECK LIP

Adjustable front deck lips have been provided on 52 in. and 61 in. cutterdecks for various cutting conditions.

To revise per conditions:

1. Loosen the front bolts S.

2. Adjust height of H.

3. Retighten S once you have desired height.

Height of cut ranges for roller adjustment

CONTROL LEVERS

There are two mounting positions for the control levers, upper and lower. The lower position works well for most people. Taller operators may need the upper position.

To adjust the height of the control levers:

– Remove bolts A and nuts B. – Align holes in control lever D with appropriate

holes in traction lever bracket C.

– Install bolts A and nuts B.

The upper mounting hole for the control levers is slotted to allow fore-aft adjustment and to allow alignment of the levers.

To adjust or align the control levers: – Loosen nuts B. – Adjust control lever position. – Tighten nuts B.

ADJUSTMENTS

WOODS

PARKING BRAKE

Park machine on a smooth level surface.

Support the machine with the rear wheels off the ground, using jack stands or equivalent. DO NOT rely on mechanical or hydraulic jacks.

1. Remove rear wheels.

2. Measure spring length O with parking brake N in the OFF position.

3. Move parking brake N to the ON position and measure length of spring O again. When spring

deects 3/8" it is properly adjusted.

4. If adjustment is required, return parking brake N to the OFF position.

5. Disconnect one end of rod M at the brake and loosen jam nut.

6. Adjust rod M in or out as required until 3/8" deection in brake spring O is achieved with park- ing brake N in the ON position.

7. Reconnect rod M and retighten jam nut.

8. Repeat steps 2-7 on opposite side of machine.

9. Replace wheels and tighten wheel nuts.

NOTE: Parking brake must be in the OFF position to properly seat brake drums.

Parking brake assembly (tire and deck not shown

for clarity - brake in ON position).

This adjustment will cause the brake springs to stretch 3/8" when the parking brake is in the ON position, providing the correct parking brake force without overloading the brake arm.

ADJUSTMENTS

WOODS

HYDROSTAT ADJUSTMENTS

A turnbuckle-style hydrostat neutral adjustment is provided.

Neutral:

1. Support the machine with the rear wheels off

the ground. Use jackstands or equivalent support. Do not rely only on mechanical or hydraulic jacks.

2. Move the traction levers out into the neutral lock

position and raise the seat.

3. Disconnect the seat switch wire K and

temporarily connect the two terminals with jumper wire J as shown.

4. Start the engine and run at low speed.

5. Loosen jam nuts T at both ends of the control

rod.

6. Rotate the control rod until the corresponding

wheel stops turning. Lock the jam nuts. Run the engine up to high idle to check the adjustment. Readjust if necessary.

7. Repeat steps 5 and 6 for the opposite side.

8. Remove the jumper wire J and reconnect the

seat switch.

Reverse Return:

1. Move traction levers out to the neutral lock posi-

tion and raise the seat.

2. Locknut U should be run on the bolt as far as it

will go.

3. Loosen jam nut Y. Adjust the clevis yoke by

turning the head of the bolt until the clevis pin just makes contact with the rear of the slot in the lever it connects with. Tighten jam nut Y.

4. Repeat steps 2 and 3 for the opposite side.

Right side adjustments

NOTE: A slight creep in reverse is acceptable

provided the wheel does not turn and the hydrostat pump does not whine when the parking brake is on.

ADJUSTMENTS

CUTTERDECK BELT

1. Tilt oorplate all the way forward.

2. Set the cutterdeck in a middle height-of-cut position.

3. Use a 3/8" ratchet and extension to back tensioning idler off to remove belt from idler. Remove belt from cutterdeck pulleys.

NOTE: Use the 3/8" ratchet in the square hole A on the idler.

4. Remove belt from clutch pulley.

5. Install the new belt by performing these steps in reverse order.

WOODS

Note: Always use Woods replacement belts, not general purpose belts. Woods belts are specially designed for use on commercial mowers and will normally last longer.

TRACKING HANDLES

An adjustment is provided to allow the operator to align the control levers with each other during operation.

1. Turn knob W clockwise to shorten control lever travel.

2. Turn knob W counter-clockwise to increase control lever travel.

DAMPERS

Different damper mounting holes have been provided for various operator preferences with control lever motion.

1. For a stronger resistance feel, mount the dampers X in the outer most hole Z of the motion control weldment.

2. For a lighter resistance feel, mount the dampers X in the inner most hole V of the motion control weldment.

BELT REPLACEMENT

WOODS

PUMP-DRIVE BELT

1. Remove engine-cutterdeck belt (see engine-cutterdeck belt replacement).

2. Attach an extension to a 3/8" drive ratchet. Insert the ratchet extension in the square hole of the pump

drive idler arm. Use the ratchet handle to rotate it enough to remove the pump drive belt.

3. Install a new pump drive belt in the same manner as it was removed.

4. Re-install engine-cutterdeck belt (see engine-cutterdeck belt replacement).

LIMITED WARRANTY

(Mow’n MachineTM Zero-Turn Mowers and Woods BoundaryTM Utility Vehicles)

Please Enter Information Below and Save For Future Reference.

Date Purchased: __________________________ From (Dealer):______________________________________

Model Number: __________________________ Serial Number: _____________________________________

WHAT IS COVERED:

Woods Equipment Company (“WOODS”) warrants Mow’n MachineTM zero-turn mowers and attachments and Woods BoundaryTM utility vehicles, accessories and attachments to be free from defect in material and workmanship for the warranty periods listed below.

FOR HOW LONG:

Mow’n Machine Model #CZ1736K, CZ1948K, CZ1952K, CZ2361, ME1952K, ME2661B, MZ2552K, MZ2561K, MZ2761, MZ3761K, MZ3772K, MZ2661KL & attachments are warranted for two (2) years from the date of delivery to the original purchaser or 2000 hours of operation, whichever occurs first. Purchaser may opt for a warranty of five (5) years from the date of delivery to the original purchaser or 500 hours of operation, whichever occurs first. The dealer must specify the special warranty term on the original, dated bill of sale and a copy must be provided with all warranty claims. Mow’n Machine model numbers CZR2242B and CZR2652B are warranted for residential use for three (3) years from the date of delivery to the original purchaser or for commercial use for 90 days from the date of delivery to the original purchaser..

Mow’n Machine Model #FE21B, FZ21D, FZ23B, FZ25D, FZ28K & attachments are warranted for two (2) years from the date of delivery to the original purchaser or 2000 hours of operation, whichever occurs first.

In addition, Mow’n Machine ME and MZ Series Models, serial number XXXXXXXX300 and above, have a Limited Lifetime Warranty on deck, deck cradle, and engine deck for the life of the machine to the original retail purchaser.

Woods Boundary utility vehicle Model #MAV350, MAV480, MAV4x4, accessories & attachments are warranted for two (2) years from the date of delivery to the original purchaser.

IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN WARRANTY PERIODS LISTED ABOVE. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WHO IS COVERED:

This Warranty is extended solely to the original purchaser of the product. Should the original purchaser sell or otherwise transfer the product to a third party, this Warranty does not transfer to the third party purchaser in any way. There are no third party beneficiaries of this Warranty.

WHAT IS NOT COVERED:

This Warranty does not cover normal wear or tear, or normal maintenance items, or any damage, failure or loss caused by:

1. Improper operation, improper maintenance, misuse, or an accident;

2. Any modification or repair by someone other than WOODS, a WOODS’ authorized dealer or distributor, and/or a WOODS’ authorized service center; or

3. Repairs made with parts other than those obtained through WOODS.

WOODS makes no warranty, express or implied, with respect to engines, batteries, tires or other parts or accessories with respect to which the manufacturer provides a separate warranty.

WHAT WOODS WILL DO TO CORRECT PROBLEMS:

WOODS’ obligation under this Warranty is limited to, at WOODS’ option, the repair or replacement, free of charge, of the product if the product is defective or in noncompliance with this Warranty. The product must be returned to WOODS with proof of purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS shall complete such repair or replacement within a reasonable time after WOODS receives the product.

OTHER LIMITATIONS:

WOODS shall not be liable for any incidental or consequential losses, damages or expenses, arising directly or indirectly from the product, whether such claim is based upon breach of contract, breach of warranty, negligence, strict liability in tort or any other legal theory. Without limiting the foregoing, WOODS shall not be liable for any damages relating to (i) lost profits, business, revenues or goodwill;

(ii) any expense or loss incurred for labor, supplies, substitute machinery or rental; or (iii) any other type of damage to property or economic loss. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

No agent, representative, dealer, distributor, service person, salesperson, or employee of any company, including without limitation, WOODS, its authorized dealers, distributors, and service centers, is authorized to alter, modify, or enlarge this Warranty.

HOW STATE LAW APPLIES:

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

QUESTIONS:

Answers to any questions regarding warranty service and locations may be obtained by contacting:

Woods Equipment Company

2606 South Illinois Route 2 Post Office Box 1000 Oregon, Illinois 61061

800-319-6637 tel 800-399-6637 fax www.WoodsEquipment.com

F-8045 MM & Boundary (Rev. 12/1/2008)

LIMITED WARRANTY

(Mow’n MachineTM Zero-Turn Mower and

Woods Boundary

Utility Vehicle Replacement Parts)

Woods Equipment Company (“WOODS”) warrants replacement parts for Mow’n MachineTM zero-turn

mowers and attachments and Woods Boundary

utility vehicles, accessories and attachments to be free from defect in material and workmanship for a period of ninety (90) days from the date of delivery of the product to the original purchaser.

IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO A PERIOD OF NINETY (90) DAYS FROM THE DATE OF DELIVERY OF THE PRODUCT TO THE ORIGINAL PURCHASER. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This Warranty does not cover normal wear or tear, or normal maintenance items, or any damage, failure or loss caused by improper operation, improper maintenance, misuse, or an accident.

product must be returned to WOODS with proof of purchase within thirty (30) days after such defect or noncompliance is discovered or should have been discovered, routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid. WOODS

shall complete such repair or replacement within a reasonable time after WOODS receives the product.

limiting the foregoing, WOODS shall not be liable for any damages relating to (i) lost profits, business, revenues or goodwill; (ii) any expense or loss incurred for labor, supplies, substitute machinery or rental; or (iii) any other type of damage to property or economic loss. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Answers to any questions regarding warranty service and locations may be obtained by contacting:

Woods Equipment Company

2606 South Illinois Route 2 Post Office Box 1000 Oregon, Illinois 61061

800-319-6637 tel 800-399-6637 fax www.WoodsEquipment.com

F-8495 MM & Boundary Repair Parts (Rev. 2/15/2006)

Woods Equipment Company

2606 South Illinois Route 2

Post Ofce Box 1000

Oregon, Illinois 61061

800-319-6637 tel 800-399-6637 fax www.WoodsEquipment.com

©2008 Woods Equipment Company. All rights reserved. WOODS, the Woods logo, and “Tested. Proven. Unbeatable.” are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that

appear in this manual are the property of their respective companies or mark holders. Specications subject to change without notice.

Woods Equipment MZ2252K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
