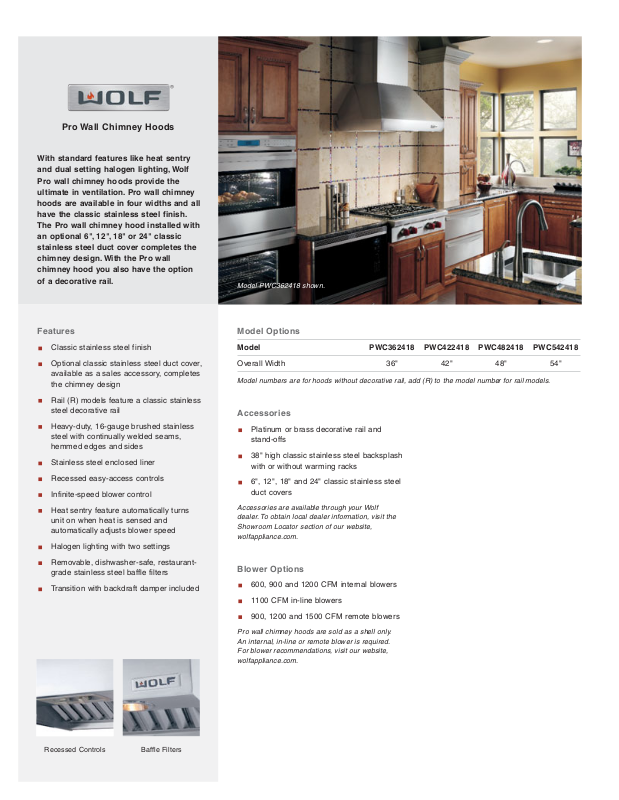

Wolf Pro Wall Chimney Hood Quick Reference Guide
Pro Wall Chimney Hoods
With standard features like heat sentry
and dual setting halogen lighting, Wolf
Pro wall chimney hoods provide the
ultimate in ventilation. Pro wall chimney
hoods are available in four widths and all
have the classic stainless steel finish.
The Pro wall chimney hood installed with
an optional 6", 12", 18" or 24" classic
stainless steel duct cover completes the
chimney design. With the Pro wall
chimney hood you also have the option
of a decorative rail.
Model Options
Model PWC362418 PWC422418 PWC482418 PWC542418
Overall Width 36" 42" 48" 54"
Model numbers are for hoods without decorative rail, add (R) to the model number for rail models.
Blower Options
600, 900 and 1200 CFM internal blowers
1100 CFM in-line blowers
900, 1200 and 1500 CFM remote blowers
Pro wall chimney hoods are sold as a shell only.
An internal, in-line or remote blower is required.
For blower recommendations, visit our website,
wolfappliance.com.
Model PWC362418 shown.
Recessed Controls Baffle Filters
Features
Classic stainless steel finish
Optional classic stainless steel duct cover,
available as a sales accessory, completes
the chimney design
Rail (R) models feature a classic stainless
steel decorative rail
Heavy-duty, 16-gauge brushed stainless
steel with continually welded seams,
hemmed edges and sides
Stainless steel enclosed liner
Recessed easy-access controls
Infinite-speed blower control
Heat sentry feature automatically turns
unit on when heat is sensed and
automatically adjusts blower speed
Halogen lighting with two settings
Removable, dishwasher-safe, restaurantgrade stainless steel baffle filters
Transition with backdraft damper included
Accessories
Platinum or brass decorative rail and
stand-offs
38" high classic stainless steel backsplash
with or without warming racks
6", 12", 18" and 24" classic stainless steel
duct covers
Accessories are available through your Wolf
dealer. To obtain local dealer information, visit the
Showroom Locator section of our website,
wolfappliance.com.
Installation Notes
Pro wall chimney hoods are sold as a shell
only. An internal, in-line or remote blower is
required. For blower recommendations, visit
our website, wolfappliance.com.
IMPORTANT NOTE: Pro wall chimney
ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal
performance, a Pro 27" deep wall hood is
recommended for use with ranges and
rangetops that contain a charbroiler or
griddle.
Unit dimensions may vary by ±1/8".
Specifications
Exterior Finish Classic Stainless Steel
Overall Widths 36", 42", 48" and 54"
Overall Height 18"
Overall Depth 24"
(including rail) 26"
Bottom of Hood to Countertop 30" to 36"
Discharge Vertical
Duct Size 10" Round
Electrical Requirements 110/120 V AC
60 Hz, 15 amp dedicated circuit
Shipping Weight 78–106 lbs
Wall Chimney Hood
Wall Chimney Hood—Rail (R) Model
Installation Specifications
Overall Dimensions
Pro Wall Chimney Hoods
Dimensions in parentheses are in
millimeters unless otherwise specified.
SUBTRACT 18" (457) FROM OVERALL WIDTH
TOP WIDTH
OVERALL WIDTH
SUBTRACT 18" (457) FROM OVERALL WIDTH
TOP WIDTH
OVERALL WIDTH
LOCATION OF
ELECTRICAL
WIDTH OF HOOD
30" TO 36"
(762–914)
TO COUNTERTOP
6"
(152)
5"
(127)
E
18" (457)
OVERALL
HEIGHT
4" (102)
18" (457)
OVERALL
HEIGHT
131/2"
(343)
24" (610)
OVERALL DEPTH
131/2"
(343)
24" (610)
OVERALL DEPTH
18" (457)
HEIGHT
OF HOOD
30" TO 36"
(762–914)
TO COUNTERTOP
4" (102)
3
/4" (19)
DIAMETER
OF RAIL
2"
(51)
DEPTH OF HOOD
24" (610)
NOTE: Pro wall chimney hoods have a vertical discharge.
