Wolf MM15TFS Installation manual

Multifunction Cooktop Installation Guide

MULTIFUNCTION COOKTOP

Contents

3 Multifunction Cooktop

4 Specications

7 Installation

7 Troubleshooting

Features and specications are subject to change at any
time without notice. Visit wolfappliance.com/specs for the
most up-to-date information.

Important Note

To ensure this product is installed and operated as safely
and efciently as possible, take note of the following types
of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

2 | Wolf Customer Care 800.222.7820

MULTIFUNCTION COOKTOP

Product Information

Important product information including the model and
serial number are listed on the product rating plate. The
rating plate is located on the bottom of the cooktop. Refer
to the illustration below.

If service is necessary, contact Wolf factory certied service
with the model and serial number. For the name of the
nearest Wolf factory certied service or for questions
regarding the installation, visit the contact & support section
of our website, wolfappliance.com or call Wolf customer
care at 800-222-7820.

RATING PLATE

Rating plate location.

wolfappliance.com | 3

SPECIFICATIONS

Installation Requirements

A minimum 2" (51) is required from the bottom of the
cooktop to combustible materials. If the cooktop is installed
above an oven, a minimum of
units. Refer to the illustration on page 6 for additional
minimum clearances.

WARNING

Failure to locate the cooktop without proper clearances
will result in a re hazard.

MULTIPLE COOKTOPS

When multiple cooktops or modules are installed side by
side, the countertop cut-out width is determined by adding
the width of each unit, then subtracting 1"
illustration below.

1

/4" (6) is required between

(25). Refer to the

21/2" (64)

Electrical

Installation must comply with all applicable electrical codes.

Locate the electrical supply as shown in the illustration on
page 6. A separate circuit, servicing only this appliance is
required. A ground fault circuit interrupter (GFCI) is not rec­ommended and may cause interruption of operation.

When multiple cooktops or modules are installed side by
side, each unit must have its own separate recommended
electrical circuit.

ELECTRICAL REQUIREMENTS

Electrical Supply grounded, 120 VAC, 60 Hz

Service 15 amp dedicated circuit

Receptacle 3-prong grounding-type

Power Cord 6'

(1.8 m)

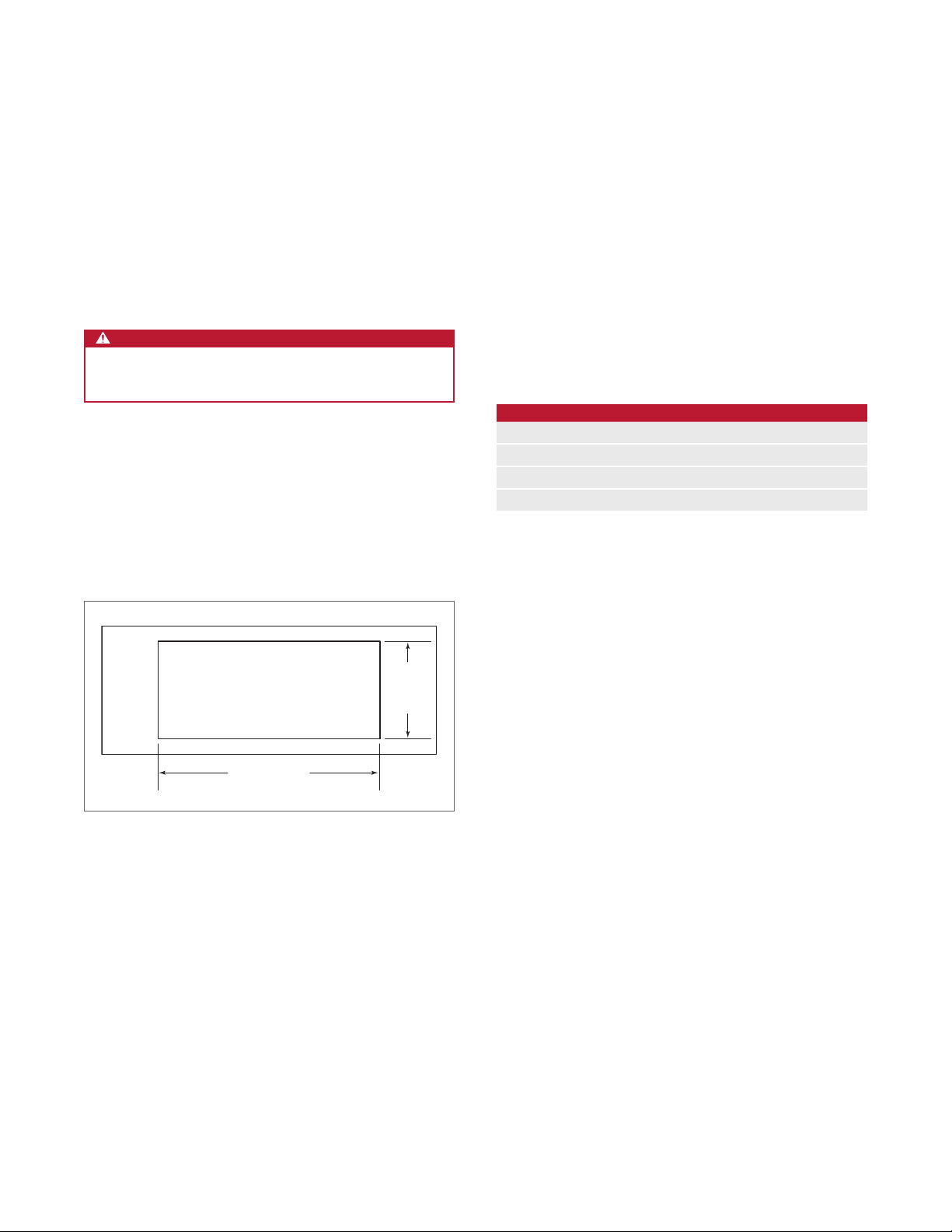

(COMBINED WIDTH OF COOKTOPS MINUS

Countertop cut-out.

CUT-OUT WIDTH

1")

191/2"

(495)

CUT- OUT

DEPTH

21/2" (64)

4 | Wolf Customer Care 800.222.7820

SPECIFICATIONS

Gas Supply

Installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code.

Locate the gas supply as shown in the illustration on the
following page.

The cooktop is equipped for use with natural or liquid
propane (LP) gas. It is design certied by the Canadian
Standards Association (CSA) for natural or LP gases. The
product rating plate has information on the type of gas that
should be used. For rating plate location, refer to the illustra­tion below. If this information does not agree with the type
of gas available, check with the local gas supplier. The gas
pressure regulator is built into the unit.

GAS REQUIREMENTS

NATURAL GAS WC

Supply Pressure 5" (12.5 mb)
Min Line Pressure 7" (17.5 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)

LP GAS WC

Supply Pressure 10" (25 mb)
Min Line Pressure 11" (27.4 mb)
Max Regulator Pressure 14" (34.9 mb), .5 psi (3.5 kPa)

The cooktop must be connected to a regulated gas supply.
The supply line must be equipped with an approved external
gas shut-off valve located near the cooktop in an accessible
location. Do not block access to the shut-off valve. Refer to
the illustration below.

3

A gas supply line of
the cooktop. If local codes permit, a certied, 3'

1

/2" (13) or 3/4" (19) ID exible metal appliance connector is

recommended to connect the units

/4" (19) rigid pipe must be provided to

(.9 m) long,

1

/2" NPT male inlet to
the gas supply line. Pipe joint compounds, suitable for use
with natural or LP gas should be used.

The appliance and its shut-off valve must be disconnected
from the gas supply piping system during any pressure
testing of the system at test pressures in excess of .5 psi

(3.5 kPa)

. The appliance must be isolated from the gas
supply piping system by closing its individual manual shut­off valve during any pressure testing of the system at test
pressures equal to or less than .5 psi

Wolf natural gas cooktops will function up to 10,250'

(3124 m)

will function up to 8,600'

in altitude without adjustment and LP gas cooktops

(2621 m). If the installation exceeds

(3.5 kPa).

these elevations, contact your authorized Wolf dealer for a
high altitude conversion kit.

RATING PLATE

Rating plate location.

SHUT-OFF VALV E

OPEN POSITION

Gas shut-off valve.

GAS SUPPLYTO APPLIANCE

wolfappliance.com | 5

SPECIFICATIONS

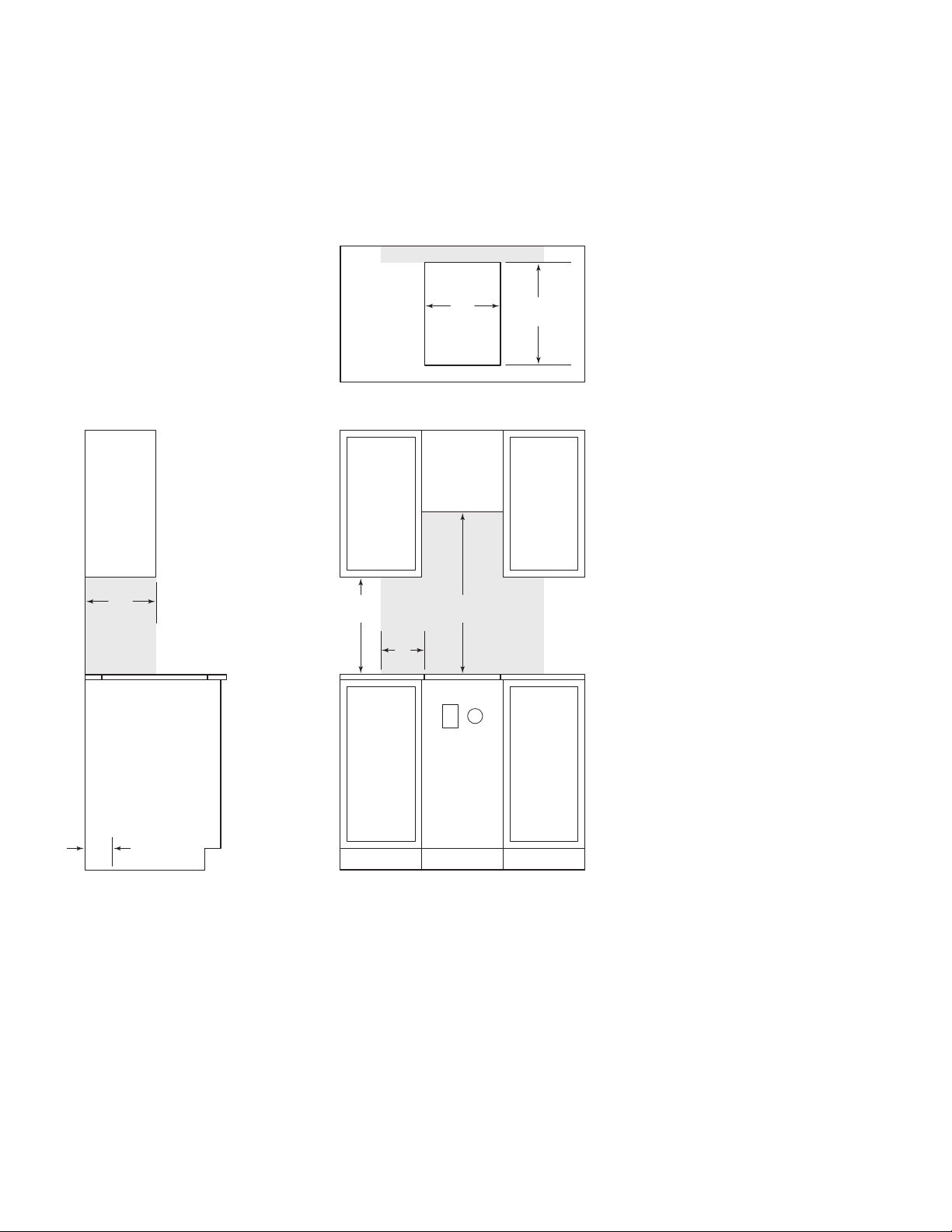

Multifunction Cooktop

INSTALLATION

21/2" (64)

13"

(330)

18"

(457)

14"

(356)

COUNTERTOP CUT-OUT

30"

(762)

7"

(178)

E G

191/2"

(495)

21/2" (64)

ELECTRICAL

AND GAS FLOOR

5"

(127)

NOTE: Shaded area above countertop indicates minimum clearance to combustible surfaces,
combustible materials cannot be located within this area.

LOCATION

FRONT VIEWSIDE VIEW

6 | Wolf Customer Care 800.222.7820

INSTALLATION

Cooktop Installation

Remove cooktop and components from the shipping
package and recycle packing materials.

1 Lower the cooktop into the countertop cut-out. Center

the cooktop in the opening with the front edge aligned
parallel to the front edge of the countertop. Using a
pencil, outline the rear edge of the cooktop on the coun­tertop. Remove the cooktop.

2 Apply the foam strip to the perimeter of the countertop

opening. Refer to the illustration below. Do not seal the
cooktop to the countertop.

3 Insert the cooktop into the opening, aligning the rear

edge with the pencil line. Verify the cooktop is aligned
with the front edge of the countertop.

4 To attach brackets to the sides of the cooktop, insert

clips into the side punchouts and press down. Install
clamping screws into the brackets and tighten until
screws contact the underside of the countertop. Do not
overtighten. Refer to the illustration below.

FOAM STRIP

Gas Supply Connection

All connections to the gas piping must be wrench-tightened.
Do not overtighten or allow pipes to turn when tightening.

1 If a exible metal connector is being used, verify it is not

kinked, then attach the gas supply line to the regulator
on the cooktop.

2 Open the valve and check for leaks by placing a liquid

detergent solution onto all gas connections. Bubbles
around connections indicate a gas leak. If a leak
appears, close the shut-off valve and adjust connections.

Troubleshooting

IMPORTANT NOTE: If the cooktop does not operate prop-

erly, follow these troubleshooting steps:

• Verify electrical power is supplied to the cooktop.

• Verify the gas supply shut-off valve is in the open

position.

• If the cooktop does not operate properly, contact Wolf

factory certied service. Do not attempt to repair the
cooktop. Wolf is not responsible for service required to
correct a faulty installation.

COUNTERTOP

CLIP

CLAMPING

BRACKET

Cooktop installation.

Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero,
Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, and Ingredients are registered trademarks and service marks
of Sub-Zero, Inc. All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.

SCREW

wolfappliance.com | 7

WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820

9003608 REV-B 3/2015
