Wilbur Curtis SLG User Manual

Fi n d o u t m o r e

o n t h e w e b .

WILBURCURTIS.COM

Models Included
SLG

CAUTION: Please use
this setup procedure

before attempting to
use this grinder. Failure to follow
the instructions can result in injury

or the voiding of the warranty.

Wi l b u r Cu r t i s Co m p a n y , in C .

Service Manual – Low Prole Grinder

Important Safeguards/Conventions

This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed
by an authorized Wilbur Curtis service center.

• Do NOT immerse the unit in water or any other liquid

• To reduce the risk of re or electric shock, do NOT open top panel. No user serviceable parts inside. Repair should

be done only by authorized service personnel.

• Keep hands and other items away from hot parts of unit during operation.

• Never clean with scouring powders or harsh implements.

Conventions

WARNINGS – To help avoid personal injury Important Notes/Cautions – from the factory

QUICK START & SETUP - SLG

1. Install the grinder on a rm, level counter top in a location where it can be connected to a grounded electrical outlet of

120VAC, rated at 15 amps.

2. Test the unit by running some whole bean coffee through the grinder. If any problems are encountered, refer to the
troubleshooting section complete at www.wilburcurtis.com or call Technical Support at 800-995-0417.

WARNING TO AVOID
SCALDING, Do not
remove brewcone while

brew light is ashing.

C

ISO 9001 REGISTERED

WILBUR CURTIS COMPANY

Montebello, CA 90640

OPERATING INSTRUCTIONS - SLG

The SLG grinder is adjusted at the factory to grind 2 - 2.5 ounces of medium roast coffee.

1. Lift off the clear hopper lid and ll the hopper with whole coffee beans.

2. Place a new lter into your brew cone. Slide the brew cone into the brew cone rails on the grinder.

3. Push the START switch on the front panel. The SLG will start to grind coffee into the brew cone.

4. Wait for the grinder motor to stop before removing the brew cone.

ADJUSTING THE GRINDS

Refer to illustration, page 2. This adjustment may change the amount of ground coffee dispensed.

1. Empty hopper of coffee beans. Run grinder to clear grinding burrs of coffee.

2. Open housing cover to locate adjustment screw (8) and lock nut (7). Loosen lock
nut.

3. Run motor during adjustment. Turning adjustment screw clockwise will result in a
ner grind (if, while turning, you hear the grinding burrs starting to touch, immedi­ately, back off 1/8th turn). Turning counter clockwise will produce a coarser grind.

4. With a screwdriver holding the adjustment screw in place, tighten the locknut.

5. Run some coffee beans through the machine to check the grind adjustment.

6. Replace front cover on machine.

CHANGING A BROKEN SHEAR DISK

1. Unplug the power cord.

2. Open the hopper and remove any coffee beans, then open the front cover.

3. On the grind motor assembly, take out the two thumb screws (10) and remove the grind cap (6).

4. Pull out the grinding burr/feed worm assembly (2). The inner half of grinding burrs will remain within the housing.

5. Separate the shear cap (5) and shear drive (3). The broken shear disk (4) should fall out from the slot on the drive.

6. Inspect and clean the housing (1) of any coffee or debris. Especially, look for something that could have caused the
shear disk to break.

For the Latest speciFications and inFormation go to www.wiLburcurtis.com

1

CHANGING A BROKEN SHEAR DISK (CONTINUED)

7. Re-insert the feed worm and grinding burr on the motor shaft.

8. Push the shear drive through the burr/feed worm assembly and align the large slot with tongue on motor shaft.

9. Rotate the burr/feed worm assembly to align the slot with the narrow slot on shear drive.

10. Slip a new shear disk into the slot. Cover with the shear cap. Replace the grind cap and thumb screws.

11. Return power to the unit.

TIMER ADJUSTMENT

ILLUSTRATED PARTS LIST

GRINDER MOTOR

SETTING TIMER ON SLG GRINDER

1. Take off timer cover (behind hopper) removing four screws. Locate timer.

2. Timer controls are one high/low switch, allowing you to select a scale on timer dial; outside scale range is .5 through
15, inside scale range is 2 to 60.

3. Test adjustment by grinding some coffee. When amount is satisfactory, reinstall timer cover.

NOTE: Time settings in
this table are only ap­proximate. Amounts will

vary with grind texture and specic

coffee bean. Weigh your output, then

make adjustments as necessary

1

2

4

5

8

6

3

7

11

10

INDEX

NUMBER

1
2
3
4

9

5
6
7
8
9
10
11

PART

NUMBER

WC-9135
WC-37284
WC-91026
WC-91024
WC-9107-6
WC-91016
WC-91017
WC-91015
WC-91045
WC-91021
WC-91020

DESCRIPTION

MOTOR CRUSHING GRINDER ASSY 120VAC

KIT, GRINDER CHUTE NEW STYLE

CAPACITOR, COFFEE GRINDER ASSY
SHEAR DRIVE COFFEE GRINDER

SHEAR DISK, 6 PCS
CAP, SHEAR DISK GRINDERS

COVER, GRINDER HOUSING W/LABEL
SCREW & THRUST PIN ADJUSTING ASSY
BURRS, SET CRUSH HIGH FLOW
SPRING, TENSION COFFEE GRINDER
WORM FEEDING ASSY CCG

2

PARTS

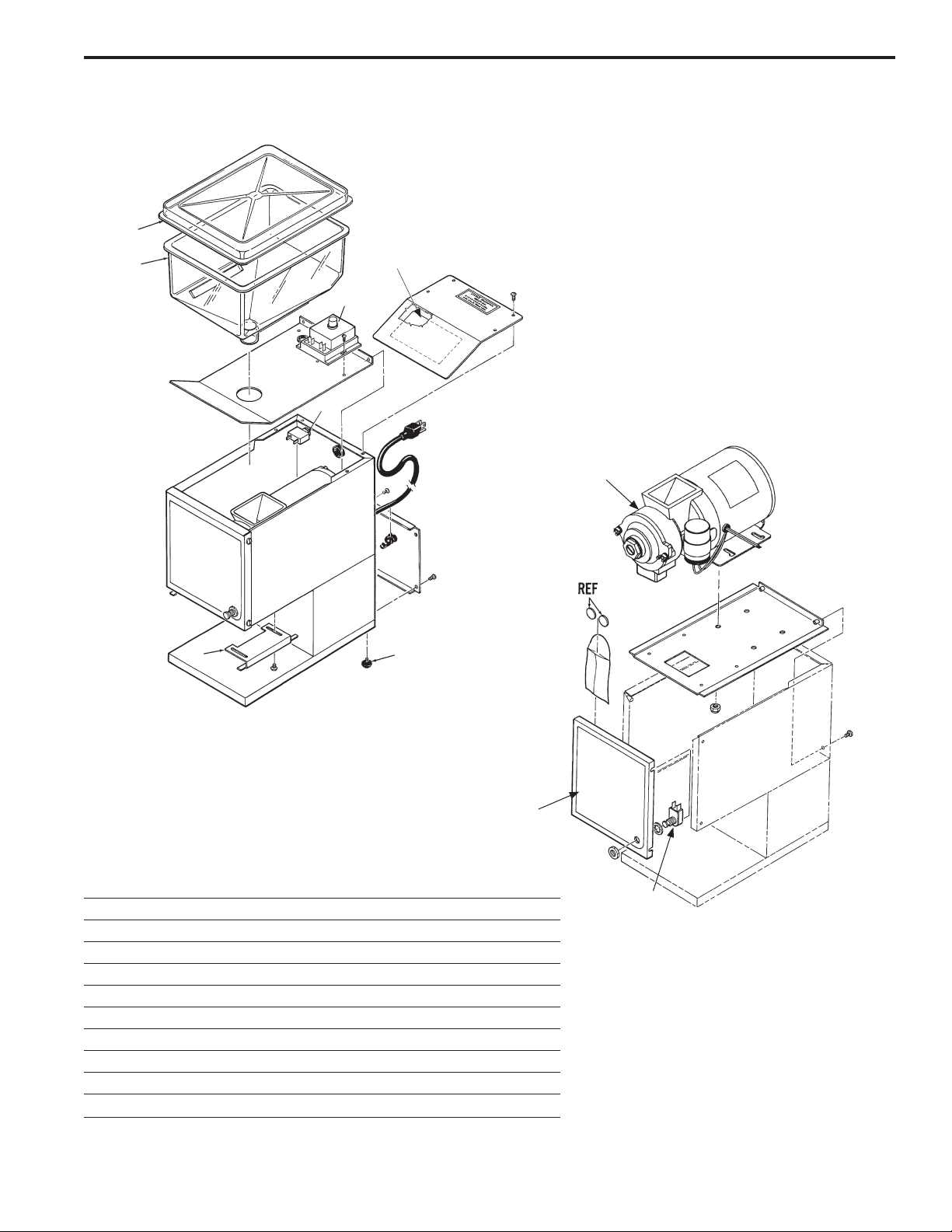

DIAGRAMS

1

2

9

3

4

7

6

5

INDEX

NUMBER

1

2

3

4

5

6

7

8

9

10

PART

NUMBER

WC-9178

WC-9169

WC- 628

WC-1504

WC-3502

WC-6550

WC-9135

WC-38027

WC-38339

WC- 101

DESCRIPTION

HOPPER COVER, CLEAR PLASTIC

HOPPER

TIMER

CIRCUIT BREAKER

FOOT, RUBBER WITH 8-32 STUD

RAILS, BREW CONE

MOTOR, 120V

LABEL, FRONT COVER SLG

LABEL, TIMER SLG

SWITCH, START

8

10

3

ELECTRICAL
SCHEMATIC

4

ROUGH-IN DRAWING

SLG GRINDER

Product Warranty Information

The Wilbur Curtis Company certies that its products are free from defects in material and workmanship under normal
use. The following limited warranties and conditions apply:

3 Years, Parts and Labor, from Original Date of Purchase on digital control boards.

2 Years, Parts, from Original Date of Purchase on all other electrical components, ttings and tubing.

1 Year, Labor, from Original Date of Purchase on all electrical components, ttings and tubing.

Additionally, the Wilbur Curtis Company warrants its Grinding Burrs for Forty (40) months from date of purchase or 40,000 pounds
of coffee, whichever comes rst. Stainless Steel components are warranted for two (2) years from date of purchase against leaking
or pitting and replacement parts are warranted for ninety (90) days from date of purchase or for the remainder of the limited warranty
period of the equipment in which the component is installed.
All in-warranty service calls must have prior authorization. For Authorization, call the Technical Support Department at 1-800-995-

0417. Effective date of this policy is April 1, 2003.
Additional conditions may apply. Go to www.wilburcurtis.com to view the full product warranty information.

CONDITIONS & EXCEPTIONS
The warranty covers original equipment at time of purchase only. The Wilbur Curtis Company, Inc., assumes no responsibility for
substitute replacement parts installed on Curtis equipment that have not been purchased from the
Wilbur Curtis Company, Inc. The Wilbur Curtis Company will not accept any responsibility if the following conditions are not met. The
warranty does not cover and is void under the following circumstances:

1) Improper operation of equipment: The equipment must be used for its designed and intended purpose and function.

2) Improper installation of equipment: This equipment must be installed by a professional technician and must comply with all
local electrical, mechanical and plumbing codes.

3) Improper voltage: Equipment must be installed at the voltage stated on the serial plate supplied with this equipment.

4) Improper water supply: This includes, but is not limited to, excessive or low water pressure, and inadequate or uctuating
water ow rate.

5) Adjustments and cleaning: The resetting of safety thermostats and circuit breakers, programming and temperature
adjustments are the responsibility of the equipment owner. The owner is responsible for proper cleaning and regular

maintenance of this equipment.

6) Damaged in transit: Equipment damaged in transit is the responsibility of the freight company and a claim should be
made with the carrier.

7) Abuse or neglect (including failure to periodically clean or remove lime accumulations): Manufacturer is not responsible for
variation in equipment operation due to excessive lime or local water conditions. The equipment must be maintained accord­ ing to the manufacturer’s recommendations.

8) Replacement of items subject to normal use and wear: This shall include, but is not limited to, light bulbs, shear disks, “0”
rings, gaskets, silicone tube, canister assemblies, whipper chambers and plates, mixing bowls, agitation assemblies and
whipper propellers.

9) Repairs and/or Replacements are subject to our decision that the workmanship or parts were faulty and the defects showed
up under normal use. All labor shall be performed during regular working hours. Overtime charges are the responsibility of
the owner. Charges incurred by delays, waiting time, or operating restrictions that hinder the service technician’s ability to
perform service is the responsibility of the owner of the equipment. This includes institutional and correctional facilities.
The Wilbur Curtis Company will allow up to 100 miles, round trip, per in-warranty service call.

RETURN MERCHANDISE AUTHORIZATION: All claims under this warranty must be submitted to the Wilbur Curtis Company
Technical Support Department prior to performing any repair work or return of this equipment to the factory. All returned equip­ment must be repackaged properly in the original carton. No units will be accepted if they are damaged in transit due to improper
packaging. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA). RMA
NUMBER MUST BE MARKED ON THE CARTON OR SHIPPING LABEL. All in-warranty service calls must be performed by an
authorized service agent. Call the Wilbur Curtis Technical Support Department to nd an agent near you.

WILBUR CURTIS CO., INC.

6913 Acco St., Montebello, CA 90640-5403 USA
Phone: [phone] Fax: [phone]

Technical Support Phone: [phone] (M-F 5:30A - 4:00P PST) E-Mail: [e-mail]
Web Site: www.wilburcurtis.com

FOR THE LATEST SPECIFICATION INFORMATION GO TO WWW.WILBURCURTIS.COM
