Wilbur Curtis CBHT User Manual

Model
CBHT

Wilbur Curtis Company, inC.

Service Manual – Combo Brewer Twin

Important Safeguards/Symbols

This equipment is designed for commercial use. Any servicing other than cleaning and routine maintenance
should be performed by an authorized Wilbur Curtis Company Service Technician.

• DO NOT immerse the unit in water or any other liquid

• To reduce the risk of re or electric shock, DO NOT open service panels. There are no user serviceable
parts inside.

• Keep hands and other items away from hot areas of the unit during operation.

• Never clean with scouring powders or harsh chemicals.

Symbols:

WARNINGS – To help avoid personal injury

Important Notes/Cautions – from the factory

Sanitation Requirements

This Curtis Generation 3 Unit is Factory Pre-Set and Ready to Go Right from the Box.
Following are the Factory Settings for your G3 Coffee Brewing System:

• Brew Temperature = 204°F • Water Bypass = On for LARGE Brew Only

• Brew Volume = Set to Vessel Requirement.
System Requirements:

• Water Source 20 – 90 PSI (Minimum Flow Rate of 1 GPM)

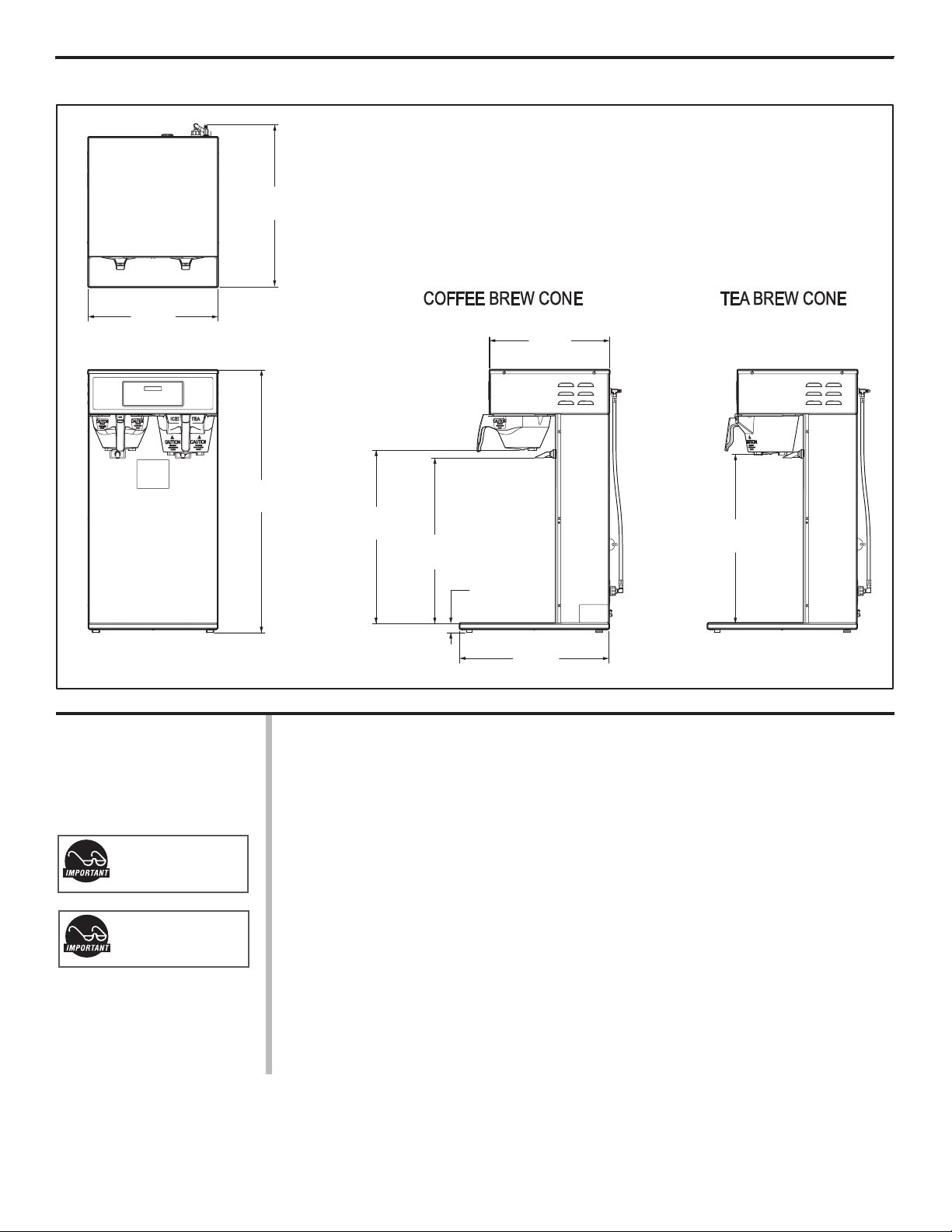

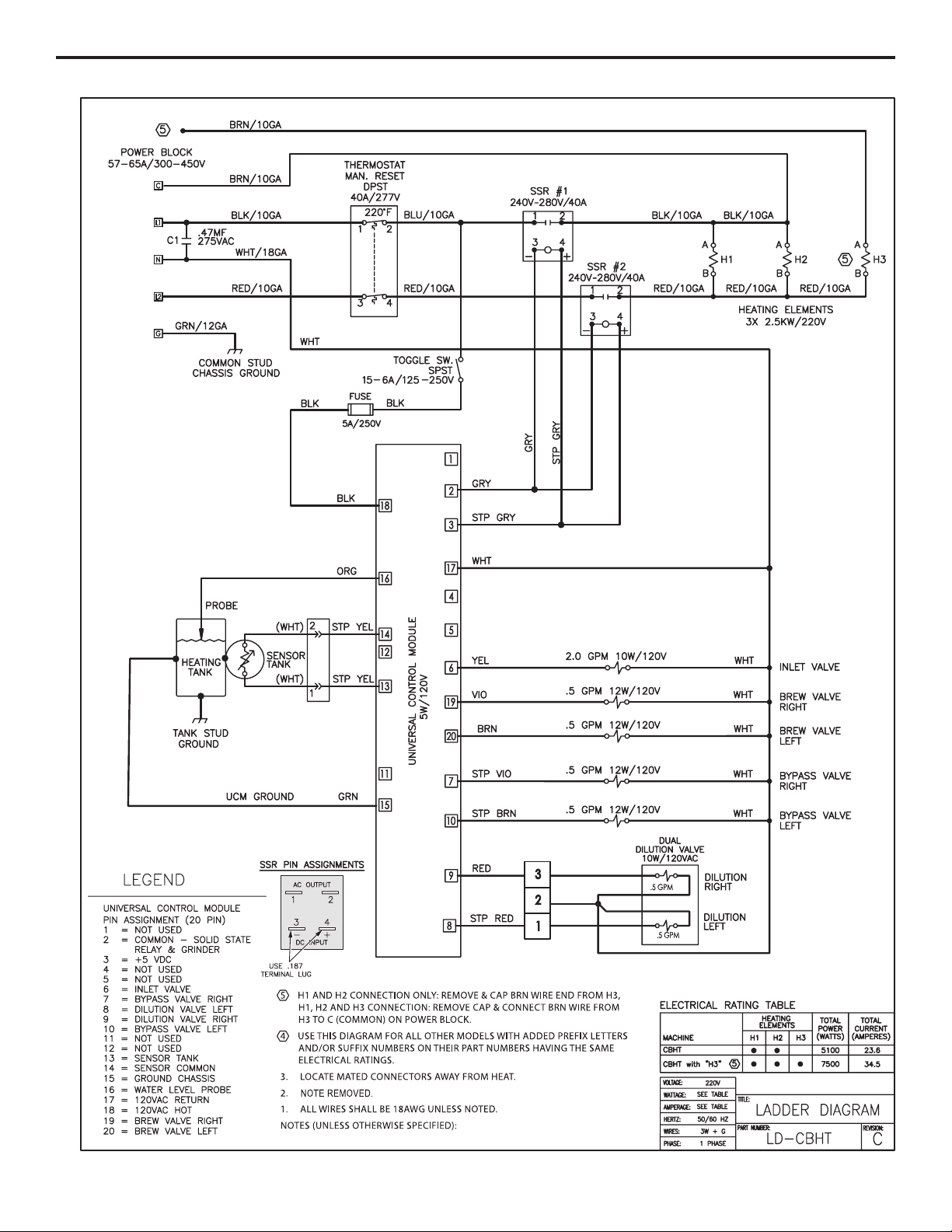

• Electrical: See attached schematic for standard model or visit www.wilburcurtis.com for your model.

CAUTION: Please use
this setup procedure
before attempting to use

this brewer. Failure to follow the
instructions can result in injury or the

voiding of the warranty.

IMPORTANT: Equipment
to be installed to comply
with applicable govern-

mental plumbing/electrical codes

having jurisdiction.

CAUTION: DO NOT

connect this brewer to hot
water. The inlet valve is

not rated for hot water.

ISO 9001:2008 REGISTERED

WILBUR CURTIS CO., INC.

6913 West Acco Street

Montebello, CA 90640-5403

For the latest information go to

www.wilburcurtis.com

Tel: [phone]

Fax: [phone]

SETUP STEPS

1. The unit should be level (left to right - front to back), on a secure surface.

2. Connect the water line to the water inlet tting on the rear of the unit. Water volume ow to the machine
should be consistent. Use tubing sized sufciently to provide a minimum ow rate of one gallon per minute.

NOTE: A water ltration system must be used to help maintain trouble-free operation. Air must
be purged from the cartridge prior to connection to equipment. In areas with extremely hard
water, we highly recommend the use of a Curtis approved water lter. For our full line of lters,
please log on to www.wilburcurtis.com.

NSF International requires the following water connection:

1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) is required so

that the unit can be moved for cleaning.

2. This unit must be installed with adequate backow protection to comply with applicable federal,

state and local codes.

3. Water pipe connections and xtures directly connected to a portable water supply shall be sized,
installed and maintained in accordance with federal, state, and local codes.

3. Connect the unit to electrical outlet with appropriate amperage rating (see serial tag on machine).

4. Once power has been supplied to the unit, ip the toggle switch to the ‘ON’ position (located on the rear of
the unit), the water tank will begin to ll. When the water level in the tank reaches the probe, the heating
element(s) will turn on.

5. Water in the heating tank will require approximately a half hour before reaching operating temperature
(factory setting of 204°F). Where applicable, turn on the Universal Control Module (UCM). When the unit
reaches operating temperature, it will display “READY TO BREW”.

FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM

1

COFFEE BREWING INSTRUCTIONS

1. Brewer should be ON (Conrm at rear toggle switch, then press the ON/OFF button). Ready-to-Brew should be on the display.

2. Place an empty coffee container under the brewcone. Make sure the container is open at the top and it is centered under the brew-

cone.

3. Place a clean lter into
the brewcone marked
“COFFEE”.

WARNING TO AVOID SCALDING, Do not remove the brewcone or coffee container until the
UCM screen indicates that the brew cycle has nished.

4. Fill the brewcone with the
proper amount of ground

coffee.

5. Slide the lled brew-

cone into rails on the
brewer.

6. Select the appropriate
COFFEE brew button and
press to start the brew

cycle.

TEA BREWING INSTRUCTIONS

1. Brewer should be ON (Conrm at rear toggle switch, then press ON/OFF button) and Ready-to-Brew displayed.

2. Make sure tea container is correctly placed on the brew deck, centered under the brewcone.

3. Place a new lter into
the brew basket. Pour

leaf tea into the brew-

cone marked ICED
TEA.

2

4. Slide the tilled brew cone

into brew rails.

5. Slide container all the
way in against the cen-

ter wrap.

6. Press the TEA BREW

button to start brewing
tea.

Your Curtis G3/Gold Cup Series is Factory Pre-Set for Optimum Performance.

After connection to water and power; the rear toggle switch must be on. You will hear a beep sound, indicating power is available to the controller.

The control displays . Press ON/OFF button and the screen will display . After three seconds, is displayed.

CURTIS

Water will ll the tank (approximately 2-3 minutes depending on water ow rate). When the proper level is reached will appear on the screen.
It takes approximately 20 minutes to reach the set point temperature.

Control will display when temperature reaches the set point. The unit is now ready to brew.

CURTIS

READY TO BREW

<CBHVT>

CURTIS

CURTIS

HEATING

CURTIS
FILLING

Programming with the Universal Control Module (UCM)

Turn off the control panel by pressing ON/OFF button. Press and hold bottom/right coffee brew button (#4 in illustration) and then press and release the ON/OFF button.

ENTERING

Continue holding the bottom-right brew button. The screen will display , wait until is displayed. Enter the 4-digit access code, the code corresponds to
the buttons illustrated below. The default code set at the factory is 1-2-3-4.

After the 4-digit code is entered, will be displayed. You can now enter the program menu features.

PROGRAM MENUS

< SELECT >

PROGRAM MODE

ENTER CODE

– – – –

All programming selections are performed with the three center buttons.

The symbols near the buttons are:

Scroll LEFT

 SELECTION or ENTER to save new parameter

Scroll RIGHT

431 2

PROGRAM MENUS COMBO BREWER

Program Menus

Global Recipes

Non-Brew Program

Temperature

Energy Save Mode

Brew Count Odom

From Program Menus press > display will show the next feature Global Recipes.

Global Recipes (Factory set to Gourmet STD)

This is a coffee option. Press  to select. If selected, press < or > to chose a coffee recipe: Gourmet STD, Light Roast, Dark
Roast, High Yield, Filter Pack, or Decaf. Press  to select the desired recipe.

Non-Brew Program

Press  to Select or < > to pass by these options and continue to the next group. The selections for Non-Brew Program are
listed below.

Temperature (Factory set to 204ºF)

Press  to Select. Press < or > to move to desired temperature and then  to set. Temperature is programmable from 170ºF
to 208ºF in 2-degree increments.

Energy Save Mode (Factory set to OFF)

Press  to Select, < or > ON, OFF or ON 140ºF ,  to set. When in ON, unit will automatically shut off 4 hours from last
brew. When feature is OFF, unit does not utilize the energy saving mode.
In the ON 140ºF position, temperature lowers to 140ºF, if unit has not brewed in 4 hours. This feature will save energy by main­taining a lower temperature in the tank in periods of non-operation.

Brew Count Odom

Press  to display total brew cycles. Press EX or Reset.

Brew Count Total

Brew Count Total

Press  to Select, Shows total gallons and total brew cycles on the unit. Cannot be reset.

3

Cold Brew Lock

Master Reset

Cold Brew Lock . . . (Factory set to 5º )

Press  to select, < or > to select desired setting (CBL 5, 15 or OFF), to set.
The Cold Brew Lock feature allows the brewer to brew at three different temperature levels from the actual set point. The rst
setting is within 5 degrees of set point, next is within 15 degrees of set point, OFF is within 30 degrees of set point for the Ready
to Brew message, however, it will brew at any temperature.

Master Reset

Press  to display Are You Sure?
Then < for Yes, > for No. Brewer factory defaults are then reset.

Service Call

Access Code

Banner Name

P-Maintenance

Beeper On/Off

Coffee

Drip-out Mode

Tea

Drip-out Mode

Service Call (Phone number Factory set to 1-800-000-0000 X0000)

Press  to display number and change number or < to move place and EX to exit when complete. This number will be dis­played during a Heating system SENSOR ERROR or during a WATER ERROR.

Access Code (Factory set to 1-2-3-4)

Press  to display number and change number, (the number can be changed 1 to 4) or < to move place and EX to exit when
complete.

Banner Name (Factory set to CURTIS)

Press  to display letters and change letters or < to move place and EX to exit when complete
This feature allows up to 14 letters to be programmed for company name or regional name. Programming all blanks disables
Banner Name. If programmed, Banner Name is displayed every 5 sec. on and off.

P-Maintenance (Factory set to OFF)

Press  to Select, Set gallons brewed to indicate P-Maintenance. Press < or > to adjust from Off to 9500 gallons. This feature
advances in 500 gallon increments. Press  to exit.

Beeper On/Off (Factory set to ON)

Press  to display ON or OFF. Pressing either < or > toggles between on and off.  to set. When ON, this feature allows you
to hear a short beep each time a button is pressed.

Coffee Drip-out Mode (Factory set to 2 minutes)

Press  to Select. Press < or > to move to desired time. Settings are OFF, 1, 2, 3, 4 and 5 minutes. Press  to Select time.

Tea Drip-out Mode (Factory set to OFF)

Press  to Select. Press < or > to move to desired time. Settings are OFF, 1, 2, 3, 4 and 5 minutes. Press  to Select time.

Displ. Brew Time

Display Messages

Brew Button Prog

Select Button

Brew By Volume

4

Displ. Brew Time (Factory set to ON)

Press  to display ON or OFF. Pressing either < or > toggles between on and off. After Display Brew Time an EXIT screen will
return you to Brew Button Prog.

Display Messages (Factory set to ON)

Press  to display ON or OFF. Pressing either < or > toggles between on and off. This feature allows the operator to select the
message “Rinse Server Before Brewing”. This will be displayed any time the unit is not brewing.

Brew Button Program

This is the next group of options in the sequence. The screen will prompt you to choose tea or coffee. Coffee options are shown
below. Tea option are shown on page 5.

Select Button This is a temporary screen message indicating you are in the coffee brew button programming mode. Select a
coffee brew button on the control module.

Brew by Volume (Factory settings: LARGE 200oz ±8oz. SMALL 64oz±4oz.)

Press  to Select. Display will ask you to select a brew button, Large, Medium or Small. Press the desired brew button to
begin... when desired volume is reached press the same brew button to stop the ow. Now the volume has been set.
