White’s Electronics TM 808 User Manual
Instruction Manual
TM 808
(English Edition)
NOTE:
To locate large metal in normal conditions, set the controls as shown
above. Walk briskly, noting areas that produce an increase in sound
- beep. Cross these areas from at least two sides ( X ) to pinpoint target
location. When AUTOMATIC THRESHOLD is in AUTO, detector must always be moving to respond to targets. NO-AUTO doesn't require motion
to respond to targets.
A Message from...
Kenneth R. White
Congratulations, and thank you for choosing the TM 808.
As an avid detectorist, I commend you for making an excellent choice
in deep seeking equipment. White's continually strives to achieve
performance and reliability above and beyond your expectations.
Your new TM 808 has been hand built and carefully tested. Properly
cared for, it will last years.
The following instructions are intended to familiarize you with this
ne detector, and give you a good understanding of the basics. Obviously, there is no substitute for eld experience. Practice using your
detector in the eld, and study this manual carefully. Before long
you may be able to teach the experts a thing or two!
People use White's metal detectors to nd valuables every day.
Regardless of a metal detectors performance, it is the operator who
makes the critical decisions that result in great recoveries. A metal
detector is simply a tool which greatly increases the capabilities of
the user to nd such valuables. Knowing your detector, and researching good places to use it, are key elements to successful metal
detecting.
Another important factor today is obtaining permission prior to
searching private property, and the necessary permits prior to
searching publicly owned lands. These steps, as well as relling dug
holes, and removing trash you discover, will go a long ways toward
protecting the hobby from future restrictive legislation.
We know in a very short time you will be using the TM 808 to help
you nd valuables. We are proud to continue White's tradition of
high performance and reliability with your TM 808.
(3)
Table of Contents
Assembly ..................................................................................................4
Batteries ................................................................................................5-6
Description of Controls

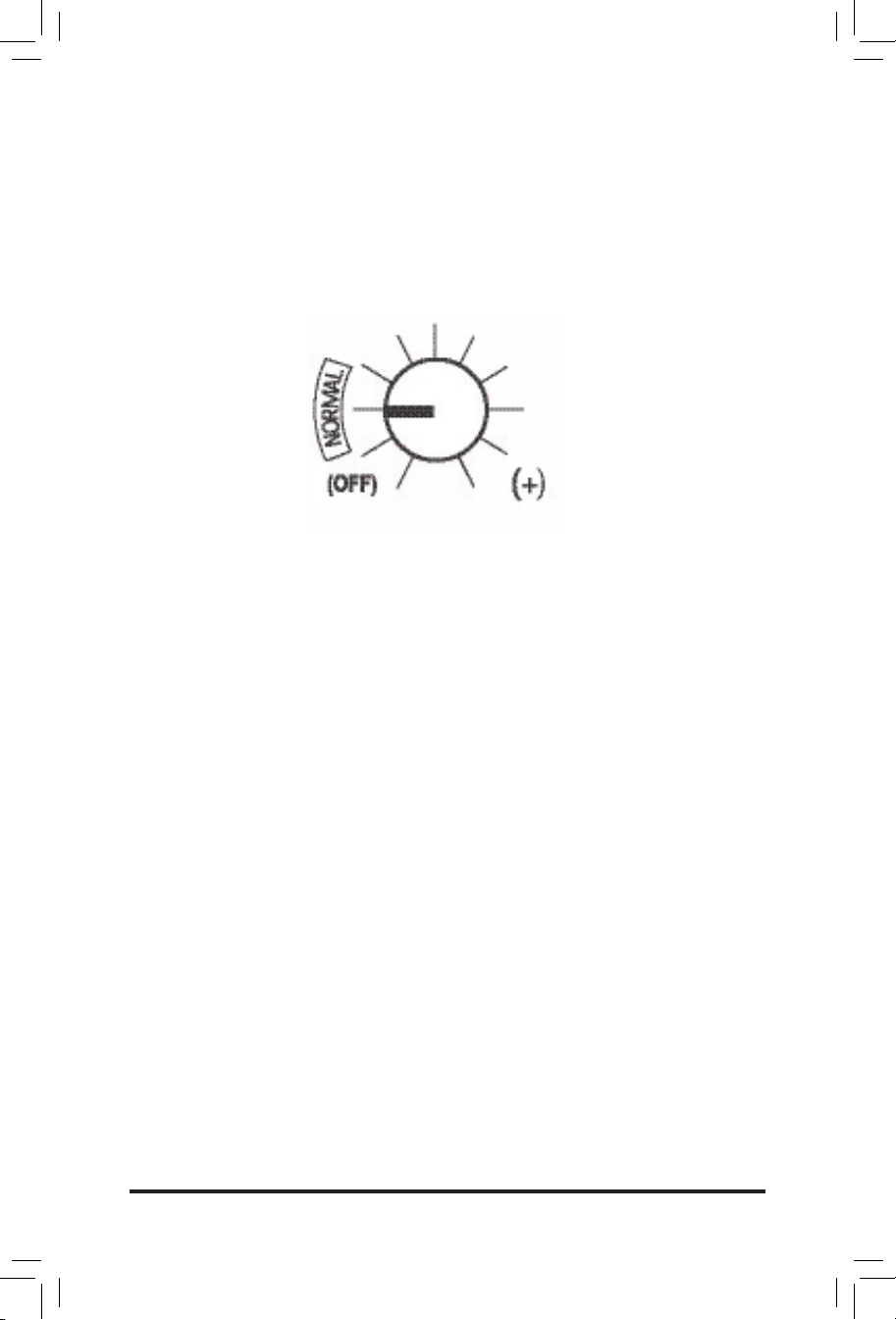

Threshold................................................................................... 7

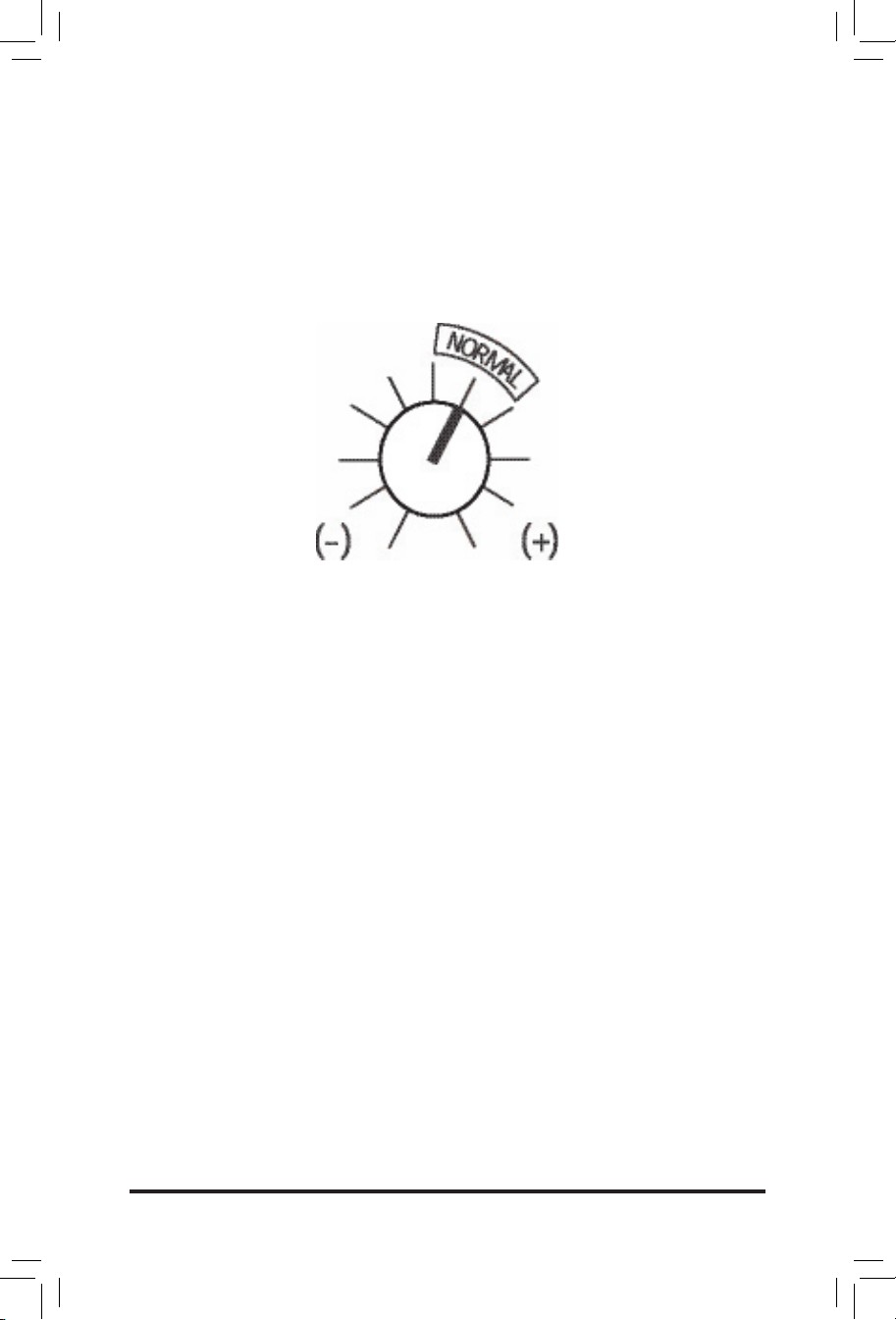

Signal Balance........................................................................... 8
Ground Balance
......................................................................... 9
Automatic Threshold ................................................................
10

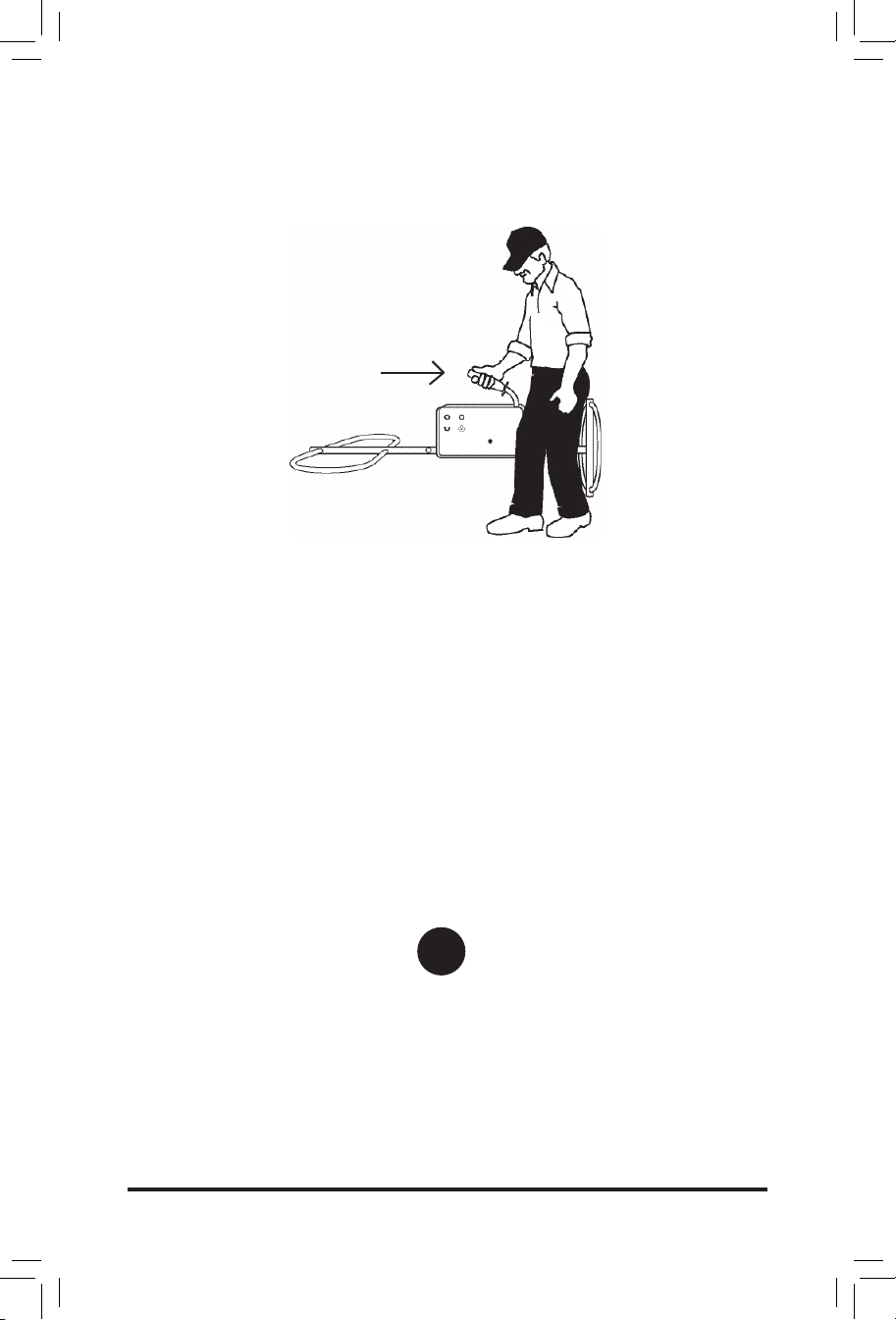

Push-Button ............................................................................. 11
Headphone Jack...................................................................... 11
Operation
Tuning (Ground Balancing) ................................................12-14
Locating Metal ......................................................................... 15

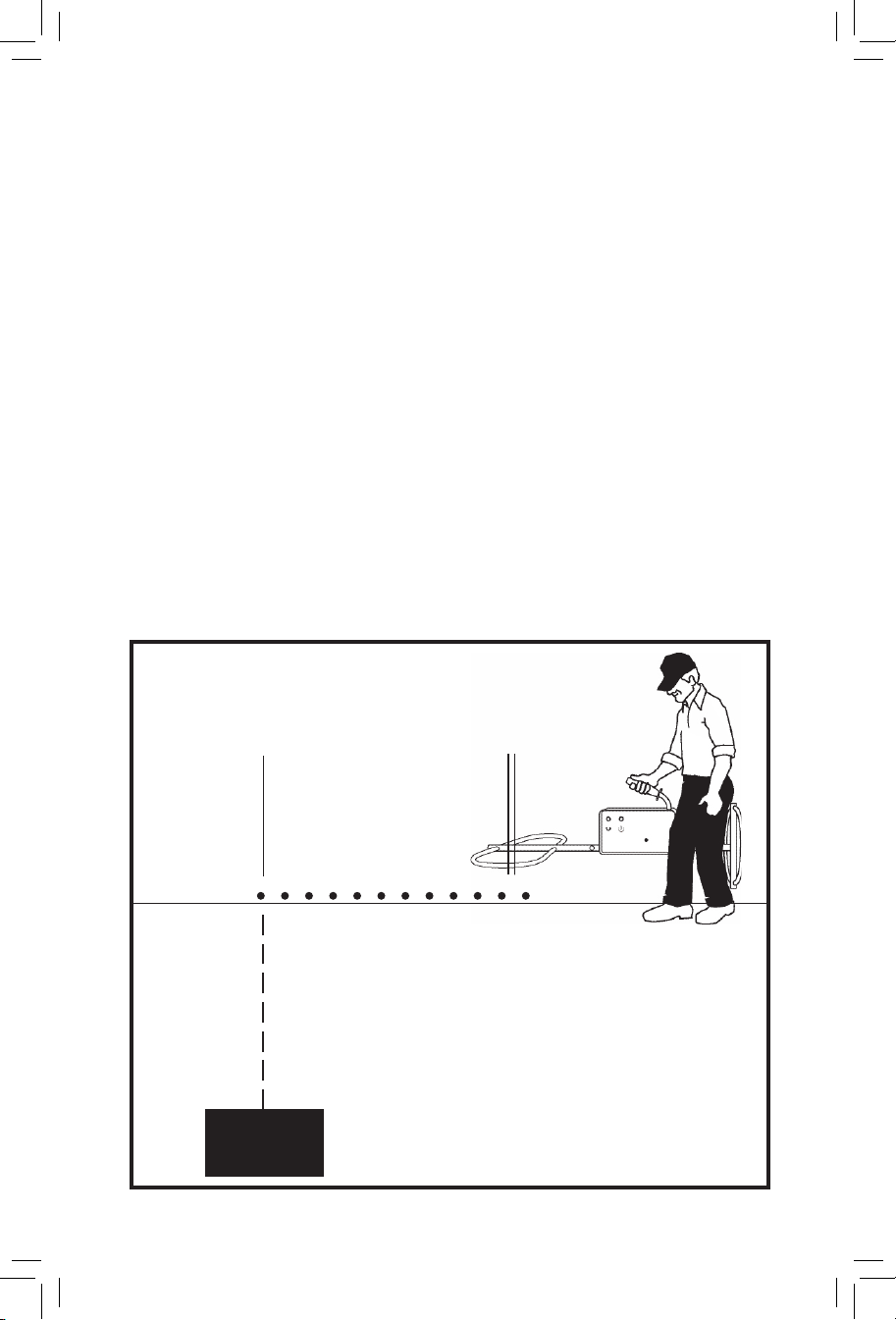

Determining Metal Depths.............................................. .........16
Caring For Your Instrument......................................................... ...........17
Warranty Statement ................................................................................ 18
NOTES ................................................................................................. 19
Carton / Carry Case ..................................................................Back Cover
Manufacturers Information ........................................................Back Cover
size batteries. Alkalines are recommended as they supply more consistent power
for longer time periods. Rechargeable "C" size batteries may also be used in this
holder, although they will need to be removed from the holder for recharging.
Using The Standard Battery Holder:
1)
Remove the battery holder lid by applying gentle pressure down on the two
locking tab openings on one side (just enough so that they unlock), flip the pack
over and apply gentle pressure on the other two locking tab openings. The lid will
then slip off.
2)
Insert the small foam squares inside the two springs on the lid, and
the two in the holder, to prevent loss of spring tension
3) Note the position of each cell. The flat side of each battery cell fits against one
of the four springs. There are two springs on the lid, and two in the case. The bat-
teries fit alternating +, -, +, -.
4) Install new "C" cells. Caution: If the cells are put in backwards the detector
may blow a fuse. Fuses can only be replaced by authorized service centers.
5) Line up the locking tabs on the lid with the locking tab openings on the battery
holder. Snap the lid and holder together.
6) Open the battery compartment door on the side of the control box nearest the
rear antenna, by pulling the battery door knob.
Assembly Instructions
1) Remove all parts from the shipping carton, taking note of how the instrument
fits into the inserts. Save this carton (and inserts) for future storage or travel.
See back cover for further Carton / Carry case instructions.
2) Assemble the front loop or antenna as shown, by compressing the button on
the short rod protruding from the front of the control box, sliding the loop onto this
short rod, and aligning the button on the control box short rod with the hole on
the front antenna so that it locks into place. Use the thumbnut and bolt to further
sucure the antenna.
3) Assemble the rear loop or antennas as shown, by compressing the button on
the short rod protruding from the rear of the control box, sliding the loop onto this
short rod, and aligning the button on the control box short rod with the hole on
the rear antenna so that it locks into place. Use the thumbnut and bolt to further
sucure the antenna.
4) Continue by reviewing the next section on Batteries.
(4)
Front Loop (Antenna)
Short Rod
Front Of
Control Box
Short
Rod Rear Of
Control Box
Meter
Rear Loop
(Antenna)
Battery
Pack
Control Box
Control
Panel
Handle
Thumbnut
&
Bolt
Thumbnut
&
Bolt
The standard battery holder supplied with your instrument holds four "C"
size batteries. Alkalines are recommended as they supply more consistent power
for longer time periods. Rechargeable "C" size batteries may also be used in this
holder, although they will need to be removed from the holder for recharging.
Using The Standard Battery Holder:
1)
Remove the battery holder lid by applying gentle pressure down on the two
locking tab openings on one side (just enough so that they unlock), flip the pack
over and apply gentle pressure on the other two locking tab openings. The lid will
then slip off.
2)
Insert the small foam squares inside the two springs on the lid, and
the two in the holder, to prevent loss of spring tension
3) Note the position of each cell. The flat side of each battery cell fits against one
of the four springs. There are two springs on the lid, and two in the case. The batteries fit alternating +, -, +, -.
4) Install new "C" cells. Caution: If the cells are put in backwards the detector
may blow a fuse. Fuses can only be replaced by authorized service centers.
5) Line up the locking tabs on the lid with the locking tab openings on the battery
holder. Snap the lid and holder together.
6) Open the battery compartment door on the side of the control box nearest the
rear antenna, by pulling the battery door knob.
(5)
Batteries
7) Insert the battery holder into the detector so that the decal on the battery
holder is facing toward the control panel of the detector.
8) Close the battery compartment door by first pressing on the door itself to
close and hold it into position, then press the battery compartment knob in, until
it snaps locked.
Rechargeable Batteries
Although this instrument doesn't normally come with a recharge-
able battery system, high quality systems are available for this model. White's
rechargeable battery #802-5185 and charger #509-0020 are recommended,
for U.S.A. 110V use. These are sealed sets which offer the durability of spot
welded contacts, and the conveniences of automatic charge, trickle charge, and
maintainenance charge. Please contact your dealer.
Batteries continued ...
(6)
