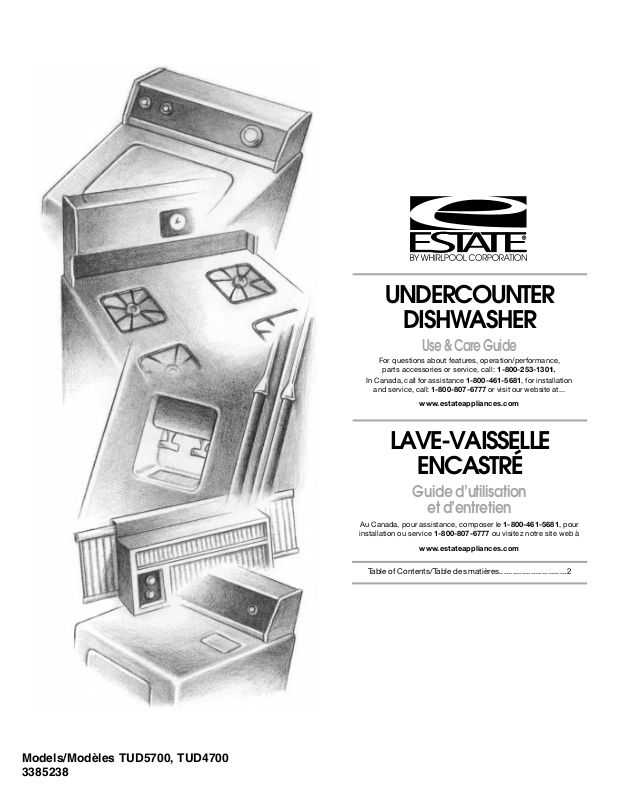

Whirlpool TUD4700, TUD5700, UNDERCOUNTER User Manual

UNDERCOUNTER

DISHWASHER

Use & Care Guide

For questions about features, operation/performance,

parts accessories or service, call:

In Canada, call for assistance 1-800-461-5681, for installation

and service, call: 1-800-807-6777 or visit our website at...

www.estateappliances.com

1-800-253-1301

LAVE-VAISSELLE

ENCASTRÉ

Guide d’utilisation

et d’entretien

Au Canada, pour assistance, composer le 1-800-461-5681, pour

installation ou service 1-800-807-6777 ou visitez notre site web à

www.estateappliances.com

Table of Contents/Table des matières..............................2

Models/Modèles TUD5700, TUD4700 3385238

TABLE OF CONTENTS

TABLE DES MATIÈRES

DISHWASHER SAFETY ................................................... 3

Before Using Your Dishwasher......................................... 4

PARTS AND FEATURES.................................................. 5

Control Panels................................................................... 6

START-UP GUIDE............................................................... 6

Using Your New Dishwasher ............................................ 6

Stopping Your Dishwasher ............................................... 7

DISHWASHER LOADING .................................................. 7

Loading Suggestions ........................................................ 7

Loading the Top Rack....................................................... 7

Loading the Bottom Rack................................................. 8

Loading the Silverware Basket ......................................... 8

DISHWASHER USE............................................................ 9

Detergent Dispenser ......................................................... 9

Rinse Aid Dispenser........................................................ 10

Dishwasher Efficiency Tips ............................................. 10

Cycle Selection Chart ..................................................... 10

Canceling a Cycle ........................................................... 11

Changing a Cycle or Setting ........................................... 11

Adding Items During a Cycle .......................................... 11

Option Selections............................................................ 11

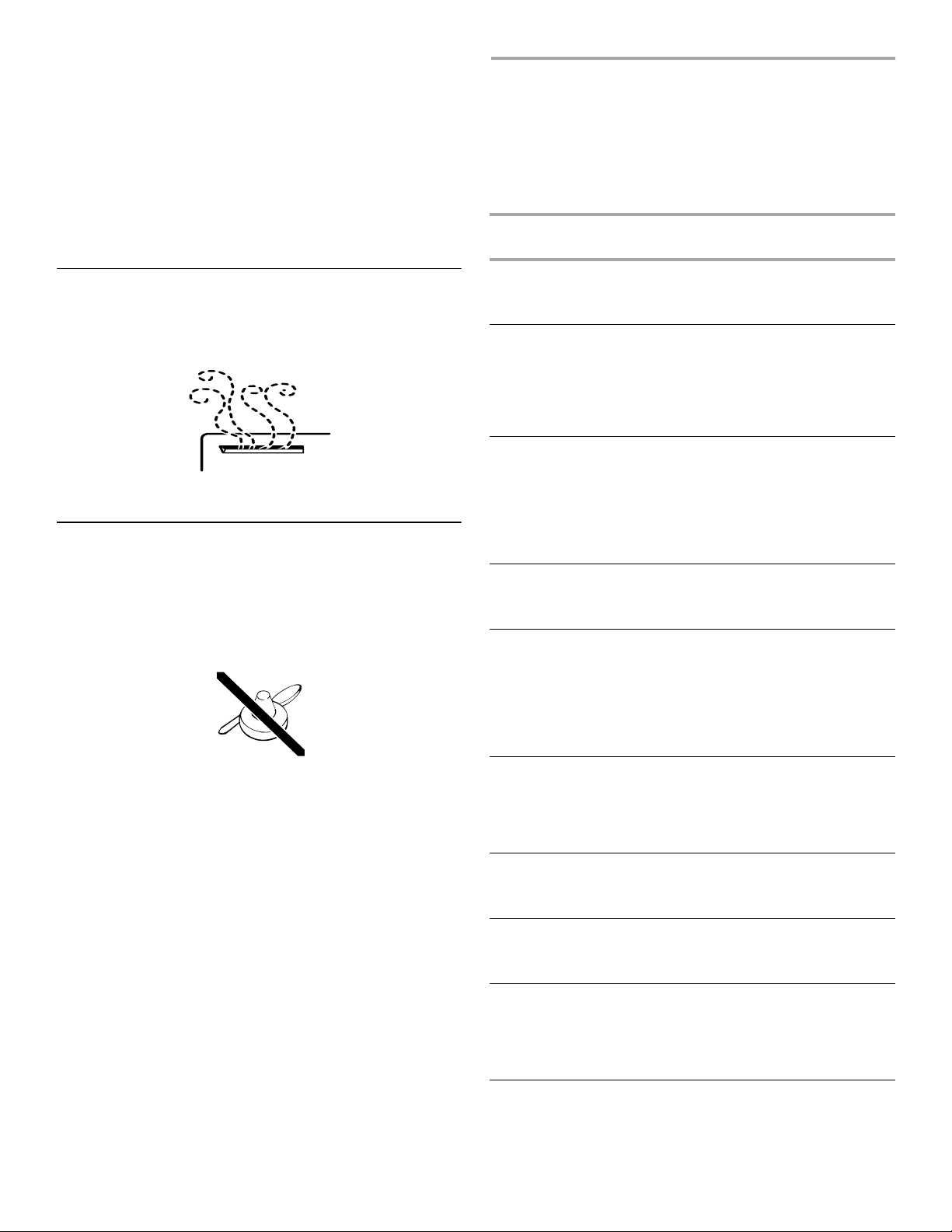

Drying System................................................................. 12

Overfill Protection Float................................................... 12

WASHING SPECIAL ITEMS ............................................. 12

DISHWASHER CARE........................................................ 13

Cleaning Your Dishwasher.............................................. 13

Cleaning the Filter Screen............................................... 13

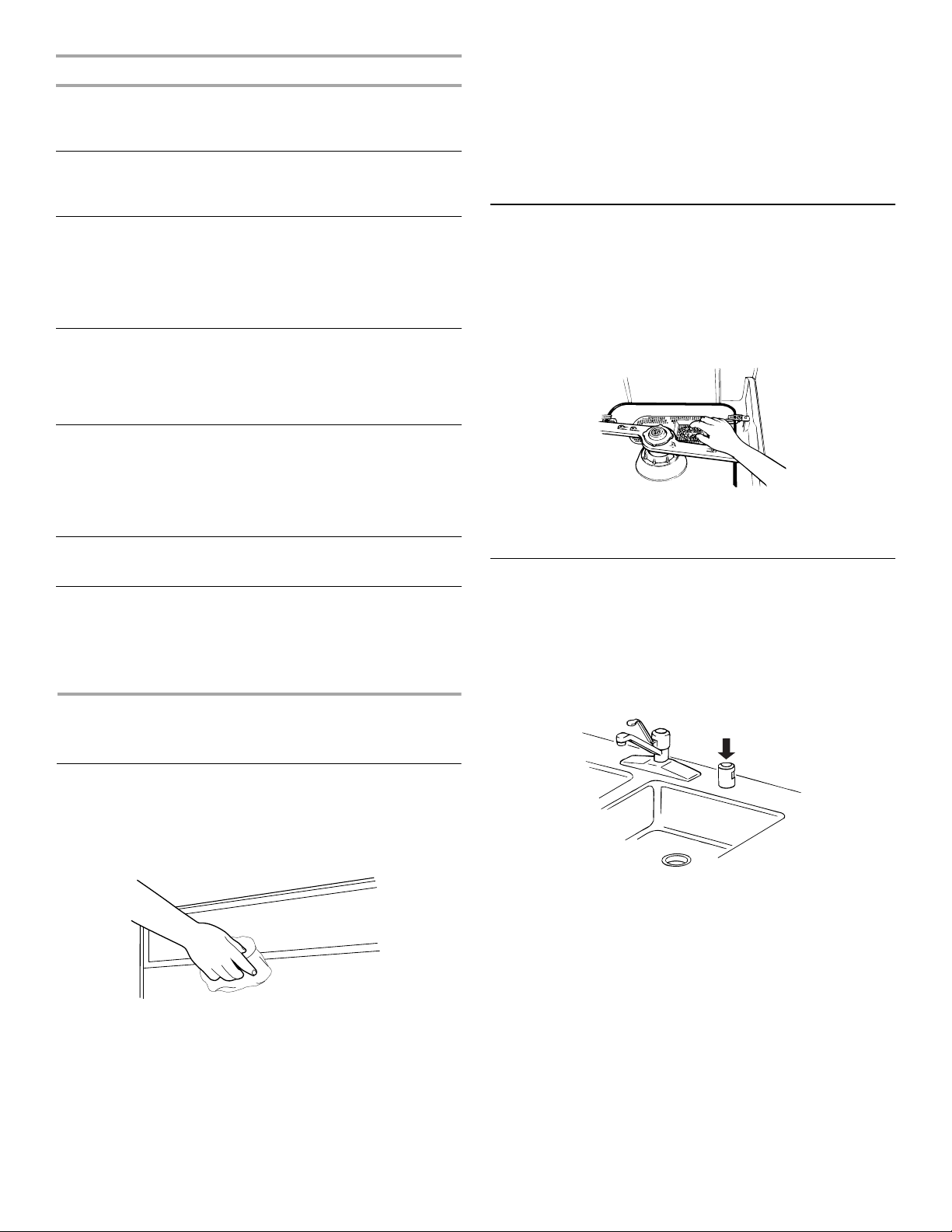

Drain Air Gap................................................................... 13

Storing Your Dishwasher ................................................ 14

TROUBLESHOOTING....................................................... 14

ASSISTANCE OR SERVICE ............................................. 16

In the U.S.A. .................................................................... 16

In Canada........................................................................ 16

WARRANTY....................................................................... 17

LA SÉCURITÉ DU LAVE-VAISSELLE ............................19

Avant d’utiliser le lave-vaisselle...................................... 20

PIÈCES ET CARACTÉRISTIQUES .................................. 21

Tableau de commande................................................... 22

GUIDE DE MISE EN MARCHE ........................................ 22

Utilisation de votre nouveau lave-vaisselle .................... 22

Arrêt du lave-vaisselle..................................................... 23

CHARGEMENT DU LAVE-VAISSELLE ........................... 23

Suggestions de chargement........................................... 23

Chargement du panier supérieur.................................... 23

Chargement du panier inférieur...................................... 24

Chargement du panier à couverts.................................. 24

UTILISATION DU LAVE-VAISSELLE............................... 25

Distributeur de détergent................................................ 25

Distributeur d’agent de rinçage ...................................... 26

Conseils d’efficacité pour le lave-vaisselle..................... 26

Tableau de sélection de programme.............................. 27

Annulation d’un programme ........................................... 28

Changement d’un programme ou réglage ..................... 28

Addition de vaisselle durant un programme .................. 28

Sélection d’options ......................................................... 28

Système de séchage ...................................................... 29

Dispositif de protection contre le débordement ............ 29

LAVAGE D’ARTICLES SPÉCIAUX................................... 29

ENTRETIEN DU LAVE-VAISSELLE ................................. 30

Nettoyage du lave-vaisselle............................................ 30

Nettoyage de l’écran de filtre.......................................... 30

Dispositif anti-refoulement.............................................. 30

Remisage du lave-vaisselle ............................................ 31

DÉPANNAGE..................................................................... 31

ASSISTANCE OU SERVICE ............................................. 33

Aux États-Unis ................................................................ 33

Au Canada ...................................................................... 33

GARANTIE ......................................................................... 34

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or

“WARNING.” These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

can be killed or seriously injured if you don't

You follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Before Using Your Dishwasher

Tip Over Hazard Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.

Electrical Shock Hazard Electrically ground dishwasher. Connect ground wire to green ground connector

in terminal box. Do not use an extension cord. Failure to follow these instructions can result in

death, fire, or electrical shock.

Install where dishwasher is protected from the elements.

■

Protect against freezing to avoid possible rupture of fill valve. Such ruptures are not covered by the warranty. See “Storing Your Dishwasher” in the “Dishwasher Care” section for winter storage information.

Install and level dishwasher on a floor that will hold the

■

weight, and in an area suitable for its size and use. Remove all shipping plugs from hoses and connectors (such

■

as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

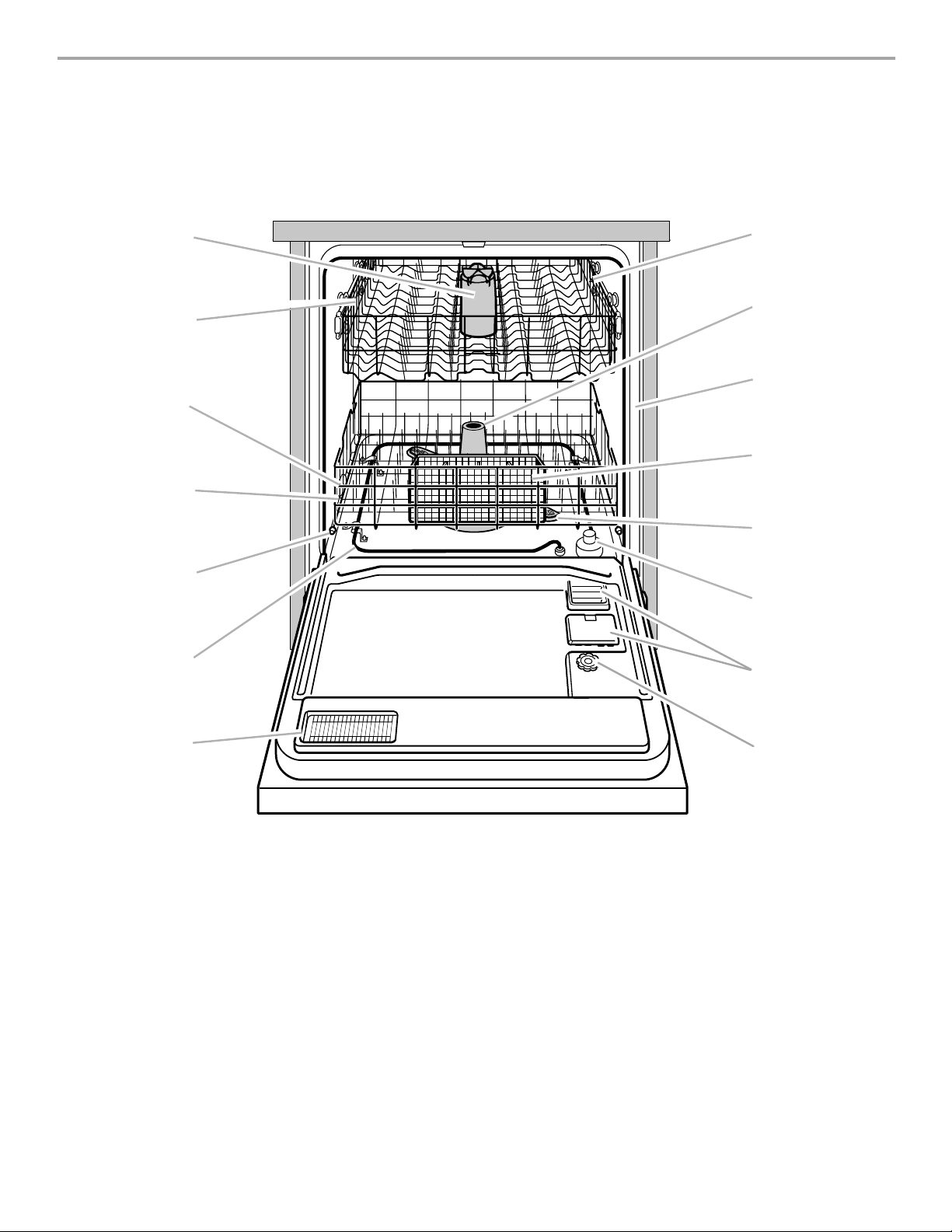

PARTS AND FEATURES

This manual covers several different models. The dishwasher you have purchased may have some or all of the parts and features listed below.

1. Third level wash (on some

models)

2. Extra-capacity fold-down

shelves (on some models)

3. Water inlet opening

4. Bottom rack

5. Rack bumper

6. Heating element

7. Vent

8. Top Rack

9. Spray tower and protector

10. Model and serial number label

11. Silverware basket

12. Spray arm

13. Overfill protection float

14. Detergent dispensers

15. Rinse aid dispenser

(Rocker switch models)

(7-button models)

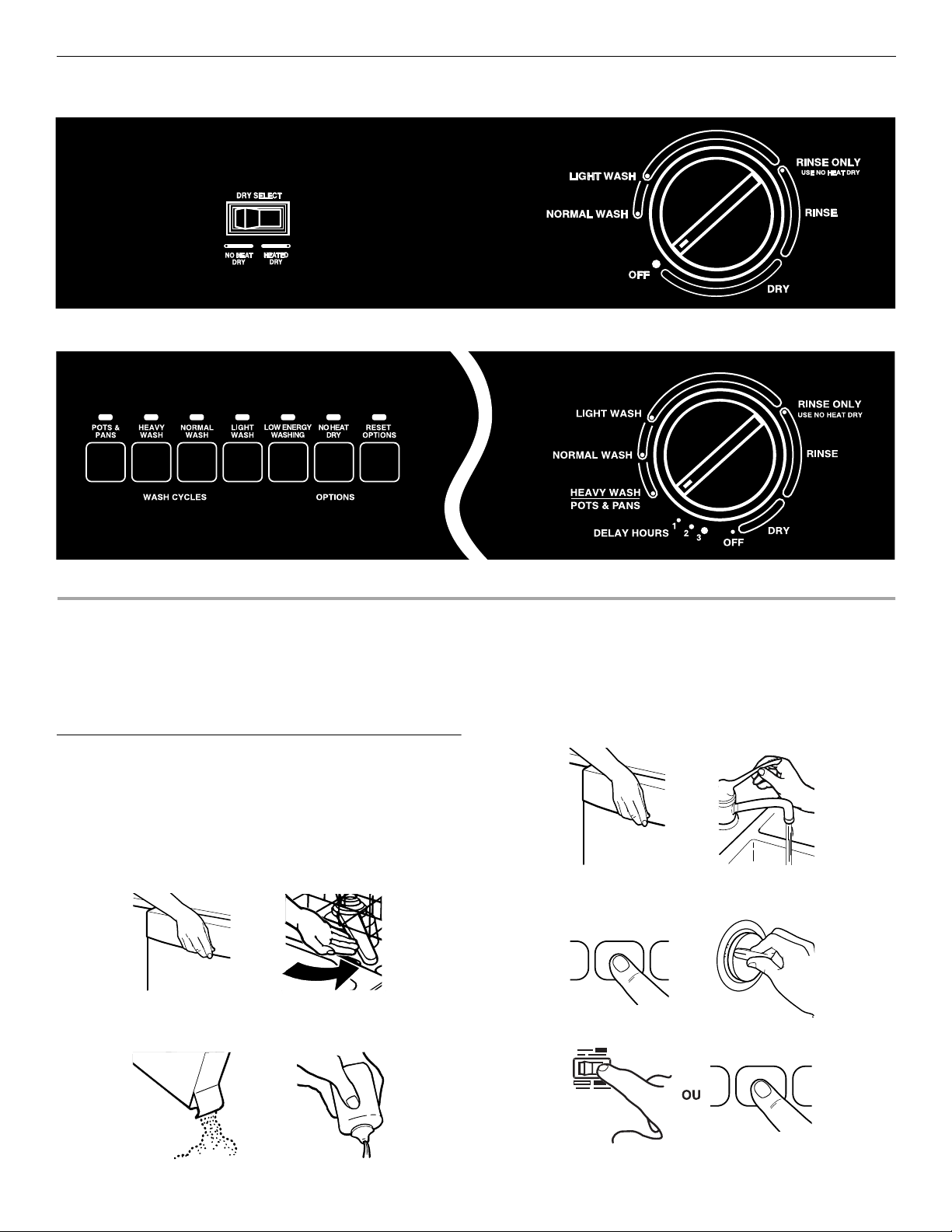

Control Panels

START-UP GUIDE

Before using your dishwasher, remove all packaging materials. Read this entire Use and Care Guide. You will find important safety information and useful operating tips.

Using Your New Dishwasher

1. Scrape large food soil and hard items (toothpicks or bones)

from dishes.

2. Properly load the dishwasher. (See “Dishwasher Loading.”)

Make sure nothing prevents the spray arm(s) from spinning freely.

3. Add detergent and check the rinse aid dispenser. Add rinse

aid if needed. (See “Dishwasher Use.”)

4. Push door firmly closed. The door latches automatically. Run

hot water at the sink nearest your dishwasher until the water is hot. (See “Dishwasher Efficiency Tips.”) Turn off water.

5. Select the desired cycle. (See “Dishwasher Use.”)

6. Select the desired option. (See "Option Selections.")

Stopping Your Dishwasher

You can stop your dishwasher anytime during a cycle.

1. Open the door slightly.

2. Wait for the spraying action to stop. Then open the door all

the way, if needed.

3. Close the door to continue the cycle. OR

1. Turn the Cycle Control knob slowly clockwise until you hear

water draining. Let the dishwasher drain completely.

2. Open the door.

3. Turn the Cycle Control knob to OFF.

DISHWASHER LOADING

Loading Suggestions

■ Remove leftover food, bones, toothpicks and other hard

items from the dishes. It is not necessary to rinse the dishes before putting them in the dishwasher.

NOTE: If hard items such as fruit seeds, nuts, and egg shells enter the wash system, you might hear chopping, grinding, crunching, or buzzing sounds. These sounds are normal. Do not let metallic items (such as pot handle screws) get into the wash system. Damage can occur.

■ Load dishes so soiled surfaces face the spray (down or

inward). It is important for the water spray to reach all soiled surfaces.

■ Load dishes so they are not stacked or overlapping if

possible. For best drying, water must be able to drain from all surfaces.

Make sure pot lids and handles, pizza pans, cookie sheets,

■

etc., do not interfere with the spray arm rotation. Run a rinse cycle to keep dishes moist if you do not plan to

■

wash them soon. Foods like eggs, rice, pasta, spinach, and cooked cereals may be hard to remove if they are left to dry over a period of time.

Quiet operating tips

To avoid thumping/clattering noises during operation:

Make sure lightweight load items are secured in the racks.

■

Make sure pot lids and handles, pizza pans, cookie sheets,

■

etc., do not touch interior walls or interfere with the rotation of the spray arm.

Load dishes so they do not touch one another.

■

NOTE: For built-in models, keep sink drain plugs closed during dishwasher operation to prevent noise transfer through drains.

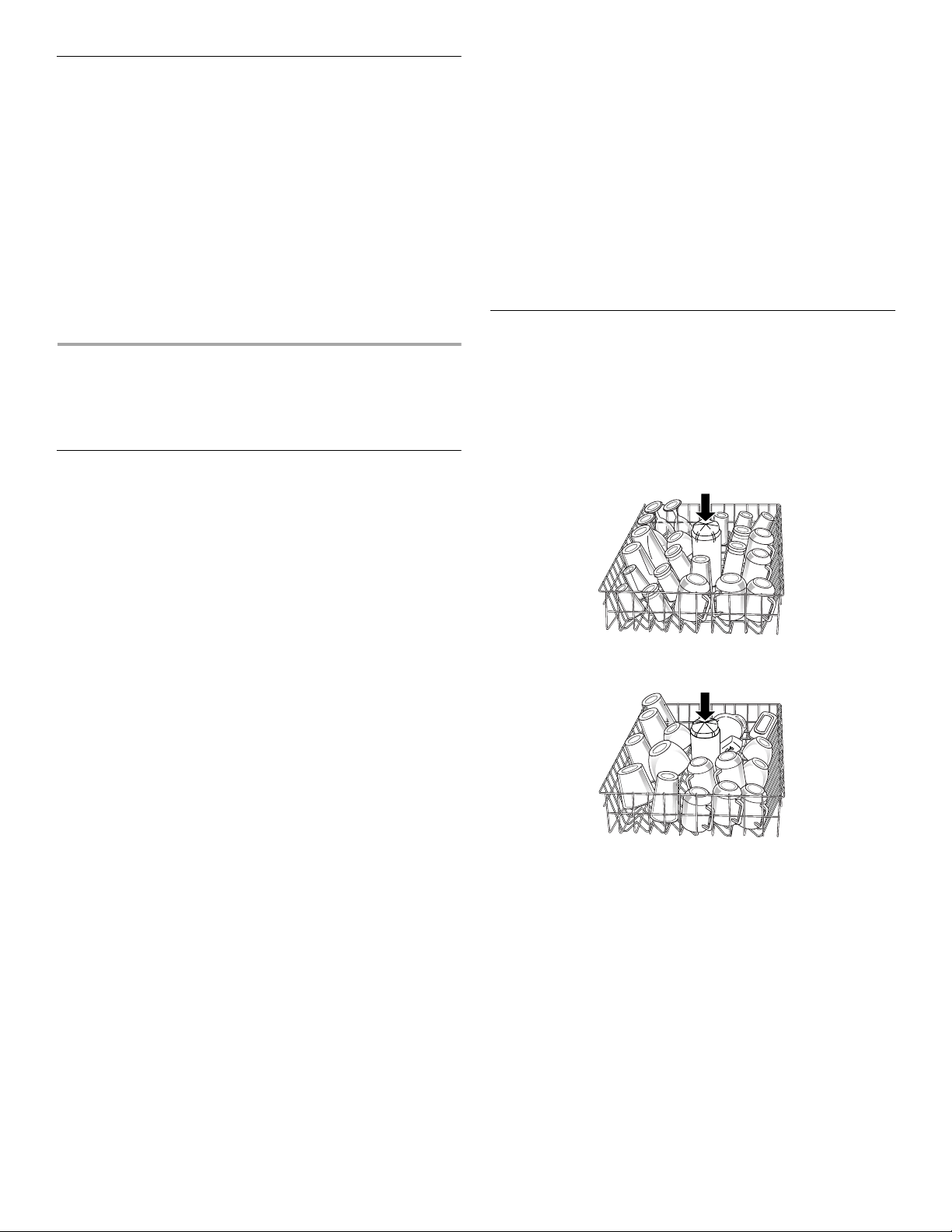

Loading the Top Rack

The top rack is designed for cups, glasses, and smaller items. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Do not cover third level wash (on some models). See arrow.

Cup and glass load

Mixed load

■ Place items so open ends face down for cleaning and

draining. Load glasses and cups in top rack only. The bottom rack is

■

not designed for glasses and cups. Damage can occur. Place cups and glasses in the rows between prongs. Placing

■

them over the prongs can lead to breakage. To avoid chipping, do not let stemware touch other items.

■

China, crystal, and other delicate items must not touch each

■

other during dishwasher operation. Damage can occur. Wedge lightweight items against one another or overlap them

■

with heavier dishes. Load plastic items securely in the top rack only. Wash only

■

plastic items marked “dishwasher safe.” Small bowls, pans, and other utensils can be placed in the

■

top rack. Load bowls in the center section for best stability.

Extra-capacity fold-down shelves (on some models)

Fold down the extra shelf on the top rack to hold additional cups, or long items such as utensils and spatulas.

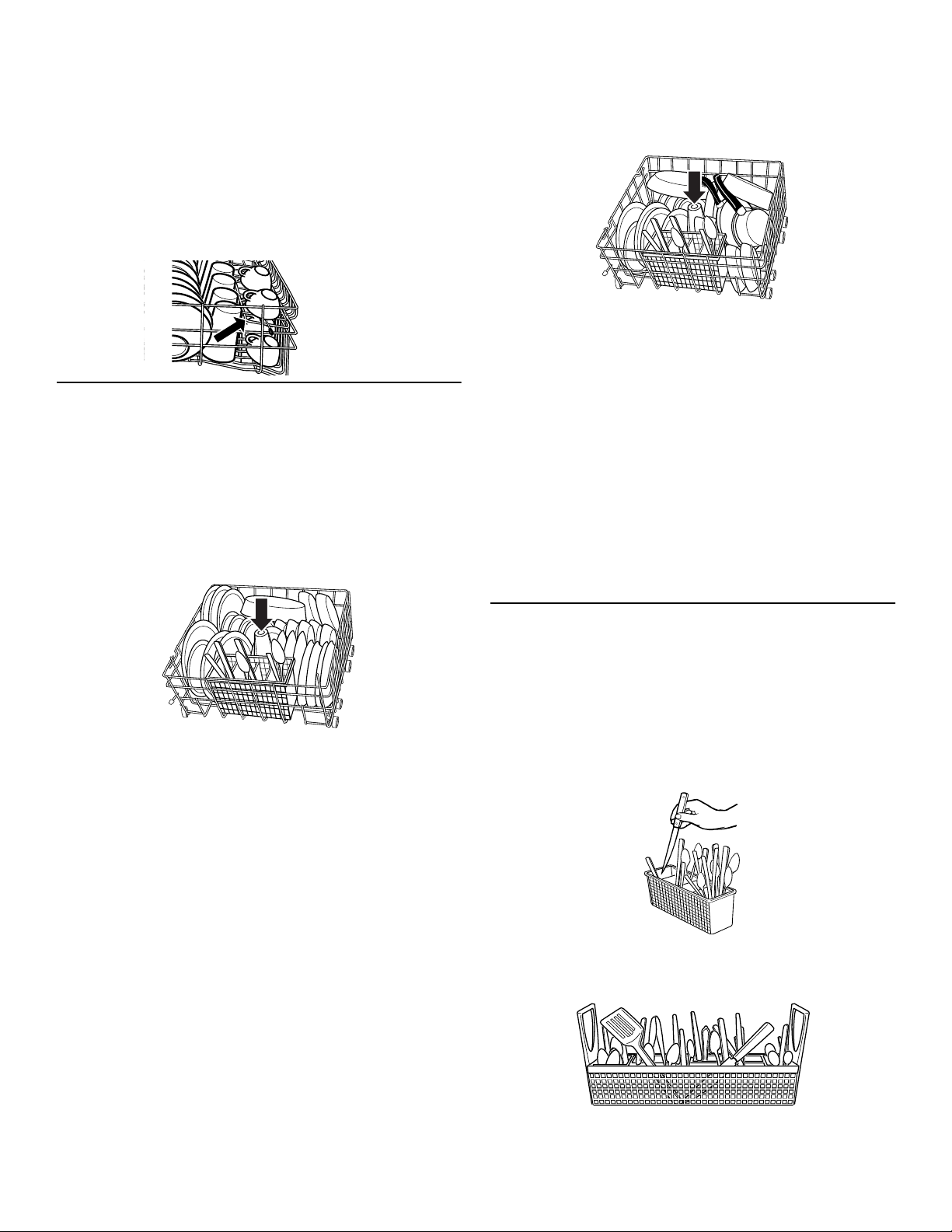

Loading the Bottom Rack

The bottom rack is designed for plates, pans, casseroles, and utensils. Items with cooked-on or dried-on food should be loaded with soiled surfaces facing inward to the spray. (See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from the drawings shown.

Do not cover spray tower. See arrow.

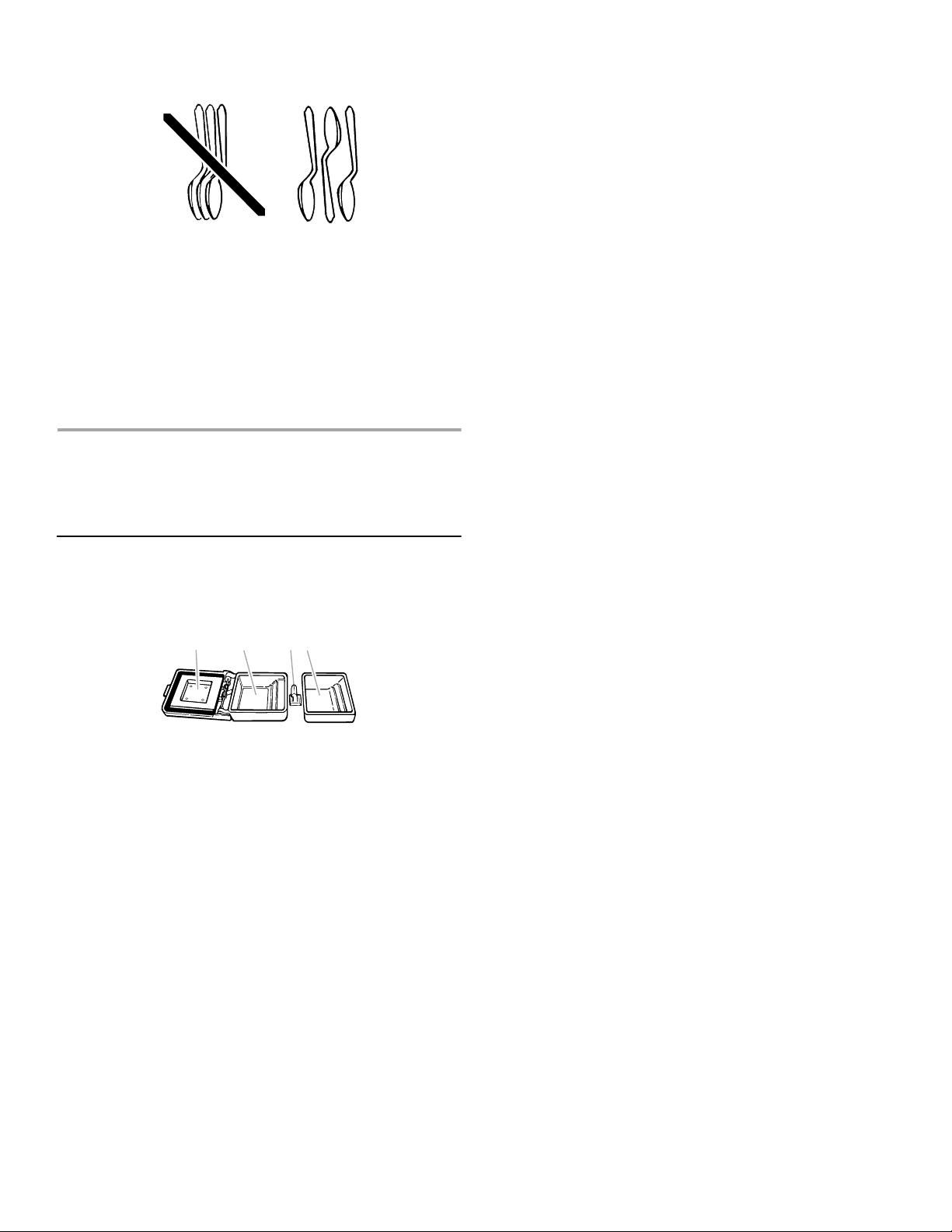

Loading the Silverware Basket

Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

NOTE: Unload or remove the basket before unloading the racks to avoid spilling water droplets on the silverware.

Style 1 (on some models)

Mixed load

Do not load glasses, cups, or plastic items in the bottom

■

rack. Load small items in the bottom rack only if they are secured in place.

■ Load plates, soup bowls, etc., between tines and facing

inward to the spray.

■ Overlap the edges of plates for large loads.

Load soup, cereal, and serving bowls in the rack in a variety

■

of ways depending upon their size and shape. Load bowls securely between the rows of tines. Do not nest bowls because the spray will not reach all surfaces.

Utensil load

Load cookie sheets, cake pans, and other large items at the

■

sides and back. Loading such items in front can keep the water spray from reaching the detergent dispenser and silverware basket.

Secure heavily soiled cookware face down in the rack.

■

Make sure pot handles and other items do not stop rotation

■

of the spray arm(s). The spray arm(s) must move freely. Do not load items between the bottom rack and the side of

■

the dishwasher tub because they might block the water inlet opening.

NOTE: If you have removed the bottom rack for unloading or cleaning, replace it with the bumpers in front.

Style 2 (on some models)

Mix items in each section of the basket with some pointing up and some down to avoid nesting. Spray cannot reach nested items.

IMPORTANT: Always load sharp items (knives, skewers, etc.) pointing down.

NOTES:

Do not load silver or silver-plated silverware with stainless

■

steel. These metals can be damaged by contact with each other during washing.

Some foods (such as salt, vinegar, milk products, fruit juices,

■

etc.) can pit or corrode silverware. Run a rinse cycle if you do not have a full load to wash immediately.

DISHWASHER USE

Detergent Dispenser

The detergent dispenser has 2 sections. The Pre-Wash section empties detergent into the dishwasher when you close the door.

1. Cover

2. Main wash section

3. Cover latch

4. Pre-wash section

The Main Wash section automatically empties detergent into the dishwasher during the main wash. (See the “Cycle Selection Chart.”)

■ Use automatic dishwashing detergent only. Other detergents

can produce excessive suds that can overflow out of the dishwasher and reduce washing performance.

■ Add detergent just before starting a cycle.

■ Store tightly closed detergent in a cool, dry place. Fresh

automatic dishwasher detergent results in better cleaning.

NOTE: Do not use detergent with a rinse cycle.

Filling the dispenser

1. If the dispenser cover is closed, open the cover by pushing

the Cover latch.

2. Fill the Main Wash section with detergent. See “How Much

Detergent to Use.”

3. Close the Main Wash dispenser cover. Fill the Pre-Wash

section if needed.

It is normal for the cover to open partially when dispensing detergent.

NOTE: Use both sections for cycles with 2 washes. Use only the covered section for cycles with 1 wash. See the “Cycle Selection Chart” for more details.

How much detergent to use

The amount of detergent to use depends on the hardness of

■

your water and the type of detergent. If you use too little, dishes won’t be clean. If you use too much in soft water, glassware will etch.

Water hardness can change over a period of time. Find out

■

your water’s hardness by asking your local water department, water softener company, or county extension agent.

Different brands of dishwasher detergent have different

■

amounts of phosphorus for softening water. If you have hard water and use a detergent with a phosphorous content of less than 8.7%, you might need to use more detergent, or use a detergent with a phosphorous content higher than 8.7%.

2. 3.

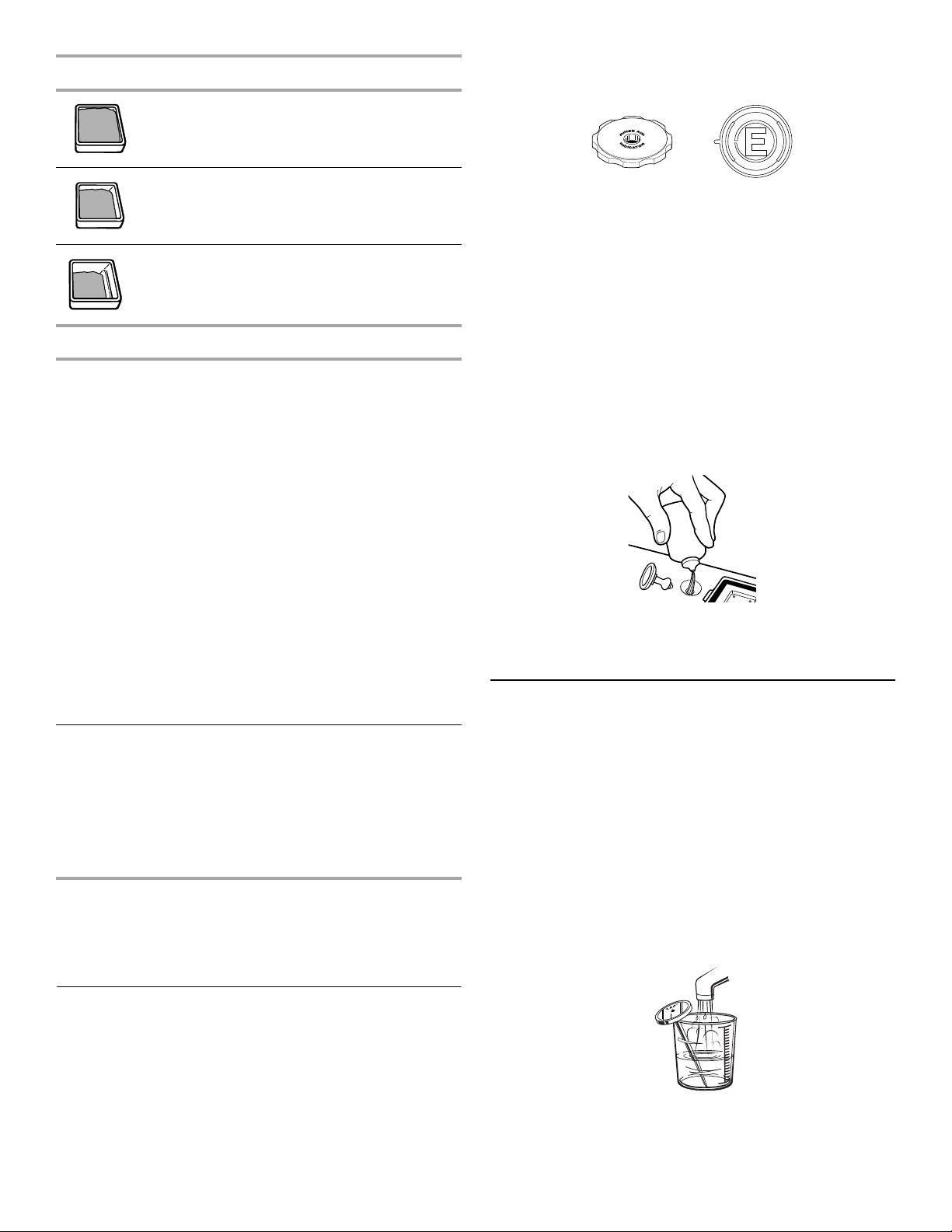

Where to fill

Top of 3rd step (3 tbs or 45 g)

Top of 2nd step (2 tbs or 30 g)

Top of 1st step (1 tb or 15 g)

Water Hardness Amount of Detergent

Soft to Medium Hard Water

0 to 6 grains per gallon

Medium to Hard Water

7 to 12 grains per gallon

NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Follow instructions on the package when using liquid dishwasher detergent or concentrated powdered detergent.

For normally soiled loads

■ Fill the Main Wash section to the

top of the 2nd step (2 tbs or 30 g) Fill the Pre-Wash section to the

■

top of the 2nd step (2 tbs or 30 g) if needed

NOTE: Add only 1 tb or 15 g of detergent to both sections if dishes are pre-rinsed or the water is very soft (0 to 2 grains per gallon).

For heavily soiled loads

■ Fill the Main Wash section to the

top of the 3rd step (3 tbs or 45 g) Fill the Pre-Wash section to the

■

top of the 2nd step (2 tbs or 30 g)

For normally soiled and heavily soiled loads

Fill the Main Wash section to the

■

top of the 3rd step (3 tbs or 45 g) Fill the Pre-Wash section to the

■

top of the 2nd step (2 tbs or 30 g) if needed

Rinse Aid Dispenser

Rinse aids prevent water from forming droplets that can dry as spots or streaks. They also improve drying by allowing water to drain off of the dishes during the final rinse by releasing a small amount of the rinse aid into the rinse water. Your dishwasher is designed to use a liquid rinse aid. Do not use a solid or bar-type.

Checking the dispenser

Check the center of the Fill Indicator cap. Clear means it needs filling.

Or you can remove the Fill Indicator cap. If an “E” is visible, the dispenser is empty.

Filling the dispenser

The rinse aid dispenser holds 6 oz (175 mL) of rinse aid. Under normal conditions, this will last for about three months. You do not have to wait until the dispenser is empty to refill it. Try to keep it full, but be careful not to overfill it.

Make sure the dishwasher door is completely open.

Remove the Fill Indicator cap.

Add rinse aid. Fill to the smallest opening in the lower part of

the dispenser. Overfilling can cause the rinse aid to leak out, and could cause oversudsing.

Clean up any spilled rinse aid with a damp cloth.

Replace the Fill Indicator cap. Close tightly.

If the water temperature at the faucet is below 120°F (49°C),

have a qualified person raise the water heater’s thermostat setting.

■ To save water, energy and time, do not rinse dishes before

putting them into the dishwasher. Use a low energy, quick, or short cycle whenever possible.

■

These cycles use less hot water and energy than the Normal cycle.

■ Use a delay feature (on some models) to run your dishwasher

during off-peak hours. Local utilities recommend avoiding heavy usage of energy at certain times of day.

During the summer, run your dishwasher at night. This

■

reduces daytime heat buildup in the kitchen.

■ Use the energy-saving dry option whenever possible. Allow

longer drying times (overnight) when using these options. Use a rinse aid to improve drying.

Use cycles or options that add extra heat to the wash or rinse

■

portion of the cycle only when needed. Run your dishwasher with full loads. Run a rinse cycle after

■

meals until the dishwasher is full.

■ If your home is equipped with a water softener, you may want

to avoid starting the dishwasher during the regeneration of the softener, as this may contribute to poor wash performance.

Cycle Selection Chart

Select the wash cycle. If the door is latched, you will hear the cycles start and stop as the Cycle Control knob passes each cycle mark. This is normal and does not hurt the dishwasher. If you prefer, you can set the Cycle Control knob with the door unlatched.

Use the No Heat Dry option with the Rinse Only cycle.

NOTE: Models with a rocker switch:

Turn the Cycle Control knob to the desired cycle.

Models with 7 buttons:

Press the desired cycle. Turn the Cycle Control knob to the desired cycle. To use Rinse Only, press any cycle and turn the Cycle Control knob to RINSE ONLY.

Dishwasher Efficiency Tips

Hot water dissolves and activates the dishwashing detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-free. For best dishwashing results, water must be at least 120°F (49°C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low.

To check water temperature

Run hot water at the faucet closest to your dishwasher for at

least 1 minute. Place a candy or meat thermometer in a glass measuring

cup.

Check the temperature on the thermometer as the water is

running into the cup.

A “●” shows what steps are in each cycle. Your model may have some or all of the cycles shown.

Water usage is shown in U.S. gallons/liters. Cycle time includes dry time.

Pre-

Rinse Rinse Main

Wash

●●●●●

●●

Use this cycle for hard-toclean, heavily-soiled pots, pans, casseroles, and regular tableware.

Rinse Final

Wash

●●

Use both detergent dispenser sections.

Rinse

Dry Time

●●

●

●●

Water

(min)

Usage (gal/L)

98 8.6/32.7

Use this cycle for loads with heavy food soil.

Pre-

Rinse Rinse Main

Wash

●●●●●

●●

Wash

●●

Use this cycle for loads with normal amounts of (The energy-usage label is based on this cycle.)

Pre-

Rinse Rinse Main

Wash

●●●●●

Wash

●●

Use this cycle for prerinsed or lightly soiled loads.

Pre-

Rinse Rinse Main

Wash

●●●●●

Rinse Final

●●

Rinse Final

●●

Rinse Final

●●

Use both detergent dispenser sections.

Rinse

Dry Time

●●

●

●●

Use both detergent dispenser sections.

Rinse

Dry Time

●●

●

●●

Use covered detergent dispenser section.

Rinse

Dry Time

●●

●

●●

Water

(min)

Usage (gal/L)

98 8.6/32.7

Water

(min)

Usage (gal/L)

90 7.2/27.2

Water

(min)

Usage (gal/L)

85 5.7/21.8

Canceling a Cycle

You can cancel a cycle at any time.

1. Turn the Cycle Control knob slowly clockwise until you hear

water draining. Let the dishwasher drain completely.

2. Open the door.

3. Turn the Cycle Control knob to OFF.

Changing a Cycle or Setting

If your dishwasher has more than one wash cycle, you can change a cycle anytime during a cycle.

1. Lift the door latch to stop the cycle.

2. Turn the Cycle Control knob clockwise.

3. Check the detergent dispensers. They must be filled properly

for the new cycle. NOTE: Turning the Cycle Control knob can cause the covered

Detergent Dispenser section to open and release the detergent. Check the covered section if the cycle uses detergent in both sections.

4. Close the door firmly until it latches. The dishwasher starts a

new cycle.

Adding Items During a Cycle

You can add an item anytime before the main wash starts, or the Cycle Control knob reaches Light Wash.

1. Lift up the door latch to stop the cycle. Wait for the spraying

action to stop before opening the door.

2. Open the door and add the item.

3. Close the door, but do not latch it. Wait 30 seconds for the air

in the dishwasher to warm up. This reduces the amount of moisture escaping from the vent when restarting a cycle.

4. Close the door firmly until it latches. The dishwasher resumes

the cycle.

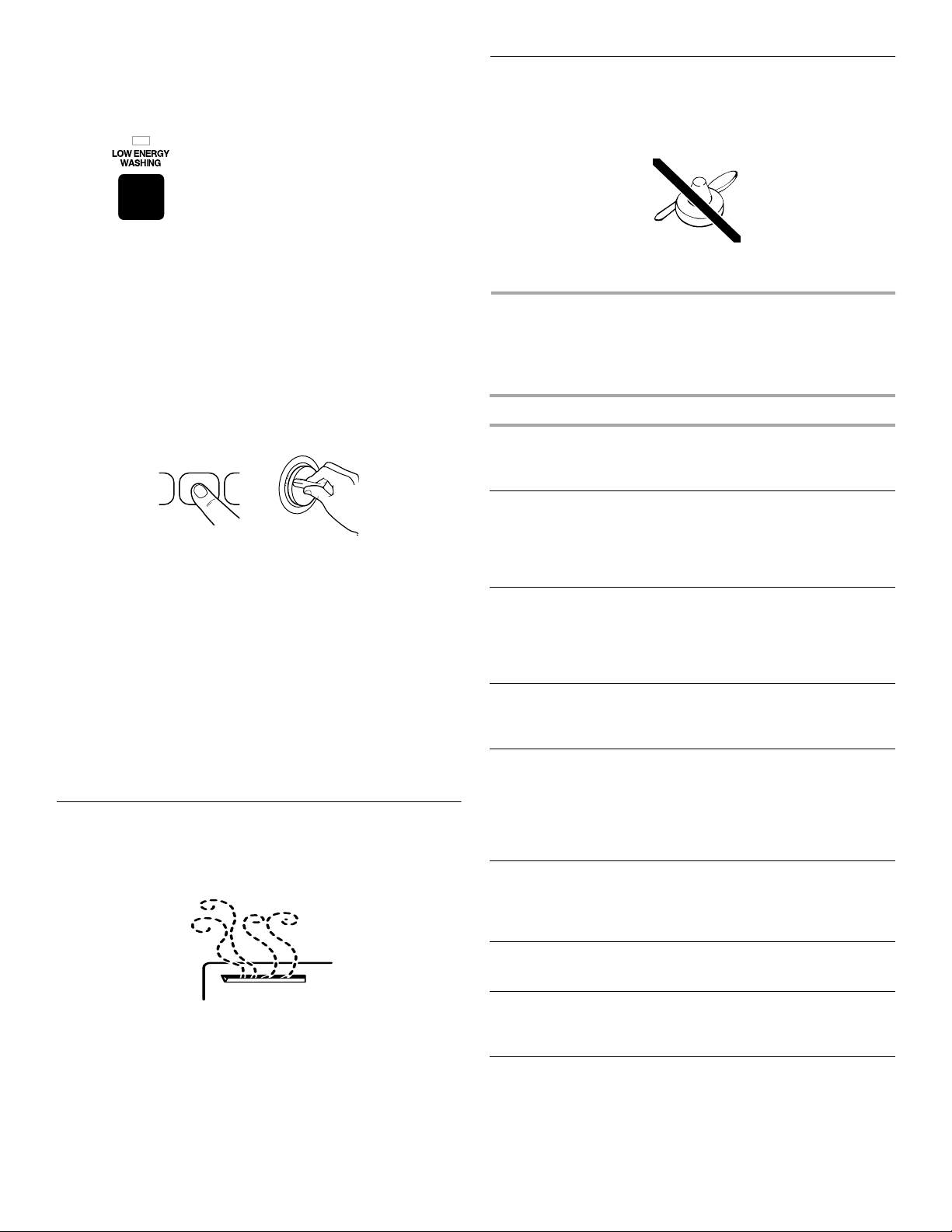

Option Selections

You can change an option anytime before the selected option begins. For example, you can press an unheated drying option any time before drying begins.

Wash

Pre-

Rinse Rinse Main

Use this cycle for rinsing dishes, glasses, and silverware that will not be washed right away.

Rinse Final

Wash

●

Rinse

●●

Do not use detergent with this cycle.

●

●●

Dry Time

(min)

20 2.9/10.9

Water

Usage (gal/L)

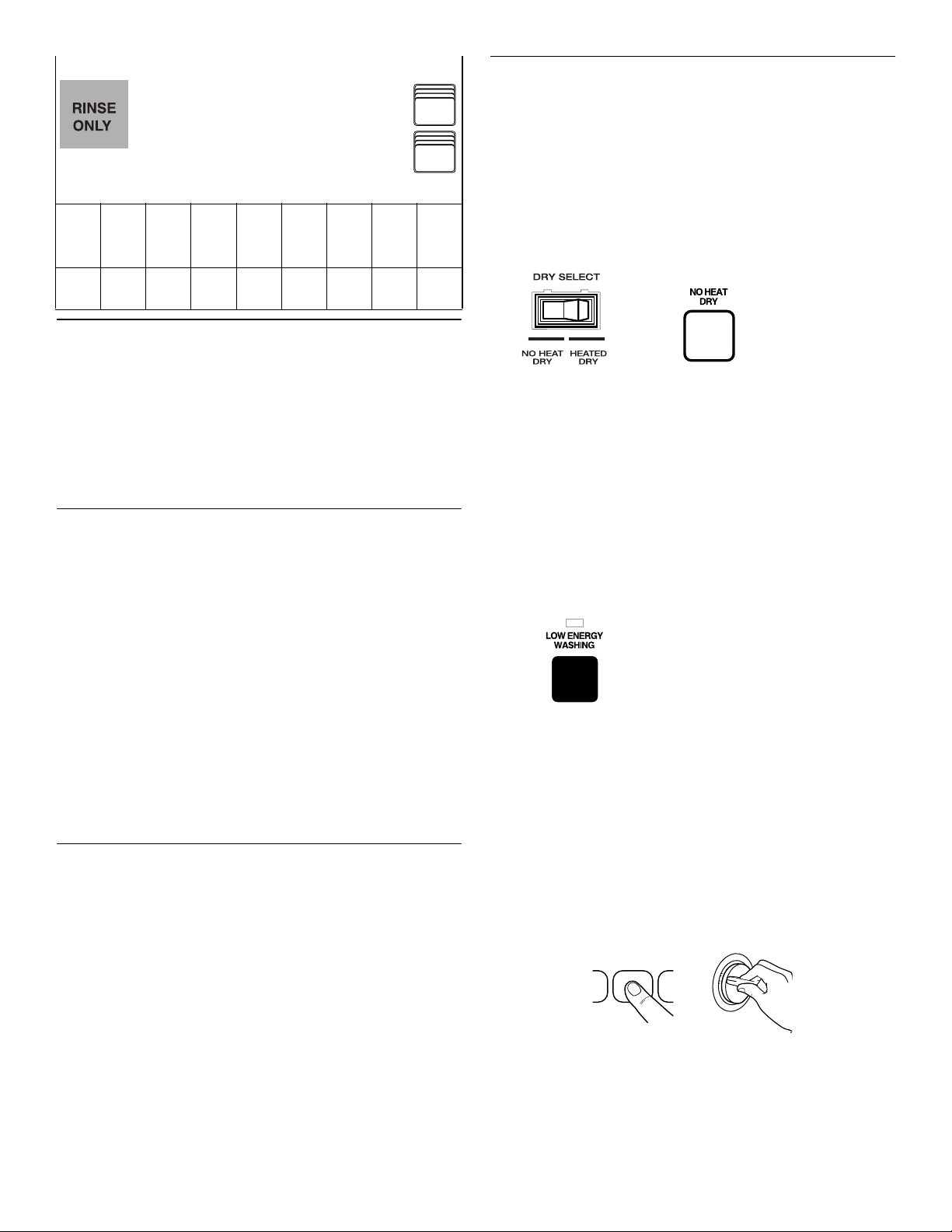

No Heat Dry

Select this energy-saving option to dry without heat. No Heat drying is useful when loads contain plastic dinnerware that may be sensitive to high temperatures.

The dishes take longer to dry and some spotting can occur. For best drying, use a liquid rinse aid. Some items (such as plastics) may need towel drying.

NOTE: Rinse Only automatically uses this option. No Heat Dry is an option with all other cycles.

+ 25 hidden pages
