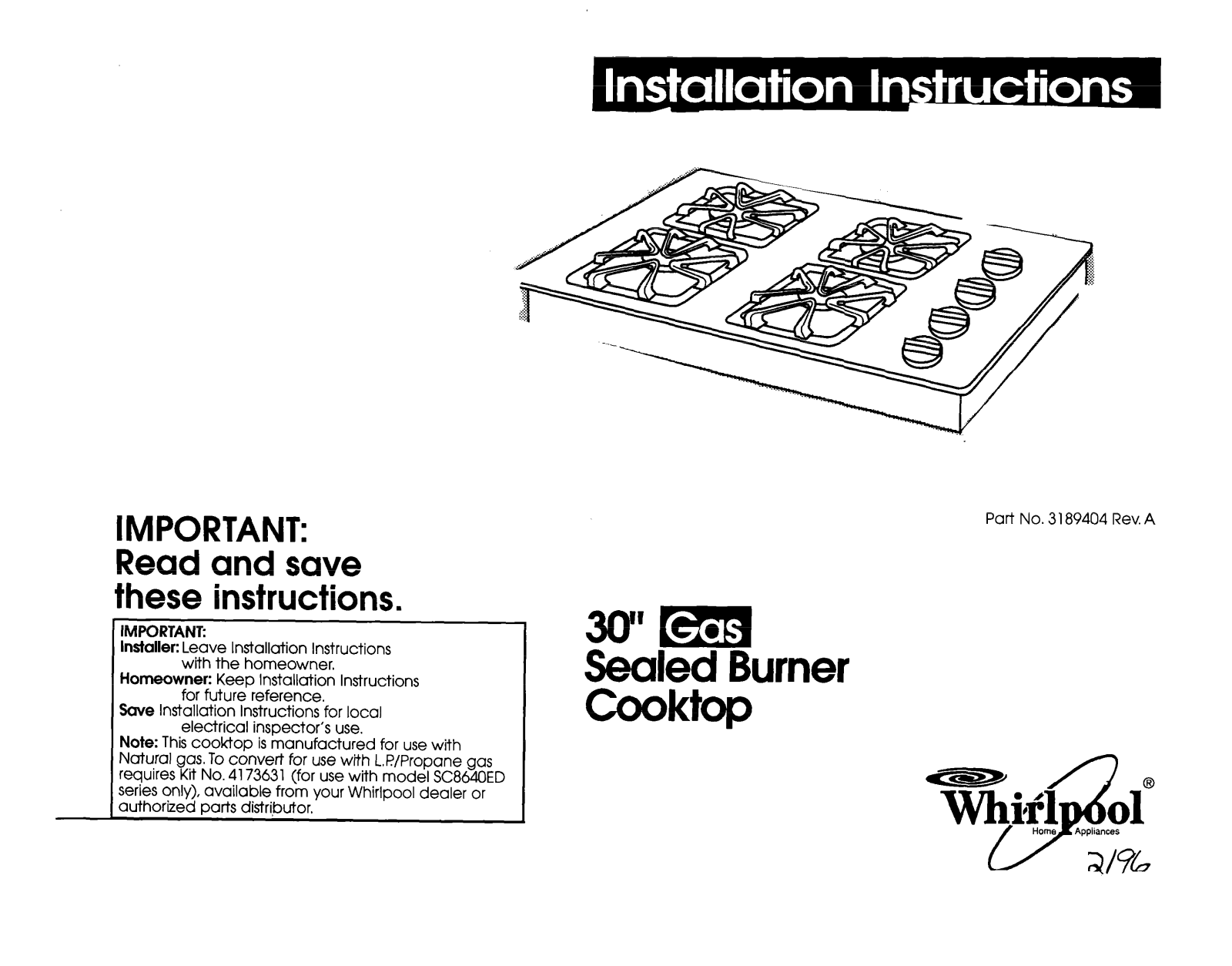

Whirlpool SC864OED User Manual
IMPORTANT:
Read and save
these instructions.
Part No. 3189404 Rev. A
IMPORTANT:
Installer: Leave Installation Instructions
with the homeowner.
Homeowner: Keep Installation Instructions
for future reference.
Save Installation Instructions for local
electrical inspector’s use.
Note: This cooktop is manufactured for use with
Natural gas. To convert for use with L.l?/Propane gas
requires Kit No. 4173631 (for use with model SC864OED
series Only), available from your Whirlpool dealer or
authorized parts distri,butor.
30” m
Sealed Burner
Cooktop
Before you start...
Proper installation is your responsibility, Make sure you
have everything necessary for correct installation. It is the
responsibility of the installer to comply with the installation
clearances specified on the model/serial rating plate. The
model/serial rating plate can be found on the underside
of the cooktop burner box. Write down your cook-top
model and serial numbers before installing cook-top. You
will be asked for these numbers if you need to call for
service or assistance.
Note: This cookfop is manufactured for use with Natural
gas. To convert for use with L.F?/Propane gas requires Kit
No. 4173631, available from your Whirlpool dealer or
authorized parts distributor.
Product Dimensions
Burner box
helght - 2-J/4”
30” mln.
has a drawer, a 3” depth clearance from
the countertop to the top of the drawer (or
other obstruction) in base cabinet is
required.
Cabinet and Cutout Dimensions
base cabinet is required. If cabinet
p- :E:::k:p -
1” min. space
between adjacent
cookiops
Minimum distance
to nearest rear
combustible surface
above cooktop
\ -7%
30” mln
This cooktop is not approved for
use with downdruft vent systems.
Check location where cook-top
will be installed. The location
should be away from strong draft
areas, such as windows, doors and
strong heating vents or fans. The
cooktop should be located for
convenient use in the kitchen.
ALL OPENINGS IN THE WALL OR
FLOOR WHERE THE COOKTOP IS TO
BE INSTALLED MUST BE SEALED.
13” max. Y
-upper
cabinet
depth \
Grounded electrical outlet is required. See
“Electrical requirements.”
Proper gas supply connection must be
available. See “Gas supply requirements.”
Countertop opening dimensions that are
shown must be used. Given dimensions
provide required 0” clearance.
Important: Observe all governing codes
and ordinances. Failure to meet codes and
ordinances could lead to fire or electrical
shock.
WARNING: If the information in
this manual is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
- Do Not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
- WHATTO DO IFYOU SMELL GAS
l
Do Not try to light any
appliance.
l
Do Not touch any electrical
switch; Do Not use any phone
in your building.
l
Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
l
If you cannot reach your gas
supplier, call the fire
department.
- Installation and service must be
performed by a qualified installer,
service agency or the gas
supplier.
I
2-l/4” mln.
space to front
\I
edge of c&net
\
Important: Observe all
governing codes and
ordinances.
Failure to meet codes
and ordinances could
lead to fire or electric
shock.
Do Not pinch the
power supply cord
between the cooktop
and cabinet.
Clearance Dimensions
See Note***
for
mlnlmum
clearances.
Wall aas line /
5” below count&on
and centered In
cabinet.
I
I
Centerline 01
! /wall and unlt
I I
--
l
** Note: 30” mln. when bottom 01
wood or metal cabinet Is
Drotected bv not less than l/4”
ilome retard’ant mlllboard .
covered wlth not less than No.
28 MSG sheet steel, 0.0 15”
stalnless steel, 0.024” alumlnum
or 0.020” copper.
38’ mln. clearance between the
top of the cooklng plattorm and
the bottom of an unprotected
wood or metal sheet.
I I
Fire Hazard
Do Not obstruct the flow of combustion
and ventilation air.
Injury Hazard
To eliminate the risk of burns or fire,
avoid installing cabinet storage above the
cooking surface. If cabinets are already
installed, reduce the hazard of reaching
over a heated cooking surface by
installing a range hood. The range hood
should extend a minimum of 5 inches out
from the bottom front of the cabinets.
Reaching over a heated cooking surface
could result in a serious burn or other
injury.
Electrical Shock Hazard
I
It is the customer’s responsibility:
To contact a qualified electrical installer.
To assure that electrical installation is
i
adequate and in conformance with
I
Uational Electrical Code ANSUNFPA 70 -
I
atest edition* and all local codes and
c
ordinances.
F
-ailure to do so could result in death or
!
serious injury.
1
rake special care when drilling holes into
t
he wall for electrical wiring. Electrical
u
nrires may be concealed behind the wall
c
:overing.
F
‘ailure to do so could result in death or
z
serious iniurv.
Panel A
Copies of the standards listed may be obtained from:
‘National Fire Protection Association
nearest combustible
\
surface above cookfop
Batterymarch Park
Quincy, Massachusetts 02269
‘*American Gas Association
1515 Wilson Boulevard
Arlington, Virginia 22209
