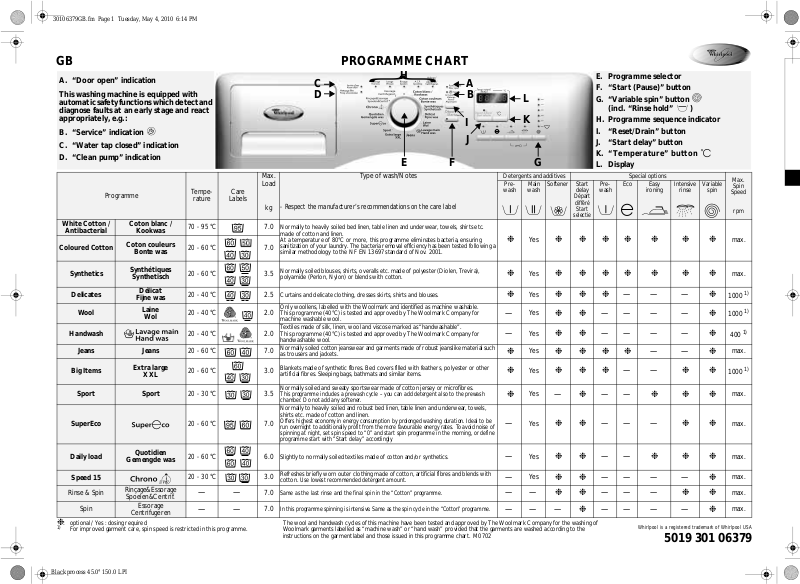

GB PROGRAMME CHART

A. “Door open” indication This washing machine is equipped with

automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indication C. “Water tap closed” indication D. “Clean pump” indication

Programme

White Cotton /

Antibacterial

Coloured Cotton

Coton blanc /

Kookwas

Coton couleurs

Bonte was

Tempe-

rature

70 - 95 °C

20 - 60 °C

Care

Labels

C D

Max. Load

- Respect the manufacturer’s recommendations on the care label

7.0

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. At a temperature of 80°C or more, this programme eliminates bacteria, ensuring sanitization of your laundry. The bacteria removal efficiency has been tested following a

7.0

similar methodology to the NF EN 13697 standard of Nov. 2001.

Type of wa s h / N o t e s

}

E. Programme selector

A B

F. “Start (Pause)” button G. “Variable spin” button

(incl. “Rinse hold” )

H. Programme sequence indicator I. “Reset/Drain” button

J. “Start delay” button K. “Temperature” button

Detergents and additives Special options

Pre-

Main wash

Yes

Softener Start

❉❉❉❉ ❉ ❉ ❉

wash

❉

delay

Départ

différé

Start

selectie

L. Display

Pre-

Eco Easy

wash

ironing

Intensive

rinse

Variable

spin

Max.

Spin

Speed

rpm

max.

Synthetics

Delicates

Wool

Handwash

Jeans Jeans

Big Items

Sport Sport

SuperEco

Daily load

Speed 15

Rinse & Spin

Spin

optional / Yes : dosing required

❉

For improved garment care, spin speed is restricted in this programme.

Synthétiques

Synthetisch

Délicat

Fijne was

Laine

Wol

Extra large

XXL

Quotidien

Gemengde was

Rinçage&Essorage

Spoelen&Centrif.

Essorage

Centrifugeren

20 - 60 °C

20 - 40 °C

20 - 60 °C

20 - 30 °C

20 - 60 °C

20 - 30 °C

—— ——

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),

3.5

polyamide (Perlon, Nylon) or blends with cotton.

Curtains and delicate clothing, dresses skirts, shirts and blouses.

2.5

Only woollens, labelled with the Woolmark and identified as machine washable. This programme (40°C) is tested and approved by The Woolmark Company for

2.0

machine washable wool. Textiles made of silk, linen, wool and viscose marked as “handwashable”.

This programme (40°C) is tested and approved by The Woolmark Company for

2.0

handwashable wool. Normally soiled cotton jeanswear and garments made of robust jeanslike material such

7.0

as trousers and jackets. Blankets made of synthetic fibres. Bed covers filled with feathers, polyester or other

3.0

artificial fibres. Sleeping bags, bathmats and similar items. Normally soiled and sweaty sportswear made of cotton jersey or microfibres.

This programme includes a prewash cycle – you can add detergent also to the prewash

3.5

chamber. Do not add any softener.

Normally to heavily soiled and robust bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Offers highest economy in energy consumption by prolonged washing duration. Ideal to be

7.0

run overnight to additionally profit from the more favourable energy rates. To avoid noise of spinning at night, set spin speed to “0” and start spin programme in the morning, or define programme start with “Start delay” accordingly.

Slightly to normally soiled textiles made of cotton and/or synthetics.

6.0

Refreshes briefly worn outer clothing made of cotton, artificial fibres and blends with

3.0

cotton.

Use lowest recommended detergent amount.

Same as the last rinse and the final spin in the “Cotton” programme.

7.0

In this programme spinning is intensive. Same as the spin cycle in the “Cotton ” programme.

7.0

The wool and handwash cycles of this machine have been tested and approved by The Woolmark Company for the washing of Woolmark garments labelled as “machine wash” or “hand wash” provided that the garments are washed according to the instructions on the garment label and those issued in this programme chart. M0702

Yes

❉ ❉

— —

❉ ❉

❉

—

— —

——

❉❉❉❉ ❉ ❉ ❉

Yes

❉❉❉

Yes

❉❉

Yes

❉❉

Yes

❉❉❉❉

Yes

❉❉❉

Yes

—

Yes

❉❉

Yes

❉❉

Yes

❉❉ ❉❉

———

—— —

—— — — —— — —

——

❉

❉❉❉

—— —

——

❉❉❉

—— — — —— — —— — —

❉

Whirlpool is a registered trademark of Whirlpool USA

max.

1000

400

max.

1000

max.

max. max. max.

❉ ❉

❉❉

❉

❉❉

❉

5019 301 06379

Black process 45.0° 150.0 LPI

30106379GB.fm Page 2 Tuesday, May 4, 2010 6:14 PM

The Sensor Technology automatically adapts Programme Time, Water and Energy consumption to the size of your wash load.

CONSUMPTION DATA

Programme

White Cotton / Antibacterial 95 7.0 74

Coloured Cotton 60 7.0 54 1.19 2:20

Coloured Cotton with “Eco”

Coloured Cotton 40 7.0 69 0.75 2:05

Synthetics 60 3.5 46 Synthetics 40 3.5 42 0.50 1:20

Delicates 30 2.5 60 0.40 0:45

Wool 40 2.0 60 0.60 0:45

Handwash 40 2.0 45 0.60 0:40

Jeans 40 7.0 86 0.75 2:21

Big Items 40 3.0 74 0.75 1:30

Sport 30 3.5 54 0.55 1:34

SuperEco 60 7.0 69 0.84 4:00

Daily load 40 6.0 73 0.60 1:00

Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

* The time indicated on the display can deviate from the values in the table, becaus e it takes into account the operation conditions applicable at that time. ** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out. *** Reference Programme for Energy Label (with separator in detergent dispenser removed for use of powder detergent).

Speed 15 30 3.0 30 0.20 0:15

***

Tem p e rat u r e

(°C)

60 7.0 54 0.91 4:00

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Load your laundry, close the door properly and add detergent as indicated on the front page and as described in the chapter “Detergent and Additives” in your Instructions for Use (remove separator in detergent dispenser for use of powder detergent if necessary).

1. Turn the

2. The

3. The indication lamp of the predefined

programme selector

The display shows the programme duration in hours and minutes as well as the predefined temperature. The

button blinks.

(Pause)”

temperature

“Temperature” button.

case you want to set another spin speed, press the “Variable spin” button .

can be altered by pressing the

to the desired programme.

spin speed

lights up. In

SELECT ANY DESIRED OPTION

Push the button(s) of any option(s) desired - the respective indication lights up. When the combination of programme and option is not possible, the lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. Increases the cycle time by approximately 15 min.

• Do not use liquid detergent for the main wash when activating the Prewash option.

“Eco” button

• With a modified temperature profile and a prolonged washing duration, the optimum combination of good washing result and lower energy consumption is achieved.

“Start

Load

Water

(kg)

“Easy ironing” button

• Helps to make ironing easier.

• Increases the water quantity and the clothes are spun very gently .

“Intensive rinse” button

• More water is added and rinse cycle is prolonged.

• This option is particularly suitable for areas with very soft water, washing baby linen and helping people with allergies.

“Variable spin” button (incl. “Rinse hold” )

• Every programme has a predefined spin speed.

• Press the button to set another spin speed.

• If you select spin speed “0”, the final spinning is cancelled but intermediate spin peaks remain during rinse. The water is drained out only.

•If you select last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

-Select

- Do not leave the laundry to soak in the rinse hold for too long.

- The programme stops to “Rinse hold” when the “Rinse

- To terminate the “Rinse hold” by draining the water,

- To terminate the programme by spinning the laundry, press

Energy

(l)

(kWh)

2.10 2:10

0.85 1:35

“Rinse hold”

later time or if you want to drain only.

hold” light in the programme sequence indicator is on. The

“Start (Pause)”

without any spinning, press the

the “Variable spin” button to select the desired spin speed and then the

“Start (Pause)”

Approx. Programme Duration

(hours : minutes)

, the laundry remains in the

if you want to postpone spinning to a

button light blinks.

“Start (Pause)”

button to start the spin cycle.

button.

START DELAY

The “Start delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper. Do not use liquid detergent when activating the “Start delay”.

• Select programme, temperature and options.

• Press the “Start delay” button to select a delay time up to 23 hours. The light of the

•Press the

• As soon as the programme starts, the start delay on the display

• Once having pressed the

To cancel the “Start delay” ...before you press “Start (Pause)”:

• Turn the programme selector to another position or press the

...after having pressed “Start (Pause)”:

•Press

“Start (Pause)”

delay time begins. The light of the on. The light of the start delay button will keep blinking until the programme starts.

is replaced by the remaining programme time, and the light of the “Start delay” button goes off.

of hours preselected can be changed by pressing and holding the “Start delay” button.

“Reset/Drain”

“Start (Pause)”

display. Press programme immediately.

“Start (Pause)”

button. The countdown of the

“Start (Pause)”

button.

- the delay time disappears from the

“Start (Pause)”

button blinks.

“Start (Pause)”

again to start the selected

button is

button, the number

PROGR AMME START

Open the tap and press and is on. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain. The display shows the remaining programme time. Due to variations in load and temperature of inlet water, the remaining time is newly calculated in certain programme phases. If this is the case,

an animation appears on the display

“Start (Pause)”

. The light stops blinking

CHILD LOCK

Activating the child lock prevents children from starting a wash cycle or changing the settings of a running programme. The child lock cannot be activated or deactivated when the programme selector is in the “Off/O” position. To activate the child lock:

• Turn the programme selector to a programme position, or run a programme as usual.

• Press the 2 buttons marked with the key symbol simultaneously for at least 3 seconds. A key-like symbol will shortly appear on the display to indicate that the child lock is active.

Any time you try to change a programme setting with active child lock, the display will shortly show the key-like symbol. The programme setting cannot be changed anymore. The only change possible is to switch the washer off by turning the programme selector to the “Off/O” position. To deactivate the child lock:

• Press again the 2 buttons marked with the key symbol simultaneously for at least 3 seconds.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show that the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Reset a running programme before the end”.

RED INDICATIONS

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your Instructions for Use. If the fault persists, contact our After Sales Service.

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap. If the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned. In the latter case refer to the Instructions for Use (“Removing the Filter”).

PROGRAMME END

• The display shows “End” and the “Door open” indication lights.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press

2. Select the new programme, temperature, any options and

3. Press

“Start (Pause)”

another spin speed if you want.

“Start (Pause)”

programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

to pause the programme. The light blinks.

again. The light is on, and the

RESET A RUNNING PROGRAMME BEFORE THE END

The

“Reset/Drain”

•Press the appears on the display. Any existing water is drained before the door can be opened.

button cancels a programme before the end.

“Reset/Drain”

button for at least 3 seconds. “rES”

Whirlpool is a registered trademark of Whirlpool USA

5019 301 06379

Black process 45.0° 150.0 LPI
