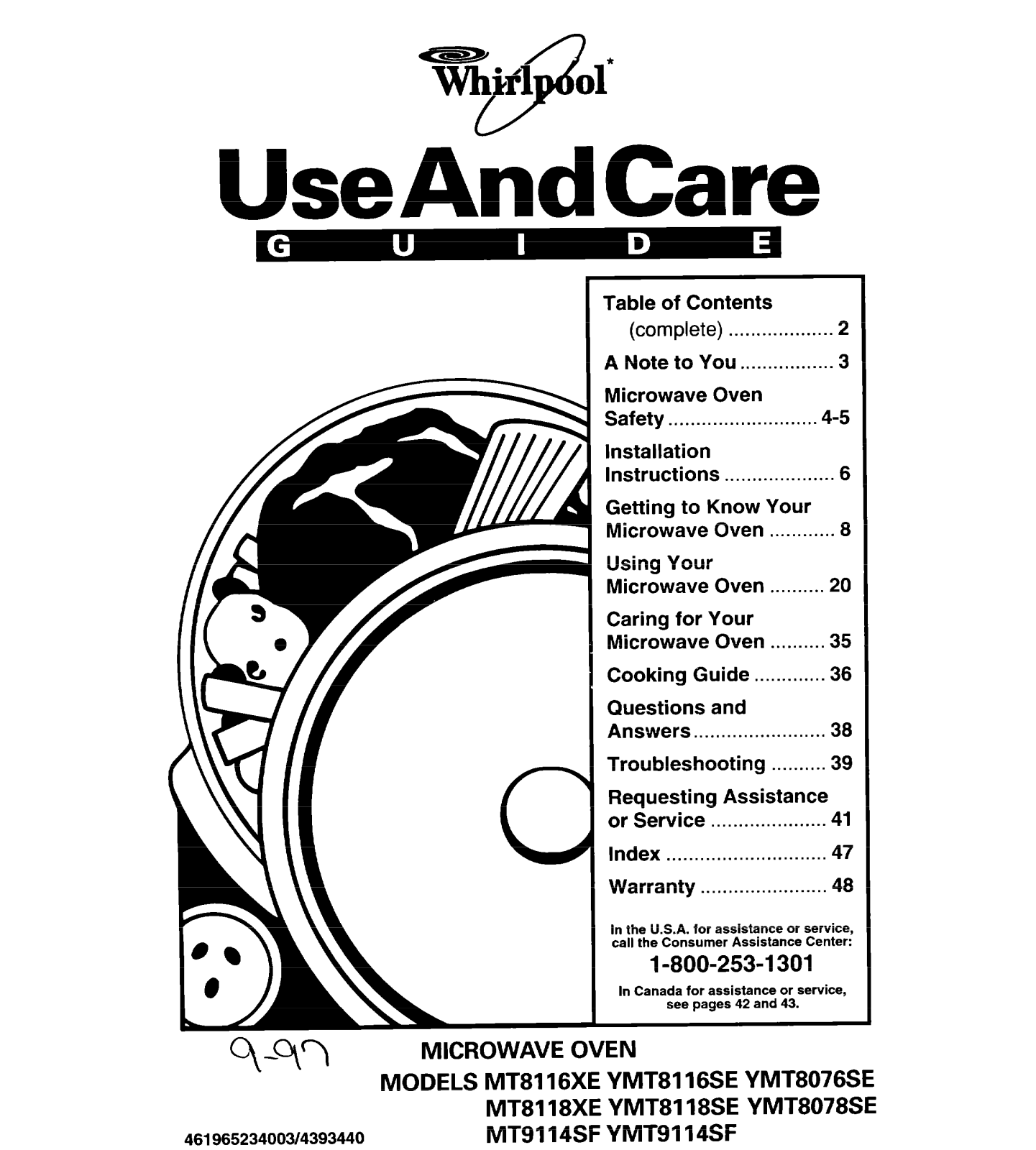

Whirlpool MT8118XE, MT9114SF, MT8116XE User Manual

0 (0)

UseAndCare

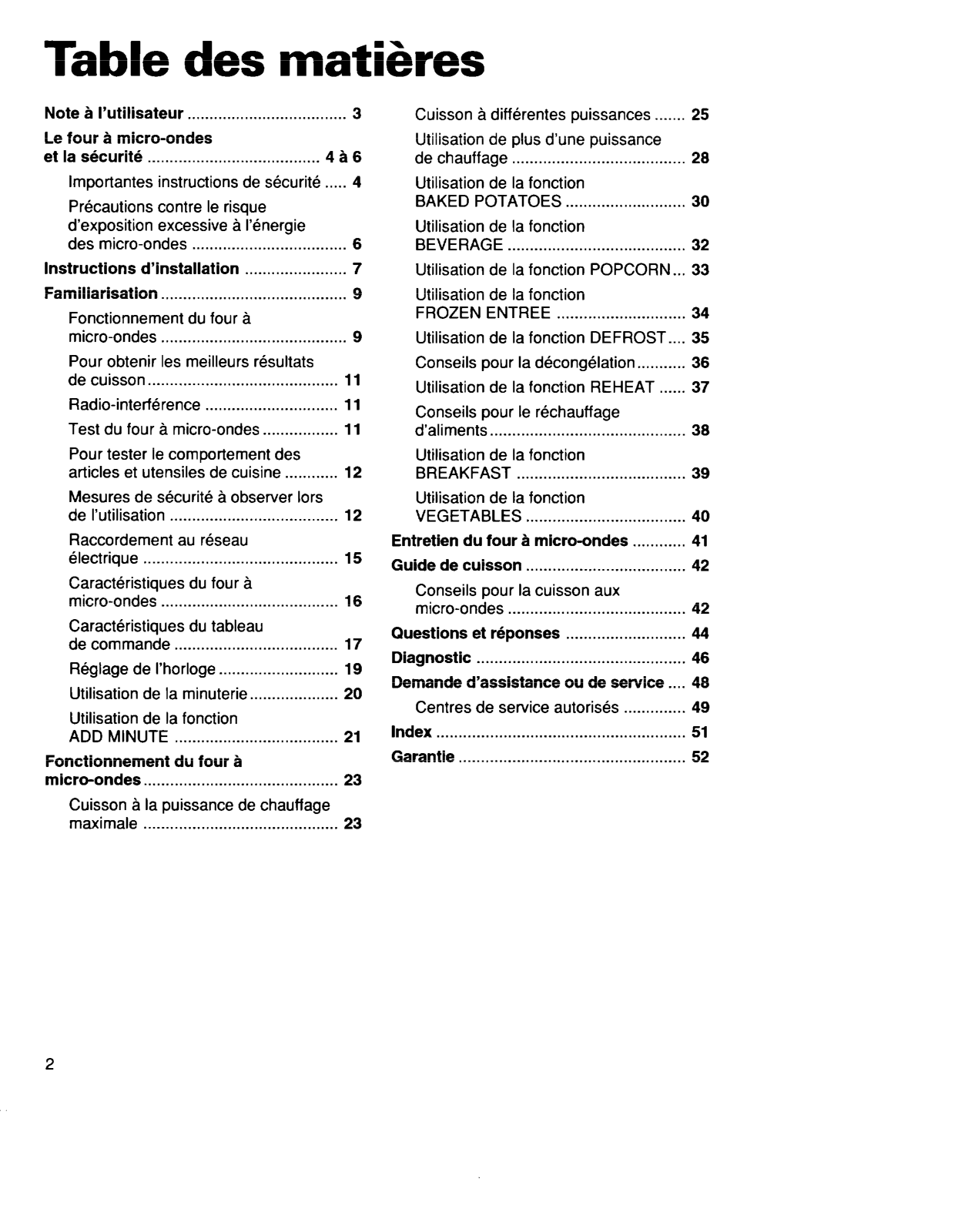

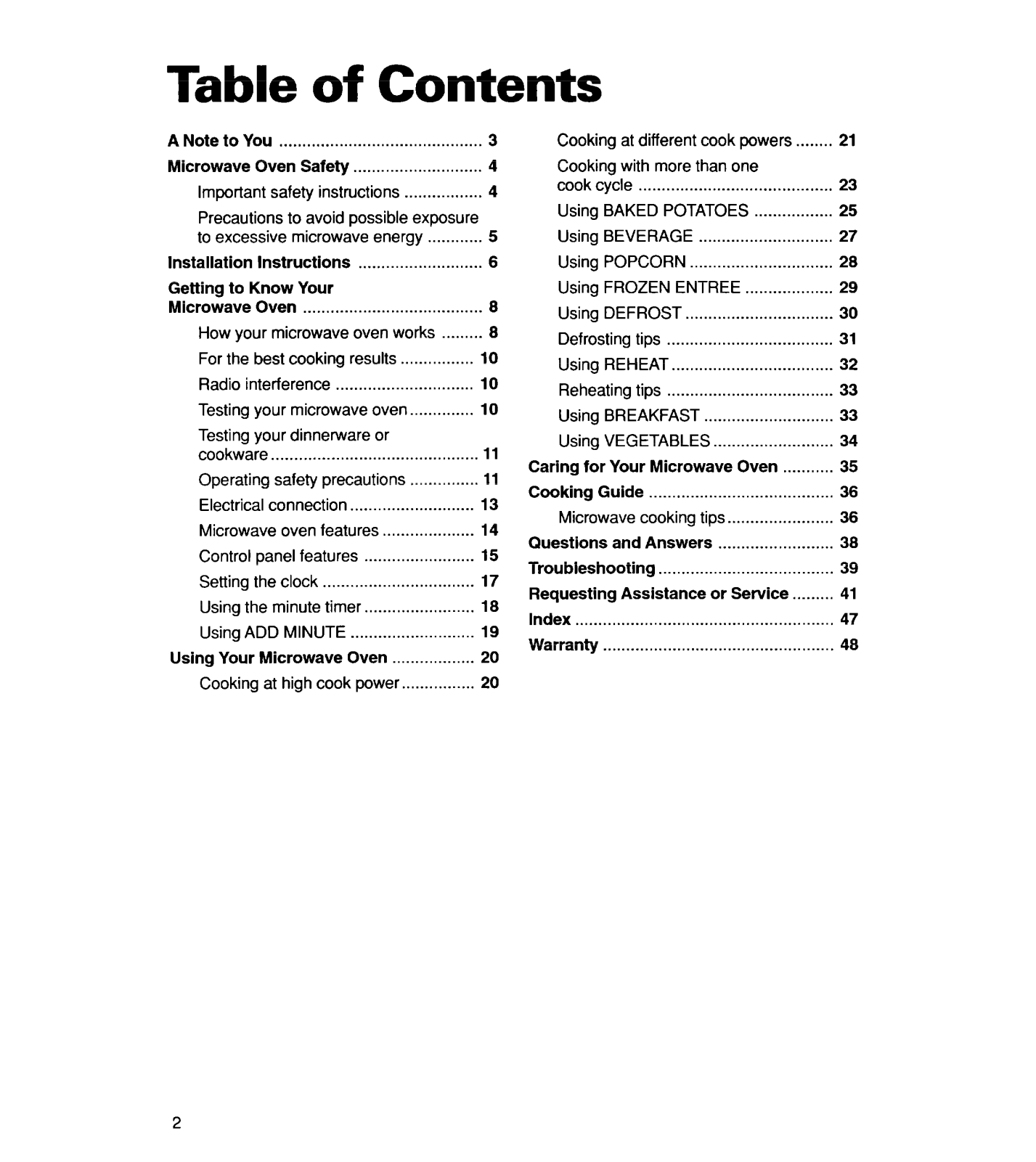

Table of Contents

(complete) ................... 2

A Note to You ................. 3

Microwave Oven Safety

Installation

Instructions .................... 6

Getting to Know Your

Microwave Oven ............ 8

Using Your

Microwave Oven .......... 20

Caring for Your

Microwave Oven .......... 35

Cooking Guide ............. 36

...........................

4-5

461965234003l4393440

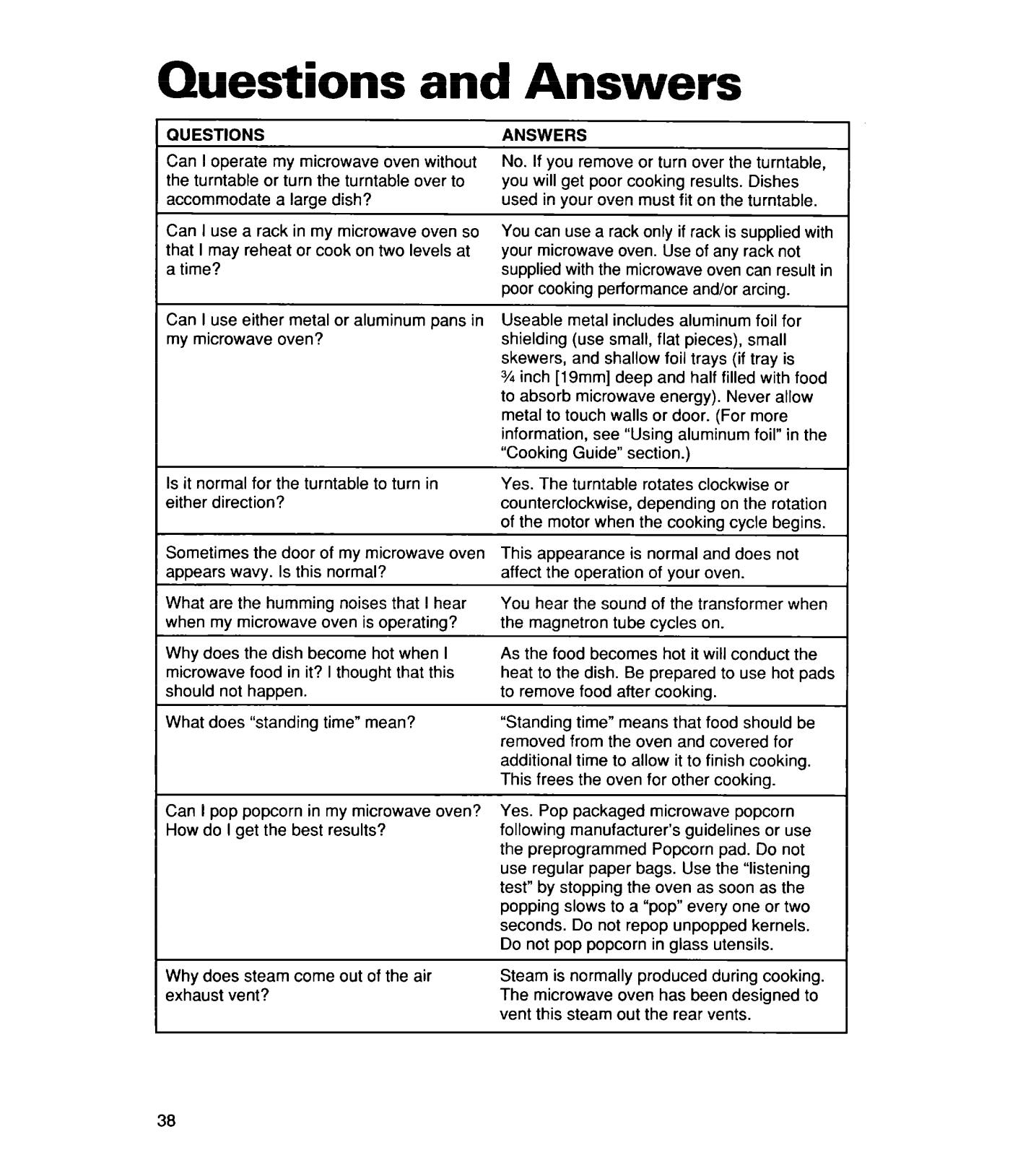

Questions and

Answers.. ...................... 38

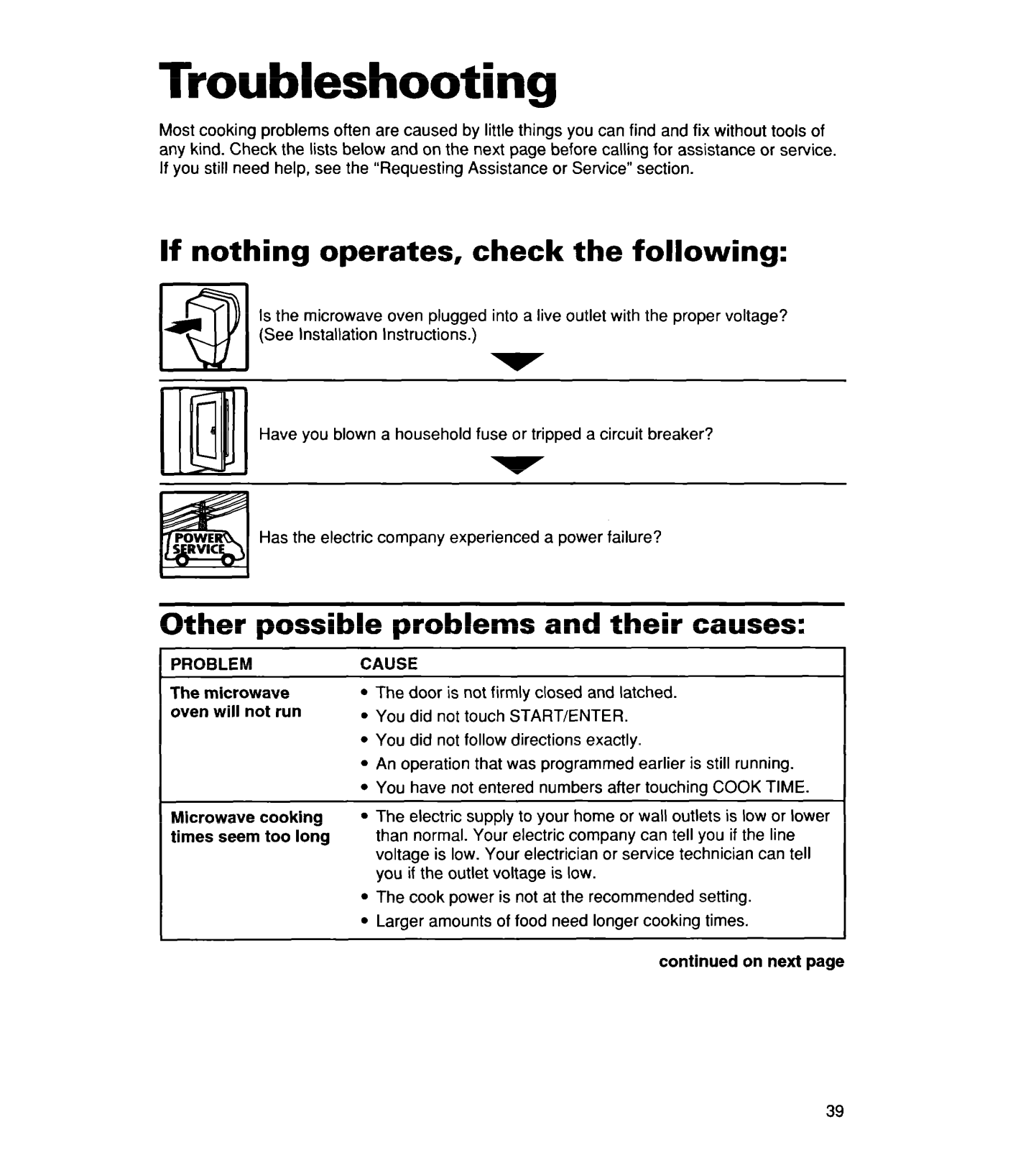

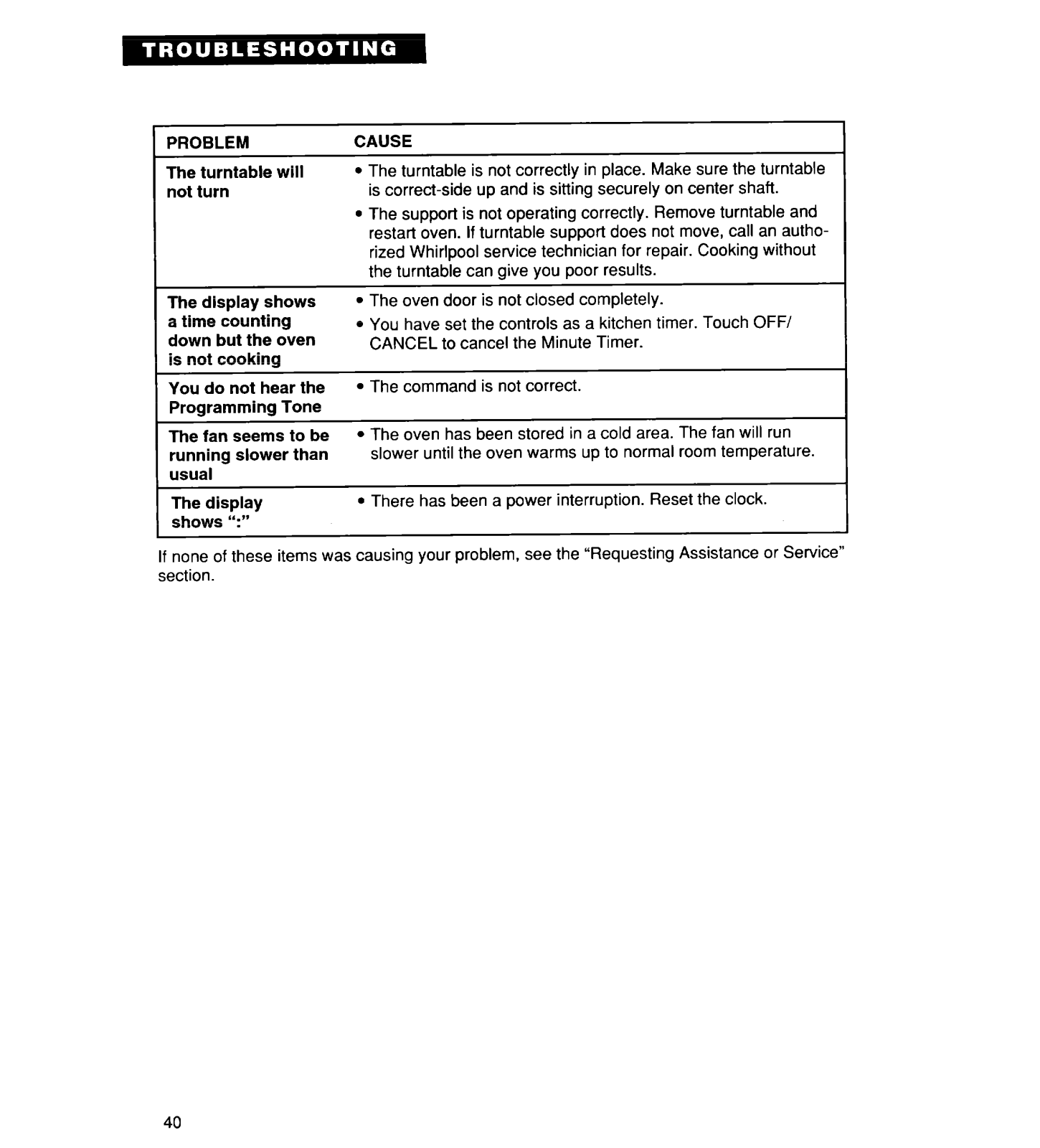

Troubleshooting .......... 39

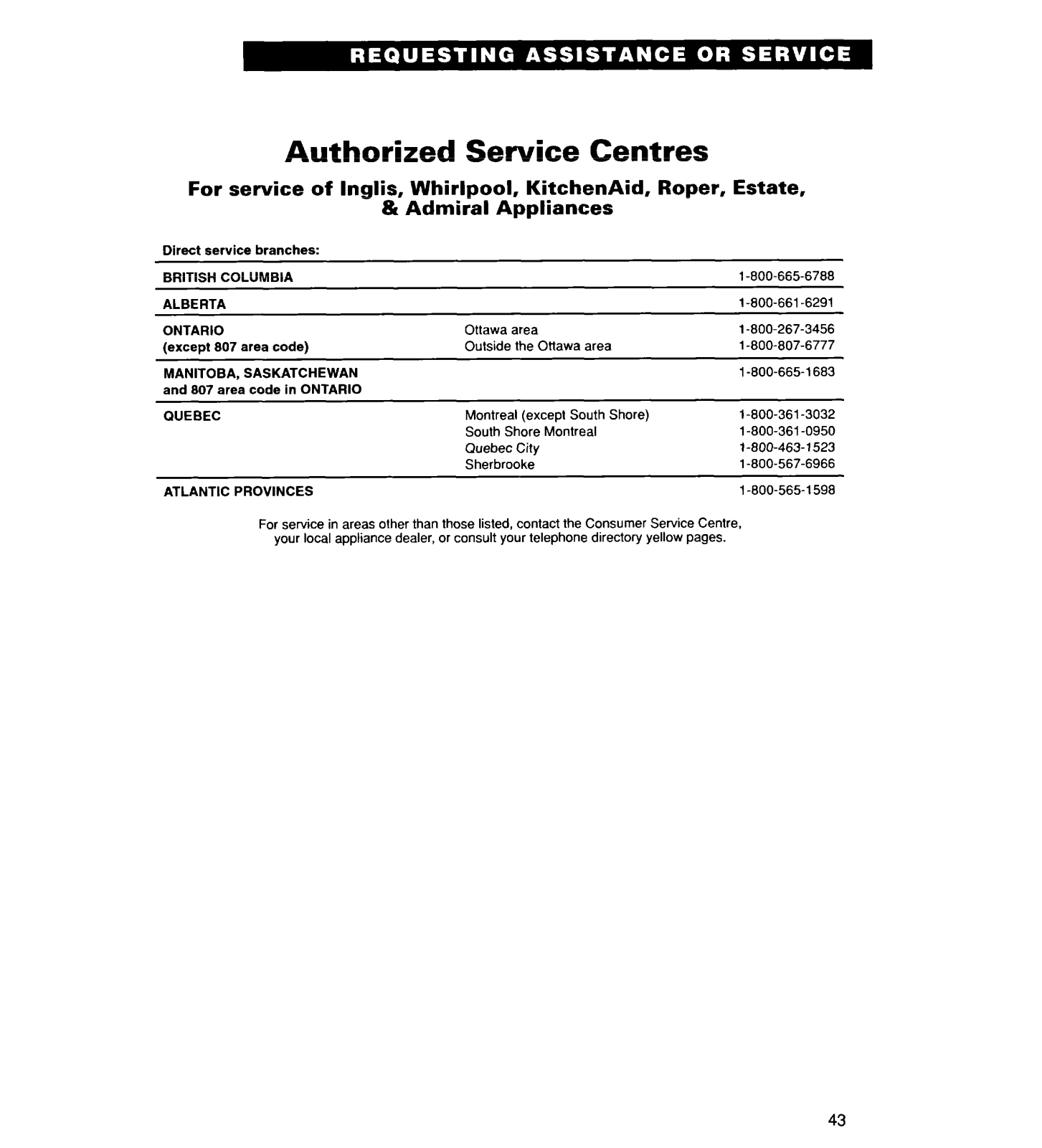

Requesting Assistance

or Service ..................... 41

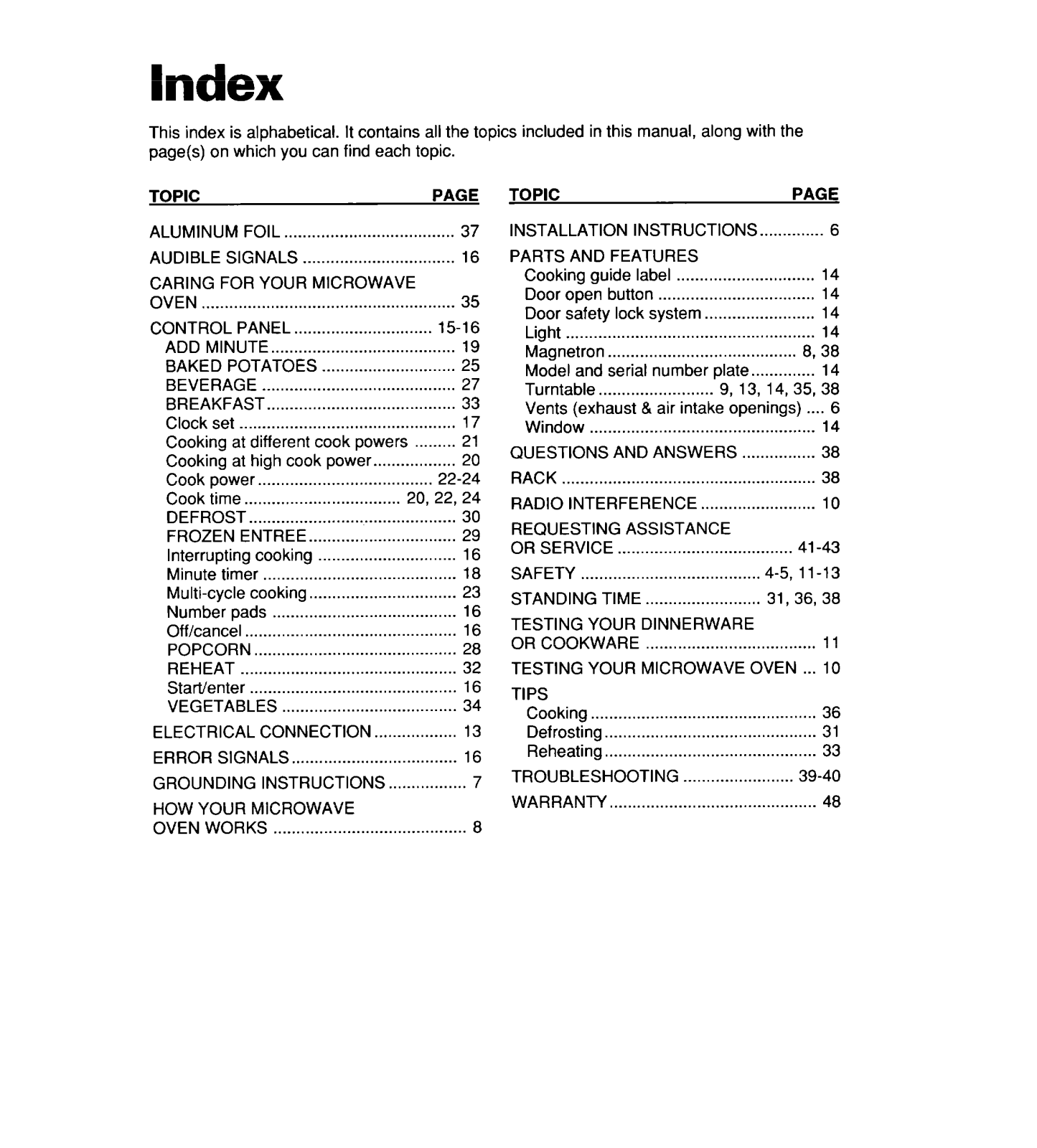

Index

Warranty ....................... 48

In the U.S.A. for assistance or service, call the Consumer Assistance Center:

.............................

1-800-253-l 301

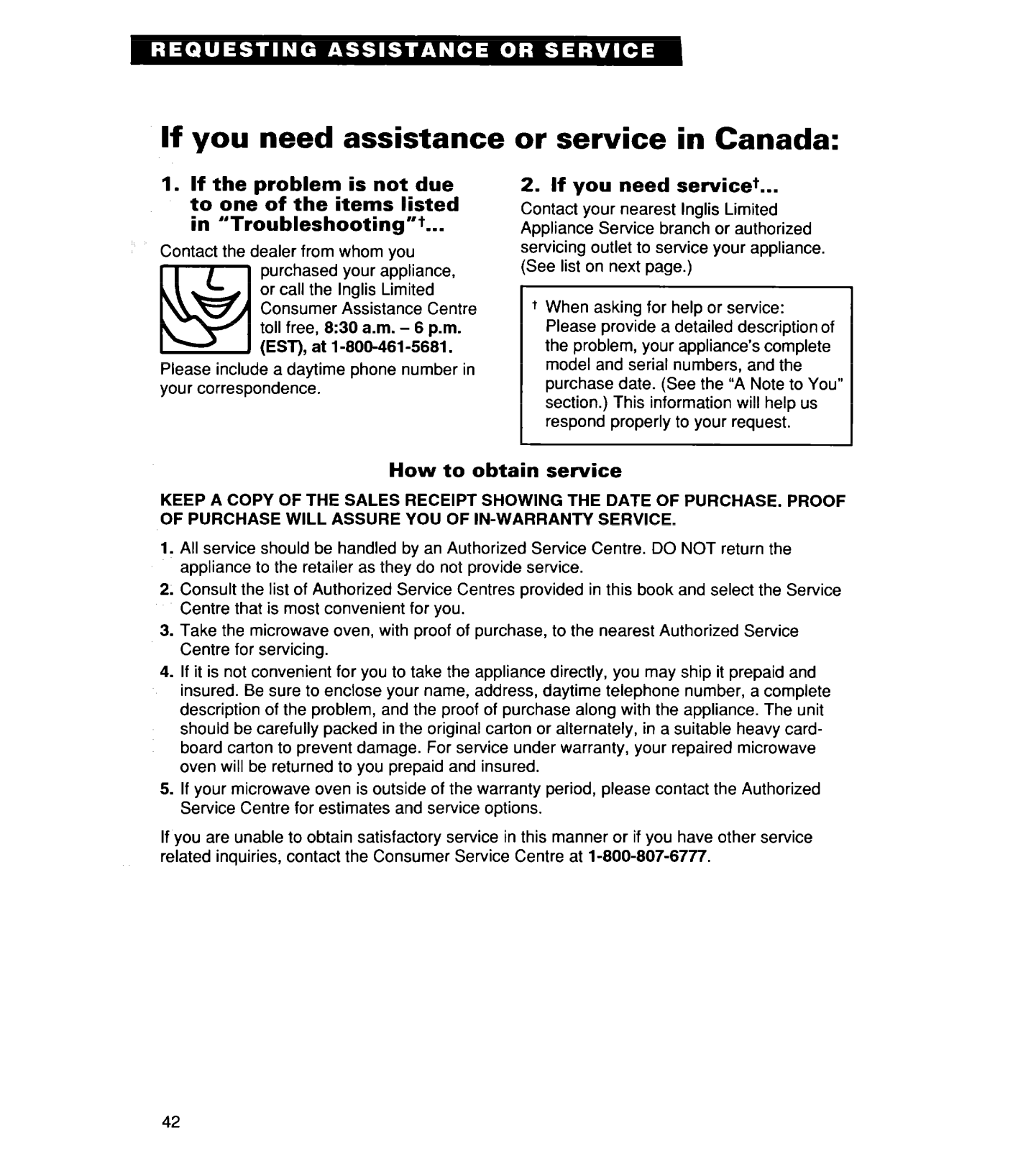

In Canada for assistance or service,

seepages42and43.

MICROWAVE OVEN

MODELS MT81 16XE YMT8116SE YMT8076SE

MT81 18XE YMT8118SE YMT8078SE MT9114SFYMT9114SF

A Note to You ............................................

Microwave Oven Safety

Important safety instructions Precautions to avoid possible exposure

to excessive microwave energy

Installation Instructions ...........................

Getting to Know Your Microwave Oven

How your microwave oven works

For the best cooking results

Radio interference ..............................

Testing your microwave oven..

Testing your dinnentvare or

cookware .............................................

Operating safety precautions

Electrical connection ...........................

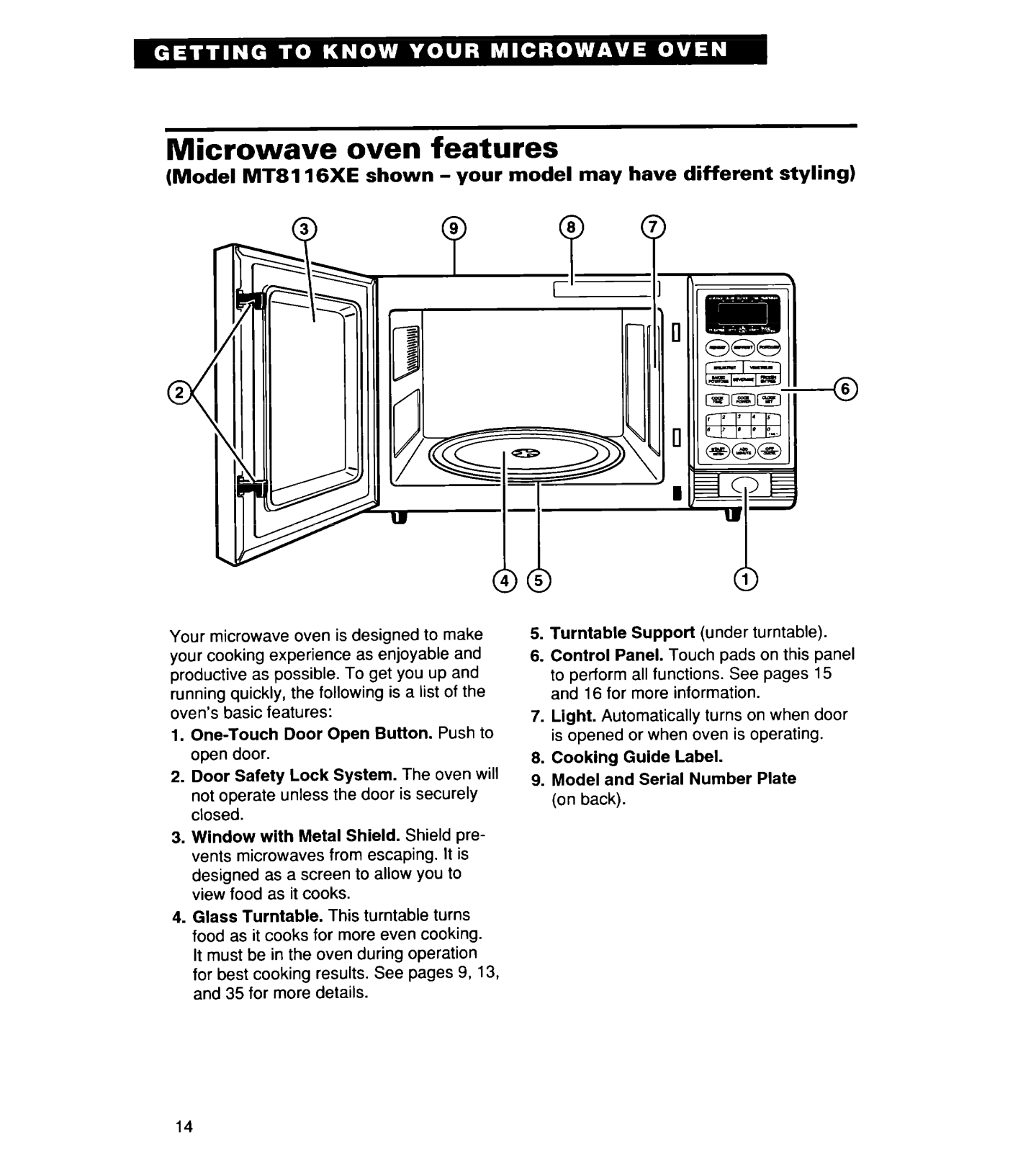

Microwave oven features ....................

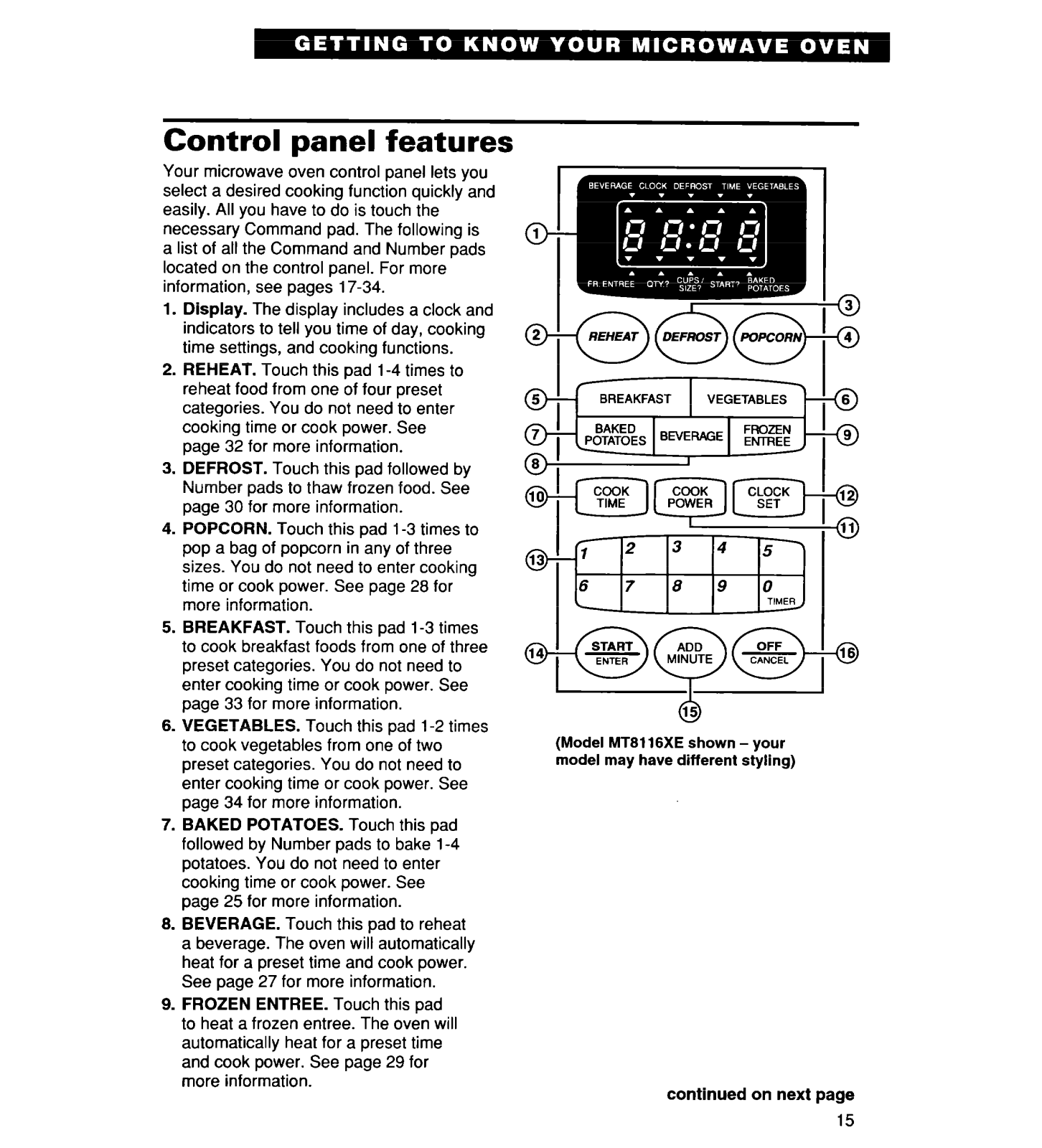

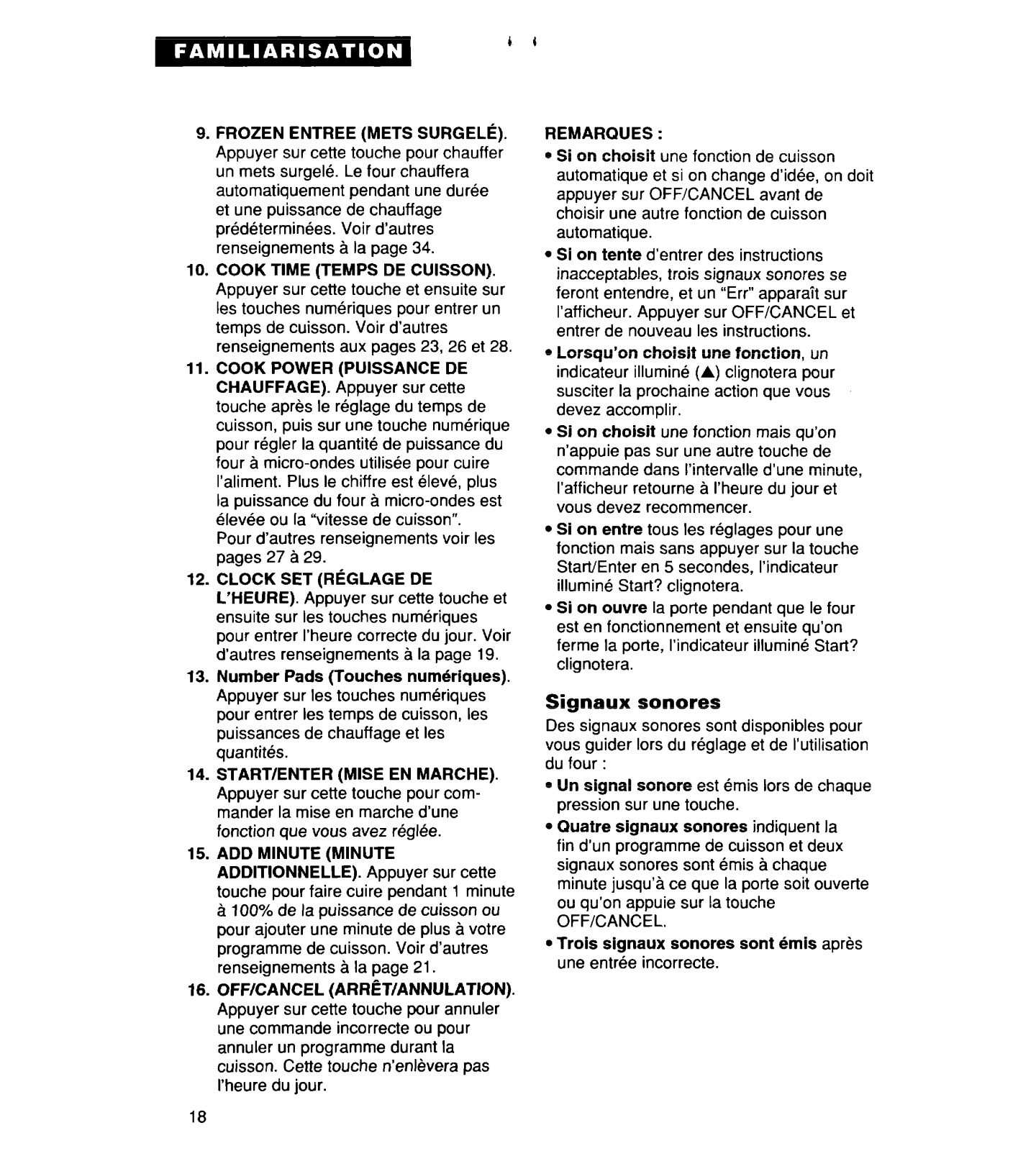

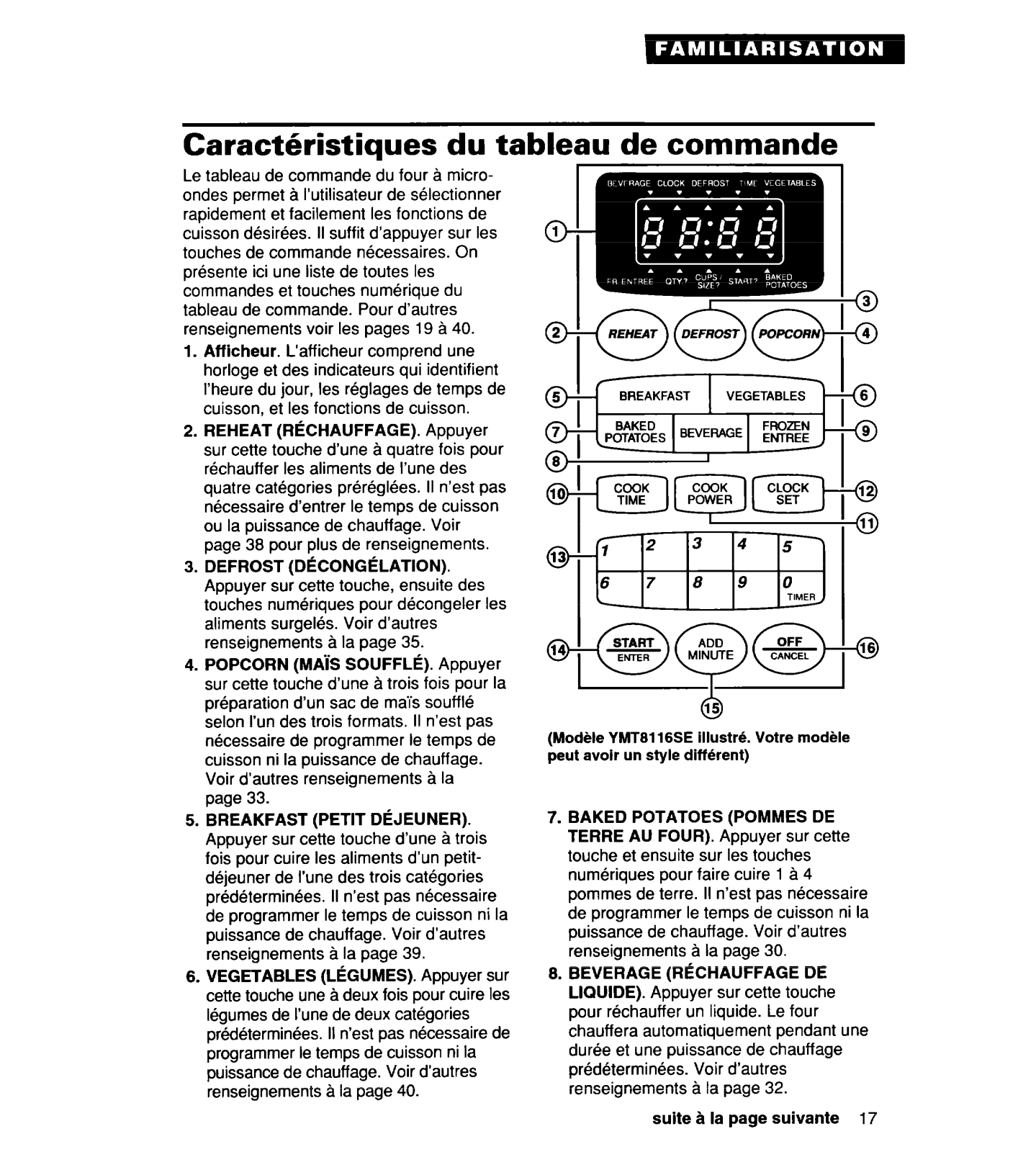

Control panel features ........................

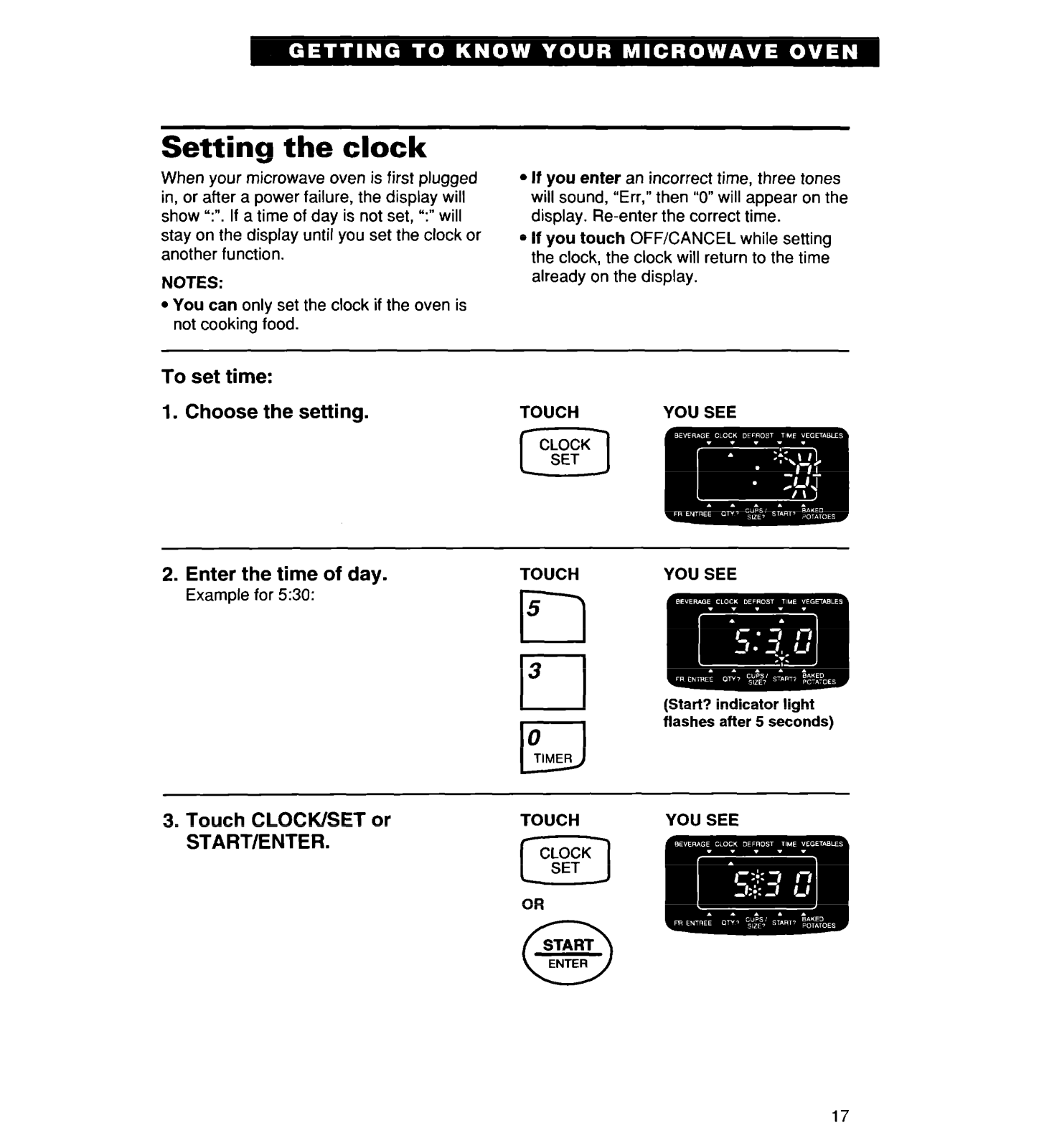

Setting the clock .................................

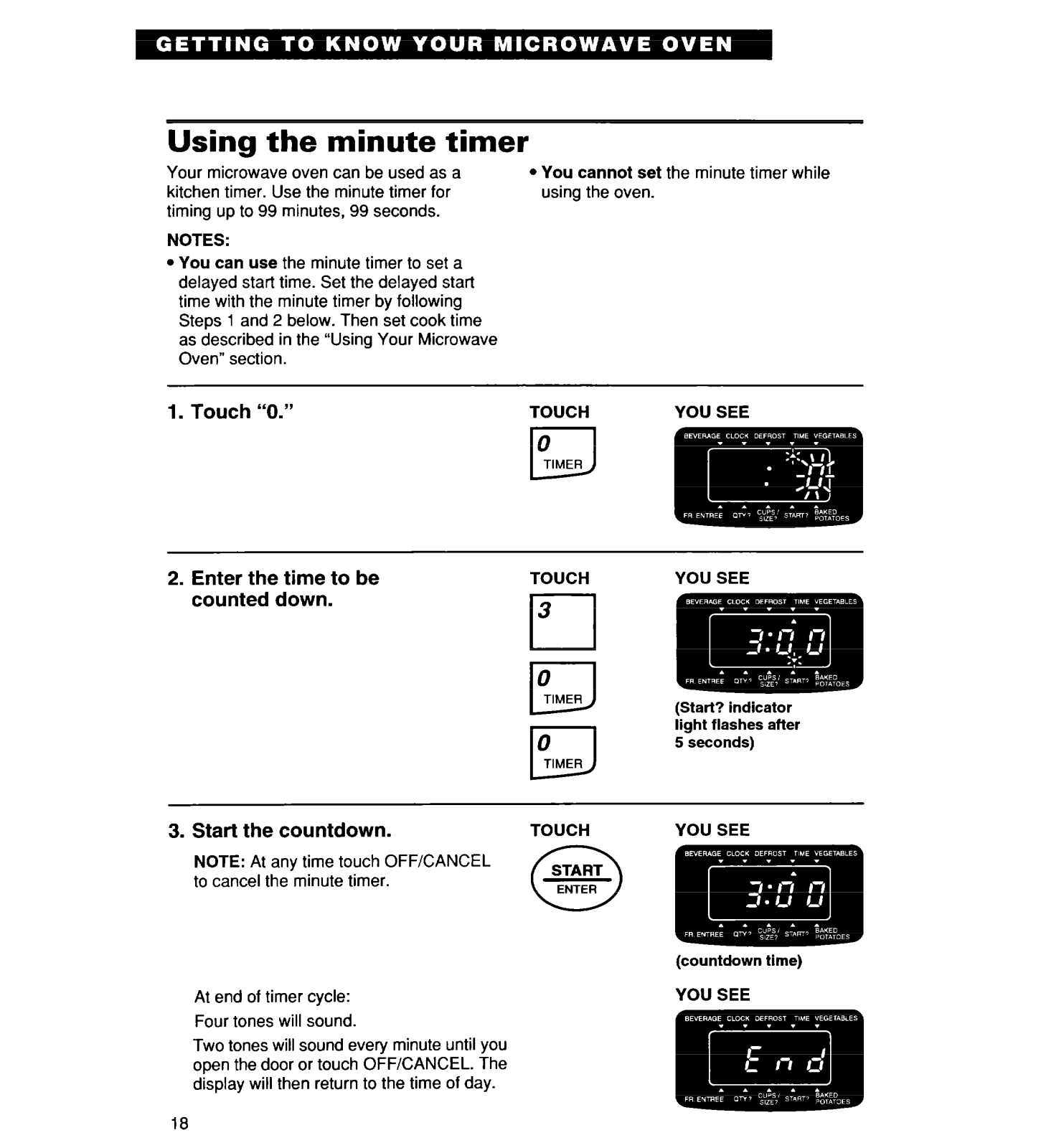

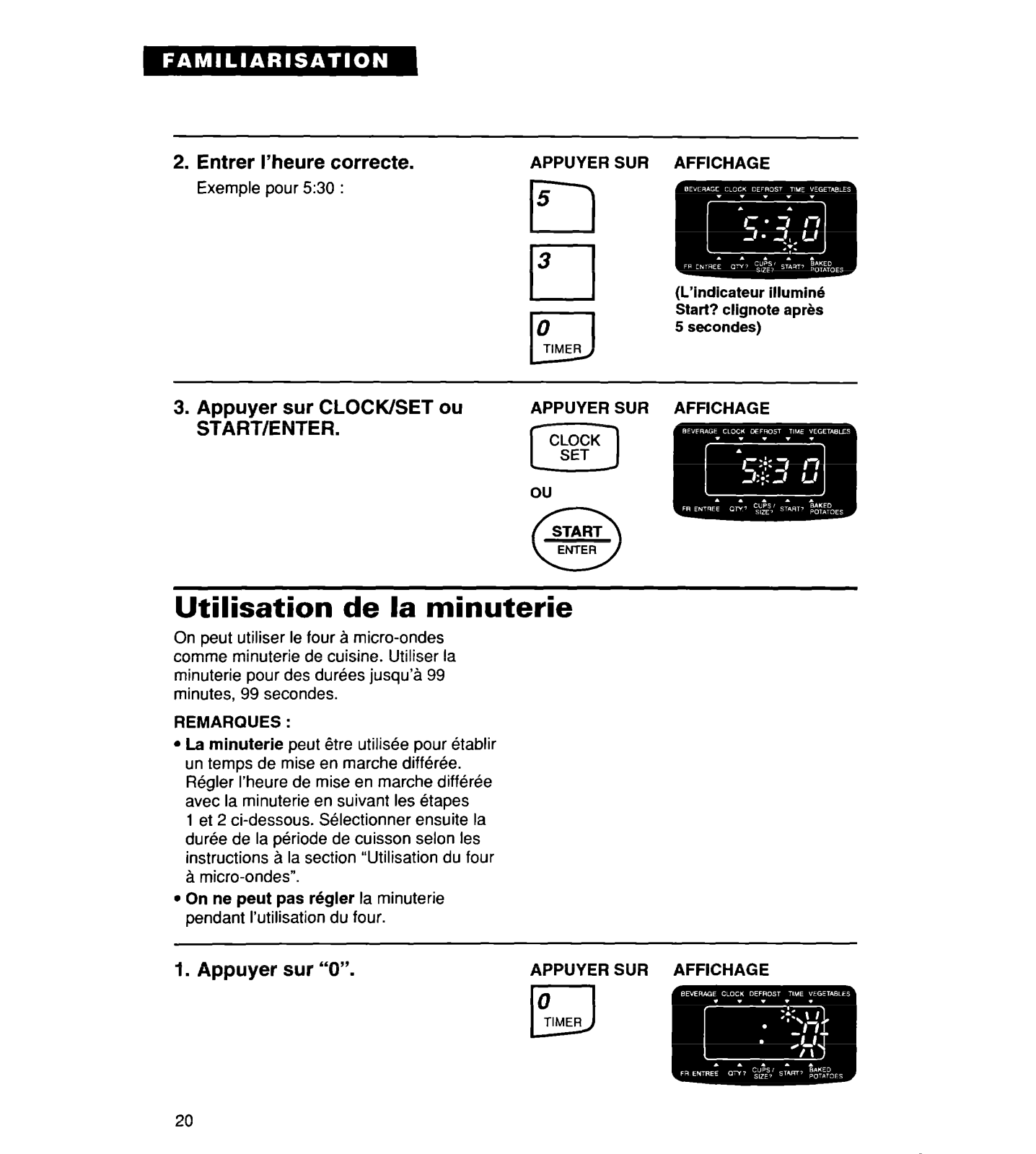

Using the minute timer.. ......................

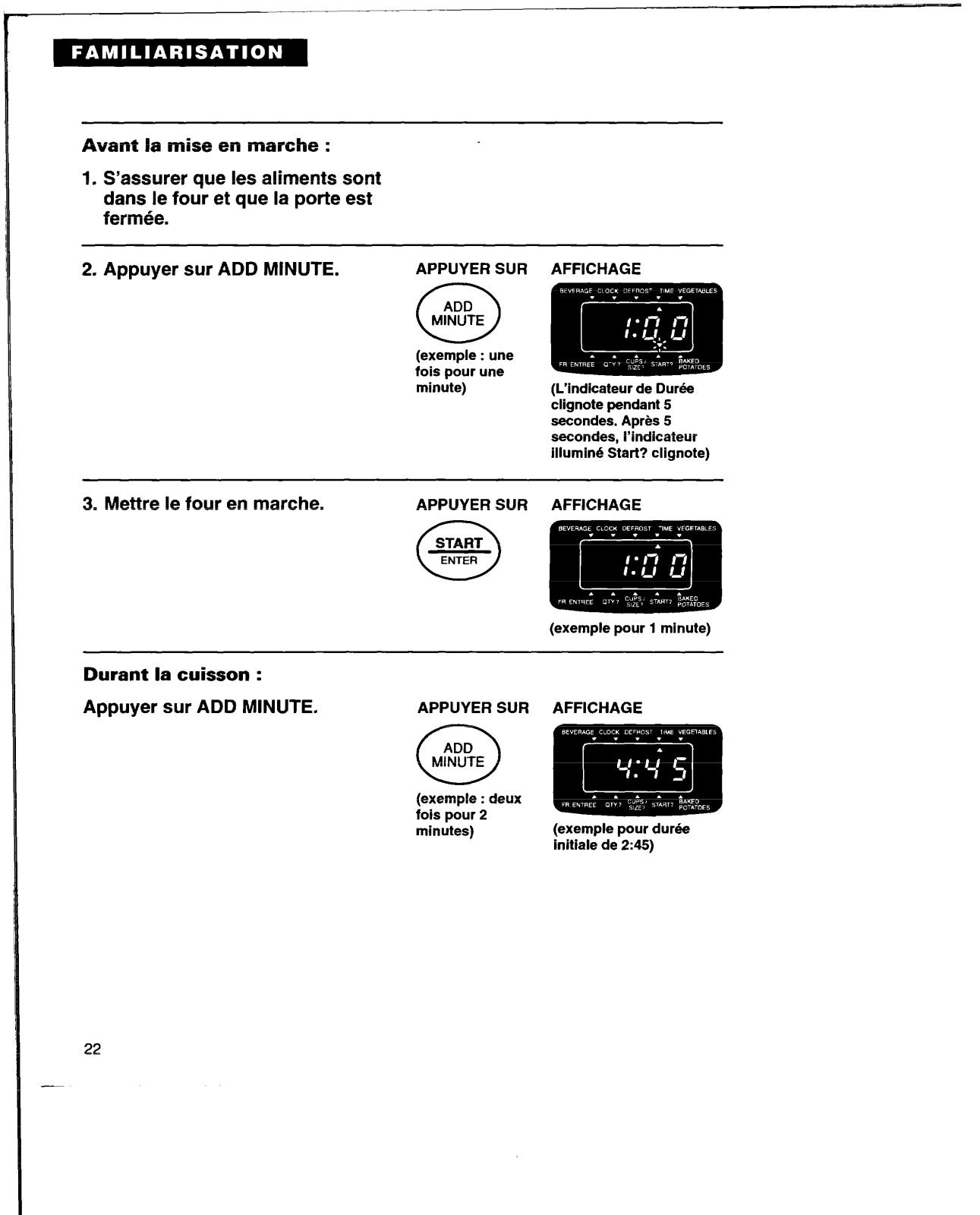

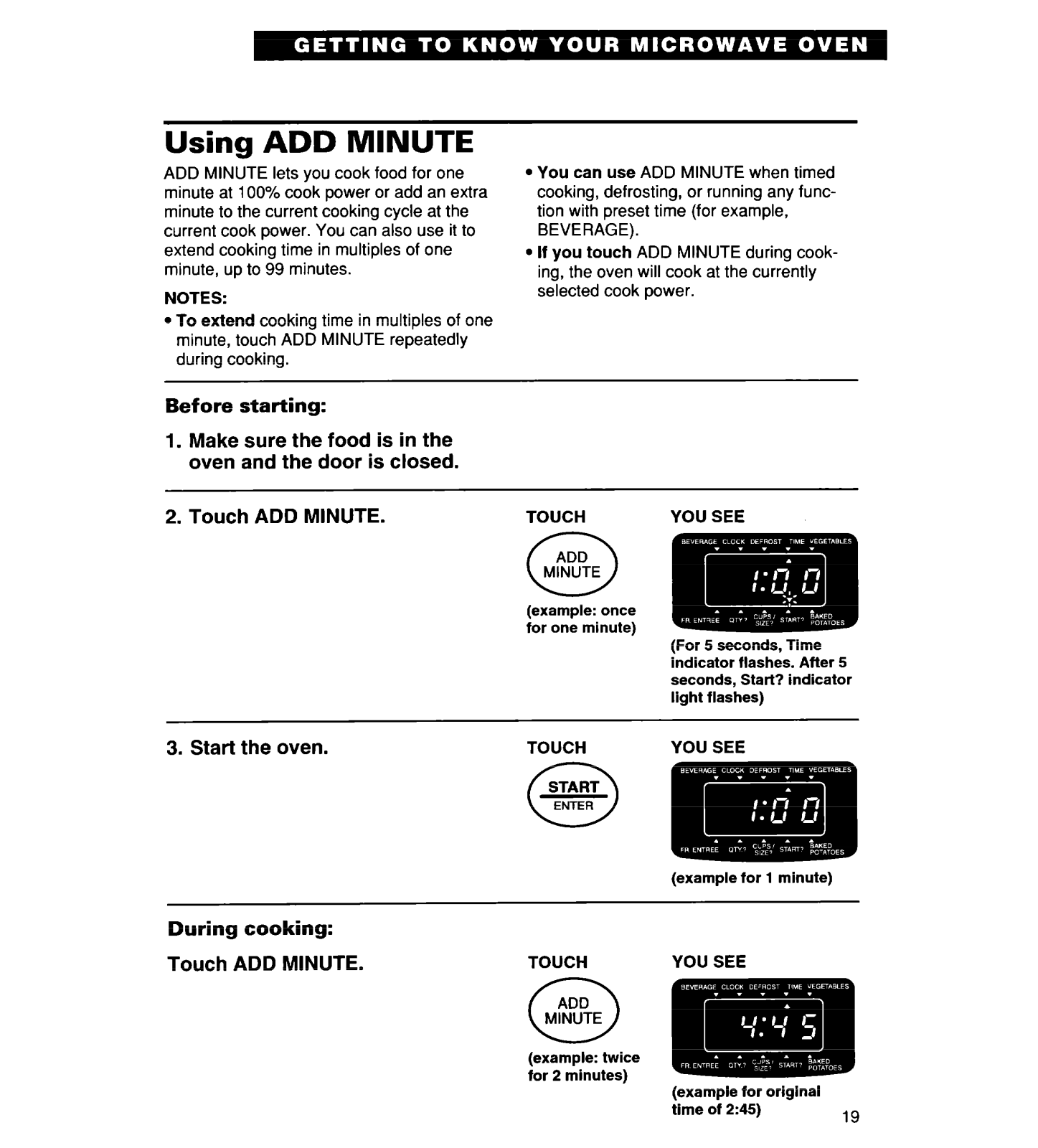

Using ADD MINUTE ...........................

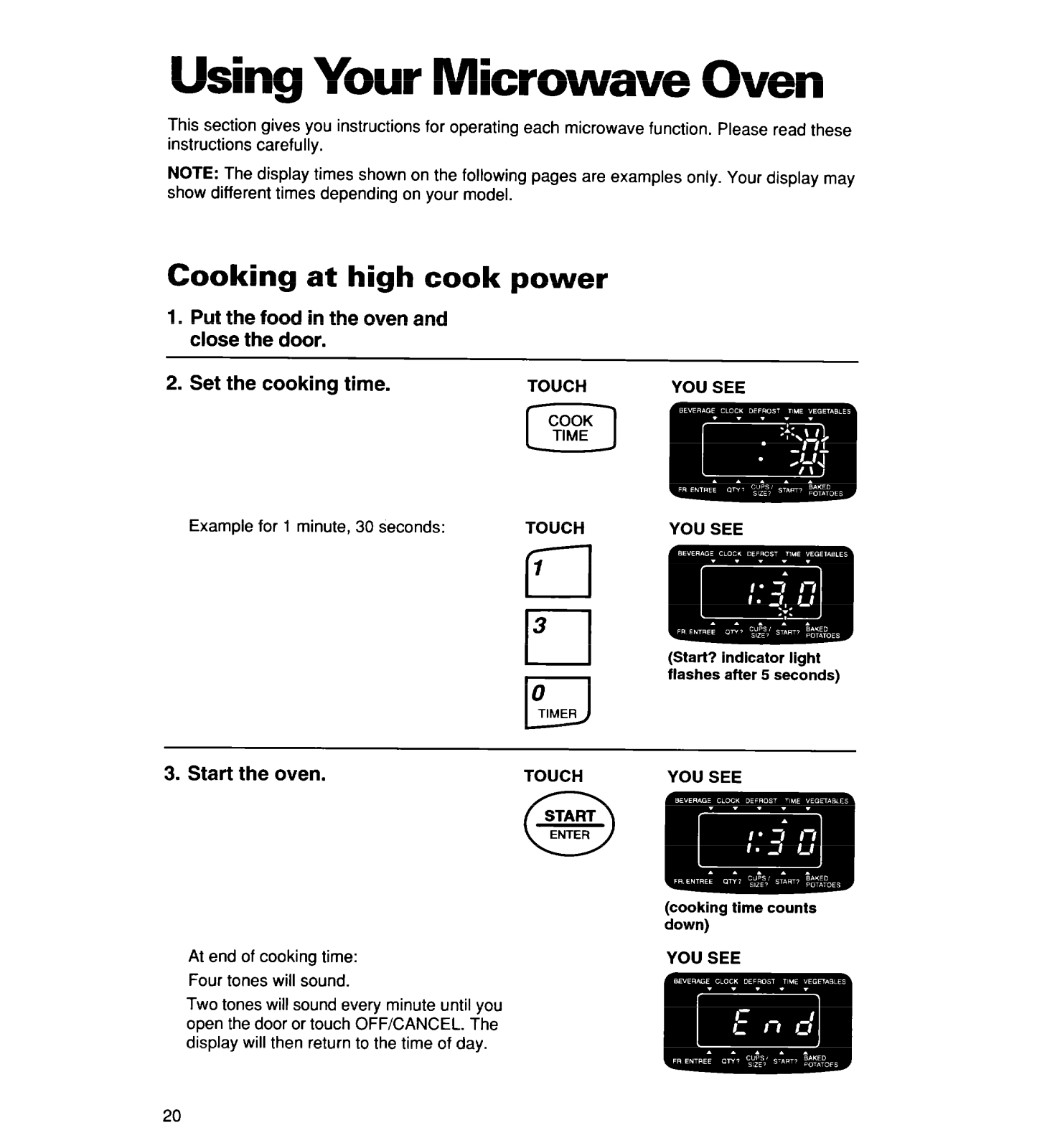

Using Your Microwave Oven ..................

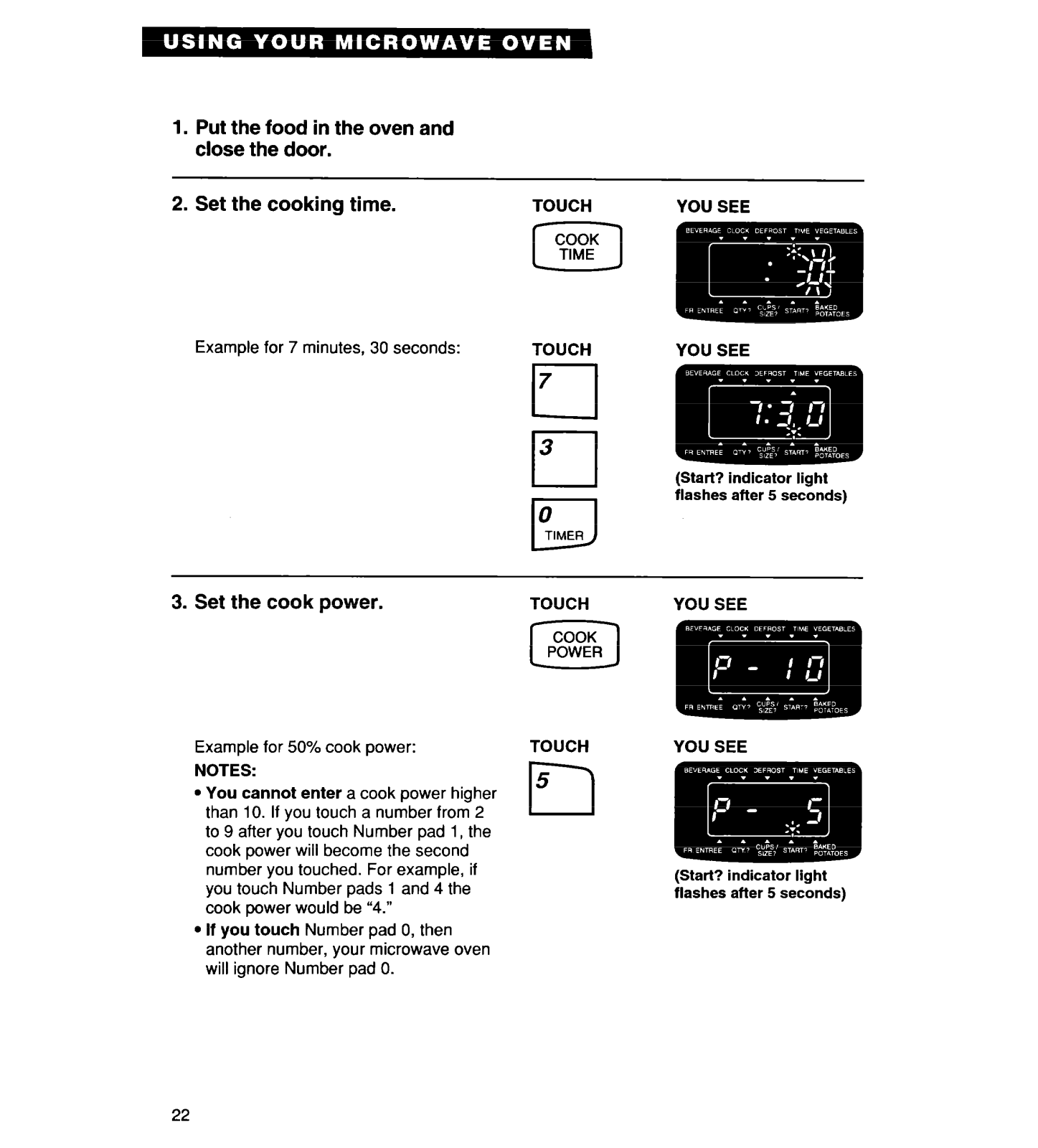

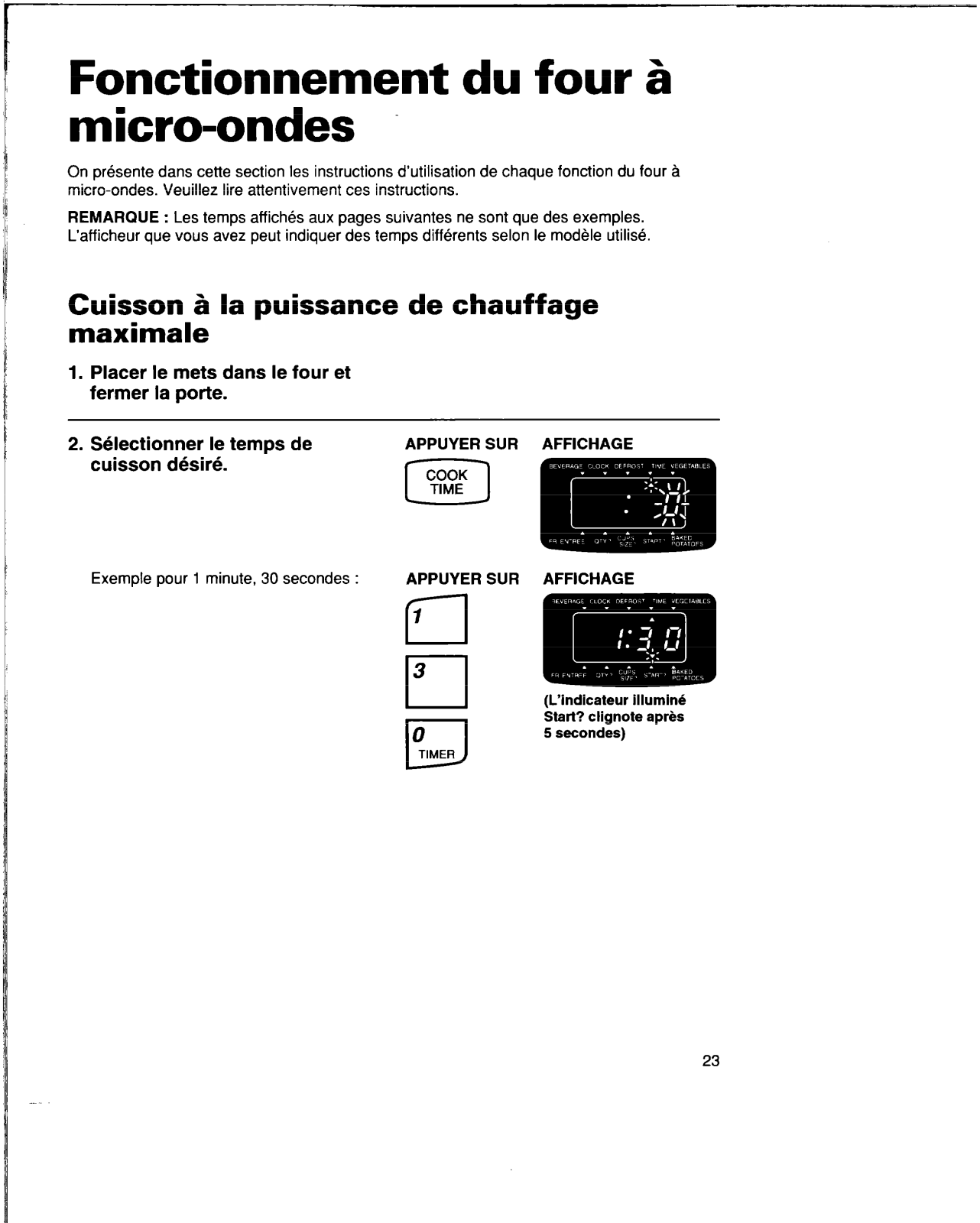

Cooking at high cook power..

.......................................

............................

................. 4

............ 5

......... 8

................ 10

............ 10

............... 11

.............. 20

3 4

13 14 15 17 18 19 20

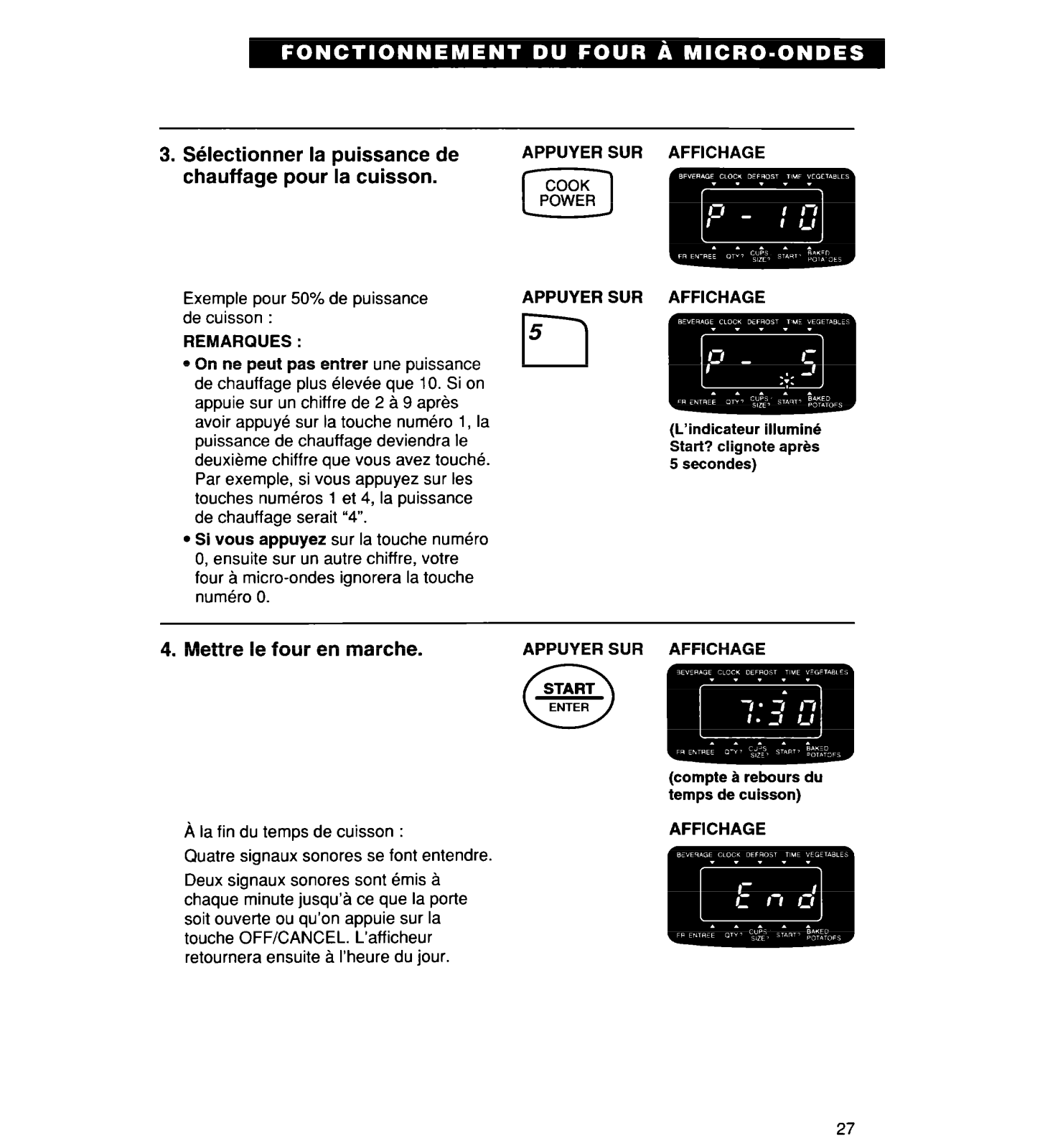

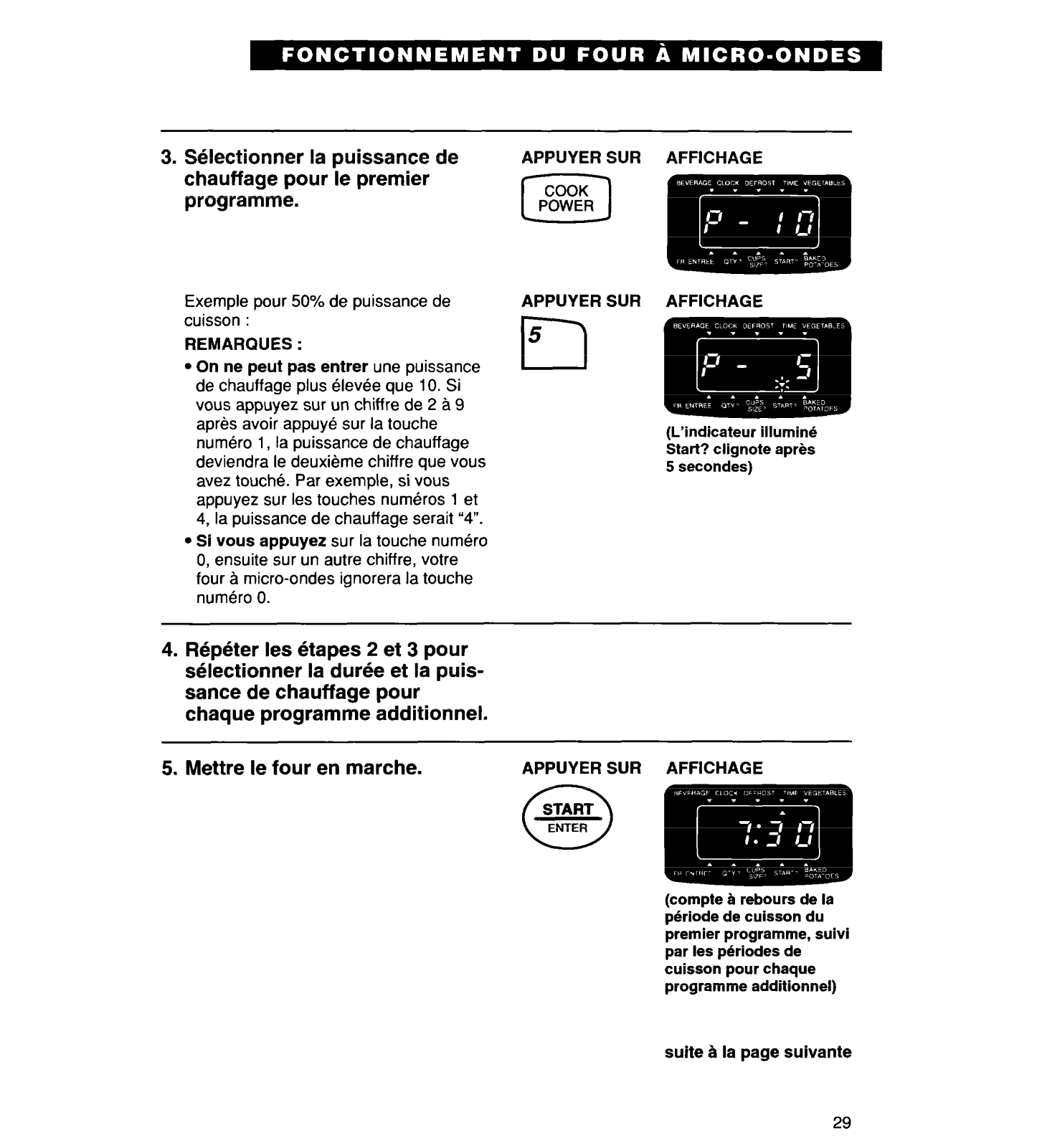

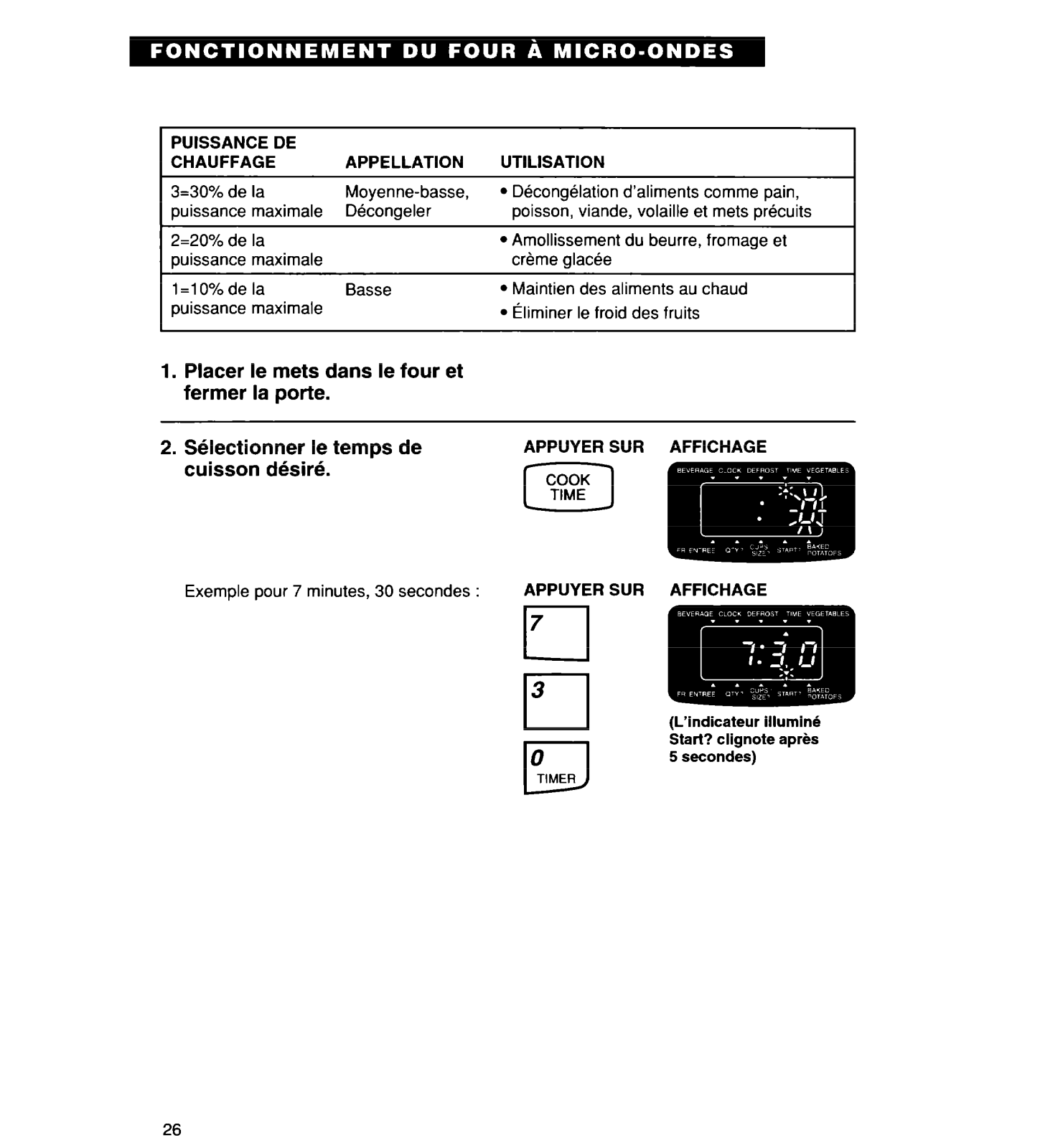

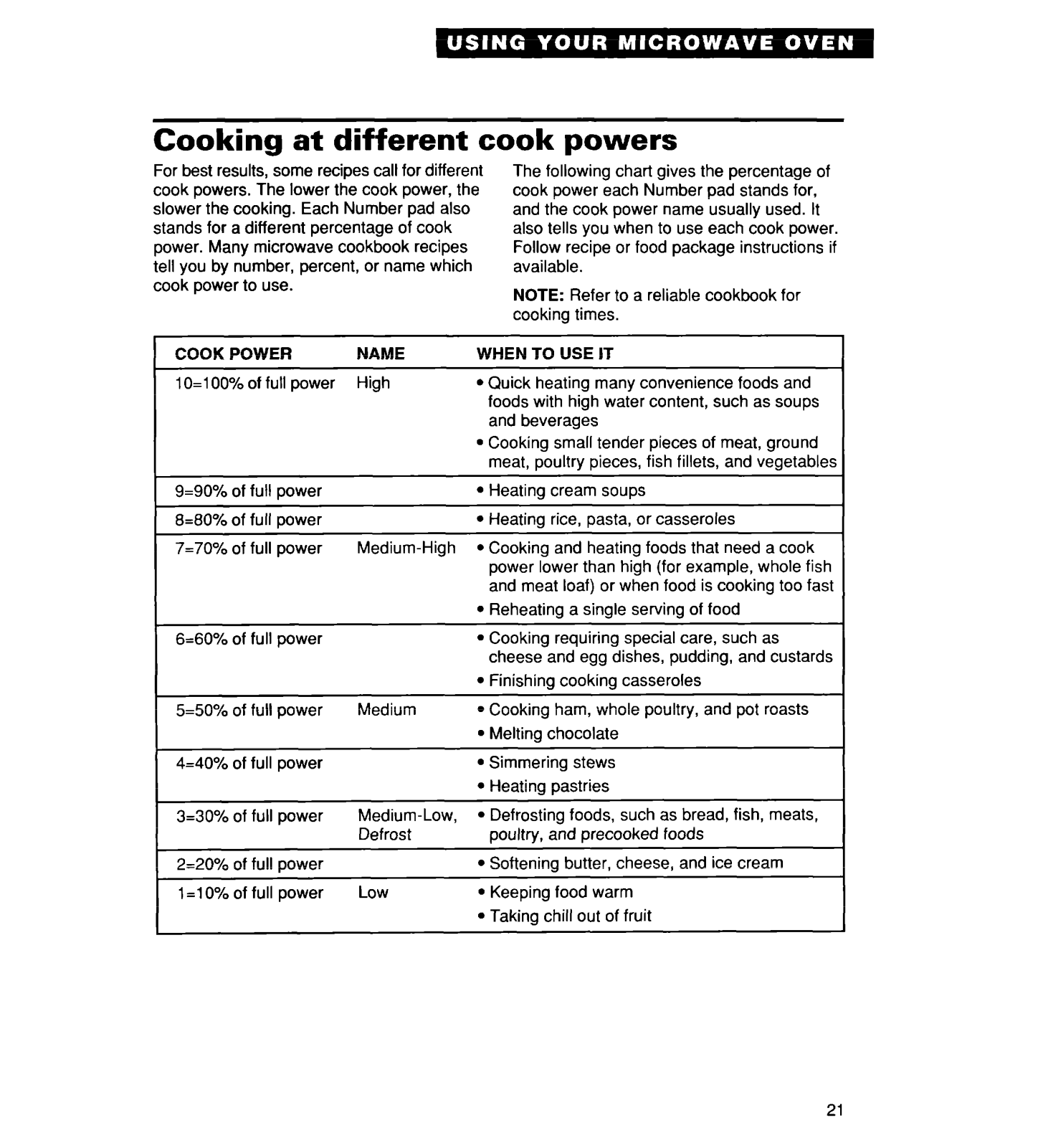

Cooking at different cook powers ........

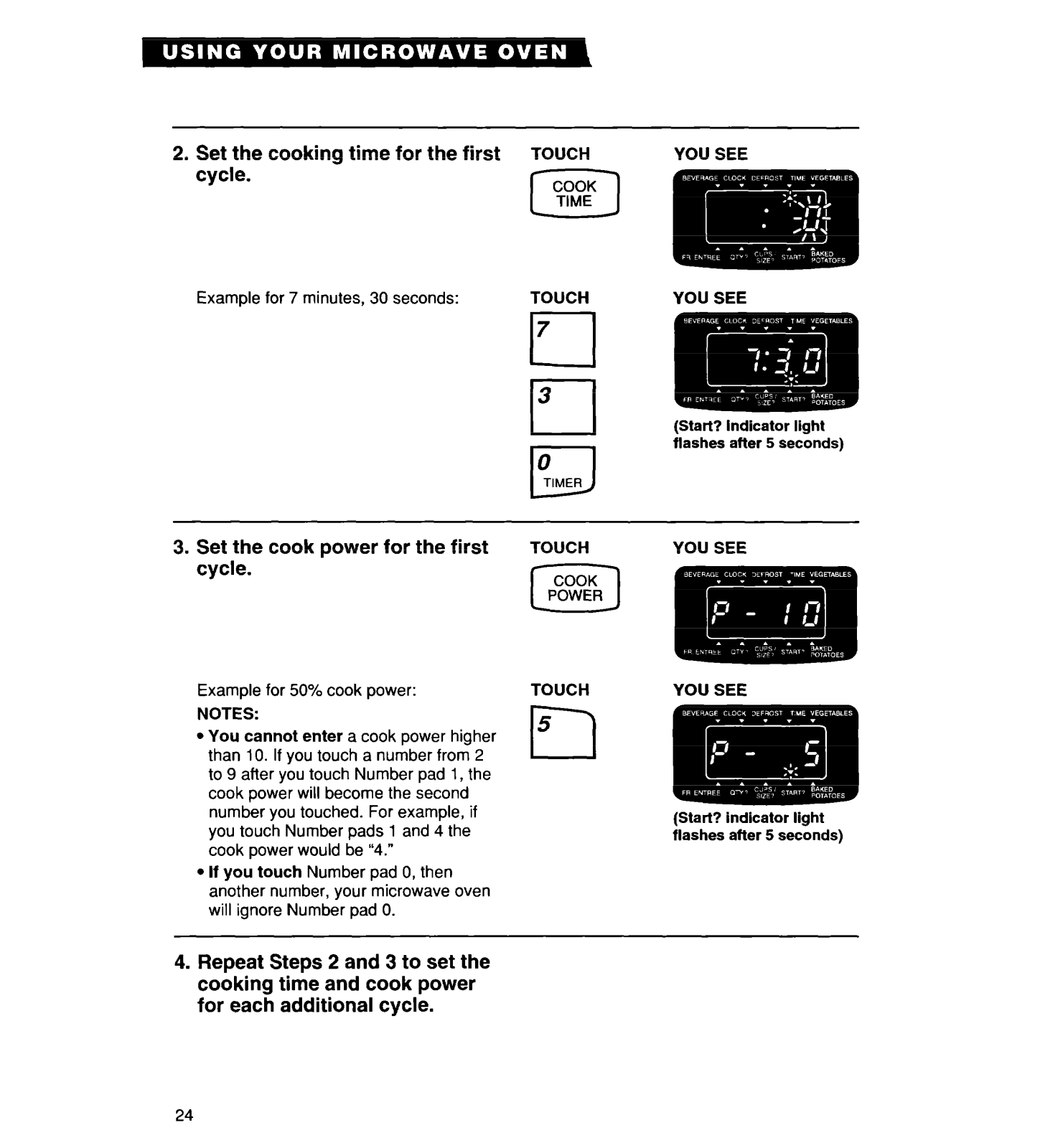

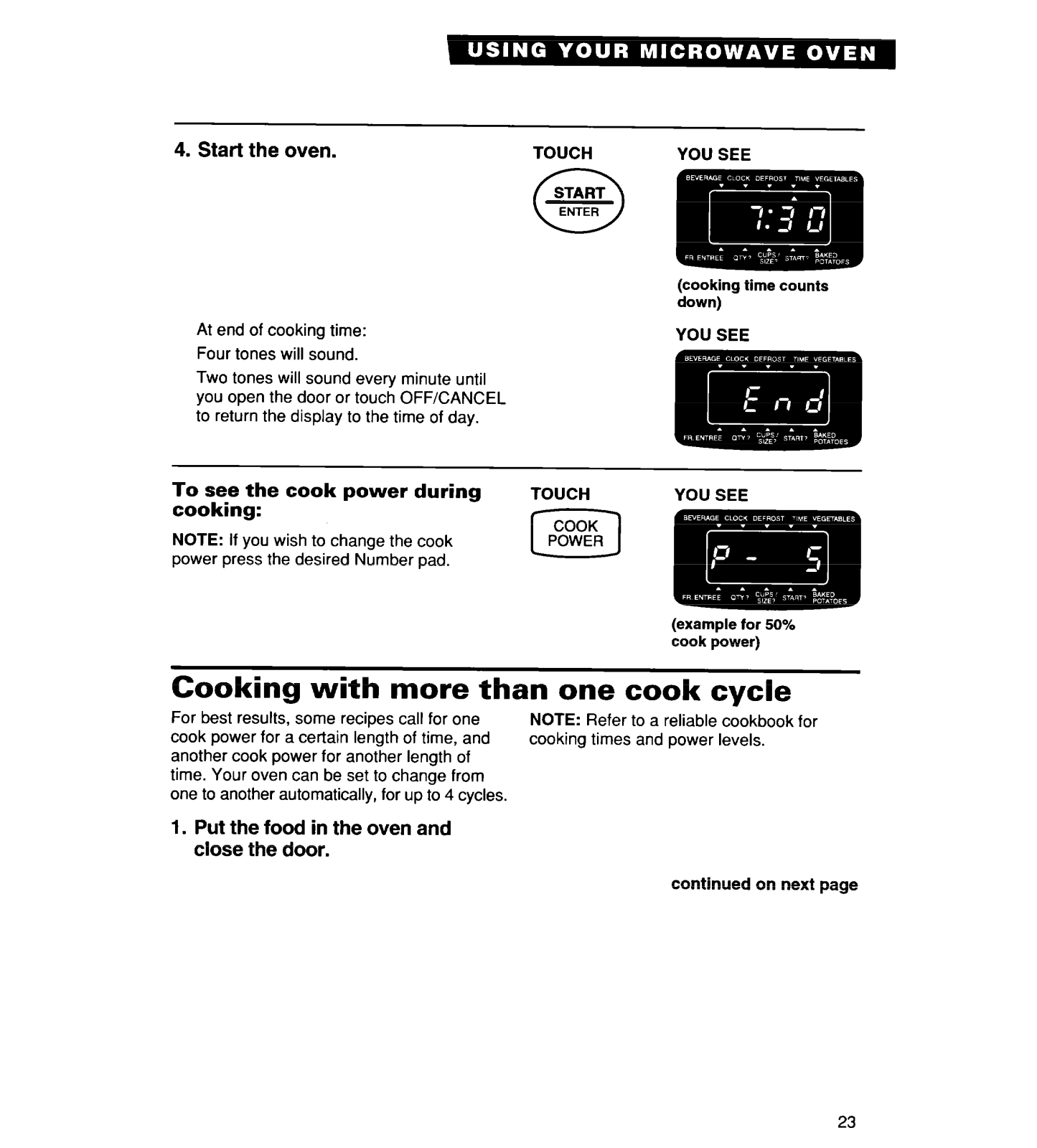

Cooking with more than one

cook cycle ..........................................

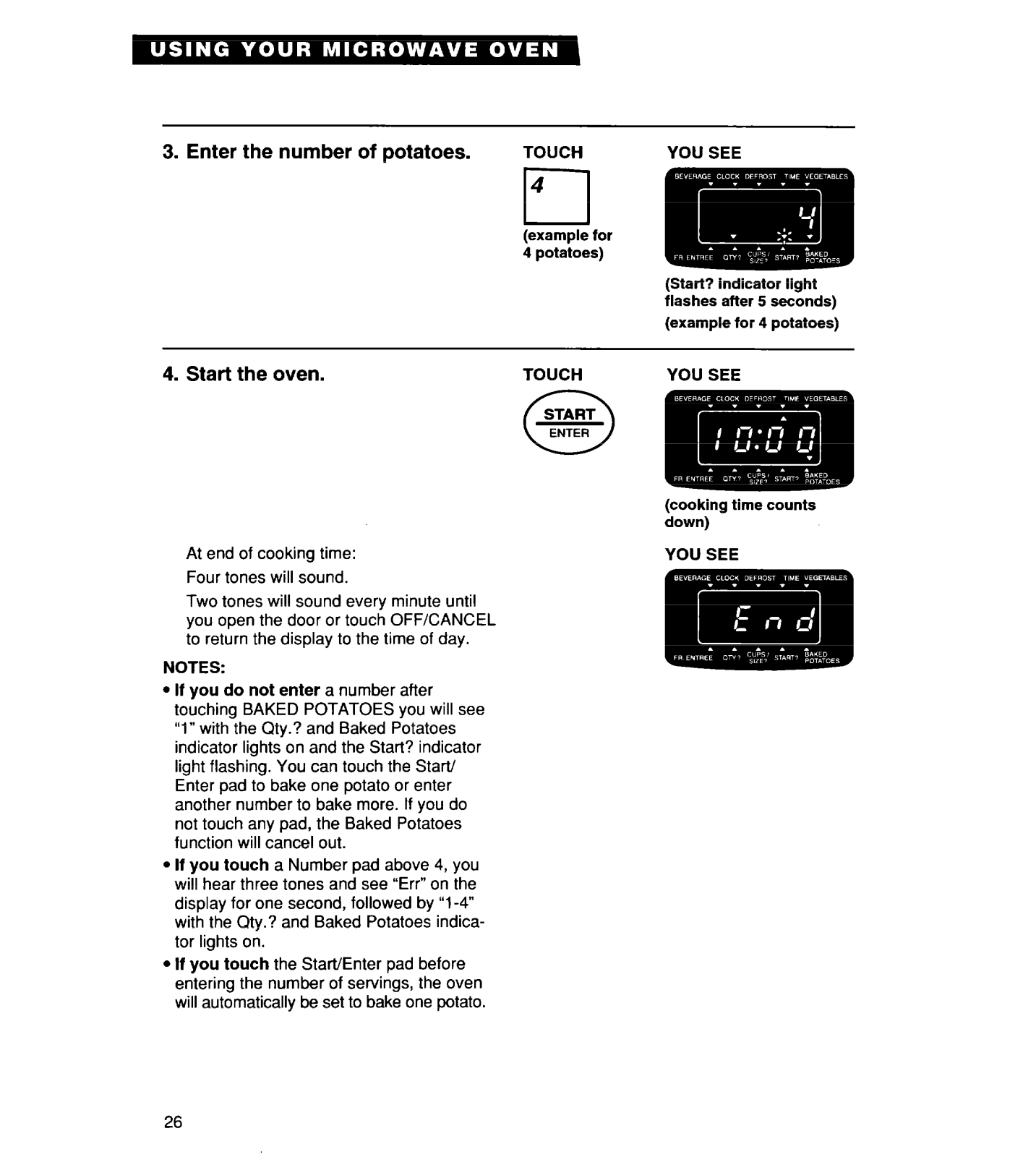

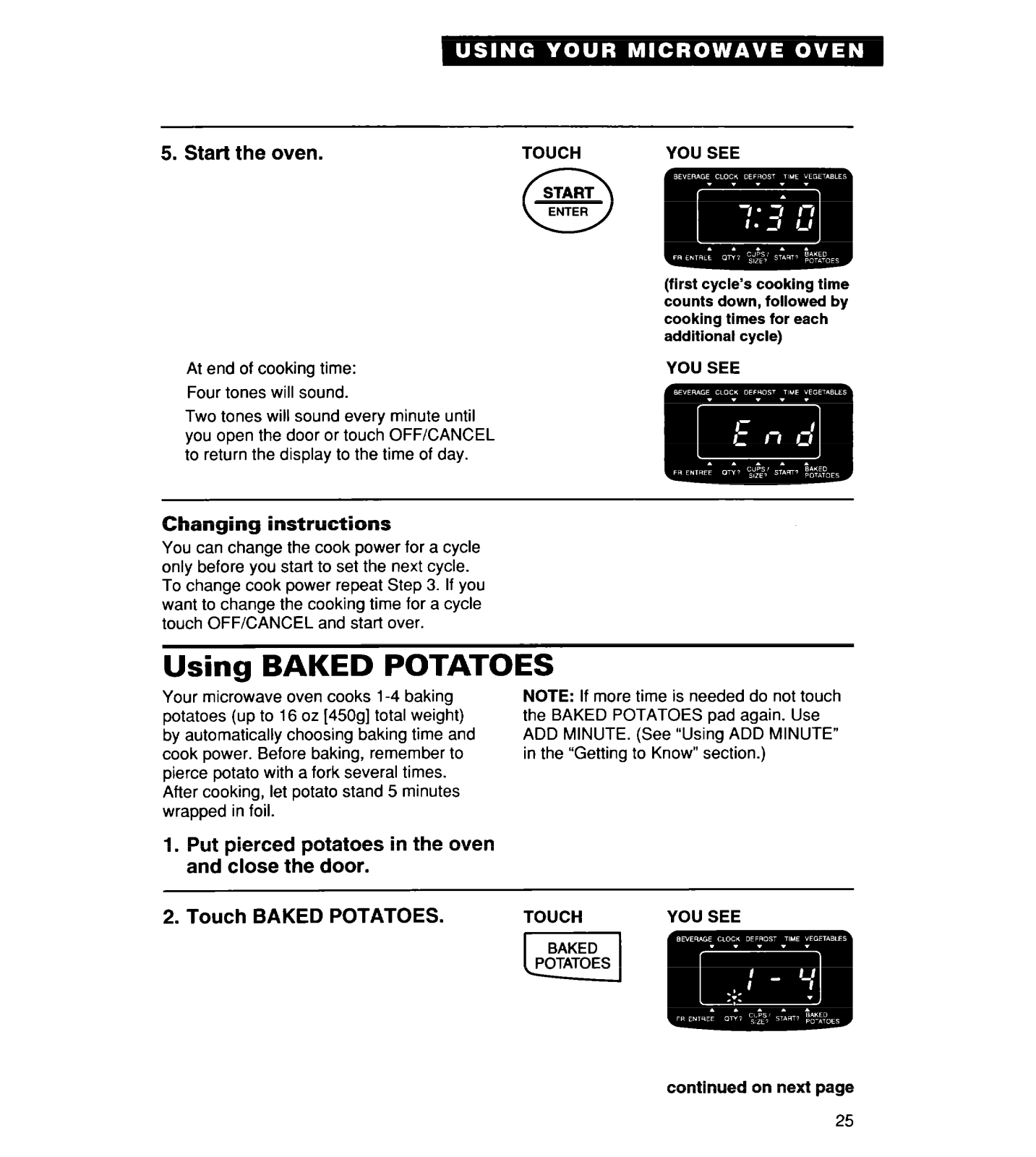

Using BAKED POTATOES .................

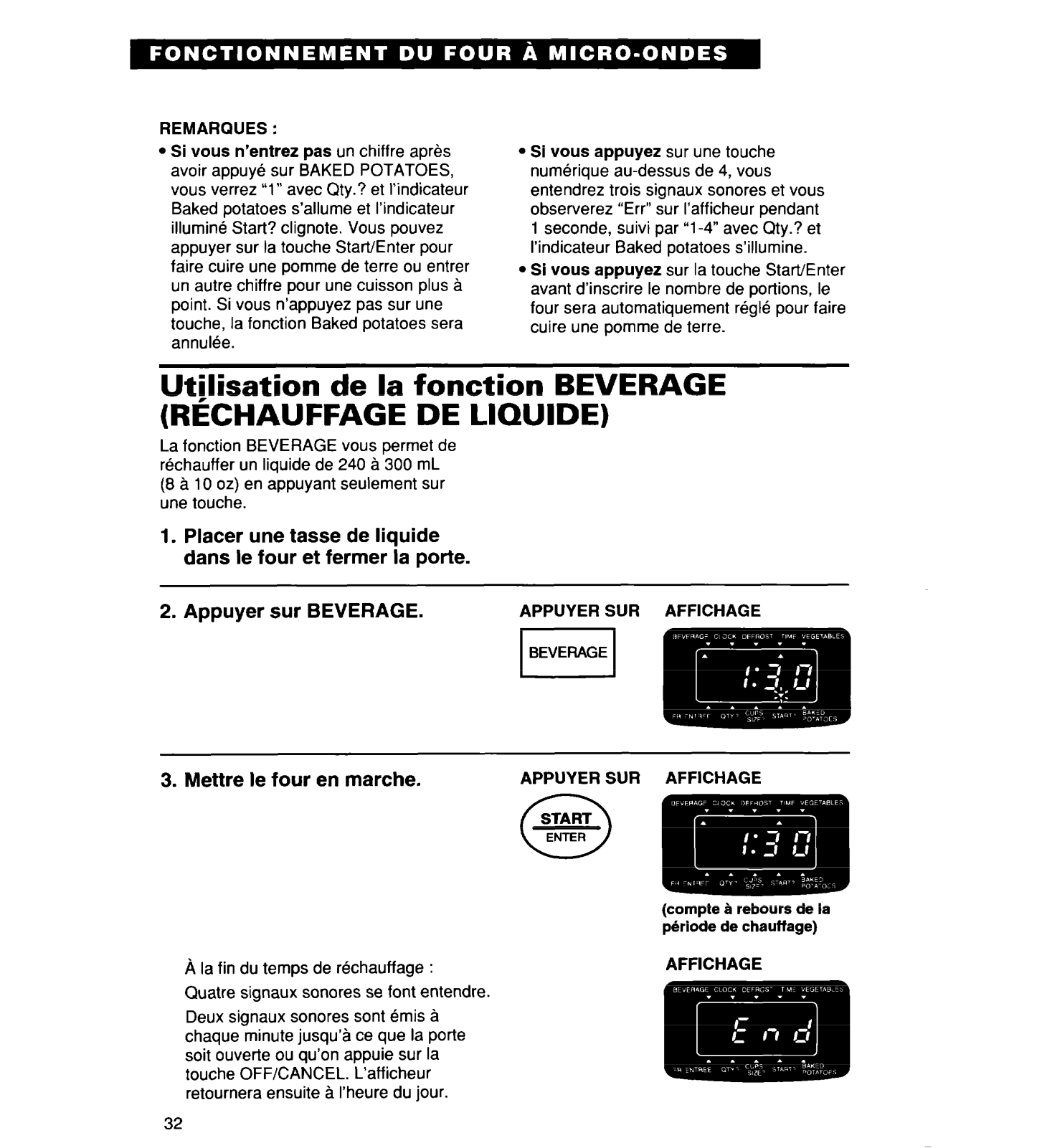

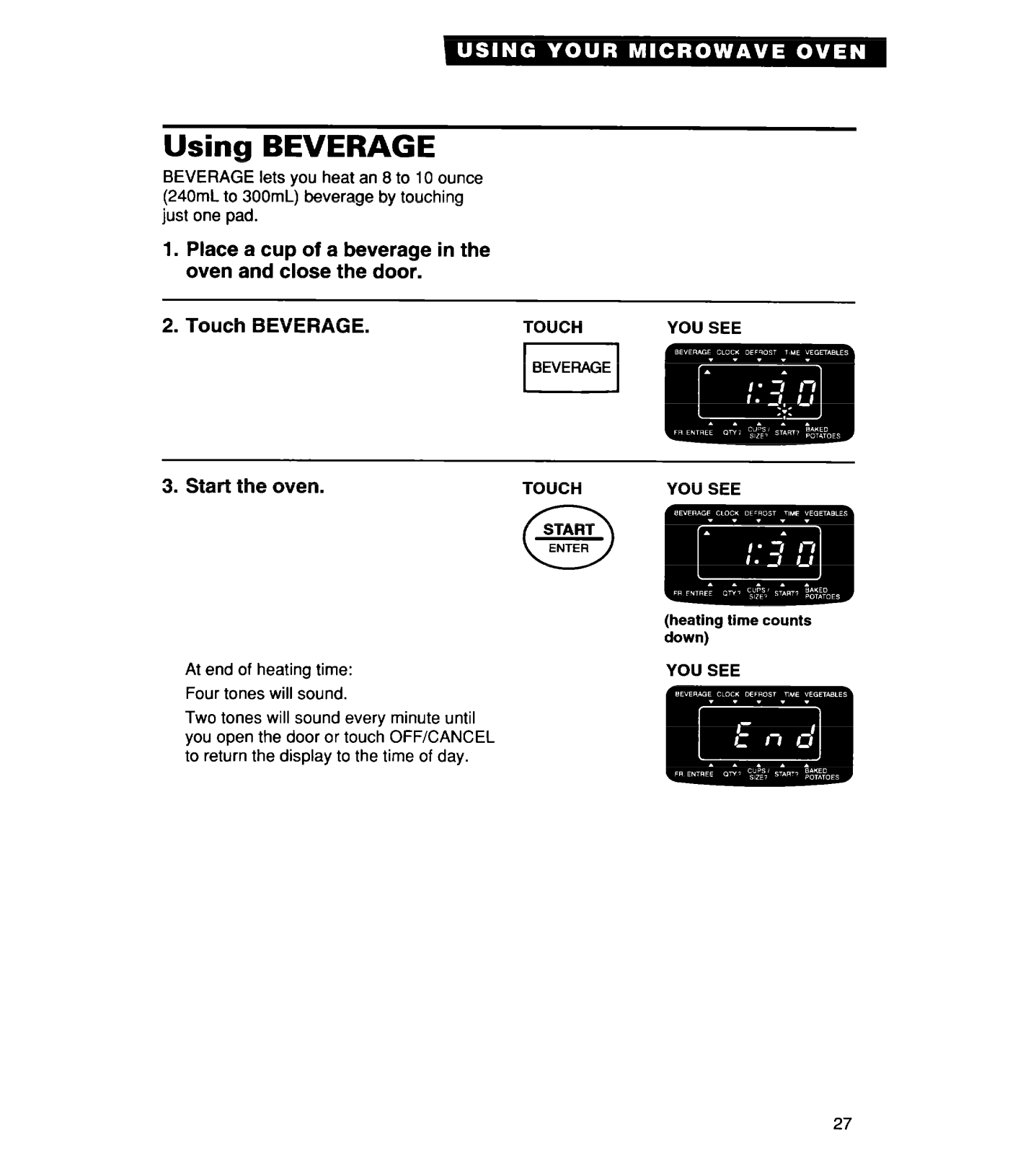

Using BEVERAGE .............................

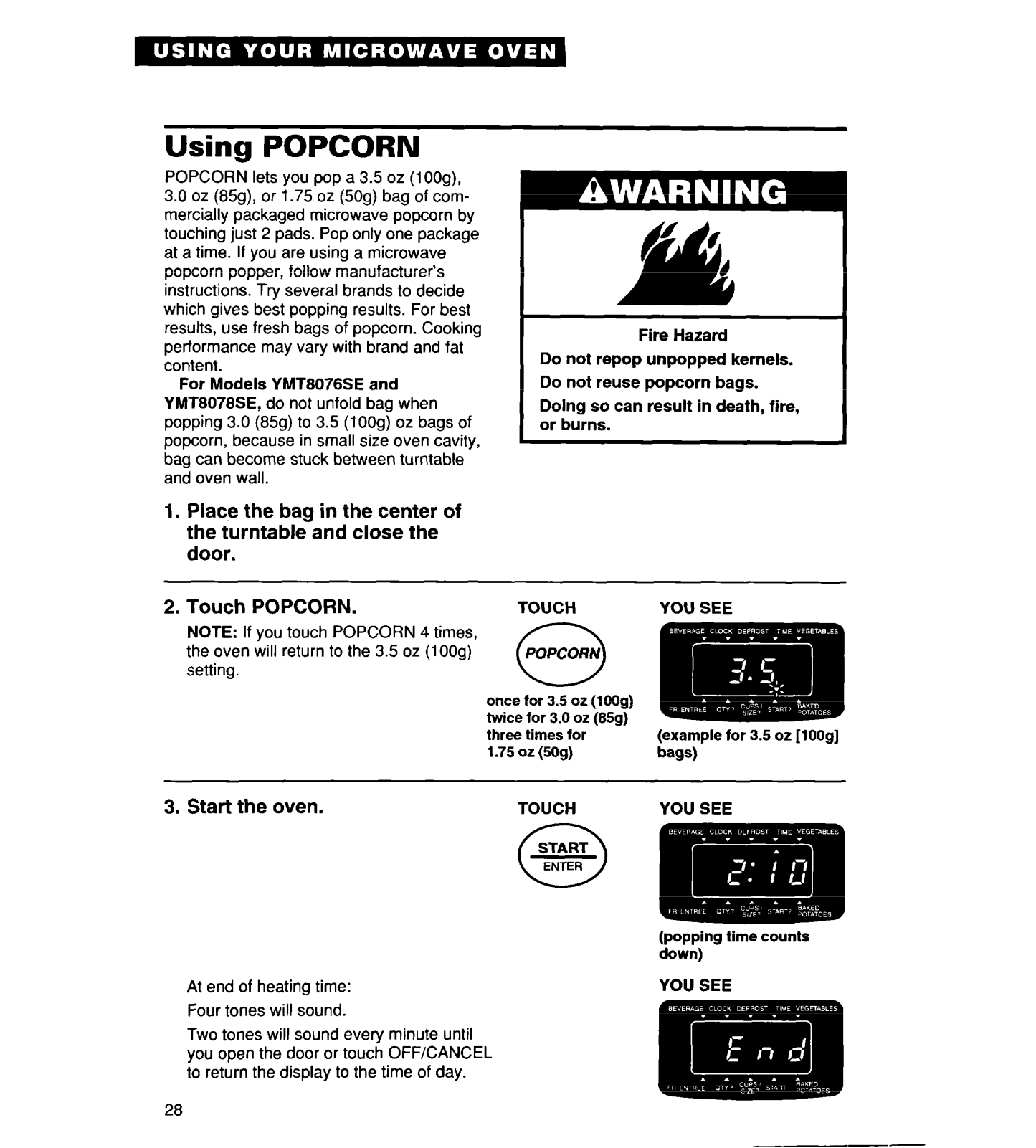

Using POPCORN ...............................

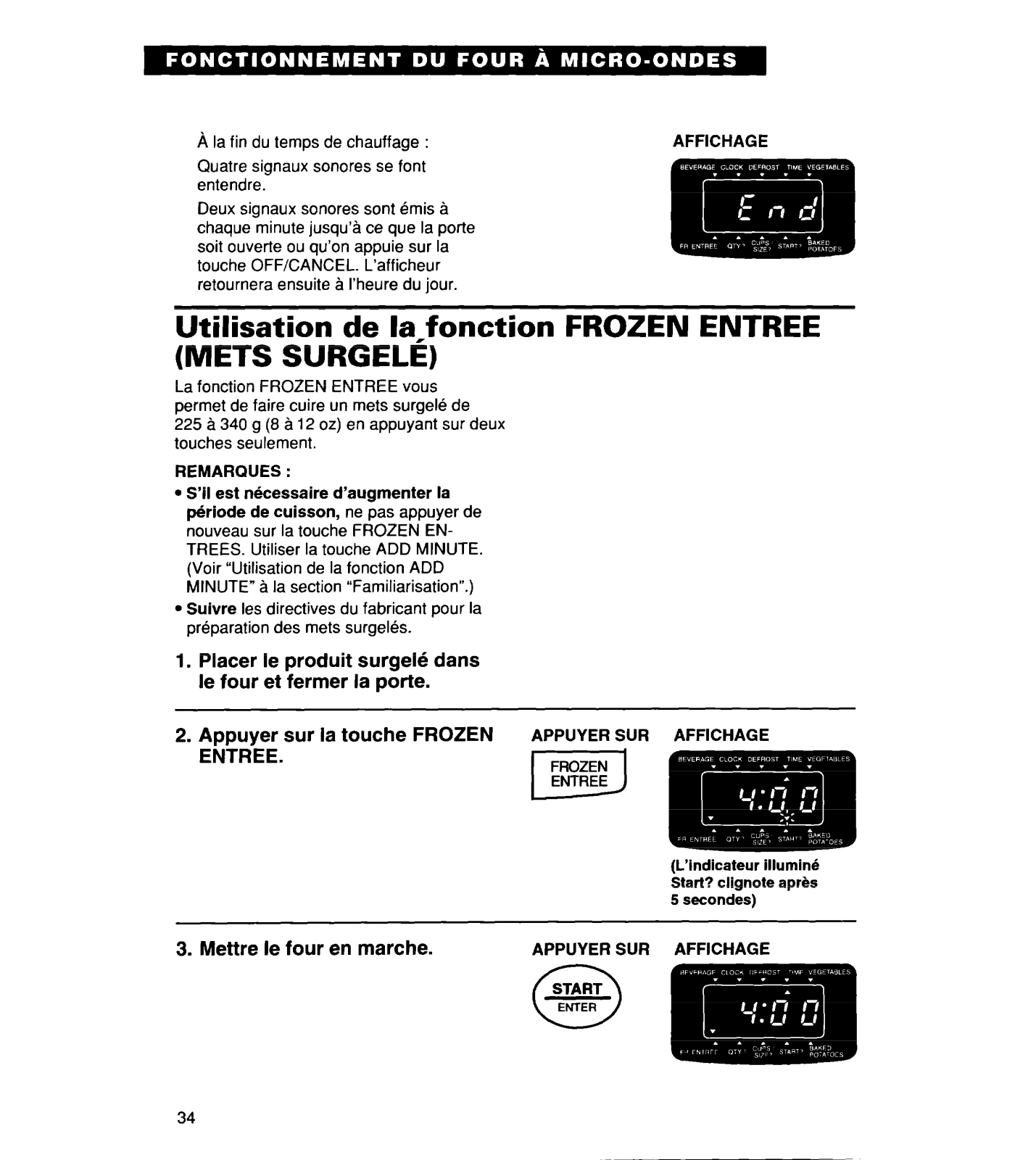

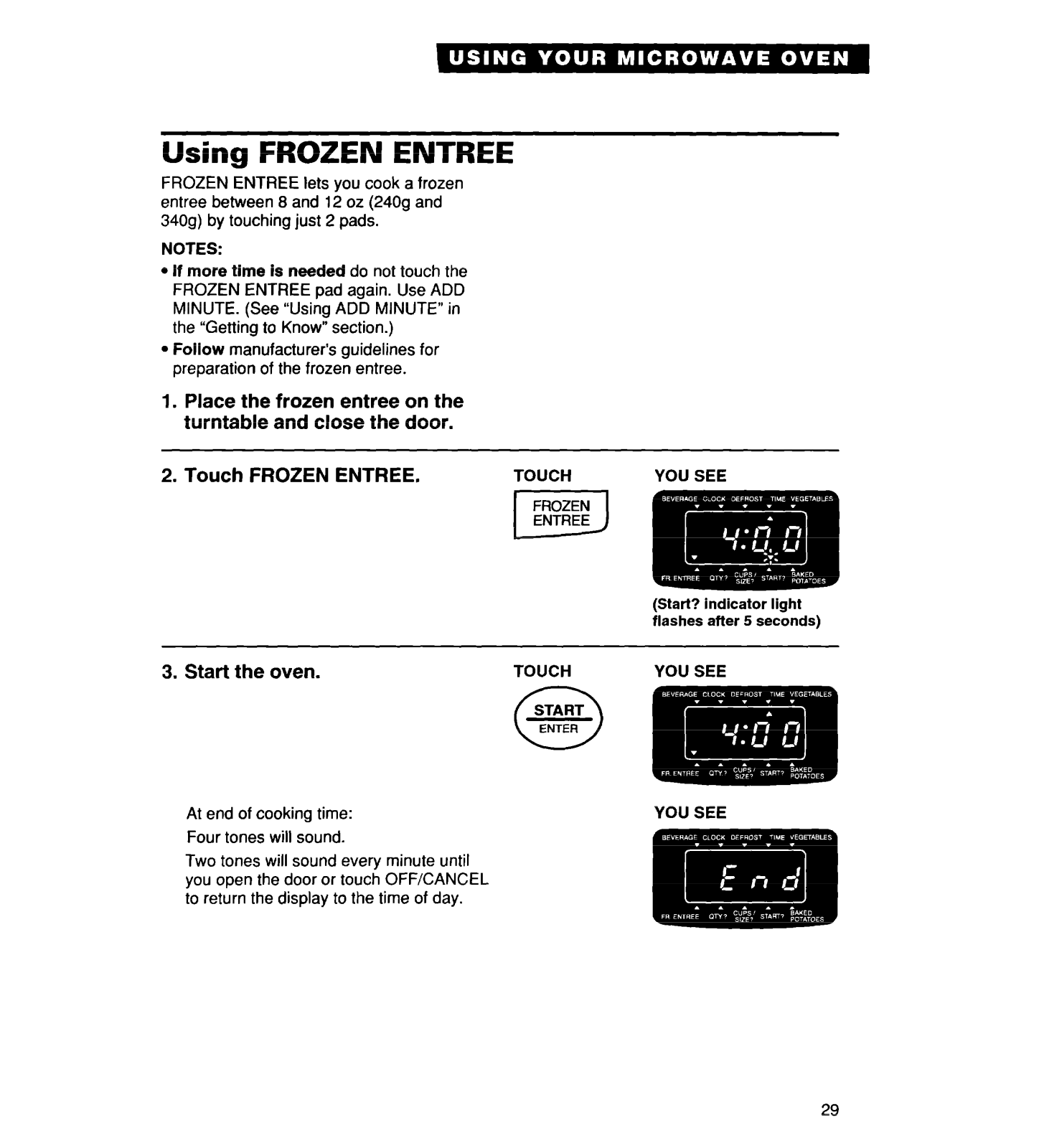

Using FROZEN ENTREE ...................

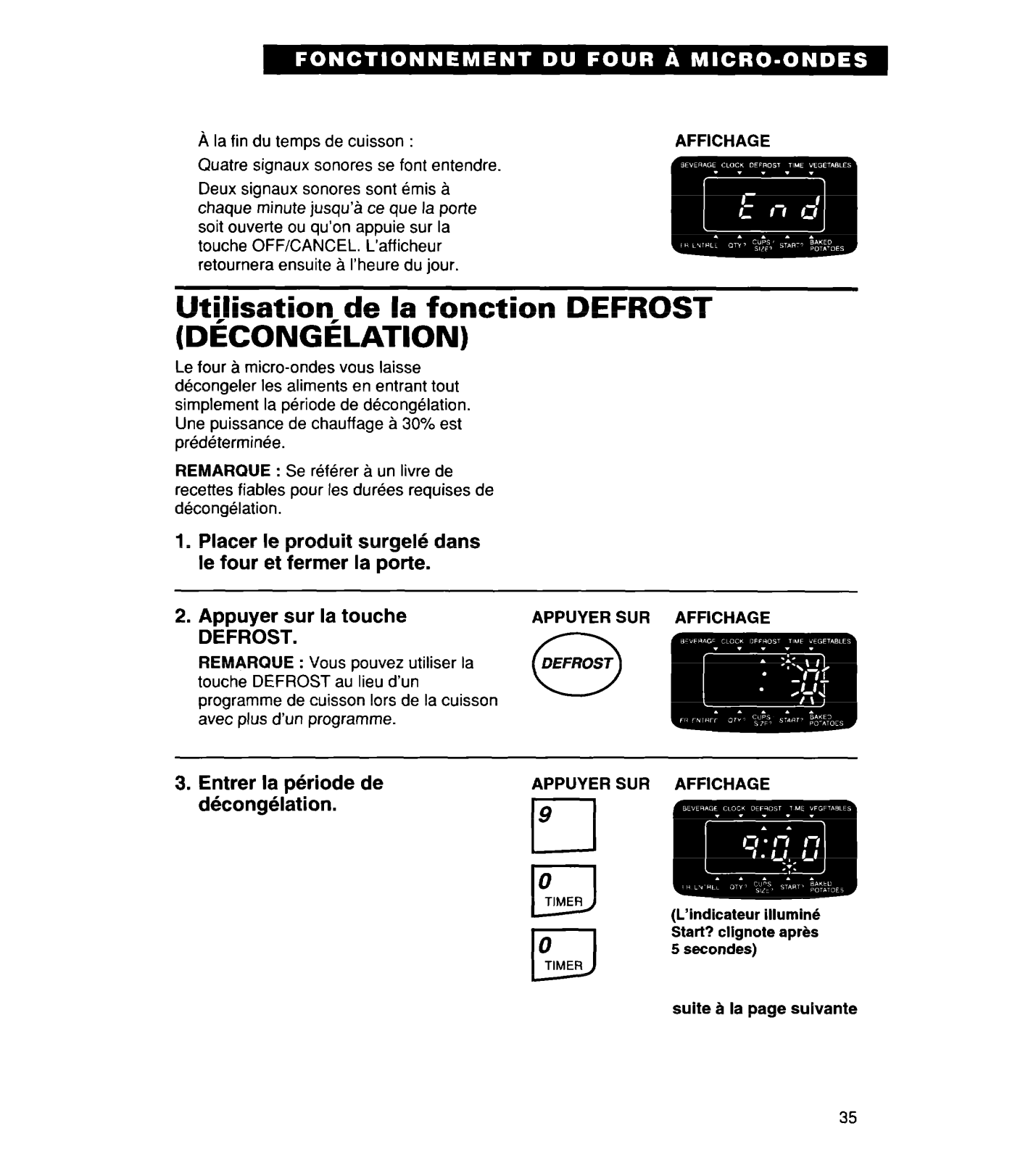

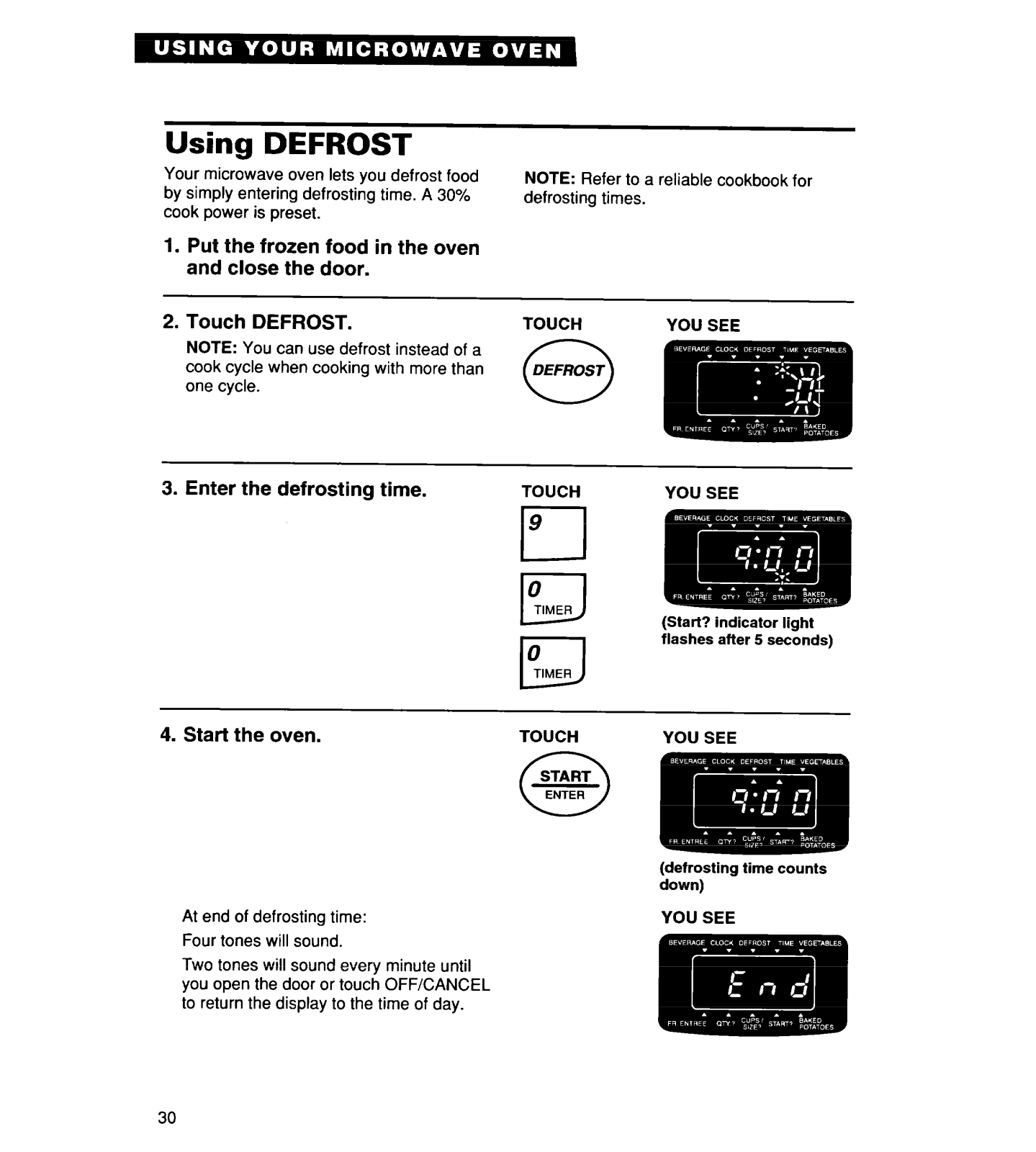

Using DEFROST ................................

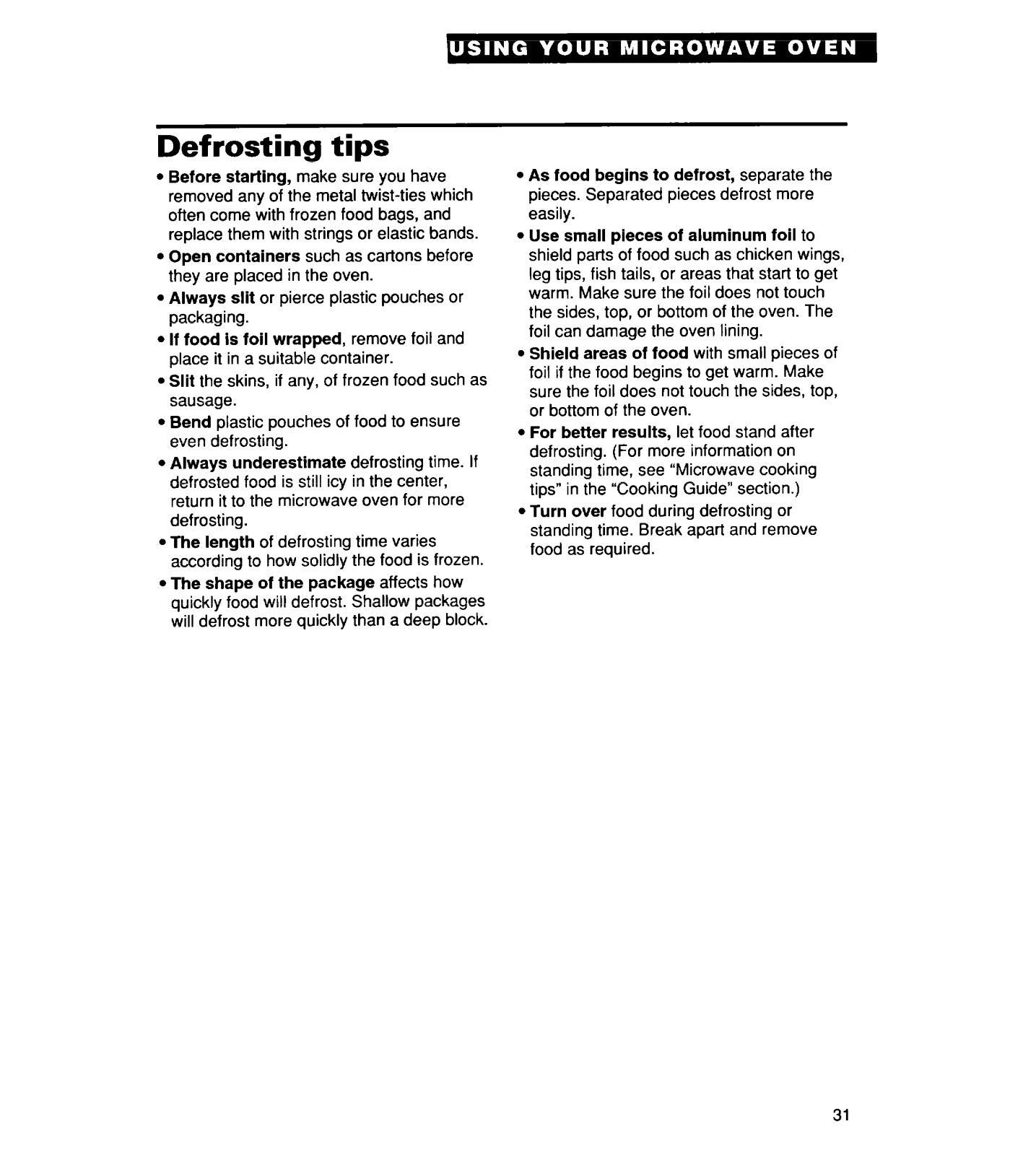

Defrosting tips ....................................

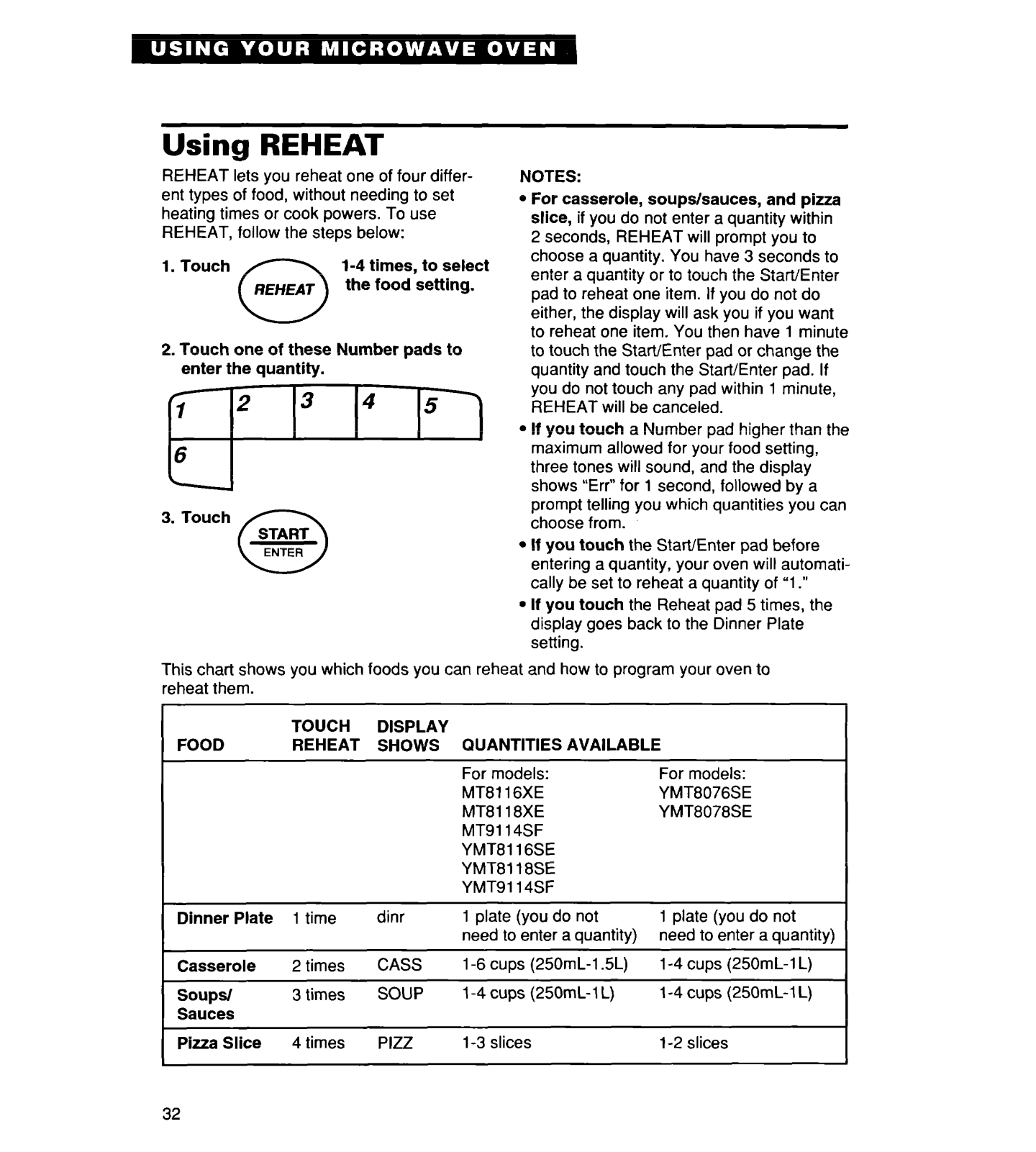

Using REHEAT.. .................................

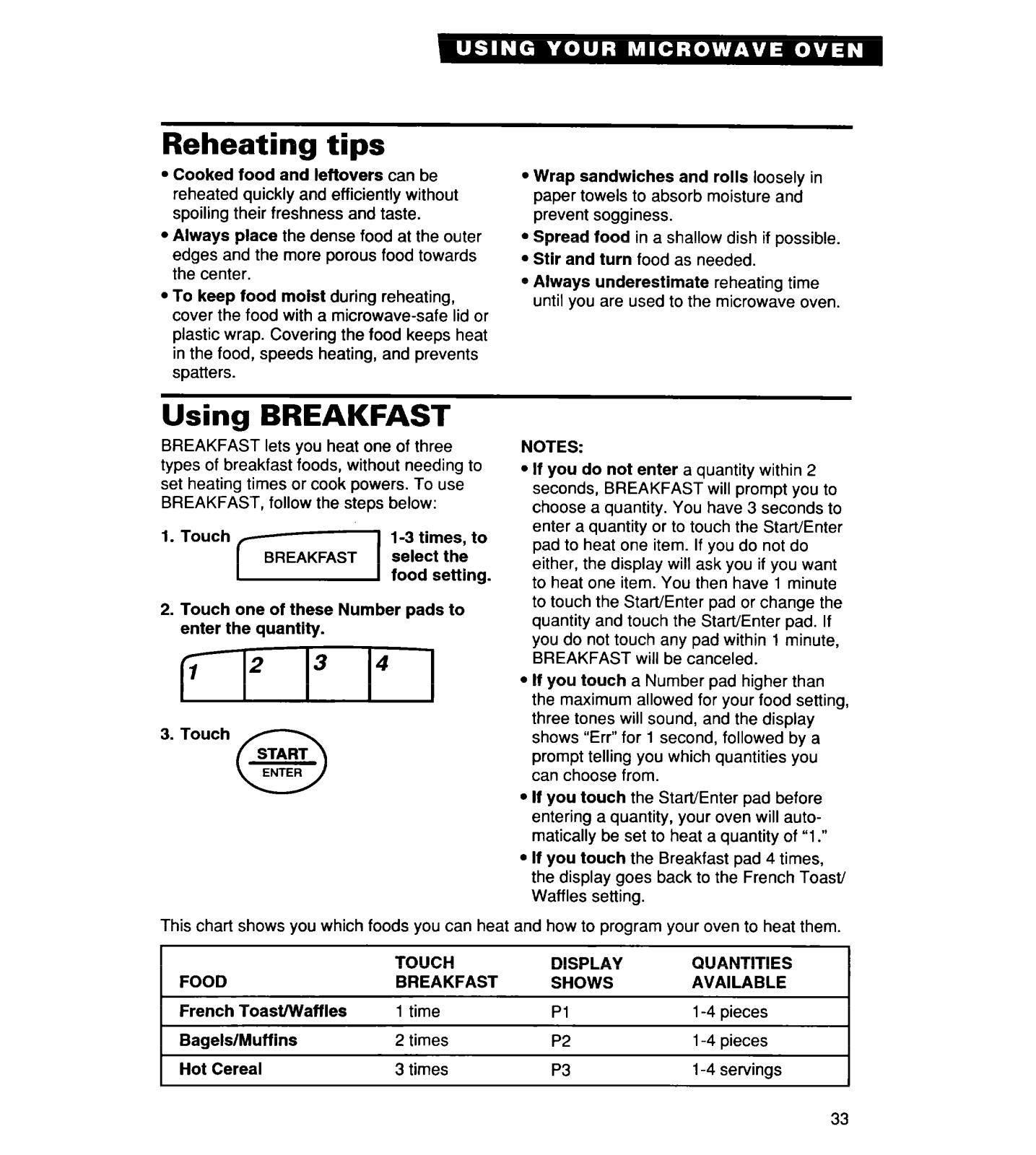

Reheating tips ....................................

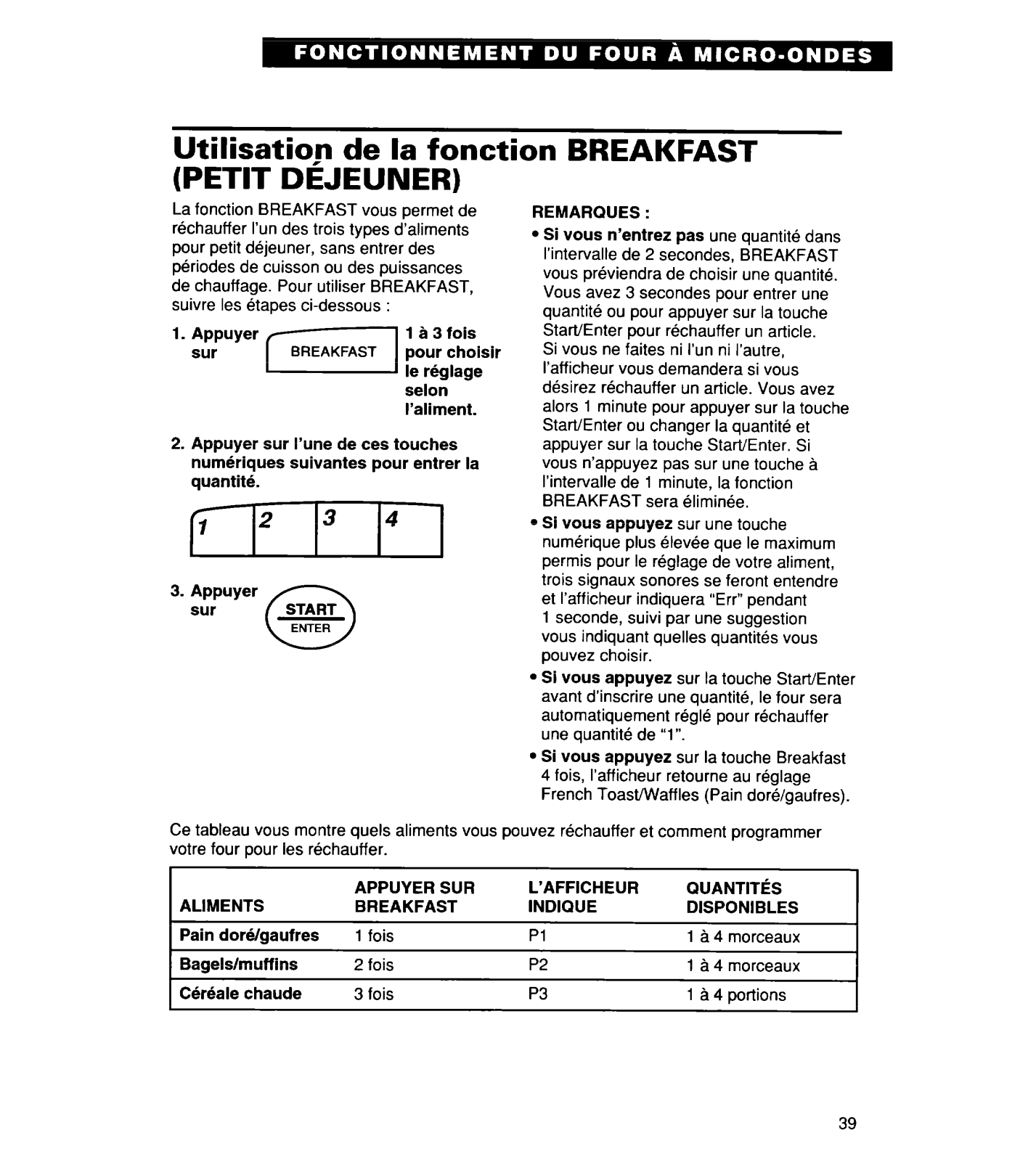

Using BREAKFAST ............................

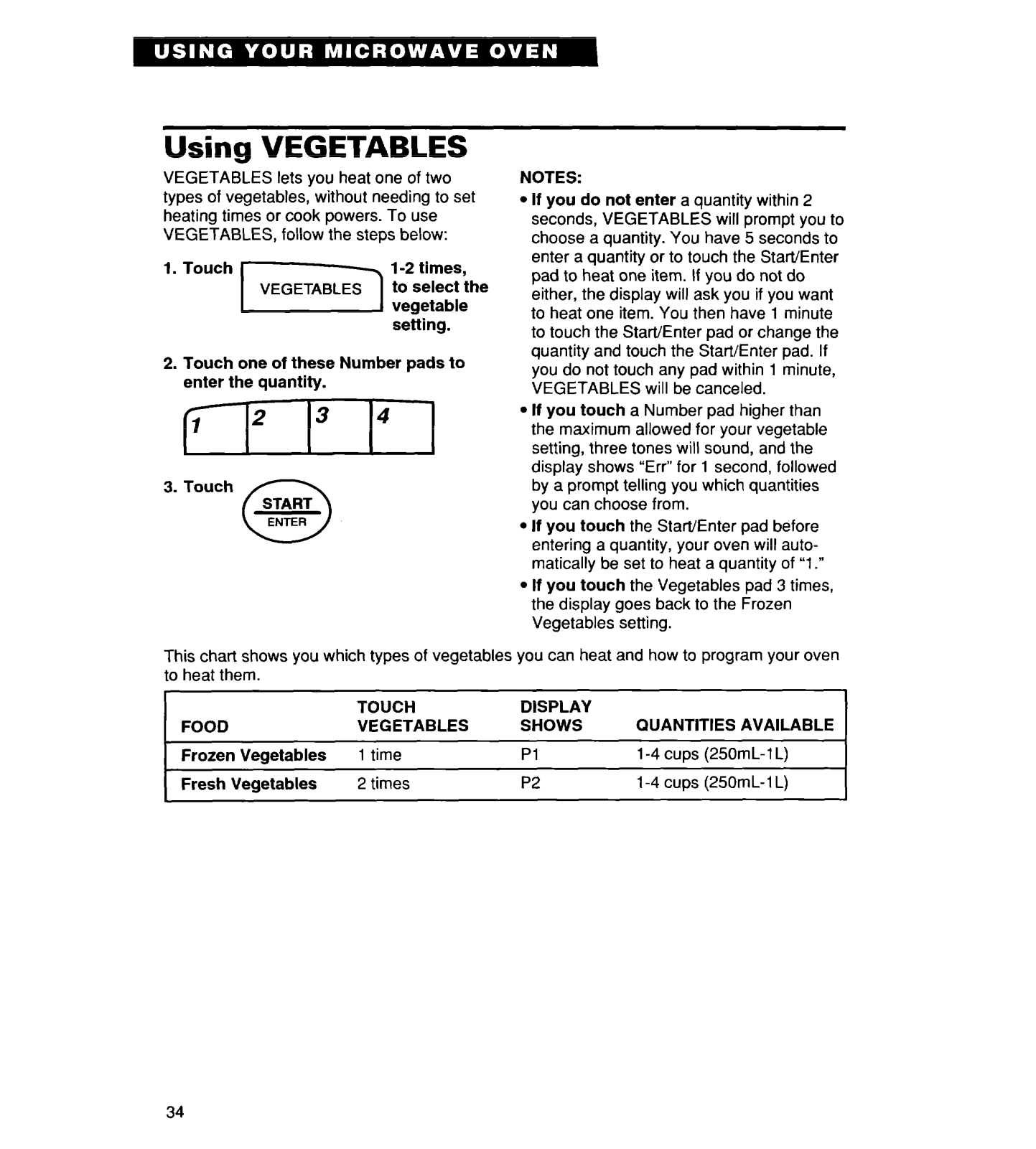

Using VEGETABLES ..........................

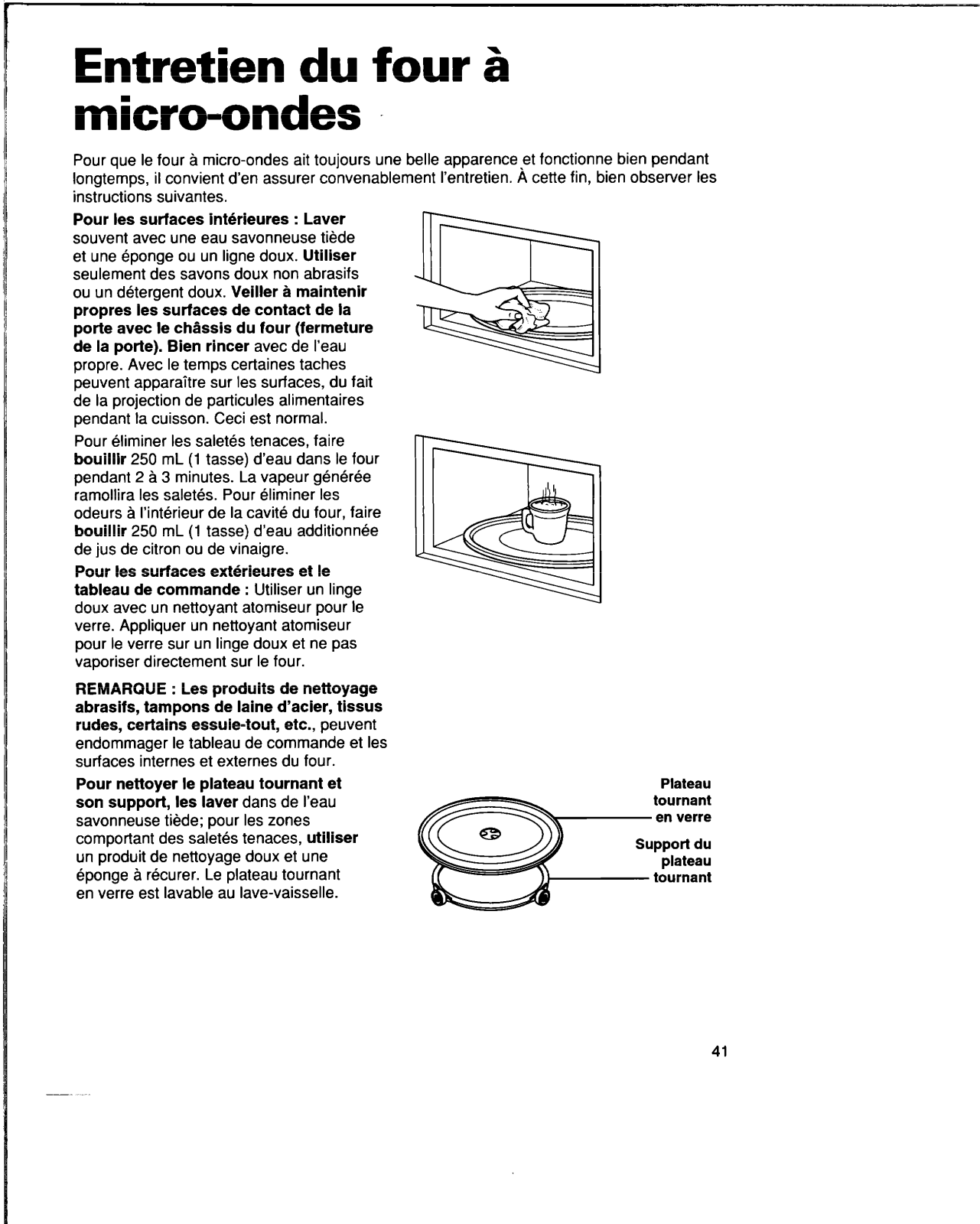

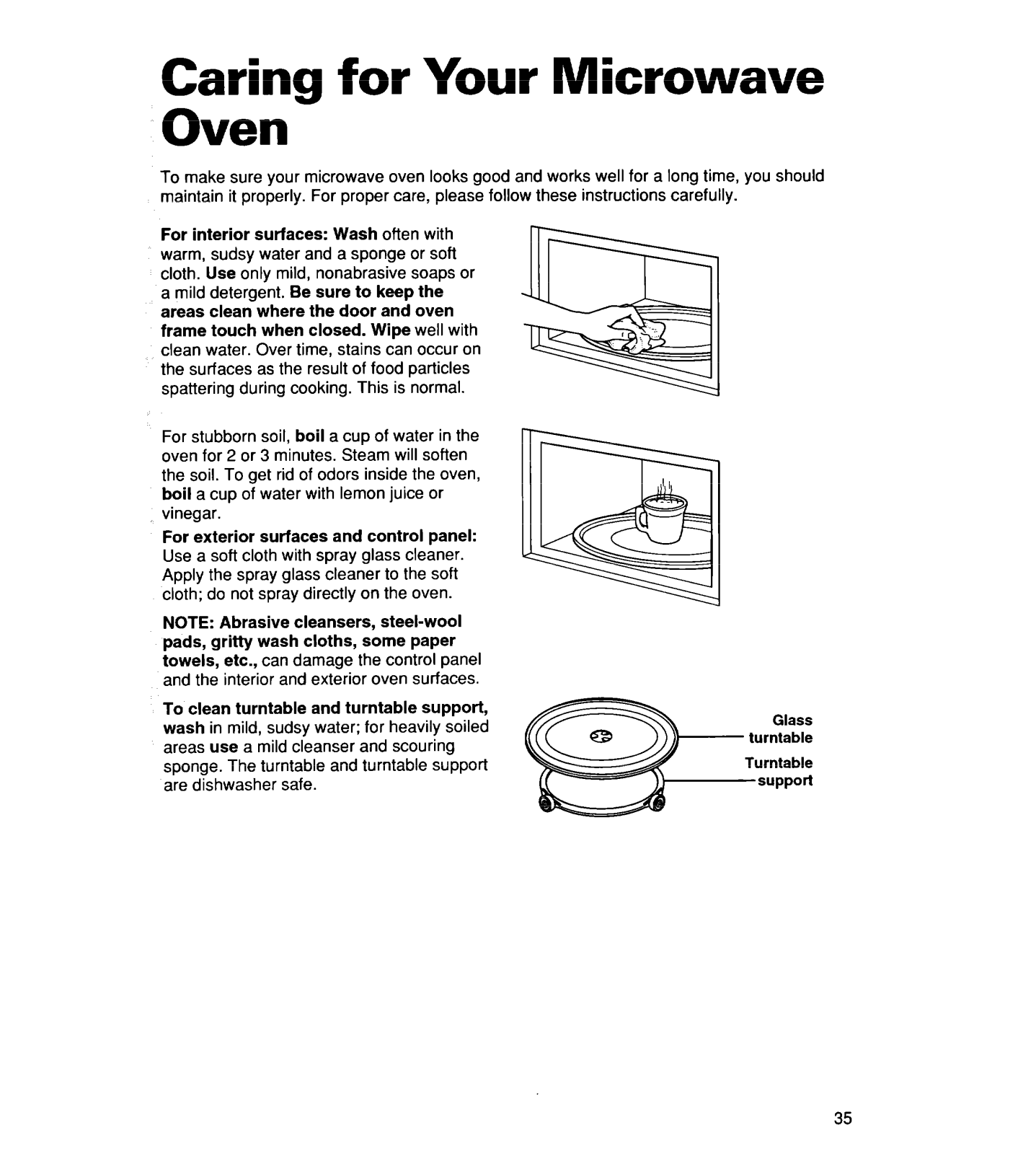

Caring for Your Microwave Oven ...........

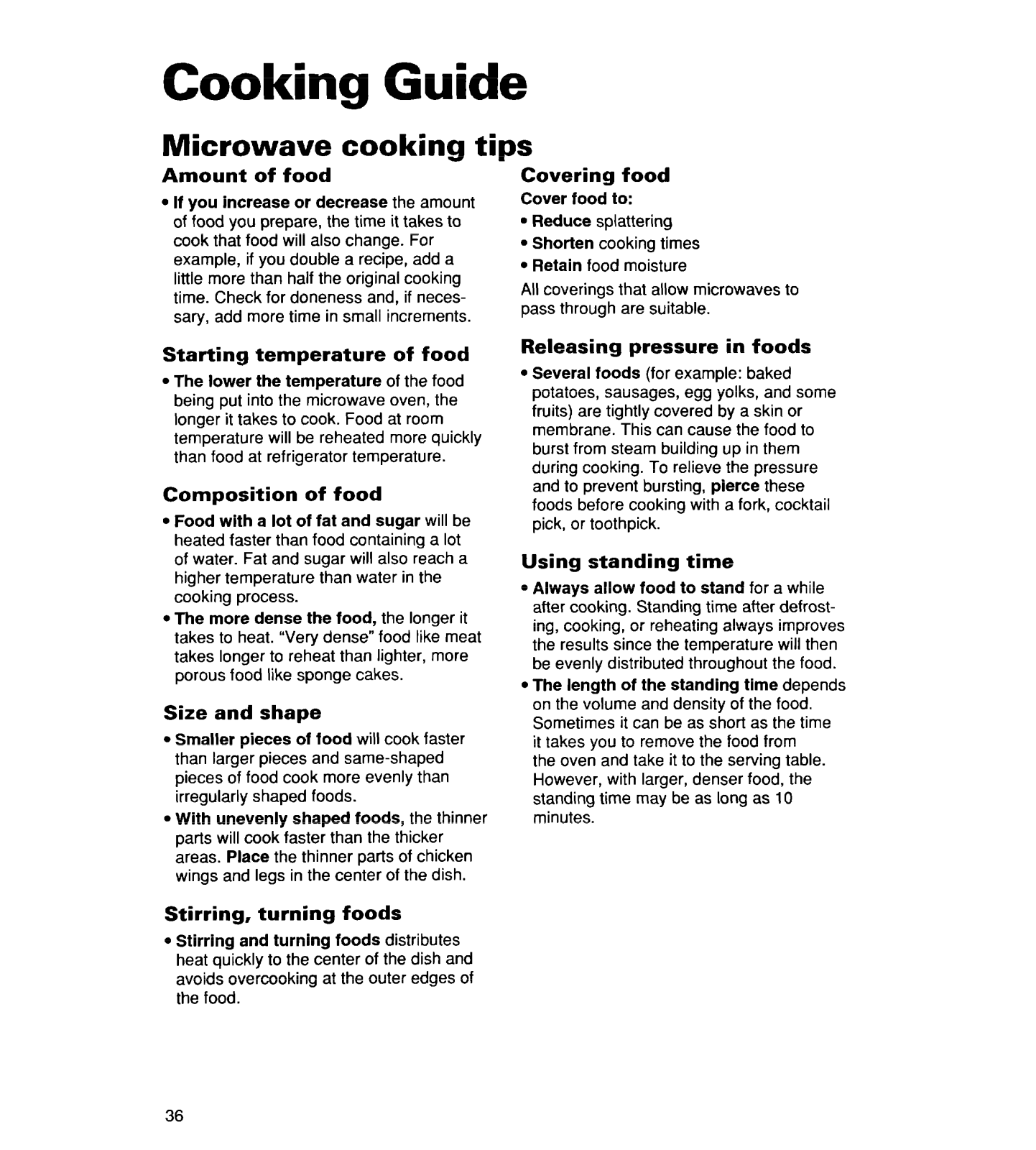

Cooking Guide ........................................

Microwave cooking tips.. .....................

Questions and Answers .........................

Troubleshooting ......................................

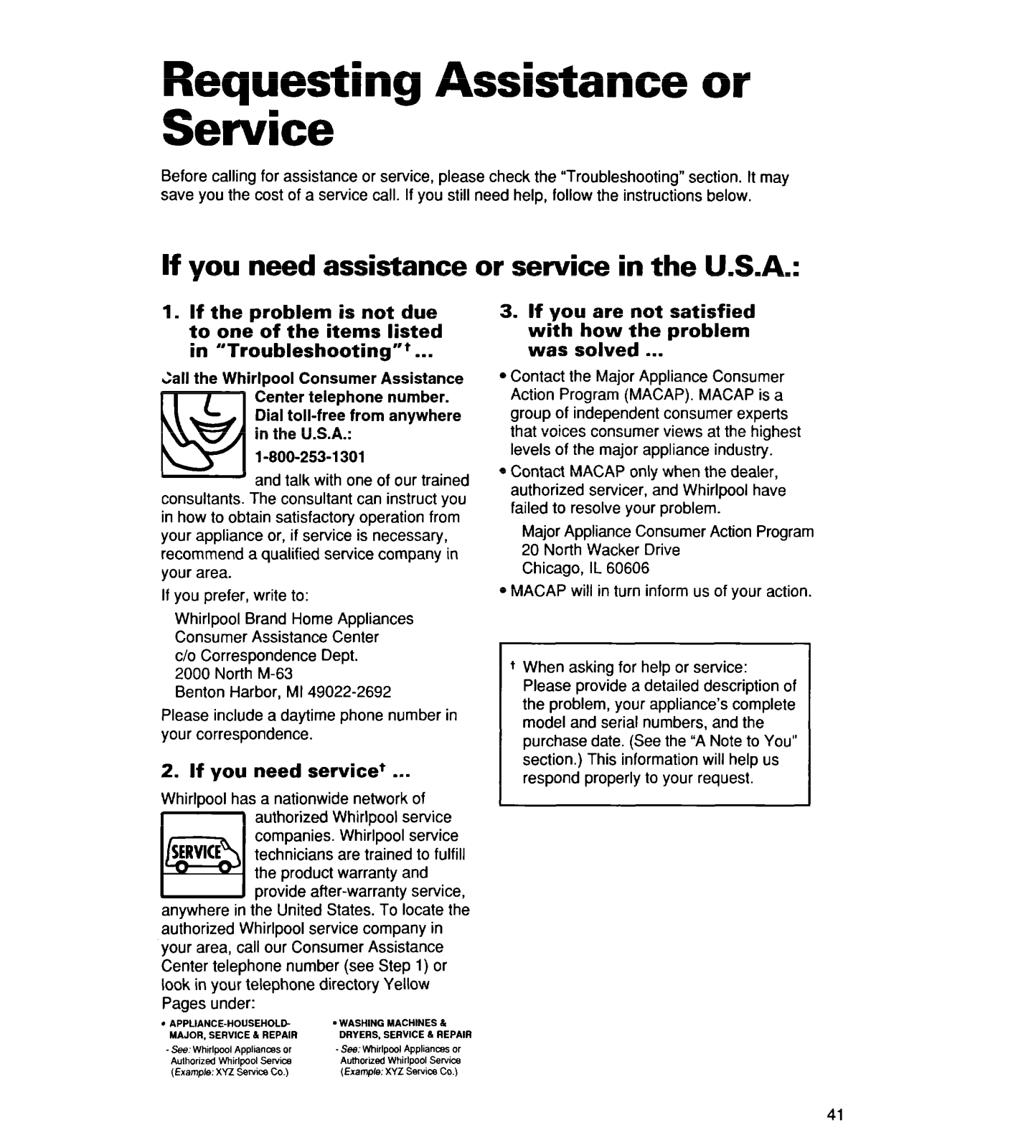

Requesting Assistance or Service .........

Index ........................................................

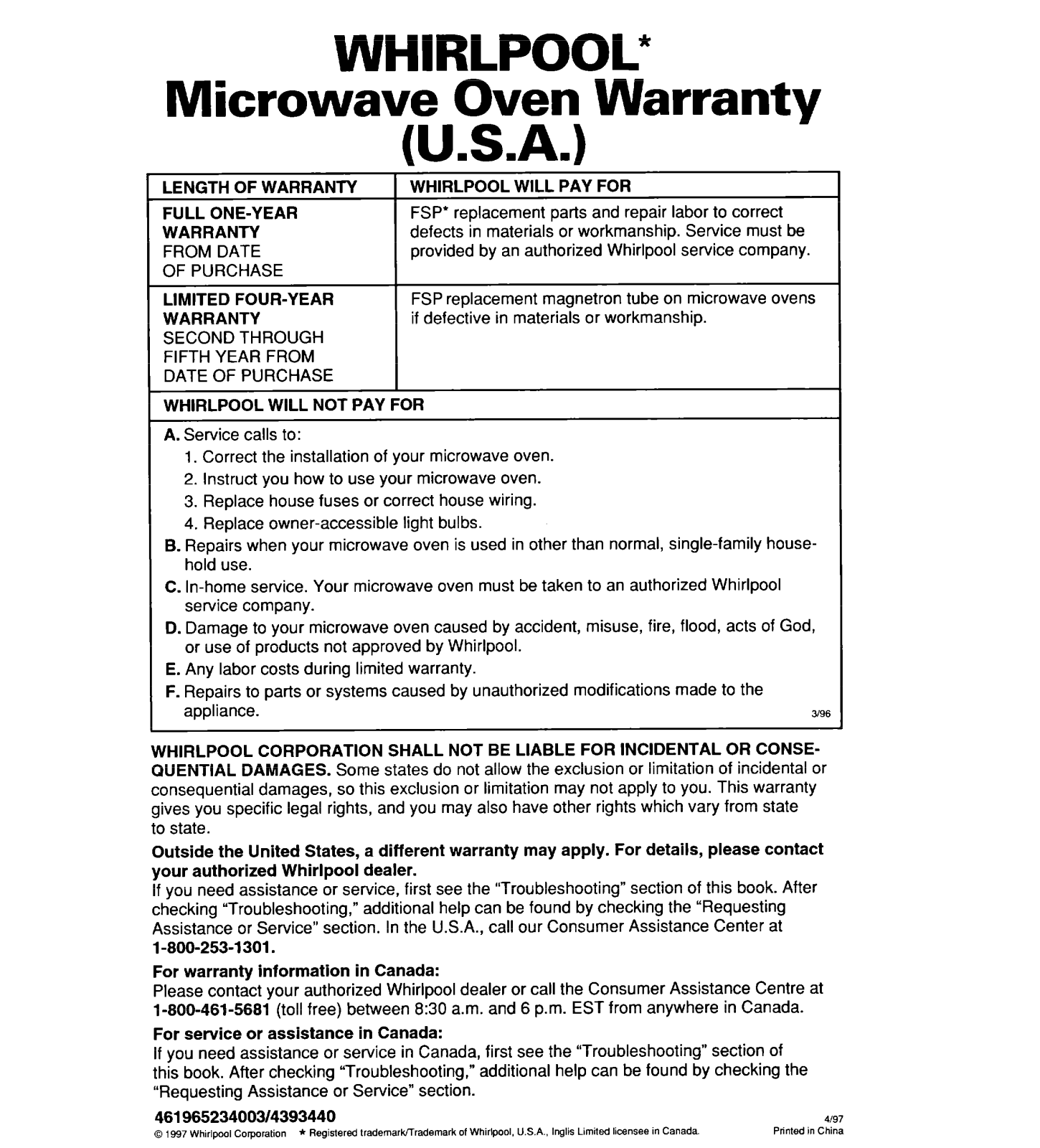

Warranty ..................................................

23 25 27 28 29 30 31 32 33 33 34 35 36 36 38

39 41 47 48

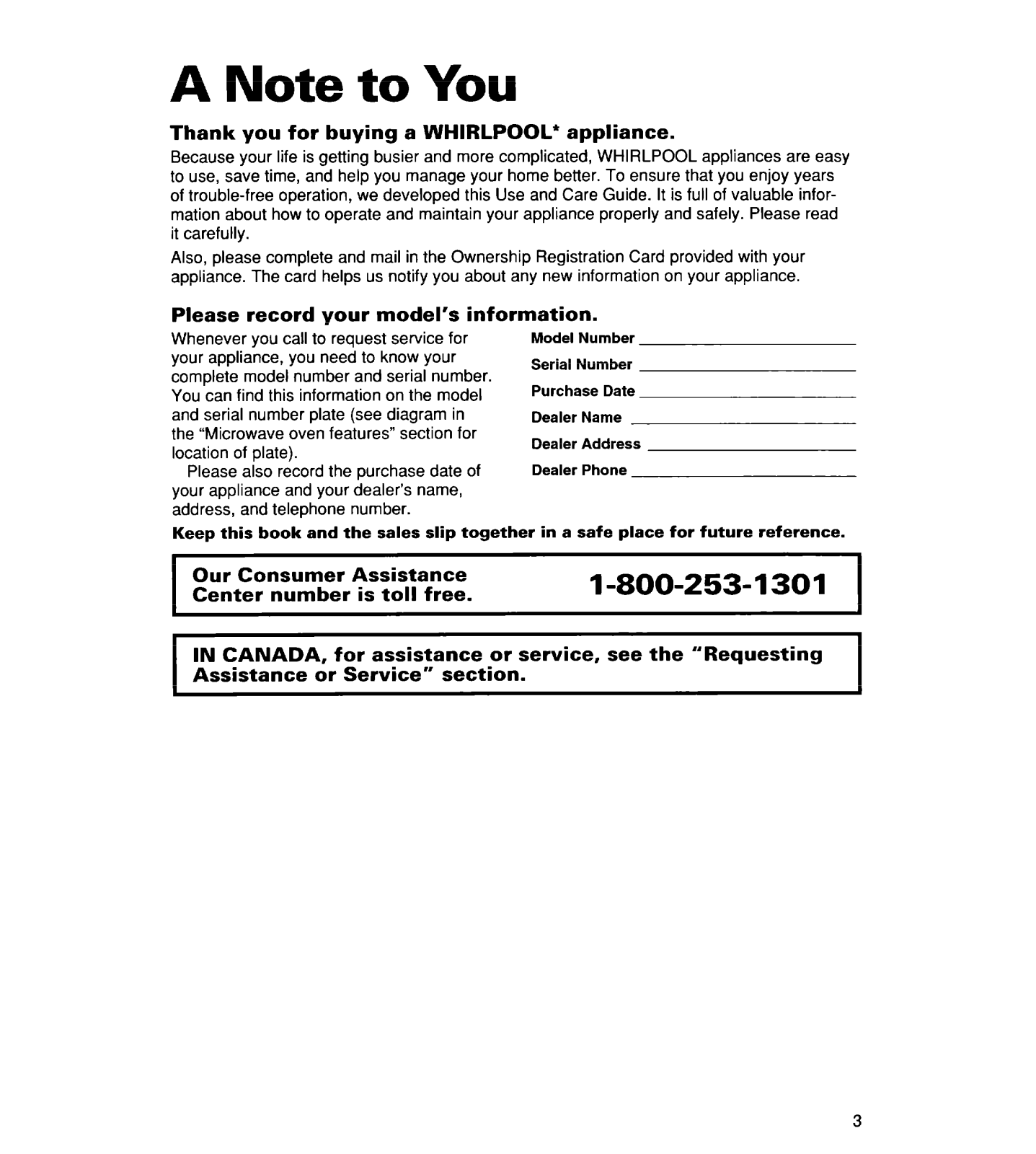

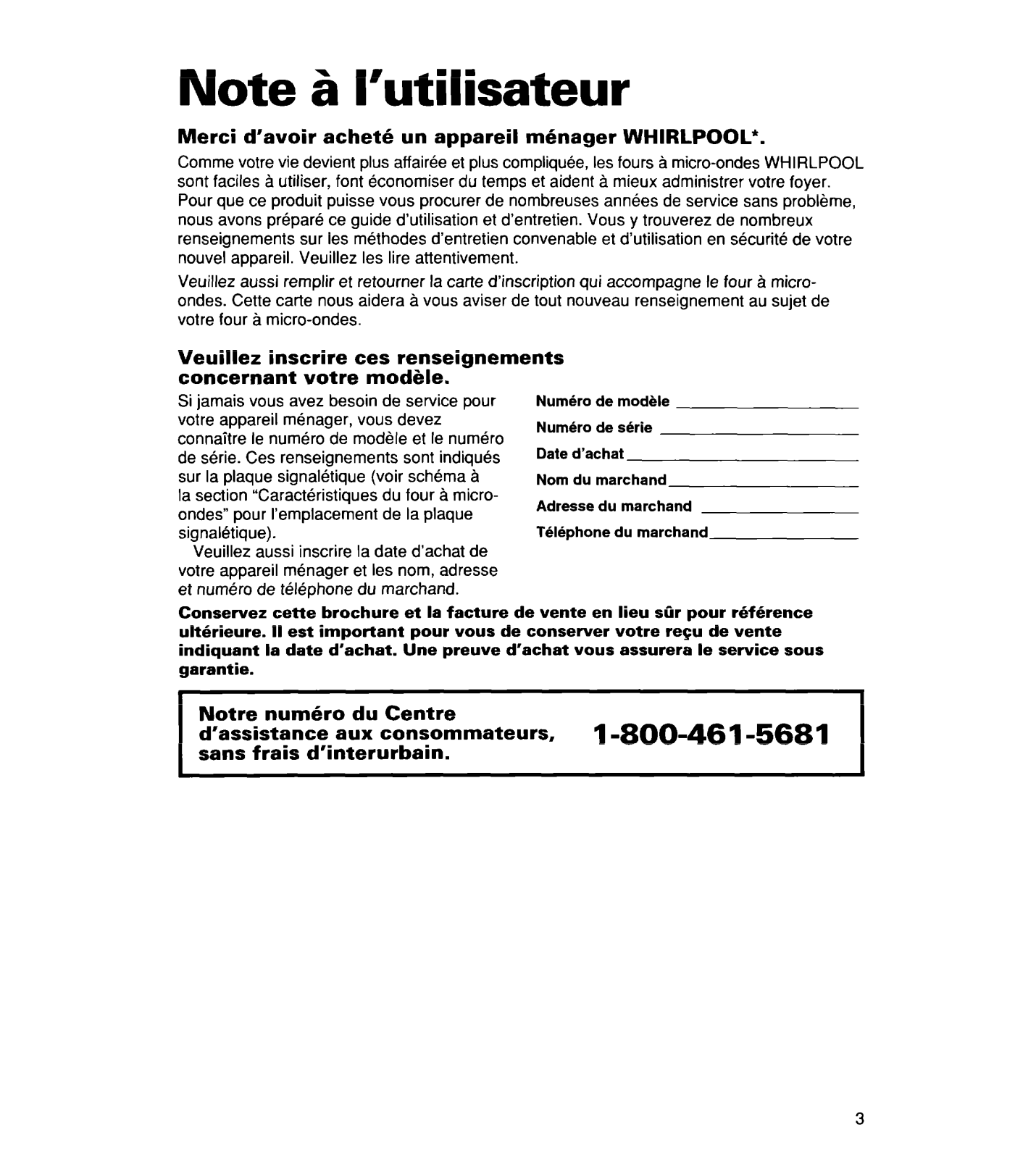

A Note to You

Thank you for buying a WHIRLPOOL* appliance.

Because your life is getting busier and more complicated, WHIRLPOOL appliances are easy to use, save time, and help you manage your home better. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for your appliance, you need to know your complete model number and serial number.

You can find this information on the model and serial number plate (see diagram in the “Microwave oven features” section for location of plate).

Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number Serial Number Purchase Date Dealer Name Dealer Address Dealer Phone

Our Consumer Assistance Center number is toll free.

IN CANADA, for assistance or service, see the “Requesting Assistance or Service” section.

1-800-253-1301 1

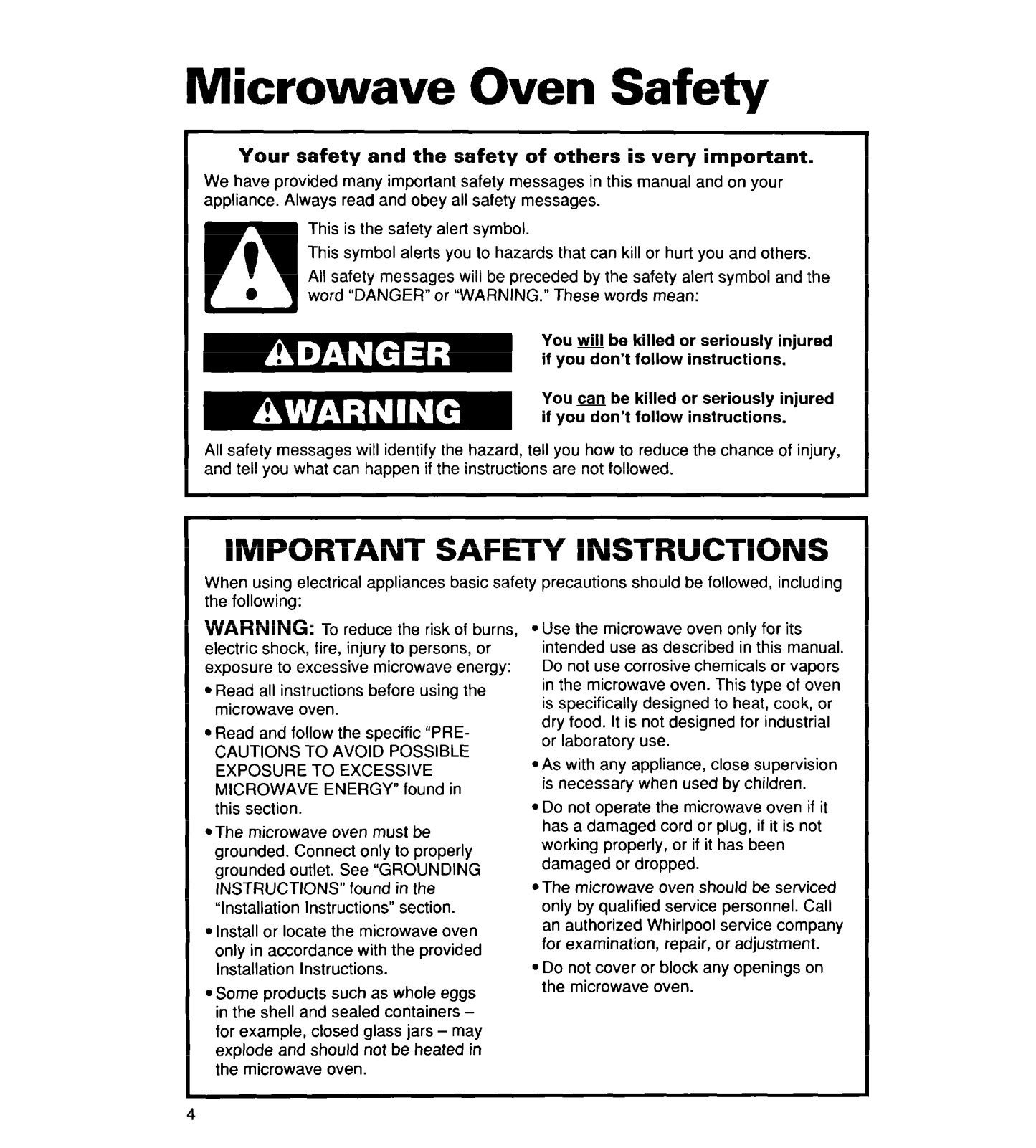

Microwave Oven Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

word “DANGER” or “WARNING.” These words mean:

You will be killed or seriously injured if you don’t follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

WARNING:

electric shock, fire, injury to persons, or intended use as described in this manual.

exposure to excessive microwave energy:

Q Read all instructions before using the

microwave oven.

l Read and follow the specific “PRE-

CAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section. l Do not operate the microwave oven if it

. The microwave oven must be

grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in the “Installation Instructions” section. only by qualified service personnel. Call

l Install or locate the microwave oven

only in accordance with the provided

Installation Instructions.

l Some products such as whole eggs

in the shell and sealed containers for example, closed glass jars - may explode and should not be heated in the microwave oven.

To reduce the risk of burns,

l Use the microwave oven only for its

Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

*As with any appliance, close supervision

is necessary when used by children.

has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

The microwave oven should be serviced an authorized Whirlpool service company

for examination, repair, or adjustment.

l Do not cover or block any openings on

the microwave oven.

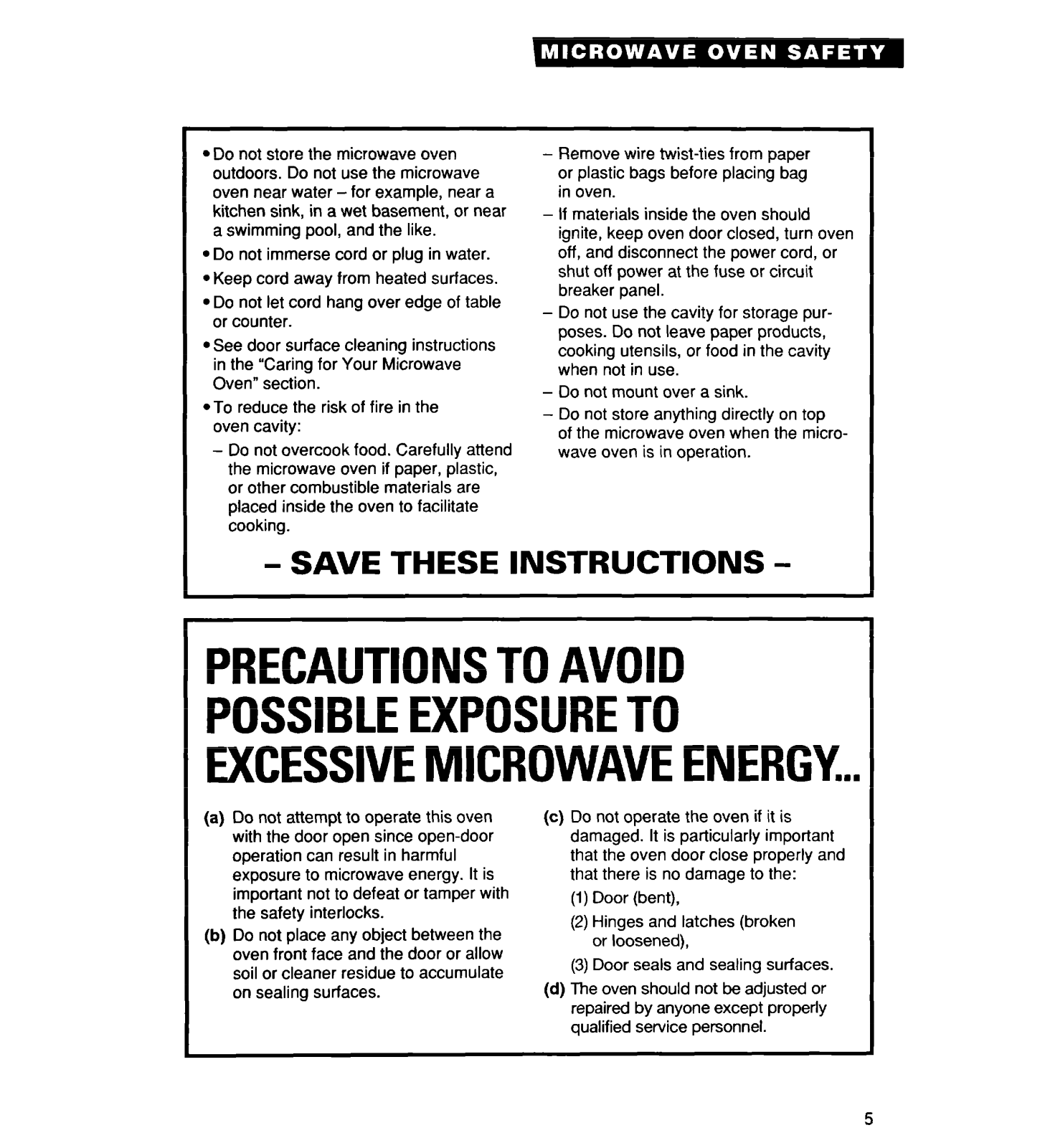

l Do not store the microwave oven

outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.

l Do not immerse cord or plug in water.

*Keep cord away from heated surfaces.

l Do not let cord hang over edge of table

or counter.

.See door surface cleaning instructions

in the “Caring for Your Microwave Oven” section.

*To reduce the risk of fire in the

oven cavity:

- Do not overcook food. Carefully attend the microwave oven if paper, plastic, or other combustible materials are

placed inside the oven to facilitate cooking.

- SAVE THESE INSTRUCTIONS -

- Remove wire twist-ties from paper or plastic bags before placing bag

in oven.

- If materials inside the oven should

ignite, keep oven door closed, turn oven

off, and disconnect the power cord, or

shut off power at the fuse or circuit breaker panel.

- Do not use the cavity for storage pur-

poses. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

- Do not mount over a sink.

- Do not store anything directly on top of the microwave oven when the micro-

wave oven is in operation.

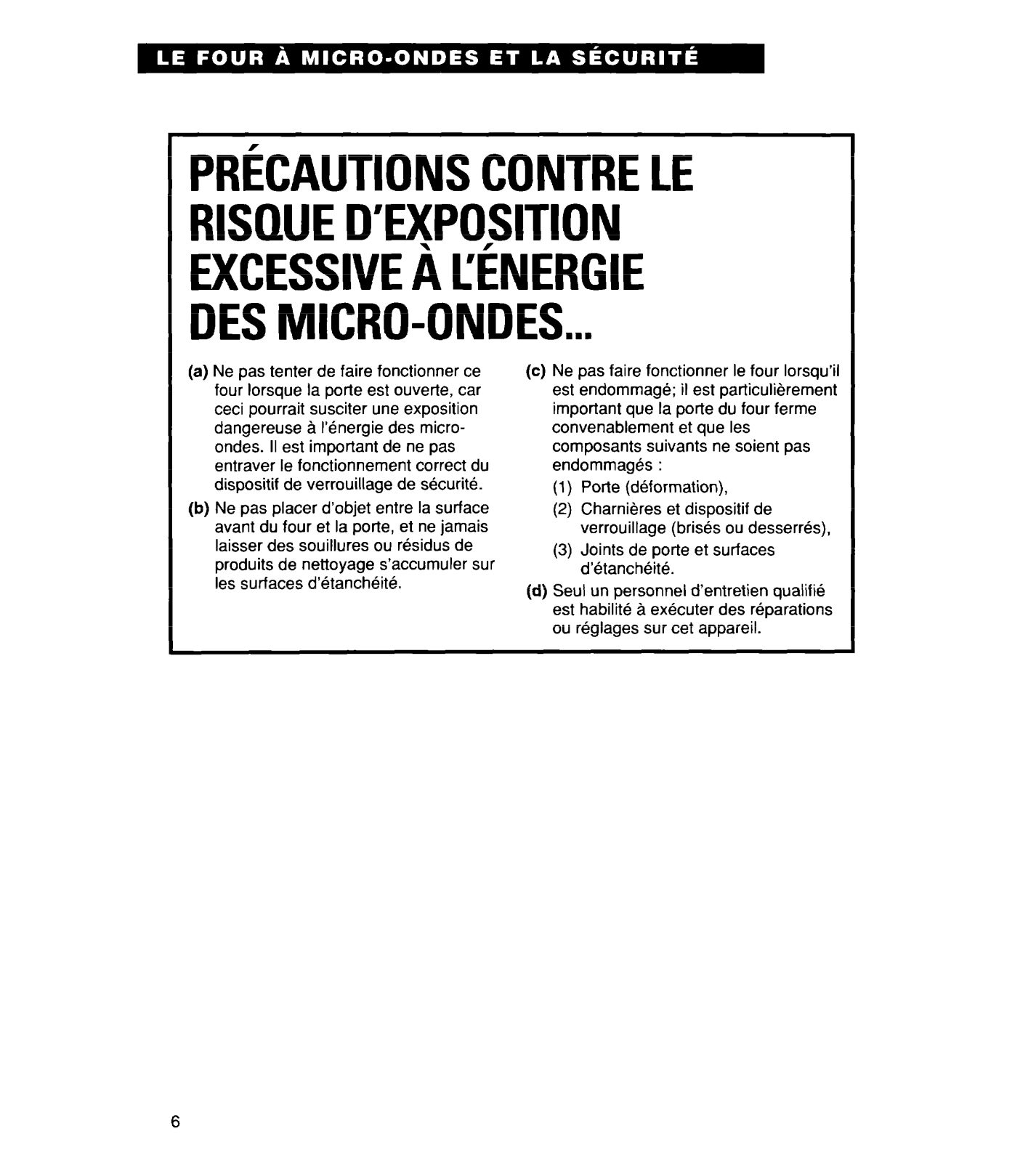

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY...

(a) Do not attempt to operate this oven

with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

(b) Do not place any object between the

oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) Door (bent), (2) Hinges and latches (broken

or loosened),

(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or

repaired by anyone except properly qualified service personnel.

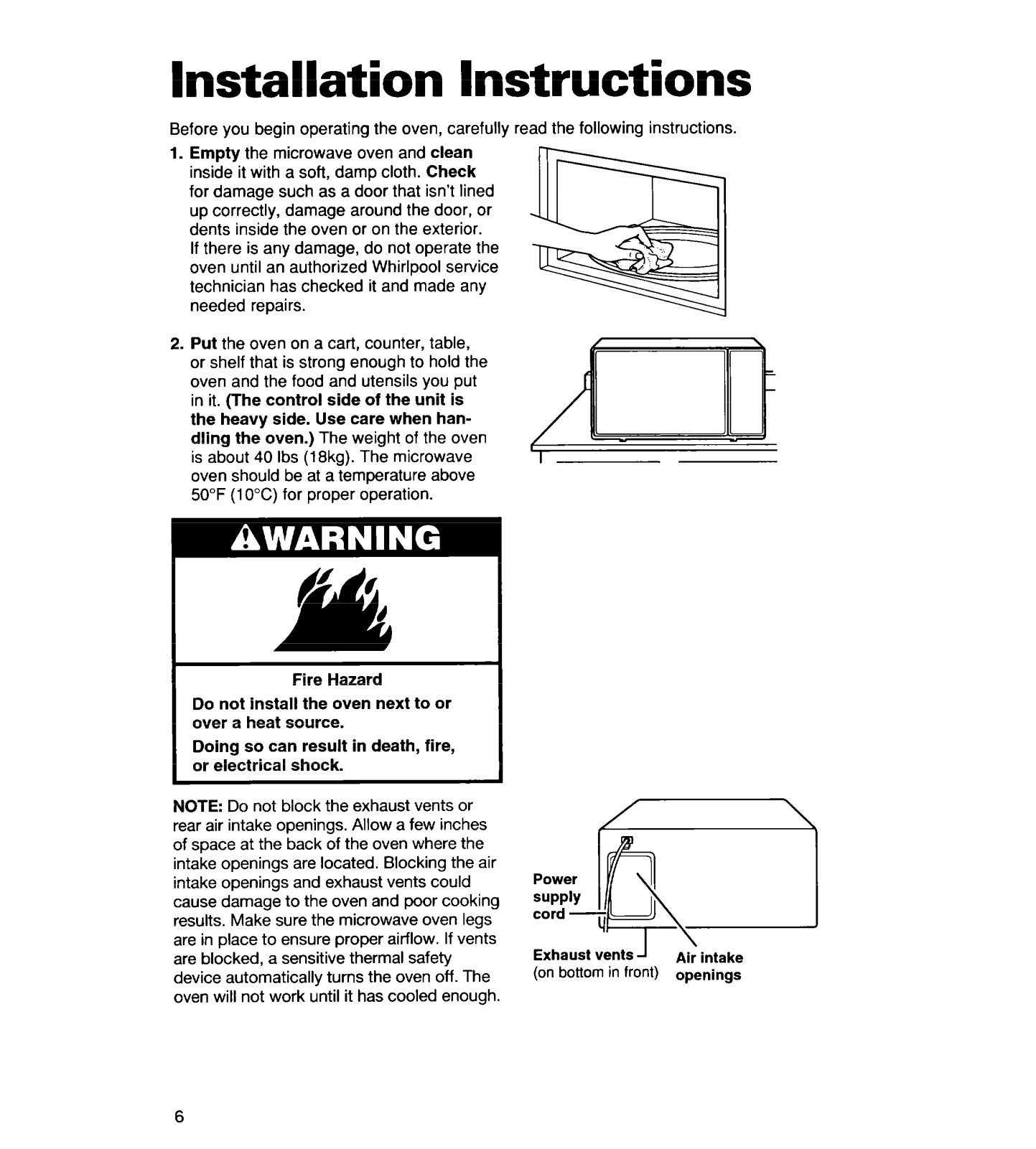

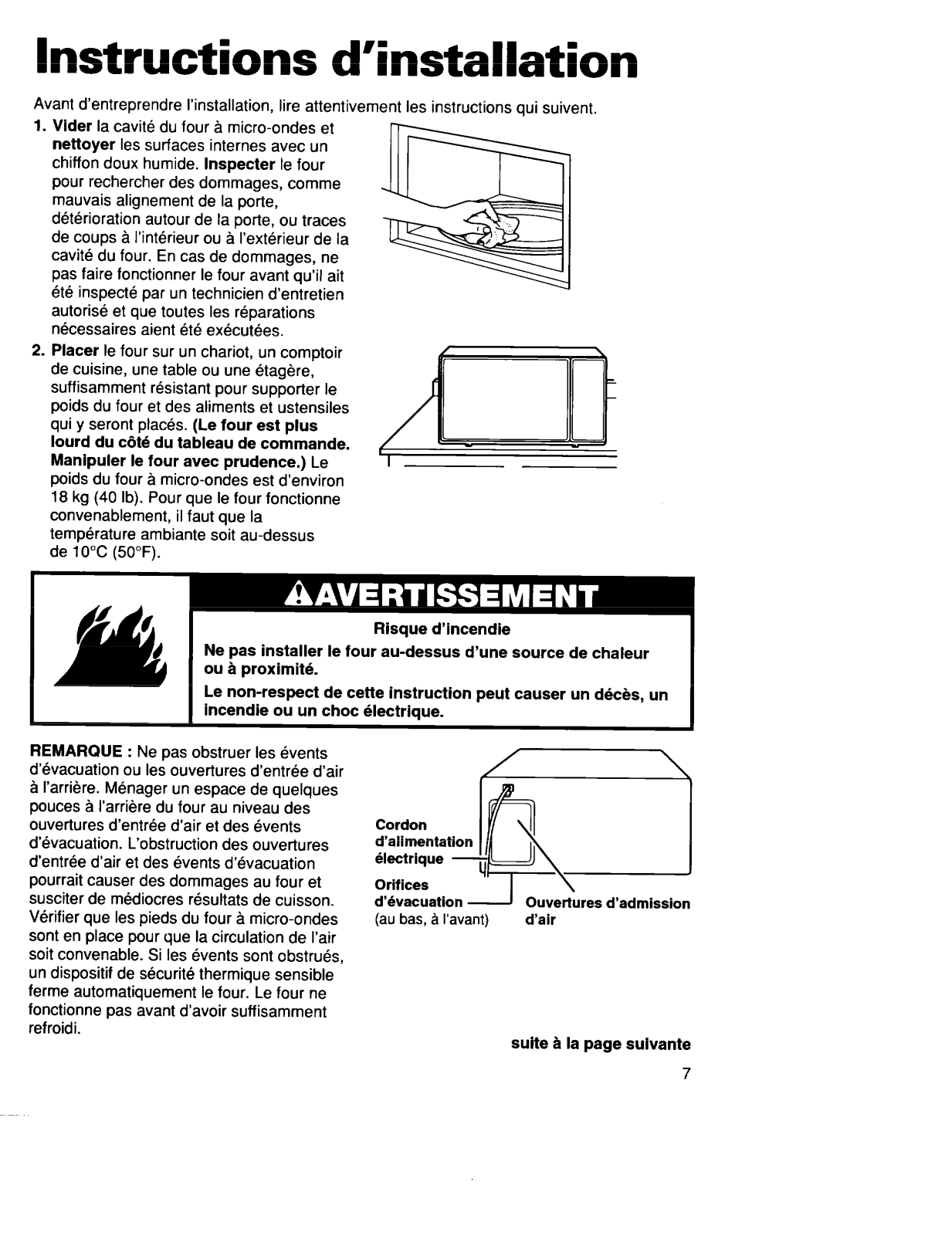

Installation Instructions

Before you begin operating the oven, carefully read the following instructions.

1. Empty the microwave oven and clean inside it with a soft, damp cloth. Check for damage such as a door that isn’t lined up correctly, damage around the door, or dents inside the oven or on the exterior. If there is any damage, do not operate the oven until an authorized Whirlpool service technician has checked it and made any needed repairs.

2. Put the oven on a cart, counter, table, or shelf that is strong enough to hold the oven and the food and utensils you put

in it. (The control side of the unit is the heavy side. Use care when handling the oven.) The weight of the oven

is about 40 Ibs (18kg). The microwave

oven should be at a temperature above

50°F (10%) for proper operation.

Fire Hazard

Do not install the oven next to or over a heat source.

Doing so can result in death, fire, or electrical shock.

NOTE: Do not block the exhaust vents or rear air intake openings. Allow a few inches of space at the back of the oven where the

intake openings are located. Blocking the air intake openings and exhaust vents could

cause damage to the oven and poor cooking

results. Make sure the microwave oven legs are in place to ensure proper airflow. If vents are blocked, a sensitive thermal safety device automatically turns the oven off. The oven will not work until it has cooled enough.

Exhaust vents Exhaust vents J

(OII

bottom in front)

(OII

bottom in front)

Air intake

openings openings

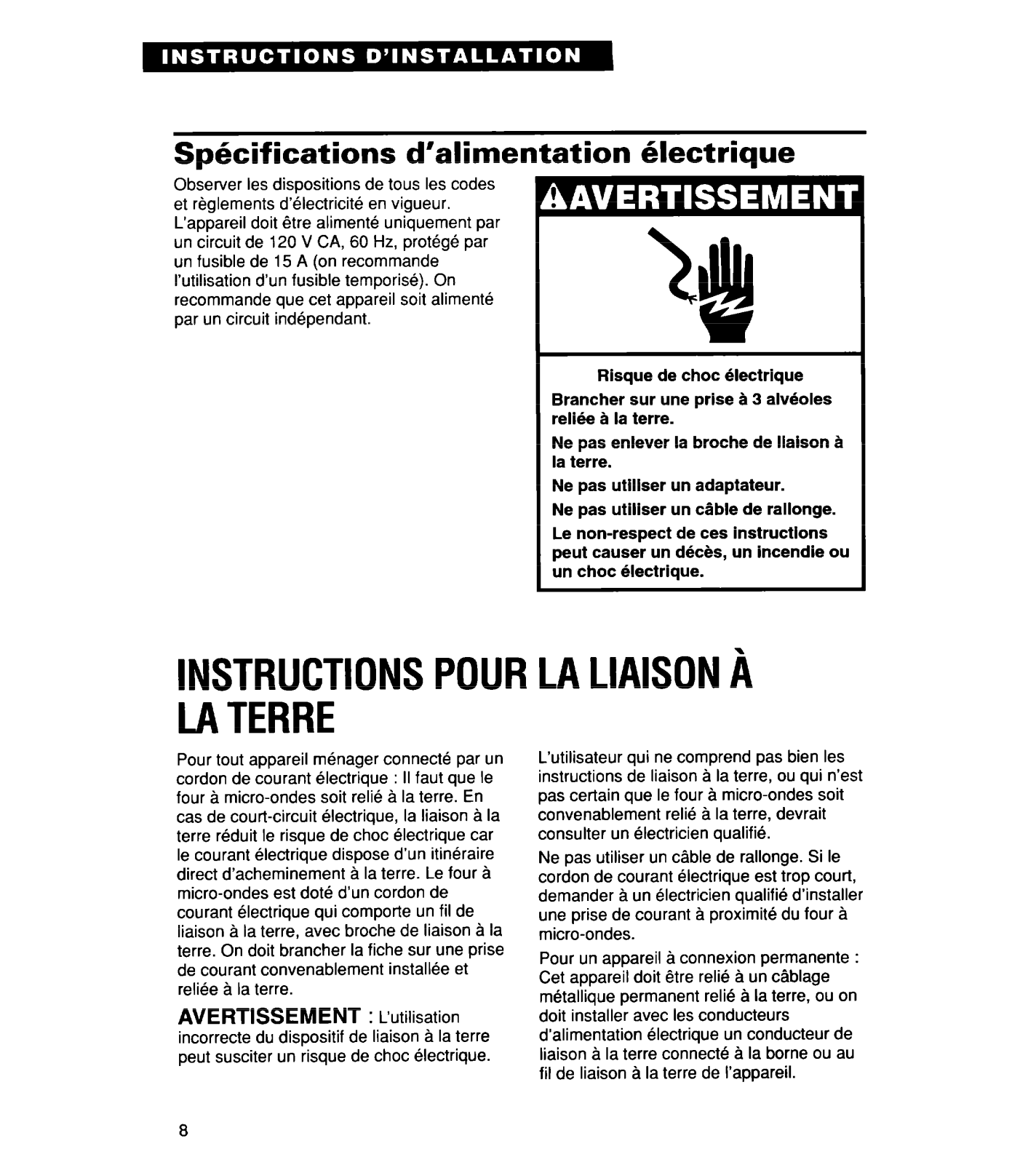

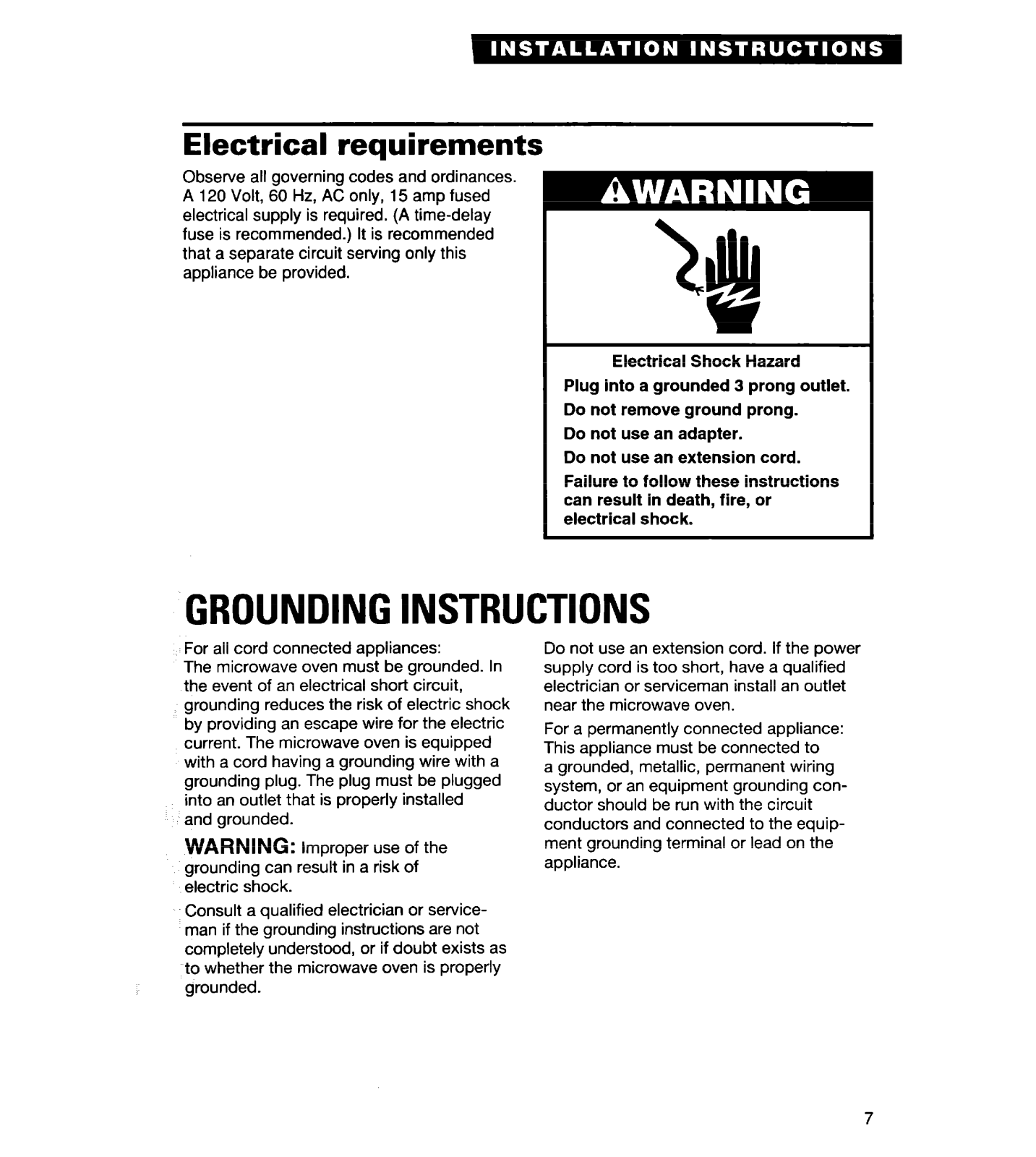

Electrical requirements

Observe all governing codes and ordinances. A 120 Volt, 60 Hz, AC only, 15 amp fused electrical supply is required. (A time-delay fuse is recommended.) It is recommended that a separate circuit serving only this appliance be provided.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions

can result in death, fire, or electrical shock.

GROUNDING INSTRUCTIONS

For all cord connected appliances: The microwave oven must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock

by providing an escape wire for the electric

current. The microwave oven is equipped

with a cord having a grounding wire with a

grounding plug. The plug must be plugged

into an outlet that is properly installed

and grounded.

WARNING:

grounding can result in a risk of

electric shock.

Consult a qualified electrician or service-

man if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly

grounded.

Improper use of the

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

For a permanently connected appliance: This appliance must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equip-

ment grounding terminal or lead on the appliance.

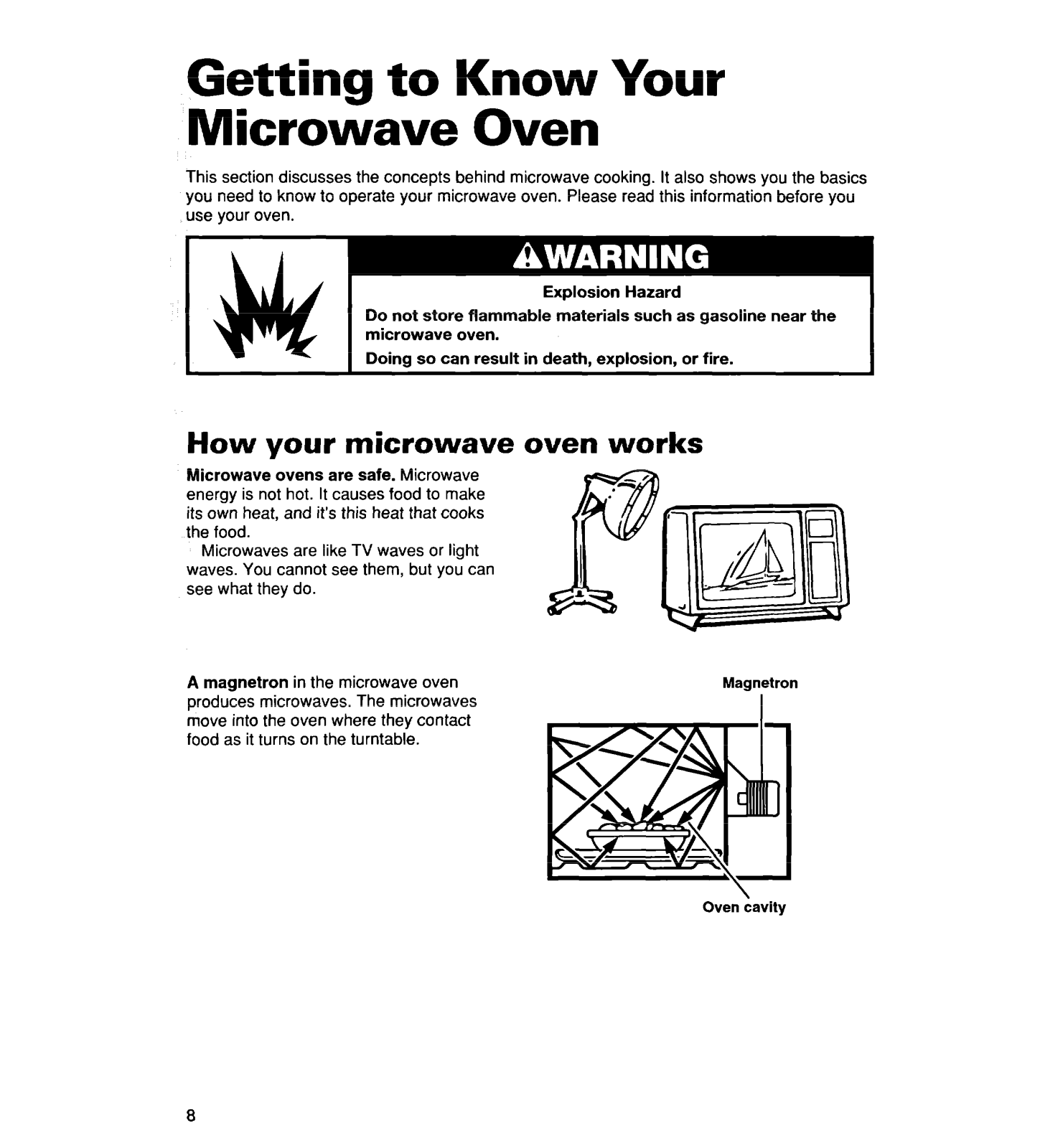

Getting to Know Your

Microwave Oven

This section discusses the concepts behind microwave cooking. It also shows you the basics you need to know to operate your microwave oven. Please read this information before you

use your oven.

Explosion Hazard

Do not store flammable materials such as gasoline near the microwave oven.

Doing so can result in death, explosion, or fire.

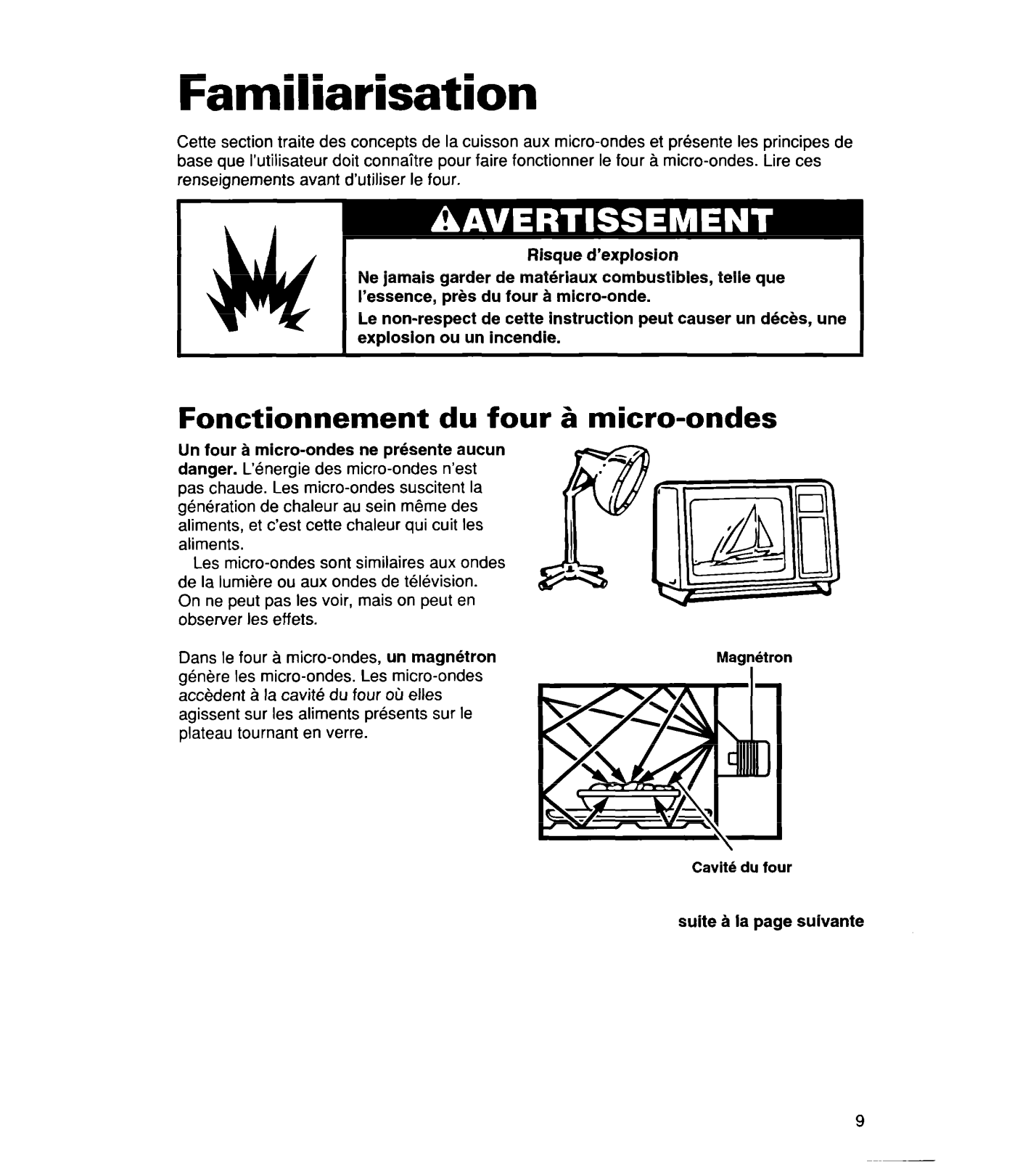

How your microwave oven works

Microwave ovens are safe. Microwave energy is not hot. It causes food to make its own heat, and it’s this heat that cooks the food.

Microwaves are like TV waves or light waves. You cannot see them, but you can see what they do.

A magnetron in the microwave oven produces microwaves. The microwaves move into the oven where they contact food as it turns on the turntable.

Magnetron

Oven cavity

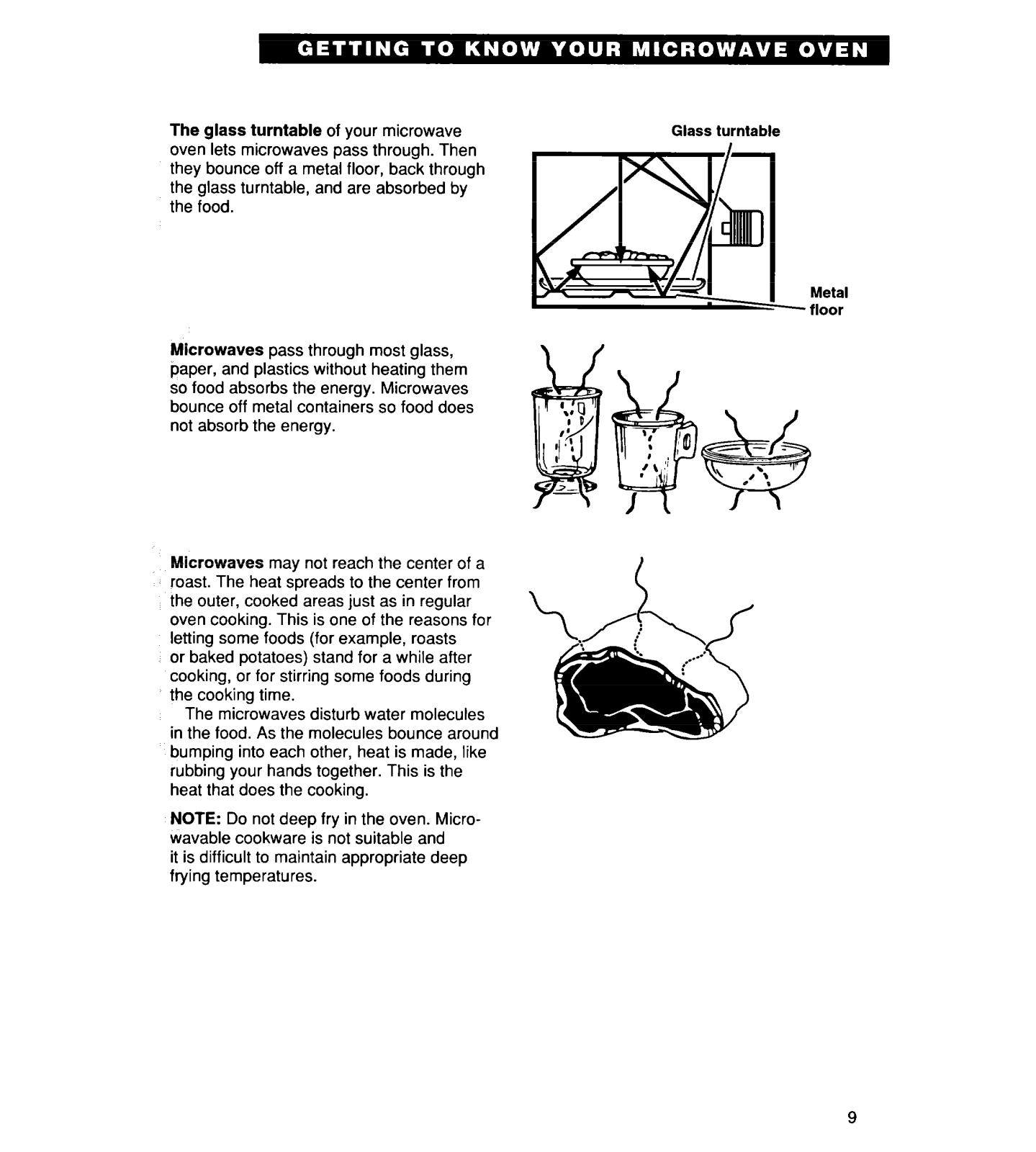

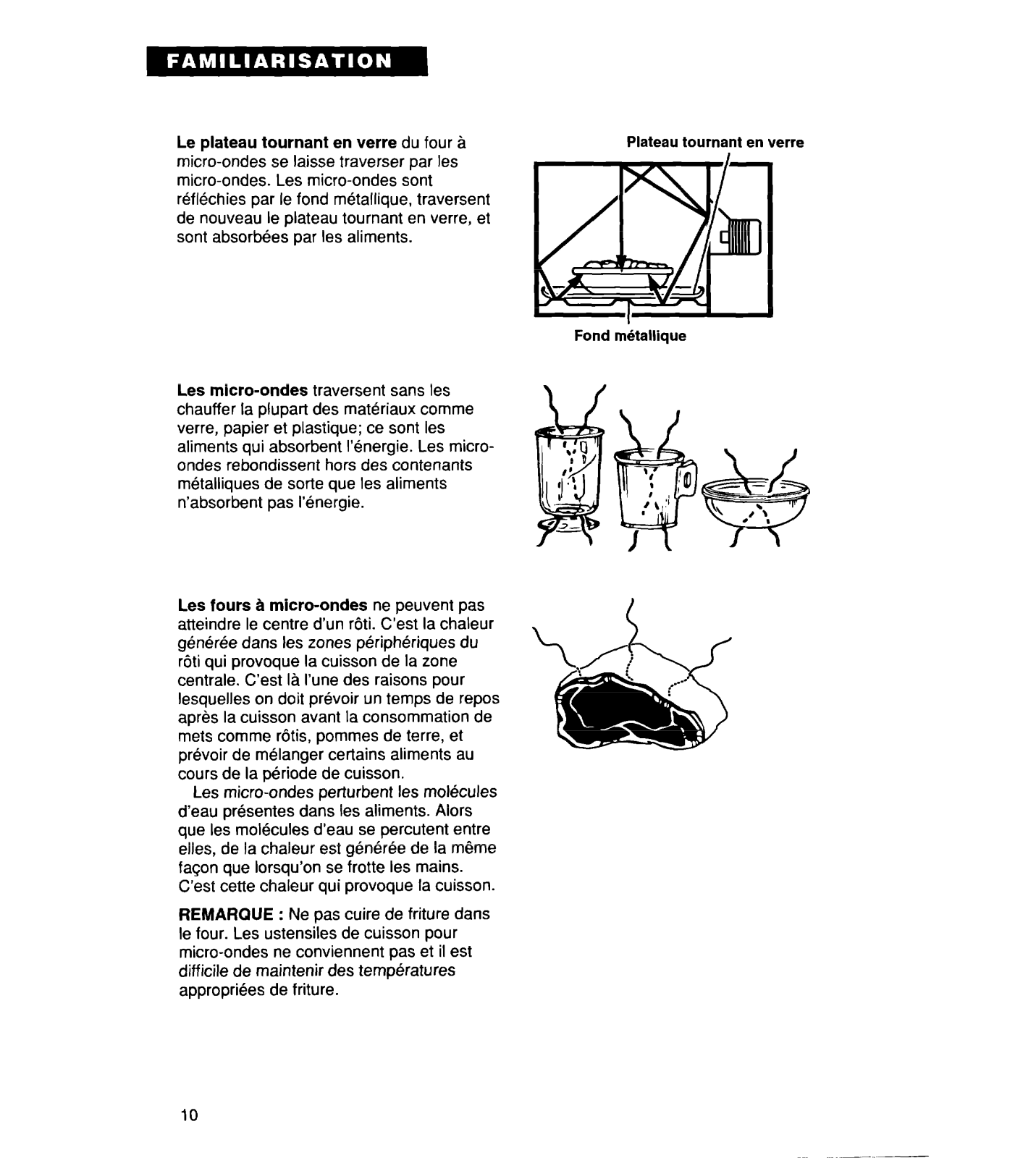

The glass turntable of your microwave oven lets microwaves pass through. Then they bounce off a metal floor, back through the glass turntable, and are absorbed by the food.

Microwaves pass through most glass, paper, and plastics without heating them so food absorbs the energy. Microwaves bounce off metal containers so food does not absorb the energy.

Microwaves may not reach the center of a roast. The heat spreads to the center from the outer, cooked areas just as in regular oven cooking. This is one of the reasons for letting some foods (for example, roasts or baked potatoes) stand for a while after cooking, or for stirring some foods during the cooking time.

The microwaves disturb water molecules in the food. As the molecules bounce around bumping into each other, heat is made, like rubbing your hands together. This is the heat that does the cooking.

Glass turntable

Metal

- floor

NOTE: Do not deep fry in the oven. Microwavable cookware is not suitable and it is difficult to maintain appropriate deep frying temperatures.

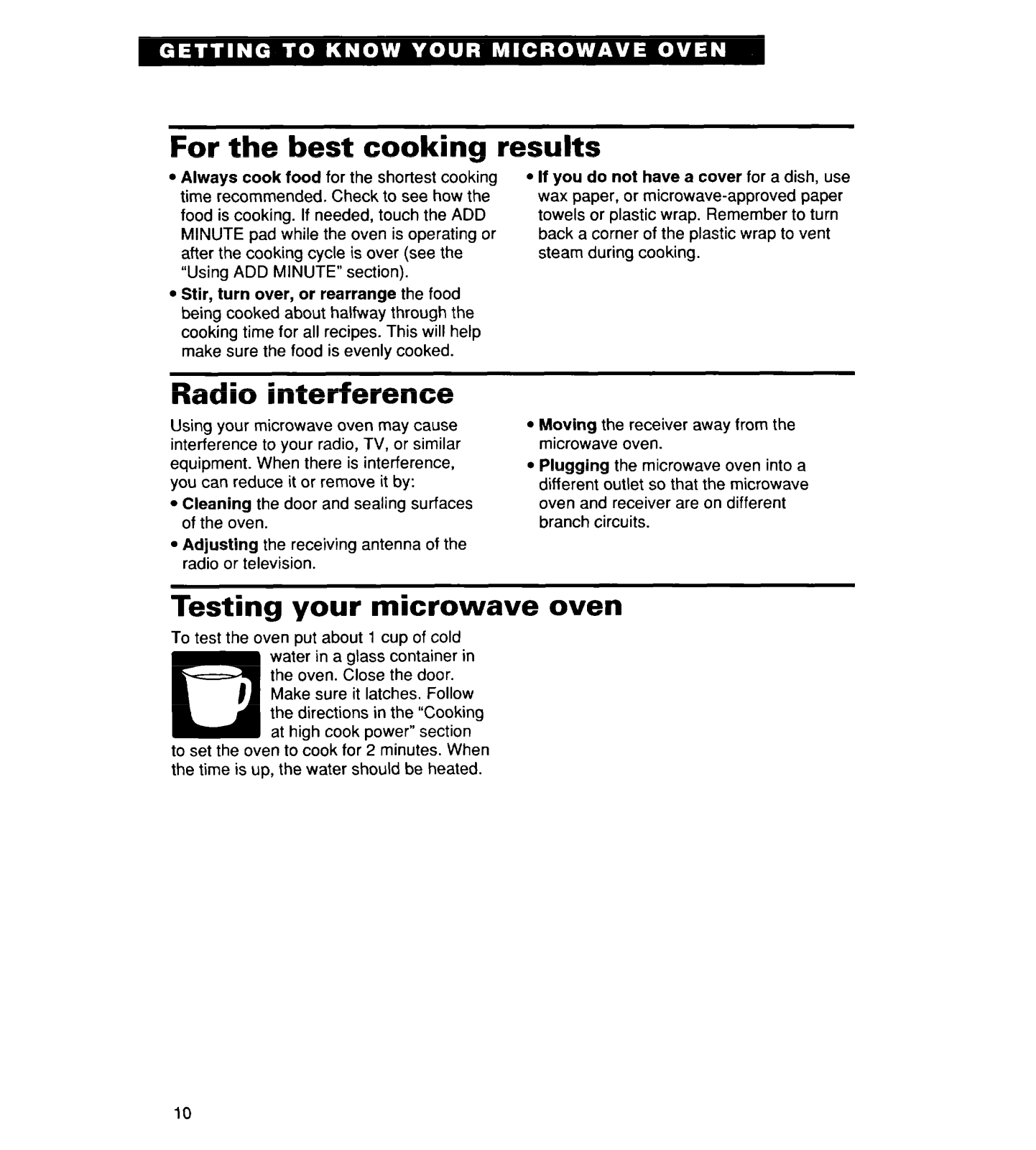

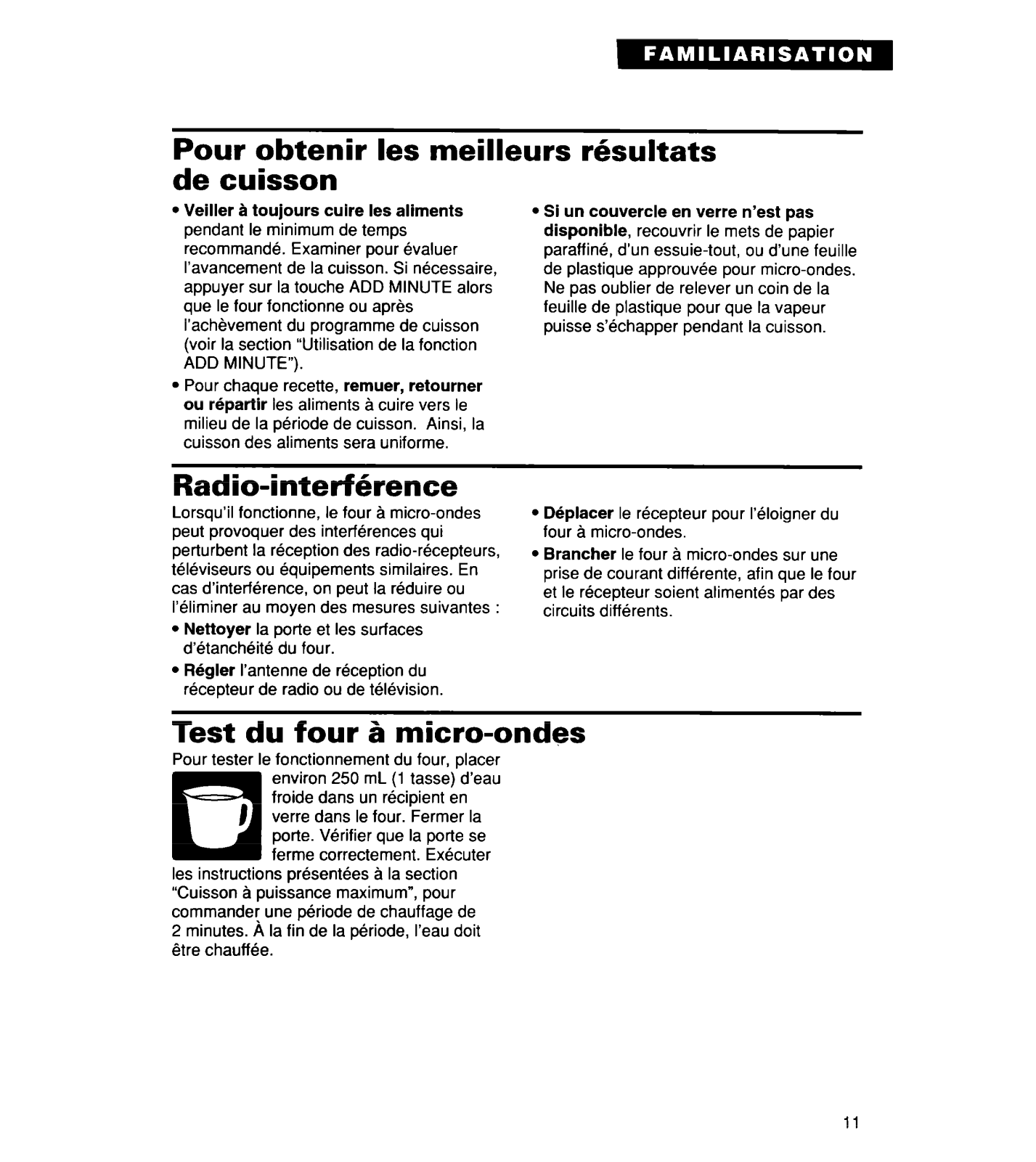

For the best cooking results

l Always cook food for the shortest cooking

time recommended. Check to see how the food is cooking. If needed, touch the ADD

MINUTE pad while the oven is operating or after the cooking cycle is over (see the “Using ADD MINUTE” section).

l Stir, turn over, or rearrange the food

being cooked about halfway through the cooking time for all recipes. This will help make sure the food is evenly cooked.

l If you do not have a cover for a dish, use

wax paper, or microwave-approved paper towels or plastic wrap. Remember to turn

back a corner of the plastic wrap to vent

steam during cooking.

Radio interference

Using your microwave oven may cause interference to your radio, TV, or similar equipment. When there is interference, you can reduce it or remove it by:

l Cleaning the door and sealing surfaces

of the oven.

l Adjusting the receiving antenna of the

radio or television.

l Moving the receiver away from the

microwave oven.

l Plugging the microwave oven into a

different outlet so that the microwave oven and receiver are on different branch circuits.

Testing your microwave oven

To test the oven put about 1 cup of cold

water in a glass container in the oven. Close the door.

Make sure it latches. Follow

the directions in the “Cooking

cl to set the oven to cook for 2 minutes. When the time is up, the water should be heated.

at high cook power” section

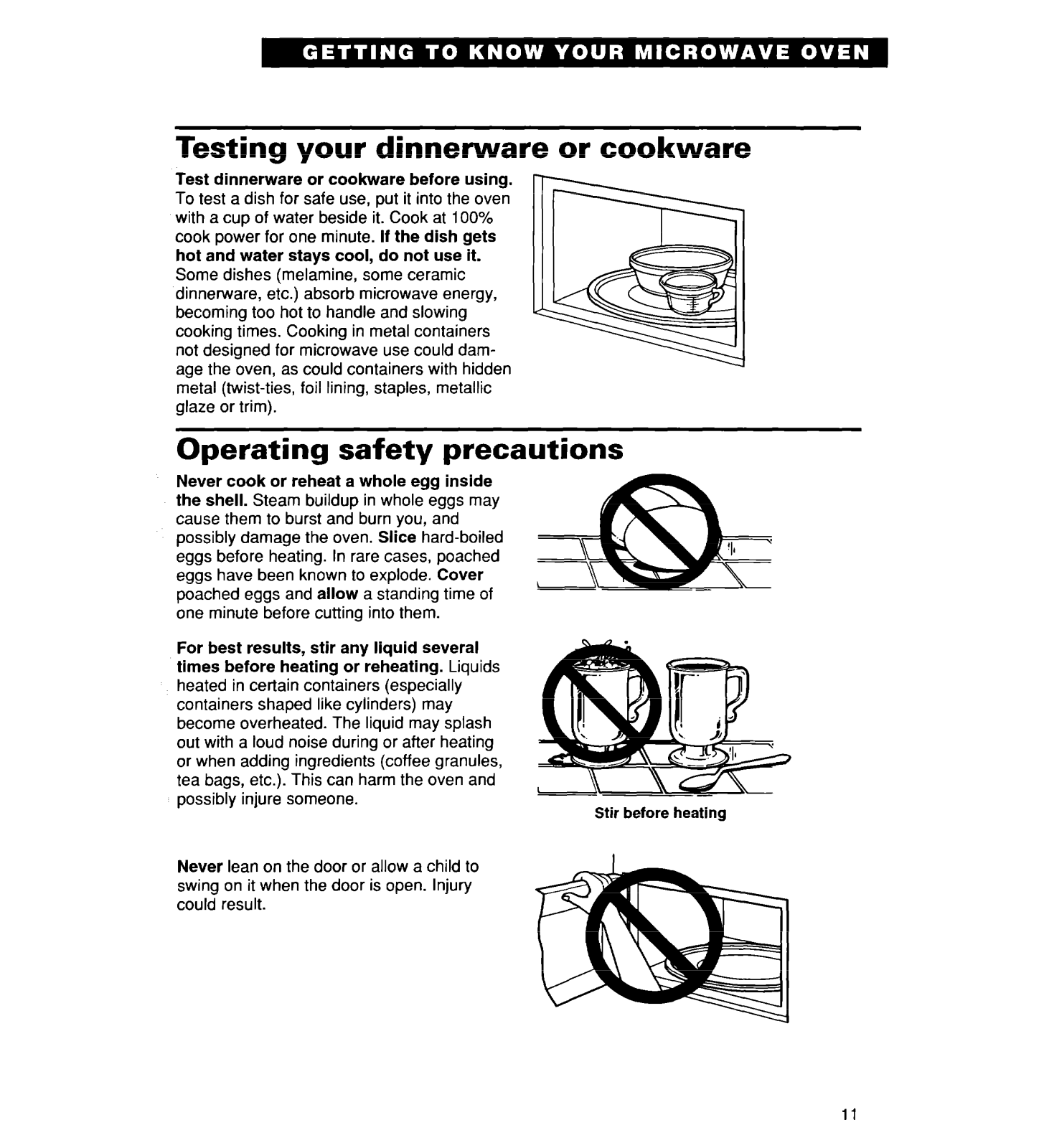

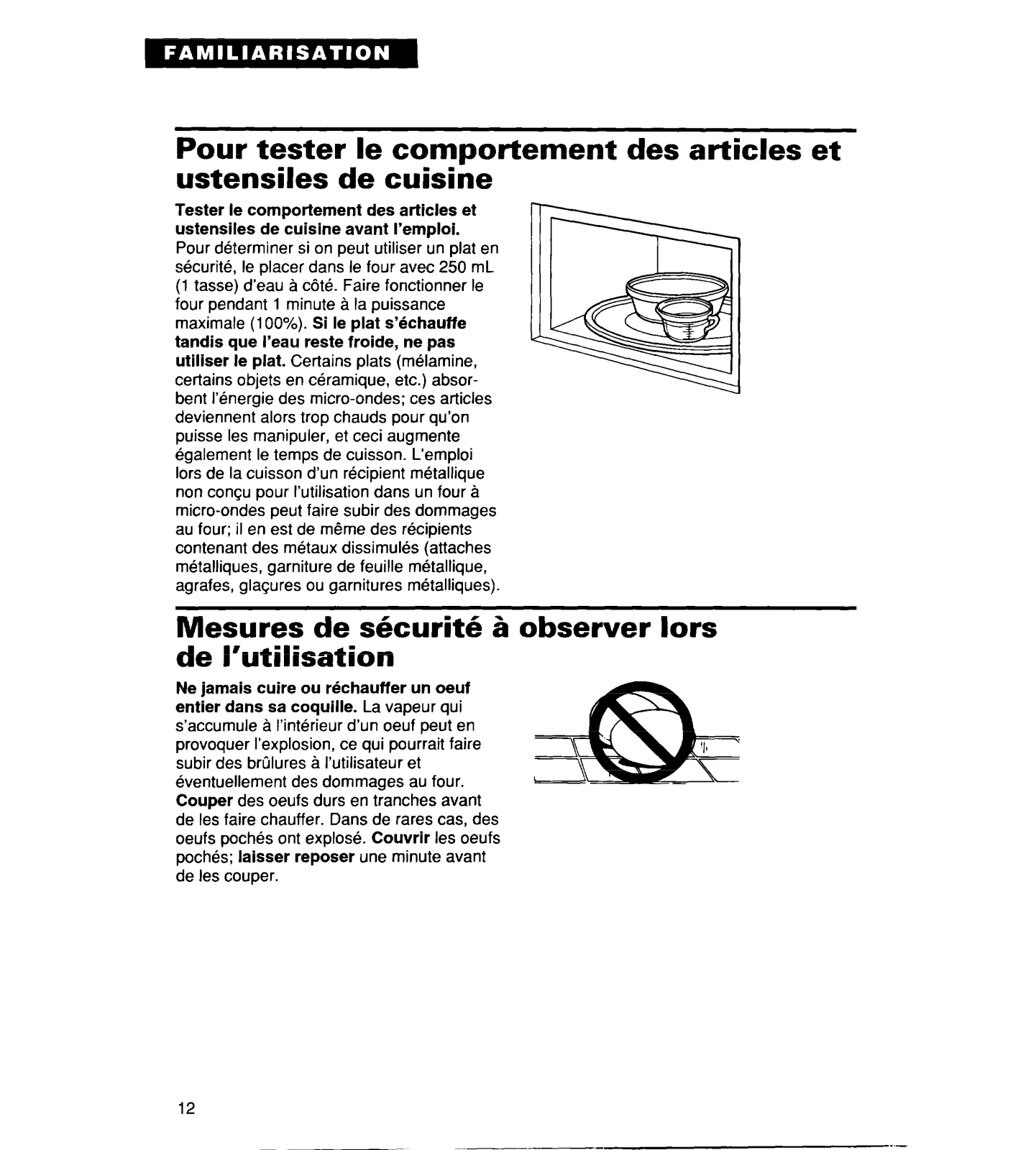

Testing your dinnerware or cookware

Test dinnerware or cookware before using. To test a dish for safe use, put it into the oven with a cup of water beside it. Cook at 100% cook power for one minute. If the dish gets hot and water stays cool, do not use it. Some dishes (melamine, some ceramic dinnerware, etc.) absorb microwave energy, becoming too hot to handle and slowing cooking times. Cooking in metal containers not designed for microwave use could damage the oven, as could containers with hidden

metal (twist-ties, foil lining, staples, metallic

glaze or trim).

Operating safety precautions

Never cook or reheat a whole egg inside the shell. Steam buildup in whole eggs may cause them to burst and burn you, and

possibly damage the oven. Slice hard-boiled

eggs before heating. In rare cases, poached

eggs have been known to explode. Cover

poached eggs and allow a standing time of

one minute before cutting into them.

T!iiisk

!I, ’

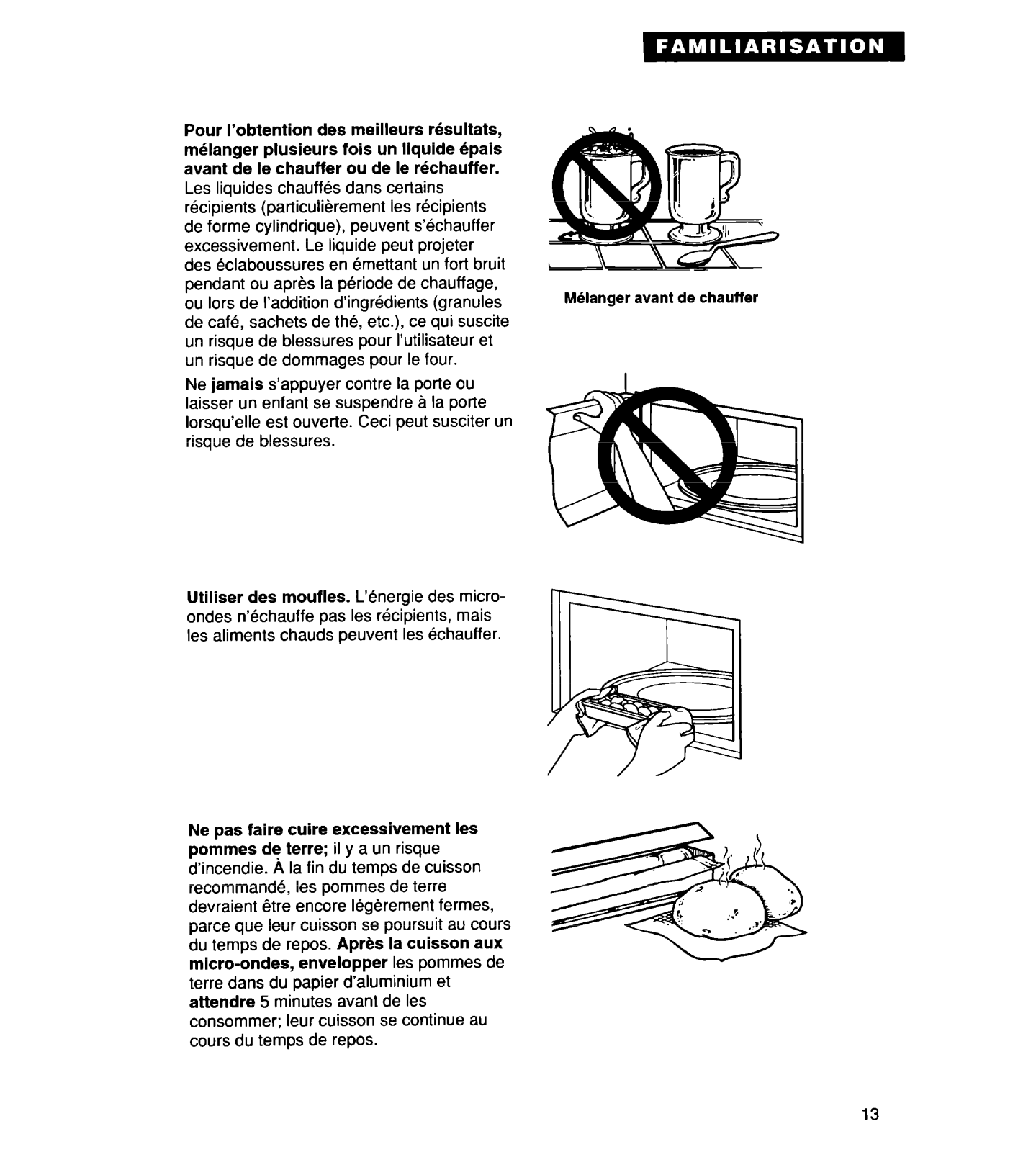

For best results, stir any liquid several

times before heating or reheating. Liquids

heated in certain containers (especially

containers shaped like cylinders) may

become overheated. The liquid may splash

out with a loud noise during or after heating

or when adding ingredients (coffee granules,

tea bags, etc.). This can harm the oven and

possibly injure someone.

Never lean on the door or allow a child to

swing on it when the door is open. Injury

could result.

Stir before heating

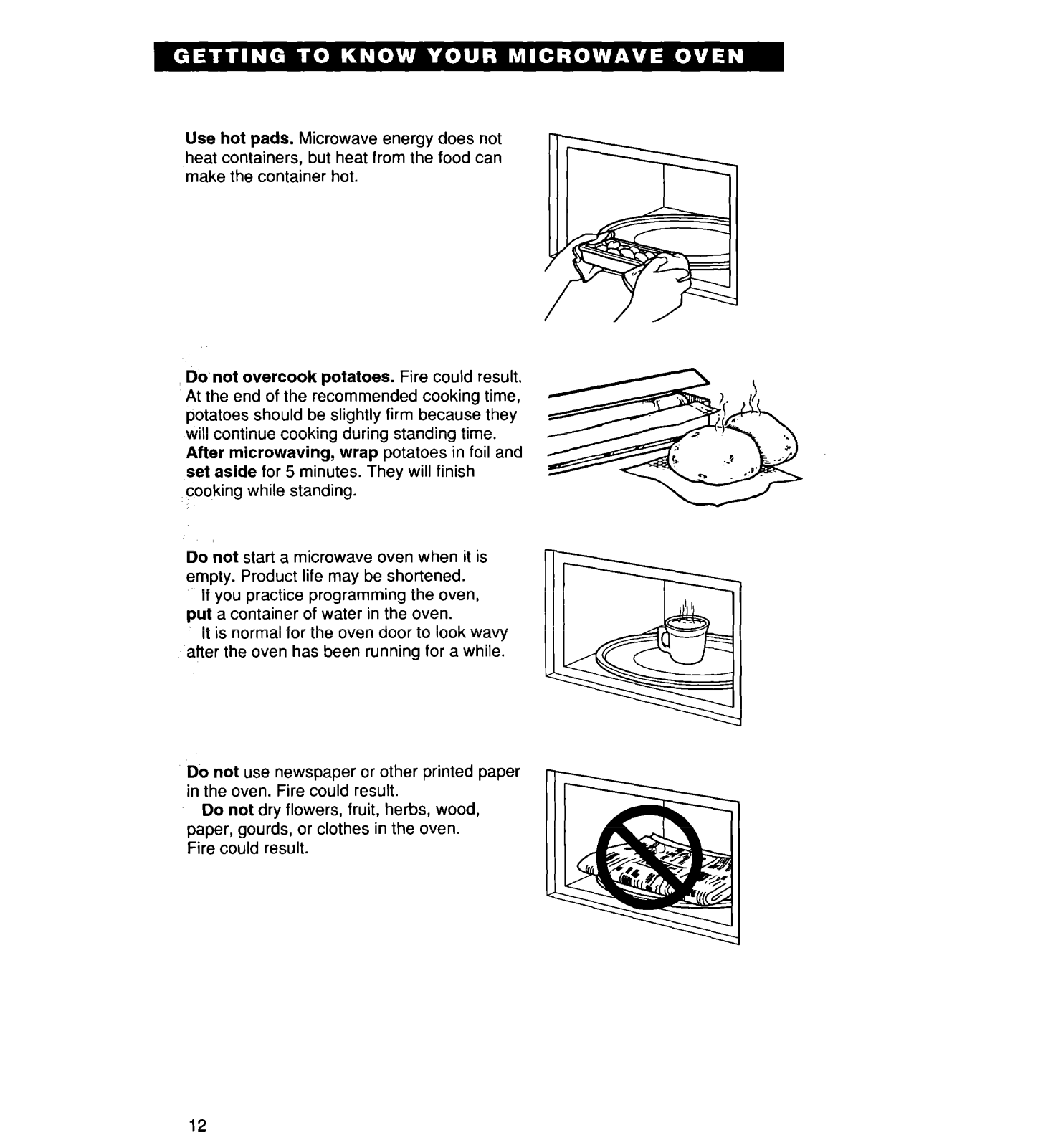

Use hot pads. Microwave energy does not heat containers, but heat from the food can make the container hot.

Do not overcook potatoes. Fire could result. At the end of the recommended cooking time, potatoes should be slightly firm because they will continue cooking during standing time. After microwaving, wrap potatoes in foil and

set aside for 5 minutes. They will finish

cooking while standing.

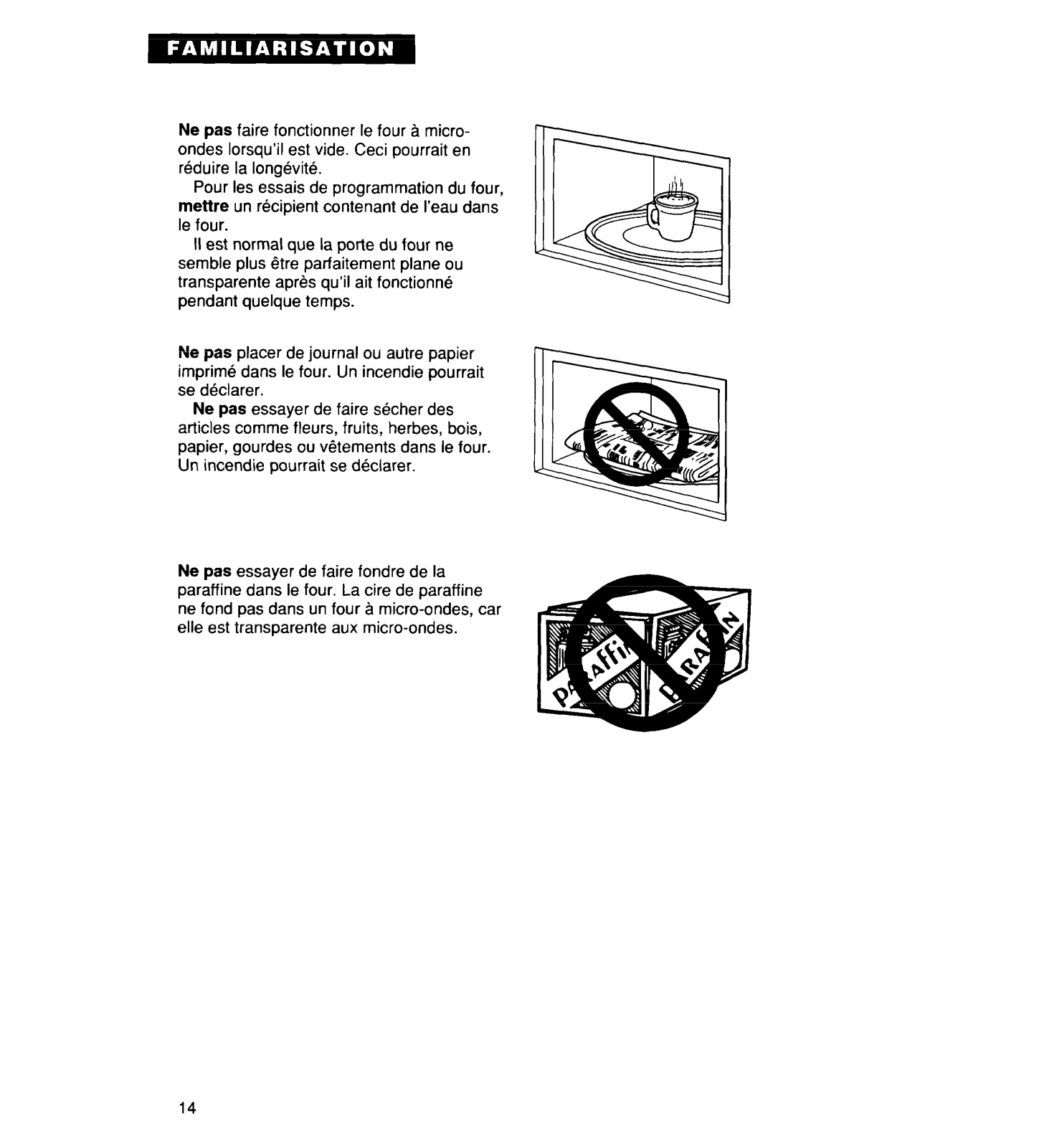

Do not start a microwave oven when it is

empty. Product life may be shortened.

If you practice programming the oven,

put a container of water in the oven.

It is normal for the oven door to look wavy

after the oven has been running for a while.

Do not use newspaper or other printed paper in the oven. Fire could result.

Do not dry flowers, fruit, herbs, wood, paper, gourds, or clothes in the oven. Fire could result.

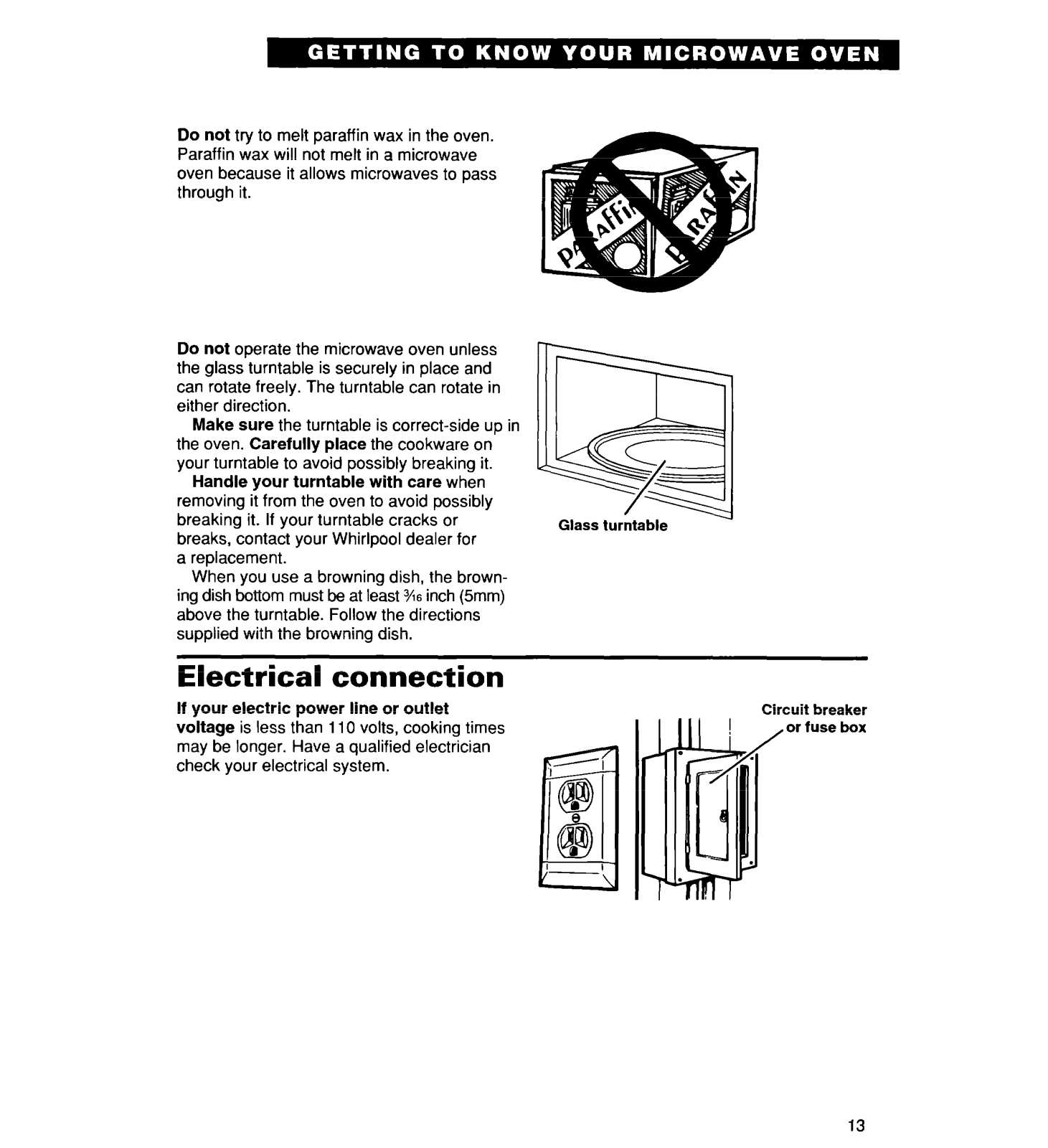

Do not operate the microwave oven unless the glass turntable is securely in place and can rotate freely. The turntable can rotate in either direction.

Make sure the turntable is correct-side up in the oven. Carefully place the cookware on your turntable to avoid possibly breaking it.

Handle your turntable with care when removing it from the oven to avoid possibly breaking it. If your turntable cracks or breaks, contact your Whirlpool dealer for a replacement.

When you use a browning dish, the browning dish bottom must be at least % inch (5mm) above the turntable. Follow the directions supplied with the browning dish.

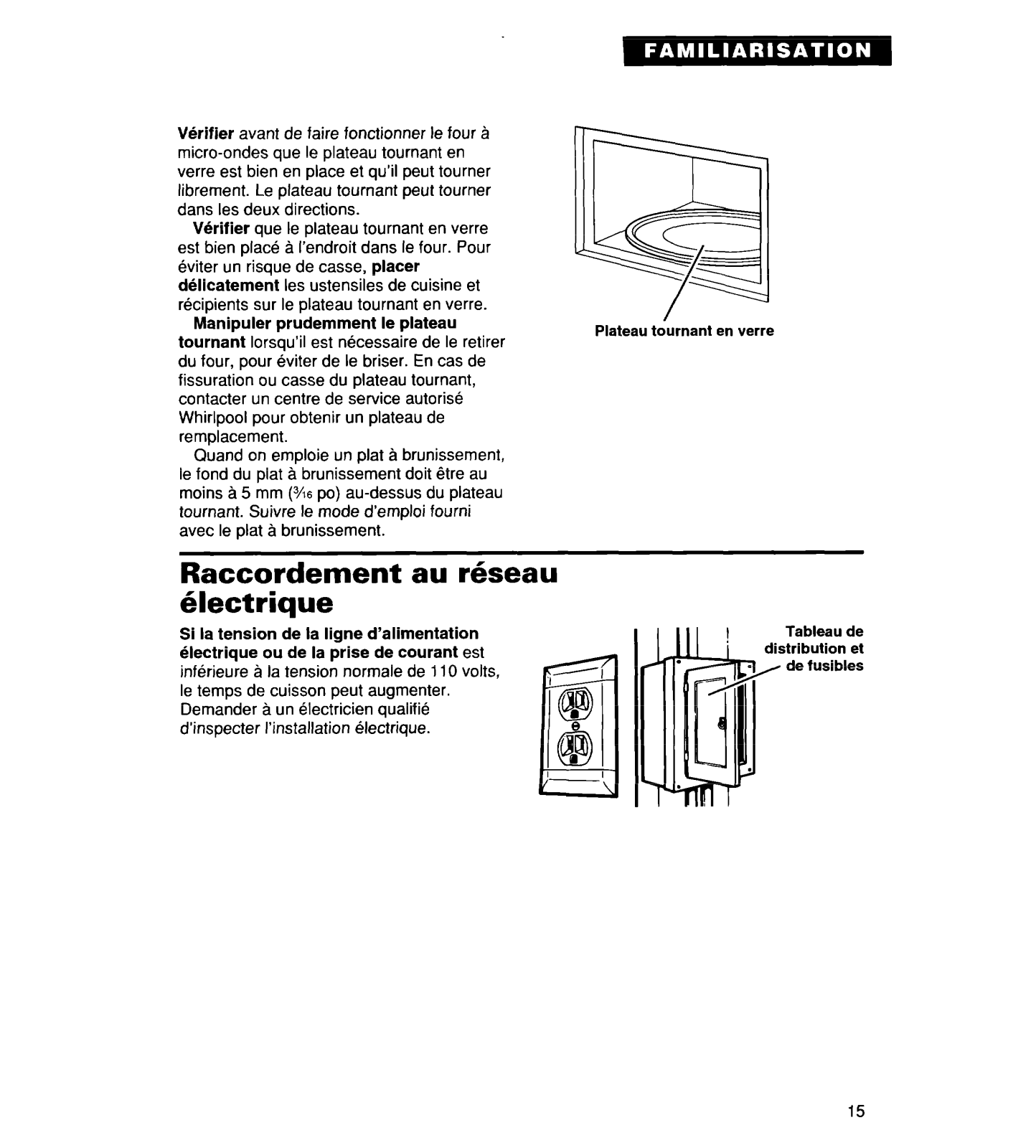

Electrical connection

If your electric power line or outlet

voltage is less than 110 volts, cookinq times

may be longer. Have a qualified electrician check your electrical system.

Glass turntable

Circuit breaker

or fuse box

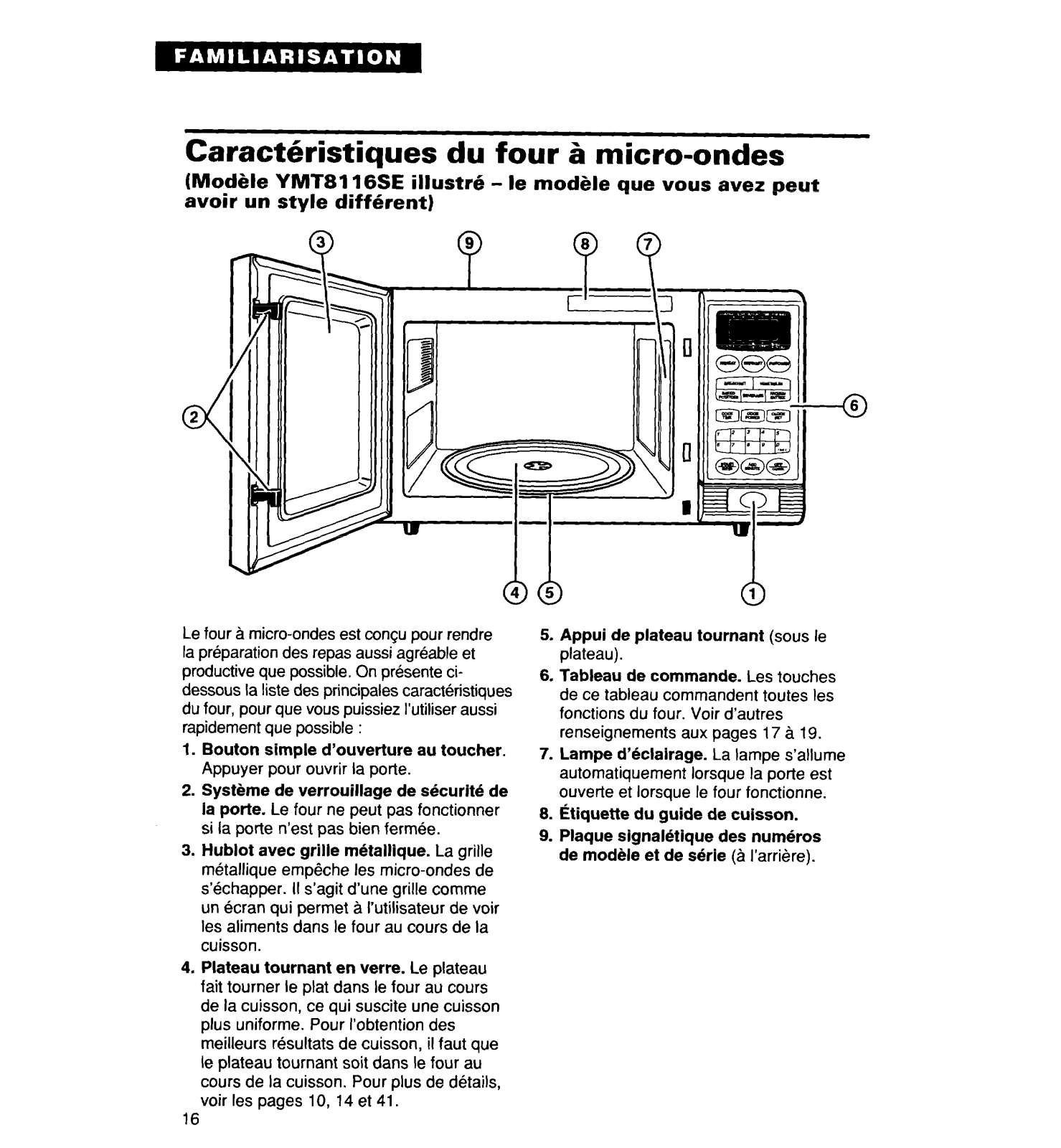

Microwave oven features

(Model MT81 16XE shown - your model may have different styling)

Your microwave oven is designed to make your cooking experience as enjoyable and

productive as possible. To get you up and running quickly, the following is a list of the oven’s basic features:

1. One-Touch Door Open Button. Push to open door.

2. Door Safety Lock System. The oven will

not operate unless the door is securely

closed.

3. Window with Metal Shield. Shield prevents microwaves from escaping. It is designed as a screen to allow you to view food as it cooks.

4. Glass Turntable. This turntable turns food as it cooks for more even cooking.

It must be in the oven during operation

for best cooking results. See pages 9, 13,

and 35 for more details.

5. Turntable Support (under turntable).

6. Control Panel. Touch pads on this panel to perform all functions. See pages 15

and 16 for more information.

7. Light. Automatically turns on when door is opened or when oven is operating.

8. Cooking Guide Label.

9. Model and Serial Number Plate

(on back).

Control panel features

Your microwave oven control panel lets you select a desired cooking function quickly and easily. All you have to do is touch the necessary Command pad. The following is a list of all the Command and Number pads located on the control panel. For more information, see pages 17-34.

1. Display. The display includes a clock and indicators to tell you time of day, cooking

time settings, and cooking functions.

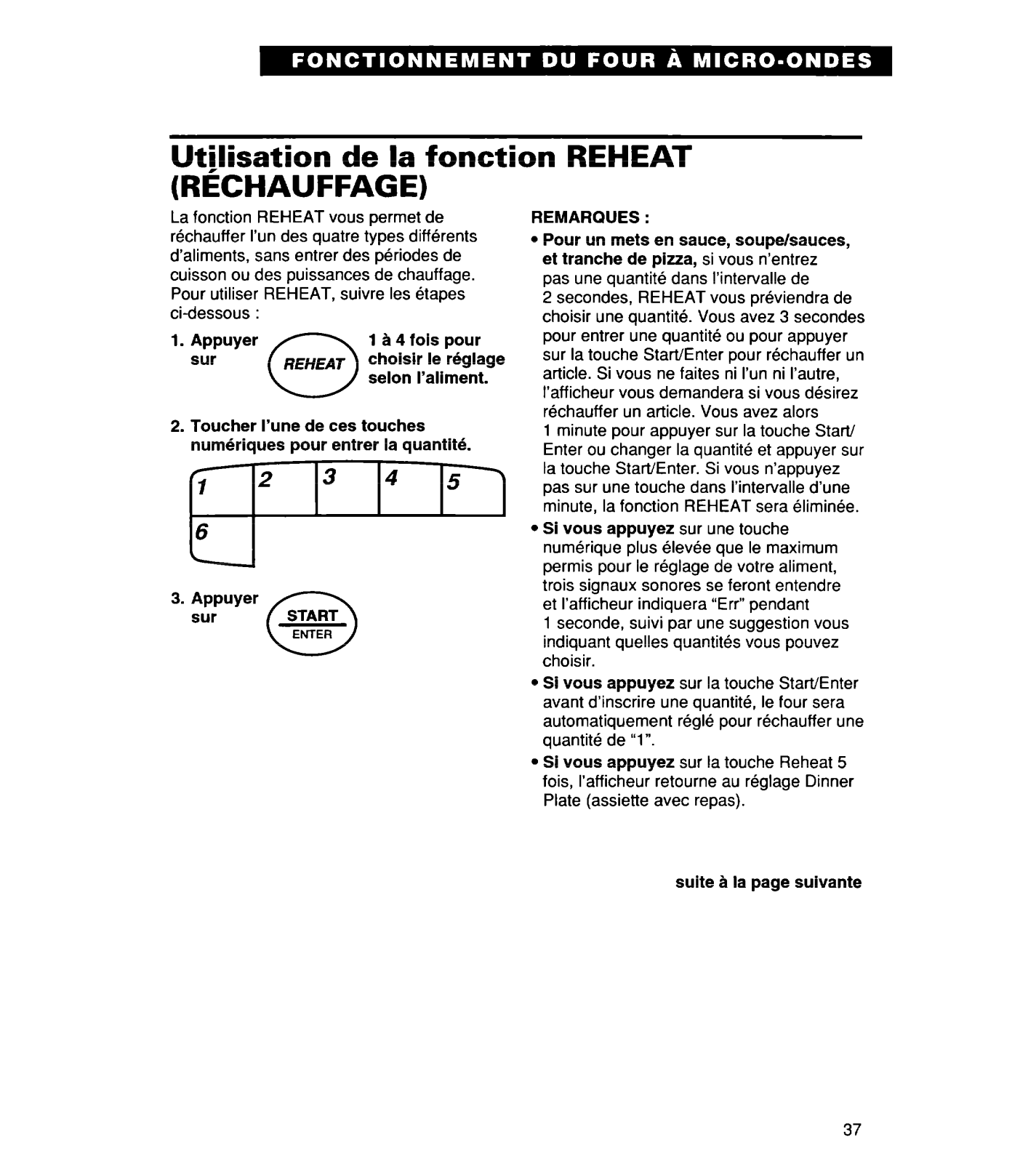

2. REHEAT. Touch this pad l-4 times to reheat food from one of four preset categories. You do not need to enter cooking time or cook power. See page 32 for more information.

3. DEFROST. Touch this pad followed by Number pads to thaw frozen food. See page 30 for more information.

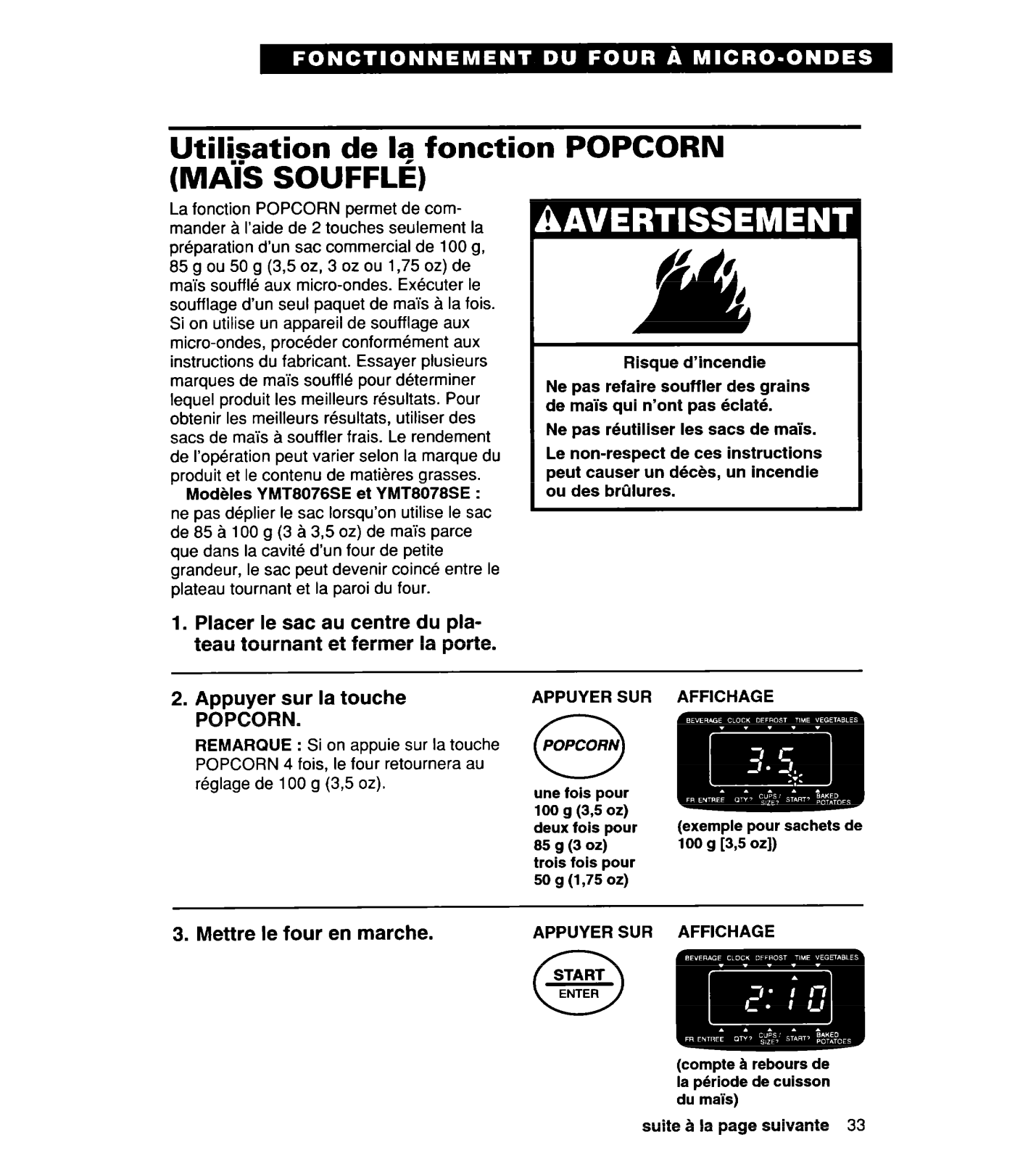

4. POPCORN. Touch this pad l-3 times to pop a bag of popcorn in any of three sizes. You do not need to enter cooking time or cook power. See page 28 for more information.

5. BREAKFAST. Touch this pad 1-3 times to cook breakfast foods from one of three preset categories. You do not need to enter cooking time or cook power. See page 33 for more information.

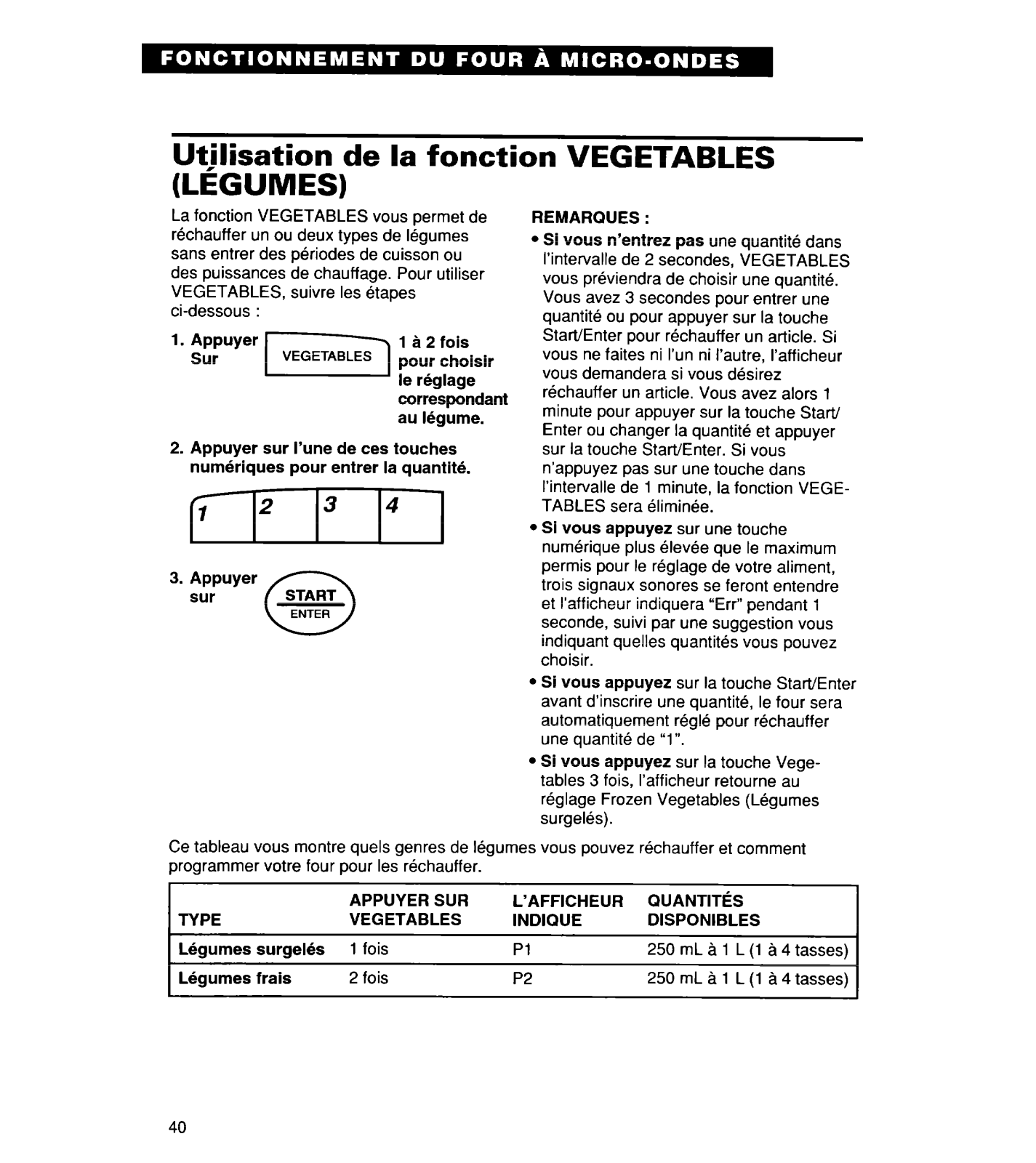

6. VEGETABLES. Touch this pad l-2 times to cook vegetables from one of two preset categories. You do not need to enter cooking time or cook power. See page 34 for more information.

7. BAKED POTATOES. Touch this pad followed by Number pads to bake l-4 potatoes. You do not need to enter cooking time or cook power. See page 25 for more information.

8. BEVERAGE. Touch this pad to reheat a beverage. The oven will automatically heat for a preset time and cook power. See page 27 for more information.

9. FROZEN ENTREE. Touch this pad to heat a frozen entree. The oven will automatically heat for a preset time and cook power. See page 29 for more information.

-j BREAKFAST 1 VEGETABLES k

BEVERAGE

(Model MT81 16XE shown - your model may have different styling)

continued on next page

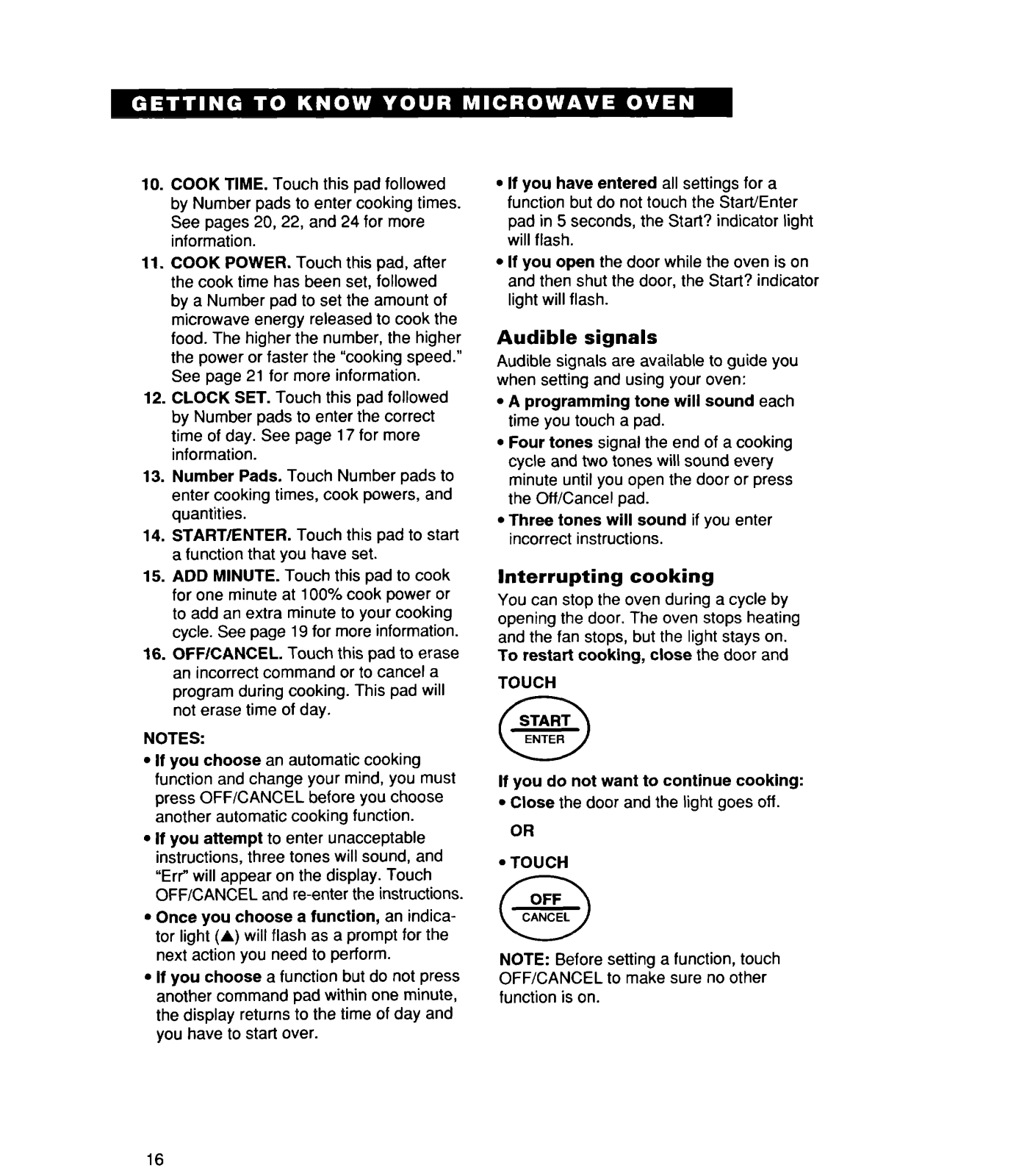

10. COOK TIME. Touch this pad followed by Number pads to enter cooking times. See pages 20,22, and 24 for more information.

11. COOK POWER. Touch this pad, after the cook time has been set, followed by a Number pad to set the amount of microwave energy released to cook the food. The higher the number, the higher the power or faster the “cooking speed.”

See page 21 for more information. CLOCK SET. Touch this pad followed

12. by Number pads to enter the correct time of day. See page 17 for more information.

Number Pads. Touch Number pads to

13. enter cooking times, cook powers, and quantities.

START/ENTER. Touch this pad to start

14. a function that you have set.

ADD MINUTE. Touch this pad to cook

15. for one minute at 100% cook power or to add an extra minute to your cooking cycle. See page 19 for more information.

OFF/CANCEL. Touch this pad to erase

16. an incorrect command or to cancel a program during cooking. This pad will

not erase time of day.

NOTES:

l If you choose an automatic cooking

function and change your mind, you must press OFF/CANCEL before you choose another automatic cooking function.

l If you attempt to enter unacceptable

instructions, three tones will sound, and “Err” will appear on the display. Touch OFF/CANCEL and re-enter the instructions.

. Once you choose a function, an indica-

tor light (A) will flash as a prompt for the

next action you need to perform.

l If you choose a function but do not press

another command pad within one minute,

the display returns to the time of day and

you have to start over.

l If you have entered all settings for a

function but do not touch the Start/Enter pad in 5 seconds, the Start? indicator light will flash.

l If you open the door while the oven is on

and then shut the door, the Start? indicator

light will flash.

Audible signals

Audible signals are available to guide you when setting and using your oven:

l A programming tone will sound each

time you touch a pad.

l Four tones signal the end of a cooking

cycle and two tones will sound every minute until you open the door or press

the Off/Cancel pad.

l Three tones will sound if you enter

incorrect instructions.

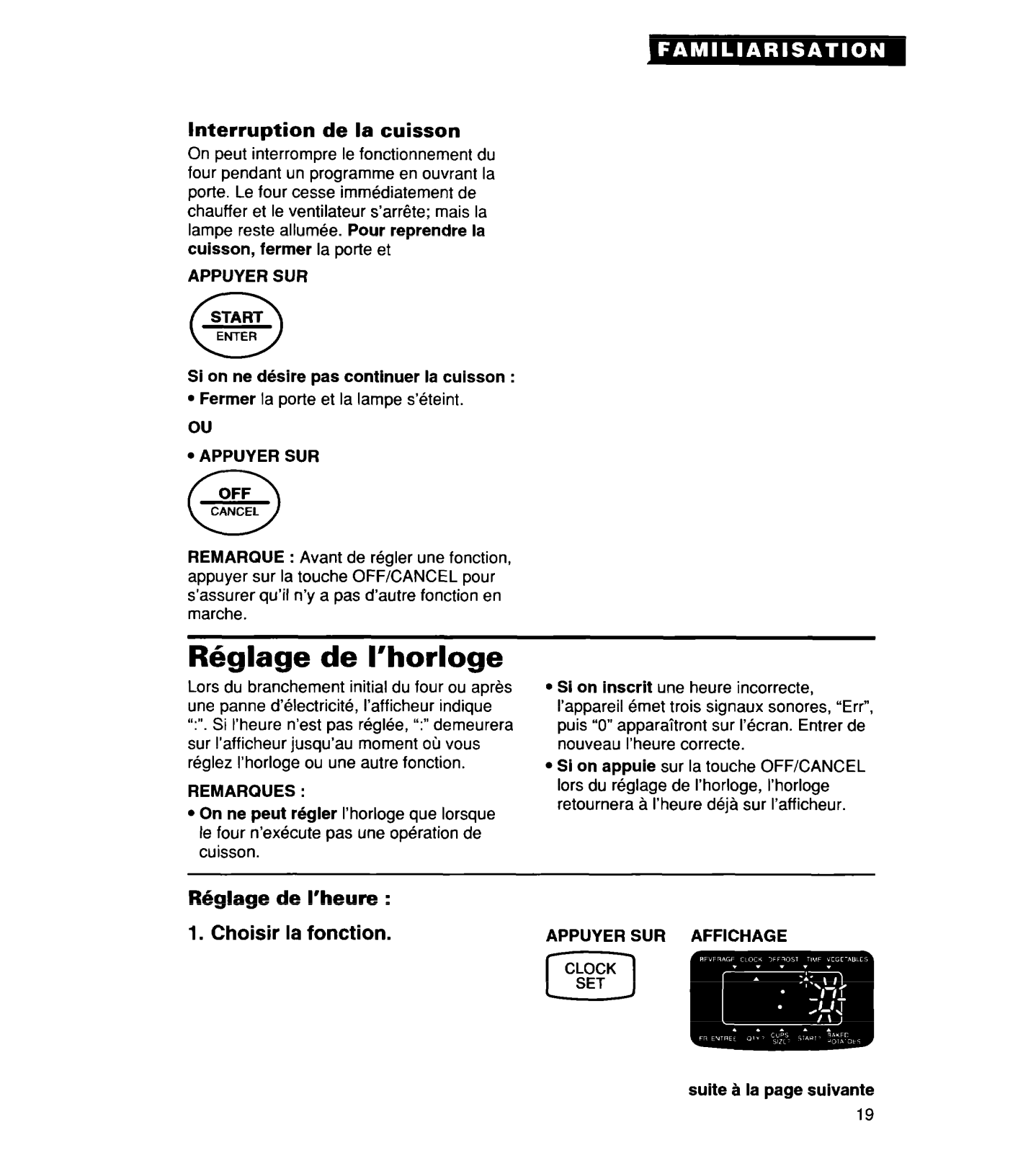

Interrupting cooking

You can stop the oven during a cycle by opening the door. The oven stops heating and the fan stops, but the light stays on. To restart cooking, close the door and

TOUCH

START

ENTER

If you do not want to continue cooking: . Close the door and the light goes off.

l TOUCH

NOTE: Before setting a function, touch OFF/CANCEL to make sure no other function is on.

Setting the clock

When your microwave oven is first plugged l If you enter an incorrect time, three tones

in, or after a power failure, the display will will sound, “Err,” then “0” will appear on the show “:‘I. If a time of day is not set, “:” will stay on the display until you set the clock or another function.

NOTES:

l You can only set the clock if the oven is

not cooking food.

To set time:

display. Re-enter the correct time.

l If you touch OFF/CANCEL while setting

the clock, the clock will return to the time already on the display.

1. Choose the setting.

2. Enter the time of day.

Example for 530:

3. Touch CLOCK/SET or START/ENTER.

TOUCH

CLOCK

SET

TOUCH YOU SEE

YOU SEE

r-l

h I

TOUCH

%EK

(Start? indicator light

flashes after 5 seconds)

YOU SEE

START

ENTER

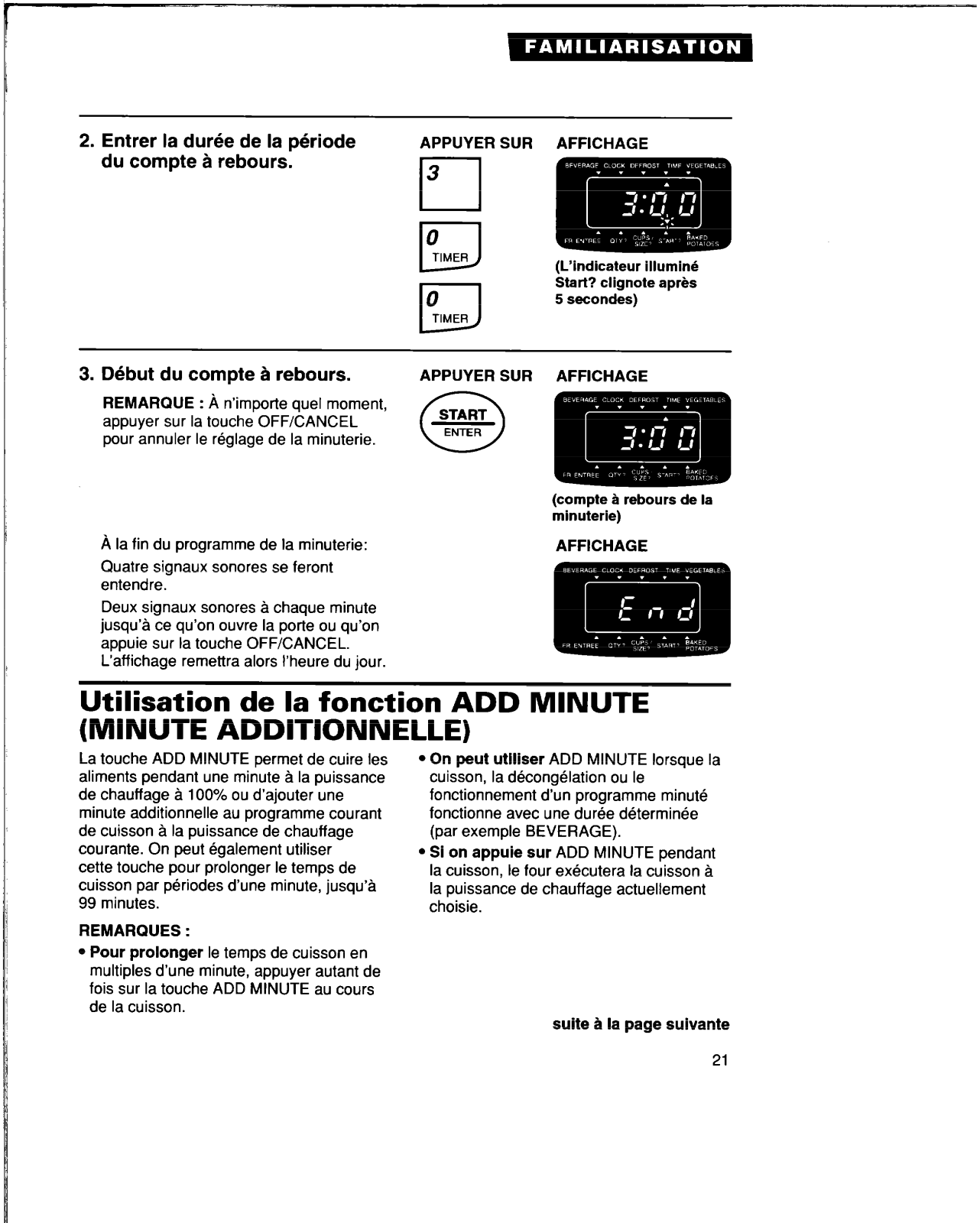

Using the minute timer

Your microwave oven can be used as a kitchen timer. Use the minute timer for timing up to 99 minutes, 99 seconds.

NOTES:

l You can use the minute timer to set a

delayed start time. Set the delayed start time with the minute timer by following Steps 1 and 2 below. Then set cook time as described in the “Using Your Microwave Oven” section.

1. Touch “0.”

l You cannot set the minute timer while

using the oven.

2. Enter the time to be counted down.

Start the countdown.

NOTE: At any time touch OFF/CANCEL

to cancel the minute timer.

At end of timer cycle:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL. The display will then return to the time of day.

TOUCH

TOUCH YOU SEE

START

ENTER

YOU SEE

(Start? indicator light flashes after 5 seconds)

YOU SEE

Using ADD MINUTE

ADD MINUTE lets you cook food for one

minute at 100% cook power or add an extra

minute to the current cooking cycle at the current cook power. You can also use it to extend cooking time in multiples of one

minute, up to 99 minutes.

NOTES: . To extend cooking time in multiples of one

minute, touch ADD MINUTE repeatedly

during cooking.

Before starting:

1. Make sure the food is in the oven and the door is closed.

l You can use ADD MINUTE when timed

cooking, defrosting, or running any function with preset time (for example, BEVERAGE).

l If you touch ADD MINUTE during cook-

ing, the oven will cook at the currently selected cook power.

2. Touch ADD MINUTE.

3. Start the oven.

During cooking:

Touch ADD MINUTE.

TOUCH

TOUCH YOU SEE

YOU SEE

(For 5 seconds, Time

indicator flashes. After 5 seconds, Stat-t? indicator light flashes)

(example for 1 minute)

ADD

MINUTE

(example: twice

for 2 minutes)

(example for original time of 2:45)

Using Your Microwave Oven

This section gives you instructions for operating each microwave function. Please read these

instructions carefully. NOTE: The display times shown on the following pages are examples only. Your display may

show different times depending on your model.

Cooking at high cook power

1. Put the food in the oven and close the door.

2. Set the cooking time.

Example for 1 minute, 30 seconds:

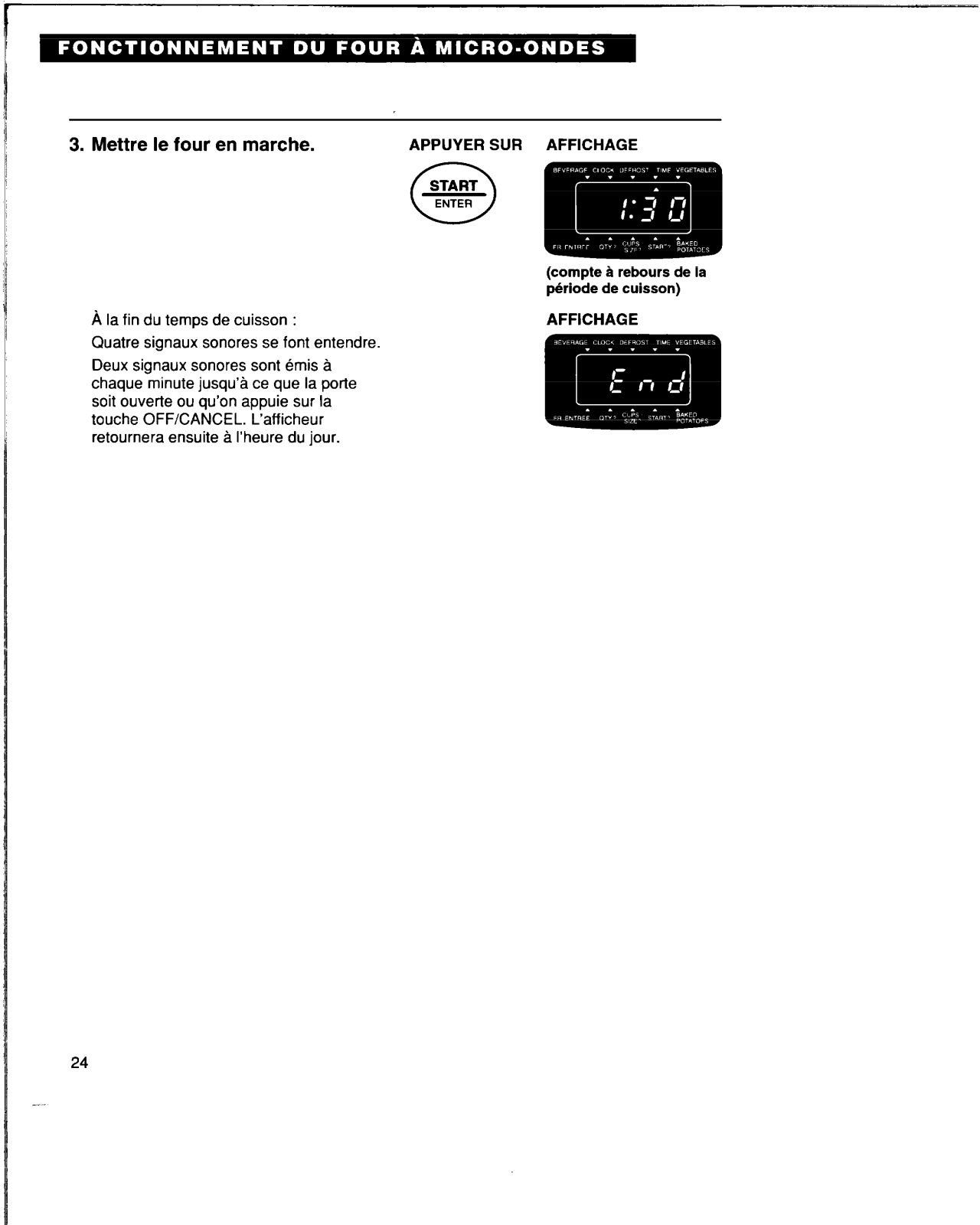

3. Start the oven.

TOUCH

COOK

TIME

TOUCH

START

ENTER

YOU SEE

At end of cooking time:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL. The display will then return to the time of day.

(cooking time counts down)

YOU SEE

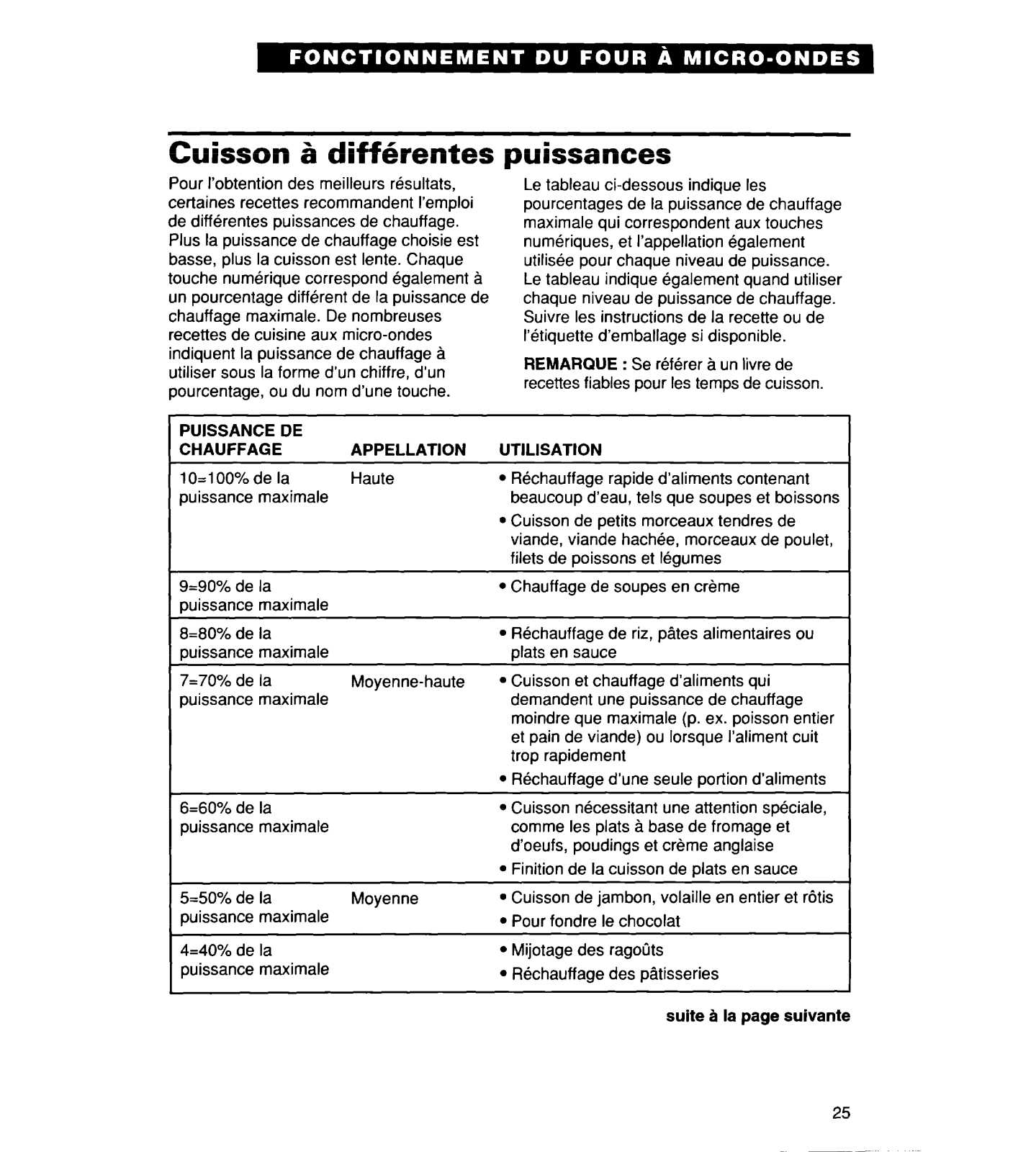

Cooking at different cook powers

For best results, some recipes call for different cook powers. The lower the cook power, the slower the cooking. Each Number pad also stands for a different percentage of cook power. Many microwave cookbook recipes tell you by number, percent, or name which cook power to use.

The following chart gives the percentage of cook power each Number pad stands for, and the cook power name usually used. It also tells you when to use each cook power. Follow recipe or food package instructions if available.

NOTE: Refer to a reliable cookbook for cooking times.

COOK POWER

NAME WHEN TO USE IT

1 O=l 00% of full power High l Quick heating many convenience foods and

foods with high water content, such as soups

and beverages

l Cooking small tender pieces of meat, ground

meat, poultry pieces, fish fillets, and vegetables 9=90% of full power 8=80% of full power 7=70% of full power

Medium-High

l Heating cream soups l Heating rice, pasta, or casseroles l Cooking and heating foods that need a cook

power lower than high (for example, whole fish

and meat loaf) or when food is cooking too fast

. Reheating a single serving of food

6=60% of full power

l Cooking requiring special care, such as

cheese and egg dishes, pudding, and custards

l Finishing cooking casseroles

5=50% of full power

4=40% of full power

Medium

Medium-Low, Defrost

l Cooking ham, whole poultry, and pot roasts

l Melting chocolate

l Simmering stews l Heatina oastries

l Defrosting foods, such as bread, fish, meats,

ooultrv. and orecooked foods

2=20% of full power

l=lO% of full power

Low

l Softening butter, cheese, and ice cream l Keeping food warm

l Taking chill out of fruit

1. Put the food in the oven and close the door.

2. Set the cooking time.

Example for 7 minutes, 30 seconds:

3. Set the cook power.

TOUCH

YOU SEE

TOUCH YOU SEE

Example for 50% cook power:

NOTES:

l You cannot enter a cook power higher

than 10. If you touch a number from 2

to 9 after you touch Number pad 1, the

cook power will become the second number you touched. For example, if you touch Number pads 1 and 4 the cook power would be “4.”

l If you touch Number pad 0, then

another number, your microwave oven will ignore Number pad 0.

TOUCH YOU SEE

(Start? indicator light flashes after 5 seconds)

4. Start the oven.

TOUCH

YOU SEE

(cooking time counts

down)

At end of cooking time: Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL to return the display to the time of day.

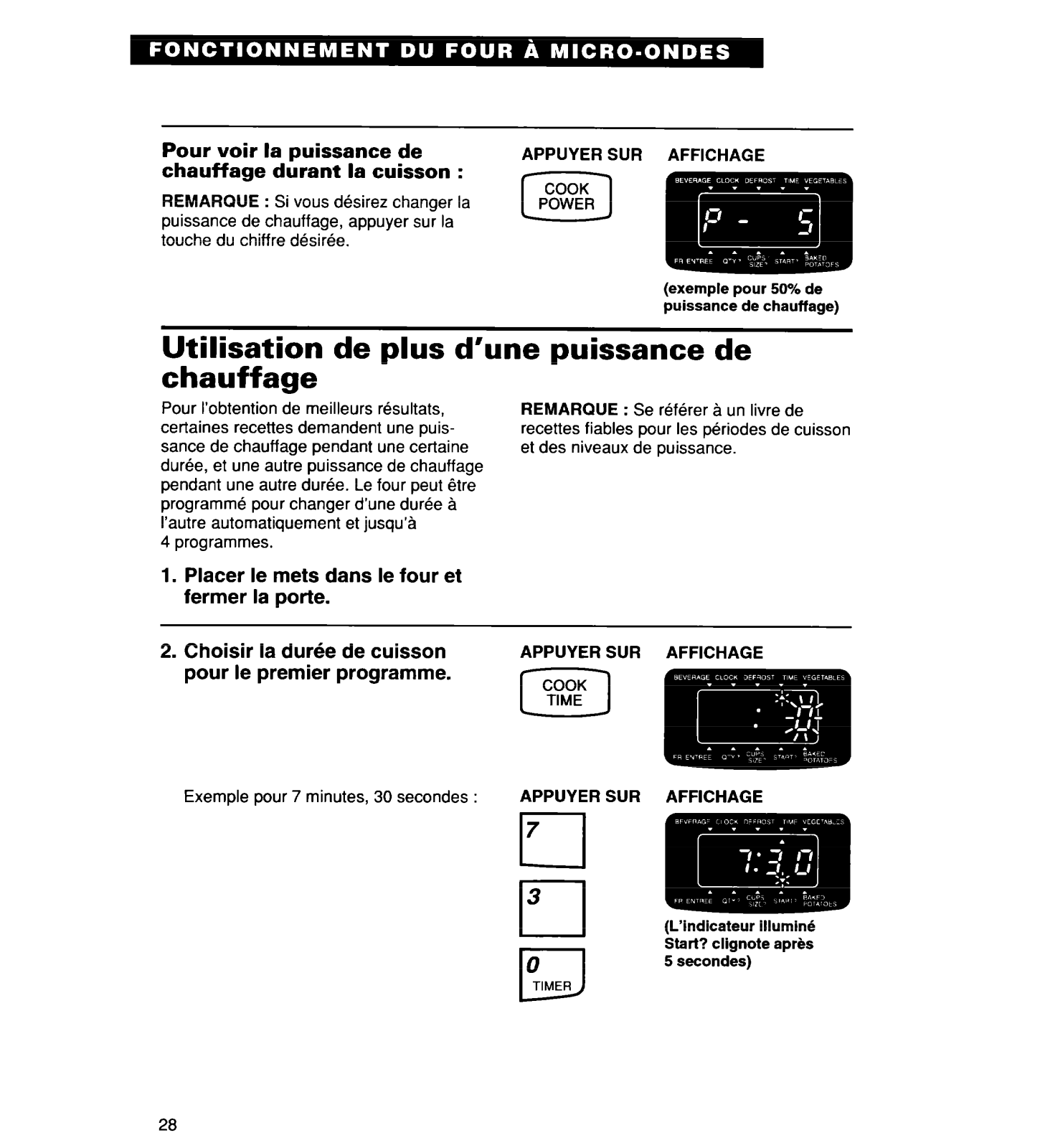

To see the cook power during

TOUCH

YOU SEE

cooking:

COOK

NOTE: If you wish to change the cook

power press the desired Number pad.

POWER

(example for 50% cook power)

Cooking with more than one cook cycle

For best results, some recipes call for one cook power for a certain length of time, and another cook power for another length of time. Your oven can be set to change from one to another automatically, for up to 4 cycles.

NOTE: Refer to a reliable cookbook for

cooking times and power levels.

1. Put the food in the oven and close the door.

continued on next page

2. Set the cooking time for the first cycle.

Example for 7 minutes, 30 seconds: TOUCH YOU SEE

TOUCH

YOU SEE

(Start? Indicator light

flashes after 5 seconds)

3. Set the cook power for the first

cycle.

Example for 50% cook power: NOTES:

l You cannot enter a cook power higher

than IO. If you touch a number from 2 to 9 after you touch Number pad 1, the cook power will become the second

number you touched. For example, if you touch Number pads 1 and 4 the cook power would be “4.”

l If you touch Number pad 0, then

another number, your microwave oven will ignore Number pad 0.

4. Repeat Steps 2 and 3 to set the cooking time and cook power for each additional cycle.

TOUCH

TOUCH YOU SEE

YOU SEE

(Start? indicator light flashes after 5 seconds)

5. Start the oven.

TOUCH

YOU SEE

(first cycle’s cooking time counts down, followed by cooking times for each additional cycle)

At end of cooking time:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL

to return the display to the time of day.

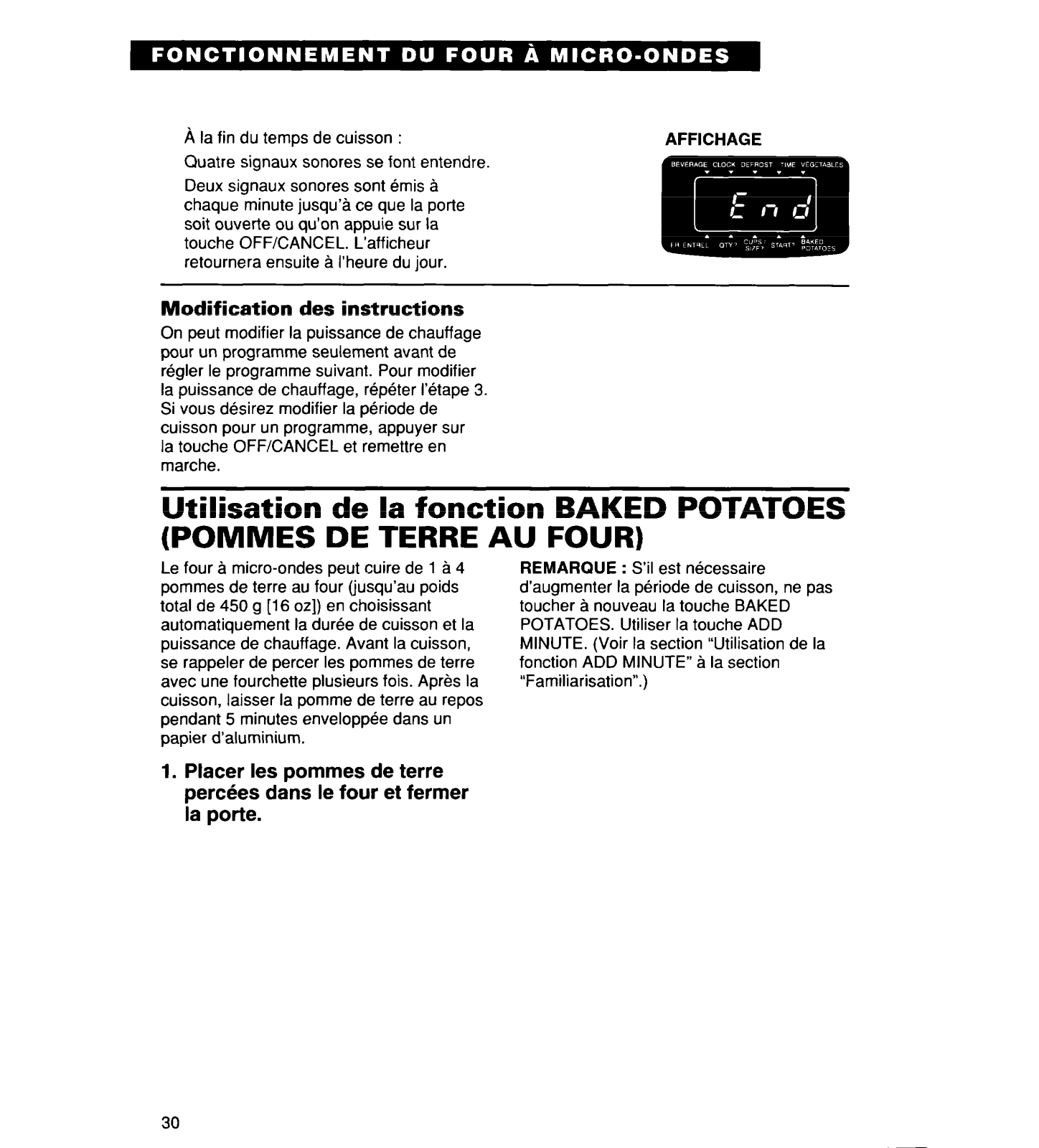

Changing instructions

You can change the cook power for a cycle only before you start to set the next cycle. To change cook power repeat Step 3. If you want to change the cooking time for a cycle touch OFF/CANCEL and start over.

Using BAKED POTATOES

Your microwave oven cooks l-4 baking

potatoes (up to 16 oz [45Og] total weight) by automatically choosing baking time and

cook power. Before baking, remember to

pierce potato with a fork several times. After cooking, let potato stand 5 minutes wrapped in foil.

1. Put pierced potatoes in the oven and close the door.

NOTE: If more time is needed do not touch the BAKED POTATOES pad again. Use ADD MINUTE. (See “Using ADD MINUTE”

in the “Getting to Know” section.)

YOU SEE

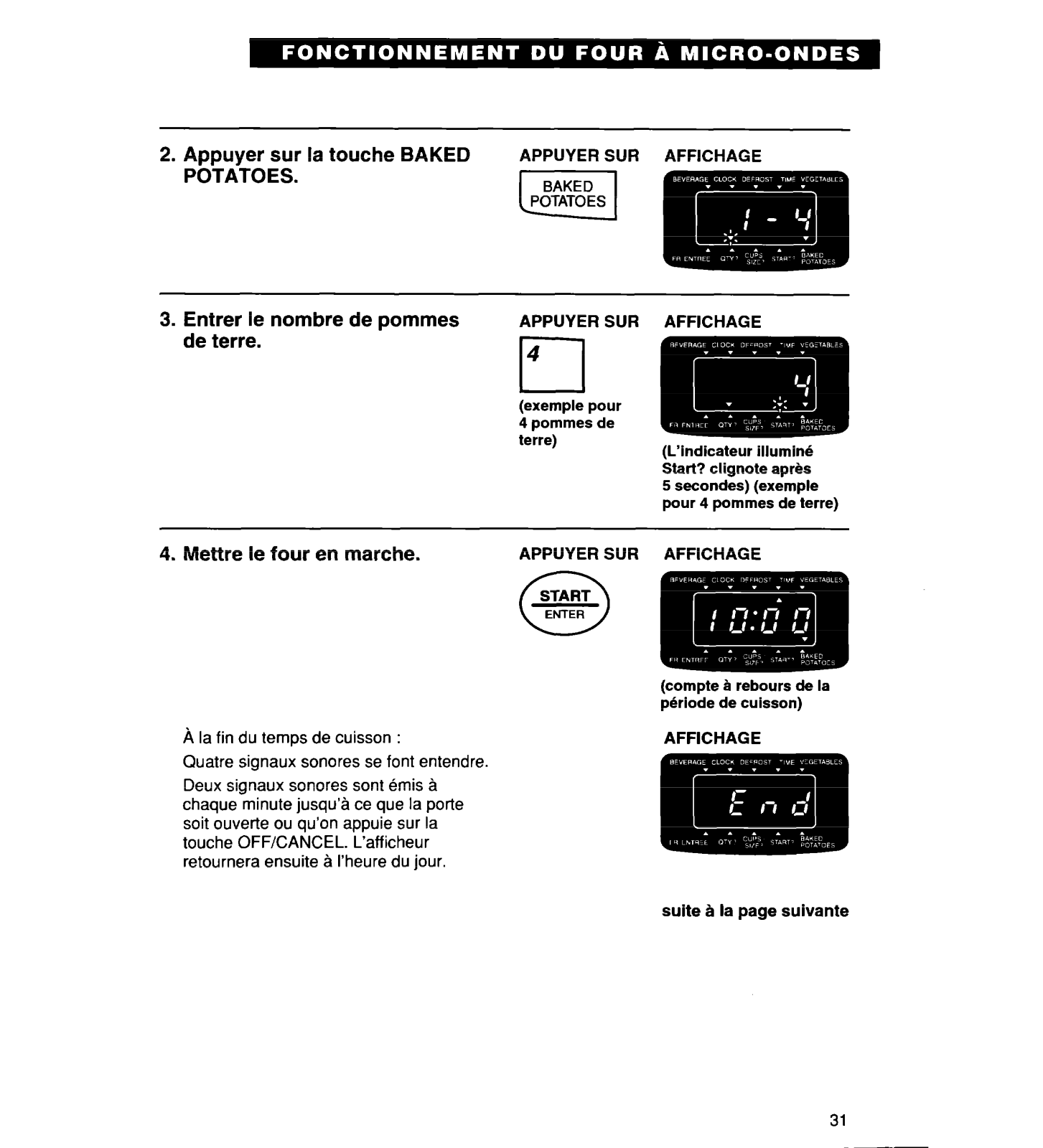

2. Touch BAKED POTATOES.

TOUCH YOU SEE

continued on next page

3. Enter the number of potatoes.

TOUCH

(example for 4 potatoes)

YOU SEE

(Start? indicator light

flashes after 5 seconds) (example for 4 potatoes)

4. Start the oven.

At end of cooking time:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL to return the display to the time of day.

NOTES:

l If you do not enter a number after

touching BAKED POTATOES you will see “1” with the Qty.? and Baked Potatoes

indicator lights on and the Start? indicator light flashing. You can touch the Start/ Enter pad to bake one potato or enter another number to bake more. If you do not touch any pad, the Baked Potatoes

function will cancel out.

l If you touch a Number pad above 4, you

will hear three tones and see “Err” on the display for one second, followed by “1-4” with the Qty.? and Baked Potatoes indicator lights on.

l If you touch the Start/Enter pad before

entering the number of servings, the oven will automatically be set to bake one potato.

TOUCH

START

ENTER

YOU SEE

(cooking time counts down)

YOU SEE

Using BEVERAGE

BEVERAGE lets you heat an 8 to 10 ounce (240mL to 300mL) beverage by touching

just one pad.

1. Place a cup of a beverage in the oven and close the door.

2. Touch BEVERAGE.

3. Start the oven.

At end of heating time:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL to return the display to the time of day.

TOUCH

START

ENTER

YOU SEE

(heating time counts down)

YOU SEE

Using POPCORN

POPCORN lets you pop a 3.5 oz (1 OOg),

3.0 oz (85g), or 1.75 oz (509) bag of commercially packaged microwave popcorn by

touching just 2 pads. Pop only one package at a time. If you are using a microwave

popcorn popper, follow manufacturer’s instructions. Try several brands to decide

which gives best popping results. For best

results, use fresh bags of popcorn. Cooking

performance may vary with brand and fat content.

For Models YMT8076SE and

YMT8078SE, do not unfold bag when

popping 3.0 (859) to 3.5 (1009) oz bags of

popcorn, because in small size oven cavity, bag can become stuck between turntable and oven wall.

1. Place the bag in the center of

the turntable and close the door.

Fire Hazard Do not repop unpopped kernels. Do not reuse popcorn bags. Doing so can result in death, fire,

or burns.

2. Touch POPCORN.

NOTE: If you touch POPCORN 4 times,

the oven will return to the 3.5 oz (1 OOg)

setting.

3. Start the oven.

At end of heating time:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL to return the display to the time of day.

TOUCH

POPCORN

once for 3.5 02 twice

for 3.0 oz (859)

three times for

1.75 02 (5og)

TOUCH

START

ENTER

YOU SEE

(1OOg)

bags)

(popping time counts down)

Using FROZEN ENTREE

FROZEN ENTREE lets you cook a frozen

entree between 8 and 12 oz (2409 and

3409) by touching just 2 pads. NOTES:

l If more time is needed do not touch the

FROZEN ENTREE pad again. Use ADD

MINUTE. (See “Using ADD MINUTE” in

the “Getting to Know” section.)

l Follow manufacturer’s guidelines for

preparation of the frozen entree.

1. Place the frozen entree on the

turntable and close the door.

2. Touch FROZEN ENTREE.

3. Start the oven.

At end of cooking time:

Four tones will sound.

Two tones will sound every minute until you open the door or touch OFF/CANCEL to return the display to the time of day.

TOUCH YOU SEE

(Start? indicator light

flashes after 5 seconds)

TOUCH YOU SEE

START

ENTER

YOU SEE

+ 67 hidden pages
